1. Attach two screws to the mounting strap, and then secure
with two lock nuts.(You can adjust the length of the
screws if necessary.)
2. Attach the mounting strap to the ceiling box by using two
mounting screws.
3. Screw the nipple into the coupling on the socket base,
and then secure with a hex nut. (You can adjust the
length of the nipple if necessary.)
4. Attach the tube,cap-1 and cap-2 to the coupling by inserting
the nipple, and then secure with a hex nut.
5. Cut the redundant wires if necessary, and make wire
connections with wire nuts:
---Connect the smooth wire (marked) from fixture to
the black wire from power source.
---Connect the ridged wire(unmarked) from fixture to
the white wire from power source.
---Attach the grounding wire to the mounting strap with the
green grounding screw. Then connect it to the house
grounding wire with the wire nut.
Carefully tuck wires back into the ceiling box.
6. Unscrew two bolt nuts from the canopy-1, attach the canopy-1
to the mounting strap, and then secure with the bolt nuts.
7. Install bulbs.(Please do not exceed the maximum capacity
that is recommended on the package.)
8. Attach the glass shade to the fixture, secure with a rubber
pad, metal pad and hex nut. Then attach the cap-3 upward
to the glass shade. and then secure with the finial.
9. Turn on the power at fuse or circuit box.
N
OT
E: Be
fore
i
n
s
talling, c
o
n
s
u
lt
l
o
c
a
l
e
le
c
tric
a
l
c
o
d
e
s
fo
r
wir
in
g
a
nd
g
rou
n
d
in
g
requi
re
m
ents.

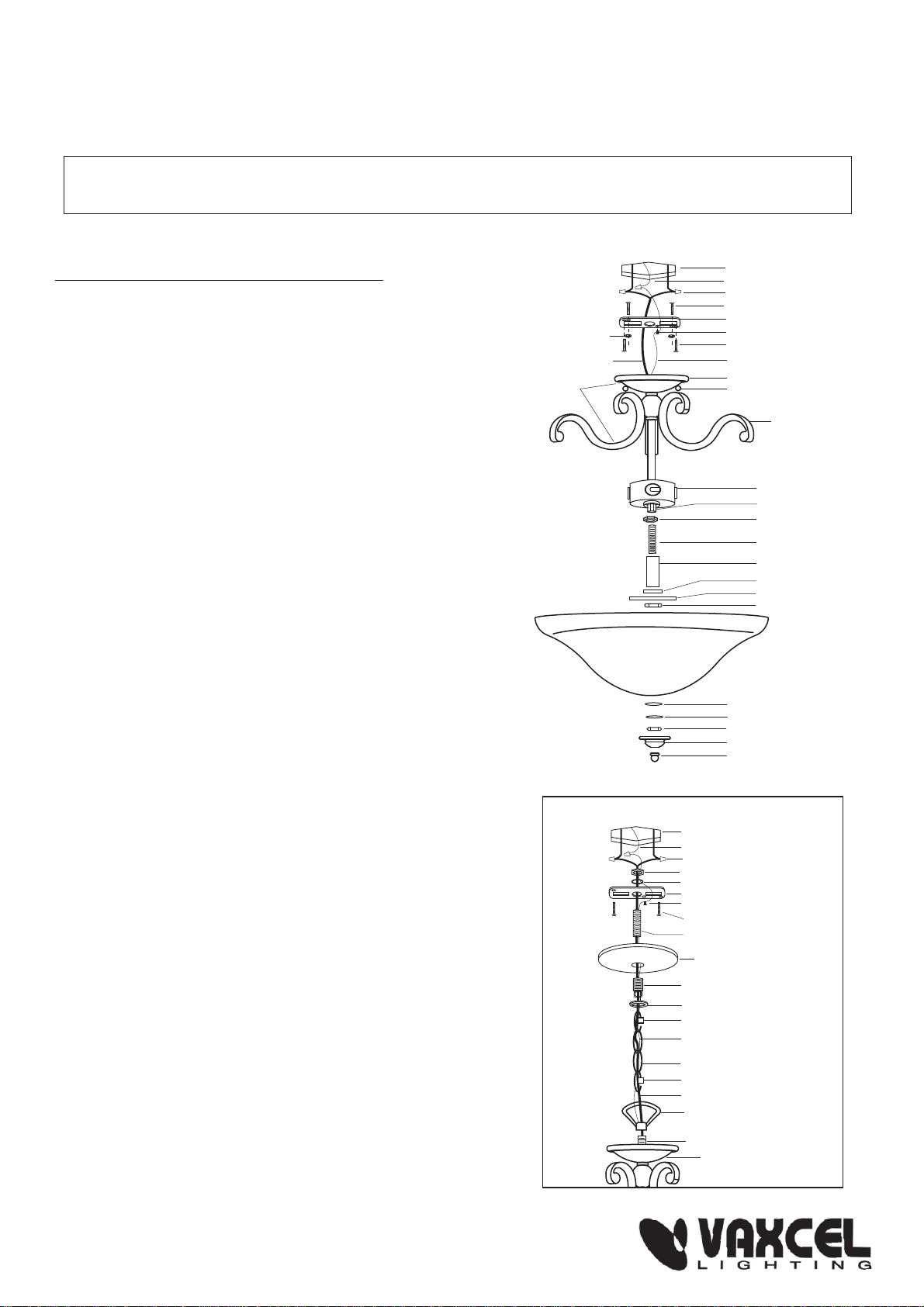

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
CF35417
Installation Steps
For Semi-Flush
For Pendant:(See Fig.1)
1. Attach the nipple-1 to the mounting strap, and then secure
with a washer and hex nut.
2. Attach the mounting strap to the ceiling box by using two
mounting screws.
3. Follow steps 3~4 as For Semi-Flush.
4. Thread the fixture wire and grounding wire through the
loop, and then secure the loop onto the nipple-2.
5. Choose the certain length of the chain that you need, and
weave the fixture wire and the grounding wire through the
chain links. Then connect one end of the chain with the loop
by using the loop lock.
6. Secure the top loop to the nipple-1.
7. Thread the fixture wire and grounding wire through the collar,
top loop, canopy-2, nipple-1 and mounting strap in order.
8. Connect the link on the other end of the chain with the top loop
by using the loop lock.
9. Follow step 5 as For Semi-Flush.
10. Attach the canopy-2 to the mounting strap by inserting the
top loop, and then secure with the collar.
11. Follow steps 7~9 as For Semi-Flush.
Lock Nut
Ceiling Box
Wire Nut
Screw
Mounting Strap
Green Grounding Screw
House Grounding Wire
Fixture Grounding Wire
Canopy-1
Bolt Nut
Arm
Mounting Screw
Fixture Wire
Fixture
Nipple-2
Fixture Wire
Chain
Mounting Screw
Nipple-1
Fixture Grounding Wire
Collar
Top Loop
Canopy-2
Mounting Strap
Green Grounding Screw
Hex Nut
Wire Nut
Washer
Ceiling Box
Loop
House Grounding Wire
Canopy-1
Loop Lock
Loop Lock
Mounting Parts For Pendant
Fig.1
Hex Nut
Cap
Finial
Metal Pad
Rubber Pad
Socket Base
Coupling
Hex Nut
Nipple
Tube
Cap-1
Hex Nut
Cap-2
050630
