OIL FREE DIRECT DRIVE AIR COMPRESSORS
MODEL NO’S: SAC6000S, SAC2400S, SAC5000S
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
1.1. ELECTRICAL SAFETY
WARNING! It is the responsibility of the owner and the operator to read, understand and comply with the following: You must check
all electrical products before use to ensure that they are safe. You must inspect power cables, plugs, sockets and any other connectors
for wear or damage. You must ensure that the risk of electric shock is minimised by the installation of appropriate safety devices. A
Residual Current Circuit Breaker (RCCB) should be incorporated in the main distribution board. We also recommend that a Residual
Current Device (RCD) is used. It is particularly important to use an RCD with portable products that are plugged into a supply which is
not protected by an RCCB. If in any doubt consult a qualified electrician. You must also read and understand the following instructions
concerning electrical safety:
1.1.1. The Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe condition of those appliances
and the safety of the appliance operators. If in any doubt about electrical safety, contact a qualified electrician.
1.1.2. Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
1.1.3. Ensure that cables are always protected against short circuit and overload.
1.1.4. Regularly inspect power supply cables and plugs for wear or damage and check all connections to ensure that none are loose.
1.1.5. Important: Ensure that the voltage marked on the appliance matches the power supply to be used and that the plug is fitted with the
correct fuse.
▲ DANGER! If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly
trained personnel to avoid danger.
8 DO NOT pull or carry the appliance by the power cable.
8 DO NOT pull the plug from the socket by the cable.
8 DO NOT use worn or damaged cables, plugs or connectors. Immediately have any faulty item repaired or replaced by a qualified electrician.
1.1.6. Over/current Protection: The user has to make provision for the installation of the over-current protection of the power circuit.
1.1.7. Electrical disconnecting device: The user has to make provisions for the installation of the electrical disconnecting device of the power
circuit. The supply disconnection device is to be in accordance with EN 60204-1:2006.
NOTE: If using a transformer to supply the compressor, it must be rated at a minimum of 2kVA to allow the compressor to run efficiently.
1.2. GENERAL SAFETY
9 Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data .
9 Familiarise yourself with the application and limitations of the compressor.
9 Operation must be with all guards, covers, lids and enclosures correctly in place.
9 This compressor has not been designed for commercial, trade or industrial applications. The warranty will be voided if the machine is used
in commercial, trade or industrial businesses or for equivalent purposes.
9 Fully assemble the compressor before using for the first time.
9 The concentration of processed gases that can displace breathing air shall be kept within acceptable levels. Reference EN 12021 for
acceptable levels of contaminants in breathing air.
9 The equipment is to be used only for it’s prescribed purpose. Any other use is deemed to be a case of misuse. The user/operator and not
the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.
9 Remove from mains supply when performing maintenance or inspections.
9 Ensure the compressor is in good order and condition before use. If in any doubt do not use the unit and contact an electrician/service agent.
9 Delivery hoses should be fitted with a safety cord. It is essential to use separators, water traps and drains which process the liquids
produced by the compressor system is put into operation.
9 The compressor may only be used in suitable rooms (with good ventilation and an ambient temperature from +5°C to +40°C). Ensure there is
no dust, acids, vapours, explosive gases, or inflammable gases in the room. The air intake should be from a clean, outside air source.
WARNING! Compressor must only be serviced by an authorised agent. DO NOT tamper with, or attempt to adjust, pressure
switch or safety valve.
9 Before moving, or maintaining the compressor ensure it is unplugged from the mains supply and that the air tank pressure has been vented.
9 Maintain the compressor in good condition and replace any damaged or worn parts. Use genuine parts only. Unauthorised parts may be
dangerous and will invalidate your warranty.
9 Read the instructions relating to any accessory to be used with this compressor. Ensure the safe working pressure of any air appliance
used exceeds compressors output pressure.
9 If using a spray gun, check that the area selected for spraying is provided with an air change/ventilation system.
9 Ensure the air supply valve is turned off before disconnecting the air supply hose.
9 To move the compressor use the handle only. Maintain unit’s centre of gravity when lifting.
8 DO NOT attempt to lift or move the compressor by any other means.
Refer to
instructions
Wear ear
protection
WARNING:
Hot surface
WARNING:
Automatic
start up
DO NOT open
the air cock
before an air
hose is attached
SAC6000S SAC2400S SAC5000S Issue 4 (3) 01/05/24
Original Language Version
© Jack Sealey Limited
9 Use the compressor in a well ventilated area and
ensure it is placed on a firm surface.
9 Keep tools and other items away from the
compressor when it is in use, and keep area clean
and clear of unnecessary items.
9 Ensure the air hose is not tangled, twisted or pinched.
9 Keep children and unauthorised persons away from
the working area.
8 DO NOT dis-assemble compressor for any reason.
The unit must be checked by qualified personnel only.
8 DO NOT use the compressor outdoors, or in damp,
or wet, locations.
8 DO NOT operate within the vicinity of flammable
liquids, gases or solids.
8 DO NOT touch compressor cylinder, cylinder head or
pipe from head to tank as these may be hot.
8 DO NOT use this product to perform a task for which
it has not been designed.
8 DO NOT deface the certification plate attached to the
compressor tank.
8 DO NOT cover the compressor or restrict air flow
around the unit whilst operating.
▲ DANGER! DO NOT direct the output jet of air towards people or animals.
8 DO NOT operate the compressor without an air filter.
8 DO NOT allow anyone to operate the compressor unless they have received full instructions.
WARNING! The air tank is a pressure vessel and the following safety measures apply:
8 DO NOT tamper with the safety valve, DO NOT modify or alter the tank in any way and DO NOT strap anything to the tank, DO NOT weld tank.
8 DO NOT subject the tank to impact, vibration or to heat and DO NOT allow contact with abrasives or corrosives.
8 When there is pressure in the receiver tank, DO NOT loosen any part of the machine.
9 Drain condensation from tank daily.
WARNING! If an electrical fuse blows, ensure it is replaced with an identical fuse type and rating.
9 When not in use, store the compressor carefully in a safe, dry, childproof location.
9 All hoses and fittings shall be suitable for the site use at the maximum allowable pressure of the portable compressor.
9 When the compressor is not in use, it should be switched off, disconnected from the mains supply and the air drained from the tank.
9 Under the PRESSURE SYSTEMS SAFETY REGULATION 2000 it is the responsibility of the owner of the compressor to initiate a system
of inspection that both defines the frequency of the inspection and appoints a person who has specific responsibility for carrying out
the inspection.
2. INTRODUCTION
All models feature aluminium cylinder heads with cast iron cylinders giving added resistance to wear. Fitted with fully automatic
pressure cut-out switches and twin gauges displaying tank and working pressures. Pump heads directly coupled to heavy-duty
induction motors for reliable and quiet operation. Precision welded receiver tanks manufactured to meet Pressure Vessel Directive.
Suitable for general-purpose and workshop applications. The benets of oil free compressors include: Easy maintenance, reduced
noise levels, better eciency, quieter when running and no oil contamination in the air supply.
3. SPECIFICATION
MODEL NO. SAC6000S SAC2400S SAC5000S
Air Displacement cfm(L/min): 4 (120)
Fuse Rating: 13A 13A 13A
Maximum Free Air Delivery cfm(L/min): 1.95 (55) 2.1 (59.5) 2.53 (71.6)
Maximum Pressure: 116psi(8bar) 116psi(8bar) 116psi(8bar)
Minimum Rated Supply: 13A 13A 13A
Motor Output: 1hp 1hp 1hp
Noise Level: 74dB
Noise Test Code: EN ISO 3744:1955
Outlet: Quick Release Coupling Quick Release Coupling Quick Release Coupling
Phase: 1ph 1ph 1ph
Plug Type: 3-Pin BS 3-Pin BS 3-Pin BS
Power Supply Cable Length: 1.8m 1.8m 1.8m
Receiver Capacity: 6L 24L 50L
Size (W x D x H): 440mm x 160mm x 445mm 550mm x 240mm x 505mm 705mm x 330mm x 565mm
Supply: 230V/13A 230V/13A 230V/13A
Inlet Discharge Pressure & Temperature: 0.8MPA/70°C
Maximum Pressure Ratio: 0.8MPA
Maximum Speed of the Unit: 1440rpm
Weight 15.1kg 21.9kg 28kg

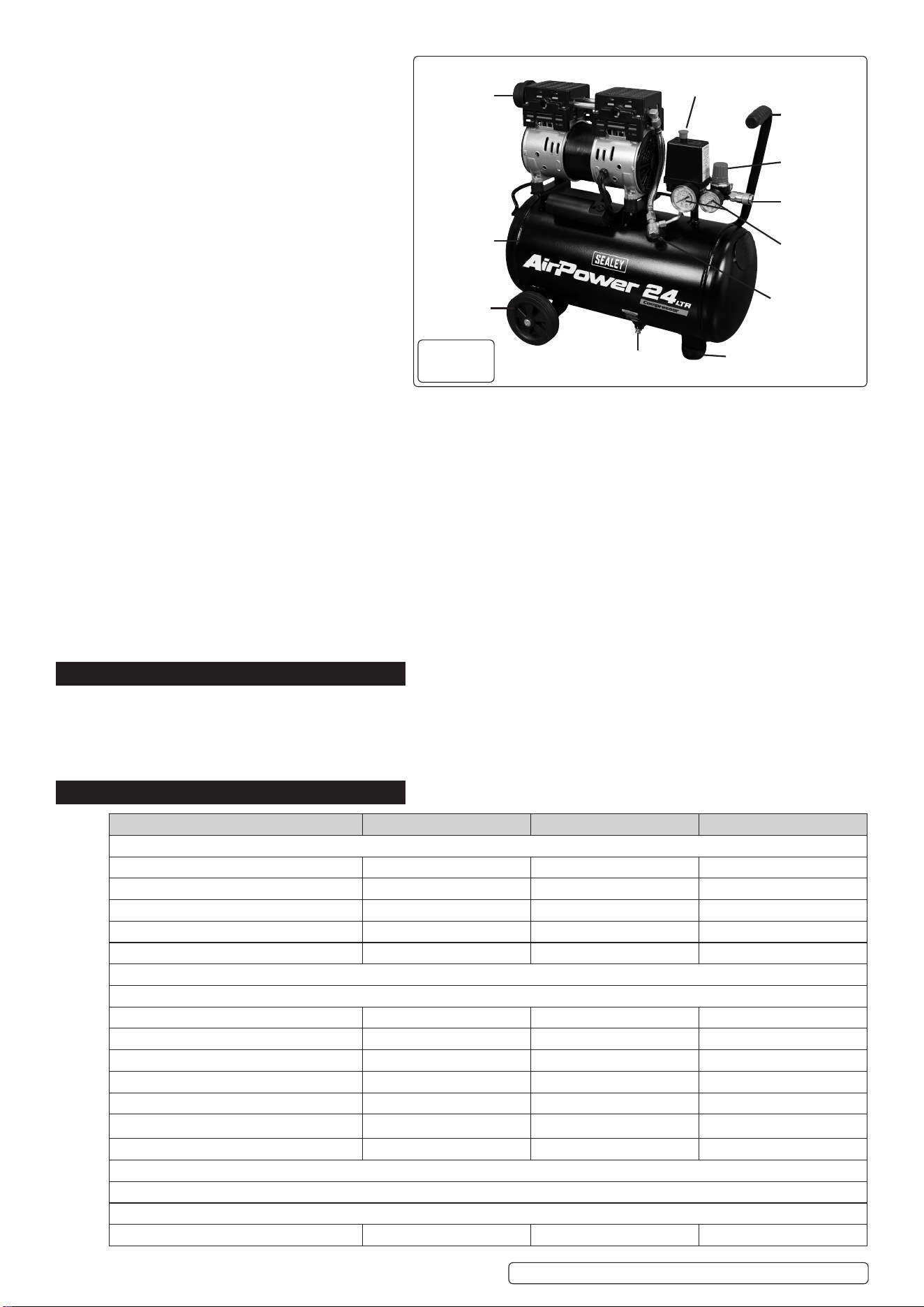

FIG.1
(SAC2400S)
PRESSURE
TANK
WHEEL
INTAKE AIR
FILTER
ON/OFF
SWITCH
TRANSPORT
HANDLE
DRAIN SCREW
(FOR CONDENSATION WATER)
PRESSURE
REGULATOR
QUICK-LOCK
COUPLING
PRESSURE
GAUGES
NON-RETURN
VALVE
FOOT
Original Language Version
© Jack Sealey Limited
SAC6000S SAC2400S SAC5000S Issue 4 (3) 01/05/24

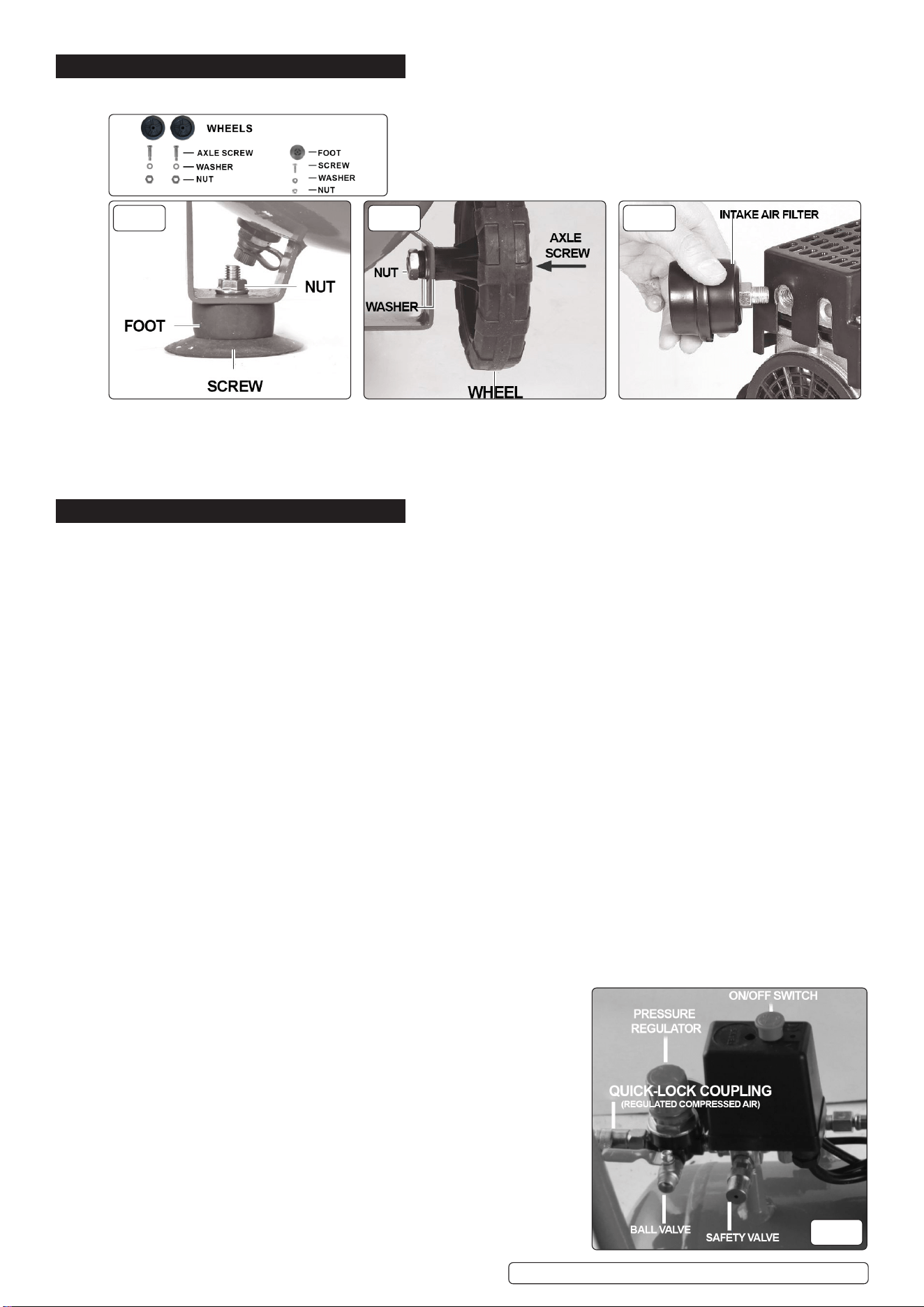

4. ASSEMBLY
IMPORTANT: You must fully assemble the appliance before using it for the rst time. See xings below:
FITTING THE SUPPORT FOOT
Fit the supplied support foot as shown in
g.2.
FIG.2
FITTING THE WHEELS
Fit the wheels as shown in g.3
FIG.3
FITTING THE AIR FILTER
Use a screwdriver to remove the
transportation cover from the air lter
connection Screw in the supplied air lter
as shown in g.4.
FIG.4
5. OPERATION
WARNING! Ensure that you have read, understood and applied Section 1 Safety Instructions.
IMPORTANT: Use of extension leads to connect these compressors to the mains is not recommended as the resulting voltage drop
reduces motor and therefore pump performance, and could damage the compressor.
NOTE: Take care when selecting tools for use with the compressor. Air tool manufacturers normally express the volume of air required
to operate a tool in cubic feet per minute (cfm). This refers to free air delivered by the compressor (‘air out’) which varies according to the
pressure setting.
8 DO NOT confuse this with the compressor displacement which is the air taken in by the compressor (‘air in’). ‘Air out’ is always less than
‘air in’ due to the losses within the compressor.
5.1. BEFORE STARTING THE EQUIPMENT
IMPORTANT: Before you connect the equipment to the power supply make sure that the data on the rating plate are identical to the
supply voltage.
5.1.1. Check the equipment for damage which may have occurred in transit. Report any damage immediately to the transport company which
was used to deliver the compressor.
5.1.2. Install the compressor in the vicinity of the point of consumption.
5.1.3. Avoid long air lines and supply lines (extension cables).
5.1.4. Make sure that the intake air is dry and dust free.
5.1.5. DO NOT install the compressor in a damp or wet room.
5.1.6. The compressor may only be used in suitable rooms (with good ventilation and an ambient temperature from +5°C to 40°C). There
must be no dust, acids, vapours, explosive gases or inammable gases in the room.
5.1.7. The compressor is designed to be used in dry rooms. It is prohibited to use the compressor in areas where work is conducted with
sprayed water.
5.1.8. Operate the equipment only on a rm, level surface.
5.1.9. Use exible hoses in order to prevent transmitting unacceptable loads to the pipeline system at the connection between the compressor
system and the pipeline system.
5.1.10. It is essential to use separators, traps and drains which process the liquids produced by the compressor before the compressor system
is put into operation.
5.1.11. Supply hoses at pressures above 7 bar should be equipped with a safety cable
(e.g. a wire rope).
5.2. OPERATION
5.2.1. ON/OFF SWITCH
To switch on the compressor, pull out the On/O switch. Push the switch to turn o
(g.5).
5.2.2. SETTING THE PRESSURE
You can adjust the pressure on the pressure gauge using the pressure regulator
(g.5).
5.2.3. SETTING THE PRESSURE SWITCH
The pressure switch is set at the factory. Cut-in pressure approx. 6 bar. Cut-out
pressure approx. 8 bar. The set pressure can be drawn from the quick-lock coupling
(g.5).
WARNING! Water that is allowed to remain in the tank during storage will corrode and
weaken the air tank which could cause the tank to rupture.
To avoid serious injury drain the tank after each use or daily.
IMPORTANT: depressurise the receiver tank at the end of every working day.
FIG.5
Original Language Version
© Jack Sealey Limited
SAC6000S SAC2400S SAC5000S Issue 4 (3) 01/05/24
6. MAINTENANCE
▲ DANGER! Pull out the power plug before doing any cleaning and maintenance work on the equipment.
9 Disconnect from all energy supplies before servicing.
WARNING! Wait until the compressor has completely cooled down to avoid risk of burns.
WARNING! Always de-pressurise the tank before carrying out any cleaning and maintenance work.
WARNING! After use, always switch o the equipment immediately and pull out the power plug.
WARNING! Air contaminants taken into the compressor will aect optimum performance. Example: body ller dust or paint over-spray
will clog the pump intake lter and may cause internal damage to pump/motor components. Please note that any parts damaged by any
type of contamination will not be covered by warranty.
6.1. CLEANING
9 Clean immediately after every use.
9 Keep all safety devices, air vents and the motor housing free of dirt and dust.
9 Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
8 DO NOT use cleaning agents or solvents. These could damage the plastic parts of the equipment.
8 DO NOT allow water to seep into the device. The ingress of water into an electric tool increases the risk of an electric shock.
6.2. CONDENSED WATER
IMPORTANT! To ensure a long service life of the pressure vessel, drain o the condensed water by opening the drain plug each time
after using.
9 Check the pressure vessel for signs of rust and damage each time before using.
8 DO NOT use the compressor with a damaged or rusty pressure vessel.
9 If you discover any damage, please contact the Sealey service centre.
6.3. SAFETY VALVE
The safety valve has been set for the highest permitted pressure of the pressure vessel. It is prohibited to adjust the safety valve or
remove its seal. Actuate the safety valve from time to time to ensure that it works when required. Pull the ring with sucient force until
you can hear the compressed air being released. Then release the ring again.
6.4. CLEANING THE INTAKE FILTER
The intake lter prevents dust and dirt being drawn in. It is essential to clean this lter after at least every 300 hours in operation.
A clogged intake lter will decrease the compressor‘s performance dramatically. Open the halves of the air lter housing. Use
compressed air at low pressure (approx. 3 bar) to blow out all the parts of the lter and then assemble the lter in reverse order. When
cleaning, take adequate precautions against dust (e.g. use a suitable face mask).
6.5. STORAGE
WARNING! Pull the mains plug out of the socket and ventilate the appliance and all connected pneumatic tools.
9 Switch o the compressor and make sure that it is secured in such a way that it cannot be started up again by any unauthorized person.
9 Store the compressor only in a dry location which is not accessible to unauthorized persons.
9 Always store upright, never tilted!
6.6. TRANSPORT
9 Transport the equipment only by carrying it by the transport handle.
9 Protect the equipment against unexpected knocks and vibrations.
7. TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
The compressor does not start. No supply voltage. Check the supply voltage, the power plug
and the socket-outlet.
Insucient supply voltage. Make sure the extension cable is not too
long. Use an extension cable with large
enough wires.
Outside temperature is too low. DO NOT operate the compressor with an
outside temperature below 5
o
C.
Motor has overheated. Stop the compressor and allow it to cool.
The compressor starts but there is no
pressure.
The non-return valve leaks. Have an authorised service centre replace
the non-return valve.
The seals are damaged. Check the seals and have any damaged
seals replaced by an authorised
service centre.
The drain plug for condensation water
leaks.
Tighten the screw by hand. Check the seal
on the screw and replace if necessary.
The compressor starts, pressure is shown
on the pressure gauge, but the tools do
not start.
The hose connections have a leak. Check the compressed air hose and tools
and replace if necessary.
A quick-lock coupling has a leak. Check the quick-lock coupling and replace
if necessary.
Insucient pressure set on the pressure
regulator.
Increase the set pressure with the
pressure regulator.
Original Language Version
© Jack Sealey Limited
SAC6000S SAC2400S SAC5000S Issue 4 (3) 01/05/24
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 sales@sealey.co.uk www.sealey.co.uk
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specications and component parts without prior notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be
sorted, taken to a recycling centre and disposed of in a manner which is compatible with the environment. When
the product becomes completely unserviceable and requires disposal, drain any uids (if applicable) into approved
containers and dispose of the product and uids according to local regulations.
REGISTER YOUR
PURCHASE HERE
WEEE REGULATIONS
Dispose of this product at the end of its working life in compliance with the EU Directive on Waste Electrical and Electronic
Equipment (WEEE). When the product is no longer required, it must be disposed of in an environmentally protective way. Contact
your local solid waste authority for recycling information.
Original Language Version
© Jack Sealey Limited
SAC6000S SAC2400S SAC5000S Issue 4 (3) 01/05/24
