12M RETRACTABLE AIR HOSE REEL Ø8MM ID
POLYURETHANE HOSE
MODEL: SA90.V2
1. SAFETY
9 Familiarise yourself with this products application and limitations, as well as the specic potential hazards peculiar to the air hose reel.
WARNING! Disconnect the air hose reel from the air supply before changing accessories, servicing or performing any maintenance.
9 Maintain air hose reel in good condition (use an authorised service agent).
WARNING! only a qualied technician should open the unit, as a high tension spring is enclosed which if allowed to unwind in an
uncontrolled manner may cause serious personal injury.
9 Replace or repair damaged parts. Use genuine parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
9 Locate and x the air hose reel in an adequate working area for its function.
8 DO NOT x the hose in direct sun light, or in areas of extreme hot or cold. Ensure there is adequate lighting in order to see the hose
operation clearly.
WARNING! Ensure correct air pressure is maintained and not exceeded.
9 Keep extended air hose away from heat, oil and sharp edges. Check hose for wear before each use, and ensure all connections are
secure.
9 Keep the unwound air hose at a safe distance from the working area, and free from wet, damp, oily surfaces.
9 Protect from sharp edges and instruments, sources of heat and dangerous substances.
WARNING! Always wear approved eye or face protection when operating the air hose reel.
9 Maintain correct balance and footing. Ensure the oor is not slippery and wear non slip shoes.
9 Remove ill tting clothing. Remove ties, watches, rings, and other loose jewellery, and contain and/ or tie back long hair.
9 Keep children and unauthorised persons away from the working area.
8 DO NOT operate the air hose reel if any parts are damaged or missing as this may cause failure or possible personal injury.
8 DO NOT use the air hose reel for any purpose other than for which it is designed.
8 DO NOT pull the hose from the air supply abruptly.
8 DO NOT operate the air hose reel when you are tired, under the inuence of alcohol, drugs or intoxicating medication.
8 DO NOT direct air from the air hose at yourself or others.
9 When not in use ensure the air supply is turned off and tools disconnected.
9 Disconnect from the air supply and retract the hose into case.
WARNING! DO NOT open the unit. The hose must only be replaced by a qualied technician. Contact your local authorised service
agent.
2. INTRODUCTION
Robust metal case for heavy-duty applications. TPU (Thermoplastic Polyurethane) Hose can be extended and retracted by simple pull
and release mechanism. Supplied with swivel mounting bracket for xing to wall or ceiling.
3. SPECIFICATION
Model No: SA90
Hose Size (ID/OD): Ø8/12mm
Hose Type: TPU
Inlet Size: Ø8mm
Length: 12m
Maximum Pressure: 280psi
Outlet Size: 1/4”BSP
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
SA90.V2 Issue 3 13/02/24
Original Language Version
© Jack Sealey Limited
4. FITTING

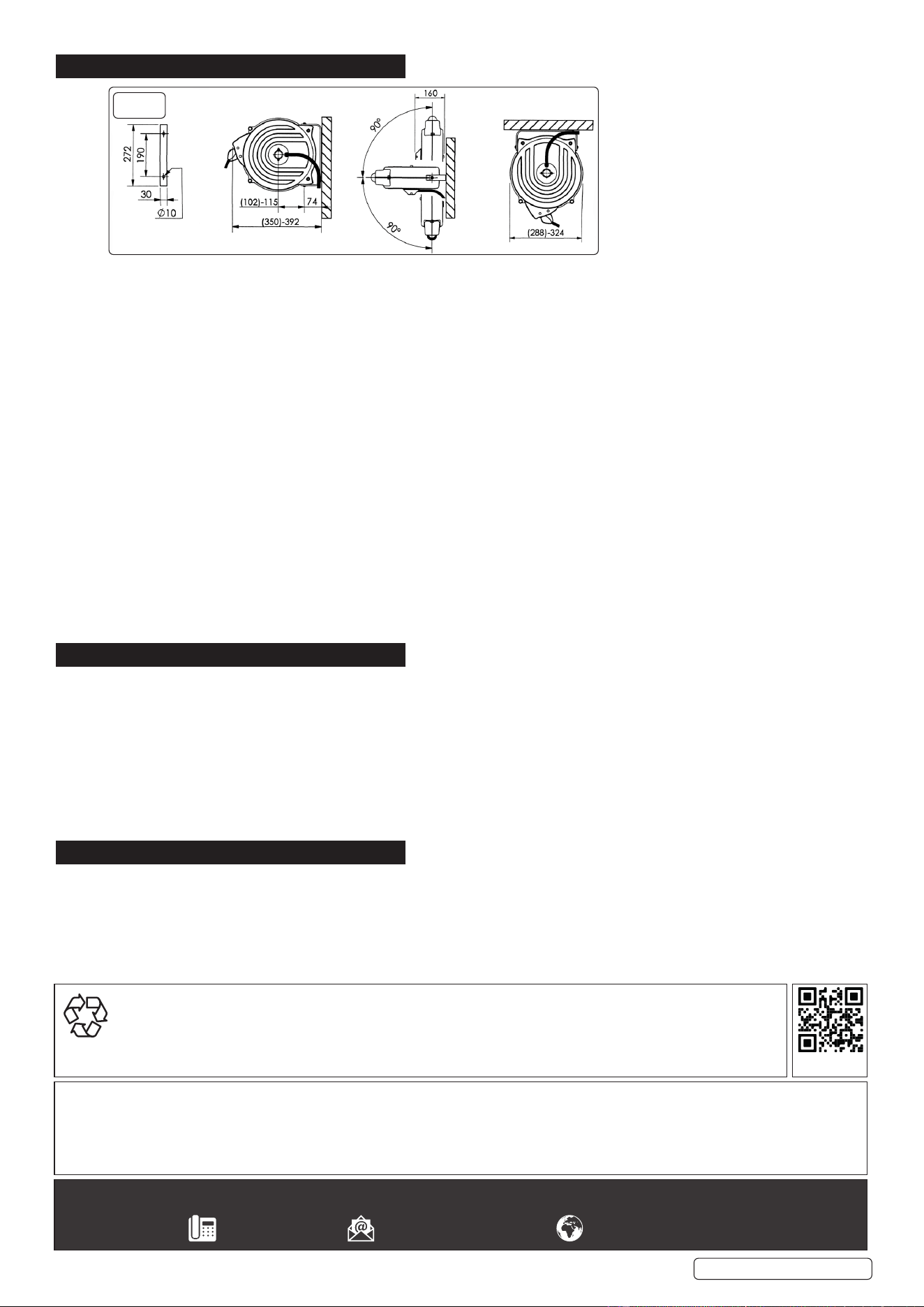

FIG.1
WARNING! Ensure hose is disconnected from air supply. Do not x the hose in direct sun light, or in areas of extreme hot or cold.
4.1. FITTING TO THE WALL
4.1.1. Ensure the wall, or structure to which the air hose is to be fixed is of sound construction, and that the securing point will hold the working
strain of the hose when in use.
4.1.2. Vertically align air hose supporting bracket (fig.1), with surface to which it will be mounted and mark the fixing hole location on surface.
IMPORTANT: The hose reel must be mounted at a minimum height of 2.5m from the oor in order to prevent accidents during
work operations.
4.1.3. Plug the wall, or ensure the screw mounting holes will sustain the weight of the air hose reel when in use.
4.1.4. Screw the support bracket to the supporting surface using two 8mm diameter screws.
4.1.5. Check that the main body will adequately turn to allow the hose to be extended without rubbing on either side of the air hose housing.
4.1.6. Before use, check that all fixings are safe and secure, and that the hose will extend and retract with ease.
4.2. FITTING TO THE CEILING OR A HORIZONTAL SURFACE
4.2.1. Ensure the ceiling (or horizontal) to which the air hose reel is to be fixed is of sound construction and that the securing point (e.g: joist, or
beam).will hold the working strain of the hose when in use,
4.2.2. Align air hose reel supporting bracket (fig.1), with surface to which it will be mounted and mark fixing hole location on surface.
IMPORTANT: The hose reel must be mounted at a minimum height of 2.5m from the oor in order to prevent accidents during
work operations.
4.2.3. Screw the support bracket to the fixing point (e.g. joist) using two 8mm diameter screws.
4.2.4. Check that the main body will adequately turn to allow the hose to be extended without rubbing on either side of the air hose housing.
4.2.5. Before use, check that all fixings are safe and secure, and that the hose will extend and retract with ease.
4.3. CONNECTING THE AIR SUPPLY
Connect the hose reel to an air supply with the flexible hose. The installation of an air valve or regulator on the feed line of the hose reel is
recommended, so that the air may be turned off for service or in case of an emergency.
5. OPERATION
WARNING! Ensure you have read, understood, and apply section 1 safety instructions when using the hose.
5.1. Connect and turn on the air supply.
5.2. Locate the ball grip on the hose and pull the hose out of the unit until you have extended it to the area of use. An intermittent fast
clicking noise will be discerned as the hose passes through the clamping mechanism. When you stop pulling the hose it will remain
clamped at that length.
5.3. To extend the hose further, take the ball grip and continue to pull accordingly.
5.4. Connect the hose to air tool.
5.5. To release and allow the hose to automatically rewind, extend the hose a little further, and release during the intermittent stage
between the fast clicking noise.
5.6. Turn off and disconnect the air supply.
6. MAINTENANCE
WARNING! Before attempting maintenance or inspection, release any pressure remaining in hose.
6.1. Clean the hose and main housing regularly. DO NOT spray or wet the product, but clean with a damp cloth. DO NOT use solvents or
detergents, as these may permanently damage the item.
6.2. Periodically check for leaks and that the hose has a smooth extending operation. Check main housing outlet rollers are in good order.
6.3. Should you wish to store the air hose away, ensure it is clean, and dry. Place the item in a dark, safe, dry, child proof location, where
the temperature will remain reasonably stable.
