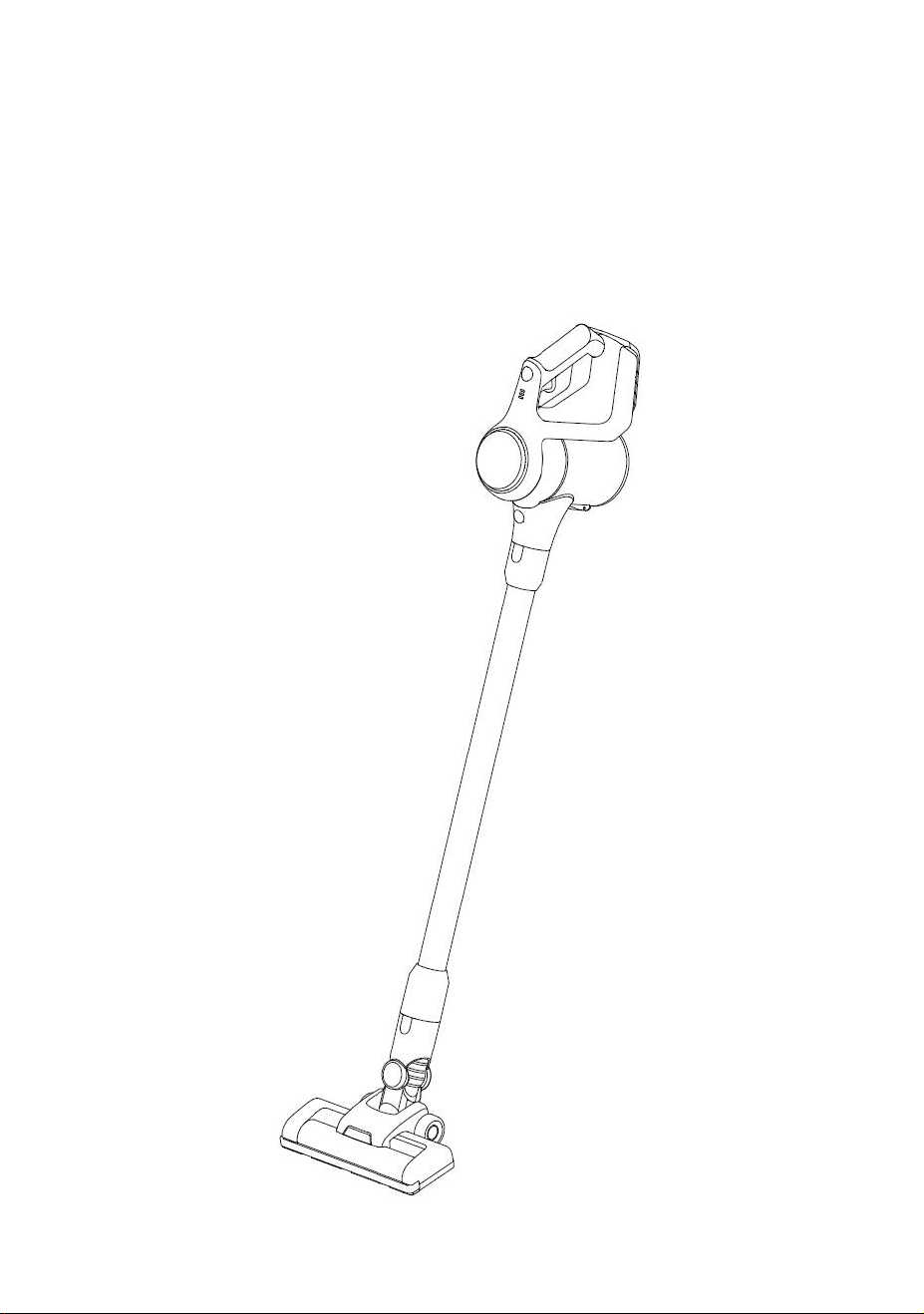

LIVOWALNY
®
Portable Vacuum Cleaner
Operating Instruction
1
Catalog
Safety instruction ...............................................................................................................1
Electric shock hazard ................................................................................................. 2
Other dangers .............................................................................................................3
Products ..............................................................................................................................4
Indicator description .........................................................................................................5
Vacuum cleaner installation ............................................................................................. 6
Complete machine Assembly .................................................................................... 6
Vacuum cleaner usage .......................................................................................................7
Operation mode ..........................................................................................................7
Use of the floor brush ................................................................................................ 7
Use of attachments .....................................................................................................8
Maintenance and maintenance .........................................................................................8
Main part maintenance ...............................................................................................8
Clean the main part .................................................................................................... 9
Pour out of the dust ....................................................................................................9
Cleaning cyclone system ......................................................................................... 10
Trouble removal .............................................................................................................. 14
2
Safety instruction
Before you first use this product, please read this manual carefully.
This vacuum cleaner is for personal use, not for commercial use. The
manufacturer will not be responsible for any damage that may result from
improper use or incorrect operation. This vacuum cleaner is not suitable
for:
• Vacuum a person or animal
• Suck small creatures (e.g. flies, spiders, etc.)
• A body that is harmful to health, has sharp edges, or is hot or glowing.
• A moist or liquid substance. Flammable or explosive materials and gases.
WARNING
• Do not allow children to play with the equipment.
• Do not allow persons with physical, mental or sensory disabilities to use
or operate the product.
• Turn off the equipment and unplug battery before performing all
maintenance and maintenance work.
• Do not open the battery pack. Repair should only be performed by
qualified personnel.
• Risk of injury. Do not use suction nozzle and straw to vacuum near the
head.
Electric shock hazard
• Do not touch contacts or wires.
• Do not touch power plugs or sockets with wet hands.
• Do not immerse the equipment in water.
• Do not roll over, squeeze or drag through sharp edges, otherwise it will
cause damage.
3
Other dangers
DANGER
• Do not operate equipment in areas with explosion risk.
• Do not smoke fine flammable gases, liquids or dust.
• Do not smoke undiluted acids or bases.
• No active metal particles (such as aluminum, manganese, or zinc) should
be inhaled.
• Do not suction burning or embers of objects.
In addition, the above substances will also cause corrosion of equipment
materials.
Warm Tip
·We recommend using a battery with a capacity of 4Ah or
higher to extend the usage time of this vacuum cleaner.
4
Products
speed regulating switch
power indicator light
with electric brush
power switch
dust cup
contact tube
5
long flat suction combination of flat suction
Indicator description
1. When the equipment is in abnormal working state, the indicator will
flash for 5 times, such as when the filter and floor brush are blocked.
Electric indicator
6

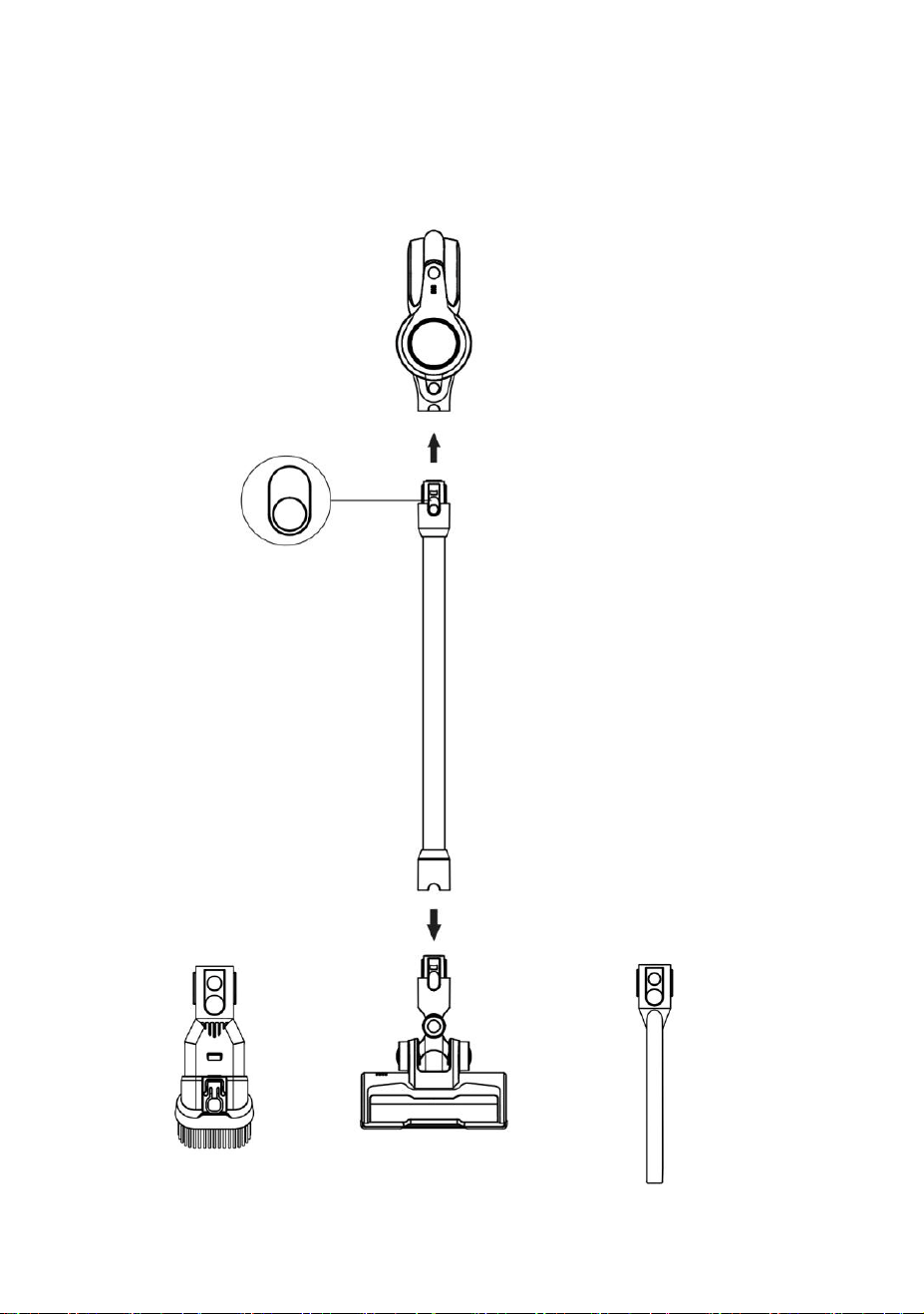

Vacuum cleaner installation
Complete machine Assembly
Quick disassembly switch,
press disassembly.
7

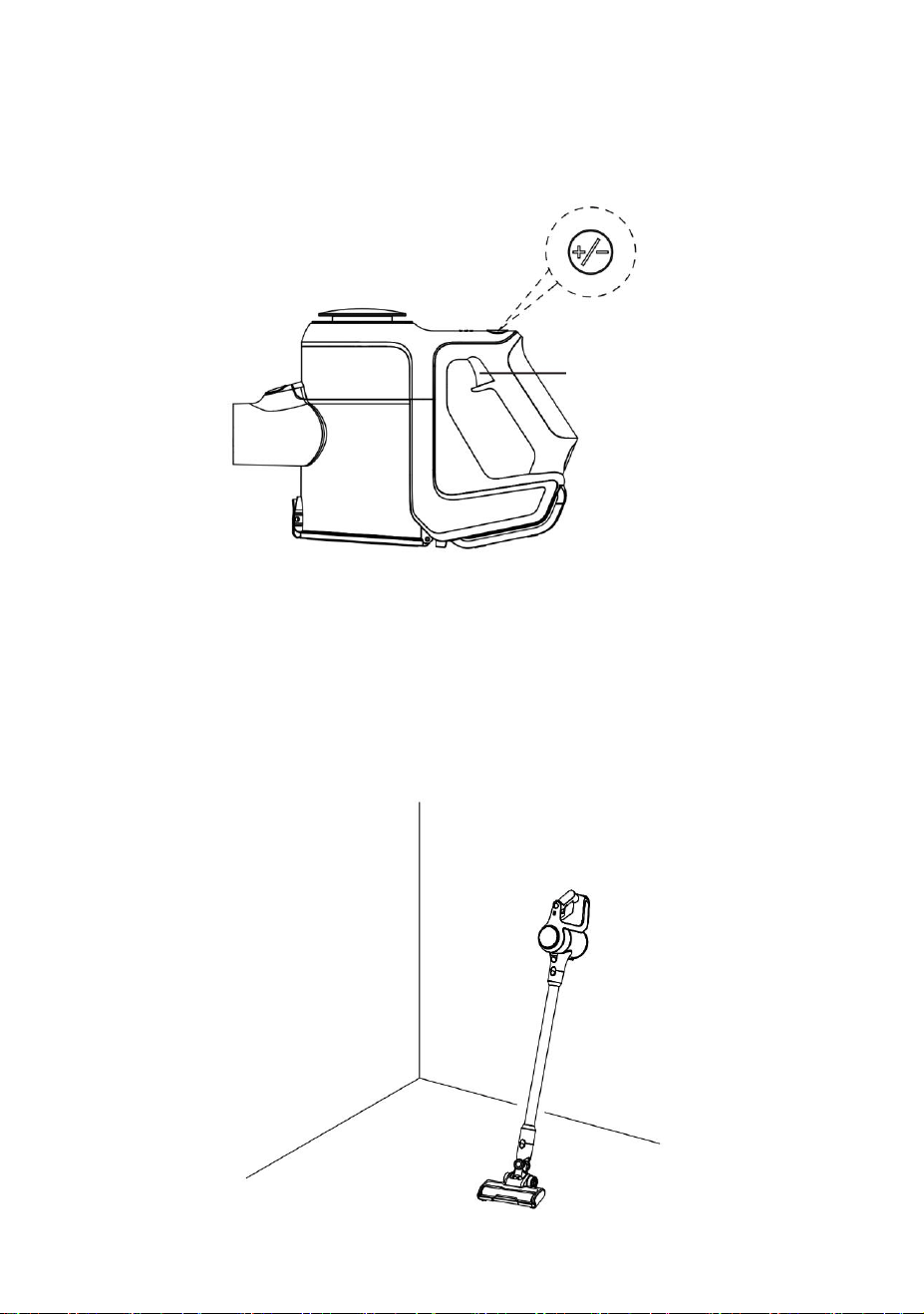

Vacuum cleaner usage
Operation mode
1. Press the power switch and the vacuum cleaner starts to work.
2. When the vacuum cleaner is working,press the speed regulating switch
to adjust the suction force of the vacuum cleaner.
Use of the floor brush
Suitable for cleaning carpets, floors, etc.
Power switch
8
Use of attachments
1 long flat
Suitable for cleaning doors and Windows grooves
and crevices.
②
Combination of flat suction
Suitable for cleaning sofa, mattress, curtain, etc.
① ②
Maintenance and maintenance
Main part maintenance
1. If the cyclone system and suction head are blocked and the machine
noise becomes loud, please clean the cyclone system and suction head in
time.
2. When you do not use the vacuum cleaner for a long time, please place
the machine in a cool and dry place. Do not place the machine in direct
sunlight or humid environment.
9

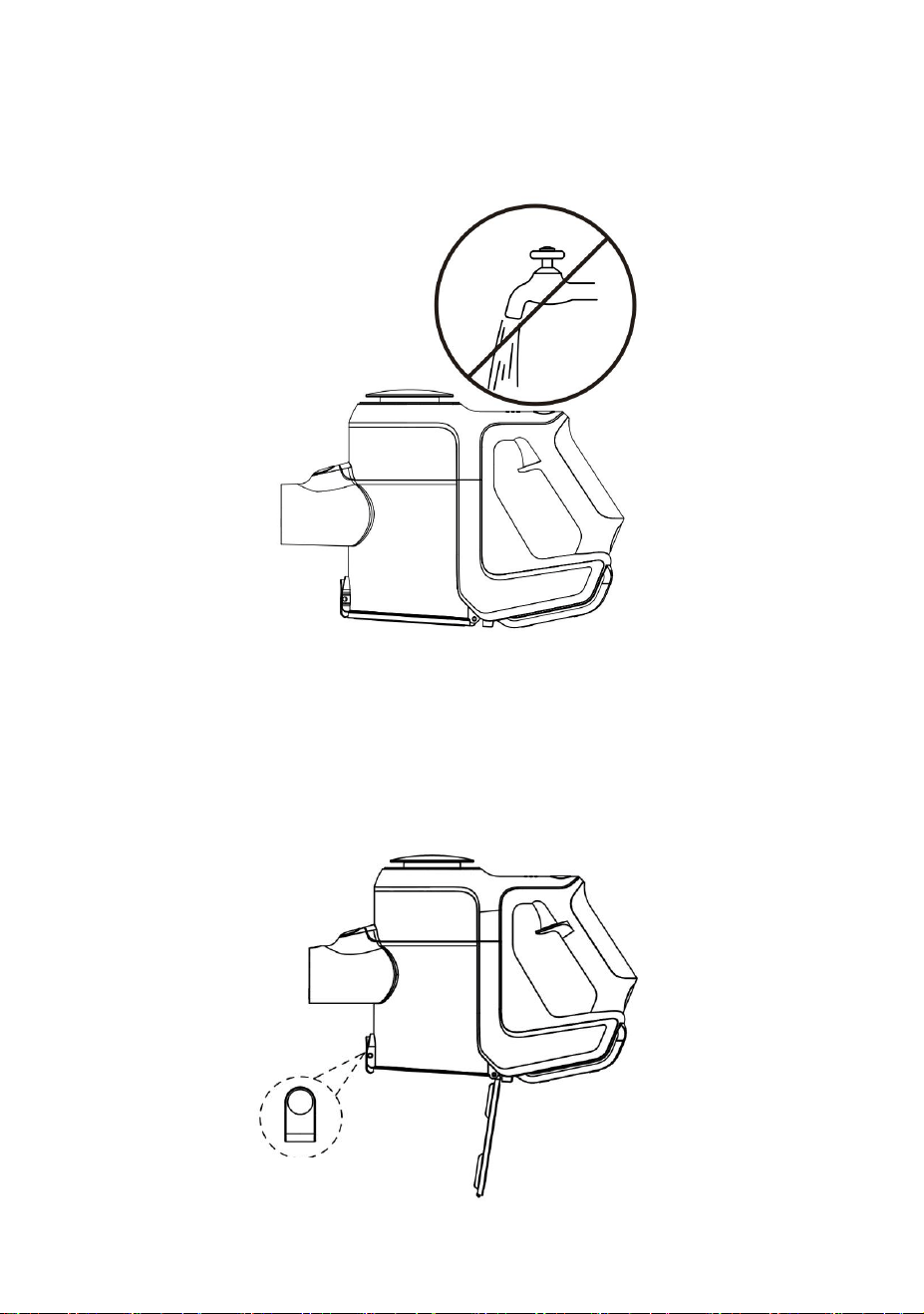

Clean the main part
Clean the mainframe with a soft dry cloth and do not flush with water.
Pour out of the dust
Note: Before each cleaning, disconnect the battery and keep the vacuum
cleaner off.
Once the dust reaches the MAX mark, please empty the dust cup in time.
The dust dump button can be used to dump the dust with one key.
Dump dust button
10

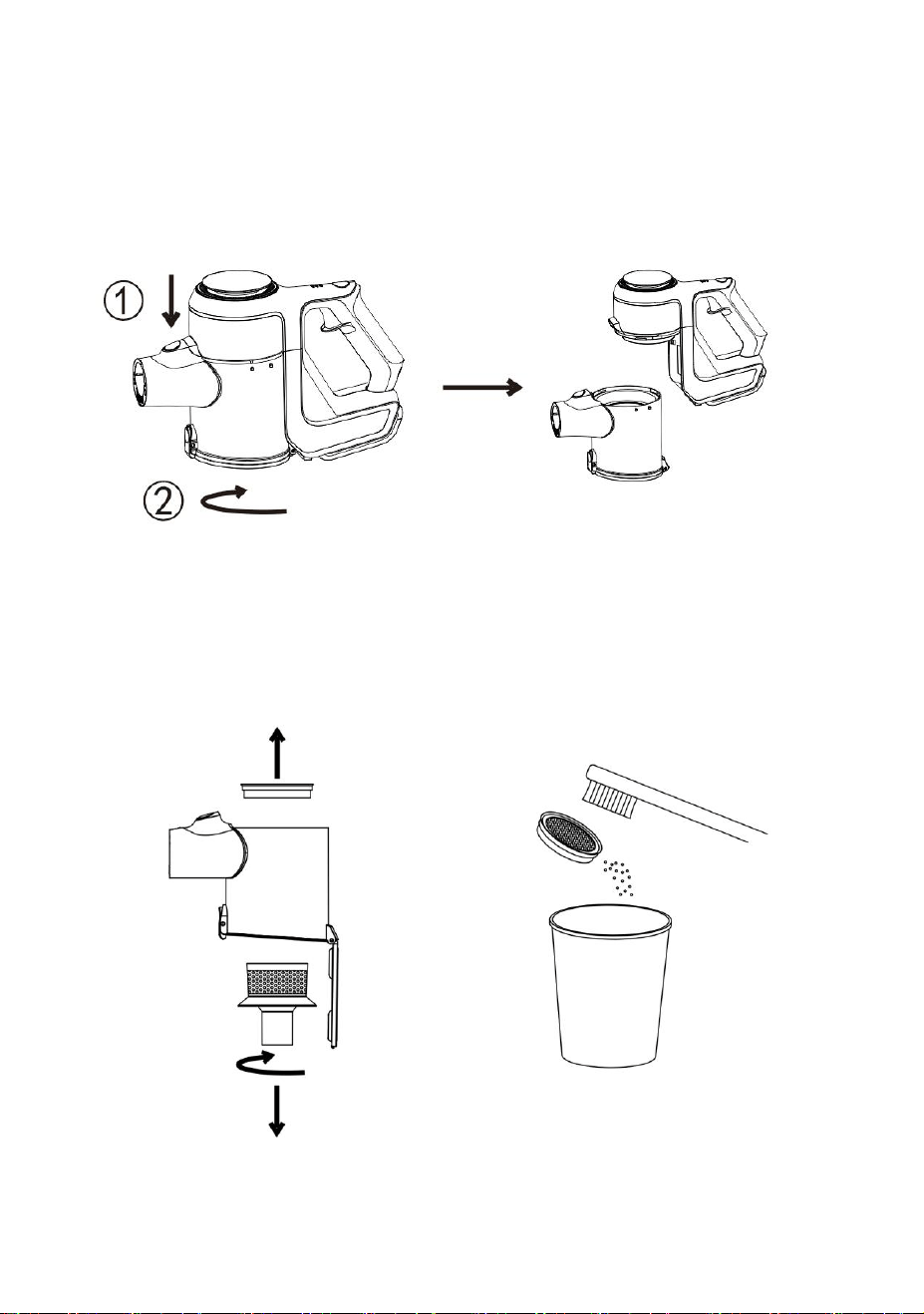

Cleaning cyclone system
1. Press the dust cup disassembly button and rotate the dust cup along the
direction of the arrow to disassemble the dust cup.
2. Remove the cyclone components as shown in the picture and clean the
filter with a brush,no flushing with water.
11
------------------------------------------------------------------------------------------
3. Clean the cyclone system regularly and dry it thoroughly before use.
12

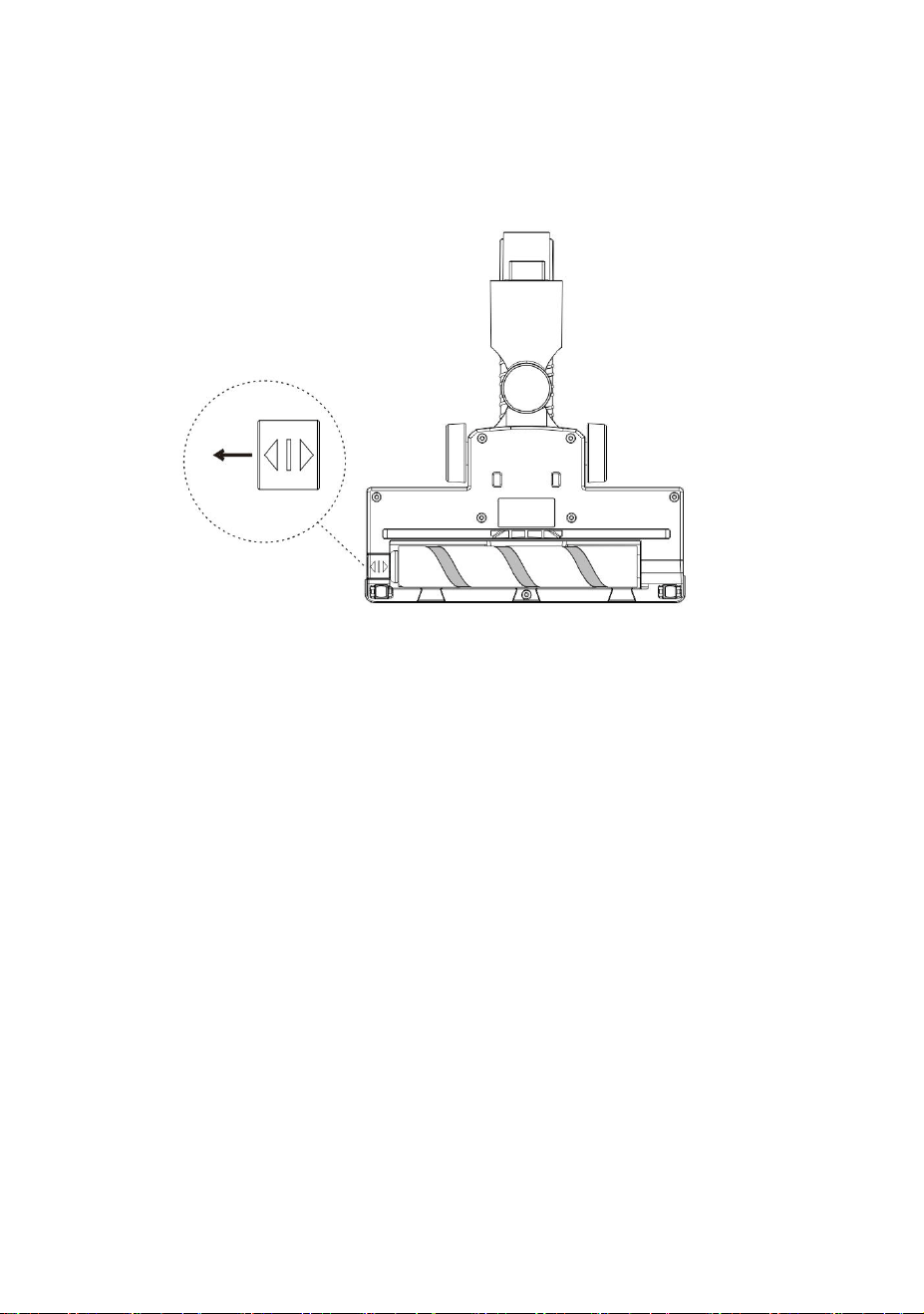

4. Slide the latch, remove the brush strip, and clean the brush strip with
water. The main body of the floor brush shall be wiped with a cloth.
13
14
Trouble removal
fault phenomenon
fault cause
trouble removal
Suction reduced
Increased noise or
abnormal loud
Dust cup full of dust or
filter clogged
Clean dust cup and
filter system
Suction block
Clean the suction
plug
Floor brush blocked
Clean the floor brush
blockage
Device not
working, indicator
light flashing
Low battery
Please charge it
before use
Filter is blocked
Cleaning filters
Ground brush is blocked
Check whether the
roller is stuck and
clean the roller
If the above phenomenon cannot be eliminated, please contact the
after-sales staff.
If you encounter problems during use or have follow-up product
questions, you can contact us via the following email address and
we will get back to you as soon as possible!
Email:customerservice@livowalny.com
