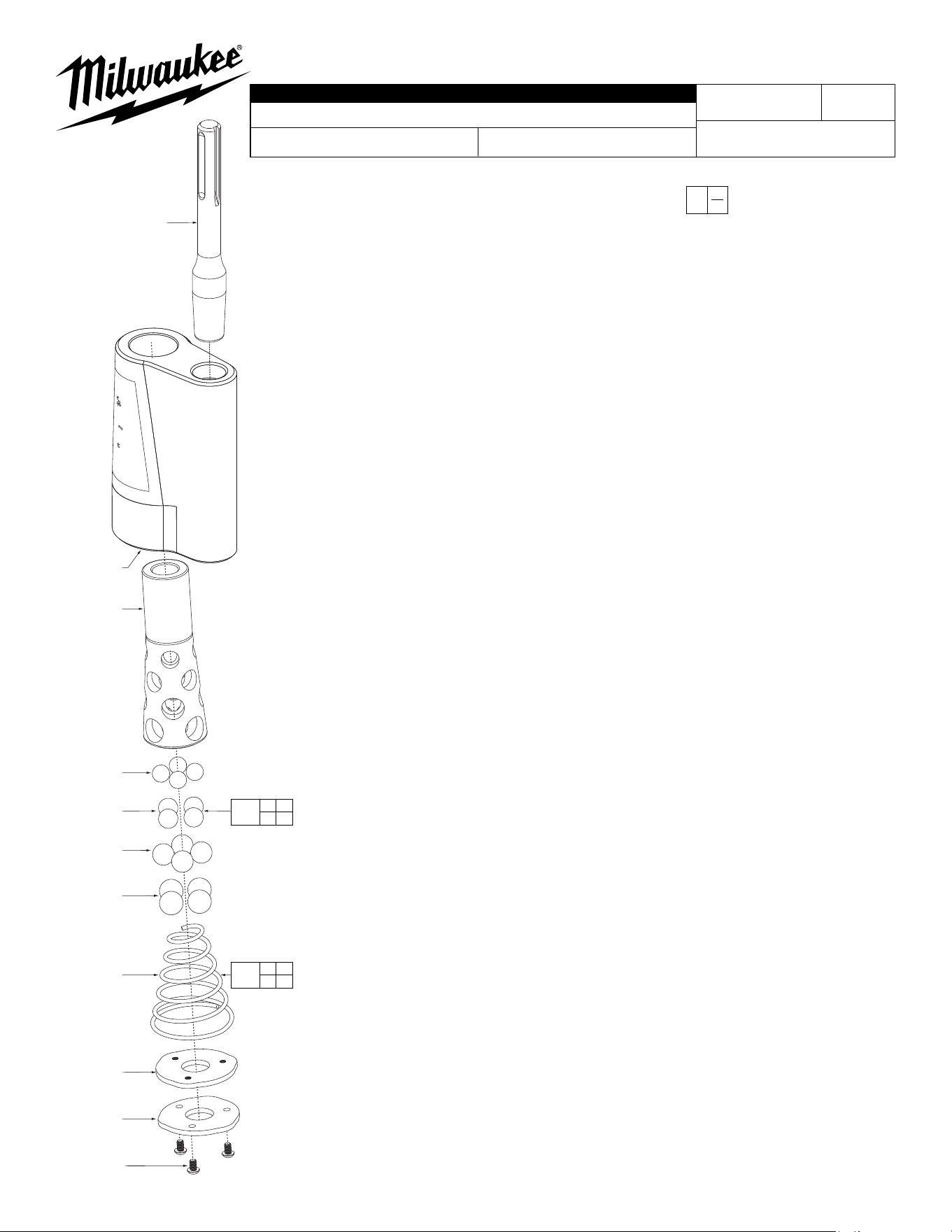

Drwg. 1
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 --------------- 17/32" Bearing (4)
2 --------------- 19/32" Bearing (4)
3 --------------- 21/32" Bearing (4)
4 --------------- 23/32" Bearing (4)
5 44-40-1040 Collet (1)
6 --------------- Bayonet Body (1)
7 --------------- Fixed Shank (1)
8 --------------- Primary Washer (1)
9 --------------- Secondary Washer (1)
10 --------------- Washer Bolt (3)
11 --------------- Spring (1)
12 12-20-4070 Service Nameplate (Not Shown) (1)
15 14-46-0929 Ball Bearings Kit (1)
16 14-46-0930 Spring and Retainment Kit (1)
BULLETIN NO.
PN0012523
SERVICE PARTS LIST
CATALOG NO. 48-62-4070
REVISED BULLETIN
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
Side Load Ground Rod Driver - SDS Max
SERIAL NO.
DATE
Sept. 2025
WIRING INSTRUCTION
R15A
0
00
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
9
10
(3x)
8
11
4
(4x)
3
(4x)
2
(4x)
1
(4x)
5
7
6
1 2
3 4
15
8 9
10 11
16
