49-16-2490X, 49-16-2690X, 49-16-2692X, 49-16-2496X,
49-16-2697X, 49-16-2698X, 49-16-2690NX, 49-16-2461M, 49-16-2461MX,
49-16-2461RX, 49-16-2461ZX, 49-16-2661MX, 49-16-2661RX, 49-16-2661ZX

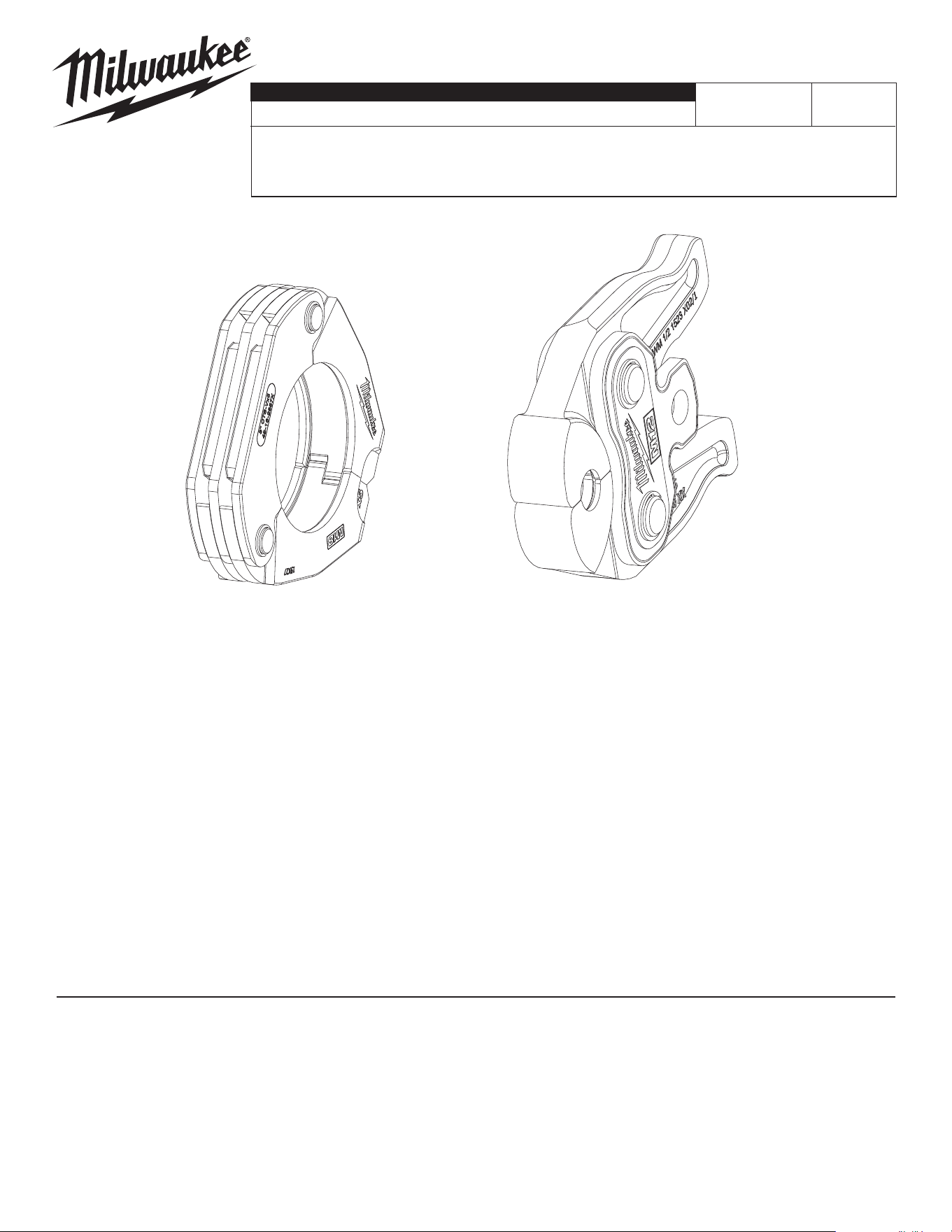

Press Jaws and Rings
May 2025
54-47-2CPT
REVISED BULLETIN
SERVICE PARTS LIST
BULLETIN NO.
DATE
CAT. NO.
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
MILWAUKEE TOOL
l
www.milwaukeetool.com
13135 W. LISBON RD., BROOKFIELD, WI 53005
Drwg. 3
Only maintenance, service, repairs, and replacements of parts as dened in the Operator's Manual
can be performed by the user.
All other repairs are to ONLY be performed by personnel authorized by MILWAUKEE TOOL. Do not
attempt to install other parts; this COULD void your tool warranty.
For service, parts, or inquiries, contact us:
• Customer Service at 1.800.SAWDUST (1.800.729.3878)
• E-Service tool repair at: www.milwaukeetool.com/e-service
• Find a local authorized MILWAUKEE service location at Milwaukeetool.com
• Find a MILWAUKEE factory Service Center Location or MILWAUKEE factory Central Repair
Center at Milwaukeetool.com. Send the following, posted paid and insured:
• Your name, address, and phone number
• Description of the issues
• Copy of the proof of purchase
• Tool, charger, and batteries involved with the issues
MILWAUKEE factory Central Repair Centers:
MILWAUKEE TOOL MILWAUKEE TOOL
Central Repair Central Repair
1401 Sycamore Avenue 2198 Southtech Drive
Greenwood, MS 38930 Greenwood, IN 46143
Jaw/Ring P/N Description Retaining Ring P/N Qty. per Jaw/Ring
49-16-2650X M12
™
& M18
™
1/2" CTS-V Pivoting Press Ring 34-60-1301 (1)
49-16-2651X M12
™
& M18
™
3/4" CTS-V Pivoting Press Ring 34-60-1301 (1)
49-16-2652X M12
™
& M18
™
1" CTS-V Pivoting Press Ring 34-60-1301 (1)
49-16-2653X M12
™
& M18
™
1-1/4" CTS-V Pivoting Press Ring 34-60-1301 (1)
49-16-2654X M12
™
& M18
™
1-1/2" CTS-V Pivoting Press Ring 34-60-1301 (1)
49-16-2655X M12
™
& M18
™
2" CTS-V Pivoting Press Ring 34-60-1301 (1)
49-16-2656X M12
™
& M18
™
2-1/2" CTS-V Pivoting Press Ring 34-60-1362 (4)
49-16-2657X M12
™
& M18
™
3" CTS-V Pivoting Press Ring 34-60-1362 (4)
49-16-2658X M12
™
& M18
™
4" CTS-V Pivoting Press Ring 34-60-1362 (4)
49-16-2650BX M12
™
& M18
™
1/2" IPS-P Pivoting Press Ring 34-60-1301 (1)
49-16-2651BX M12
™
& M18
™
3/4" IPS-P Pivoting Press Ring 34-60-1362 (4)
49-16-2652BX M12
™
& M18
™
1" IPS-P Pivoting Press Ring 34-60-1362 (4)
49-16-2653BX M12
™
& M18
™
1-1/4" IPS-P Pivoting Press Ring 34-60-1362 (4)
49-16-2654BX M12
™
& M18
™
1-1/2" IPS-P Pivoting Press Ring 34-60-1362 (4)
49-16-2655BX M12
™
& M18
™
2" IPS-P Pivoting Press Ring 34-60-1362 (4)
49-16-2656BX M12
™
& M18
™
2-1/2" IPS-P Pivoting Press Ring 34-60-1302 (4)
49-16-2657BX M12
™
& M18
™
3" IPS-P Pivoting Press Ring 34-60-1302 (4)
49-16-2658BX M12
™
& M18
™
4" IPS-P Pivoting Press Ring 34-60-1302 (4)
49-16-2656NX
M18
™
Long Throw 2-1/2" NIBCO® Press Ring
34-60-1302 (2)
49-16-2657NX
M18
™
Long Throw 3" NIBCO® Press Ring
34-60-1302 (2)
49-16-2658NX
M18
™
Long Throw 4" NIBCO® Press Ring
34-60-1302 (2)
49-16-2459X3 x3 Ring Jaw 34-60-0111 (4)
49-16-2659X4 x4 Ring Jaw 34-60-1303 (4)
49-16-2659X5 x5 Ring Jaw 34-60-1304 (4)
49-16-2659X6 x6 Ring Jaw 34-60-1305 (4)
49-16-2658R
M18
™
1-3/8” RLS® Press Jaw
34-60-1303 (4)
49-16-2450M M12
™
1/4" Streamline
®
ACR Press Jaw 34-60-0111 (4)
49-16-2452M M12
™
3/8" Streamline
®
ACR Press Jaw 34-60-0111 (4)
49-16-2453M M12
™
1/2" Streamline
®
ACR Press Jaw 34-60-0111 (4)
49-16-2454M M12
™
5/8" Streamline
®
ACR Press Jaw 34-60-0111 (4)
49-16-2455M M12
™
3/4" Streamline
®
ACR Press Jaw 34-60-0111 (4)
49-16-2456M M12
™
7/8" Streamline
®
ACR Press Jaw 34-60-0111 (4)

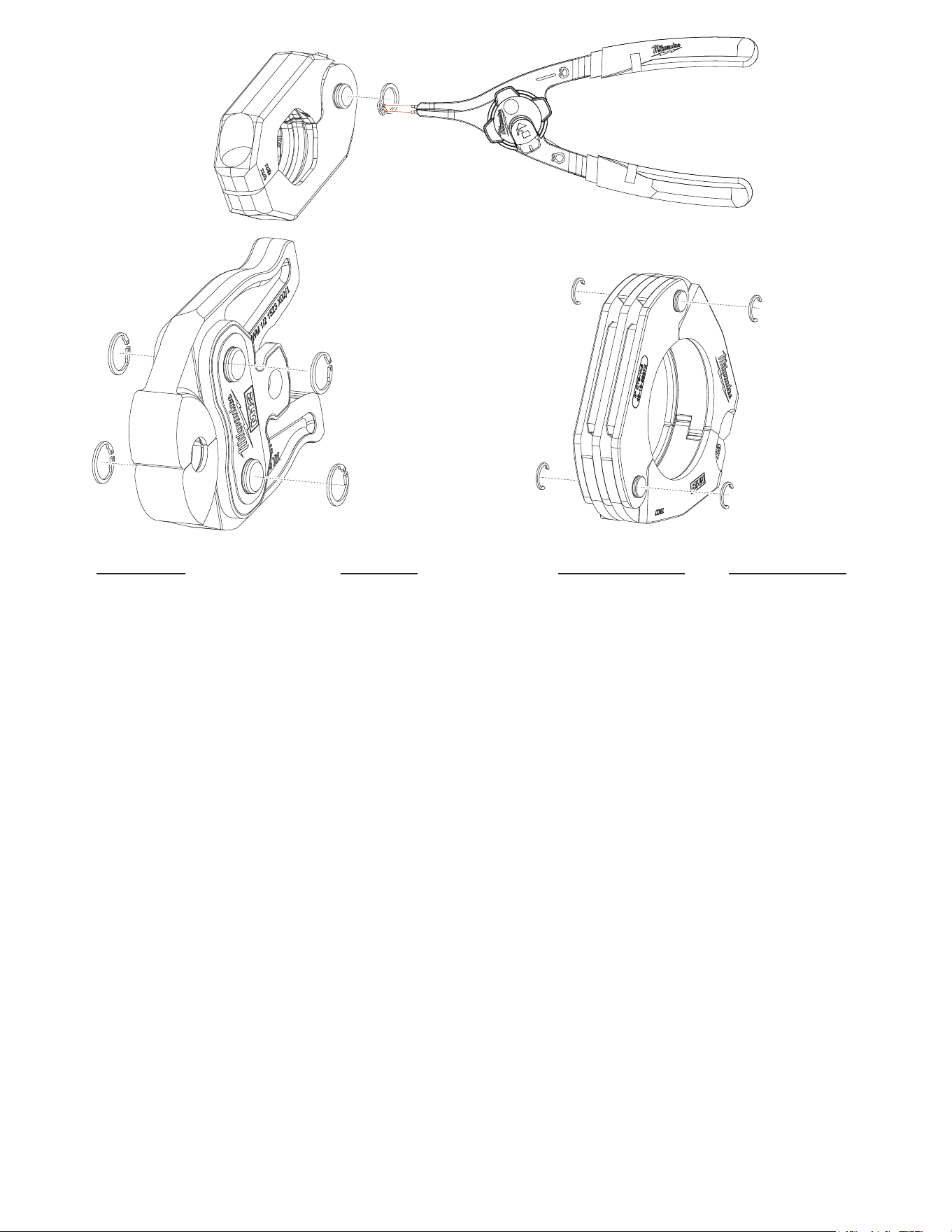

To replace retaining rings, use
the appropriate retaining ring
pliers to remove the retaining
ring(s) from the pin(s). Do not
remove or replace any jaw/ring
components besides the
retaining rings.
1” CTS-V Ring
Streamline
®
Jaw
3” CTS-V Ring
Jaw/Ring Kit P/N Jaw/Ring Kit Description Blow-Molded Case P/N Service Component / P/N
49-16-2490X M12
™
1/2" - 1-1/4" CTS-V Pivoting Press Ring Kit 42-55-2490X ---------------
49-16-2690X M18
™
2-1/2" - 4" CTS-V Pivoting Press Ring Kit 42-55-2690X ---------------
49-16-2692X M18
™
1/2" - 2" CTS-V Pivoting Press Ring Kit 42-55-2692X ---------------
49-16-2496X M12
™
1/2" - 1" IPS-P Pivoting Press Ring Kit 42-55-2496X ---------------
49-16-2697X M18
™
1/2" - 2" IPS-P Pivoting Press Ring Kit 42-55-2697X ---------------
49-16-2698X M18
™
2-1/2" - 4" IPS-P Pivoting Press Ring Kit 42-55-2698X Side Handle, 49-15-0415
49-16-2690NX M18
™
Long Throw 2-1/2" - 4" NIBCO
®
Press Ring Kit 42-55-2690NX Side Handle, 49-15-0415
49-16-2461M M12
™
1/4" - 7/8" Streamline
®
ACR Press Jaw Kit 42-55-2461M 1/4" to 1-1/8" Mueller Crimp/Depth Gauge,
43-46-0014; Streamline
®
ACR
Cone Reamer, CONE120B**
49-16-2461MX M12
™
1/4"-7/8" Streamline
®
ACR Pivoting Press Ring Kit 42-55-2785 1/4" to 1-3/8" Mueller Crimp/Depth Gauge,
43-46-0175; Streamline
®
ACR Cone
Reamer, CONE120B**
49-16-2661MX M18
™
1/4"-7/8" Streamline
®
ACR Pivoting Press Ring Kit 42-55-2785 1/4" to 1-3/8" Mueller Crimp/Depth Gauge,
43-46-0175 Streamline
®
ACR Cone Reamer,
CONE120B**
49-16-2650MX M12
™
& M18
™
1/4" Streamline
®
ACR Pivoting Press Ring --------------- 34-60-1301
49-16-2652MX M12
™
& M18
™
3/8" Streamline
®
ACR Pivoting Press Ring --------------- 34-60-1301
49-16-2653MX M12
™
& M18
™
1/2" Streamline
®
ACR Pivoting Press Ring --------------- 34-60-1301
49-16-2654MX M12
™
& M18
™
5/8" Streamline
®
ACR Pivoting Press Ring --------------- 34-60-1301
49-16-2655MX M12
™
& M18
™
3/4" Streamline
®
ACR Pivoting Press Ring --------------- 34-60-1301
49-16-2656MX M12
™
& M18
™
7/8" Streamline
®
ACR Pivoting Press Ring --------------- 34-60-1301
49-16-2657MX M18
™
1-1/8" Streamline
®
ACR Pivoting Press Ring --------------- 34-60-1362
49-16-2658MX M18
™
1-3/8" Streamline
®
ACR Pivoting Press Ring --------------- 34-60-1362
49-16-2461RX M12
™
1/4"-7/8" RLS
®
Pivoting Press Ring Kit 42-55-2785 1/4" to 1-3/8" RLS
Crimp/Depth Gauge, 42-36-0052
49-16-2661RX M18
™
1/4"-7/8" RLS
®
Pivoting Press Ring Kit 42-55-2785 1/4" to 1-3/8" RLS
Crimp/Depth Gauge, 42-36-0052
49-16-2650RX M12
™
& M18
™
1/4" RLS
®
Pivoting Press Ring --------------- 34-60-1301
49-16-2652RX M12
™
& M18
™
3/8" RLS
®
Pivoting Press Ring --------------- 34-60-1301
49-16-2653RX M12
™
& M18
™
1/2" RLS
®
Pivoting Press Ring --------------- 34-60-1301
49-16-2654RX M12
™
& M18
™
5/8" RLS
®
Pivoting Press Ring --------------- 34-60-1301
49-16-2655RX M12
™
& M18
™
3/4" RLS
®
Pivoting Press Ring --------------- 34-60-1301
49-16-2656RX M12
™
& M18
™
7/8" RLS
®
Pivoting Press Ring --------------- 34-60-1301
49-16-2657RX M12
™
& M18
™
1-1/8" RLS
®
Pivoting Press Ring --------------- 34-60-1362
49-16-2658RX M12
™
& M18
™
1-3/8" RLS
®
Pivoting Press Ring --------------- 34-60-1362
49-16-2461ZX M12
™
1/4"-7/8" ZoomLock MAX
®
& >B< MaxiPro
®
Pivoting Press Ring Kit 42-55-2661ZX 1/4" to 2-1/8" ZoomLock MAX
®
&
>B< MaxiPro
®
Depth Gauge, 42-36-0975
49-16-2661ZX M18
™
1/4"-7/8" ZoomLock MAX
®
& >B< MaxiPro
®
Pivoting Press Ring Kit 42-55-2661ZX 1/4" to 2-1/8" ZoomLock MAX
®
&
>B< MaxiPro
®
Depth Gauge, 42-36-0975
49-16-2650ZX M12
™
& M18
™
1/4" ZoomLock MAX
®
& >B< MaxiPro
®
Pivoting Press Ring --------------- 34-60-1301
49-16-2652ZX M12
™
& M18
™
3/8" ZoomLock MAX
®
& >B< MaxiPro
®
Pivoting Press Ring --------------- 34-60-1301
49-16-2653ZX M12
™
& M18
™
1/2" ZoomLock MAX
®
& >B< MaxiPro
®
Pivoting Press Ring --------------- 34-60-1301
49-16-2654ZX M12
™
& M18
™
5/8" ZoomLock MAX
®
& >B< MaxiPro
®
Pivoting Press Ring --------------- 34-60-1301
49-16-2655ZX M12
™
& M18
™
3/4" ZoomLock MAX
®
& >B< MaxiPro
®
Pivoting Press Ring --------------- 34-60-1301
49-16-2656ZX M12
™
& M18
™
7/8" ZoomLock MAX
®
& >B< MaxiPro
®
Pivoting Press Ring --------------- 34-60-1301
49-16-2657ZX M12
™
& M18
™
1-1/8" ZoomLock MAX
®
& >B< MaxiPro
®
Pivoting Press Ring --------------- 34-60-1301
49-16-2658ZX M18
™
1-3/8" ZoomLock MAX
®
& >B< MaxiPro
®
Pivoting Press Ring --------------- 34-60-1362
49-16-2670ZX 1-5/8" ZoomLock MAX
®
& >B< MaxiPro
®
Pivoting Press Ring --------------- 34-60-1302
49-16-2671ZX 2-1/8" ZoomLock MAX
®
& >B< MaxiPro
®
Pivoting Press Ring --------------- 34-60-1302

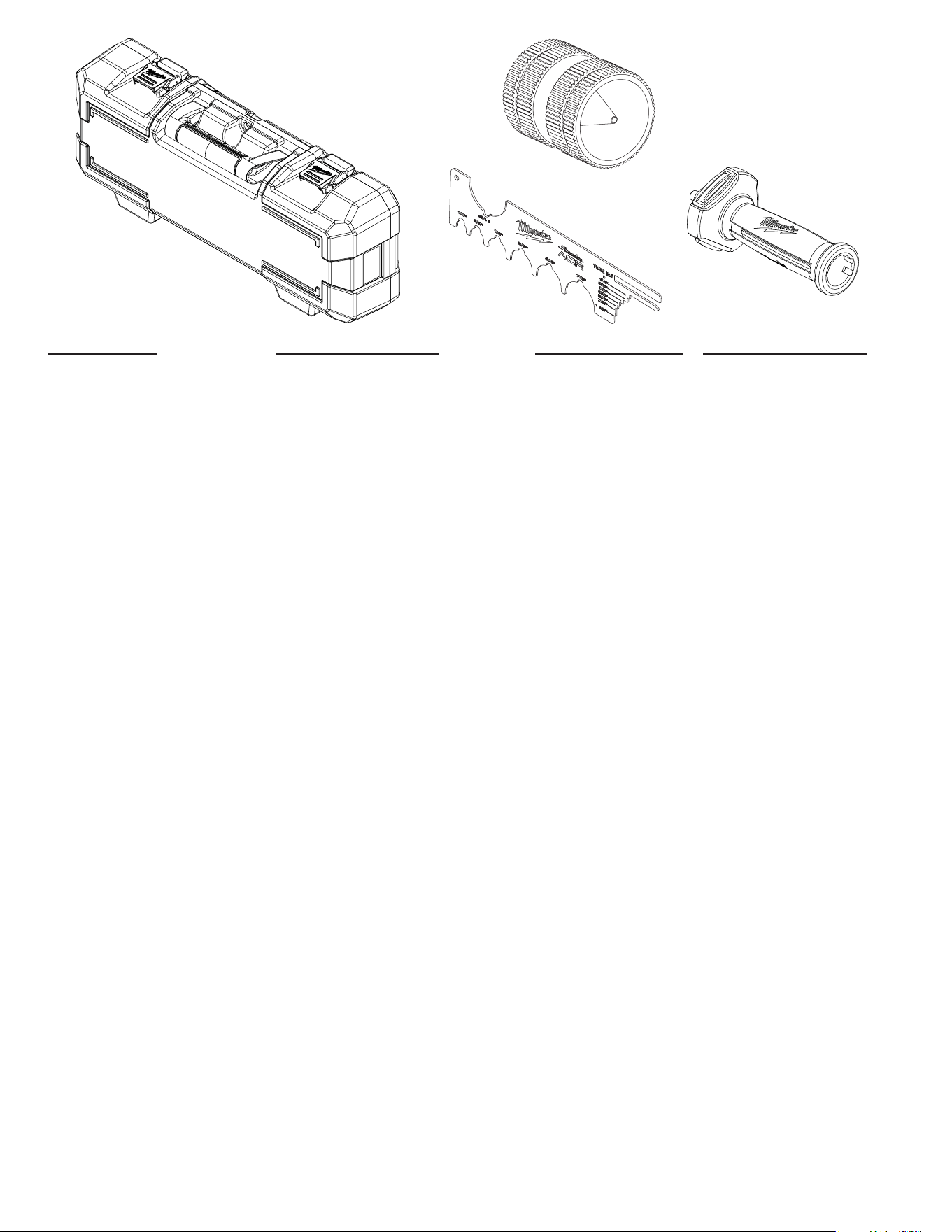

Blow Molded
Case
Cone Reamer
Gauge Side Handle
RLS® is a registered trademark of RLS LLC.
NIBCO® is a registered trademark of NIBCO, Inc.
**Streamline® is a registered trademark of Mueller Industries, Inc. Contact Mueller for cone reamer maintenance and warranty.
ZoomLock MAX® is a registered trademark of Parker Hannin Corporation Sporlan Valve Division.
>B< MaxiPro® is a registered trademark of Conex Bänninger.
