FRONT AXLE UPPER BALL JOINT EXTRACTOR/
INSTALLER - VW T4
MODEL NO:VSE725.V2
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
instruction
manual
VSE725.V2 Issue:2 (H,F) 15/05/23
Original Language Version
© Jack Sealey Limited
1. SAFETY
WARNING! Ensure Health and Safety, local authority and general workshop practice regulations are adhered to when using tools.
9 Maintain the tool components in good and clean condition for best and safest performance.
9 Ensure that a vehicle which has been jacked up is adequately supported with axle stands.
9 Wear approved eye protection. A full range of personal safety equipment is available from your Sealey stockist.
9 Wear suitable clothing to avoid snagging. DO NOT wear jewellery and tie back long hair.
9 Keep children and other unauthorised persons away from the working area.
9 Ensure there is adequate lighting prior to using the ball joint replacement tool.
8 DO NOT use the kit if any parts are missing or damaged.
8 DO NOT use the ball joint replacement tool for any purpose other than that for which it is designed.
IMPORTANT: These instructions are intended as a guide only. Always refer to the vehicle manufacturer’s service instructions or a
proprietary manual to establish the current procedure.
2. INTRODUCTION
Suitable for removing and installing the upper front ball joint in situ without the need to disassemble. Features various adaptors used in
different combinations for extracting and installing. Supplied in a storage case with each part numbered for simple selection.
3. APPLICATIONS
Model No: .............................................VSE725.V2
Applications: ................. VW: T4 2000cc, T4 2500cc
4. CONTENTS
Wear eye
protection

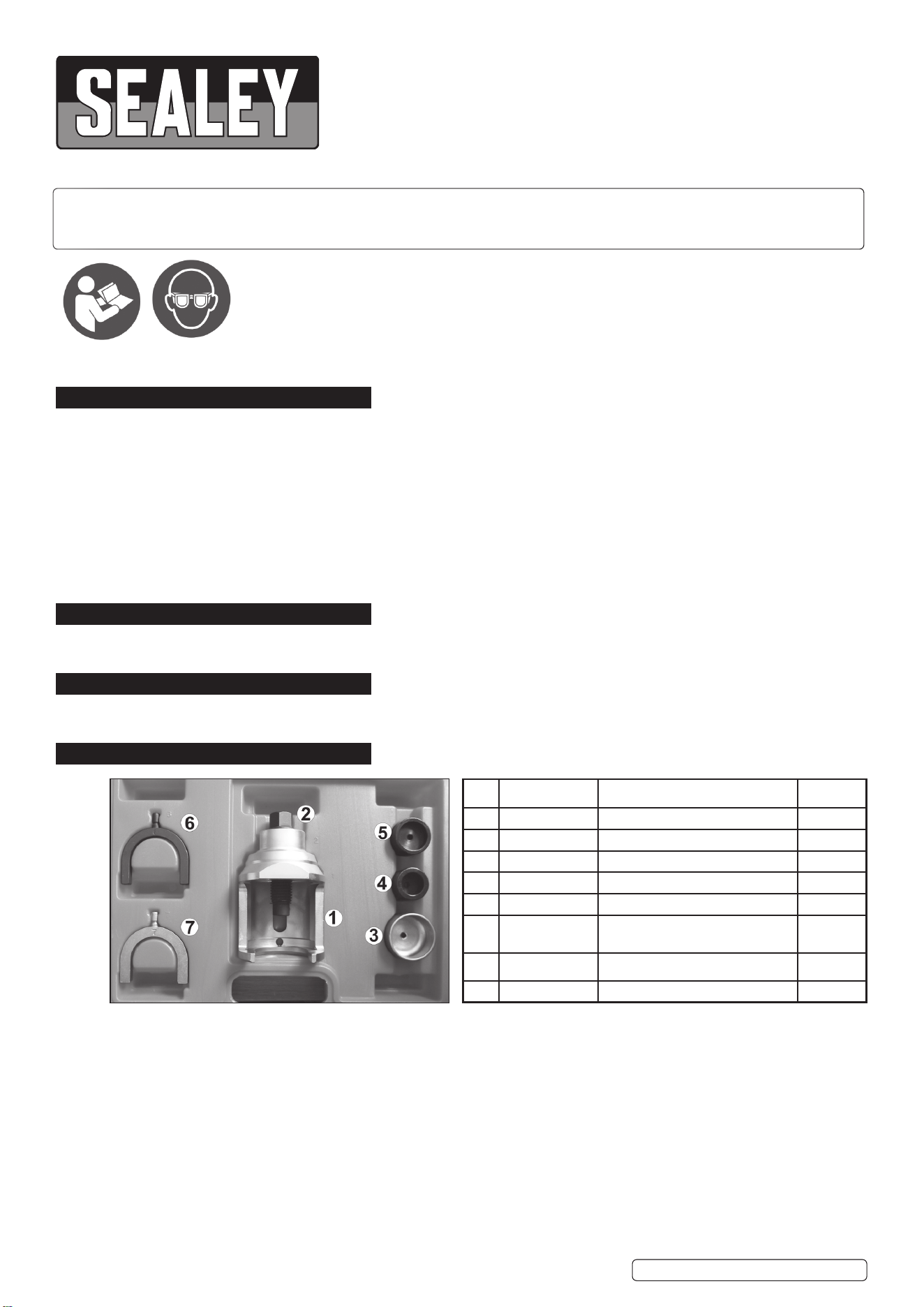

NO Part Number Description Quantity
1 VSE725.V2-01 Main body 1
2 VSE725.V2-02 Screw 1
3 VSE725.V2-03 Installing xed base 1
4 VSE725.V2-04 Removing guide ring (35mm) 1
5 VSE725.V2-05 Removing guide ring (40mm) 1
6 VSE725.V2-06 C-shaped removing bracket
(black)
1
7 VSE725.V2-07 C-Shaped Removing Bracket (7) 1
VSE725.V2-07 Blow mould case 1
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 sales@sealey.co.uk www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted,
taken to a recycling centre and disposed of in a manner which is compatible with the environment. When the product
becomes completely unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and
dispose of the product and fluids according to local regulations.
VSE725.V2 Issue:2 (H,F) 15/05/23
Original Language Version
© Jack Sealey Limited
REGISTER YOUR
PURCHASE HERE
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice. Please note that other versions of this product are available. If you require documentation for alternative versions, please email or call
our technical team on technical@sealey.co.uk or 01284 757505.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.

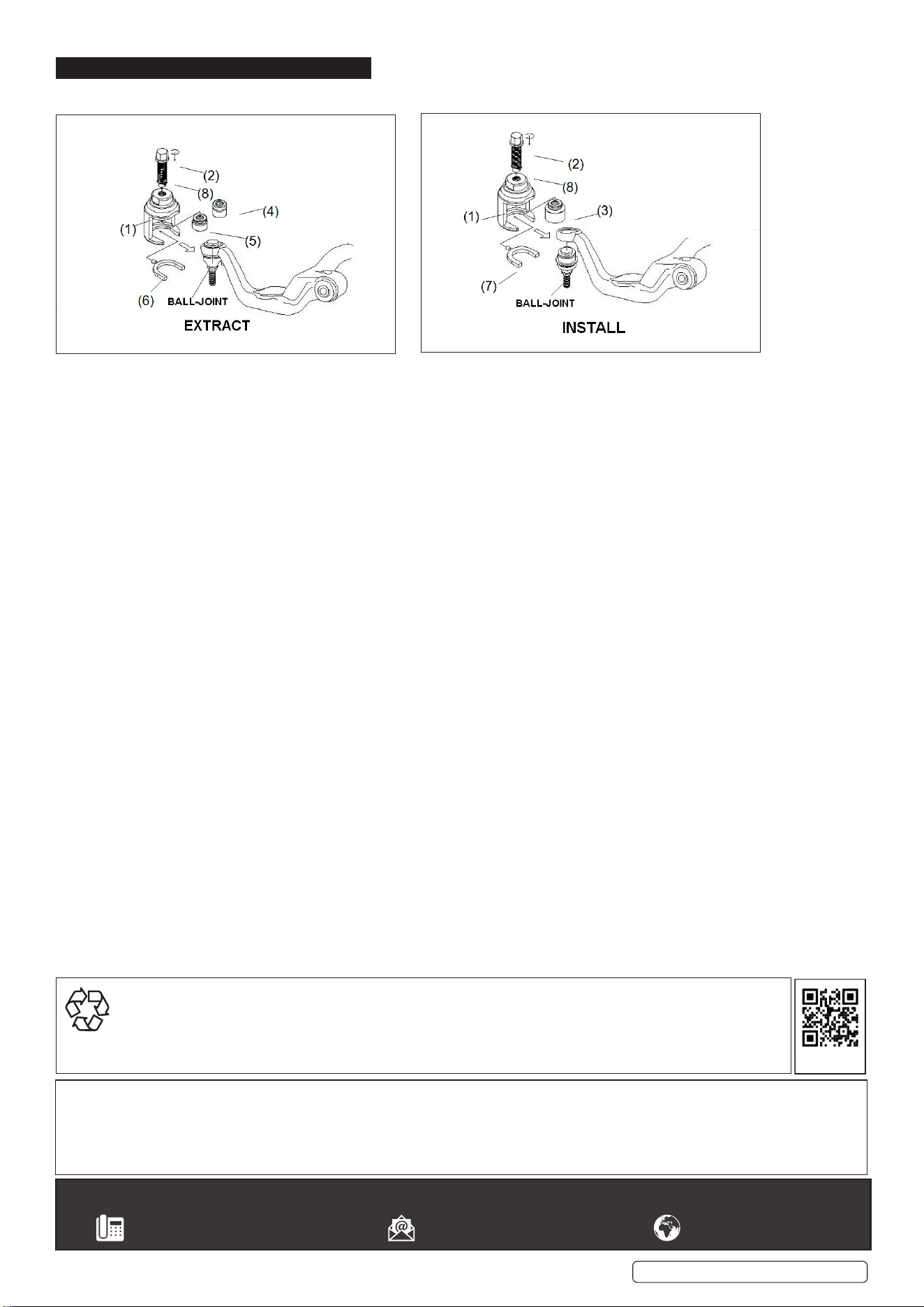

5. OPERATION
NOTE: Clean and lubricate the thrust screw threads and grease before use.
