BAUMR-AG SAWTWDBMP7CA LCS-700 Portable Log Circular Saw, User Manual

User Manual

[Revision 1.0 September 2023]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY

VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance,

assembly, inclusions, specifications, description, and packaging.

The product is NOT supplied with engine oil, although traces of oil from the manufacturing process may be present. It is essential to add

adequat

e engine oil of the correct type to the engine before use. Failure to add engine oil will void the product warranty.

LCS-700 Circular Log Saw

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or

equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be INJURED if you do

not follow instructions or equipment

damage may occur.

It is vital that you read and understand this

user manual before using the product,

including safety warnings, and any assembly

and operating instructions. Keep the manual

for future reference.

Safety precautions and recommendations

detailed here must be fully understood and

followed to reduce the risk of injury, fire,

explosion, electrical hazard, and/or property

damage.

Safety information presented here is generic

in nature – some advice may not be

applicable to every product. The term

"equipment" refers to the product, be it

electrical mains powered, battery powered or

combustion engine powered.

• Before Use - If you are not familiar with the

safe operation/handling of the equipment or

are in any way unsure of any aspect of

suitability or correct use for your

application, you should complete training

conducted by a person or organization

qualified in safe use and operation of this

equipment, including fuel/electrical handling

and safety.

• Do NOT operate the equipment in

flammable or explosive environments, such

as in the presence of flammable liquids,

gases, or dust. The equipment may create

sparks or heat that may ignite flammable

substances.

• Keep clear of moving parts.

• Equipment may be a potential source of

electric shock or injury if misused.

• Do NOT operate the equipment if it is

damaged, malfunctioning or is in an

excessively worn state.

• Do NOT allow others to use the equipment

unless they have read this manual and are

adequately trained.

• Keep packaging away from children - risk

of suffocation! Operators must use the

equipment correctly. When using the

equipment, consider conditions and pay

due care to persons and property.

General Work Area Safety

• Work areas should be clean and well it.

• Do not operate the equipment if

bystanders, animals etc are within

operating range of the equipment or the

general work area.

• If devices are provided for connecting dust

extraction / collection facilities, ensure

these are connected and used properly.

Dust collection can reduce dust-related

hazards.

General Personal Safety

• Wear appropriate protective equipment

when operating, servicing, or when in the

operating area of the equipment to help

protect from eye and ear injury, poisoning,

burns, cutting and crush injuries. Protective

equipment such as safety goggles,

respirators, non-slip safety footwear, hard

hat, hearing protection etc should be used

for appropriate equipment / conditions.

Other people nearby should also wear

appropriate personal protective equipment.

Do not wear loose clothing or jewellery,

which can be caught in moving parts. Keep

hair and clothing away from the equipment.

• Stay alert and use common sense when

operating the equipment. Do not over-

reach. Always maintain secure footing and

balance.

• Do not use the equipment if tired or under

the influence of drugs, alcohol, or

medication.

• This equipment is not intended for use by

persons with reduced physical, sensory, or

mental capabilities.

General Fuel Safety

• Petrol/fuel/gasoline is extremely flammable

– keep clear of naked flames or other

ignition sources.

• Do not spill fuel. If you spill fuel, wipe it off

the equipment immediately – if fuel gets on

your clothing, change clothing.

• Do NOT smoke near fuel or when

refuelling.

• Always shut off the engine before

refuelling.

• Do NOT refuel a hot engine.

• Open the fuel cap carefully to allow any

pressure build-up in the tank to release

slowly.

• Always refuel in well ventilated areas.

• Always check for fuel leakage. If fuel

leakage is found, do not start, or run the

engine until all leaks are fixed.

General Carbon-Monoxide Safety

• Using a combustion engine indoors CAN

KILL IN MINUTES. Engine exhaust

contains carbon-monoxide – a poison you

cannot smell or see.

• Use combustion engines OUTSIDE only,

and far away from windows, doors, and

vents.

General Equipment Use and Care

• The equipment is designed for domestic

use only.

• Handle the equipment safely and carefully.

• Before use, inspect the equipment for

misalignment or binding of moving parts,

loose components, damage, or any other

condition that may affect its operation. If

damaged, have the equipment repaired by

an authorised service centre or technician

before use.

• Prevent unintentional starting of the

equipment - ensure equipment and power

switches are in the OFF position before

connecting or moving equipment. Do not

carry equipment with hands or fingers

touching any controls. Remove any tools or

other items that are not a part of the

equipment from it before starting or

switching on.

• Do not force the equipment. Use the

correct equipment for your application.

Equipment will perform better and be safer

when used within its design and usage

parameters.

• Use the equipment and accessories etc. in

accordance with these instructions,

considering working conditions and the

work to be performed. Using the equipment

for operations different from those intended

could result in hazardous situations.

• Always keep equipment components

(engines, hoses, handles, controls, frames,

housings, guards etc) and accessories

(cutting tools, nozzles, bits etc) properly

maintained. Keep the equipment clean and,

where applicable, properly lubricated.

• Store the equipment out of reach of

children or untrained persons. To avoid

burns or fire hazards, let the equipment

cool completely before transporting or

storing. Never place or store the equipment

near flammable materials, combustible

gases, or liquids etc.

• The equipment is not weather-proof, and

should not be stored in direct sunlight, at

high ambient temperatures or locations that

are damp or humid.

• Do not clean equipment with solvents,

flammable liquids, or harsh abrasives.

• For specific equipment safety use and care,

see Equipment Safety.

LCS-700 Circular Log Saw

General Electrical Safety

• Inspect electrical equipment, extension

cords, power bars, and electrical fittings for

damage or wear before each use. Repair or

replace damaged equipment immediately.

• Ensure all power sources conform to

equipment voltage requirements and are

disconnected before connecting or

disconnecting equipment.

• When wiring electrically powered

equipment, follow all electrical and safety

codes.

• Wherever possible, use a residual current

device (RCD).

• High voltage / high current power lines may

be present. Use extreme caution to avoid

contact or interference with power lines.

Electrical shock can be fatal.

General Electrical Safety

• Electrically grounded equipment must have

an approved cord and plug and be

connected to a grounded electrical outlet.

• Do NOT bypass the ON/OFF switch and

operate equipment by connecting and

disconnecting the electrical cord.

• Do NOT use equipment that has exposed

wiring, damaged switches, covers or

guards.

• Do NOT use electrical equipment in wet

conditions or in damp locations.

• Do NOT use electrical cords to lift, move or

carry equipment.

• Do NOT coil or knot electrical cords, and

ensure electrical cords are not trip hazards.

General Service Information

• The equipment must be serviced or

repaired at authorised service centres by

qualified personnel only.

• Replacement parts must be original

equipment manufacturer (OEM) to ensure

equipment safety is maintained.

• Do NOT attempt any maintenance or repair

work not described in this manual.

• After use, the equipment and components

may still be hot – allow the equipment to

cool and disconnect spark plugs and/or

electrical power sources and/or batteries

from it before adjusting, changing

accessories, or performing repair or

maintenance.

• Do NOT adjust while the equipment is

running.

• Perform service-related activities in suitable

conditions, such as a workshop.

• Replace worn, damaged or missing

warning/safety labels immediately.

Child Choking Hazard!

• WARNING: CHOKING HAZARD - CHILDREN UNDER 8 YRS. CAN CHOKE OR SUFFOCATE ON SMALL PARTS. ADULT

SUPERVISION REQUIRED.

• Carefully inspect anything a baby or child could gain access to, including this product & packaging.

• Dangers include anything of a size that could become stuck or lodged in a baby or child's airway.

• Dangers include things like raw, hard fruit and vegetable pieces, large pieces of meat, bones or sausage skins, popcorn, nuts,

hard lollies and corn chips, small magnets and batteries, coins, beads, marbles and small uninflated balloons, broken toys and smaller toys,

buttons, keys, and coins. But there are also many more.

• Pay particular attention to accessories, nuts, bolts, screws, washers, caps, covers, loose parts, parts that could be removed or break off, pieces

of packaging, staples, tape etc.

• In the case of any doubt, secure the item of concern in an appropriate manner, or completely remove the possibility of access by a baby or child.

Important Safety Information

• In the operating process, fixed on a level surface in machine, the machine is the ground near the level, maintain good, no loose materials (such

as wood shavings, standard compound).

• When found shields or saw blades failure shall immediately report.

• The safety measures to cleaning, maintenance and cleaning of wood and eliminate the risk of fire dust.

• The case it's necessary, wear appropriate personal protective equipment; May include:

• Hearing protection facilities caused by reducing the risk of hearing loss.

• Breathing protection facilities to reduce the risk of harm inhalation of dust.

• Touch saw blades, the need to bring the protective gloves (where practicable, saw blade should be put in a fixed thing).

• When no one in the machine when besides, should stop the machine operation.

• The correct use of sharp saw blades.

• Ensure flange is applicable to the provisions of the manufacturers purpose.

• When the machine is running, should stop in cutting area clear scraps or other artifacts (special circumstances, can consider putting through to).

• Make sure the machine operation must protective equipment and safety equipment in the right place, has the good work order, and the correct

maintenance.

• WARNING READ ALL SAFETY WARNINGS AND INSTRUCTIONS. FAILURE TO FOLLOW THE WARNINGS AND INSTRUCTIONS MAY

RESULT IN FIRE AND/OR SERIOUS INJURY. SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE.

Work Area Safety

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.

• Do not operate this machine in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.

• Keep children and bystanders away while operating this machine. Distractions can cause you to lose control.

Personal safety

• Stay alert, watch what you are doing and use common sense when operating this machine. Do not use while you are tired or under the influence

of drugs, alcohol, or medication. A moment of inattention while operating may result in serious personal injury.

• Use safety equipment. Always wear SAA approved eye protection. Safety equipment such as dust mask, non-skid safety shoes, hard hat, or

hearing protection used for appropriate conditions will reduce personal injuries.

LCS-700 Circular Log Saw

• Remove any adjusting key or wrench before turning the machine on. A wrench or a key left attached to a rotating part of the machine may result

in personal injury.

• Do not overreach. Keep proper footing and balance at all times. This enables better control of the machine in unexpected situations.

• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewellery or

long hair can be caught in moving parts.

• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these

devices can reduce dust-related hazards.

Saw Bench Use and Care

• Use clamps (not included) or other practical ways to secure and support workpiece to a stable platform. Holding workpiece by hand or against

your body is unstable and may lead to loss of control.

• Do not force the SAW BENCH. Use the correct SAW BENCH for your application. The correct machine will do the job better and safer at the rate

for which it was designed.

• Do not force material into Saw Blade when cutting. Apply moderate pressure, allowing the Saw Blade to cut without being forced.

• Shut off engine and keep the blade stop before making any adjustments, changing accessories, or storing machine. Such preventive safety

measures reduce the risk of starting the machine accidentally.

• Store idle SAW BENCH out of the reach of children and do not allow persons unfamiliar with machine or these instructions to operate the

machine. SAW BENCHs are dangerous in the hands of untrained users.

• Maintain SAW BENCH. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the

machine’s operation. If damaged, have the machine repaired before use. Many accidents are caused by poorly maintained machine.

• Keep blade sharp and clean. Properly maintained cutting blade with sharp cutting edges are less likely to bind and are easier to control.

• Use the machine, accessories, and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to

be performed. Use this machine for operation different from those intended could result in a hazardous situation.

Service

• Have your machine serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the machine is

maintained.

Vibration Safety

This machine vibrates during use. Repeated or long-term exposure to vibration may cause temporary or permanent physical injury, particularly to

the hands, arms and shoulders. To reduce the risk of vibration-related injury:

• Anyone using vibrating machine regularly or for an extended period should first be examined by a doctor and then have regular medical check-

ups to ensure medical problems are being caused or worsened from use. Pregnant women or people who have impaired blood circulation to the

hand, past hand injuries, nervous system disorders, diabetes, or Raynaud’s Disease should not use this machine. If you feel any medical or

physical symptoms related to vibration (such as tingling, numbness, and white or blue fingers), seek medical advice as soon as possible.

• Do not smoke during use. Nicotine reduces the blood supply to the hands and fingers, increasing the risk of vibration-related injury.

• Wear suitable gloves to reduce the vibration effects on the user.

• Use tools with the lowest vibration when there is a choice between different processes.

• Include vibration-free periods each day of work.

• Grip machine as lightly as possible (while still keeping safe control of it). Let the machine do the work.

• To reduce vibration, maintain the machine as explained in this manual. If any abnormal vibration occurs, stop use immediately.

Specific Safety Warnings

• Maintain labels on the machine. These carry important safety information.

• Avoid unintentional starting. Prepare to begin work before operating the machine.

• Industrial applications must follow OSHA requirements.

• Check for damaged parts. Before using this product, carefully check that it will operate properly and perform its intended function. Check for

damaged parts and any other conditions that may affect the operation of this product. Replace or repair damaged or worn parts immediately.

• Do not use this tool for cutting metals or brittle materials. Do not cut dangerous materials, such as asbestos which can cause harmful dust or

vapours.

• Allow the Saw Blade to spin up to full speed before feeding wood into it. When turning it off, allow the Saw Blade to spin down and stop on its

own. Do not press against the Saw Blade to stop it.

• Never pass hands directly over the Saw Blade when cutting the workpiece.

• Never attempt to remove material stuck in the moving parts of the SAW BENCH while it is plugged in and running.

• Always feed the wood stock into the Saw Blade and against its rotation.

• Make sure the wood stock is supported at all times while sawing. Use a Roller Stand (not provide) with larger wood stocks if necessary.

• Before trying new or complicated techniques, study the procedure, and practice with scrap wood.

• Make sure the wood stock is free from loose knots, flaws, nails, and from any other foreign objects that could damage the Saw Blade or cause

“kickback”.

• Causes and operator prevention of “kickback”: Kickback is a sudden reaction to a pinched, bound, or misaligned Saw Blade, causing an

uncontrolled wood stock to lift up and out of the SAW BENCH toward the operator. When the Saw Blade is pinched or bound tightly by the kerf

closing down, the Saw Blade stalls, and the motor reaction drives the tool rapidly back toward the operator. If the Saw Blade becomes twisted or

misaligned in the cut, the teeth at back edge of the Saw Blade can raise the workpiece (walk-up) and eject it towards the operator. Kickback is a

result of tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below:

• Maintain control of the wood stock at all times. Never allow the wood stock to rest on the moving Saw Blade without holding on to it.

LCS-700 Circular Log Saw

• When the Saw Blade is binding, or when interrupting a cut for any reason, turn off the engine and hold the stock motionless on the SAW

BENCH until the Saw Blade comes to a complete stop. Never attempt to remove the wood stock from the SAW BENCH or pull the wood stock

backward while the Saw Blade is in motion or kickback may occur. Investigate and take corrective actions to eliminate the cause of Saw Blade

binding.

• When restarting a wood stock on the SAW BENCH, centre the Saw Blade in the pre-cut kerf and check that saw teeth are not engaged into the

wood stock. If the Saw Blade is binging, the wood stock may walk up or kickback from the workpiece as the SAW BENCH is restarted.

• Support large panels to minimize the risk of Saw Blade pinching and kickback. Large panels tend to sag under their own weight. Supports must

be placed under the panel and near the outer edge of the panel.

• Do not use dull or damaged Saw Blade. Unsharpened or improperly set Saw Blades produce a narrow kerf causing excessive friction, Saw

Blade binding and kickback.

• Never rip a wood stock that is twisted or warped or does not have a straight edge to guide along the Rip Fence.

• Push the wood stock past the Saw Blade prior to release.

• Check all guards for proper operation before each use. Never disable any guards. Do not operate the SAW BENCH if the Guard Assembly does

not move freely and close instantly. Before each use, raise the Guard Assembly and make sure it moves freely and does not touch the Saw

Blade or any other part, in all angles and depths of cut.

• Always use the proper size and type of Saw Blade

• Never perform layout, assembly, or setup work on the table of the SAW BENCH when the machine is running.

• Always turn off the engine before performing any services, maintenance, or cleaning such as leaving the work area, moving the tool from one

location to another, changing Saw Blades, cleaning sawdust from the unit, etcetera.

• Before use, the SAW BENCH should be placed on a flat, stable surface, capable of supporting the weight of the tool and workpiece, and any

additional pressure caused by working on it.

• The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may

occur. It must be understood by the operator that common sense and caution are factors which cannot be built into this product but must be

supplied by the operator.

DANGER

Running combustion engines in confined

areas CAN KILL IN MINUTES. Engine

exhaust fumes contain carbon-monoxide –

a deadly gas that you cannot smell or see.

NEVER run a combustion engine in

confined areas EVEN IF windows and doors

are open. ONLY run petrol engines

OUTDOORS and away from doors,

windows, and vents.

Do not operate the equipment in hazardous locations, such

as where there may be a risk of fire or explosions from

flammable liquids, gases, or dust.

Do not operate the equipment in confined areas where

exhaust gases, smoke or fumes could reach dangerous

concentrations.

Do not refuel a combustion engine while it is running on or

hot.

Never smoke while refuelling combustion engines or

handling flammable substances.

For generators, the electrical output is potentially lethal and

must only be connected to a fixed electrical installation by

an appropriately licensed person.

Be aware that the equipment may include hazardous

components, such as blades, hot surfaces and moving

parts.

Handle any flammable substance with extreme caution.

•

Be aware that the equipment may include hazardous components, such as blades, hot surfaces and

moving parts.

•

Moving blades can cause serious injury and even death if used improperly or without sufficient PPE.

•

Do not use this equipment on uneven surfaces and always maintain good balance when using this

equipment. Failure to do so may cause serious injury.

•

Maintain a secure grip of the trigger assembly at all times.

LCS-700 Circular Log Saw

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on your

product and their meanings. If any stickers become unreadable, unattached etc., replace them.

Flammable Material Hazard

Flammable liquids, gases, or

substances etc may present.

Avoid ignition sources and open

flames. Danger of fire.

Read User Manual

Read and fully understand

product safety warnings,

operation, procedures etc before

using the product.

Use Hand Protection

Wear appropriate hand protection

and take due care as the product

or use of the product may present

hand hazards.

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be fatal.

Electrocution / Electrical Shock

Hazard

High voltage or high current

electricity may be present or

required by the product. Take

due care when handling electrical

products, cables, plugs and

leads. Electrical shock can be

fatal.

Toxic Fumes / Dust Hazard

Using the product or by-products

from use may produce fumes,

smoke or particles that could be

harmful if inhaled. Wear

appropriate breathing protection

and have adequate ventilation.

Explosive Material Hazard

Combustible liquids, gases, or

substances etc may be present.

Avoid ignition sources and open

flames. Danger of explosion.

Cutting / Amputation Hazard

The product may have blades,

edges or mechanical devices that

can cause severe cut injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Crush Hazard

The product may have blades,

edges or mechanical devices that

can cause severe crush injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Single Operator Only

The product must be operated by

a single person only. More than

one person operating the product

may introduce additional hazards.

Use Face Protection

Wear appropriate full-face

protection and take due care as

the product or use of the product

may present face and eye

hazards.

Use Foot Protection

Wear appropriate foot protection

and take due care as the product

or use of the product may present

foot hazards.

Use Eye / Ear / Head Protection

Wear appropriate eye and / or

ear and / or head protection and

take due care as the product or

use of the product may present

eye, hearing, and head hazards.

Running Hazard

Do not run on or near the product

as doing so may present a fall

hazard.

Diving Hazard

Do not dive into the product as

doing so may present a neck /

head injury hazard.

Adult Supervision Required

Always supervise children and

other users of a product to

prevent drowning or injury.

Skin Penetration / Puncture

Hazard

The product may produce

pressure, emit liquids or objects

that can cause severe injury to

fingers, limbs, blood etc. Take

due care when handling and

using the product.

Hot Surface Hazard

Be aware that the product may

produce high temperatures and

hot surfaces that can cause burn

injuries.

Flying Debris Hazard

Be aware that the product or use

of the product may present

hazards produced by flying

debris. Wear appropriate clothing

and protective devices.

Moving Parts Hazard

Be aware that the product

contains or uses mechanical

devices that move or rotate.

Always wait for moving parts to

stop fully before handling the

product, adjusting, maintenance

etc.

LCS-700 Circular Log Saw

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be fatal.

Pull Hazard

Be aware that the product

contains or uses mechanical

devices that can pull in objects

and can cause severe injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Slope / Fall Injury Hazard

Be aware that using the product

on sloping surfaces or in slippery

conditions may present additional

dangers from falls and contact

with blades, moving parts, hot

surfaces etc.

"Slam Dunk" Warning

Do NOT attempt "slam dunk"

manoeuvres as this may result in

severe injury due to falling,

product breakage or collapse etc.

Electrocution / Electrical Shock

Hazard - Outdoor

High voltage or high current

electricity may be present or

required by the product. Do NOT

use in rain, damp, or wet

conditions. Electrical shock can

be fatal.

Electrocution / Electrical Shock

Hazard - Disconnect

High voltage or high current

electricity may be present or

required by the product. Always

disconnect the product from the

electrical supply before handling

the product, adjusting,

maintenance etc.

Power Line Electrocution

Hazard

High voltage / high current power

lines may be present. Use

extreme caution to avoid contact

or interference with power lines.

Electrical shock can be fatal.

"Kick-Back" Hazard

High level of "kick-back" hazard

that can cause the machine to

suddenly rotate towards operator.

Kick-back injury can be fatal.

Winch Operator Position

Hazard

Do NOT stand between winch

and load. Do NOT use winch to

move people.

Winch Lift Hazard

Do NOT LIFT load vertically. Use

machine to PULL only.

Cable Hazard

Ensure that load bearing cable is

not kinked or knotted.

Winch Cable Hazard

Ensure that there is a minimum

number of cable coils on

winching mechanism.

Winch Hook Hazard

Carry hook to load – do NOT

throw or run.

Flash / Blinding Hazard

Wear appropriate eye protection

for welding. Direct exposure to

weld arcs may cause permanent

eye injury.

Laser Hazard

Laser may be in use – do NOT

look directly at laser or allow

others to.

Choking Hazard

Children under 8 yrs. Can choke

or suffocate on small parts. Adult

supervision required.

LCS-700 Circular Log Saw

Table of Contents

Safety ............................................................................................................................................................. 2

Safety Symbols ........................................................................................................................................................... 6

Parts Identification ....................................................................................................................................... 9

Explosive Diagram ...................................................................................................................................... 10

Assembly ..................................................................................................................................................... 14

How to Change the Saw Blade .................................................................................................................. 19

Operation ..................................................................................................................................................... 20

Towing ...................................................................................................................................................................... 20

Operating Zone ......................................................................................................................................................... 20

Adjusting the Engine ................................................................................................................................................. 21

Noise Level ............................................................................................................................................................... 22

Whole Life Cycle ....................................................................................................................................................... 22

Common Failures ..................................................................................................................................................... 22

Maintenance ................................................................................................................................................ 23

Specifications ............................................................................................................................................. 24

LCS-700 Circular Log Saw

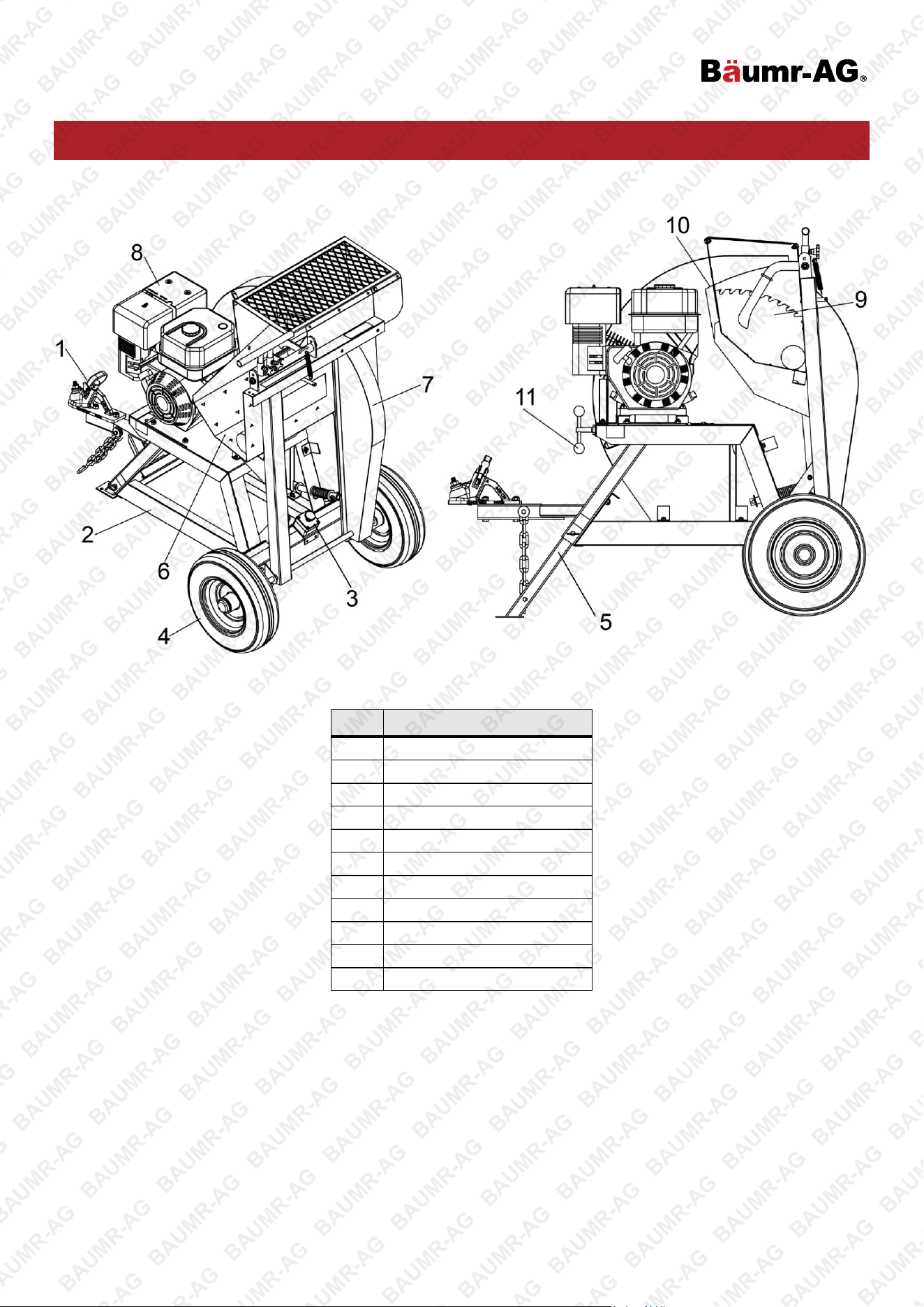

Parts Identification

No. Name

1

50mm Coupler

2

Frame

3

Emergency Stop Switch

4 Wheel Assembly

5 Support Leg

6 Operating Platform

7

Large Cover

8

Engine

9

Saw Bit

10 Belt Cover

11

Belt Tensioner

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

LCS-700 Circular Log Saw

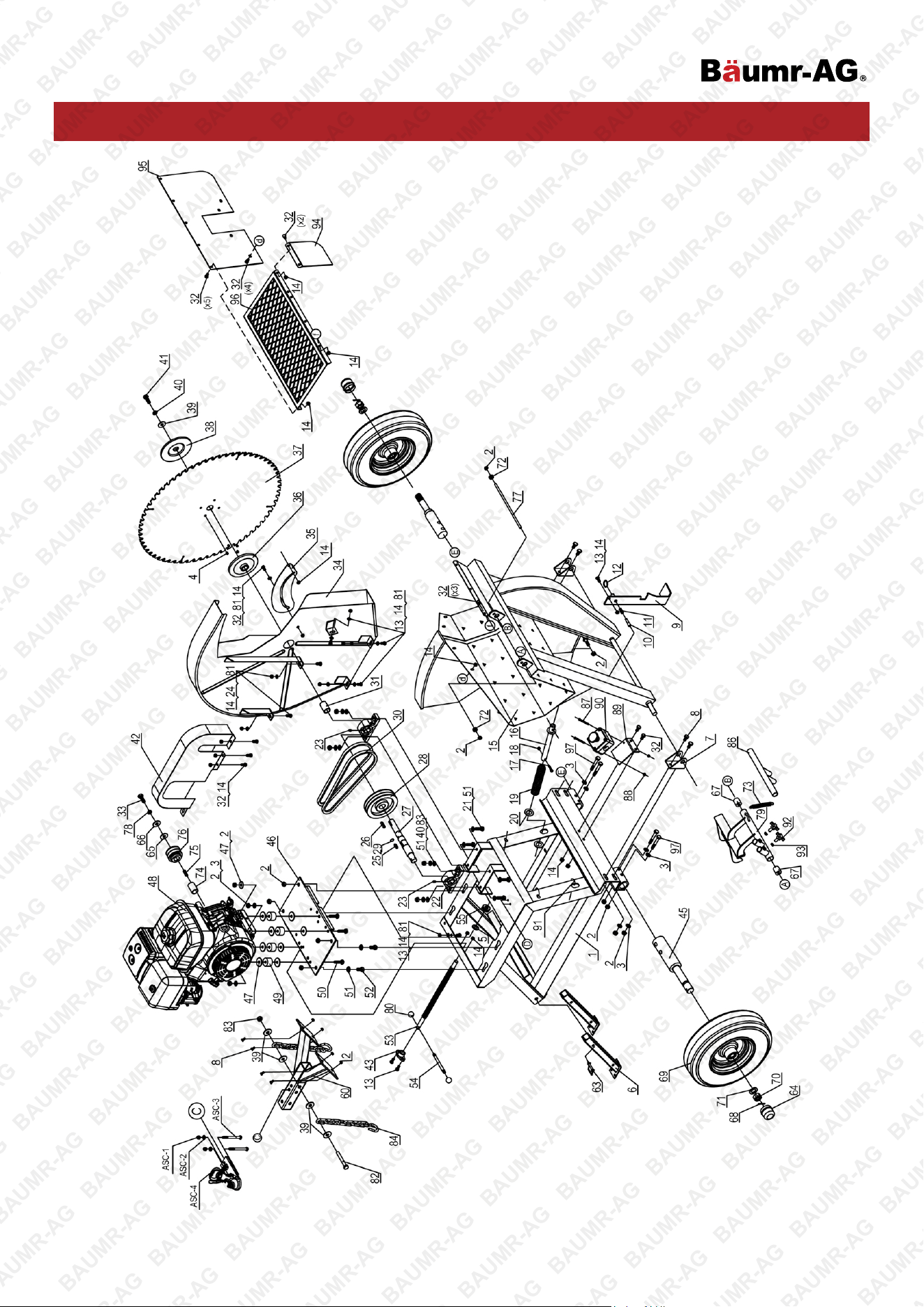

Explosive Diagram

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

LCS-700 Circular Log Saw

Part # Drawing No. Description Qty.

1 SMA700-01000 Frame 1

2 9206-10000-DX Nylon Lock Nut M10 23

3 9301-10000-DX Flat Washer Ø10 10

4 SM700-00017 Round PinB8×8 4

5 9301-16000-DX Flat Washer Ø16 1

6 SMA700-04000 Rear Support Leg 2

7 SM700-00001 Wheel Axle Base 2

8 9101-10020-DX8.8 Hex Bolt M10x20 8

9 SM700-06000 Support Leg 1

10 Z330-00008-DX Pawl 1

11 Z330-00003-FH Spring B 1

12 Z330-00017-DX Key Ring 1

13 9101-08020-DX8.8 Hex Bolt M8x20 7

14 9206-08000-DX Nylon Lock Nut M8 30

15 SMA700-03000 Work Table 1

16 SM700-04000 Pull Rod 1

17 9101-06030-DX8.8 Hex Bolt M6x30 1

18 9206-06000-DX Nylon Lock Nut M6 1

19 SM700-00010-FH Return Spring 1

20 9301-22000-DX Flat Washer Ø22 2

21 9101-12040-DX8.8 Hex Bolt M12x40 4

22 N030-04300 UCP 205 Bearing 2

23 9112-06010-FH12.9 Inner Hex Set Screw M6x10 4

24 9101-08025-DX8.8 Hex Bolt M8x25 2

25 8801-8×7×25-DX Key 8x25 1

26 8801-8×7×32-DX Key 8x32 1

27 SM700-00004-FH Main Shaft 1

28 SM700-00005 Main Shaft Pulley 1

29 9304-28000-FH Snap Ring for Shaft Ø28 1

30 GB11544/A-825 Vee Belt A-825 2

31 SM700-00006-DX Bearing Support Bushing 1

32 9101-08016-DX8.8 Hex Bolt M8x16 20

33 9101-08035-DX8.8 Hex Bolt M8x35 1

34 SM700-02000 Large Cover 1

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

LCS-700 Circular Log Saw

Part # Drawing No. Description Qty.

35 SM700-00009-DX Long Slotted Plate 1

36 SM700-00007 Saw Blade Clamping Plate (Inner) 1

37 SM700-00003 Saw Blade 1

38 SM700-00008 Saw Blade Clamping Plate (Outer) 1

39 9302-12000-DX Big Flat Washer Ø12 5

40 9306-12000-DX Lock Washer Ø12 5

41 9101-12025-DX8.8 Hex Bolt M12x25 1

42 SM700-11000 Belt Cover 1

43 SM700-00016 Rear Crossbeam Base 1

45 SMA700-00001-DY Wheel Axle 2

46 SM700-05000 Engine Mounting Plate 1

47 9302-10000-DX Big Flat Washer Ø10 10

48 - Manual Engine 1

49 LSP35-00001 Polyurethane Block 4

50 9101-10070-DX8.8 Hex Bolt M10x70 4

51 9301-12000-DX Flat Washer Ø12 12

52 SM700-00015-DX Sliding Screw 4

53 SM700-00013-DX Tensioner Screw 1

54 SM700-00014-DX Threaded Rod M8x120 1

55 9605-51203 Thrust Ball Bearing 1

60 SMA700-02000 Tow Bar 1

63 T400-40000-DX Lock Sleeve Pin 2

64 LSP25-00009-DX Axle Cap 2

65 T328-20004 Spacer 1

66 M010-00009-DX Big Flat Washer Ø8 1

67 SM700-00023 Nylon Bushing 2

68 9404-04036-DX Cotter Pin Ø4x36 2

69 LSP25-14000 Wheel Assembly 2

70 LSP25-00020-FH Hex Thin Slotted Nut M20 2

71 9301-20000-DX Flat Washer Ø20 2

72 SM700-00022 Axle Cap 2

73 N390-00003-DX Tension Spring 1

74 LSP35-02004-DX Belt Pulley Spacer Bushing 1

75 8801-7×7×35/DX Key 7x35 1

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

LCS-700 Circular Log Saw

Part # Drawing No. Description Qty.

76 SM701-00001 Engine Pulley 1

77 SM700-00019-DX Threaded Rod M10X350 1

78 9306-08000-DX Lock Washer Ø8 1

79 SM700-08000 Handle Assembly 1

80 SM700-00011 Bakelite Ball 2

81 9302-08000-DX Big Washer Ø8 10

82 9101-12090-DX8.8 Hex Bolt M12x90 1

83 9206-12000-DX Nylon Lock Nut M12 5

84 LSP25-11000-DX Hook Chain 2

86 SM700-13000 Handle 1

87 9110-04060-DX4.8 Cross Groove Bolt M4x60 2

88 9206-04000-DX Nylon Lock Nut M4 2

89 SMA700-00002

Emergency Stop Switch Mounting

Plate

1

90 SMA700-00003 Emergency Stop Switch 1

91 - Nylon Cable Ties 5x300 2

92 T251-60000 Handle Wheel 2

93 9201-10000-DX Hex Nut M10 2

94 SM700-00031 Guard Board 2 1

95 SM700-00030 Guard Board 1

96 SM700-12000 Mesh 1

97 9101-10060-DX8.8 Hex Bolt M10x60 4

ASC-1 9206-12000-DX Nylon Lock Washer Ø12 2

ASC-2 9301-12000-DX Flat Washer Ø12 2

ASC-3 9101-12080-DX8.8 Hex Bolt M12x80 2

ASC-4 Z105 50mm Coupler 1

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

LCS-700 Circular Log Saw

Assembly

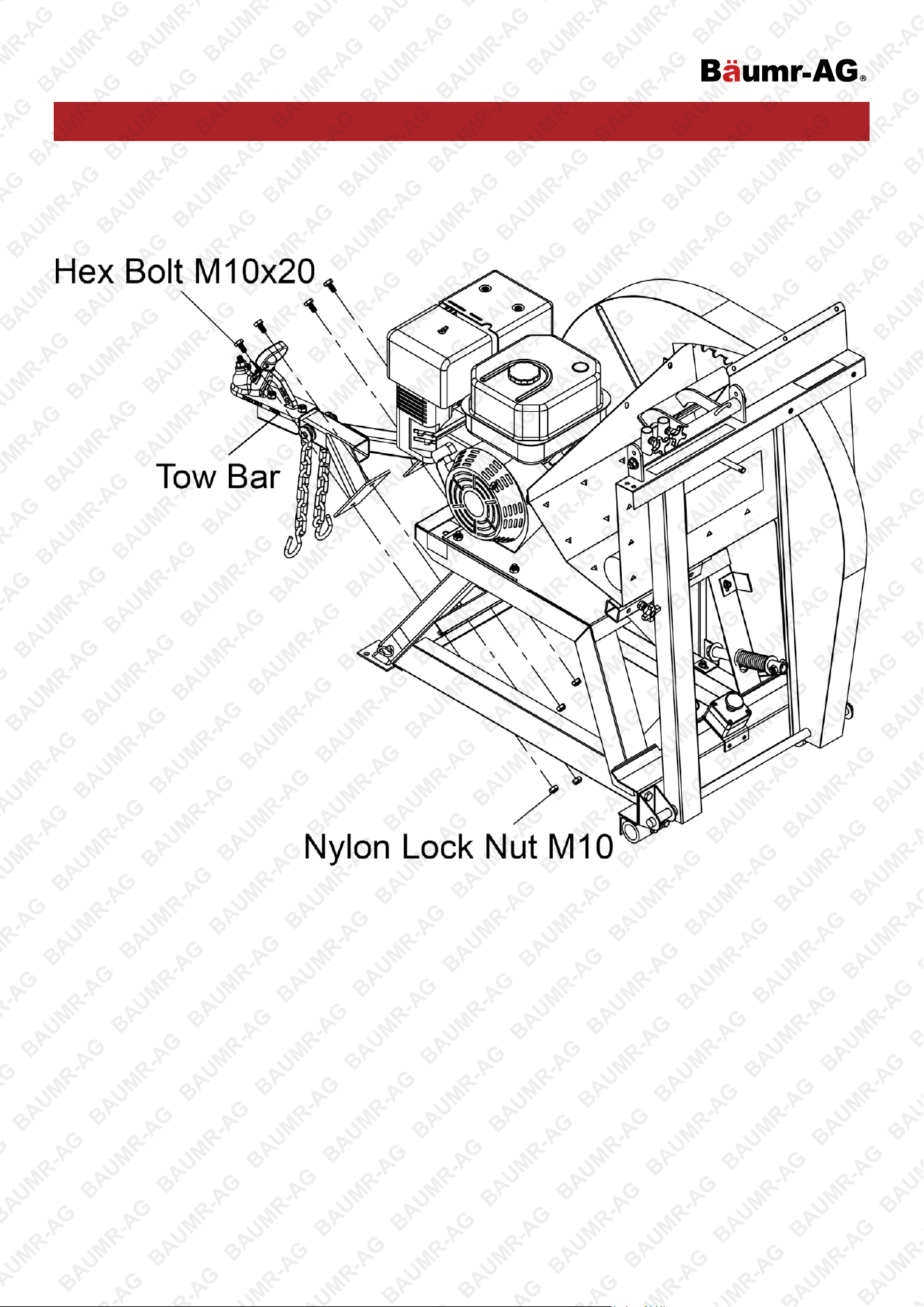

Step 1:

Attach the Tow Bar Mounting Plate to the Rear Crossbeam using Hex Bolt M10x20 (#8) and Nylon Lock Nut

M10 (#2).

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

LCS-700 Circular Log Saw

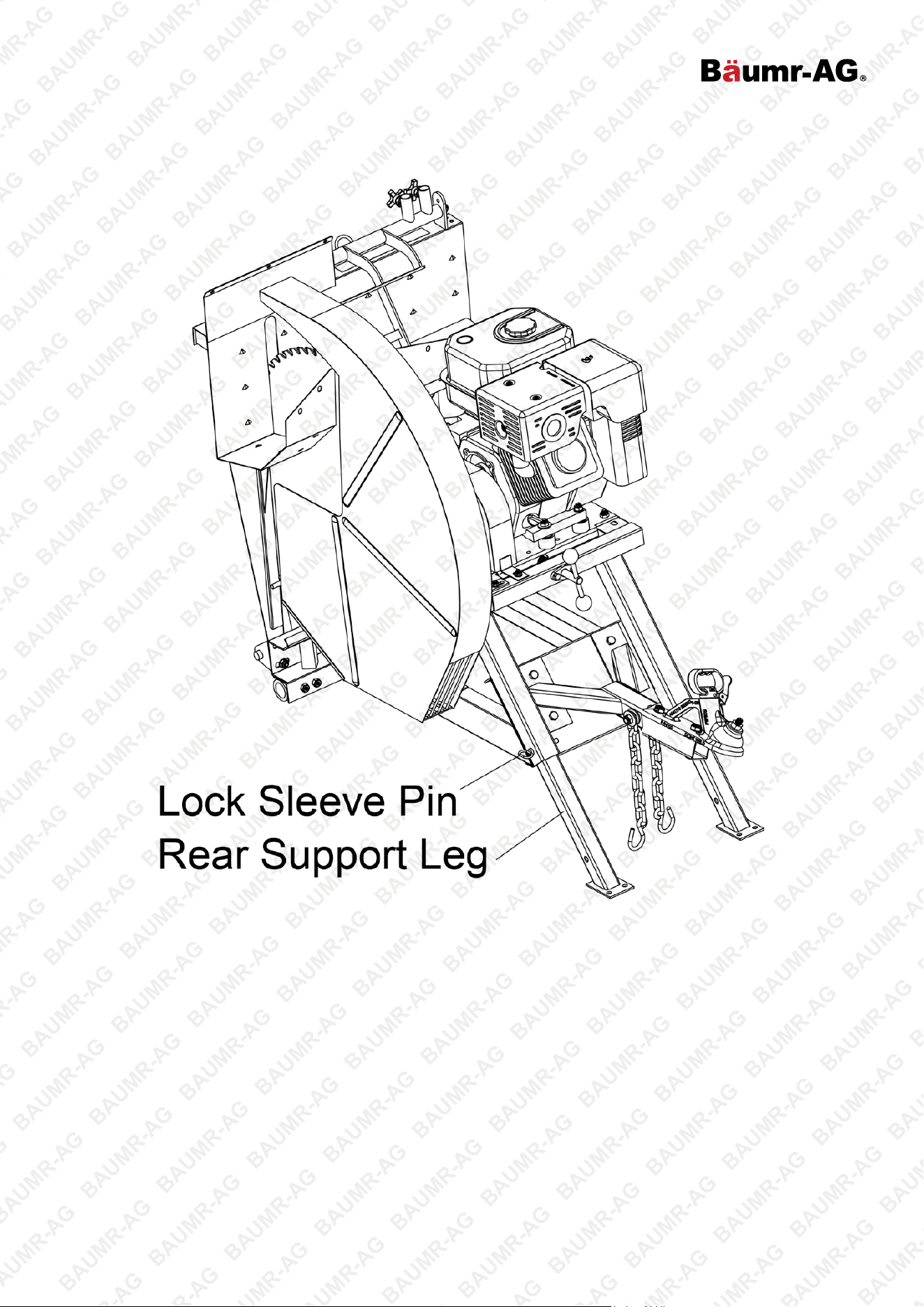

Step 2:

Secure with a lock sleeve pin after pulling out the rear support leg (#6).

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

LCS-700 Circular Log Saw

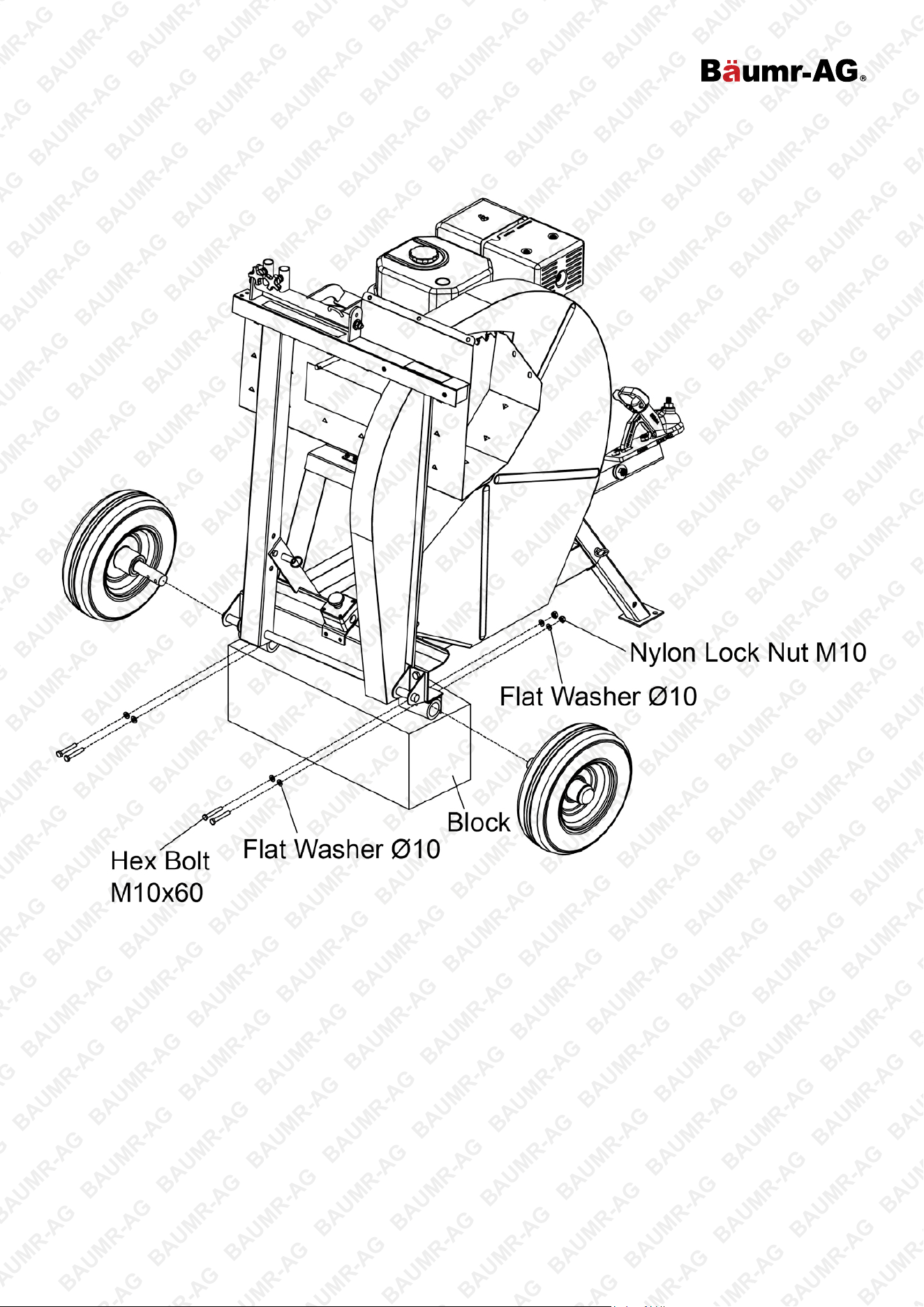

Step 3:

Block up the machine higher than the radius height of wheel (21cm), and make sure the machine is stable.

Then, attach the wheel using hex bolt M10x60 (#97), two flat washers Ø10 (#3) and nylon lock nut M10 (#2).

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

LCS-700 Circular Log Saw

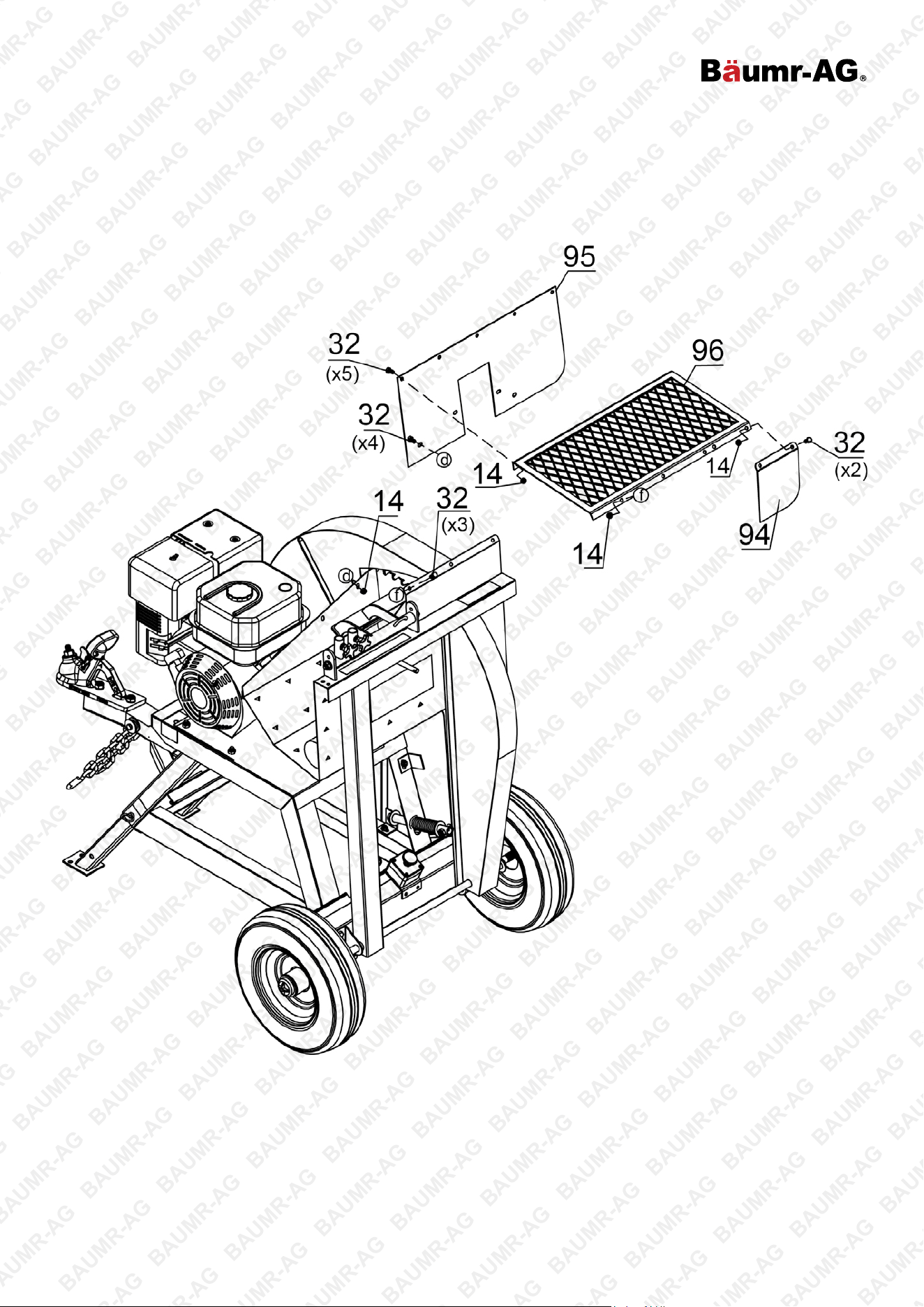

Step 4:

1. Attach mesh (#96) to the worktable using hex bolt M8x16 (#32) and nylon lock nut M8 (#14).

2. Attach guard board (#95) to the mesh and worktable using hex bolt M8x16 (#32) and nylon lock nut M8

(#14).

3. Attach guard board 2 (#94) to the mesh using hex bolt M8x16 (#32) and nylon lock nut M8 (#14).

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

LCS-700 Circular Log Saw

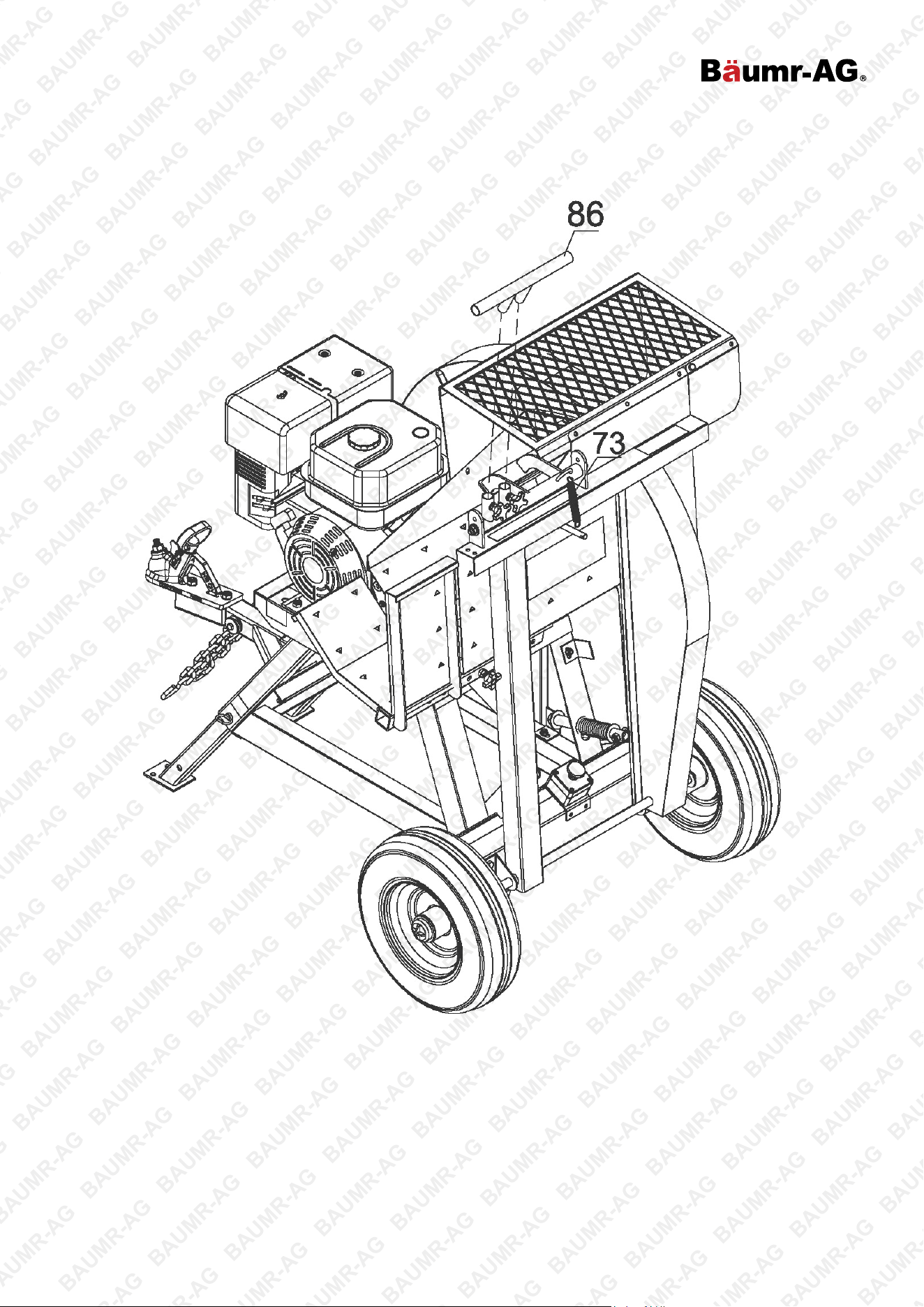

Step 5:

1. Attach handle (#86) to the bushing, adjust the height of handle then tighten with hand wheel.

2. Hook the tension spring (#73) to the handle and the pull rod.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

LCS-700 Circular Log Saw

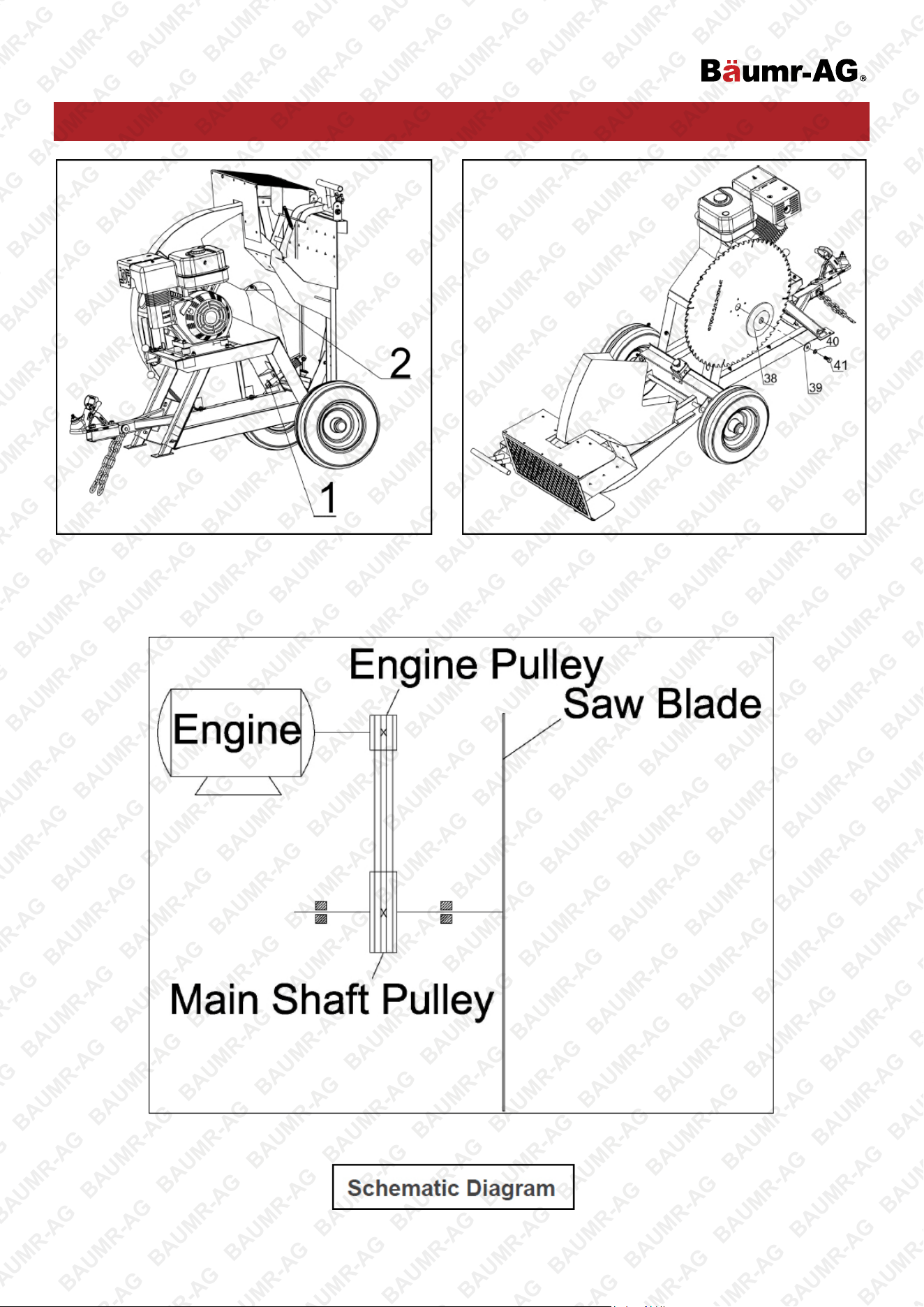

How to Change the Saw Blade

1. Referring to the left picture above, remove the Hex Blot M6x30 and Lock Nut M6 on #1 Pull Rod and Lock

Nut M8 on position #2, put the worktable on ground.

2. Referring to the right picture above, remove the saw blade and change it.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

LCS-700 Circular Log Saw

Operation

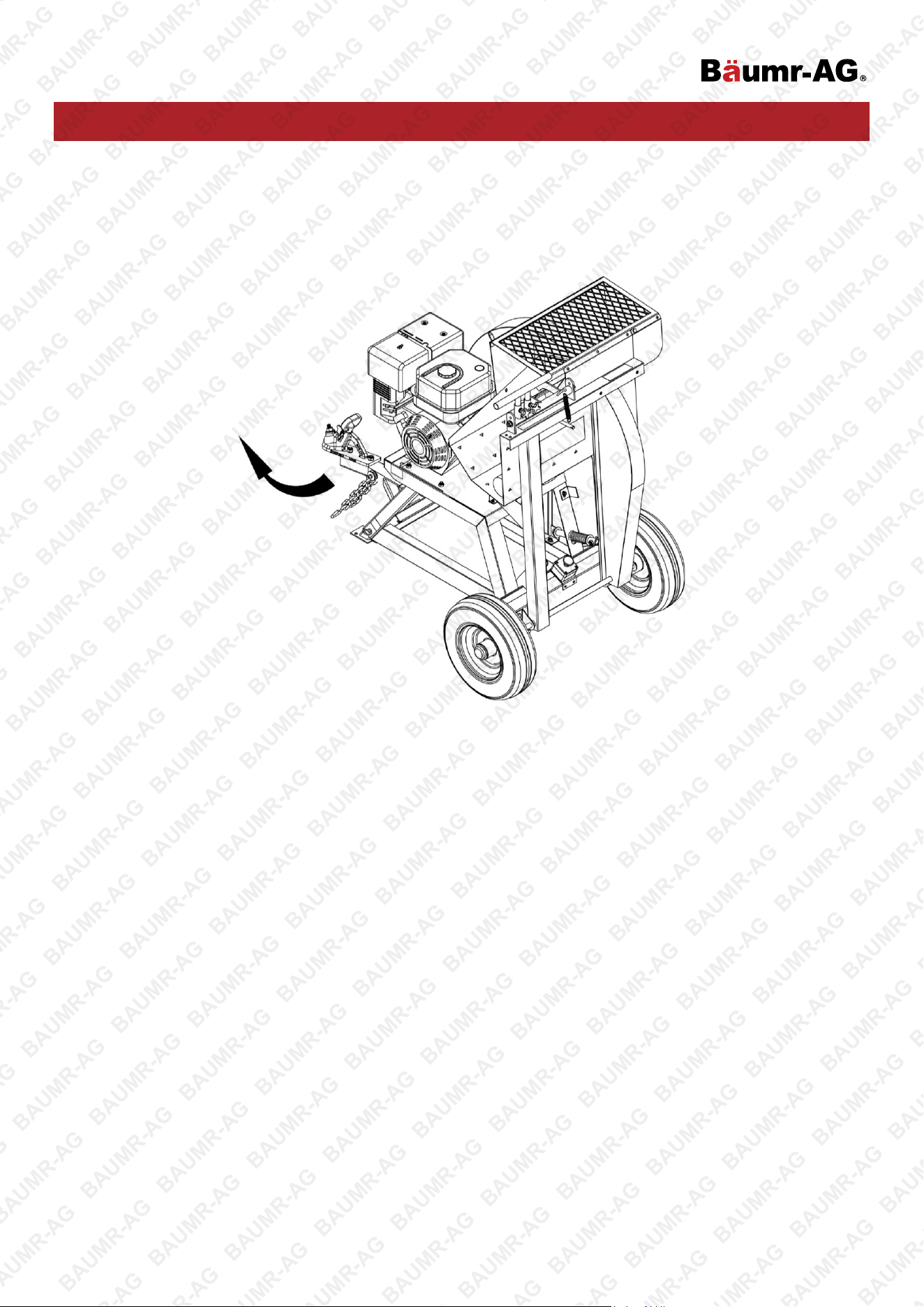

Towing

1. When towing, hitch the coupler onto the connector of the tractor, then slide in the feet.

2. When you’ve arrived at the destination, slide out the feet, and separate the coupler from the connector.

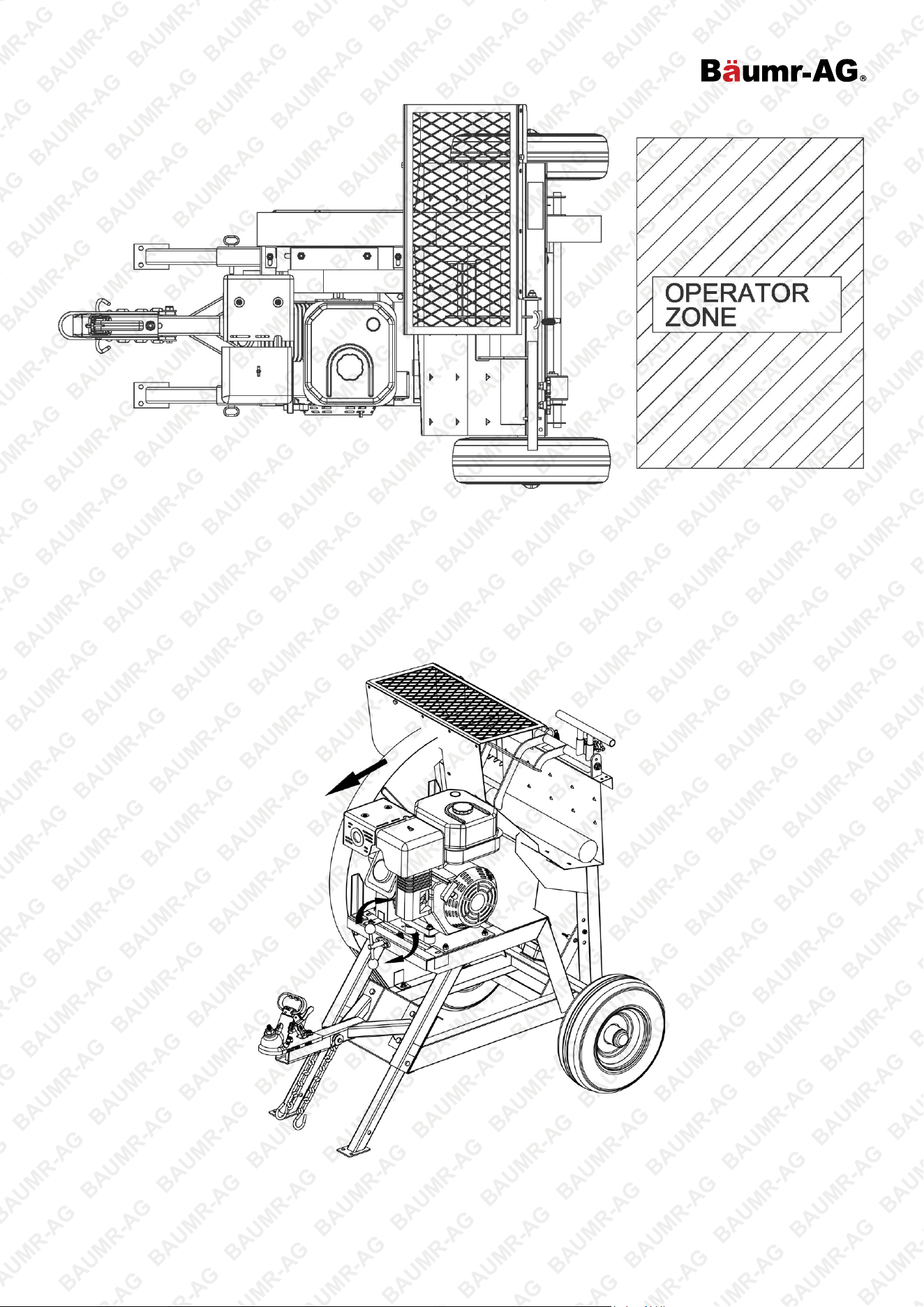

Operating Zone

•

In the operating process, fixe machine on a level surface, the ground near the machine is level, maintain

good, non-loose materials (such as wood shavings, standard compound).

•

Provide sufficient lighting or local lighting.

•

Inventory and finished products should be placed in near normal work of the operator location.

•

When no one beside the machine, should stop machine running.

•

When found safety covers or saw blades failure should report immediately.

•

Use safety measures when cleaning, maintenance and cleaning wood and dust to eliminate the risk of fire

dust.

•

Pay attention on the highest speed marked on the blades.

•

Always wear helmet, safety glasses, earflap, gloves, and other safety equipment when operating.

•

Always operate with two people.

•

Do not cut the wood which is less than 100mm of the length.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

LCS-700 Circular Log Saw

Adjusting the Engine

1. Rotate the Threaded Rod M8x120 (#54) clockwise, the engine will move outward, and the belt will be

tightened.

2. Rotate the Threaded Rod M8x120 (#54) anti-clockwise, the engine will move inward, and the belt will be

loosened.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

LCS-700 Circular Log Saw

Noise Level

The figures quoted are emission levels and are not necessarily safe working levels. Whilst there is a correlation

between the emission and exposure levels, this cannot be used reliably to determine whether further precautions

are required. Factors that influence the actual level of exposure of the workforce include the characteristics of

the work room, the other sources of noise etc. i.e., the number of machines and other adjacent processes. Also,

the permissible exposure level can vary from country to country. This information, however, will enable the user

of the machine to make a better evaluation of the hazard and risk.

Whole Life Cycle

•

For moving, bearing should be added with lubricating oil regularly to reduce abrasions.

•

After extended time of work, the belt may become loose, which the user needs to adjust the tensioner screw

to re-tighten the belt.

•

Tensioner screw may be rusted after long time. This can cause some difficulties with adjusting the engine.

Always keep a little lubricating oil on the tensioner screw.

•

If the blade is not situated at the middle of the trough of the worktable, the user needs to adjust the

worktable.

Common Failures

•

The saw teeth are blunt or damaged and makes rough wood sections. Operator needs to replace with a new

circular saw blade.

•

If the bearing temperature is too high, it will case machine problems. Pay special attention to the bearing

temperature and the noise of bearing parts. If anomalies are found, add lubricating oil.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

LCS-700 Circular Log Saw

Maintenance

ATTENTION: Surface corrosion will occur on metal surfaces over time and the rate of oxidation

depends on factors such as proximity to the ocean and humidity or condensation of water

vapour on metal surfaces. To mitigate this, WD40 can be used to remove surface corrosion then, when

applied periodically, it will prevent rust from forming. Do not use damaged equipment. If abnormal noise

or vibration occurs, have the problem corrected before further use.

•

BEFORE EACH USE, inspect the general condition of the tool. Check for loose screws, misalignment or

binding of moving parts, cracked or broken parts, improper mounting of the Saw Blade and any other

condition that may affect its safe operation.

•

Remove cut-off pieces and scraps from the Table before starting the SAW BENCH. Before cutting, ensure

the machine is turned off. While the Saw Blade is completely stopped.

•

WARNING! ALLOWING SAWDUST, SCRAPS, OR OTHER DEBRIS TO ACCUMULATE CAN CAUSE

FIRE, RESULTING IN SEVERE PERSONAL INJURY OR PROPERTY DAMAGE.

•

With a brush, soft cloth, or vacuum, remove all sawdust from the SAW BENCH.

•

Do not use solvents to wipe off the SAW BENCH, as damage may result. You may use a mild detergent.

•

Once clean, lubricate all moving parts with a light oil.

•

When storing, keep the SAW BENCH covered with a cloth cover.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

LCS-700 Circular Log Saw

Specifications

Engine 420cc OHV Petrol

Drive Manual Tension Belt Drive

Cutting Depth 270mm

Working Length 1000mm

Type Steel 64T Circular with Tungsten Carbide Tips

Towable 50mm Coupler*

Tyre type 16” x 4.80-R8 Tubeless

* Note: Not suitable for road registration

* 1 ⅞ inch Hitch Balls are not suitable for use with this product

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Some experts believe that the incorrect or prolonged use of almost any

product may cause serious injury or death. To help reduce your risk of

serious injury or death, refer to the information below. For more information,

see www.datastreamserver.com/safety



Consult all documentation, packaging,

and product labelling before use. Note

that some products feature

documentation available online. It is

recommended to print and retain the

documentation.



Before each use, check the product for

loose/broken/damaged/missing parts,

wear, or leaks (if applicable). Never use a

product with

loose/broken/damaged/missing parts,

wear, or leaks.



Products must be inspected and serviced

(if applicable) by a qualified technician

every 6 months. This is based on

average residential use by persons of

average size and strength, and on a

property of average metropolitan size.

Use beyond these recommendations may

require more frequent

inspections/servicing.



Ensure that all users of the product have

completed a suitable industry recognised

training course before being allowed

access to the product.



The product has been supplied by a general merchandise

retailer that may not be familiar with your specific

application or description of application. Be sure to attain

third-party approval from a qualified specialist for your

application before use, regardless of any assurances from

the retailer or its representatives.



This product is not intended for use where fail-safe

operation is required. As with any product (for example,

automobile, computer, toaster), there is the possibility of

technical issues that may require the repair or

replacement of parts, or the product itself. If the possibility

of such failure and the associated time it may take to

rectify could in any way inconvenience the user, business,

or employee, or financially affect the user, business, or

employee, then the product is not suitable for your

requirements. This product is not intended for use where

incorrect operation or a failure of any kind, including but

not limited to, a condition requiring product return,

replacement, parts replacement, or service by a

technician may cause financial loss, loss of employee

time or an inconvenience requiring compensation.



If this product has been purchased in error when

considering the information presented here, contact the

retailer directly for details of their returns policy, if

required.

ideas, diagrams, or images may be reproduced or transmitted in any form or by any means, electronic or

mechanical, including photocopying, scanning, or recording, or any information storage and retrieval system,

without express permission or consent from the publisher.
