Bevel SAWMITBMRA25DR BAUMR-AG 254mm Dual Sliding Compound User Manual

User Manual

[Revision 6.0]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY

VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance,

assembly, inclusions, specifications, description, and packaging.

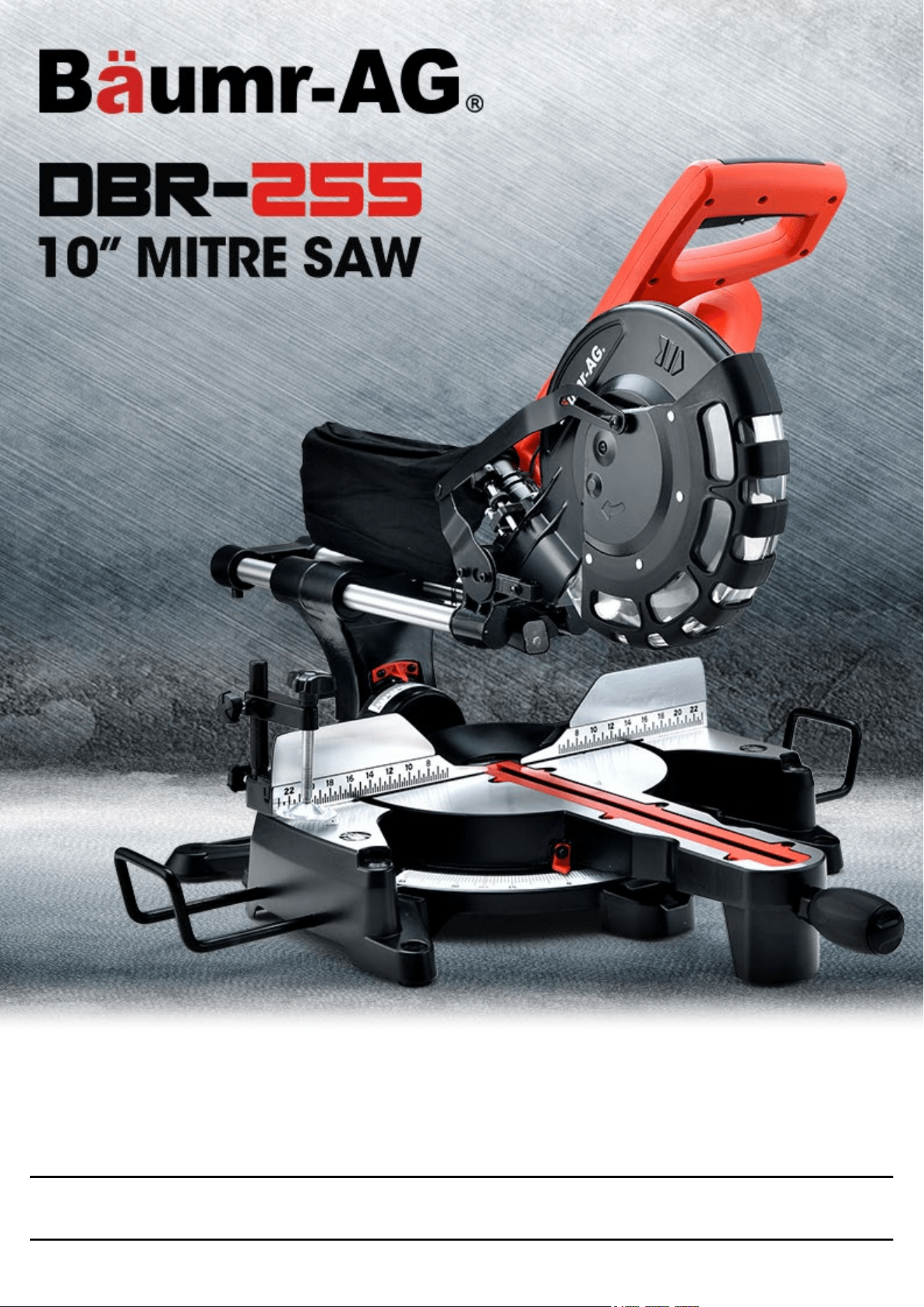

DBR-255 10” Mitre Saw

E&OE © Baumr-AG 2

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or

equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be INJURED if you do

not follow instructions or equipment

damage may occur.

It is vital that you read and understand this

user manual before using the product,

including safety warnings, and any assembly

and operating instructions. Keep the manual

for future reference.

Safety precautions and recommendations

detailed here must be fully understood and

followed to reduce the risk of injury, fire,

explosion, electrical hazard, and/or property

damage.

Safety information presented here is generic

in nature – some advice may not be

applicable to every product. The term

"equipment" refers to the product, be it

electrical mains powered, battery powered or

combustion engine powered.

• Before Use - If you are not familiar with the

safe operation/handling of the equipment or

are in any way unsure of any aspect of

suitability or correct use for your

application, you should complete training

conducted by a person or organization

qualified in safe use and operation of this

equipment, including fuel/electrical handling

and safety.

• Do NOT operate the equipment in

flammable or explosive environments, such

as in the presence of flammable liquids,

gases, or dust. The equipment may create

sparks or heat that may ignite flammable

substances.

• Keep clear of moving parts.

• Equipment may be a potential source of

electric shock or injury if misused.

• Do NOT operate the equipment if it is

damaged, malfunctioning or is in an

excessively worn state.

• Do NOT allow others to use the equipment

unless they have read this manual and are

adequately trained.

• Keep packaging away from children - risk

of suffocation! Operators must use the

equipment correctly. When using the

equipment, consider conditions and pay

due care to persons and property.

General Work Area Safety

•

Work areas should be clean and well it.

• Do not operate the equipment if

bystanders, animals etc are within

operating range of the equipment or the

general work area.

• If devices are provided for connecting dust

extraction / collection facilities, ensure

these are connected and used properly.

Dust collection can reduce dust-related

hazards.

General Personal Safety

•

Wear appropriate protective equipment

when operating, servicing, or when in the

operating area of the equipment to help

protect from eye and ear injury, poisoning,

burns, cutting and crush injuries. Protective

equipment such as safety goggles,

respirators, non-slip safety footwear, hard

hat, hearing protection etc should be used

for appropriate equipment / conditions.

Other people nearby should also wear

appropriate personal protective equipment.

Do not wear loose clothing or jewellery,

which can be caught in moving parts. Keep

hair and clothing away from the equipment.

• Stay alert and use common sense when

operating the equipment. Do not over-

reach. Always maintain secure footing and

balance.

• Do not use the equipment if tired or under

the influence of drugs, alcohol, or

medication.

• This equipment is not intended for use by

persons with reduced physical, sensory, or

mental capabilities.

General Fuel Safety

•

Petrol/fuel/gasoline is extremely flammable

– keep clear of naked flames or other

ignition sources.

• Do not spill fuel. If you spill fuel, wipe it off

the equipment immediately – if fuel gets on

your clothing, change clothing.

• Do NOT smoke near fuel or when

refuelling.

• Always shut off the engine before

refuelling.

• Do NOT refuel a hot engine.

• Open the fuel cap carefully to allow any

pressure build-up in the tank to release

slowly.

• Always refuel in well ventilated areas.

• Always check for fuel leakage. If fuel

leakage is found, do not start, or run the

engine until all leaks are fixed.

General Carbon-Monoxide Safety

•

Using a combustion engine indoors CAN

KILL IN MINUTES. Engine exhaust

contains carbon-monoxide – a poison you

cannot smell or see.

• Use combustion engines OUTSIDE only,

and far away from windows, doors, and

vents.

General Equipment Use and Care

•

Keep packaging away from children and

pets, potential risk of suffocation or

choking.

• The equipment is designed for domestic

use only.

• Handle the equipment safely and carefully.

• Before use, inspect the equipment for

misalignment or binding of moving parts,

loose components, damage, or any other

condition that may affect its operation. If

damaged, have the equipment repaired by

an authorised service centre or technician

before use.

• Prevent unintentional starting of the

equipment - ensure equipment and power

switches are in the OFF position before

connecting or moving equipment. Do not

carry equipment with hands or fingers

touching any controls. Remove any tools or

other items that are not a part of the

equipment from it before starting or

switching on.

• Do not force the equipment. Use the

correct equipment for your application.

Equipment will perform better and be safer

when used within its design and usage

parameters.

• Use the equipment and accessories etc. in

accordance with these instructions,

considering working conditions and the

work to be performed. Using the equipment

for operations different from those intended

could result in hazardous situations.

• Always keep equipment components

(engines, hoses, handles, controls, frames,

housings, guards etc) and accessories

(cutting tools, nozzles, bits etc) properly

maintained. Keep the equipment clean and,

where applicable, properly lubricated.

• Store the equipment out of reach of

children or untrained persons. To avoid

burns or fire hazards, let the equipment

cool completely before transporting or

storing. Never place or store the equipment

near flammable materials, combustible

gases, or liquids etc.

• The equipment is not weather-proof, and

should not be stored in direct sunlight, at

high ambient temperatures or locations that

are damp or humid.

• Do not clean equipment with solvents,

flammable liquids, or harsh abrasives.

• For specific equipment safety use and care,

see Equipment Safety.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

DBR-255 10” Mitre Saw

E&OE © Baumr-AG 3

General Electrical Safety

•

Inspect electrical equipment, extension

cords, power bars, and electrical fittings for

damage or wear before each use. Repair or

replace damaged equipment immediately.

• Ensure all power sources conform to

equipment voltage requirements and are

disconnected before connecting or

disconnecting equipment.

• When wiring electrically powered

equipment, follow all electrical and safety

codes.

• Always use a Residual Current Device

(RCD) (GFCI) / Earth Leakage Circuit

Breaker / Safety Switch when operating this

item (electrical items only).

• High voltage / high current power lines may

be present. Use extreme caution to avoid

contact or interference with power lines.

Electrical shock can be fatal.

General Electrical Safety

•

Electrically grounded equipment must have

an approved cord and plug and be

connected to a grounded electrical outlet.

• Do NOT bypass the ON/OFF switch and

operate equipment by connecting and

disconnecting the electrical cord.

• Do NOT use equipment that has exposed

wiring, damaged switches, covers or

guards.

• Do NOT use electrical equipment in wet

conditions or in damp locations.

• Do NOT use electrical cords to lift, move or

carry equipment.

• Do NOT coil or knot electrical cords, and

ensure electrical cords are not trip hazards.

General Service Information

•

The equipment must be serviced or

repaired at authorised service centres by

qualified personnel only.

• Replacement parts must be original

equipment manufacturer (OEM) to ensure

equipment safety is maintained.

• Do NOT attempt any maintenance or repair

work not described in this manual.

• After use, the equipment and components

may still be hot – allow the equipment to

cool and disconnect spark plugs and/or

electrical power sources and/or batteries

from it before adjusting, changing

accessories, or performing repair or

maintenance.

• Do NOT adjust while the equipment is

running.

• Perform service-related activities in suitable

conditions, such as a workshop.

• Replace worn, damaged or missing

warning/safety labels immediately.

Child Choking Hazard!

• W

ARNING: CHOKING HAZARD - CHILDREN UNDER 8 YRS. CAN CHOKE OR SUFFOCATE ON SMALL PARTS. ADULT

SUPERVISION REQUIRED.

• Carefully inspect anything a baby or child could gain access to, including this product & packaging.

• Dangers include anything of a size that could become stuck or lodged in a baby or child's airway.

• Dangers include things like raw, hard fruit and vegetable pieces, large pieces of meat, bones or sausage skins, popcorn, nuts,

hard lollies and corn chips, small magnets and batteries, coins, beads, marbles and small uninflated balloons, broken toys and smaller toys,

buttons, keys and coins. But there are also many more.

• Pay particular attention to accessories, nuts, bolts, screws, washers, caps, covers, loose parts, parts that could be removed or break off, pieces

of packaging, staples, tape etc.

• In the case of any doubt, secure the item of concern in an appropriate manner, or completely remove the possibility of access by a baby or child.

Mitre Saw Safety

WARNING. Rea

d all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious personal injury. The

term “power tool” in all the warnings listed below refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Important Safety Reminders

• BE

AWARE THAT THE EQUIPMENT MAY INCLUDE HAZARDOUS COMPONENTS, SUCH AS BLADES, HOT SURFACES AND MOVING

PARTS.

• MOVING BLADES CAN CAUSE SERIOUS INJURY AND EVEN DEATH IF USED IMPROPERLY OR WITHOUT SUFFICIENT PPE.

• DO NOT USE THIS EQUIPMENT ON UNEVEN SURFACES AND ALWAYS MAINTAIN GOOD BALANCE WHEN USING THIS EQUIPMENT.

FAILURE TO DO SO MAY CAUSE SERIOUS INJURY.

• MAINTAIN A SECURE GRIP OF THE TRIGGER ASSEMBLY AT ALL TIMES.

Safety Rules for Laser Lights

The laser light/laser radiation used in the system is Class 2 with maximum 1mW and 650nm wavelengths. These lasers do not normally present an

opti

cal hazard, although staring at the beam may cause flash blindness.

WARNING. DO NOT STARE DIRECTLY AT THE LASER BEAM.

A hazard may exist if you deliberately stare into the beam, please observe all safety rules as follows:

• The laser shall be used and maintained in accordance with the manufacturer’s instructions.

• Never aim the beam at any person or an object other than the workpiece.

• The laser beam shall not be deliberately aimed at personnel and shall be prevented from being directed towards the eye of a person for longer

than 0.25s.

• Always ensure the laser beam is aimed at a sturdy workpiece without reflective surfaces. I.e., wood, or rough coated surfaces are acceptable.

Bright shiny reflective sheet steel or the like is not suitable for laser use as the reflective surface could direct the beam back at the operator.

• Do not change the laser light assembly with a different type. Repairs must be carried out by the laser manufacturer or an authorised agent.

• CAUTION. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN

MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

General Safety Instructions

To use this tool properly, you must observe the safety regulations, the assembly instructions, and the operating instructions to be found in this

M

anual. All persons who use and service the machine must be acquainted with this Manual and must be informed about its potential hazards.

Children and infirm people must not use this tool. Children should be always supervised if they are in the area in which the tool is being used. It is

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

DBR-255 10” Mitre Saw

E&OE © Baumr-AG 4

also imperative that you observe the accident prevention regulations in force in your area. The same applies for general rules of occupational health

and safety.

WARNING. WHEN USING POWER TOOLS, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE TAKEN TO REDUCE THE RISK OF FIRE,

ELECTRIC SHOCK AND PERSONAL INJURY. ALSO, PLEASE READ AND HEED THE ADVICE GIVEN IN THE ADDITIONAL IMPORTANT

SAFETY INSTRUCTIONS.

Even when the tool is used as prescribed it is not possible to eliminate all residual risk factors. The following hazards may arise in connection with

the tool’s construction and design:

• Contact with the blade.

• Kickback of workpiece and parts of workpiece.

• Blade fracture.

• Catapulting of blade pieces.

• Damage to hearing if effective earmuffs are not worn.

• Harmful emissions of sawdust when the machine is used in closed rooms. Always use supplementary dust extraction where possible.

• Do not use blades that are deformed or cracked.

• Always remove the plug from the mains socket before making any adjustments or maintenance, including changing the blade. To ensure safe

operation of the mitre saw you must follow these guidelines:

• Select the correct blade for the material to be cut.

• Do not use the saw to cut materials other than those recommended by the manufacturer.

The mitre saw can be safely carried by the main handle but only once it has been removed from the mains power and secured in the locked down

position.

• Do not use the saw without the guards in position, in good working order and properly maintained.

• Ensure that the arm is properly secure when bevelling.

• Keep the floor area around the machine level, well maintained and free of loose materials.

• Provide adequate lighting.

• Ensure that you are trained in the use, adjustment, and operation of the machine.

• Use correctly sharpened blades and observe the maximum speed marked on the blade.

• Do not remove any cut-offs from the cutting area until the guard is fully locked in place and the blade has come to rest.

• Ensure that the mitre saw is fixed to a bench wherever possible.

• When cutting long pieces which extend well over the table width ensure that the ends are adequately supported at the same height as the saw

table top. Supports should be positioned in such a way to ensure that the workpiece does not fall to the ground. once the cut has been made. A

few supports at regular intervals may be required if the workpiece is extremely long.

WARNING. WHEN USING POWER TOOLS, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE TAKEN TO REDUCE THE RISK OF FIRE,

ELECTRIC SHOCK AND PERSONAL INJURY. ALSO, PLEASE READ AND HEED THE ADVICE GIVEN IN THE ADDITIONAL IMPORTANT

SAFETY INSTRUCTIONS.

• Keep the work area clean and tidy. Cluttered work areas and benches invite accidents and injury.

• Consider the environment in which you are working. Do not use power tools in damp or wet locations. Keep the work area well lit. Do not expose

power tools to rain. Do not use power tools in the presence of flammable liquids or gases.

• Keep visitors away from the work area. All visitors and onlookers, especially children and infirm persons, should be kept well away from where

you are working. Do not let others in the vicinity make contact with the tool or extension cord.

• Store tools safely. When not in use, tools should be locked up out of reach.

• Do not force the tool. The tool will do the job better and safer working at the rate for which it was designed.

• Use the correct tool for the job. Do not force small tools or attachments to do the job best handled by a heavier duty tool. Never use a tool for a

purpose for which it was not intended.

• Dress correctly. Do not wear loose clothing or jewellery. They can be caught in moving parts. Rubber gloves and non-slip footwear are

recommended when working outdoors. If you have long hair, wear a protective hair covering.

• Use safety accessories. Safety glasses and earmuffs should always be worn. A face or dust mask is also required if the drilling operation creates

dust.

• Do not abuse the power cord. Never pull the cord to disconnect the tool from the power point. Keep the cord away from heat, oil and sharp

edges.

• Secure the workpiece. Use clamps or a vice to hold the workpiece. It is safer than using your hand and frees both hands to operate the tool.

• Do not overreach. Keep your footing secure and balanced at all times.

• Look after your tools. Keep tools sharp and clean for better and safer performance. Follow the instructions regarding lubrication and accessory

changes. Inspect tool cords periodically and, if damaged, have them repaired by an authorised service facility. Inspect extension cords

periodically and replace them if damaged. Keep tool handles dry, clean and free from oil and grease.

• Disconnect idle tools. Switch off the power and disconnect the plug from the power point before servicing, when changing accessories and when

the tool is not in use.

• Remove adjusting keys and wrenches. Check to see that keys and adjusting wrenches are removed from the tool before switching on.

• Avoid unintentional starting. Always check that the switch is in the OFF position before plugging in the tool to the power supply. Do not carry a

plugged-in tool with your finger on the switch.

• Use outdoor rated extension cords. When a tool is used outdoors, use only extension cords that are intended for outdoor use and are so marked.

• Stay alert. Watch what you are doing. Use common sense. Do not operate a power tool when you are tired.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

DBR-255 10” Mitre Saw

E&OE © Baumr-AG 5

• Check for damaged parts. Before using a tool, check that there are no damaged parts. If a part is slightly damaged, carefully determine if it will

operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, proper

mounting and any other conditions that may affect the operation of the tool. A part that is damaged should be properly repaired or replaced by an

authorised service facility, unless otherwise indicated in this Instruction Manual. Defective switches must be replaced by an authorized service

facility. Do not use a tool if the switch does not turn the tool on and off correctly.

• Guard against electric shock. Prevent body contact with grounded objects such as water pipes, radiators, cookers and refrigerator enclosures.

• Use only approved parts. When servicing, use only identical replacement parts. Use an authorised service facility to fit replacement parts.

WARNING. THE USE OF AN ACCESSORY OR ATTACHMENT, OTHER THAN THOSE RECOMMENDED IN THIS INSTRUCTION MANUAL,

MAY PRESENT A RISK OF PERSONAL INJURY.

Additional Safety Rules for Mitre Saws

WARNING. BE

FORE CONNECTING A TOOL TO A POWER SOURCE (MAINS SWITCH POWER POINT RECEPTACLE, OUTLET, ETC.) BE

SURE THAT THE VOLTAGE SUPPLY IS THE SAME AS THAT SPECIFIED ON THE NAMEPLATE OF THE TOOL. A POWER SOURCE WITH

A VOLTAGE GREATER THAN THAT SPECIFIED FOR THE TOOL CAN RESULT IN SERIOUS INJURY TO THE USER, AS WELL AS

DAMAGE TO THE TOOL. IF IN DOUBT, DO NOT PLUG IN THE TOOL. USING A POWER SOURCE WITH A VOLTAGE LESS THAN THE

NAMEPLATE RATING IS HARMFUL TO THE MOTOR. YOUR TOOL IS DOUBLE INSULATED FOR ADDITIONAL PROTECTION AGAINST A

POSSIBLE ELECTRICAL INSULATION FAILURE WITHIN THE TOOL. ALWAYS REMOVE THE PLUG FROM THE MAINS SOCKET BEFORE

MAKING ANY ADJUSTMENTS OR MAINTENANCE, INCLUDING CHANGING THE BLADE.

• When operating the saw, use safety equipment including safety goggles or shield, ear protection, dust mask and protective clothing including

safety gloves.

• Ensure that there is adequate general or localized lighting.

• Do not use the saw unless the guards are in place.

• Do not use the saw to cut metal or masonry.

• Do not let anyone under 18 years operate this saw.

• Ensure that the operator is adequately trained in the use, adjustment, and operation of the machine.

• Do not use this saw to cut firewood.

• Keep the area free of tripping hazards.

• Report faults in the machine, including guards and saw blades, as soon as they are discovered.

• Ensure that the machine is always fixed to a bench, whenever possible.

• Always stand to one side when operating the saw.

• Never use a cracked or distorted saw blade.

• When cutting round wood, use clamps that prevent the workpiece from turning on both sides of the blade.

• Never use your hands to remove sawdust, chips, or waste close by the blade.

• Use only blades as recommended by the manufacturer and which conform to EN 847-1.

• Do not use blades of High-Speed Steel (HSS blades).

• If the table insert is damaged or worn, have it replaced by an authorised service centre.

• Rags, cloths, cord and string and the like should never be left around the work area.

• Avoid cutting nails. Inspect the workpiece and remove all nails and other foreign objects before beginning sawing.

• Support the work properly.

• Refrain from removing any cut-offs or other parts of the workpiece from the cutting area whilst the machine is running, and the saw head is not in

the rest position.

• Do not attempt to free a jammed blade before first switching off the machine.

• Do not slow or stop a blade with a piece of wood. Let the blade come to rest naturally.

• If you are interrupted when operating the saw, complete the process and switch off before looking up.

• Periodically check that all nuts, bolts, and other fixings are properly tightened.

• Do not store materials or equipment above a machine in such a way that they could fall into it.

• Always hold the saw on parts that are insulated. If you accidentally cut into hidden wiring or the saw’s own cable, the metal parts of the saw will

become “live”. Switch off at the mains and remove the plug immediately.

• Never saw near combustible liquids or gases.

• Note the direction of rotation of the motor and the blade.

• Do not lock the movable guard in the open position and always ensure that it is working properly, freely rotating and returning to fully cover the

teeth of the blade.

• Connect the saw to a dust collection devise and ensure that it is operated properly. As the operator of the saw, please make sure that you

understand factors that influence exposure to dust, including the type of material to be machined, the importance of local extraction and the

proper adjustment of hoods/baffles/ shoots of your dust extraction system. We recommend that you always wear a dust mask when operating this

saw.

• Wear gloves when handling saw blades and rough materials.

• Saw blades shall be carried in a holder wherever possible.

• Select saw blades in relation to the material being cut.

• Use correctly sharpened saw blades and observe the maximum speed marked on the blade.

• Take additional care when trenching (slotting).

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

DBR-255 10” Mitre Saw

E&OE © Baumr-AG 6

• The mitre saw can be safely carried by the carrying handle but only once it has been removed from the mains power and secured in the locked

down position.

• Ensure that the arm is properly secure when bevelling.

• Keep the floor area around the machine level, well maintained and free of loose materials.

• Ensure that you are trained in the use, adjustment, and operation of the machine.

• Do not remove any cut-offs from the cutting area until the guard is fully locked in placed and the blade has come to rest.

• When cutting long pieces which extend well over the table width, ensure that the ends are adequately supported at the same height as the saw

table top. Supports should be positioned in such a way to ensure that the workpiece does not fall to the ground once the cut has been made. A

few supports at regular intervals may be required if the workpiece is extremely long.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

DBR-255 10” Mitre Saw

E&OE © Baumr-AG 7

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on your

product and their meanings. If any stickers become unreadable, unattached etc., replace them.

Flammable Material Hazard

Flammable liquids, gases, or

substances etc may present.

Avoid ignition sources and open

flames. Danger of fire.

Read User Manual

Read and fully understand

product safety warnings,

operation, procedures etc before

using the product.

Use Hand Protection

Wear appropriate hand protection

and take due care as the product

or use of the product may present

hand hazards.

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be fatal.

Electrocution / Electrical Shock

Hazard

High voltage or high current

electricity may be present or

required by the product. Take

due care when handling electrical

products, cables, plugs and

leads. Electrical shock can be

fatal.

Toxic Fumes / Dust Hazard

Using the product or by-products

from use may produce fumes,

smoke or particles that could be

harmful if inhaled. Wear

appropriate breathing protection

and have adequate ventilation.

Explosive Material Hazard

Combustible liquids, gases, or

substances etc may be present.

Avoid ignition sources and open

flames. Danger of explosion.

Cutting / Amputation Hazard

The product may have blades,

edges or mechanical devices that

can cause severe cut injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Crush Hazard

The product may have blades,

edges or mechanical devices that

can cause severe crush injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Single Operator Only

The product must be operated by

a single person only. More than

one person operating the product

may introduce additional hazards.

Use Face Protection

Wear appropriate full-face

protection and take due care as

the product or use of the product

may present face and eye

hazards.

Use Foot Protection

Wear appropriate foot protection

and take due care as the product

or use of the product may present

foot hazards.

Use Eye / Ear / Head Protection

Wear appropriate eye and / or

ear and / or head protection and

take due care as the product or

use of the product may present

eye, hearing, and head hazards.

Running Hazard

Do not run on or near the product

as doing so may present a fall

hazard.

Diving Hazard

Do not dive into the product as

doing so may present a neck /

head injury hazard.

Adult Supervision Required

Always supervise children and

other users of a product to

prevent drowning or injury.

Skin Penetration / Puncture

Hazard

The product may produce

pressure, emit liquids or objects

that can cause severe injury to

fingers, limbs, blood etc. Take

due care when handling and

using the product.

Hot Surface Hazard

Be aware that the product may

produce high temperatures and

hot surfaces that can cause burn

injuries.

Flying Debris Hazard

Be aware that the product or use

of the product may present

hazards produced by flying

debris. Wear appropriate clothing

and protective devices.

Moving Parts Hazard

Be aware that the product

contains or uses mechanical

devices that move or rotate.

Always wait for moving parts to

stop fully before handling the

product, adjusting, maintenance

etc.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

DBR-255 10” Mitre Saw

E&OE © Baumr-AG 8

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be fatal.

Pull Hazard

Be aware that the product

contains or uses mechanical

devices that can pull in objects

and can cause severe injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Slope / Fall Injury Hazard

Be aware that using the product

on sloping surfaces or in slippery

conditions may present additional

dangers from falls and contact

with blades, moving parts, hot

surfaces etc.

"Slam Dunk" Warning

Do NOT attempt "slam dunk"

manoeuvres as this may result in

severe injury due to falling,

product breakage or collapse etc.

Electrocution / Electrical Shock

Hazard - Outdoor

High voltage or high current

electricity may be present or

required by the product. Do NOT

use in rain, damp, or wet

conditions. Electrical shock can

be fatal.

Electrocution / Electrical Shock

Hazard - Disconnect

High voltage or high current

electricity may be present or

required by the product. Always

disconnect the product from the

electrical supply before handling

the product, adjusting,

maintenance etc.

Power Line Electrocution

Hazard

High voltage / high current power

lines may be present. Use

extreme caution to avoid contact

or interference with power lines.

Electrical shock can be fatal.

"Kick-Back" Hazard

High level of "kick-back" hazard

that can cause the machine to

suddenly rotate towards operator.

Kick-back injury can be fatal.

Winch Operator Position

Hazard

Do NOT stand between winch

and load. Do NOT use winch to

move people.

Winch Lift Hazard

Do NOT LIFT load vertically. Use

machine to PULL only.

Cable Hazard

Ensure that load bearing cable is

not kinked or knotted.

Winch Cable Hazard

Ensure that there is a minimum

number of cable coils on

winching mechanism.

Winch Hook Hazard

Carry hook to load – do NOT

throw or run.

Flash / Blinding Hazard

Wear appropriate eye protection

for welding. Direct exposure to

weld arcs may cause permanent

eye injury.

Laser Hazard

Laser may be in use – do NOT

look directly at laser or allow

others to.

Choking Hazard

Children under 8 yrs. Can choke

or suffocate on small parts. Adult

supervision required.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

DBR-255 10” Mitre Saw

E&OE © Baumr-AG 9

Table of Contents

Safety ............................................................................................................................................................. 2

Safety Symbols ........................................................................................................................................................... 7

Parts Identification ..................................................................................................................................... 10

Getting Started ............................................................................................................................................ 12

Accessories .............................................................................................................................................................. 12

Transportation ........................................................................................................................................................... 12

Bench Mounting ........................................................................................................................................................ 13

Using the Laser Lines ............................................................................................................................................... 13

Trench Depth Adjustment ......................................................................................................................................... 14

Side Support Bars ..................................................................................................................................................... 14

Bevel Angle Adjustment ........................................................................................................................................... 14

Mitre Cutting Angle Adjustment ................................................................................................................................ 15

Operation ..................................................................................................................................................... 15

Cutting Operation ...................................................................................................................................................... 16

Cross-Cutting (Without Slide Action) ........................................................................................................................ 16

Cross-Cutting (with Slide Action) .............................................................................................................................. 17

Bevel Cut .................................................................................................................................................................. 17

Compound Mitre Cut ................................................................................................................................................. 17

Maintenance and Repair ............................................................................................................................ 18

Changing A Blade ..................................................................................................................................................... 18

Maintenance ............................................................................................................................................................. 19

General Inspection .................................................................................................................................................... 19

Lubrication ................................................................................................................................................................ 19

Specifications ............................................................................................................................................. 20

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

DBR-255 10” Mitre Saw

E&OE © Baumr-AG 10

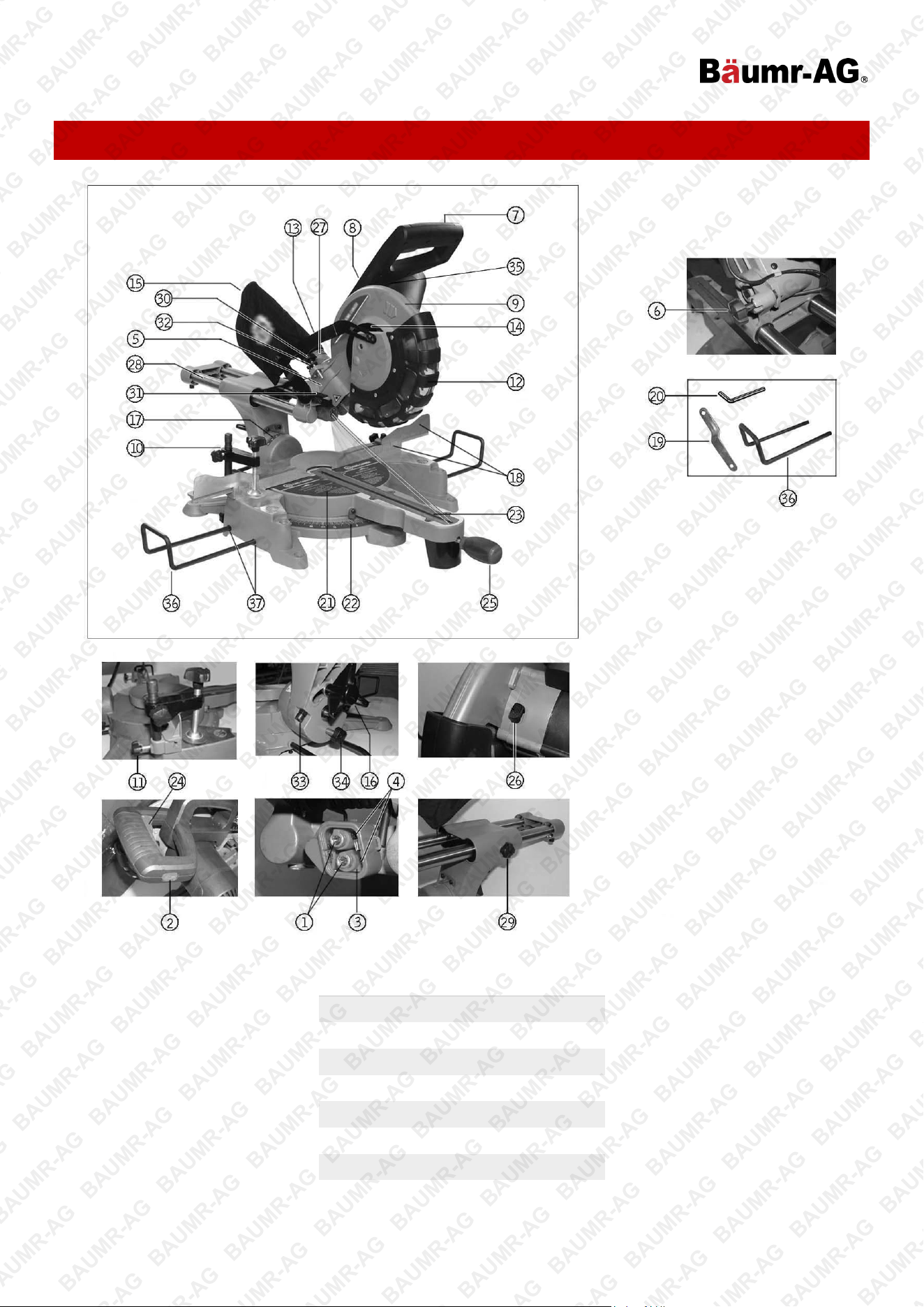

Parts Identification

No. Name

1 Laser assembly

2 Laser light on/off switch

3 Laser cover

4 Las

er pitch control

5 Saw arm

6 R

elease knob

7 Operating handle

8 C

arrying handle

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

DBR-255 10” Mitre Saw

E&OE © Baumr-AG 11

No. Name

9 Upper fixed blade guard

10 Clamp assembly

11 Clamp assembly lock (x2)

12 R

otating blade guard

13 Guard retraction arm

14 B

lade bolt cover

15 Dust bag

16 B

evel lock

17 Bevel scale

18 F

ence

19 Blade wrench

20 H

ex keys (6mm)

21 Mitre table

22 M

itre scale

23 Table insert (kerfplate)

24 S

witch trigger

25 Mitre lock

26 S

pindle lock button

27 Dust extraction port

28 S

lide bars

29 Slide lock

30 T

renching depth adjustment screw

31 Trenching stop

32 T

renching depth lock nut

33 45° Bevel adjustment screw

34 0°

Bevel adjustment screw

35 -

36 S

ide support bars (x2)

37

Side support bar location holes (2

sets)

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

DBR-255 10” Mitre Saw

E&OE © Baumr-AG 12

Getting Started

Accessories

This slide compound mitre saw comes with the following accessories:

•

24 Teeth blade (fitted)

•

Dust bag

•

Work clamp

•

Blade socket wrench

•

Side support bar (x 2)

•

6mm Hex keys

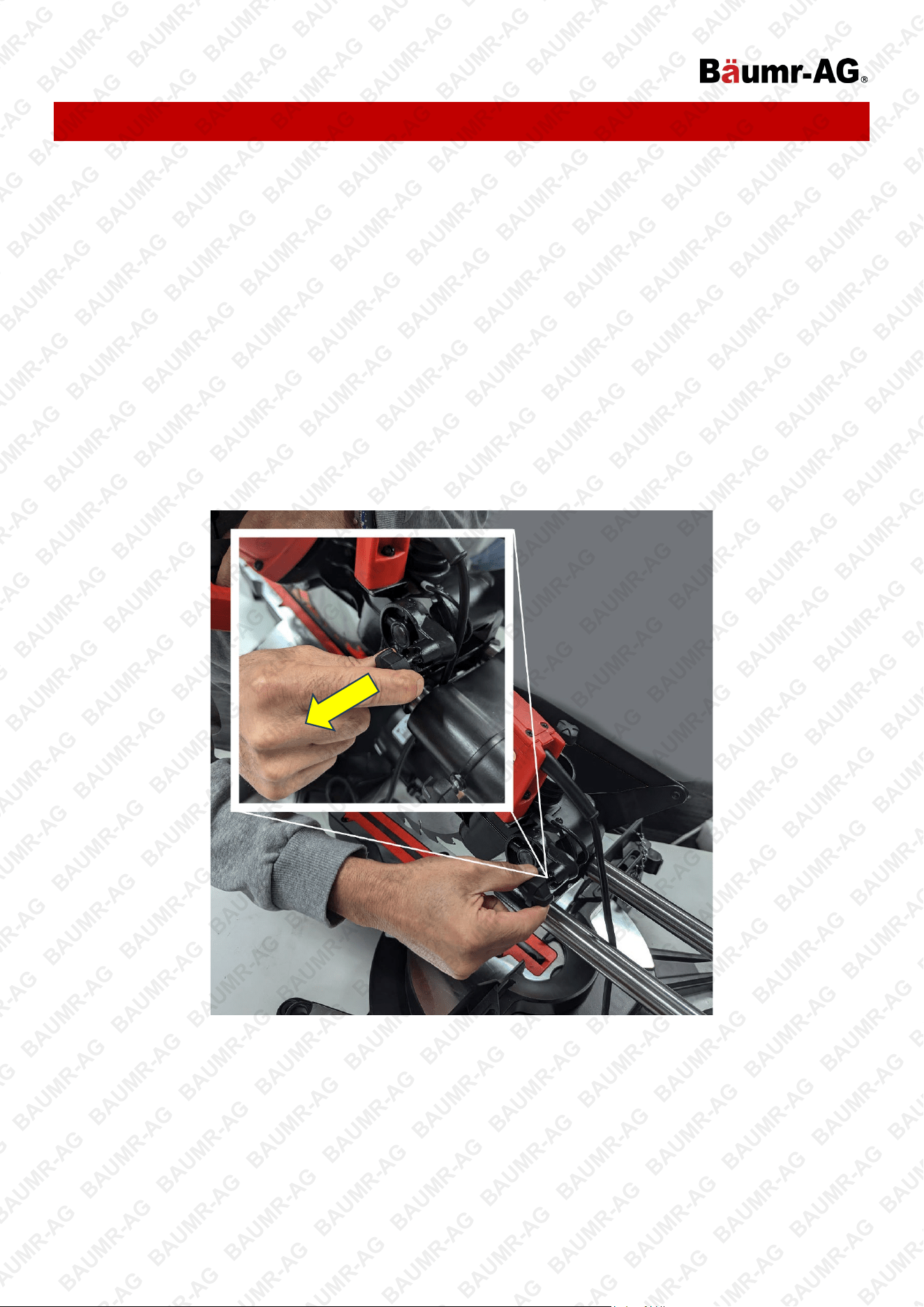

Transportation

The cutting head will arrive locked in the downward position.

You can lock the cutting head into the down position by pulling the locking pin on the right side of the cutting

head. To bring the cutting head back to its normal upright position simply pull the pin outward and raise the

cutting head.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

DBR-255 10” Mitre Saw

E&OE © Baumr-AG 13

Bench Mounting

•

The saw base has holes to facilitate bench mounting.

•

Attach the saw to a level, horizontal bench or work table using bolts (not supplied) though the fixing holes in

the saw base.

NOTE: If desired, you can mount the saw to a piece of 13mm or thicker plywood which can then be clamped to

your work support or moved to other job sites and re-clamped.

CAUTION! Make sure that the mounting surface is not warped as an uneven surface can cause binding

and inaccurate sawing.

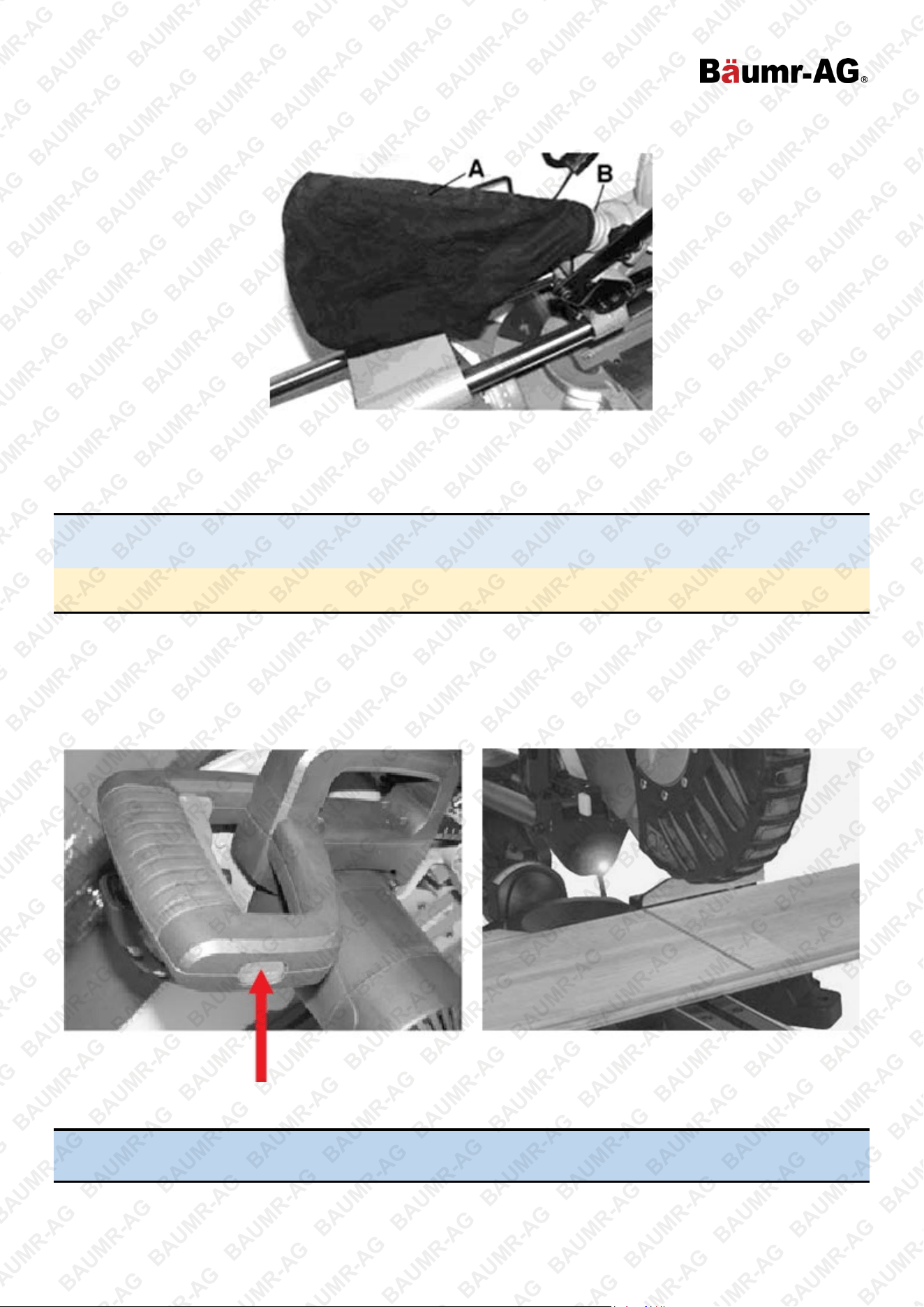

The dust bag (15) fits in the dust extractor port (27). For efficient operation, empty the dust bag when it is no

more than half full. This allows better air flow through the bag.

Using the Laser Lines

Switch ON the laser lights with the ON/OFF switch (2).

NOTE: The laser comes in a pre-mounted position. It is possible the laser can become misaligned in

transit. If the laser is not aligned with the blade, please re-align it before use.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

DBR-255 10” Mitre Saw

Trench Depth Adjustment

In its normal position, the trenching stop (31) permits the saw blade to cut right through a workpiece. When the

saw arm is lifted, the trenching stop can be adjusted so that the trenching depth adjustment screw (30) contacts

the stop as the saw arm is lowered. This restricts the cut to a “trench” in the workpiece. The depth of the trench

can be adjusted with the trenching depth adjustment screw (30) and locked in position with the trenching depth

lock nut (32).

Side Support Bars

The side support bars (36) can be used to support long pieces of timber. There are two location holes (37) for a

support bar on either side of the table. Ensure that the side bars are fully inserted before using them to support

the workpiece.

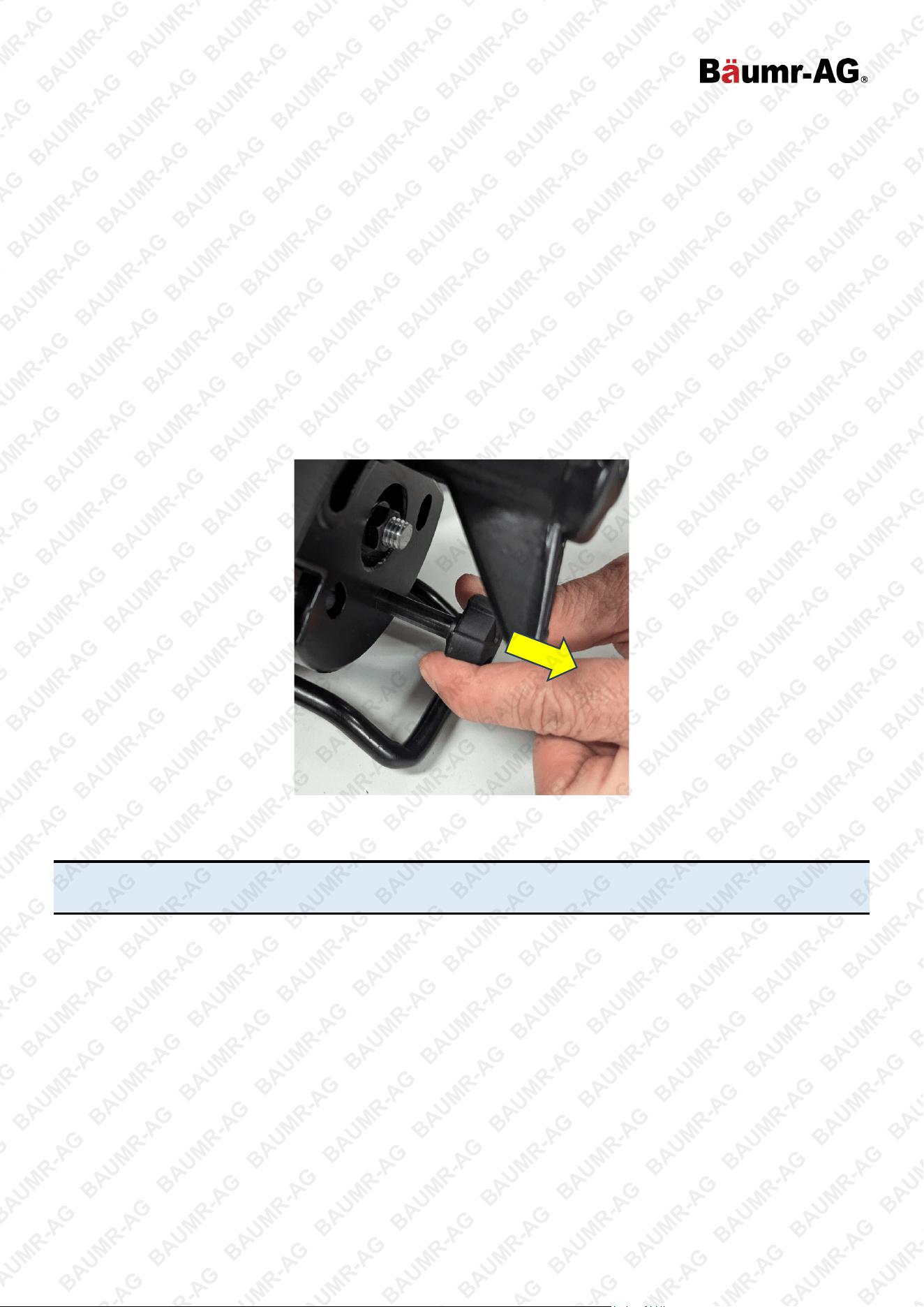

Bevel Angle Adjustment

Pull and hold the release pin at the back of the unit; while holding the pin you can tilt the cutting head to your

desired angle

Please note that you will need to mount the saw to the table before doing this. Adjusting the angle requires some

force, it is this way by design.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

DBR-255 10” Mitre Saw

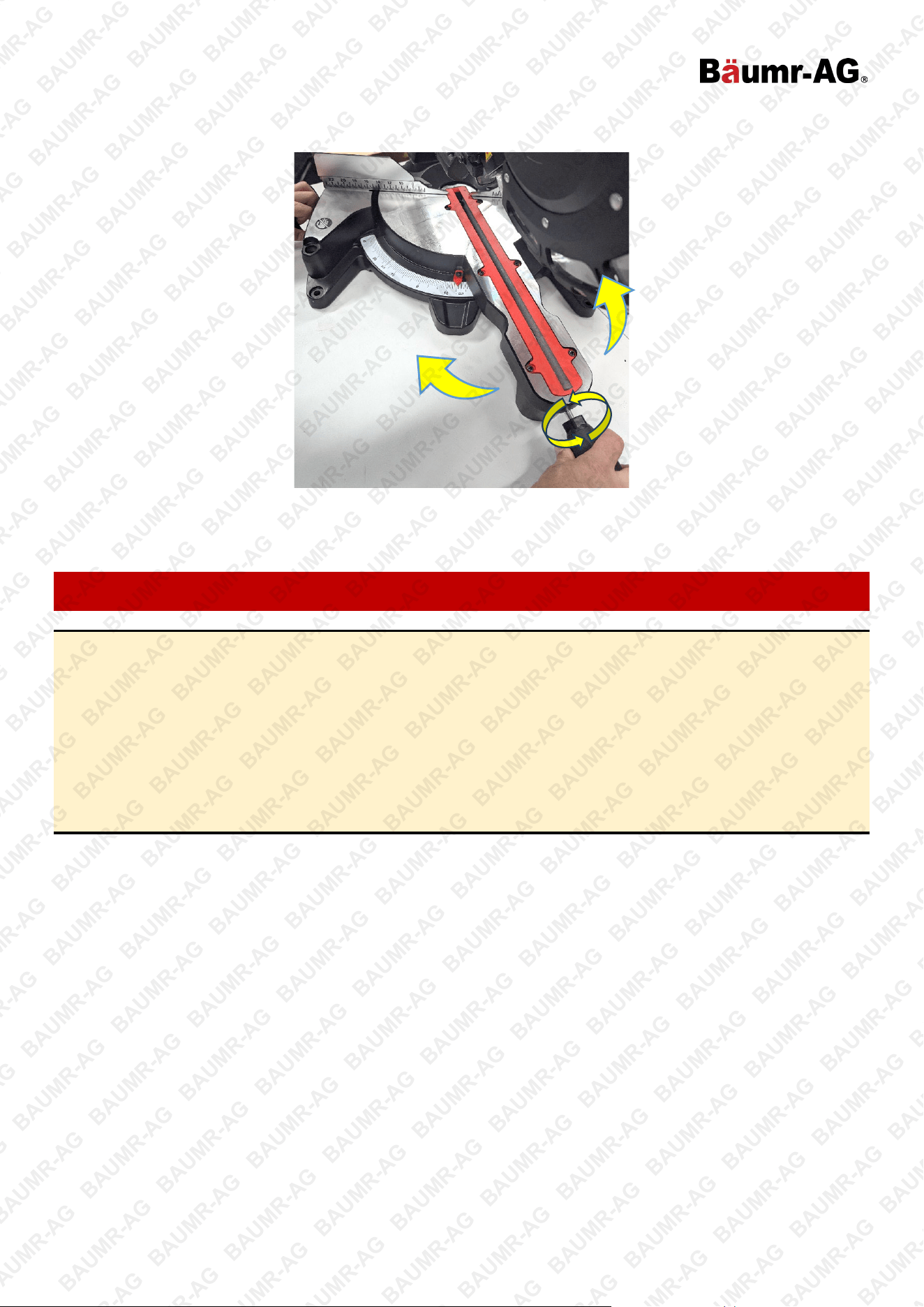

Mitre Cutting Angle Adjustment

Rotate the handle counterclockwise then slide the handle left or right until you reach the desired angle on the

scale.

Operation

WARNING!  Do not stare directly at the laser beam. Never aim the beam at any person or an object

other than the workpiece.  Do not deliberately aim the beam at personnel and ensure that it is not

directed towards the eye of a person for longer than 0.25s.  Always ensure the laser beam is aimed at a

sturdy workpiece without reflective surfaces. Wood or rough coated surfaces are acceptable. Bright

shiny reflective surfaces are not suitable for laser use as the reflective surface could direct the beam

back at the operator.  Always remember to switch off the laser on/off switch (2) after finishing a job.

Only turn the laser beam on when the workpiece is on the mitre saw table.  Mark the line of the cut on

the workpiece.  Adjust the angle of mitre and bevel of the cut as required.  Adequate support such as

table extensions and saw horses must be used for a workpiece that is wider or longer than the table top,

failure to do so may lead to injury.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

DBR-255 10” Mitre Saw

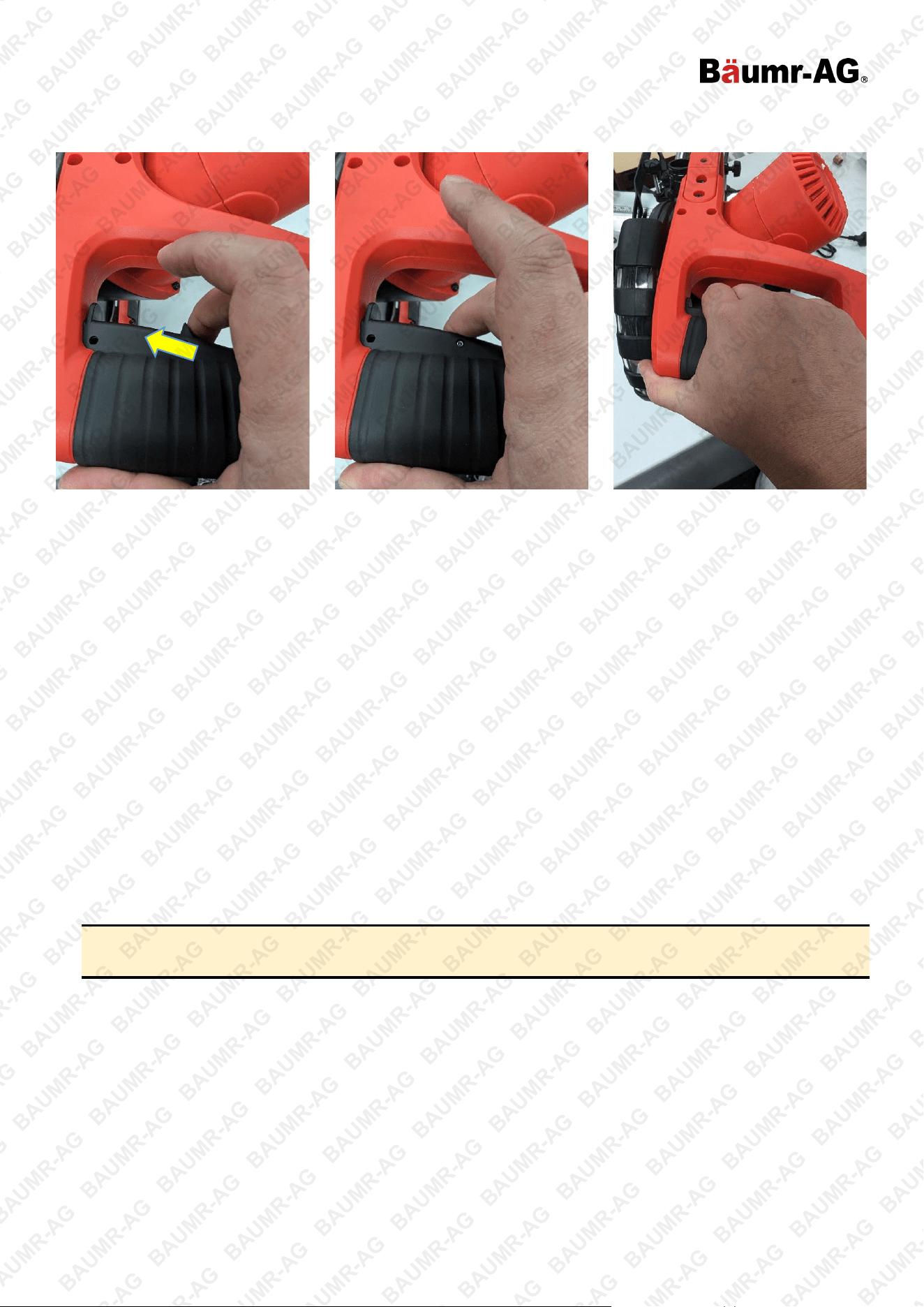

Cutting Operation

1. Connect the saw to power

2. Ensure the workpiece is secured correctly so it is safe to begin cutting

3. Lower the cutting head

4. Push the small safety latch from right to left with your middle finger, then grip the trigger mechanism with all

4 fingers and clench a fist. The blade will now begin spinning. To stop the blade from spinning simply release

the trigger and raise the cutting head.

Cross-Cutting (Without Slide Action)

When cutting a narrow piece of wood, it is not necessary to use the slide mechanism. In these cases, ensure

that the slide lock (29) is screwed down to prevent the saw arm from sliding.

1. A crosscut is made by cutting across the grain of the workpiece. A 90º crosscut is made with the mitre table

set at 0º. Mitre crosscuts are made with the table set at some angle other than zero.

2. Pull on the release knob (6) and lift the saw arm (5) to its full height.

3. Loosen the mitre lock (25).

4. Rotate the mitre table (21) until the pointer aligns with the desired angle.

5. Retighten the mitre lock (25).

WARNING. Be sure to tighten the mitre lock before making a cut. Failure to do so could result in the table

moving during the cut and cause serious personal injury.

6. Place the workpiece flat on the table with one edge securely against the fence (18). If the board is warped,

place the convex side against the fence (18). If the concave side is placed against the fence, the board could

break and jam the blade.

7. When cutting long pieces of timber, support the opposite end of the timber with the side support bars (36), a

roller stand or a work surface that is level with the saw table.

8. Use the clamp assembly (10) to secure the workpiece wherever possible.

9. It is possible to remove the clamp assembly (10) by loosening the clamp assembly lock (11) and moving it to

the other side of the table. Make sure the clamp assembly lock is tight before using the clamp.

10. Before turning on the saw, perform a dry run of the cutting operation to check that there are no problems.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

DBR-255 10” Mitre Saw

11. Hold the operating handle (7) firmly and squeeze the switch trigger (24). Allow the blade to reach maximum

speed.

12. Slowly lower the blade into and through the workpiece.

13. Release the switch trigger (24) and allow the saw blade to stop rotating before raising the blade out of the

workpiece. Wait until the blade stops before removing the workpiece.

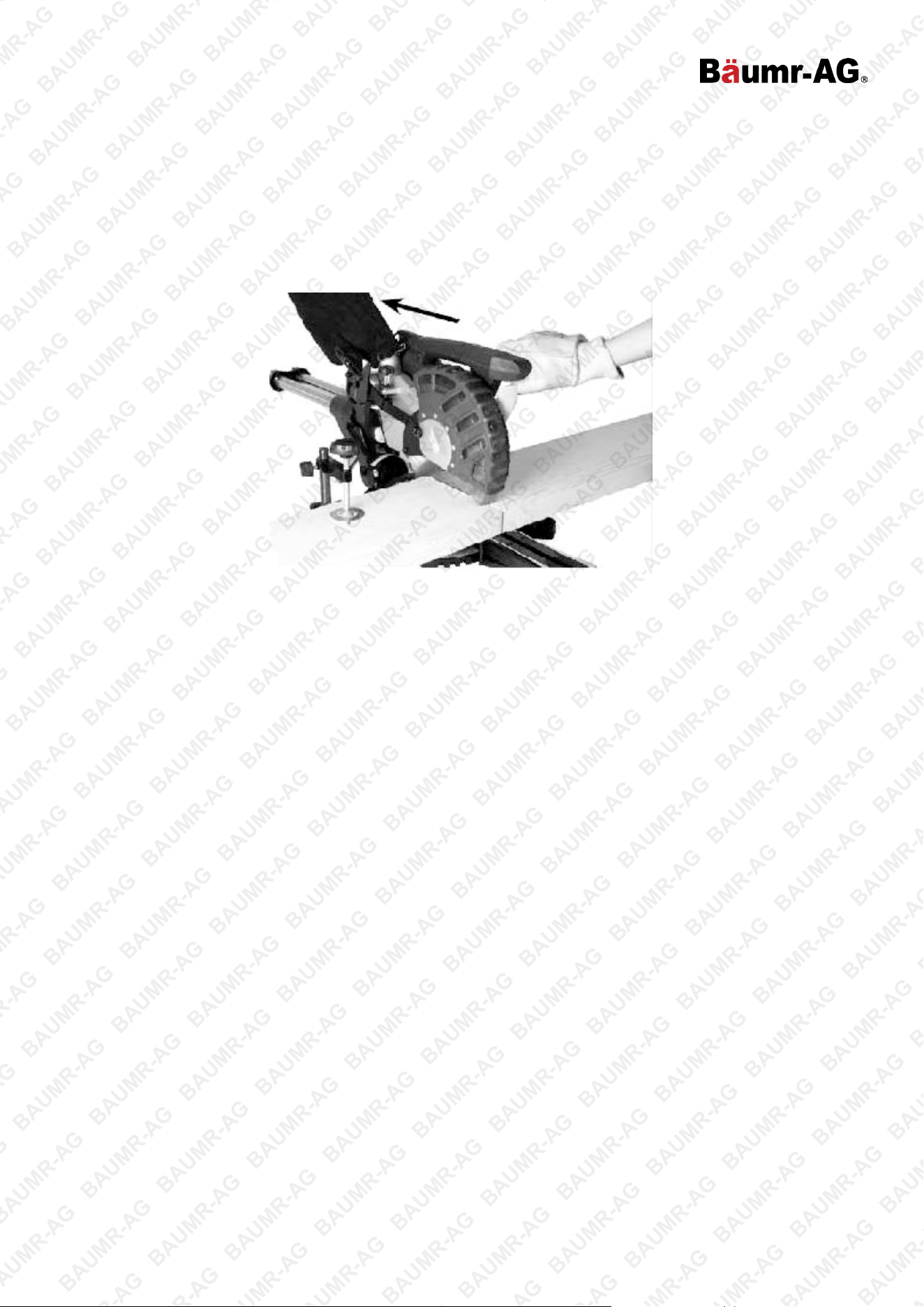

Cross-Cutting (with Slide Action)

1. When cutting wide workpieces, first unscrew the slide lock (29).

2. Pull on the release knob (6), raise the saw arm (5) to its highest position and slide it towards you.

3. Hold the handle firmly and squeeze the switch trigger (24). Allow the blade to reach maximum speed.

4. Slowly lower the blade into the workpiece and slide it away from you at the same time until the workpiece is

cut.

5. Release the switch trigger (24) and allow the saw blade to stop rotating before raising the blade out of the

workpiece. Wait until the blade stops before removing the workpiece.

Bevel Cut

1. A bevel cut is made by cutting across the grain of the workpiece with the blade angled to the fence and mitre

table. The mitre table is set at the zero-degree position and the blade set at an angle between 0º and 45º.

2. Use the slide action when cutting wide workpieces.

3. Loosen the bevel lock (16) and move the saw arm (5) to the left to the desired bevel angle (between 0º and

45º). Tighten the bevel lock (16).

Compound Mitre Cut

•

A compound mitre cut involves using a mitre angle and a bevel angle at the same time.

•

It is used in making picture frames, to cut mouldings, making boxes with sloping sides and for roof framing.

Always make a test cut on a piece of scrap wood before cutting into the good material.

•

Use the slide action when cutting wide workpieces.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

DBR-255 10” Mitre Saw

Maintenance and Repair

DANGER!  Never try to use a blade larger than the stated capacity of the saw. It might come into

contact with the blade guards.  Never use a blade that is too thick to allow the outer blade washer to

engage with the flats on the spindle. It will prevent the blade screw from properly securing the blade on

the spindle.  Do not use the saw to cut metal or masonry.  Ensure that any spacers and spindle rings

that may be required suit the spindle and the blade fitted.  Make sure that the electrical plug is removed

from the power point.

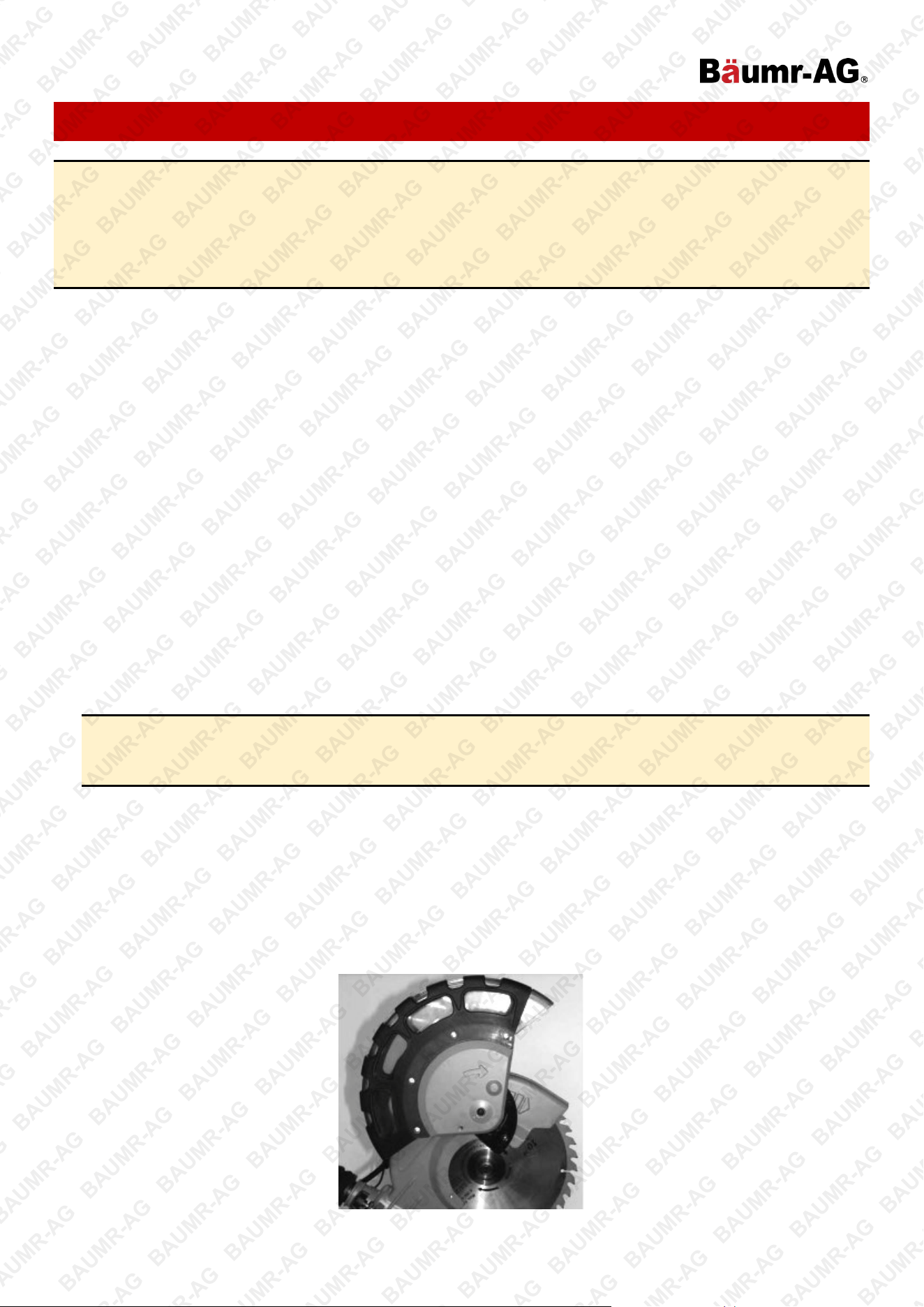

Changing A Blade

1. Push down on the operating handle (7) and pull the release knob (6) to disengage the saw arm (5). The

release knob (6) can be turned so that it is held in the retracted position.

Raise the saw arm (5) to its highest position.

2. Remove the hex screw that secures the blade bolt cover (14).

3. Pull the rotating blade guard (12) down then swing it up together with the blade bolt cover (14).

4. When the rotating blade guard (12) is positioned over the upper fixed blade guard (9) it is possible to access

the blade bolt.

5. Hold the rotating guard (12) up and press the spindle lock button (26). Rotate the blade until the spindle

locks.

6. Use wrench (19) to remove the blade bolt. (Loosen in a clockwise direction as the blade screw has a left-

hand thread).

7. Remove the outer blade washer and the blade.

Wipe a drop of oil onto the inner blade washer and the outer blade washer where they contact the blade.

Fit the new blade onto the spindle taking care that the inner blade washer sits behind the blade.

CAUTION. To ensure correct blade rotation, always install the blade with the blade teeth and the

arrow printed on the side of the blade pointing down. The direction of blade rotation is also stamped

with an arrow on the upper blade guard.

8. Replace the outer blade washer.

Depress the spindle lock button (26) and replace the blade bolt.

9. Use the blade wrench (19) to tighten the blade screw securely (anticlockwise).

Hold the rotating lower blade guard (12) and blade bolt cover (14) in position and tighten the fixing screw.

Check that the blade guard operates correctly and covers the blade as the saw arm is lowered.

Connect the saw to the power supply and run the blade to make certain that it is operating correctly.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

DBR-255 10” Mitre Saw

Maintenance

•

Keep the tool’s air vents unclogged and clean at all times.

•

Regularly check to see if any dust or foreign matter has entered the grills near the motor and around the

trigger switch. Use a soft brush to remove any accumulated dust. Wear safety glasses to protect your eyes

whilst cleaning.

•

Re-lubricate all moving parts at regular intervals.

•

If the body of the tool needs cleaning, wipe it with a soft damp cloth. A mild detergent can be used but

nothing like alcohol, petrol, or other cleaning agent.

•

Never use caustic agents to clean plastic parts.

CAUTION. Water must never come into contact with the tool.

General Inspection

•

Regularly check that all the fixing screws are tight, particularly the outer flange. They may vibrate loose over

time.

•

The supply cord of the tool and any extension cord used should be checked frequently for damage. If

damaged, have the cord set replaced by an authorised service facility. Replace the extension cord if

necessary.

Lubrication

The grease in the gearbox will require replacement after extensive use of the tool. Please refer to an authorised

service agent to provide this service.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

DBR-255 10” Mitre Saw

Specifications

Rated power 2000W

No-load speed 5500 rpm

Blade diameter 10 inch (254mm)

Blade teeth 24T

Swivel range ±45°

Bevel tilt range ±45°

Cutting Capacity

0°×0°: 340×80mm,

45°×0°: 240×80mm,

0°×45°: L 340×50mm, R 340×25mm

45°×45°: L 240×50mm, R 240×25mm

Laser Class 2

Input voltage 220-240V / 50Hz

Power Plug Australian Standard

Minimal Assembly required

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Some experts believe that the incorrect or prolonged use of almost any

product may cause serious injury or death. To help reduce your risk of

serious injury or death, refer to the information below. For more information,

see www.datastreamserver.com/safety



Consult all documentation, packaging,

and product labelling before use. Note

that some products feature

documentation available online. It is

recommended to print and retain the

documentation.



Before each use, check the product for

loose/broken/damaged/missing parts,

wear, or leaks (if applicable). Never use a

product with

loose/broken/damaged/missing parts,

wear, or leaks.



Products must be inspected and serviced

(if applicable) by a qualified technician

every 6 months. This is based on

average residential use by persons of

average size and strength, and on a

property of average metropolitan size.

Use beyond these recommendations may

require more frequent

inspections/servicing.



Ensure that all users of the product have

completed a suitable industry recognised

training course before being allowed

access to the product.



The product has been supplied by a general merchandise

retailer that may not be familiar with your specific

application or description of application. Be sure to attain

third-party approval from a qualified specialist for your

application before use, regardless of any assurances from

the retailer or its representatives.



This product is not intended for use where fail-safe

operation is required. As with any product (for example,

automobile, computer, toaster), there is the possibility of

technical issues that may require the repair or

replacement of parts, or the product itself. If the possibility

of such failure and the associated time it may take to

rectify could in any way inconvenience the user, business,

or employee, or financially affect the user, business, or

employee, then the product is not suitable for your

requirements. This product is not intended for use where

incorrect operation or a failure of any kind, including but

not limited to, a condition requiring product return,

replacement, parts replacement, or service by a

technician may cause financial loss, loss of employee

time or an inconvenience requiring compensation.



If this product has been purchased in error when

considering the information presented here, contact the

retailer directly for details of their returns policy, if

required.
