BAUMR-AG LGSDSLBMRA8D0 65 Tonne Diesel Hydraulic Wood Log User Manual

Trailer Mount

Colours and models will vary

User Manual

[Revision 7.0 October 2022]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND

MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in

appearance, assembly, inclusions, specifications, description, and packaging.

The product is NOT supplied with engine oil, although traces of oil from the manufacturing process may be present. It is essential to add

ade

quate engine oil of the correct type to the engine before use. Failure to add engine oil will void the product warranty.

Log Splitter

Trailer Mount Log Splitter

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or

equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or

SERIOUSLY INJURED if you

do not follow instructions.

You CAN be KILLED or

SERIOUSLY INJURED if you

do not follow instructions.

You CAN be INJURED if you

do not follow instructions or

equipment damage may occur.

It is vital that you read and understand

this user manual before using the product,

including safety warnings, and any

assembly and operating instructions.

Keep the manual for future reference.

Safety precautions and recommendations

detailed here must be fully understood

and followed to reduce the risk of injury,

fire, explosion, electrical hazard, and/or

property damage.

Safety information presented here is

generic in nature – some advice may not

be applicable to every product. The term

"equipment" refers to the product, be it

electrical mains powered, battery powered

or combustion engine powered.

• Before Use - If you are not familiar with

the safe operation/handling of the

equipment, or are in any way unsure of

any aspect of suitability or correct use

for your application, you should

complete training conducted by a

person or organization qualified in safe

use and operation of this equipment,

including fuel/electrical handling/safety.

• Do NOT operate the equipment in

flammable or explosive environments,

such as in the presence of flammable

liquids, gases or dust. The equipment

may create sparks or heat that may

ignite flammable substances.

• Keep clear of moving parts.

• Equipment may be a potential source of

electric shock or injury if misused.

• Do NOT operate the equipment if it is

damaged, malfunctioning or is in an

excessively worn state.

• Do NOT allow others to use the

equipment unless they have read this

manual and are adequately trained.

• Keep packaging away from children -

risk of suffocation!

• Operators must use the equipment

correctly, consider conditions and pay

due care to persons and property.

• Ensure that any property that may be

damaged by equipment failure is not

within the work area / operating range.

General Work Area Safety

• Work areas should be clean and well it.

• Do not operate the equipment if

bystanders, animals etc are within

operating range of the equipment or the

general work area.

• If devices are provided for connecting

dust extraction / collection facilities,

ensure these are connected and used

properly. Dust collection can reduce

dust-related hazards.

General Personal Safety

• Wear appropriate protective equipment

when operating, servicing, or when in

the operating area of the equipment to

help protect from eye and ear injury,

poisoning, burns, cutting and crush

injuries. Protective equipment such as

safety goggles, respirators, non-slip

safety footwear, hard hat, hearing

protection etc should be used for

appropriate equipment / conditions.

Other people nearby should also wear

appropriate personal protective

equipment. Do not wear loose clothing

or jewellery, which can be caught in

moving parts. Keep hair and clothing

away from the equipment.

• Stay alert and use common sense

when operating the equipment. Do not

over-reach. Always maintain secure

footing and balance.

• Do not use the equipment if tired or

under the influence of drugs, alcohol or

medication.

• This equipment is not intended for use

by persons with reduced physical,

sensory or mental capabilities.

General Fuel Safety

• Petrol/fuel/gasoline is extremely

flammable – keep clear of naked flames

or other ignition sources.

• Do not spill fuel. If you spill fuel, wipe it

off the equipment immediately – if fuel

gets on your clothing, change clothing.

• Do NOT smoke near fuel or when

refuelling.

• Always shut off the engine before

refuelling.

• Do NOT refuel a hot engine.

• Open the fuel cap carefully to allow any

pressure build-up in the tank to release

slowly.

• Always refuel in well ventilated areas.

• Always check for fuel leakage. If fuel

leakage is found, do not start or run the

engine until all leaks are fixed.

General Carbon-Monoxide Safety

• Using a combustion engine indoors

CAN KILL IN MINUTES. Engine

exhaust contains carbon-monoxide – a

poison you cannot smell or see.

• Use combustion engines OUTSIDE

only, and far away from windows, doors

and vents.

General Equipment Use and Care

• The equipment is designed for

domestic use only.

• Handle the equipment safely and

carefully.

• Before use, inspect the equipment for

misalignment or binding of moving

parts, loose components, damage or

any other condition that may affect its

operation. If damaged, have the

equipment repaired by an authorised

service centre or technician before use.

• Prevent unintentional starting of the

equipment - ensure equipment and

power switches are in the OFF position

before connecting or moving

equipment. Do not carry equipment

with hands or fingers touching any

controls. Remove any tools or other

items that are not a part of the

equipment from it before starting or

switching on.

• Do not force the equipment. Use the

correct equipment for your application.

Equipment will perform better and be

safer when used within its design and

usage parameters.

• Use the equipment and accessories

etc. in accordance with these

instructions, considering working

conditions and the work to be

performed. Using the equipment for

operations different from those

intended could result in hazardous

situations.

• Always keep equipment components

(engines, hoses, handles, controls,

frames, housings, guards etc) and

accessories (cutting tools, nozzles, bits

etc) properly maintained. Keep the

equipment clean and, where

applicable, properly lubricated.

• Store the equipment out of reach of

children or untrained persons. To avoid

burns or fire hazards, let the equipment

cool completely before transporting or

storing. Never place or store the

equipment near flammable materials,

combustible gases or liquids etc.

• The equipment is not weather-proof,

and should not be stored in direct

sunlight, at high ambient temperatures

or locations that are damp or humid.

• Do not clean equipment with solvents,

flammable liquids or harsh abrasives.

• For specific equipment safety use and

care, see Equipment Safety

.

Trailer Mount Log Splitter

General Electrical Safety

• Inspect electrical equipment, extension

cords, power bars, and electrical fittings

for damage or wear before each use.

Repair or replace damaged equipment

immediately.

• Ensure all power sources conform to

equipment voltage requirements and

are disconnected before connecting or

disconnecting equipment.

• When wiring electrically powered

equipment, follow all electrical and

safety codes.

• Wherever possible, use a residual

current device (RCD).

• High voltage / high current power lines

may be present. Use extreme caution

to avoid contact or interference with

power lines. Electrical shock can be

fatal.

General Electrical Safety

• Electrically grounded equipment must

have an approved cord and plug and be

connected to a grounded electrical

outlet.

• Do NOT bypass the ON/OFF switch

and operate equipment by connecting

and disconnecting the electrical cord.

• Do NOT use equipment that has

exposed wiring, damaged switches,

covers or guards.

• Do NOT use electrical equipment in wet

conditions or in damp locations.

• Do NOT use electrical cords to lift,

move or carry equipment.

• Do NOT coil or knot electrical cords,

and ensure electrical cords are not trip

hazards.

General Service Information

• The equipment must be serviced or

repaired at authorised service centres

by qualified personnel only.

• Replacement parts must be original

equipment manufacturer (OEM) to

ensure equipment safety is maintained.

• Do NOT attempt any maintenance or

repair work not described in this

manual.

• After use, the equipment and

components may still be hot – allow the

equipment to cool and disconnect

spark plugs and/or electrical power

sources and/or batteries from it before

making adjustments, changing

accessories or performing repair or

maintenance.

• Do NOT make adjustments while the

equipment is running.

• Perform service related activities in

suitable conditions, such as a

workshop.

• Replace worn, damaged or missing

warning/safety labels immediately.

Trailer Mount Log Splitter

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on

your product and their meanings. If any stickers become unreadable, unattached etc, replace them.

Flammable Material Hazard

Flammable liquids, gases or

substances etc may present.

Avoid ignition sources and

open flames. Danger of fire.

Read User Manual

Read and fully understand

product safety warnings,

operation, procedures etc

before using the product.

Use Hand Protection

Wear appropriate hand

protection and take due care

as the product or use of the

product may present hand

hazards.

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be

fatal.

Electrocution / Electrical

Shock Hazard

High voltage or high current

electricity may be present or

required by the product. Take

due care when handling

electrical products, cables,

plugs and leads. Electrical

shock can be fatal.

Toxic Fumes / Dust Hazard

Using the product or by-

products from use may

produce fumes, smoke or

particles that could be harmful

if inhaled. Wear appropriate

breathing protection and have

adequate ventilation.

Explosive Material Hazard

Combustible liquids, gases or

substances etc may be

present. Avoid ignition sources

and open flames. Danger of

explosion.

Cutting / Amputation Hazard

The product may have blades,

edges or mechanical devices

that can cause severe cut

injury to fingers, limbs etc.

Take due care when handling

and using the product.

Crush Hazard

The product may have blades,

edges or mechanical devices

that can cause severe crush

injury to fingers, limbs etc.

Take due care when handling

and using the product.

Single Operator Only

The product must be operated

by a single person only. More

than one person operating the

product may introduce

additional hazards.

Use Face Protection

Wear appropriate full-face

protection and take due care

as the product or use of the

product may present face and

eye hazards.

Use Foot Protection

Wear appropriate foot

protection and take due care

as the product or use of the

product may present foot

hazards.

Use Eye / Ear / Head

Protection

Wear appropriate eye and / or

ear and / or head protection

and take due care as the

product or use of the product

may present eye, hearing and

head hazards.

Running Hazard

Do not run on or near the

product as doing so may

present a fall hazard.

Diving Hazard

Do not dive into the product as

doing so may present a neck /

head injury hazard.

Adult Supervision Required

Always supervise children and

other users of a product to

prevent drowning or injury.

Skin Penetration / Puncture

Hazard

The product may produce

pressure, emit liquids or

objects that can cause severe

injury to fingers, limbs, blood

etc. Take due care when

handling and using the

product.

Hot Surface Hazard

Be aware that the product may

produce high temperatures

and hot surfaces that can

cause burn injuries.

Flying Debris Hazard

Be aware that the product or

use of the product may

present hazards produced by

flying debris. Wear appropriate

clothing and protectiove

devices.

Moving Parts Hazard

Be aware that the product

contains or uses mechanical

devices that move or rotate.

Always wait for moving parts

to stop fully before handling

the product, adjusting,

maintenence etc.

Trailer Mount Log Splitter

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be

fatal.

Pull Hazard

Be aware that the product

contains or uses mechanical

devices that can pull in objects

and can cause severe injury to

fingers, limbs etc. Take due

care when handling and using

the product.

Slope / Fall Injury Hazard

Be aware that using the

product on sloping surfaces or

in slippery conditions may

present additional dangers

from falls and contact with

blades, moving parts, hot

surfaces etc.

"Slam Dunk" Warning

Do NOT attempt "slam dunk"

maneouvres as this may result

in severe injury due to falling,

product breakage or collapse

etc.

Electrocution / Electrical

Shock Hazard - Outdoor

High voltage or high current

electricity may be present or

required by the product. Do

NOT use in rain, damp or wet

conditions. Electrical shock

can be fatal.

Electrocution / Electrical

Shock Hazard - Disconnect

High voltage or high current

electricity may be present or

required by the product.

Always disconnect the product

from the electrical supply

before handling the product,

adjusting, maintenence etc.

Power Line Electrocution

Hazard

High voltage / high current

power lines may be present.

Use extreme caution to avoid

contact or interference with

power lines. Electrical shock

can be fatal.

"Kick-Back" Hazard

High level of "kick-back"

hazard that can cause the

machine to suddenly rotate

towards operator. Kick-back

injury can be fatal.

Winch Operator Position

Hazard

Do NOT stand between winch

and load. Do NOT use winch

to move people.

Winch Lift Hazard

Do NOT LIFT load vertically.

Use machine to PULL only.

Cable Hazard

Ensure that load bearing cable

is not kinked or knotted.

Winch Cable Hazard

Ensure that there is a

minimum number of cable

coils on winching mechanism.

Winch Hook Hazard

Carry hook to load – do NOT

throw or run.

Flash / Blinding Hazard

Wear appropriate eye

protection for welding. Direct

exposure to weld arcs may

cause permanent eye injury.

Laser Hazard

Laser may be in use – do NOT

look directly at laser, or allow

others to.

Corrosive Substance Hazard

The product may contain

corrosive substances that can

harm or otherwise cause

damage. Take due care when

handling and using the

product.

Explosion Hazard

The product may contain

substances that can explode

under certain conditions or

misuse. Take due care when

handling and using the

product.

Trailer Mount Log Splitter

Equipment Safety

Log splitting machines produce high hydraulic pressures and have exposed parts that can

cause serious injury if not used correctly or without taking proper safety precautions. It is

extremely important that you read and fully understand the information in this section and all other

safety warnings / recommendations and usage instructions before using the equipment.

Operator

• If you are untrained in the use of a log splitter, it is highly recommended that you be trained/instructed by

a suitably qualified or experienced person before using the machine.

• Fully understand how to safely operate the machine and the log splitting process. See Log Splitter

Operation.

• The machine must be operated by one person only. Do not allow helpers or bystanders within 30m (90')

of the machine. Bystanders should wear eye protection.

• You must be in good physical condition to use a motorised cultivator. NEVER operate the machine when

tired, or under the influence of any substance (medication, alcohol, drugs etc) that may impair your

judgement, alertness, physical strength, vision or dexterity.

• Crush / amputation hazard - keep hands away from moving parts and from splits/cracks that open in

logs.

• Maintain sure-footing and balance always when using or handling the machine and have full awareness

of your surroundings and any possible hazards.

Clothing and Protective Equipment – All Operators and Assistants

• Wear approved safety goggles, or safety glasses with adequate top and side protection..

• Wear suitable hearing protection.

• Wear heavy-duty, non-slip leather or protective gloves.

• Wear approved heavy-duty safety boots, with steel toe-caps and non-slip soles.

• Wear suitable overalls or work clothing that fits snugly, but does not restrict movement. Avoid loose

fitting clothing, scarves, jewellery etc and keep long hair contained to avoid getting caught or pulled by

the chainsaw or by tree branches etc.

Work Area Safety

• Be aware of fire risks resulting from machine use. Ensure that the machine exhaust and spark arrestor (if

equipped) is well maintained and that engine is tuned correctly.

• Refuel outdoors only. Avoid fuel spillage. Start the machine at least 3m (10') away from the fuelling

location.

Operational Safety

• Do NOT use the machine if the throttle or any safety guard or mechanism is not installed or is not

operating correctly – have the machine inspected and repaired at an authorised service centre before

using it again.

• Do not load or unload logs whilst the ram is moving.

• Do not remove jammed logs by hand.

• Make sure there are no nails or foreign objects in the logs to be split.

• Log ends must be cut square.

• Branches must be cut off flush with the trunk.

• Always split logs in the direction of the wood grain.

• Do NOT use the equipment for purposes it is not designed for, such as splitting non-wood material.

Trailer Mount Log Splitter

• Do not attach the machine to fixed supports.

Transportation Safety

• Always STOP the engine before transporting or working on it (refuelling, adjusting etc).

• Do not carry passengers, or allow any person to sit or stand on the machine.

• Always fully secure the machine to the towing vehicle hitch before towing.

• Use caution when towing. Tow with an appropriate vehicle, and avoid slopes, ditches etc.

• Do not tow on public roads.

Trailer Mount Log Splitter

Table of Contents

Safety ................................................................................................................................................ 2

Safety Symbols .......................................................................................................................................... 4

Equipment Safety ............................................................................................................................. 6

Applicable Models ......................................................................................................................... 10

Parts Identification ......................................................................................................................... 11

HDS800 / HPS800 ..................................................................................................................................... 11

HPS500 ...................................................................................................................................................... 12

Spare Parts ..................................................................................................................................... 13

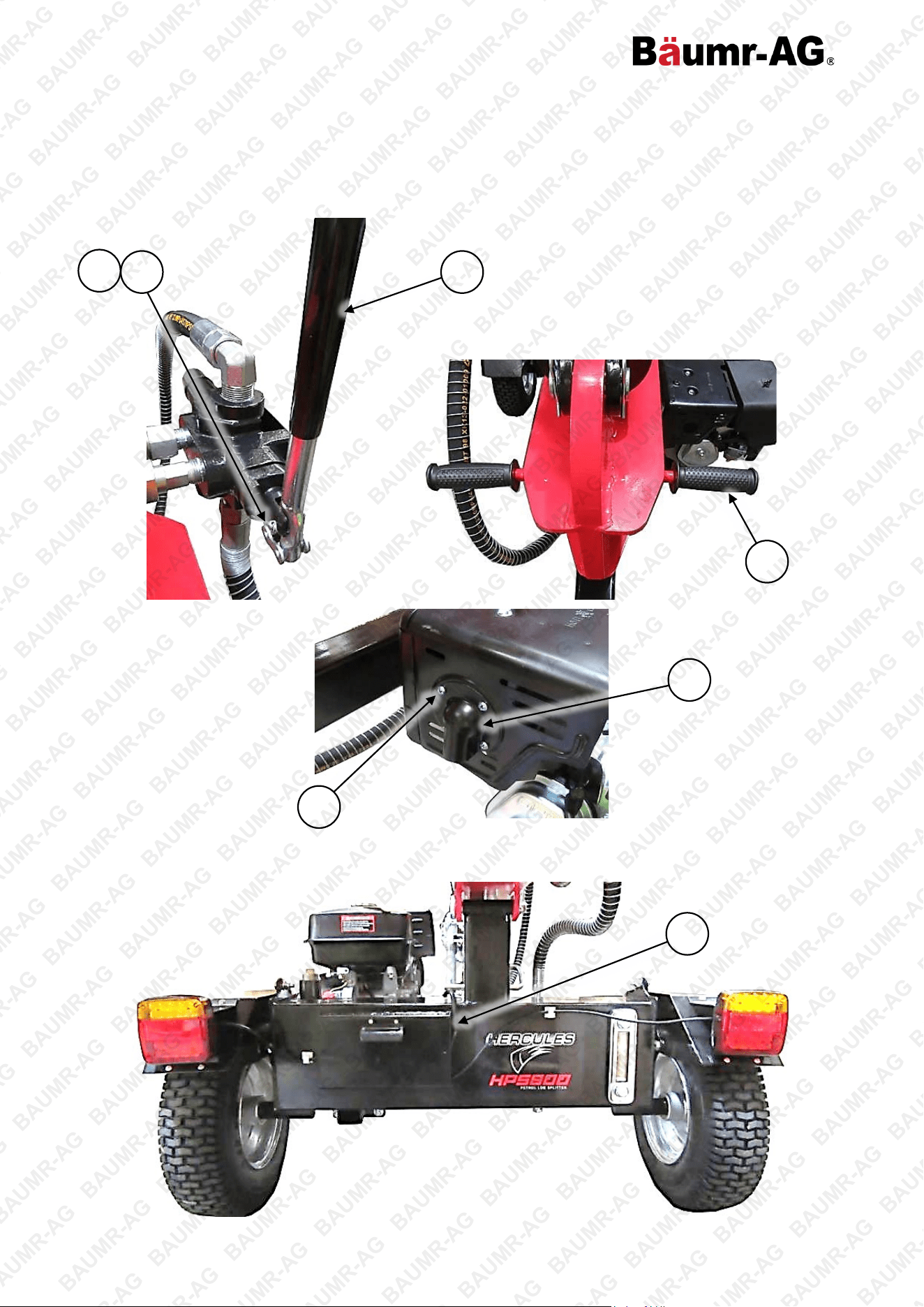

Controls and Features Identification ........................................................................................... 14

HDS800 / HPS800 ..................................................................................................................................... 14

HPS500 ...................................................................................................................................................... 15

Before Use Checklist ..................................................................................................................... 16

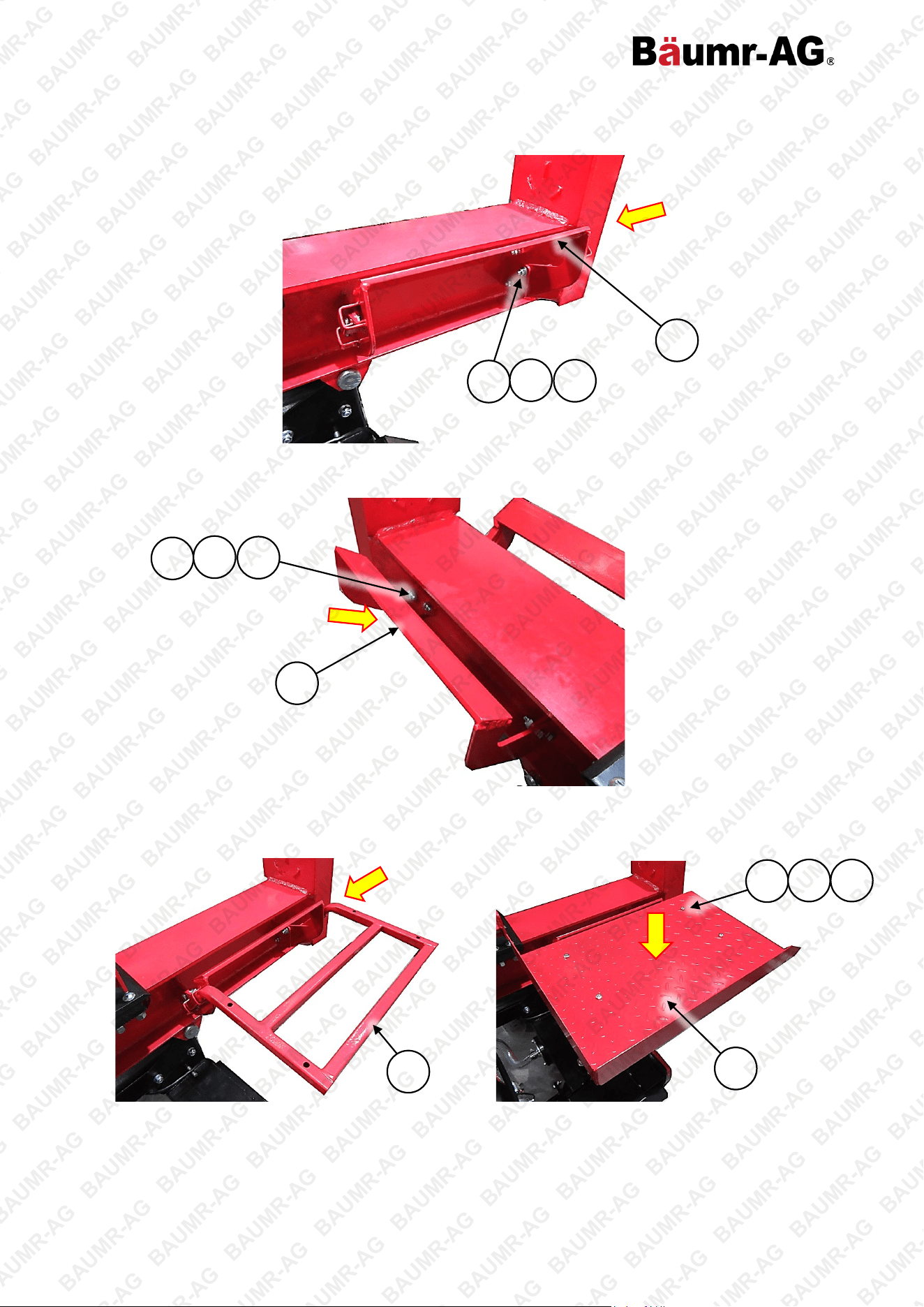

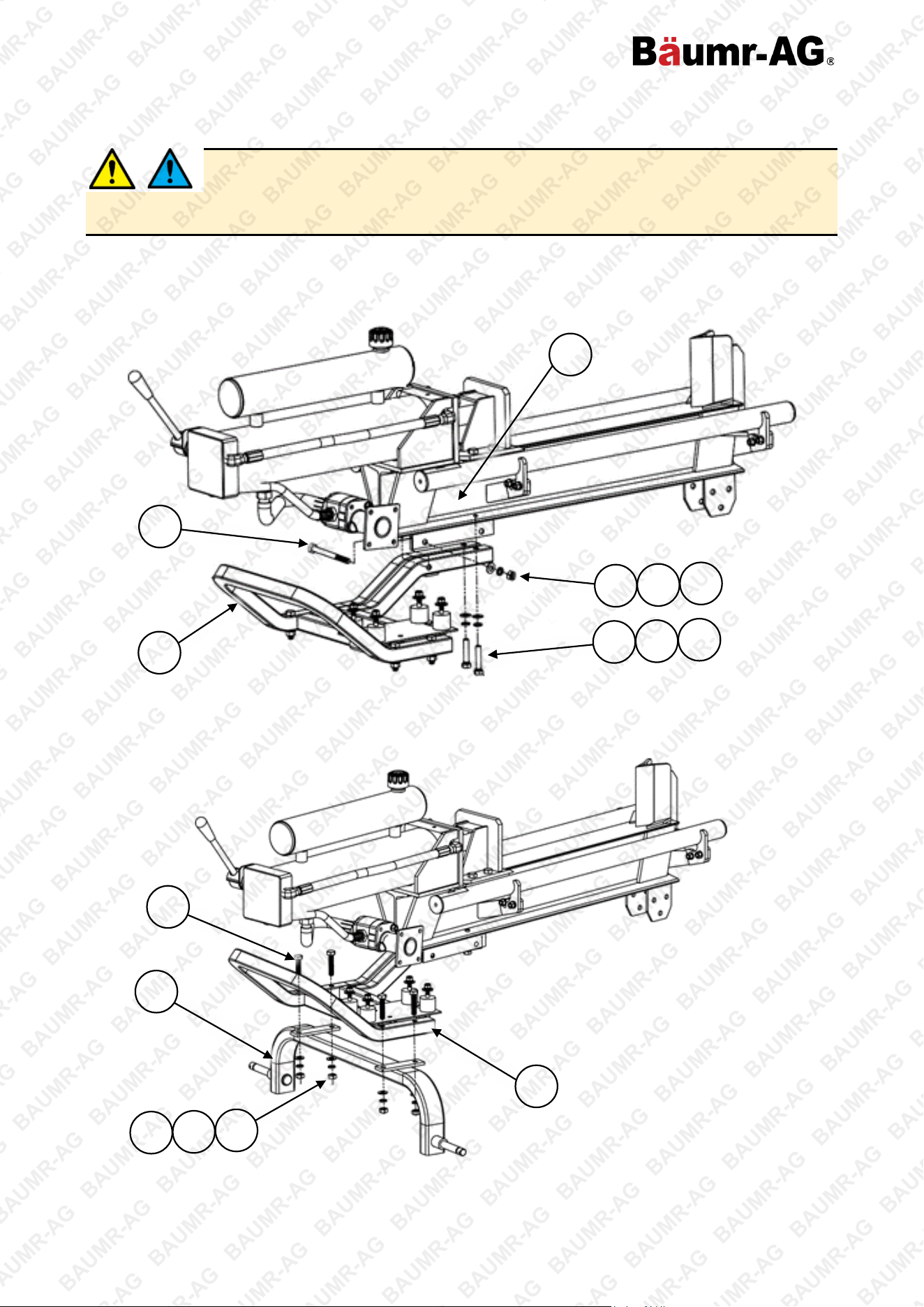

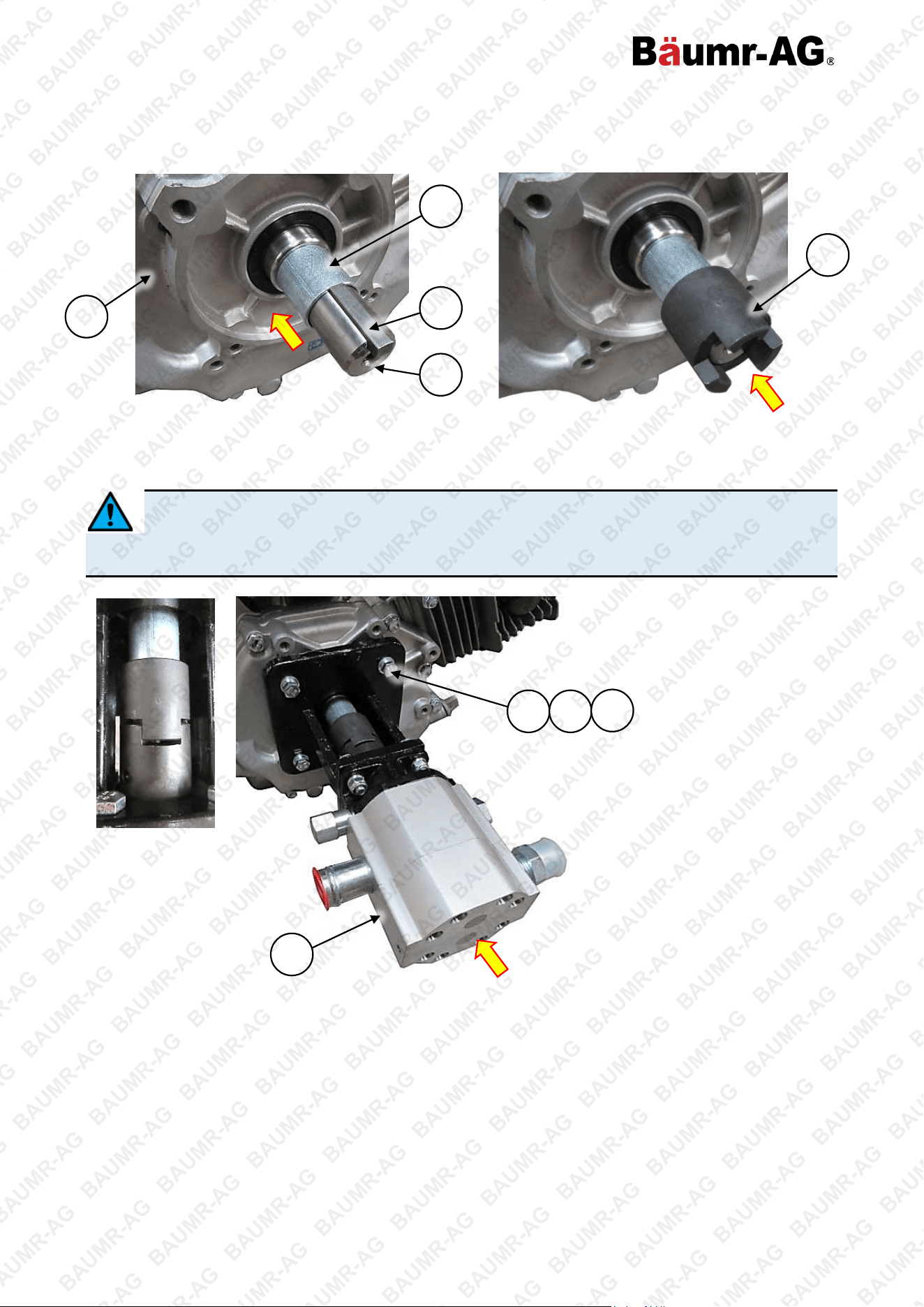

Assembly – HDS800 / HPS800.................................................................................................................. 16

Assembly – HPS500 .................................................................................................................................. 23

Engine Oil ................................................................................................................................................... 25

Air Filter ...................................................................................................................................................... 25

Fuel ............................................................................................................................................................ 26

Hydraulic Oil ............................................................................................................................................... 26

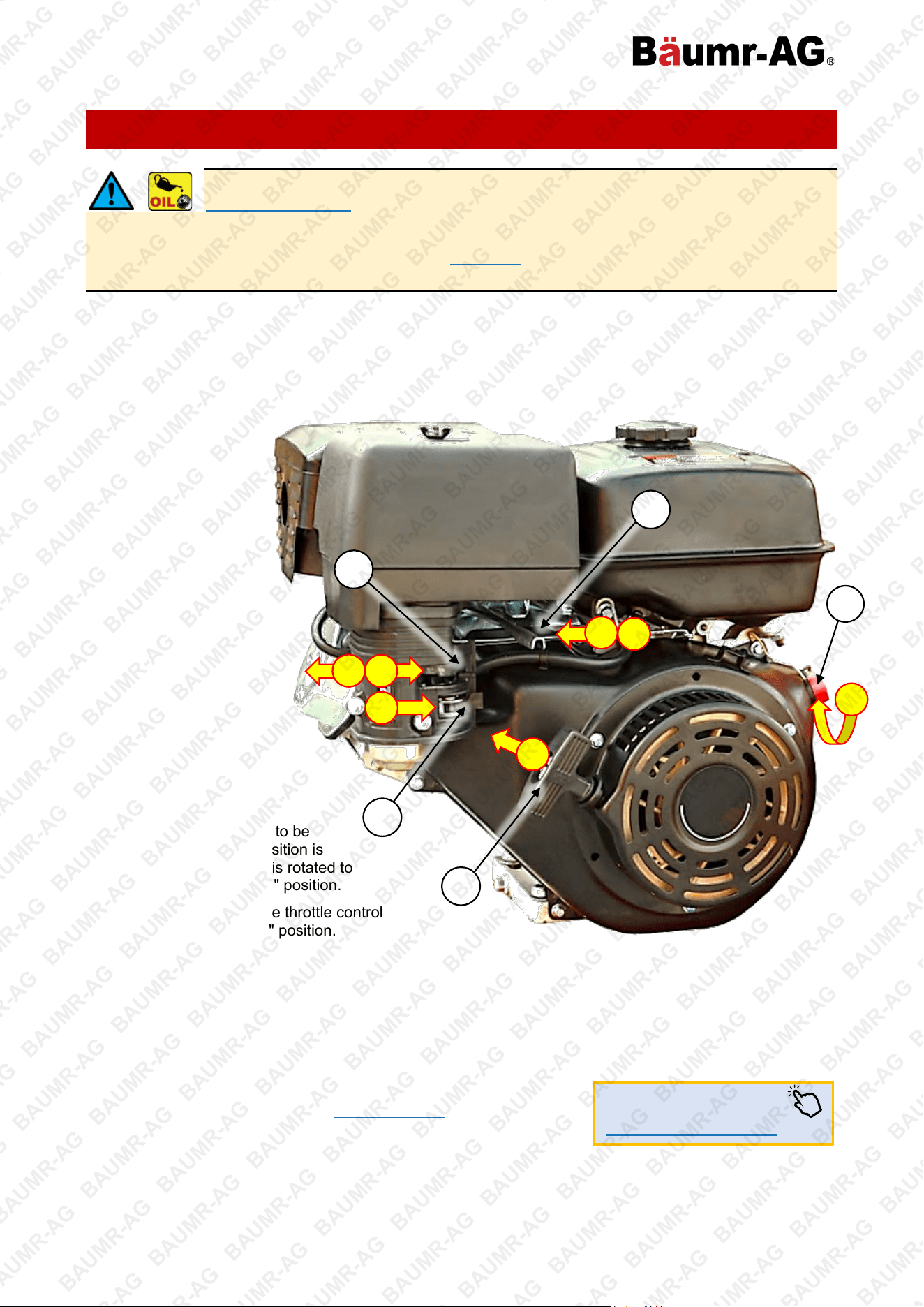

Engine Starting .............................................................................................................................. 27

Starting Petrol Engines .............................................................................................................................. 27

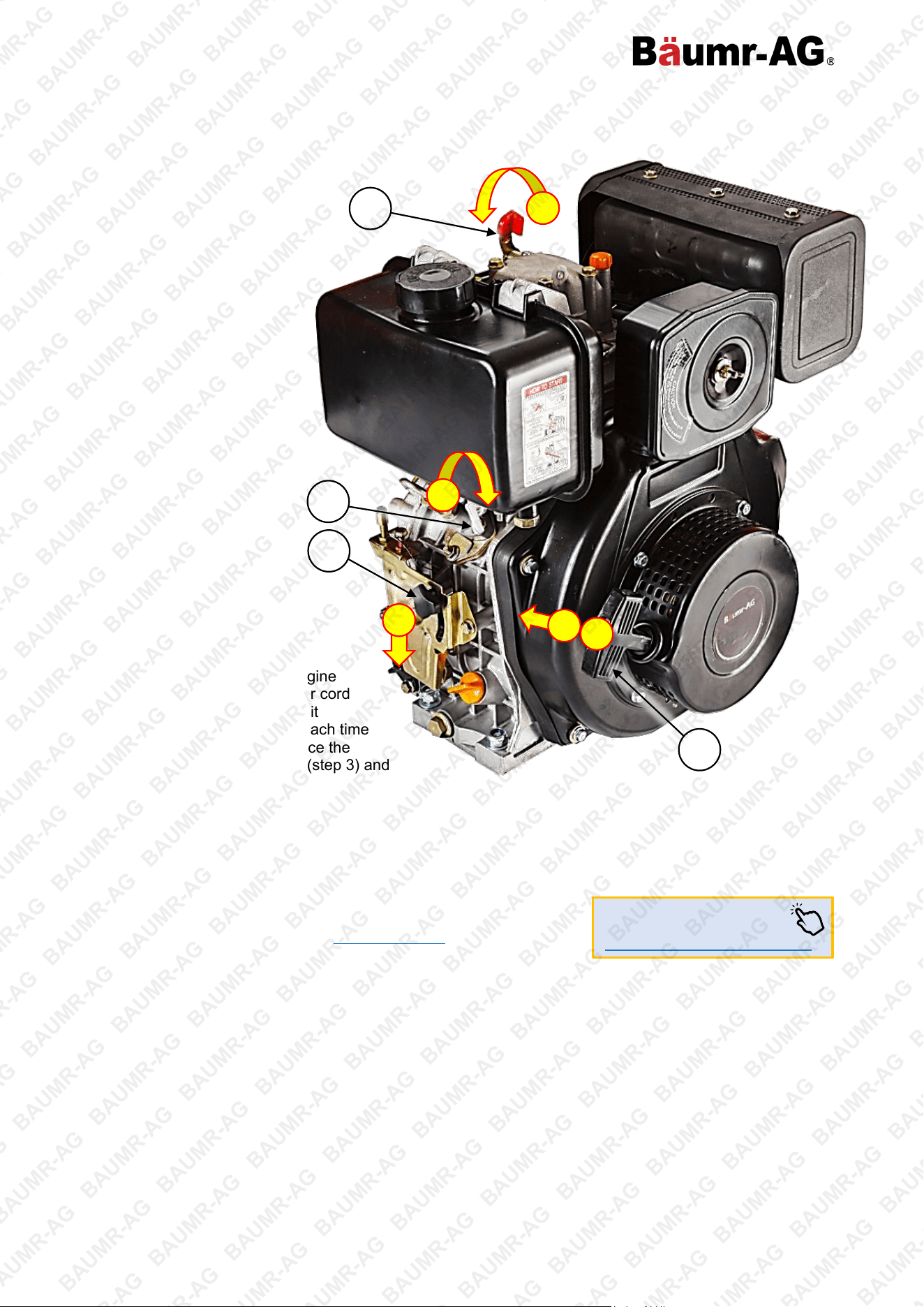

Starting Diesel Engines .............................................................................................................................. 28

Stopping the Engine ................................................................................................................................... 28

Environmental Considerations ................................................................................................................... 29

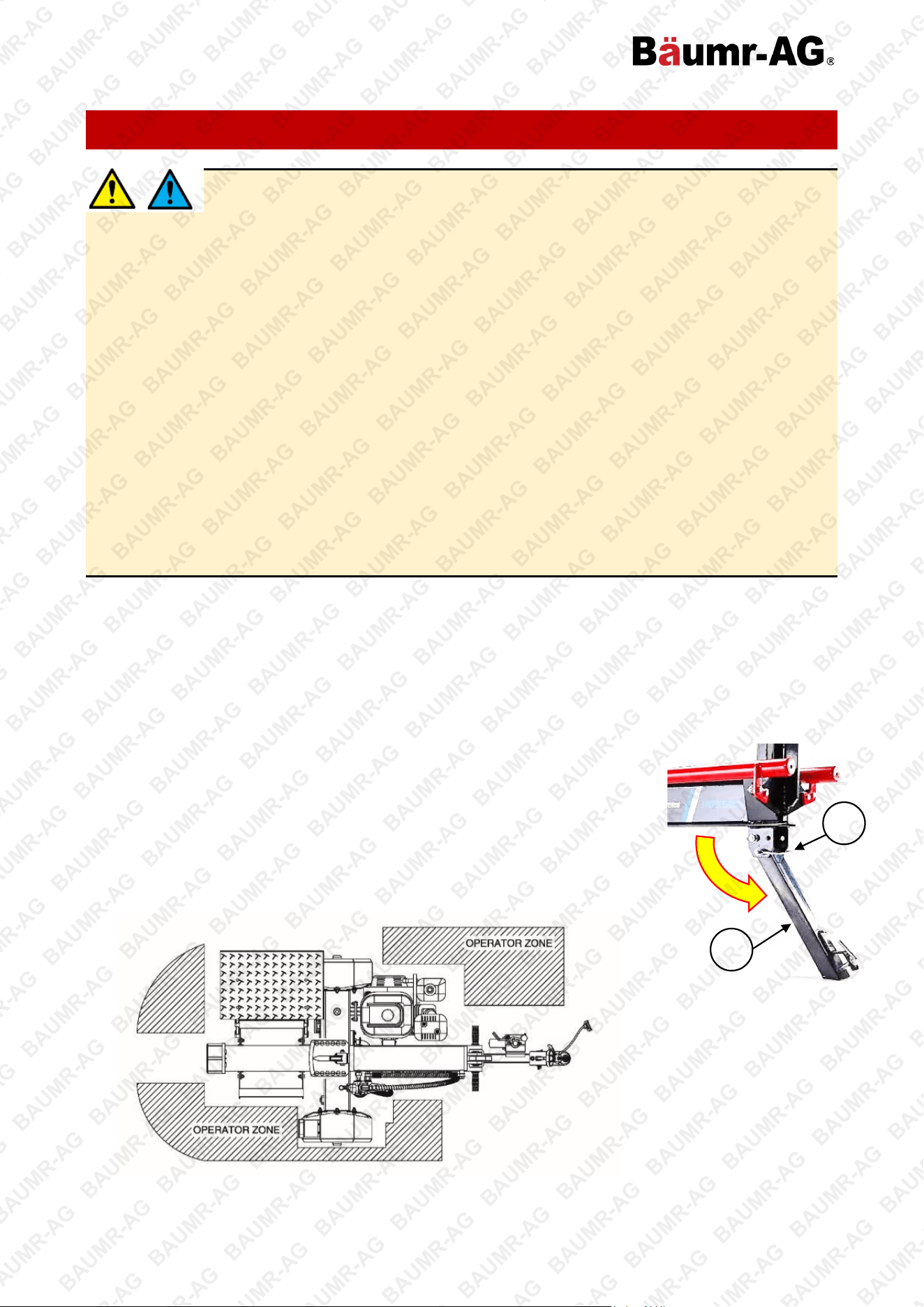

Log Splitter Operation ................................................................................................................... 30

Splitting Logs .............................................................................................................................................. 31

Setting-Up the Machine in the Vertical / Horizontal Position ............................................................... 32

Towing ........................................................................................................................................................ 33

Maintenance ................................................................................................................................... 34

Maintenance Schedule – Petrol Engines / Machines ................................................................................ 35

Maintenance Schedule – Diesel Engines / Machines ................................................................................ 36

Hydraulic System ....................................................................................................................................... 37

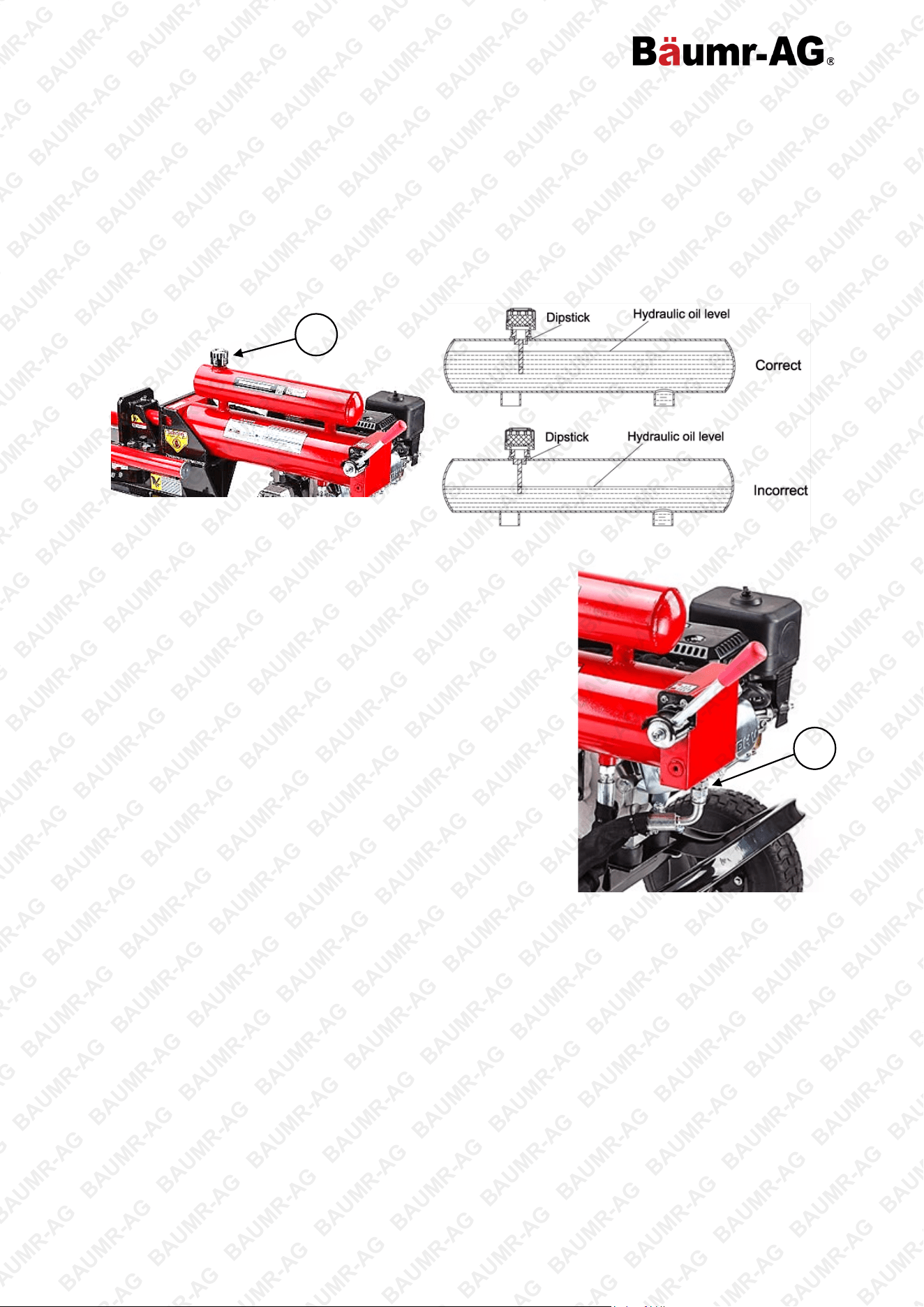

Checking and Changing Hydraulic Oil – HDS800 / HPS800 .............................................................. 37

Checking and Changing Hydraulic Oil – HPS500 ............................................................................... 38

Engine Oil ................................................................................................................................................... 39

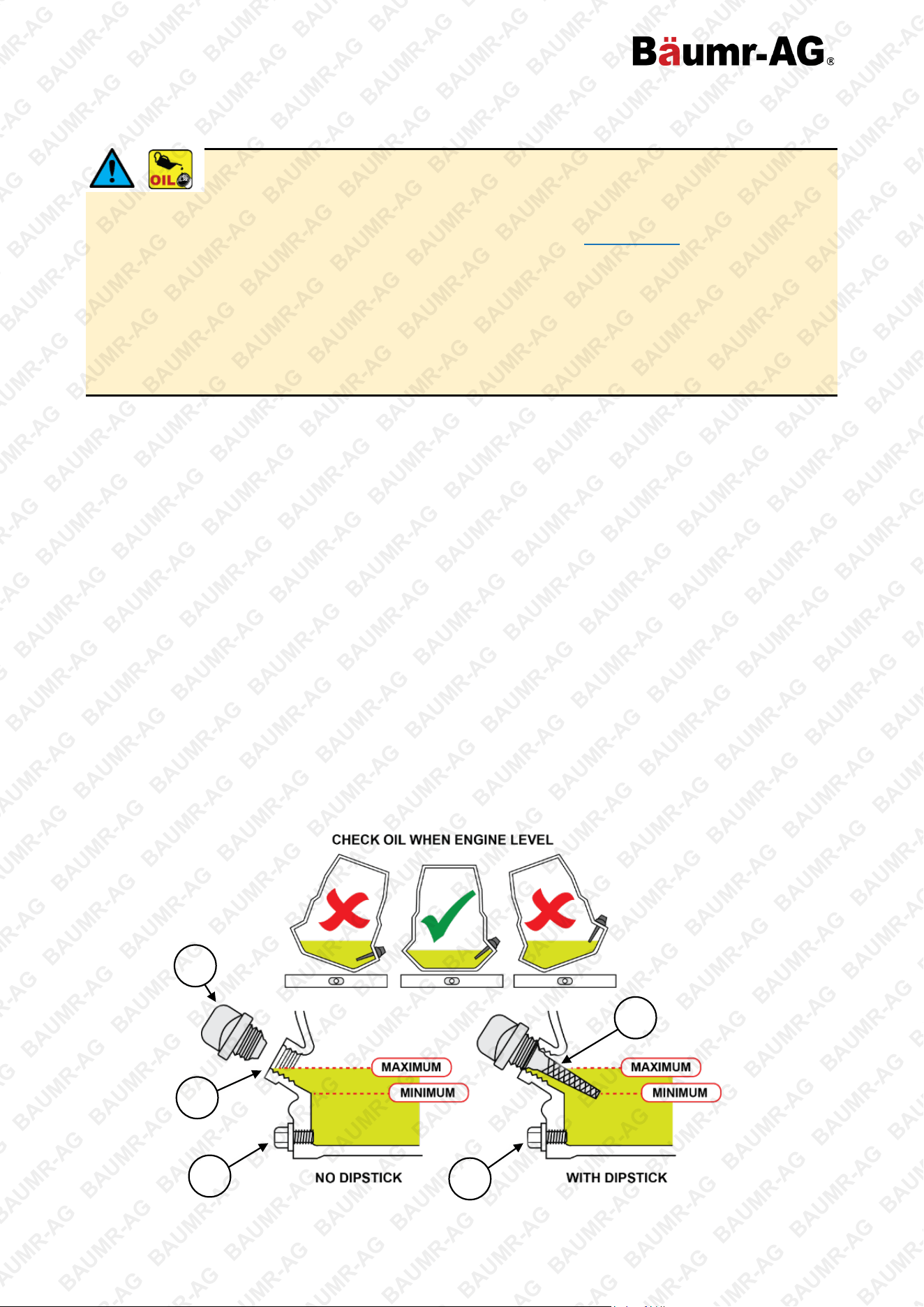

Checking and Changing Engine Oil ..................................................................................................... 39

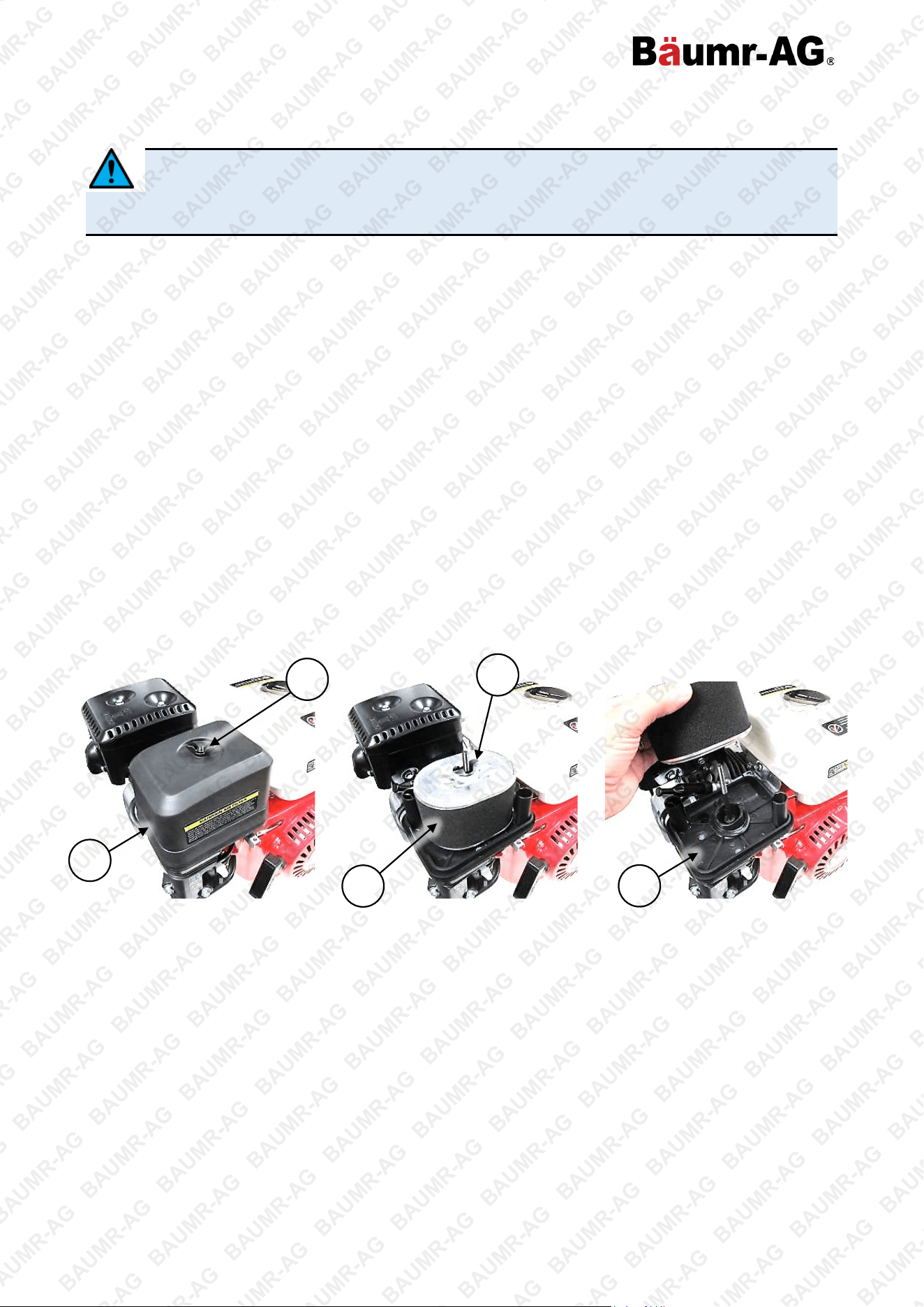

Air Filter ...................................................................................................................................................... 41

Inspection and Cleaning ...................................................................................................................... 41

Removal/Installation – Petrol Engines ................................................................................................. 41

Trailer Mount Log Splitter

Removal/Installation – Diesel Engines ................................................................................................ 42

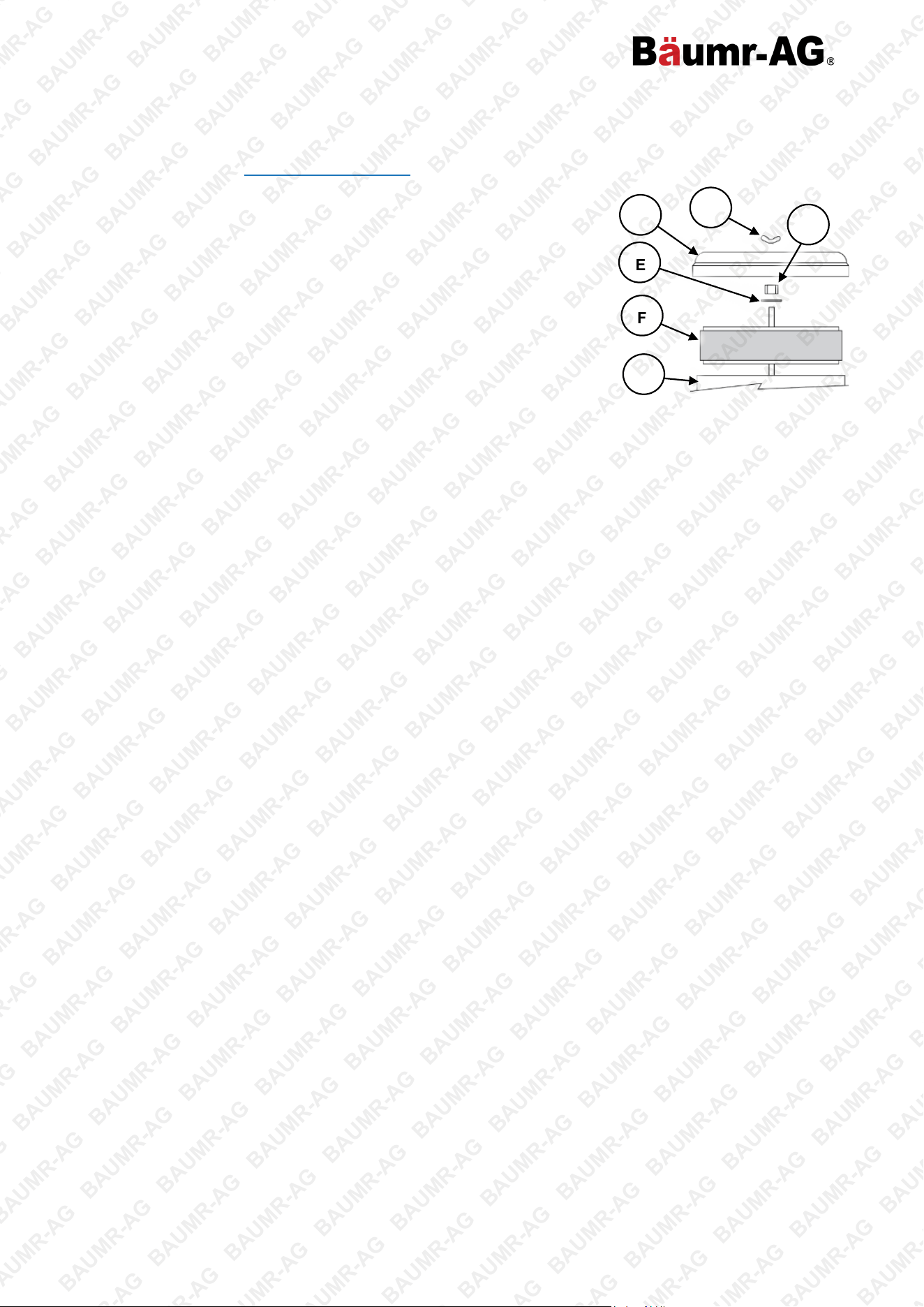

Spark Plug .................................................................................................................................................. 43

Cleaning and Gap Checking ................................................................................................................ 43

Removal/Installation ............................................................................................................................ 43

Transportation and Storage .......................................................................................................... 44

Preparing for Transport and Storage ......................................................................................................... 44

Long Term Storage .................................................................................................................................... 44

Troubleshooting ............................................................................................................................. 45

Specifications ................................................................................................................................. 48

Engine Service and Maintenance Record .................................................................................... 49

Trailer Mount Log Splitter

Applicable Models

This manual applies to the following Bäumr-AG log splitters:

HDS800

HPS800

HPS500

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Trailer Mount Log Splitter

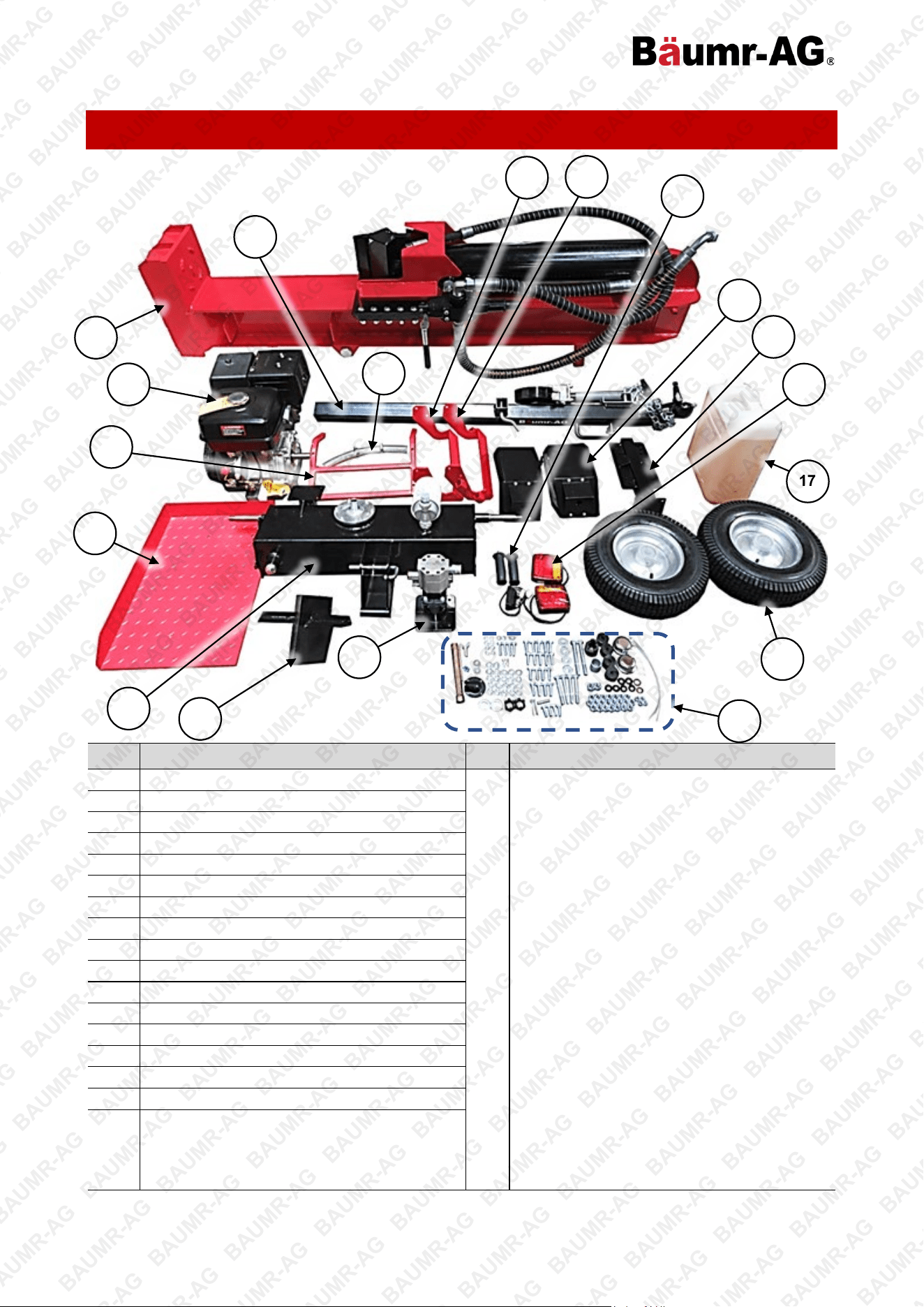

Parts Identification

HDS800 / HPS800

No. Name No. Name

1 Hydraulic Ram Assembly 17

M10x30 Bolt (18)

M10x25 Winged Bolt (1)

M8x35 Bolt (4)

M8x25 Bolt (4)

M5x10 Bolt (4)

Self-Tapping Screw (4)

M20 Castellated Nut (2)

M12 Nut (2)

M10 Nut (22)

M8 Nut (4)

M20 Washer (2)

M12 Washer (2)

M10 Large Washer (4)

M10 Washer (22)

M10 Rubber Washer (6)

M8 Washer (8)

M8 Spring Washer (4)

M6 Washer (2)

M6 Spring Washer (2)

Split Pin (2)

17mm O-Ring (2)

M8 Nut (2)

Hub Cap (2)

Exhaust Shroud

Pump Coupling Spacer

Pump Coupling

Cable Tidies

Woodruff Key (for engine output shaft)

Rubber Engine Mount (4)

2

Engine (petrol version shown)

3

Oil Tank / Rear Axle Assembly

4 Tow Arm / Jockey Wheel Assembly

5 Wheel (2)

6

Oil Pump

7 Log Table

8 Engine Mounting Bracket

9

Mudguard (left and right)

10 Log Cradle with Table Mounts

11 Log Table Support

12

Log Cradle

13 4-Way Splitting Wedge

14 Oil Supply Hose (includes 2 hose clamps)

15 Trailer Lamps (left / right and number plate)

16

Ram Lifting Handle (2)

17 Tools / Fasteners / Accessories:

Hydraulic Oil

Spark Plug Tool

M12x100 Bolt (2)

M10x75 Bolt (4)

1

2

3

9

5

6

7

8

13

11

14

4

12

10

17

15

16

17

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Trailer Mount Log Splitter

HPS500

No. Name No. Name

1 Main Machine Assembly (includes hydraulic ram, oil

tank, slide, log cradle, wedge etc)

7 Tools / Fasteners (pre-assembled to associated parts) /

Accessories (not shown):

Spark Plug Tool

M10x100 Bolt (2)

M10x50 Bolt (6)

M8x65 Bolt (5)

M8x25 Bolt (4)

M16 Castellated Nut (2)

M10 Nut (7)

M8 Nut (8)

M16 Washer (2)

M10 Washer (9)

M8 Washer (8)

M10 Spring Washer (9)

M8 Spring Washer (8)

Split Pin (2)

Pump Coupling Spacer

Pump Coupling

Locking Pin

Woodruff Key (for engine output shaft)

Rubber Engine Mount (4)

2 Engine

3 Rear Frame

4

Axle Assembly

5 Wheel (2)

6 Support Leg

1

6

3

4

5

2

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Trailer Mount Log Splitter

Spare Parts

Spare parts available for purchase, scan QR codes below:

QR Code SKU QR Code SKU

LGSDSLUSAA50D

LGSPTLUSAA50P

LGSPTLBMRA20P

LGSPTLBMRB50P

LGSDSLBMRB50D

LGSDSLBMRA8D0

LGSPTLBMRA8P0

LGSPTLBMRA5C0

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Trailer Mount Log Splitter

Controls and Features Identification

HDS800 / HPS800

No. Name No. Name

1 Hydraulic Ram 12 Pump Outlet Hose

2 Engine (petrol version shown) 13 Control Lever

3

Oil Tank

14

Slide

4 Tow Arm 15 Foot

5 Jockey Wheel 16 Trailer Electrical Connector

6 Oil Pump 17 Ram Horizontal Position Latch

7

Log Table

18

Ram Vertical Position Latch

8 Return Hose 19 Wheel

9 Log Cradle 20 Ram Lifting Handle

10

Ram Pivot Pin

21

Lamp

11 Splitting Wedge 22 Safety Chain

1

6

3

4

5

2

7

12

8

9

15

13

18

11

14

16

17

10

19

20

22

21

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Trailer Mount Log Splitter

HPS500

No. Name No. Name

1

Hydraulic Ram

10

Control Lever

2 Engine 11 Splitting Wedge

3 Oil Tank 12 Log Cradle

4 Tow Hitch 13 Locking Pin

5

Support Leg

14

Rear Frame (includes engine mount)

6 Oil Pump 15 Rear Axle

7 Slide 16 Wheel

8

Return Hose

17

Pusher Plate

9 Pump Outlet Hose 18 Engine Position Adjustment Bolt

1

6

3

4

5

2

7

12

8

9

15

13

11

14

16

10

17

18

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Trailer Mount Log Splitter

Before Use Checklist

Ensure that you carry out all procedures below before starting the engine or operating the

equipment. All procedures described are generic in nature and slight variations between

different models may exist. Failure to follow the checklist and carry out the procedures correctly may

result in making the product warranty void. The product is NOT supplied with engine oil, although traces

of oil from the manufacturing process may be present. It is essential to add adequate engine oil of the correct

type to the engine before use – see Engine Oil. Failure to add engine oil will void the product warranty.

Assembly – HDS800 / HPS800

2 or more persons are required for assembly. • Suitable tools (not supplied) are required for

correct assembly. • Check all parts have been supplied and are in good condition before

commencing assembly. • Washers are to be placed under nuts unless otherwise stated. • Firmly secure all

fasteners.

1. Attach the tow bar assembly (A) to the mounting bracket at the top of the oil tank assembly (B) using 2

M12x100 bolts (C), 2 M12 washers (D) and M12 nuts (E). Once attached, lower the jockey wheel (1)

before continuing assembly.

2. Connect the oil supply hose (F) to the oil tank port (2) and secure it using the supplied hose clamp.

3. Remove the split pin (G), M20 castellated nut (H) and M20 washer (I) from the axle on either end of the

oil tank assembly. Remove any dust covers from the wheel (J) hubs – be careful not to allow any dirt etc

to get into the wheel bearings. Then, slide each wheel onto the axle – be careful not to allow the

bearings to come out of the wheel hub. Place a M20 washer onto the axle, then the M20 castellated nut.

After tightening the nut, insert a split pin through the nut and axle, then bend the pin legs to prevent it

from falling out. Install the hub caps (K) to seal the bearings – these may require tapping on with a mallet

or soft hammer etc.

A

B

C

D

E

F

2

1

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Trailer Mount Log Splitter

4. Remove the pre-assembled nuts from the rear lamps (L), then run the lamp wiring through the hole in

the lamp mounting (3) on each mudguard (M), then secure the lamps using the previously removed nuts.

NOTE: the wiring for the right-hand side tail light is longer than for the left side.

5. Attach each mudguard to the oil tank using 3 M10x30 bolts (N), M10 rubber washers (O), M10 washers

(P) and M10 nuts (Q). Place the rubber washers between the mudguard and the oil tank.

6. Attach the engine mounting bracket (R) to the oil tank mounting (4) using 4 M10x30 bolts (N), M10

washers (P) and M10 nuts (Q).

7. Remove the hinge pin (5) and R-clip (6) from the underside of the hydraulic ram assembly (S). Lower the

hydraulic ram assembly onto the oil tank, so the hinge pin is aligned with the pivot (7) on the ram

mounting (8). Re-install the hinge pin so the hydraulic ram assembly is secured, then insert the R-clip to

J

K

I G

H

3

L

M

N

O P Q

R

4

Q

P N

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Trailer Mount Log Splitter

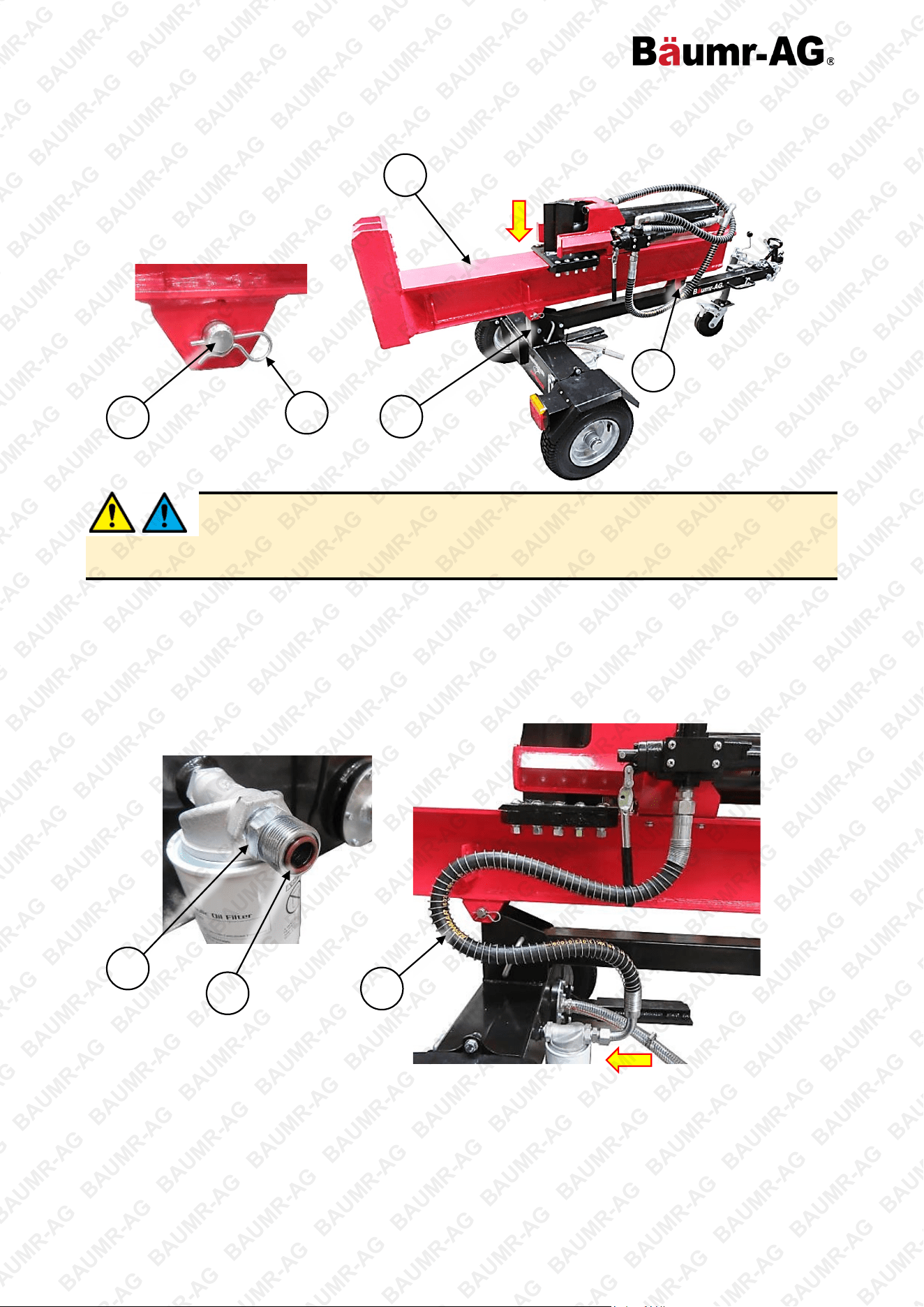

prevent the pin from falling out. Ensure that the spring-loaded pin (9) engages with the hydraulic ram

assembly to lock it in the horizontal position.

When making the high-pressure hose connections, it is ESSENTIAL that O-rings are

correctly installed and that the connector internals are absolutely clean. • The hydraulic ram

may be supplied pre-filled with oil – be aware that when removing the hose plugs that oil may escape from

the hose.

8. Remove the dust cover from the oil tank "return" hose connector / filter (10), then install a 17mm O-ring

(T) to the connector. Remove the plastic sealing plug from the "return" hose (11) connector (hose with

90° elbow at the end). Note that there may be an O-ring behind the plug – do not make a connection

using 2 O-rings. Connect the hose to the oil tank connector and firmly secure it. Ensure that the hose is

routed as shown – this will prevent the hose being stressed when the hydraulic ram is used in the

vertical position.

S

5

6

9

8

10

T

11

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Trailer Mount Log Splitter

9. Slide the pump coupling spacer (U) onto the engine (V) output shaft (12), then place the woodruff key

(W) into the slot in the output shaft. Then, slide the pump coupling (X) onto the output shaft (because of

the woodruff key, the coupling will fit on one way only).

10. Bring the pump assembly (Y) into position against the engine. Ensure that the pump couplings engage

as shown, then attach the pump assembly to the engine using 4 M8x25 bolts (Z), M8 washers (AA) and

M8 spring washers (BB). The engine is now ready to be mounted to the machine.

Before tightening the pump assembly mounting bolts, pull the engine starter cord several times

(remove the spark plug first to make spinning the engine easier) and check that the engine-pump

coupling operates smoothly. If not, adjust the position of the pump as required. When the coupling operates

smoothly, tighten the fasteners.

W

12

U

V

X

Z

AA

BB

Y

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Trailer Mount Log Splitter

11. Place 4 rubber engine mounts (EE) and M10 large washers (FF) onto the engine mounting bracket (R),

as shown. Carefully lower the engine onto the mounts and secure it using 4 M10x75 bolts (GG), inserted

from under the engine mounting brackets, M10 washers (P) and M10 nuts (Q).

12. Connect the oil supply hose (F) (from oil tank) to the pump inlet port (13) and secure it using the hose

clamp.

13. Remove the dust cover from the oil pump "outlet" hose connector (14), then install a 17mm O-ring (T) to

the connector. Remove the plastic sealing plug from the "outlet" hose (15) connector. Note that there

may be an O-ring behind the plug – do not make a connection using 2 O-rings. Connect the hose to the

oil pump connector and firmly secure it. Ensure that the hose is routed as shown – this will prevent the

hose being stressed when the hydraulic ram is used in the vertical position.

EE

GG

FF

R

P

Q

F

13

T

15

14

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Trailer Mount Log Splitter

14. Attach the log cradle with log table mounts (HH) to the right-hand side of the hydraulic ram assembly

using 4 M10x30 bolts (N), M10 washers (P) and M10 nuts (Q).

15. Attach the remaining log cradle (II) to the left-hand side of the hydraulic ram assembly using 4 M10x30

bolts (N), M10 washers (P) and M10 nuts (Q).

16. Insert the arms of the log table support (JJ) into the log cradle with table mounts. Place the log table

(KK) on the support and secure it using 4 M8x35 bolts (LL), M8 washers (AA) and M8 nuts (MM). Insert

the bolts from the top of the table.

17. If required, assembly the valve control lever – remove the pin (NN) and retaining clip (OO) from the lever

(PP). Rotate the lever up, then re-insert the pin through the lever and pivot and secure using the

retaining clip.

18. Screw the ram lifting handles (QQ) into the holes at the end of the ram assembly and firmly tighten by

hand.

HH

N

P

Q

I I

N

P

Q

JJ

KK

LL

AA

MM

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Trailer Mount Log Splitter

19. If required, place the exhaust shroud (RR) in position on the engine exhaust shield and secure it using 4

self-tapping screws (SS).

20. Join the lamp electrical connectors to the main wiring harness (TT) that runs through the tow arm,

according to the labels on them – "L" to "L", and "R" to "R". Use the self-adhesive cable tidies for the

trailer lamp wiring.

PP

NN

OO

QQ

SS

RR

TT

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Trailer Mount Log Splitter

Assembly – HPS500

2 or more persons are required for assembly. • Suitable tools (not supplied) are required for

correct assembly. • Check all parts have been supplied and are in good condition before

commencing assembly. • Fasteners are pre-assembled to applicable parts. • Washers are to be placed

under nuts unless otherwise stated. • Firmly secure all fasteners.

1. Remove the 2 M10x50 bolts (A), washers (B) and spring washers (C) from the main machine assembly

(D), and the 2 M10x100 bolts (E), washers (B), spring washers (C) and nuts (F) from the rear frame (G).

2. Attach the rear frame (G) to the main machine assembly (D) using the previously removed fasteners.

3. Remove the 4 M10x50 bolts (A), washers (B), spring washers (C) and nuts (F) from the rear frame (G).

4. Attach the axle assembly (H) to the rear frame (G) using the previously removed fasteners

D

G

A

B

C

H

A

E

B

C

F

B

C

F

G

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Trailer Mount Log Splitter

5. Remove the split pin (I), M16 castellated nut (J) and M16 washer (K) from the axle on either end of the

axle assembly (H). Then, slide each wheel (L) onto the axle. Place a M16 washer onto the axle, then the

M16 castellated nut. After tightening the nut, insert a split pin through the nut and axle, then bend the pin

legs to prevent it from falling out.

6. Remove the M8x65 bolt (M), nut (N), spring washer (O), washer (P) and locking pin (Q) from the support

leg (R).

7. Attach the support leg (R) to the bracket at the front of the main machine assembly (D) using the

previously removed fasteners.

8. Remove the 4 M8x65 bolts (M), washers (P), spring washers (O) and nuts (N) from the rear frame (G),

and the 4 M8x25 bolts (S), washers (P) and spring washers (O) and from the engine (T).

J

L

I

H

K

D

P

Q

R

N O

M

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Trailer Mount Log Splitter

9. From the hydraulic pump assembly (U), install the output shaft bush (V), woodruff key (W) (this must be

placed into the slot in the engine output shaft) and coupling (X) to the engine output shaft in that order.

10. Attach the pump assembly (U) to the engine (T) using the 4 previously removed M8x25 bolts, spring

washers and washers.

Before tightening the engine mounting bolts, slowly pull the engine starter cord several times

(remove the spark plug first to make spinning the engine easier) – ensure that the engine output

shaft and pump drive assembly is aligned and that the parts engage and rotate smoothly. If required, use the

"adjusting bolt" (Y) to hold the engine in the correct position. When aligned, tighten the engine mounting

bolts.

11. Attach engine (T) to the rear frame (G) using the 4 previously removed M8x65 bolts, washers, spring

washers and nuts.

Engine Oil

Four-stroke engines require engine oil in the crankcase for lubrication of internal components. Severe or

irreparable damage may occur if the engine is allowed to run without engine oil. The engine oil level requires

regular maintenance. Check the engine oil level and ensure that the oil level is at or just under the maximum

level indicator.

Always check the engine oil level before starting the engine. See Engine Oil

.

Air Filter

The air filter is used to prevent dirt and other particles from possibly entering the engine and causing internal

damage to it. The air filter requires regular maintenance.

Always check the air filter before starting the engine. See Air Filter

.

G

N

O

P

M

T

X

W

U

V

S

P

O

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Trailer Mount Log Splitter

Fuel

Petrol/fuel/gasoline is extremely flammable – keep clear of naked flames or other ignition

sources. • The engine must be cool before refuelling.

Adequately fill the fuel tank with the correct fuel type.

• For petrol engines, use non-ethanol unleaded petrol (higher RON values will provide best engine

performance). Do not use old or contaminated fuel.

• For diesel engines, use commercial non-bio diesel fuel. Do not use old or contaminated fuel.

To fill or top up fuel:

1. Place the machine on a flat and level surface.

2. Clean the machine around the fuel filler so that no dirt or other material enters the engine when the cap

is removed.

3. Remove (rotate left) the fuel filler cap.

4. Using a funnel, carefully fill the tank with fuel. Do not fill above the top of the strainer (if equipped) or

otherwise overfill the tank.

5. When finished, reinstall (rotate right) the fuel filler cap until firm. Wipe away any residual fuel from the

machine. If fuel has been spilt, move the pump away from the spillage before starting the engine.

Hydraulic Oil

The hydraulic system requires adequate hydraulic oil of the correct type to operate safely and efficiently. The

machine is shipped without hydraulic oil although some oil may be supplied. Check the hydraulic oil level and

ensure that it is at the recommended level. See Hydraulic Oil

.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Trailer Mount Log Splitter

Engine Starting

Before starting the engine, ensure that you have followed all procedures described in the

Before Use Checklist. Failure to follow the checklist and carry out the procedures

correctly may result in making the product warranty void. The product is NOT supplied with engine oil,

although traces of oil from the manufacturing process may be present. It is essential to add adequate engine

oil of the correct type to the engine before use – see Engine Oil. Failure to add engine oil will void the

product warranty.

Different models may feature variations in design; for example, some have different engine types etc. The

following procedures and images are typical to all models, however, the position or appearance of controls

etc may vary. All major engine controls are identified on the machine by way of stickers or other markings.

Starting Petrol Engines

1. FUEL – Place the

fuel tap (A) in the

"ON" position (to

the right).

2. CHOKE – If the

engine is cold,

place the choke (B)

in the "COLD"

position (to the left).

If the engine is

warm or ambient

temperature is high,

place in the "HOT"

position (to the

right).

3. IGNITION – Place

the engine ON/OFF

switch (C) or key

switch (if equipped)

in the "ON" ("I")

position. For key

switches, the "OFF"

position allows the key to be

removed. The "ON" position is

reached when the key is rotated to

the right from the "OFF" position.

4. THROTTLE – Place the throttle control

(D) just off the "SLOW" position.

5. START – Slowly pull out the starter cord (E) until you feel it engage with the engine, then pull it out

rapidly (use both hands if necessary). The engine should start. Allow the starter cord to rewind slowly –

do not let it "snap" back.

6. WARM-UP – Allow the engine to warm-up and run smoothly. If choke is being applied, place the choke

(B) in the "HOT" position.

7. THROTTLE – Adjust the throttle control (D) for the required engine speed.

If the engine does not start, repeat step 5 onward. If the engine fails to

start after several attempts, refer to Troubleshooting

.

A

B

C

1

2

5

4

6

7

3

D

E

C

Video Tutorial:

Starting Petrol Engines

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Trailer Mount Log Splitter

Starting Diesel Engines

1. FUEL – Place the fuel

tap (A) in the "ON"

position.

2. THROTTLE – Place the

throttle control (B) in the

"RUN" position (down).

Some models use a

screw to secure the

throttle in position – to

adjust, loosen the screw

and move it to the

required position, then

tighten it again.

3. TOP DEAD CENTRE –

Slowly pull out the starter

cord (D) until you feel it

engage with the engine,

then allow it to return to

the retracted position.

4. DECOMPRESS – Place

the decompression lever

(C) in the "down"

position, otherwise you

may not be able to start

the engine.

5. START – Rapidly pull the

starter cord (D) (use both

hands if necessary). The engine

should start. Allow the starter cord

to rewind slowly – do not let it

"snap" back to the engine. Each time

you use the starter cord, place the

engine at "top dead centre" (step 3) and

the decompression lever in the "down"

position (step 4) first.

6. WARM-UP – Allow the engine to warm-up and run smoothly.

7. THROTTLE – Adjust the throttle control (B) for the required engine speed. Some models use a screw to

secure the throttle in position – to adjust, loosen the screw and move it to the required position, then

tighten it again.

If the engine does not start, repeat step 3 onward. If the engine fails to

start after several attempts, refer to Troubleshooting

.

Stopping the Engine

1. Place the throttle control in the "SLOW" position. For diesels, loosen the throttle control – it should

automatically return to the engine OFF position (up).

2. If equipped, place the engine ON/OFF switch in the "OFF" position.

3. If equipped, place the fuel tap in the "OFF" position.

C

A

B

D

3

2

5

1

4

Video Tutorial:

Pull-Starting Diesel Engines

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Trailer Mount Log Splitter

Environmental Considerations

Altitude – If the engine is being used in altitudes at or above 1500m (approximately 5000'), adjustments to

the fuel system may be required. This is because there is less oxygen in the air as altitude increases, which

effectively "enriches" the ratio of fuel to air going into the engine, and the higher the altitude, the richer the

fuel mixture becomes. If the engine is being permanently operated at high altitude, it is recommended to

have an authorised service centre make the necessary fuel system adjustments. If the engine is used

occasionally at altitude (not extreme altitudes), no adjustments should be required, however, a slight

decrease in engine performance can be expected.

Temperature – If the engine is being used in extremely cold or hot

environments; for example, desert or snow conditions, the type of

engine oil may need to be changed to suit environmental

temperatures. Oil thickens as the temperature decreases and thins as

temperature increases, which means that if the engine oil is not suited

to the temperature its ability to properly lubricate the engine may be

affected. Use the following chart to determine the correct engine oil:

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Trailer Mount Log Splitter

Log Splitter Operation

The machine must be operated by one person only. Do not allow helpers or bystanders

within 30m (90') of the machine. Bystanders should wear eye protection. • Make sure there

are no nails or foreign objects in logs to be split. • Log ends must be cut square. • Branches must be cut off

flush with the trunk. • Always split logs in the direction of the wood grain. • Do not load or unload logs whilst

the ram is moving. • Crush / amputation hazard - keep hands away from moving parts and from splits/cracks

that open in logs. • Do not remove jammed logs by hand. • Ensure that when initially retracting the ram that

the timber has split and is separated from the wedge. If timber becomes jammed on the wedge and

moves up when retracting the ram, do NOT fully retract the ram as this may cause injury and/or

damage the machine. Remove the timber from the wedge before fully retracting the ram. • Do not

change the machine set-up between vertical and horizontal when the machine is running or timber is loaded

into the machine. • Ensure that the hydraulic ram assembly is locked into position before using the machine.

• Before use, check the hydraulic oil level with the ram in the fully retracted position. • Make sure all fittings

are secure before applying pressure. • Make sure the hydraulic hoses do not touch any hot surfaces or are in

or near the splitting area. • To avoid serious bodily injury, inspect the hydraulic system (hoses, fittings and

connections, and hydraulic pump) before operating the machine. Very high fluid pressure and temperatures

are created in the hydraulic system. Hydraulic fluid will escape through the smallest opening and can

puncture skin and cause severe injury and blood poisoning. Never check for leaks with your hands or any

other body part while the hydraulic system is pressurised – use a piece of wood or other hard

material that any leak will be visible on. Seek medical attention immediately if injured by hydraulic

fluid. • The hydraulic oil needs to be above -12°C (10°F) before starting the engine. Cold hydraulic oil can

damage the hydraulic pump. If the air temperature is below 0°C (32°F), allow the oil to warm up by extending

and returning the wedge several times before splitting wood.

Note that once the engine is running, the hydraulic pumping action of the machine activates. When the

engine is idling (slowest continuous running speed), the hydraulic pressure is minimal. As you increase

engine speed (use the engine throttle control), the hydraulic pressure increases. Note the following

recommendations:

• Operate the engine at a sufficient speed to provide the desired hydraulic pressure. This may vary on the

size of the timber and species etc.

• Set-up and operate the machine on a dry and level surfaces with good footing. Do not work on mud,

loose, or slippery ground surfaces, and chock the wheels before use.

• Lower the support leg (if equipped) from the towing arm position:

1. Unlock the support leg (AA) from the towing position by removing the

locking pin (BB).

2. Swing the leg down to the low position, then secure it with the locking pin.

• Maintain a clearance of at least 2.5m (7') around the machine at all times to

any combustible material.

AA

BB

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Trailer Mount Log Splitter

• For suitable wood types, use the 4-way splitting wedge (CC) (if

equipped). To attach, place it over the standard wedge (DD), then

secure it using the winged bolt (EE) (tighten by hand only).

Splitting Logs

1. Place the log on the slide/work table (A), with one end up against the non-

moving part – that is, log stop (1A) or wedge (1B).

2. Operate the hydraulic ram using the ram control lever (2). Move the lever

in the direction of the log stop and hold it there for the hydraulic ram/wedge to push the forward.

3. Push the wedge into the log until it splits, then release the lever.

4. When the wedge is free from the log, move the ram control lever in the reverse direction to retract the

ram/wedge.

Ensure that when initially retracting the ram that the timber has split and is separated from

the wedge. If timber becomes jammed on the wedge and moves up when retracting

the ram, do NOT fully retract the ram as this may cause injury and/or damage the machine. Remove

the timber from the wedge before fully retracting the ram. • If the log is not splitting, do NOT keep

pressure against the log for more than 5 seconds. This places additional stresses on the machine and may

damage it or the hydraulic system. In such cases rotate the log 90° and attempt to split it again. If this is not

successful, the log may be too hard for the capacity of the machine and should be discarded

1A

A

2

DD

CC

EE

A

1B

2

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Trailer Mount Log Splitter

Working with Logs

• Always set logs firmly on the slide / work table.

• Ensure that logs will not twist, rock or slip while being split.

• Ensure that logs have good contact with the splitting wedge. Splitting

against the top of the wedge may break the wedge or otherwise damage

the machine. Use the adjacent diagram for the safest method of splitting

logs with slanted faces

Extracting Jammed Logs

• Release pushing pressure against the log. Do NOT fully retract the

ram/wedge.

• Insert a wooden wedge under the log at the log stop, narrow edge under

the end of the log.

• Use the log splitter to push the log over the wedge to release it. Various

sized wedges may need to be tried. A crowbar can also be used to lever

the log from the wedge. Do not strike the jammed log to free as this may

damage the machine or launch the log.

Setting-Up the Machine in the Vertical / Horizontal Position

Some model machines can be used in the horizontal or vertical position for splitting. The vertical set-up is

generally better suited to larger pieces of timber. To use the vertical set-up:

1. Secure the machine in the work position with the wheels chocked.

2. Pull out and hold the spring-loaded release pin (A).

3. Whilst the release pin is in the unlocked position, use the

handles to lift the top of the hydraulic ram assembly and rotate it

until it is in the vertical position.

To revert to the horizontal position, use

the handles to gently lower the

hydraulic ram assembly, pull out and

hold the spring-loaded release pin so

that the ram assembly fully lowers,

then release the pin. Ensure the ram

assembly is held securely before

proceeding.

A

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Trailer Mount Log Splitter

Towing

Before towing, ensure the axle nuts are tight and the axle nut split pins and securely in

place. • Ensure that the tyres are inflated to the pressure marked on the tyre wall. • Do not

tow if the tyres are worn, damaged or do not hold air pressure. • Do not tow the machine in the vertical

position. Ensure that the hydraulic ram assembly is locked in the horizontal position before towing. • Do not

carry passengers, or allow any person to sit or stand on the machine. • Always fully secure the machine to

the towing vehicle hitch before towing. • Use caution when towing. Tow with an appropriate vehicle, and

avoid slopes, ditches etc. Refer to the towing vehicle owner's manual for correct safety and towing

instructions. • Do NOT tow on public roads.

HDS800 / HPS800

1. If required, lower the hydraulic ram assembly. Ensure the ram assembly is held securely before

proceeding.

2. P

lace the tow ball socket over the towing vehicle tow ball and secure it. Rotate the jockey wheel (A)

height adjustor (B) to raise/lower the tow ball socket a needed.

3. Raise the jockey wheel:

a. Pull out and hold the spring-

loaded release pin (C).

b. Whilst the release pin is in the

unlocked position, swing the

jockey wheel up to the

horizontal position, then

release the pin, ensuring that is

fully enters its horizontal

position locating hole.

4. Connect the trailer electrical connection to the towing vehicle

and ensure that the trailer lamps operate correctly.

HPS500

1. Raise the front support leg and secure it in the towing position:

a. Unlock the front support leg (A) by removing the locking pin

(B).

b. Swing the leg up to the horizontal towing arm position, then

secure it with the locking pin.

2. Hitch the towing arm securely to the towing vehicle, then place the

hitch pin in the locked position.

A

B

C

A

B

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Trailer Mount Log Splitter

Maintenance

Running combustion engines in confined areas CAN KILL IN MINUTES. Engine exhaust

fumes contain carbon-monoxide – a deadly gas that you cannot smell or see. NEVER run

a combustion engine in confined areas EVEN IF windows and doors are open. ONLY run

combustion engines OUTDOORS and away from doors, windows and vents. • Petrol / fuel

/ gasoline is extremely flammable – keep clear of naked flames or other ignition sources. •

Do not have the engine running during inspection and maintenance unless specifically required. • The engine

should be cool enough to touch before performing maintenance activities. • Some maintenance activities

may be beyond the scope of some users. Do NOT attempt procedures that you are not comfortable with, or

do not have the necessary tools, experience or knowledge for – take the unit to an authorised service centre

or qualified technician for servicing. • Harsh operating environments such as extreme temperatures, dust etc

may necessitate more frequent maintenance. • Failure to follow the maintenance schedule, using

incorrect or non-compatible accessories or replacements parts, or general negligence may result in

making the product warranty void.

To keep the machine performing at optimal efficiency, regular checks and maintenance is required. The

maintenance schedule below specifies preventative maintenance checks and necessary maintenance tasks

and how often they should be performed. The schedule applies to multiple engines; some engines may not

include some components, so maintenance on those components is not applicable.

Maintenance Schedule

Use the following maintenance schedule for a list of regular maintenance tasks and how often they need to

be performed. Maintenance frequency is based on average usage. Be aware of how much the machine is

used and be sure to follow the schedule according to time or usage, whichever comes first.

Towards the end of this document is a form you can use for maintenance record keeping. It is recommended

that you keep a reference of all maintenance.

Major Servicing and "Heavy-Duty" Usage - For engines that are subject to "heavy-duty" use,

which can be defined as being used under loads of 85% or more and / or in use more than

approximately 300 hours per year (for example, generators and water pumps), more frequent "Major

Service" maintenance is required. In addition to normal service requirements, and as with many smaller

machine and off-road bike engines, the following parts (as applicable for petrol, diesel or 2-stroke engines)

may require replacement during a major service:

• Piston rings.

• Big-end bearings.

• Small-end bearings.

• Gudgeon pin.

• Oil rings.

• Gaskets and seals.

• Valve seats.

Inspection of the following items is required:

• Piston for cracks and stress fractures.

• Bore for wear requiring reconditioning.

• Full machine for broken, worn or loose parts.

Failure to follow the maintenance schedule, using incorrect or non-compatible accessories or

replacements parts, or general negligence may result in making the product warranty void.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Trailer Mount Log Splitter

Maintenance Schedule – Petrol Engines / Machines

Major Service

–

Heavy

-Duty Use

Every 200

Hours Use

Replace

Check. Tighten as necessary

Replace

Clean

Replace as necessary

Check. Clean

Flush and clean

Check. Adjust as necessary

Check. Tighten as necessary

Check. Clean / de

-coke as necessary

Check level. Adjust as necessary

Perform

Sharpen. Replace as necessary

Repl

ace

Replace

Check. Replace as necessary

Major Service

–

Normal Use

24 Months / 200

Hours Use

12 Months /

100 Hours

Use

Clean. Replace as necessary

6 Months /

50

Hours Use

3 Months /

25

Hours Use

Check

After First 5

Hours Use

Every Use

Check

level. Adjust

as necessary

Check

level. Adjust

as necessary

Check

level. Adjust

as necessary

Check tension.

Adjust

as necessary

Component / Task

Engine Oil

****

Engine Oil Filter

*

Loose Engine / Machine

Fasteners

Air Filter

Spark Plug

Spark Arrestor

*

Fuel Filter

*

Fuel Strainer

*

Float Bowl

*

Fuel Lines / Hoses

Fuel injector

*

Fuel Pump

*

Fuel Tank

Idle Speed

Valve Clearance

Cylinder Head Fasteners

Combustion Chamber

Battery Electrolyte

*

Major Service

Cutting Blade / Chain

*

Water Pump Oil

**

Hydraulic Fluid

***

Drive Belt

*

* Where applicable. ** Pressure washers with non-sealed water pumps. *** Log splitters only.

**** Briggs & Stratton "EXi" engines do NOT require engine oil changes; just ensure that oil level is correct.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Trailer Mount Log Splitter

Maintenance Schedule – Diesel Engines / Machines

Major Service

–

Heavy

-Duty Use

Every 200

Hours Use

Replace

Clean. Replace as necessary

Check. Tighten as necessary

Replace

Replace as necessary

Check. Clean

Flush and clean

Check. Adjust as necessary

Check. Tighten as necessary

Check. Clean / de

-coke as necessary

Check level. Adjust as necessary

Perform

Sharpen. Replace as necessary

Repl

ace

Replace

Check. Replace as necessary

Major Service

–

Normal Use

24 Months / 200

Hours Use

12 Months /

100 Hours

Use

Clean. Replace as necessary

6 Months / 50

Hours Use

3 Months / 25

Hours Use

After First 5

Hours Use

Every Use

Check level. Adjust

as necessary

Check

Check level. Adjust

as necessary

Check level. Adjust

as necessary

Check tension.

Adjust as necessary

Component / Task

Engine Oil

Engine Oil Filter

*

Loose Engine /

Machine

Fasteners

Air Filter

Spark Arrestor

*

Fuel Filter

*

Fuel Strainer

*

Fuel Lines / Hoses

Fuel injector

*

Fuel Pump

*

Fuel Tank

Idle Speed

Valve Clearance

Cylinder Head Fasteners

Combustion Chamber

Battery Electrolyte

*

Major Service

Cutting Blade / Chain

*

Water Pump Oil

**

Hydraulic Fluid

***

Drive Belt

*

* Where applicable. ** Pressure washers with non-sealed water pumps. *** Log splitters only.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Trailer Mount Log Splitter

Hydraulic System

Very high fluid pressure and temperatures are created in the hydraulic system. Hydraulic

fluid will escape through the smallest opening and can puncture skin and cause severe

injury and blood poisoning. Never check for leaks with your hands or any other body part while the

hydraulic system is pressurised – use a piece of wood or other hard material that any leak will be

visible on. Seek medical attention immediately if injured by hydraulic fluid. • Before performing any

maintenance, relieve any hydraulic pressure – with the engine OFF, use the ram control lever to move the

ram forward and back until it no longer moves (the pressure is released). • If any hydraulic system

components are damaged or show signs of wear, replace them before using the machine. Do NOT remove

the hydraulic oil fill cap when the system is pressurised, the engine is running or the oil is hot. • Always check

the oil level before using the machine and ensure it is at or close to the recommended level. • Oil should be

replaced approximately every 200 hours of machine use or if it has a milky or cloudy appearance, which

indicates that it has absorbed considerable moisture. Before changing oil, ensure that it is cool enough to not

cause burns. • Suitable hydraulic oil is 10W AW-32, ASLE H-150, or ISO 32. • Before first use, add and

hydraulic oil and double-check oil level.

• Before each use, check all hydraulic hoses, connections and

fittings for signs of wear or damage or leaks. Ensure all hydraulc

connections and fittings are secure.

• Lubricate the hydraulic ram slide (A) and edges with grease before

each use and ensure it is clean and free of debris after each use.

Checking and Changing Hydraulic Oil – HDS800 /

HPS800

Check oil temperature from the sight glass at the rear of the hydraulic oil tank – the temperature is

indicated by the height of the red mercury column with regard to the scales on the glass.

To check hydraulic oil level:

1. Place the machine on a flat and level surface.

2. View the oil level using the oil sight glass on the back of the hydraulic oil tank. Note

that the scale on the sight glass refers to oil temperature, not level.

3. Ensure that the oil level is at approximately 70 to 80% full. If the oil level is low, add

additional oil until the correct level is reached. If the oil level is too high, drain some

oil until the correct level is reached.

To change the hydraulic oil:

1. Place the machine on a suitable surface that is flat and level and have a container

ready to catch drained oil.

2. Unscrew (rotate left) and remove the drain plug (A) and washer from the underside

of the hydraulic oil tank.

3. When all oil is drained, clean the drain plug and washer and then reinstall them.

Screw in fully (rotate right) and firmly tighten.

4. Remove (rotate left) the oil filler cap (B)

from the top of the hydraulic oil tank.

5. Using a funnel, carefully add oil to the

hydraulic oil tank until the recommended

level is reached (approximately 20 litres).

Double- check the oil level.

6. When finished, re-install (rotate right) the

oil filler cap until firm. Wipe off any

residual oil from the machine.

7. Start the engine and extend and retract the ram several times to remove any air from the hoses.

A

B

A

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Trailer Mount Log Splitter

Checking and Changing Hydraulic Oil – HPS500

To check hydraulic oil level:

1. Place the machine on a flat and level surface.

2. Unscrew the oil filler cap/dipstick (A) and check how far up the dipstick oil can be seen. Note that the oil

filler cap/dipstick must be fully screwed in for a correct oil level reading.

3. Ensure that the oil level is at approximately 70 to 80% full; that is, the oil level up approximately ¾ the

length of the dipstick. If the oil level is low, add additional oil until the correct level is reached. If the oil

level is too high, drain some oil until the correct level is reached.

To change the hydraulic oil:

1. Place the machine on a suitable surface that is flat and level and

have a container ready to catch drained oil.

2. Disconnect (rotate left) the high-pressure hose (B) at the rear of

the machine and allow oil to drain from the tank and hose. Be

careful not to lose the O-ring in the connector.

3. When all oil is drained, clean the hose connections and O-ring

and then reinstall them. Screw the connector in fully (rotate right)

and firmly tighten.

4. Remove (rotate left) the oil filler cap (A) from the top of the

hydraulic oil tank.

5. Using a funnel, carefully add oil to the hydraulic oil tank until the

recommended level is reached (approximately 5 litres). Double-

check the oil level.

6. When finished, re-install (rotate right) the oil filler cap until firm.

Wipe off any residual oil from the machine.

7. Start the engine and extend and retract the ram several times to

remove any air from the hoses.

B

A

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Trailer Mount Log Splitter

Engine Oil

Engines are NOT supplied with engine oil, although traces of oil from the manufacturing

process may be present. It is essential to add adequate engine oil of the correct type to the

engine before use. Failure to add engine oil will void the product warranty. • Always check engine oil

level when the machine is in an upright position on a flat and level surface. • Do not use used or

contaminated engine oils. • Use only engine oils of the correct type (see Specifications). • Perform the first oil

change within the first 20 hours of use. Subsequently, change the oil every 20 hours of use. • It is

recommended that the engine be warm, but not hot, when performing oil changes. When the oil is warm it

drains faster. • Using dirty or incorrect engine oil may cause engine damage and void any warranty • Always

use suitable tools. • Always dispose of used oil in an environmentally responsible manner and according to

regulations. • Some engines feature oil level detection, which will prevent the engine being started or

automatically stop a running engine if there is insufficient oil. • Always check the oil level and ensure is at

or near the "MAX" indicator before using the machine. • Some models may have 2 oil drain plugs and

fillers on either side of the engine – it does not matter which one is used.

4-stroke engines require engine oil in the crankcase for lubrication of internal components. Severe or

irreparable damage may occur if the engine is allowed to run without engine oil. The engine oil level requires

regular maintenance as per the maintenance schedule.

Checking and Changing Engine Oil

To check engine oil level:

1. Place the machine on a flat and level surface.

2. Clean the machine around the oil filler cap (A) so that no dirt or other material enters the engine when

the cap is removed.

3. Remove the oil filler cap (rotate left) until fully unscrewed. For machines without a dipstick, the oil level is

determined by how close the oil is to the edge of the filler hole (B). For machines equipped with an oil

level dipstick:

a. Remove the dipstick (C) and wipe clean with a piece of cloth or paper.

b. Insert the dipstick into the oil filler but do not screw it in.

c. Remove and inspect the dipstick – the oil level is determined by where oil can be seen on it.

4. Ensure that the oil level is at or just under the "maximum". If the oil level is low, add additional oil until the

correct level is reached. If the oil level is too high, drain some oil until the correct level is reached.

5. When finished, re-install (rotate right) the oil filler cap until firm. Wipe off any residual oil from the

machine.

A

B

C

D

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Trailer Mount Log Splitter

To change the engine oil:

1. Place the machine on a suitable work surface that is flat and level and have a container ready to catch

drained oil.

2. Clean the machine around the oil drain plug (D) and oil filler cap/dipstick so that no dirt or other material

enters the engine when the plug or cap is removed.

3. Unscrew (rotate left) and remove the drain plug and washer.

4. Tilt the machine and drain all oil from the engine. Once drained, allow the machine to sit level again.

5. Clean the drain plug and washer and then reinstall them. Screw in fully (rotate right) and firmly tighten.

6. Remove the oil filler cap (rotate left) until fully unscrewed. Wipe the oil level indicator clean with a piece

of cloth or paper.

7. Using a funnel, carefully add oil to the engine until the "maximum" level is reached. Double-check the oil

level (described above).

8. When finished, re-install (rotate right) the oil filler cap until firm. Wipe off any residual oil from the

machine.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Trailer Mount Log Splitter

Air Filter

Operating the machine without a functional air filter may cause severe engine damage and will void

any warranty. • A dirty or oil saturated air filter will restrict air flow, which can be mistaken as fuel

system problems. Check the condition of the air filter before adjusting engine idle speed, where applicable. •

If the air filter is damaged (torn, broken, disintegrating), replace it.

The air filter is used to prevent dirt and other particles from possibly entering the engine and causing internal

damage to it. The air filter requires regular maintenance as per the maintenance schedule.

Inspection and Cleaning

Inspect the air filter for dirtiness and debris, damage etc. Clean or replace the filter element as necessary. To

clean air filters:

• For foam filters, wash the filter in warm water and mild detergent, then rinse and allow to dry.

• For paper filters, use compressed air to blow particles from it. The air should be blown from the engine

side of the filter.

• Clean all other air filter assembly components using water and mild detergent, then dry them.

• For foam filters, place a few drops of clean engine oil on the filter then squeeze it a few times to spread

the oil through the filter material and remove any excess oil.

Removal/Installation – Petrol Engines

To remove the air filter:

1. Unscrew (rotate left) the wing nut (B) securing the air filter cover (C) and remove the cover from the air

intake assembly (A).

2. Unscrew (rotate left) the wing nut (D) and remove the filter element (E).

To install the air filter:

1. Re-install the filter element and ensure it is seated correctly on the air intake assembly.

2. Re-install (rotate right) the wing nut and tighten by hand so that the filter element is secure. Do not over-

tighten.

3. Re-install the filter cover and secure it with the wing nut (rotate right). Tighten the nut by hand. Do not

over-tighten.

C

B

A

D

E

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Trailer Mount Log Splitter

Removal/Installation – Diesel Engines

Some engine may feature a 2-stage air filter, with a foam "envelope" around a paper element. Cleaning

procedures are as per Inspection and Cleaning.

To remove the air filter:

1. Unscrew (rotate left) the wing nut (B) securing the air filter cover (C)

and remove the cover from the air intake assembly (A).

2. Unscrew (rotate left) the nut (D) and washer (E) and remove the filter

element (F).

To install the air filter:

1. Push the filter element onto the mounting screw and secure with the

washer and nut (rotate right) and tighten. Do not over-tighten.

2. Place the air filter cover in position. Reinstall the wing nut (rotate right)

and tighten by hand so that all filter components are secure. Do not

over-tighten.

A

F

E

C

B

D

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Trailer Mount Log Splitter

Spark Plug

If the spark plug is damaged (cracked insulator, broken or eroded electrodes etc), replace it. •

Always use spark plugs of the correct "heat range" - see Specifications. Spark plug maintenance is

not applicable to diesel engines.

The spark plug is used to ignite the air/fuel mixture inside the engine. The spark plug has electrodes on one

end and an electrical terminal on the other. The spark plug requires regular maintenance.

Cleaning and Gap Checking

The spark plug should be checked and cleaned as per the maintenance schedule.

1. Remove any carbon deposits on the spark plug (A) electrodes (B) with a wire

brush.

2. Clean the spark plug threads and the electrical terminal (C) on the top.

To check and adjust the spark plug "gap":

1. Use "feeler" or "thickness" gauges (X) to measure the existing gap. The gauge

must drag a little when being slid between the electrodes (2) – this means the

measurement is fairly accurate.

2. Adjust the gap to within specification (see Specifications

). If the gap needs to be

reduced, gently tap the electrode as required. If the gap needs to be increased,

use pliers to gently pull the electrode as required.

3. Measure the gap again and ensure it is within the specified range before re-i

nstalling the spark plug.

Removal/Installation

1. Pull the electrical lead (B) from the terminal on top of the spark plug (A).

2. Clean the area around the spark plug so that no dirt or other material can enter the engine when the

spark plug is removed.

3. Use the spark plug tool (C) to remove the spark plug (rotate left).

To re-install the spark plug:

1. Place the spark plug in its hole and screw it in (rotate right) until “finger tight”.

2. Use the spark plug tool to tighten the spark plug approximately one quarter turn (do not over-tighten).

3. Place the electrical lead over the spark plug terminal and push it down so that it connects firmly with the

terminal

A

B

X

A

B

A

C

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Trailer Mount Log Splitter

Transportation and Storage

Always ensure that the machine is cool enough to touch before transporting or

storing. • Petrol/fuel/gasoline is extremely flammable – keep clear of naked flames or

other ignition sources. • Always transport the machine with the fuel tap and engine ON/OFF switch in the

"OFF" position. • Drain the fuel tank before transportation or storage.

Preparing for Transport and Storage

• Clean the machine down by removing debris, dirt etc before storing it.

• Drain the fuel system. It is advised to have the fuel tank as empty as possible before draining.

a. Place the fuel tap in the "OFF" position.

b. Unscrew (rotate left) the carburettor drain plug. Use a suitable container to catch the draining fuel.

c. Place the fuel tap in the "ON" position and allow the fuel to drain. Store the drained fuel in a properly

sealed container.

d. Place the fuel tap in the "OFF" position.

e. Re-install (rotate right) the carburettor drain plug and tighten.

• Lightly lubricate all machine surfaces and moving parts to prevent corrosion.

• Store the unit in a dry, well-ventilated area and out of the reach of children.

Long Term Storage

Follow the normal procedures for storage, then:

• Remove the spark plug and pour 10ml of clean engine oil into the cylinder. Pull the starter cord slowly to

distribute the oil. Re-install the spark plug.

• Cover the equipment to protect it.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Trailer Mount Log Splitter

Troubleshooting

Running combustion engines in confined areas CAN KILL IN MINUTES. Engine exhaust

fumes contain carbon-monoxide – a deadly gas that you cannot smell or see. NEVER run a

combustion engine in confined areas EVEN IF windows and doors are open. ONLY run

combustion engines OUTDOORS and away from doors, windows and vents. •

Petrol/fuel/gasoline is extremely flammable – keep clear of naked flames or other ignition

sources. • The product is NOT supplied with engine oil, although traces of oil from the manufacturing process

may be present. It is essential to add adequate engine oil of the correct type to the engine before use – see

Engine Oil. Failure to add engine oil will void the product warranty. • Do not have the engine running

during inspection and maintenance unless specifically required. • The engine should be cool enough to touch

before performing maintenance activities. • Some maintenance activities may be beyond the scope of some

users. Do NOT attempt procedures that you are not comfortable with, or do not have the necessary tools,

experience or knowledge for – take the unit to an authorised service centre or qualified technician for

servicing.

The following information may assist in identifying a problem and rectifying it.

Difficulty starting the engine.

Possible Fault Action

Lack of fuel Check that there is fuel in the tank and the fuel tap is in the "ON" position. • To further

check if fuel is reaching the carburettor, remove the carburettor drain plug and check if fuel

drains.

Engine "OFF" Ensure engine ON/OFF switch is in the "ON" position.

Carbon build-up on spark plug Remove the spark plug and clean any carbon from the electrodes before re-installing it. Not

applicable to diesel engines.

Spark plug faulty Remove the spark plug, then reconnect the plug lead to it. Place fuel tap in the "OFF"

position and the engine ON/OFF switch in "ON" position. Touch the spark plug electrode to

a part of the engine crankcase, away from the spark plug hole, and attempt to start the

engine – a spark should be visible across the electrodes as the engine is rotated. If no

spark is visible, replace the spark plug. Not applicable to diesel engines.

Engine "flooded" with fuel Place the choke in "HOT" or "RUN" position. Leave the ON/OFF switch in the "OFF"

position. Pull the starter cord several times to assist clearing excess fuel from engine before

attempting to start engine.

Not enough or too much engine oil Check oil level and ensure that the level is at or just below the recommended maximum

level.

Engine starts but does not idle.

Possible Fault Action

Blocked air filter Perform an air filter service.

Idle speed requires adjustment Adjust idle speed until engine runs smoothly and at a reasonable speed when idling. For

fuel-injected models, idle speed adjustment should not be required.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Trailer Mount Log Splitter

Difficulty restarting the engine after use or engine stops suddenly during use.

Possible Fault Action

No fuel or engine oil Check fuel level and ensure adequate fuel is available. For some engines, an engine oil

sensor will automatically switch off the engine or prevent starting if a low engine oil level is

detected.

Overheating Allow engine to cool before restarting. If possible, improve engine cooling, such as

operating in lower temperatures.

Carbon build-up on spark plug Perform a spark plug service. Not applicable to diesel engines.

Fuel system blockage Clean the fuel system.

Reduced engine speed/power during use.

Possible Fault Action

Blocked air filter Perform an air filter service.

Carbon build-up in engine and/or

entry to exhaust silencer

Remove the engine cylinder head and clean any carbon from the combustion chamber. For

the exhaust silencer, remove it and clean any carbon deposits from the exhaust entry port.

Carbon build-up on spark plug Perform a spark plug service. Not applicable to diesel engines.

Fuel system blockage Clean the fuel system.

Ram not moving.

Possible Fault Action

Lack of hydraulic oil Check oil level and ensure that the level is at the recommended level.

Hydraulic system blockage Flush hydraulic system.

Faulty control valve Repair or replace control valve.

Internal seal faulty Replace worn or damaged seals.

Engine bogs down during splitting.

Possible Fault Action

Engine speed too slow Increase engine speed.

Control valve setting incorrect Adjust control valve to provide correct pressure.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Trailer Mount Log Splitter

Ram speed slow when extending / retracting.

Possible Fault Action

Engine speed too slow Increase engine speed.

Lack of hydraulic oil Check oil level and ensure that the level is at the recommended level.

Excessive pump inlet vacuum Ensure pump inlet hose is not blocked, kinked etc.

Hydraulic system blockage Flush hydraulic system.

Faulty control valve Repair or replace control valve.

Internal seal faulty Replace worn or damaged seals.

Wood not splitting or splitting very slowly.

Possible Fault Action

Engine speed too slow Increase engine speed.

Lack of hydraulic oil Check oil level and ensure that the level is at the recommended level.

Air bubbles in hydraulic oil Allow oil to "settle" for several hours for air bubbles to escape from oil. Air bubbling can

build-up in the oil if the machine is used for prolonged periods.

Excessive pump inlet vacuum Ensure pump inlet hose is not blocked, kinked etc.

Hydraulic system blockage Flush hydraulic system.

Faulty control valve Repair or replace control valve.

Internal seal faulty Replace worn or damaged seals.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Trailer Mount Log Splitter

Specifications

Hydraulic System – HDS800 / HPS800

Log Capacity HDS800 / HPS800 - Maximum diameter 65cm / maximum length 55cm

HPS500 – Maximum diameter 30cm / maximum length 46cm

Oil Capacity HDS800 / HPS800 – Approximately 22 litres

HPS500 – Approximately 5 litres.

Oil Type 10WT AW32 / ASLE H-150 / ISO 32

Petrol Engines

Engine Type 4-stroke, single cylinder

Fuel Type Unleaded non-ethanol petrol

Fuel Tank Capacity 6.5l

Spark Plug Type F7TC, F7RTC

Spark Plug Gap 0.7 to 0.8mm (0.028 to 0.032")

Valve Clearance

Inlet: 0.15mm ± 0.02mm (0.006" ± 0.001")

Exhaust: 0.2mm ± 0.02mm (0.008" ± 0.001")

Engine Oil Type SAE 10W-30 automotive engine oil recommended for general use

Engine Oil Capacity A

pproximately 1.1l (always check level)

Diesel Engines

Engine Type 4-stroke, single cylinder, diesel

Fuel Type Unleaded non-bio diesel

Fuel Tank Capacity 6.5l

Valve Clearance

I

nlet: 0.15mm ± 0.02mm (0.006" ± 0.001")

Exhaust: 0.15mm ± 0.02mm (0.006" ± 0.001")

Engine Oil Type SAE 10W-30 automotive engine oil recommended for general use

Engine Oil Capacity Approximately 1.1l (always check level)

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Trailer Mount Log Splitter

Engine Service and Maintenance Record

Use the following tables as a record of machine servicing and maintenance. Keeping accurate records will

help ensure longest machine service life and may simplify fault diagnosis and any possible warranty claims.

Fill out date, number of hours of use and the activity performed, as required (see Maintenance Schedule

).

Date Hours Use Maintenance Task / Notes

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Trailer Mount Log Splitter

Some experts believe the incorrect or prolonged use of almost any product could cause serious

injury or death. For information that may reduce your risk of serious injury or death, consult the

points below and additionally, the information available at www.datastreamserver.com/safety

• Consult all documentation, packaging and product

labelling before use. Note that some products feature

online documentation which should be printed and kept

with the product.

• Check product for loose / broken / damaged / missing

parts, wear or leaks (if applicable) before each use.

Never use a product with loose / broken / damaged /
