MICHIGAN CHPPCKMCHA1M0 8HP 208cc Petrol Commercial Wood User Manual

User Manual

[Revision 5.0 January 2023]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY

VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance,

assembly, inclusions, specifications, description, and packaging.

The product is NOT supplied with engine oil, although traces of oil from the manufacturing process may be present. It is essential to add

adequ

ate engine oil of the correct type to the engine before use. Failure to add engine oil will void the product warranty.

Raptor 1000 Wood Chipper & Shredder

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or

equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be INJURED if you do

not follow instructions or equipment

damage may occur.

It is vital that you read and understand this

user manual before using the product,

including safety warnings, and any assembly

and operating instructions. Keep the manual

for future reference.

Safety precautions and recommendations

detailed here must be fully understood and

followed to reduce the risk of injury, fire,

explosion, electrical hazard, and/or property

damage.

Safety information presented here is generic

in nature – some advice may not be

applicable to every product. The term

"equipment" refers to the product, be it

electrical mains powered, battery powered or

combustion engine powered.

• Before Use - If you are not familiar with the

safe operation/handling of the equipment or

are in any way unsure of any aspect of

suitability or correct use for your

application, you should complete training

conducted by a person or organization

qualified in safe use and operation of this

equipment, including fuel/electrical handling

and safety.

• Do NOT operate the equipment in

flammable or explosive environments, such

as in the presence of flammable liquids,

gases or dust. The equipment may create

sparks or heat that may ignite flammable

substances.

• Keep clear of moving parts.

• Equipment may be a potential source of

electric shock or injury if misused.

• Do NOT operate the equipment if it is

damaged, malfunctioning or is in an

excessively worn state.

• Do NOT allow others to use the equipment

unless they have read this manual and are

adequately trained.

• Keep packaging away from children - risk

of suffocation! Operators must use the

equipment correctly. When using the

equipment, consider conditions and pay

due care to persons and property.

General Work Area Safety

• Work areas should be clean and well it.

• Do not operate the equipment if

bystanders, animals etc are within

operating range of the equipment or the

general work area.

• If devices are provided for connecting dust

extraction / collection facilities, ensure

these are connected and used properly.

Dust collection can reduce dust-related

hazards.

General Personal Safety

• Wear appropriate protective equipment

when operating, servicing, or when in the

operating area of the equipment to help

protect from eye and ear injury, poisoning,

burns, cutting and crush injuries. Protective

equipment such as safety goggles,

respirators, non-slip safety footwear, hard

hat, hearing protection etc should be used

for appropriate equipment / conditions.

Other people nearby should also wear

appropriate personal protective equipment.

Do not wear loose clothing or jewellery,

which can be caught in moving parts. Keep

hair and clothing away from the equipment.

• Stay alert and use common sense when

operating the equipment. Do not over-

reach. Always maintain secure footing and

balance.

• Do not use the equipment if tired or under

the influence of drugs, alcohol or

medication.

• This equipment is not intended for use by

persons with reduced physical, sensory or

mental capabilities.

General Fuel Safety

• Petrol/fuel/gasoline is extremely flammable

– keep clear of naked flames or other

ignition sources.

• Do not spill fuel. If you spill fuel, wipe it off

the equipment immediately – if fuel gets on

your clothing, change clothing.

• Do NOT smoke near fuel or when

refuelling.

• Always shut off the engine before

refuelling.

• Do NOT refuel a hot engine.

• Open the fuel cap carefully to allow any

pressure build-up in the tank to release

slowly.

• Always refuel in well ventilated areas.

• Always check for fuel leakage. If fuel

leakage is found, do not start or run the

engine until all leaks are fixed.

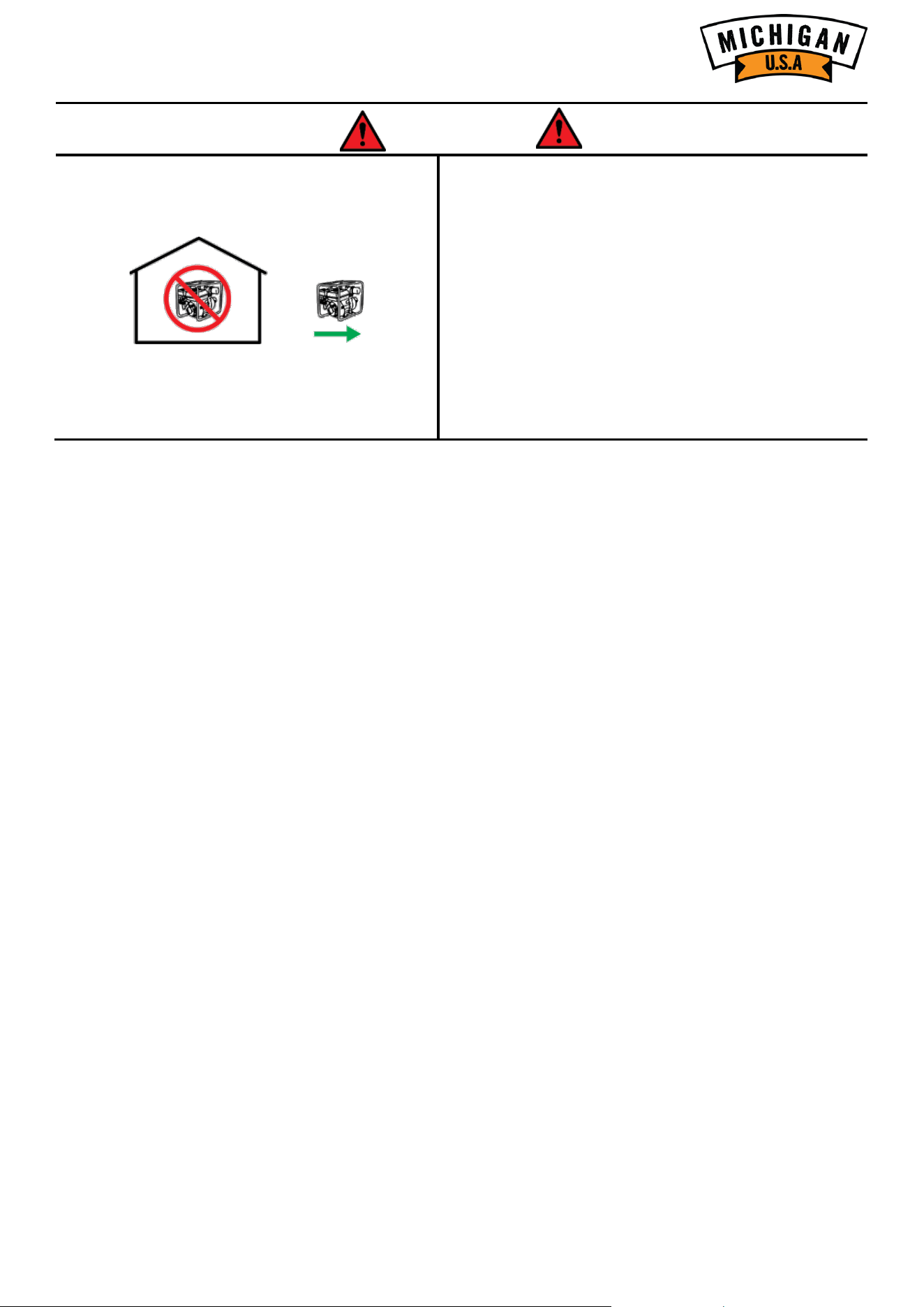

General Carbon-Monoxide Safety

• Using a combustion engine indoors CAN

KILL IN MINUTES. Engine exhaust

contains carbon-monoxide – a poison you

cannot smell or see.

• Use combustion engines OUTSIDE only,

and far away from windows, doors and

vents.

Chipper Use and Care

• The equipment should be operated by

responsible adults only, 18 years of age

and over.

• The equipment must be used on firm, flat

and level surfaces only.

• Maintain a safe working distance of at

least 15m (36') between the output chute

and any persons, animals or structures.

• Before each use, check the cutting blade

clearance and ensure that blade

fasteners are tight.

• Do not use the equipment for purposes it

is not designed for.

• Refer to the product listing for max.

branch diameters.

• For roots, always remove any attached

dirt, stones etc before chipping.

• Do not attempt to chip or shred any

material other than suitable wood types.

• Do not attempt to remove materials from

the machine or attempt to un-jam it while

the machine is running.

• Do not use the machine in confined

areas where ventilation or space around

the machine is limited.

• After stopping the engine, always allow

all moving components (blades etc) to

stop moving before moving, lifting etc.

General Fuel Safety

• Petrol/fuel/gasoline is

extremely flammable – keep clear

of naked flames or other ignition

sources.

• Do not spill fuel. If you spill fuel, wipe it

from equipment immediately – if fuel

gets on your clothing, change them

immediately

• Do not smoke near fuel.

• Always shut off the engine before

refuelling.

• Do not refuel a hot engine.

• Open the fuel cap carefully to allow any

pressure build-up in the tank to release

slowly.

• Always refuel in well ventilated areas.

• Always check for fuel leakage. If fuel

leakage is found, do not start or run the

engine until all leaks are fixed.

Raptor 1000 Wood Chipper & Shredder

General Electrical Safety

• Inspect electrical equipment, extension

cords, power bars, and electrical fittings for

damage or wear before each use. Repair or

replace damaged equipment immediately.

• Ensure all power sources conform to

equipment voltage requirements and are

disconnected before connecting or

disconnecting equipment.

• When wiring electrically powered

equipment, follow all electrical and safety

codes.

• Wherever possible, use a residual current

device (RCD).

• High voltage / high current power lines may

be present. Use extreme caution to avoid

contact or interference with power lines.

Electrical shock can be fatal.

General Electrical Safety

• Electrically grounded equipment must have

an approved cord and plug and be

connected to a grounded electrical outlet.

• Do NOT bypass the ON/OFF switch and

operate equipment by connecting and

disconnecting the electrical cord.

• Do NOT use equipment that has exposed

wiring, damaged switches, covers or

guards.

• Do NOT use electrical equipment in wet

conditions or in damp locations.

• Do NOT use electrical cords to lift, move or

carry equipment.

• Do NOT coil or knot electrical cords, and

ensure electrical cords are not trip hazards.

General Service Information

• The equipment must be serviced or

repaired at authorised service centres by

qualified personnel only.

• Replacement parts must be original

equipment manufacturer (OEM) to ensure

equipment safety is maintained.

• Do NOT attempt any maintenance or repair

work not described in this manual.

• After use, the equipment and components

may still be hot – allow the equipment to

cool and disconnect spark plugs and/or

electrical power sources and/or batteries

from it before adjusting, changing

accessories or performing repair or

maintenance.

• Do NOT adjust while the equipment is

running.

• Perform service related activities in suitable

conditions, such as a workshop.

• Replace worn, damaged or missing

warning/safety labels immediately.

Wood Chipper & Shredder General Safety

This machine is designed solely to chip wood and must not be used for any other purpose. It should only be used by trained operators who are

familiar with the content of this manual. It is potentially hazardous to fit or use any parts other than your dealer parts. The supplier disclaims all

liability for the consequences of such use, which in addition voids the machine warranty.

• Operating this Wood Chipper safely is necessary to prevent or minimize the risk of death or serious injury. Unsafe operation can create a number

of hazards for you. Always take the following precautions when operating:

• Your Wood Chipper is a powerful tool, not a plaything. Exercise extreme caution at all times. The machine is designed to Chip Woods. Do not

use it for any other purpose.

• Know how to stop the Wood Chipper quickly.

• Never operate your unit on a slippery, wet, muddy, or icy surface. Exercise caution to avoid slipping or falling.

• See manufacturer's instructions for proper operation and installation of accessories.

• Never use the machine without ensuring that all guards and shields are in place.

• Never, under any conditions, remove, bend, cut, fit, weld, or otherwise alter standard parts on the Wood Chipper. This includes all shields and

guards. Modifications to your machine could cause personal injuries and property damage and will invalid your warranty.

• If the machine start to make an unusual noise or vibrate, shut down the engine, disconnect the spark plug wire, keeping it away from the spark

plug to prevent accidental starting, wait 5 minutes for engine to cool down, then inspect for damage. Vibration is generally a warning of trouble.

Check damaged parts and clean, repair and/or replace as necessary.

• Never tamper with safety devices. Check their proper operation regularly.

• Before performing any maintenance or inspection procedure, shut down the engine, disconnect the spark plug wire keeping it away from the

spark plug to prevent accidental starting, wait 5 minutes for machine to cool down.

• Never allow people who are unfamiliar with these instructions to use the Wood Chipper. Allow only responsible individuals who are familiar with

these rules of safe operation to use your machine.

• Never overload or attempt to chip woods beyond the manufacturer's recommendation. It could result in personal injury or damage to the machine.

• While using, don't hurry or take things for granted. When in doubt about the equipment or your surroundings stop the machine and take time to

look things over.

• Never operate the machine when under the influence of alcohol, drugs, or medication.

• Use the machine only in daylight.

• Stay alert for hidden hazards or traffic.

• Keep all nuts and bolts tight and keep the equipment in good operating condition.

List of warnings and cautions cannot be all-inclusive. If situations occur that are not covered by this manual, the operator must apply

common sense and operate this wood chipper in a safe manner. Contact local dealers for assistance in your area.

Before Using the Wood Chipper

• Operators must be fully trained before using this machine.

• User Manual is read and understood.

• Machine is positioned on level ground, all guards are fitted and in good condition.

• Blades are in good condition and secure. All blades are sharpened or replaced in sets.

• All fasteners are checked for tightness.

• Only WOODEN materials free of nails etc. are fed into the machine.

• Fire extinguisher is available on site.

Raptor 1000 Wood Chipper & Shredder

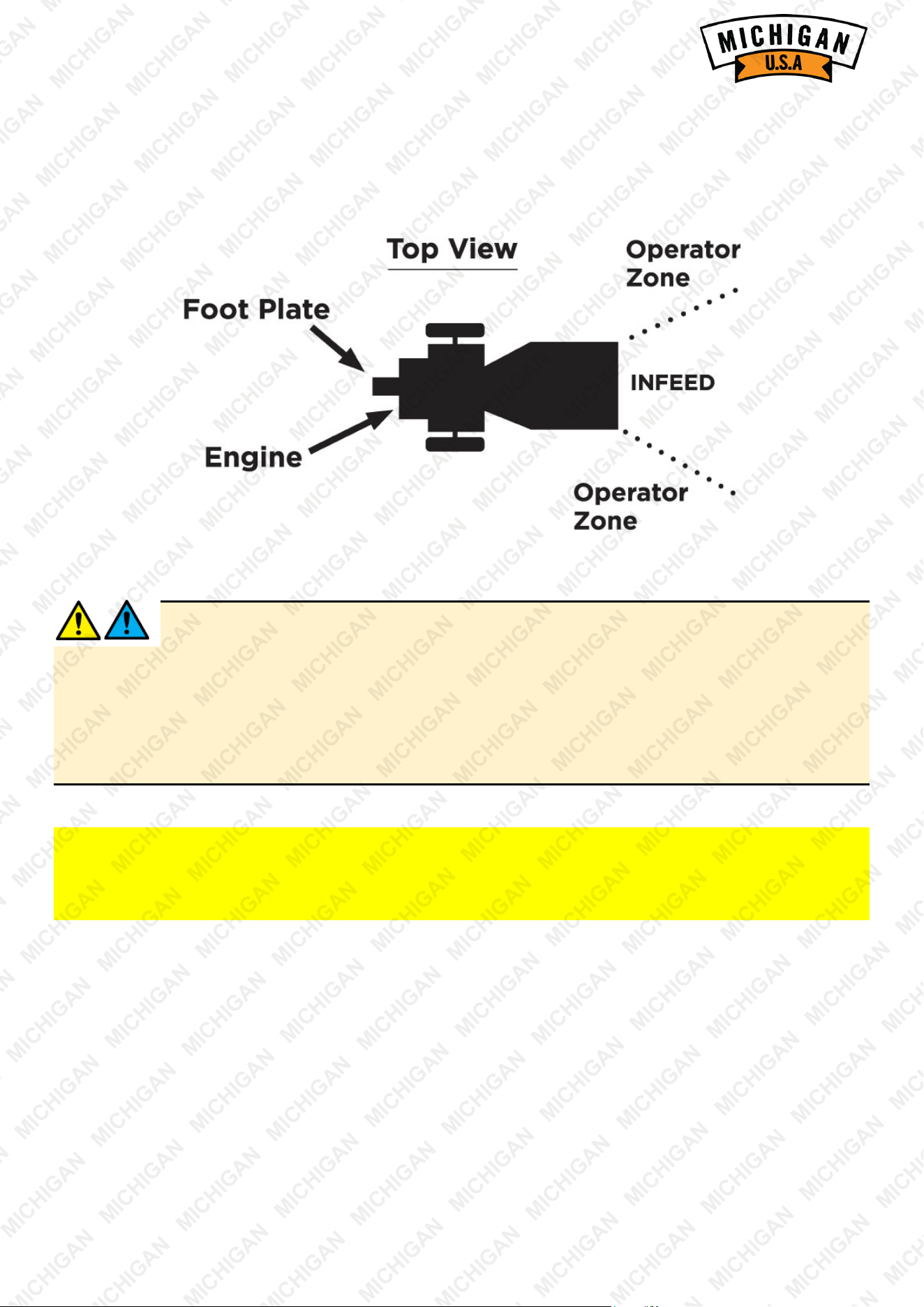

When Using the Wood Chipper

• Always feed from the side.

• It is better to have a second trained operator within easy reach of the machine.

• Maintain strict discipline at all times and service machine at specified periods.

• Note direction of discharge chute and if necessary, note the wind direction to prevent debris from being blown into highway or where it could

affect members of the public.

• DO NOT put any part of your body into the in-feed chute while the machine is running.

• DO NOT operate the machine whilst under the influence of alcohol or drugs.

• DO NOT operate inside a building or confined space or Climb on the in-feed chute.

Protecting Yourself and Those Around You

WARNING! This is a high-powered machine, with moving parts operating with high energy. You must operate the machine safely. Unsafe

operation can create a number of hazards for you, as well as anyone else in the nearby area. Always take the following precautions when

using this machine:

• Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people, their property, and themselves.

• Always wear protective goggles or safety glasses with side shields while using the Wood Chipper to protect your eyes from possible thrown

debris.

• Avoid wearing loose clothing or jewellery, which can catch on moving parts.

• We recommend wearing gloves while using the Wood Chipper. Be sure your gloves fit properly and do not have loose cuffs or drawstrings.

• Wear shoes with non-slip treads when using your Wood Chipper. If you have safety shoes, we recommend wearing them. Do not use the

machine while barefoot or wearing open sandals.

• Wear long pants while operating the Wood Chipper.

• Keep bystanders at least 50 feet away from your work area at all times. Stop the engine when another person or pet approaches.

Safety for Children and Pets

WARNING! Tragic accidents can occur if the operator is not alert to the presence of children and pets. Children are often attracted to the

machine and the chipping activity. Never assume that children will remain where you last saw them. Always follow these precautions:

• Keep children and pets at least 50 feet from the working area and ensure they are under the watchful care of a responsible adult.

• Be alert and turn the machine off if children or pets enter the work area.

• Never allow children to operate the Wood Chipper.

Safety with Gasoline - Powered Machines

WARNING! Gasoline is a highly flammable liquid. Gasoline also gives off flammable vapor that can be easily

ignited and cause a fire or explosion. Never overlook the hazards of gasoline. Always follow these precautions:

• Never run the engine in an enclosed area or without proper ventilation as the exhaust from the engine contains carbon monoxide, which is an

odorless, tasteless, and a deadly poisonous gas.

• Store all fuel and oil in containers specifically designed and approved for this purpose and keep away from heat and open flame, and out of the

reach of children.

• Replace rubber fuel lines and grommets when worn or damaged and after 5 years of use.

• Fill the gasoline tank outdoors with the engine off and allow the engine to cool completely. Don't handle gasoline if you or anyone nearby is

smoking, or if you're near anything that could cause it to ignite or explode. Reinstall the fuel tank cap and fuel container cap securely.

• If you spill gasoline, do not attempt to start the engine. Move the machine away from the area of the spill and avoid creating any source of ignition

until the gas vapours have dissipated. Wipe up any spilled fuel to prevent a fire hazard and properly dispose of the waste.

• Allow the engine to cool completely before storing in any enclosure. Never store a machine that has gas in the tank, or a fuel container, near an

open flame or spark such as a water heater, space heater, clothes dryer or furnace.

• Never make adjustments or repairs with the engine running. Shut down the engine, disconnect the spark plug wire, keeping it away from the

spark plug to prevent accidental starting, wait 5 minutes before making adjustments or repairs.

• Never tamper with the engine's governor setting. The governor controls the maximum safe operation speed and protects the engine. Over-

speeding the engine is dangerous and will cause damage to the engine and to the other moving parts of the machine. If required, see your

authorized dealer for engine governor adjustments.

• Keep combustible substances away from the engine when it is hot.

• Never cover the machine while the muffler is still hot.

• Do not operate the engine with the air cleaner or the carburettor air intake cover removed. Removal of such parts could create a fire hazard. Do

not use flammable solutions to clean the air filter.

• The muffler and engine become very hot and can cause a severe burn; do not touch.

Raptor 1000 Wood Chipper & Shredder

DANGER

Running petrol engines in confined areas CAN KILL

IN MINUTES. Engine exhaust fumes contain carbon-

monoxide – a deadly gas that you cannot smell or

see.

NEVER run a petrol engine in confined areas EVEN

IF windows and doors are open. ONLY run petrol

engines OUTDOORS and away from doors, windows

and vents.

Do not operate the equipment in hazardous locations, such

as where there may be a risk of fire or explosions from

flammable liquids, gases or dust.

Do not operate the equipment in confined areas where

exhaust gases, smoke or fumes could reach dangerous

concentrations.

Do not refuel petrol engines while they are running.

Never smoke while refuelling petrol engines.

For generators, the electrical output is potentially lethal and

must only be connected to a fixed electrical installation by

an appropriately licensed person.

Be aware that the equipment may include hazardous

components, such as blades, hot surfaces and moving

parts.

Raptor 1000 Wood Chipper & Shredder

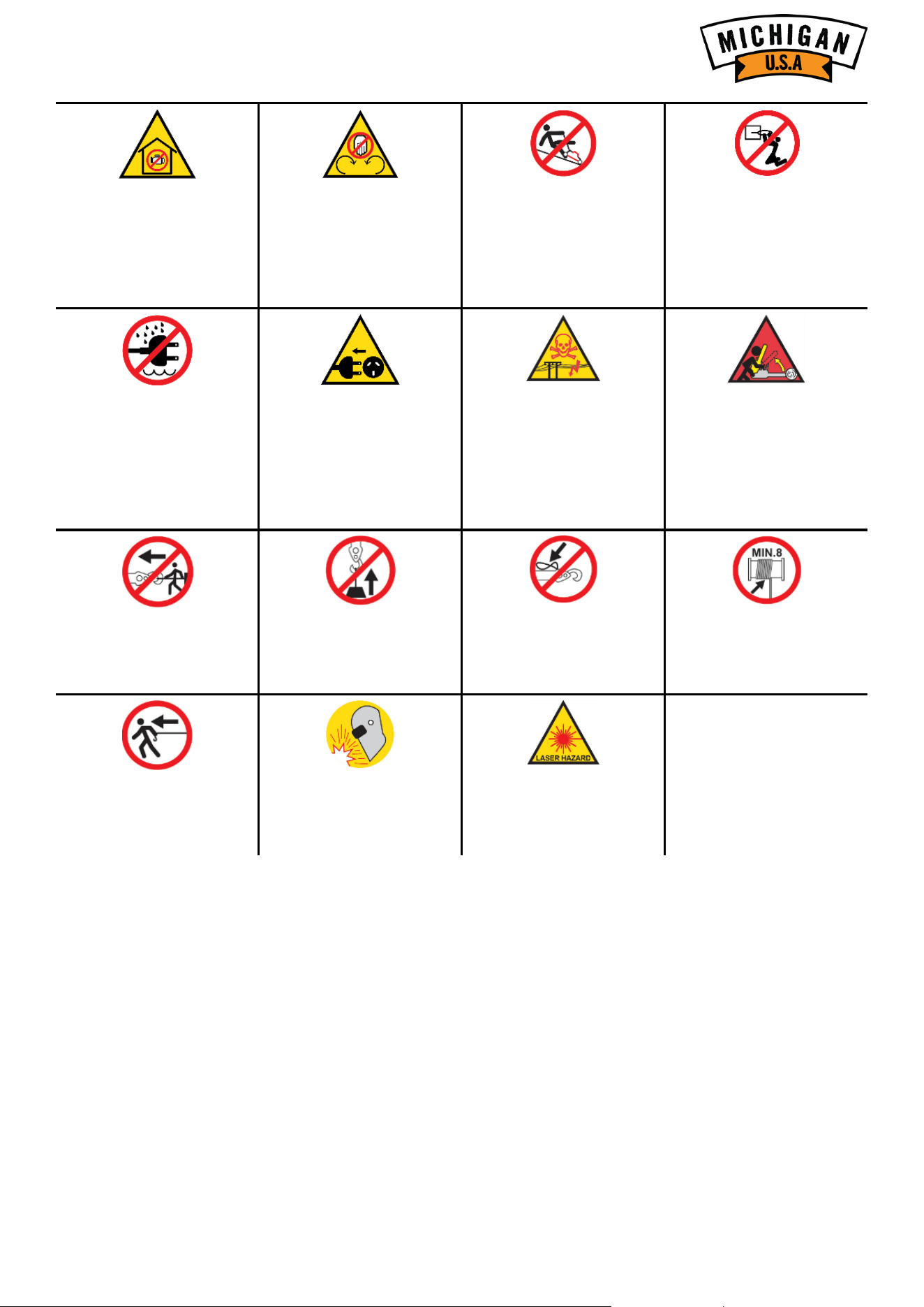

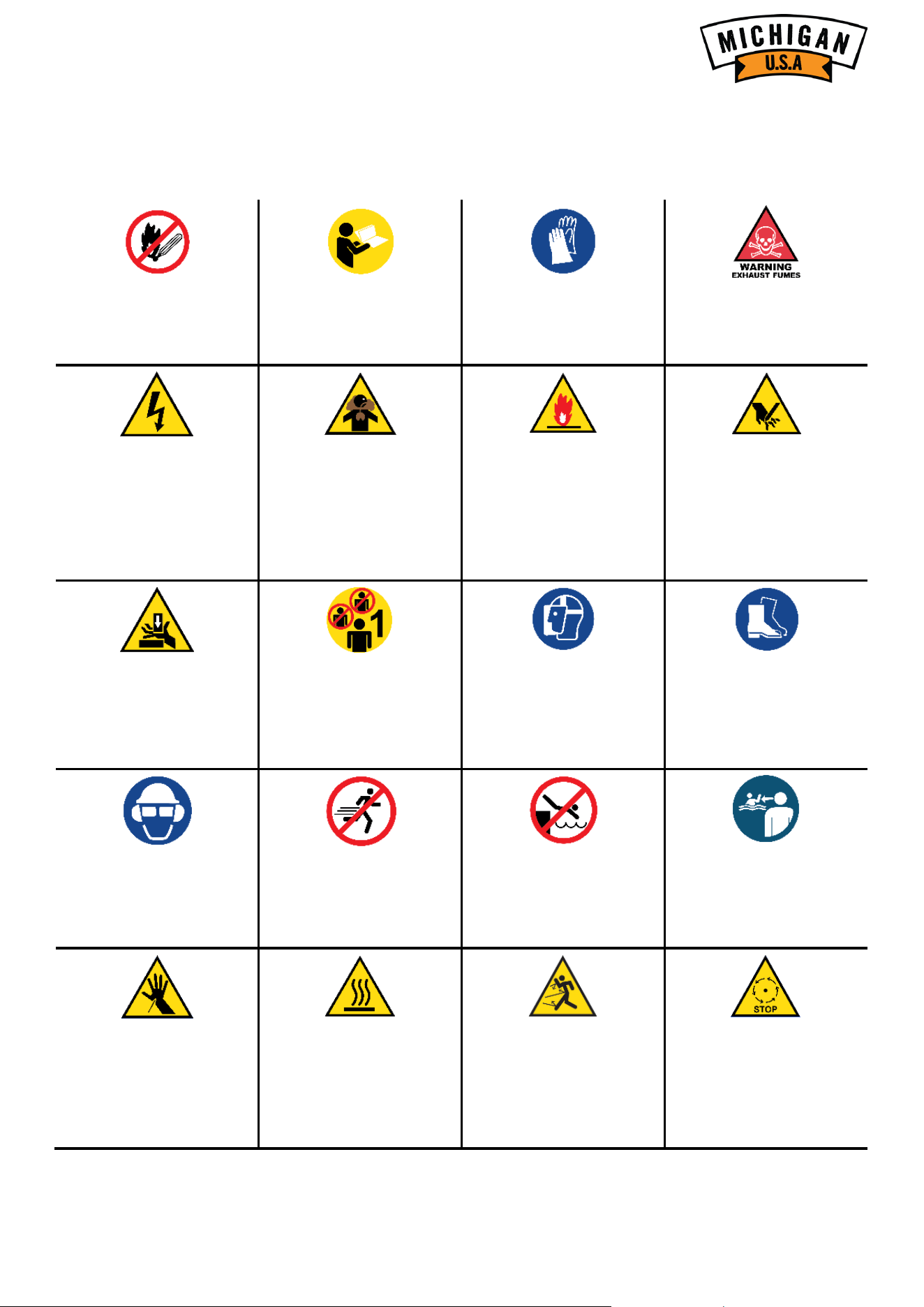

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on your

product and their meanings. If any stickers become unreadable, unattached etc., replace them.

Flammable Material Hazard

Flammable liquids, gases or

substances etc may present.

Avoid ignition sources and open

flames. Danger of fire.

Read User Manual

Read and fully understand

product safety warnings,

operation, procedures etc before

using the product.

Use Hand Protection

Wear appropriate hand protection

and take due care as the product

or use of the product may present

hand hazards.

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be fatal.

Electrocution / Electrical Shock

Hazard

High voltage or high current

electricity may be present or

required by the product. Take

due care when handling electrical

products, cables, plugs and

leads. Electrical shock can be

fatal.

Toxic Fumes / Dust Hazard

Using the product or by-products

from use may produce fumes,

smoke or particles that could be

harmful if inhaled. Wear

appropriate breathing protection

and have adequate ventilation.

Explosive Material Hazard

Combustible liquids, gases or

substances etc may be present.

Avoid ignition sources and open

flames. Danger of explosion.

Cutting / Amputation Hazard

The product may have blades,

edges or mechanical devices that

can cause severe cut injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Crush Hazard

The product may have blades,

edges or mechanical devices that

can cause severe crush injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Single Operator Only

The product must be operated by

a single person only. More than

one person operating the product

may introduce additional hazards.

Use Face Protection

Wear appropriate full-face

protection and take due care as

the product or use of the product

may present face and eye

hazards.

Use Foot Protection

Wear appropriate foot protection

and take due care as the product

or use of the product may present

foot hazards.

Use Eye / Ear / Head Protection

Wear appropriate eye and / or

ear and / or head protection and

take due care as the product or

use of the product may present

eye, hearing and head hazards.

Running Hazard

Do not run on or near the product

as doing so may present a fall

hazard.

Diving Hazard

Do not dive into the product as

doing so may present a neck /

head injury hazard.

Adult Supervision Required

Always supervise children and

other users of a product to

prevent drowning or injury.

Skin Penetration / Puncture

Hazard

The product may produce

pressure, emit liquids or objects

that can cause severe injury to

fingers, limbs, blood etc. Take

due care when handling and

using the product.

Hot Surface Hazard

Be aware that the product may

produce high temperatures and

hot surfaces that can cause burn

injuries.

Flying Debris Hazard

Be aware that the product or use

of the product may present

hazards produced by flying

debris. Wear appropriate clothing

and protective devices.

Moving Parts Hazard

Be aware that the product

contains or uses mechanical

devices that move or rotate.

Always wait for moving parts to

stop fully before handling the

product, adjusting, maintenance

etc.

Raptor 1000 Wood Chipper & Shredder

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be fatal.

Pull Hazard

Be aware that the product

contains or uses mechanical

devices that can pull in objects

and can cause severe injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Slope / Fall Injury Hazard

Be aware that using the product

on sloping surfaces or in slippery

conditions may present additional

dangers from falls and contact

with blades, moving parts, hot

surfaces etc.

"Slam Dunk" Warning

Do NOT attempt "slam dunk"

manoeuvres as this may result in

severe injury due to falling,

product breakage or collapse etc.

Electrocution / Electrical Shock

Hazard - Outdoor

High voltage or high current

electricity may be present or

required by the product. Do NOT

use in rain, damp or wet

conditions. Electrical shock can

be fatal.

Electrocution / Electrical Shock

Hazard - Disconnect

High voltage or high current

electricity may be present or

required by the product. Always

disconnect the product from the

electrical supply before handling

the product, adjusting,

maintenance etc.

Power Line Electrocution

Hazard

High voltage / high current power

lines may be present. Use

extreme caution to avoid contact

or interference with power lines.

Electrical shock can be fatal.

"Kick-Back" Hazard

High level of "kick-back" hazard

that can cause the machine to

suddenly rotate towards operator.

Kick-back injury can be fatal.

Winch Operator Position

Hazard

Do NOT stand between winch

and load. Do NOT use winch to

move people.

Winch Lift Hazard

Do NOT LIFT load vertically. Use

machine to PULL only.

Cable Hazard

Ensure that load bearing cable is

not kinked or knotted.

Winch Cable Hazard

Ensure that there is a minimum

number of cable coils on

winching mechanism.

Winch Hook Hazard

Carry hook to load – do NOT

throw or run.

Flash / Blinding Hazard

Wear appropriate eye protection

for welding. Direct exposure to

weld arcs may cause permanent

eye injury.

Laser Hazard

Laser may be in use – do NOT

look directly at laser or allow

others to.

Raptor 1000 Wood Chipper & Shredder

Table of Contents

Safety ............................................................................................................................................................. 2

Safety Symbols ........................................................................................................................................................... 6

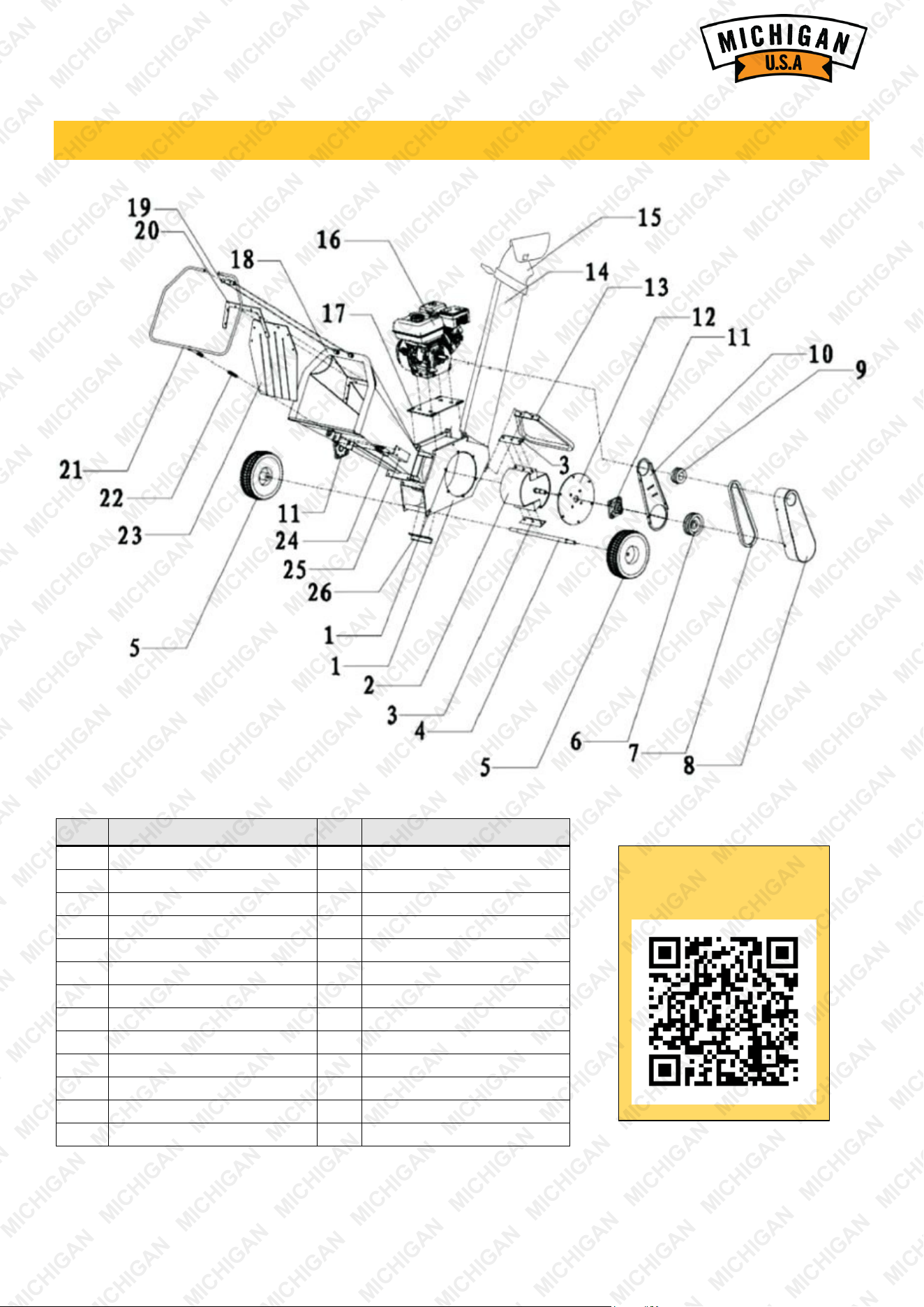

Parts Identification ....................................................................................................................................... 9

Before Use Checklist .................................................................................................................................. 10

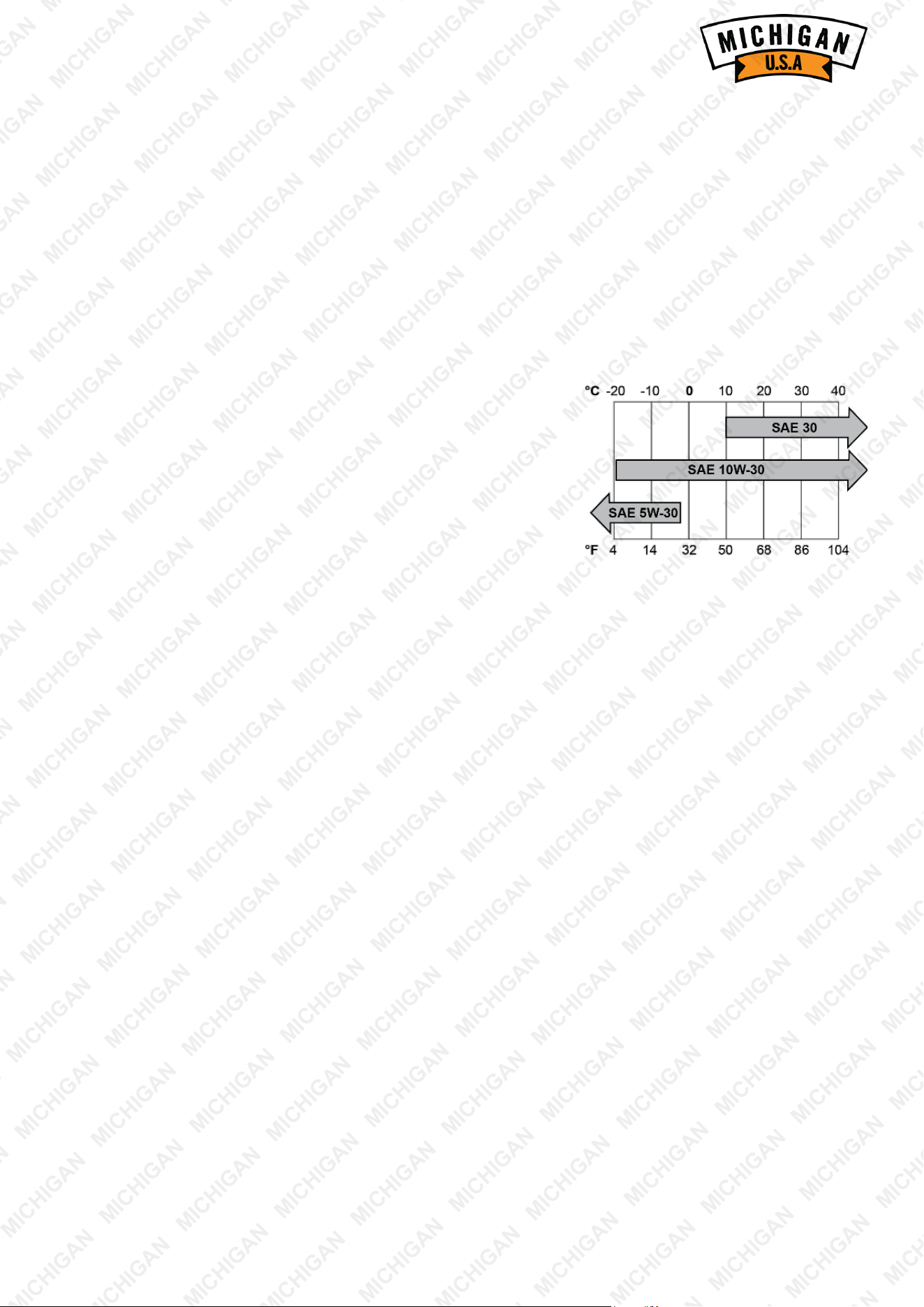

4-Stroke Engine Oil ................................................................................................................................................... 10

Air Filter .................................................................................................................................................................... 10

Fuel ........................................................................................................................................................................... 10

Spark Plug ................................................................................................................................................................ 11

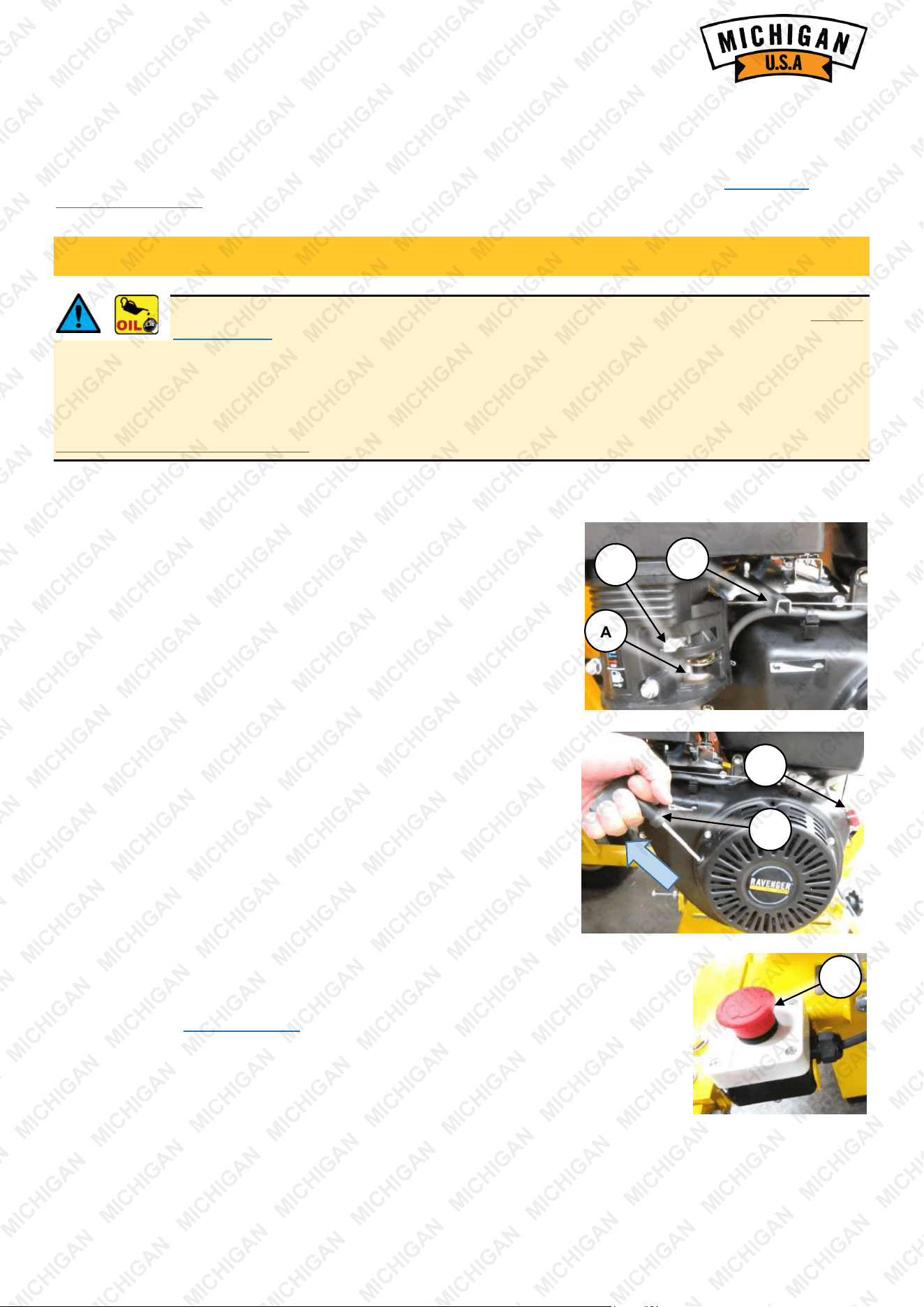

Engine Starting and Stopping ................................................................................................................... 11

Environmental Considerations .................................................................................................................................. 12

Operation ..................................................................................................................................................... 13

Starting the Wood Chipper ....................................................................................................................................... 13

Stopping the Wood Chipper ..................................................................................................................................... 14

Proper Wood Chipping ............................................................................................................................................. 14

Maintenance ................................................................................................................................................ 15

Maintenance Schedule ............................................................................................................................................. 15

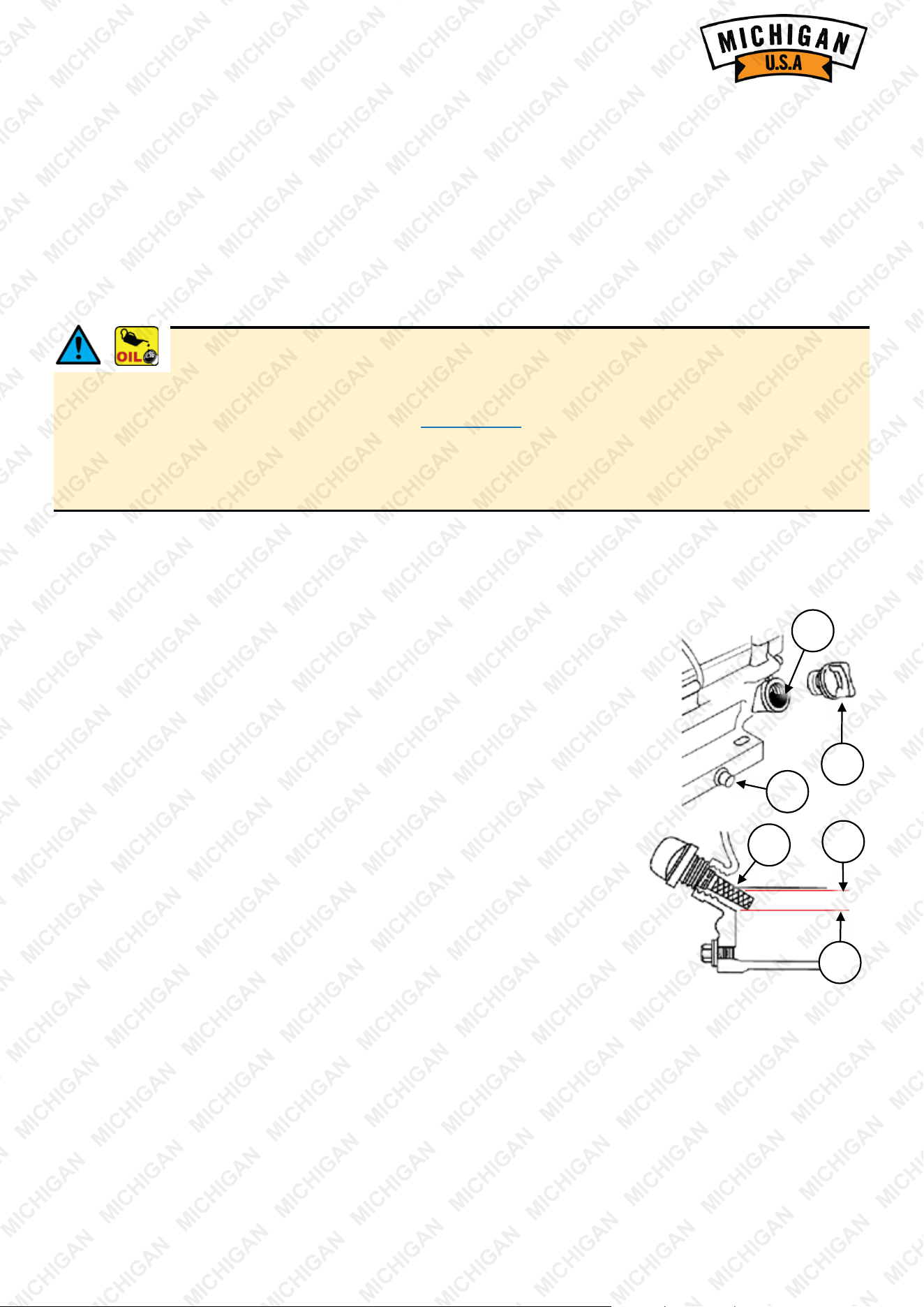

Checking and Changing Engine Oil .......................................................................................................................... 16

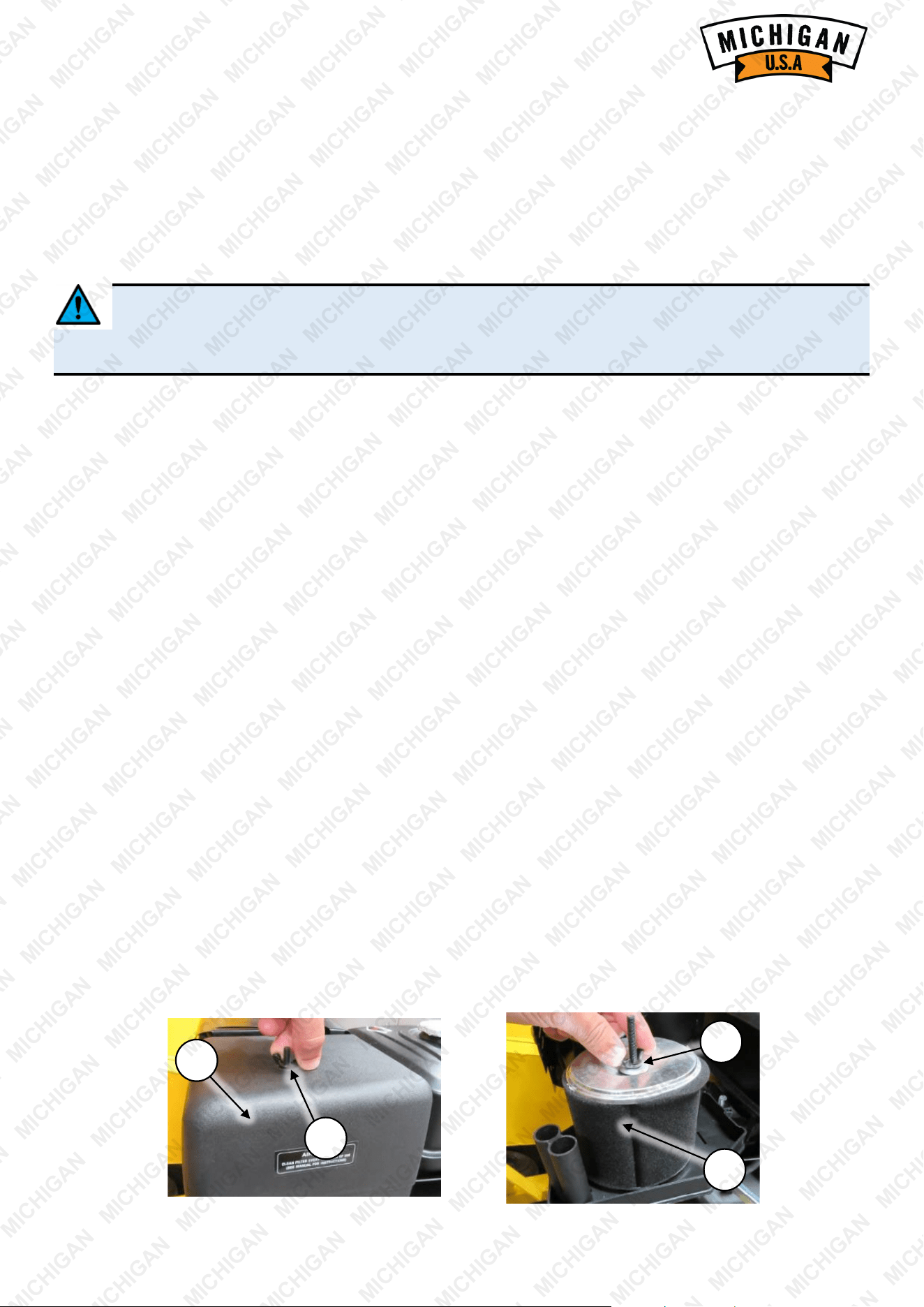

Checking, Cleaning or Replacing the Air Filter ......................................................................................................... 17

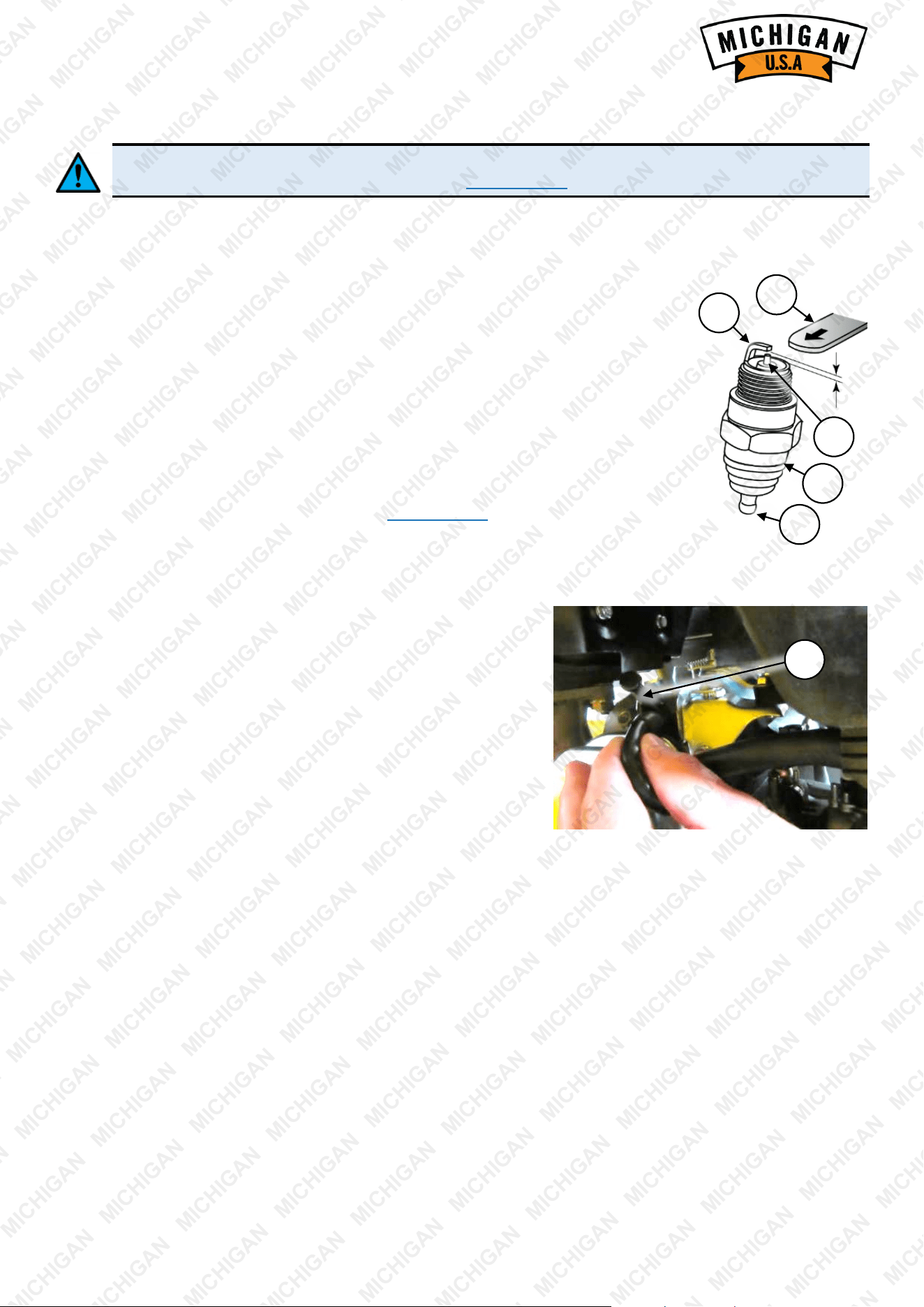

Spark Plug ................................................................................................................................................................ 18

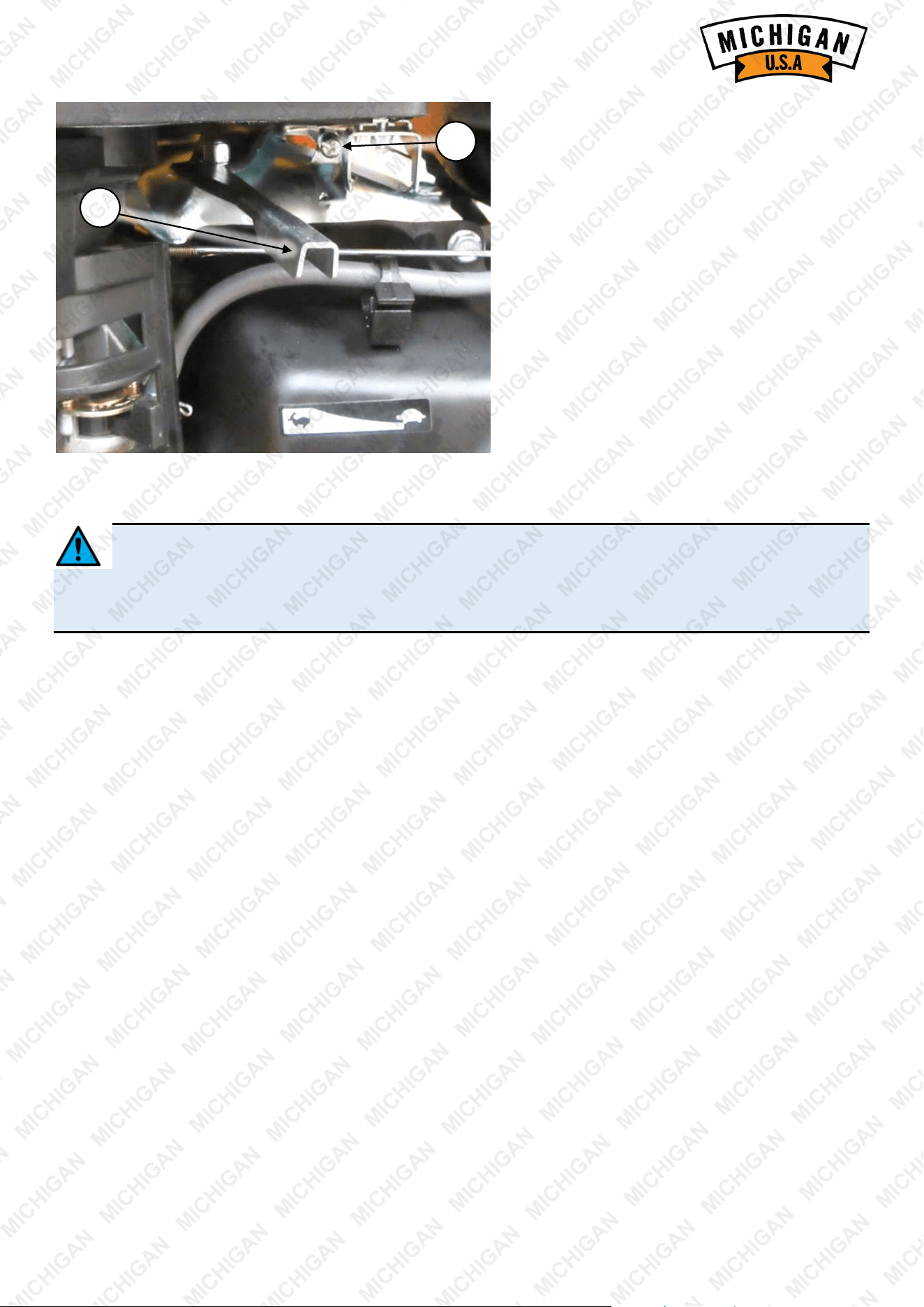

Throttle Limiter Adjustment ....................................................................................................................................... 18

Cleaning Guidelines.................................................................................................................................................. 19

Transportation and Storage ....................................................................................................................... 20

Troubleshooting ......................................................................................................................................... 21

Specifications ............................................................................................................................................. 22

Raptor 1000 Wood Chipper & Shredder

Parts Identification

No. Name No. Name

1 Foundation 14 Discharge chute

2 Roller 15 Chute adjuster

3

Blade

16

Engine

4

Wheel axis

17

Engine fixation plate

5

Wheel

18

In-feed

6

Pulley

19

Emergency stop fixation

7

Belt

20

Rubber fixation

8 Belt cover 21 Emergency stop

9 Pulley 22 Spring

10

Belt inner cover

23

Rubber

11

Bearing

24

Switch

12

Bearing fixation plate

25

Switch cover

13 Support foot 26 Lower blade

Spare parts available

for purchase, scan QR

code below:

MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN

Raptor 1000 Wood Chipper & Shredder

Before Use Checklist

Ensure that you carry out all procedures below before starting the engine or operating the

equipment. Failure to follow the checklist and carry out the procedures correctly may

result in making the product warranty void. The product is NOT supplied with engine oil, although traces of

oil from the manufacturing process may be present. It is essential to add adequate engine oil of the correct type

to the engine before use – see Checking and Changing Engine Oil. Failure to add engine oil will void the

product warranty.

4-Stroke Engine Oil

The product is NOT supplied with engine oil, although traces of oil from the manufacturing

process may be present. It is essential to add adequate engine oil of the correct type to the

engine before use – see Checking and Changing Engine Oil. Failure to add engine oil will void the product

warranty.

Four-stroke engines require engine oil in the crankcase for lubrication of internal components. Severe or

irreparable damage may occur if the engine is allowed to run without engine oil. The engine oil level requires

regular maintenance. Check the engine oil level and ensure that the oil level is at or just under the maximum

level indicator.

Always check the engine oil level before starting the engine. See Checking and Changing Engine Oil

.

Air Filter

The air filter is used to prevent dirt and other particles from possibly entering the engine and causing internal

damage to it. The air filter requires regular maintenance.

Always check the air filter before starting the engine. See Checking, Cleaning and Replacing the Air Filter.

Fuel

Petrol/fuel/gasoline is extremely flammable – keep clear of naked flames or other ignition

sources. • The engine must be cool before refuelling.

Adequately fill the fuel tank with the correct fuel type.

•

For 4-stroke engines, use non-ethanol unleaded petrol (higher RON values will provide best engine

performance). Do not use old or contaminated fuel.

To fill or top up fuel:

1. Place the machine in an upright position on a flat and level surface.

2. Clean the machine around the fuel filler so that no dirt or other material enters the engine when the cap is

removed.

3. Remove (rotate left) the fuel filler cap.

4. Using a funnel, carefully fill the tank with fuel. Do not fill above the top of the strainer (if equipped) or

otherwise overfill the tank.

5. When finished, re-install (rotate right) the fuel filler cap until firm. Wipe away any residual fuel from the

machine. If fuel has been spilt, move the machine away from the spillage before starting the engine.

Video Tutorial:

Assembly

MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN

Raptor 1000 Wood Chipper & Shredder

Spark Plug

The spark plug may come disconnected from the spark plug lead. If this is the case, place the electrical lead

over the spark plug terminal and push it down so that it connects firmly with the terminal. See S

park Plug

Removal/Installation.

Engine Starting and Stopping

Before starting the engine, ensure that you have followed all procedures described in the Before

Use Checklist. The product is NOT supplied with engine oil, although traces of oil from the

manufacturing process may be present. It is essential to add adequate engine oil of the correct type to the

engine before use – see Checking and Changing Engine Oil. Failure to add engine oil will void the product

warranty. Before starting the engine, ensure that you have followed all procedures described in the Before Use

Checklist. The product is NOT supplied with engine oil, although traces of oil from the manufacturing process

may be present. It is essential to add adequate engine oil of the correct type to the engine before use – see

Checking and Changing Engine Oil. Failure to add engine oil will void the product warranty.

Major engine controls are identified on the machine by stickers or other markings. To start the engine:

1. FUEL – Place the fuel tap (A) in the "ON" position. If necessary,

“prime” the fuel system by gently pulling the starter cord 4 to 8

times. Priming is required when starting the engine for the first time

or after the machine has used all fuel and the carburettor is now

"dry".

2. CHOKE and Throttle – If the engine is cold, place the choke (B) in

the "COLD" or "START" position. If the engine is warm or the

ambient temperature is high, place the choke in the "HOT" or

"RUN" position. Place the throttle control (C) just off the "tortoise"

(slow) position.

3. IGNITION – Place the engine ON/OFF switch (D) in the “ON” (“I”)

position. Ensure that the emergency stop button is not engaged.

4. START – Slowly pull out the starter cord (E) until you feel it

engage with the engine, then pull it out rapidly. The engine should

start. Allow the starter cord to rewind slowly – do not let it “snap”

back.

5. WARM-UP and THROTTLE – It is good practice to allow the

engine to warm-up and run smoothly before using the machine.

Use the throttle control to set the desired engine speed once the

engine is warm. Move the throttle control (C) towards the "rabbit"

to increase speed, and towards the "tortoise" to reduce speed. If

the throttle does not allow the engine to run at a high enough speed, the throttle

limiting screw may need to be adjusted.

If the engine does not start, repeat step 4. If the engine fails to start after several

attempts, refer to Troubleshooting

.

To stop the engine:

•

Place the engine ON/OFF switch (D) in the “OFF” position or press the emergency

engine stop button (F). If the engine is stopped using the emergency stop button,

reset the button by rotating it right until it "pops" up. The button must be reset in order to start the engine

again.

A

B

C

D

E

F

MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN

Raptor 1000 Wood Chipper & Shredder

Environmental Considerations

Altitude

If the engine is being used in altitudes at or above 1500m (approximately 5000’), adjustments to the carburettor

may be required. This is because there is less oxygen in the air as altitude increases, which effectively

“enriches” the ratio of fuel to air going into the engine and the higher the altitude, the richer the fuel mixture

becomes. If the engine is being permanently operated at high altitude, it is recommended to have an authorized

service centre make the necessary carburettor adjustments. If the engine is used occasionally at altitude (not

extreme altitudes), no adjustments should be required, however, a slight decrease in engine performance can be

expected.

Temperature

If the engine is being used in extremely cold or hot environments; for

example, desert or snow conditions, the type of engine oil may need to

be changed to suit environmental temperatures. Oil thickens as the

temperature decreases and thins as temperature increases, which means

that if the engine oil is not suited to the temperature its ability to properly

lubricate the engine may be affected. Use the following chart to

determine the correct engine oil.

MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN

Raptor 1000 Wood Chipper & Shredder

Operation

BEFORE USING THE WOOD CHIPPER: The product is NOT supplied with engine oil, although traces

of oil from the manufacturing process may be present. It is essential to add adequate engine oil of the

correct type to the engine before use – see Checking and Changing Engine Oil. Failure to add engine oil will

void the product warranty. • Operators must be fully trained before using this machine. • User Manual is read

and understood. • Machine is positioned on level ground, and all guards are fitted and in good condition. •

Blades are in good condition and secure. All blades are sharpened or replaced in sets. • All fasteners are

checked for tightness. • Only WOODEN materials free of nails etc. are fed into the machine. • Fire extinguisher is

available on site.

WHEN USING THE WOOD CHIPPER: • Always feed from the side. • It is better to have a second

trained operator within easy reach of the machine. • Maintain strict discipline at all times and service

machine at specified periods. • Note direction of discharge chute and if necessary, note the wind

direction to prevent debris from being blown into highway or where it could affect members of the public. • DO

NOT put any part of your body into the in-feed chute while the machine is running. • DO NOT operate the

machine whilst under the influence of alcohol or drugs. • DO NOT operate inside a building or confined space or

Climb on the in-feed chute.

WARNING! Read and understand all instructions, safety precautions, and/or warnings in the Safety

section before operating the wood chipper. If any doubt or question arises about the correct or safe

method of performing anything found in this manual, please contact local dealers in your area.

When operating the wood chipper, make sure you are standing in the safe operating area (Operator Zone). You

must stay in the safe operating area at all times when the ram is in motion (whether extending or retracting).

Never place any part of your body into a position that causes an unsafe operating condition.

Before loading and operating the wood chipper, always wear protective gear, including safety goggles, hearing

protection, tight-fitting gloves without draw strings or loose cuffs, and steel-toed shoes.

Know the correct and incorrect methods of chipping woods. Never using an incorrect or unsafe method.

Starting the Wood Chipper

1. Position your wood chipper on flat, dry ground, and then stop the front wheel with the brake, make sure the

machine cannot be moved.

2. Make sure the fuel shut-off valve is in the "ON" position.

3. Move the choke control lever to the "CHOKE" position (should only be needed if the engine is cold).

4. Move the throttle control lever to the "FAST" position.

5. Recoil Start: Turn the Ignition Switch to the "On" position. Grasp the recoil starter handle and slowly pull until

you feel resistance. Let the cord retract a little bit then pull the cord rapidly to start the engine. One or two

pulls usually starts the engine.

6. Electric Start: Turn and hold the Key in the start position until Engine starts then let the Key return to run

position.

7. Move the choke control lever (if used for cold engine) slowly back to the "RUN" position when the engine is

running well.

8. If the wood chipper has not been running (cold engine), warm up the engine by running the engine at half

throttle for 3 to 4 minutes, then advance the engine throttle control to the maximum speed.

MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN

Raptor 1000 Wood Chipper & Shredder

Stopping the Wood Chipper

1. Move the Throttle Lever to IDLE.

2. Recoil Start: Turn the Ignition Switch to the OFF position.

3. Electric Start: Turn the Key to the OFF position.

Proper Wood Chipping

Do NOT overload the machine by feeding overly large material into it, or at a rate that creates

unnecessary loads. For some wood types that are particularly hard, you may have to reduce the

size of the material being chipped. • Never hold on to material as it is being drawn into the machine – always

release the material. • Do not attempt to chip or shred tough fibrous plant material such as flax or vines. • When

chipping material large material, process one branch at a time. • Do NOT force material into the chipper. •

REFER TO THE PRODUCT LISTING FOR MAX BRANCH DIAMETERS. • For roots, always remove any

attached dirt, stones etc. before chipping. • Do not attempt to chip or shred any material other than suitable wood

types. • Do not attempt to remove materials from the machine or attempt to un-jam it while the machine is

running.

•

Woods' and branches' diameter should be no bigger than what is stated in the product’s listing.

•

DO NOT PLACE YOUR HANDS INTO THE CHUTE WHEN LOADING! THIS IS A VERY UNSAFE

METHOD AND COULD RESULT IN INJURY TO YOUR HANDS!

•

DO NOT REACH OR STEP ACROSS THE RAIL WHILE THE WOOD CHIPPER IS RUNNING! THIS IS A

VERY UNSAFE METHOD WHICH COULD CAUSE PERSONAL INJURY, EVEN DEATH!

When Blocked:

If the Roller stops while chipping woods or branches, the engine SHOULD BE STOPPED, and take out the

pieces of woods stuck in the roller, then restart the engine, and resume chipping again.

MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN

Raptor 1000 Wood Chipper & Shredder

Maintenance

Running petrol engines in confined areas CAN KILL IN MINUTES. Engine exhaust fumes

contain carbon-monoxide – a deadly gas that you cannot smell or see. NEVER run a

petrol engine in confined areas EVEN IF windows and doors are open. ONLY run petrol engines OUTDOORS

and away from doors, windows and vents. • Petrol/fuel/gasoline is extremely flammable – keep clear of naked

flames or other ignition sources. The product is NOT supplied with engine oil, although traces of oil from the

manufacturing process may be present. It is essential to add adequate engine oil of the correct type to the

engine before use – see Checking and Changing Engine Oil. Failure to add engine oil will void the product

warranty. • Do not have the engine running during inspection and maintenance unless specifically required. •

The engine should be cool enough to touch before performing maintenance activities. • Some maintenance

activities described may be beyond the scope of some users. For procedures that you are not comfortable with

or have the tools or experience for, have the unit serviced by a service centre or qualified technician.

To keep the equipment performing at optimal efficiency, regular checks and maintenance is required. Proper

care and maintenance ensure best performance and longest service life.

The maintenance schedule below specifies preventative maintenance checks and necessary maintenance tasks

and how often they should be performed.

Harsh operating environments such as extreme temperatures, dust etc. may necessitate more frequent

maintenance. • Maintenance frequencies are based on general factors including a maximum use of

approximately 300 hours per year. Apply common-sense when following the maintenance schedule based on

your actual use of the product. • Keep reasonable records of maintenance activities for reference. Failure to

follow the maintenance schedule, using incorrect or non-compatible accessories or replacements parts,

or general negligence may result in making the product warranty void.

Maintenance Schedule

Procedure

Before

Each Use

Every 3

Hours

Every 25

Hours

Every 100

Hours

Check engine oil level



Check general equipment condition



Check wedge for sharpness



Grease surface of slide rail



Check belts



Grease rack and pinion



Check tyre pressure



Clean engine exterior and cooling



Change engine oil

First time: 5

hours



Replace air filter



Replace spark plug



Engine Service:

Refer to the engine manufacturer's user manual for engine maintenance.

MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN

Raptor 1000 Wood Chipper & Shredder

Lubrication:

All Bearings of your Chipper are sealed units and should have sufficient lubricant to last the life of your machine

with normal use.

Greasing the rack and pinion:

All the rack and pinion should be greased before every use.

Checking and Changing Engine Oil

The product is NOT supplied with engine oil, although traces of oil from the manufacturing

process may be present. It is essential to add adequate engine oil of the correct type to the

engine before use. Failure to add engine oil will void the product warranty. • Always check engine oil level

when the machine is in an upright position on a flat and level surface. • Do not use used or contaminated engine

oils. • Use only engine oils of the correct type (see Specifications). • Perform the first oil change within the first 20

hours of use. Subsequently, change the oil every 20 hours of use. • It is recommended that the engine be warm,

but not hot, when performing oil changes. When the oil is warm it drains faster. • Using dirty or incorrect engine

oil may cause engine damage and void any warranty • Always use suitable tools. • Always dispose of used oil in

an environmentally responsible manner and according to regulations.

Four-stroke engines require engine oil in the crankcase for lubrication of internal components. Severe or

irreparable damage may occur if the engine is allowed to run without engine oil. The engine oil level requires

regular maintenance as per the maintenance schedule.

To check engine oil level:

1. Place the machine in an upright position on a flat and level surface.

2. Clean the machine around the oil filler cap (A) so that no dirt or other

material enters the engine when the cap is removed.

3. Remove the oil filler cap (rotate left) until fully unscrewed. For machines

without a dipstick, the oil level is determined by how close the oil is to the

filler hole (B). The lower limit is indicated by (X), the upper limit by (Y). For

machines equipped with an oil level dipstick:

a. Wipe the dipstick (C) clean with a piece of cloth or paper.

b. Insert the dipstick into the oil filler but do not screw it in.

c. Remove and inspect the dipstick – the oil level is determined by where

oil can be seen on it.

4. Ensure that the oil level is at or just under the permissible maximum. If the

oil level is low, add additional oil until the correct level is reached. If the oil

level is too high, drain some oil until the correct level is reached.

5. When finished, reinstall (rotate right) the oil filler cap until firm. Wipe off any

residual oil from the machine.

To change the engine oil:

1. Place the machine on a suitable work surface that is flat and level and have a container ready to catch

drained oil.

2. Clean the machine around the oil drain plug (D) and oil filler (A) so that no dirt or other material enters the

engine when the plug or cap is removed.

3. Unscrew (rotate left) and remove the drain plug and washer.

4. Tilt the machine and drain all oil from the engine. Once drained, allow the machine to sit level again.

5. Clean the drain plug and washer and then reinstall them. Screw in fully (rotate right) and firmly tighten.

A

Y

X

B

C

D

MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN

Raptor 1000 Wood Chipper & Shredder

6. Remove the oil filler cap (rotate left) until fully unscrewed. Wipe the oil level indicator clean with a piece of

cloth or paper.

7. Using a funnel, carefully add oil to the engine until the permissible maximum is reached. Double- check the

oil level (described above).

8. When finished, reinstall (rotate right) the oil filler cap until firm. Wipe off any residual oil from the machine.

Checking, Cleaning or Replacing the Air Filter

Operating the machine without a functional air filter may cause severe engine damage and will void any

warranty. • A dirty or oil saturated air filter will restrict air flow, which can be mistaken as fuel system

problems. Check the condition of the air filter before adjusting engine idle speed, where applicable. • If the air

filter is damaged (torn, broken, disintegrating), replace it.

The air filter is used to prevent dirt and other particles from possibly entering the engine and causing internal

damage to it. The air filter requires regular maintenance as per the maintenance schedule.

Air Filter Inspection and Cleaning

Inspect the air filter for dirtiness and debris, damage etc. Clean or replace the filter element as necessary. To

clean air filters:

•

For foam filters, wash the filter in warm water and mild detergent, then rinse and allow to dry.

•

For paper filters, use compressed air to blow particles from it, if possible. The air should be blown from the

engine side of the filter. Tapping the filter element against a hard surface and brushing the pleats using a

soft brush may also help remove debris from the filter.

•

For foam filters, place a few drops of clean engine oil on the filter then squeeze it a few times to spread the

oil through the filter material and remove any excess oil.

•

It is recommended to clean the air filter cover and air intake assembly of any dirt, cuttings etc.

To remove the air filter:

1. Remove (rotate left) the wingnut (A) securing the air filter cover (B), then remove the cover from the air

intake assembly.

2. Remove (rotate left) the wingnut (C) securing the air filter element (D), then remove the filter element from

the air intake assembly.

To install the air filter:

1. Insert the air filter element, and ensure it is correctly positioned in relation to the air intake assembly as it will

seat and seal properly in one position only. Secure the air filter element with the wingnut (rotate right and

tighten by hand. Do not over-tighten).

2. Re-install the filter cover, ensuring it is fitted properly against the engine and secure it with the wingnut

(rotate right and tighten by hand. Do not over-tighten).

A

B

C

D

MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN

Raptor 1000 Wood Chipper & Shredder

Spark Plug

If the spark plug is damaged (cracked insulator, broken or eroded electrodes etc.), replace it. • Always

use spark plugs of the correct “heat range” - see Specifications.

The spark plug is used to ignite the air/fuel mixture inside the engine. The spark plug has electrodes on one end

and an electrical terminal on the other. The spark plug requires regular maintenance.

Spark Plug Cleaning and Gap Checking

The spark plug should be checked and cleaned as per the maintenance schedule.

1. Remove any carbon deposits on the spark plug (A) electrodes (B) with a wire brush.

2. Clean the spark plug threads and the electrical terminal (C) on the top.

To check and adjust the spark plug “gap”:

1. Use “feeler” or “thickness” gauges (X) to measure the existing gap. The gauge must

drag a little when being slid between the electrodes (B) – this means the

measurement is fairly accurate.

2. Adjust the gap to within specification (see Specifications

). If the gap needs to be

reduced, gently tap the electrode as required. If the gap needs to be increased, use

pliers to gently pull the electrode as required.

3. Measure the gap again and ensure it is within the specified range before re-installing the spark plug.

Spark Plug Removal/Installation

1. Pull the electrical lead (A) from the terminal on top of the spark

plug. The spark plug is located below and between the air filter

and exhaust cases.

2. Clean the area around the spark plug so that no dirt or other

material can enter the engine when the spark plug is removed.

3. Use the spark plug tool to remove the spark plug (rotate left).

To re-install the spark plug:

1. Place the spark plug in its hole and screw it in (rotate right)

until “finger tight”.

2. Use the spark plug tool to tighten the spark plug approximately one quarter turn (do not over-tighten).

3. Place the electrical lead over the spark plug terminal and push it down so that it connects firmly terminal.

Throttle Limiter Adjustment

The engine may be equipped with a screw that determines how far the throttle can be opened. This is normally

set at the correct position by the factory, however, over time may need adjustment due to vibration etc. If it is not

possible to run the engine at full speed, particularly when under load, then the limiter screw may require

adjusting. To adjust the throttle limiter:

1. Locate the throttle limiter screw (A), above the throttle control (B).

2. Rotate the screw to the left (anti-clockwise) to increase the maximum throttle opening. Rotate to the right

(clockwise) to reduce the maximum throttle opening.

3. Check throttle operation and engine speed under load – make further adjustments, if required.

A

B

X

C

A

MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN

Raptor 1000 Wood Chipper & Shredder

Cleaning Guidelines

Do not use solvents, chemicals or abrasives when cleaning the machine, as some surfaces may be

damaged. • Do not use high-pressure sprayers near the blade shaft bearings as bearing damage may

result. • Wear gloves or use suitable tools to assist in cleaning – do not use bare hands. • Clean the machine

after every use to ensure best performance and longest service life. • Avoid tilting the machine to avoid potential

fuel or oil spills or leaks.

•

Use a slightly damp cloth, water, and mild detergent for cleaning.

•

Use a brush for parts that are difficult to reach.

•

Ensure air vents and surfaces designed for heat dissipation are clean and free of obstructions or debris.

•

It is recommended to lightly oil the cutting blades after each use to help prevent corrosion.

•

Ensure all chutes and flaps are clean and not obstructed.

•

Ensure that all control cables, levers, switches etc. are clean and operate normally and smoothly.

A

B

MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN

Raptor 1000 Wood Chipper & Shredder

Transportation and Storage

Always ensure that the machine is cool enough to touch before transporting or storing. •

Petrol/fuel/gasoline is extremely flammable – keep clear of naked flames or other ignition

sources.

Preparing for Transport and Storage

•

Clean the equipment before transport or storage.

•

Disconnect the spark plug lead.

•

Store the equipment in a dry, well-ventilated area and out of the reach of children.

Long Term Storage

1. Follow the normal procedures for storage, then:

•

Drain the fuel system. It is advised to have the fuel tank as empty as possible before draining.

a. Unscrew (rotate left) the carburettor drain plug. Use a suitable container to catch the draining fuel, and

allow the fuel to drain. Store the drained fuel in a properly sealed container.

b. Re-install (rotate right) the carburettor drain plug and tighten.

2. Remove the spark plug and put 30ml of clean engine oil into the cylinder. Pull the starter rope slowly to

distribute the oil. Re-install the spark plug.

3. Lubricate the blade shaft bearings.

4. Cover the equipment to protect it from dirt and dust.

MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN

Raptor 1000 Wood Chipper & Shredder

Troubleshooting
