MICHIGAN CHPTRDMCHA2X0 18HP Petrol Wood Chipper User Manual

Ravenger 2250 Wood

Chipper / Shredder

User Manual

[Revision 8.0 April 2023]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY

VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance,

assembly, inclusions, specifications, description, and packaging.

The product is NOT supplied with engine oil, although traces of oil from the manufacturing process may be present. It is essential to add

adequat

e engine oil of the correct type to the engine before use. Failure to add engine oil will void the product warranty.

Ravenger 2250 Wood Chipper/Shredder

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or

equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or

SERIOUSLY INJURED if you

do not follow instructions.

You CAN be KILLED or

SERIOUSLY INJURED if you

do not follow instructions.

You CAN be INJURED if you

do not follow instructions or

equipment damage may occur.

It is vital that you read and understand

this user manual before using the product,

including safety warnings, and any

assembly and operating instructions.

Keep the manual for future reference.

Safety precautions and recommendations

detailed here must be fully understood

and followed to reduce the risk of injury,

fire, explosion, electrical hazard, and/or

property damage.

Safety information presented here is

generic in nature – some advice may not

be applicable to every product. The term

"equipment" refers to the product, be it

electrical mains powered, battery powered

or combustion engine powered.

• Before Use - If you are not familiar with

the safe operation/handling of the

equipment, or are in any way unsure of

any aspect of suitability or correct use

for your application, you should

complete training conducted by a

person or organization qualified in safe

use and operation of this equipment,

including fuel/electrical handling and

safety.

• Do NOT operate the equipment in

flammable or explosive environments,

such as in the presence of flammable

liquids, gases or dust. The equipment

may create sparks or heat that may

ignite flammable substances.

• Keep clear of moving parts.

• Equipment may be a potential source of

electric shock or injury if misused.

• Do NOT operate the equipment if it is

damaged, malfunctioning or is in an

excessively worn state.

• Do NOT allow others to use the

equipment unless they have read this

manual and are adequately trained.

• Keep packaging away from children -

risk of suffocation! Operators must use

the equipment correctly. When using

the equipment, consider conditions and

pay due care to persons and property.

General Work Area Safety

• Work areas should be clean and well it.

• Do not operate the equipment if

bystanders, animals etc are within

operating range of the equipment or the

general work area.

• If devices are provided for connecting

dust extraction / collection facilities,

ensure these are connected and used

properly. Dust collection can reduce

dust-related hazards.

General Personal Safety

• Wear appropriate protective equipment

when operating, servicing, or when in

the operating area of the equipment to

help protect from eye and ear injury,

poisoning, burns, cutting and crush

injuries. Protective equipment such as

safety goggles, respirators, non-slip

safety footwear, hard hat, hearing

protection etc should be used for

appropriate equipment / conditions.

Other people nearby should also wear

appropriate personal protective

equipment. Do not wear loose clothing

or jewellery, which can be caught in

moving parts. Keep hair and clothing

away from the equipment.

• Stay alert and use common sense

when operating the equipment. Do not

over-reach. Always maintain secure

footing and balance.

• Do not use the equipment if tired or

under the influence of drugs, alcohol or

medication.

• This equipment is not intended for use

by persons with reduced physical,

sensory or mental capabilities.

General Fuel Safety

• Petrol/fuel/gasoline is extremely

flammable – keep clear of naked flames

or other ignition sources.

• Do not spill fuel. If you spill fuel, wipe it

off the equipment immediately – if fuel

gets on your clothing, change clothing.

• Do NOT smoke near fuel or when

refuelling.

• Always shut off the engine before

refuelling.

• Do NOT refuel a hot engine.

• Open the fuel cap carefully to allow any

pressure build-up in the tank to release

slowly.

• Always refuel in well ventilated areas.

• Always check for fuel leakage. If fuel

leakage is found, do not start or run the

engine until all leaks are fixed.

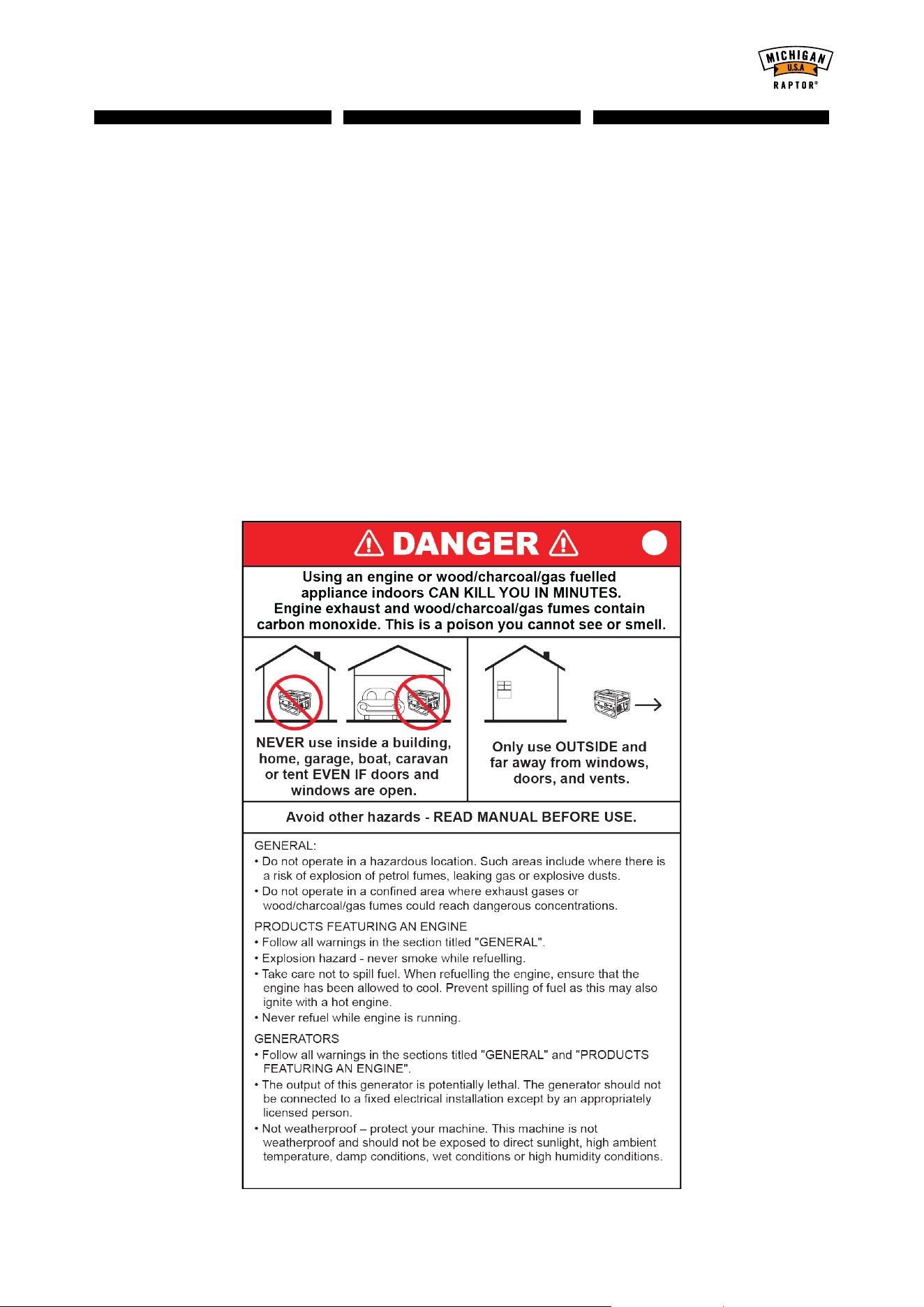

General Carbon-Monoxide Safety

• Using a combustion engine indoors

CAN KILL IN MINUTES. Engine

exhaust contains carbon-monoxide – a

poison you cannot smell or see.

• Use combustion engines OUTSIDE

only, and far away from windows, doors

and vents.

General Equipment Use and Care

• The equipment is designed for

domestic use only.

• Handle the equipment safely and

carefully.

• Before use, inspect the equipment for

misalignment or binding of moving

parts, loose components, damage or

any other condition that may affect its

operation. If damaged, have the

equipment repaired by an authorised

service centre or technician before use.

• Prevent unintentional starting of the

equipment - ensure equipment and

power switches are in the OFF position

before connecting or moving

equipment. Do not carry equipment

with hands or fingers touching any

controls. Remove any tools or other

items that are not a part of the

equipment from it before starting or

switching on.

• Do not force the equipment. Use the

correct equipment for your application.

Equipment will perform better and be

safer when used within its design and

usage parameters.

• Use the equipment and accessories

etc. in accordance with these

instructions, considering working

conditions and the work to be

performed. Using the equipment for

operations different from those

intended could result in hazardous

situations.

• Always keep equipment components

(engines, hoses, handles, controls,

frames, housings, guards etc) and

accessories (cutting tools, nozzles, bits

etc) properly maintained. Keep the

equipment clean and, where

applicable, properly lubricated.

• Store the equipment out of reach of

children or untrained persons. To avoid

burns or fire hazards, let the equipment

cool completely before transporting or

storing. Never place or store the

equipment near flammable materials,

combustible gases or liquids etc.

• The equipment is not weather-proof,

and should not be stored in direct

sunlight, at high ambient temperatures

or locations that are damp or humid.

• Do not clean equipment with solvents,

flammable liquids or harsh abrasives.

• For specific equipment safety use and

care, see Equipment Safety

.

Ravenger 2250 Wood Chipper/Shredder

General Electrical Safety

• Inspect electrical equipment, extension

cords, power bars, and electrical fittings

for damage or wear before each use.

Repair or replace damaged equipment

immediately.

• Ensure all power sources conform to

equipment voltage requirements and

are disconnected before connecting or

disconnecting equipment.

• When wiring electrically powered

equipment, follow all electrical and

safety codes.

• Wherever possible, use a residual

current device (RCD).

• High voltage / high current power lines

may be present. Use extreme caution

to avoid contact or interference with

power lines. Electrical shock can be

fatal.

General Electrical Safety

• Electrically grounded equipment must

have an approved cord and plug and be

connected to a grounded electrical

outlet.

• Do NOT bypass the ON/OFF switch

and operate equipment by connecting

and disconnecting the electrical cord.

• Do NOT use equipment that has

exposed wiring, damaged switches,

covers or guards.

• Do NOT use electrical equipment in wet

conditions or in damp locations.

• Do NOT use electrical cords to lift,

move or carry equipment.

• Do NOT coil or knot electrical cords,

and ensure electrical cords are not trip

hazards.

General Service Information

• The equipment must be serviced or

repaired at authorised service centres

by qualified personnel only.

• Replacement parts must be original

equipment manufacturer (OEM) to

ensure equipment safety is maintained.

• Do NOT attempt any maintenance or

repair work not described in this

manual.

• After use, the equipment and

components may still be hot – allow the

equipment to cool and disconnect

spark plugs and/or electrical power

sources and/or batteries from it before

making adjustments, changing

accessories or performing repair or

maintenance.

• Do NOT make adjustments while the

equipment is running.

• Perform service related activities in

suitable conditions, such as a

workshop.

• Replace worn, damaged or missing

warning/safety labels immediately.

Ravenger 2250 Wood Chipper/Shredder

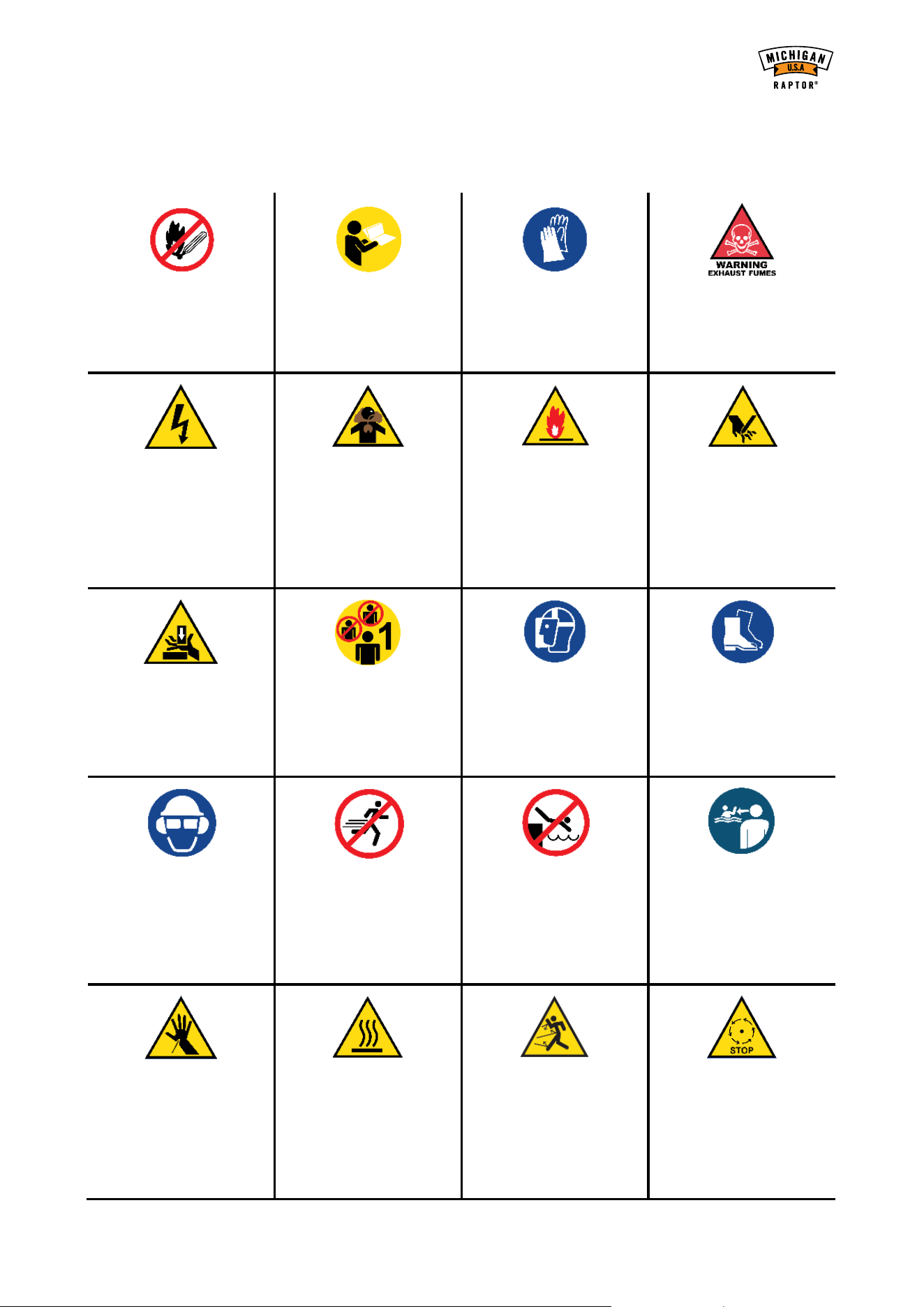

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on

your product and their meanings. If any stickers become unreadable, unattached etc, replace them.

Flammable Material Hazard

Flammable liquids, gases or

substances etc may present.

Avoid ignition sources and

open flames. Danger of fire.

Read User Manual

Read and fully understand

product safety warnings,

operation, procedures etc

before using the product.

Use Hand Protection

Wear appropriate hand

protection and take due care

as the product or use of the

product may present hand

hazards.

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be

fatal.

Electrocution / Electrical

Shock Hazard

High voltage or high current

electricity may be present or

required by the product. Take

due care when handling

electrical products, cables,

plugs and leads. Electrical

shock can be fatal.

Toxic Fumes / Dust Hazard

Using the product or by-

products from use may

produce fumes, smoke or

particles that could be harmful

if inhaled. Wear appropriate

breathing protection and have

adequate ventilation.

Explosive Material Hazard

Combustible liquids, gases or

substances etc may be

present. Avoid ignition sources

and open flames. Danger of

explosion.

Cutting / Amputation Hazard

The product may have blades,

edges or mechanical devices

that can cause severe cut

injury to fingers, limbs etc.

Take due care when handling

and using the product.

Crush Hazard

The product may have blades,

edges or mechanical devices

that can cause severe crush

injury to fingers, limbs etc.

Take due care when handling

and using the product.

Single Operator Only

The product must be operated

by a single person only. More

than one person operating the

product may introduce

additional hazards.

Use Face Protection

Wear appropriate full-face

protection and take due care

as the product or use of the

product may present face and

eye hazards.

Use Foot Protection

Wear appropriate foot

protection and take due care

as the product or use of the

product may present foot

hazards.

Use Eye / Ear / Head

Protection

Wear appropriate eye and / or

ear and / or head protection

and take due care as the

product or use of the product

may present eye, hearing and

head hazards.

Running Hazard

Do not run on or near the

product as doing so may

present a fall hazard.

Diving Hazard

Do not dive into the product as

doing so may present a neck /

head injury hazard.

Adult Supervision Required

Always supervise children and

other users of a product to

prevent drowning or injury.

Skin Penetration / Puncture

Hazard

The product may produce

pressure, emit liquids or

objects that can cause severe

injury to fingers, limbs, blood

etc. Take due care when

handling and using the

product.

Hot Surface Hazard

Be aware that the product may

produce high temperatures

and hot surfaces that can

cause burn injuries.

Flying Debris Hazard

Be aware that the product or

use of the product may

present hazards produced by

flying debris. Wear appropriate

clothing and protectiove

devices.

Moving Parts Hazard

Be aware that the product

contains or uses mechanical

devices that move or rotate.

Always wait for moving parts

to stop fully before handling

the product, adjusting,

maintenence etc.

Ravenger 2250 Wood Chipper/Shredder

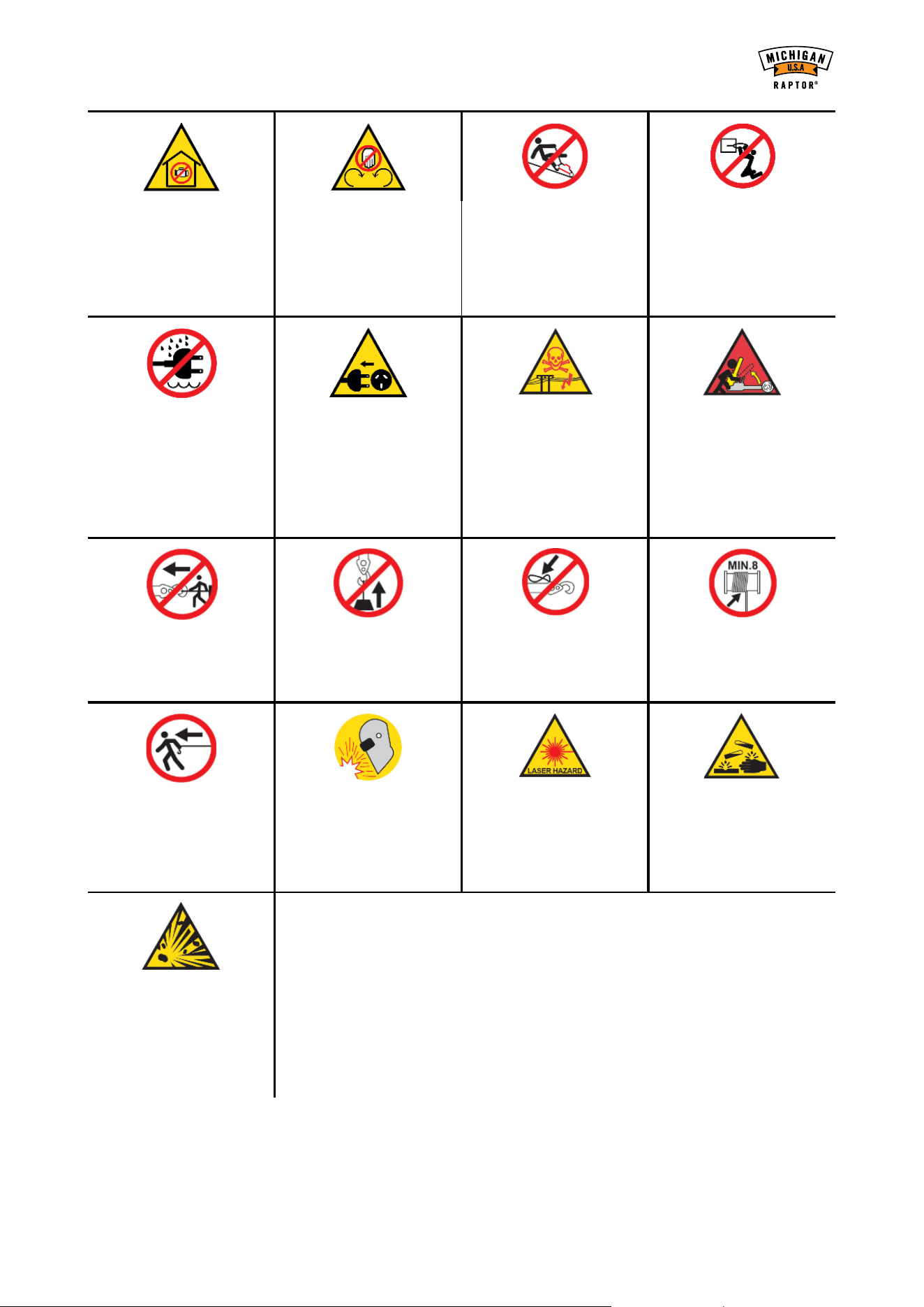

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be

fatal.

Pull Hazard

Be aware that the product

contains or uses mechanical

devices that can pull in objects

and can cause severe injury to

fingers, limbs etc. Take due

care when handling and using

the product.

Slope / Fall Injury Hazard

Be aware that using the

product on sloping surfaces or

in slippery conditions may

present additional dangers

from falls and contact with

blades, moving parts, hot

surfaces etc.

"Slam Dunk" Warning

Do NOT attempt "slam dunk"

maneouvres as this may result

in severe injury due to falling,

product breakage or collapse

etc.

Electrocution / Electrical

Shock Hazard - Outdoor

High voltage or high current

electricity may be present or

required by the product. Do

NOT use in rain, damp or wet

conditions. Electrical shock

can be fatal.

Electrocution / Electrical

Shock Hazard - Disconnect

High voltage or high current

electricity may be present or

required by the product.

Always disconnect the product

from the electrical supply

before handling the product,

adjusting, maintenence etc.

Power Line Electrocution

Hazard

High voltage / high current

power lines may be present.

Use extreme caution to avoid

contact or interference with

power lines. Electrical shock

can be fatal.

"Kick-Back" Hazard

High level of "kick-back"

hazard that can cause the

machine to suddenly rotate

towards operator. Kick-back

injury can be fatal.

Winch Operator Position

Hazard

Do NOT stand between winch

and load. Do NOT use winch

to move people.

Winch Lift Hazard

Do NOT LIFT load vertically.

Use machine to PULL only.

Cable Hazard

Ensure that load bearing cable

is not kinked or knotted.

Winch Cable Hazard

Ensure that there is a

minimum number of cable

coils on winching mechanism.

Winch Hook Hazard

Carry hook to load – do NOT

throw or run.

Flash / Blinding Hazard

Wear appropriate eye

protection for welding. Direct

exposure to weld arcs may

cause permanent eye injury.

Laser Hazard

Laser may be in use – do NOT

look directly at laser, or allow

others to.

Corrosive Substance Hazard

The product may contain

corrosive substances that can

harm or otherwise cause

damage. Take due care when

handling and using the

product.

Explosion Hazard

The product may contain

substances that can explode

under certain conditions or

misuse. Take due care when

handling and using the

product.

Ravenger 2250 Wood Chipper/Shredder

Equipment Safety

Wood chippers can cause serious or fatal injury if proper safety precautions are not followed. It is

extremely important that you read and fully understand the information in this section and all

other safety warnings / recommendations and usage instructions before using the equipment.

Operator

• If you are untrained in the use of a wood chipper, it is highly recommended that you be trained/instructed

by a suitably qualified or experienced person before using the equipment.

• NEVER operate the machine when tired, or under the influence of any substance (medication, alcohol,

drugs etc) that may impair your judgement, alertness, physical strength, vision or dexterity.

• Maintain sure-footing and balance always when using or handling the machine and have full awareness

of your surroundings and any possible hazards.

• Always wear ANSI approved safety goggles, hearing protection, heavy-duty work gloves, and a dust

mask or respirator when using the machine.

Work Area Safety

• Be aware of fire risks resulting from machine use. Ensure that the machine exhaust and spark arrestor (if

equipped) is well maintained and that engine is tuned correctly.

• Refuel outdoors only. Avoid fuel spillage. Start the machine at least 3m (10') away from the fuelling

location.

• Keep children and bystanders away while operating the machine. Provide barriers or shields as needed.

• Operate the machine on solid, level surfaces only.

• Never leave the machine unattended when it is running.

• Do not allow processed material to build up in the discharge area. This may prevent proper discharge

and can result in material being ejected through the feed chute.

Operational Safety

• Do NOT use the machine if the throttle or any safety guard or mechanism is not installed or is not

operating correctly – have the machine inspected and repaired at an authorised service centre before

using it again.

• Always feed branches into the machine slowly to allow the blades to chip/shred the material.

• Please refer to the product listing for max branch diameters for the shredder chute and the chipper

chute.

• If the machine becomes blocked, immediately switch the engine OFF and disconnect the spark plug

lead. Wait until the machine comes to a complete stop, then clear the machine of any obstructions.

• Never place hands or any other body parts into any machine chute. Use a stick to push the tree limbs,

leaves, etc. into the feed hopper.

• Never allow metal, stone, glass or other foreign objects to be fed into the machine.

• Do not look into the chutes or discharge opening when the machine is running.

• Do NOT attempt to remove materials from the machine or attempt to un-jam it while the machine is

running.

• For roots, always remove any attached soil, stones etc before chipping.

Transportation Safety

• Always STOP the engine before transporting or working on it (refuelling, adjusting etc).

• When transporting the machine in a vehicle, ensure the engine is OFF, and the machine is secured in an

upright position to prevent tip-over, machine damage or fuel spills.

Ravenger 2250 Wood Chipper/Shredder

Table of Contents

Safety ................................................................................................................................................ 2

Safety Symbols ............................................................................................................................................ 4

Equipment Safety ............................................................................................................................. 6

Included Items .................................................................................................................................. 8

Before Use Checklist ....................................................................................................................... 9

Assembly ...................................................................................................................................................... 9

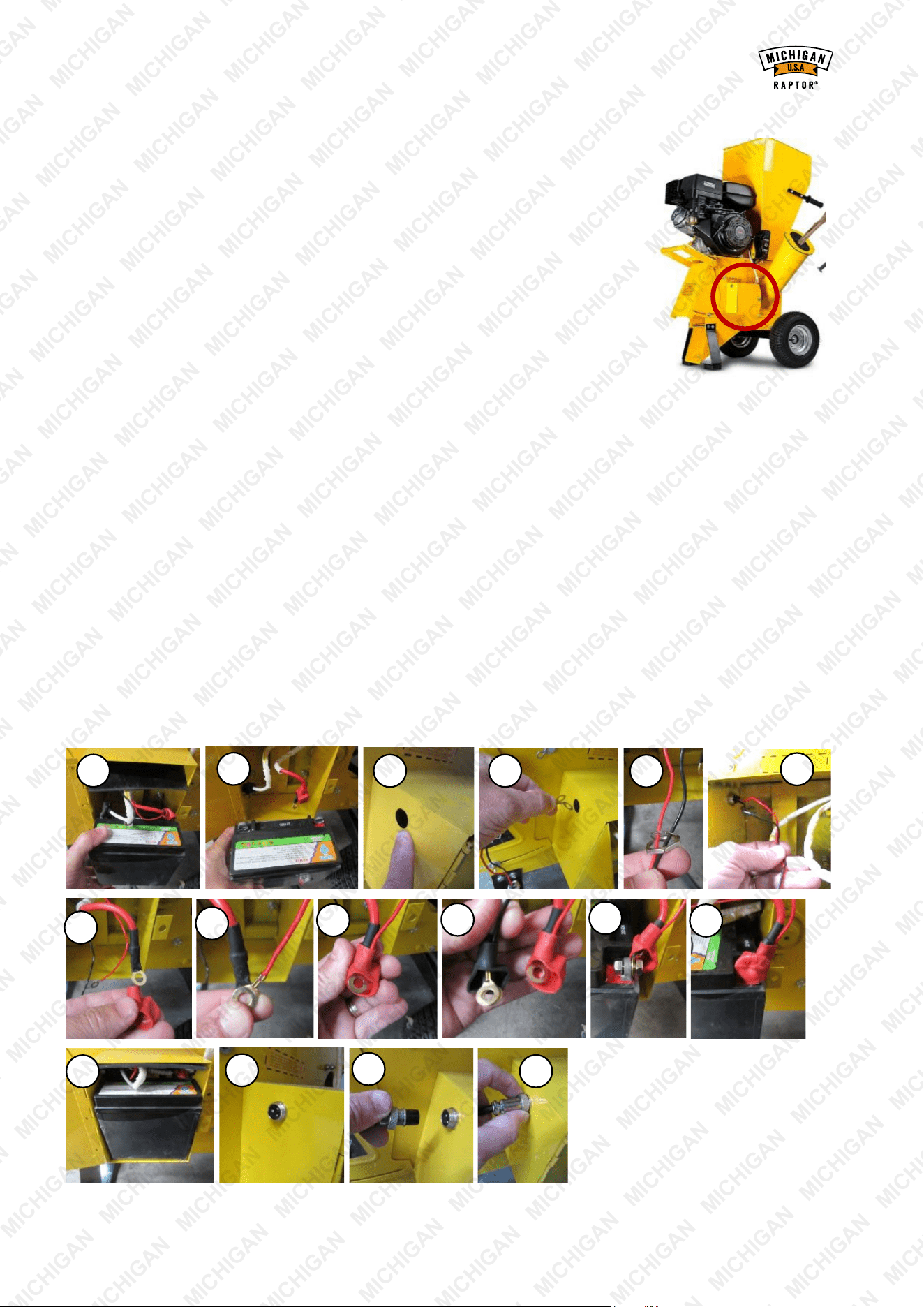

Battery Charging Cable Installation ........................................................................................................... 10

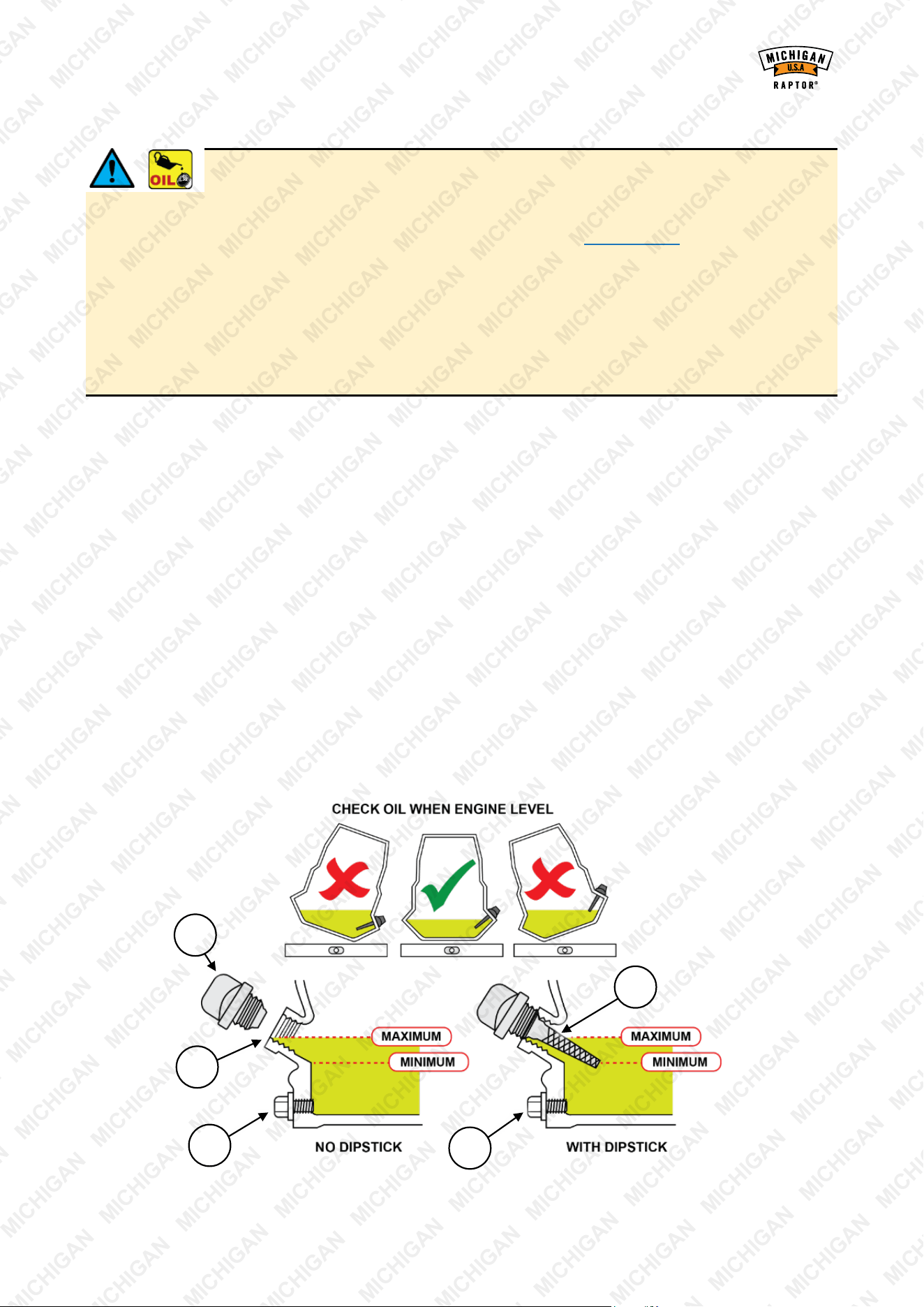

Engine Oil ................................................................................................................................................... 11

Air Filter ...................................................................................................................................................... 11

Fuel ............................................................................................................................................................ 11

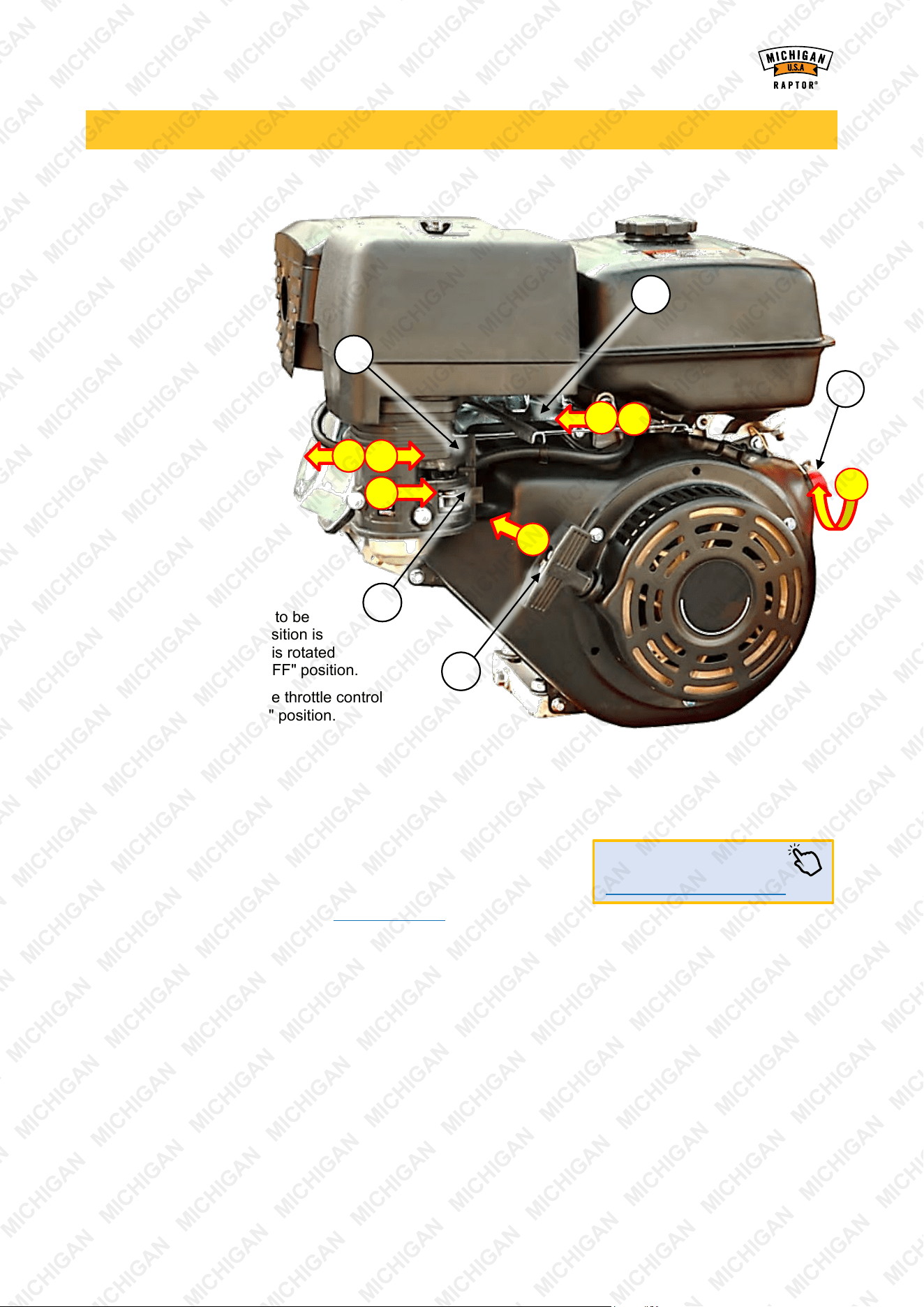

Engine Starting and Stopping ...................................................................................................... 12

Starting Petrol Engines .............................................................................................................................. 12

Stopping the Engine ................................................................................................................................... 12

Environmental Considerations ................................................................................................................... 13

Operation ........................................................................................................................................ 14

Maintenance ................................................................................................................................... 15

Maintenance Schedule – Petrol Engines / Machines ................................................................................ 16

Engine Oil ................................................................................................................................................... 17

Air Filter ...................................................................................................................................................... 19

Inspection and Cleaning ................................................................................................................... 19

Removal/Installation ............................................................................................................................ 19

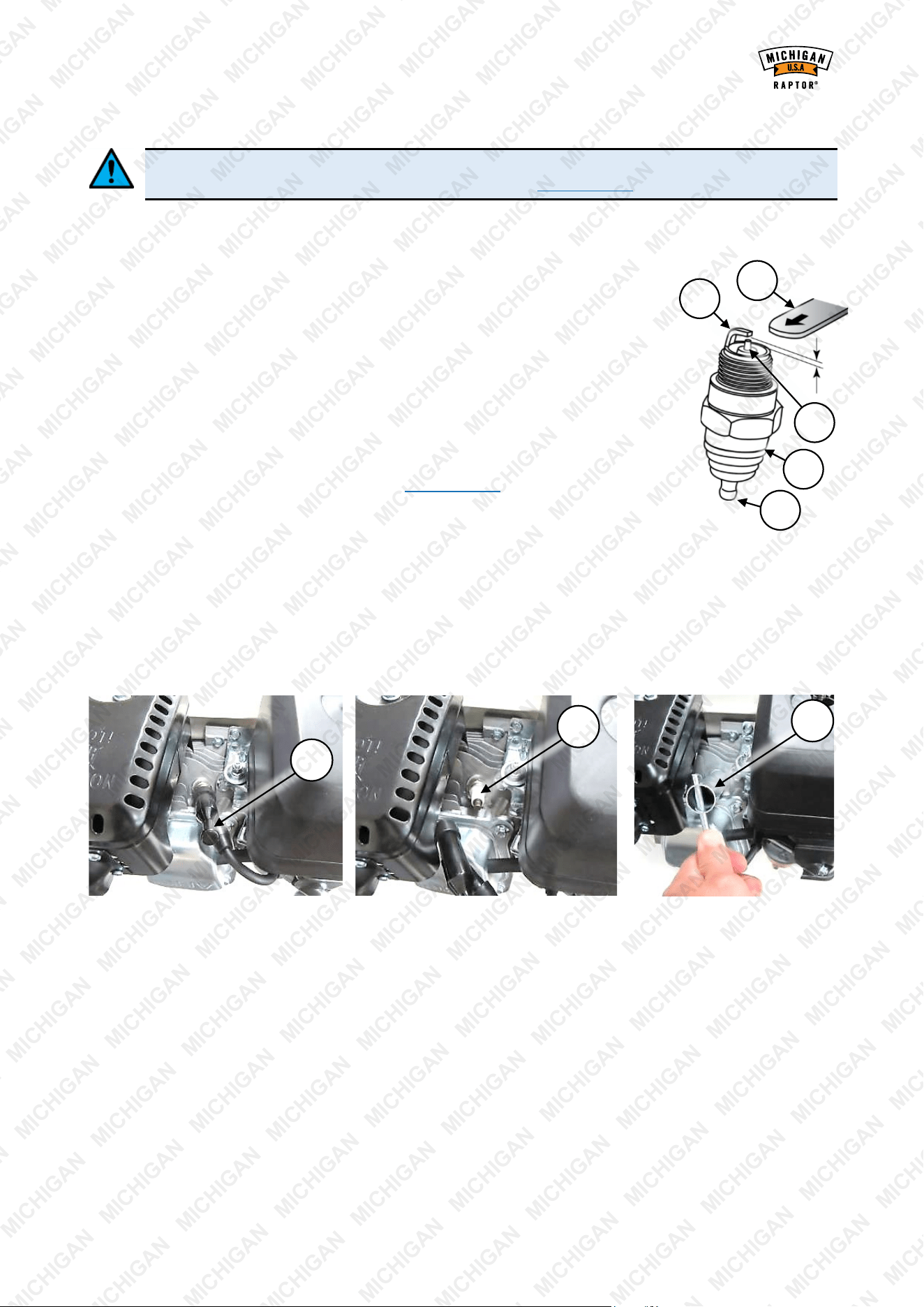

Spark Plug .................................................................................................................................................. 20

Cleaning and Gap Checking ............................................................................................................. 20

Removal/Installation .......................................................................................................................... 20

Blades ........................................................................................................................................................ 21

Removal/Installation .......................................................................................................................... 21

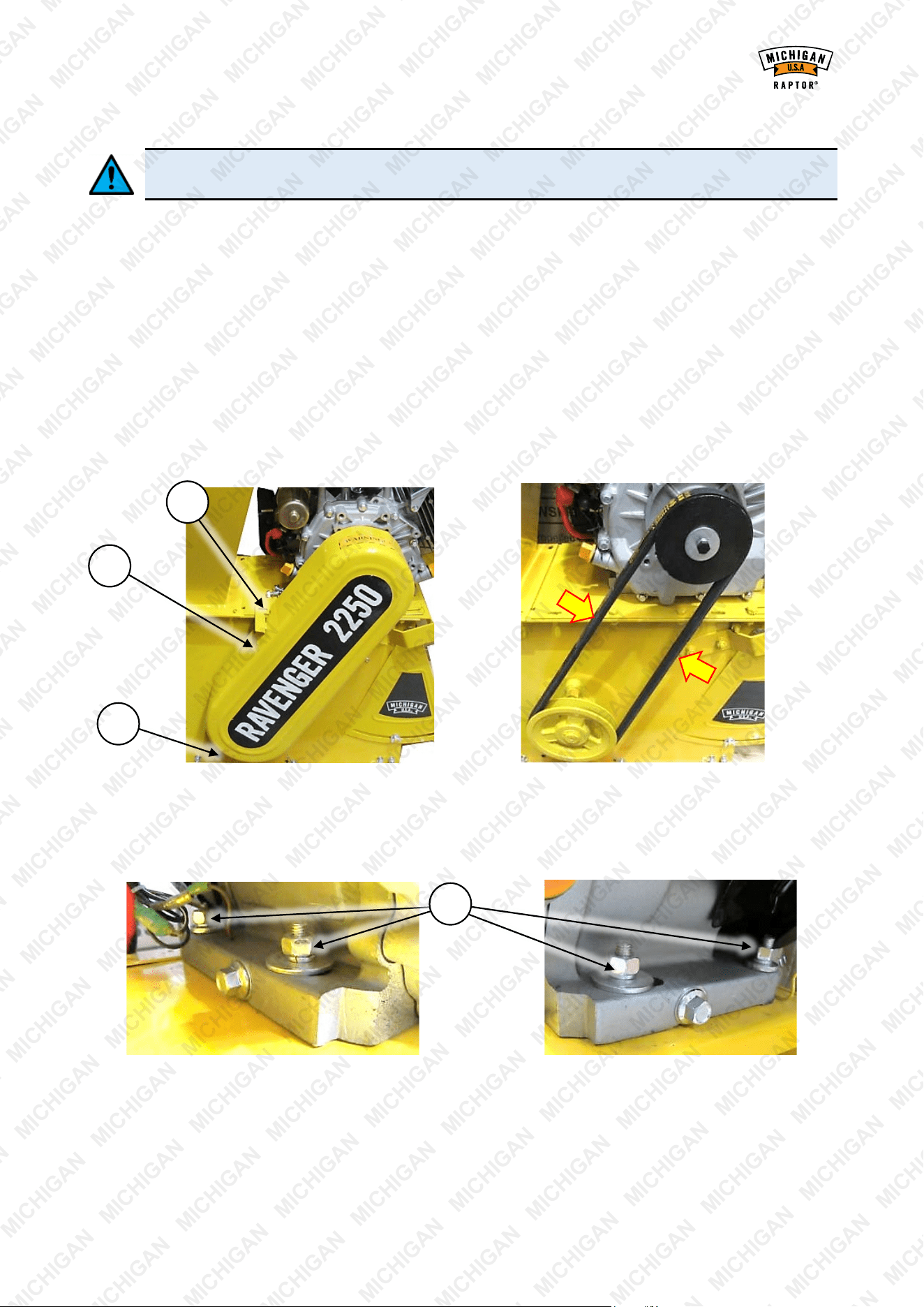

Drive Belt .................................................................................................................................................... 22

Checking and Adjusting Belt Tension .................................................................................................. 22

Replacing the Belt ................................................................................................................................ 23

Transportation and Storage .......................................................................................................... 24

T

roubleshooting ............................................................................................................................. 25

Specifications ................................................................................................................................. 27

Engine Service and Maintenance Record .................................................................................... 28

Ravenger 2250 Wood Chipper/Shredder

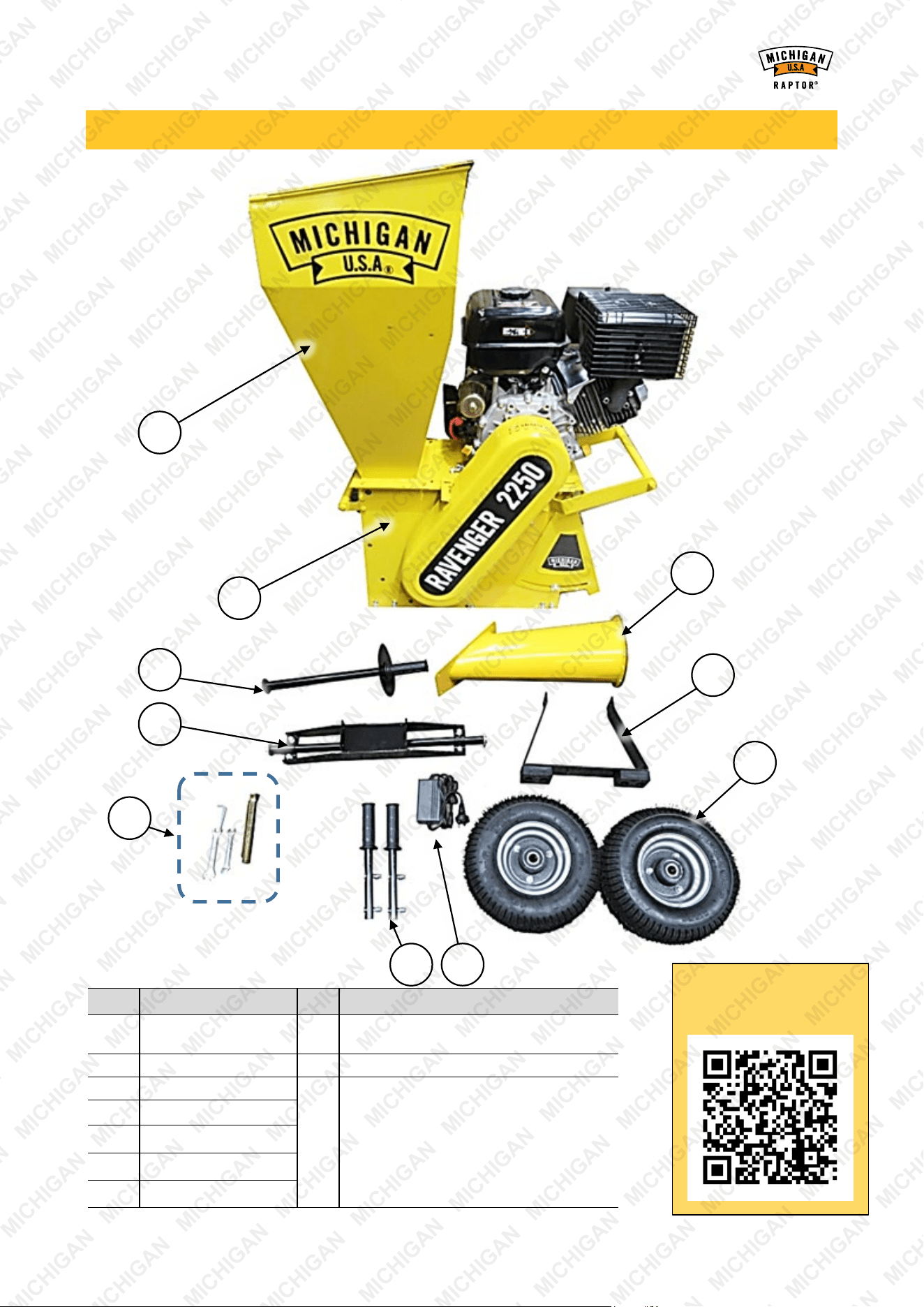

Included Items

No. Name No. Name

1 Base Machine (engine

/ frame)

8 Depth Guide

2

Shredder Chute

9

Feed Stick / Pusher

3

Chipper Chute 10 Tools / Fasteners / Accessories:

5mm Allen Key

10 / 12 / 13 / 14mm Spanner

Spark Plug Tool

Note that fasteners come pre-assembled

4 Foot

5 Axle Assembly

6 Wheel (2)

7

Handle (2)

2

1

3

9

5

4

6

10

8

7

Note: Additional accessories,

such as spare blades, gloves

etc may be included.

Spare parts available

for purchase, scan

QR code below:

MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN

Ravenger 2250 Wood Chipper/Shredder

Before Use Checklist

Ensure that you carry out all procedures below before starting the engine or operating the

equipment. All procedures described are generic in nature and slight variations between

different models may exist. Failure to follow the checklist and carry out the procedures correctly may

result in making the product warranty void. The product is NOT supplied with engine oil, although traces

of oil from the manufacturing process may be present. It is essential to add adequate engine oil of the correct

type to the engine before use – see Engine Oil. Failure to add engine oil will void the product warranty.

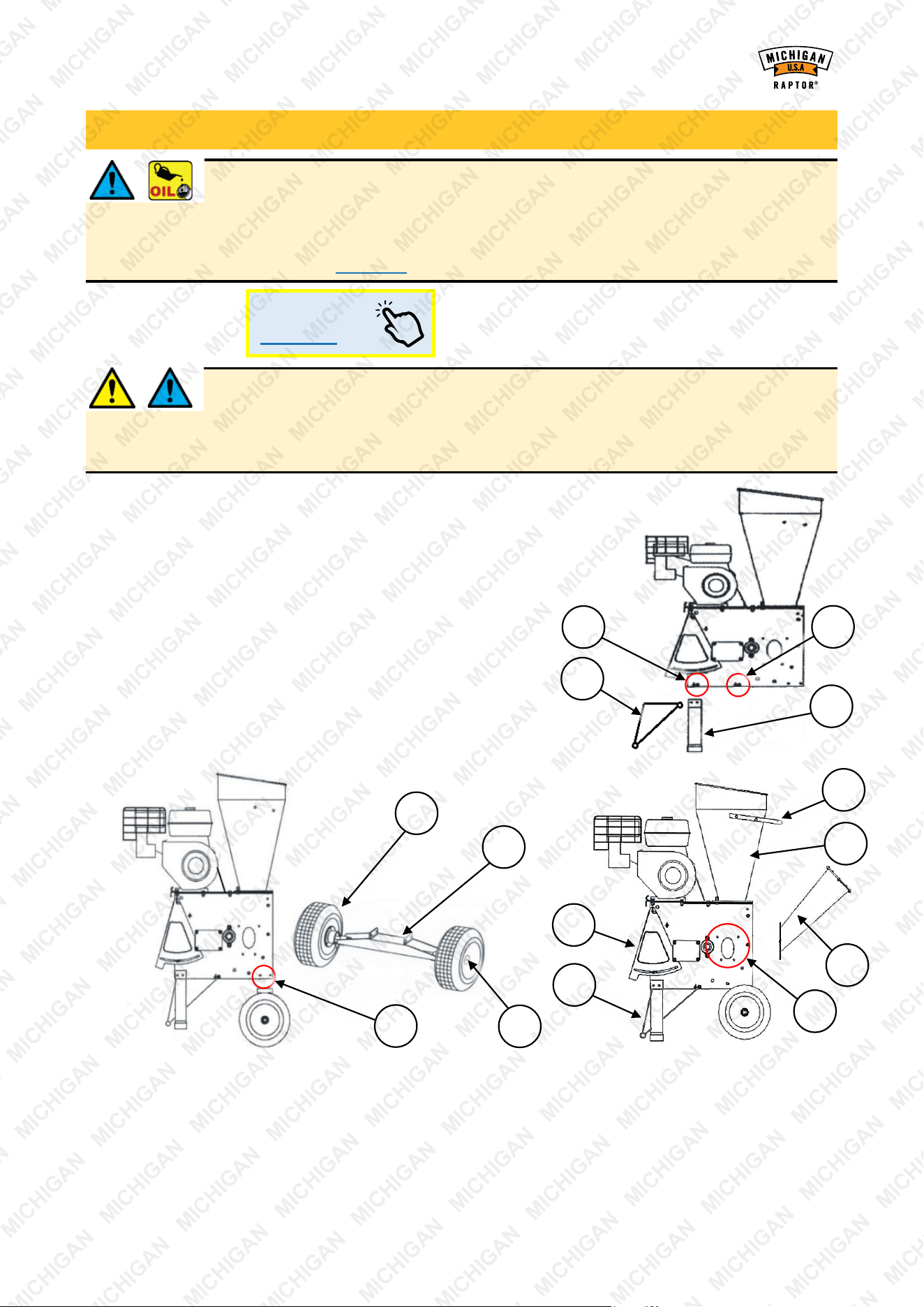

Assembly

2 or more persons are required for assembly. • Suitable tools are required for correct

assembly. • Check all parts have been supplied and are in good condition before

commencing assembly. • Firmly secure all fasteners. • Generally, fasteners come pre-assembled and must

be removed and re-installed during assembly. • Occasionally, additional fasteners may come supplied,

however, these are not used for this machine configuration.

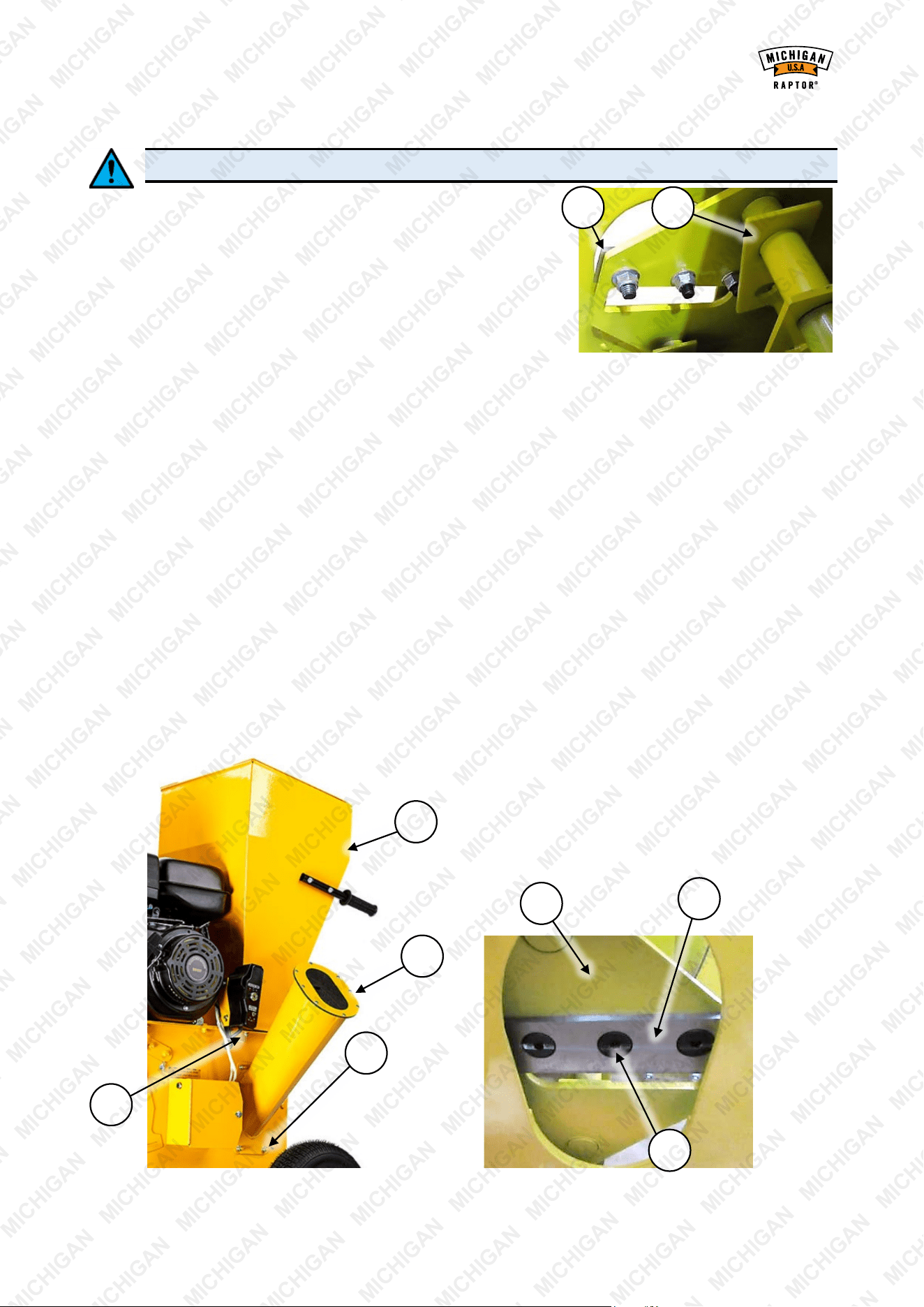

1. At the rear of the machine, remove the 2 short bolts, long bolt,

spacing tube, washers and nuts (A). Place the foot (B) in

position and attach it to the machine body using the 2 short

bolts, long bolt, spacing tube, washers and nuts.

2. Remove the R-pins, washers and shaft (C). Place the discharge

port chute (D) into position, then slide the shaft through the top

tube of the chute. Secure the shaft in position using the washers

and R-pins.

3. Remove the washers and bolts (E) from the axle assembly (F).

Place each wheel (G) onto the axle assembly and secure it

using the washer and bolt.

4. At the front of the machine, remove the 4 bolts, washer and nuts

(H). Place the axle and wheel assembly in position and attach it

to the machine body using the 4 bolts, washers and nuts.

5. On the right side of the machine, remove the nuts and washers (I). Attach the chipping chute (J) to the

machine body using the 4 washers and nuts.

6. Attach each handle (K) to the shredder chute (L) using the 2 screws, washers and nuts supplied with the

handle.

A

B

F

G

E

H

K

J

M

L

I

D

C

D

Video Tutorial:

Assembly

MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN

Ravenger 2250 Wood Chipper/Shredder

Battery Charging Cable Installation

1. Open the battery cover and gently pull the battery out so you can

access the battery terminals. Lift the black rubber cap and disconnect

the BLACK (-) battery cable. Then, lift the red rubber cap, and

disconnect the RED (+) battery cable. Remove the protective rubber

sheet.

2. Remove the battery. If the battery compartment has a rubber plug in the

charger cable hole, remove it.

3. Insert the charger cable wires through the charger cable hole from the

outside of the battery compartment.

4. Secure the charger cable connector to the battery compartment wall

using the washer and nut, from the inside of the battery compartment.

5. Remove the red rubber cap from the end of the RED (+) battery cable. Place the RED battery and

charger cable wire terminals together, then push the red rubber cap back over both wires.

6. Remove the black rubber cap from the end of the BLACK (-) battery cable. Place the BLACK

battery and charger cable wire terminals together, then push the black rubber cap back over both

wires.

7. Connect the RED battery cable to the POSITIVE (+) battery terminal and secure with the screw

and nut. Push the rubber cap FULLY over the terminal so that all conductive parts are covered.

8. Connect the BLACK (-) battery cable to the NEGATIVE (-) battery terminal and secure with the

screw and nut. Push the rubber cap FULLY over the terminal so that all conductive parts are

covered.

9. Carefully place the battery into the battery compartment. Place the protective rubber sheet on top

of the battery, then close and secure the battery compartment cover.

10. To use the charger; for example, after the machine has been in storage, connect the charger cable

to the connector on the battery compartment – it can connect one-way only, then secure it with the

locking ring. Connect the charger to a 240VAC electrical supply and charge the battery for a

minimum 8 hours.

1

2

3

4

5

6

7

9

10

MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN

Ravenger 2250 Wood Chipper/Shredder

Engine Oil

Four-stroke engines require engine oil in the crankcase for lubrication of internal components. Severe or

irreparable damage may occur if the engine is allowed to run without engine oil. The engine oil level requires

regular maintenance. Check the engine oil level and ensure that the oil level is at or just under the maximum

level indicator.

Always check the engine oil level before starting the engine. See Engine Oil

.

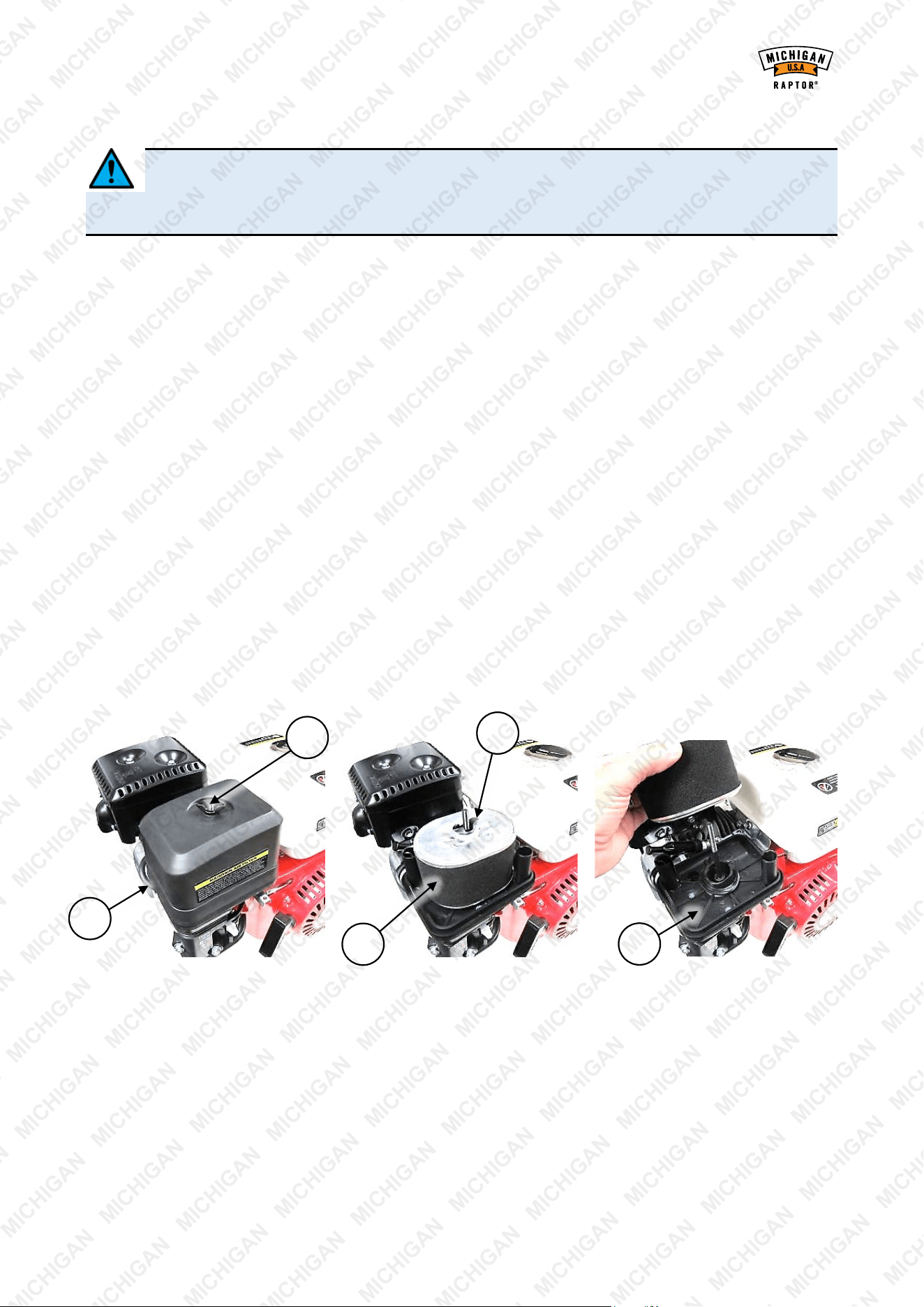

Air Filter

The air filter is used to prevent dirt and other particles from possibly entering the engine and causing internal

damage to it. The air filter requires regular maintenance.

Always check the air filter before starting the engine. See Air Filter

.

Fuel

Petrol/fuel/gasoline is extremely flammable – keep clear of naked flames or other ignition

sources. • The engine must be cool before refuelling.

Adequately fill the fuel tank with the correct fuel type.

• Use non-ethanol unleaded petrol (higher RON values will provide best engine performance). Do not use

old or contaminated fuel.

To fill or top up fuel:

1. Place the machine on a flat and level surface.

2. Clean the machine around the fuel filler so that no dirt or other material enters the engine when the cap

is removed.

3. Remove (rotate left) the fuel filler cap.

4. Using a funnel (not included), carefully fill the tank with fuel. Do not fill above the top of the strainer (if

equipped) or otherwise overfill the tank.

5. When finished, reinstall (rotate right) the fuel filler cap until firm. Wipe away any residual fuel from the

machine. If fuel has been spilt, move the pump away from the spillage before starting the engine.

MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN

Ravenger 2250 Wood Chipper/Shredder

Engine Starting and Stopping

Starting Petrol Engines

1. FUEL – Place the

fuel tap (A) in the

"ON" position (to

the right).

2. CHOKE – If the

engine is cold,

place the choke (B)

in the "COLD"

position (to the left).

If the engine is

warm or ambient

temperature is high,

place in the "HOT"

position (to the

right).

3. IGNITION – Place

the engine ON/OFF

switch (C) or key

switch (if equipped)

in the "ON" ("I")

position. For key

switches, the "OFF"

position allows the key to be

removed. The "ON" position is

reached when the key is rotated

to the right from the "OFF" position.

4. THROTTLE – Place the throttle control

(D) just off the "SLOW" position.

5. START – Slowly pull out the starter cord (E) until you feel it engage with the engine, then pull it out

rapidly (use both hands if necessary). The engine should start. Allow the starter cord to rewind slowly –

do not let it "snap" back.

6. WARM-UP – Allow the engine to warm-up and run smoothly. If choke is being applied, place the choke

(B) in the "HOT" position.

7. THROTTLE – Adjust the throttle control (D) for the required engine

speed.

If the engine does not start, repeat step 5 onward. If the engine fails to

start after several attempts, refer to Troubleshooting

.

Stopping the Engine

1. Place the throttle control in the "SLOW" position. For diesels, loosen the throttle control – it should

automatically return to the engine OFF position (up).

2. If equipped, place the engine ON/OFF switch in the "OFF" position.

3. If equipped, place the fuel tap in the "OFF" position.

A

B

C

1

2

5

4

6

7

3

D

E

C

Video Tutorial:

Starting Petrol Engines

MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN

Ravenger 2250 Wood Chipper/Shredder

Environmental Considerations

Altitude – If the engine is being used in altitudes at or above 1500m (approximately 5000'), adjustments to

the fuel system may be required. This is because there is less oxygen in the air as altitude increases, which

effectively "enriches" the ratio of fuel to air going into the engine, and the higher the altitude, the richer the

fuel mixture becomes. If the engine is being permanently operated at high altitude, it is recommended to

have an authorised service centre make the necessary carburettor adjustments. If the engine is used

occasionally at altitude (not extreme altitudes), no adjustments should be required, however, a slight

decrease in engine performance can be expected.

Temperature – If the engine is being used in extremely cold or hot

environments; for example, desert or snow conditions, the type of

engine oil may need to be changed to suit environmental

temperatures. Oil thickens as the temperature decreases and thins as

temperature increases, which means that if the engine oil is not suited

to the temperature its ability to properly lubricate the engine may be

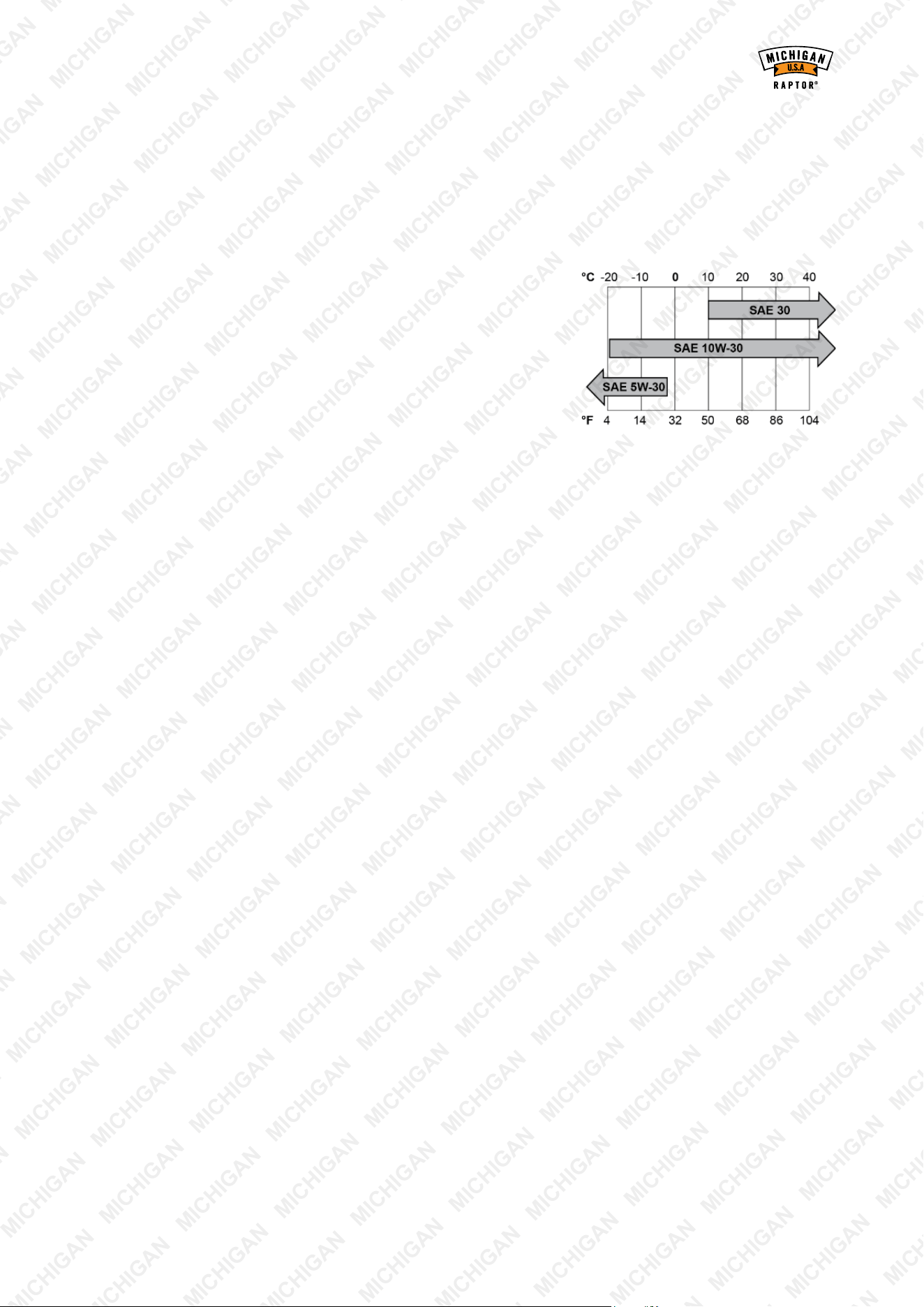

affected. Use the following chart to determine the correct engine oil:

MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN

Ravenger 2250 Wood Chipper/Shredder

Operation

Never use your hands to feed material directly into the machine chutes. If needed, use a

stick etc to push the branches, leaves etc into the chute. • The machine is not designed for

tough fibrous materials, such as flax, vines or palm fronds. • Material discharges from bottom of

chipper/shredder. Stand clear to avoid discharged material. • Do not allow processed material to build-up in

the discharge zone. This may prevent proper discharge and can result in kickback of material. • If the

machine jams during use, immediately switch the engine OFF. Wait until the machine completely stops.

Clear the jam by shifting the material with a long stick etc. Then, resume operation. • Do not insert oversized

material into the machine. • PLEASE REFER TO THE PRODUCT LISTING FOR MAX BRANCH

DIAMETERS FOR THE SHREDDER CHUTE AND THE CHIPPER CHUTE. • Do not attempt to force

material into the shredder or chipper chutes - the machine is designed to pull the material in automatically.

1. Start the machine and allow it to warm up.

2. Slowly drop material into the shredder chute (one branch at a time). The machine will pull the material in

automatically.

3. When using the chipper chute, always insert one branch in at a time.

4. When finished, place the engine ON/OFF switch to the “OFF” position and the fuel valve in the “OFF”

position. Wait until the machine stops completely before moving or cleaning the chipper/shredder.

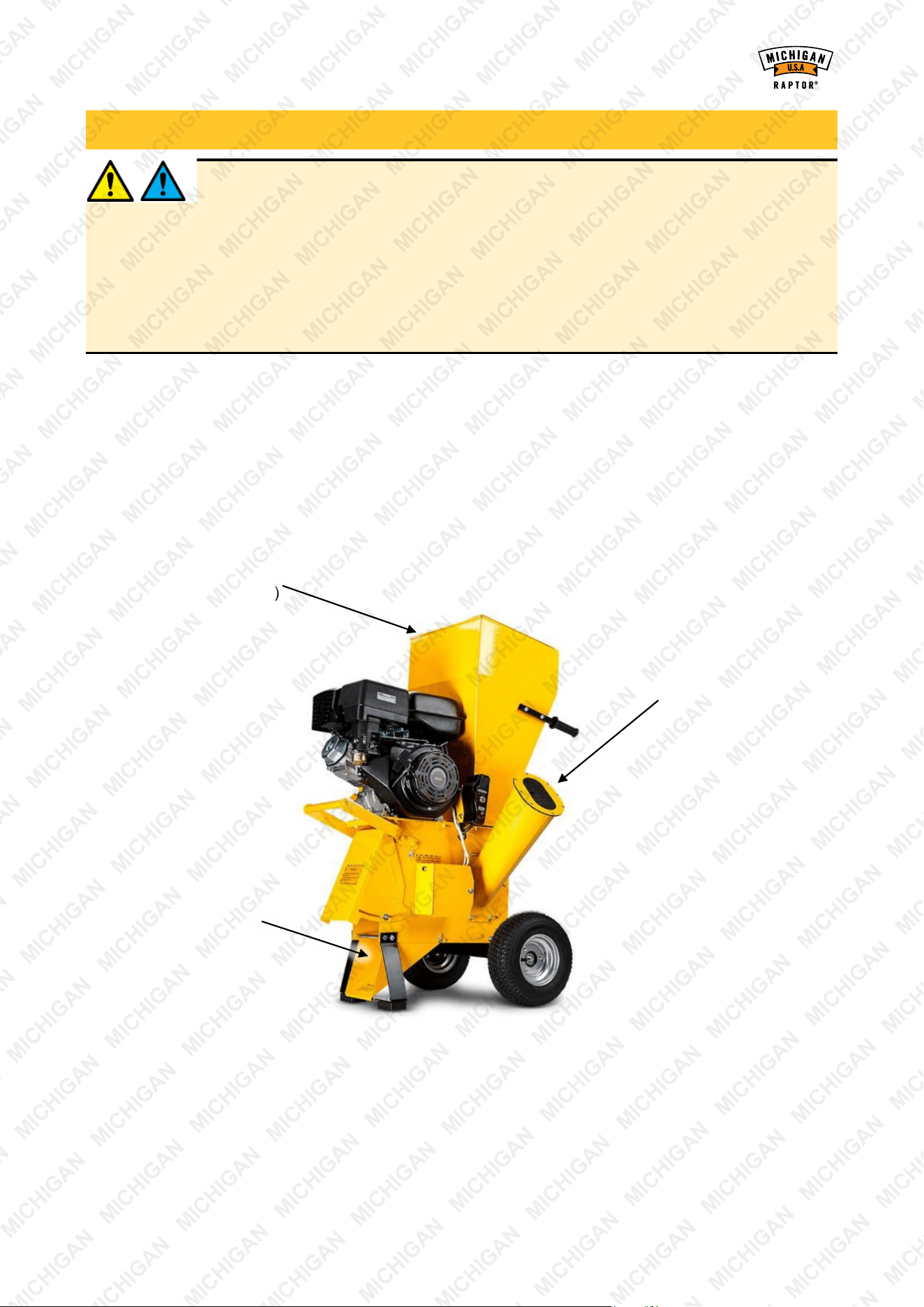

Shredder Chute (Maximum branch

size: refer to the product listing)

Chipper Chute (Maximum branch

size: refer to the product listing)

Discharge Port

MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN

Ravenger 2250 Wood Chipper/Shredder

Maintenance

Running combustion engines in confined areas CAN KILL IN MINUTES. Engine exhaust

fumes contain carbon-monoxide – a deadly gas that you cannot smell or see. NEVER run

a combustion engine in confined areas EVEN IF windows and doors are open. ONLY run

combustion engines OUTDOORS and away from doors, windows and vents. • Petrol / fuel

/ gasoline is extremely flammable – keep clear of naked flames or other ignition sources. •

Do not have the engine running during inspection and maintenance unless specifically required. • The engine

should be cool enough to touch before performing maintenance activities. • Some maintenance activities

may be beyond the scope of some users. Do NOT attempt procedures that you are not comfortable with, or

do not have the necessary tools, experience or knowledge for – take the unit to an authorised service centre

or qualified technician for servicing. • Harsh operating environments such as extreme temperatures, dust etc

may necessitate more frequent maintenance. • Failure to follow the maintenance schedule, using

incorrect or non-compatible accessories or replacements parts, or general negligence may result in

making the product warranty void.

To keep the machine performing at optimal efficiency, regular checks and maintenance is required. The

maintenance schedule below specifies preventative maintenance checks and necessary maintenance tasks

and how often they should be performed. The schedule applies to multiple engines; some engines may not

include some components, so maintenance on those components is not applicable.

Maintenance Schedule

Use the following maintenance schedule for a list of regular maintenance tasks and how often they need to

be performed. Maintenance frequency is based on average usage. Be aware of how much the machine is

used and be sure to follow the schedule according to time or usage, whichever comes first.

Towards the end of this document is a form you can use for maintenance record keeping. It is recommended

that you keep a reference of all maintenance.

Major Servicing and "Heavy-Duty" Usage - For engines that are subject to "heavy-duty" use,

which can be defined as being used under loads of 85% or more and / or in use more than

approximately 300 hours per year (for example, generators and water pumps), more frequent "Major

Service" maintenance is required. In addition to normal service requirements, and as with many smaller

machine and off-road bike engines, the following parts (as applicable for petrol, diesel or 2-stroke engines)

may require replacement during a major service:

• Piston rings.

• Big-end bearings.

• Small-end bearings.

• Gudgeon pin.

• Oil rings.

• Gaskets and seals.

• Valve seats.

Inspection of the following items is required:

• Piston for cracks and stress fractures.

• Bore for wear requiring reconditioning.

• Full machine for broken, worn or loose parts.

Failure to follow the maintenance schedule, using incorrect or non-compatible accessories or

replacements parts, or general negligence may result in making the product warranty void.

MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN

Ravenger 2250 Wood Chipper/Shredder

Maintenance Schedule – Petrol Engines / Machines

Major Service

–

Heavy

-Duty Use

Every 200

Hours Use

Replace

Check. Tighten as necessary

Replace

Clean

Replace as necessary

Check. Clean

Flush and clean

Check. Adjust as necessary

Check. Tighten as necessary

Check. Clean / de

-coke as necessary

Check level. Adjust as necessary

Perform

Sharpen. Replace as necessary

Repl

ace

Replace

Check. Replace as necessary

Major Service

–

Normal Use

24 Months / 200

Hours Use

12 Months /

100 Hours

Use

Clean. Replace as necessary

6 Months /

50

Hours Use

3 Months / 25

Hours Use

Check

After First 5

Hours Use

Every Use

Check level. Adjust

as necessary

Check

Check level. Adjust

as

necessary

Check level. Adjust

as necessary

Check tension.

Adjust as necessary

Component / Task

Engine Oil

****

Engine Oil Filter

*

Loose Engine / Machine

Fasteners

Air Filter

Spark Plug

Spark Arrestor

*

Fuel Filter

*

Fuel Strainer

*

Float Bowl

*

Fuel Lines / Hoses

Fuel injector

*

Fuel Pump

*

Fuel Tank

Idle Speed

Valve Clearance

Cylinder Head Fasteners

Combustion Chamber

Battery Electrolyte

*

Major Service

Cutting Blade / Chain

*

Water Pump Oil

**

Hydraulic Fluid

***

Drive Belt

*

* Where applicable. ** Pressure washers with non-sealed water pumps. *** Log splitters only.

**** Briggs & Stratton "EXi" engines do NOT require engine oil changes; just ensure that oil level is correct.

MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN

Ravenger 2250 Wood Chipper/Shredder

Engine Oil

Engines are NOT supplied with engine oil, although traces of oil from the manufacturing

process may be present. It is essential to add adequate engine oil of the correct type to the

engine before use. Failure to add engine oil will void the product warranty. • Always check engine oil

level when the machine is in an upright position on a flat and level surface. • Do not use used or

contaminated engine oils. • Use only engine oils of the correct type (see Specifications). • Perform the first oil

change within the first 20 hours of use. Subsequently, change the oil every 20 hours of use. • It is

recommended that the engine be warm, but not hot, when performing oil changes. When the oil is warm it

drains faster. • Using dirty or incorrect engine oil may cause engine damage and void any warranty • Always

use suitable tools. • Always dispose of used oil in an environmentally responsible manner and according to

regulations. • Some engines feature oil level detection, which will prevent the engine being started or

automatically stop a running engine if there is insufficient oil. • Always check the oil level and ensure is at

or near the "MAX" indicator before using the machine. • Some models may have 2 oil drain plugs and

fillers on either side of the engine – it does not matter which one is used.

4-stroke engines require engine oil in the crankcase for lubrication of internal components. Severe or

irreparable damage may occur if the engine is allowed to run without engine oil. The engine oil level requires

regular maintenance as per the maintenance schedule.

To check engine oil level:

1. Place the machine on a flat and level surface.

2. Clean the machine around the oil filler cap (A) so that no dirt or other material enters the engine when

the cap is removed.

3. Remove the oil filler cap (rotate left) until fully unscrewed. For machines without a dipstick, the oil level is

determined by how close the oil is to the edge of the filler hole (B). For machines equipped with an oil

level dipstick:

a. Remove the dipstick (C) and wipe clean with a piece of cloth or paper.

b. Insert the dipstick into the oil filler but do not screw it in.

c. Remove and inspect the dipstick – the oil level is determined by where oil can be seen on it.

4. Ensure that the oil level is at or just under the "maximum". If the oil level is low, add additional oil until the

correct level is reached. If the oil level is too high, drain some oil until the correct level is reached.

5. When finished, re-install (rotate right) the oil filler cap until firm. Wipe off any residual oil from the

machine.

A

B

C

D

MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN

Ravenger 2250 Wood Chipper/Shredder

To change the engine oil:

1. Place the machine on a suitable work surface that is flat and level and have a container ready to catch

drained oil.

2. Clean the machine around the oil drain plug (D) and oil filler cap/dipstick so that no dirt or other material

enters the engine when the plug or cap is removed.

3. Unscrew (rotate left) and remove the drain plug and washer.

4. Tilt the machine and drain all oil from the engine. Once drained, allow the machine to sit level again.

5. Clean the drain plug and washer and then reinstall them. Screw in fully (rotate right) and firmly tighten.

6. Remove the oil filler cap (rotate left) until fully unscrewed. Wipe the oil level indicator clean with a piece

of cloth or paper.

7. Using a funnel (not included), carefully add oil to the engine until the "maximum" level is reached.

Double-check the oil level (described above).

8. When finished, re-install (rotate right) the oil filler cap until firm. Wipe off any residual oil from the

machine.

MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN

Ravenger 2250 Wood Chipper/Shredder

Air Filter

Operating the machine without a functional air filter may cause severe engine damage and will void

any warranty. • A dirty or oil saturated air filter will restrict air flow, which can reduce performance

and be mistaken as fuel system problems. Check the condition of the air filter before adjusting engine idle

speed, where applicable. • If the air filter is damaged (torn, broken, disintegrating), replace it.

The air filter is used to prevent dirt and other particles from possibly entering the engine and causing internal

damage to it. The engine breather may be connected to the air intake assembly – this may lead to a build-up

of oil in the air filter over extended use and is normal. The air filter requires regular maintenance as per the

maintenance schedule.

Inspection and Cleaning

Inspect the air filter for dirtiness and debris, damage etc. Clean or replace the filter element as necessary.

The air filter housing includes an oil bath as an additional filtration safeguard, to ensure that the foam filter

element remains well lubricated. To clean air filters:

• For foam filters, wash the filter in warm water and mild detergent, then rinse and allow to dry.

• For paper filters, use compressed air to blow particles from it. The air should be blown from the engine

side of the filter.

• Clean all other air filter assembly components using water and mild detergent, then dry them.

• Discard any residual oil from the air filter base if it is contaminated and clean the air filter base, cover and

washer in high-flashpoint solvent and allow to dry. Clean the engine where the air filter installs.

Removal/Installation

To remove the air filter:

1. Unscrew (rotate left) the wing nut (B) securing the air filter cover (C) and remove the cover from the air

intake assembly (A).

2. Unscrew (rotate left) the wing nut (D) and remove the filter element (E).

To install the air filter:

1. Re-install the filter element and ensure it is seated correctly on the air intake assembly.

2. Re-install (rotate right) the wing nut and tighten by hand so that the filter element is secure. Do not over-

tighten.

3. Re-install the filter cover and secure it with the wing nut (rotate right). Tighten the nut by hand. Do not

over-tighten.

C

B

A

D

E

MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN

Ravenger 2250 Wood Chipper/Shredder

Spark Plug

If the spark plug is damaged (cracked insulator, broken or eroded electrodes etc), replace it. •

Always use spark plugs of the correct "heat range" - see Specifications.

The spark plug is used to ignite the air/fuel mixture inside the engine. The spark plug has electrodes on one

end and an electrical terminal on the other. The spark plug requires regular maintenance.

Cleaning and Gap Checking

The spark plug should be checked and cleaned as per the maintenance schedule.

1. Remove any carbon deposits on the spark plug (A) electrodes (B) with a wire

brush.

2. Clean the spark plug threads and the electrical terminal (C) on the top.

To check and adjust the spark plug "gap":

1. Use "feeler" or "thickness" gauges (X) to measure the existing gap. The gauge

must drag a little when being slid between the electrodes (2) – this means the

measurement is fairly accurate.

2. Adjust the gap to within specification (see Specifications

). If the gap needs to be

reduced, gently tap the electrode as required. If the gap needs to be increased,

use pliers to gently pull the electrode as required.

3. M

easure the gap again and ensure it is within the specified range before re-installing the spark plug.

Removal/Installation

1. Pull the electrical lead (A) from the terminal on top of the spark plug (B).

2. If accessible, clean the area around the spark plug so that no dirt or other material can enter the engine

when the spark plug is removed.

3. Use the spark plug tool (C) to remove the spark plug (rotate left).

To re-install the spark plug:

1. Place the spark plug in its hole and screw it in (rotate right) until "finger tight".

2. Use the spark plug tool to tighten the spark plug approximately one quarter turn (do not over-tighten).

3. Place the electrical lead over the spark plug terminal and push it down so that it connects firmly with the

terminal.

A

B

X

C

B

A

C

MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN

Ravenger 2250 Wood Chipper/Shredder

Blades

Wear suitable protective gloves when handling the cutting blades.

To ensure optimum performance of the machine, the cutting blades

need to be kept sharp. If cutting performance reduces or if the

machine becomes obstructed frequently, the blades may require

sharpening or replacement. There are 2 blades (A) and multiple

"chipping hammers" (B) that rotate around shafts in the cutter

assembly. Consult an authorised service centre if the chipping

hammers require replacement.

Removal/Installation

1. Using a suitable spanner, remove the 4 nuts and washers (A) securing the chipper chute (B), then

remove the chute.

2. Using suitable spanners, remove the 4 bolts, washers, lock washers and nuts (C) securing the shredder

chute (D), then remove the chute.

3. Using a 5mm Allen key and suitable spanner, remove the 3 blade attachment bolts and nuts (E) for each

blade (F). Use the engine starter cord to rotate the blades. Note that the attachment bolts can be very

tight – they may require a rattle gun etc to loosen.

4. Check blade condition – if there is any cracking or chips, replace the blade. If the blades are serviceable,

sharpen the cutting edges using a grinder etc, taking care to maintain the original shape of the cutting

edges.

To re-install the blades.

1. Place a blade in position so it sits on the outside of the blade flange (G). Ensure that the cutting edge of

each blade is over the hole in the blade flange and that the countersunk holes are on the outside.

2. Re-install the blade attachment bolts and nuts and very firmly tighten the bolts.

3. Re-install the chipper and shredder chutes and secure them using the bolts, washers, lock washers and

nuts. Firmly tighten the fasteners.

A

B

A

C

B

E

D

F

G

MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN

Ravenger 2250 Wood Chipper/Shredder

Drive Belt

On new machines or after installing a new belt, check the belt tension after the first 20 hours of

operation. Check and adjust the belt every 50 hours thereafter.

To ensure optimum power transmission from the engine to the cutter assembly, the drive belt must be in

good condition and be correctly tensioned.

Checking and Adjusting Belt Tension

Correct belt tension is critical to machine performance and how long the belt will last. Inadequate tension

may cause the belt to slip, which will prevent the cutter assembly from rotating at the correct speed and will

cause excessive belt wear, glazing etc. Too much tension will cause premature belt failure and place

unnecessary stress on other machine parts. To check belt tension:

1. Remove the 2 bolts, washers and nuts (A) securing the top of the drive belt cover (B), and the washer

and nut (C) securing the bottom of the cover, then remove the cover.

2. Check belt condition – if there is any cracking, fraying, or glazing, replace the belt.

3. Squeeze the belt together in the centre – belt deflection on each side should be 5 to 10mm with

moderate pressure applied.

4. If the tension requires adjustment, loosen the 4 engine mounting bolts (D) slightly (do not remove) – just

enough to allow the engine to be moved.

5. Shift the engine toward the front or rear of the machine, as required, until the belt tension is correct.

Ensure that the engine and belt pulleys remain in alignment. If the engine cannot be moved any further

and the belt remains "loose", replace the belt.

6. Tighten the engine mounting bolts.

7. Re-install the drive belt cover.

A

B

D

C

MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN

Ravenger 2250 Wood Chipper/Shredder

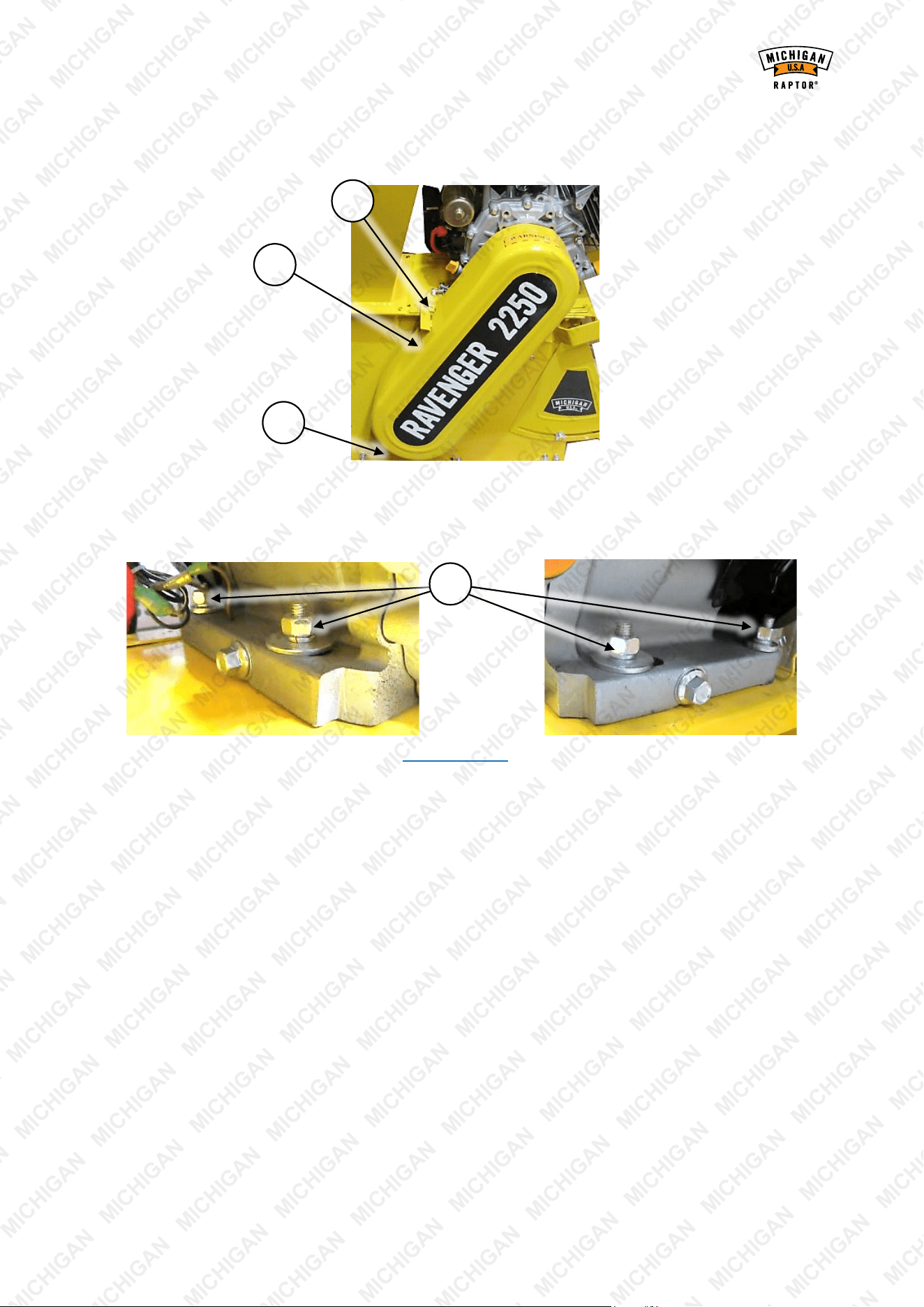

Replacing the Belt

1. Remove the 2 bolts, washers and nuts (A) securing the top of the drive belt cover (B), and the washer

and nut (C) securing the bottom of the cover, then remove the cover.

2. Loosen the 4 engine mounting bolts (D) slightly (do not remove) – just enough to allow the engine to be

moved.

3. Shift the engine forward until the belt can be removed from the pulleys. Ensure that the engine and belt

pulleys remain in alignment.

4. Place the new belt on to the pulleys, then tension the belt

.

5. Tighten the engine mounting bolts.

6. Re-install the drive belt cover.

A

B

D

C

MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN

Ravenger 2250 Wood Chipper/Shredder

Transportation and Storage

Always ensure that the machine is cool enough to touch before transporting or

storing. • Petrol/fuel/gasoline is extremely flammable – keep clear of naked flames or

other ignition sources. • Always transport the machine with the fuel tap and engine ON / OFF switch (where

applicable) in the "OFF" position. • Drain the fuel tank before transportation or storage.

Preparing for Transport and Storage

• Drain the fuel system by allowing the engine to run until it stops. It is advised to have the fuel tank as

empty as possible before draining.

• Ensure that the fuel tap (if applicable), engine ON/OFF or key switch (where applicable) is in the "OFF"

position.

• Disconnect the spark plug lead.

• Avoid exposing the equipment to direct sunlight, particularly during transportation.

• Ensure the equipment is secure and upright during transport.

• Store the unit in a dry, well-ventilated area and out of the reach of children.

Long Term Storage

Follow the normal procedures for storage, then:

• Unscrew (rotate left) the carburettor drain plug. Use a suitable container to catch the draining fuel, and

allow the fuel to drain. Store the drained fuel in a properly sealed container.

• Re-install (rotate right) the carburettor drain plug and tighten.

• Remove the spark plug and put 10ml of clean engine oil into the cylinder. Pull the starter cord slowly to

distribute the oil. Re-install the spark plug.

• Cover the equipment to protect it.

MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN

Ravenger 2250 Wood Chipper/Shredder

Troubleshooting

Running combustion engines in confined areas CAN KILL IN MINUTES. Engine exhaust

fumes contain carbon-monoxide – a deadly gas that you cannot smell or see. NEVER run a

combustion engine in confined areas EVEN IF windows and doors are open. ONLY run

combustion engines OUTDOORS and away from doors, windows and vents. •

Petrol/fuel/gasoline is extremely flammable – keep clear of naked flames or other ignition

sources. • The product is NOT supplied with engine oil, although traces of oil from the manufacturing process

may be present. It is essential to add adequate engine oil of the correct type to the engine before use – see

Engine Oil. Failure to add engine oil will void the product warranty. • Do not have the engine running

during inspection and maintenance unless specifically required. • The engine should be cool enough to touch

before performing maintenance activities. • Some maintenance activities may be beyond the scope of some

users. Do NOT attempt procedures that you are not comfortable with, or do not have the necessary tools,

experience or knowledge for – take the unit to an authorised service centre or qualified technician for

servicing.

The following information may assist in identifying a problem and rectifying it.

Difficulty starting the engine.

Possible Fault Action

Lack of fuel Check that there is sufficient fuel in the tank and the fuel tap (if equipped) is in the "ON"

position. • To further check if fuel is reaching the carburettor, remove the carburettor drain

plug and check if fuel drains.

Engine "OFF" Ensure the engine ON / OFF switch (if equipped) is in the "ON" position.

Carbon build-up on spark plug Perform a spark plug service.

Spark plug faulty Remove the spark plug, then reconnect the plug lead to it. Place the fuel tap (if equipped) in

the "OFF" position and the engine ON/OFF switch (if equipped) in the "ON" position. Touch

the spark plug electrode to a part of the engine crankcase, away from the spark plug hole,

and attempt to start the engine – a spark should be visible across the electrodes as the

engine is rotated. If no spark is visible, replace the spark plug. Not applicable to diesel

engines.

Engine "flooded" with fuel Place the choke in the "HOT" or "RUN" position. Leave the engine ON / OFF switch (if

equipped) in the "OFF" position. Pull the starter cord several times to assist clearing excess

fuel from engine before attempting to start engine.

Not enough or too much engine oil Check oil level and ensure that the level is at or just below the recommended maximum

level. For some engines, an engine oil sensor will automatically switch off the engine or

prevent starting if a low engine oil level is detected.

Engine starts but does not idle.

Possible Fault Action

Blocked air filter Perform an air filter service.

Idle speed requires adjustment Adjust idle speed until engine runs smoothly and at a reasonable speed when idling.

MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN

Ravenger 2250 Wood Chipper/Shredder

Engine starts but runs erratically.

Possible Fault Action

Spark plug lead loose Ensure the spark plug lead is undamaged and is securely connected to the spark plug

terminal.

Choke ON Set the choke to the "HOT" or "RUN" position.

Blocked fuel line or stale fuel. Clean the fuel line. Fill the tank with clean, fresh fuel.

Water or dirt in fuel system Drain fuel tank and carburettor. Refill with fresh fuel.

Dirty air filter Perform an air filter service.

Difficulty restarting the engine after use or engine stops suddenly during use.

Possible Fault Action

No fuel or engine oil Check fuel level and ensure adequate fuel is available. For some engines, an engine oil

sensor will automatically switch off the engine or prevent starting if a low engine oil level is

detected.

Overheating Allow engine to cool before restarting. If possible, improve engine cooling, such as operating

in lower temperatures.

Carbon build-up on spark plug Perform a spark plug service.

Fuel system blockage Clean fuel lines / fuel filter / carburettor / fuel injector.

Reduced engine speed/power during use.

Possible Fault Action

Blocked air filter Perform an air filter service.

Carbon build-up in engine and/or

entry to exhaust silencer

Remove the engine cylinder head and clean any carbon from the combustion chamber. For

the exhaust silencer, remove it and clean any carbon deposits from the exhaust entry port.

Carbon build-up on spark plug Perform a spark plug service.

Fuel system blockage Clean fuel lines / fuel filter / carburettor / fuel injector.

Engine overheats.

Possible Fault Action

Engine oil level low Fill the crankcase with the correct engine oil type to the "MAX" indicator or just under.

Dirty air cleaner Perform an air filter service.

MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN

Ravenger 2250 Wood Chipper/Shredder

Specifications

Engine Type 4-stroke, single cylinder

Fuel Type Non-ethanol unleaded petrol

Fuel Tank Capacity 6.5l

Spark Plug Type F7TC, F7RTC

Spark Plug Gap 0.7 to 0.8mm (0.028 to 0.032”)

Valve Clearance

Inlet: 0.15mm ± 0.02mm (0.006” ± 0.001”)

Exhaust: 0.2mm ± 0.02mm (0.008” ± 0.001”)

Engine Oil Type SAE 1

0W-30 automotive engine oil recommended for general use

Engine Oil Capacity Approximately 1.1l (always check level)

Drive Belt B-

1092

Chipper Branch Size Refer to the product listing for max branch diameter

Shredder Branch Size R

efer to the product listing for max branch diameter

MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN

Ravenger 2250 Wood Chipper/Shredder

Engine Service and Maintenance Record

Use the following tables as a record of machine servicing and maintenance. Keeping accurate records will

help ensure longest machine service life and may simplify fault diagnosis and any possible warranty claims.

Fill out date, number of hours of use and the activity performed, as required (see Maintenance Schedule

).

Date Hours Use Maintenance Task / Notes

MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN MICHIGAN

Ravenger 2250 Wood Chipper/Shredder

concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means,

electronic or mechanical, including photocopying, scanning or recording, or any information storage and

retrieval system, without express permission or consent from the publisher.

Some experts believe that the incorrect or prolonged use of almost any product

may lead to serious injury or death. To help reduce your risk, refer to the
