BAUMR-AG LGSPTRBM4C0B 12 Tonne Petrol Hydraulic Wood Log User Manual

User Manual

[Revision 1.0]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY

VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance,

assembly, inclusions, specifications, description, and packaging.

The product is NOT supplied with engine oil, although traces of oil from the manufacturing process may be present. It is essential to add

ade

quate engine oil of the correct type to the engine before use. Failure to add engine oil will void the product warranty.

Hercules HPS400 Log Splitter

E&OE © Baumr-AG 2

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or

equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be INJURED if you do

not follow instructions or equipment

damage may occur.

It is vital that you read and understand this

user manual before using the product,

including safety warnings, and any assembly

and operating instructions. Keep the manual

for future reference.

Safety precautions and recommendations

detailed here must be fully understood and

followed to reduce the risk of injury, fire,

explosion, electrical hazard, and/or property

damage.

Safety information presented here is generic

in nature – some advice may not be

applicable to every product. The term

"equipment" refers to the product, be it

electrical mains powered, battery powered or

combustion engine powered.

• Before Use - If you are not familiar with the

safe operation/handling of the equipment or

are in any way unsure of any aspect of

suitability or correct use for your

application, you should complete training

conducted by a person or organization

qualified in safe use and operation of this

equipment, including fuel/electrical handling

and safety.

• Do NOT operate the equipment in

flammable or explosive environments, such

as in the presence of flammable liquids,

gases, or dust. The equipment may create

sparks or heat that may ignite flammable

substances.

• Keep clear of moving parts.

• Equipment may be a potential source of

electric shock or injury if misused.

• Do NOT operate the equipment if it is

damaged, malfunctioning or is in an

excessively worn state.

• Do NOT allow others to use the equipment

unless they have read this manual and are

adequately trained.

• Keep packaging away from children - risk

of suffocation! Operators must use the

equipment correctly. When using the

equipment, consider conditions and pay

due care to persons and property.

General Work Area Safety

•

Work areas should be clean and well it.

• Do not operate the equipment if

bystanders, animals etc are within

operating range of the equipment or the

general work area.

• If devices are provided for connecting dust

extraction / collection facilities, ensure

these are connected and used properly.

Dust collection can reduce dust-related

hazards.

General Personal Safety

•

Wear appropriate protective equipment

when operating, servicing, or when in the

operating area of the equipment to help

protect from eye and ear injury, poisoning,

burns, cutting and crush injuries. Protective

equipment such as safety goggles,

respirators, non-slip safety footwear, hard

hat, hearing protection etc should be used

for appropriate equipment / conditions.

Other people nearby should also wear

appropriate personal protective equipment.

Do not wear loose clothing or jewellery,

which can be caught in moving parts. Keep

hair and clothing away from the equipment.

• Stay alert and use common sense when

operating the equipment. Do not over-

reach. Always maintain secure footing and

balance.

• Do not use the equipment if tired or under

the influence of drugs, alcohol, or

medication.

• This equipment is not intended for use by

persons with reduced physical, sensory, or

mental capabilities.

General Fuel Safety

•

Petrol/fuel/gasoline is extremely flammable

– keep clear of naked flames or other

ignition sources.

• Do not spill fuel. If you spill fuel, wipe it off

the equipment immediately – if fuel gets on

your clothing, change clothing.

• Do NOT smoke near fuel or when

refuelling.

• Always shut off the engine before

refuelling.

• Do NOT refuel a hot engine.

• Open the fuel cap carefully to allow any

pressure build-up in the tank to release

slowly.

• Always refuel in well ventilated areas.

• Always check for fuel leakage. If fuel

leakage is found, do not start, or run the

engine until all leaks are fixed.

General Carbon-Monoxide Safety

•

Using a combustion engine indoors CAN

KILL IN MINUTES. Engine exhaust

contains carbon-monoxide – a poison you

cannot smell or see.

• Use combustion engines OUTSIDE only,

and far away from windows, doors, and

vents.

General Equipment Use and Care

•

The equipment is designed for domestic

use only.

• Handle the equipment safely and carefully.

• Before use, inspect the equipment for

misalignment or binding of moving parts,

loose components, damage, or any other

condition that may affect its operation. If

damaged, have the equipment repaired by

an authorised service centre or technician

before use.

• Prevent unintentional starting of the

equipment - ensure equipment and power

switches are in the OFF position before

connecting or moving equipment. Do not

carry equipment with hands or fingers

touching any controls. Remove any tools or

other items that are not a part of the

equipment from it before starting or

switching on.

• Do not force the equipment. Use the

correct equipment for your application.

Equipment will perform better and be safer

when used within its design and usage

parameters.

• Use the equipment and accessories etc. in

accordance with these instructions,

considering working conditions and the

work to be performed. Using the equipment

for operations different from those intended

could result in hazardous situations.

• Always keep equipment components

(engines, hoses, handles, controls, frames,

housings, guards etc) and accessories

(cutting tools, nozzles, bits etc) properly

maintained. Keep the equipment clean and,

where applicable, properly lubricated.

• Store the equipment out of reach of

children or untrained persons. To avoid

burns or fire hazards, let the equipment

cool completely before transporting or

storing. Never place or store the equipment

near flammable materials, combustible

gases, or liquids etc.

• The equipment is not weather-proof, and

should not be stored in direct sunlight, at

high ambient temperatures or locations that

are damp or humid.

• Do not clean equipment with solvents,

flammable liquids, or harsh abrasives.

• For specific equipment safety use and care,

see Equipment Safety.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Hercules HPS400 Log Splitter

E&OE © Baumr-AG 3

General Electrical Safety

•

Inspect electrical equipment, extension

cords, power bars, and electrical fittings for

damage or wear before each use. Repair or

replace damaged equipment immediately.

• Ensure all power sources conform to

equipment voltage requirements and are

disconnected before connecting or

disconnecting equipment.

• When wiring electrically powered

equipment, follow all electrical and safety

codes.

• Always use a Residual Current Device

(RCD) (GFCI) / Earth Leakage Circuit

Breaker / Safety Switch when operating this

item (electrical items only).

• High voltage / high current power lines may

be present. Use extreme caution to avoid

contact or interference with power lines.

Electrical shock can be fatal.

General Electrical Safety

•

Electrically grounded equipment must have

an approved cord and plug and be

connected to a grounded electrical outlet.

• Do NOT bypass the ON/OFF switch and

operate equipment by connecting and

disconnecting the electrical cord.

• Do NOT use equipment that has exposed

wiring, damaged switches, covers or

guards.

• Do NOT use electrical equipment in wet

conditions or in damp locations.

• Do NOT use electrical cords to lift, move or

carry equipment.

• Do NOT coil or knot electrical cords, and

ensure electrical cords are not trip hazards.

General Service Information

•

The equipment must be serviced or

repaired at authorised service centres by

qualified personnel only.

• Replacement parts must be original

equipment manufacturer (OEM) to ensure

equipment safety is maintained.

• Do NOT attempt any maintenance or repair

work not described in this manual.

• After use, the equipment and components

may still be hot – allow the equipment to

cool and disconnect spark plugs and/or

electrical power sources and/or batteries

from it before adjusting, changing

accessories, or performing repair or

maintenance.

• Do NOT adjust while the equipment is

running.

• Perform service-related activities in suitable

conditions, such as a workshop.

• Replace worn, damaged or missing

warning/safety labels immediately.

Child Choking Hazard!

• W

ARNING: CHOKING HAZARD - CHILDREN UNDER 8 YRS. CAN CHOKE OR SUFFOCATE ON SMALL PARTS. ADULT

SUPERVISION REQUIRED.

• Carefully inspect anything a baby or child could gain access to, including this product & packaging.

• Dangers include anything of a size that could become stuck or lodged in a baby or child's airway.

• Dangers include things like raw, hard fruit and vegetable pieces, large pieces of meat, bones or sausage skins, popcorn, nuts,

hard lollies and corn chips, small magnets and batteries, coins, beads, marbles and small uninflated balloons, broken toys and smaller toys,

buttons, keys and coins. But there are also many more.

• Pay particular attention to accessories, nuts, bolts, screws, washers, caps, covers, loose parts, parts that could be removed or break off, pieces

of packaging, staples, tape etc.

• In the case of any doubt, secure the item of concern in an appropriate manner, or completely remove the possibility of access by a baby or child.

Important Safety Information

• W

ARNING: READ AND UNDERSTAND ALL INSTRUCTIONS AND SAFETY INFORMATION IN THIS MANUAL AND ON SAFETY DECALS

BEFORE ASSEMBLING AND/OR OPERATING THE LOG SPLITTER. FAILURE TO UNDERSTAND AND FOLLOW ALL INSTRUCTIONS

AND SAFETY INFORMATION MAY RESULT IN SERIOUS INJURY OR DEATH. PERSONS WHO HAVE NOT READ THE MANUAL SHOULD

NEVER OPERATE THE LOG SPLITTER. A LOG SPLITTER CAN BE DANGEROUS WHEN ASSEMBLED AND/OR USED IMPROPERLY. DO

NOT OPERATE THE LOG SPLITTER IF YOU HAVE ANY QUESTIONS CONCERNING SAFE OPERATION. CONTACT THE

MANUFACTURER, OR A QUALIFIED TECHNICIAN, OR AN AUTHORISED SERVICE CENTRE FOR ANY QUESTIONS REGARDING SAFE

OPERATION OF THE LOG SPLITTER.

• WARNING: THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS INCLUDING LEAD AND LEAD COMPOUNDS WHICH ARE KNOWN TO

CAUSE CANCER AND BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM.

Intended Use

•

NEVER use the log splitter for any purpose besides splitting wood. The log splitter is designed only for splitting wood. Using the log splitter for

any other purpose can result in serious injury or death and may void the warranty.

Personal Protective Equipment

•

BEFORE operating the log splitter always be sure to put on appropriate safety gear, including eye protection (goggles), steel-toed shoes and

tight-fitting gloves (avoid loose cuffs and draw strings). Also, the use of proper hearing protection (headphones) is required when operating the

log splitter.

Safety Decals

•

ALWAYS check that all safety warning decals are in good condition and readable. Immediately replace any missing or damaged decals.

General Safety

•

ALWAYS keep the operator’s manual in the canister for reference. Review the manual periodically and whenever questions arise.

• ALWAYS keep all bystanders and pets a minimum of 10 feet away from your work area when operating the log splitter. Only the operator should

be near the log splitter during use.

• NEVER activate the control valve until all people are clear of the work area.

• NEVER wear loose clothing or jewellery when operating the log splitter. Keep clothing and hair away from all moving parts when operating the log

splitter.

• NEVER allow adults without proper instruction and operational knowledge to use the log splitter.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Hercules HPS400 Log Splitter

E&OE © Baumr-AG 4

• NEVER operate the log splitter when under the influence of drugs, alcohol, or medication or when otherwise not alert enough to operate the log

splitter.

• DO NOT allow children to play on, stand upon, climb on, or operate the log splitter at any time.

Work Area

•

NEVER operate the log splitter on wet, icy, slippery, or unstable ground.

• NEVER operate the log splitter in an enclosed area. Exhaust fumes contain the deadly poison carbon monoxide.

• ONLY operate the log splitter with adequate lighting in the work area.

• ONLY operate the log splitter on level ground. Operating on a slope may cause the log splitter to move and/or logs to fall off the log splitter.

• ALWAYS keep the work area free of debris. Remove any split wood around the log splitter immediately to avoid tripping.

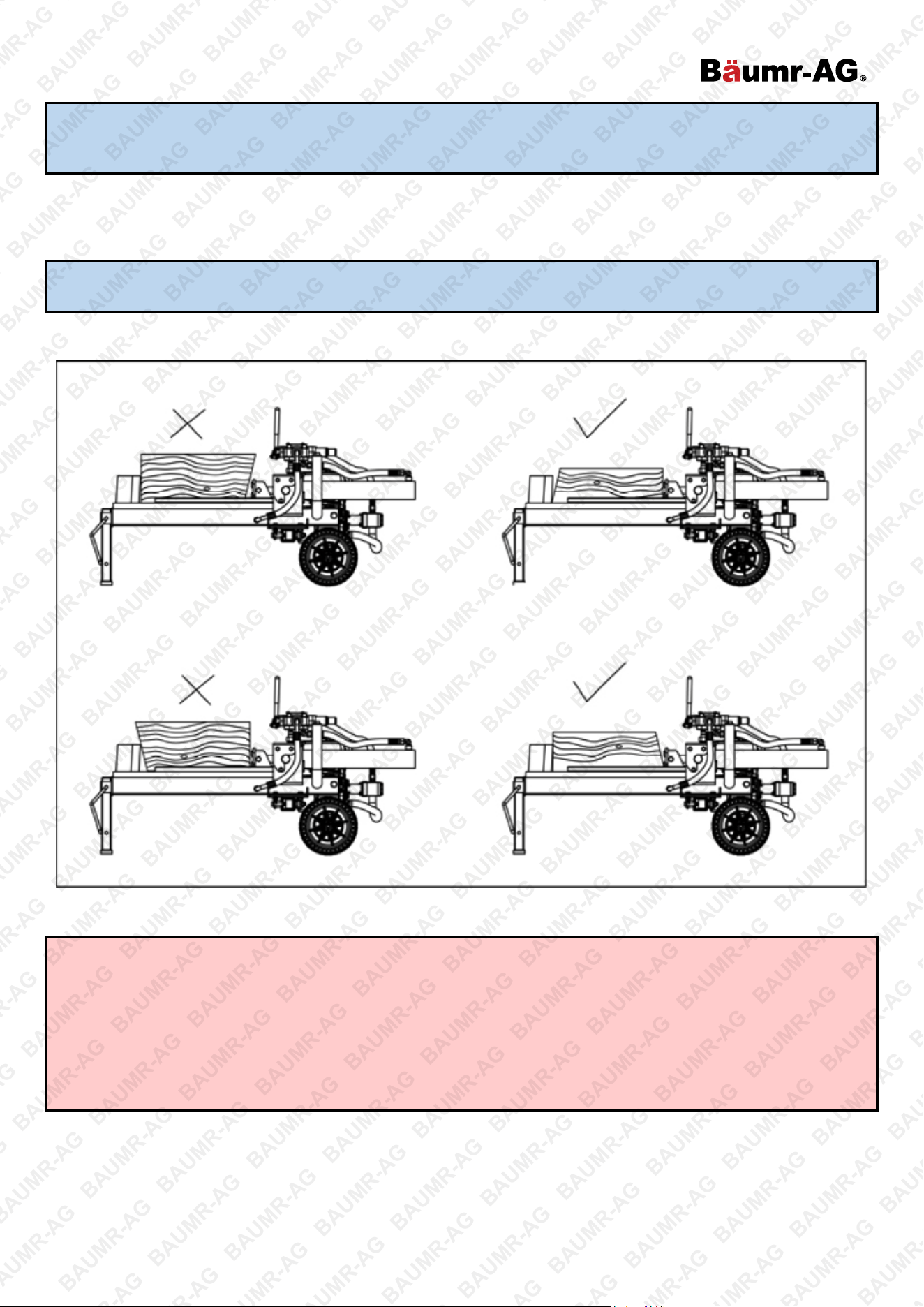

Preparing Logs for the Splitter

•

Before placing logs on the log splitter, log ends should be cut as squarely as possible. The square shape of the log helps prevent the logs from

moving during splitter operation. The maximum log length is 20 inches.

Operation of the Log Splitter

•

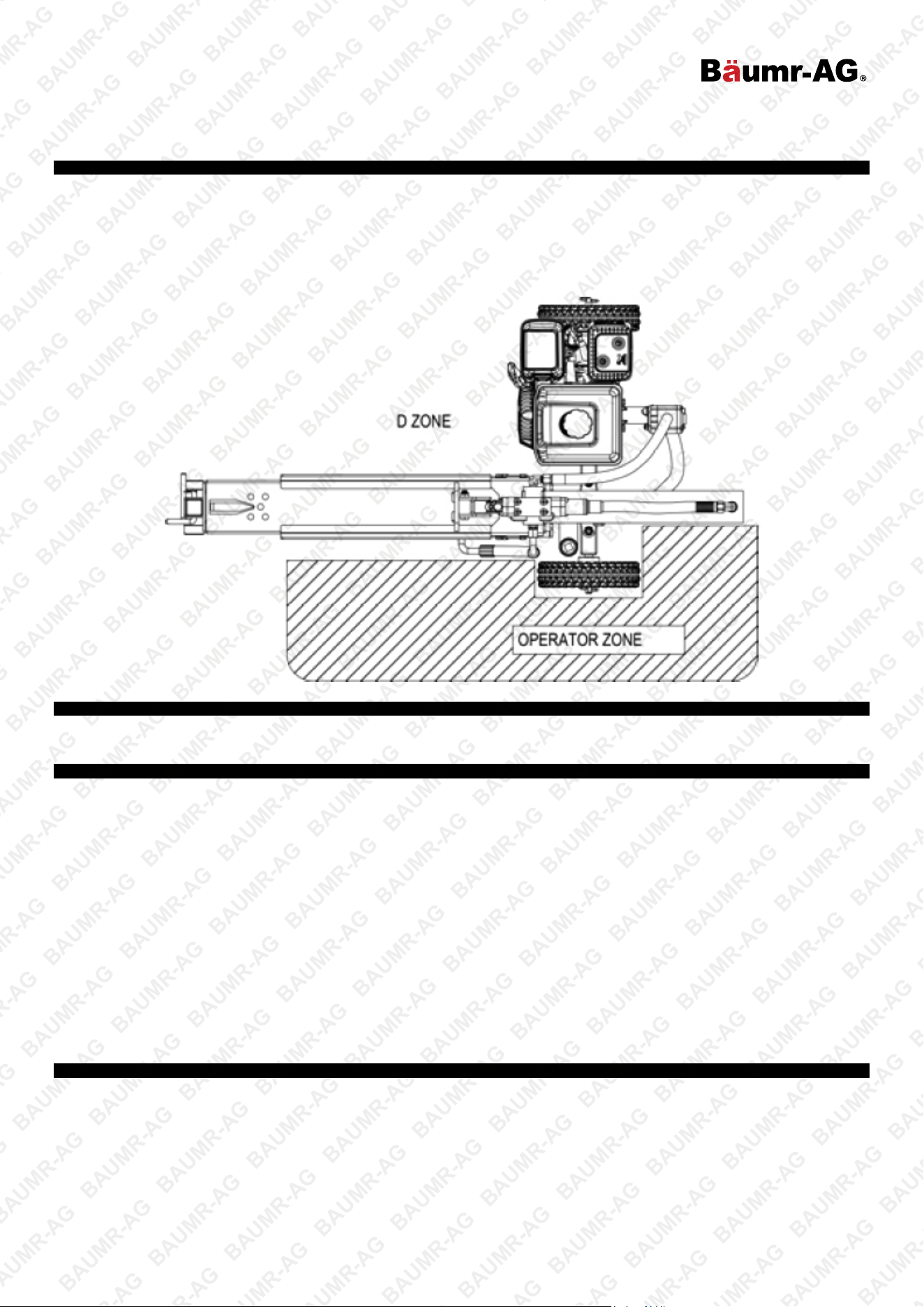

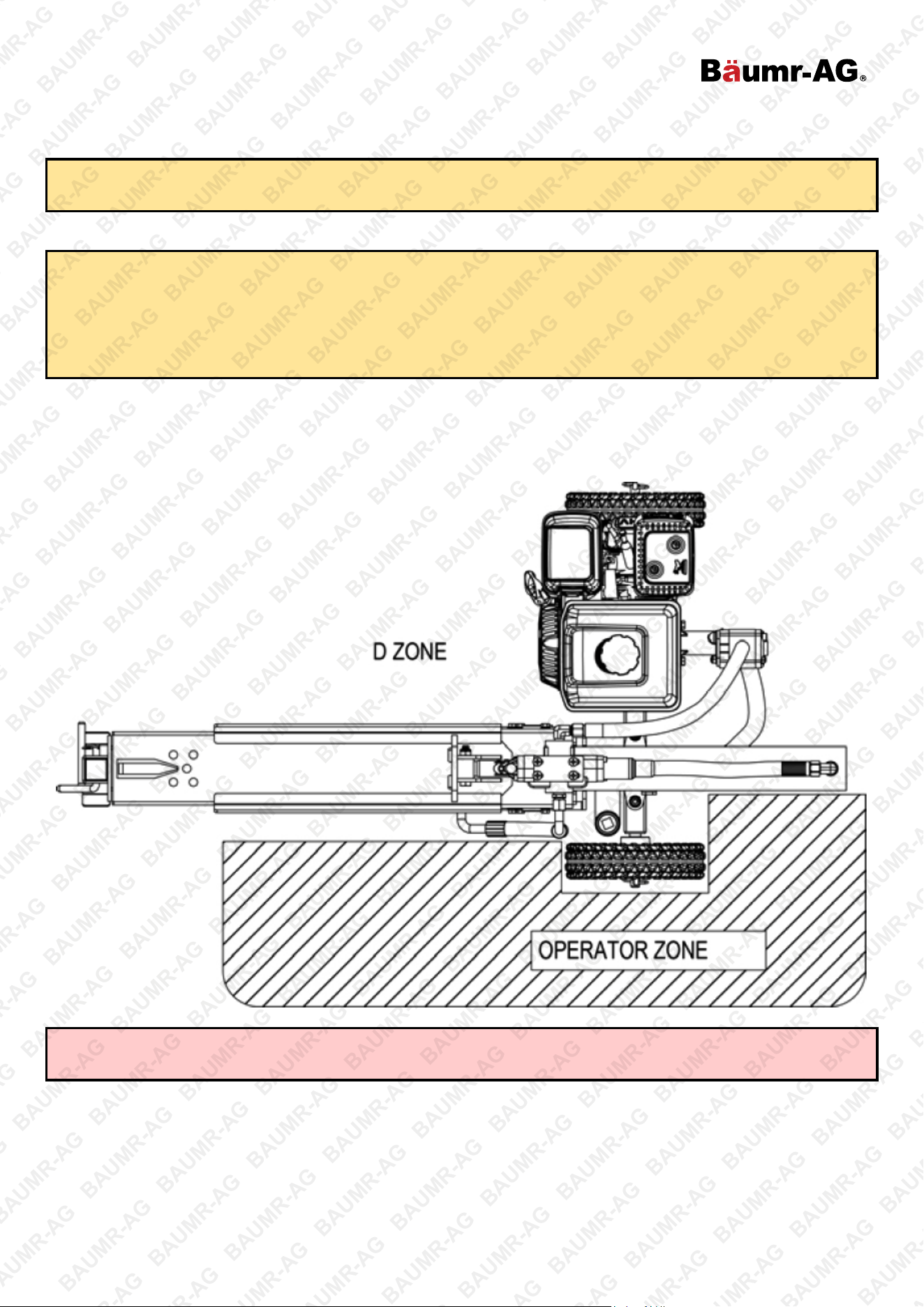

ONLY operate the log splitter from the operator zone as shown in the diagram. Operating the log splitter outside the operator zone can result in

serious injury or death.

• ALWAYS chock the wheels to prevent the log splitter from moving while operating the log splitter.

• ALWAYS know how to stop the log splitter and disengage the controls before operating the log splitter.

• NEVER attempt to split a log against the grain.

• NEVER attempt to split two logs at the same time.

• NEVER step over the log splitter during operation.

• NEVER reach or bend over the log splitter to pick up a log while splitter is in use.

• NEVER attempt to load the log splitter when the wedge is in motion.

• NEVER place hands or feet between the log and splitting wedge during forward or reverse stroke, as this could result in serious injury or death.

• NEVER use your foot, a rope, or any extension device to operate the control lever on the valve. Only use hands to operate the control levers.

• NEVER touch the muffler and other hot areas of the engine. Allow time for the engine to cool down before touching.

• NEVER move the log splitter while the engine is running.

• NEVER leave the log splitter running unattended, even for a short period of time. Before leaving the log splitter always turn off the engine.

General Repair

•

NEVER operate the log splitter if it is in poor mechanical condition or needs repairs.

• NEVER alter/modify the log splitter as any alterations/modifications may make the log splitter unsafe and void the warranty.

• NEVER perform any service or repair on the log splitter without first removing the spark plug wire.

• NEVER tamper with the engine settings. The maximum engine speed is pre-set by the manufacturer and conforms with safety limits. Refer to the

engine owner’s manual for the particular log splitter.

• ALWAYS perform all recommended maintenance procedures before using the log splitter.

• ALWAYS check the level of hydraulic oil and engine oil before operating the log splitter.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Hercules HPS400 Log Splitter

E&OE © Baumr-AG 5

• NEVER attempt to remove stuck logs while the log splitter is running.

• ALWAYS replace all damaged or worn parts immediately with parts approved by the manufacturer.

• ALWAYS check regularly that all nuts, bolts, screws, hydraulic fittings and hose clamps are tight.

• ALWAYS be sure any and all replacement parts meet the manufacturer’s specifications.

Maintenance and Safety

•

The mechanical and hydraulic systems of the log splitter require careful inspection. Be sure to replace any damaged hydraulic hoses or

components immediately to ensure safe operation of the log splitter.

• NEVER check for leaking hydraulic fluid by using your hands. Leaking hydraulic fluid under pressure can potentially penetrate the skin causing

SERIOUS INJURY or even DEATH. Leaks can be safely detected by holding a piece of cardboard over the suspected leak and looking for

discoloration.

• NEVER remove the cap from the hydraulic tank while the log splitter is running. The tank contains hot oil under pressure which could cause

serious injury if released from the tank.

• NEVER adjust the relief valve setting on the log splitter. The pressure relief valve on the log splitter is pre-set by the manufacturer. Only a

qualified service technician should perform any adjustments.

• ALWAYS immediately seek medical attention if injured by escaping hydraulic fluid. Serious infections or reactions can develop if proper medical

treatment is not quickly administered.

• ALWAYS check the system is not under any pressure by shutting off the engine and moving the valve control handle back and forth. Check for

pressure before loosening or removing any hydraulic fitting.

• ALWAYS keep the beam and wedge free of debris build-up.

Fire Prevention

•

ONLY refuel the log splitter in clear areas with no gas fumes and no spilled gas.

• NEVER operate the log splitter near flames, sparks or smoke. Hydraulic oil and gasoline are flammable and potentially explosive.

• NEVER add fuel to the log splitter while the engine is hot or running. Allow the engine to cool completely before refuelling.

• If gasoline spills, move the log splitter away from the area of the spill and avoid creating any source of ignition.

• ALWAYS securely replace the gas cap.

• ALWAYS clean wood debris from the muffler area of the engine.

• ALWAYS store gasoline in an appropriate, tightly sealed container. Store the gas container in a cool, dry place and away from any heat sources.

Important Note: Spark Arrestor-Regulation

•

As a precautionary measure against possible flying sparks, always have a Class B fire extinguisher on hand when operating the log splitter in dry

areas. The log splitter is equipped with an internal combustion engine that generates heat and potential flying sparks. Only use the log splitter on

or near any unimproved, forest-covered, brush-covered, or grass-covered land if the engine’s exhaust system is equipped with a spark arrester in

compliance with any applicable local or state laws. Spark arresters should be effectively maintained and serviced. In some countries, a spark

arrester is required by law and other states have similar laws. Federal laws will apply when operating the log splitter on federal land. Always

research and comply with applicable state, local and federal laws, and regulations. A spark arrester muffler is optional and available as an

accessory at your nearest engine dealer.

Safe Transport

•

NEVER tow the log splitter behind a vehicle as the wheels and log splitter orientation are incompatible with towing. Attempting to tow the log

splitter may damage or destroy the wheels or other parts of the log splitter.

• TO SAFELY TRANSPORT THE LOG SPLITTER SECURE IT ON TOP OF A TRAILER OR OTHER TRANSPORTING VEHICLE.

• NEVER move the log splitter over hilly or uneven terrain without the proper vehicle and adequate help for safe movement.

• NEVER exceed the weight capacity of hitch or load limits of the transporting vehicle.

• ALWAYS use caution when transporting the log splitter and check carefully that the log splitter is securely attached to the transporting vehicle.

• ALWAYS confirm hitch accessory tightness before and after transporting the log splitter.

• ALWAYS disconnect the log splitter from the carrying vehicle before operating.

• ALWAYS check for and replace a damaged hitch.

• ALWAYS turn the fuel shut off valve on the engine to the “OFF” position before transporting the log splitter. Failure to turn off the engine before

transport can flood the engine and damage the engine.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Hercules HPS400 Log Splitter

E&OE © Baumr-AG 6

•

BE AWARE THAT THE EQUIPMENT MAY INCLUDE HAZARDOUS COMPONENTS, SUCH AS BLADES,

HOT SURFACES AND MOVING PARTS.

•

MOVING BLADES CAN CAUSE SERIOUS INJURY AND EVEN DEATH IF USED IMPROPERLY OR

WITHOUT SUFFICIENT PPE.

•

DO NOT USE THIS EQUIPMENT ON UNEVEN SURFACES AND ALWAYS MAINTAIN GOOD BALANCE

WHEN USING THIS EQUIPMENT. FAILURE TO DO SO MAY CAUSE SERIOUS INJURY.

•

MAINTAIN A SECURE GRIP OF THE TRIGGER ASSEMBLY AT ALL TIMES.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Hercules HPS400 Log Splitter

E&OE © Baumr-AG 7

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on your

product and their meanings. If any stickers become unreadable, unattached etc., replace them.

Flammable Material Hazard

Flammable liquids, gases, or

substances etc may present.

Avoid ignition sources and open

flames. Danger of fire.

Read User Manual

Read and fully understand

product safety warnings,

operation, procedures etc before

using the product.

Use Hand Protection

Wear appropriate hand protection

and take due care as the product

or use of the product may present

hand hazards.

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be fatal.

Electrocution / Electrical Shock

Hazard

High voltage or high current

electricity may be present or

required by the product. Take

due care when handling electrical

products, cables, plugs and

leads. Electrical shock can be

fatal.

Toxic Fumes / Dust Hazard

Using the product or by-products

from use may produce fumes,

smoke or particles that could be

harmful if inhaled. Wear

appropriate breathing protection

and have adequate ventilation.

Explosive Material Hazard

Combustible liquids, gases, or

substances etc may be present.

Avoid ignition sources and open

flames. Danger of explosion.

Cutting / Amputation Hazard

The product may have blades,

edges or mechanical devices that

can cause severe cut injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Crush Hazard

The product may have blades,

edges or mechanical devices that

can cause severe crush injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Single Operator Only

The product must be operated by

a single person only. More than

one person operating the product

may introduce additional hazards.

Use Face Protection

Wear appropriate full-face

protection and take due care as

the product or use of the product

may present face and eye

hazards.

Use Foot Protection

Wear appropriate foot protection

and take due care as the product

or use of the product may present

foot hazards.

Use Eye / Ear / Head Protection

Wear appropriate eye and / or

ear and / or head protection and

take due care as the product or

use of the product may present

eye, hearing, and head hazards.

Running Hazard

Do not run on or near the product

as doing so may present a fall

hazard.

Diving Hazard

Do not dive into the product as

doing so may present a neck /

head injury hazard.

Adult Supervision Required

Always supervise children and

other users of a product to

prevent drowning or injury.

Skin Penetration / Puncture

Hazard

The product may produce

pressure, emit liquids or objects

that can cause severe injury to

fingers, limbs, blood etc. Take

due care when handling and

using the product.

Hot Surface Hazard

Be aware that the product may

produce high temperatures and

hot surfaces that can cause burn

injuries.

Flying Debris Hazard

Be aware that the product or use

of the product may present

hazards produced by flying

debris. Wear appropriate clothing

and protective devices.

Moving Parts Hazard

Be aware that the product

contains or uses mechanical

devices that move or rotate.

Always wait for moving parts to

stop fully before handling the

product, adjusting, maintenance

etc.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Hercules HPS400 Log Splitter

E&OE © Baumr-AG 8

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be fatal.

Pull Hazard

Be aware that the product

contains or uses mechanical

devices that can pull in objects

and can cause severe injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Slope / Fall Injury Hazard

Be aware that using the product

on sloping surfaces or in slippery

conditions may present additional

dangers from falls and contact

with blades, moving parts, hot

surfaces etc.

"Slam Dunk" Warning

Do NOT attempt "slam dunk"

manoeuvres as this may result in

severe injury due to falling,

product breakage or collapse etc.

Electrocution / Electrical Shock

Hazard - Outdoor

High voltage or high current

electricity may be present or

required by the product. Do NOT

use in rain, damp, or wet

conditions. Electrical shock can

be fatal.

Electrocution / Electrical Shock

Hazard - Disconnect

High voltage or high current

electricity may be present or

required by the product. Always

disconnect the product from the

electrical supply before handling

the product, adjusting,

maintenance etc.

Power Line Electrocution

Hazard

High voltage / high current power

lines may be present. Use

extreme caution to avoid contact

or interference with power lines.

Electrical shock can be fatal.

"Kick-Back" Hazard

High level of "kick-back" hazard

that can cause the machine to

suddenly rotate towards operator.

Kick-back injury can be fatal.

Winch Operator Position

Hazard

Do NOT stand between winch

and load. Do NOT use winch to

move people.

Winch Lift Hazard

Do NOT LIFT load vertically. Use

machine to PULL only.

Cable Hazard

Ensure that load bearing cable is

not kinked or knotted.

Winch Cable Hazard

Ensure that there is a minimum

number of cable coils on

winching mechanism.

Winch Hook Hazard

Carry hook to load – do NOT

throw or run.

Flash / Blinding Hazard

Wear appropriate eye protection

for welding. Direct exposure to

weld arcs may cause permanent

eye injury.

Laser Hazard

Laser may be in use – do NOT

look directly at laser or allow

others to.

Choking Hazard

Children under 8 yrs. Can choke

or suffocate on small parts. Adult

supervision required.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Hercules HPS400 Log Splitter

E&OE © Baumr-AG 9

Table of Contents

Safety ............................................................................................................................................................. 2

Safety Symbols ........................................................................................................................................................... 7

Contents Supplied ...................................................................................................................................... 10

Parts Identification ..................................................................................................................................... 11

Controls and Features Identification ........................................................................................................ 14

Assembly ..................................................................................................................................................... 15

Operation ..................................................................................................................................................... 23

Before Operation Checks ......................................................................................................................................... 23

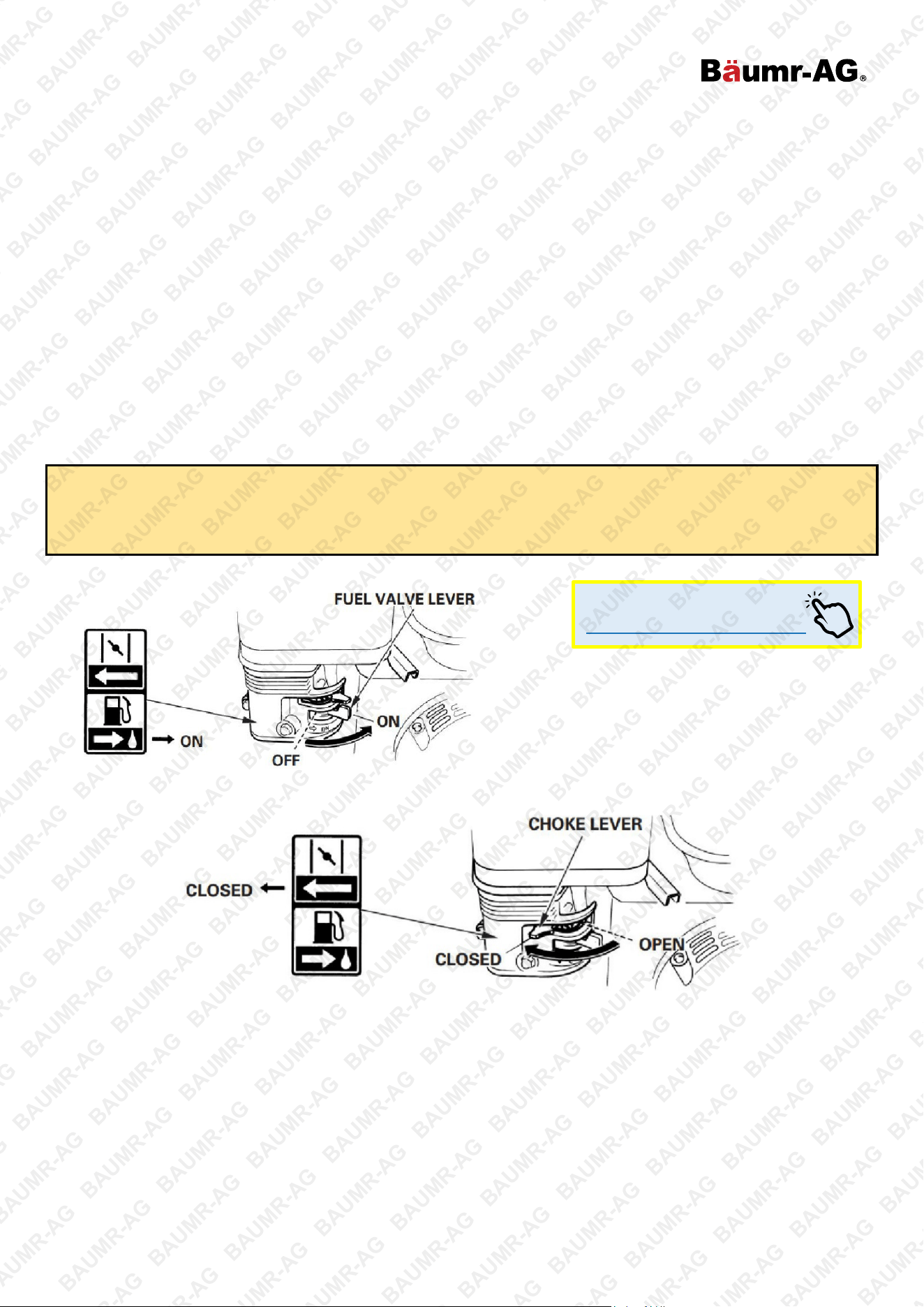

Starting the Engine ................................................................................................................................................... 24

Stopping the Engine ................................................................................................................................................. 26

Setting Engine Speed ............................................................................................................................................... 26

Using the Log Splitter ............................................................................................................................................... 26

Maintenance and Storage .......................................................................................................................... 30

Servicing Your Engine .............................................................................................................................................. 30

Refuelling Your Engine ............................................................................................................................................. 32

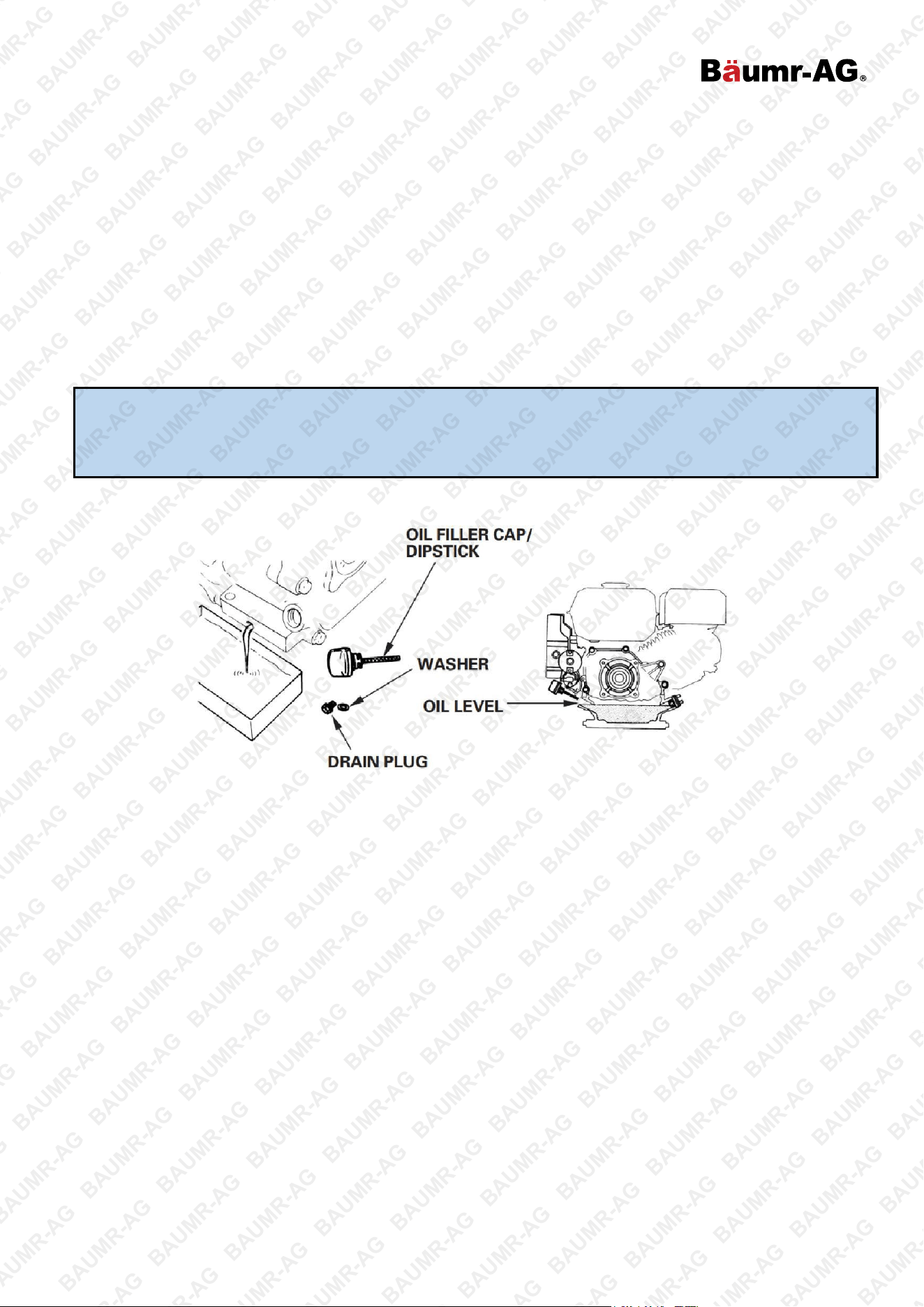

Oil Level Check ......................................................................................................................................................... 33

Oil Change ................................................................................................................................................................ 34

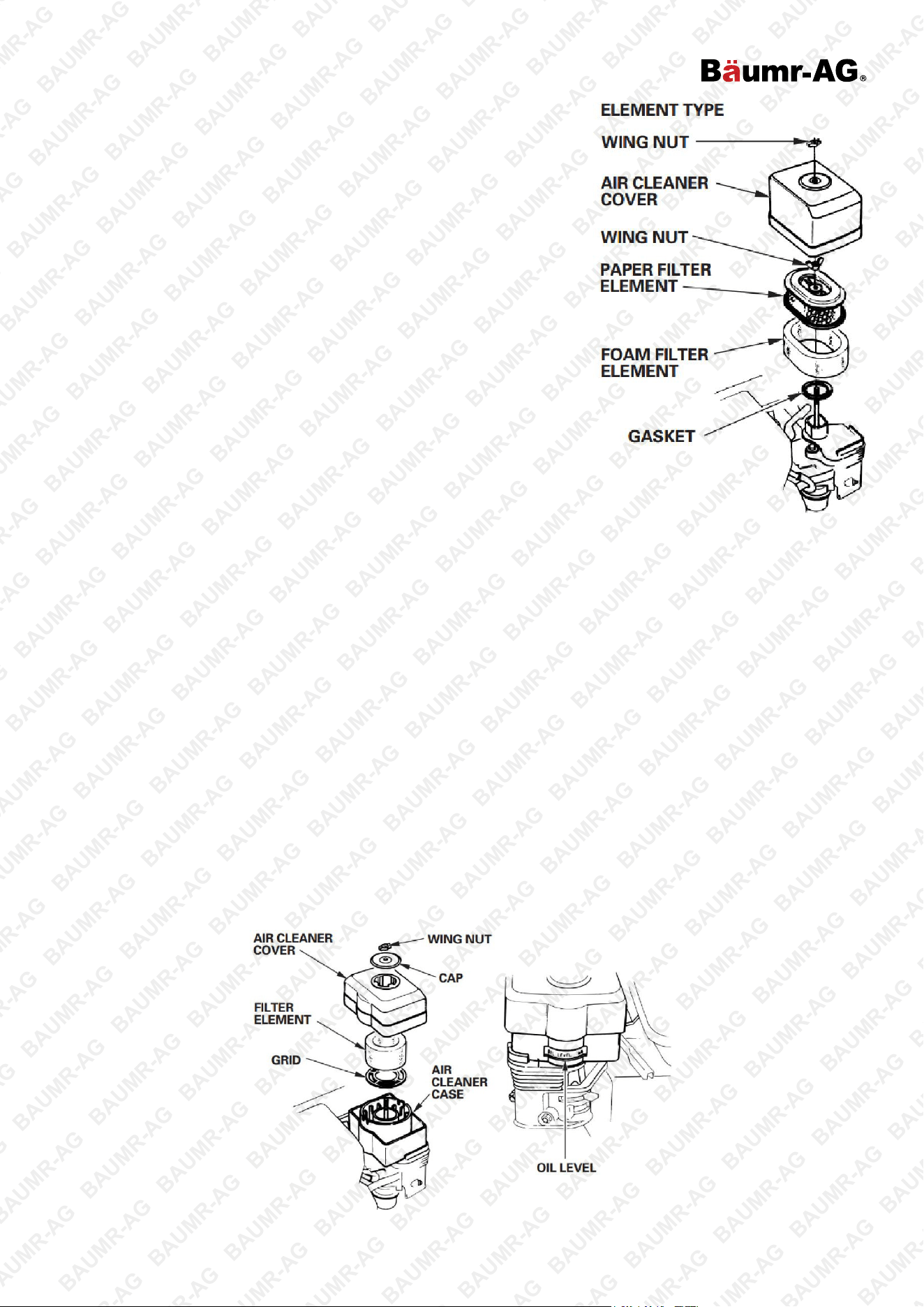

Air Cleaner ................................................................................................................................................................ 34

Sediment Cup ........................................................................................................................................................... 36

Spark Plug ................................................................................................................................................................ 36

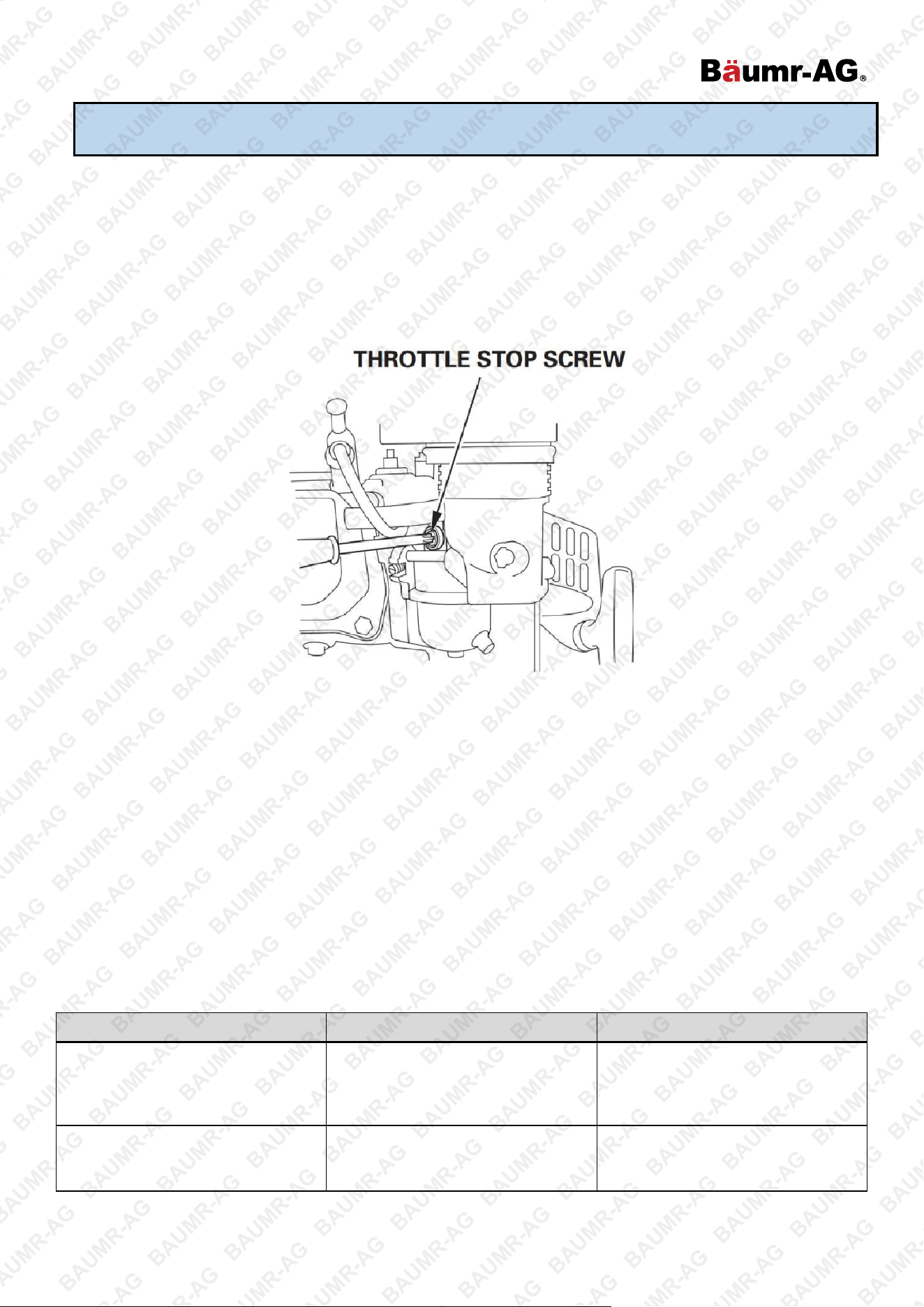

Idle Speed Adjustment ............................................................................................................................................. 37

Log Splitter Maintenance .......................................................................................................................................... 37

Storage ..................................................................................................................................................................... 38

Troubleshooting ......................................................................................................................................... 39

Specifications ............................................................................................................................................. 42

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Hercules HPS400 Log Splitter

E&OE © Baumr-AG 10

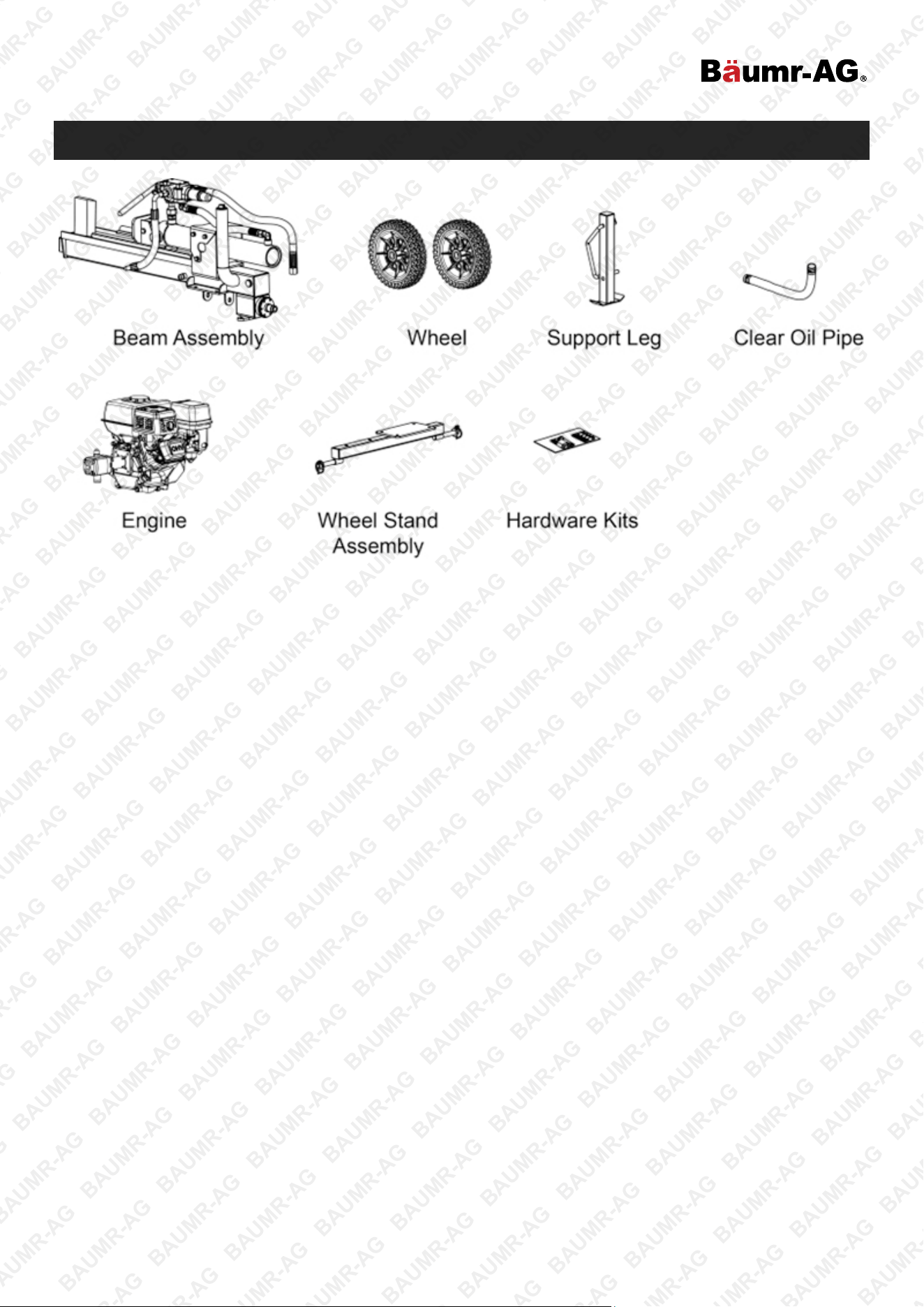

Contents Supplied

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Hercules HPS400 Log Splitter

E&OE © Baumr-AG 11

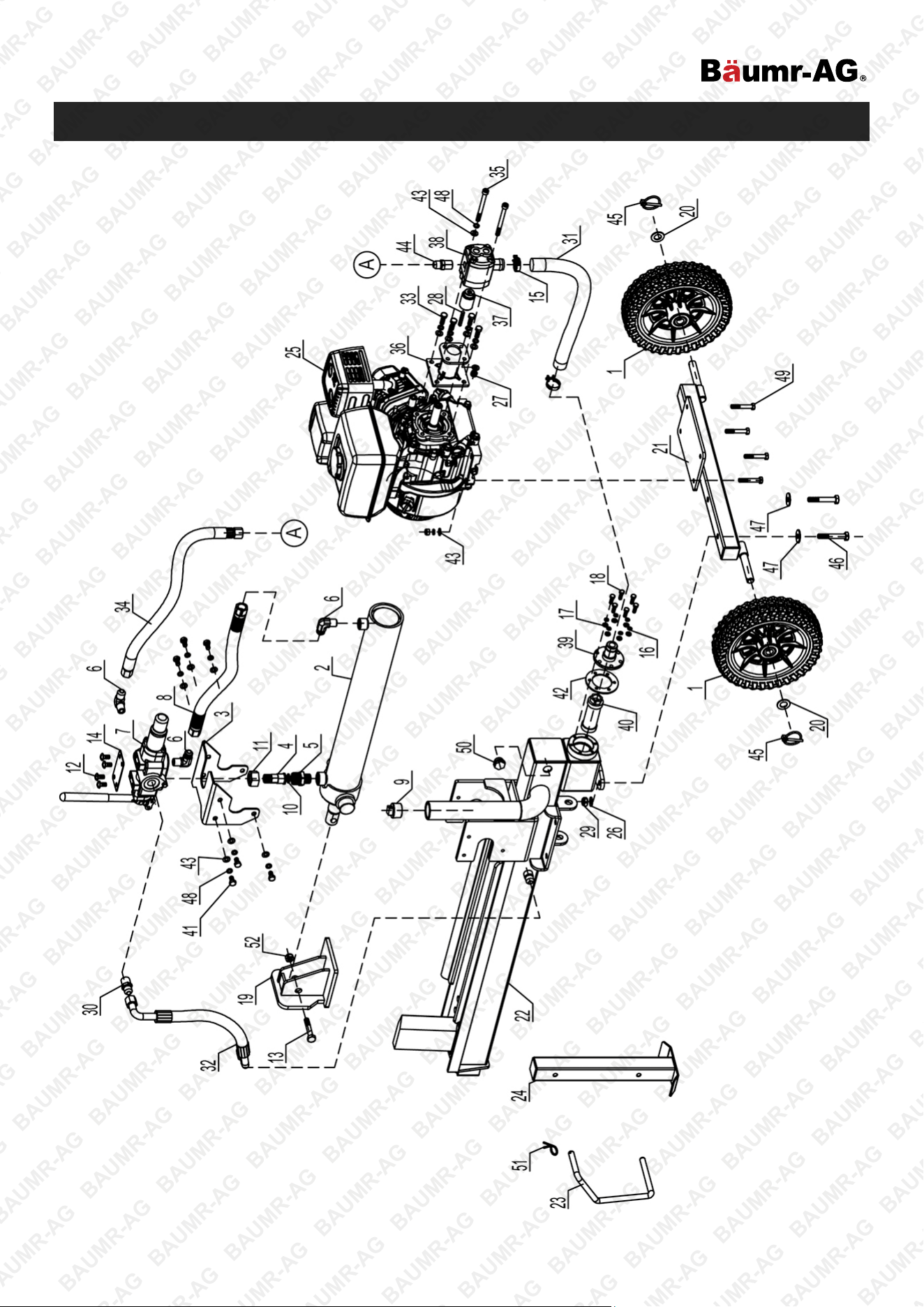

Parts Identification

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Hercules HPS400 Log Splitter

E&OE © Baumr-AG 12

Ref# Drawing No. Description Qty

1

MS12A-00001

10-2.75” Flat Free Tire

2

LS0900-04000

Cylinder

1

3

LSE12-00003

Cylinder Cover

1

4

LS12-00006-DX

Valve B Joint

1

5

LSA22-00009-DX

Connector

1

6

LS12J-00011-DX

Connector

3

7

LS12-09000

Single Handle Control Valve

1

8

LS0900-00003

Hydraulic Hose (valve-cylinder)

1

9

LSP25-13001-DX

Oil Bolt

1

10

9901-16X2.5

O Ring Ø16x2.5

1

11

LSP25-17002-DX

Nut

1

12

9110-08010-DX

Screw M8x10

4

13

9101-12065-DX8.8

Hex Bolt M12x65

1

14

LSA22-00025

Plate

1

15

LSP25-00011-BXG

Clamp

2

16

9306-06000-DX

Lock Washer Ø6

6

17

9301-06000-DX

Flat Washer Ø6

6

18

9101-06020-DX8.8

Hex Bolt M6x20

6

19

LS0900-05000

Push Plate

1

20

9301-16000-DX

Flat Washer Ø16

2

21

LS0900-02000

Wheel Stand Assembly

1

22

LS0900-01000

Beam Assembly

1

23

LS0900-00004-DX

Handle

1

24

LS0900-03000

Support Leg

1

25

/

Engine

1

26

9301-10000-DX

Flat Washer Ø10

2

27

9206-08000-DX

Nylon Lock Nut M8

5

28

/

Flat Key

1

29

9206-10000-DX

Hex Lock Nut M10

2

30

LS12J-00007-DX

Straight Connector

1

31

/

Clear Oil Pipe

1

32

LS0900-00002

Oil Return Hydraulic Hose

1

33

9101-08025-DX8.8

Hex Bolt M8x25

4

34

LS0900-00001

Oil Inlet Hydraulic Hose

1

35

9105-08090-FH10.9

Inner Hex Socket Head Bolt M8x90

2

36

LS12-07003

Gear Pump Stand

1

37

LS12-07002

Spline Coupling

1

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Hercules HPS400 Log Splitter

E&OE © Baumr-AG 13

Ref# Drawing No. Description Qty

Ref#

Drawing No.

Description

Qty

38

LS0900-07001

Gear Pump

1

39

LS12-04000-DX

Oil Filter Mounting Plate

1

40

LS12-00011

Oil Filter

1

41

9101-08016-DX8.8

Hex Bolt M8x16

6

42

LS12-00010

Rubber Washer

1

43

9301-08000-DX

Flat Washer Ø8

16

44

LS12J-00010-DX

Straight Connector

1

45

TS600-00009-DX

O Lock Ring

2

46

9101-10065—DX8.8

Hex Bolt M10x65

2

47

9302-10000-DX

Large Flat Washer Ø10

2

48

9306-08000-DX

Lock Washer Ø8

15

49

9010-08040-DX8.8

Hex Bolt M8x40

4

50

9702-20000

Screw-in Round Oil Mark

1

51

N280-00041-DX

R Pin

1

52

9206-12000-DX

Hex Lock Nut M12

1

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Hercules HPS400 Log Splitter

E&OE © Baumr-AG 14

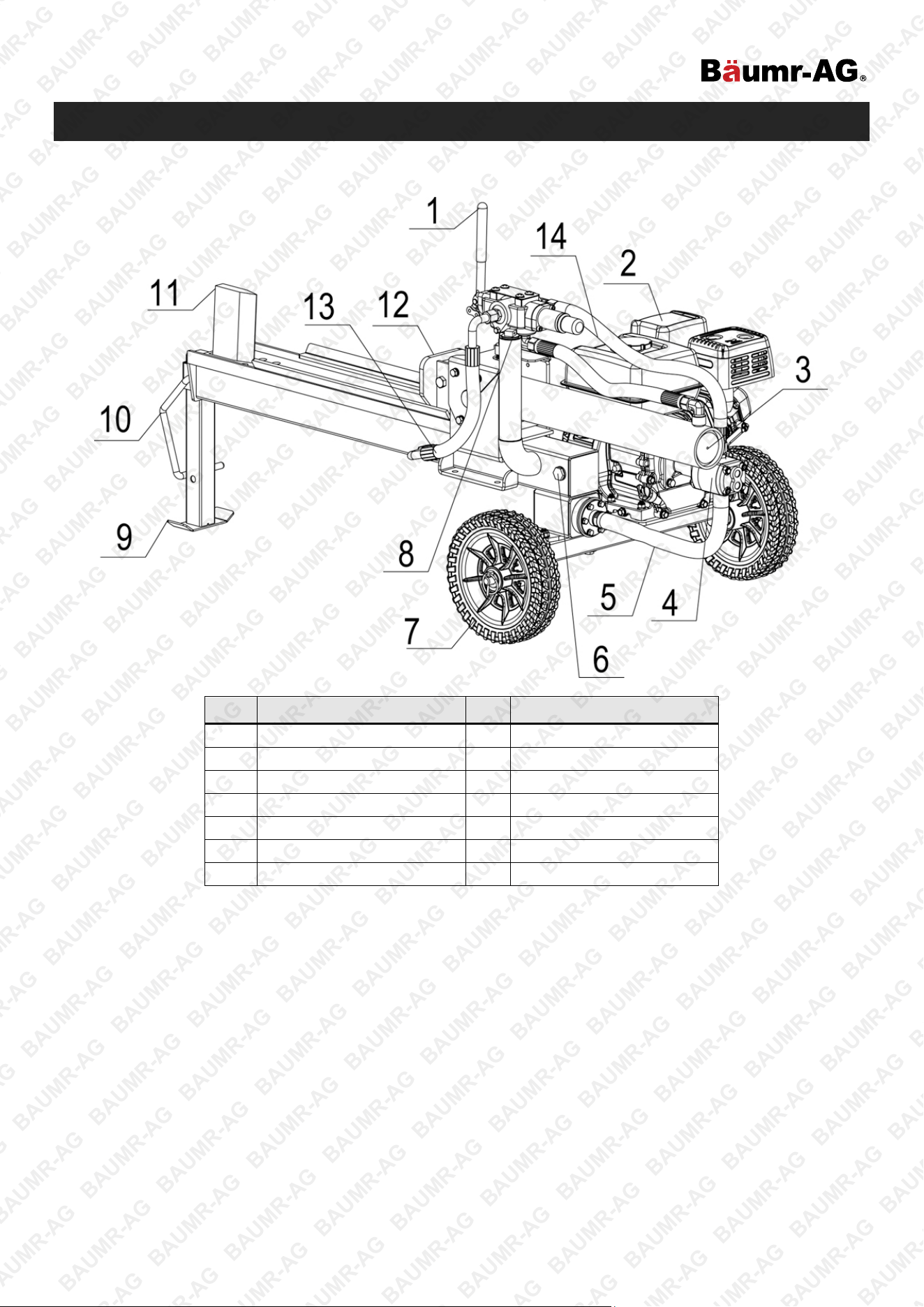

Controls and Features Identification

The diagram below identifies the major components and features of the log splitter described in this manual.

No. Name No. Name

1

Control Valve Handle

8

Oil Filler

2 Engine 9 Support Leg

3 Cylinder Component 10 Handle

4 Gear Pump 11 Wedge

5

Clear Oil Pipe

12

Push Plate Component

6

Oil Window

13

Oil Return Hydraulic Hose

7

Wheel

14

Oil Inlet Hydraulic Hose

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Hercules HPS400 Log Splitter

E&OE © Baumr-AG 15

Assembly

TOOLS REQUIRED (not included):

•

Screwdriver

•

Hammer

•

Band Cutter

•

13mm, 17mm and 24mm Wrenches

•

Large Adjustable Wrench

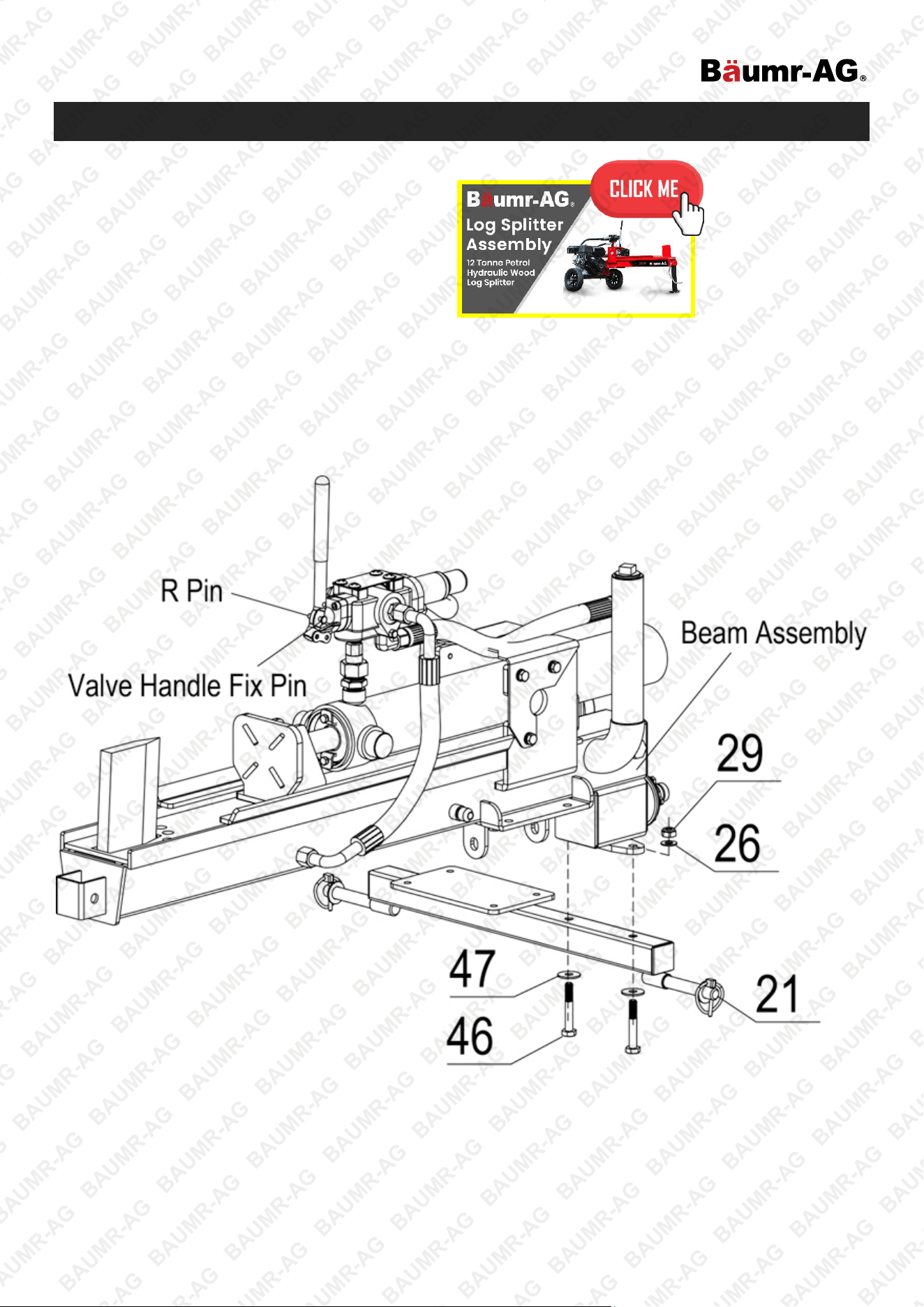

STEP 1: Attach the Wheel Stand Assembly to the Beam Assembly

1. Remove the valve handle fix pin from the valve, then reinstall the pin with the handle in a vertical position.

2. Attach the wheel stand assembly (#21) to the beam assembly using the hex bolts M10x65 (#46), large flat

washers Ø10 (#47), flat washers Ø10 (#26) and the lock nut M10 (#29).

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Hercules HPS400 Log Splitter

E&OE © Baumr-AG 16

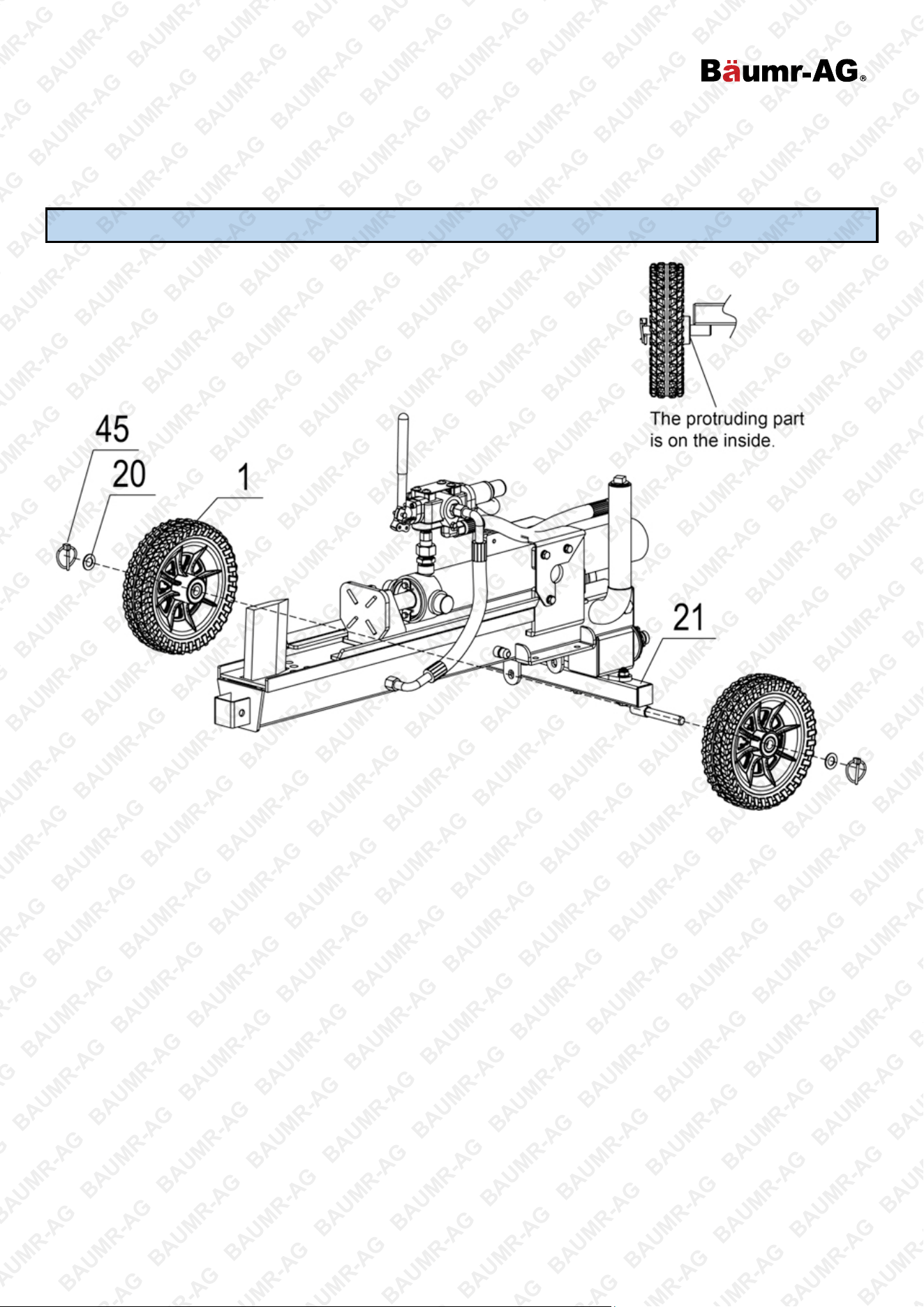

STEP 2: Attach the Wheels

First, remove the O lock ring (#45) and the flat washer Ø16 (#20), then attach the wheel (#1) to the wheel stand

(#21) using the flat washer Ø16 (#20) and the O lock ring (#45). Repeat the same process on other side to

attach the second wheel.

NOTE: The protruding part is on the inside of the wheel.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Hercules HPS400 Log Splitter

E&OE © Baumr-AG 17

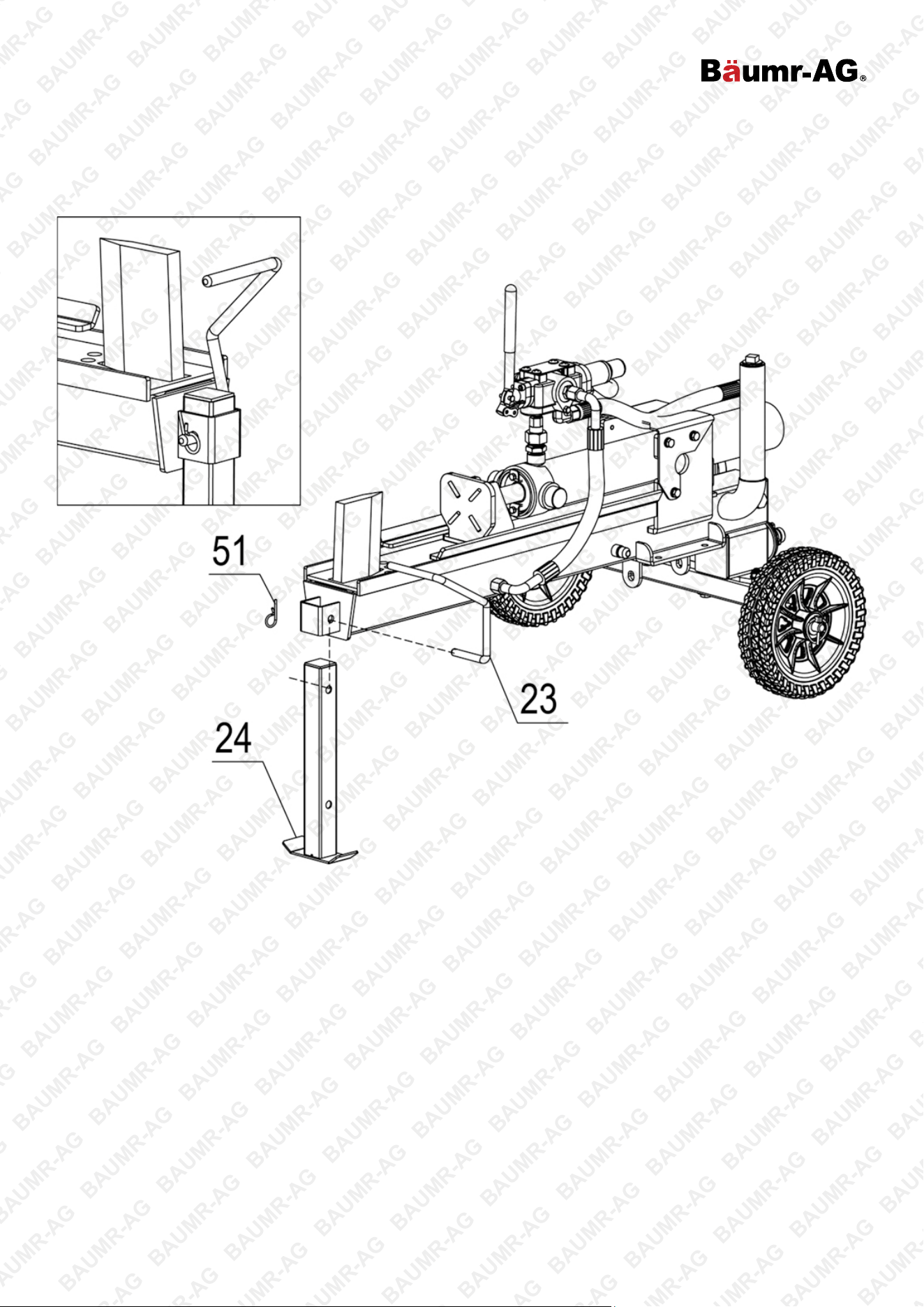

STEP 3: Attach the Support Leg

Attach the support leg (#24) to the square tube on the beam assembly, then insert the handle (#23) into the hole

in the direction shown in the figure. Finally, insert the R pin (#51) from the bottom up into the hole to secure the

leg.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Hercules HPS400 Log Splitter

E&OE © Baumr-AG 18

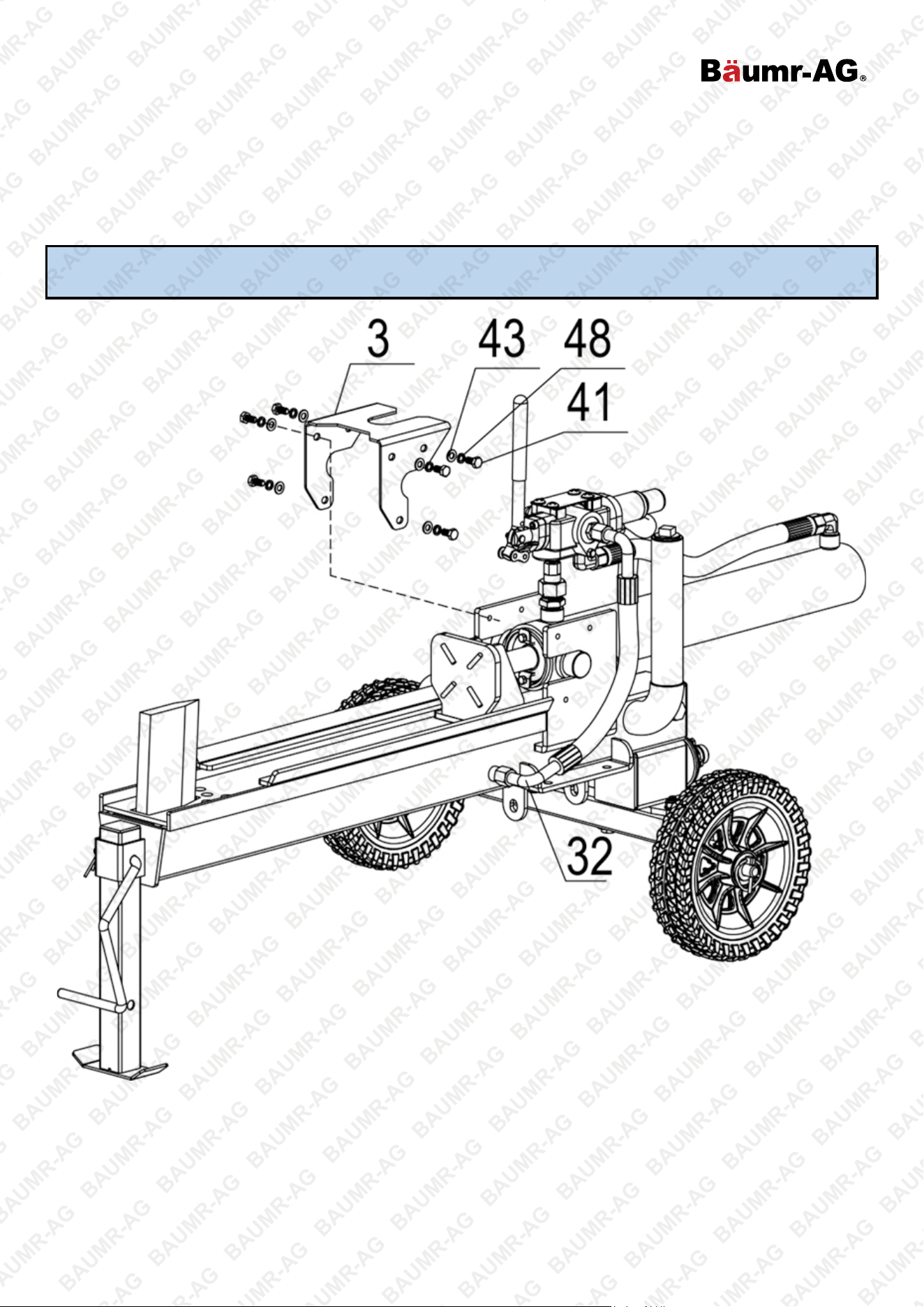

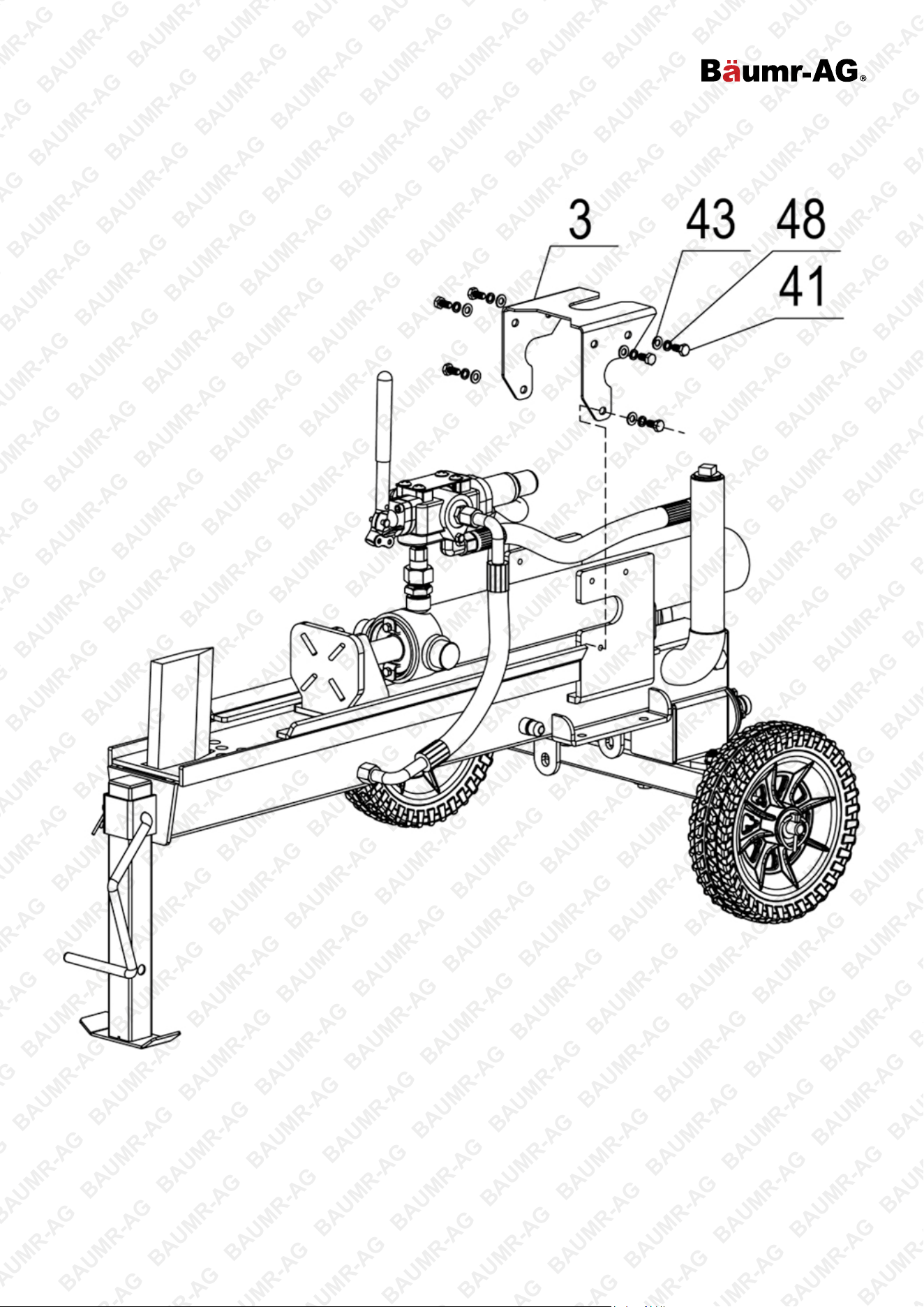

STEP 4: Remove the Cylinder Cover

Remove the cylinder cover (#3) from the beam assembly. Do NOT discard the hex bolt M8x16 (#41), the lock

washer Ø8 (#48) or the flat washer Ø8 (#43).

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Hercules HPS400 Log Splitter

E&OE © Baumr-AG 19

STEP 5: Attach the Cylinder Cover and the Hydraulic Hose

1. Pull the cylinder assembly back until the two mounting ears on the cylinder snap into the groove, then re-

install the cylinder cover (#3) into its’ original position and tighten it with the hex bolt M8x16 (#41), the lock

washer Ø8 (#48) and the flat washer Ø8 (#43).

2. Remove the plug from the hydraulic hose, then install the hydraulic hose (#32) onto the beam. To properly

attach the hose, screw in a few teeth by hand into the correct location then tighten it with a wrench.

A small amount of oil may leak from the hoses when the plugs are removed. To prevent oil from dripping

on the ground, use a small pail to catch any oil and put down cardboard.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Hercules HPS400 Log Splitter

E&OE © Baumr-AG 20

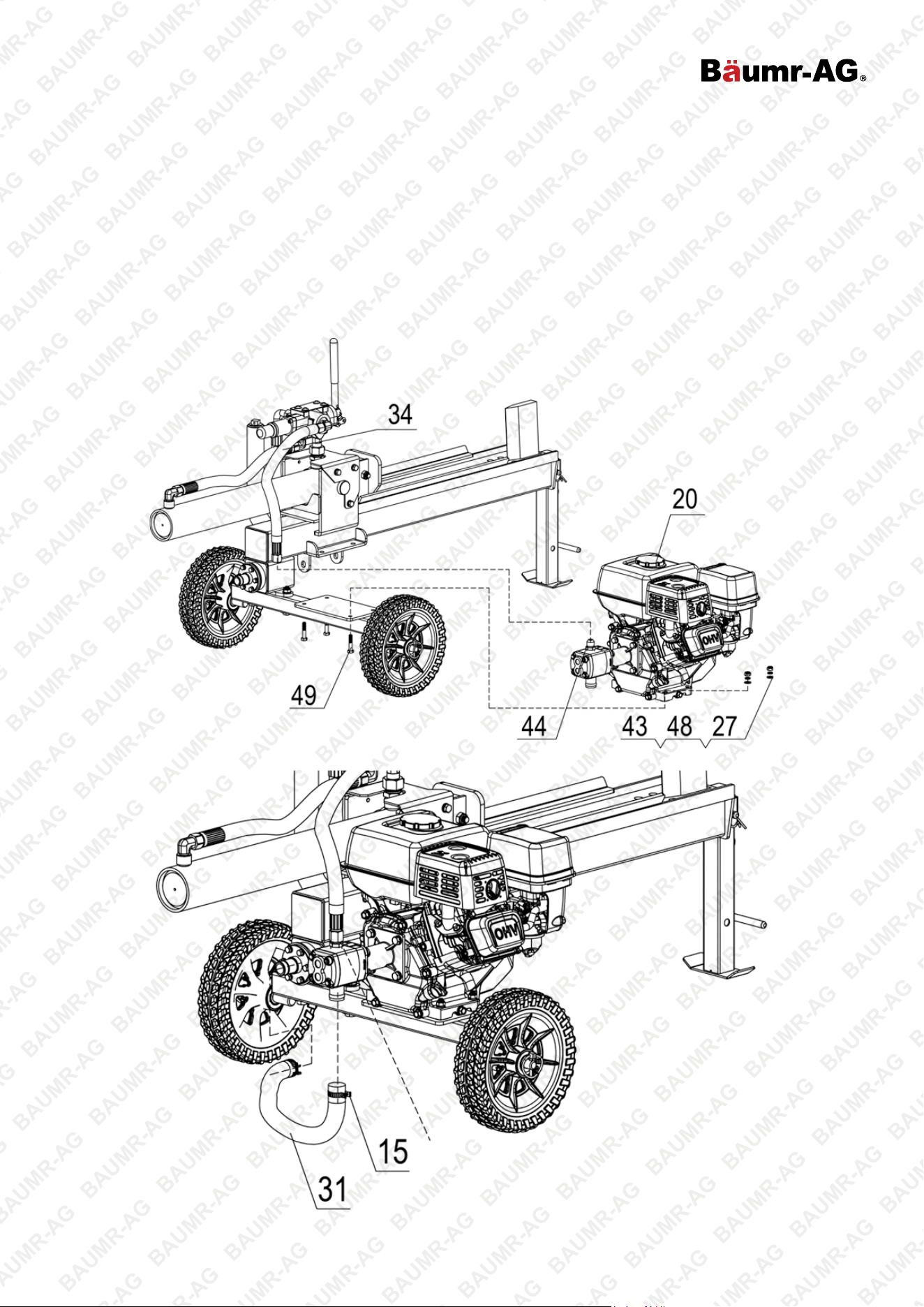

STEP 6: Attach the Engine to the Mounting Plate

1. Attach the engine (#20) to the mounting plate using the hex bolt M8x40 (#49), the flat washer Ø8 (#43), the

lock washer Ø8 (#48) and the lock nut M8 (#27).

2. Remove the plugs from the hydraulic hose and the gear pump connector. Attach the hydraulic hose (#34) to

the connector of the gear pump (#44). When attaching the hose hand screw in a few teeth then tighten it with

a wrench.

3. Remove the plug from the gear pump connector, then attach one side of the clear oil pipe (#31) to the

connector of the gear pump (#44). Remove the film bag from the opening of the oil filter mounting plate, then

attach the other side of the clear oil pipe to the opening of the oil filter mounting plate. Secure the clear oil

pipe with the clamp (#15).

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Hercules HPS400 Log Splitter

E&OE © Baumr-AG 21

STEP 7: Add Engine Oil

1. Make sure the log splitter is on a flat, level surface.

2. Remove the oil fill cap/dipstick before adding the engine oil.

3. Add the correct amount of engine oil (SAE10W-30) and replace the oil fill cap/dipstick.

4. Check the engine oil level daily and add more engine oil to maintain proper levels as needed.

NOTE: During the break-in period, engine may use oil quickly so check the engine oil level often.

CAUTION! DO NOT attempt to crank or start the engine before properly filling with the recommended

type and amount of engine oil. Failure to follow instructions regarding engine oil may damage or destroy

the log splitter and will void the log splitter’s warranty.

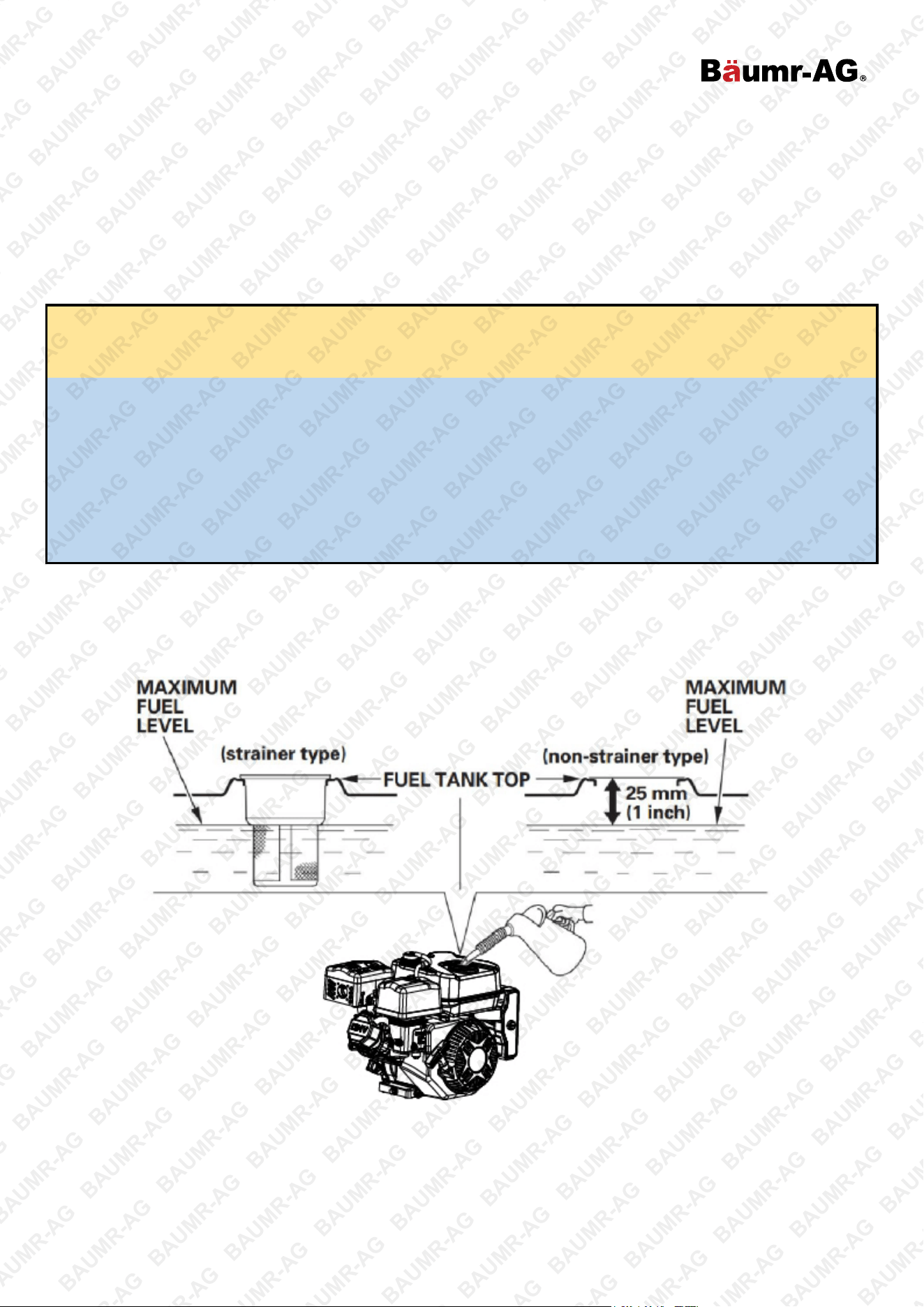

STEP 8: Add Gasoline to the Engine

1. Use only clean, fresh, regular unleaded gasoline with a minimum 87 octane rating.

2. DO NOT mix oil with gasoline.

3. Remove the fuel cap and slowly add gasoline to the tank. DO NOT overfill the tank and always allow

approximately ¼ inch of space for fuel expansion.

4. Screw on the fuel cap and wipe away any spilled gasoline.

DANGER! Log splitter engine exhaust contains carbon monoxide, a colourless, odourless, poison gas.

Breathing carbon monoxide will cause nausea, dizziness, fainting or death. If you start to feel dizzy or

weak, get to fresh air immediately. Only operate the log splitter outdoors and in a well-ventilated area.

DO NOT operate the log splitter inside any building, enclosure, or compartment. DO NOT allow exhaust

fumes to enter a confined area through windows, doors, vents, or other openings. DANGER CARBON

MONOXIDE, using a log splitter indoors CAN KILL YOU IN MINUTES.

CAUTION! Fuel and fuel vapours are highly flammable and extremely explosive. Gasoline fires and

explosions may cause severe burns, bodily injury, or death. Unintentional startup may result in

entanglement, traumatic amputation or laceration. Only use regular unleaded gasoline with a minimum

87 octane rating. DO NOT mix oil and gasoline together. Fill tank approximately ¼” below the top of the

tank to allow for fuel expansion. DO NOT fill fuel tank indoors or when the engine is running or hot. DO

NOT light cigarettes or smoke when filling the fuel tank or operating the log splitter.

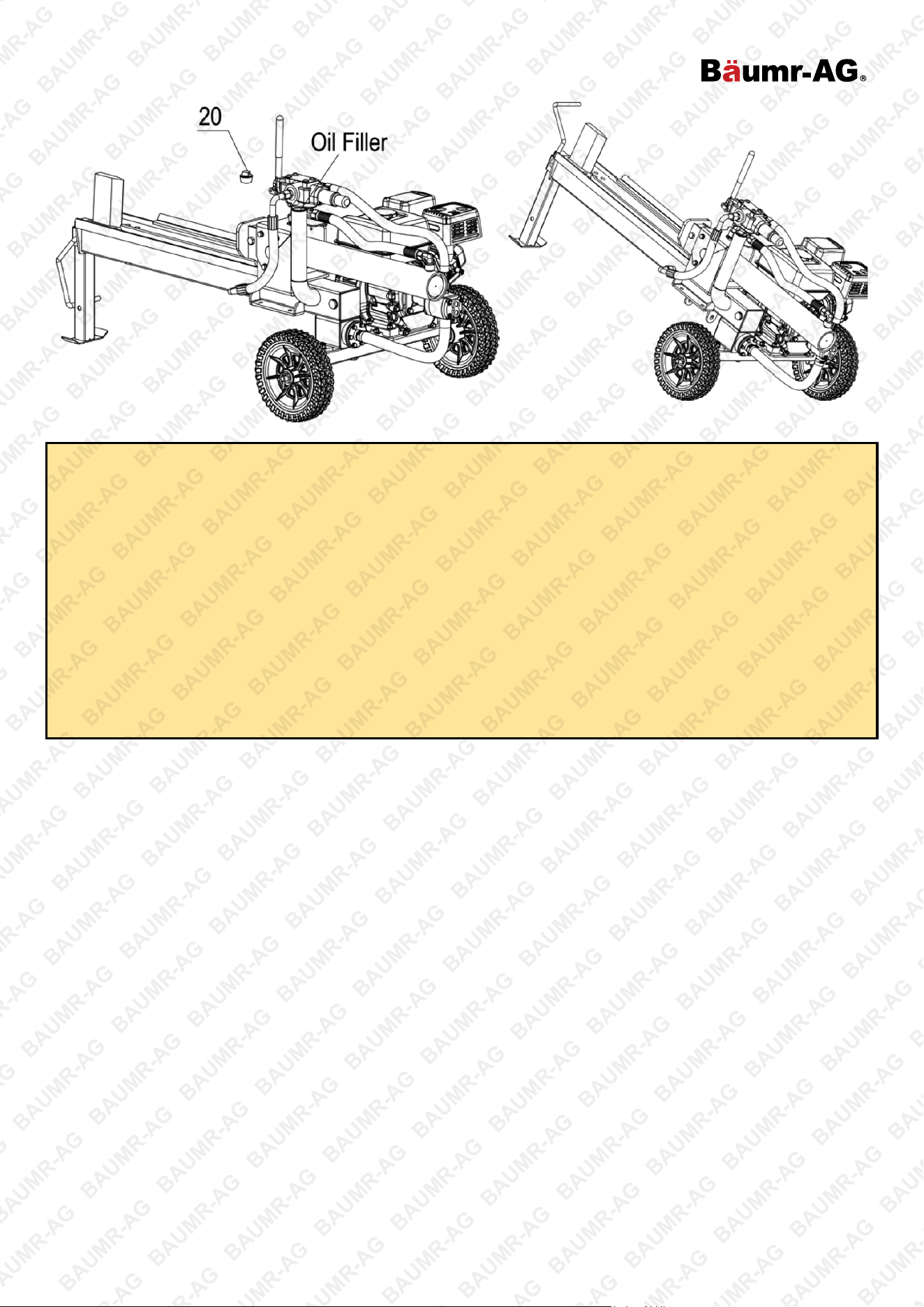

STEP 9: Add the Hydraulic Oil

1. The log splitter needs to be on a flat, level surface before adding the hydraulic oil.

2. Remove the oil bolt (#20) from the oil filler.

3. Add 5L of hydraulic oil. AW32, AW46 and universal hydraulic oil are all acceptable types of hydraulic oil for

the log splitter. Automatic transmission fluid should be used when operating in temperatures below 32

degrees (all units are tested and have excess oil in the ram).

4. Check the hydraulic oil level.

5. After adding the hydraulic oil, there will be some gas in the clear oil pipe that cannot be discharged. It is

necessary to tilt the beam to exhaust the gas in the clear oil pipe. Tilt the beam several times, then the gas in

the clear oil pipe should be exhausted.

6. Start the engine and use the control lever to extend and retract the wedge several times to remove air from

the lines.

7. With the wedge retracted, check the hydraulic oil level again and add additional hydraulic oil if necessary.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Hercules HPS400 Log Splitter

E&OE © Baumr-AG 22

WARNING! DO NOT remove the hydraulic oil fill cap when the engine is running or hot. Hot oil can

escape and cause severe burns. Always allow the log splitter to cool completely before removing the

hydraulic oil cap.

High fluid pressure and very hot temperatures are created in the hydraulic log splitters. Hydraulic fluid

can escape through a pin-size hole opening, producing enough force to puncture skin and cause severe

blood poisoning.

Inspect the hydraulic system regularly for possible leaks. Never check for leaks with your hand while the

system is pressurized. Seek medical attention immediately if injured by escaping hydraulic fluid.

Make sure all fittings are tight and secure before applying pressure. Release all system pressure before

servicing the log splitter.

Make sure the hydraulic hoses do not touch any hot surfaces or cutting areas. Hoses need to be

positioned where they are clear from the engine and the cutting wedge. To avoid serious bodily injury

always inspect the hoses before operating the log splitter.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Hercules HPS400 Log Splitter

E&OE © Baumr-AG 23

Operation

WARNING! Read and understand all instructions and safety information in this manual and on safety

decals before assembling or operating the log splitter. Failure to understand instructions and safety

information could result in serious injury or death. Do not allow anyone to operate the log splitter who

has not read this manual. A log splitter can be dangerous if assembled or used improperly. Do not

operate this log splitter if you have any questions concerning safe operation. Contact a qualified

technician or an authorised service centre.

ALWAYS use the log splitter for its intended use.

ONLY use the log splitter to split wood logs, length wise with the grain.

NEVER modify, alter, or change the log splitter in any way (modifications will void the warranty).

NEVER attach a rope, cable, or any other device to the control lever on the log splitter.

ONLY operate the log splitter in daylight/adequate lighting.

NEVER leave the log splitter unattended while the engine is running.

NEVER change the splitting position when the engine is running.

NEVER touch the muffler during or immediately after using the log splitter. The muffler becomes very

hot and can cause serious burns.

ALWAYS make sure the beam is in the locked position.

DO NOT let the beam drop as it may crush fingers or other body parts and/or cause damage to the log

splitter.

NEVER operate or allow anyone else to operate the log splitter while under the influence of alcohol,

drugs, or medication.

Before Operation Checks

Is your engine ready to go?

For your safety, and to maximize the service life of your equipment, it is very important to take a few moments

before you operate the engine to check its condition. Be sure to take care of any problem you find, or have your

servicing dealer correct it before you operate the engine.

WARNING! Improperly maintaining this engine, or failure to correct a problem before operation, can

cause a malfunction in which you can be seriously hurt or killed. Always perform a pre-operation

inspection before each operation and correct any problem.

Before beginning your pre-operation checks, be sure the engine is level, and the engine switch is in the OFF

position.

Always check the following items before you start the engine:

Check the General Condition of the Engine

1. Look around and underneath the engine for signs of oil or gasoline leaks.

2. Remove any excessive dirt or debris, especially around the muffler and recoil starter.

3. Look for signs of damage.

4. Check that all shields and covers are in place, and all nuts, bolts, and screws are tightened.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Hercules HPS400 Log Splitter

E&OE © Baumr-AG 24

Check the Engine

1. Check the fuel level. Starting with a full tank will help to eliminate or reduce operating interruptions for

refuelling.

2. Check the engine oil level. Running the engine with a low oil level can cause engine damage. The Oil Alert

system (applicable types) will automatically stop the engine before the oil level falls below safe limits.

However, to avoid the inconvenience of an unexpected shutdown, always check the engine oil level before

startup.

3. Check the reduction case oil level on applicable types. Oil is essential to reduction case operation and long

life.

4. Check the air filter element. A dirty air filter element will restrict air flow to the carburettor, reducing engine

performance.

5. Check the equipment powered by this engine. Review the instructions provided with the equipment powered

by this engine for any precautions and procedures that should be followed before engine startup.

Starting the Engine

WARNING! Carbon monoxide gas is toxic. Breathing it can cause unconsciousness and even kill you.

Avoid any areas or actions that expose you to carbon monoxide. Review the instructions provided with

the equipment powered by this engine for any safety precautions that should be observed with engine

startup, shutdown, or operation.

1. Move the fuel valve lever to the ON position.

2. To start a cold engine, move the choke lever to the CLOSED position.

To restart a warm engine, leave the choke lever in the OPEN position. Some engine applications use a

remote-mounted choke control rather than the engine-mounted choke lever shown here. Refer to the

instructions provided by the equipment manufacturer.

Video Tutorial:

Starting Your 4 Stroke Engine

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Hercules HPS400 Log Splitter

E&OE © Baumr-AG 25

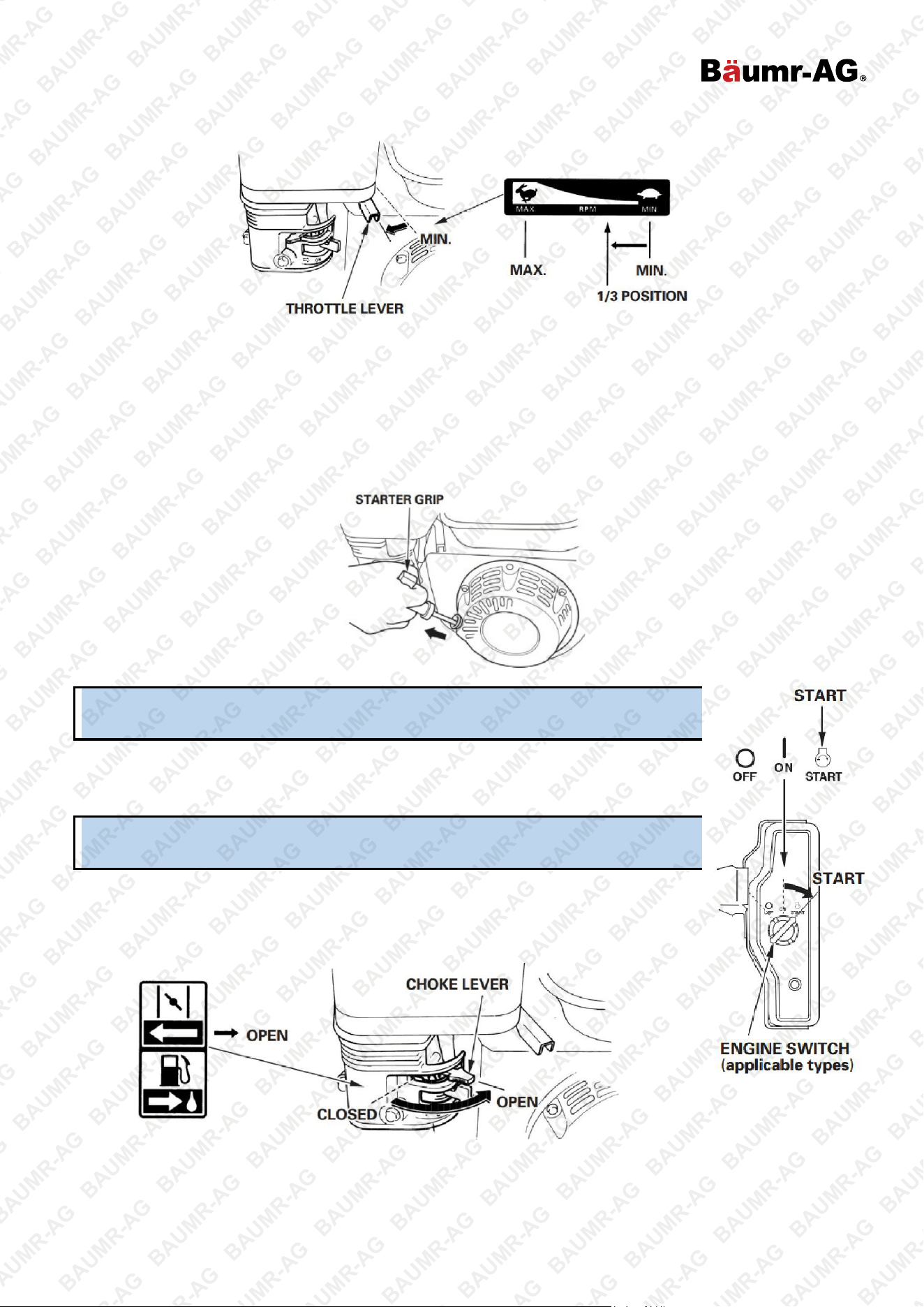

3. Move the throttle lever away from the MIN. position, about 1/3 of the way toward the MAX. position.

Some engine applications use a remote-mounted throttle control rather than the engine-mounted throttle

lever shown here. Refer to the instructions provided by the equipment manufacturer.

4. Turn the engine switch to the ON position.

5. Operate the starter.

RECOIL STARTER: Pull the starter grip lightly until you feel resistance, then pull briskly. Return the starter

grip gently.

NOTE: Do not allow the starter grip to snap back against the engine. Return it

gently to prevent damage to the starter.

ELECTRIC STARTER (applicable types): Turn the key to the START position and

hold it there until the engine starts. If the engine fails to start within 5 seconds,

release the key, and wait at least 10 seconds before operating the starter again.

NOTE: Using the electric starter for more than 5 seconds at a time will overheat

the starter motor and can damage it.

When the engine starts, release the key, allowing it to return to the ON position.

6. If the choke lever has been moved to the CLOSED position to start the engine,

gradually move it to the OPEN position as the engine warms up.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Hercules HPS400 Log Splitter

E&OE © Baumr-AG 26

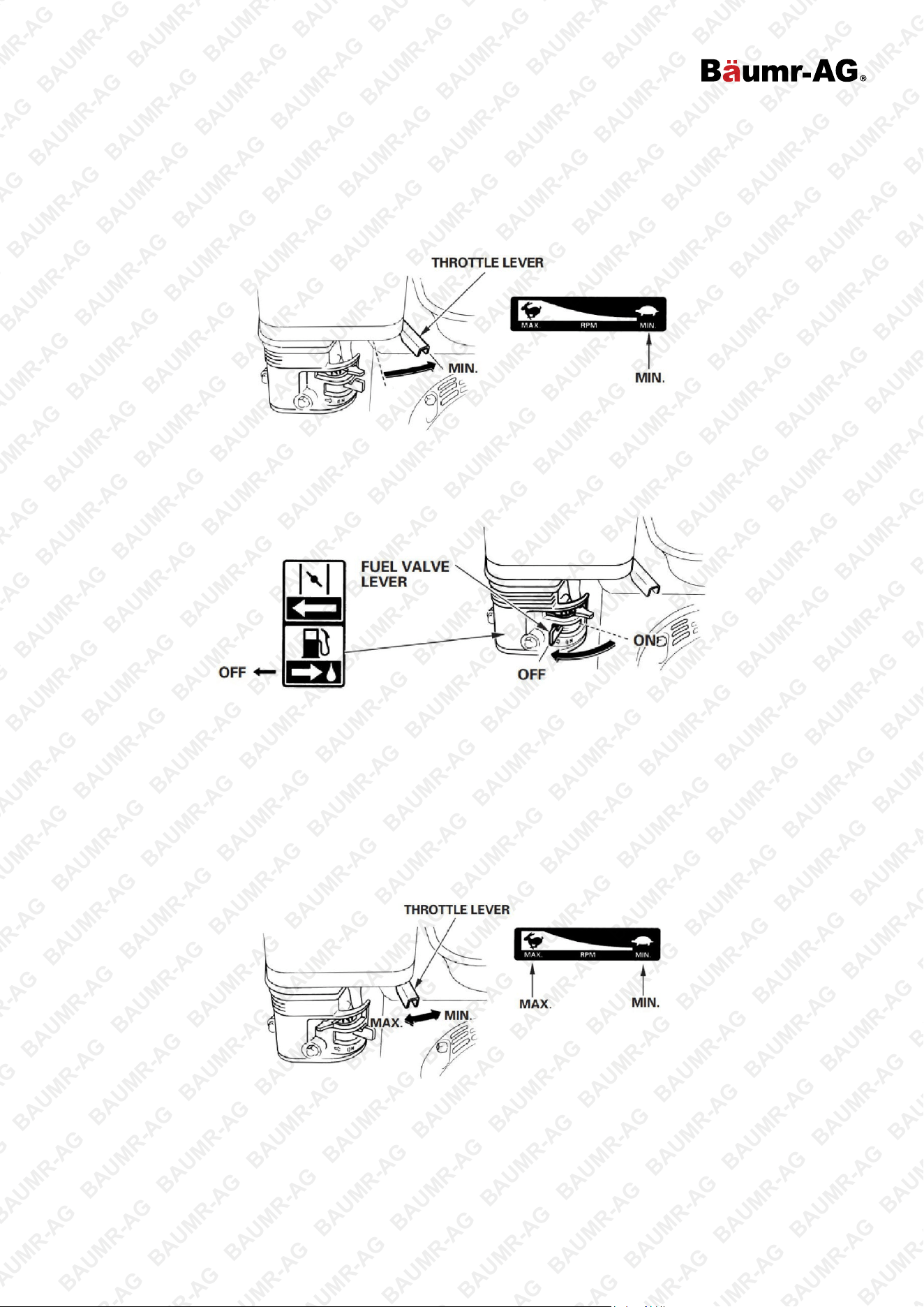

Stopping the Engine

To stop the engine in an emergency, simply turn the engine switch to the OFF position. Under normal conditions,

use the following procedure. Refer to the instructions provided by the equipment manufacturer.

1. Move the throttle lever to the MIN. position. Some engine applications use a remote-mounted throttle control

rather than the engine-mounted throttle lever shown here.

2. Turn the engine switch to the OFF position.

3. Turn the fuel valve lever to the OFF position.

Setting Engine Speed

•

Position the throttle lever for the desired engine speed.

•

Some engine applications use a remote-mounted throttle control rather than the engine-mounted throttle

lever shown here. Refer to the instructions provided by the equipment manufacturer.

•

For engine speed recommendations, refer to the instructions provided with the equipment powered by this

engine.

Using the Log Splitter

1. NEVER use the log splitter to carry passengers; never sit upon or stand on the log splitter.

2. Before using the log splitter, check the hydraulic oil level and visually inspect all the hoses and attachments

for potential problems.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Hercules HPS400 Log Splitter

E&OE © Baumr-AG 27

3. Inspect the engine and check that the engine oil level is correct.

4. Before transporting the log splitter, the hitch accessory must be firmly secured.

TYRE WARNING! DO NOT use the log splitter if the tyres are severely worn and need to be replaced.

Tyres are NOT compatible with towing.

5. Refer to the vehicle owner’s manual for proper safety and transport instructions.

TRANSPORT WARNING! Serious injury or death can occur if transportation safety rules are not

followed. Always secure and lock the log splitter to the transporting vehicle before moving. Drive safely

when transporting the log splitter. Be aware of the added length of the log splitter. Never exceed the

maximum travel speed of 10 mph. Never ride upon or transport any cargo on the log splitter. Turn off the

transporting vehicle before leaving the log splitter unattended. Block the log splitter wheels to prevent

unintended movement during transport.

6. The log splitter must have at least seven feet of clearance from combustible material. For safe operation the

log splitter must be on a dry and level surface with stable footing. Do not use the log splitter on mud, ice,

brush, or snow. Always maintain a clear, dry work zone when using the log splitter as failure to do so at all

times may result in serious bodily injury or death.

DANGER! Serious accidents can happen when other people are allowed inside the work zone. Only the

operator should be inside the work zone while operating the control lever.

7. Always wear proper safety gear, including eye protection, gloves and work boots when operating the log

splitter.

8. Start the engine and make sure the log splitter is on level ground before operating.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Hercules HPS400 Log Splitter

E&OE © Baumr-AG 28

NOTE: The hydraulic oil needs to be above -12C° before starting the engine. Cold hydraulic oil can

damage the hydraulic pump. If the outdoor air temperature is below 0C, before splitting wood allow the

log splitter to warm up by extending and returning the wedge several times.

9. To prevent the log splitter from moving during operation, put the support leg in the down position and block

both tires.

10. Set the log splitter in the horizontal position.

NOTE: HORIZONTAL position is used for lighter logs that can easily be loaded onto the beam. Back

injury can result from lifting logs onto the log splitter if proper lifting techniques are not used.

11. Load a log onto the beam and up against the endplate (Max Log Length-20”).

12. Keep hands clear from the wedge and crush hazard areas.

CRUSH WARNING! The wedge can cut through skin, break bones, and cause serious bodily injury. Keep

both hands away from the wedge and beam slide.

Serious accidents can happen when other people are allowed inside the work zone. Keep everyone

besides the operator out of the work zone while operating the control lever.

DO NOT wear loose clothing that can get tangled in the moving parts of the log splitter.

Only use the log splitter in daylight/with adequate lighting so you can see and safely operate the log

splitter.

13. Push the control lever FORWARD with one hand to split the log.

14. Pull the control lever BACKWARD with one hand to return the wedge to its original position.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Hercules HPS400 Log Splitter

E&OE © Baumr-AG 29

CAUTION! If a log gets stuck or will not split completely, push the control lever in the reverse direction

and allow the splitter to strip the log from the wedge.

If a log remains stuck after trying the method above, turn the log splitter completely off and carefully use

a sledgehammer and crowbar to remove the log.

ALWAYS keep hands clear of the log and wedge when the log splitter is retracting.

15. Always keep the work zone clean and free of split wood and debris.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Hercules HPS400 Log Splitter

E&OE © Baumr-AG 30

Maintenance and Storage

CAUTION! Improper maintenance and storage of the log splitter may void your warranty.

Servicing Your Engine

The Importance of Maintenance

Good maintenance is essential for safe, economical and trouble- free operation. It will also help reduce pollution.

WARNING! Improper maintenance, or failure to correct a problem before operation, can cause a

malfunction in which you can be seriously hurt or killed. Always follow the inspection and maintenance

recommendations and schedules in this owner’s manual.

To help you properly care for your engine, the following pages include a maintenance schedule, routine

inspection procedures, and simple maintenance procedures using basic hand tools. Other service tasks that are

more difficult, or require special tools, are best handled by professionals, and are normally performed by a

technician or other qualified mechanic.

The maintenance schedule applies to normal operating conditions. If you operate your engine under severe

conditions, such as sustained high-load or high-temperature operation, or use in unusually wet or dusty

conditions, consult your servicing dealer for recommendations applicable to your individual needs and use.

Maintenance Safety

Some of the most important safety precautions follow. However, we cannot warn you of every conceivable

hazard that can arise in performing maintenance. Only you can decide whether or not you should perform a

given task.

WARNING! Failure to properly follow maintenance instructions and precautions can cause you to be

seriously hurt or killed. Always follow the procedures and precautions in this owner’s manual.

Safety Precautions

•

Make sure the engine is off before you begin any maintenance or repairs. This will eliminate several potential

hazards:

− Carbon monoxide poisoning from engine exhaust.

Be sure there is adequate ventilation whenever you operate the engine.

− Burns from hot parts.

Let the engine and exhaust system cool before touching.

− Injury from moving parts.

Do not run the engine unless instructed to do so.

•

Read the instructions before you begin, and make sure you have the tools and skills required.

•

To reduce the possibility of fire or explosion, be careful when working around gasoline. Use only a non-

flammable solvent, not gasoline, to clean parts. Keep cigarettes, sparks, and flames away from all fuel

related parts.

Remember that your servicing dealer knows your engine best and is fully equipped to maintain and repair it.

To ensure the best quality and reliability, use only new genuine parts or their equivalents for repair and

replacement.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Hercules HPS400 Log Splitter

Maintenance Schedule

REGULAR SERVICE PERIOD (3)

Perform at every indicated month

or operating hour interval,

whichever comes ﬁrst.

ITEM

Each Use

First

Months or

20 Hrs

Every 3

Months or

50 Hrs

Every 6

Months or

100 Hrs

Every Year

or 300Hrs

Engine oil

Check level

Change

Reduction case oil

(applicable types)

Check level

Change

Air Cleaner

Clean

(1)

Replace

*

Sediment cup Clean

Spark plug

Check-adjust

Replace

Spark arrester

(Optional parts types)

Clean

Idle speed Check-adjust

(2)

Valve clearance Check-adjust

(2)

Fuel tank & ﬁlter Clean

(2)

Combustion chamber Clean After every 300 Hrs. (2)

Fuel tube Check Every 2 years (Replace if necessary) (2)

* Replace paper element type only.

(1) Service more frequently when used in dusty areas.

(2) These items should be serviced by your servicing dealer unless you have the proper tools and are

mechanically proficient. Refer to manual for service procedures. Failure to follow this maintenance schedule

could result in non- warrantable failures.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Hercules HPS400 Log Splitter

Refuelling Your Engine

Recommended Fuel

•

Research octane rating 91 or higher

•

Pump octane rating 86 or higher

This engine is certified to operate on unleaded gasoline. Unleaded gasoline produces fewer engine and spark

plug deposits and extends exhaust system life.

WARNING! Gasoline is highly flammable and explosive, and you can be burned or seriously injured

when refuelling. Stop engine and keep heat, sparks, and flame away. Refuel only outdoors. Wipe up

spills immediately.

NOTE: Fuel can damage paint and some types of plastic. Be careful not to spill fuel when filling your fuel

tank. Damage caused by spilled fuel is not covered under Warranty. Never use stale or contaminated

gasoline or oil/gasoline mixture. Avoid getting dirt or water in the fuel tank. Occasionally you may hear a

light ‘‘spark knock’’ or ‘‘pinging’’ (metallic rapping noise) while operating under heavy loads. This is no

cause for concern. If spark knock or pinging occurs at a steady engine speed, under normal load,

change brands of gasoline. If spark knock or pinging persists, see an authorized servicing dealer.

Running the engine with persistent spark knock or pinging can cause engine damage. Running the

engine with persistent spark knock or pinging is considered misuse, and the Distributor’s Limited

Warranty does not cover parts damaged by misuse.

1. With the engine stopped and on a level surface, remove the fuel tank cap and check the fuel level. Refill the

tank if the fuel level is low.

2. Add fuel to the bottom of the fuel level limit of the fuel tank. Do not overfill. Wipe up spilled fuel before

starting the engine.

Refuel in a well-ventilated area before starting the engine. If the engine has been running, allow it to cool. Refuel

carefully to avoid spilling fuel. Do not fill the fuel tank completely. Fill tank to approximately 25 mm (1 inch) below

the top of the fuel tank to allow for fuel expansion. It may be necessary to lower the fuel level depending on

operating conditions. After refuelling, tighten the fuel tank cap securely.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Hercules HPS400 Log Splitter

Never refuel the engine inside a building where gasoline fumes may reach flames or sparks. Keep gasoline

away from appliance pilot lights, barbecues, electric appliances, power tools, etc. Spilled fuel is not only a fire

hazard, it causes environmental damage. Wipe up spills immediately.

Engine Oil

Oil is a major factor affecting performance and service life.

Use 4-stroke automotive detergent oil.

Recommended Oil

•

Use 4-stroke motor oil that meets or exceeds the

requirements for API service classification SJ, SL, or

equivalent. Always check the API service label on the oil

container to be sure it includes the letters SJ, SL, or

equivalent.

•

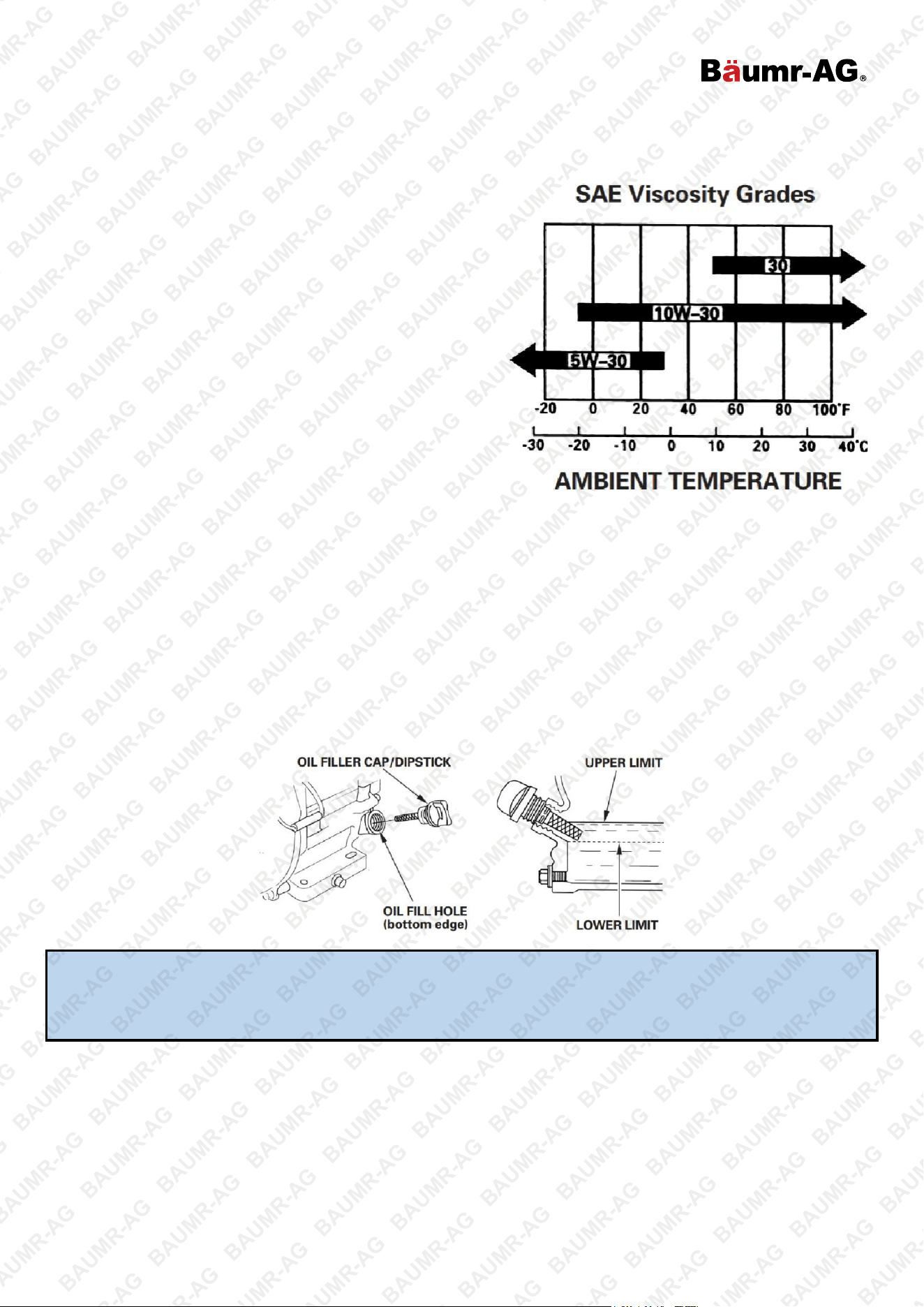

SAE 10W-30 is recommended for general use. Other

viscosities shown in the chart may be used when the

average temperature in your area is within the indicated

range.

Oil Level Check

Check the engine oil level with the engine stopped and in a level position.

1. Remove the oil filler cap/dipstick and wipe it clean.

2. Insert the oil filler cap/dipstick into the oil filler neck as shown, but do not screw it in, then remove it to check

the oil level.

3. If the oil level is near or below the lower limit mark on the dipstick, fill with the recommended oil to the upper

limit mark (bottom edge of the oil fill hole). Do not overfill.

4. Reinstall the oil filler cap/dipstick.

NOTE: Running the engine with a low oil level can cause engine damage. The Oil Alert system

(applicable types) will automatically stop the engine before the oil level falls below the safe limit.

However, to avoid the inconvenience of an unexpected shutdown, always check the engine oil level

before startup.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Hercules HPS400 Log Splitter

Oil Change

Drain the used oil when the engine is warm. Warm oil drains quickly and completely.

1. Place a suitable container below the engine to catch the used oil, then remove the oil filler cap/dipstick, oil

drain plug, and washer.

2. Allow the used oil to drain completely, then reinstall the oil drain plug and new washer, and tighten the oil

drain plug securely.

Please dispose of used motor oil in a manner that is compatible with the environment. We suggest you take

used oil in a sealed container to your local recycling centre or service station for reclamation. Do not throw it

in the trash, pour it on the ground, or down a drain.

3. With the engine in a level position, fill to the upper limit mark (bottom edge of the oil fill hole) on the dipstick

with the recommended oil.

NOTE: Running the engine with a low oil level can cause engine damage. The Oil Alert

®

system

(applicable types) will automatically stop the engine before the oil level falls below the safe limit.

However, to avoid the inconvenience of an unexpected shutdown, fill to the upper limit, and check

the oil level regularly.

4. Install the oil filler cap/dipstick and tighten securely.

Air Cleaner

A dirty air cleaner will restrict air flow to the carburettor, reducing engine performance. If you operate the engine

in very dusty areas, clean the air filter more often than specified in the Maintenance Schedule.

Operating the engine without an air filter, or with a damaged air filter, will allow dirt to enter the engine, causing

rapid engine wear. This type of damage is not covered by the Distributor’s Limited Warranty.

Inspection

•

Remove the air cleaner cover and inspect the filter elements. Clean or replace dirty filter elements.

•

Always replace damaged filter elements. If equipped with an oil-bath air cleaner, also check the oil level.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Hercules HPS400 Log Splitter

Cleaning Dual-Filter-Element Types

1. Remove the wing nut from the air cleaner cover and remove the

cover.

2. Remove the wing nut from the air filter and remove the filter.

3. Remove the foam filter from the paper filter.

4. Inspect both air filter elements and replace them if they are

damaged. Always replace the paper air filter element at the

scheduled interval.

5. Clean the air filter elements if they are to be reused. Paper air filter

element: Tap the filter element several times on a hard surface to

remove dirt or blow compressed air [not exceeding 207 kPa (2.1

kgf/cm, 30 psi)] through the filter element from the inside.

Never try to brush off dirt; brushing will force dirt into the fibres.

Foam air filter element: Clean in warm soapy water, rinse, and allow

to dry thoroughly. Or clean in non-flammable solvent and allow to

dry. Dip the filter element in clean engine oil, then squeeze out all

excess oil. The engine will smoke when started if too much oil is left

in the foam.

6. Wipe dirt from the inside of the air cleaner case and cover, using a moist rag. Be careful to prevent dirt from

entering the air duct that leads to the carburettor.

7. Place the foam air filter element over the paper element and reinstall the assembled air filter. Be sure the

gasket is in place beneath the air filter. Tighten the air filter wing nut securely.

8. Install the air cleaner cover and tighten the wing nut securely.

Oil-Bath Type

1. Remove the wing nut and remove the air cleaner cap and cover.

2. Remove the air filter element from the cover. Wash the cover and filter element in warm soapy water, rinse

and allow to dry thoroughly. Or clean in non-flammable solvent and allow to dry.

3. Dip the filter element in clean engine oil, then squeeze out all excess oil. The engine will smoke if too much

oil is left in the foam.

4. Empty the used oil from the air cleaner case, wash out any accumulated dirt with non-flammable solvent,

and dry the case.

5. Fill the air cleaner case to the OIL LEVEL mark with the same oil that is recommended for the engine. Oil

capacity: 60 cm (2.0 US oz, 2.1 Imp oz)

6. Reassemble the air cleaner and tighten the wing nut securely.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Hercules HPS400 Log Splitter

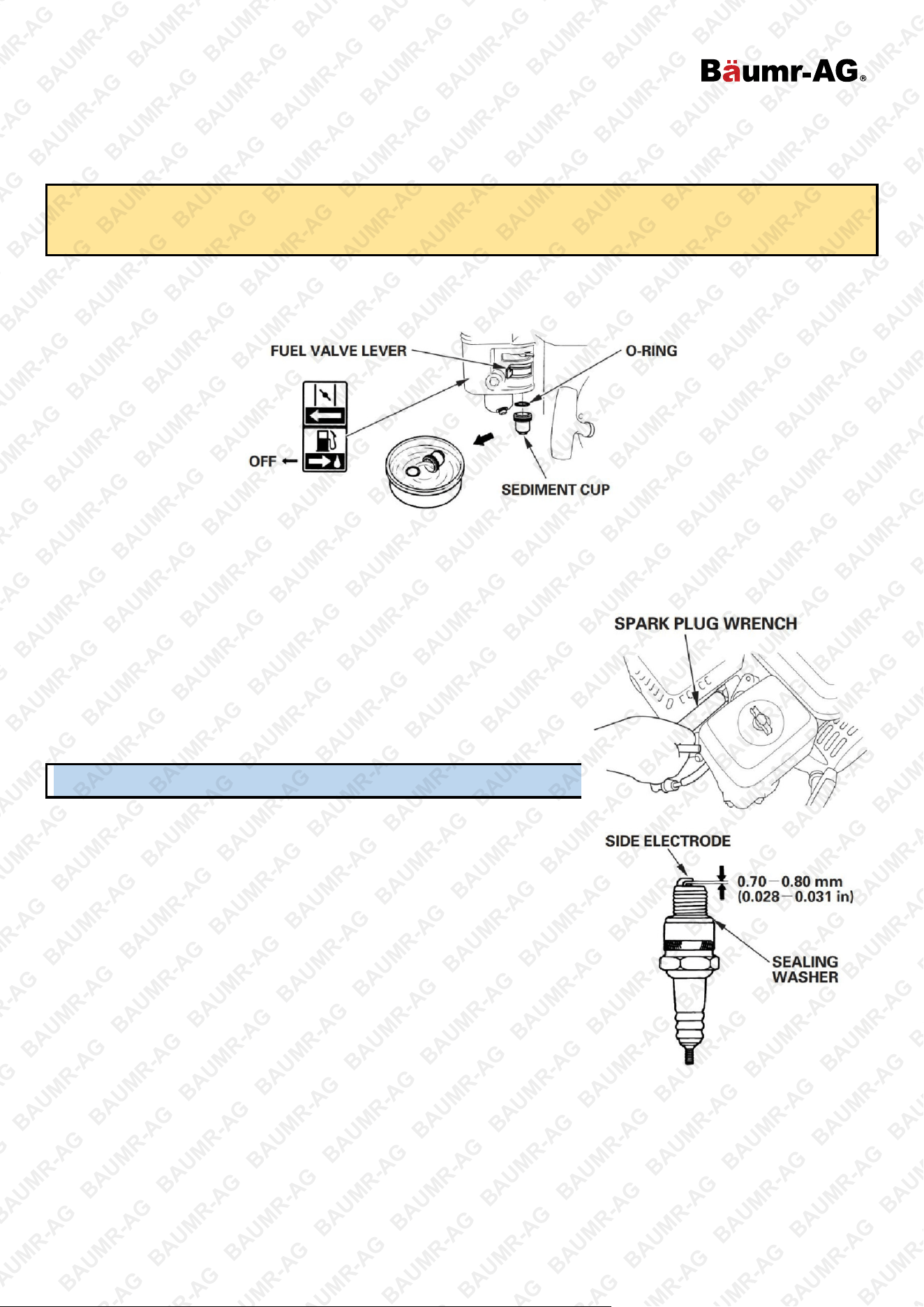

Sediment Cup

Cleaning

WARNING! Gasoline is highly flammable and explosive, and you can be burned or seriously injured

when handling fuel. Stop engine and keep heat, sparks, and flame away. Handle fuel only outdoors. Wipe

up spills immediately.

1. Move the fuel valve to the OFF position, then remove the fuel sediment cup and O-ring.

2. Wash the sediment cup and O-ring in nonflammable solvent and dry them thoroughly.

3. Place the O-ring in the fuel valve and install the sediment cup. Tighten the sediment cup securely.

4. Move the fuel valve to the ON position, and check for leaks. Replace the O-ring if there is any leakage.

Spark Plug

Recommended Spark Plugs: F7TC.F7RTC or other

equivalents

The recommended spark plug is the correct heat range for normal

engine operating temperatures.

NOTE: An incorrect spark plug can cause engine damage.

For good performance, the spark plug must be properly gapped and free

of deposits.

1. Disconnect the spark plug cap and remove any dirt from around the

spark plug area.

2. Remove the spark plug with a spark plug wrench.

3. Inspect the spark plug. Replace it if damaged, badly fouled, if the

sealing washer is in poor condition, or if the electrode is worn.

4. Measure the spark plug electrode gap with a wire-type feeler gauge.

Correct the gap, if necessary, by carefully bending the side

electrode. The gap should be: 0.70 －0.80 mm (0.028 －0.031 in)

5. Install the spark plug carefully, by hand, to avoid cross-threading.

6. After the spark plug is seated, tighten with a spark plug wrench to compress the sealing washer.

7. When installing a new spark plug, tighten 1/2 turn after the spark plug seats to compress the washer.

8. When reinstalling the original spark plug, tighten 1/8 －1/4 turn after the spark plug seats to compress the

washer.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Hercules HPS400 Log Splitter

NOTE: A loose spark plug can overheat and damage the engine. Overtightening the spark plug can

damage the threads in the cylinder head.

9. Attach the spark plug cap to the spark plug.

Idle Speed Adjustment

1. Start the engine outdoors and allow it to warm up to operating temperature.

2. Move the throttle lever to its minimum position.

3. Turn the throttle stop screw to obtain the standard idle speed. Standard idle speed: 1,800±150 rpm.

Log Splitter Maintenance

1. Before performing maintenance, the log splitter must be placed in maintenance mode. Turn off the engine

and move the control lever forward and backwards to release any hydraulic pressure.

2. After performing any maintenance, make sure all guards, shields and safety features are put back in place

before operating the log splitter.

3. Regularly (and as needed) grease the axle and wheel bearing area.

4. After greasing the wheel bearings, make sure the axle nuts and pins are in place and secure.

5. Periodically check all fasteners and hoses for tightness and leaks.

6. Annually (and as needed) clean and lightly lubricate all moving parts of the log splitter.

7. Use a glossy enamel spray paint to touch up any scratched/worn painted metal surfaces.

8. Never exceed the load capacity rating of 9 tons as doing so will damage the log splitter.

What When How

Hoses Each use

Inspect hoses for exposed wire mesh

and leaks. Replace all worn or

damaged hoses before starting the

engine.

Hydraulic Fittings Each use

Inspect fittings for cracks and leaks.

Replace all damaged fittings before

starting the engine.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Hercules HPS400 Log Splitter

What When How

Nuts and Bolts Each use

Check for any loose nuts and bolts;

tighten before operating the log

splitter.

Beam Each use Apply grease to the beam surface.

Moving Parts Each use

Clear and debris from all moving parts

before using the log splitter.

Refer to the Engine Owner’s Manual for engine maintenance.

IMPORTANT! If a part needs replacement, only use parts that meet the manufacturer’s specifications.

Using replacement parts that do not meet manufacturer’s specifications can create safety hazards, poor

machine operation and damage to the log splitter.

Storage

1. Before storing the log splitter make sure the machine is clean and dry.

2. Lightly lubricate all the log splitter’s surfaces and moving parts to prevent rust.

3. Always store the log splitter indoors or in a protected area, especially during severe weather and cold winter

months.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Hercules HPS400 Log Splitter

Troubleshooting

WARNING! Before attempting troubleshooting or to service the log splitter, read and follow all safety

instructions to avoid serious injury to the operator or bystanders from moving parts that can crush, cut,

burn, or release high pressure hydraulic fluid.

PROBLEM CAUSE REMEDY

Slow cylinder shaft speed while

extending and retracting

1. Gear sections damaged.

2. Excessive pump inlet vacuum.

3. Slow engine speed.

4. Damaged relief valve.

5. Incorrect oil level.

6. Contaminated oil.

7. Directional valve leaking

internally.

8. Internally damaged cylinder.

1. See an authorised service dealer.

2. Check that pump inlet hoses are

clear and unblocked. Use only

short, large diameter inlet hoses.

3. See an authorised service dealer.

4. See an authorised service dealer.

5. Check the oil level and fill to

correct level.

6. Drain oil, clean the reservoir, and

refill with clean oil.

7. See an authorised service dealer.

8. See an authorised service dealer.

Leaking Cylinder

1. Broken seals.

2. Scored cylinder.

1. See an authorised service dealer.

2. See an authorised service dealer.

Engine runs, but wood will not

split or wood splits too slowly

1. Small gear section damaged.

2. Pump check valve leaking.

3. Excessive pump inlet vacuum.

4. Incorrect oil level.

5. Contaminated oil.

6. Directional valve leaking

internally.

7. Overloaded cylinder.

8. Internally damaged cylinder.

1. See an authorised service dealer.

2. See an authorised service dealer.

3. Check that pump inlet hoses are

clear and unblocked.

4. Check the oil level and fill to

correct level.

5. Drain oil, clean the reservoir, and

refill with clean oil.

6. See an authorised service dealer.

7. Do not attempt to split wood

against the grain.

8. See an authorised service dealer.

Engine stalls during splitting

1. Low horsepower/weak engine.

2. Overloaded cylinder.

1. See an authorised service dealer.

2. Do not attempt to split wood

against the grain; see authorised

service dealer.

Engine will not turn or stalls

under low load conditions

1. Engine/pump misalignment.

2. Frozen or seized pump.

3. Low horsepower/weak engine.

4. Hydraulic lines blocked.

5. Blocked directional valve.

1. Correct alignment as necessary.

2. See an authorised service dealer.

3. See an authorised service dealer.

4. Flush and clean the hydraulic

system.

5. Flush and clean the hydraulic

system.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Hercules HPS400 Log Splitter

PROBLEM CAUSE REMEDY

Leaking pump shaft seal

1. Broken drive shaft.

2. Engine/pump misalignment.

3. Gear sections damaged.

4. Poorly positioned shaft seal.

5. Plugged oil breather.

1. See an authorised service dealer.

2. Correct alignment of the engine

and/or pump.

3. See an authorised service dealer.

4. See an authorised service dealer.

5. Check that reservoir is properly

vented.

Engine fails to start

1. Spark plug wire is disconnected.

2. Fuel tank is empty, or fuel is

stake.

3. Choke, if equipped, not in HOKE

position.

4. Faulty spark plug.

5. Blocked fuel line.

6. If engine is equipped with a

primer, engine is not primed

properly.

7. Throttle control lever is not in the

correct starting position.

1. Connect wire to the spark plug.

2. Fill the tank with clean, fresh

gasoline.

3. Move the choke to CHOKE

position.

4. Clean, adjust the gap, or replace

the spark plug.

5. Clean the fuel line.

6. Properly prime the engine.

7. Move the throttle lever to the

FAST position.

Engine runs erratically

1. Unit running with CHOKE applied.

2. Spark plug wire is loose.

3. 3. Blocked fuel line or stale fuel.

4. 4. Water or dirt in the fuel system.

5. 5. Dirty air cleaner.

6. 6. Carburettor not adjusted

properly.

1. Move the choke lever to OFF

position.

2. Connect and tighten the spark

plug wire.

3. Clean the fuel line; fill tank with

clean, fresh (less than 30 days

old) gasoline.

4. Drain the fuel tank. Refill the tank

with clean, fresh fuel.

5. Clean or replace the air cleaner.

6. See an authorised service dealer.

Engine Overheats

1. Engine oil level low.

2. Dirty air cleaner.

3. Carburettor not adjusted properly.

1. Fill crankcase with proper amount

of oil.

2. Clean or replace the air cleaner.

3. See an authorised service dealer.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Hercules HPS400 Log Splitter

PROBLEM CAUSE REMEDY

Cylinder rod stuck/will not move

1. Broken drive shaft.

2. Screws in coupling not adjusted

properly.

3. Loose shaft coupling.

4. Gear sections are damaged.

5. Damaged relief valve.

6. Hydraulic lines are blocked.

7. Incorrect oil level.

8. Damaged directional valve.

9. Blocked directional valve.

1. See an authorised service dealer.

2. See the operator’s manual for

correct adjustment instructions.

3. Correct the engine and pump

alignment as necessary.

4. See an authorised service dealer.

5. See an authorised service dealer.

6. Flush and clean the hydraulic

system.

7. Check oil level and fill to correct

level.

8. See an authorised service dealer.

9. Flush and clean the hydraulic

system.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Hercules HPS400 Log Splitter

Specifications

Engine Type 7.0hp 4-stroke (Euro V standard)

Engine Displacement 212cc

Recommended Engine Oil SAE10W-30

Log splitter Type Horizontal

Fuel Type Petrol Regular Unleaded 95+ RON

Max. Tested Splitting Force 12 Tons

Max. Spitting Length 490mm

Max. Ram Travel 465mm

Hydraulic Cylinder Diameter 70mm

Hydraulic Oil Capacity 5L

Hydraulic Oil Type AW32, AW46 & universal hydraulic oil (not included with purchase)

Log Diameter (species dependent - view Buying Guide)

Cycle Time 14.5 sec

Tyre type 10” Flat-free wheels

Coupling attachment 2” Mount

Note: Not suitable for road registration. For more information about selecting the right log splitter view the Buying

Guide. Assembly Required

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Some experts believe that the incorrect or prolonged use of almost any

product may cause serious injury or death. To help reduce your risk of

serious injury or death, refer to the information below. For more information,

see www.datastreamserver.com/safety



Consult all documentation, packaging,

and product labelling before use. Note

that some products feature

documentation available online. It is

recommended to print and retain the

documentation.



Before each use, check the product for

loose/broken/damaged/missing parts,

wear, or leaks (if applicable). Never use a

product with

loose/broken/damaged/missing parts,

wear, or leaks.



Products must be inspected and serviced

(if applicable) by a qualified technician

every 6 months. This is based on

average residential use by persons of

average size and strength, and on a

property of average metropolitan size.

Use beyond these recommendations may

require more frequent

inspections/servicing.



Ensure that all users of the product have

completed a suitable industry recognised

training course before being allowed

access to the product.



The product has been supplied by a general merchandise

retailer that may not be familiar with your specific

application or description of application. Be sure to attain

third-party approval from a qualified specialist for your

application before use, regardless of any assurances from

the retailer or its representatives.



This product is not intended for use where fail-safe

operation is required. As with any product (for example,

automobile, computer, toaster), there is the possibility of

technical issues that may require the repair or

replacement of parts, or the product itself. If the possibility

of such failure and the associated time it may take to

rectify could in any way inconvenience the user, business,

or employee, or financially affect the user, business, or

employee, then the product is not suitable for your

requirements. This product is not intended for use where

incorrect operation or a failure of any kind, including but

not limited to, a condition requiring product return,

replacement, parts replacement, or service by a

technician may cause financial loss, loss of employee

time or an inconvenience requiring compensation.



If this product has been purchased in error when

considering the information presented here, contact the

retailer directly for details of their returns policy, if

required.

diagrams, or images may be reproduced or transmitted in any form or by any means, electronic or
