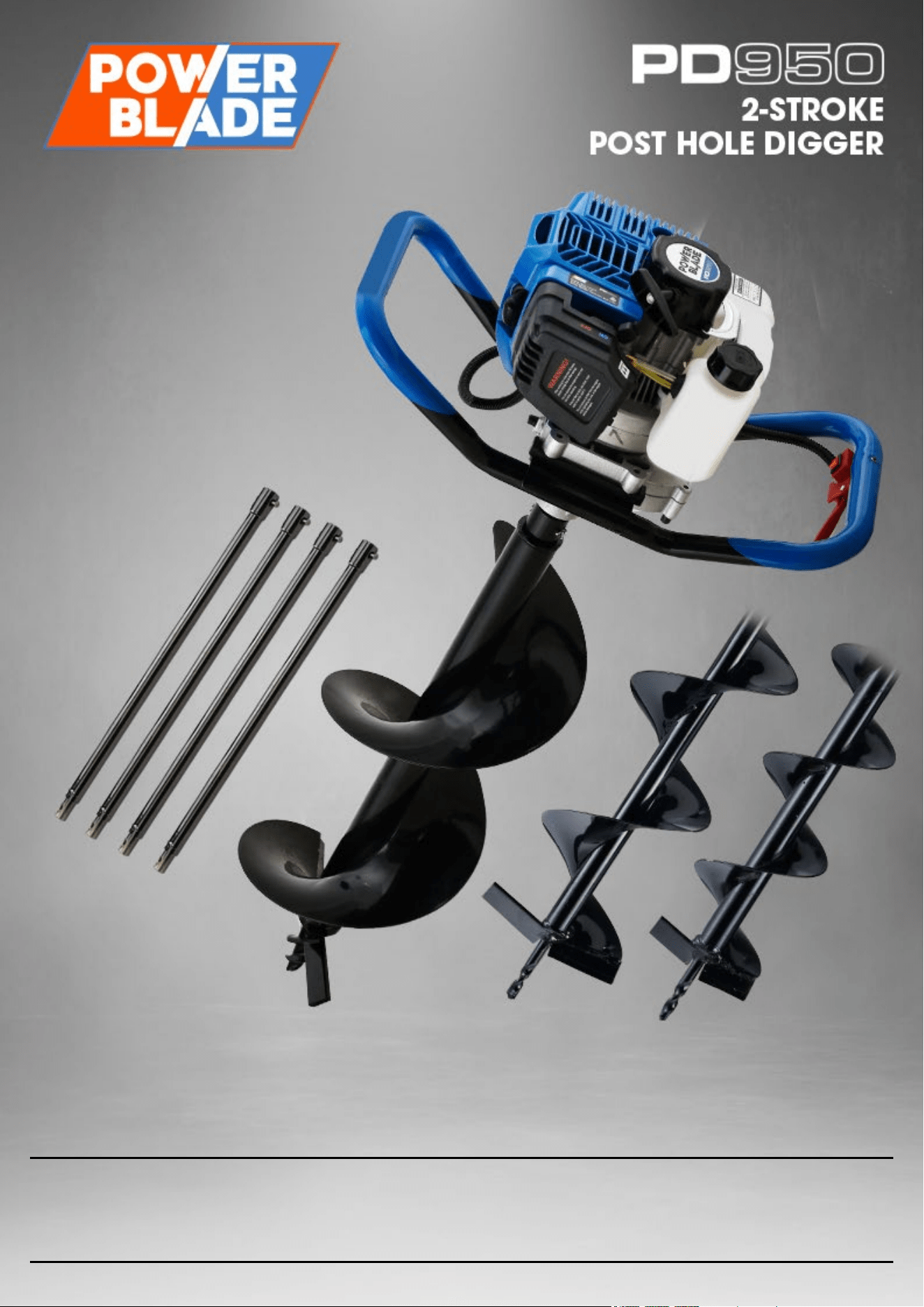

POWERBLADE PHDPTRPB9C2A PD950 52cc 2-Stroke Petrol Post User Manual

User Manual

[Revision 2.0]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY

VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance,

assembly, inclusions, specifications, description, and packaging.

The product is NOT supplied with engine oil, although traces of oil from the manufacturing process may be present. It is essential to add

adequate engine oil of the correct type to the engine before use. Failure to add engine oil will void the product warranty.

PD950 2-Stroke Post Hole Digger

E&OE © PowerBlade 2

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or

equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be INJURED if you do

not follow instructions or equipment

damage may occur.

It is vital that you read and understand this

user manual before using the product,

including safety warnings, and any assembly

and operating instructions. Keep the manual

for future reference.

Safety precautions and recommendations

detailed here must be fully understood and

followed to reduce the risk of injury, fire,

explosion, electrical hazard, and/or property

damage.

Safety information presented here is generic

in nature – some advice may not be

applicable to every product. The term

"equipment" refers to the product, be it

electrical mains powered, battery powered or

combustion engine powered.

• Before Use - If you are not familiar with the

safe operation/handling of the equipment or

are in any way unsure of any aspect of

suitability or correct use for your

application, you should complete training

conducted by a person or organization

qualified in safe use and operation of this

equipment, including fuel/electrical handling

and safety.

• Do NOT operate the equipment in

flammable or explosive environments, such

as in the presence of flammable liquids,

gases, or dust. The equipment may create

sparks or heat that may ignite flammable

substances.

• Keep clear of moving parts.

• Equipment may be a potential source of

electric shock or injury if misused.

• Do NOT operate the equipment if it is

damaged, malfunctioning or is in an

excessively worn state.

• Do NOT allow others to use the equipment

unless they have read this manual and are

adequately trained.

• Keep packaging away from children - risk

of suffocation! Operators must use the

equipment correctly. When using the

equipment, consider conditions and pay

due care to persons and property.

General Work Area Safety

• Wor

k areas should be clean and well it.

• Do not operate the equipment if

bystanders, animals etc are within

operating range of the equipment or the

general work area.

• If devices are provided for connecting dust

extraction / collection facilities, ensure

these are connected and used properly.

Dust collection can reduce dust-related

hazards.

General Personal Safety

• Wear

appropriate protective equipment

when operating, servicing, or when in the

operating area of the equipment to help

protect from eye and ear injury, poisoning,

burns, cutting and crush injuries. Protective

equipment such as safety goggles,

respirators, non-slip safety footwear, hard

hat, hearing protection etc should be used

for appropriate equipment / conditions.

Other people nearby should also wear

appropriate personal protective equipment.

Do not wear loose clothing or jewellery,

which can be caught in moving parts. Keep

hair and clothing away from the equipment.

• Stay alert and use common sense when

operating the equipment. Do not over-

reach. Always maintain secure footing and

balance.

• Do not use the equipment if tired or under

the influence of drugs, alcohol, or

medication.

• This equipment is not intended for use by

persons with reduced physical, sensory, or

mental capabilities.

General Fuel Safety

• P

etrol/fuel/gasoline is extremely flammable

– keep clear of naked flames or other

ignition sources.

• Do not spill fuel. If you spill fuel, wipe it off

the equipment immediately – if fuel gets on

your clothing, change clothing.

• Do NOT smoke near fuel or when

refuelling.

• Always shut off the engine before

refuelling.

• Do NOT refuel a hot engine.

• Open the fuel cap carefully to allow any

pressure build-up in the tank to release

slowly.

• Always refuel in well ventilated areas.

• Always check for fuel leakage. If fuel

leakage is found, do not start, or run the

engine until all leaks are fixed.

General Carbon-Monoxide Safety

• U

sing a combustion engine indoors CAN

KILL IN MINUTES. Engine exhaust

contains carbon-monoxide – a poison you

cannot smell or see.

• Use combustion engines OUTSIDE only,

and far away from windows, doors, and

vents.

General Equipment Use and Care

• K

eep packaging away from children and

pets, potential risk of suffocation or

choking.

• The equipment is designed for domestic

use only.

• Handle the equipment safely and carefully.

• Before use, inspect the equipment for

misalignment or binding of moving parts,

loose components, damage, or any other

condition that may affect its operation. If

damaged, have the equipment repaired by

an authorised service centre or technician

before use.

• Prevent unintentional starting of the

equipment - ensure equipment and power

switches are in the OFF position before

connecting or moving equipment. Do not

carry equipment with hands or fingers

touching any controls. Remove any tools or

other items that are not a part of the

equipment from it before starting or

switching on.

• Do not force the equipment. Use the

correct equipment for your application.

Equipment will perform better and be safer

when used within its design and usage

parameters.

• Use the equipment and accessories etc. in

accordance with these instructions,

considering working conditions and the

work to be performed. Using the equipment

for operations different from those intended

could result in hazardous situations.

• Always keep equipment components

(engines, hoses, handles, controls, frames,

housings, guards etc) and accessories

(cutting tools, nozzles, bits etc) properly

maintained. Keep the equipment clean and,

where applicable, properly lubricated.

• Store the equipment out of reach of

children or untrained persons. To avoid

burns or fire hazards, let the equipment

cool completely before transporting or

storing. Never place or store the equipment

near flammable materials, combustible

gases, or liquids etc.

• The equipment is not weather-proof, and

should not be stored in direct sunlight, at

high ambient temperatures or locations that

are damp or humid.

• Do not clean equipment with solvents,

flammable liquids, or harsh abrasives.

• For specific equipment safety use and care,

see Equipment Safety.

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

PD950 2-Stroke Post Hole Digger

E&OE © PowerBlade 3

General Electrical Safety

• I

nspect electrical equipment, extension

cords, power bars, and electrical fittings for

damage or wear before each use. Repair or

replace damaged equipment immediately.

• Ensure all power sources conform to

equipment voltage requirements and are

disconnected before connecting or

disconnecting equipment.

• When wiring electrically powered

equipment, follow all electrical and safety

codes.

• Always use a Residual Current Device

(RCD) (GFCI) / Earth Leakage Circuit

Breaker / Safety Switch when operating this

item (electrical items only).

• High voltage / high current power lines may

be present. Use extreme caution to avoid

contact or interference with power lines.

Electrical shock can be fatal.

General Electrical Safety

• E

lectrically grounded equipment must have

an approved cord and plug and be

connected to a grounded electrical outlet.

• Do NOT bypass the ON/OFF switch and

operate equipment by connecting and

disconnecting the electrical cord.

• Do NOT use equipment that has exposed

wiring, damaged switches, covers or

guards.

• Do NOT use electrical equipment in wet

conditions or in damp locations.

• Do NOT use electrical cords to lift, move or

carry equipment.

• Do NOT coil or knot electrical cords, and

ensure electrical cords are not trip hazards.

General Service Information

• T

he equipment must be serviced or

repaired at authorised service centres by

qualified personnel only.

• Replacement parts must be original

equipment manufacturer (OEM) to ensure

equipment safety is maintained.

• Do NOT attempt any maintenance or repair

work not described in this manual.

• After use, the equipment and components

may still be hot – allow the equipment to

cool and disconnect spark plugs and/or

electrical power sources and/or batteries

from it before adjusting, changing

accessories, or performing repair or

maintenance.

• Do NOT adjust while the equipment is

running.

• Perform service-related activities in suitable

conditions, such as a workshop.

• Replace worn, damaged or missing

warning/safety labels immediately.

Child Choking Hazard!

• W

ARNING: CHOKING HAZARD - CHILDREN UNDER 8 YRS. CAN CHOKE OR SUFFOCATE ON SMALL PARTS. ADULT

SUPERVISION REQUIRED.

• Carefully inspect anything a baby or child could gain access to, including this product & packaging.

• Dangers include anything of a size that could become stuck or lodged in a baby or child's airway.

• Dangers include things like raw, hard fruit and vegetable pieces, large pieces of meat, bones or sausage skins, popcorn, nuts,

hard lollies and corn chips, small magnets and batteries, coins, beads, marbles and small uninflated balloons, broken toys and smaller toys,

buttons, keys, and coins. But there are also many more.

• Pay particular attention to accessories, nuts, bolts, screws, washers, caps, covers, loose parts, parts that could be removed or break off, pieces

of packaging, staples, tape etc.

• In the case of any doubt, secure the item of concern in an appropriate manner, or completely remove the possibility of access by a baby or child.

Product Safety

FOR YOUR SAFETY, PLEASE FOLLOW THE INSTRUCTIONS ON THE SAFE OPERATION OF THE RULES OF OPERATION AND

T

ECHNICAL MAINTENANCE, OR WILL CAUSE HARM TO YOUR PERSONAL SAFETY OR DAMAGE THE MACHINE. WARNING! FAILURE

TO FOLLOW INSTRUCTIONS CAN INSTANTLY RESULT IN INJURY OR DEATH.

Personal Safety

• Wear

a mask, goggles, helmet, and earplugs when using machine.

• Do not wear loose clothing, jewellery, shorts, slippers, or bare feet. Make sure your hair is above the shoulders.

• Do not use this tool when you are tired, sick, under the influence of alcohol or medication.

• Do not allow children or inexperienced personnel to operate the machine.

• Wear hearing protection.

• Keep the handle dry and focus on holding the handle tightly.

• Keep your hands away from the drill while the machine is running.

• Hold the handle with both hands and make sure to stand on firm ground.

• When the operation time is too long, it is necessary to take a short break from time to time.

• Be careful about your feet, do not let them come close to the rotating auger.

• Be careful: debris can be thrown away with high speed.

• Keep by standers 15m away from auger.

• Do not touch the sparking plug or high-pressure cable during the operation, otherwise it will cause electric shock.

• In order to avoid burns, please do not touching the engine, muffler, and exhaust due to these parts are very hot during use, even before the

engine is stopped and after cooling.

• When the operation time is too long, intermittent moments should be taken from time to time to avoid white finger disease which may be caused

by vibration.

• WARNING! FAILURE TO FOLLOW THE OPERATING INSTRUCTIONS CAN RESULT IN PERSONAL INJURY OR EQUIPMENT DAMAGE.

Tool Safety

• P

lease thoroughly check the tool before each use. Check whether it has fuel leaks and ensure that all fasteners are in place and fastened.

• Please always replace parts that has cracked, broken or damaged before use.

• Keep other people away from during carburettor adjustment.

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

PD950 2-Stroke Post Hole Digger

E&OE © PowerBlade 4

• Please use parts according to recommendation of the manufacturer.

• WARNING! DO NOT MODIFY THE TOOL IN ANY WAY, DO NOT MODIFY THE TOOL FOR OTHER PURPOSES.

Fuel Safety

• P

lease avoid sparks or flames during mix and pour the fuel outdoors.

• Please use containers that are allowed for fuel.

• Please do not smoke near the tool and fuel, and do not allow others to smoke during using the tool.

• Stop the engine and ensure that it is sufficiently cool when injecting fuel and choose a place with good ventilation and no ventilation.

• Please remove all fuel spills before starting up the engine. Keep it at least 3 meters away from the burning zone before starting up.

• Please stop the engine before removing the fuel cover.

• Please empty the fuel before collecting the tools. It is recommended to empty after each use. If the fuel is left in the tank, the fuel must be not

leak.

• In the storage area of tools and fuels, gasoline engines cannot be placed near heaters, motors or electric switches, stoves, etc. to produce sparks

or open flames.

• WARNING! THE ANTI-VIBRATION SYSTEM DOES NOT GUARANTEE THAT YOU WILL NOT GET A WHITE FINGER DISEASE OR

CARPAL TUNNEL SYNDROME. THEREFORE, REGULAR OPERATORS SHOULD MONITOR THEIR FINGERS. PLEASE SEE A DOCTOR

IF THEY HAVE ANY ABOVE SYMPTOMS.

Maintenance Safety

• P

lease maintain the tool according to the recommended instructions.

• Please stop the engine before performing maintenance.

• Others should keep away from carburettor if making carburettor adjustment.

• Please replace only with genuine parts recommended by the manufacturer.

• When the machine is not used temporarily, clean and dry the machine, and place it in a dry and clean place. The drill bit shall be removed, and

the main shaft and threaded connection part of the machine shall be coated with anti-rust oil for maintenance.

Transportation and storage

• S

top the run of engine and hold the tool, to keep the silencer away from your body.

• Please allow the engine to cool down, empty the fuel tank, and secure the tool before storing or using the gasoline carrier.

• Please empty the fuel tank before storing the tool. It is recommended to empty the fuel after each use. If the fuel remains in the tank, store it so

that the fuel does not leak.

• Keep tools out of children.

• Please carefully clean the device and store it in a dry place.

• Please make sure the engine switch is off before transporting or storing.

• If the situation is not covered in the Manual, please judge it carefully and handle it carefully. If you need help, please contact your dealer.

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

PD950 2-Stroke Post Hole Digger

E&OE © PowerBlade 5

DANGER

Running combustion engines in confined

areas CAN KILL IN MINUTES. Engine

exhaust fumes contain carbon-monoxide –

a deadly gas that you cannot smell or see.

NEVER run a combustion engine in

confined areas EVEN IF windows and doors

are open. ONLY run petrol engines

OUTDOORS and away from doors,

windows, and vents.

Do not operate the equipment in hazardous locations, such

as where there may be a risk of fire or explosions from

flammable liquids, gases or dust.

Do not operate the equipment in confined areas where

exhaust gases, smoke or fumes could reach dangerous

concentrations.

Do not refuel a combustion engine while it is running on or

hot.

Never smoke while refueling combustion engines or

handling flammable substances.

For generators, the electrical output is potentially lethal and

must only be connected to a fixed electrical installation by

an appropriately licensed person.

Be aware that the equipment may include hazardous

components, such as blades, hot surfaces and moving

parts.

Handle any flammable substance with extreme caution.

•

Be aware that the equipment may include hazardous components, such as blades, hot surfaces and

moving parts.

•

Moving blades can cause serious injury and even death if used improperly or without sufficient PPE.

•

Do not use this equipment on uneven surfaces and always maintain good balance when using this

equipment. Failure to do so may cause serious injury.

•

Maintain a secure grip of the trigger assembly at all times.

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

PD950 2-Stroke Post Hole Digger

E&OE © PowerBlade 6

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on your

product and their meanings. If any stickers become unreadable, unattached etc., replace them.

Flammable Material Hazard

Flammable liquids, gases, or

substances etc may present.

Avoid ignition sources and open

flames. Danger of fire.

Read User Manual

Read and fully understand

product safety warnings,

operation, procedures etc before

using the product.

Use Hand Protection

Wear appropriate hand protection

and take due care as the product

or use of the product may present

hand hazards.

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be fatal.

Electrocution / Electrical Shock

Hazard

High voltage or high current

electricity may be present or

required by the product. Take

due care when handling electrical

products, cables, plugs and

leads. Electrical shock can be

fatal.

Toxic Fumes / Dust Hazard

Using the product or by-products

from use may produce fumes,

smoke or particles that could be

harmful if inhaled. Wear

appropriate breathing protection

and have adequate ventilation.

Explosive Material Hazard

Combustible liquids, gases, or

substances etc may be present.

Avoid ignition sources and open

flames. Danger of explosion.

Cutting / Amputation Hazard

The product may have blades,

edges or mechanical devices that

can cause severe cut injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Crush Hazard

The product may have blades,

edges or mechanical devices that

can cause severe crush injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Single Operator Only

The product must be operated by

a single person only. More than

one person operating the product

may introduce additional hazards.

Use Face Protection

Wear appropriate full-face

protection and take due care as

the product or use of the product

may present face and eye

hazards.

Use Foot Protection

Wear appropriate foot protection

and take due care as the product

or use of the product may present

foot hazards.

Use Eye / Ear / Head Protection

Wear appropriate eye and / or

ear and / or head protection and

take due care as the product or

use of the product may present

eye, hearing, and head hazards.

Running Hazard

Do not run on or near the product

as doing so may present a fall

hazard.

Diving Hazard

Do not dive into the product as

doing so may present a neck /

head injury hazard.

Adult Supervision Required

Always supervise children and

other users of a product to

prevent drowning or injury.

Skin Penetration / Puncture

Hazard

The product may produce

pressure, emit liquids or objects

that can cause severe injury to

fingers, limbs, blood etc. Take

due care when handling and

using the product.

Hot Surface Hazard

Be aware that the product may

produce high temperatures and

hot surfaces that can cause burn

injuries.

Flying Debris Hazard

Be aware that the product or use

of the product may present

hazards produced by flying

debris. Wear appropriate clothing

and protective devices.

Moving Parts Hazard

Be aware that the product

contains or uses mechanical

devices that move or rotate.

Always wait for moving parts to

stop fully before handling the

product, adjusting, maintenance

etc.

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

PD950 2-Stroke Post Hole Digger

E&OE © PowerBlade 7

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be fatal.

Pull Hazard

Be aware that the product

contains or uses mechanical

devices that can pull in objects

and can cause severe injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Slope / Fall Injury Hazard

Be aware that using the product

on sloping surfaces or in slippery

conditions may present additional

dangers from falls and contact

with blades, moving parts, hot

surfaces etc.

"Slam Dunk" Warning

Do NOT attempt "slam dunk"

manoeuvres as this may result in

severe injury due to falling,

product breakage or collapse etc.

Electrocution / Electrical Shock

Hazard - Outdoor

High voltage or high current

electricity may be present or

required by the product. Do NOT

use in rain, damp, or wet

conditions. Electrical shock can

be fatal.

Electrocution / Electrical Shock

Hazard - Disconnect

High voltage or high current

electricity may be present or

required by the product. Always

disconnect the product from the

electrical supply before handling

the product, adjusting,

maintenance etc.

Power Line Electrocution

Hazard

High voltage / high current power

lines may be present. Use

extreme caution to avoid contact

or interference with power lines.

Electrical shock can be fatal.

"Kick-Back" Hazard

High level of "kick-back" hazard

that can cause the machine to

suddenly rotate towards operator.

Kick-back injury can be fatal.

Winch Operator Position

Hazard

Do NOT stand between winch

and load. Do NOT use winch to

move people.

Winch Lift Hazard

Do NOT LIFT load vertically. Use

machine to PULL only.

Cable Hazard

Ensure that load bearing cable is

not kinked or knotted.

Winch Cable Hazard

Ensure that there is a minimum

number of cable coils on

winching mechanism.

Winch Hook Hazard

Carry hook to load – do NOT

throw or run.

Flash / Blinding Hazard

Wear appropriate eye protection

for welding. Direct exposure to

weld arcs may cause permanent

eye injury.

Laser Hazard

Laser may be in use – do NOT

look directly at laser or allow

others to.

Choking Hazard

Children under 8 yrs. Can choke

or suffocate on small parts. Adult

supervision required.

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

PD950 2-Stroke Post Hole Digger

E&OE © PowerBlade 8

Table of Contents

Safety ......................................................................................................................................................... 2

Safety Symbols ........................................................................................................................................................... 6

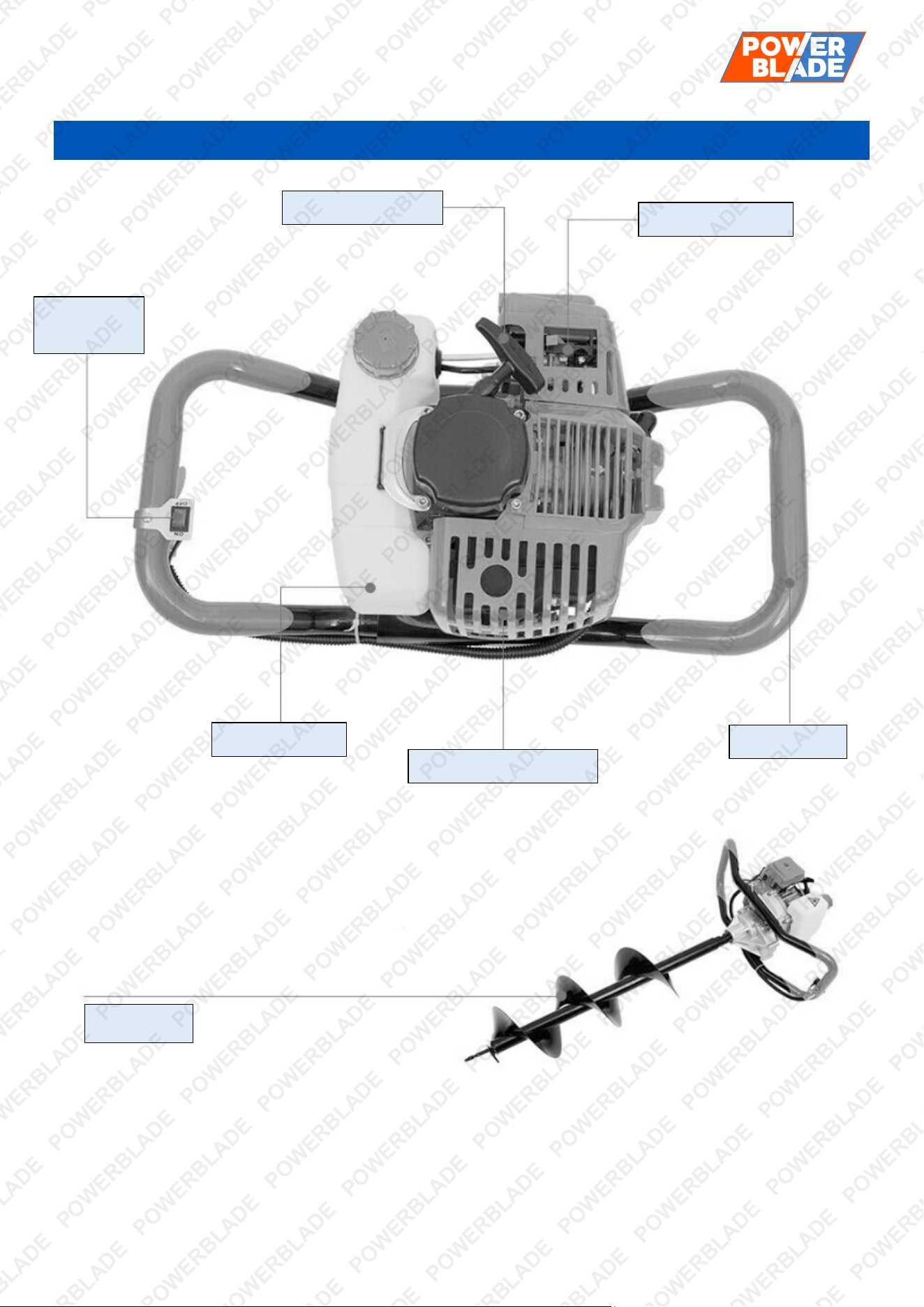

Parts Identification .................................................................................................................................... 9

Equipment Safety .................................................................................................................................... 10

Before Use ............................................................................................................................................... 12

Assembly ................................................................................................................................................. 12

Engine Oil ................................................................................................................................................................. 12

Auger ........................................................................................................................................................................ 13

Air Filter .................................................................................................................................................................... 13

Fuel ........................................................................................................................................................................... 13

Operation ................................................................................................................................................. 15

Starting the Engine ................................................................................................................................................... 15

Stopping the Engine ................................................................................................................................................. 15

Environmental Considerations .................................................................................................................................. 16

Post Hole Digger Operation ...................................................................................................................................... 16

Maintenance ............................................................................................................................................. 17

Maintenance Schedule – 2-Stroke Engine / Machine .............................................................................................. 18

Maintenance /Check / Overhaul ............................................................................................................................... 19

Daily check ............................................................................................................................................................... 19

Weekly Maintenance ................................................................................................................................................ 19

Monthly Maintenance................................................................................................................................................ 19

Carburettor Adjustments ........................................................................................................................................... 19

Spark Plug Maintenance .......................................................................................................................................... 20

Air Filter Maintenance ............................................................................................................................................... 20

Fuel Filter .................................................................................................................................................................. 21

Silencer ..................................................................................................................................................................... 21

Storage ..................................................................................................................................................................... 21

Troubleshooting ...................................................................................................................................... 22

Specifications .......................................................................................................................................... 24

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

PD950 2-Stroke Post Hole Digger

E&OE © PowerBlade 9

Parts Identification

Starter cord

Choke lever

ON/OFF

switch

Fuel tank

Exhaust hole

Handle

Auger

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

PD950 2-Stroke Post Hole Digger

E&OE © PowerBlade 10

Equipment Safety

Post hole diggers are high-speed, fast-cutting equipment with exposed blades that can cause serious

injury if not used correctly or without taking proper safety precautions. It is extremely important that you

read and fully understand the information in this section and all other safety warnings /

recommendations and usage instructions before using the equipment.

Operator

•

If you are untrained in the use of a hole digger, it is highly recommended that you be trained/instructed by a

suitably qualified or experienced post hole digger user before using the machine.

•

Fully understand how to safely operate the machine and the digging process. See Post Hole Digger

Operation.

•

You must be in good physical condition to use a digger. NEVER operate the machine when tired, or under

the influence of any substance (medication, alcohol, drugs etc) that may impair your judgement, alertness,

physical strength, vision, or dexterity.

•

Maintain sure-footing and balance always when using or handling the digger and have full awareness of your

surroundings and any possible hazards.

•

Prolonged digger use may lead to health complications, such as carpal tunnel syndrome, due to vibration. To

help reduce the possibility of such conditions, wear gloves, take breaks frequently, keep fingers and hands

warm, and maintain the equipment for optimal operation and minimal vibration. It is recommended to seek

medical advice if you feel numbness or burning sensations in fingers/hands.

Clothing and Protective Equipment – All Operators and Assistants

•

Wear approved safety goggles, or safety glasses with adequate top and side protection.

•

Wear suitable hearing protection.

•

Wear heavy-duty, non-slip leather or protective gloves.

•

Wear approved heavy-duty safety boots, with steel toecaps and non-slip soles.

•

Wear suitable overalls or work clothing that fits snugly but does not restrict movement. Avoid loose fitting

clothing, scarves, jewellery etc and keep long hair contained to avoid getting caught or pulled by the

chainsaw or by tree branches etc.

Work Area Safety

•

Use EXTREME CAUTION to avoid power cables – contact can be fatal. Also be aware of plumbing, water

and gas pipes etc. If in any doubt, do NOT dig – contact the appropriate organisation or authority for

information before digging.

•

Be aware of fire risks resulting from machine use. Ensure that the machine exhaust and spark arrestor (if

equipped) is well maintained, and that engine is tuned correctly.

•

Refuel outdoors only. Avoid fuel spillage. Start the machine at least 3m (10') away from the fuelling location.

Operational Safety

•

Do NOT use the machine if the throttle or any safety guard or mechanism is not installed or is not operating

correctly – have the machine inspected and repaired at an authorised service centre before using it again.

•

Always hold the machine firmly with both hands during operation. Always use the machine handles.

•

Do NOT use any auger attachment that is cracked or damaged in any way – replace it.

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

PD950 2-Stroke Post Hole Digger

E&OE © PowerBlade 11

•

Ensure the auger is not obstructed before digging.

•

Ensure that all auger attachments are fully secured before digging.

•

If the auger jams, release the throttle trigger and stop the engine immediately.

•

Do NOT use the equipment for purposes it is not designed for, such as cutting concrete.

•

Do not attach the machine to fixed supports.

Transportation Safety

•

Always STOP the engine before putting the machine down, transporting or working on it (refuelling, adjusting

etc).

•

When transporting the machine in a vehicle, ensure the engine is OFF, the auger is disconnected, and the

machine is secured in an upright position to prevent tip-over, machine damage or fuel spills.

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

PD950 2-Stroke Post Hole Digger

E&OE © PowerBlade 12

Before Use

Ensure that you carry out all procedures below before starting the engine or operating the

equipment. All procedures described are generic in nature and slight variations between

different models may exist. Failure to follow the checklist and carry out the procedures correctly may

result in making the product warranty void.

IMPORTANT! BEFORE EVERY USE:

1. Before attaching the auger drill bit, start & test the engine to ensure the throttle is

assembled correctly, working properly and that no parts are loose/missing. Also ensure the engine

shut-off is working correctly.

2. Shut off the engine.

3. DO NOT USE the item if there is any physical or functional problem. Arrange service or replacement.

4. Once you have confirmed there are no physical or functional problems you may attach the auger drill

bit and start the job.

If you lose control of the engine while in use, simply remove all humans and animals from the area and

wait for it to stop.

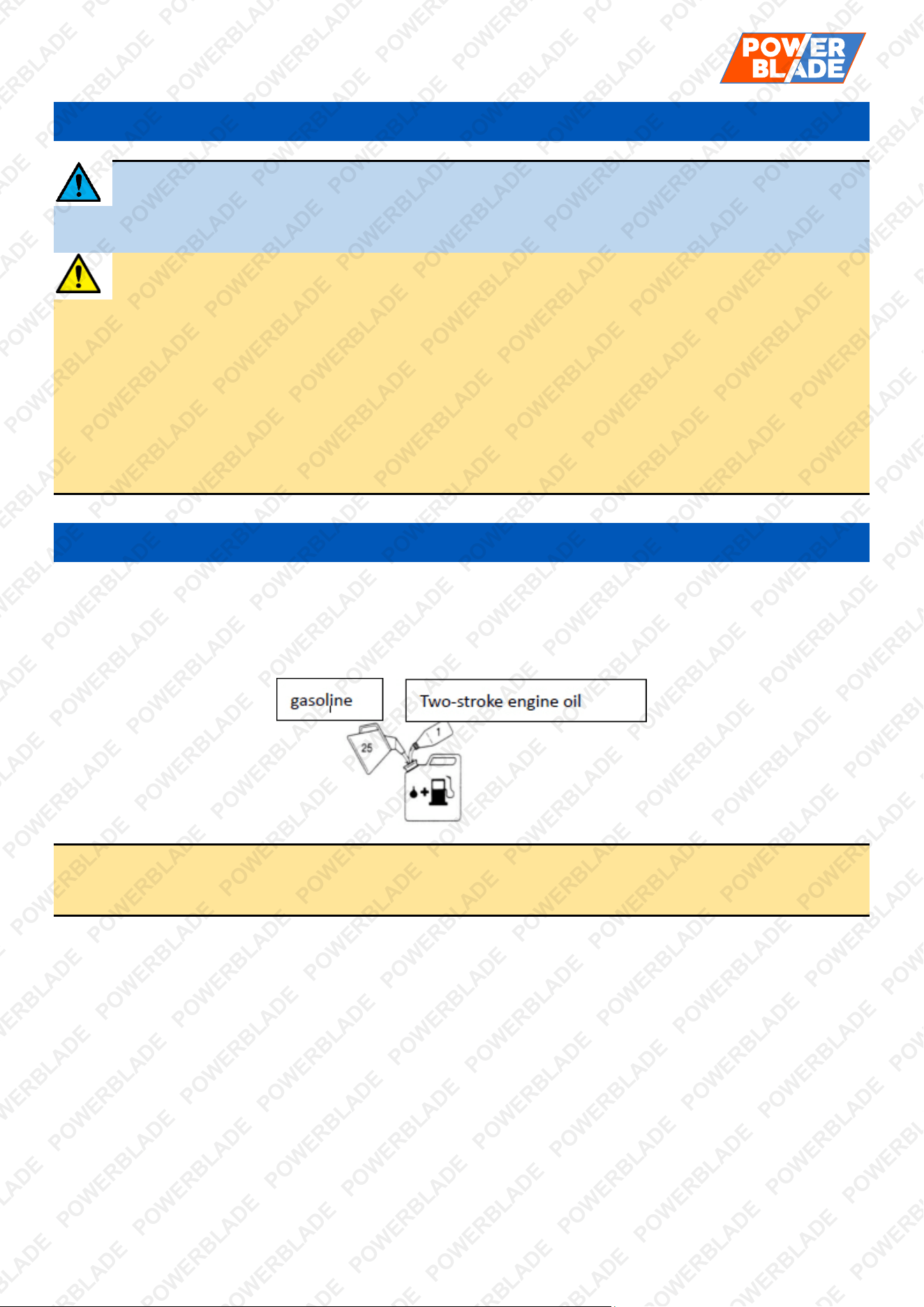

Assembly

Engine Oil

Use only high quality two-stroke engine oil containing gasoline in a mixing ratio of 25:1 (gasoline: two-stroke oil)

WARNING! Do not smoke during oil filling and keep all sources of ignition away from the fuel tank to

avoid fire or burns. Secure the gasoline and oil mixture in a separate, clean container. Wipe off any fuel

spills before starting the engine.

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

PD950 2-Stroke Post Hole Digger

E&OE © PowerBlade 13

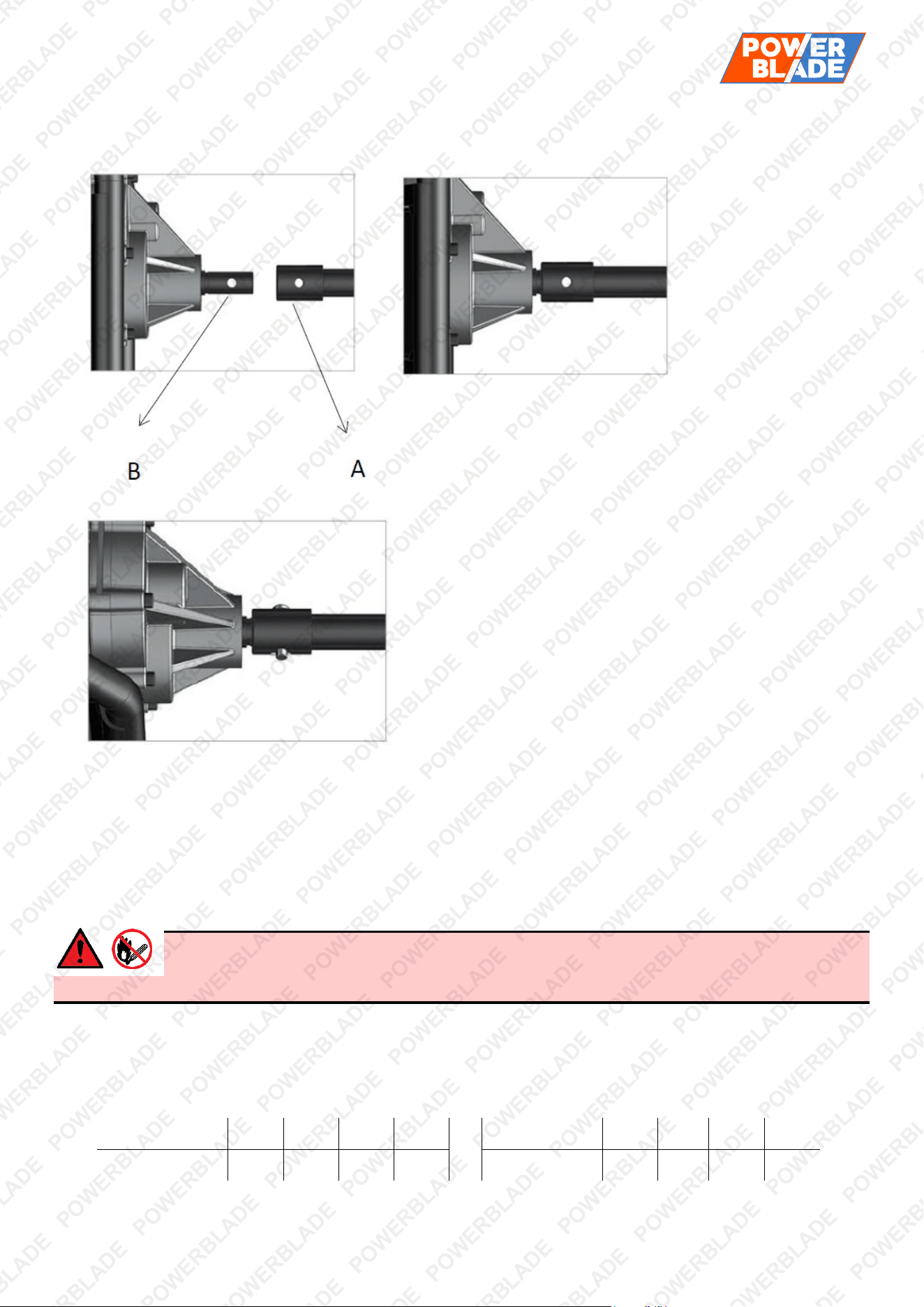

Auger

1. Set the auger (A) into the output shaft of the machine (B).

2. Secure with bolt and split.

Air Filter

The air filter is used to prevent dirt and other particles from possibly entering the engine and causing internal

damage to it. The air filter requires regular maintenance. Always check the air filter before starting the engine.

Fuel

Petrol/fuel/gasoline is extremely flammable – keep clear of naked flames or other ignition

sources. • The engine must be cool before refuelling. • Always pre-mix the fuel before

placing it in the fuel tank. • The fuel to 2-stroke engine oil mixture ratio is 25:1.

Adequately fill the fuel tank with the correct fuel type.

•

Use non-ethanol unleaded petrol mixed at a 25:1 ratio with 2-stroke engine oil (higher RON values and good

quality 2-stroke oil will provide best engine performance). Do not use old or contaminated fuel/oil. Fuel/oil

mix ratio examples are shown below.

Petrol (Litre) 1 2 5 10 Gas (US Gal) 0.5 1 2 3

Oil (Millilitre) 40 80 200 400 Oil (Fl. Oz) 2.56 5.12 10.24 15.36

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

PD950 2-Stroke Post Hole Digger

E&OE © PowerBlade 14

To fill or top up fuel:

1. Place the machine in a vertical position on a flat and level surface with the fuel filler cap facing up.

2. Clean the machine around the fuel filler so that no dirt or other material enters the engine when the cap is

removed.

3. Remove (rotate left) the fuel filler cap.

4. Using a funnel, carefully fill the tank with fuel. Do not fill above the top of the strainer (if equipped) or

otherwise overfill the tank.

5. When finished, reinstall (rotate right) the fuel filler cap until firm. Wipe away any residual fuel from the

machine. If fuel has been spilt, move the machine away from the spillage before starting the engine.

Priming the Fuel System

When an engine is new or has been completely run out of fuel it may be

necessary to “prime” the fuel system before attempting to start the engine. This

means removing any air from the fuel line. To prime:

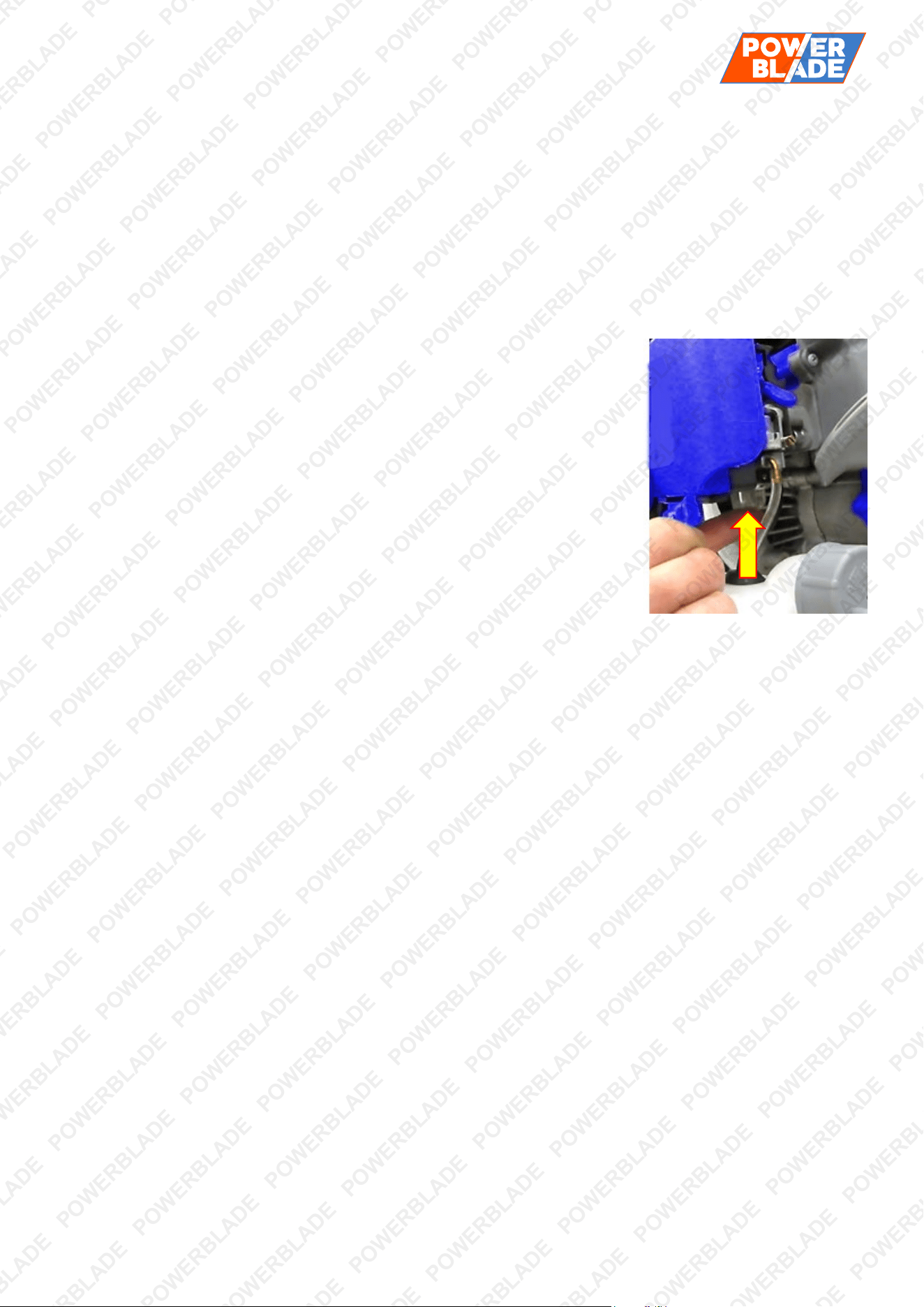

1. Ensure the fuel tank is filled with fuel.

2. Press the fuel primer bulb repeatedly until you feel resistance or pressure in

the bulb – this indicates that it is full of fuel. Fuel may also be visible in the

fuel intake tube.

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

PD950 2-Stroke Post Hole Digger

E&OE © PowerBlade 15

Operation

Before use, ensure that there are no electrical cables, gas, or water pipes etc or other buried or unseen

hazards in the work area. Contact the applicable utility providers for assistance. • The machine should

be operated on ground that is suitable for digging. Do not attempt to dig into set concrete, rock, tree

roots, or other extremely hard surfaces. • Do not use the machine without an auger and bit attached. •

Augers and auger tips are consumable parts and are not covered under warranty.

Before starting the engine, ensure that you have followed all procedures described in the Before Use

Checklist. Failure to follow the checklist and carry out the procedures correctly may result in making the

product warranty void. • Once the engine is running at sufficient speed, the clutch will engage and begin

rotating the cutting attachment. • Do NOT start the engine with the machine cutting attachment touching

any object. • If the engine is new or is being re-started after completely running out of fuel, it may be

necessary to pull the starter cord several times for fuel to reach the carburettor.

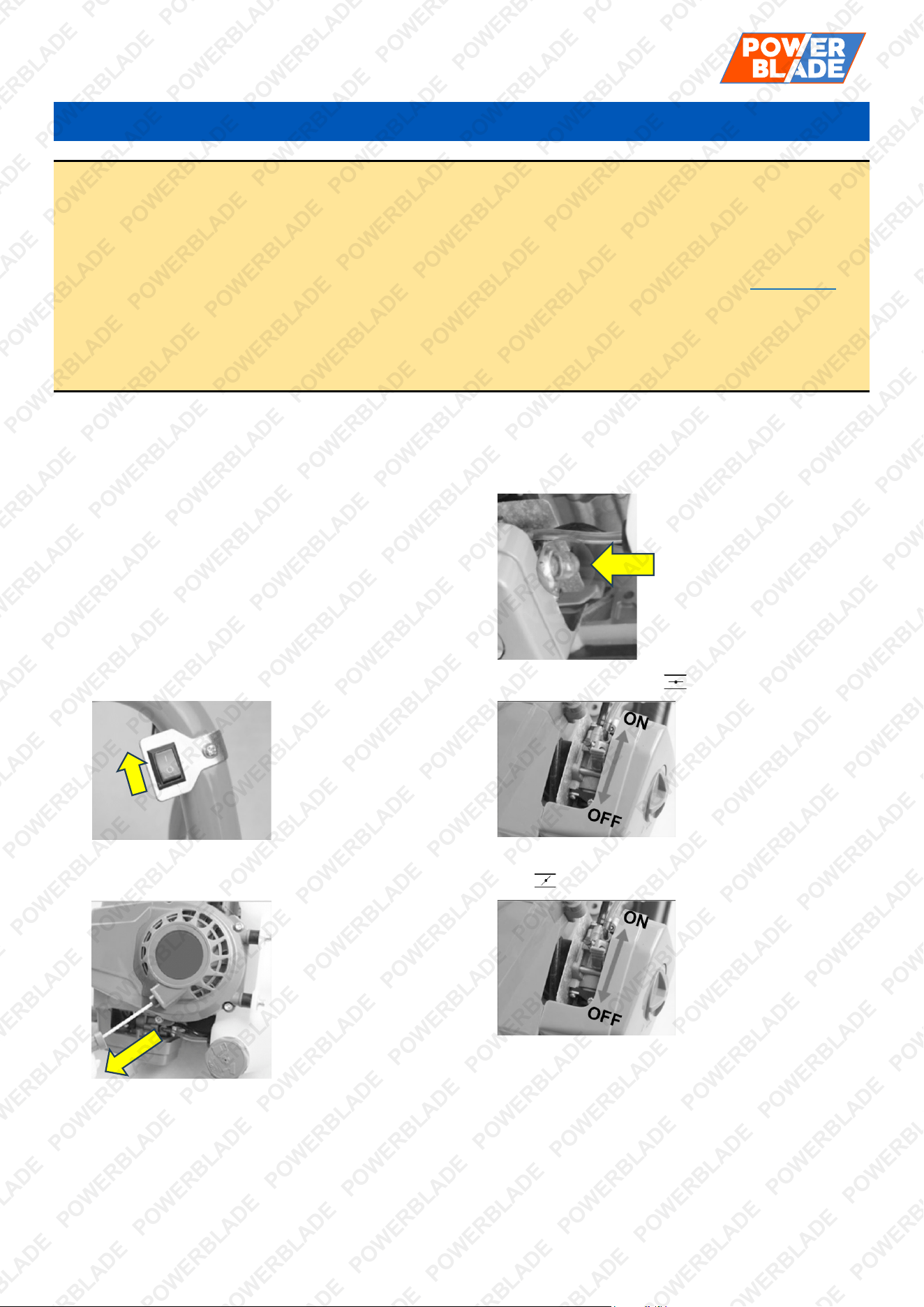

Starting the Engine

1. Place the machine on a flat and level surface. 2. Press priming bulb until fuel is seen in tube.

3. Place engine ON/OFF switch in ON position.

4. Place choke in the ON position.

5. Gently pull starter until engaged, then pull rapidly.

Repeat until engine starts.

6. When the engine is warm, place the choke in the

OFF position.

Stopping the Engine

To stop the engine, release the throttle and place the engine ON/OFF switch in the "OFF" or "STOP" position.

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

PD950 2-Stroke Post Hole Digger

E&OE © PowerBlade 16

Environmental Considerations

Altitude – If the engine is being used in altitudes at or above 1500m (approximately 5000'), adjustments to the

carburettor may be required. This is because there is less oxygen in the air as altitude increases, which

effectively "enriches" the ratio of fuel to air going into the engine and the higher the altitude, the richer the fuel

mixture becomes. If the engine is being permanently operated at high altitude, it is recommended to have an

authorized service centre make the necessary carburettor adjustments. If the engine is used occasionally at

altitude (not extreme altitudes), no adjustments should be required, however, a slight decrease in engine

performance can be expected.

Post Hole Digger Operation

Before use, ensure that there are no electrical cables, gas, or water pipes etc. or other buried or unseen

hazards in the work area. Contact the applicable utility providers for assistance. • The machine should

be operated on ground that is suitable for digging. Do not attempt to dig into set concrete, rock, tree

roots, or other extremely hard surfaces. • Do not use the machine without an auger and bit attached. •

Augers and auger tips are consumable parts and are not covered under warranty.

The machine is used for "drilling" holes in the ground. For example, to erect fencing etc. The machine is

designed for manual operation, where the operator both holds and controls it. Note the following:

•

Adjust the throttle, which controls the drilling action, only when ready to begin digging the hole.

•

Hold the machine as straight as possible when in use to ensure that holes are dug vertically.

•

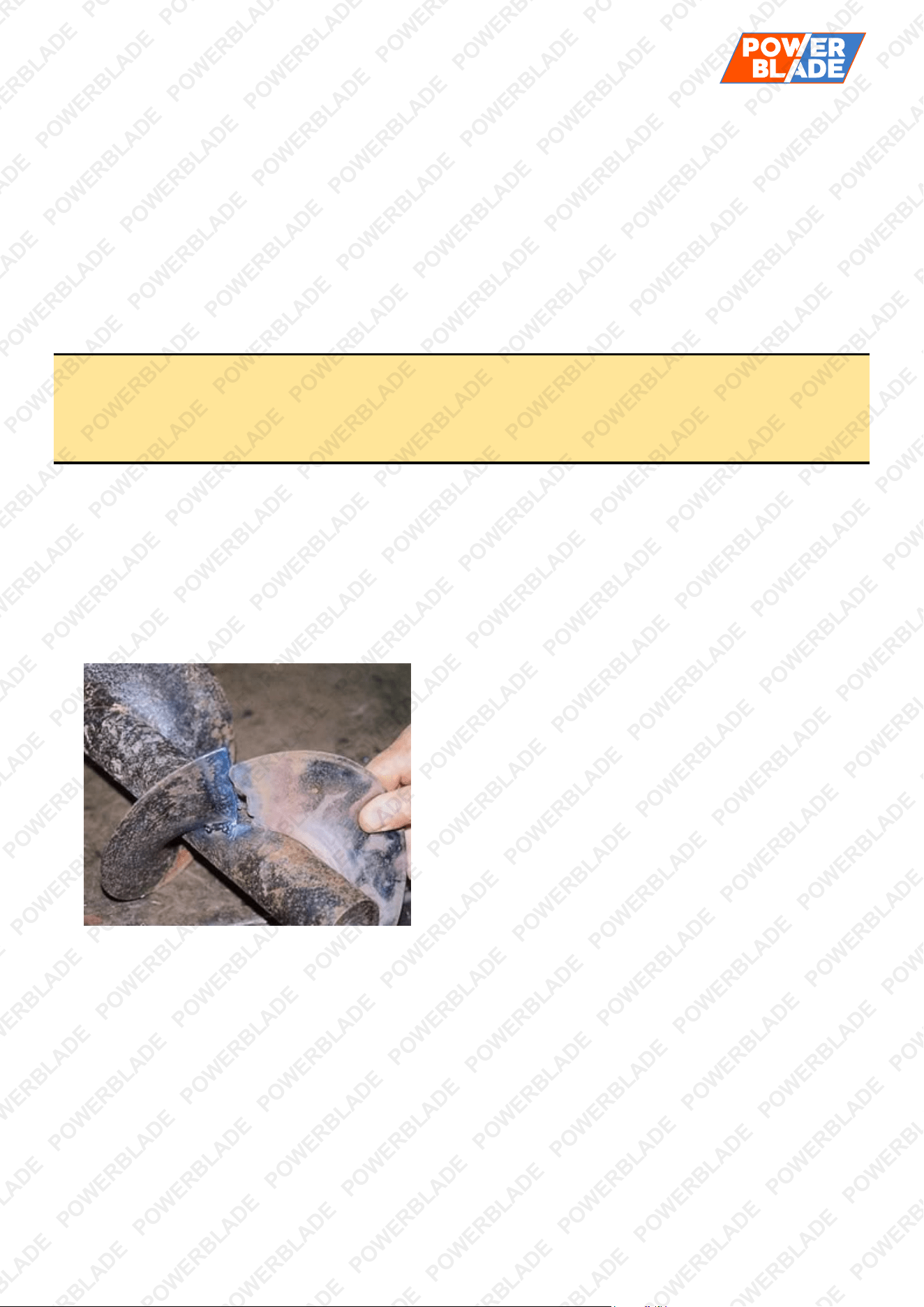

Always check the auger flutes, cutters, and bit before digging each hole. Sharpen or replace any worn or

damaged components. Do not use if damaged in any way. Below is an example of the type of condition in

which an auger is not to be used:

To dig a hole:

1. Start the machine and allow it to warm up.

2. Position the machine in the required location, with the auger bit against the ground.

3. Holding the machine firmly with both hands (or having an assistant help), use the throttle to activate the

drilling action and dig the hole – once the auger starts to cut there is no need to push down on the machine.

Adjust the throttle for the desired drilling rate.

4. Release the throttle – this disengages the drilling action.

5. Lift the machine and auger carefully from the hole.

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

PD950 2-Stroke Post Hole Digger

E&OE © PowerBlade 17

Maintenance

Running combustion engines in confined areas CAN KILL IN MINUTES. Engine exhaust

fumes contain carbon-monoxide – a deadly gas that you cannot smell or see. NEVER run

a combustion engine in confined areas EVEN IF windows and doors are open. ONLY run

combustion engines OUTDOORS and away from doors, windows, and vents. • Petrol / fuel

/ gasoline is extremely flammable – keep clear of naked flames or other ignition sources. •

Do not have the engine running during inspection and maintenance unless specifically required. • The

engine should be cool enough to touch before performing maintenance activities. • Some maintenance

activities may be beyond the scope of some users. Do NOT attempt procedures that you are not

comfortable with, or do not have the necessary tools, experience, or knowledge for – take the unit to an

authorised service centre or qualified technician for servicing. • Harsh operating environments such as

extreme temperatures, dust etc may necessitate more frequent maintenance. • Failure to follow the

maintenance schedule, using incorrect or non-compatible accessories or replacements parts, or general

negligence may result in making the product warranty void.

ATTENTION: Surface corrosion will occur on metal surfaces over time and the rate of oxidation depends

on factors such as proximity to the ocean and humidity or condensation of water vapour on metal

surfaces. To mitigate this, WD40 can be used to remove surface corrosion then, when applied

periodically, it will prevent rust from forming.

To keep the machine performing at optimal efficiency, regular checks and maintenance is required. The

maintenance schedule below specifies preventative maintenance checks and necessary maintenance tasks and

how often they should be performed. The schedule applies to multiple engines; some engines may not include

some components, so maintenance on those components is not applicable.

Maintenance Schedule

Use the following maintenance schedule for a list of regular maintenance tasks and how often they need to be

performed. Maintenance frequency is based on average usage. Be aware of how much the machine is used and

be sure to follow the schedule according to time or usage, whichever comes first.

Towards the end of this document is a form you can use for maintenance record keeping. It is recommended

that you keep a reference of all maintenance.

Major Servicing and "Heavy-Duty" Usage - For engines that are subject to "heavy-duty" use, which can be

defined as being used under loads of 85% or more and / or in use more than approximately 300 hours per year

(for example, generators and water pumps), more frequent "Major Service" maintenance is required. In addition

to normal service requirements, and as with many smaller machine and off-road bike engines, the following parts

(as applicable for petrol, diesel, or 2-stroke engines) may require replacement during a major service:

• Piston rings.

• Big-end bearings.

• Small-end bearings.

• Gudgeon pin.

• Oil rings.

• Gaskets and seals.

• Valve seats.

Inspection of the following items is required:

• Piston for cracks and stress fractures.

• Bore for wear requiring reconditioning.

• Full machine for broken, worn, or loose parts.

Failure to follow the maintenance schedule, using incorrect or non-compatible accessories or

replacements parts, or general negligence may result in making the product warranty void.

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

PD950 2-Stroke Post Hole Digger

E&OE © PowerBlade 18

Maintenance Schedule – 2-Stroke Engine / Machine

Major Service

–

Heavy

-Duty Use

Every 200

Hours Use

Check. Tighten as necessary

Replace

Clean

Replace as necessary

Flush and clean

Check. Adjust as necessary

Check. Tighten as necessary

Check. Clean / de

-coke as necessary

Perform

Sharpen. Replace as necessary

C

heck. Add as necessary.

Clean. Replace as necessary

Major Service

–

Normal Use

24 Months / 200

Hours Use

12 Months /

100 Hours

Use

Clean. Replace as necessary

6 Months / 50

Hours Use

3 Months / 25

Hours Use

Check

After First 5

Hours Use

Every Use

Check

Component / Task

Loose Engine / Machine

Fasteners

Air Filter

Spark Plug

Spark Arrestor

*

Fuel Filter

*

Fuel Strainer

*

Float Bowl

*

Fuel Lines / Hoses

Fuel Tank

Idle Speed

Engine Tune

Cylinder Head Fasteners

Combustion Chamber

Major Service

Cutting Blade / Chain

*

Chain Lubricant

*

Chain Lubricant Strainer

*

* Where applicable.

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

PD950 2-Stroke Post Hole Digger

Maintenance /Check / Overhaul

It is recommended to regular check and maintenance based on frequency of use, keeping the tool in a better

condition, and extending its useful life, ultimately reducing overall operating costs.

This specification will also protect you from serious harm.

Daily check

•

Check whether all nuts and screws are tight or not.

•

Check the fuel level. When filling new fuel, please wipe off the spill and clean the fuel tank.

•

Check whether the belt of the transmission wheel is loose or aged and cracked or not.

Weekly Maintenance

•

Check the starter, especially the wires and the springs.

•

Check the outside of the sparking plug.

•

Remove the sparking plug and check the electrode spacing. Adjust to 0.6MM or replace the sparking plug.

•

Check the heat sink on the cylinder and check whether the air inlet of the starter is blocked or not.

•

Check the air filter.

Monthly Maintenance

•

Flush the fuel tank with gasoline.

•

Clean the outside of the carburettor and its surroundings.

•

Clean the fan and its surroundings.

Carburettor Adjustments

•

The carburettor on the equipment has been adjusted at the factory but may need to be fine-tuned according

to working conditions. To adjustments after the end sleeve has been removed. Before adjusting the

carburettor, make sure that the air/fuel filter supplied is clean, fresh, and that the fuel has been properly

mixed. To adjust after the engine has been warmed up for a few minutes.

•

When the idle speed is higher or lower, adjust it to the appropriate speed with the idle speed adjustment

screw.

− Rotate clockwise to get a higher idle speed.

− Rotate counterclockwise to get a lower idle speed.

− If adjustable, L adjustment screw (low speed fuel adjustment) and (high speed fuel adjustment.)

− In the case of idling, turn the L adjustment screw to the right or left to find the peak value of the idling

speed. From the position, return the adjustment screw to the remaining 1/4 circle.

− Turn the H adjusting screw to the right or left and follow the same procedure as the above L adjusting

screw.

•

The carburettor has pre-selected at the factory. Fine tuning based on climate, altitude, etc. can optimize

performance. The increment of the adjustment screw must not be greater than 90 degrees, otherwise it will

result in damage to the engine due to incorrect adjustment.

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

PD950 2-Stroke Post Hole Digger

•

If you are not familiar with the adjustment assistance, please consult your local dealer.

Spark Plug Maintenance

•

To remove the spark plug, connect the high-pressure pack, and

pull the starter to touch the cylinder parts has ignition spark or

not.

WARNING! Do not touch the area that mounting thread of the

sparking plug, because it may cause a hazard to residual gases.

When pulling the recoil starter handle, do not touch the metal

part of the spark plug, otherwise it will cause an electric shock.

After wiping the fuel in the spark zone, make sure there is no

fire and check the spark plug.

•

Under normal conditions, sparks can be seen.

•

Use the recommended type of spark plug.

•

Under optimal operating conditions, the electrodes on the spark plug show a dark brown colour and remain

dry. If the spark plug is dirty, clean it and check the electrode spacing. If you need to adjust again, please

note that the correct spacing is 0.6mm.

•

The state of the spark plug is affected by the following factors:

− The settings of carburettor are incorrect.

− The mix ratio of fuel is incorrect (two-stroke oil in gasoline is too much)

− The air filter is dirty.

− Operating conditions are difficult (in cold weather conditions).

− After working for 100 hours, or in the case of a etched electrode, the spark plug should be replaced.

Air Filter Maintenance

When the air filter absorbs dust and becomes dirty, it will produce all kinds of malfunctions.

•

The carburettor has failed.

•

Starter has fault.

•

Engine power is declining.

•

Engine component has unnecessary wear.

•

Fuel consumption is abnormal.

To clean the air filter:

Dust and dirt must be cleaned regularly, and the damaged filter should be replaced.

1. Remove the air filter cover and filter.

2. Rinse with warm soapy water and wring out before reinstalling.

3. The broken filter must be replaced with a new one.

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

PD950 2-Stroke Post Hole Digger

Fuel Filter

If the impurities in the fuel block the fuel filter, the fuel cannot flow into the oil.

Silencer

The power decline of engine may be due to a large amount of carbon accumulating in the cylinder exhaust port,

muffler inlet or outlet after long-term use.

•

After working for 100 hours, remove the silencer and clean the excess carbon from the exhaust or muffler

inlet.

•

When cleaning, carefully remove carbon, do not damage the pistons, cylinders, and do not allow carbon to

enter the crankcase.

Storage

1. Clean the parts and apply two-stroke oil to the metal parts to prevent corrosion.

2. If the tool is stored for a long time (more than 3 weeks), the fuel shall be discharged from the fuel tank, and

make engine to idling without load until the engine stops operating, and to empty all residual fuel in the

carburettor.

3. remove the spark plug, pour the two-stroke oil into the cylinder, and pull the handle of the recoil starter

multiple times to inject the oil.

4. Stop pulling the recoil starter handle when the component is sensed to engage.

5. If the parts are damaged before storage, should be repaired at first.

6. The tool storage area should be free of dust and moisture, and the temperature should be lower than 50 °C.

7. Tools should be kept in a place where children cannot enter.

8. The fuel should be stored in a safe container and placed in a cool room or in a place where there is no fire.

Do not use old fuels that can cause engine failure.

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

PD950 2-Stroke Post Hole Digger

Troubleshooting

Running combustion engines in confined areas CAN KILL IN MINUTES. Engine exhaust

fumes contain carbon-monoxide – a deadly gas that you cannot smell or see. NEVER run

a combustion engine in confined areas EVEN IF windows and doors are open. ONLY run

combustion engines OUTDOORS and away from doors, windows, and vents. •

Petrol/fuel/gasoline is extremely flammable – keep clear of naked flames or other ignition

sources. • Do not have the engine running during inspection and maintenance unless specifically

required. • The engine should be cool enough to touch before performing maintenance activities. • Some

maintenance activities may be beyond the scope of some users. Do NOT attempt procedures that you

are not comfortable with, or do not have the necessary tools, experience, or knowledge for – take the

unit to an authorised service centre or qualified technician for servicing.

The following information may assist in identifying a problem and rectifying it.

PROBLEM POSSIBLE REASONS CORRETIVE MEASURES

Engine does not start

Fuel system:



Fuel shortage



The sparking plug to be wet due

to over fuel



The fuel pipe is bent or

disconnected.



The carburettor function is

defective.

Fill with fuel that have 25 gasoline / 1

two-stroke oil.

1. Remove the spark plug.

2. Exhaust excess fuel by pulling the

recoil starter handle 5-6 times.

3. Re-install the spark plug.

4. Pull the throttle switch to the open

position and pull the recoil starter

handle.



Repair the carburettor air leak.



The adjustment of carburettor is

incorrect.



The diaphragm in the carburettor

is broken.



The weight adjustment of the

carburettor valve hinge is

incorrect.

Electrical System:



The ignition stop switch is in the

stop position.



No sparks.



Stop shape lead is short circuit.



The plug is dirty.



The sparking plug has a large

gap.



Poor connection between the high

voltage cable and the ignition

sparking plug.



The ignition coil is broken.



Turn to the open position.



The connection / ignition coil is

defective.



The air gap/ignition line is

defective.



The ignition coil is defective.



Repair or replace.



Clean or replace.



Adjust to the correct gap.



Correct the connection.



Replace.

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

PD950 2-Stroke Post Hole Digger

PROBLEM POSSIBLE REASONS CORRETIVE MEASURES

Engine stops running shortly after

installation

Fuel system:



Fuel shortage.



The throttle lever is in the closed

position.



Air enters the fuel system.



The carburettor function is

defective.

Fill with fuel that have 25 gasoline / 1

two-stroke oil.



turn to open position.



Check whether the tube or

connector has cracks or not and

whether the tube is secured or

not.



The carburettor has air leaks.



The adjustment of carburettor is

incorrect.



The diaphragm in the carburettor

is broken.



The weight adjustment of the

carburettor valve hinge is

incorrect.

Electrical System:



Sparking plugs is defective.



Ignition coil is defective.



Replace.



Replace.

Engine overheats



Mixing ratio is incorrect.



Wrong choice of sparking plugs.



Cylinders have debris/dirt in them.



Cooling ducts have debris/dirt in

them.



Fill with fuel that have 25 gasoline

/ 1 two-stroke oil.

Replace. Use only the pure and

specified parts.



Clean.



Clean.

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

PD950 2-Stroke Post Hole Digger

Specifications

Engine Type 2-Stroke

Engine Displacement 52cc

Fuel Tank Capacity 1.1L

Mixed fuel ratio 25:1

Fuel Type Petrol Regular Unleaded 95+ RON

Max Power 2.5HP

Reduction Ratio 40:1

Auger mount shaft 3/4''

Torque 80 Nm

Auger Dimensions 100mm, 150mm, 250mm (diameter), 800mm (length)

Extension Shaft Length 600mm

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE POWERBLADE

Some experts believe that the incorrect or prolonged use of almost any

product may cause serious injury or death. To help reduce your risk of

serious injury or death, refer to the information below. For more information,

see www.datastreamserver.com/safety



Consult all documentation, packaging,

and product labelling before use. Note

that some products feature

documentation available online. It is

recommended to print and retain the

documentation.



Before each use, check the product for

loose/broken/damaged/missing parts,

wear, or leaks (if applicable). Never use a

product with

loose/broken/damaged/missing parts,

wear, or leaks.



Products must be inspected and serviced

(if applicable) by a qualified technician

every 6 months. This is based on

average residential use by persons of

average size and strength, and on a

property of average metropolitan size.

Use beyond these recommendations may

require more frequent

inspections/servicing.



Ensure that all users of the product have

completed a suitable industry recognised

training course before being allowed

access to the product.



The product has been supplied by a general merchandise

retailer that may not be familiar with your specific

application or description of application. Be sure to attain

third-party approval from a qualified specialist for your

application before use, regardless of any assurances from

the retailer or its representatives.



This product is not intended for use where fail-safe

operation is required. As with any product (for example,

automobile, computer, toaster), there is the possibility of

technical issues that may require the repair or

replacement of parts, or the product itself. If the possibility

of such failure and the associated time it may take to

rectify could in any way inconvenience the user, business,

or employee, or financially affect the user, business, or

employee, then the product is not suitable for your

requirements. This product is not intended for use where

incorrect operation or a failure of any kind, including but

not limited to, a condition requiring product return,

replacement, parts replacement, or service by a

technician may cause financial loss, loss of employee

time or an inconvenience requiring compensation.



If this product has been purchased in error when

considering the information presented here, contact the

retailer directly for details of their returns policy, if

required.

diagrams, or images may be reproduced or transmitted in any form or by any means, electronic or

mechanical, including photocopying, scanning, or recording, or any information storage and retrieval system,

without express permission or consent from the publisher.
