Jet-USA PRWPTLJETA770 4800PSI Petrol-Powered High Pressure User Manual

User Manual

[Revision 7.0 October 2022]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND

MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in

appearance, assembly, inclusions, specifications, description, and packaging.

The product is NOT supplied with engine oil, although traces of oil from the manufacturing process may be present. It is essential to

add adequate engine oil of the correct type to the engine before use. Failure to add engine oil will void the product warranty.

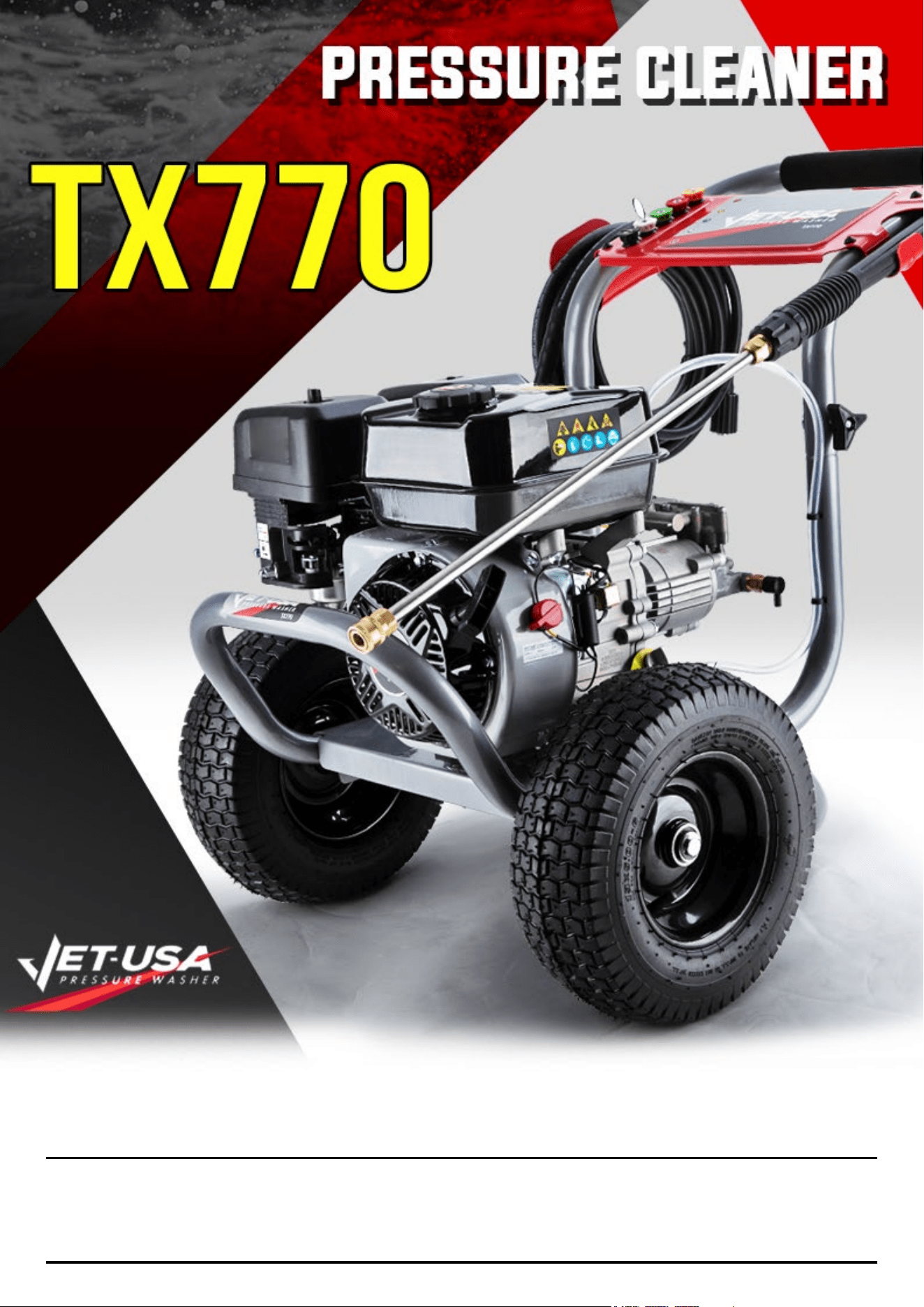

TX770 Pressure Cleaner

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or

equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be INJURED if you do

not follow instructions or equipment

damage may occur.

It is vital that you read and understand this

user manual before using the product,

including safety warnings, and any assembly

and operating instructions. Keep the manual

for future reference.

Safety precautions and recommendations

detailed here must be fully understood and

followed to reduce the risk of injury, fire,

explosion, electrical hazard, and/or property

damage.

Safety information presented here is generic

in nature – some advice may not be

applicable to every product. The term

"equipment" refers to the product, be it

electrical mains powered, battery powered or

combustion engine powered.

• Before Use - If you are not familiar with the

safe operation/handling of the equipment or

are in any way unsure of any aspect of

suitability or correct use for your

application, you should complete training

conducted by a person or organization

qualified in safe use and operation of this

equipment, including fuel/electrical handling

and safety.

• Do NOT operate the equipment in

flammable or explosive environments, such

as in the presence of flammable liquids,

gases or dust. The equipment may create

sparks or heat that may ignite flammable

substances.

• Keep clear of moving parts.

• Equipment may be a potential source of

electric shock or injury if misused.

• Do NOT operate the equipment if it is

damaged, malfunctioning or is in an

excessively worn state.

• Do NOT allow others to use the equipment

unless they have read this manual and are

adequately trained.

• Keep packaging away from children - risk

of suffocation! Operators must use the

equipment correctly. When using the

equipment, consider conditions and pay

due care to persons and property.

General Work Area Safety

• Work areas should be clean and well it.

• Do not operate the equipment if

bystanders, animals etc are within

operating range of the equipment or the

general work area.

• If devices are provided for connecting dust

extraction / collection facilities, ensure

these are connected and used properly.

Dust collection can reduce dust-related

hazards.

General Personal Safety

• Wear appropriate protective equipment

when operating, servicing, or when in the

operating area of the equipment to help

protect from eye and ear injury, poisoning,

burns, cutting and crush injuries. Protective

equipment such as safety goggles,

respirators, non-slip safety footwear, hard

hat, hearing protection etc should be used

for appropriate equipment / conditions.

Other people nearby should also wear

appropriate personal protective equipment.

Do not wear loose clothing or jewellery,

which can be caught in moving parts. Keep

hair and clothing away from the equipment.

• Stay alert and use common sense when

operating the equipment. Do not over-

reach. Always maintain secure footing and

balance.

• Do not use the equipment if tired or under

the influence of drugs, alcohol or

medication.

• This equipment is not intended for use by

persons with reduced physical, sensory or

mental capabilities.

General Fuel Safety

• Petrol/fuel/gasoline is extremely flammable

– keep clear of naked flames or other

ignition sources.

• Do not spill fuel. If you spill fuel, wipe it off

the equipment immediately – if fuel gets on

your clothing, change clothing.

• Do NOT smoke near fuel or when

refuelling.

• Always shut off the engine before

refuelling.

• Do NOT refuel a hot engine.

• Open the fuel cap carefully to allow any

pressure build-up in the tank to release

slowly.

• Always refuel in well ventilated areas.

• Always check for fuel leakage. If fuel

leakage is found, do not start or run the

engine until all leaks are fixed.

General Carbon-Monoxide Safety

• Using a combustion engine indoors CAN

KILL IN MINUTES. Engine exhaust

contains carbon-monoxide – a poison you

cannot smell or see.

• Use combustion engines OUTSIDE only,

and far away from windows, doors and

vents.

General Equipment Use and Care

• The equipment is designed for domestic

use only.

• Handle the equipment safely and carefully.

• Before use, inspect the equipment for

misalignment or binding of moving parts,

loose components, damage or any other

condition that may affect its operation. If

damaged, have the equipment repaired by

an authorised service centre or technician

before use.

• Prevent unintentional starting of the

equipment - ensure equipment and power

switches are in the OFF position before

connecting or moving equipment. Do not

carry equipment with hands or fingers

touching any controls. Remove any tools or

other items that are not a part of the

equipment from it before starting or

switching on.

• Do not force the equipment. Use the

correct equipment for your application.

Equipment will perform better and be safer

when used within its design and usage

parameters.

• Use the equipment and accessories etc. in

accordance with these instructions,

considering working conditions and the

work to be performed. Using the equipment

for operations different from those intended

could result in hazardous situations.

• Always keep equipment components

(engines, hoses, handles, controls, frames,

housings, guards etc) and accessories

(cutting tools, nozzles, bits etc) properly

maintained. Keep the equipment clean and,

where applicable, properly lubricated.

• Store the equipment out of reach of

children or untrained persons. To avoid

burns or fire hazards, let the equipment

cool completely before transporting or

storing. Never place or store the equipment

near flammable materials, combustible

gases or liquids etc.

• The equipment is not weather-proof, and

should not be stored in direct sunlight, at

high ambient temperatures or locations that

are damp or humid.

• Do not clean equipment with solvents,

flammable liquids or harsh abrasives.

• For specific equipment safety use and care,

see Equipment Safety.

TX770 Pressure Cleaner

General Electrical Safety

• Inspect electrical equipment, extension

cords, power bars, and electrical fittings for

damage or wear before each use. Repair or

replace damaged equipment immediately.

• Ensure all power sources conform to

equipment voltage requirements and are

disconnected before connecting or

disconnecting equipment.

• When wiring electrically powered

equipment, follow all electrical and safety

codes.

• Wherever possible, use a residual current

device (RCD).

• High voltage / high current power lines may

be present. Use extreme caution to avoid

contact or interference with power lines.

Electrical shock can be fatal.

General Electrical Safety

• Electrically grounded equipment must have

an approved cord and plug and be

connected to a grounded electrical outlet.

• Do NOT bypass the ON/OFF switch and

operate equipment by connecting and

disconnecting the electrical cord.

• Do NOT use equipment that has exposed

wiring, damaged switches, covers or

guards.

• Do NOT use electrical equipment in wet

conditions or in damp locations.

• Do NOT use electrical cords to lift, move or

carry equipment.

• Do NOT coil or knot electrical cords, and

ensure electrical cords are not trip hazards.

General Service Information

• The equipment must be serviced or

repaired at authorised service centres by

qualified personnel only.

• Replacement parts must be original

equipment manufacturer (OEM) to ensure

equipment safety is maintained.

• Do NOT attempt any maintenance or repair

work not described in this manual.

• After use, the equipment and components

may still be hot – allow the equipment to

cool and disconnect spark plugs and/or

electrical power sources and/or batteries

from it before adjusting, changing

accessories or performing repair or

maintenance.

• Do NOT adjust while the equipment is

running.

• Perform service related activities in suitable

conditions, such as a workshop.

• Replace worn, damaged or missing

warning/safety labels immediately.

Pressure Washer Safety

• This machine must be attended during operation. The manufacturer cannot anticipate every possible hazardous circumstance that the user may

encounter. Therefore, the Warning!s in this manual, on tags, and on affixed decals are not all-inclusive. To avoid accidents, the user must

understand and follow all manual instructions and use common sense.

• WARNING! Read and understand this manual in its entirety before operating this pressure washer. Improper use of this pressure washer could

result in serious injury or death.

• This machine has been designed for use with the cleaning agent supplied or recommended by the manufacturer. The use of other cleaning

agents or chemicals may adversely affect the safety of the machine.

• Do not use the machine within range of persons unless they wear protective clothing.

• Spray from this unit has extreme pressure and can ricochet back splashing water or propelling objects towards eyes.

• Never substitute eye protection with dry condition goggles.

• Pressure washer can create puddles and slippery surfaces. Never wear sandals, always wear protective footwear.

• Operate pressure washer from a level and stable surface.

• Do not operate from a ladder, scaffolding, or uneven surface as recoil from spray gun could cause you to fall.

• Do not over-extend yourself in attempt to reach a little further.

• Do not direct the jet against yourself or others in order to clean clothes or footwear.

• Risk of explosion - Do not spray flammable liquids

• High pressure cleaners shall not be used by children or untrained personnel.

• High pressure hoses, fittings and coupling are important for the safety of the machine. Use only hoses, fittings and couplings recommended by

the manufacturer.

• To ensure machine safety, use only original spare parts from the manufacturer or approved by the manufacturer.

• Water that has flowed through backflow preventers is considered to be non-potable.

• The machine shall be disconnected from its power source during cleaning or maintenance and when replacing parts or converting the machine to

another function.

• Do not use the machine if a supply cord or important parts of the machine are damaged, e.g. safety devices, high pressure hoses, trigger gun.

• Do not use combustion engine powered machines indoors unless adequate ventilation is assessed by national labour authorities.

• Carbon monoxide gas is a poisonous, odorless gas that can cause headache, confusion, fatigue, nausea, fainting, sickness, seizures, or

death. If you start to experience any of these symptoms, IMMEDIATELY get fresh air and seek medical attention.

• Never use indoors, in a covered area, or in a confined space, even if doors and windows are open.

• Ensure that any exhaust emissions are not in the vicinity of air intakes.

• For gas or oil-heated machines it is important to provide adequate ventilation and make sure that the flue gases are properly discharged.

• Incorrect fuels shall not be used as they may prove hazardous.

• Never spray near a power source such as an electrical outlet. Making contact with a power source could cause an electric shock or burn.

• Stay alert and use common sense. Do not operate this unit if you are under the influence of alcohol, drugs, medication or you feel tired.

• High pressure jets can be dangerous if subject to misuse. The jet must not be directed at persons, live electrical equipment or the machine itself.

• The high-pressure stream of water produced can cut through skin and underlying tissue. Never squeeze the trigger or point the spray gun at

other people, animals, plants, or fragile objects such as glass, even if the engine is stopped.

• This unit is not a toy. Keep unit away from children and pets.

• Do not leave spray gun unattended while unit is running.

TX770 Pressure Cleaner

• Make sure the spray gun, nozzle, and accessories are attached correctly.

• Never attempt to repair high pressure hose, always replace.

• Never attempt to repair leaks with sealant, always replace O-ring or seal.

• Never attempt to connect or disconnect hose from pump or spray gun while system is pressurized.

• Always release water pressure from unit every time you stop the engine.

• Avoid contacting hot areas of this unit.

• Use caution around the muffler and other engine parts as they can be extremely hot.

• Allow hot components to cool before touching.

• Moving parts can catch on clothing, jewellery, and hair.

• Do not wear loose clothing or gloves.

• Remove jewellery or anything else that could be caught in moving parts.

• Tie back or wear protective head covering to contain long hair.

• Keep engine away from flammable objects and other hazardous materials.

• The fuel and its vapours used to power this unit are highly flammable and could explode resulting in serious injury or death.

• Never overfill fuel tank. If fuel spills, move the unit at least 30 feet away from the spill and wipe up any remaining fuel on the unit before starting

the engine.

• Never smoke while operating or fuelling this unit.

• Never operate or store this unit near an open flame, heat, or any other ignition source.

• Keep engine free of grass, leaves, or grease which are flammable.

• When adding or draining fuel, unit should be turned off for at least 2 minutes to cool before removing fuel cap. If unit has been running the fuel

cap is under pressure, remove slowly.

• To keep fuel from spilling, secure unit so it cannot tip while operating or transporting.

• When transporting unit, disconnect the spark plug wire and make sure the fuel tank is empty with the fuel shutoff valve turned to the off

position.

• This machine can be used by people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have

been given supervision or instruction concerning use of the machine in safe way and understand the hazards involved.

TX770 Pressure Cleaner

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on your

product and their meanings. If any stickers become unreadable, unattached etc., replace them.

Flammable Material Hazard

Flammable liquids, gases or

substances etc may present.

Avoid ignition sources and open

flames. Danger of fire.

Read User Manual

Read and fully understand

product safety warnings,

operation, procedures etc before

using the product.

Use Hand Protection

Wear appropriate hand protection

and take due care as the product

or use of the product may present

hand hazards.

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be fatal.

Electrocution / Electrical Shock

Hazard

High voltage or high current

electricity may be present or

required by the product. Take

due care when handling electrical

products, cables, plugs and

leads. Electrical shock can be

fatal.

Toxic Fumes / Dust Hazard

Using the product or by-products

from use may produce fumes,

smoke or particles that could be

harmful if inhaled. Wear

appropriate breathing protection

and have adequate ventilation.

Explosive Material Hazard

Combustible liquids, gases or

substances etc may be present.

Avoid ignition sources and open

flames. Danger of explosion.

Cutting / Amputation Hazard

The product may have blades,

edges or mechanical devices that

can cause severe cut injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Crush Hazard

The product may have blades,

edges or mechanical devices that

can cause severe crush injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Single Operator Only

The product must be operated by

a single person only. More than

one person operating the product

may introduce additional hazards.

Use Face Protection

Wear appropriate full-face

protection and take due care as

the product or use of the product

may present face and eye

hazards.

Use Foot Protection

Wear appropriate foot protection

and take due care as the product

or use of the product may present

foot hazards.

Use Eye / Ear / Head Protection

Wear appropriate eye and / or

ear and / or head protection and

take due care as the product or

use of the product may present

eye, hearing and head hazards.

Running Hazard

Do not run on or near the product

as doing so may present a fall

hazard.

Diving Hazard

Do not dive into the product as

doing so may present a neck /

head injury hazard.

Adult Supervision Required

Always supervise children and

other users of a product to

prevent drowning or injury.

Skin Penetration / Puncture

Hazard

The product may produce

pressure, emit liquids or objects

that can cause severe injury to

fingers, limbs, blood etc. Take

due care when handling and

using the product.

Hot Surface Hazard

Be aware that the product may

produce high temperatures and

hot surfaces that can cause burn

injuries.

Flying Debris Hazard

Be aware that the product or use

of the product may present

hazards produced by flying

debris. Wear appropriate clothing

and protective devices.

Moving Parts Hazard

Be aware that the product

contains or uses mechanical

devices that move or rotate.

Always wait for moving parts to

stop fully before handling the

product, adjusting, maintenance

etc.

TX770 Pressure Cleaner

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be fatal.

Pull Hazard

Be aware that the product

contains or uses mechanical

devices that can pull in objects

and can cause severe injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Slope / Fall Injury Hazard

Be aware that using the product

on sloping surfaces or in slippery

conditions may present additional

dangers from falls and contact

with blades, moving parts, hot

surfaces etc.

"Slam Dunk" Warning

Do NOT attempt "slam dunk"

manoeuvres as this may result in

severe injury due to falling,

product breakage or collapse etc.

Electrocution / Electrical Shock

Hazard - Outdoor

High voltage or high current

electricity may be present or

required by the product. Do NOT

use in rain, damp or wet

conditions. Electrical shock can

be fatal.

Electrocution / Electrical Shock

Hazard - Disconnect

High voltage or high current

electricity may be present or

required by the product. Always

disconnect the product from the

electrical supply before handling

the product, adjusting,

maintenance etc.

Power Line Electrocution

Hazard

High voltage / high current power

lines may be present. Use

extreme caution to avoid contact

or interference with power lines.

Electrical shock can be fatal.

"Kick-Back" Hazard

High level of "kick-back" hazard

that can cause the machine to

suddenly rotate towards operator.

Kick-back injury can be fatal.

Winch Operator Position

Hazard

Do NOT stand between winch

and load. Do NOT use winch to

move people.

Winch Lift Hazard

Do NOT LIFT load vertically. Use

machine to PULL only.

Cable Hazard

Ensure that load bearing cable is

not kinked or knotted.

Winch Cable Hazard

Ensure that there is a minimum

number of cable coils on

winching mechanism.

Winch Hook Hazard

Carry hook to load – do NOT

throw or run.

Flash / Blinding Hazard

Wear appropriate eye protection

for welding. Direct exposure to

weld arcs may cause permanent

eye injury.

Laser Hazard

Laser may be in use – do NOT

look directly at laser or allow

others to.

TX770 Pressure Cleaner

Table of Contents

Safety ................................................................................................................................................................................ 2

Safety Symbols ........................................................................................................................................................... 5

Parts Identification .......................................................................................................................................................... 8

Features ...................................................................................................................................................................... 8

Breakdown .................................................................................................................................................................. 9

Spare Parts .................................................................................................................................................................... 11

Assembly ....................................................................................................................................................................... 12

Unpacking ................................................................................................................................................................. 12

Installing the Handle ................................................................................................................................................. 12

Attaching the Spray Gun .......................................................................................................................................... 13

Adding / Checking Engine Oil ................................................................................................................................... 13

Adding Fuel ............................................................................................................................................................... 14

Connecting the High-Pressure Hose to Pump ......................................................................................................... 14

Connecting a Garden Hose to Pressure Washer ..................................................................................................... 15

Operation ....................................................................................................................................................................... 16

Starting the Pressure Washer .................................................................................................................................. 16

Stopping the Pressure Washer ................................................................................................................................. 17

Using the Spray Gun ................................................................................................................................................ 17

Using the Spray Nozzle ............................................................................................................................................ 18

Applying Detergent ................................................................................................................................................... 18

Rinsing with the Pressure Washer ........................................................................................................................... 18

Moving the Pressure Washer ................................................................................................................................... 19

Maintenance ................................................................................................................................................................... 20

Pre-Operation Steps ................................................................................................................................................. 20

Remove Debris ......................................................................................................................................................... 20

After Each Use .......................................................................................................................................................... 20

Maintenance Schedule ............................................................................................................................................. 21

Changing the Engine Oil ........................................................................................................................................... 21

Checking the Detergent Siphoning Tube ................................................................................................................. 21

High-Pressure Hose ................................................................................................................................................. 22

Spray Gun ................................................................................................................................................................. 22

Spray Nozzle ............................................................................................................................................................ 22

Checking the Spark Plug .......................................................................................................................................... 22

Repairing Leaking Connections ................................................................................................................................ 22

Air Filter .................................................................................................................................................................... 23

Hose Care ................................................................................................................................................................. 23

Storing the Pressure Washer ................................................................................................................................... 23

Troubleshooting ............................................................................................................................................................ 24

Specifications ................................................................................................................................................................ 25

TX770 Pressure Cleaner Brand Logo

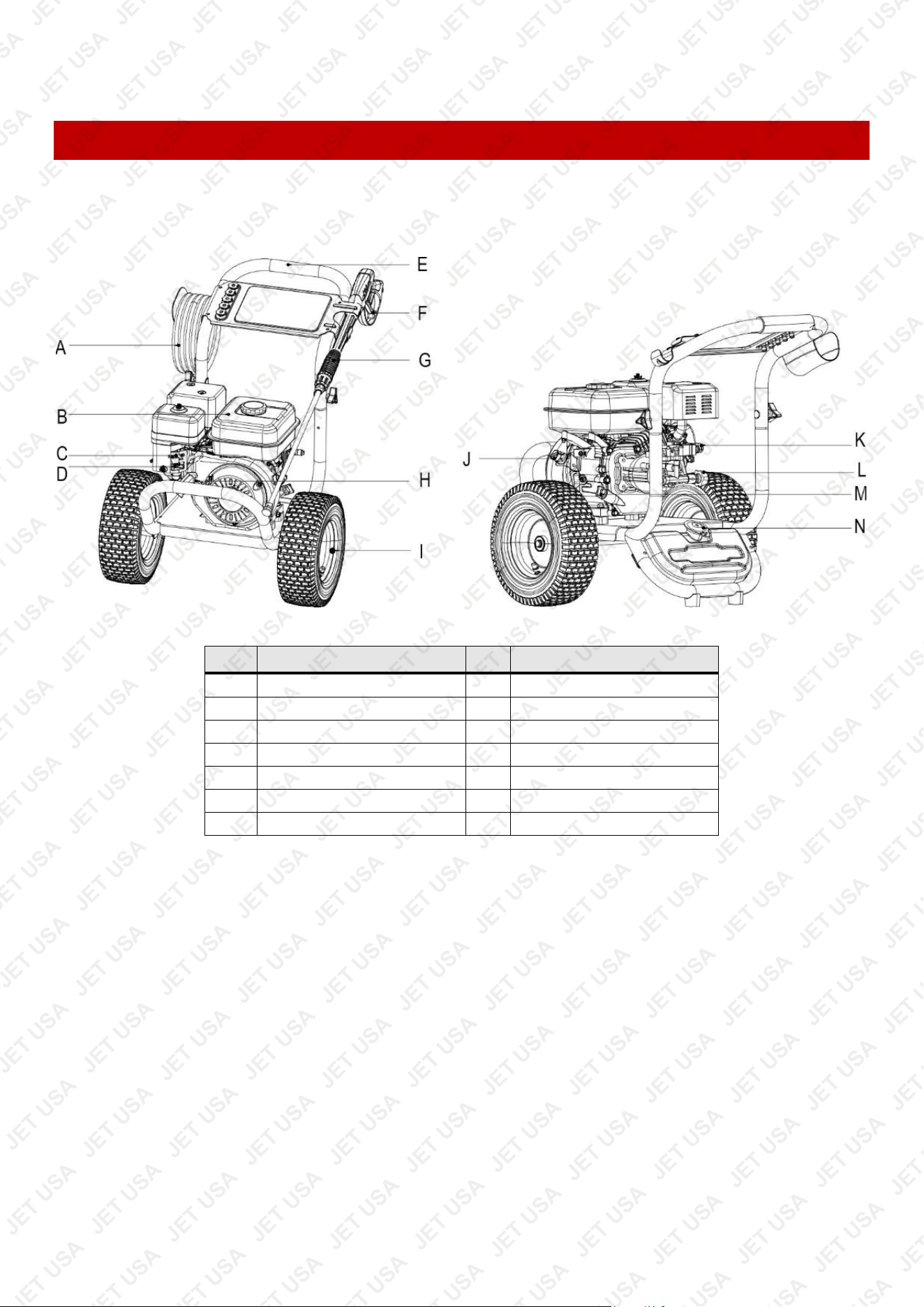

Parts Identification

Features

No. Name No. Name

A

High Pressure Hose

H

Pull Cord

B

Fuel Tank

I

Flat proof, Foam-Filled Tyres

C

Choke

J

Engine Switch

D

Fuel Valve Lever

K

High Pressure Hose Outlet

E Handle L Water Inlet

F Locking Trigger M Dipstick

G Spray Gun N Soap Tank

JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA

TX770 Pressure Cleaner

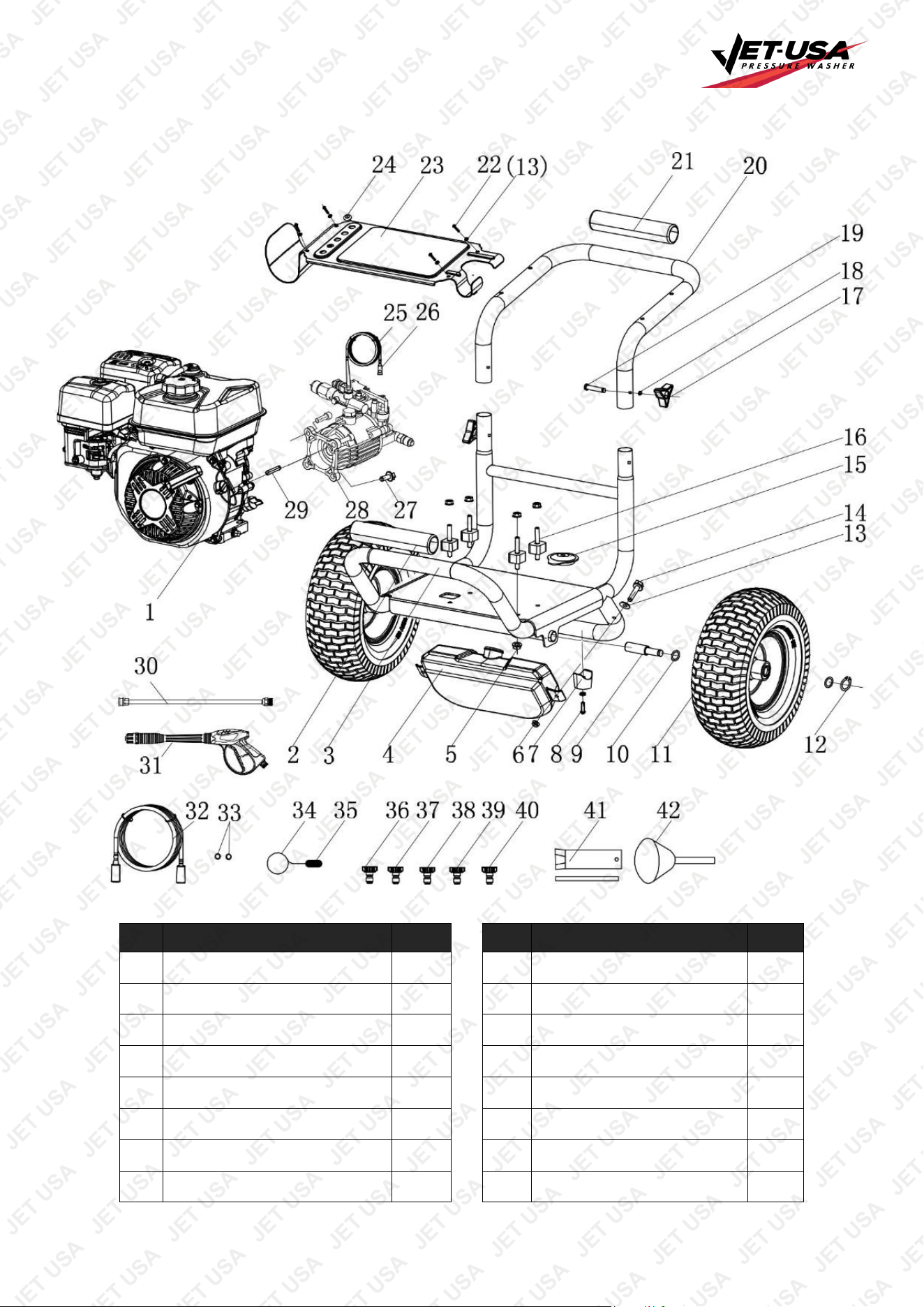

Breakdown

No. Part Name Qty. No. Part Name Qty.

1 Engine 1 22 Hexagon Socket Screw 4

2 Grip, Frame 1 23 Panel 1

3 Frame Base 1 24 Nozzle Holder 5

4 Soap Tank 1 25 Siphon Tube 1

5 Bolt M8 8 26 Siphon Filter 1

6 M6 Self-Lock Nut 2 27 Bolt M8*20 4

7 Rubber Feet 2 28 Pump 1

8 Bolt M6*25 2 29 Shaft Key 1

JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA

TX770 Pressure Cleaner

No. Part Name Qty. No. Part Name Qty.

9 Axle 2 30 Wand 1

10 Plate washer 4 31 Spray Gun 1

11 Wheels 2 32 High Pressure Hose 1

12 Hair Pin 2 33 O-ring 2

13 Bolt M6*45 2 34 Nozzle Cleaner 1

14 Washer, Rocker 8 35 Smart cover 1

15 Cap, Soap Tank 1 36 Red Nozzle 0° 1

16 Engine Mount, Vibration Isolator 4 37 Yellow Nozzle 15° 1

17

Triangle Knob, M8 Self-Lock

Nut

2

38 Green Nozzle 25° 1

18 Plate washer 2 39 White Nozzle 40° 1

19 Bolt 2 40 Black Soap Nozzle 1

20 Frame Handle 1 41 Spark plug wrench 1

21 Handle grip 1 42 Funnel 1

JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA

TX770 Pressure Cleaner

Spare Parts

Spare parts available for purchase, scan QR codes below:

QR Code SKU

PRWPTLJETA770

PRWPTLJETA770-KIT

JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA

TX770 Pressure Cleaner

Assembly

Do not attempt to assemble or operate this pressure washer until you have read and understood

this entire manual. If you have any problems assembling or operating this unit, contact your

dealer or a qualified service centre.

Do not operate this pressure washer if any of the parts are damaged or missing until the part is

replaced. Using this product with damaged or missing parts can cause damage to the machine or result

in serious injury or death.

Unpacking

1. Remove the high-pressure hose from box.

2. After the high-pressure hose has been removed, carefully open product by cutting down the sides of the box.

3. Remove the product, parts, and all accessories. Make sure all items listed on the packing list are included

and not damaged.

Installing the Handle

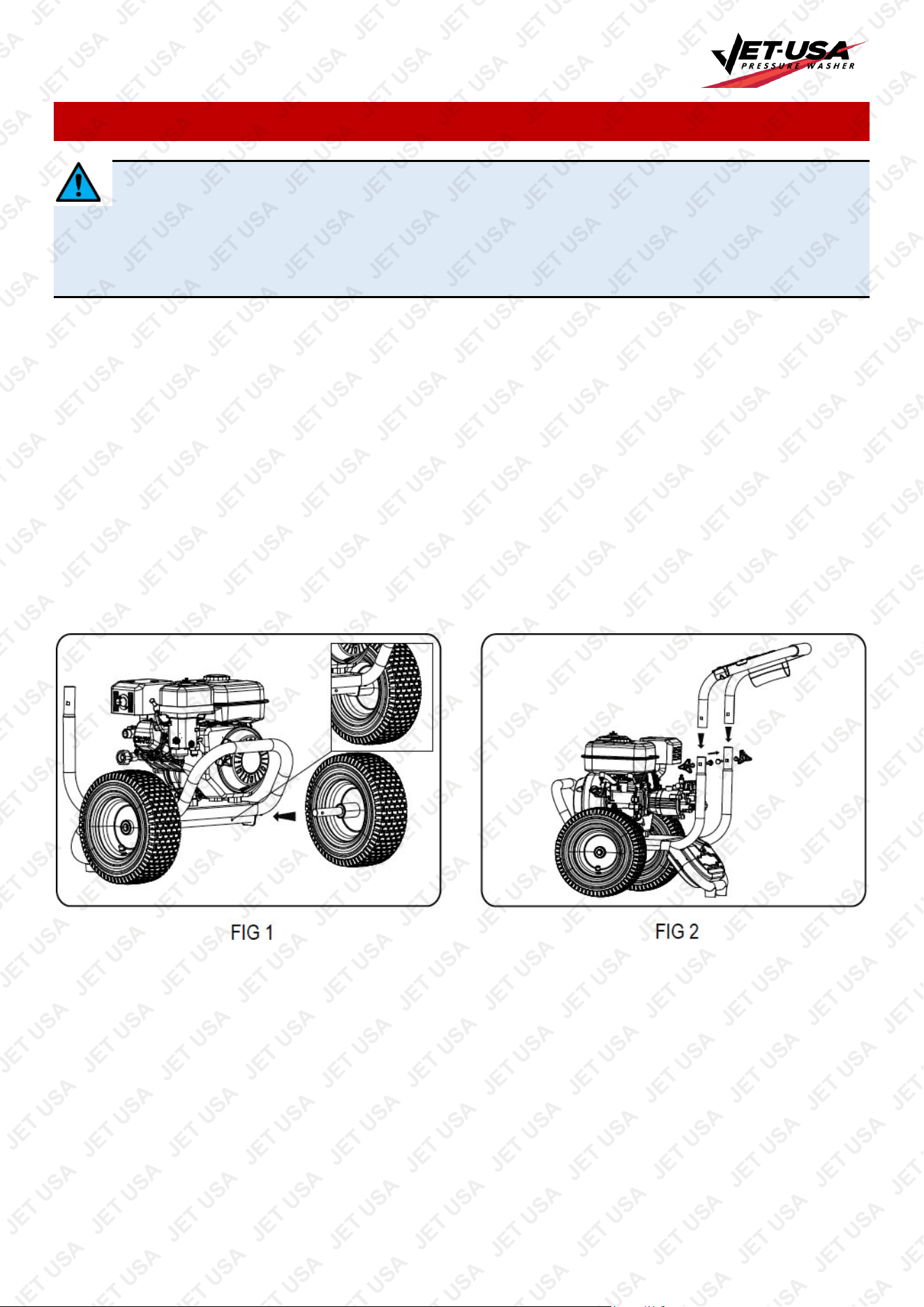

1. Install the wheel assembly into the frame sleeve on the side of the fuel tank. The wheel spring button is

aligned with the casing hole and pops out.

2. Install upper frame (handle) onto the lower frame by sliding the handle over the two upright tubes on the

lower frame and pressing down firmly until the handle is seated and the two detent pins snap in place.

JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA

TX770 Pressure Cleaner

Attaching the Spray Gun

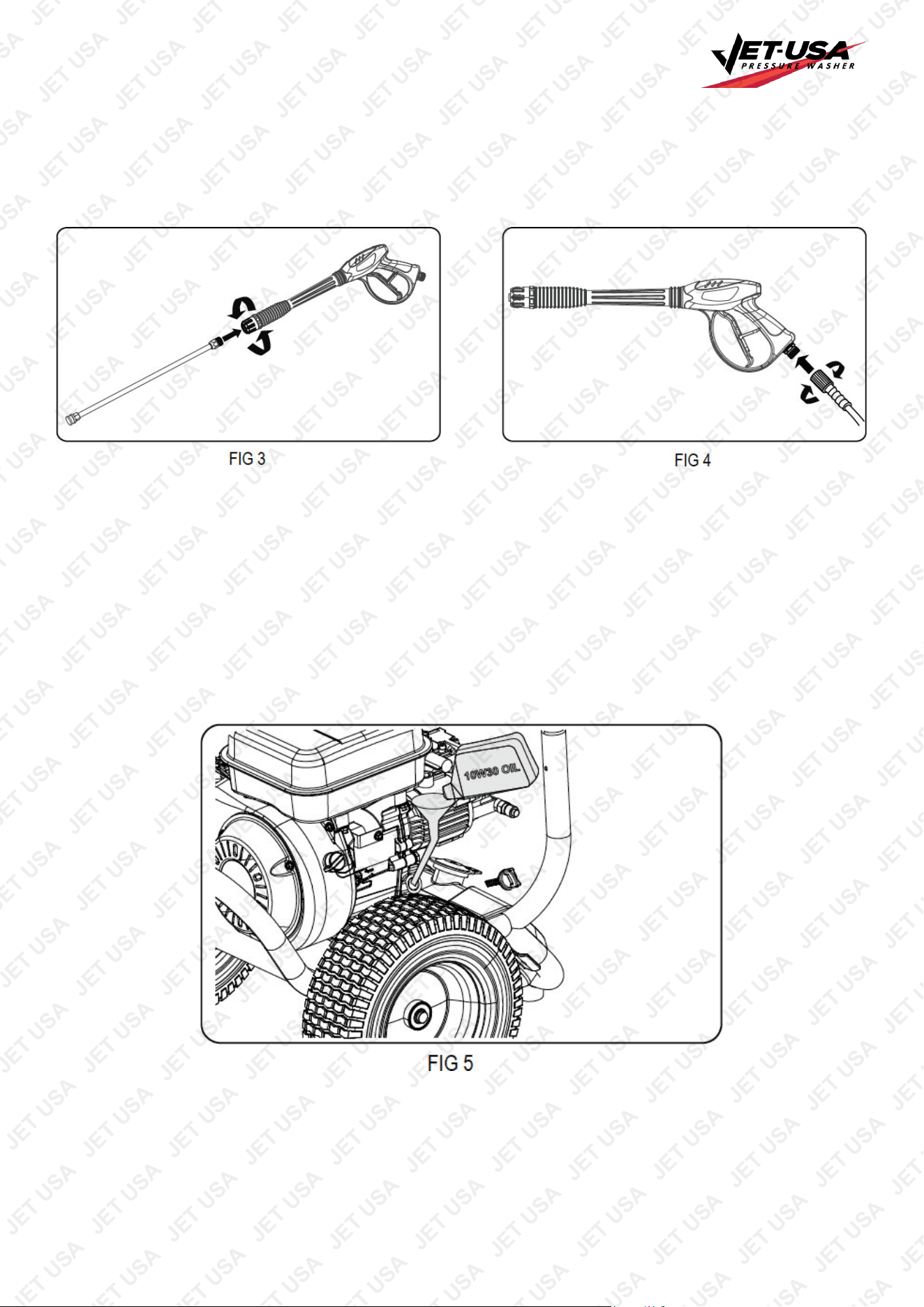

1. Screw the spray wand and the trigger handle together until they are secure.

2. Insert the inlet coupler of the spray hose into the threaded fitting on the high-pressure spray gun and thread

the black nut on by turning clockwise until it is hand tight.

Adding / Checking Engine Oil

1. Place pressure washer on a level surface.

2. Remove one or both of the crankcase dipsticks to ensure you do not overfill the engine.

3. Carefully add between 520 ml (17.6 oz) of 4-Cycle engine oil (SAE10W30) to empty reservoir until oil

reaches the outer edge of the oil fill hole (Crankcase Dipstick hole).

4. Be sure to replace both dipsticks before attempting to start the engine.

5. To check oil, set pressure washer on a level surface, wipe dipstick clean, then reinsert dipstick without re-

threading.

JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA

TX770 Pressure Cleaner

Adding Fuel

CAUTION! Oil must be added to unit prior to first use. To avoid spillage, do not overfill fuel tank as

gasoline expands.

1. Set pressure washer on a clean and level surface in an area that is well ventilated.

2. Remove fuel cap.

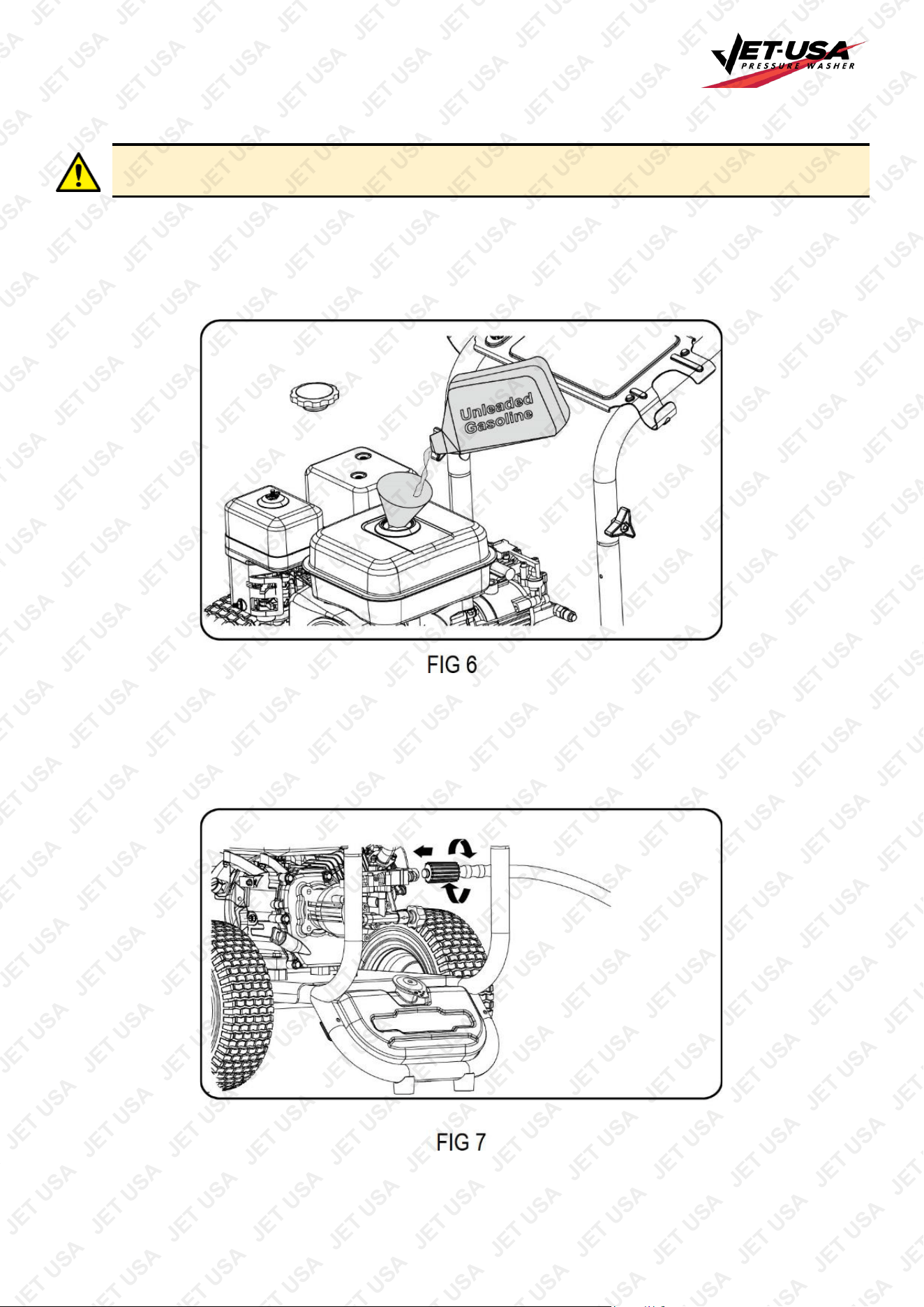

3. Insert a funnel into the fuel tank and carefully pour gasoline into the tank until fuel level reaches 1 1/2 inches

below the top of the neck.

Connecting the High-Pressure Hose to Pump

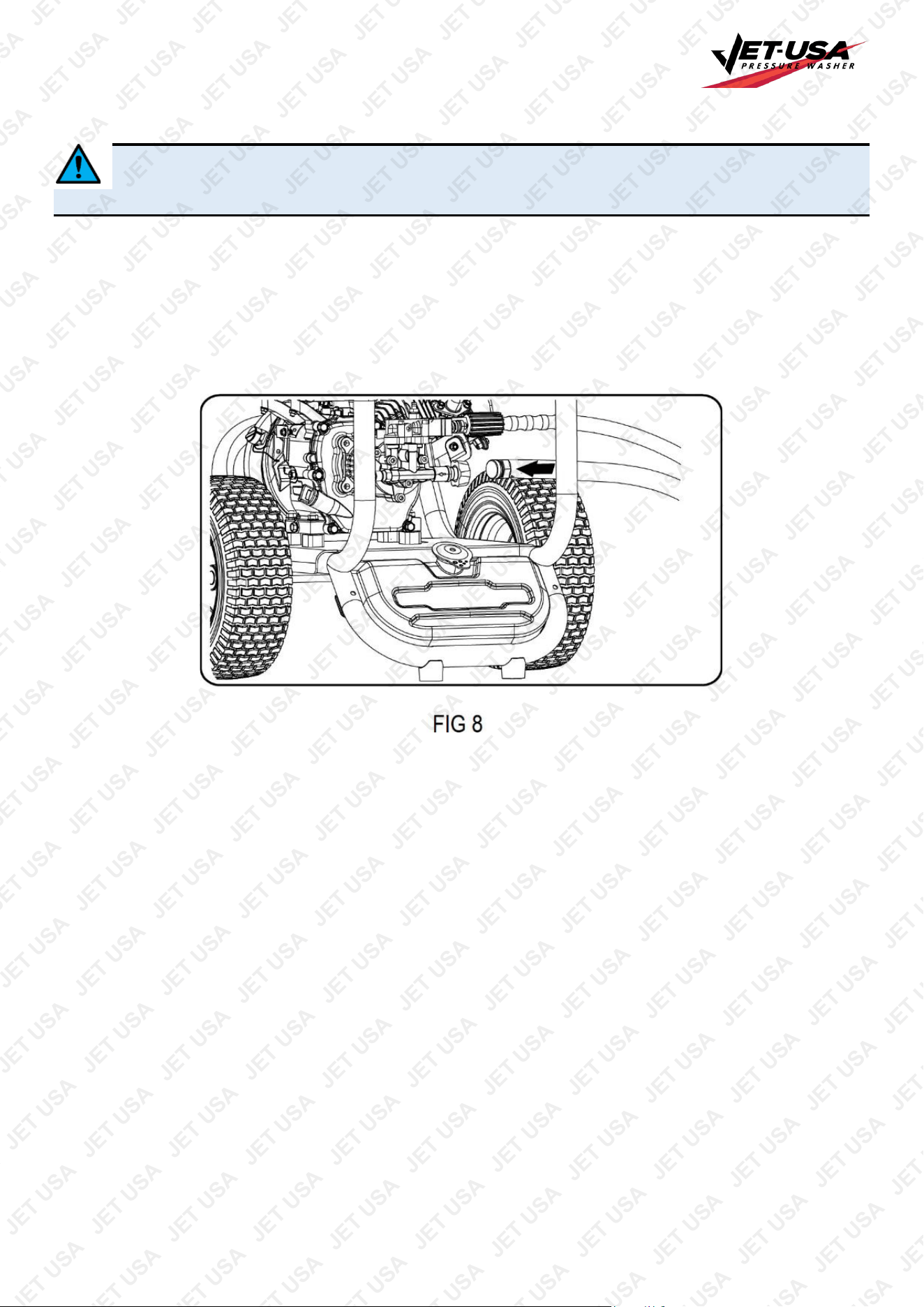

1. Attach end of high-pressure hose to the high-pressure outlet on pump.

2. Follow the same procedure with opposite end to attach high-pressure hose to spray wand.

JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA

TX770 Pressure Cleaner

Connecting a Garden Hose to Pressure Washer

CAUTION! Do not run pump without connecting to the water supply and turning water on. Failure

to do so could damage the pressure washer. Failure to follow these instructions will void product

warranty. The unit is not suitable for use with a drinking water supply!

1. Run water through the hose for a few seconds to flush any debris from the hose.

2. Inspect inlet screen and remove any debris.

3. Connect hose to water inlet and tighten by hand. There must be a minimum of 10 feet of unrestricted hose

between pressure washer and faucet or shut off valve.

4. Turn on water.

5. Purge the system’s pump of air by releasing the safety and squeezing the trigger of the spray gun.

JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA

TX770 Pressure Cleaner

Operation

WARNING!  Do not operate indoors or in a confined space preventing dangerous carbon

monoxide gas from dissipating.  Carbon monoxide gas is a poisonous, odorless gas that can

cause headache, confusion, fatigue, nausea, fainting, sickness, seizures, or death. If you start to experience any

of these symptoms, IMMEDIATELY get fresh air and seek medical attention.  Never use indoors, in a covered

area, or in a confined space, even if doors and windows are open.  Keep exhaust from this unit from entering a

confined area through windows, doors, vents, or other openings.  When working in areas where vapors could

be inhaled, use a respirator mask according to all of its instructions.

CAUTION! Do not run pressure washer with a damaged hose. Do not run pressure washer without first

connecting and turning on water supply or damage to the pressure washer could result. FAILURE TO

FOLLOW THESE INSTRUCTIONS WILL VOID PRODUCT WARRANTY.

Starting the Pressure Washer

1. Place pressure washer on a level surface.

2. Turn on water.

3. Purge the system’s pump of air by releasing the safety and squeezing the trigger of the spray gun.

4. Attach wand/lance to spray gun.

5. Turn fuel valve to the ON position.

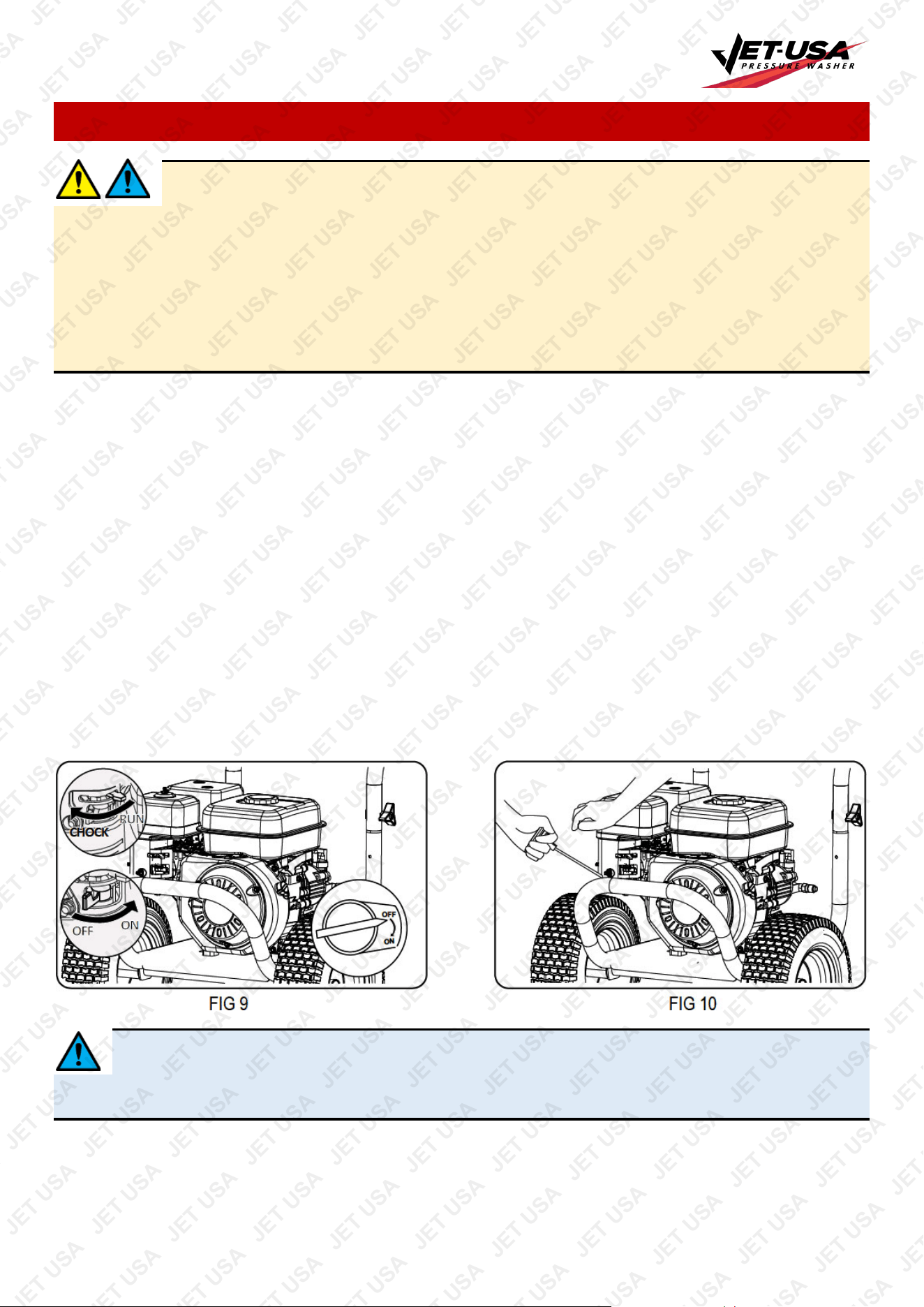

6. Slide the choke lever to the “Choke” position.

7. Turn the engine OFF/ON switch to the “ON” position.

8. Holding the machine with your hand, pull the recoil handle (starter cord) slowly until resistance is felt, then

pull rapidly. Squeeze the Gun trigger and release the pressure after every failed attempt to start the pressure

washer (This will reduce the back pressure).

9. Let engine run for several seconds and then gradually slide the choke lever to the RUN position as the

engine warms up until the choke is fully slid to the RUN position.

WARNING!  Pull cord recoils rapidly and pulls arm towards engine faster than you can let go

which could result in injury.  Always relieve pressure from spray gun before pulling starter cord,

including every failed attempt to start engine.  To avoid recoil, pull starter cord slowly until resistance is felt,

then pull rapidly.

JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA

TX770 Pressure Cleaner

Stopping the Pressure Washer

1. Turn the on/stop switch to the OFF position.

2. Turn the fuel valve to the OFF position.

3. Turn off water and squeeze the trigger handle to release all water pressure.

Using the Spray Gun

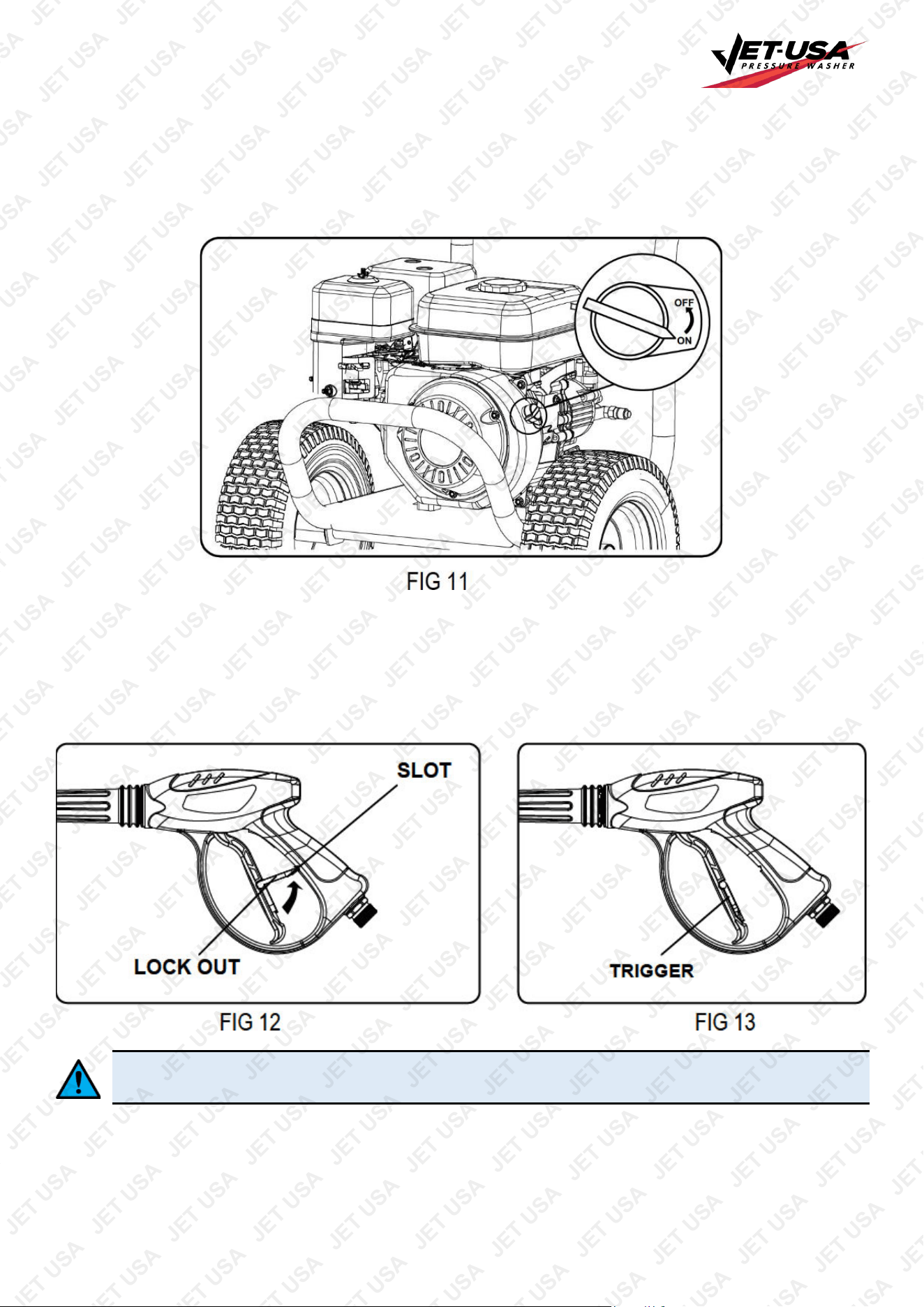

1. Flip the lock tab behind the trigger up or down until it clicks to apply or remove the safety. Pull back on the

trigger to begin operating pressure washer.

2. To stop water flow, release trigger.

WARNING! Kickback forces result from pressing the trigger! Always hold the spray gun with

both hands! Pay attention to safe posture! Improper handling can lead to injuries!

JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA

TX770 Pressure Cleaner

Using the Spray Nozzle

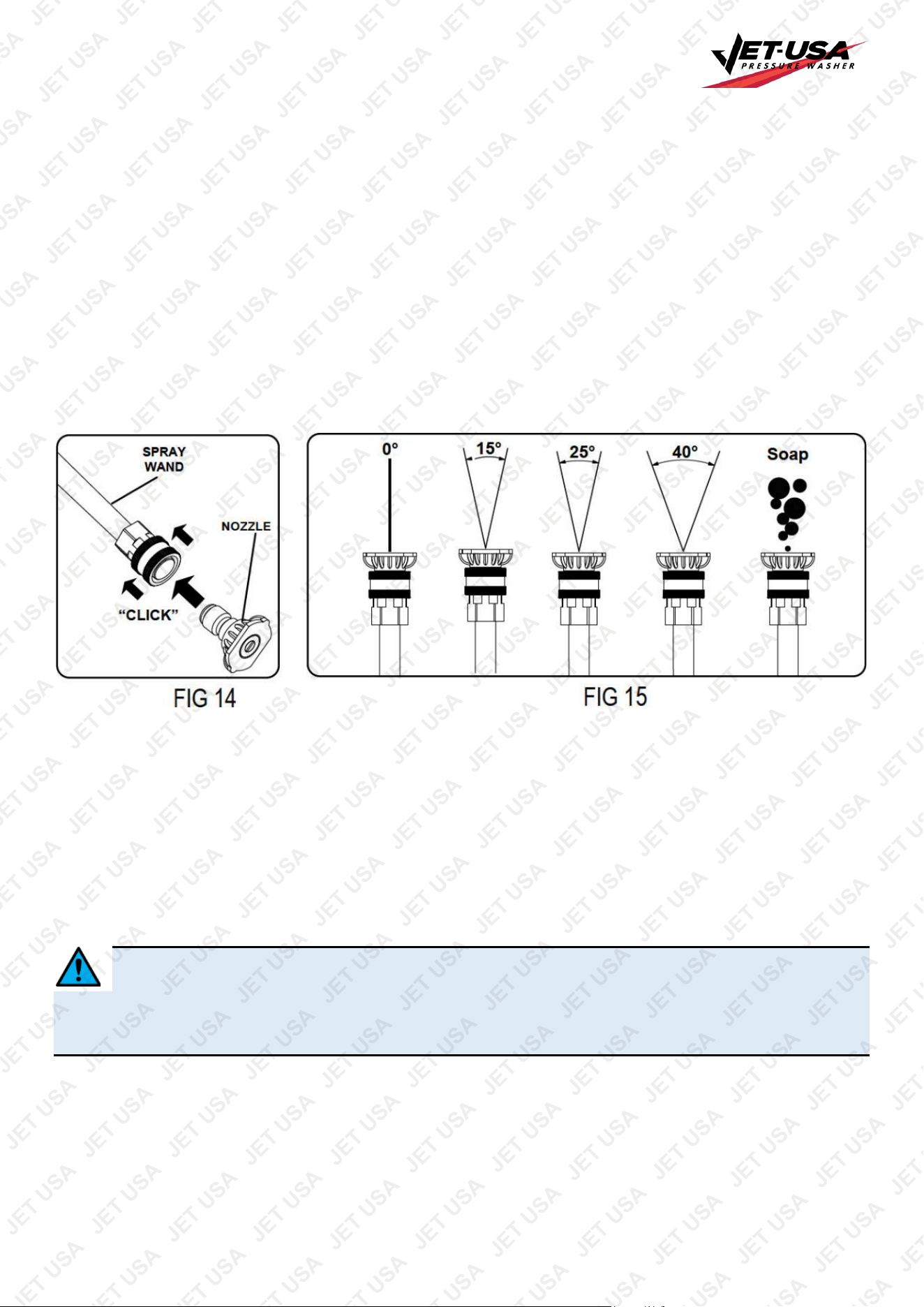

1. To connect or disconnect spray tip, pull back on the quick-connect collar. Insert or remove spray tip then

release collar.

2. When spray tip is connected, pull on the spray tip to make sure it is secured.

3. For general cleaning, use the 40° spray tip. This option is for cement walkways.

4. For stripping, spot cleaning, blasting, and hard to reach areas, use the 25° spray tip. This option is for

removing paint, rust, mildew, marine growth off boats, or grease stains. This option can be used for reaching

second story surfaces, or for the removal of paint, rust, oil stains, tar, gum, and other stubborn substances.

Use extreme caution when using this nozzle.

5. For applying pressure washer safe detergent, use the black soap nozzle.

6. The angle of the nozzles shown indicates the spray “fan shape” projected from the nozzle when the trigger of

the spray gun is pulled, and high-pressure water is passing through the nozzle. The pressure and flow will

not change significantly due to the various fan patterns (Nozzles).

Applying Detergent

1. Rinse surface with cool water before applying cleaner.

2. Prepare detergent as required by job. For best results, follow detergent directions as supplied from

manufacturer.

3. Remove cap from detergent container and fill.

4. Spray detergent on surface. For best results, use long, even, and overlapping strokes. Allow detergent to set

for about 3 minutes before rinsing, but do not allow detergent to dry on surface or it may cause streaking or

cause damage to the surface. Use good judgment.

WARNING! Only use mild, environmentally friendly detergents intended for use in pressure

washers. Ask your specialist dealer about these special products. Never use aggressive

chemicals (e.g. bleach), abrasive detergents or similar to avoid damage to your health, the product and

the environment. Avoid skin contact with detergents, especially contact with eyes! If detergent gets in

your eyes, flush your eyes with clean water and seek immediate medical attention!

Rinsing with the Pressure Washer

1. Test a small area first to avoid surface damage.

2. Rinse from top to bottom using long, overlapping strokes.

JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA

TX770 Pressure Cleaner

Moving the Pressure Washer

1. Turn the pressure washer off.

2. Tilt unit towards you until it is balanced on its wheels.

3. Roll machine to desired location.

JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA

TX770 Pressure Cleaner

Maintenance

WARNING! Before inspecting or servicing this machine, make sure the engine is off and no parts

are moving. Disconnect the spark plug wire and move it away from the spark plug.

Regular maintenance will extend the life of this pressure washer and improve its performance. The warranty

does not cover items that result from operator negligence, misuse, or abuse. To receive full value from the

warranty, operator must maintain the pressure washer as instructed in this manual, including proper storage.

Pre-Operation Steps

Before starting the engine, perform the following pre-operation steps:

•

Check the level of the engine oil and the fuel tank level.

•

Make sure the air filter is clean.

•

Remove any debris that has collected on the pressure washer.

•

Check water inlet screen for damage. Clean inlet screen if it is clogged.

•

Check high pressure hose for damage.

•

Briefly run garden hose to flush out any debris or insects.

•

Inspect the work area for hazards.

Remove Debris

•

Clean any debris that has collected around or behind the muffler, cleaning system, and controls.

•

Use a damp cloth to wipe exterior surfaces. If dirt is caked on, use a soft bristle brush.

After Each Use

Follow the following procedure after each use:

1. Shut off engine and turn off water supply. Release water pressure by pointing spray gun in a safe direction

and squeezing the trigger.

2. Disconnect high pressure hose, spray gun, and nozzle. Drain water from items and use a rag to wipe down

the outside of the hose and spray gun.

3. Empty the water from the pump by pulling the recoil starter 6 times.

4. Store unit in a clean and dry area.

5. Use of a pressure washer pump conditioner is recommended, follow the instructions provided by the

manufacturer of the pump conditioner.

JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA

TX770 Pressure Cleaner

Maintenance Schedule

After first 5 hours

Change engine oil

After each use

Check and Clean Water Inlet screen

Check High Pressure Hose

Check and Clean Detergent Siphoning Tube

Check Spray Gun for Leaks

Clean Debris

Check Engine Oil Level before starting

Annually (20hr. use)

Change Engine Oil (Service more often under dirty or dusty conditions)

Annually (50 hr. use)

Check and Clean Air Filter

Check muffler and spark arrester

Annually (100 hr. use)

Service or Replace Spark Plug

Changing the Engine Oil

1. Engine oil will drain better if the engine is still warm, but not hot.

2. Shut off engine.

3. Clean the area around the oil fill cap/dipstick to keep out debris then remove oil fill cap/dipstick.

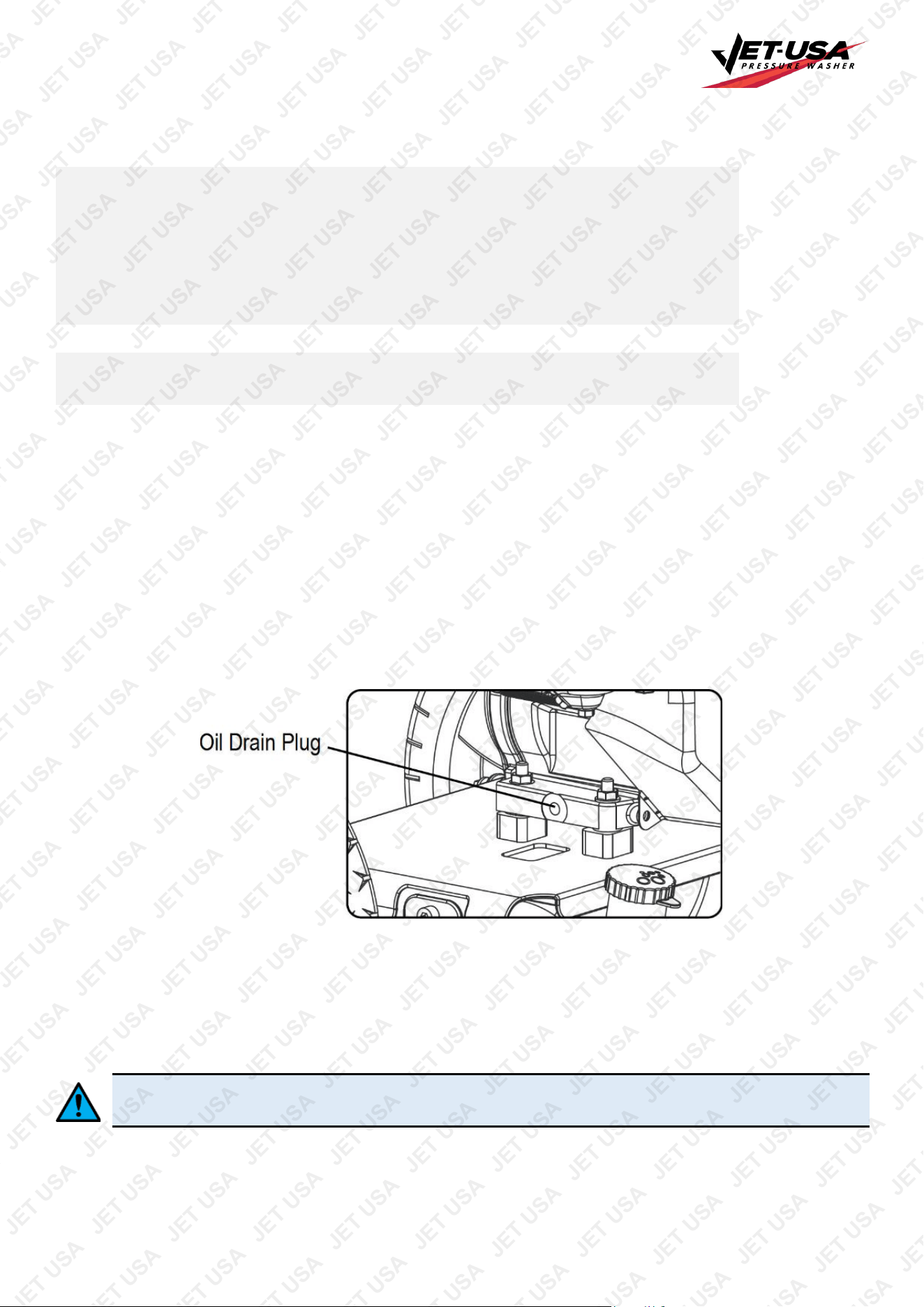

4. Place an oil pan on the ground to catch oil. Remove oil plug then tilt pressure washer back and to the side to

empty out the oil from the crankcase.

5. Once oil is completely drained, return the pressure washer to a level position, and install the oil drain plug.

Refill the engine with new oil as instructed earlier in this manual under Adding/Checking Oil.

Checking the Detergent Siphoning Tube

1. Check the detergent siphoning tube for clogs, leaks, or tears.

2. Make sure the tube fits tightly to the pump fitting.

3. Replace siphoning tubes if damaged.

WARNING! Never repair high-pressure hose or use unit if hose is damaged. If hose is damaged,

replace with identical parts from the manufacturer.

JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA

TX770 Pressure Cleaner

High-Pressure Hose

•

Inspect hose for cuts, bulges, or leaks which can develop from kinking or wear. If damage is found,

immediately replace hose.

•

Inspect couplings for damage. Immediately replace hose if damage is found.

Spray Gun

•

Make sure the spray gun is connected securely.

•

Inspect the spray gun safety and make sure the spray gun trigger springs back upon release.

Spray Nozzle

If a pulsing sensation is felt while squeezing the trigger, the spray nozzle may be dirty or clogged and should be

cleaned immediately.

1. To clean the nozzle, shut off the engine and turn off the water.

2. Remove the nozzle from the spray wand making sure that the nozzle is pointing away from you and in a safe

direction.

3. Use the nozzle cleaner or a small paper clip to

dislodge any foreign materials which are clogging or

restricting the spray tip.

4. Flush debris out of the nozzle by back flushing with a garden hose for 30-60 seconds.

5. Reconnect the nozzle to the spray wand.

6. Turn the water supply back on and start engine.

Checking the Spark Plug

1. Disconnect the spark plug wire from the spark plug.

2. Before removing the spark plug, clean the area around its base to prevent debris from entering the engine.

3. Clean carbon deposits off the electrode with a wire brush.

4. Check the electrode gap and slowly adjust to 0.80mm (0.031in.) if necessary.

5. Reinstall spark plug and tighten to Torque 22.0 – 26.9 Nm (16-20 ft-lb).

6. Reconnect spark plug wire.

7. If spark plug is worn, replace only with an equivalent replacement part. Spark plug should be replaced

annually.

WARNING! Water pressure produced by this unit can cut through skin and tissue leading to

serious injury and possible amputation. Never attempt to repair high pressure hose, always

replace. Never attempt to repair leaks with sealant, always replace O-ring or seal.

Repairing Leaking Connections

Purchase O-Ring / Maintenance kits through your nearest authorised service centre and follow instructions

provided with the kit.

JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA

TX770 Pressure Cleaner

Air Filter

A dirty air filter will reduce the life span of the engine, make starting the engine difficult, and reduce the unit's

performance.

1. To clean, remove the air filter cover.

2. Carefully pull the air filter out by lifting up along the edges.

3. Remove dirt from filter by tapping on it or having it blown out.

4. Reinstall air filter so that it seals and replace air filter cover.

WARNING! Storage cover could be flammable. Let engine cool before covering pressure washer.

Hose Care

•

To extend your hose life, you’ll want to drain the hose after use. Don’t rely on the nozzle to cut the water

when you are done. If you do, the water pressure builds up inside the hose and can burst it. The better

procedure for the hose upkeep is to turn off the water at the spigot and allow the hose to drain.

•

Another way to keep your hose in good shape for longer is to avoid dragging it by the spray trigger

assembly. This weakens the coupler connection and causes leaks.

•

Also, don’t just leave it in a pile when you are finished with it. Using the included hose reel prevents kinks

that create tears.

•

Finally, there is the issue of storing a hose over winter. If you live in a cold winter region, you’ll want to bring

the hose into the garage (or somewhere inside) to prevent freezing. Drain the entire hose first, then coil it on

a hose reel and carry it inside.

Storing the Pressure Washer

If storing pressure washer for 30 days or more follow the procedures below:

1. Add fuel stabilizer to gasoline to keep gasoline from going stale and to prevent gum deposits from forming

on the carburettor. Run engine for a couple of minutes to circulate the fuel stabilizer.

2. Add PumpSaver to protect pump from freezing or damage caused by mineral deposits.

3. Empty fluid from all hoses and pump.

4. Disconnect the spark plug wire and clean the spark plug. Leave spark plug wire disconnected.

5. Clean the air filter.

6. Cover unit with a suitable protective cover to keep unit dry.

7. Store unit in a frost-free area.

JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA

TX770 Pressure Cleaner

Troubleshooting

Problems Possible Causes Possible Solutions

Engine does not start 1. Out of fuel.

2. Engine oil low.

3. Spark plug wire disconnected

from spark plug.

4. Bad spark plug.

5. Spark plug wire has shorted.

6. Ignition inoperative.

1. Fill fuel tank.

2. Add engine oil.

3. Connect spark plug wire.

4. Replace spark plug.

5. Contact service centre.

6. Contact service centre.

Engine hard to start 1. Stale fuel or water in fuel.

2. Spark plug producing weak

spark.

3. Excessively rich fuel mixture.

1. Drain fuel and refill with fresh

gasoline.

2. Contact service centre.

3. Contact service centre.

Engine lacks power and vibrates

excessively

Dirty air filter. Clean air filter.

Engine quits during operation Out of fuel. Fill fuel tank.

Engine loses power when load is

added

Engine speed is too slow.

Move throttle to fast. If this does not

correct problem, contact service centre.

Water pressure is weak 1. Water supply is restricted.

2. Water not turned on to full

power.

3. Not using high pressure nozzle.

1. Inspect garden hose for kinks or

leaks. Make sure you are using a

large enough garden hose (min. ¾

inch diameter).

2. Open water source all the way.

3. Change nozzle.

Detergent and spray do not mix

1. Detergent hose is not

submerged or has disconnected.

2. Black soap nozzle needed.

1. Make sure hose is connected and

submerged in the detergent.

2. Install soap nozzle.

Pump fails to produce pressure or

pressure is inconsistent

1. Water supply is restricted.

2. Water not turned on full power.

3. Nozzle is clogged.

4. Spray gun leaks.

5. Air in line.

6. Inlet hose screen is clogged.

7. Water supply is over 100°F.

8. Pump is faulty.

1. Inspect garden hose for kinks or

leaks. Make sure you are using a

large enough garden hose (Min. ¾

inch diameter).

2. Open water source all the way.

3. Clean nozzle.

4. Check spray gun connection or

replace spray gun.

5. Squeeze trigger handle to remove

air.

6. Clean inlet.

7. Use cool water supply.

8. Contact service centre.

JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA

TX770 Pressure Cleaner

Specifications

OUTPUT/GENERAL

Pressure (psi) 4,800

Flow rate (GPM) 2.5

ENGINE

Power 7HP, OHV, 4-stroke

Manufacturer Ducar

Displacement (cc) 212cc

Orientation Horizontal

Starting method Recoil-manual

Recoil style Ducar

Muffler Standard

Spark arrestor Yes

USDA FS Certified spark arrester Yes

Tank volume (gal/litre) 0.94/3.6

Tank Metal

Fuel level indicator No

Fuel ON/OFF switch Yes

Engine ON/OFF switch Yes

Choke Manual

Oil cap w/dipstick Yes

Oil cap/choke lever colour Yes

PUMP

Manufacturer Lianxing

Type Axial cam

Head material Aluminium

Activation temp. for thermal relief valve (°f/°c) 140/60

Maximum supply temperature (°f/°c) 104/40

Inlet screen Yes

Chemical/detergent injector Yes

Life expectancy (hour) 120

Water inlet connection 3/4" fght.

Water outlet connection M22 threaded

Billboard

Material Metal

JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA

TX770 Pressure Cleaner

Nozzle tips storage Integrated with the billboard

Gun/lance storage Integrated with the billboard

Hose storage Wire hook on billboard

SPRAY GUN

Type

3600psi gun rear entry, m22-m inlet, chrome-plated

steel tubing

Trigger lock Yes

Gun connection to hose M22 threaded male, 1.5 pitch

Gun connection to lance M22 threaded female, 1.5 pitch

LANCE/WAND

Lance connection to nozzle 1/4" quick connection

Turbo Nozzle Connector Size Standard 1/4" BSP Quick Connect

Length (inch/cm) 21/533

Material PVC + rubber

Connector material Brass

HIGH PRESSURE HOSE

Rating (psi/bar) 3300psi

Connections M22*1.5

Length (feet/m) 30/9.14

ID (inch/mm) 0.31/7.9

Material TPU

CHEMICAL/DETERGENT TANK

Volume (gal/litre) 3l

Material Plastic

FRAME

Tubing (size/shape) 32mm round

Handle grip (foam) Yes

Wheel (size/type/colour)

12*4” WX Style

12" Pneumatic Wheel

Heavy duty steel rim with 1” sealed bearings

OTHER

Wheelbarrow style Yes

Low oil shutdown Yes

Power source Petrol

JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA JET USA

Some experts believe that the incorrect or prolonged use of almost any

product may cause serious injury or death. To help reduce your risk of

serious injury or death, refer to the information below. For more information,

see www.datastreamserver.com/safety



Consult all documentation, packaging

and product labelling before use. Note

that some products feature

documentation available online. It is

recommended to print and retain the

documentation.



Before each use, check the product for

loose/broken/damaged/missing parts,

wear or leaks (if applicable). Never use a

product with

loose/broken/damaged/missing parts,

wear or leaks.



Products must be inspected and serviced

(if applicable) by a qualified technician

every 6 months. This is based on

average residential use by persons of

average size and strength, and on a

property of average metropolitan size.

Use beyond these recommendations may

require more frequent

inspections/servicing.



Ensure that all users of the product have

completed a suitable industry recognised

training course before being allowed

access to the product.



The product has been supplied by a general merchandise

retailer that may not be familiar with your specific

application or description of application. Be sure to attain

third-party approval from a qualified specialist for your

application before use, regardless of any assurances from

the retailer or its representatives.



This product is not intended for use where fail-safe

operation is required. As with any product (for example,

automobile, computer, toaster), there is the possibility of

technical issues that may require the repair or

replacement of parts, or the product itself. If the possibility

of such failure and the associated time it may take to

rectify could in any way inconvenience the user, business

or employee, or financially affect the user, business or

employee, then the product is not suitable for your

requirements. This product is not intended for use where

incorrect operation or a failure of any kind, including but

not limited to, a condition requiring product return,

replacement, parts replacement or service by a technician

may cause financial loss, loss of employee time or an

inconvenience requiring compensation.



If this product has been purchased in error when

considering the information presented here, contact the

retailer directly for details of their returns policy, if

required.

diagrams or images may be reproduced or transmitted in any form or by any means, electronic or

mechanical, including photocopying, scanning or recording, or any information storage and retrieval system,

without express permission or consent from the publisher.

Jet-USA PRWPTLJETA770 4800PSI Petrol-Powered High Pressure Cleaner Washer TX770

Product's Documents

Product manual

Specifications

Jet-USA PRWPTLJETA770 Questions and Answers
