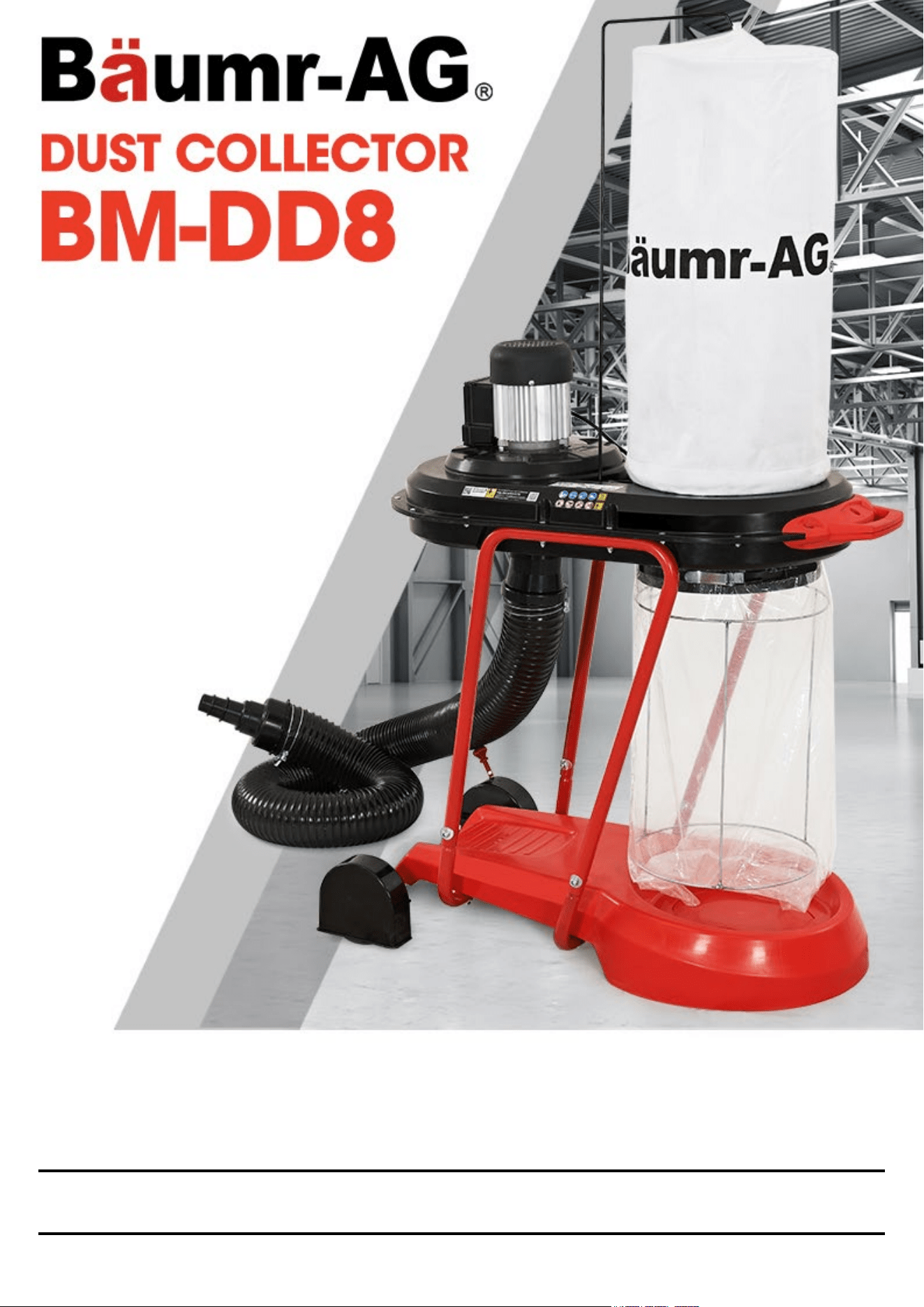

Baumr-AG VACDSTUMCADD8 Mobile Dust Collector Cyclone User Manual

User Manual

[Revision 4.0 December 2023]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND

MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in

appearance, assembly, inclusions, specifications, description, and packaging.

Dust Collector - BM-DD8

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or

equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be KILLED or

SERIOUSLY INJURED if you do

not follow instructions.

You CAN be INJURED if you do

not follow instructions or equipment

damage may occur.

It is vital that you read and understand this

user manual before using the product,

including safety warnings, and any assembly

and operating instructions. Keep the manual

for future reference.

Safety precautions and recommendations

detailed here must be fully understood and

followed to reduce the risk of injury, fire,

explosion, electrical hazard, and/or property

damage.

Safety information presented here is generic

in nature – some advice may not be

applicable to every product. The term

"equipment" refers to the product, be it

electrical mains powered, battery powered or

combustion engine powered.

• Before Use - If you are not familiar with the

safe operation/handling of the equipment or

are in any way unsure of any aspect of

suitability or correct use for your

application, you should complete training

conducted by a person or organization

qualified in safe use and operation of this

equipment, including fuel/electrical handling

and safety.

• Do NOT operate the equipment in

flammable or explosive environments, such

as in the presence of flammable liquids,

gases or dust. The equipment may create

sparks or heat that may ignite flammable

substances.

• Keep clear of moving parts.

• Equipment may be a potential source of

electric shock or injury if misused.

• Do NOT operate the equipment if it is

damaged, malfunctioning or is in an

excessively worn state.

• Do NOT allow others to use the equipment

unless they have read this manual and are

adequately trained.

• Keep packaging away from children - risk

of suffocation! Operators must use the

equipment correctly. When using the

equipment, consider conditions and pay

due care to persons and property.

General Work Area Safety

• Work areas should be clean and well it.

• Do not operate the equipment if

bystanders, animals etc are within

operating range of the equipment or the

general work area.

• If devices are provided for connecting dust

extraction / collection facilities, ensure

these are connected and used properly.

Dust collection can reduce dust-related

hazards.

General Personal Safety

• Wear appropriate protective equipment

when operating, servicing, or when in the

operating area of the equipment to help

protect from eye and ear injury, poisoning,

burns, cutting and crush injuries. Protective

equipment such as safety goggles,

respirators, non-slip safety footwear, hard

hat, hearing protection etc should be used

for appropriate equipment / conditions.

Other people nearby should also wear

appropriate personal protective equipment.

Do not wear loose clothing or jewellery,

which can be caught in moving parts. Keep

hair and clothing away from the equipment.

• Stay alert and use common sense when

operating the equipment. Do not over-

reach. Always maintain secure footing and

balance.

• Do not use the equipment if tired or under

the influence of drugs, alcohol or

medication.

• This equipment is not intended for use by

persons with reduced physical, sensory or

mental capabilities.

General Fuel Safety

• Petrol/fuel/gasoline is extremely flammable

– keep clear of naked flames or other

ignition sources.

• Do not spill fuel. If you spill fuel, wipe it off

the equipment immediately – if fuel gets on

your clothing, change clothing.

• Do NOT smoke near fuel or when

refuelling.

• Always shut off the engine before

refuelling.

• Do NOT refuel a hot engine.

• Open the fuel cap carefully to allow any

pressure build-up in the tank to release

slowly.

• Always refuel in well ventilated areas.

• Always check for fuel leakage. If fuel

leakage is found, do not start or run the

engine until all leaks are fixed.

General Carbon-Monoxide Safety

• Using a combustion engine indoors CAN

KILL IN MINUTES. Engine exhaust

contains carbon-monoxide – a poison you

cannot smell or see.

• Use combustion engines OUTSIDE only,

and far away from windows, doors and

vents.

General Equipment Use and Care

• The equipment is designed for domestic

use only.

• Handle the equipment safely and carefully.

• Before use, inspect the equipment for

misalignment or binding of moving parts,

loose components, damage or any other

condition that may affect its operation. If

damaged, have the equipment repaired by

an authorised service centre or technician

before use.

• Prevent unintentional starting of the

equipment - ensure equipment and power

switches are in the OFF position before

connecting or moving equipment. Do not

carry equipment with hands or fingers

touching any controls. Remove any tools or

other items that are not a part of the

equipment from it before starting or

switching on.

• Do not force the equipment. Use the

correct equipment for your application.

Equipment will perform better and be safer

when used within its design and usage

parameters.

• Use the equipment and accessories etc. in

accordance with these instructions,

considering working conditions and the

work to be performed. Using the equipment

for operations different from those intended

could result in hazardous situations.

• Always keep equipment components

(engines, hoses, handles, controls, frames,

housings, guards etc) and accessories

(cutting tools, nozzles, bits etc) properly

maintained. Keep the equipment clean and,

where applicable, properly lubricated.

• Store the equipment out of reach of

children or untrained persons. To avoid

burns or fire hazards, let the equipment

cool completely before transporting or

storing. Never place or store the equipment

near flammable materials, combustible

gases or liquids etc.

• The equipment is not weather-proof, and

should not be stored in direct sunlight, at

high ambient temperatures or locations that

are damp or humid.

• Do not clean equipment with solvents,

flammable liquids or harsh abrasives.

• For specific equipment safety use and care,

see Equipment Safety.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Dust Collector - BM-DD8

General Electrical Safety

• Inspect electrical equipment, extension

cords, power bars, and electrical fittings for

damage or wear before each use. Repair or

replace damaged equipment immediately.

• Ensure all power sources conform to

equipment voltage requirements and are

disconnected before connecting or

disconnecting equipment.

• When wiring electrically powered

equipment, follow all electrical and safety

codes.

• Always use a Residual Current Device

(RCD) (GFCI) / Earth Leakage Circuit

Breaker / Safety Switch when operating this

item (electrical items only).

• High voltage / high current power lines may

be present. Use extreme caution to avoid

contact or interference with power lines.

Electrical shock can be fatal.

General Electrical Safety

• Electrically grounded equipment must have

an approved cord and plug and be

connected to a grounded electrical outlet.

• Do NOT bypass the ON/OFF switch and

operate equipment by connecting and

disconnecting the electrical cord.

• Do NOT use equipment that has exposed

wiring, damaged switches, covers or

guards.

• Do NOT use electrical equipment in wet

conditions or in damp locations.

• Do NOT use electrical cords to lift, move or

carry equipment.

• Do NOT coil or knot electrical cords, and

ensure electrical cords are not trip hazards.

General Service Information

• The equipment must be serviced or

repaired at authorised service centres by

qualified personnel only.

• Replacement parts must be original

equipment manufacturer (OEM) to ensure

equipment safety is maintained.

• Do NOT attempt any maintenance or repair

work not described in this manual.

• After use, the equipment and components

may still be hot – allow the equipment to

cool and disconnect spark plugs and/or

electrical power sources and/or batteries

from it before adjusting, changing

accessories or performing repair or

maintenance.

• Do NOT adjust while the equipment is

running.

• Perform service related activities in suitable

conditions, such as a workshop.

• Replace worn, damaged or missing

warning/safety labels immediately.

Dust Collector Safety

• Carefully read through this entire user manual before using your new Dust Collector. Take special care to heed the cautions and warnings.

• This dust collector is designed for operating under ambient temperatures between +5°C and 40°C and for installation at altitudes no more than

1000m above M.S.L. The surrounding humidity should less than 50% at 40°C. It can be stored or transported under ambient temperatures

between -25°C and 55°C.

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment

or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return

your used device, please use the return and collection systems or check with your local authority or local stores for advice of environmental

safe recycling.

Understand your Machine

• Read this manual and labels affixed to the machine to understand its limitations and potential hazards.

• Be thoroughly familiar with the controls and their proper operation. Know how to stop the machine and disengage the controls quickly.

• Do not attempt to operate the machine until you fully understand how to properly operate and maintain the machine and how to avoid accidental

injuries and/or property damage.

• If the unit is to be used by someone other than original purchaser or loaned, rented, or sold, always provide this manual and any needed safety

training before operation. The user can prevent and is responsible for accidents or injuries that may occur to themselves, other people, and

property.

• Do not force the machine. Use the correct machine for your application. The correct machine will do the job more efficiently and safer at the rate it

was designed.

Personal Safety

• Do not permit children to operate this machine at any time.

• Keep children, pets, and other people not using the unit away from the work area. Be alert and shut off unit if anyone enters work area. Keep

children under the watchful care of a responsible adult.

• Do not operate the machine while under the influence of drugs, alcohol, or any medication that could affect your ability to use it properly.

• Dress properly. Wear heavy long pants, boots. Do not wear loose clothing, short pants, or jewellery of any kind. Secure long hair so it is above

shoulder level. Keep your hair, clothing, away from moving parts. Loose clothes, jewellery, or long hair can be caught in moving parts.

• Protect eyes, face, and head from objects that may be thrown from the unit. Always wear safety goggles or safety glasses with side shields when

operating.

• Wear appropriate hearing protection. Wear respiratory protection to avoid the risk of inhaling harmful dust.

• Always keep hands and feet away from all moving parts during operation. Moving parts can cut or crush body parts.

• Always keep hands and feet away from all pinch points.

• Do not touch parts that might be hot from operation. Allow parts to cool before attempting to maintain, adjust, or service.

• Stay alert, watch what you are doing, and use common sense when operating the machine.

• Do not overreach. Do not operate the machine while barefoot or when wearing sandals or similar lightweight footwear. Wear protective footwear

that will protect your feet and improve your footing on slippery surfaces. Keep proper footing and balance at all times. This enables better control

of the machine in unexpected situations.

Inspect your Machine

• Check your machine before starting it. Keep guards in place and in working order. Make sure all nuts, bolts, etc., are securely tightened.

• Never operate the machine when it is in need of repair or is in poor mechanical condition. Replace damaged, missing, or failed parts before using

it. Keep the machine in safe working condition. Regularly check to see that keys and adjusting wrenches are removed from the machine area

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Dust Collector - BM-DD8

before starting it. A wrench or a key that is left attached to a rotating part of the machine may result in personal injury. Avoid accidental starting.

Be sure the motor switch is off before transporting the machine or performing any maintenance or service on the unit.

• Transporting or performing maintenance or service on a machine with its switch on invites accidents. If the machine should start to vibrate

abnormally, stop the motor and check immediately for the cause. Vibration is generally a warning sign of trouble.

Electric Safety

• Protect yourself from electric shock. Do not plug or unplug the motor while standing in or around damp or wet ground. Do not use the unit in wet

or damp areas or expose it to rain. Prevent body contact with grounded surfaces: pipes, radiators, ranges, and refrigerator enclosures. Make sure

your fingers do not touch the plug’s metal prongs when plugging or unplugging the unit.

• Avoid inadvertent starting. Make sure that the switch is switched off when plugging the plug into an outlet.

• Only use approved and appropriately identified extension cables for use outdoors. Only use cable reels in the unrolled state.

• Do not use the cable for purposes for which it is not intended. Do not use the cable to pull the plug out of the outlet. Protect the cable from heat,

oil and sharp edges.

• Have your electric tool repaired by a qualified electrician. This electric tool conforms to the applicable safety regulations. Repairs may only be

performed by an electrician using original spare parts. Otherwise accidents can occur.

Work Area & Store Area

• Keep the work area orderly. Disorder in the work area can lead to accidents.

• Take environmental influences into account. Do not expose electric tools to rain. Do not use electric tools in a damp or wet environment. Make

sure that the work area is well-illuminated. Do not use electric tools where there is a risk of fire or explosion.

• Securely store unused electric tools. Unused electric tools should be stored in a dry, elevated or closed location out of the reach of children.

Intended Use

• Do not force tool or attachment to do a job for which it was not designed.

• This dust collector is designed to collect sawdust only.

• Never attempt to use this dust collector to vacuum water or any other liquids.

• Never try to use this dust collector to collect large wood pieces.

• Never attempt to use this dust collector to collect flammable or combustible dust/gas. Do not use near any flammable or combustible liquids.

• Never attempt to use this dust collector to collect anything that is burning or smoking.

• Do not use outdoors or on wet surfaces. Rain or moisture entering the dust collector motor housing/canister increases the risk of electrical shock.

• Never attempt to use this dust collector to collect metal materials such as screws, nails or other metal parts.

• Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the

machine is used in commercial, trade or industrial businesses or for equivalent purposes.

Safety Instructions for the Handling of Dust Collector

• Know your tool. Learn the tool’s operation, application and specific limitations.

• Disconnect tool when changing the filter cartridge or filter bag.

• Avoid accidental start-up. Make sure that the tool is in the OFF position before plugging in.

• Do not force tool. It will work most efficiently at the rate for which it was designed

• Leave hands free to operate machine. Protect hands from possible injury

• Never leave tool running unattended. Turn the power off and do not leave tool until it comes to a complete stop.

• Do not overreach. Keep proper footing and balance.

• Never stand on tool. Serious injury could occur if tool is tipped over.

• Keep hands away from moving parts.

• Keep visitors at a safe distance from work area.

• Children must always be supervised in order to ensure that they do not play with the equipment.

Maintenance and Repair

• Pull out the mains plug for any adjustment or repair tasks.

• Repairs are to be carried out only by a qualified electrician using original replacement parts or the user may suffer an accident.

• Regularly inspect the filter for damage. Replace damaged filters!

• Check tightness of the housing and of the sealing of filter and filter bag regularly.

• Inspect the power cords for damage on a regular basis. Make sure that during this inspection the power cord is not connected to the mains

supply.

• Have damaged switches replaced by a customer service workshop.

• Refit all guards and safety devices immediately after you have completed any repairs or maintenance work.

• Check that the moving parts are in good working order, that they do not jam, and that no parts are damaged.

• Make sure that all parts are fitted correctly and that all other operating conditions are properly fulfilled

• Remove adjusting tools. Form habit of checking to see adjusting tools or accessories are removed before switching tool on.

• Faults on the machine have to be reported to the person in charge as soon as they are discovered.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Dust Collector - BM-DD8

Residual Risks

• The manufacturer shall not be liable for any changes made to the machine nor for any damage resulting from such changes. Even when the

machine is used as prescribed it is still impossible to eliminate certain residual risk factors during work.

• Wear proper apparel. Do not wear loose clothing, gloves, neckties, rings, bracelets or other jewellery which may get caught in moving parts of the

tool.

• Wear protective hair covering to contain long hair.

• Wear safety shoes with non-slip soles.

• Wear approved eye protection and respirator when emptying collection canister or changing filter cartridge/bags.

• Be alert and think clearly. Never operate power tools when tired, intoxicated or when taking medications that cause drowsiness.

• There is an electrical hazard when improper electrical connecting cables are being used.

• Furthermore, there might be non-obvious residual risks despite all precautions. Remaining risks can be minimized by observing the “Safety

Instructions” and the “Intended Use” as well as the operating instruction in their entirety.

• This machine is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience

and knowledge.

• Children should be supervised to ensure that they do not play with the appliance.

• Cleaning and user maintenance shall not be made by children without supervision This machine is intended for commercial use, for example in

hotels, schools, hospitals, factories, shops, offices, and rental businesses.

• WARNING Operators shall be adequately instructed on the use of these machines.

• WARNING This machine is not suitable for picking up hazardous dust.

• WARNING This machine is for dry use only.

• CAUTION This machine is for indoor use only.

• CAUTION This machine shall be stored indoors only.

• The machine must be disconnected from its power source during cleaning or maintenance and when replacing parts or converting the machine to

another function:

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Dust Collector - BM-DD8

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on your

product and their meanings. If any stickers become unreadable, unattached etc., replace them.

Flammable Material Hazard

Flammable liquids, gases or

substances etc may present.

Avoid ignition sources and open

flames. Danger of fire.

Read User Manual

Read and fully understand

product safety warnings,

operation, procedures etc before

using the product.

Use Hand Protection

Wear appropriate hand protection

and take due care as the product

or use of the product may present

hand hazards.

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be fatal.

Electrocution / Electrical Shock

Hazard

High voltage or high current

electricity may be present or

required by the product. Take

due care when handling electrical

products, cables, plugs and

leads. Electrical shock can be

fatal.

Toxic Fumes / Dust Hazard

Using the product or by-products

from use may produce fumes,

smoke or particles that could be

harmful if inhaled. Wear

appropriate breathing protection

and have adequate ventilation.

Explosive Material Hazard

Combustible liquids, gases or

substances etc may be present.

Avoid ignition sources and open

flames. Danger of explosion.

Cutting / Amputation Hazard

The product may have blades,

edges or mechanical devices that

can cause severe cut injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Crush Hazard

The product may have blades,

edges or mechanical devices that

can cause severe crush injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Single Operator Only

The product must be operated by

a single person only. More than

one person operating the product

may introduce additional hazards.

Use Face Protection

Wear appropriate full-face

protection and take due care as

the product or use of the product

may present face and eye

hazards.

Use Foot Protection

Wear appropriate foot protection

and take due care as the product

or use of the product may present

foot hazards.

Use Eye / Ear / Head Protection

Wear appropriate eye and / or

ear and / or head protection and

take due care as the product or

use of the product may present

eye, hearing and head hazards.

Running Hazard

Do not run on or near the product

as doing so may present a fall

hazard.

Diving Hazard

Do not dive into the product as

doing so may present a neck /

head injury hazard.

Adult Supervision Required

Always supervise children and

other users of a product to

prevent drowning or injury.

Skin Penetration / Puncture

Hazard

The product may produce

pressure, emit liquids or objects

that can cause severe injury to

fingers, limbs, blood etc. Take

due care when handling and

using the product.

Hot Surface Hazard

Be aware that the product may

produce high temperatures and

hot surfaces that can cause burn

injuries.

Flying Debris Hazard

Be aware that the product or use

of the product may present

hazards produced by flying

debris. Wear appropriate clothing

and protective devices.

Moving Parts Hazard

Be aware that the product

contains or uses mechanical

devices that move or rotate.

Always wait for moving parts to

stop fully before handling the

product, adjusting, maintenance

etc.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Dust Collector - BM-DD8

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be fatal.

Pull Hazard

Be aware that the product

contains or uses mechanical

devices that can pull in objects

and can cause severe injury to

fingers, limbs etc. Take due care

when handling and using the

product.

Slope / Fall Injury Hazard

Be aware that using the product

on sloping surfaces or in slippery

conditions may present additional

dangers from falls and contact

with blades, moving parts, hot

surfaces etc.

"Slam Dunk" Warning

Do NOT attempt "slam dunk"

manoeuvres as this may result in

severe injury due to falling,

product breakage or collapse etc.

Electrocution / Electrical Shock

Hazard - Outdoor

High voltage or high current

electricity may be present or

required by the product. Do NOT

use in rain, damp or wet

conditions. Electrical shock can

be fatal.

Electrocution / Electrical Shock

Hazard - Disconnect

High voltage or high current

electricity may be present or

required by the product. Always

disconnect the product from the

electrical supply before handling

the product, adjusting,

maintenance etc.

Power Line Electrocution

Hazard

High voltage / high current power

lines may be present. Use

extreme caution to avoid contact

or interference with power lines.

Electrical shock can be fatal.

"Kick-Back" Hazard

High level of "kick-back" hazard

that can cause the machine to

suddenly rotate towards operator.

Kick-back injury can be fatal.

Winch Operator Position

Hazard

Do NOT stand between winch

and load. Do NOT use winch to

move people.

Winch Lift Hazard

Do NOT LIFT load vertically. Use

machine to PULL only.

Cable Hazard

Ensure that load bearing cable is

not kinked or knotted.

Winch Cable Hazard

Ensure that there is a minimum

number of cable coils on

winching mechanism.

Winch Hook Hazard

Carry hook to load – do NOT

throw or run.

Flash / Blinding Hazard

Wear appropriate eye protection

for welding. Direct exposure to

weld arcs may cause permanent

eye injury.

Laser Hazard

Laser may be in use – do NOT

look directly at laser or allow

others to.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Dust Collector - BM-DD8

Table of Contents

Safety ............................................................................................................................................................. 2

Safety Symbols ........................................................................................................................................................... 6

Parts Identification ....................................................................................................................................... 9

Get to Know Your Machine ........................................................................................................................ 10

Assembly ..................................................................................................................................................... 11

Operation ..................................................................................................................................................... 14

Before Starting .......................................................................................................................................................... 14

To Start ..................................................................................................................................................................... 14

To Stop ..................................................................................................................................................................... 14

Maintenance ................................................................................................................................................ 15

General Maintenance Measures .............................................................................................................................. 15

Cleaning .................................................................................................................................................................... 15

Lubrication ................................................................................................................................................................ 15

Transportation and Storage ....................................................................................................................... 15

Troubleshooting ......................................................................................................................................... 16

Specifications ............................................................................................................................................. 17

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Dust Collector - BM-DD8

Parts Identification

The dust collector comes partially assembled and is shipped in carefully packed carton. After all the parts have

been removed from the carton, you should have:

No. Name No. Name

1

Undercarriage

7

Locking strap

2

Undercarriage tray

8

Wheel cover

3

Wheel

9

Suction hose

4 Complete housing with motor 10 Support pipe

5 Support bar 11 Filter bag

6 Shavings bag 12 Hardware bag, includes:

Spare parts available

for purchase, scan QR

code below:

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Dust Collector - BM-DD8

Get to Know Your Machine

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Dust Collector - BM-DD8

Assembly

1. Slide the wheels on both ends of the axle, followed by flat washers, then insert the split pins into the holes,

bend each side of the pins outward so they do not fall out, finally put on the wheel cover.

2. Insert the ends of the undercarriage U shape supports into the openings of the support pipes and align the

mounting holes. Secure the connection with M8x40 bolts, pipe washers and nuts.

3. Place the housing assembly on the frame of the pipe supports, align the mounting holes.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Dust Collector - BM-DD8

4. Secure the connection with M5x45 bolts, pipe washers and nuts.

5. Hang the filter bag on the support bar.

6. Insert the support bar into the hole on the top of the housing.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Dust Collector - BM-DD8

7. Use locking strap to fix the filter and shavings bags onto the openings on the housing.

8. Plug the hose coupling onto the suction inlet on the housing. Secure it in place with the supplied hose clamp.

9. Attach the hose coupling to the other end of the hose using a hose clamp.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Dust Collector - BM-DD8

Operation

Before Starting

1. Place the dust collector near the dust producing machine on a flat, level surface.

2. There are four hose adapters supplied. Select the hose adapter that best fits the dust producing machine

outlet and attach it to the hose coupler.

3. Connect the dust collector adapter to the dust producing machine outlet. Make sure the connection is

secure.

4. Make sure the machine is turned OFF.

5. Connect the dust collector's power cord to the correct power source.

To Start

IMPORTANT: Turn dust collector ON before starting dust producing machine.

Place the dust collector's ON/OFF switch in the ON (I) position. Turn the machine ON.

To Stop

IMPORTANT: ALWAYS turn the dust producing machine OFF before turning the dust collector OFF.

Place the dust collector's ON/OFF switch in the OFF (O) position. Turn the machine OFF.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Dust Collector - BM-DD8

Maintenance

DANGER: Make sure the machine is turned off and the cord is disconnected from the power source

before servicing and removing/replacing any components on the machine.

General Maintenance Measures

Pull the mains plug before any adjustments, maintenance, or repair. Have any work on the device that is not

described in this instruction guide performed by a professional. Only use original parts. Allow the device to cool

off before any maintenance or cleaning is undertaken.

Check the dust collector daily for loose connections, damaged wires, worn switch, full shavings bag, dirty filter

bag and any other unsafe condition.

Damaged filters and bags must be immediately changed in order to keep the amount of dust that escapes into

the work environment as low as possible.

Cleaning

For constant performance, periodically shake out filter bag vigorously. Between cleanings, beating the bag with

the hand several times is sufficient.

The shavings bag must be replaced at the latest when the sawdust is within 10cm of the housing collar.

Clean the equipment regularly with a damp cloth and some soft soap. Do not use cleaning agents or solvents;

these could attack the plastic parts of the equipment. Ensure that no water can seep into the device. The ingress

of water into an electric tool increases the risk of an electric shock.

Lubrication

The sealed bearings in the motor have been permanently lubricated at the factory. They require no further

lubrication.

Transportation and Storage

•

Turn off the power tool before any transport and disconnect it from the power supply.

•

Never lift the machine at the suction hose or the power cord.

•

Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal

storage temperature is between 5 and 30°C. Store the electric tool in its original packaging. Cover the

electric tool in order to protect it from dust and moisture.

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Dust Collector - BM-DD8

Troubleshooting

Problem Cause Remedy

Device will not start

1. No mains voltage. Main circuit breaker

is tripped

2. On switch (green) / Off Switch (red) (1)

is broken

3. Motor faulty

1. Check the socket, mains supply cable,

cord, mains plug; if necessary, have them

repaired the main fuse

2. Contact an authorised service centre

3. Contact an authorised service centre

Motor will not run

1. Defective or broken switch

2. Defective or damaged power cord

3. Open circuit, loose connections, or

burned out motor

4. Low voltage

1. Take to a qualified service technician or

an authorised service centre

2. Take to a qualified service technician or

an authorised service centre

3. Take to a qualified service technician or

an authorised service centre

4. Check the power line for the proper

voltage. Use another circuit or have a

qualified one

Motor slow to start or

fails to reach full speed

1. Burned or defective motor

2. Worn brushes

1. Check motor, replace if necessary

2. Inspect brushes, replace if necessary

Motor overheats

1. Motor overload

2. Improper motor cooling

1. Reduce load by slowing dust production

2. Clean sawdust from motor

Tripping circuit breaker

or fuses

1. Motor overloaded

2. Improper capacity of circuit breaker or

fuses

1. Reduce load by slowing dust production

2. Use proper capacity circuit breaker or fuse

Unit has vibration or

noisy operation

1. Motor or components are loose

2. Motor bearings faulty

1. Inspect/replace any stripped or damaged

bolts/nuts and retighten

2. Take to a qualified service technician or

an authorised service centre

Loud, repetitious noise

or excessive vibration

coming from dust

collector

1. Shavings bag is full

2. Filter bag is dirty or damaged

3. Dust collector hose restricted

4. The lumber is wet, and dust is not

flowing through the hose smoothly

5. There is a leak in the hose

1. Replace the shavings bag

2. Clean filter bag or replace

3. Remove hose from dust collector inlet and

unblock the restriction in the hose. A

plumbing snake may be necessary

4. Process lumber with less than 20%

moisture content

5. Inspect and replace hose

Motor stalls

1. Short circuit in motor

2. Incorrect fuses or circuit breakers

3. Overloaded circuit

4. Low Voltage

1. Take to a qualified service technician or

an authorised service centre

2. Replace with correct fuse or circuit

breaker for the circuit

3. Turn off other machines and retry

4. Check the power line for the proper

voltage. Use another circuit or have a

qualified electrician upgrade the service

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Dust Collector - BM-DD8

Specifications

Voltage 230-240v-50hz

Motor 550W / 3/4HP

Flow Rate 1150m

3

/h

Tank / Bag Capacity 75L

Intake Hose Diameter 100mm

Number of inlets 1

Hose Length 2300mm

Noise level LWA 98.17DB(A)

Noise level LPA 83.40DB(A)

Hose adaptor and diameter (mm) 68mm, 45mm, 40mm, 35mm

Filter No

Filter bag No, just a normal bag

LPHV = Low-Pressure, High-Volume System Not tested

HPLV - High Pressure Low Volume Not tested

Portable on wheels Yes

Type of wheels Solid wheels

Wheel brakes No

Top bag support hook Yes

Quick-action clamps Yes

Magnetic safety switch Yes

Carry handle Yes

Plastic bag to collect dust

Comes with 1 plastic bag, user can replace

it as long as the opening is big enough

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Some experts believe that the incorrect or prolonged use of almost any

product may cause serious injury or death. To help reduce your risk of

serious injury or death, refer to the information below. For more information,

see www.datastreamserver.com/safety



Consult all documentation, packaging

and product labelling before use. Note

that some products feature

documentation available online. It is

recommended to print and retain the

documentation.



Before each use, check the product for

loose/broken/damaged/missing parts,

wear or leaks (if applicable). Never use a

product with

loose/broken/damaged/missing parts,

wear or leaks.



Products must be inspected and serviced

(if applicable) by a qualified technician

every 6 months. This is based on

average residential use by persons of

average size and strength, and on a

property of average metropolitan size.

Use beyond these recommendations may

require more frequent

inspections/servicing.



Ensure that all users of the product have

completed a suitable industry recognised

training course before being allowed

access to the product.



The product has been supplied by a general merchandise

retailer that may not be familiar with your specific

application or description of application. Be sure to attain

third-party approval from a qualified specialist for your

application before use, regardless of any assurances from

the retailer or its representatives.



This product is not intended for use where fail-safe

operation is required. As with any product (for example,

automobile, computer, toaster), there is the possibility of

technical issues that may require the repair or

replacement of parts, or the product itself. If the possibility

of such failure and the associated time it may take to

rectify could in any way inconvenience the user, business

or employee, or financially affect the user, business or

employee, then the product is not suitable for your

requirements. This product is not intended for use where

incorrect operation or a failure of any kind, including but

not limited to, a condition requiring product return,

replacement, parts replacement or service by a technician

may cause financial loss, loss of employee time or an

inconvenience requiring compensation.



If this product has been purchased in error when

considering the information presented here, contact the

retailer directly for details of their returns policy, if

required.

ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or

mechanical, including photocopying, scanning or recording, or any information storage and retrieval system,

without express permission or consent from the publisher.

Baumr-AG VACDSTUMCADD8 Mobile Dust Collector Cyclone Extraction System

Product's Documents

Product manual

Specifications

BAUMR-AG VACDSTUMCADD8 Questions and Answers
