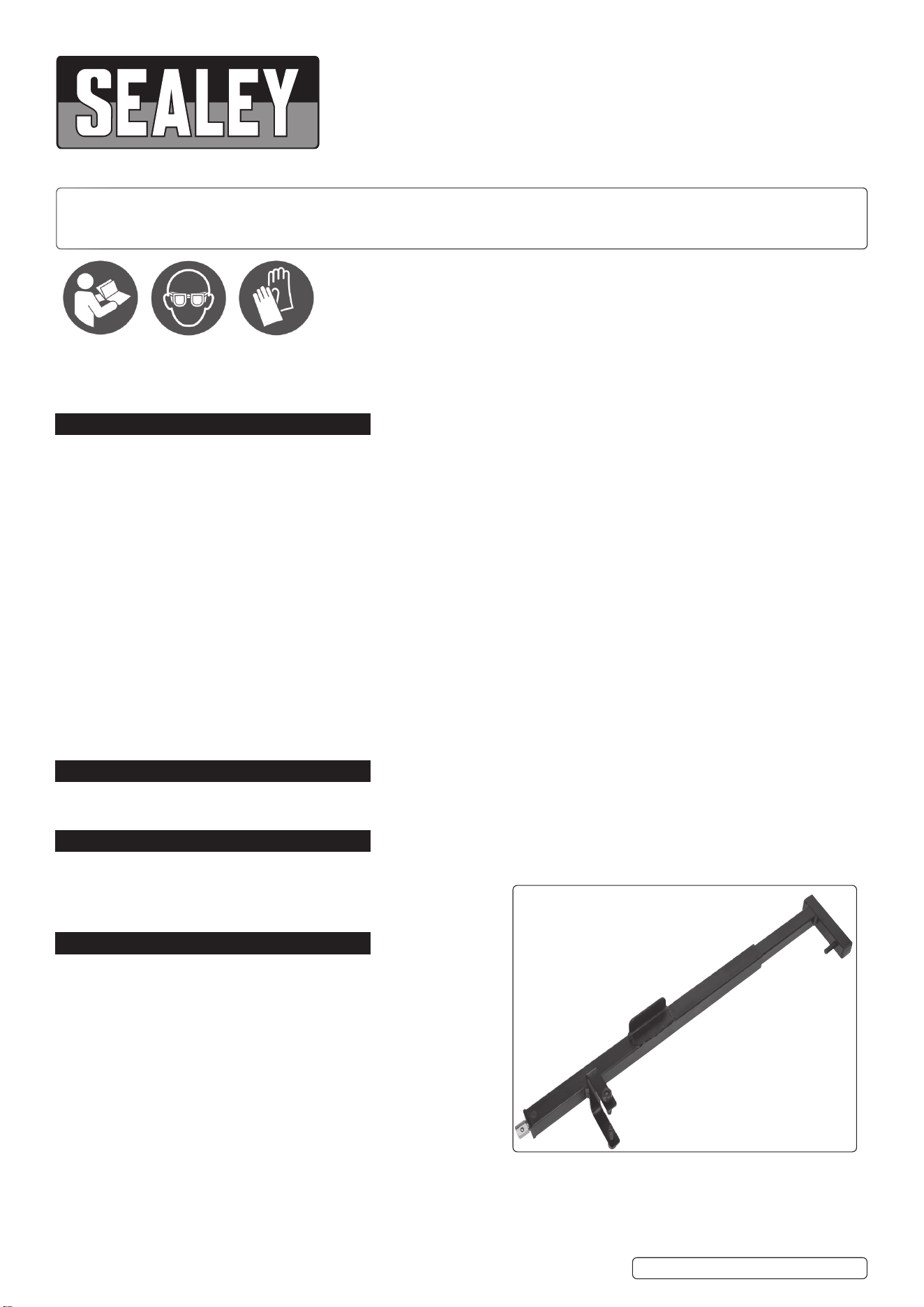

MOTORCYCLE FORK SPRING COMPRESSOR
MODEL NO: MS1824.V2
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using this
equipment.
9 Before each use, check the unit for full functional capability. If the functional capability is not ensured or if damage is detected, the unit
should not be used and you should contact your supplier immediately.
WARNING! Wear approved safety eye protection (standard spectacles are not adequate) and protective gloves.
WARNING! DO NOT compress the spring to an extent where the jaws touch.
8 DO NOT use the compressor for other purposes than it was designed for and DO NOT OVERLOAD the compressor.
8 DO NOT operate spring compressor if parts are damaged or missing as this may cause failure and/or personal injury.
9 Maintain the spring compressor in good condition. Replacement or repair of damaged parts must be carried out by competent
personnel. Use genuine parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
8 DO NOT force the spring compressor to achieve a task it was not designed to perform.
8 DO NOT allow untrained persons to use the spring compressor.
9 Familiarise yourself with the applications, limitations and potential hazards of the spring compressor.
9 Keep the work area clean, uncluttered and ensure there is adequate lighting.
9 Keep hands and body clear of the spring when operating the spring compressor.
9 Maintaincorrectbalanceandfooting.Ensuretheoorisnotslipperyandwearnon-slipshoes.
9 Removeillttingclothes.Removeties,watches,rings,otherloosejewellery.Containand/ortiebacklonghair.
9 For indoor use and at room temperature only.
9 When not in use clean and store the spring compressor in a safe, dry, childproof location.
2. INTRODUCTION
Designedtorelieveforkspringtensionallowingremovalofthetubecapsfromtherod,withoutdamagingthethreads.Canbeusedwiththefork
in situ or on the bench. Use with 17mm socket.
3. SPECIFICATION
Model No: ............................................................ MS1824.V2
Maximum Reach: ...................................................... 750mm
MaximumCylinderSize:.......................................... Ø100mm
Retaining Peg Diameter: .......................................... Ø7.5mm
4. OPERATION
NOTE: Always refer to the original manufacturer’s manual for
assembly and dismantling of motorcycle forks.
4.1. Clamptheforkspringcompressorhorizontallyorverticallyina
vice using the utility bracket.
4.2. Adjust the fork spring compressor length to suit the fork length
approximately.
4.3. Remove the nut at the top of the fork.
4.4. Locate the bottom of the fork on the compressor pin.
4.5. The two screws on the tool are to align with the two holes in the
fork internal sleeve. The fork internal sleeve is an aluminium alloy;
location of the screws and holes is required only. DO NOT apply
force to the internal sleeve when locating.
4.6. Using a 17mm socket, tighten the tool pulling down the collar and the spring, which allows access to the nut holding the fork cap in
place.
Refer to
instruction
manual
Wear eye
protection
Wear protective
gloves
Original Language Version
© Jack Sealey Limited
MS1824.V2 | Issue:3 (3) 12/06/23
Original Language Version
© Jack Sealey Limited
4.7.
4.8.
.
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice. Please note that other versions of this product are available. If you require documentation for alternative versions, please email or call
our technical team on technical@sealey.co.uk or 01284 757505.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
Parts support is available for this product. Please email sales@sealey.co.uk or telephone 01284 757500
