INSTRUCTIONS FOR
MOTORCYCLE ENGINE STAND -
SINGLE/TWIN CYLINDER
MODEL NO: MES01
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
WARNING! Ensure all Health and Safety, local authority, and general workshop practice regulations are strictly adhered to when using this
equipment.
8 DO NOT use unit if damaged.
9 Replace or repair damaged parts. Use recommended parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
9 Keep the stand clean for best and safest performance.
9 Locate the stand in a suitable work area. Keep area clean and tidy and free from unrelated materials. Ensure there is adequate lighting.
9 Use on a firm, level surface capable of sustaining the stand and the load.
9 Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
9 Ensure all non-essential persons keep a safe distance whilst the stand is in use.
9 Lock ratchet in position with locking pin before fixing a load and ensure the engine is centred and securely mounted.
9 Ensure the stand and load are stable.
9 DO NOT allow untrained persons to use the stand.
8 DO NOT exceed the rated capacity of 30kg.
8 DO NOT use the stand for purposes other than those for which it is designed.
9 When not in use store stand in a safe, dry, childproof area.
2. INTRODUCTION
Suitable for a wide variety of engines and transmissions. Model no. MES01 is suitable for lower capacity single and twin cylinder engines
(maximum weight 30kg) and includes a utility/drip tray.
3. SPECIFICATION
Model no: .................................................................. MES01
Maximum capacity: ........................................................ 30kg
Height: ....................................................................... 375mm
Width: ......................................................................... 320mm
Length: ....................................................................... 535mm
Engine support span: .......................................... 200-375mm
ASSEMBLY
MES01 | Issue 1 03/12/15
Original Language Version
© Jack Sealey Limited
Refer to
Instruction
Manual

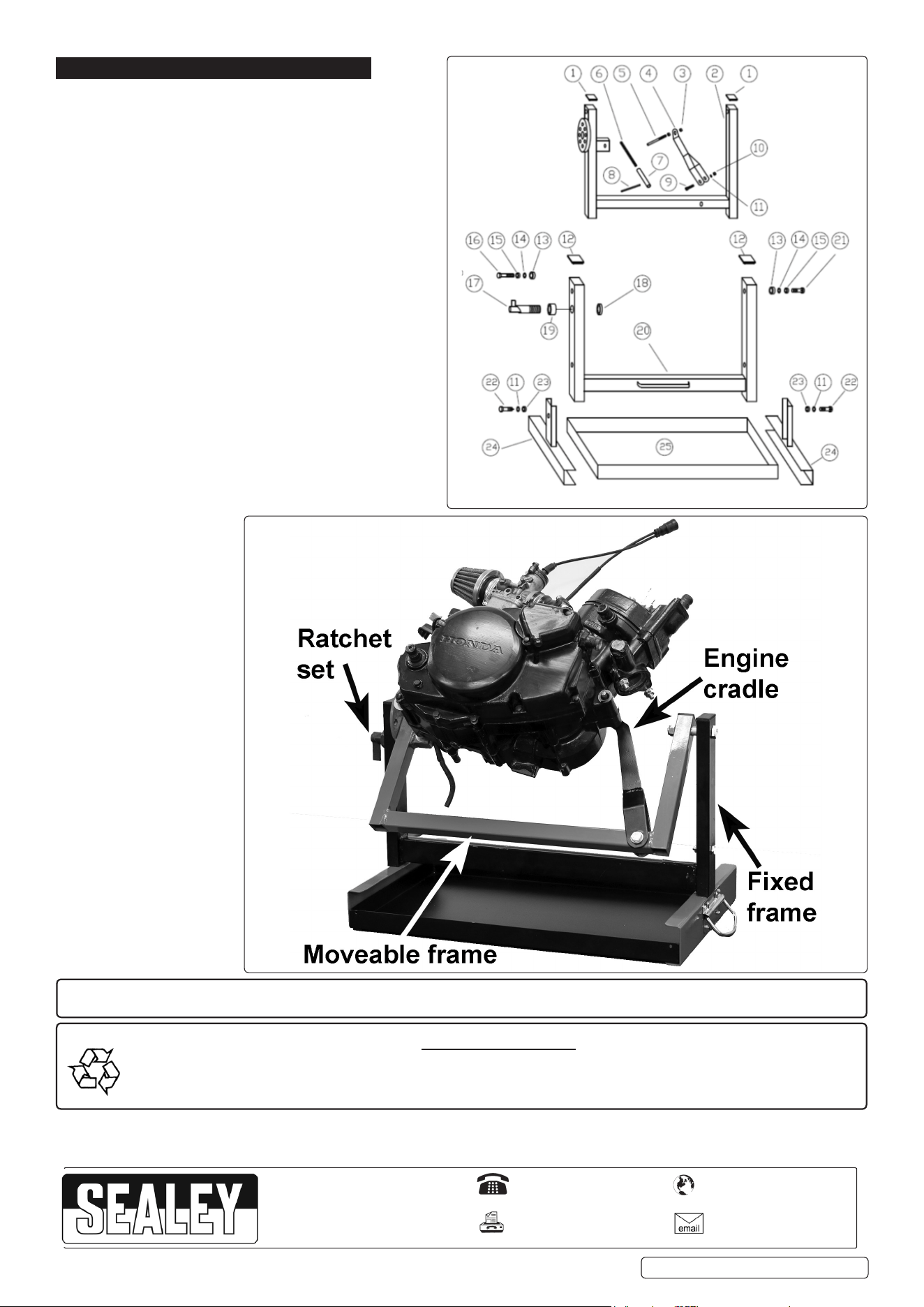

4. ASSEMBLY
4.1. Insertpost(24)intoxedframe(20),usebolt(22),
washer (11) and nut (23) to secure each end.
4.2. Fitmovableframe(2)toxedframe(20).
Fitratchetset(17)toxedframe(20).Usenut(19)and
nut (18) inside frame.
Usebolt(16)andsleeve(15)betweenxedframe(20)and
moveable frame (2), washer (14) and nut (13) at the ratchet
set end.
At the other end use bolt (21), sleeve (15) between the
two frames, washer (14) and nut (13).
4.3. Fitenginecradle(4)tomoveableframe(2)usingscrew(9)
washer (11) and nut (10).
Fit screw (5) into the other end of the engine cradle (4).
Use two nylock nuts (3) either side of the engine cradle.
Screw support tube (7) onto this. Use rod (8) through the
end, to tighten.
Fit screw (6) through the moveable frame in the same way
asscrew(5)wasxed.Screwonsupporttube(7).
4.4. Slide in oil plate (25).
4.5. Check all fasteners are secure.
