INSRUCTIONS FOR:
SOLDERING WIRE DISPENSER STAND
PART NO: SWD1
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE THE PRODUCT
CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL
INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions
and maintained properly, give you years of trouble free performance.
Steel constructed soldering wire dispensing stand. Fitted with soldering wire bobbin which will support multiple sizes of wire up to 1kg. Features
soldering wire guide and smooth reel action for improved work efficiency. Fitted with sheathed soldering iron holder for storing iron even when hot.
Supplied with soldering sponge.
Size(WxDxH): 145x120x115mm

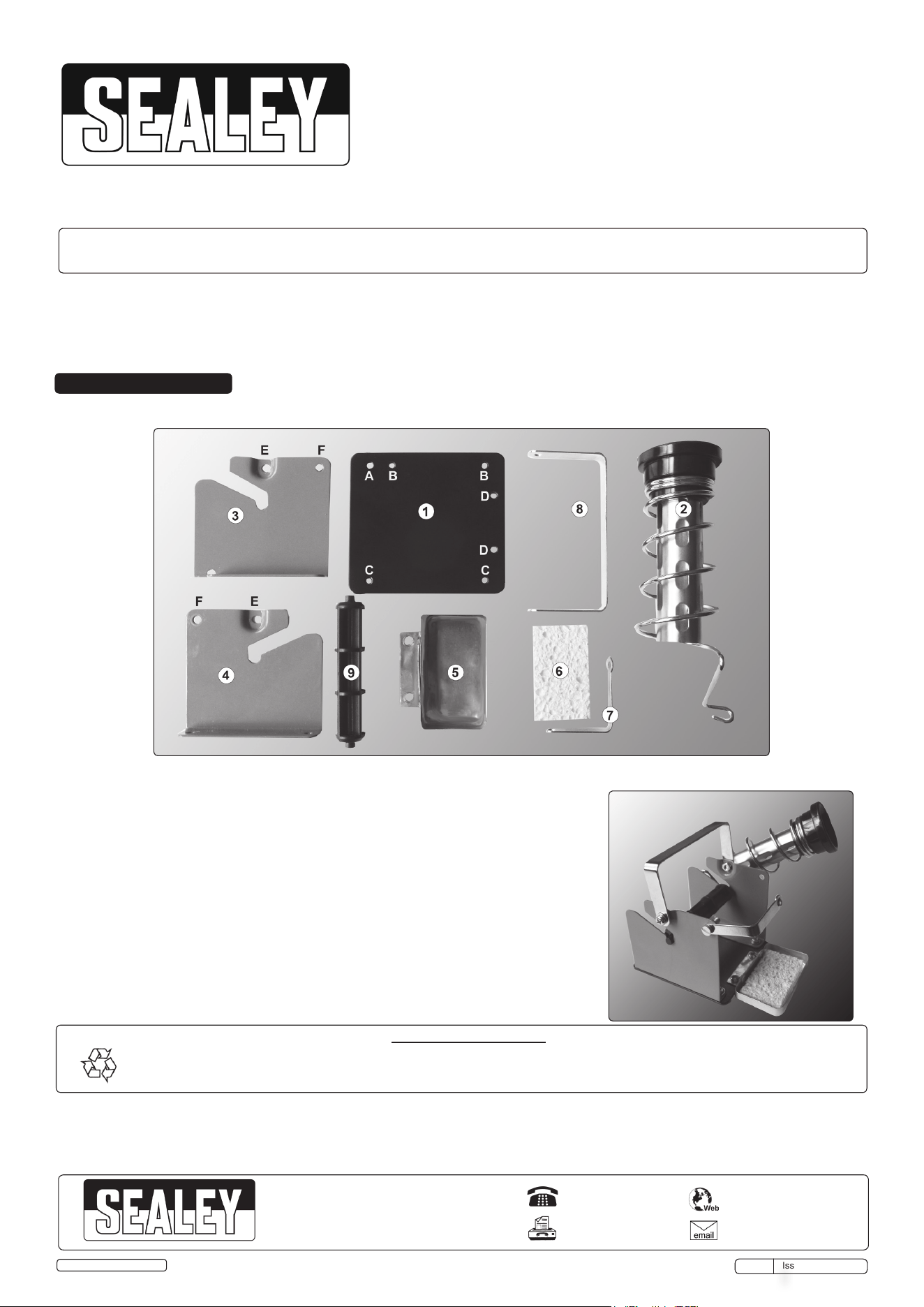

ASSEMBLY
1.1. Using a screw and washer, fix the soldering iron holder (2) to hole ‘A’ on the base (1)
1.2.. Fasten side piece (3, with the notch and shorter flange) to the base by means of screws
and washers into holes ‘B’.
1.3. Fasten other side piece (4) by means of holes ‘C’ to the base.
1.4. Fasten the sponge tray (5) to the base by means of holes ‘D’.
1.5. Secure the wire leader (7) to either side piece by means of screw, nut and washer into
hole ‘F’.
1.6. Secure the handle to the two side frames by means screws, washers and nuts into
holes ‘E’.
1.7. Fit the spool of wire onto the bobbin (9) and fit the bobbin into the channels in the side
plates.
1.8. Put the sponge in the sponge tray ready for use.
Environmental Protection
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable dispose of it according to local regulations.
NOTE: It is our policy to improve products continually and as such we reserve the right to alter data, specifications and component parts without prior
notice.
IMPORTANT: No liability is accepted for incorrect use of this product.
WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.
