H85-GA-B10
H85-GA-B15
H85-GA-P18
CORDLESS CONVENIENCE FOR
QUICK EVERYDAY CLEAN UPS
LET’S GET STARTED.
Gator
HANDHELD
Let’s talk safety
Basic
safety
precautions
Don’ts
Do’s
This handheld is intended for household use only and NOT for
commercial or industrial use.
• This handheld is for indoor use only.
• For dry debris use, not to be used on wet surfaces.
• Keep ngers, hair and loose clothing from moving parts
and openings whilst using the handheld.
• Only Vax recommend charger, tools and accessories should be used with
this handheld.
• This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
• Don’t charge the handheld outdoors
• Don’t use this handheld if it has been dropped, damaged,
immersed in water or left outdoors.
• Don’t run over the charger cord or use handheld if the Charger
cord or plug is damaged. Please contact our Customer Care Line
on: 0844 4128 455 (Mon-Fri 8.30am to 6.30pm, Sat 9.00am
to 5.00pm).
• Don’t handle the plug or use the handheld with wet hands.
• Don’t throw the handheld into re or expose to high
temperatures, as the handheld contains a rechargeable nickel
cadmium battery which may cause damage or burst.
• Don’t pull or carry this handheld by the charger cord. Don’t use the charger
cord as a handle, pull the charger cord around corners or sharp edges or
close a door over the charger cord. Don’t unplug handheld by pulling on the
charger cord.
• Don’t attempt to remove blockages with sharp objects as this may cause
damage to your handheld.
• Don’t use the handheld charger with incorrect voltage as this may result in
damage or injury to the user. The correct voltage is listed on the ratings label.
• Don’t vacuum up hot coals, cigarette butts, matches or smoking hot burning
items or use in an area where there may be harmful uids (chlorine, bleach,
and ammonia drain cleaner).
• Always make sure lter and dirt container are tted correctly
before using your handheld.
• Always turn o the Gator handheld vacuum and disconnect the
charger before carrying out any maintenance.
• Turn o all controls on the handheld before disconnecting
or connecting the charger.
• Take extra care when cleaning on the stairs.
• Always replace the fuse in the plug with a 13amp fuse.
• Always protect the charger cable from heated surfaces or near open ames.
• Use only CE approved 13amp extension cords, non-approved extension cords
may overheat. Care should be taken to arrange the extension cord as it can
be a trip hazard.
• Always carry the handheld by the handle.
• Store your handheld in a cool, dry area.
PLEASE KEEP INSTRUCTIONS FOR FURTHER USE.
Let’s talk safety
Basic
safety
precautions
Don’ts
Do’s
This handheld is intended for household use only and NOT for
commercial or industrial use.
• This handheld is for indoor use only.
• For dry debris use, not to be used on wet surfaces.
• Keep ngers, hair and loose clothing from moving parts
and openings whilst using the handheld.
• Only Vax recommend charger, tools and accessories should be used with
this handheld.
• This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
• Don’t charge the handheld outdoors
• Don’t use this handheld if it has been dropped, damaged,
immersed in water or left outdoors.
• Don’t run over the charger cord or use handheld if the Charger
cord or plug is damaged. Please contact our Customer Care Line
on: 0844 4128 455 (Mon-Fri 8.30am to 6.30pm, Sat 9.00am
to 5.00pm).
• Don’t handle the plug or use the handheld with wet hands.
• Don’t throw the handheld into re or expose to high
temperatures, as the handheld contains a rechargeable nickel
cadmium battery which may cause damage or burst.
• Don’t pull or carry this handheld by the charger cord. Don’t use the charger
cord as a handle, pull the charger cord around corners or sharp edges or
close a door over the charger cord. Don’t unplug handheld by pulling on the
charger cord.
• Don’t attempt to remove blockages with sharp objects as this may cause
damage to your handheld.
• Don’t use the handheld charger with incorrect voltage as this may result in
damage or injury to the user. The correct voltage is listed on the ratings label.
• Don’t vacuum up hot coals, cigarette butts, matches or smoking hot burning
items or use in an area where there may be harmful uids (chlorine, bleach,
and ammonia drain cleaner).
• Always make sure lter and dirt container are tted correctly
before using your handheld.
• Always turn o the Gator handheld vacuum and disconnect the
charger before carrying out any maintenance.
• Turn o all controls on the handheld before disconnecting
or connecting the charger.
• Take extra care when cleaning on the stairs.
• Always replace the fuse in the plug with a 13amp fuse.
• Always protect the charger cable from heated surfaces or near open ames.
• Use only CE approved 13amp extension cords, non-approved extension cords
may overheat. Care should be taken to arrange the extension cord as it can
be a trip hazard.
• Always carry the handheld by the handle.
• Store your handheld in a cool, dry area.
PLEASE KEEP INSTRUCTIONS FOR FURTHER USE.
Gator 10.8V & 15.6V
Filter
Included with
your machine
Motorised Tool
Charger
Name Gator Gator Gator
10.8V 15.6V 18V
Weight 1.24kg 1.8kg 1.8kg
Capacity 0.3L 0.3L 0.3L
Cleaning
Time 15 mins 18 mins 20 mins
Charging
Time 12 hrs 12 hrs 12 hrs
Technical Specication
Subject to technical change without notice.
Accessories & Consumables
*
*To purchase consumables and accessories, please visit vax.co.uk

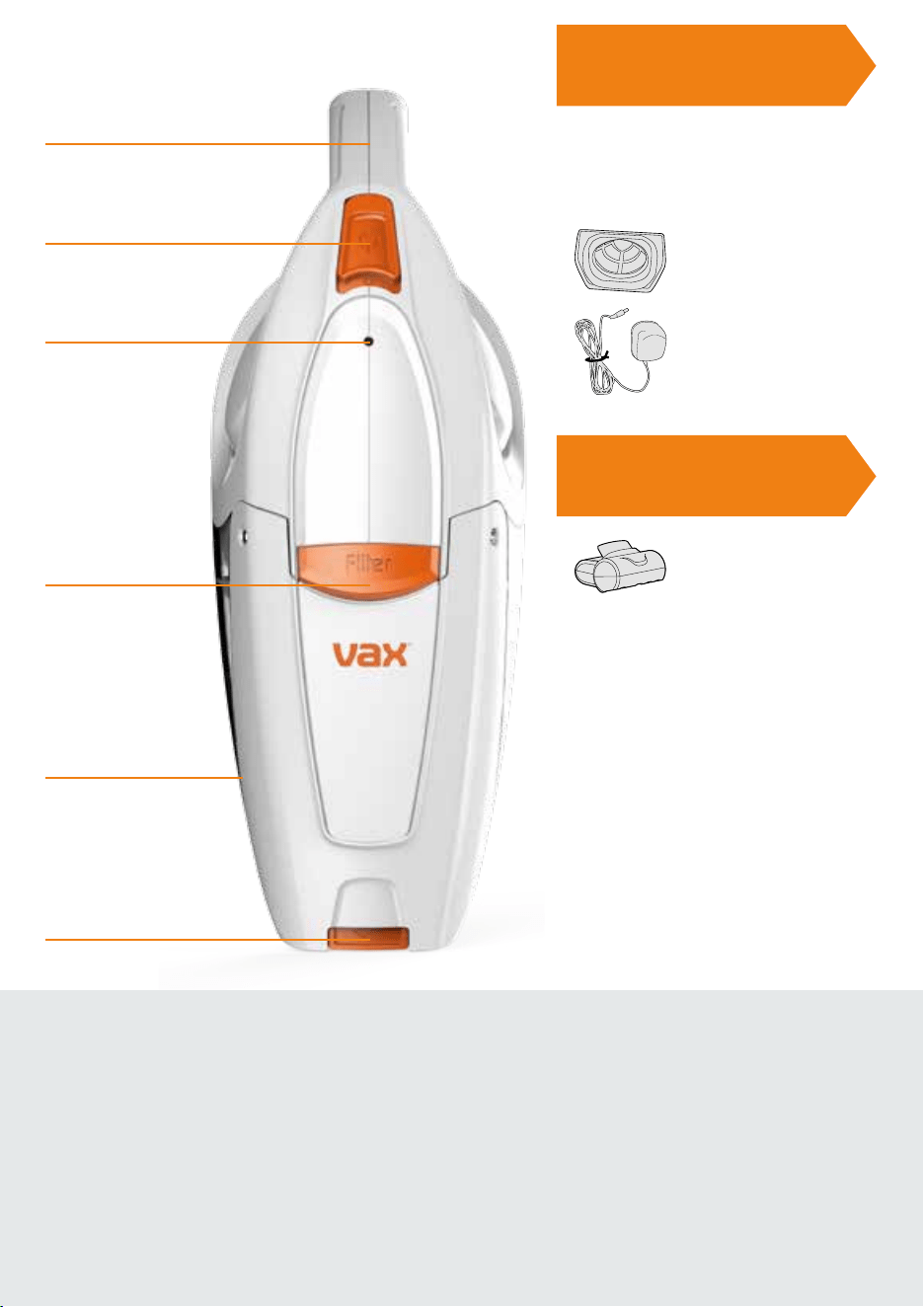

Gator 18V
Handle
On/O switch
Charging indicator
(red LED)
Dirt container
release button
Retractable crevice tool
Filter release button
Thank you for buying this Gator.
Taking care of small cleaning tasks
The Gator range is designed to make cleaning as quick and convenient as possible and this user
guide will help you get the most out of your machine.
The Gator range is perfect for small cleaning tasks on surfaces and upholstery.
Taking care of your Gator
Also inside this guide are instructions on maintaining your new machine, so that it’s always ready
when you need to tackle those small jobs.
Let us know what you think @VaxUK
Taking care of you
We’re here if you need us. Instead of taking me back
to the shop, simply visit:
vax.co.uk/support or call:
(UK) 0330 026 8455 (ROI) 1-800 928 308
Monday-Friday 8:30am to 6:30pm, Saturday 9:00am to 5:00pm
Calls are charged at the UK local rate. Please make a note of the serial number and model number
of the product before calling.
Alternatively, you can write to us at:
Vax Ltd., Plot 302, Stonebridge Cross Business Park, Hampton Lovett, Droitwich,
Worcestershire, WR9 0LW, UK
This user guide can be found online at: vax.co.uk/support
Gator 10.8V
Charger
1-5-131865-00
Pre-motor
Filter (Type 67)
1-7-131574-00
Gator 15.6V
Charger
1-5-132794-00
Pre-motor
Filter (Type 67)
1-7-131574-00
Gator 18v
Charger
1-5-132794-00
Pre-motor
Filter (Type 67)
1-7-131574-00
Motorised
Turbohead
1-2-132797-00
Gator 10.8V & 15.6V
Filter
Included with
your machine
Motorised Tool
Charger
Name Gator Gator Gator
10.8V 15.6V 18V
Weight 1.24kg 1.8kg 1.8kg
Capacity 0.3L 0.3L 0.3L
Cleaning
Time 15 mins 18 mins 20 mins
Charging
Time 12 hrs 12 hrs 12 hrs
Technical Specication
Subject to technical change without notice.
Accessories & Consumables
*
*To purchase consumables and accessories, please visit vax.co.uk
Gator 18V
Handle
On/O switch
Charging indicator
(red LED)
Dirt container
release button
Retractable crevice tool
Filter release button
Thank you for buying this Gator.
Taking care of small cleaning tasks
The Gator range is designed to make cleaning as quick and convenient as possible and this user
guide will help you get the most out of your machine.
The Gator range is perfect for small cleaning tasks on surfaces and upholstery.
Taking care of your Gator
Also inside this guide are instructions on maintaining your new machine, so that it’s always ready
when you need to tackle those small jobs.
Let us know what you think @VaxUK
Taking care of you
We’re here if you need us. Instead of taking me back
to the shop, simply visit:
vax.co.uk/support or call:
(UK) 0330 026 8455 (ROI) 1-800 928 308
Monday-Friday 8:30am to 6:30pm, Saturday 9:00am to 5:00pm
Calls are charged at the UK local rate. Please make a note of the serial number and model number
of the product before calling.
Alternatively, you can write to us at:
Vax Ltd., Plot 302, Stonebridge Cross Business Park, Hampton Lovett, Droitwich,
Worcestershire, WR9 0LW, UK
This user guide can be found online at: vax.co.uk/support
Gator 10.8V
Charger
1-5-131865-00
Pre-motor
Filter (Type 67)
1-7-131574-00
Gator 15.6V
Charger
1-5-132794-00
Pre-motor
Filter (Type 67)
1-7-131574-00
Gator 18v
Charger
1-5-132794-00
Pre-motor
Filter (Type 67)
1-7-131574-00
Motorised
Turbohead
1-2-132797-00

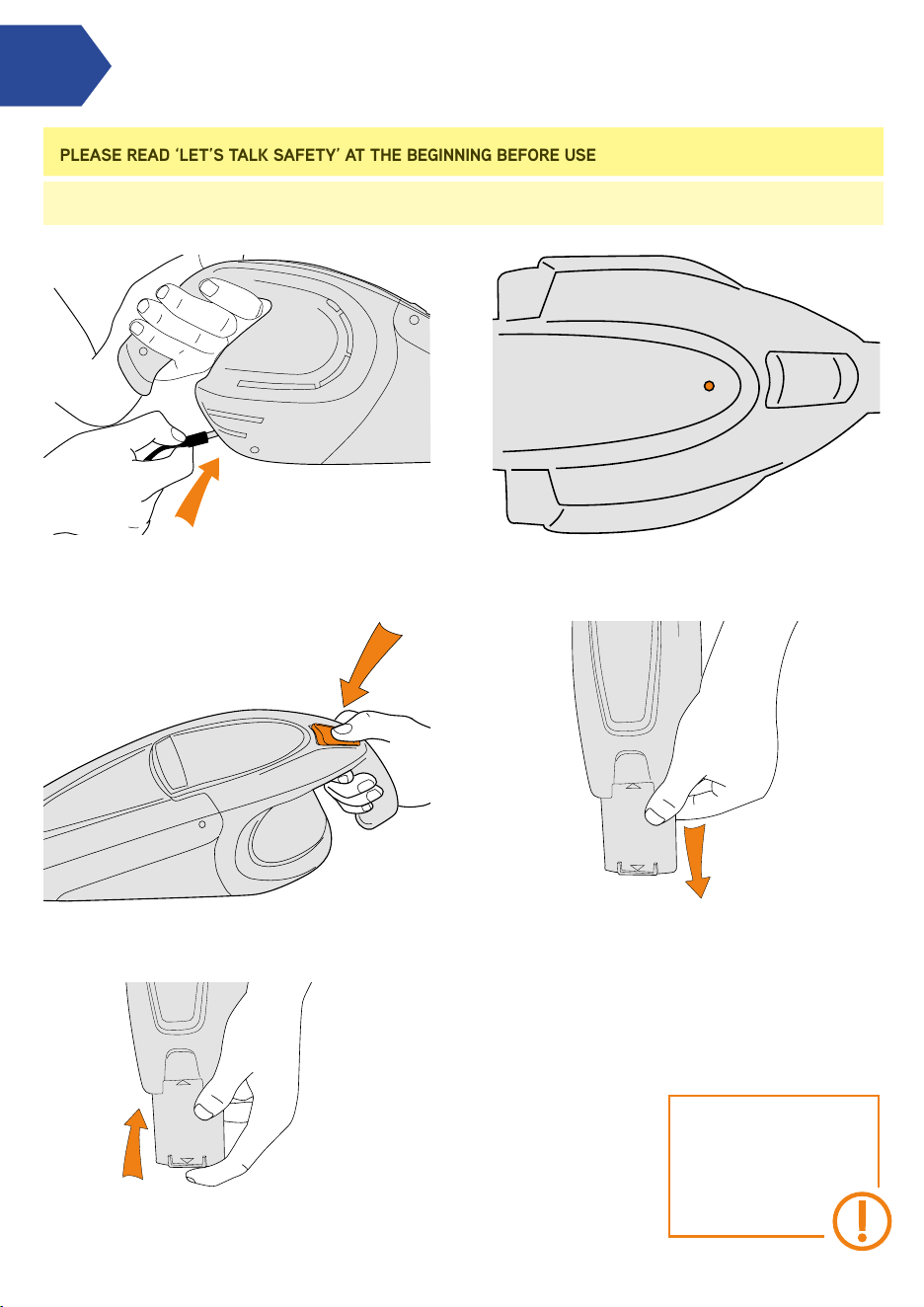

Plug charger into the mains and insert lead into back
of machine. Initial charging time is 24 hours.
Getting started Using your machine
PLEASE READ ‘LET’S TALK SAFETY’ AT THE BEGINNING BEFORE USE
The charging light will illuminate continuously
whilst the charger is connected.
On/o switch: 0 O
I On
Gently pull the crevice tool.
Push the crevice tool to retract.
PLEASE READ ‘LET’S TALK SAFETY’ AT THE BEGINNING BEFORE USE

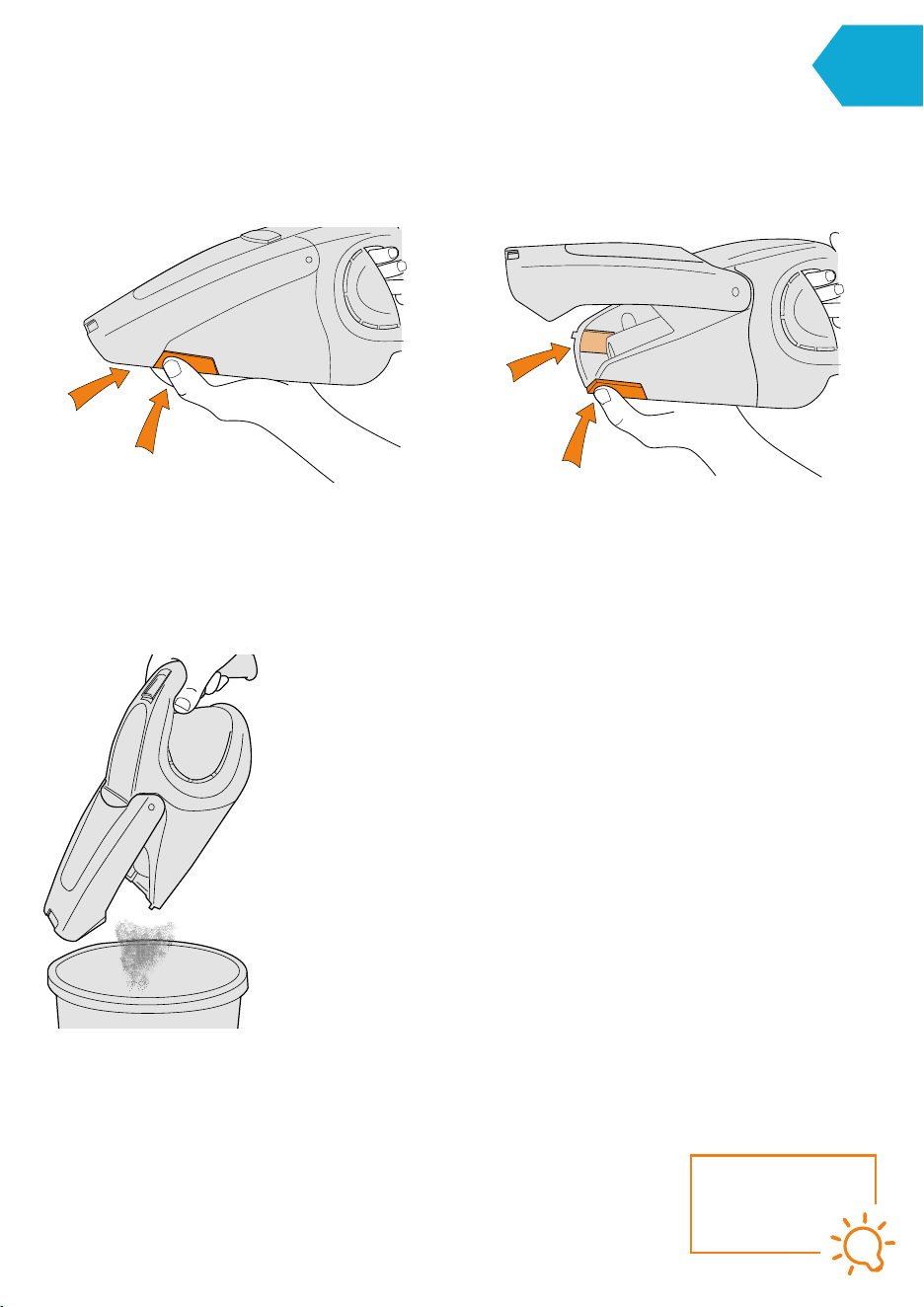

To empty the dirt container, press both buttons either side of the dirt container to release lid.
Empty dirt and
debris over a bin.
Failure to initially charge
the battery for 24 hours,
may result in poor
battery performance.
CAUTION
TIP
We recommend to
empty the dirt container
after each use.
NOTE: The power switch must be in the o position to charge the battery.
Plug charger into the mains and insert lead into back
of machine. Initial charging time is 24 hours.
Getting started Using your machine
PLEASE READ ‘LET’S TALK SAFETY’ AT THE BEGINNING BEFORE USE
The charging light will illuminate continuously
whilst the charger is connected.
On/o switch: 0 O
I On
Gently pull the crevice tool.
Push the crevice tool to retract.
PLEASE READ ‘LET’S TALK SAFETY’ AT THE BEGINNING BEFORE USE
To empty the dirt container, press both buttons either side of the dirt container to release lid.
Empty dirt and
debris over a bin.
Failure to initially charge
the battery for 24 hours,
may result in poor
battery performance.
CAUTION
TIP
We recommend to
empty the dirt container
after each use.
NOTE: The power switch must be in the o position to charge the battery.
Taking care of your machine Taking care of your machine

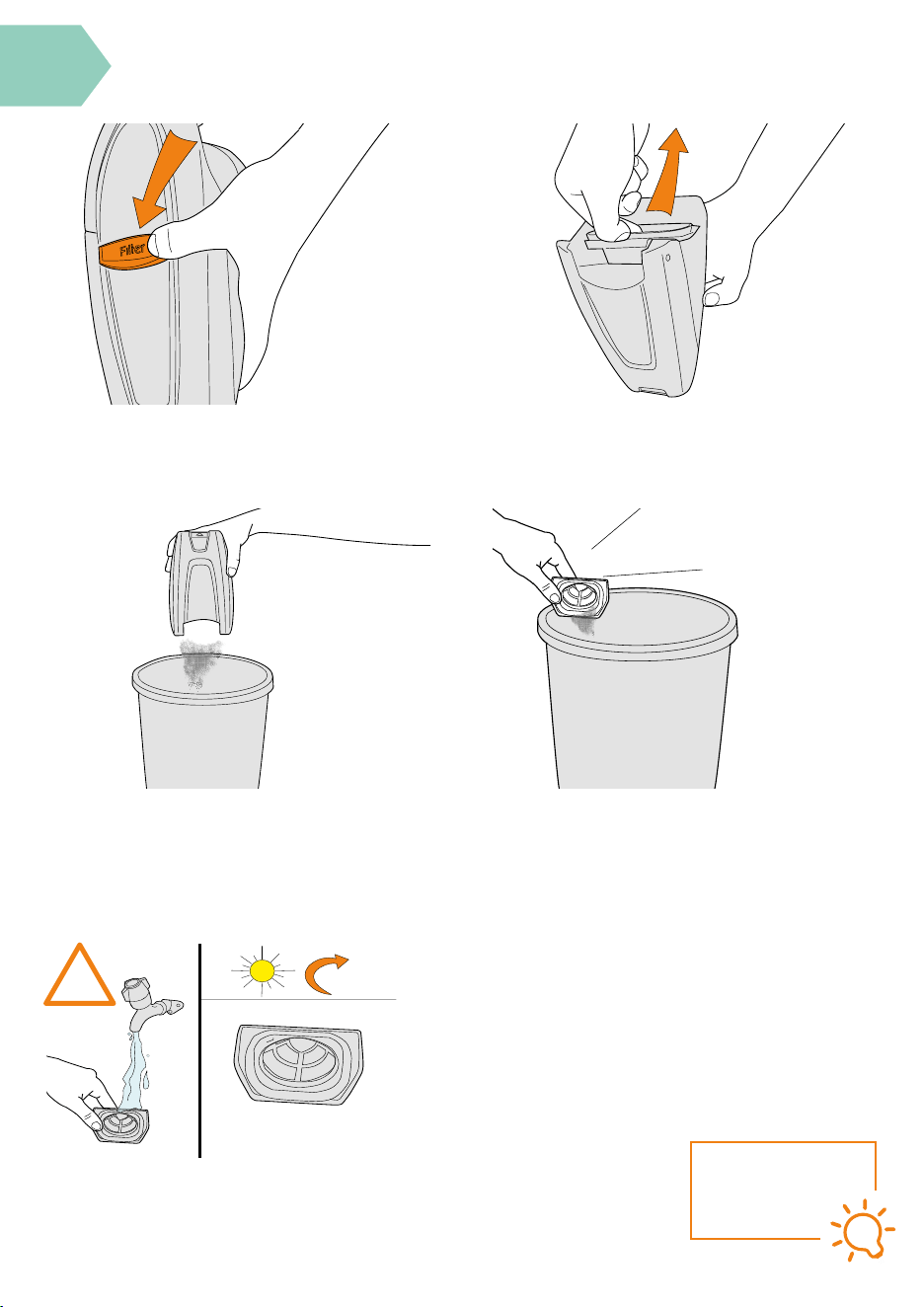

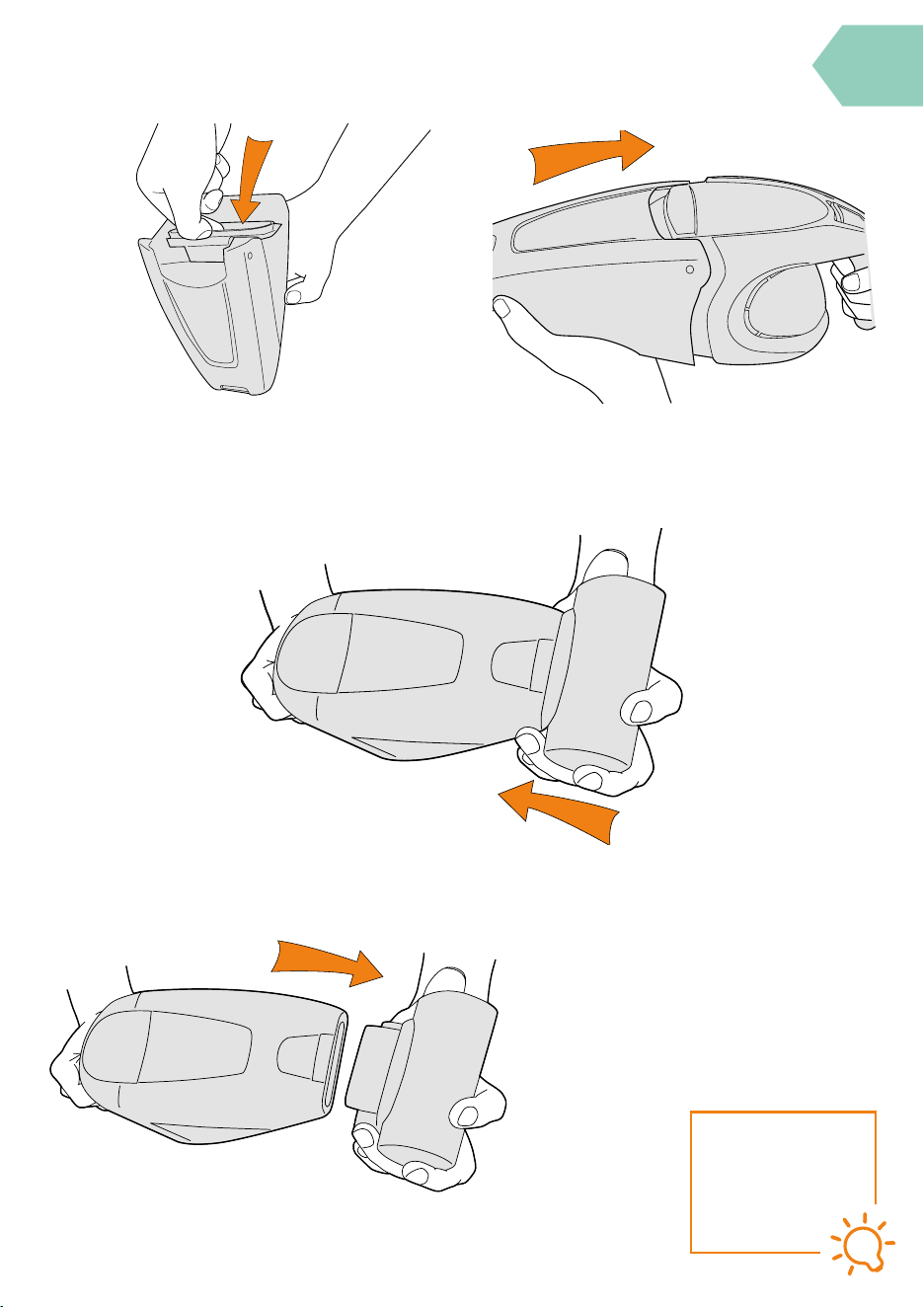

Press the lter removal button and pull dirt container
from machine.
Whilst holding the dirt container over a bin, grasp the
lter gently and pull out.
Shake any excess dirt or debris from the dirt container. Tap lter against bin.
tap
Wash the lter under running water and leave to
fully dry for a least 24 hours before replacing.
Gently push lter back into the dirt container.
To re-attach the dirt container, align bottom of the dirt
container and push until it locks into place.
To remove the Motorised Tool (18v Gator only) for cleaning
or when not in use, gently twist down and pull to detach.
To attach the Motorised Tool (18v Gator only),
align with dirt container and push until it locks in place.
24hr
40
o
C max
!
!
!
!
TIP
TIP
Always unplug the
charging lead from the
machine before carrying
out any maintenance.
Do not use the
handheld without
the lter in place.
Taking care of your machine Taking care of your machine
Press the lter removal button and pull dirt container
from machine.
Whilst holding the dirt container over a bin, grasp the
lter gently and pull out.
Shake any excess dirt or debris from the dirt container. Tap lter against bin.
tap
Wash the lter under running water and leave to
fully dry for a least 24 hours before replacing.
Gently push lter back into the dirt container.
To re-attach the dirt container, align bottom of the dirt
container and push until it locks into place.
To remove the Motorised Tool (18v Gator only) for cleaning
or when not in use, gently twist down and pull to detach.
To attach the Motorised Tool (18v Gator only),
align with dirt container and push until it locks in place.
24hr
40
o
C max
!
!
!
!
TIP
TIP
Always unplug the
charging lead from the
machine before carrying
out any maintenance.
Do not use the
handheld without
the lter in place.
• Battery may not be fully charged. If using the handheld for
the rst time the initial charge should be 24 hours.
The charging light will illuminate continuously when charger
is connected.
• The nozzle or crevice tool may be blocked, check and clear
any blockage. The lter may be clogged, clean the lter.
Go to ‘Taking care of your machine’ page*. The battery is
getting weak, let the battery run until it stops and recharge.
The dirt container may be full, empty the dirt container.
Go to ‘Using your machine’.
• The charger may not be inserted correctly. Check the fuse
in the plug, if this needs replacing always replace with a
13amp fuse.
SolutionProblem
What to do if it goes wrong
Why does my handheld
have no power?
Why won’t the
handheld pick up?
Why won’t the battery
recharge?
Getting in touch
†
Registration required. Terms and conditions apply.
* Calls are charged at the UK local rate. Please make a note of the serial number and model number of the product before calling.
• Battery may not be fully charged. If using the handheld for
the rst time the initial charge should be 24 hours.
The charging light will illuminate continuously when charger
is connected.
• The nozzle or crevice tool may be blocked, check and clear
any blockage. The lter may be clogged, clean the lter.
Go to ‘Taking care of your machine’ page*. The battery is
getting weak, let the battery run until it stops and recharge.
The dirt container may be full, empty the dirt container.
Go to ‘Using your machine’.
• The charger may not be inserted correctly. Check the fuse
in the plug, if this needs replacing always replace with a
13amp fuse.
SolutionProblem
What to do if it goes wrong
Why does my handheld
have no power?
Why won’t the
handheld pick up?
Why won’t the battery
recharge?
Getting in touch
†
Registration required. Terms and conditions apply.
* Calls are charged at the UK local rate. Please make a note of the serial number and model number of the product before calling.
GET IN TOUCH
0330 026 8455 VaxVacuums[email protected] vax.co.uk @VaxUK
EEC Statement of Compliance: Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility, declare
that the H85-GA-B10/B15/P18 is manufactured in compliance with the following Directives: Safety: 2006/95/EC
Low Voltage Directive.
EMC: 2004/108/EC Electromagnetic Compatibility Directive.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with
your Local Authority or retailer for recycling advice.
© 2015 All rights reserved. VAX®, are trade marks or registered trade marks of Techtronic Floor Care Technology Ltd.
