9434 • 080620
44” Vue Ceiling Fan
Owner’s Manual
Item #1362367, 2758984, 2758985
Model #42004, 42228, 42229
1
Questions, problems, missing parts? Before returning to your retailer, call our customer service
department at 1-877-706-3267, 8 am - 5 pm Central, Monday - Friday.

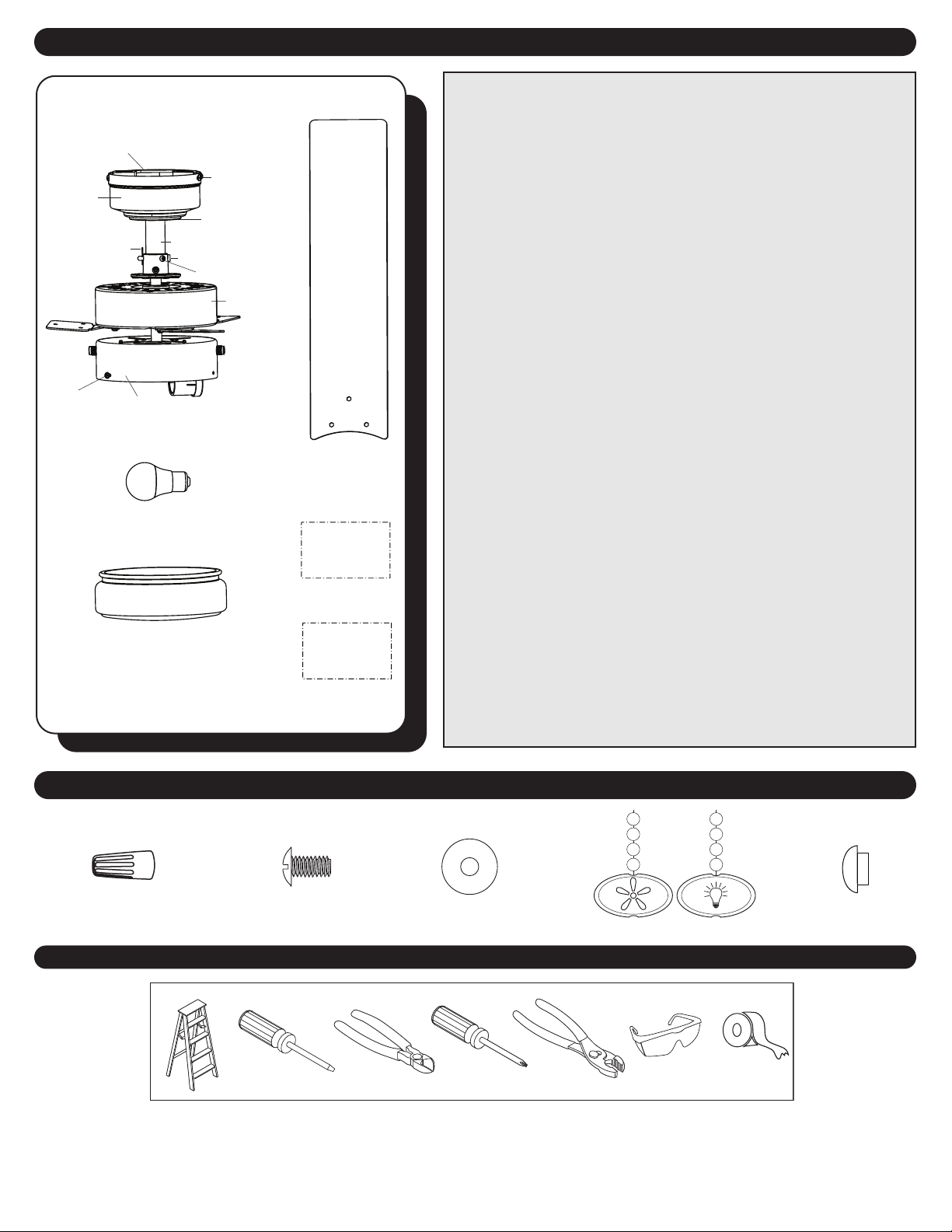

PACKAGE CONTENTS
2
HARDWARE CONTENTS
TOOL REQUIRED (not included)
1. Canopy
2. Canopy Cover
3. Mounting Bracket
4. Mounting Bracket
Screw (x 4)
5. Downrod
6. Downrod Pin
7. Downrod Clip
8. Blade Arm (x 3)
9. Set Screw (x 2)
10. Motor
11. Light Kit
12. Thumbscrew (x 3)
13. Glass Bowl
14. E26-base LED bulb
15. Blade (x 3)
16. Hardware Kit
17. Owner’s Manual
18. Wire Connector (x 3)
19. Blade Screw (x 9)
20. Blade Washer (x 9)
21. Pull Chain Extension (x 2)
22. Screw Cap (x 9)
Unpack your fan and check the contents. You should
have the following items:
PACKAGE CONTENTS
HARDWARE CONTENTS
Note: Some extra hardware has been included. The quantity
listed above is the number required for installation.
18
22
19
20
21
Tool required for assembly: Electrical tape, Phillips Screwdriver, Pliers, Safety Glasses, Step Ladder, Wire Cutters
and Wire Strippers
Helpful Tools: AC Tester Light, Tape Measure, and Wiring Handbook
Hardware Kit
Owner’s
Manual
1
2
3
5
6
9
7
10
11
12
13
14
4
8
15
16
17

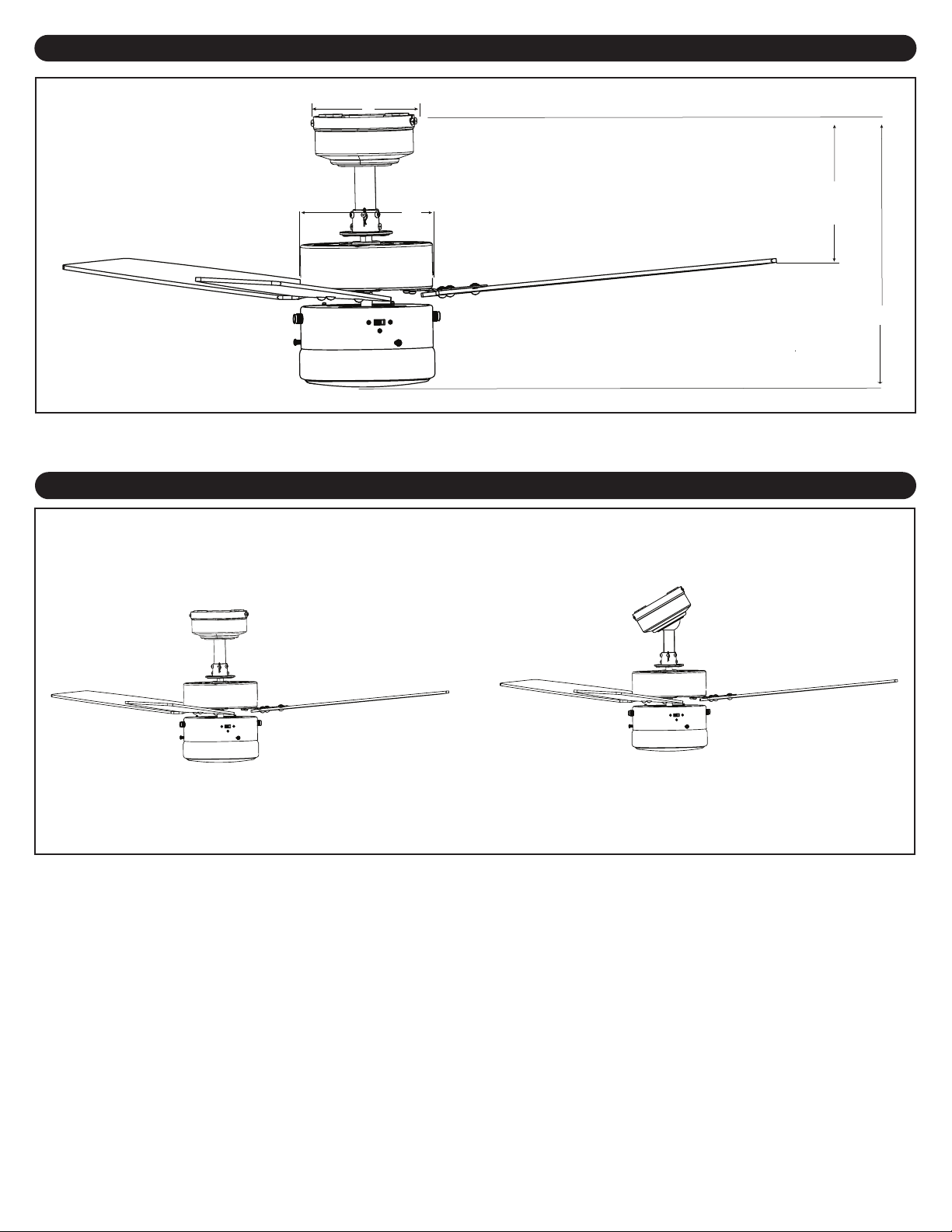

MOUNTING OPTIONS
3
Two Mounting Options
Downrod Mount
Angled Ceiling Mount (Up to 16 degrees)
A. 13.66 in. B. 9.00 in. C. 6.74 in. D. 5.13 in.
DIMENSION REFERENCE
C
D
B
A
Choose one of the following mounting options:
Downrod Mount is best suited for ceilings 8 ft. or higher. For taller ceilings you may want to use a longer downrod
(not included).
Angled Ceiling Mount is best suited for angled or vaulted ceilings. A longer downrod is sometimes necessary to
ensure proper blade clearance from the ceiling. If using the angle mount, check to ensure the ceiling angle is not
steeper than 16°.
WARNING:
READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN INSTALLING THE
FAN AND SAVE INSTRUCTIONS.
All set screws of the fan must be checked and retightened where necessary before installation.
To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets, balancing
the blades or cleaning fan. Do not insert foreign objects in between rotating fan blades.
Before changing the fan direction, turn o the fan and wait for the fan blades to stop completely.
The safeguards provided by these safety instructions and by the separate installation instructions are not
meant to cover all possible conditions and situations that may occur. It must be understood that common
sense, caution and care are factors which can not be built into this product. These factors must be supplied
by the person(s) installing, caring for and operating the fan.
The fan weight is Net Weight: 11.31 lb (5,14 kg). Be sure the outlet box (not included) is securely attached
to the building structure and is marked “Acceptable For Fan Support”. Failure to do so can result in serious
injury.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver
--Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
Please note changes or modications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
HKC-US
3350 Player’s Club Parkway, #225
Memphis, TN 38125
1-800-643-0067
To avoid risk of electric shock, be sure to shut o power at the main fuse or circuit breaker box before
installing or servicing this xture. Turning o the electrical power by using the light switch is not
sucient to prevent electrical shock.
To reduce the risk of injury, install the fan so that the blades are at least 7 feet (2.1 Meters) above the
oor and at least 18 inches (0.5 Meters) from the tip of the blades to the wall.
To reduce the risk of re, electric shock, or personal injury, mount to outlet box marked “acceptable for
fan support” and use mounting screws provided with the outlet box.
The installation has to be in accordance with the national electrical code, ANSI/NFPA 70-1999 and
local codes. If you are unfamiliar with the methods of installing electrical wiring, seek the services of a
qualied licensed electrician.
SAFETY INSTRUCTIONS
CAUTION:
4
5

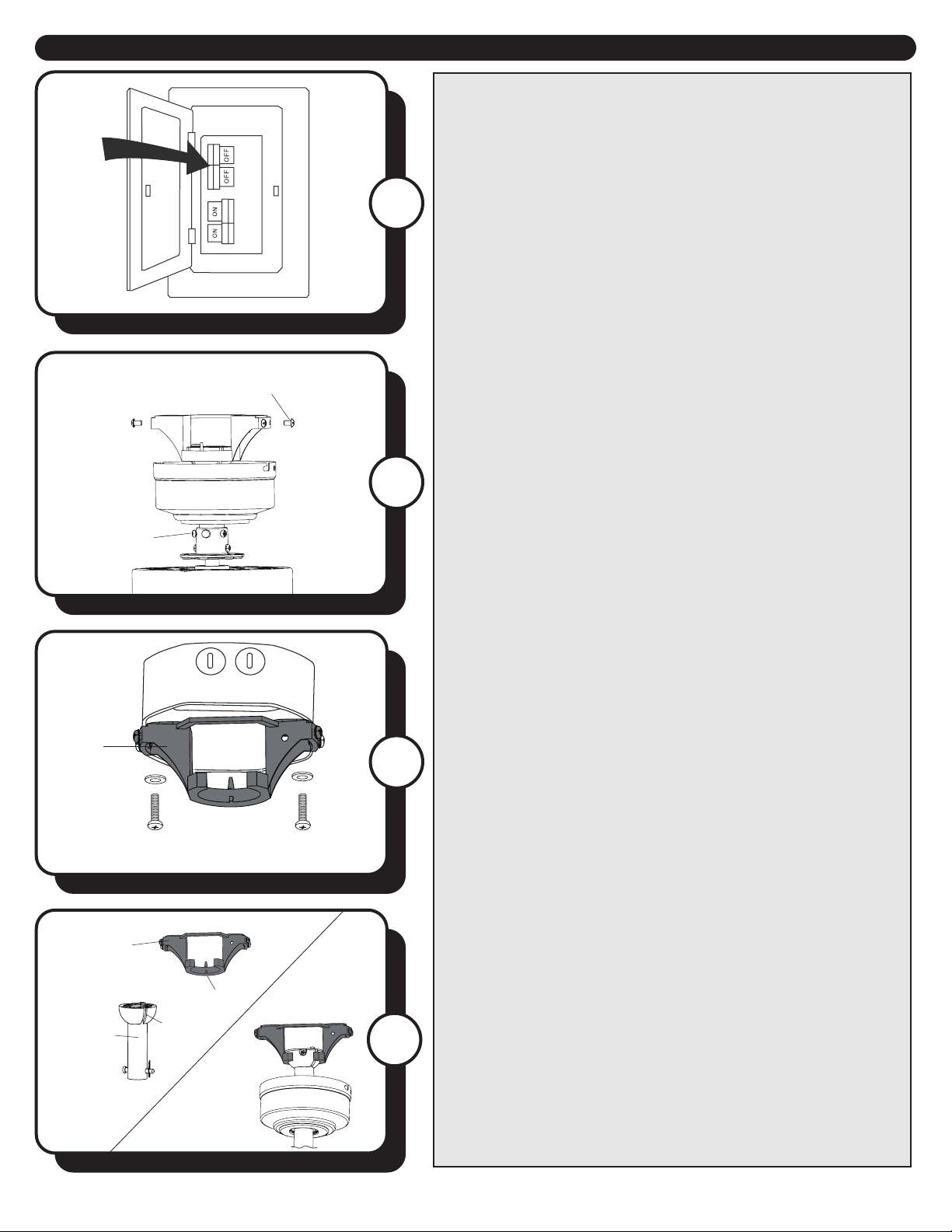

ASSEMBLY INSTRUCTIONS
1
1. Turn OFF the electrical power at the main fuse or circuit
breaker.
DANGER: Failure to disconnect the power supply prior to
installation may result in serious injury or death.
3
2. Tighten the two set screws. Then remove the
mounting bracket by removing the two mounting
bracket screws from the round holes in the canopy.
Finally, loosen the other two mounting bracket screws
from the J-shaped slots. Lower the canopy and remove
mounting bracket.
3. Install the mounting bracket to the outlet box (not
included) using the screws and washers provided with
the outlet box.
WARNING: To reduce the risk of re electric shock,
or personal injury, mount to the outlet box marked
“acceptable for fan support” and use the mounting
screws and washers provided with the outlet box.
Mounting
Bracket Screw
Mounting
Bracket
2
4. Remove the paper and rubberband from the downrod.
Then, lift the downrod into the mounting bracket. Rotate
the downrod until the tab in the mounting bracket is
seated in the slot in the downrod ball.
WARNING: The fan and/or downrod should not rotate in
the mounting bracket if installed correctly. Failure to align
the slot in the downrod ball with the tab may result in fan
falling causing serious injury or death.
Tab
Slot
Downrod
Mounting
Bracket
4
Set Screw
6

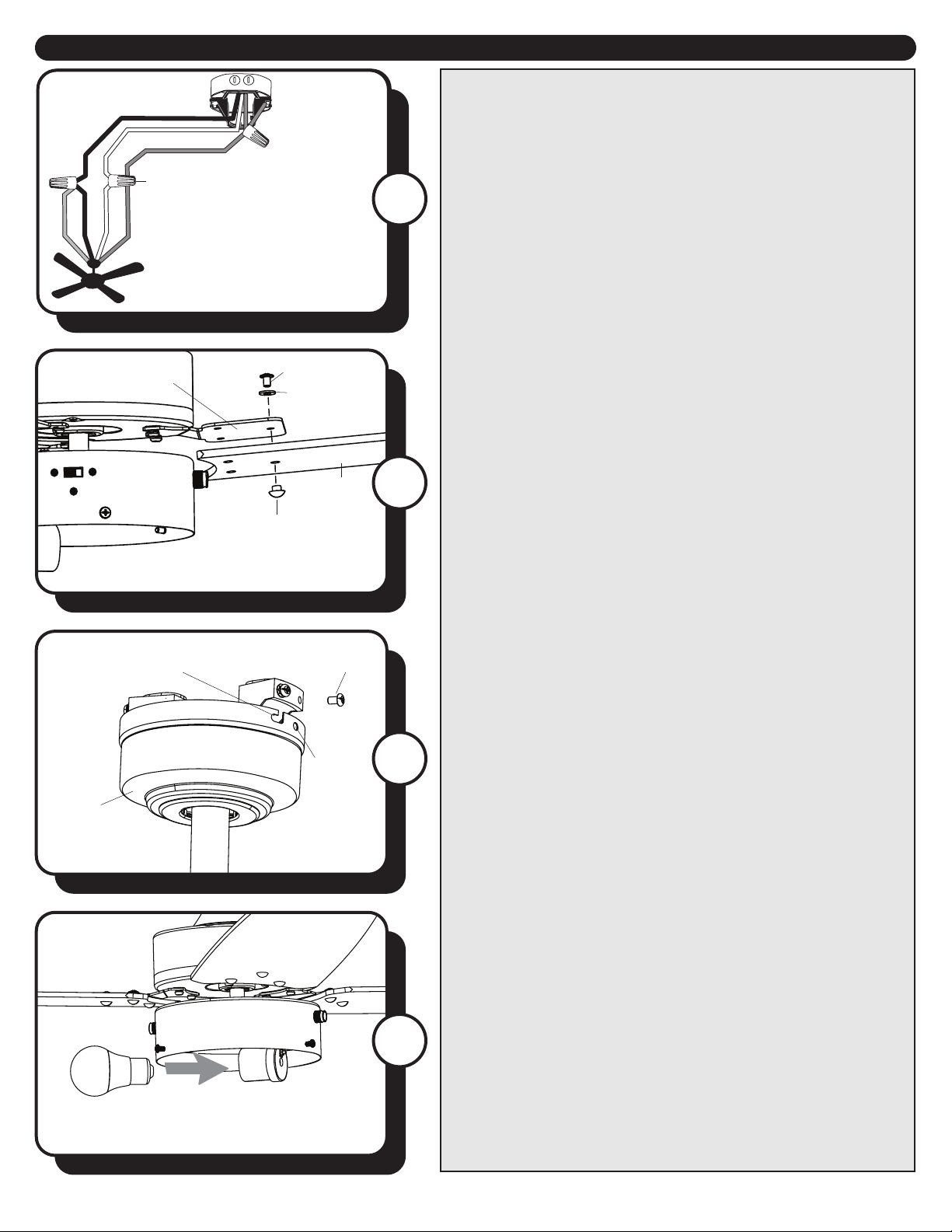

ASSEMBLY INSTRUCTIONS
Black (Hot)
White (Neutral)
Bare/Green (Ground)
Black
Blue
White
Green
5. Use wire connectors to connect the fan wires to the
power supply wires according to the wiring diagram and
the following instructions:
• Connect the green wire from the downrod and mounting
bracket to the bare/green (ground) supply wire.
• Connect the white wire from the fan to the white
(neutral) supply wire.
• Connect the black and blue wires from the fan to the
black (hot) supply wire.
Note: If there is a second hot/power wire coming from the
outlet box, connect it to the Blue (light power) fan wire for
separate light and fan control.
Important: After the connections have been made, the
connected wires should be turned upward and pushed
carefully up into the outlet box. Place the black and white
wire connections on opposite sides of the outlet box.
Warning: Do NOT wire the
fan motor to a variable-speed
(dimmer) wall control.
5
Canopy
Round
Hole
Mounting
Bracket Screw
J-shaped Slot
Wire Connector
Blade Screw
Blade Washer
Blade Arm
Screw Cap
Blade
Bulb
6
7
8
7. Raise the canopy, ensure the two mounting bracket
screws are aligned with the J-shaped slots in the canopy.
Then, turn the canopy clockwise until the mounting
bracket screws are completely engaged in the J-shaped
slots. Install the two previously removed mounting
bracket screws in the round holes. Securely tighten all
four mounting bracket screws.
6. Attach the blades to blade arms using the blade
screws, washers and screw caps from the hardware kit.
8. Install the E26-base A15 bulb into the socket.
Important: Make sure to allow the bulb and the light kit
to cool before you replace it.
7

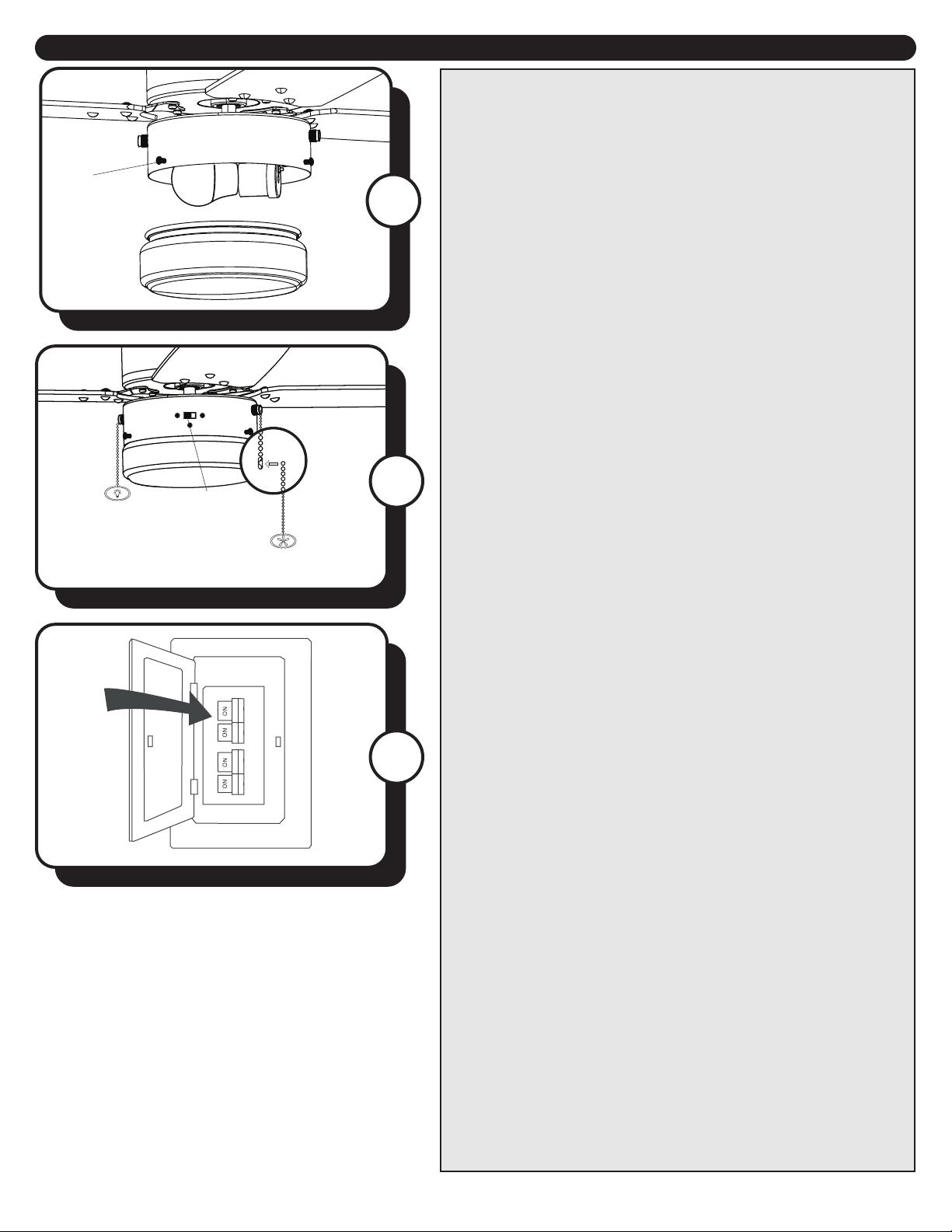

ASSEMBLY INSTRUCTIONS
Glass Bowl
Thumbscrew
9. Loosen the three thumbscrews near the bottom of the
light kit. Lift the glass bowl into the light kit and re-tighten
the previously loosened thumbscrews to secure.
9
Reverse
Switch
Fan Pull Chain
Light Pull Chain
11. Restore the power at the main fuse or circuit breaker
and wall switch.
10. Attach pull chain extensions to the pull chains.
Note: When facing the reverse switch the light pull chain
is on the left and the fan pull chain is on the right.
10
11
8

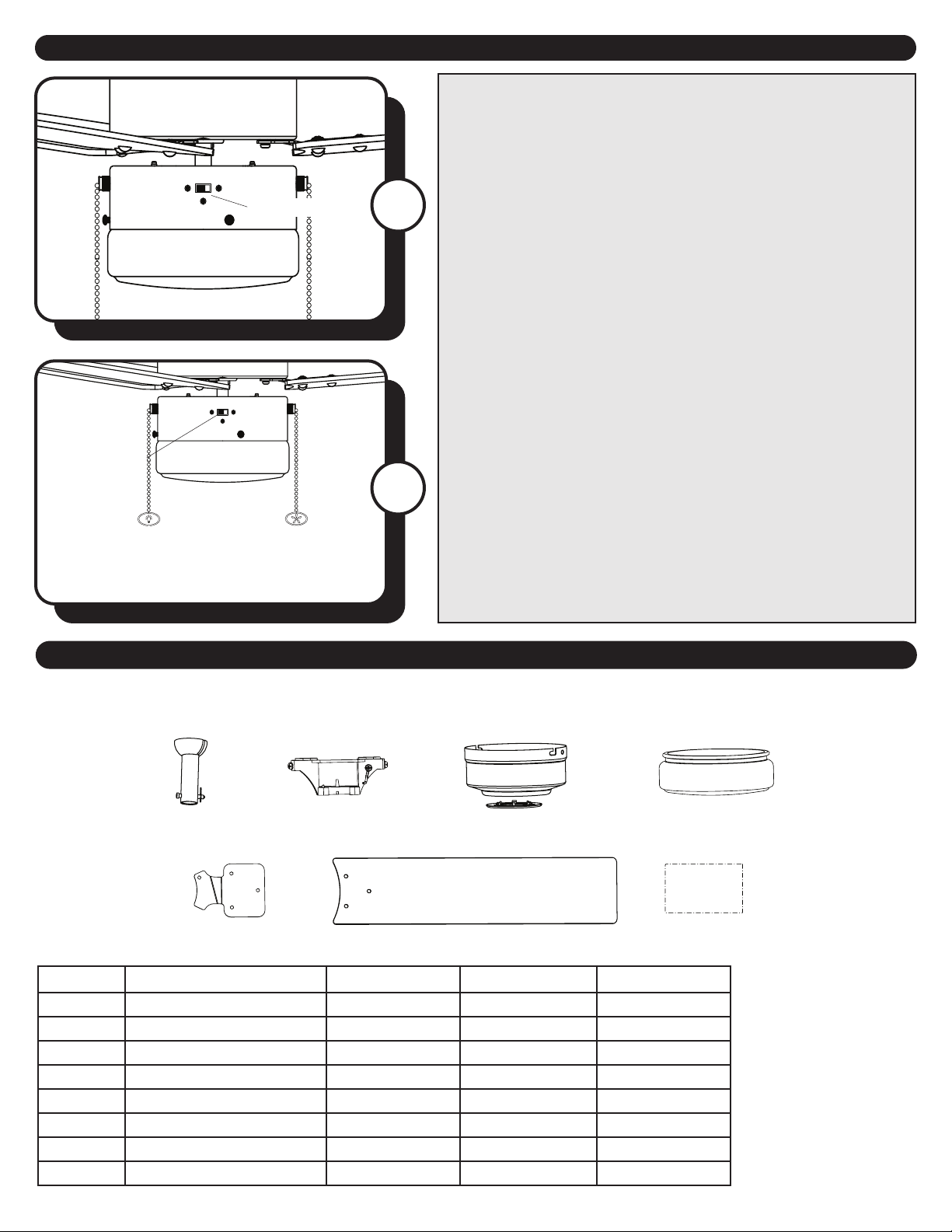

OPERATING INSTRUCTIONS
1
2
1. Use the reverse switch, located on the light kit to
optimize your fan for seasonal performance.
Using a ceiling fan will allow you to raise your thermostat
setting in summer and lower your thermostat setting in
winter without feeling a dierence in your comfort.
In warmer weather, push the reverse switch left, which
will result in downward airow creating a wind chill eect.
In cooler weather, push the reverse switch right, which
will result in upward airow that can help move stagnant,
hot air o the ceiling area.
Important: Wait for the fan to stop before moving the
reverse switch. The reverse switch must be set either
completely up or down in order for the fan to function
correctly. If the reverse switch is set in the middle
position, the fan will not operate.
2. The fan pull chain has four positions to control fan
speed. One pull is HIGH, two is MEDIUM, three is LOW and
four turns the fan OFF.
The light pull chain has two positions to control the light,
ON and OFF.
Note: When facing the reverse switch the light pull chain
is on the left and the fan pull chain is on the right.
Reverse Switch
Reverse Switch
Light Pull
Chain
Fan Pull
Chain
REPLACEMENT PARTS
For replacement parts, call our Customer Service Department at 1-866-706-3267,
Monday - Friday, 8 am - 5 pm, Central, Monday - Friday.
Hardware Kit
PART DESCRIPTION 42004
42228 42229
A Downrod 4L000006330 4L000013340 4L000013790
B Mounting Bracket 4L000006350 4L000006350 4L000006350
C Canopy 4A000008700 4A000009330 4L000013800
D Canopy Cover 4L000008290 4L000010400 4L000013810
E Glass Bowl 4A166460001 4A166460001 4A166460001
F Blade Arm 4A071480004 4A071480005 4A071480006
G Blade 4L085340002 4L085340003 4L085340001
HW Hardware Kit 4L000011270 4L000013770 4L000013780
A B D
C
E
HW
G
F
9
PROBLEM SUGGESTED REMEDY
1. Fan does not start 1. Check main and branch circuit fuses or circuit breakers.
2. Check power supply wire connections to fan and switch wire connections in
switch housing.
CAUTION: Make sure main power is turned o before entering canopy.
3. Make sure forward/reverse switch pushed completely left or right. Fan will not
operate when switch is in the middle.
4. Make sure that the wall control is turned ON.
1. Ensure canopy and mounting bracket are tightened securely to outlet box and
outlet box is mounted rmly to ceiling joist.
2. Make sure the screws which attach the blade arm to the motor are tight.
3. Make sure wire connectors in switch housing are not rattling against each other
or against the interior wall of the switch housing.
CAUTION: Make sure main power is turned o before entering switch housing.
4. If using a light kit, be sure the thumbscrews holding the glass bowl are nger
tight. Check to be sure light bulb is snug in socket and not touching glass bowl.
5. Some fan motors are sensitive to signals from Solid State variable speed controls.
DO NOT USE a Solid State variable speed wall control.
1. Ensure all blades are screwed rmly into blade arms.
2. Ensure all blade arms are tightened securely to motor.
3. Ensure canopy and mounting bracket are tightened securely to outlet box and
outlet box is mounted rmly to ceiling joist.
4. Switch one blade with a blade from the opposite side. Or balance the fan using a
balancing kit (sold separately).
5. If blade wobble is still noticeable, interchanging two adjacent (side by side)
blades can redistribute the weight and possibly result in smoother operation.
1. Check blue wire from fan to make sure it is connected to hot (black) power
supply wire.
2. Check for loose or disconnected wires in fan switch housing.
3. Check for faulty light bulbs.
CAUTION: Make sure main power is turned o before entering switch housing.
2. Fan is noisy
3. Fan wobbles
4. Light does not work:
TROUBLESHOOTING
TROUBLESHOOTING
If you have diculty operating your new ceiling fan, it may be the result of incorrect assembly, installation or
wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please
check the Troubleshooting section below. If a problem cannot be remedied or you are experiencing diculty in
installation, please contact Customer Service: 1-866-706-3267, 8 am - 5 pm Central, Monday - Friday.
Model Name: 44” Vue Ceiling Fan
Model No: 42004 Bronze
42228 Matte Black
42229 Gun Metal
10
MANUFACTURER WARRANTY
Set forth below, the manufacturer, Hong Kong China Electric appliance Company (HKC) warrants the fan
motor for this ceiling fan to be free from defects in workmanship and material for the life of the product.
Also, subject to the limitations below, HKC warrants all ceiling fan parts (“ceiling fan parts” excludes the
motor and parts made in whole or in part with glass) to be free from defects in workmanship and material
for a period of one year after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser, whether such purchaser purchased the product through a
store or contractor. Ceiling fan part defects must be reported within the rst year from the date of purchase.
Parts made in whole or in part with glass and the nishes of metal and other surfaces are not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any
part caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by this
warranty. HKC assumes no responsibility whatsoever for fan installation. Any service performed by a non-
licensed electrician will render the warranty invalid.
HKC’s sole responsibility shall be to repair or replace the motor, parts, or product within the terms stated
above. HKC shall not be liable for any loss or damage of any kind, including any incidental or consequential
damages resulting directly or indirectly, from any breach of warranty, express or implied, or any other
failure of this product. Some states do not allow the exclusion or limitation of incidental or consequential
damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or materials
within the warranty period associated with the defective part, HKC agrees to replace the defective part
without charge, or at its option, to replace the ceiling fan with a comparable or superior model.
HKC’s warranties are limited to the written warranties set out in this HKC ceiling fan limited lifetime
warranty. All other express and implied warranties, including, without limitation, the implied warranty of
tness for a particular purpose and the implied warranty of merchantability are disclaimed. Some states do
not allow the disclaimer of implied warranties, so this disclaimer may not apply to you.
To obtain service, please contact the Service Department:
at 1-877-706-3267, 8 a.m. - 5 p.m. Central, Monday - Friday.
