Eamon Ceiling Fan
User Guide
Model #50603, 50604, 50605
Home
2
PACKAGE CONTENTS
HARDWARE CONTENTS
Mounting Bracket Screw (x 4)
Mounting Bracket
Canopy
Canopy Cover
Downrod
Downrod Clip
Downrod Pin
Blade (x 3)
Yoke Cover
Yoke
Closemount
Screw (x 3)
Set Screw (x 2)
Motor Assembly
Fitter Plate
Fitter Plate Screw (x 3)
Light Kit
Lens Cover
Blade Balancing KitBlade Washer (x 9)Blade Screw (x 9) Wire Connector (x 1)
Note: Some extra hardware may be included. The quantity listed above is the number required for installation.
Remote Pack
3
SAFETY INFORMATION
CARE AND MAINTENANCE
Please read and understand this entire manual before attempting to assemble, operate or install the product.
• Before you begin installing the fan, disconnect the power by removing fuses or turning off the circuit breakers.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical Code and ANSI/NFPA
70-199. Hire an electrician or consult a do-it-yourself handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum of 7 feet from the blades to the oor and at least 30 inches from
the tip of the blades to any obstruction.
• The weight of the fan is 13.9 pounds.
DANGER: When using an existing outlet box, make sure it is securely attached to the building structure and can support
the full weight of the fan. Failure to this can result in serious injury or death. The stability of the outlet box is essential in
minimizing wobble and noise in the fan after installation is complete.
WARNING: To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp edges.
WARNING: Using a full-range dimmer switch to control fan speed will cause a humming sound from the fan. To reduce the
risk of re or electric shock, do NOT use a full-range dimmer switch to control fan speed.
WARNING: To reduce the risk of fire, electric shock or personal injury, mount the fan to an outlet box marked
“ACCEPTABLE FOR FAN SUPPORT” and use the mounting screws provided with the outlet box. Most outlet boxes commonly
used for the support of lighting fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified
electrician if in doubt. Secure the outlet box directly to the building structure. The outlet box and its support must be able to
support the moving weight of the fan (at least 35 lbs.).
WARNING: To reduce the risk of fire, electric shock or personal injury, wire connectors provided with this fan are designed to
accept only one 12-gauge house wire and two lead wires from the fan. If your house wire is larger than 12-gauge and/or there is
more than one house wire to connect to the two fan lead wires, consult an electrician for the proper size wire connectors to use.
WARNING: To reduce the risk of fire, electric shock or personal injury, do not bend the blade arms when installing them,
balancing the blades or cleaning the fan. Do not insert objects between the rotating fan blades.
WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use of parts other than those
provided with this fan will void the warranty.
CAUTION: Be sure the outlet box is properly grounded or a ground (green or bare) wire is present.
CAUTION: Carefully check all screws, bolts, and nuts on the fan assembly ensure they are secured.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver
--Connect the equipment into and outlet on a circuit different from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
Please note changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
At least twice each year, lower the canopy to check the downrod assembly and tighten all screws on the fan. Clean the motor
housing and blades with a soft brush or lint-free cloth to avoid scratching the finish.
Important: Shut off the main power supply before you begin any maintenance task. Do NOT use water or a damp cloth to clean
the fan.
4
INITIAL INSTALLATION
PREPARATION
Before beginning the assembly of this product, ensure all parts are present. Compare all parts with the package contents list
and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product.
Estimated assembly time: 2 hours
Tools required (not included): Electrical tape, Phillips Screwdriver, Safety Glasses, Step Ladder, and Wire Strippers.
1. Turn off power to the fan at the breaker box and the wall switch (Figure 1.1). DANGER: Failure to disconnect the power supply
prior to installation may result in serious injury or death.
2. Choose one of the following mounting options (Figure 1.2) :
Standard Mount - best suited for ceilings 8 feet or higher. For very high ceilings, use a longer downrod (not included).
Angle Mount - best suited for angled or vaulted ceilings. A longer downrod is sometimes necessary to ensure proper blade
clearance. Ensure the ceiling angle is not steeper than 10 degrees.
Flushmount Installation - not available for this model.
Closemount Installation - best suited for ceilings lower than 8 feet.
3. Choose a suitable location - Ensure the blades will be at least 30 inches from any obstructions. Also check the downrod
length to ensure the blades will be at least 7 feet above the oor (Figure 1.3).
1. Loosen all four mounting bracket screws and completely remove the two screws from the round holes in the canopy. Then
remove mounting bracket from the canopy and save them for later (Figure 2.1).
2. Install the mounting bracket to the outlet box (sold separately) using the screws and washers provided with the outlet box
(Figure 2.2).
For CLOSEMOUNT INSTRUCTIONS, skip to page 6.
Figure 1.1
Figure 2.1
Figure 1.2
Standard and
Closemount
Angle Mount
Figure 2.2
Figure 1.3
Mounting
Bracket Screw
Canopy
7 ft. min.
30in. min.
Standard Mount
Flushmount
Angle Mount
Closemount
D
5
STANDARD OR ANGLE MOUNT INSTRUCTIONS
1. Remove the downrod pin and downrod clip from the downrod. Then partially loosen the set screws in the yoke at the top of the
motor assembly (Figure 3.1).
2. Feed the fan wires through the yoke cover, canopy and downrod (Figure 3.2).
3. Slide the downrod into the yoke of the motor assembly. Align holes and reinstall the downrod pin and downrod clip and secure
with the two set screws (Figure 3.3).
4. Depending on the length of downrod you use, you may want to cut the fan wires to simplify wiring. After pulling the wires all
the way through the downrod, measure 8 inches of wire. Cut off the excess wire using wire cutters (not included) (Figure 3.4).
5. Install the ball end of the downrod into the opening of the mounting bracket (Figure 3.5). WARNING: Failure to align the slot
in the ball with the tap on the mounting bracket may cause the fan to fall, which could result in injury or death. Then, insert
the receiver inside the mounting bracket with the at side facing the ceiling.
Skip to FINAL INSTALLATION, page 6.
8 in.
Figure 3.1
Figure 3.5
Figure 3.3
Downrod Clip
Mounting
Bracket
Downrod
Set Screw
Downrod
Receiver
Downrod Pin
Downrod
Tab
Canopy
Slot
Yoke Cover
Downrod
Clip
Set Screw
Yoke
Downrod
Pin
Figure 3.2
Figure 3.4
6
FINAL INSTALLATION
Black (hot/power)
White (neutral)
Bare/Green
(ground)
Red
White
White
White
Black
Blue
Blue
Black
Green
Green
Receiver
Figure 4.2
Figure 5.2
Figure 4.1
Figure 5.1
Figure 4.3
Figure 5.3
WARNING: Do NOT wire the
fan motor to a variable-speed
(dimmer) wall control.
Mounting
Bracket Screw
1. Use wire connnectors to connect household supply and receiver wires according to the diagram (Figure 5.1) and the following
steps:
• Connect the green wire from the downrod and mounting bracket to the Bare/Green (ground) supply wire. Note: Closemount
installation does not use the downrod, so there will only be two Green wires to connect.
• Connect the Blue wire with the white label to the blue fan wire.
• Connect the Black wire with the white label to the black fan wire.
• Connect the White wire with the white label to the white fan wire.
• Connect the Red wire with the red label to the Black (live) supply wire.
• Connect the White wire with the red label to the White (neutral) supply wire.
2. Align the canopy over the loosened mounting bracket screws. Place the J-slot of the canopy onto the mounting bracket
screws and rotate clockwise (Figure 5.2).
3. Secure the canopy with the two previously removed mounting bracket screws. Tighten all the mounting bracket screws
securely (Figure 5.3).
Canopy Cover
Closemount
Screw
Mounting
Bracket
Canopy
Canopy
Canopy
Receiver
Hook
CLOSEMOUNT INSTRUCTIONS (optional)
1. Remove the canopy cover from the bottom of the canopy (Figure 4.1).
2. Remove the three Phillips-head closemount screws from the top of the motor assembly. Then align the canopy with the holes
in the top of the motor assembly. The larger holes in the canopy will encompass the remaining screws. Secure the canopy to
the top of the motor assembly with the previously removed closemount screws (Figurev 4.2).
3. Raise the motor assembly and place the canopy on the hook of the mounting bracket to free hands during the wiring process
(Figura 4.3). Then, insert the receiver in the mounting bracket with the at side facing up.
Mounting
Bracket Screw
7

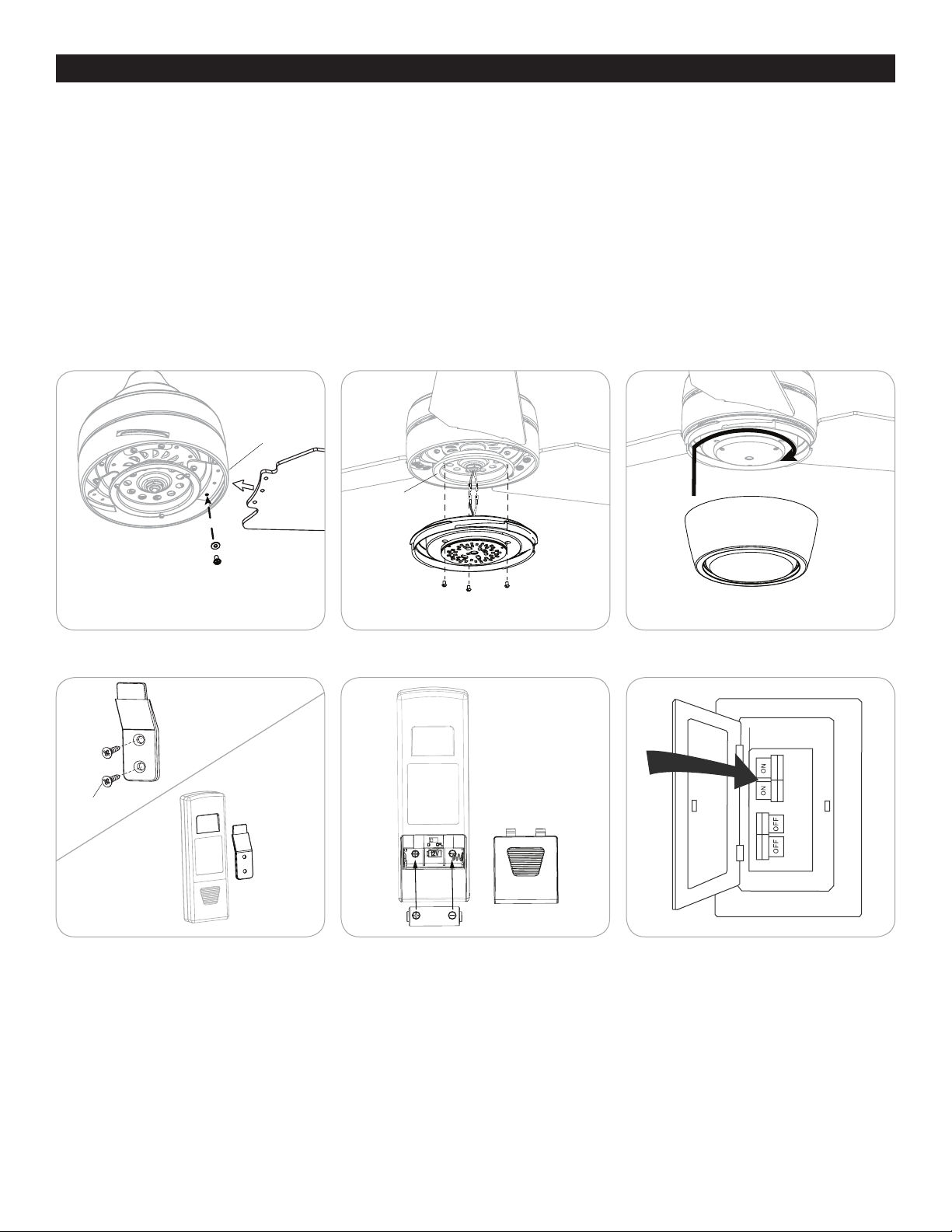

FINAL INSTALLATION
4. Insert blade through slot in the side of the motor assembly. Align the holes of one blade with three blade screw holes in
underside of the motor assembly. Secure with three blade screws and blade washers. Repeat this step for the remaining
blades (Figure 5.4).
5. Remove one of the three fitter plate screws preassembled to the fitter plate and loosen the other two but do not remove.
Connect the single-pin connector from the fitter plate to the single-pin connector from the light kit -- Blue to Black and White
to White. Align the slotted holes in the light kit with the loosened screws in the fitter plate. Turn light kit clockwise and replace
the previously removed fitter plate screw. Tighten all screws (Figure 5.5).
6. Attach the lens cover to the light kit by twisting the lens cover tightly in a clockwise direction (Figure 5.6).
7. If desired, the wall bracket in remote pack can be installed to a wall using the provided mounting screws. The remote can be
stored in the mounting bracket for easy access (Figure 5.7).
8. Remove the battery cover from the back of the remote and insert the 12-volt battery, noting polarity -- positive (+) to positive
(+) and negative (-) to negative (-). Replace the battery cover. If battery is installed correctly, the LED indicator on the front of
the remote transmitter should illuminate when any button is pushed (Figure 5.8).
9. Turn on power to fan at breaker box and the wall switch (Figure 5.9). Assembly is complete.
Figure 5.5Figure 5.4 Figure 5.6
Blade Screw
Blade
Blade Washer
Fitter Plate
Light Kit
Fitter Plate Screw
Slot
Lens cover
Figure 5.8Figure 5.7 Figure 5.9
Screw
Wall
Bracket
Battery
Battery
Cover
8
Figure 6.2Figure 6.1
A
B
C
D
E
F
Reverse Switch
OPERATING INSTRUCTIONS
1. To operate the fan using remote control, press and release the following buttons:
A - High fan speed
B - Medium fan speed
C - Low fan speed
D - Turns the fan off. Press and hold this button for 5 seconds to enter Light Delay Off mode, which will turn off light after one
minute. The LED indicator on the remote control will ash four times to conrm mode setting.
E - Light Control: Dimmable Bulbs - Press light control to turn lights off and on. Press and hold light control to dim or
brighten the lights. Non-dimmable Bulbs -Turns the lights on and off. Note: The dimmer function does not work with non-
dimmable bulbs.
F - D/CFL Switch: Located inside the battery compartment in remote transmitter. Button must remain in the “D” position at all
times for this item. (Figure 6.1).
2. Use the reverse switch located on the motor assembly to optimize your fan for seasonal performance. In warmer weather,
push the reverse switch left which results in downward airow creating a wind chill effect. In cooler weather, push the reverse
switch right which results in upward airow that will help move hot air of the ceiling (Figure 6.2).
9
TROUBLESHOOTING
The fan does not move.
The fan is noisy.
The fan wobbles
excessively.
The fan operates
correctly but the lights
are not working.
Remote control does not
work.
1. Firmly push the reverse switch completely left or right.
2. Make sure the wall switch is turned on.
3. Turn the power on or check the fuse (breaker).
4. Turn the power off and check all connections at the ceiling outlet box.
1. Check and tighten all screws that hold the fan blades to the blade arms and the motor.
2. Replace the cracked blade.
3. Do not use a full range dimmer switch to control the fan speed.
4. Ensure the outlet box is secured to the building structure.
5. Ensure the mounting bracket is secured to the outlet box and that the screws are tight.
1. Ensure the single-pin connectors are properly secured.
2. Turn the power off and check all connections at the ceiling outlet box.
1. Check and tighten all screws that hold the fan blades to the blade arms and the blade arms to the
motor.
2. Switch one blade with a blade from the opposite side, or balance the fan using the blade
balancing kit.
3. Turn off the power. Loosen the canopy and verify that the mounting bracket is secure to the
electrical outlet box. The bracket must be ush without movement against the outlet box. Verify
the outlet box is secure.
4. Use a longer downrod (sold separately) or move the fan to another location.
5. Lift up the yoke cover and tighten the set screws on the yoke until secure.
1. Turn off the main power, then turn it back on. Within 30 seconds, press and hold the high and low
speed buttons on the remote at the same time for 5 seconds. The LED indicator will ash 3 times,
signaling a successful synchronization. Once complete, the fan will start on the low speed with
the light (if applicable) off.
2. Insert new 12V battery in battery compartment of the remote control.
3. If there are several fans in close proximity, turn power off to other fans and re-sync the remote.
PROBLEM CORRECTIVE ACTION
If you experience any faults, please check the Troubleshooting section below. If a problem cannot be remedied or you are
experiencing difficulty in installation, please contact Customer Service: 1-877-361-3883.
Warning: Shut off the power supply before you begin any maintenance task.
10
LIMITED LIFETIME WARRANTY
Set forth below, the manufacturer, Hong Kong China Electric Appliance Company (HKC) warrants the fan motor for this ceiling
fan to be free from defects in workmanship and material for the life of the product. Also, subject to the limitations below, HKC
warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts made in whole or in part with glass) to be free
from defects in workmanship and material for a period of one year after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser, whether such purchaser purchased the product through a store or
contractor. Ceiling fan part defects must be reported within the first year from the date of purchase. Parts made in whole or in
part with glass and the finishes of metal and other surfaces are not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any part caused by ordinary
wear and tear, accident, misuse, or improper installation, is not covered by this warranty. HKC assumes no responsibility
whatsoever for fan installation. Any service performed by a non-licensed electrician will render the warranty invalid.
HKC’s sole responsibility shall be to repair or replace the motor, parts, or product within the terms stated above. HKC shall not
be liable for any loss or damage of any kind, including any incidental or consequential damages resulting directly or indirectly,
from any breach of warranty, express or implied, or any other failure of this product. Some states do not allow the exclusion or
limitation of incidental or consequential damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or materials within the warranty
period associated with the defective part, HKC agrees to replace the defective part without charge, or at its option, to replace the
ceiling fan with a comparable or superior model.
HKC’s warranties are limited to the written warranties set out in this HKC ceiling fan limited lifetime warranty. All other express
and implied warranties, including, without limitation, the implied warranty of fitness for a particular purpose and the implied
warranty of merchantability are disclaimed. Some states do not allow the disclaimer of implied warranties, so this disclaimer
may not apply to you.
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department (1-877-361-3883). Monday-Thursday 8am - 6pm, Friday
8am - 5pm, Eastern Standard Time.
A Downrod 4A000003530 4A000003980 4A000008770
B Mounting Bracket 4L000006350 4L000006410 4L000006410
C Canopy 4A000008700 4A000008500 4A000008780
D Canopy Cover 4L000008030 4A000003790 4A000008790
E Light Kit 4A000008710 4A000008720 4A000008730
F Lens Cover 4A166690004 4A166690002 4A166690003
G Yoke Cover 4A000003540 4A000005540 4A000008800
H Remote Pack 4L000007970 4L000007970 4L000007970
I Blade (x 3) 4A084720001 4A084720001 4A084720002
HW Hardware Bag 4A000008740 4A000008750 4A000008760
A
B
C
D
E
F
G
I
HW
9324 • 052418
H
The Honeywell Trademark is used under
license from Honeywell International Inc ™.
Honeywell International Inc. makes no
representations or warranties with respect
to this product.
This product is manufactured for
Hong Kong China Electric Appliance, LTD.
3350 Players Club Parkway, Suite 225
Memphis, TN 38125
1 (877) 361-3883
50603
50604 50605
