Carmel Ceiling Fan
User Manual
Read and save these instructions before use
Model #50196, 50197,
51627, 51912
Home
2

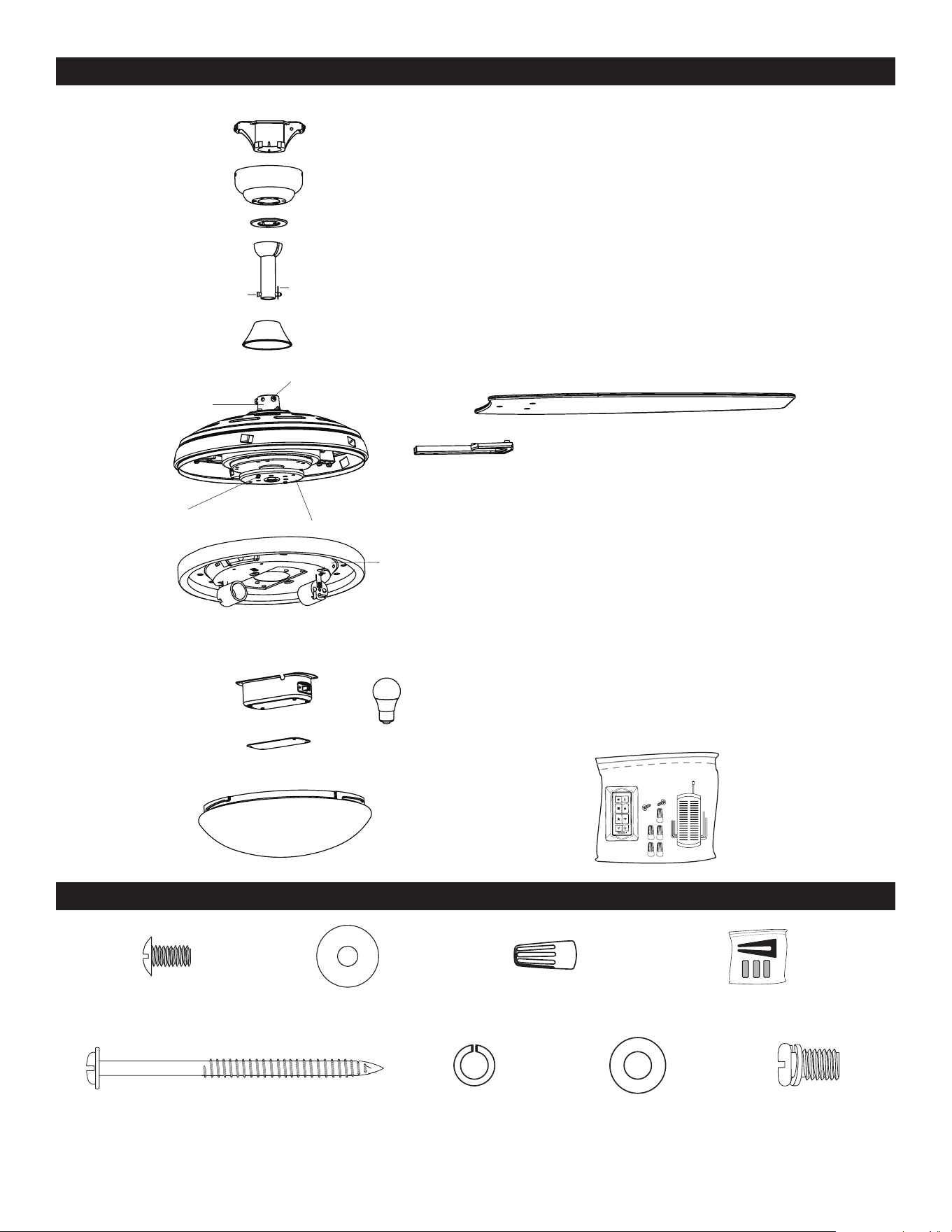

PACKAGE CONTENTS
HARDWARE CONTENTS
Mounting Bracket Screw (x 4)
Mounting Bracket
Canopy
Canopy Cover
Downrod
Downrod Clip
Downrod Pin
Blade Arm (x 5)
Bulb (x 2)
Blade (x 5)
Yoke Cover
Yoke
Set Screw (x 2)
Motor Assembly
Switch Housing
Motor Screw (x 10)
Fitter Plate Screw (x 4)
Fitter Plate
Switch Housing Cover
Light Kit
Glass Bowl
Remote Pack
Blade Balancing Kit
Blade Washer (x 15)Blade Screw (x 15) Wire Connector
Note: Some extra hardware may be included. The quantity listed above is the number required for installation.
Secondary Spring
Washer
Support WasherSecondary Support Screw
3
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the product.
• Before you begin installing the fan, disconnect the power by removing fuses or turning off the circuit breakers.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical Code and ANSI/NFPA
70-199. Hire an electrician or consult a do-it-yourself handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum of 7 feet from the blades to the floor and at least 30 inches from
the tip of the blades to any obstruction.
• The weight of the fan is 19.62 lb.
DANGER: When using an existing outlet box, make sure it is securely attached to the building structure and can support
the full weight of the fan. Failure to this can result in serious injury or death. The stability of the outlet box is essential in
minimizing wobble and noise in the fan after installation is complete.
WARNING: To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp edges.
WARNING: Using a full-range dimmer switch to control fan speed will cause a humming sound from the fan. To reduce the
risk of fire or electric shock, do NOT use a full-range dimmer switch to control fan speed.
WARNING: To reduce the risk of fire, electric shock or personal injury, mount the fan to an outlet box marked
“ACCEPTABLE FOR FAN SUPPORT” and use the mounting screws provided with the outlet box. Most outlet boxes commonly
used for the support of lighting fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified
electrician if in doubt. Secure the outlet box directly to the building structure. The outlet box and its support must be able to
support the moving weight of the fan (at least 35 lbs.).
WARNING: To reduce the risk of fire, electric shock or personal injury, wire connectors provided with this fan are designed to
accept only one 12-gauge house wire and two lead wires from the fan. If your house wire is larger than 12-gauge and/or there is
more than one house wire to connect to the two fan lead wires, consult an electrician for the proper size wire connectors to use.
WARNING: To reduce the risk of fire, electric shock or personal injury, do not bend the blade arms when installing them,
balancing the blades or cleaning the fan. Do not insert objects between the rotating fan blades.
4
CARE AND MAINTENANCE
Important: Shut off the main power supply before you begin any maintenance task. Do NOT use water or a damp cloth to clean
the fan.
At least twice each year, lower the canopy to check the downrod assembly and tighten all screws on the fan. Clean the motor
housing and blades with a soft brush or lint-free cloth to avoid scratching the finish.
Bulb Replacement: Use 60-watt max. A15, E26-base LED, CFL or incandescent bulbs. Halogen bulbs are not recommended for
this item.
Battery Replacement: Use CR2032 lithium batteries. WARNING: Keep batteries out of reach of children. May be fatal if
swallowed. In the event that a battery is swallowed, immediately consult a doctor. Non-rechargeable batteries are not to be
recharged. Do not mix different types of batteries such as alkaline, carbon-zinc, or rechargeable batteries. Do not mix old and
new batteries. Batteries are to be inserted with the correct polarity. Exhausted batteries are to be removed from the product. Do
not dispose of batteries in fire, as they may explode or leak.
CAUTION:
CAN ICES-003 (B) / NMB-003 (B)
CAN ICES-005 (B) / NMB-005 (B)
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause
undesired operation of the device (if applicable).
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver
--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
Please note changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to
operate the equipment.
HKC-US
3350 Players Club Parkway #225
Memphis, TN 38125
1-877-361-3883
SAFETY INFORMATION
5

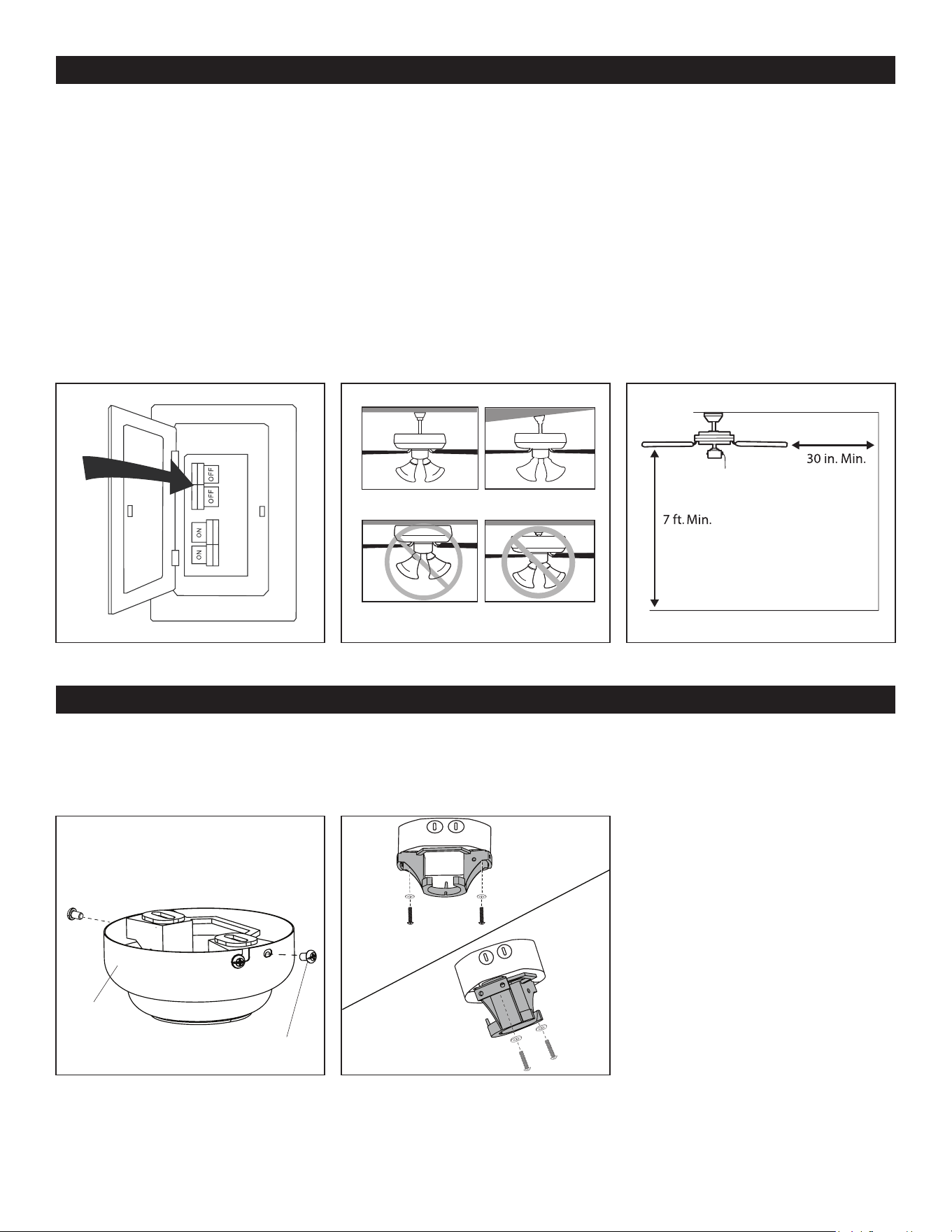

INITIAL INSTALLATION
PREPARATION
Before beginning the assembly of this product, ensure all parts are present. Compare all parts with the package contents list
and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product.
Estimated assembly time: 2 hours
Tools required (not included): Electrical tape, Phillips Screwdriver, Safety Glasses, Step Ladder, and Wire Strippers.
1. Turn off power to the fan at the breaker box and the wall switch (Figure 1.1). DANGER: Failure to disconnect the power supply
prior to installation may result in serious injury or death.
2. Choose one of the following mounting options (Figure 1.2) :
Standard Mount - best suited for ceilings 8 feet or higher. For very high ceilings, use a longer downrod (not included).
Angle Mount - best suited for angled or vaulted ceilings. A longer downrod is sometimes necessary to ensure proper blade
clearance. Ensure the ceiling angle is not steeper than 10 degrees.
Flushmount Installation - not available for this model.
Closemount Installation - not available for this model.
3. Choose a suitable location - Ensure the blades will be at least 30 inches from any obstructions. Also check the downrod
length to ensure the blades will be at least 7 feet above the floor (Figure 1.3).
1. Loosen all four mounting bracket screws and completely remove the two screws from the round holes in the canopy. Then
remove mounting bracket from the canopy and save the screws for later (Figure 2.1).
2. Install the mounting bracket to the outlet box (not included) using the screws and washers provided with the outlet box
(Figure 2.2).
D
Figure 1.1
Figure 2.1
Figure 1.2
Standard
Mount
Angle Mount
Mounting
Bracket Screw
Canopy
Figure 2.2
Figure 1.3
Standard Mount
Flushmount
Angle Mount
Closemount
6

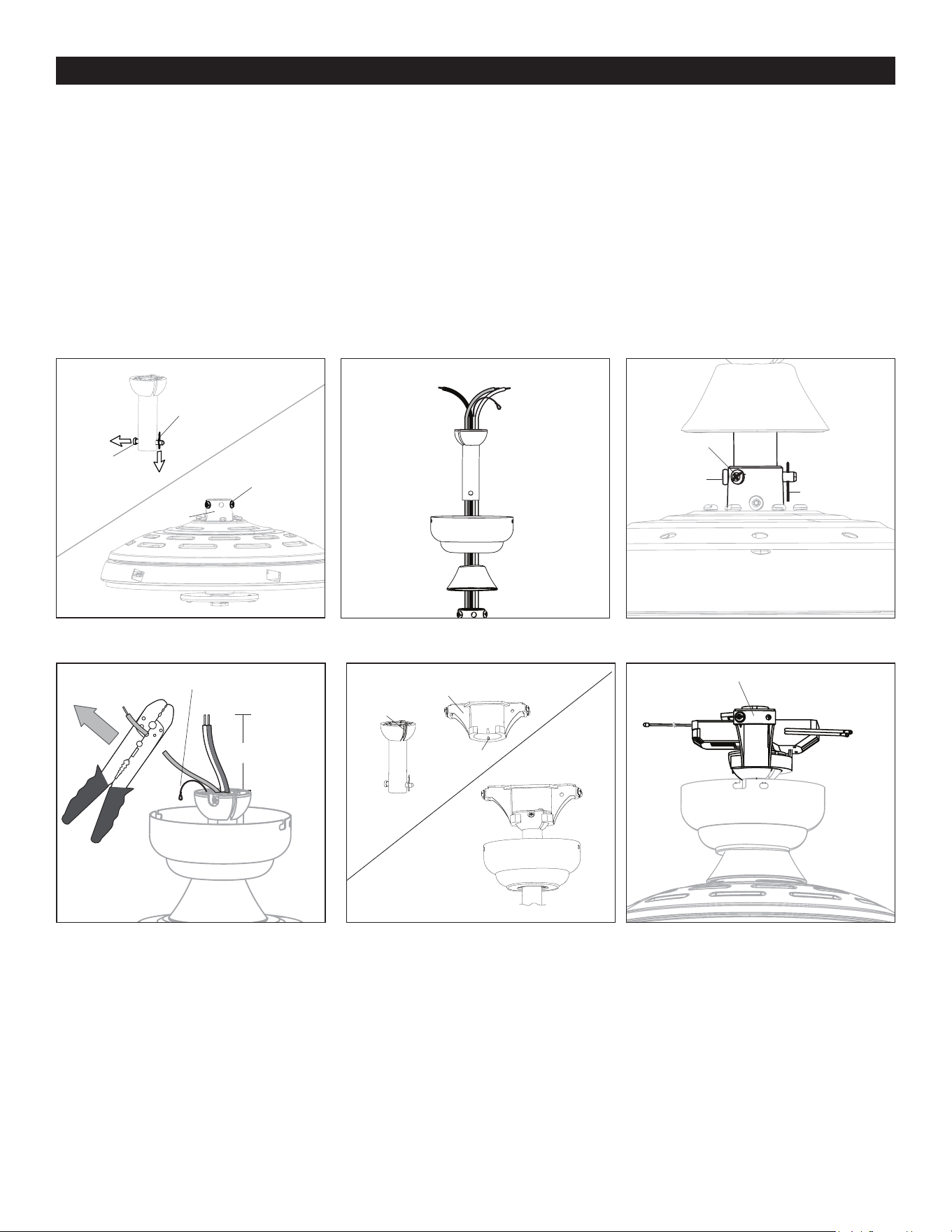

STANDARD OR ANGLE MOUNT INSTALLATION
1. Remove the downrod clip and downrod pin from the downrod. Then partially loosen the set screws in the yoke at the top of the
motor assembly (Figure 3.1).
2. Feed the fan wires and braided cable through the yoke cover, canopy and downrod (Figure 3.2).
3. Slide the downrod into the yoke of the motor assembly. Align holes and reinstall the downrod pin and downrod clip and secure
with the two set screws (Figure 3.3).
4. Depending on the length of downrod you use, you may want to cut the fan wires to simplify wiring. After pulling the wires all
the way through the downrod, measure 8 inches of wire. Cut off the excess wire using wire cutters (not included).WARNING:
Do NOT cut the braided cable. Then, strip 1/2” of insulation from the end of each wire (Figure 3.4).
5. Lift the downrod into the mounting bracket. Rotate the downrod until the tab in the mounting bracket is seated in the slot in
the downrod ball. WARNING: The fan and/or downrod should not rotate in the mounting bracket, if installed correctly. Failure
to align the slot in the downrod ball with the tab on the mounting bracket may result in fan falling causing serious injury or
death. (Figure 3.5).
6. Insert the receiver into the mounting bracket with the flat side facing the ceiling (Figure 3.6).
Figure 3.1
Figure 3.4 Figure 3.5 Figure 3.6
Downrod Clip
Set Screw
Yoke
Downrod
Downrod Pin
Downrod
Canopy
Yoke Cover
Braided Cable
Braided Cable
Figure 3.2 Figure 3.3
8 in.
Downrod
Clip
Downrod
Downrod Pin
Set Screw
Mounting
Bracket
Receiver
Mounting
Bracket
Downrod
Tab
Slot
7
Figure 4.2Figure 4.1 Figure 4.3
Braided Cable
Brace
Open Loop
Secondary Support Screw
Support
Washer
Spring
Washer
Secondary
Support Screw

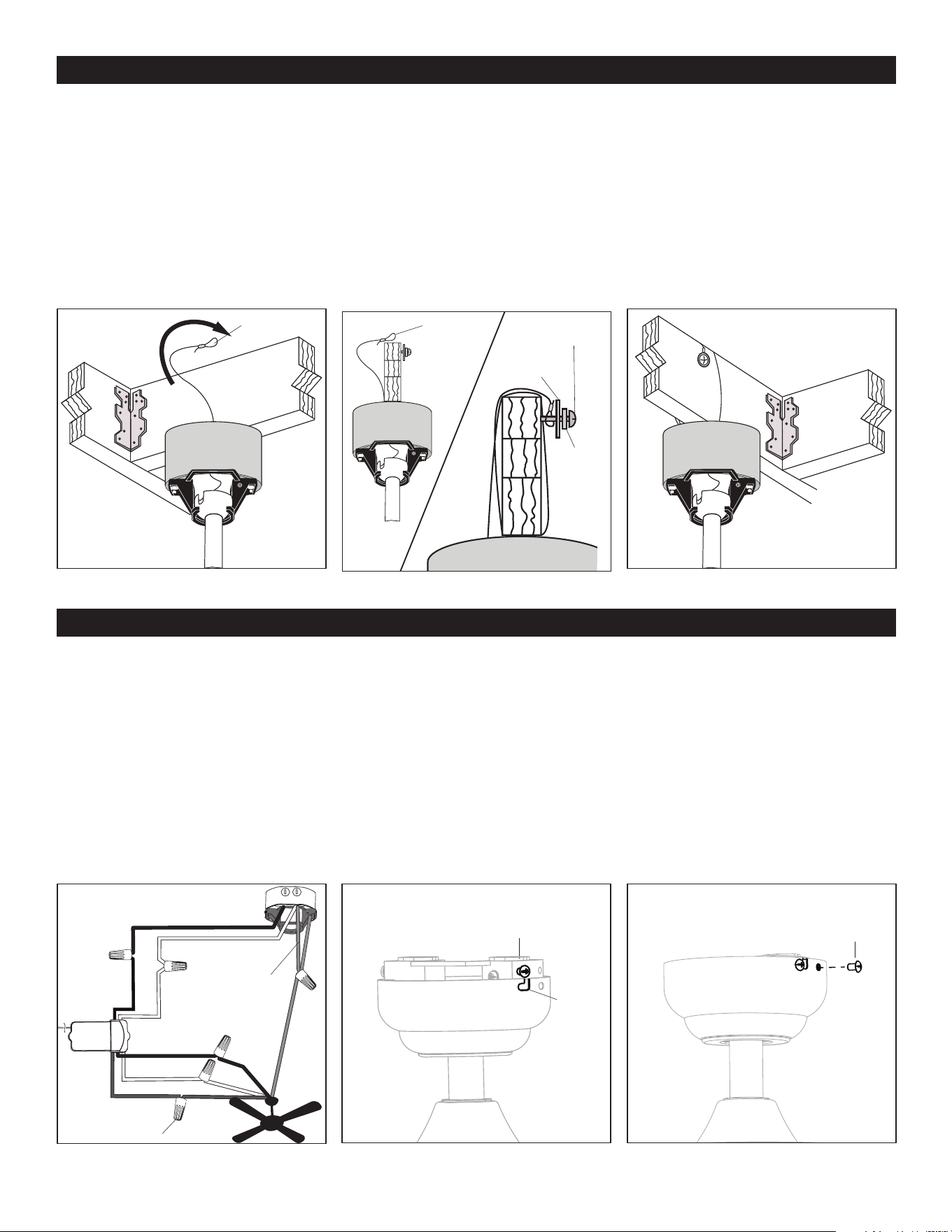

SECONDARY HANGING SYSTEM INSTRUCTIONS
1. WARNING: Secondary support is required for this product. Failure to follow the steps below could result in property damage
and/or personal injury. Feed the loop of the braided cable, preassembled to the motor assembly, up through the outlet box
mounted in the ceiling (Figure 4.1).
2. Install secondary support screw, spring washer and support washer partly into the side of the brace installed in the ceiling.
Then loop the braided cable up and over the ceiling brace and place the open loop of the braided cable around the secondary
support screw. Note: The ceiling support brace may not be accessible from below. If not, it must be accessed from above.
Important: The braided cable must make a complete circle around the support brace to secure the fan (Figure 4.2).
3. Tighten the secondary support screw, securing the braided cable (Figure 4.3).
For installation in the United States: Building codes in the U.S.A. do not require installation of a Secondary Hanging System.
If desired, the braided cable can be cut and removed using wire cutters (sold separately). Skip to FINAL INSTALLATION. For
installation in Canada: In compliance with building codes in Canada, installation of the Secondary Hanging System is required.
FINAL INSTALLATION
1. Use wire connectors to connect the fan wires and the receiver wires to the household supply wires according to the wiring
diagram and the following instructions (Figure 5.1):
• Connect the green wire from the downrod and mounting bracket to the Bare/Green (ground) supply wire.
• Connect the White (AC IN N) from the receiver to the White (neutral) supply wire.
• Connect the Red wire (AC IN L) from the receiver to the Black (hot/power) supply wire.
• Connect the Black wire (TO MOTOR L) from the receiver to the Black fan wire.
• Connect the Blue wire (FOR LIGHT) from the receiver to the Blue fan wire.
• Connect the White wire (TO MOTOR N) from the receiver to the White fan wire.
Secure all wiring connections together with wire connectors.
2. Align the canopy over the loosened mounting bracket screws. Place the J-slot of the canopy onto the mount bracket screws
and rotate clockwise (Figure 5.2).
3. Secure the canopy with the two previously removed mounting bracket screws. Tighten all the mounting bracket screws
securely (Figure 5.3).
Figure 5.2Figure 5.1 Figure 5.3
Mounting
Bracket Screw
J-slot
Mounting
Bracket Screw
Wire Connector
Black (hot/power)
White (neutral)
Bare/Green
(ground)
White
White
Black
Blue
Blue
Black
Green
Gree
n
Receiver
Red
White
8

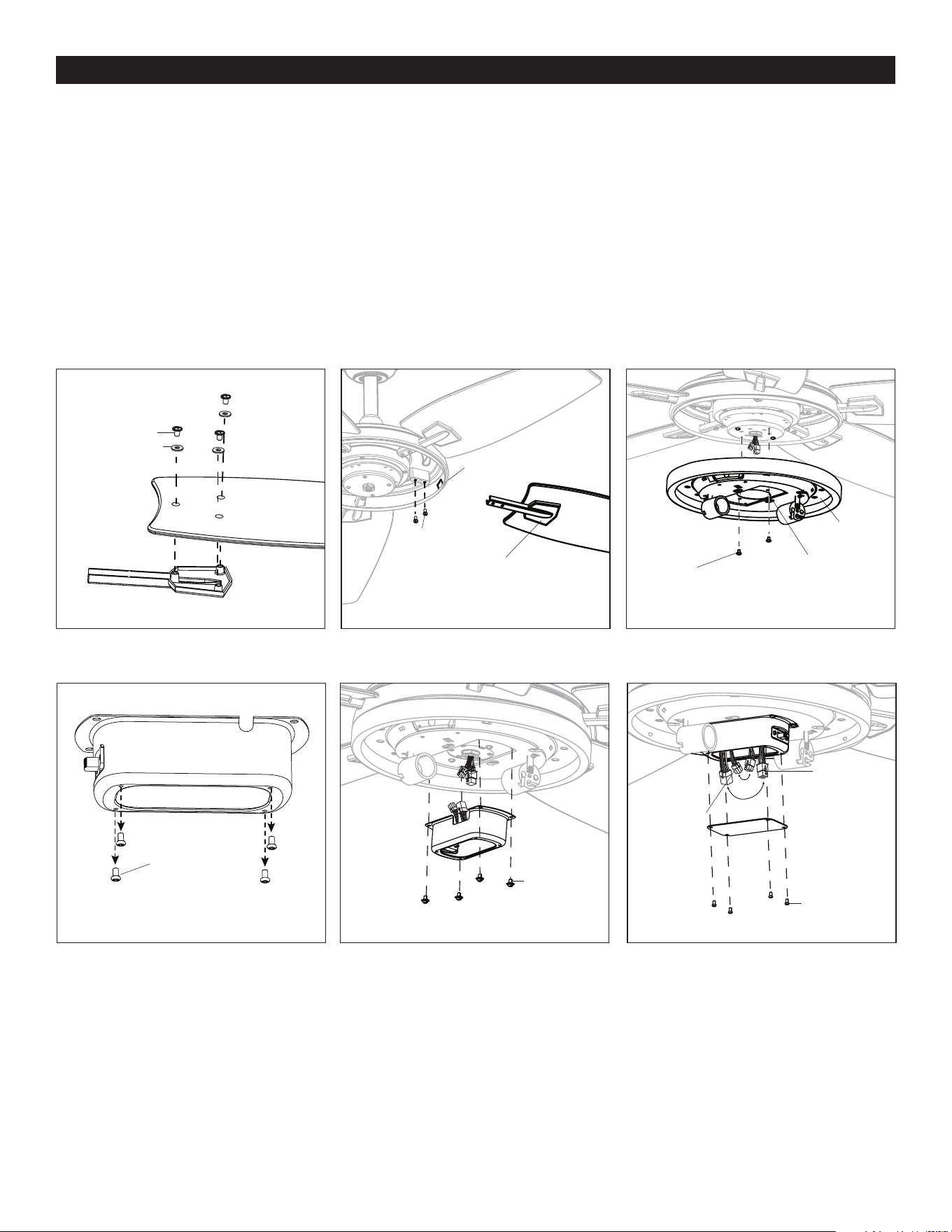

FINAL INSTALLATION
4. Partially insert the blade screws along with blade washer through blade and into the blade arm. Tighten each blade screw with a
Phillips screwdriver, starting with the one in the middle. Repeat this step for the remaining blades and blade arms (Figura 5.4).
5. Insert blade arm through slot in the side of the motor assembly. Align the holes of one blade arm with two motor screw holes
in underside of the motor assembly. Secure with two motor screws. Repeat this step for the remaining blade arms (Figure 5.5).
6. Remove two of the four fitter plate screws located on the underside of the motor assembly and loosen the other two screws.
Align the two key slots of the light kit with the loosened fitter plate screws. Rotate the light kit clockwise until the screw heads
engage the key slots. Replace previously removed fitter plate screws, then tighten all screws (Figure 5.6).
7. Remove the four switch housing cover screws preassembled to the switch housing. Set aside for later (Figure 5.7).
8. Remove the four switch housing screws preassembled to the light kit. Secure the switch housing to the light kit by re-
installing the switch housing screws. Note: The switch housing should be oriented so its notch covers the wiring from the
light kit (Figure 5.8).
9. Connect the two 4-pin connectors and two 9-pin connectors from the switch housing. Insert the connectors into the switch
housing. Then, install the switch housing cover to the switch housing using the switch housing cover screws that were
previously removed (Figure 5.9).
Figure 5.5Figure 5.4 Figure 5.6
Blade Screw
Light Kit
Key Slot
Fitter Plate
Screw
Blade Washer
Blade Arm
Blade Arm
Slot
Motor Screw
Blade
Figure 5.8Figure 5.7 Figure 5.9
Switch Housing
Cover Screw
Switch Housing
Screw
Switch Housing
Cover
Switch
Housing
Switch Housing
Cover Screw
9-pin
Connector
4-pin
Connector
9

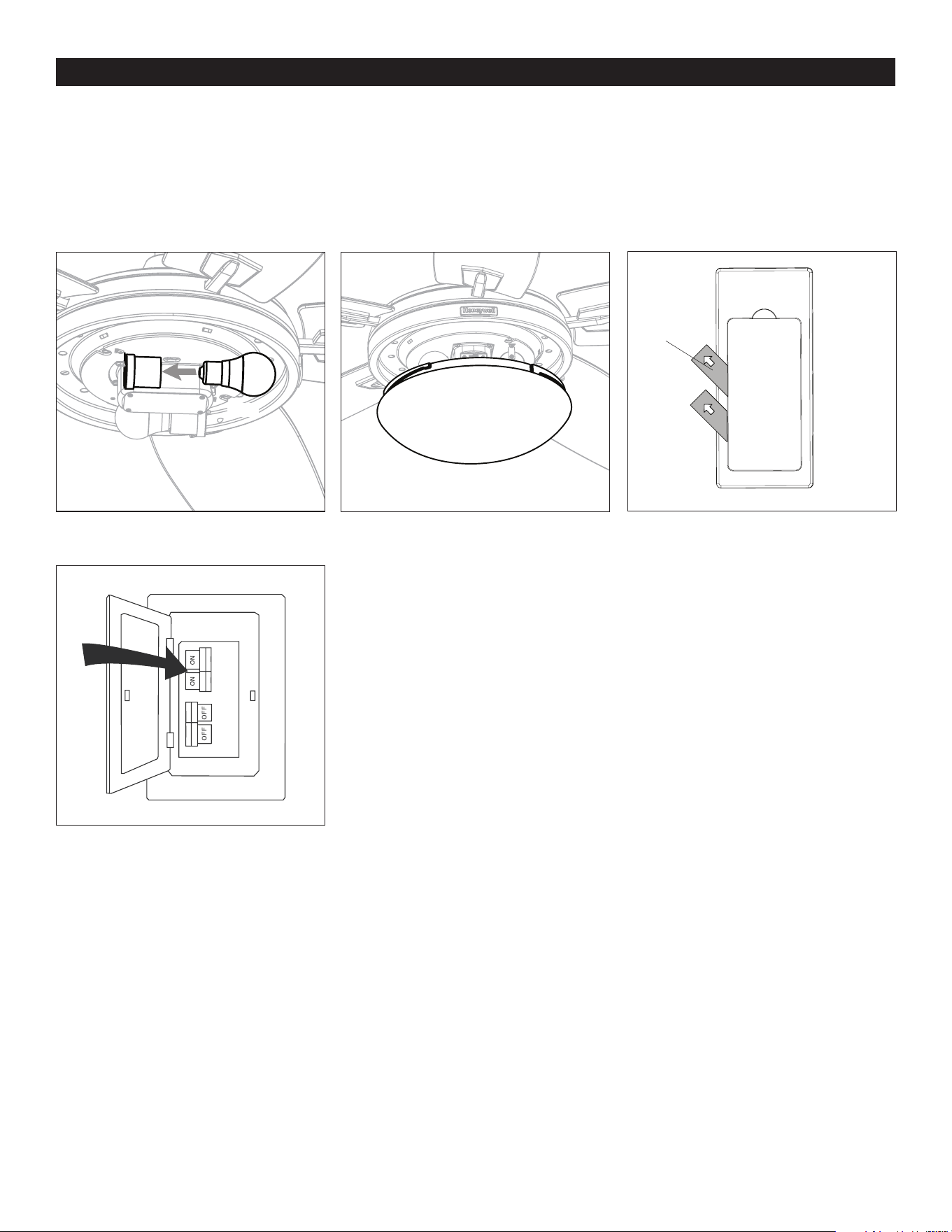

FINAL INSTALLATION
10. Install E26-base bulbs into the sockets of the light kit. Important: When replacing the bulb, allow bulb and light kit to cool
before touching (Figure 5.10).
11. Lift the glass bowl into the light kit and twist in a clockwise direction to secure (Figure 5.11).
12. Batteries were preinstalled in the battery compartment of the remote. Pull the plastic film in the direction of the arrow to
remove which will activate the batteres (Figure 5.12).
13. Turn on power to fan at breaker box and the wall switch. Assembly is complete (Figure 5.13).
Figure 5.11Figure 5.10
Figure 5.13
Figure 5.12
Plastic Film
Remote
Bulb
Glass Bowl
10

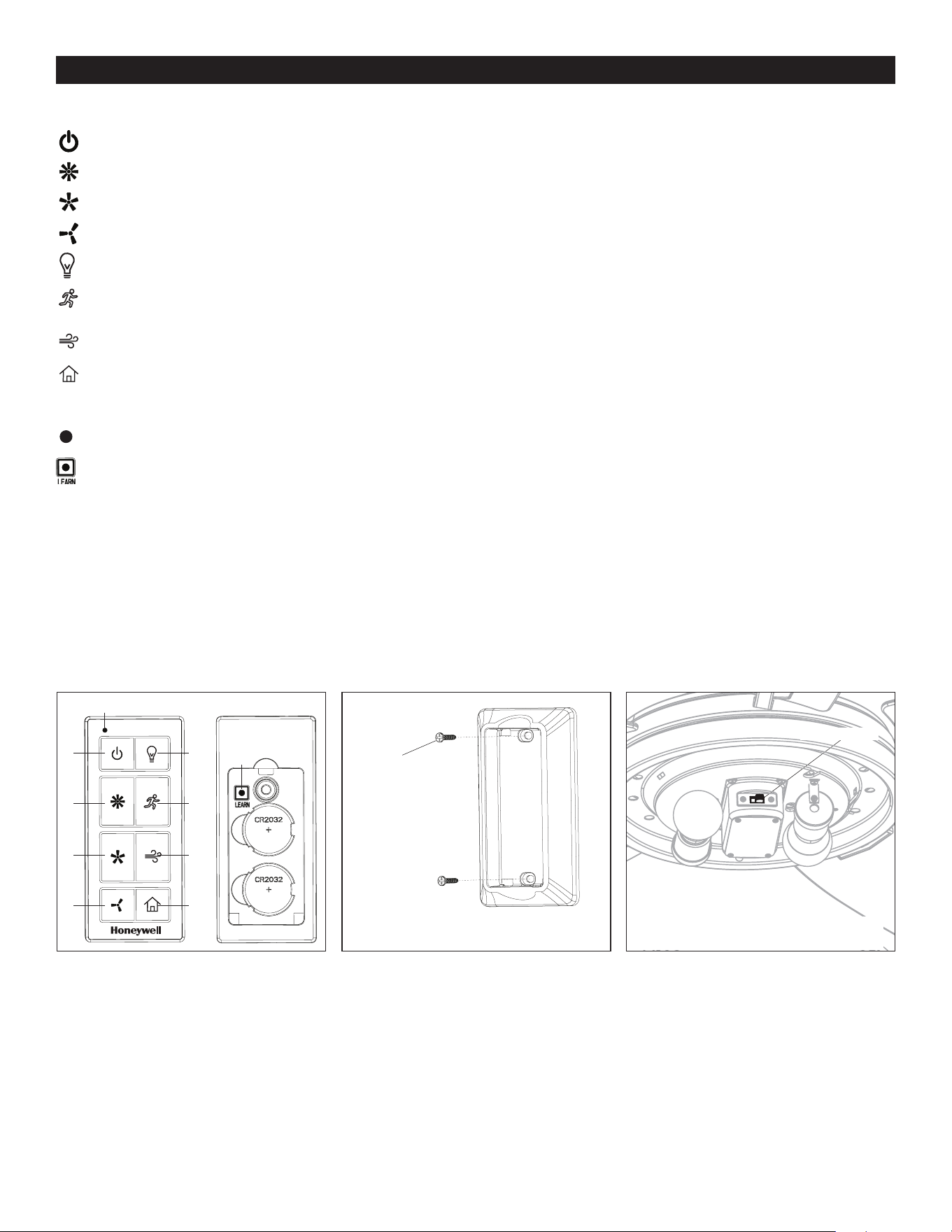

OPERATING INSTRUCTIONS
Figure 6.3Figure 6.2
Figure 6.1
1. To operate the fan using the remote, press and release the following buttons (Figure 6.1):
Fan Off - Turns the power to fan off.
High Speed - Turns on fan at high speed.
Medium Speed - Turns on fan at medium speed.
Low Speed - Turns on fan at low speed.
Light Control: Turns the light on and off. Press and hold to dim or brighten lights (for dimmable bulbs only).
Light Delay Off mode - Light stays on for 60 seconds to allow for safe exit from room. Tap Light Delay once to activate. Fan
light blinks once to confirm Light Delay is active. Press any button to cancel.
Variable Breeze - Simulates a breeze in nature. Press and hold button to activate. Press any fan speed button to cancel.
Home Shield™ - Simulates occupancy while away from home. Fan remains off and the light randomly turns on for a
minimum of five minutes and a maximum of 20 minutes. The light remains off for 60 minutes between events. Press and
hold button to activate. Light will blink twice to confirm Home Shield is active. Press any button to cancel.
LED Indicator - should illuminate when any remote button is pressed. If not, replace the DC3V, CR2032 batteries.
LEARN Button - Syncs remote to receiver (see TROUBLESHOOTING for instructions). Note: To access LEARN button,
remove battery door from back of the remote using a flat-head screwdriver.
2. If desired, the wall bracket in remote pack can be installed to a wall using the provided mounting screws. The remote can be
stored in the wall bracket for easy access (Figure6.2).
3. Using a ceiling fan will allow you to raise your thermostat setting in summer and lower your thermostat setting in winter
without feeling a difference in your comfort. The reverse switch is located on the switch housing (Figure 6.3).
In warmer weather, push the reverse switch left, which will result in downward airflow creating a wind chill effect.
In cooler weather, push the reverse switch right and the fan to low, which will result in upward airflow that can help move
stagnant, hot air off the ceiling area. Important: Wait for the fan to stop before moving the reverse switch located on the light
kit. The reverse switch must be set either completely left or right in order for the fan to function correctly. If the reverse switch
is set in the middle position, the fan will not operate.
Remove glass bowl by turning in a counter
clockwise direction to access the reverse switch.
Reverse Switch
Wall Bracket
Mounting
Screw
A
I
J
E
B F
C G
D H
11
TROUBLESHOOTING
The fan does not move.
The fan is noisy.
The fan wobbles
excessively.
The fan operates
correctly but the lights
are not working.
Remote does not work.
1. Firmly push the reverse switch completely left or right.
2. Make sure the wall switch is turned on.
3. Turn the power on or check the fuse (breaker).
4. Turn the power off and check all connections at the ceiling outlet box.
1. Check and tighten all screws that hold the fan blades to the blade arms and the motor.
2. Check for a cracked blade. If one blade is cracked, replace the full set of blades.
3. Do not use a full range dimmer switch to control the fan speed.
4. Ensure the outlet box is secured to the building structure.
5. Ensure the mounting bracket is secured to the outlet box and that the screws are tight.
1. Ensure the 9-pin and 4-pin connectors in the switch housing are properly secured.
2. Turn the power off and check all connections at the ceiling outlet box.
3. Replace the bulbs.
1. Check and tighten all screws that hold the fan blades to the blade arms and the blade arms to the
motor.
2. Switch one blade with a blade from the opposite side, or balance the fan using the blade
balancing kit.
3. Turn off the power. Loosen the canopy and verify that the mounting bracket is secure to the
electrical outlet box. The bracket must be flush without movement against the outlet box. Verify
the outlet box is secure.
4. Use a longer downrod (sold separately) or move the fan to another location.
5. Lift up the yoke cover and tighten the set screws on the yoke until secure.
PROBLEM CORRECTIVE ACTION
If you experience any faults, please check the Troubleshooting section below. If a problem cannot be remedied or you are
experiencing difficulty in installation, please contact Customer Service: 1-877-361-3883.
Warning: Shut off the power supply before you begin any maintenance task.
1. Power surge may have cleared the memory and remote needs to be resynced to the receiver.
Syncing instructions: Turn off the main power, then turn it back on. Within 30 seconds, press and
hold the HIGH SPEED and LOW SPEED buttons (or the “LEARN” button, located in the battery
compartment) for 5 seconds. Fan will turn on at low speed and light off. This confirms the syncing
process is successful.
2. Insert new CR2032 batteries in battery compartment of the wall control.
3. If there are several remote fans in proximity, turn the power off to those fans and re-sync the fan.
12
LIMITED LIFETIME WARRANTY
Set forth below, the manufacturer, Hong Kong China Electric Appliance Company (HKC) warrants the fan motor for this ceiling
fan to be free from defects in workmanship and material for the life of the product. Also, subject to the limitations below, HKC
warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts made in whole or in part with glass) to be free
from defects in workmanship and material for a period of one year after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser, whether such purchaser purchased the product through a store or
contractor. Ceiling fan part defects must be reported within the first year from the date of purchase. Parts made in whole or in
part with glass and the finishes of metal and other surfaces are not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any part caused by ordinary
wear and tear, accident, misuse, or improper installation, is not covered by this warranty. HKC assumes no responsibility
whatsoever for fan installation. Any service performed by a non-licensed electrician will render the warranty invalid.
HKC’s sole responsibility shall be to repair or replace the motor, parts, or product within the terms stated above. HKC shall not
be liable for any loss or damage of any kind, including any incidental or consequential damages resulting directly or indirectly,
from any breach of warranty, express or implied, or any other failure of this product. Some states do not allow the exclusion or
limitation of incidental or consequential damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or materials within the warranty
period associated with the defective part, HKC agrees to replace the defective part without charge, or at its option, to replace the
ceiling fan with a comparable or superior model.
HKC’s warranties are limited to the written warranties set out in this HKC ceiling fan limited lifetime warranty. All other express
and implied warranties, including, without limitation, the implied warranty of fitness for a particular purpose and the implied
warranty of merchantability are disclaimed. Some states do not allow the disclaimer of implied warranties, so this disclaimer
may not apply to you.

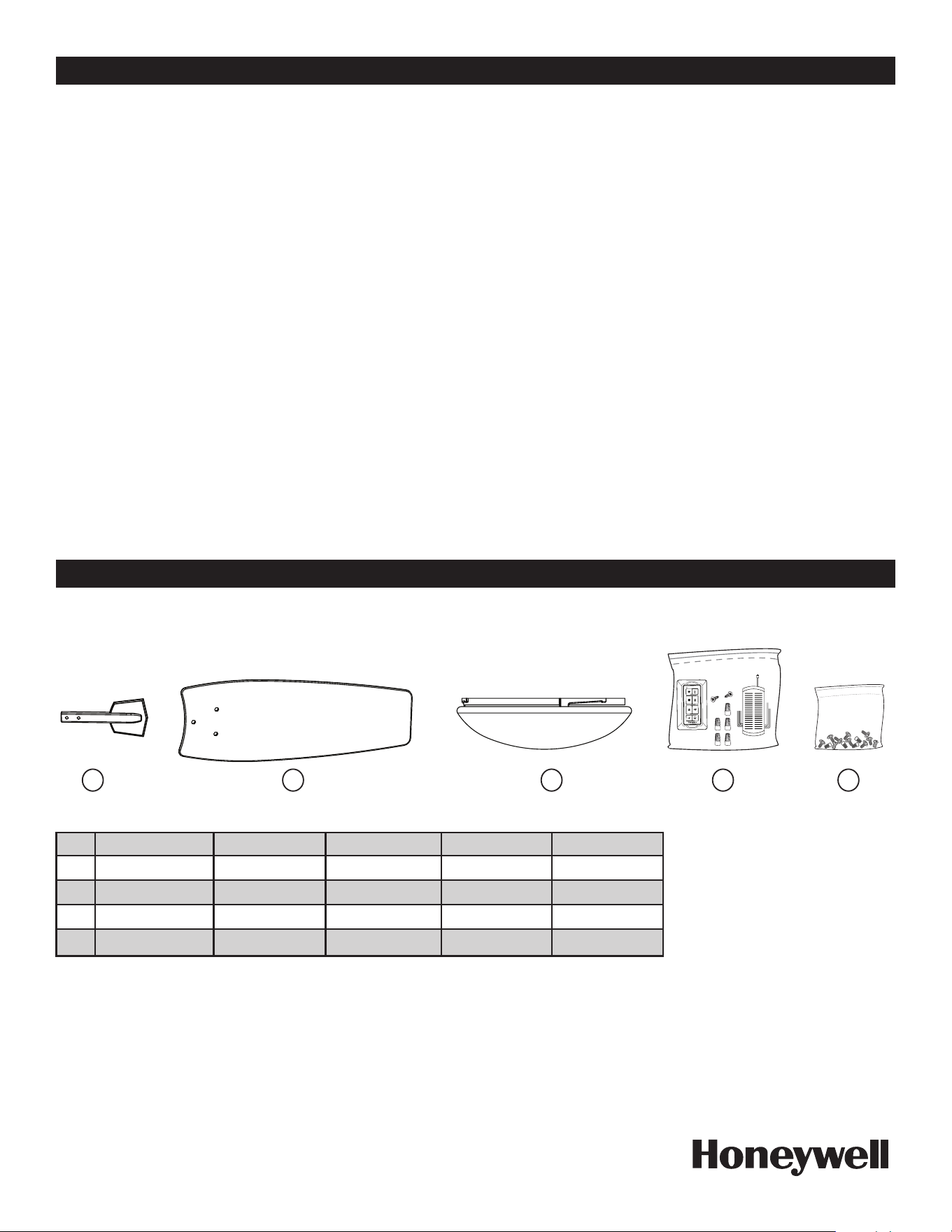

REPLACEMENT PARTS LIST
For replacement parts, call our customer service department 1-877-361-3883. Monday-Friday 8am - 5pm, Central Time.
A Blade Arm (x 5) 4L000004370 4A072560001 4A072560002 4A072560003
B Blade (x 5) 4A084030001 4A084030000 4A084030002 4A084030003
C Glass Bowl 4L166090001 4L166090001 4L166090001 4L166090001
D Remote Pack 4A000024910 4A000024910 4A000024910 4A000024910
HW Hardware Bag 4A000013350 4A000013360 4A000014130 4A000026200
A B D
HW
9611 • 092623
50196 50197 51627 51912
C
Home
The Honeywell Trademark is used under license
from Honeywell International Inc.
Honeywell International Inc. makes no
representations or warranties with respect to
this product.
This product is manufactured for
Hong Kong China Electric Appliance, LTD.
3350 Players Club Parkway, Suite 225
Memphis, TN 38125
1 (877) 361-3883
