BIRNHAM 52” CEILING FAN
MODEL #50191,50192
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-877-361-3883, Monday - Thursday, 8 am - 6 pm, EST and Friday,
8 am - 5 pm, EST.
Español p. 20
2
WELCOME
PREPARATION
Before beginning the assembly of this product, ensure
that all parts are present. Compare all parts with the
package contents list and hardware contents list. If
any part is missing or damaged, do not attempt to
assemble the product.
After opening the top of the carton, remove the
mounting hardware package from the foam inserts,
then remove the motor from the packaging and
place it on a soft surface, such as a carpet, to avoid
damage to the nish.
Estimated Assembly Time: Under 60 minutes
Tools Required for Assembly (not included): Electrical
Tape, Phillips Screwdriver, Pliers, Safety Glasses,
Step Ladder, and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape
Measure, Wiring Handbook, and Wire Cutters
CARE AND MAINTENANCE
At least twice each year, lower the canopy to check
the downrod assembly, and then tighten all screws
on the fan. Clean the motor housing with only a soft
brush or lint-free cloth to avoid scratching the nish.
Clean the blades with a lint-free cloth. You may
occasionally apply a light coat of furniture polish to
wood blades for added protection.
Important: Shut off the main power supply before you
begin any maintenance tasks. Do not use water or a
damp cloth to clean the ceiling fan.
FAN WEIGHT
The net weight of this fan is: 18.7 lbs. (8,48 kg).
TABLE OF CONTENTS
ATTACH YOUR RECEIPT HERE
Serial Number
Purchase Date
Care and Maintenance ........................2
Package Contents ...........................3
Safety Information ...........................4
Mounting Options ............................5
Mounting Bracket Installation ...................6
Standard or Angle Mounting Instructions . . . . . . . . . .7
Closemount Instructions......................10
Wiring ....................................11
Canopy Installation..........................12

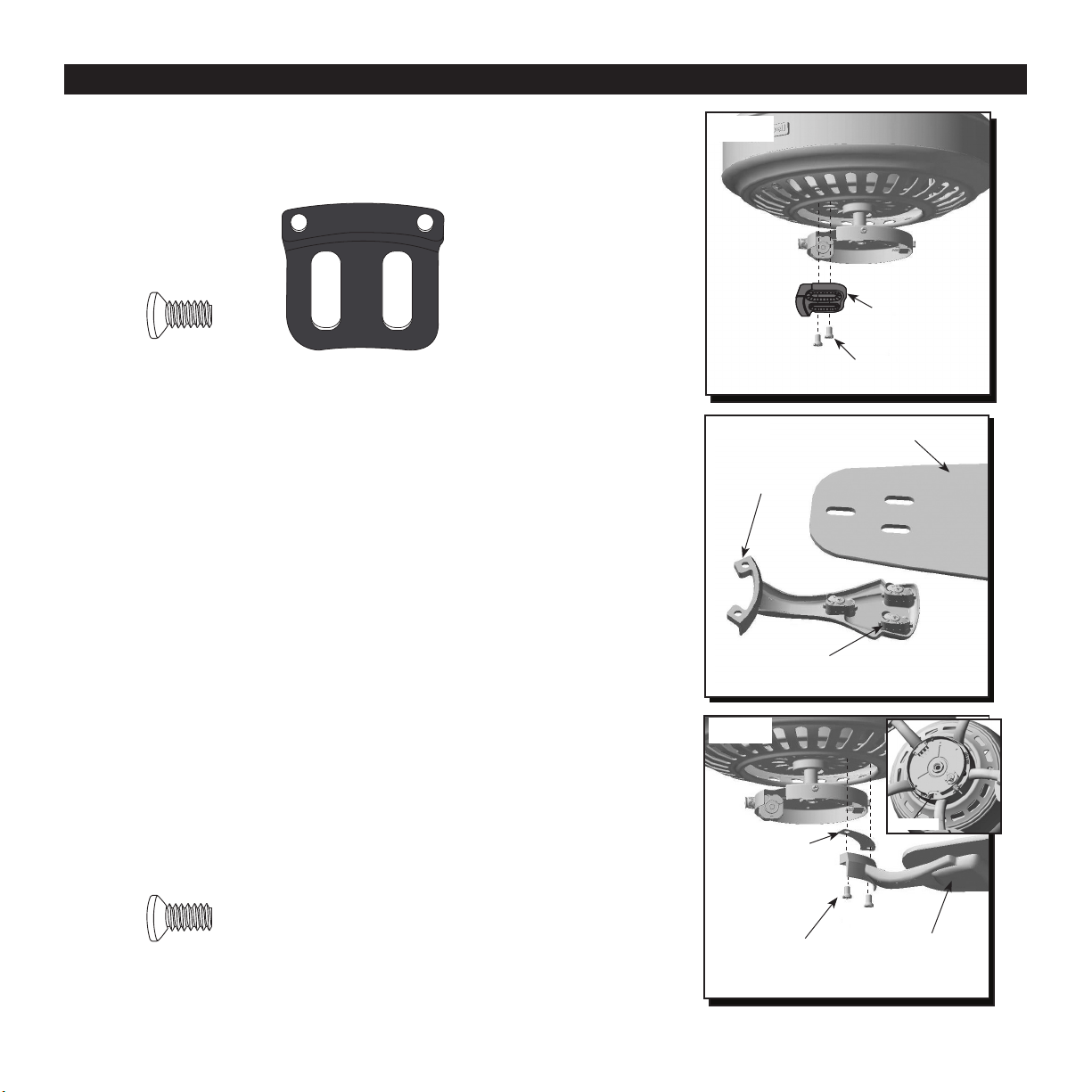

Blade Installation ...........................13

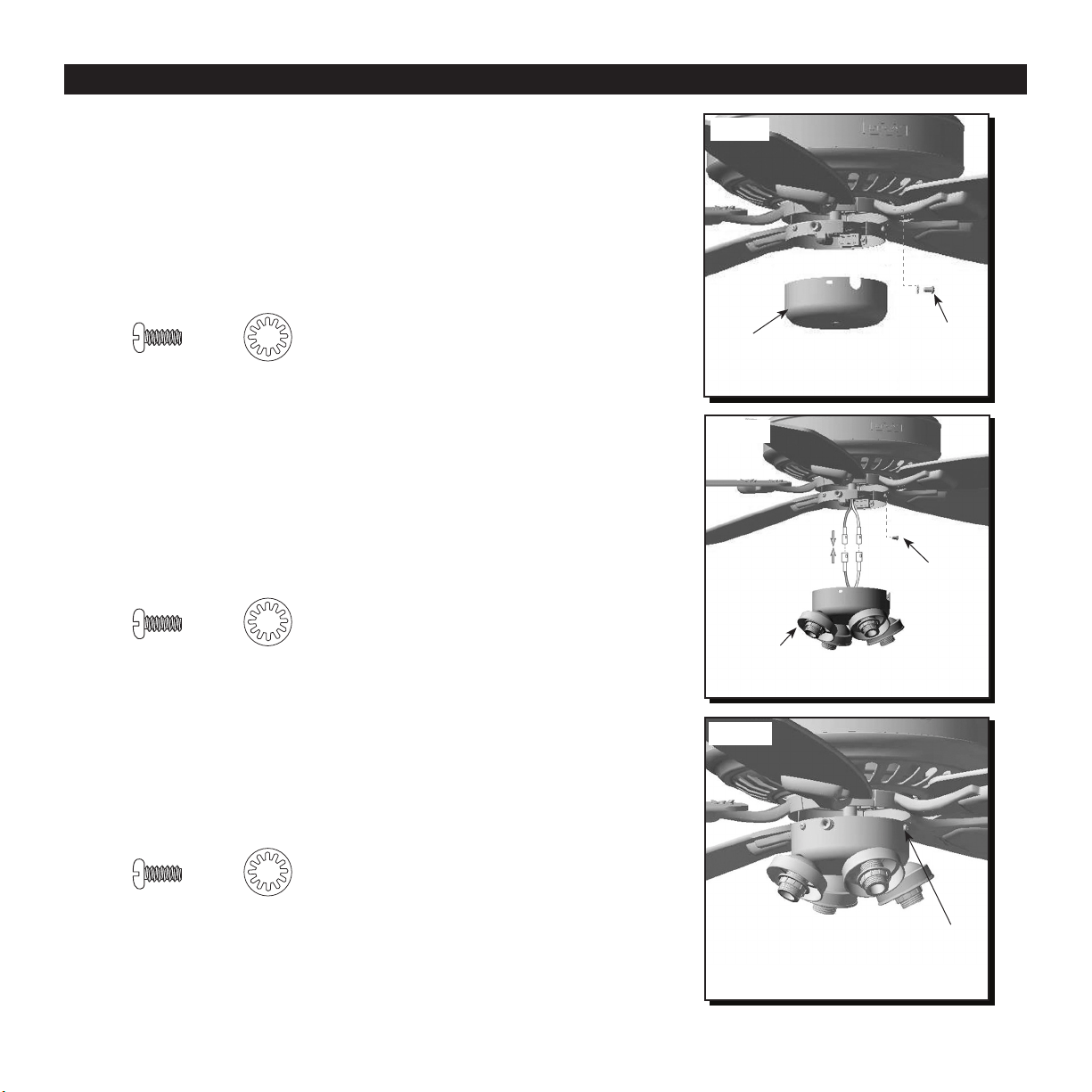

Light Kit Installation .........................14
Operating Installation . . . . . . . . . . . . . . . . . . . . . . . .16

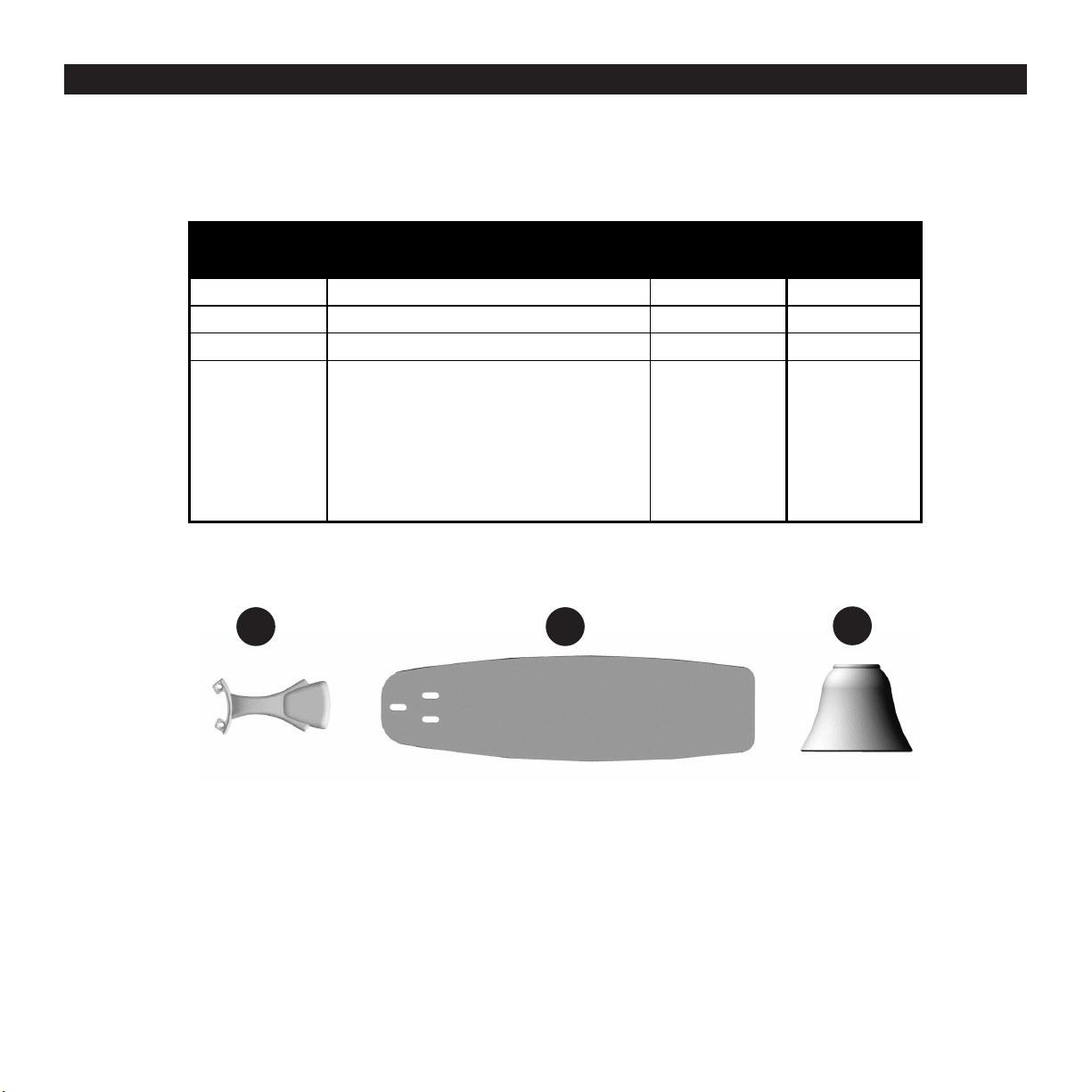

Replacement Parts List ......................17
Troubleshooting ............................18
Limited Lifetime Warranty.....................19
3

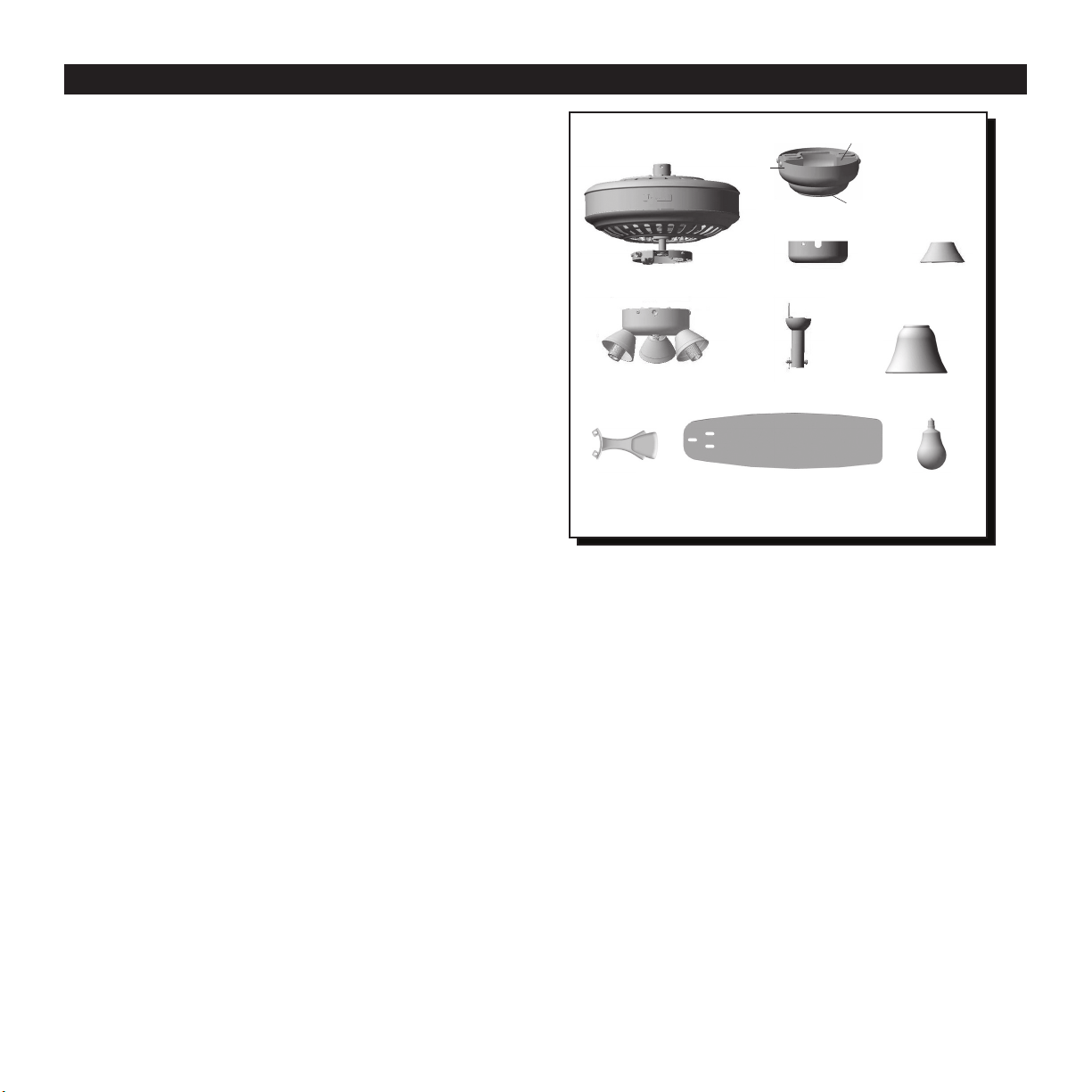

PACKAGE CONTENTS
Unpack your fan and check the contents. You should
have the following items:
1. Motor Housing
2. Light Kit Fitter
3. Blade Arm (5)
4. Canopy
5. Mounting Bracket
6. Canopy Cover
7. Optional Cap
8. Downrod Assembly
9. Blade (5)
10. Yoke Cover
11. Glass Shade (4)
12. Bulb (4)
13. Loose parts bags containing (not shown): Mounting
hardware, blade attachment hardware, electrical
hardware, pull chains, wire connectors, etc.
1
2
6
3
7
4
9
8
5
10
12
11
4
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate, or install the product.
• Before you begin installing the fan, disconnect the power by removing fuses or turning off the
circuit breakers.
• Make sure that all electrical connections comply with local codes, ordinances, the National Electrical
Code, and ANSI/NFPA 70-199. Hire a qualied electrician or consult a do-it-yourself wiring handbook if
you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. (2,14 m) from the
blades to the oor and at least 30 in. from the end of the blades to any obstruction.
DANGER
WARNING
WARNING
When using an existing outlet box, make sure
the outlet box is securely attached to the building
structure and can support the full weight of
the fan. Failure to do this can result in serious
injury or death. The stability of the outlet box is
essential in minimizing wobble and noise in the
fan after installation is complete.
To reduce the risk of re or electric shock, do not
use the fan with any solid-state speed-control
device or control the fan speed with a full-range
dimmer switch.
To reduce the risk of re, electric shock, or personal
injury, mount the fan to an outlet box marked
“ACCEPTABLE FOR FAN SUPPORT” and use the
mounting screws provided with the outlet box. Most
outlet boxes commonly used for the support of
lighting xtures are not acceptable for fan support
and may need to be replaced. Consult a qualied
electrician if in doubt. Secure the outlet box directly
to the building structure. The outlet box and its
support must be able to support the moving weight
of the fan, at least 35 lbs. (15,88 kg).
!
!
!
!
WARNING
CAUTION
CAUTION
To reduce the risk of re, electric shock, or
personal injury, do not bend the blade arms
when installing them, balancing the blades, or
cleaning the fan. Do not insert objects between
the rotating fan blades.
Read all instructions and safety information
before installing your new fan. Review the
accompanying assembly diagrams.
Carefully check all screws, bolts, and nuts on
the fan motor housing to ensure that they are
secured.
!
!
!
!
!
!
!
!
5

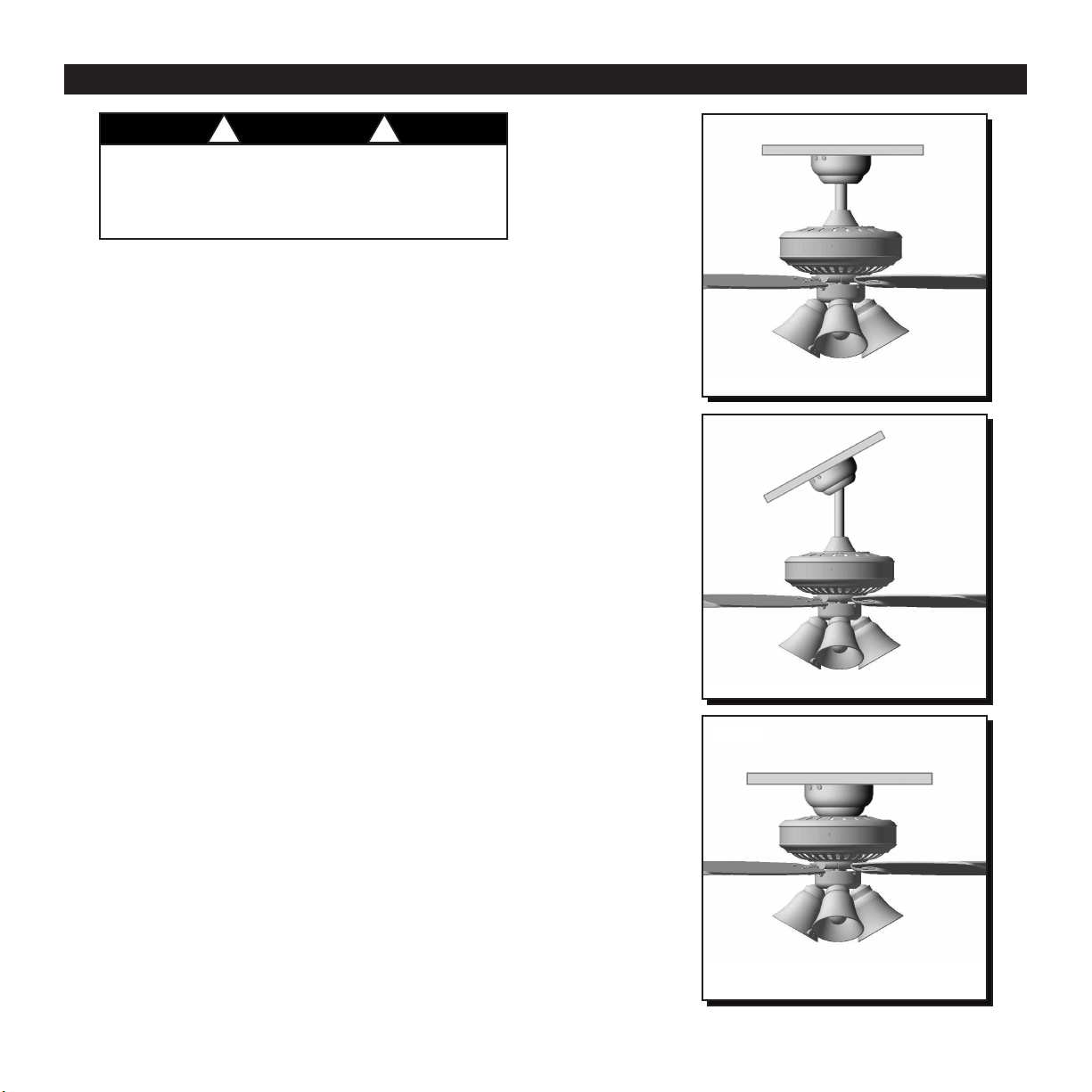

MOUNTING OPTIONS
DANGER
Turn off the circuit breakers and the wall
switch to the fan supply line leads. Failure to
disconnect the power supply prior to installation
may result in serious injury or death.
Fig. 1
Fig. 2
Fig. 3
1. Your fan has 3 mounting options:
• Standard (Fig. 1)
• Angled (Fig. 2)
• Closemount (Fig. 3)
Note: The fans in gures 1 through 3 are not the actual
fan in your package, they are representation of the
3 different mounting options.
Important: If using the angle mount, check to ensure
the ceiling angle is not steeper than 16°.
Helpful Hint: Standard mounting is best suited for
ceilings 8 ft. or higher. For taller ceilings you may
want to use a longer downrod (sold separately).
Angled mounting is best suited for angled or vaulted
ceilings. A longer downrod is sometimes necessary
to ensure proper blade clearance. Closemount-style
mounting is more suitable for ceilings lower than 8
ft. (2,44 m) high.
2. Ensure that the blades of the fan are 30 in. (76 cm)
from any obstruction.
3. Check the downrod length to ensure the blades will
be at least 7 ft. (2,14 m) above your oor.
! !
Fig. 5
6
MOUNTING BRACKET INSTALLATION
Fig. 4
Mounting Bracket
Screws
Mounting
Bracket
Canopy
Washer

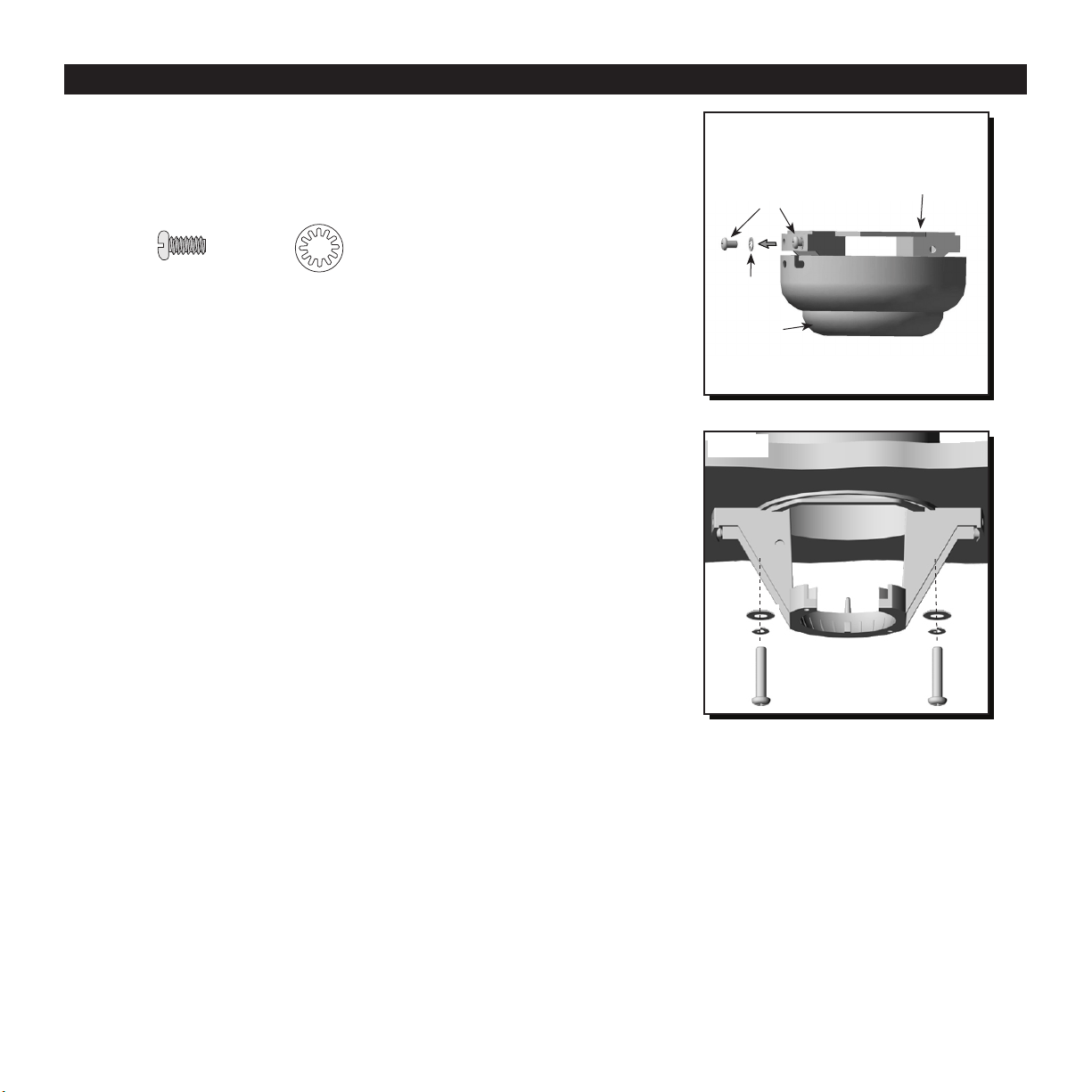

4. Loosen all four mounting bracket screws. Remove
the two canopy screws and washers from the round
holes of canopy. Set aside for later use. Detach
mounting bracket from canopy (Fig. 4).
5. Secure the mounting bracket to the outlet box using
screws and washers provided with the outlet box
(not included) (Fig. 5).
Note: It is very important that you use proper hardware
when installing the mounting bracket as it supports
the fan.
Important: If using the angle mount, ensure that the
open end of the mounting bracket is installed facing
the peak of the ceiling.
Mounting
Bracket Screw
Washer
Fig. 8
Downrod
Canopy
Yoke
Cover
Motor
Housing
7

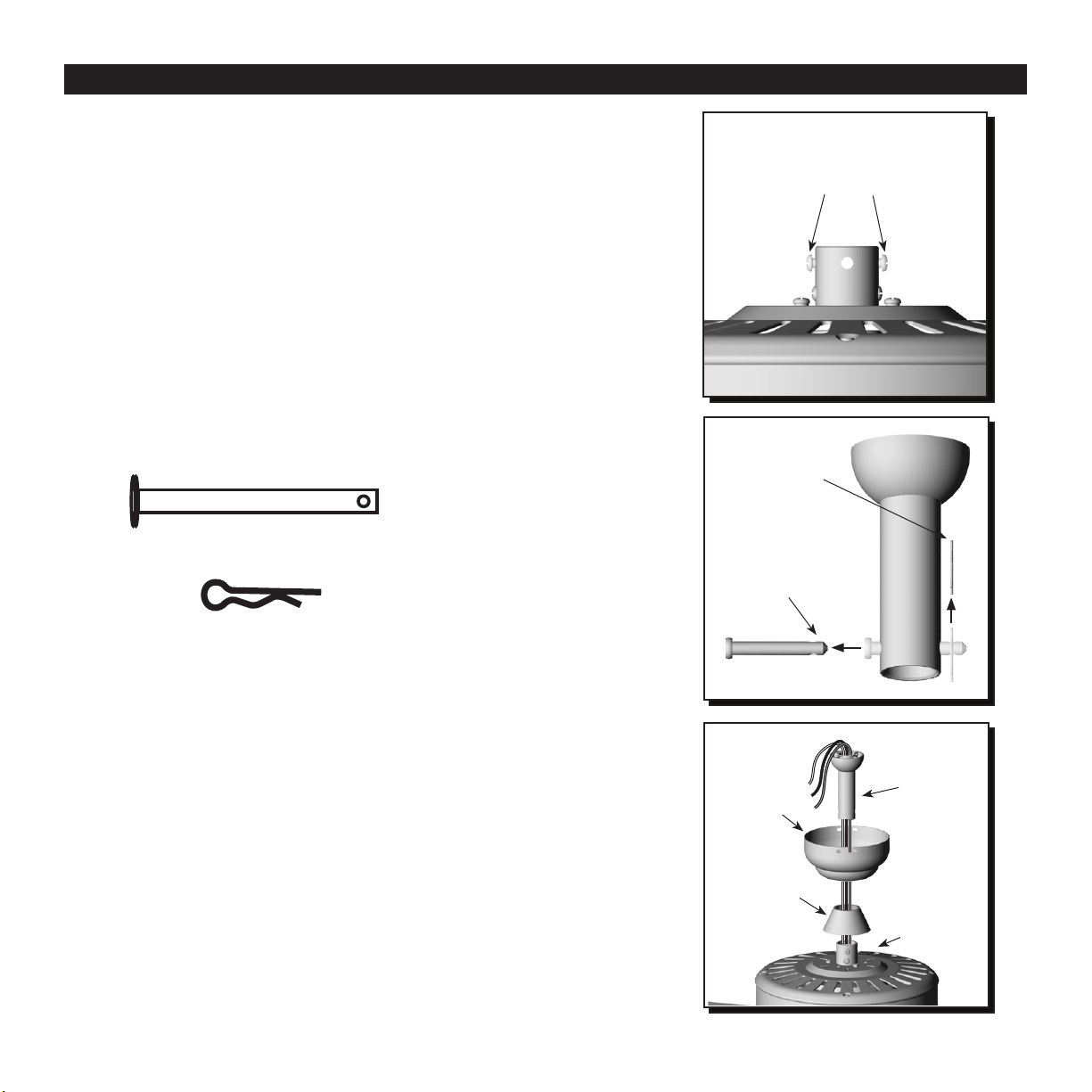

STANDARD OR ANGLE MOUNTING INSTRUCTIONS
Downrod
Clip
Downrod
Pin
Fig. 6
Fig. 7
Set Screws
Downrod Pin
Downrod Clip
6. Partially loosen the two set screws in the yoke at
the top of the motor housing (Fig. 6).
7. Remove the downrod pin and downrod clip from
the downrod (Fig. 7).
8. Thread the wires from the motor housing through
the yoke cover, canopy and out through the top of
the downrod (Fig. 8).
8
STANDARD OR ANGLE MOUNTING INSTRUCTIONS

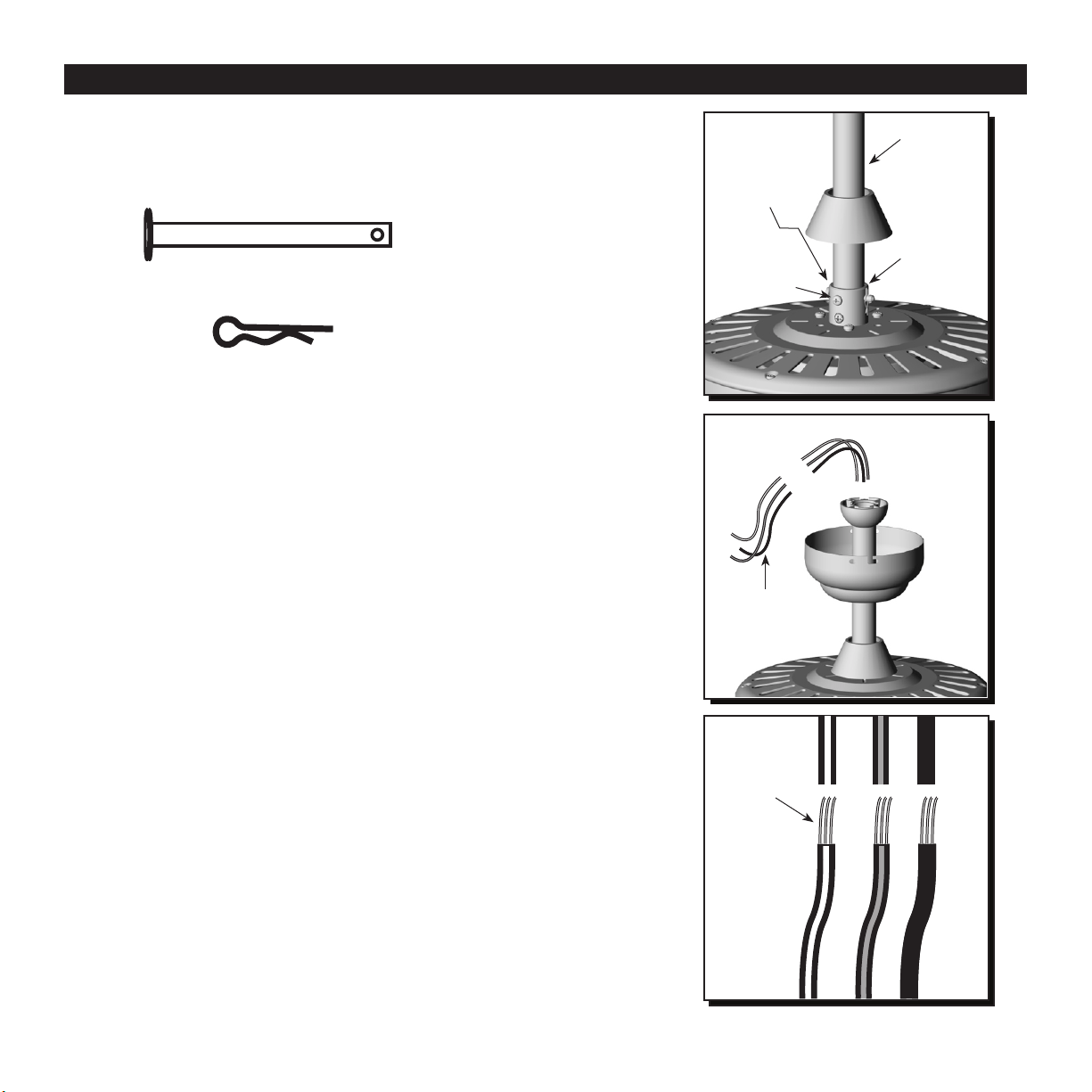

9. Slide the downrod into the yoke of the motor
housing, align the holes, and re-install the downrod
pin and downrod clip. Then re-tighten the two set
screws (Fig. 9).
10. Depending on the length of downrod you use, you
may need to cut the lead wires back to simplify the
wiring. If you decide to cut back the lead wires,
it is suggested that you do so in the following
manner: Take the lead wires and make sure that
you have pulled them all the way through the top
of the downrod and measure 8 in. of lead wire, and
then cut the excess wire off with wire cutters (not
included) (Fig. 10).
11. If you cut back the lead wire in Step 10, strip 1/2 in.
of insulation from the end of each wire. Twist the
stripped ends of each strand of wire clockwise with
pliers (not included) (Fig. 11).
Note: If you did not cut back the lead wires in Step 10,
Step 11 is not necessary and you may proceed to
Step 12 instead.
Downrod
Downrod
Pin
Set Screw
Downrod
Clip
Fig. 9
Fig. 10
Fig. 11
Cut Wires
Stripped
Wires
Downrod Pin
Downrod Clip
Mounting
Bracket
Downrod
Ball
Tab
Slot
Fig. 12
9
STANDARD OR ANGLE MOUNTING INSTRUCTIONS

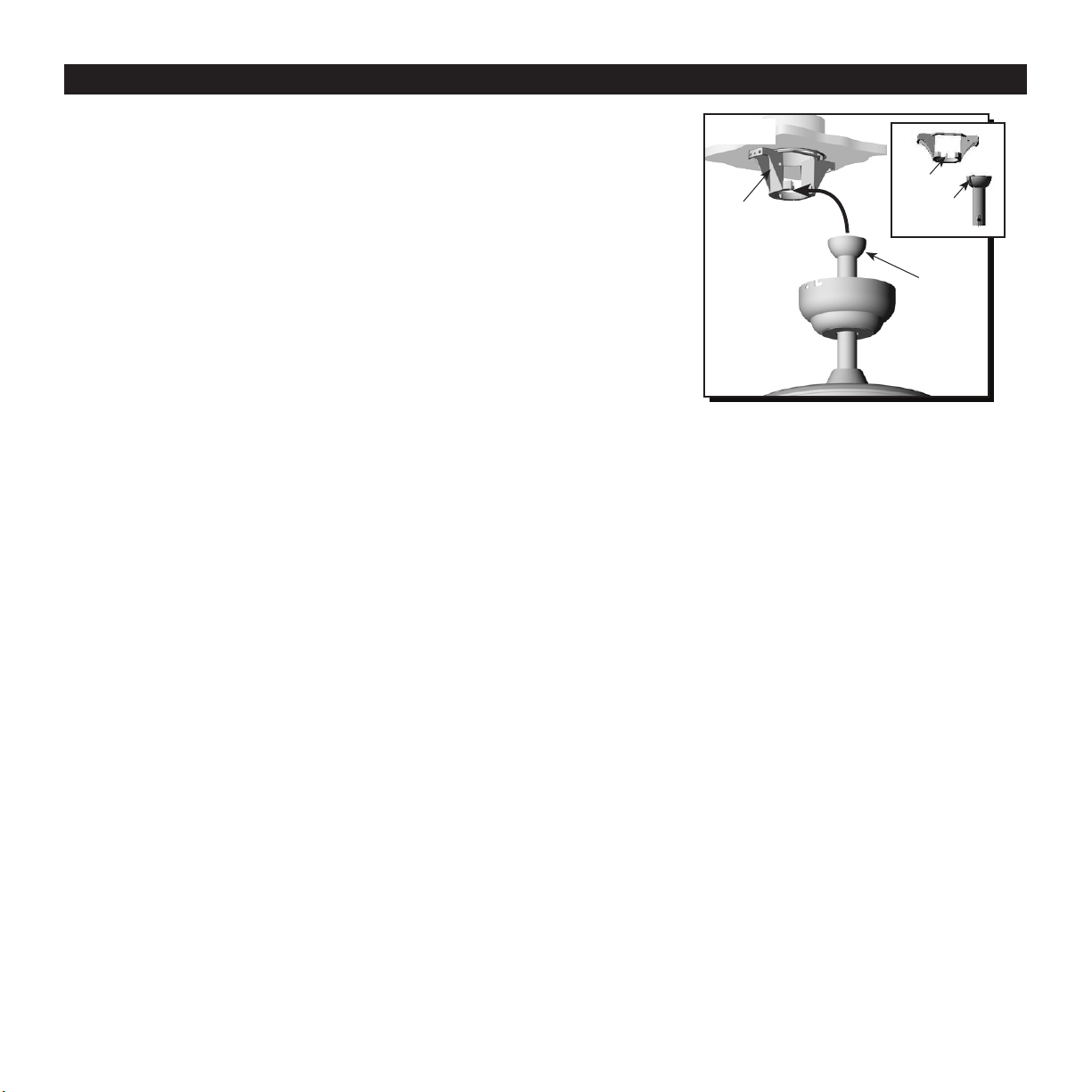

12. Install the downrod ball into the mounting bracket
opening. Rotate the fan and/or downrod until the
slot in the downrod ball engages the tab in the
mounting bracket. The rod should not rotate if
installed correctly (Fig. 12).
Closemount
Screws
Spring
Washer
Fig. 14
10

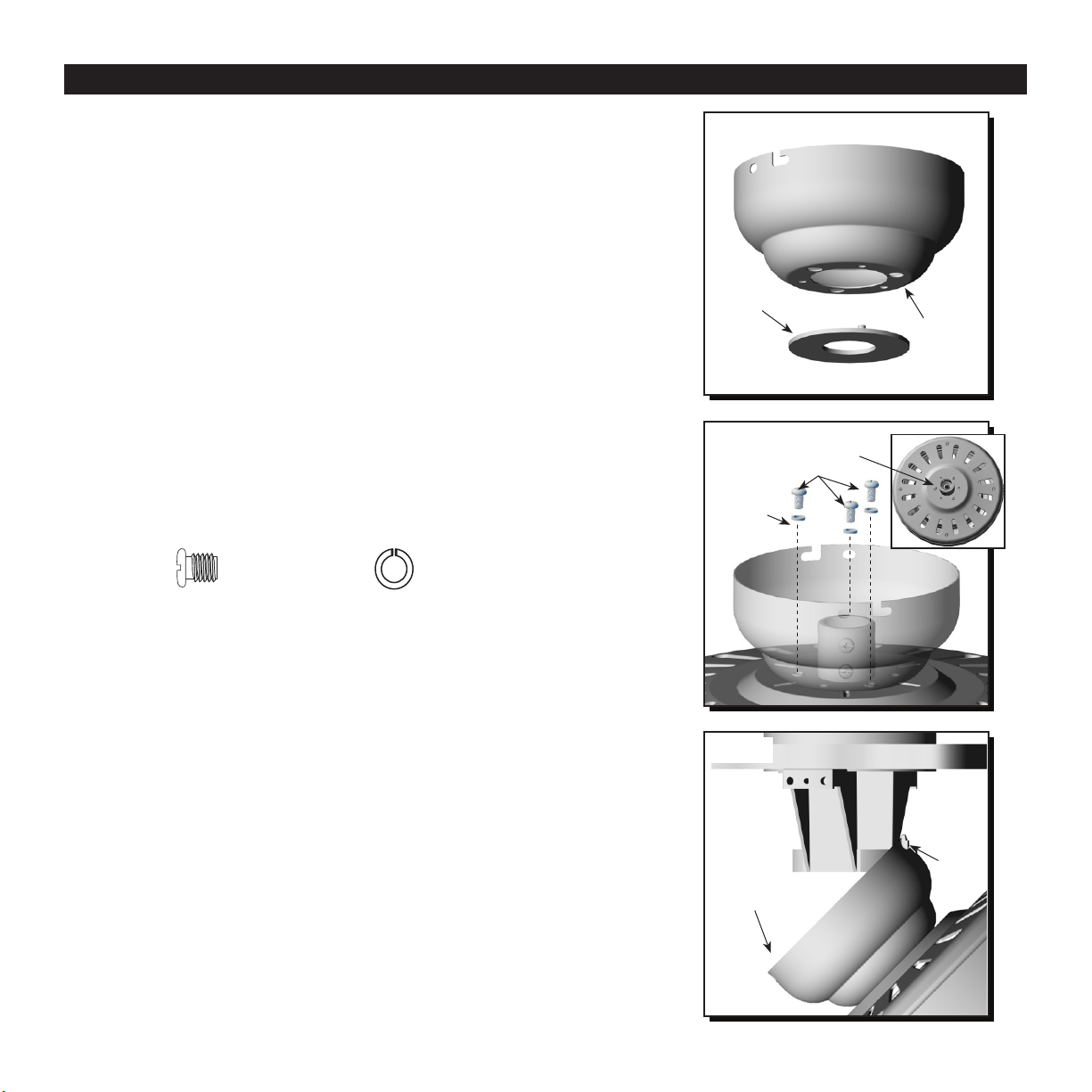

CLOSEMOUNT INSTRUCTIONS
13. Remove the canopy cover from the bottom of the
canopy (Fig. 13).
Helpful Hint: Closemount-style mounting is more
suitable for ceilings lower than 8 ft. (2,44 m) high.
The downrod and canopy cover are not used in this
type of installation.
15. Raise the fan and place the canopy on the hook
located on the mounting bracket for wiring (Fig. 15).
Canopy
Canopy
Hook
Canopy
Cover
Fig. 13
Fig. 15
Closemount Screw
Spring Washer
14. Align the canopy with the closemount screw holes
in the top of the motor housing. Secure the canopy
to the top of the motor housing by installing three
closemount screws and spring washers (Fig. 14).
Black (live)
White (neutral)
Bare/Green (ground)
Black
Blue
White
Green
OFF
Black (live)
Second Wire (live)
White (neutral)
Bare/Green (ground)
Black
Blue
White
Green
OFF OFF
Wire Connector

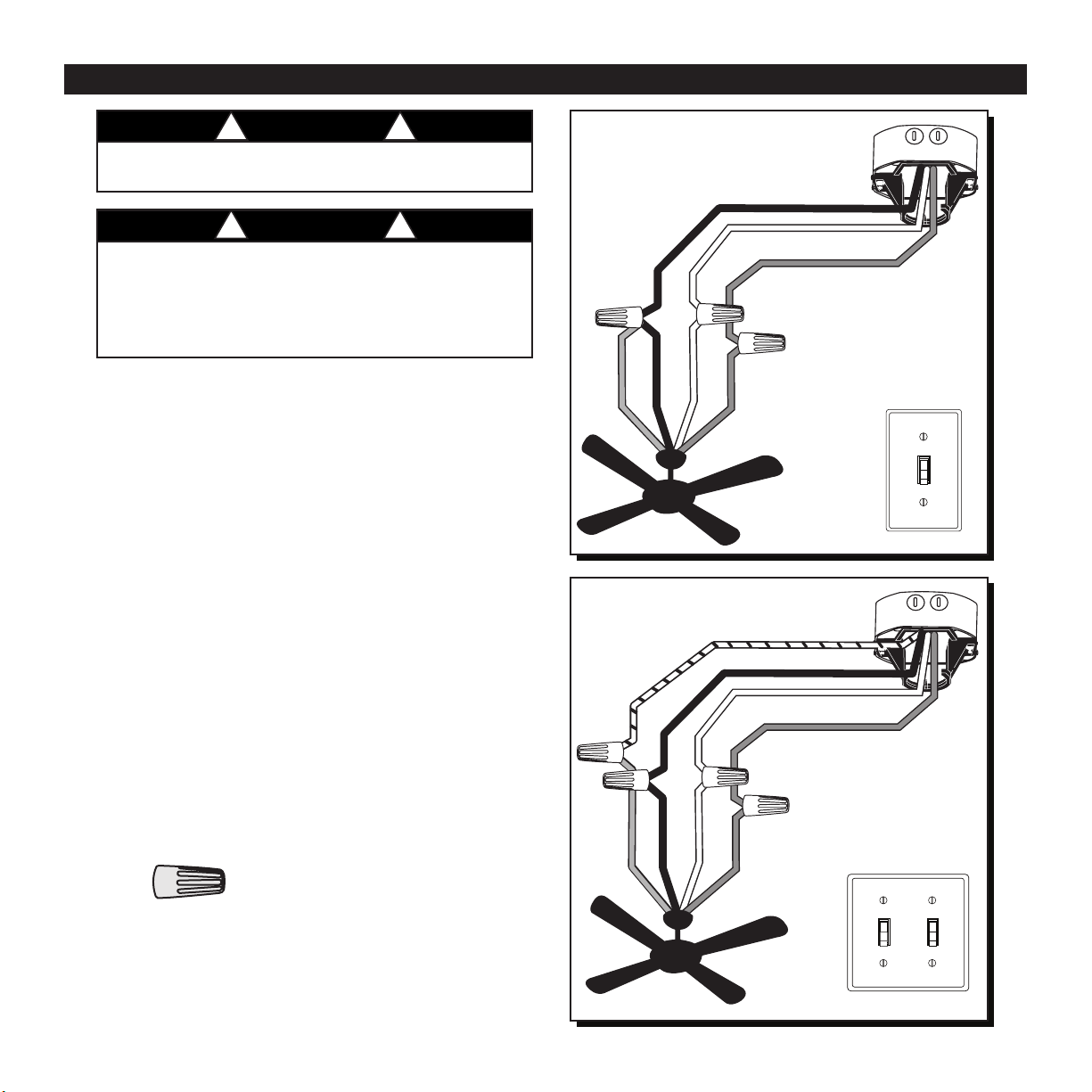

16. Connect supply and fan wires according to the
diagram (Fig. 16) and these steps:
• Connect the Green wires from the fan and
mounting bracket to the Bare/Green (ground)
supply wire.
• Connect the Black and Blue wire from the fan to
the Black (live) supply wire.
• Connect the White wire from the fan to the White
(neutral) supply wire.
Secure all wiring connections together with wire
connectors and push all connected wires back into
the outlet box.
17. (Optional) If a second hot power wire is available
from outlet box, connect it to the blue (light power)
wire from the fan for separate light and fan control
(Fig.17).
Important: The black fan wire is power for fan. The blue
fan wire is power for the light. The white wire from
the fan is common/neutral. The green wires from the
fan and mounting bracket are ground wires.
a
CAUTION
WARNING
If house wires are different colors than referred to in
the following step, stop immediately. A professional
electrician is recommended to determine wiring.
Incorrect wire connection can damage the receiver
and could cause re or injury.
Be sure outlet box is properly grounded or that a
ground (green or bare) wire is present.
! !
! !
Fig. 16
Fig. 17
11
WIRING
12
CANOPY INSTALLATION

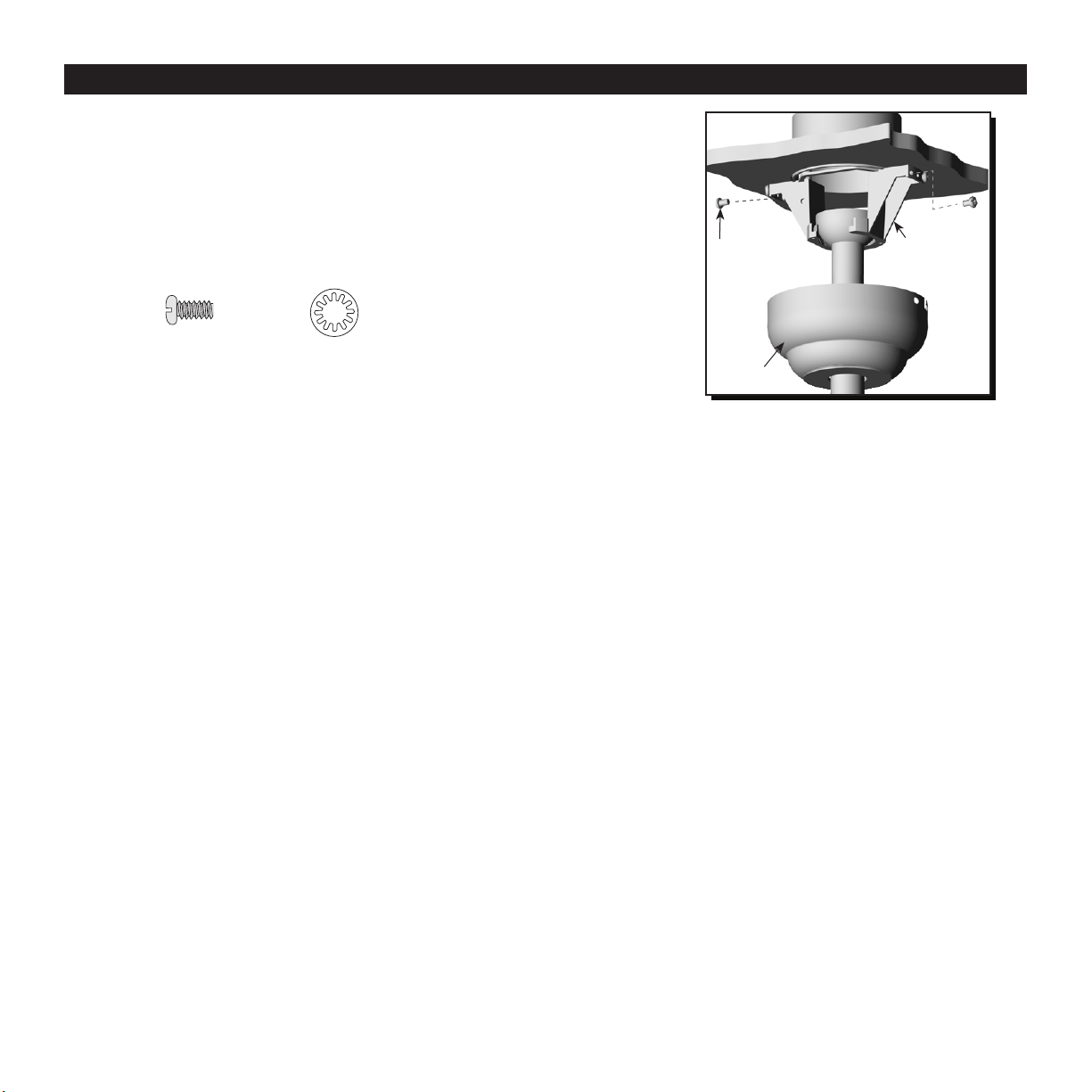

18. Lift the canopy up so the partially installed canopy
screws are situated in the L-slots on each side
of the canopy. Rotate the canopy clockwise and
install the remaining canopy screws and washers
from Step 4 (Fig.18).
Mounting
Bracket
Mounting
Bracket
Screw and
Washer
Canopy
Fig. 18
Mounting Bracket
Screw
Washer
Blade Isolator
Fig. 21
Motor Screw
Blade Arm
Cutout
13
BLADE INSTALLATION
20. The blades attach to blade arms using the Fast
Attach
TM
system. Align each twist lock connector in
the direction of its corresponding hole in the blade.
Place the blade over the twist lock connectors.
Rotate each twist lock connector so that it is
perpendicular to the hole in the blade. Repeat for
the remaining blades (Fig. 20).
19. Remove the ten motor screws from underside of
motor and save for blade arm attachment. Discard
the ve plastic motor blocks but keep the screws
(Fig. 19).
Blade
Twist Lock
Connector
Blade Arm
Fig. 20
Fig. 19
Motor Screw
Motor Block
Motor Screw
Motor Screw
Motor Block
Note: A cutout in the upper switch housing allows
easy access to the motor screw holes.
21. Insert two of the previously removed motor screws
through the blade arm and blade isolator and into
the motor. Tighten the motor screws securely.
Repeat this step for the remaining blade arms.
(Fig. 21).
14
LIGHT KIT INSTALLATION
23. Remove three screws and washers from upper
switch housing. Connect the white wire from the
upper switch housing to the white wire from the
light kit. Connect the blue wire from the upper
switch housing to the black wire from the light kit.
Make sure plugs connect tightly (Fig. 23).
24. Align holes in the light kit tter with holes in upper
switch housing. Re-insert screws and washers that
were previously removed. Use a Phillips screwdriver
(not included) to secure all screws (Fig. 24).
Fig. 23
Fig. 24
Screw
Washer
Screw
Screw
Washer
Washer
22. (Optional) To install the fan without a light kit:
Remove the screws and washers from the upper
switch housing. Align holes in optional cap with
holes in upper switch housing. Re-insert screws
and washers that were previously removed. Use
a Phillips screwdriver (not included) to secure all
screws (Fig. 22).
Proceed to step 27.
Fig. 22
Optional
Cap
Light Kit
Screw
and
Washer
Screw
and
Washer
Screw
and
Washer
15

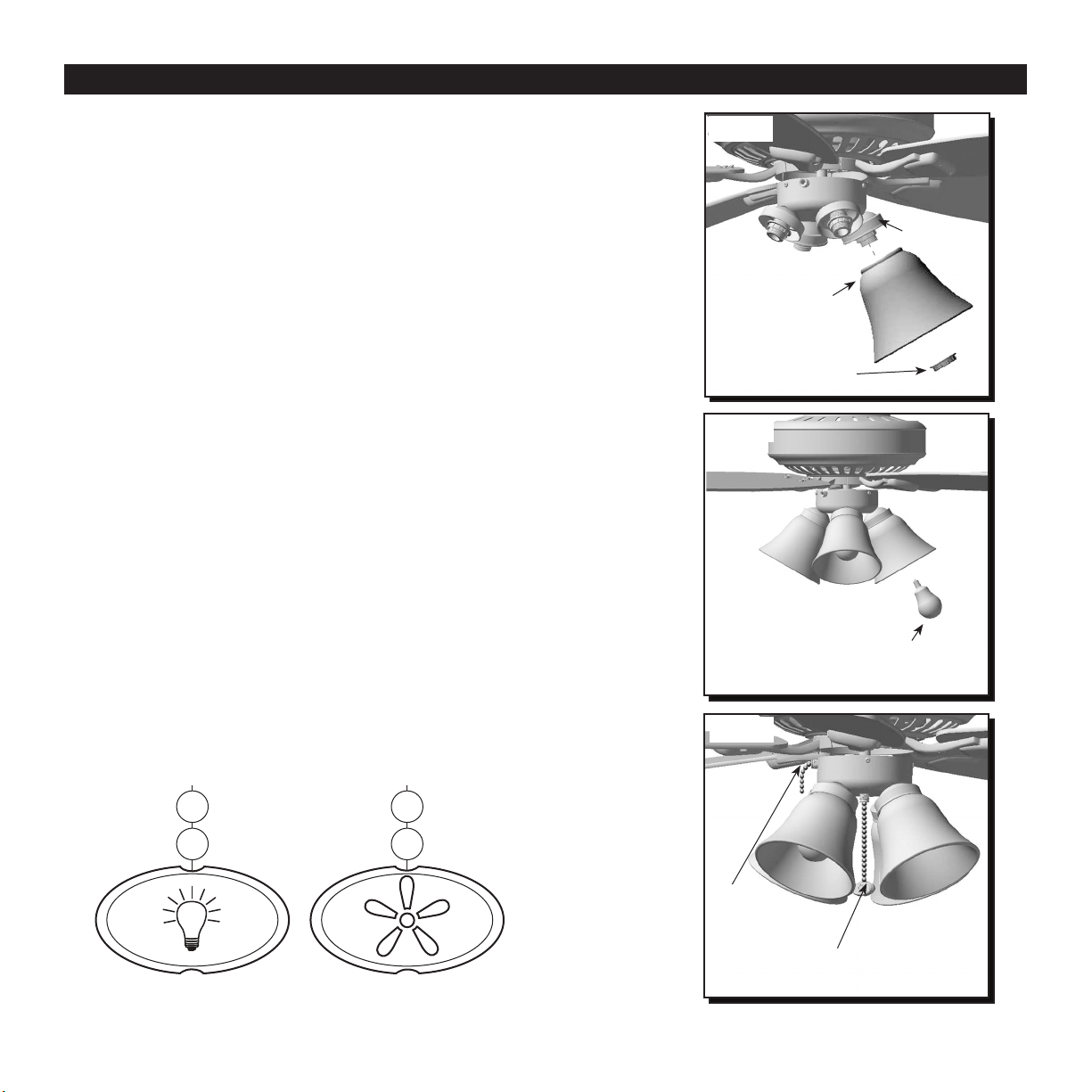

LIGHT KIT INSTALLATION
27. Attach the pull chain extensions or custom pull
chains extensions (sold separately) to fan and light
pull chains (Fig. 27).
Fig. 26
Fig. 27
Glass Shade
Socket Ring
Light
Pull Chain
Fan
Pull Chain
Socket
Bulb
26. Install the bulbs (Fig. 26).
Important: When you need to replace the bulb,
please allow bulb and light kit to cool down before
touching the bulb or the light kit.
Fig. 25
25. Remove the socket ring from the socket. Lift glass
shade onto the light kit tter and secure with socket
ring (Fig. 25). Repeat for each socket.
Light Pull Chain Fan Pull Chain
16

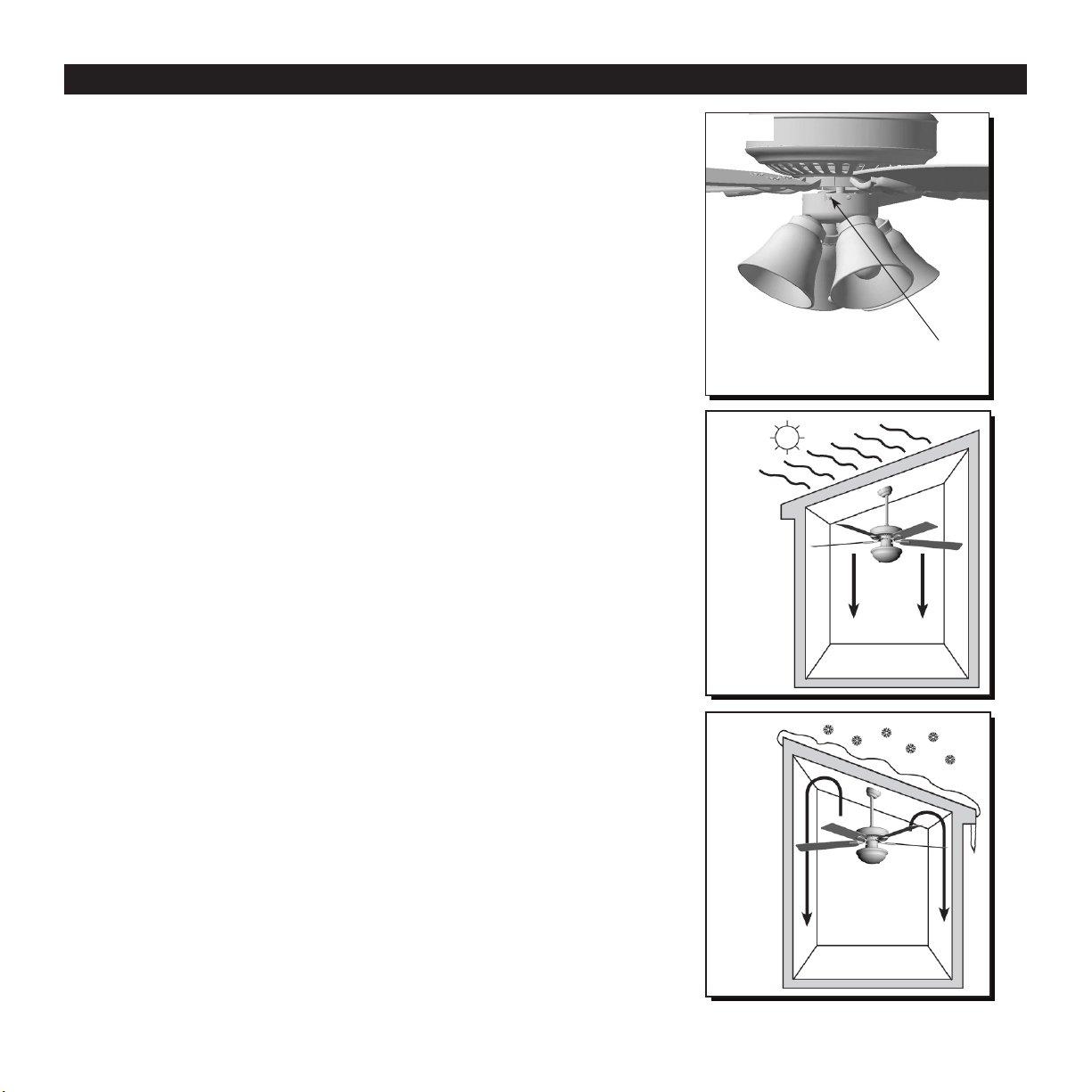

OPERATING INSTRUCTIONS
28. Use the fan reverse switch, located on the side
of the light kit, to optimize your fan for seasonal
performance (Fig. 28).
Using a ceiling fan will allow you to raise your
thermostat in the summer and lower your
thermostat in the winter without sacricing comfort.
Note: The reverse switch must be set either completely
left or right in order for the fan to function correctly.
If the reverse switch is set in the middle position,
the fan will not operate.
Important: Wait for the fan to stop before moving the
reverse switch.
29. In warmer weather, push the reverse switch left,
which will result in downward airow creating a
wind chill effect (Fig. 29).
Note: Energy savings are possible by turning on the
ceiling fan and setting the thermostat a few degrees
warmer. To maximize savings, turn ceiling fan off
when no one is in the room.
30. In cooler weather, push the reverse switch right
and the fan to low, which will result in upward
airow that can help move hot air off the ceiling. By
mixing the air, the furnace may not have to run as
often and may yield energy savings (Fig. 30).
Fig. 28
Fig. 29
Fig. 30
Reverse
Switch
REPLACEMENT PARTS LIST
For replacement parts, call the customer service department at 1-877-361-3883, 8 a.m. - 6 p.m., EST, Monday -
Thursday, 8 a.m. - 5 p.m., EST, Friday.
17
PIECE DESCRIPTION
Model 50191
PART#
Model 50192
PART#
A Blade Arm 50191-A 50192-A
B Blade 50191-B 50192-B
C Shade 50191-C 50192-C
D
Loose parts bags containing (not
shown): Mounting hardware, blade
attachment hardware, electrical
hardware, pull chains, wire
connectors, etc.
50191-D 50192-D
A
C
B
18
TROUBLESHOOTING
At least twice each year, lower the canopy to check the downrod assembly, and then tighten all screws
on the fan. Clean the motor housing with only a soft brush or lint-free cloth to avoid scratching the nish.
Clean the blades with a lint-free cloth. You may occasionally apply a light coat of furniture polish to wood
blades for added protection.
Important: Shut off the main power supply before you begin any maintenance tasks. Do not use water or
a damp cloth to clean the ceiling fan.
Problem: The fan does not move
1. Turn the power on or check the fuse.
2. Turn the power off. Loosen the canopy and check all connections.
3. Check that the connectors from the light kit tter and fan are connected properly.
4. Disable the power supply to the fan motor and re-start the motor.
5. The blade is overweight. Do not install the unapproved blades.
Problem: The fan is noisy.
1. Check and tighten all screws that hold the fan blades to the blade arms and the motor.
2. Replace the cracked blade.
Problem: There is excessive wobbling
1. Check and tighten all screws that hold the fan blades to the blade arms and the blade arms to the motor.
2. Switch one blade with a blade from the opposite side. Or balance the fan using a balancing kit.
3. Turn off the power. Loosen the canopy and verify that the mounting bracket is secure to the
electrical outlet box.
4. The bracket must be ush without movement against the outlet box.
Problem: The fan operates correctly, but the lights are not working.
1. Re-install the bulb(s).
2. Ensure that the male and female plugs in the light kit tter are connected properly.
3. Turn the power off and check all connections at the ceiling outlet box.
4. Check to see if the light is over than 190W, since a limiter included.
19
LIMITED LIFETIME WARRANTY
Subject to the limitations set forth below, Hong Kong China Electric appliance Company (HKC) warrants
the fan motor for this ceiling fan to be free from defects in workmanship and material for the life of the
product. Also, subject to the limitations below, HKC warrants all ceiling fan parts (“ceiling fan parts”
excludes the motor and parts made in whole or in part with glass) to be free from defects in workmanship
and material for a period of one year after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser, whether such purchaser purchased the product through a
store or contractor. Ceiling fan part defects must be reported within the rst year from the date of purchase.
Parts made in whole or in part with glass and the nishes of metal and other surfaces are not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any
part caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by this
warranty. HKC assumes no responsibility whatsoever for fan installation. Any service performed by a non-
licensed electrician will render the warranty invalid.
HKC’s sole responsibility shall be to repair or replace the motor, parts, or product within the terms stated
above. HKC SHALL NOT BE LIABLE FOR ANY LOSS OR DAMAGE OF ANY KIND, INCLUDING
ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING DIRECTLY OR INDIRECTLY,
FROM ANY BREACH OF WARRANTY, EXPRESS OR IMPLIED, OR ANY OTHER FAILURE OF THIS
PRODUCT. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES SO THIS LIMITATION MAY NOT APPLY TO YOU.
IF THE ORIGINAL PURCHASER CEASES TO OWN THE FAN, THIS WARRANTY IS VOIDED.
Should the purchaser encounter a problem with your fan related to defects in workmanship or materials
within the warranty period associated with the defective part, HKC agrees to replace the defective part
without charge, or at its option, to replace the ceiling fan with a comparable or superior model.
HKC’S WARRANTIES ARE LIMITED TO THE WRITTEN WARRANTIES SET OUT IN THIS HKC
CEILING FAN LIMITED LIFETIME WARRANTY. ALL OTHER EXPRESS AND IMPLIED WARRANTIES,
INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR
PURPOSE AND THE IMPLIED WARRANTY OF MERCHANTABILITY ARE DISCLAIMED. SOME
STATES DO NOT ALLOW THE DISCLAIMER OF IMPLIED WARRANTIES, SO THIS DISCLAIMER MAY
NOT APPLY TO YOU.
To obtain warranty service, please write down your model number and call Customer Service at
1-877-361-3883, Monday - Thursday, 8 am - 6 pm, EST and Friday, 8 am - 5 pm, EST. Please have
a copy of the receipt as proof of purchase.
The Honeywell Trademark is used under license from Honeywell International
Inc. Honeywell International Inc. makes no representations or warranties with
respect to this product. This product is manufactured for:
Hong Kong China Electric Appliance Manufacture Co., Ltd.
3059 Forest Hill Irene Rd, Suite 103
Germantown, TN 38138
1-877-361-3883
9073-EN r031014
