Model #53006
Graceshire Ceiling Fan
User Manual
Read and save these instructions before use
EN I 2

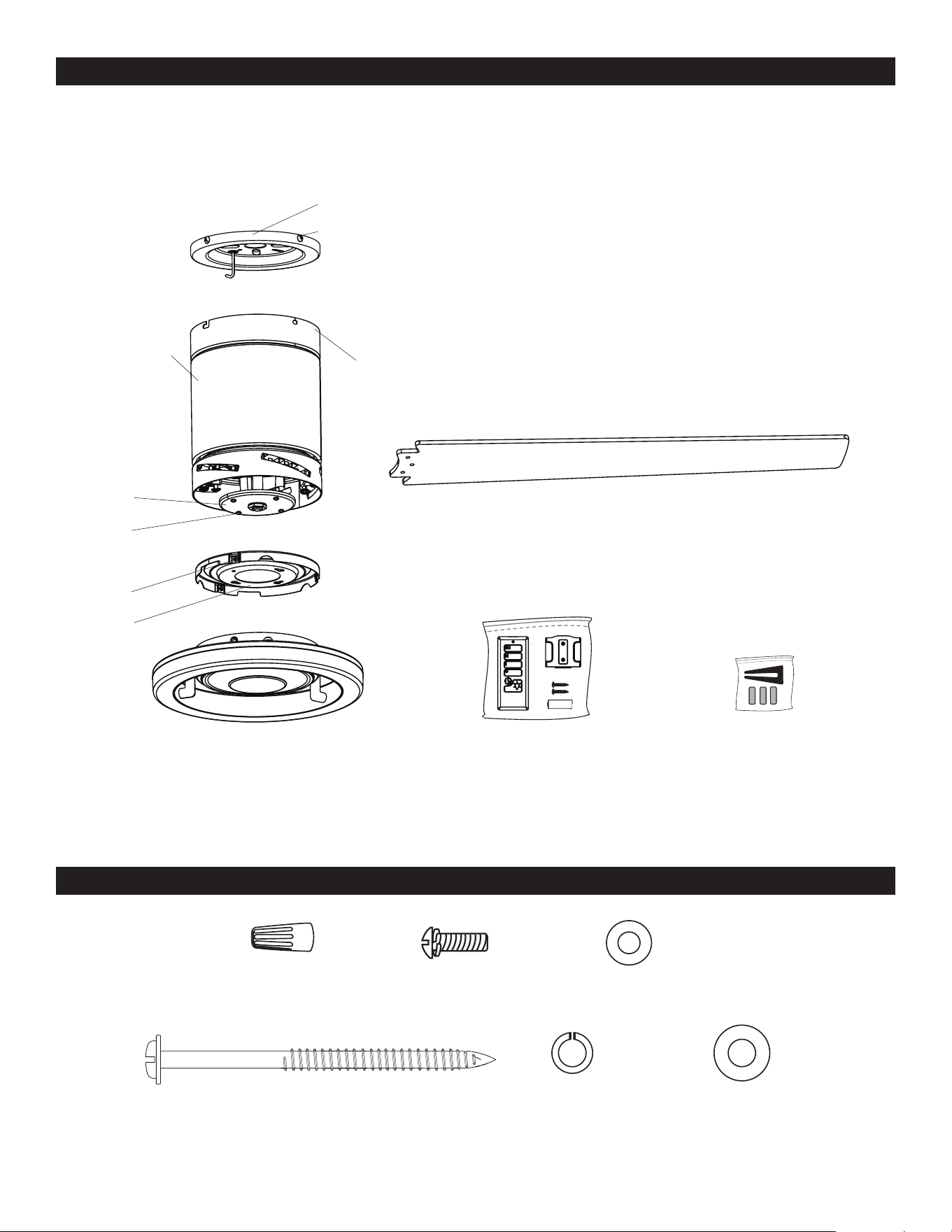

PACKAGE CONTENTS
HARDWARE CONTENTS
Mounting Bracket Screw (x4)
Mounting Bracket
Canopy
Blade (x5)
Motor Assembly
Fitter Plate
Light Pan
Fitter Plate
Screw (x4)
Light Pan
Screw (x3)
Light Kit
Remote Pack Blade Balancing Kit
Blade Screw (x15) Blade Washer (x15)Wire Connector (x3)
Note: Some extra hardware may be included. The quantity listed above is the number required for installation.
Secondary Spring
Washer
Support WasherSecondary Support Screw
EN I 3
SAFETY INFORMATION
THANK YOU
Please read and understand this entire manual before attempting to assemble, operate or install the product.
• Before you begin installing the fan, disconnect the power by removing fuses or turning off the circuit breakers.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical Code and ANSI/NFPA 70-
199. Hire an electrician or consult a do-it-yourself handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum of 7 feet from the blades to the floor and at least 30 inches from
the tip of the blades to any obstruction.
• RATED FOR INDOOR LOCATIONS ONLY. The fan is not suitable for damp or outdoor locations.
• The weight of the fan is 15.32 lb.
DANGER: When using an existing outlet box, make sure it is securely attached to the building structure and can support
the full weight of the fan. Failure to this can result in serious injury or death. The stability of the outlet box is essential in
minimizing wobble and noise in the fan after installation is complete.
WARNING: Using a full-range dimmer switch to control fan speed will cause a humming sound from the fan. To reduce the
risk of fire or electric shock, do NOT use a full-range dimmer switch to control fan speed.
WARNING: To reduce the risk of fire, electric shock or personal injury, mount the fan to an outlet box marked
“ACCEPTABLE FOR FAN SUPPORT” and use the mounting screws provided with the outlet box. Most outlet boxes commonly
used for the support of lighting fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified
electrician if in doubt. Secure the outlet box directly to the building structure. The outlet box and its support must be able to
support the moving weight of the fan (at least 35 lbs.).
WARNING: To reduce the risk of fire, electric shock or personal injury, wire connectors provided with this fan are designed to
accept only one 12-gauge house wire and two lead wires from the fan. If your house wire is larger than 12-gauge and/or there is
more than one house wire to connect to the two fan lead wires, consult an electrician for the proper size wire connectors to use.
WARNING: To reduce the risk of fire, electric shock or personal injury, do not bend the blade arms when installing them,
balancing the blades or cleaning the fan. Do not insert objects between the rotating fan blades.
WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use of parts other than those
provided with this fan will void the warranty.
CAUTION: Be sure the outlet box is properly grounded or a ground (green or bare) wire is present.
CAUTION: Carefully check all screws, bolts, and nuts on the fan assembly ensure they are secured.
Honeywell Ceiling Fans feature a collection of fans in various sizes and specifications to ensure your choice of indoor or outdoor
fan delivers optimum performance for your room’s size. You can trust the quality of Honeywell Ceiling Fans to deliver maximum
airflow and stylish lighting options. Honeywell Ceiling Fans use high-quality materials that are long lasting and durable to
deliver a great look and last for years to come.
EN I 4
CARE AND MAINTENANCE
Important: Shut off the main power supply before you begin any maintenance task. Do NOT use water or a damp cloth to clean
the fan.
At least twice each year, check and tighten all screws on the fan. Clean the motor housing and blades with a soft brush or
lint-free cloth to avoid scratching the finish.
Total fixture wattage is 23 watts; do not attempt to replace.
Battery Replacement: Use A23, 12 V alkaline battery. WARNING: Keep batteries out of reach of children. May be fatal if
swallowed. In the event that a battery is swallowed, immediately consult a doctor. Non-rechargeable batteries are not to be
recharged. Batteries are to be inserted with the correct polarity. Exhausted batteries are to be removed from the product. Do not
dispose of batteries in fire, as they may explode or leak.
CAUTION: This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following
two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device (if applicable).
CAN ICES-003 (B) / NMB-003 (B)
CAN ICES-005 (B) / NMB-005 (B)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver
--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
Please note changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
HKC-US
3350 Players Club Parkway #225
Memphis, TN 38125
1-877-361-3883
SAFETY INFORMATION
EN I 5
INITIAL INSTALLATION
PREPARATION
Before beginning the assembly of this product, ensure all parts are present. Compare all parts with the package contents list
and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product.
Estimated assembly time: 2 hours
Tools required (not included): Phillips and Flat-head Screwdrivers, Safety Glasses, Step Ladder, Wire Cutter, and Wire Stripper.

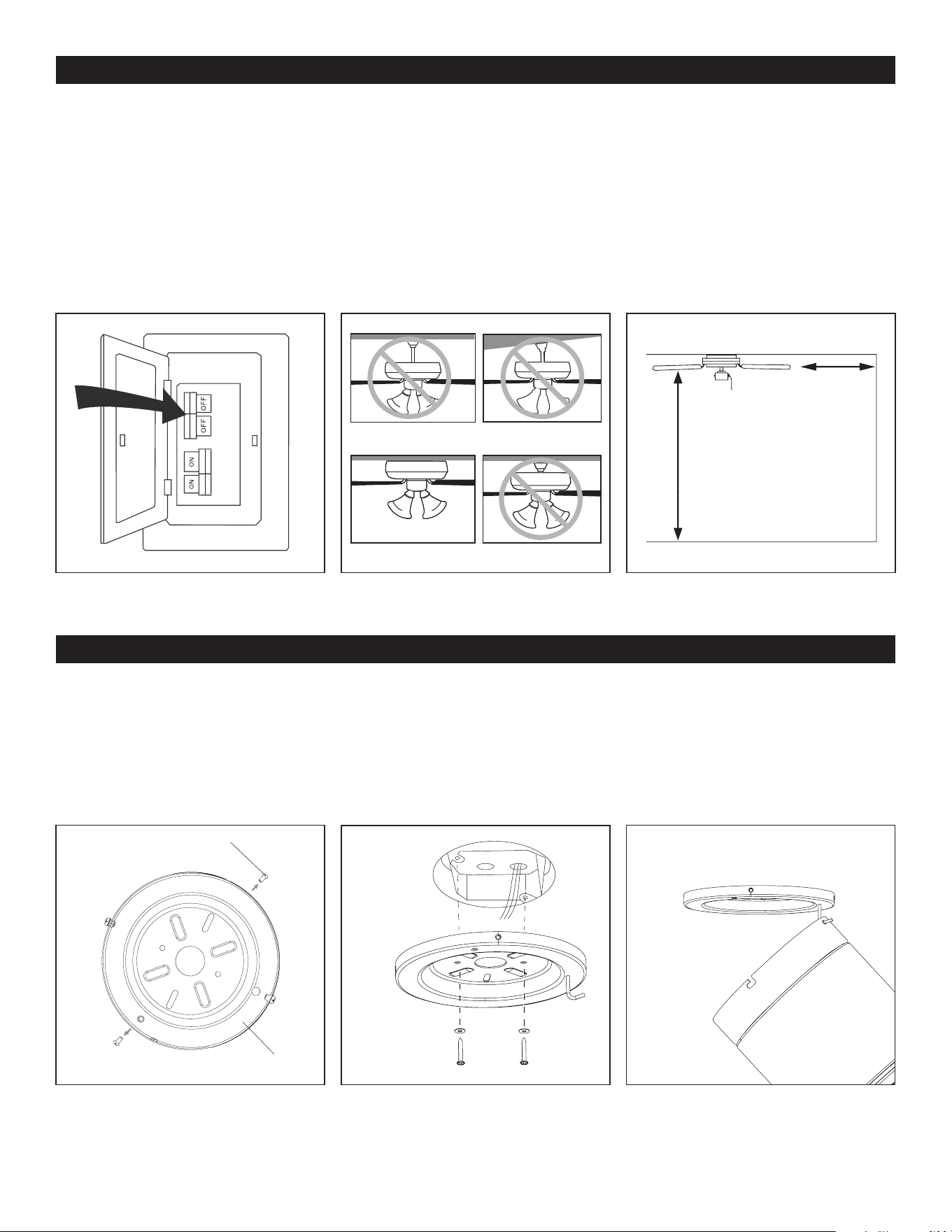

1. Turn off power to the fan at the breaker box and the wall switch (Figure 1.1). DANGER: Failure to disconnect the power supply
prior to installation may result in serious injury or death.
2. This fan is intended for Flushmount Installation. Standard Mounting, Angle Mounting, and Closemount installations are not
available (Figure 1.2).
3. When selecting a location for installation, ensure the blades will be at least 30 inches from any wall or obstruction and at
least 7 feet above the floor (Figure 1.3).
Standard Mounting
Flushmount Closemount
Angle Mounting
Figure 1.1 Figure 1.2 Figure 1.3
7 feet
minimum
30 in.
minimum
1. Loosen all four mounting bracket screws, then completely remove two mounting bracket screws from opposite sides of the
mounting bracket (Figure 2.1).
2. Install the mounting bracket to the outlet box (sold separately) using the screws and washers provided with the outlet box.
WARNING: To reduce the risk of fire, electric shock, or personal injury, mount to the outlet box marked “acceptable for fan
support” (Figure 2.2).
3. Lift the fan and place top of the canopy on the hook on the mounting bracket, temporarily leaving hands free for the wiring
process (Figure 2.3).
Figure 2.1
Mounting Bracket
Outlet Box
Figure 2.2 Figure 2.3
Mounting Bracket Screw
Mounting Bracket
Mounting Bracket
Canopy
Hook
EN I 6
Figure 3.2Figure 3.1 Figure 3.3
Braided Cable
Brace
Hook
Canopy
Open Loop Secondary Support Screw
Support
Washer
Spring
Washer
Secondary
Support Screw

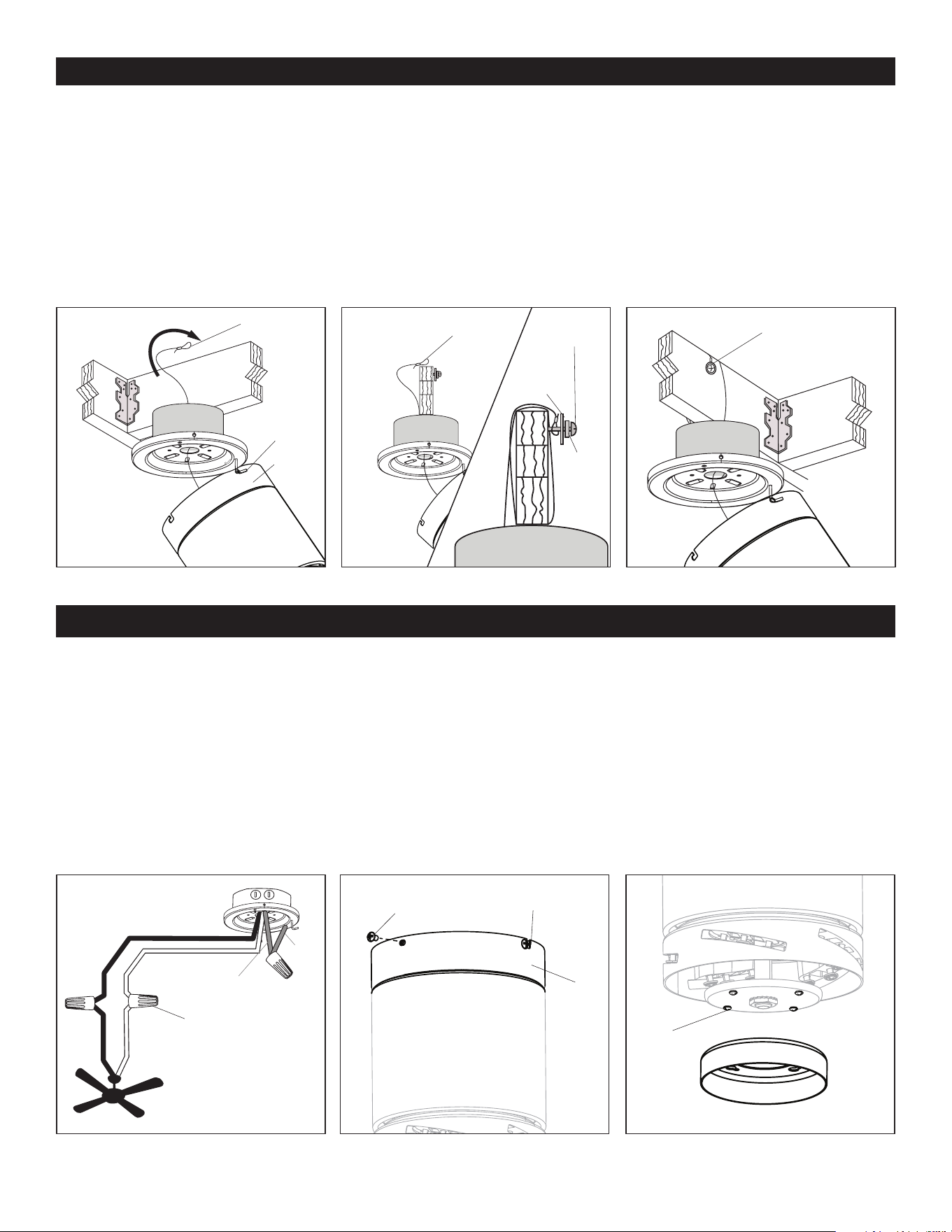

SECONDARY HANGING SYSTEM INSTRUCTIONS
1. Raise the fan and place the hole in the canopy on the hook on the mounting bracket. Feed the loop of the braided cable,
preassembled to the motor assembly, up through the outlet box mounted in the ceiling (Figure 3.1).
2. Install secondary support screw, spring washer and support washer partly into the side of the brace installed in the ceiling.
Then loop the braided cable up and over the ceiling brace and place the open loop of the braided cable around the secondary
support screw. Note: The ceiling support brace may not be accessible from below. If not, it must be accessed from above.
Important: The braided cable must make a complete circle around the support brace to secure the fan (Figure 3.2).
3. Tighten the secondary support screw, securing the braided cable (Figure 3.3).
FINAL INSTALLATION
1. Use wire connectors to connect the fan wires to the power supply wires according to the wiring diagram and the following
instructions (Figure 4.1):
• Connect the Green wires from the mounting bracket to the Bare/Green (ground) supply wire.
• Connect the White wire from the fan to the White (neutral) supply wire.
• Connect the Black wire from the fan to the Black (hot) supply wire.
Important: After the connections have been made, the connected wires should be turned upward and pushed carefully up into
the outlet box. Place the Black and White wire connections on opposite sides of the outlet box.
2. Raise the canopy, ensure the two mounting bracket screws are aligned with the J-shaped slots in the canopy. Then turn the
canopy in a clockwise direction until the mounting bracket screws are completely engaged in the J-shaped slots. Install the two
previously removed mounting bracket screws in the round holes. Securely tighten all mounting bracket screws (Figure 4.2).
3. Loosen the four fitter plate screws preassembled to the fitter plate. Then, turn the orange shipping block counterclockwise and
remove. Discard the shipping block (Figure 4.3).
Figure 4.2 Figure 4.3Figure 4.1
Fitter Plate
Screw
Shipping Block
Mounting
Bracket Screw
Wire Connector
Black (Hot)
White (Neutral)
Bare/Green (Ground)
Green
Black
White
For installation in the United States: Building codes in the U.S.A. do not require installation of a Secondary Hanging System.
If desired, the braided cable can be cut and removed using wire cutters (sold separately). Skip to FINAL INSTALLATION. For
installation in Canada: In compliance with building codes in Canada, installation of the Secondary Hanging System is required.
J-Slot
Canopy
EN I 7
FINAL INSTALLATION

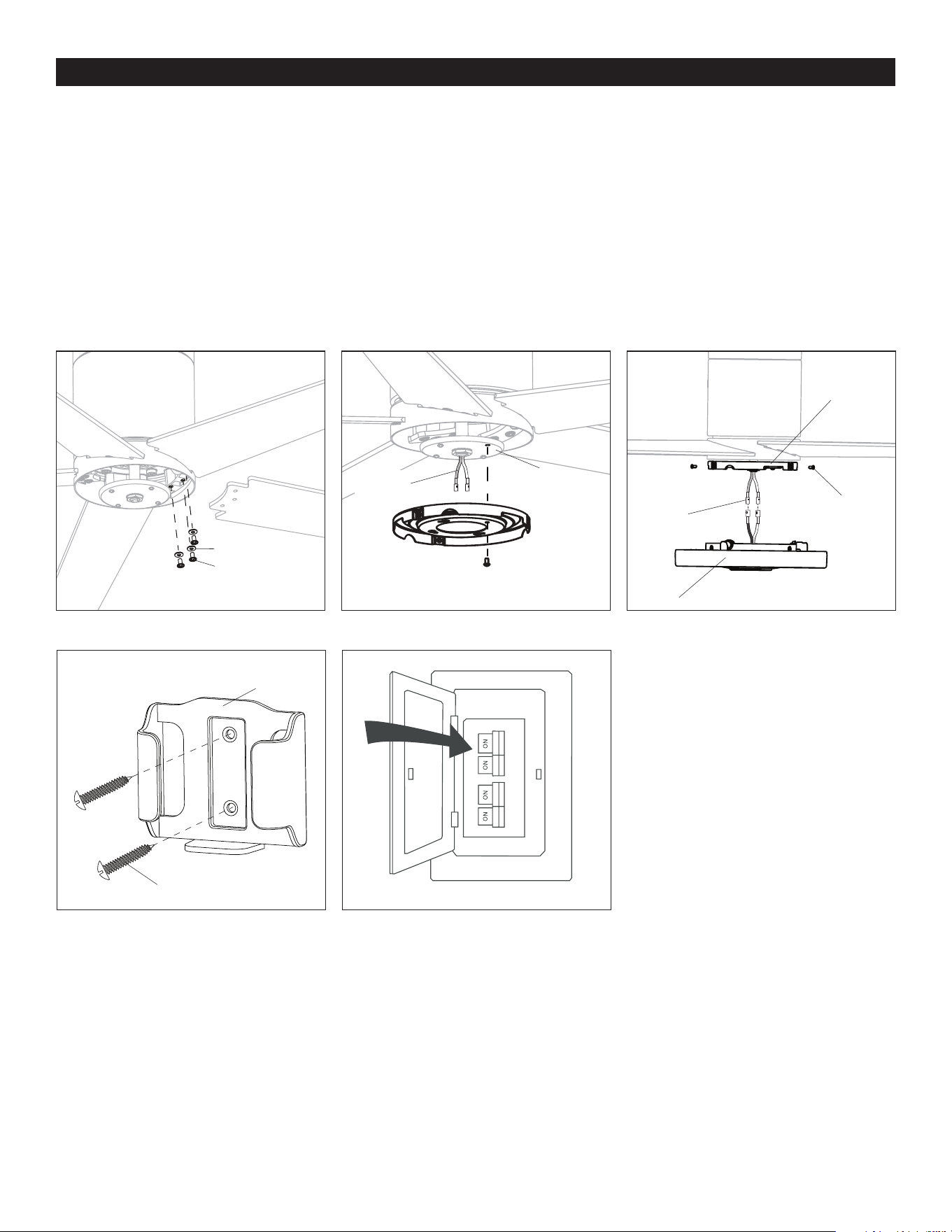

4. Insert blade through slot in the side of the motor assembly. Align the holes of one blade with three blade screw holes in
underside of the motor assembly. Secure with the three blade screws and blade washers. Repeat this step for the remaining
blades (Figure 4.4).
5. Remove one of the four fitter plate screws preassembled to the fitter plate and loosen the other three but do not remove. Feed
the single-pin connectors through the center hole in the light pan. Align the keyhole slots in the light pan with the loosened
screws in the fitter plate. Turn light pan clockwise and replace the previously removed fitter plate screw. Tighten all screws
(Figure 4.5).
6. Remove the three light pan screws preassembled to the light pan. Connect the single-pin connectors from the fitter plate to the
single-pin connectors from the light kit -- blue to blue and white to white. Secure the light kit with the previously removed light
pan screws (Figure 4.6).
7. If desired, the wall bracket in remote pack can be installed to a wall using the provided mounting screws. The remote can be
stored in the wall bracket for easy access.The remote can be stored in the wall bracket for easy access (Figure 4.7).
8. Turn on power to fan at breaker box and the wall switch. Assembly is complete (Figure 4.8).
Figure 4.5Figure 4.4 Figure 4.6
Figure 4.7 Figure 4.8
Light Pan
Single-Pin
Connector
Light Kit
Light Pan Screw
Wall Bracket
Wall Bracket
Screw
Fitter Plate Screw
Light Pan
Fitter Plate
Blade Screw
Blade Washer
Blade
Single-Pin
Connector
EN I 8
OPERATING INSTRUCTIONSOPERATING INSTRUCTIONS
Figure 5.2Figure 5.1
Battery
Compartment
Battery
Cover
D/CFL
Switch
Battery
LEARN
High Speed
Led Indicator
Medium Speed
Low Speed
Fan Off
Light Delay
Light Control
Reverse Switch
1. Use a flat-head screwdriver, if necessary, to remove the battery cover from the back of the remote found in remote pack. Insert
the battery into the remote; ensure polarity of battery matches the polarity indicated in the battery compartment -- positive
(+) to positive (+) and negative (-) to negative (-). Replace the battery cover and press the fan on/off button on the remote to
ensure the LED indicator illuminates and the remote turns on the fan (Figure 5.1). Note: If remote doesn’t turn on the fan, see
TROUBLESHOOTING (page 9).
2. To operate the fan using the remote from remote pack, press and release the following buttons (Figure 5.2).:
III - High speed
II - Medium speed
I - Low speed
Fan Off - Turns power to fan off.
Light Delay - Tap the light delay button, which will turn off the light after one minute. Tap the light control button to exit light
delay mode.
Light Control - Tap the light control button to turn the light off and on. Press and hold light control button to dim or brighten
the lights.
Reverse Switch - In warmer weather, push the reverse switch left toward sun icon, which will result in downward airflow
creating a wind chill effect. In cooler weather, push the reverse switch right toward the snowflake icon, which will result in
upward airflow that can help move hot air off the ceiling. Important: Wait for the fan to stop before moving the reverse switch.
Low Battery Indicator - LED Indicator will flash for one minute as a reminder to replace the 12-volt battery.
D/CFL Switch - set to “D” at the factory. The switch should remain in the “D” position to ensure the LED board is dimmable.
LEARN - Syncs remote to receiver (see TROUBLESHOOTING, page 9).
EN I 9
TROUBLESHOOTING
The fan does not
move.
The fan is noisy.
The fan wobbles
excessively.
The fan operates
correctly but the lights
are not working.
Remote does not
work.
1. Firmly push the reverse switch completely left or right.
2. Make sure the wall switch is turned on.
3. Turn the power on or check the fuse (breaker).
4. Turn the power off and check all connections at the ceiling outlet box.
1. Check and tighten all screws that hold the fan blades to the blade arms and the motor.
2. Replace the cracked blade.
3. Do not use a full range dimmer switch to control the fan speed.
4. Ensure the outlet box is secured to the building structure.
5. Ensure the mounting bracket is secured to the outlet box and that the screws are tight.
1. Ensure the single-pin connectors are properly secured.
2. Turn the power off and check all connections at the ceiling outlet box.
1. Check and tighten all screws that hold the fan blades to the blade arms and the blade arms to the
motor.
2. Switch one blade with a blade from the opposite side, or balance the fan using the blade
balancing kit.
3. Turn off the power. Loosen the canopy and verify that the mounting bracket is secure to the
electrical outlet box. The bracket must be flush without movement against the outlet box. Verify
the outlet box is secure.
PROBLEM CORRECTIVE ACTION
If you experience any faults, please check the Troubleshooting section below. If a problem cannot be remedied or you are
experiencing difficulty in installation, please contact Customer Service: 1-877-361-3883, Monday-Friday, 8am - 5pm, Central Time.
WARNING : Shut off the power supply before you begin any maintenance task.
1. After installation is complete, switch the power off and back on again. Within 30 seconds, press
and hold the “LEARN” button, located in the battery compartment, for 5 seconds. Fan will turn on
at low speed and light off. This confirms that the SMART SYNC is active.
2. Insert new 12V battery in battery compartment of the remote control (see page 8).
3. If there are several fans in close proximity, turn power off to other fans and re-sync the remote
(see Corrective Action 1 above).
EN I 10
LIMITED LIFETIME WARRANTY
Set forth below, the manufacturer, Hong Kong China Electric Appliance Company (HKC) warrants the fan motor for this ceiling
fan to be free from defects in workmanship and material for the life of the product. Also, subject to the limitations below, HKC
warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts made in whole or in part with glass) to be free
from defects in workmanship and material for a period of one year after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser, whether such purchaser purchased the product through a store or
contractor. Ceiling fan part defects must be reported within the first year from the date of purchase. Parts made in whole or in
part with glass and the finishes of metal and other surfaces are not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any part caused by ordinary
wear and tear, accident, misuse, or improper installation, is not covered by this warranty. HKC assumes no responsibility
whatsoever for fan installation. Any service performed by a non-licensed electrician will render the warranty invalid.
HKC’s sole responsibility shall be to repair or replace the motor, parts, or product within the terms stated above. HKC shall not
be liable for any loss or damage of any kind, including any incidental or consequential damages resulting directly or indirectly,
from any breach of warranty, express or implied, or any other failure of this product. Some states do not allow the exclusion or
limitation of incidental or consequential damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or materials within the warranty
period associated with the defective part, HKC agrees to replace the defective part without charge, or at its option, to replace the
ceiling fan with a comparable or superior model.
HKC’s warranties are limited to the written warranties set out in this HKC ceiling fan limited lifetime warranty. All other express
and implied warranties, including, without limitation, the implied warranty of fitness for a particular purpose and the implied
warranty of merchantability are disclaimed. Some states do not allow the disclaimer of implied warranties, so this disclaimer
may not apply to you.

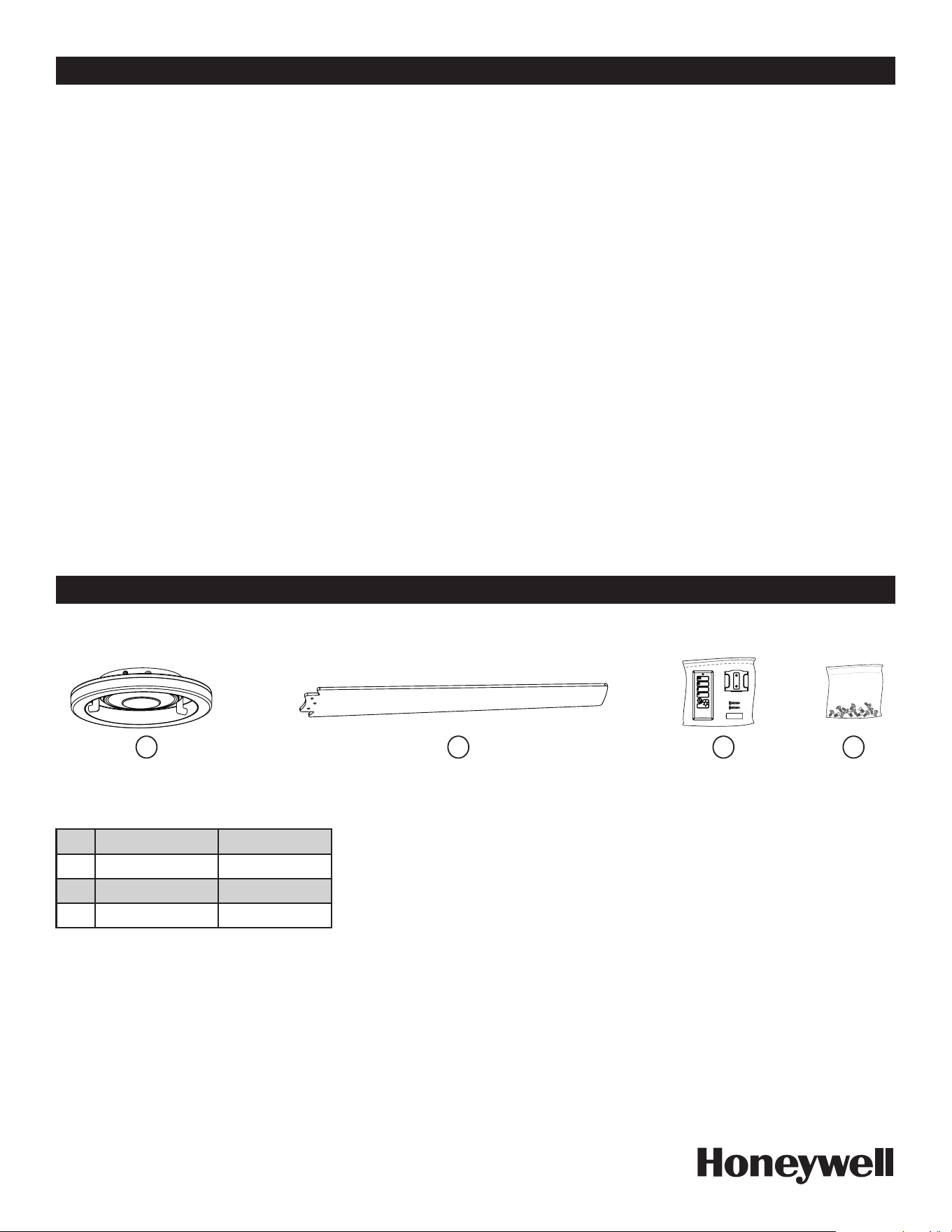

REPLACEMENT PARTS LIST
For replacement parts, call our customer service department 1-877-361-3883, Monday-Friday, 8am - 5pm, Central Time.
A CB
HW
The Honeywell Trademark is used under license
from Honeywell International Inc.
Honeywell International Inc. makes no
representations or warranties with respect to
this product.
This product is manufactured for
Hong Kong China Electric Appliance, LTD.
3350 Players Club Parkway, Suite 225
Memphis, TN 38125
1 (877) 361-3883
10185 • 090324
A Light Kit
4A000029230
B Blade (x5)
4A086410005
C Remote Pack
4L000008750
HW Hardware Bag
4A000029240
53006
Home
