QUESTIONS OR CONCERNS CONTACT AT:
1-800-265-1833 (English)
1-800-567-2513 (French)
Monday through Friday 8:00 a.m. to 5:00 p.m. E.S.T.
NOTE: FOR OPTIMUM QUIETNESS, FULLY ASSEMBLE FAN AND RUN 24 HOURS
2157 Parkedale Ave.,
Brockville, Ontario
K6V 5V6
PH: (613) 342-5424
FX: (613) 342-8437
8500 Rue Grenache,
Anjou, Quebec
H1J 2B1
PH: (514) 353-2255
FX: (514) 353-2522
TOOLS AND MATERIALS REQUIRED
- Philips Screw Driver
- Blade Screw Driver
- Step Ladder
- Wire Cutters
- Wiring supplies as required by electrical code.
!
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS
READ ALL INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
INSTALLATION AND WIRING TO BE IN ACCORDANCE WITH CEC,
NEC, LOCAL ELECTRICAL CODES and ANSI/NFPA 70.
Consult a qualified electrician if you are not familiar with wiring.
DUAL MOUNT SERIES
“Thank you” for purchasing our product. It is our policy to furnish you with high quality
products at a fair price. With proper installation your fan should provide you with years of
money saving comfort.
This fan is guaranteed to be free from defects in workmanship and Material for a period
of five (5) years from date of purchase. Within the first (1) year from date of purchase any
defective product should be returned to your RETAIL OUTLET along with proof of purchase.
For the balance of the warranty, four (4) years, the MOTOR WINDINGS ONLY shall be free
of defects. We will correct such defects or replace the motor assembly at our option if the
product is returned, FREIGHT PREPAID, to us. The returned fan must be accompanied by
your proof of purchase and a cheque for $20.00 for handling and labour charges. All costs of
removing and re-installing the product are YOUR RESPONSIBILITY damage to any part as
such by accident, misuse, improper installation or by affixing any accessories IS NOT covered
by this warranty. As a result of varying climatic conditions in our area this warranty does not
cover any changes in finishes, including rusting, pitting, corroding, tarnishing or peeling.
WARRANTY VOID: In cases of alteration, abuse, installation not in accordance with
instructions or REMOVAL Of the c.S.A. Sticker.
5 YEAR LIMITED WARRANTY
11/16
I
I
N
N
S
S
T
T
A
A
L
L
L
L
A
A
T
T
I
I
O
O
N
N
I
I
N
N
S
S
T
T
R
R
U
U
C
C
T
T
I
I
O
O
N
N
S
S
QUESTIONS OR CONCERNS CONTACT AT:
1-800-265-1833 (English)
1-800-567-2513 (French)
Monday through Friday 8:00 a.m. to 5:00 p.m. E.S.T.
NOTE: FOR OPTIMUM QUIETNESS, FULLY ASSEMBLE FAN AND RUN 24 HOURS
2157 Parkedale Ave.,
Brockville, Ontario
K6V 5V6
PH: (613) 342-5424
FX: (613) 342-8437
8500 Rue Grenache,
Anjou, Quebec
H1J 2B1
PH: (514) 353-2255
FX: (514) 353-2522
TOOLS AND MATERIALS REQUIRED
- Philips Screw Driver
- Blade Screw Driver
- Step Ladder
- Wire Cutters
- Wiring supplies as required by electrical code.
!
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS
READ ALL INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
INSTALLATION AND WIRING TO BE IN ACCORDANCE WITH CEC,
NEC, LOCAL ELECTRICAL CODES and ANSI/NFPA 70.
Consult a qualified electrician if you are not familiar with wiring.
DUAL MOUNT SERIES
“Thank you” for purchasing our product. It is our policy to furnish you with high quality
products at a fair price. With proper installation your fan should provide you with years of
money saving comfort.
This fan is guaranteed to be free from defects in workmanship and Material for a period
of five (5) years from date of purchase. Within the first (1) year from date of purchase any
defective product should be returned to your RETAIL OUTLET along with proof of purchase.
For the balance of the warranty, four (4) years, the MOTOR WINDINGS ONLY shall be free
of defects. We will correct such defects or replace the motor assembly at our option if the
product is returned, FREIGHT PREPAID, to us. The returned fan must be accompanied by
your proof of purchase and a cheque for $20.00 for handling and labour charges. All costs of
removing and re-installing the product are YOUR RESPONSIBILITY damage to any part as
such by accident, misuse, improper installation or by affixing any accessories IS NOT covered
by this warranty. As a result of varying climatic conditions in our area this warranty does not
cover any changes in finishes, including rusting, pitting, corroding, tarnishing or peeling.
WARRANTY VOID: In cases of alteration, abuse, installation not in accordance with
5 YEAR LIMITED WARRANTY
11/16
CF-15
11/18
instructions or REMOVAL of the C SA Sticker.
Pg. #11
TROUBLESHOOTING
TROUBLE
SUGGESTIONS
- Check fuses and circuit breakers.
1. Fan will not start - Check wiring connections to fan.
- Check wiring connections in switch housing.
CAUTION: Turn power off for last two items.
2. Fan sounds noisy - Check to make sure that all screws in motor housing are snug.
- Check to make sure that blade bracket screws are tight.
- Check to make sure that marrettes in switch housing
are not rattling against wall of switch housing.
- If fan has a light kit make sure switch housing
screws and set screws are tight.
- Some fan motors are sensitive to signals from solid
state variable controls. If solid state controller is
used, change to an alternative control. (See a
representative for a list of available controls.)
- Allow a 24 hour break in period to eliminate most noises.
3. Fan wobbles - Check that all blades are screwed firmly into blade brackets.
or shakes
excessively.
- Check that blade brackets are secured firmly to motor.
- Check distance from tip of blades to ceiling.
-
Check distance between blade tip to blade tip. All
measurements should be equal. Loosen blade
screws and position blade until even then re-tighten.
- Check that the downrod hemisphere notch is engaged in canopy.
- Check to make sure that jam screws in downrod are tightened.
- Make sure canopy and mounting bracket are
tightened securely to wooden joist.
- Make sure warpage has not occurred in wooden
blades. If so, contact the customer service department
for replacement parts.
Pg. #2
SAFETY PRECAUTIONS
1. Turn off power at main electrical service box before starting installation.
2. Electrical connections must comply with local code ordinances, national
electrical codes, CEC, NEC and ANSI/NFPA 70.
3. Make sure the installation site you choose allows the fan blades to rotate
freely without any obstructions.
4. When mounting the fan on a ceiling outlet box, Use an approved (CSA for
Canada and UL for U.S.) ceiling fan box marked "FOR FAN SUPPORT".
5. WARNING: To reduce the risk of fire, electric shock, or personal injury,
mount fan only to an outlet box marked acceptable for fan support and use
mounting screws provided with the outlet box. Most outlet boxes commonly
used for the support of lighting fixtures are not acceptable for fan support
and may need to be replaced. Consult a qualified electrician if in doubt.
Ensure the outlet box is securely installed in place such that it is able to
support at least the fan weight.
6.Total Fan Weight For Reference: 52"approximate 9.5 kgs(20.95lbs).
- To r
-
- Mount
floor or
- DO
be
chain
WARNING
educe the risk of fire or electrical shock, ONLY use model CQ005
remote control for optional remote control adaptability.
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR PERSONAL
INJURY, MOUNT TO OUTLET BOX MARKED ACCEPTABLE FOR FAN SUPPORT
AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX.
with the lowest moving parts at least 2.10 Meters (7 Feet) above
grade level.
NOT operate reversing switch while fan blades are in motion. Fan
must
turned
off
and
rotating
blades
stopped,
reverse
chain
pulled,
the
speed
pulled
again
to
start
in
the
opposite
direction.
- WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS, ENSURE THE FAN
LOWER COVER IS SECURELY ATTACHED ON THE FAN UPPER COVER BEFORE USE.
INSTRUCTIONS
The
slide
switch
is
for
forward/reverse
rotation.
In
warm
weather:
Set
to forward rotation
(counter-clockwise).
Airflow
will
be
directed
downward, circulating cold
air.
.
In
cold
weather:
Set
to
reverse
rotation
(clockwise).
Airflow
will
be
directed
upward,
circulating
warm
air..

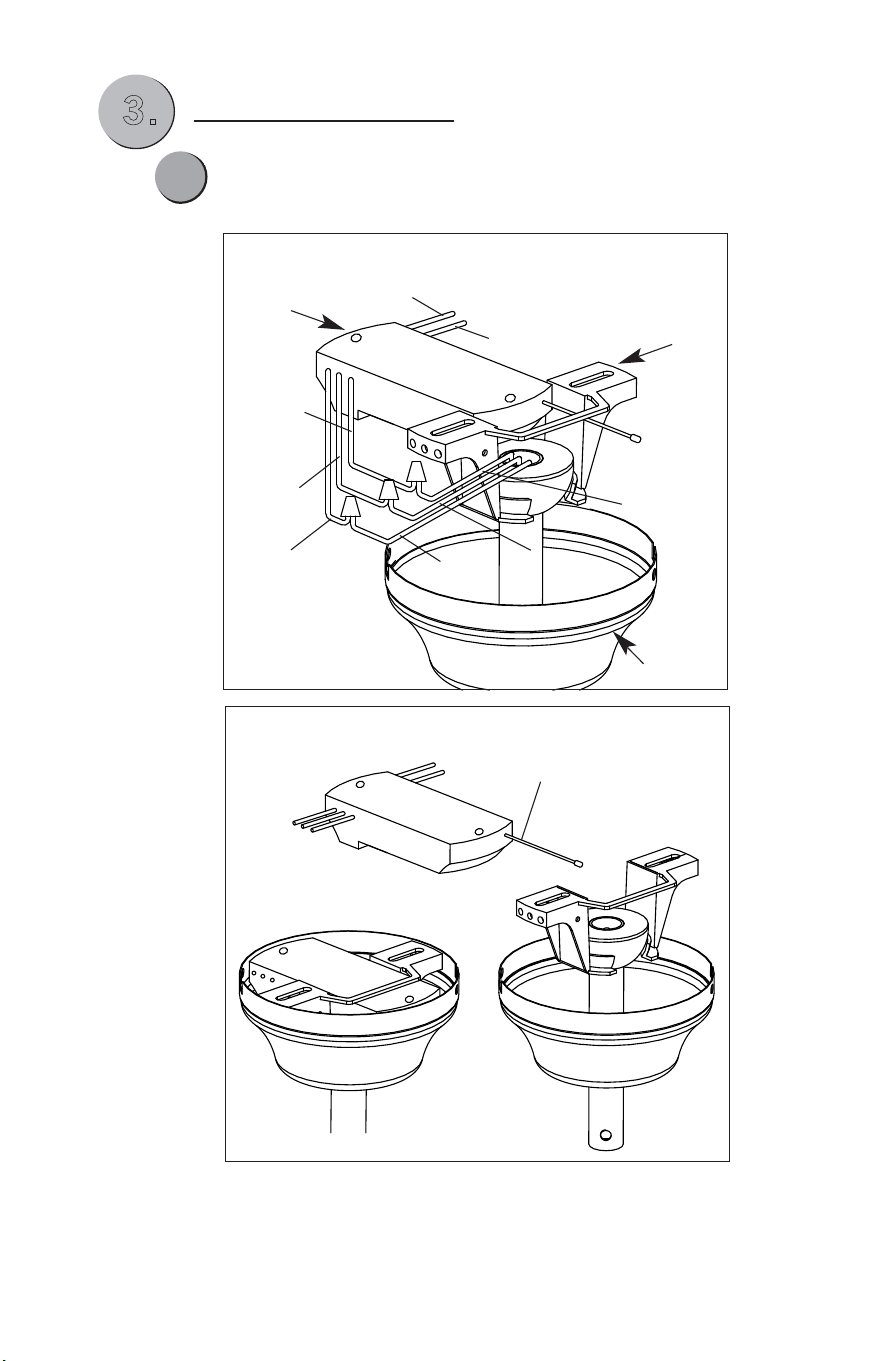

REMOTE
CONTROL
Install DC1.5V/AAA*2pcs battery (not included).Operation buttons on the remote:
*Hold
down
to
increase
or
decrease
the
light.
The
light
has
a
memory
function
so
the
light
will
stay
at
the
same
brightness
as
the
last
time
it
was
turned
off.
LIGHT ON/OFF: Press and release immediately to turn on or off the light.
DIMMER- Press and hold to dim or brighten lights to the desired level
and release. (Incandescent light bulbs only and "light function
select switch” to “DIM” position)
HI : Turn on the fan at high speed
MED : Turn on the fan at medium speed
LOW : Turn on the fan at low speed
OFF : Turn off the ceiling fan
Pg. #3
1. Wooden Joist
2. Approved (CSA for Canada
and UL for U.S.) ceiling fan box
(not provided)
3. Ceiling
4. J-Hook
5. Rubber Gasket
6. Screws & Lock Washers
(set of 4)
7. Mounting Bracket c/w Ground
Wire
8. Outlet Box Screws (not provided)
9. Rubber Ring
10. Lock Pin
11. Hemisphere Jam Screw
12. Hemisphere
13. Upper Motor Housing Screws
& Lock Washers
14. Downrod c/w Ground Wire
15. Ceiling Canopy
16.
Rubber Bushing
17.
Bolt
18.
Motor Assembly
19.
Jam Screws
20.
Cotter Pin
21.
Flat Washer
22.
Blade Bracket
24.
25.
Flat Washer
26.
Fibre Washer
27.
Blade
23.
With Downrod
Without Downrod
10.
11.
12.
13.
14.
15.
18.
15.
17.
19.
20.
21.
22.

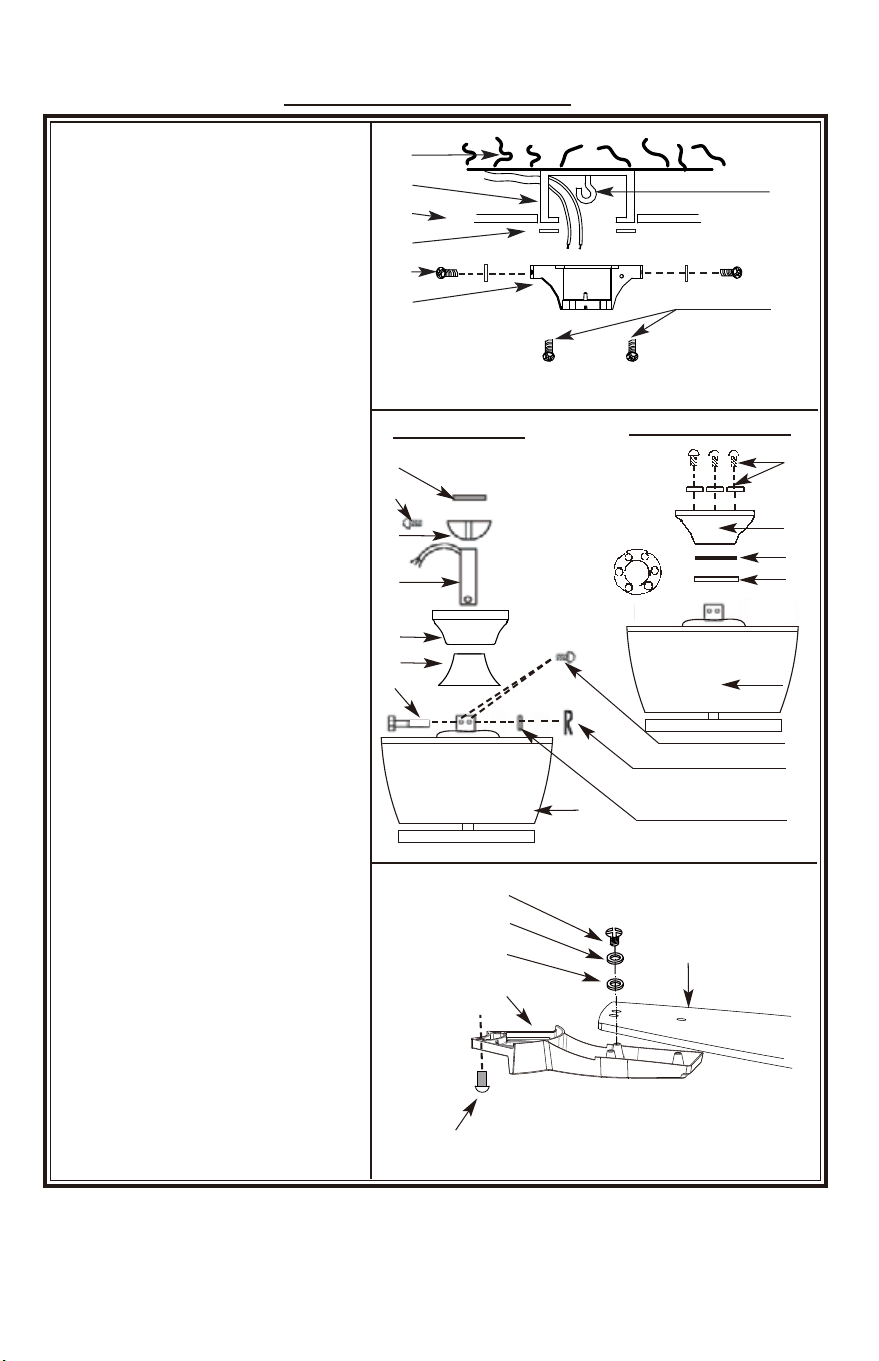

ASSEMBLY DRAWING
Pg. #10
Fig.1
9.
19.
Yoke Cover
16.
28.
23.
24.
25.
27.
28.
26.
Screws
Motor Screw & Lock Washer
Blade Bracket

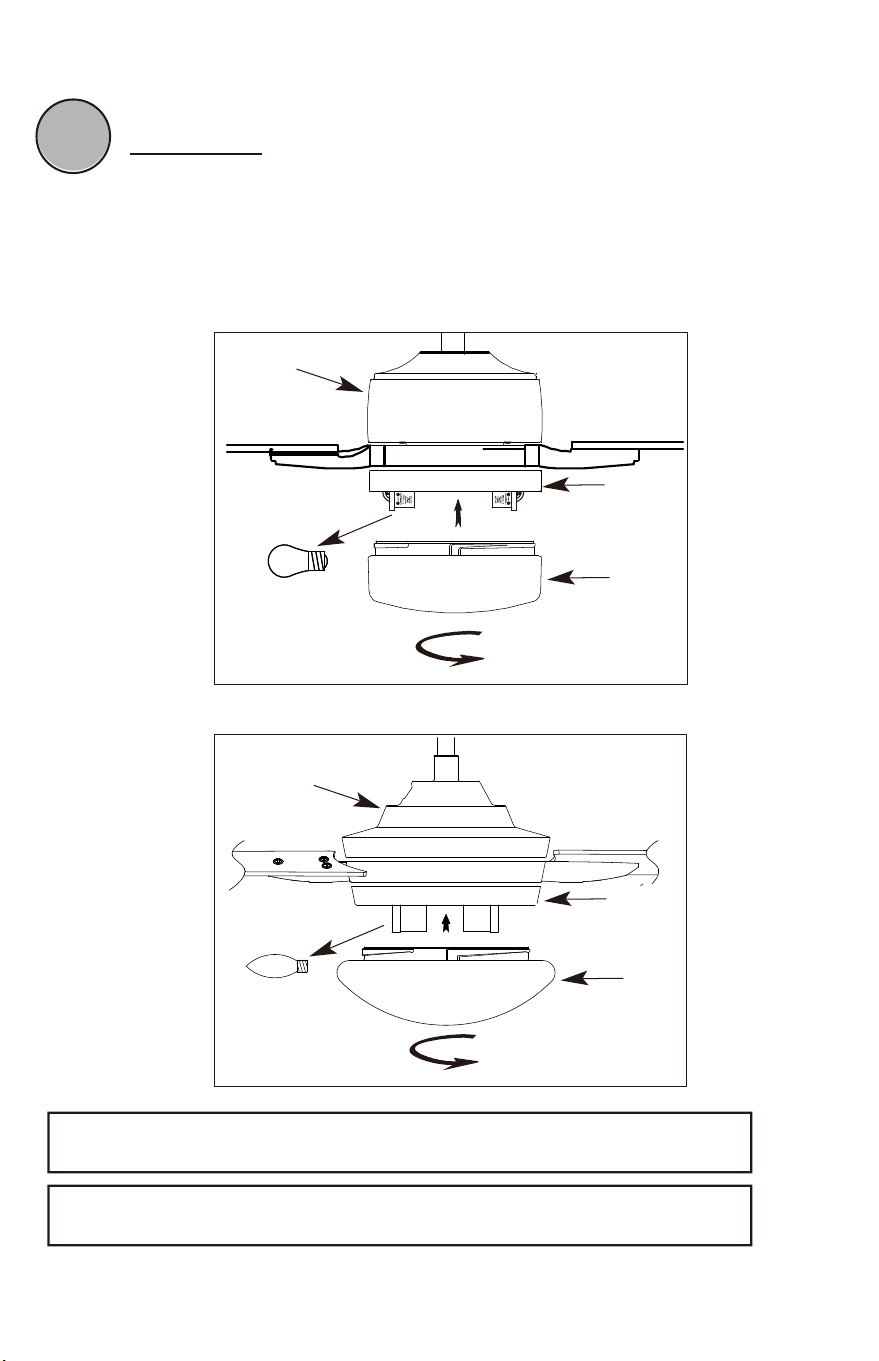

- Install proper wattage and type of bulb (not included) identified on light kit or shade.
- Place glass on light kit by turning clockwise firmly for securement.
8.
LIGHT KIT
WARNING: BE SURE TO TURN OFF POWER BEFORE
INSTALLING
Glass
Light Kit
Bulb
Bulb
Motor
a 01.giF
(not provided)
For model Kori : Fig.10a
Motor
Bulb
Bulb
(not provided)
Glass
Light Kit
b 01.giF
For model Malta : Fig.10b
WARNING: Ensure that all connections, set screws and screws are securely
tightened before the next step.
To clean the fixture, turn off the power, wait for it to cool, and wipe the
fixture with a clean, soft cloth.
1.
2.
3.
4.
5.
6.
7.
8.
Pg. #4
NOTE:
All set screws must be checked and
retightened where necessary, before and after
installation.

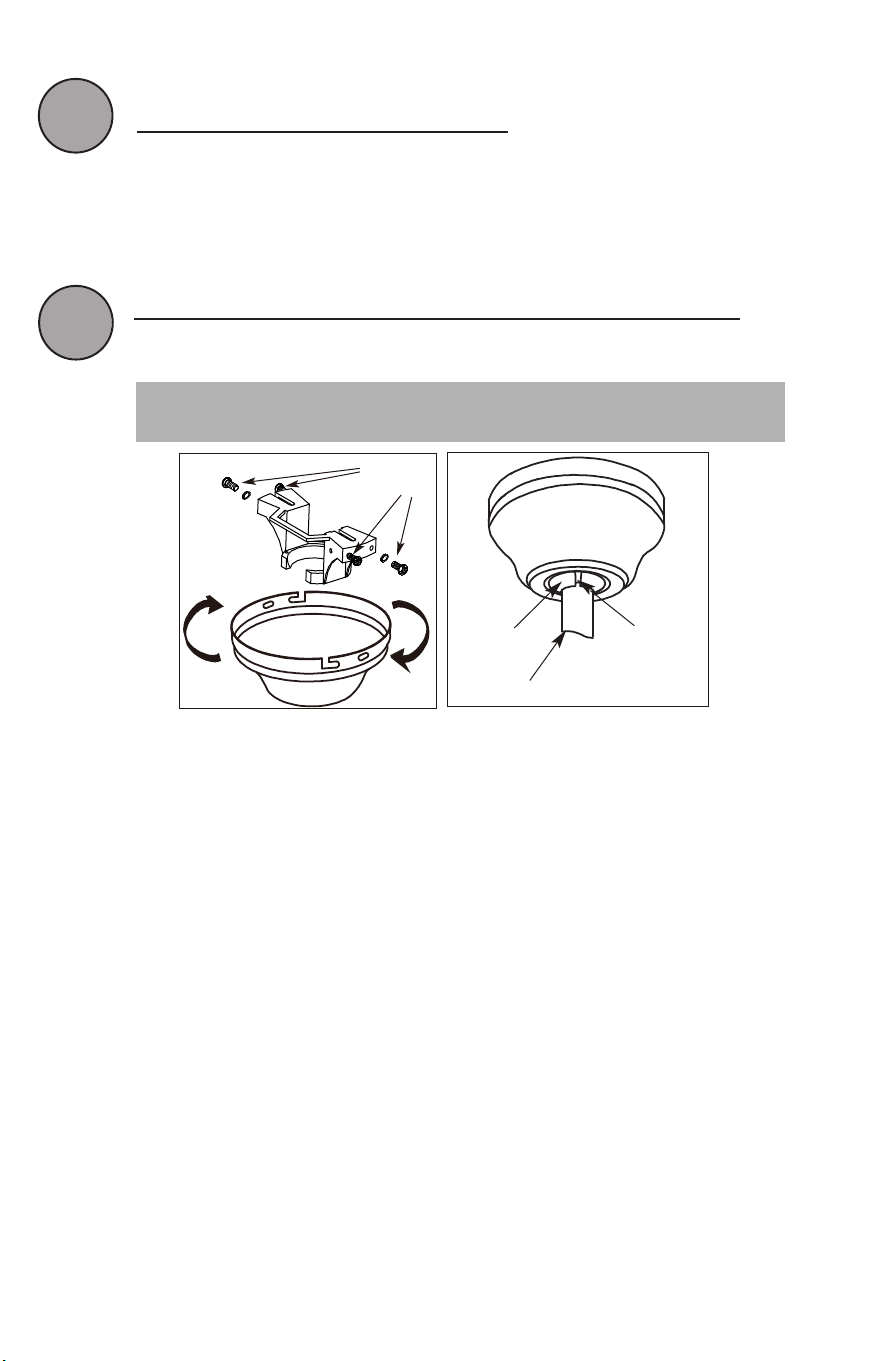

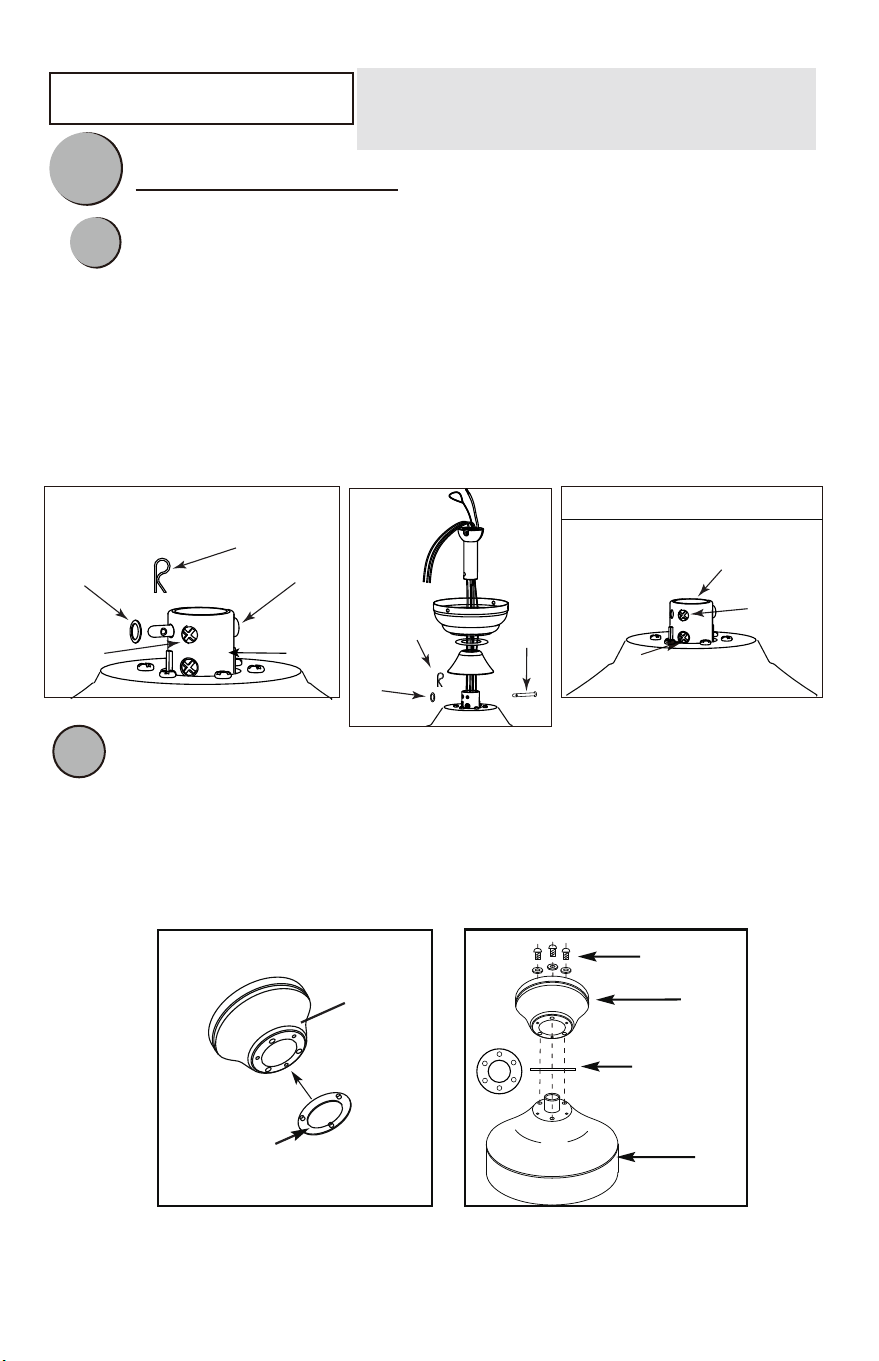

MOUNTING OPTION
INST
INST
ALLA
ALL
A
TION
TION
1.
DOWNROD MOUNT
-
Using
a
Philips
sc
rewdriver
loosen the
two
upper
jam
sc
r
ews
on
the
yoke.
-
Position down
rod inside canopy.
-
Route wir
es
exiting yoke on motor through ceiling
canopy
and
down
r
od.
- Position down
r
od/canopy into
yoke and
align holes
in
yoke
and
down
r
od.
- Inse
r
t bolt through
hole
in yoke and downrod.
Be
careful
not
to
damage
or
cut
the
fan wires.
- Tighten flat washe
r
, lock washer
,
and nut and bolt (not included on
some
models
).
Secu
r
e
with cotter pin through hole in the end of the
bolt.
- Secure downrod in position by tightening upper jam screws.
A
FLUSH MOUNT
- Remove the yoke screws and lockwashers which correspond to the holes
- Optional for some models -Remove rubber ring from canopy (see Fig. 2d)
in the canopy.
- Position canopy over the holes on motor and secure with the same screws
and lockwashers removed in the previous step. Ensure to place the rubber bushing
between the canopy and motor.
B
Pg. #9
MOUNT BLADE
BRACKETS
TO
BLADES
6.

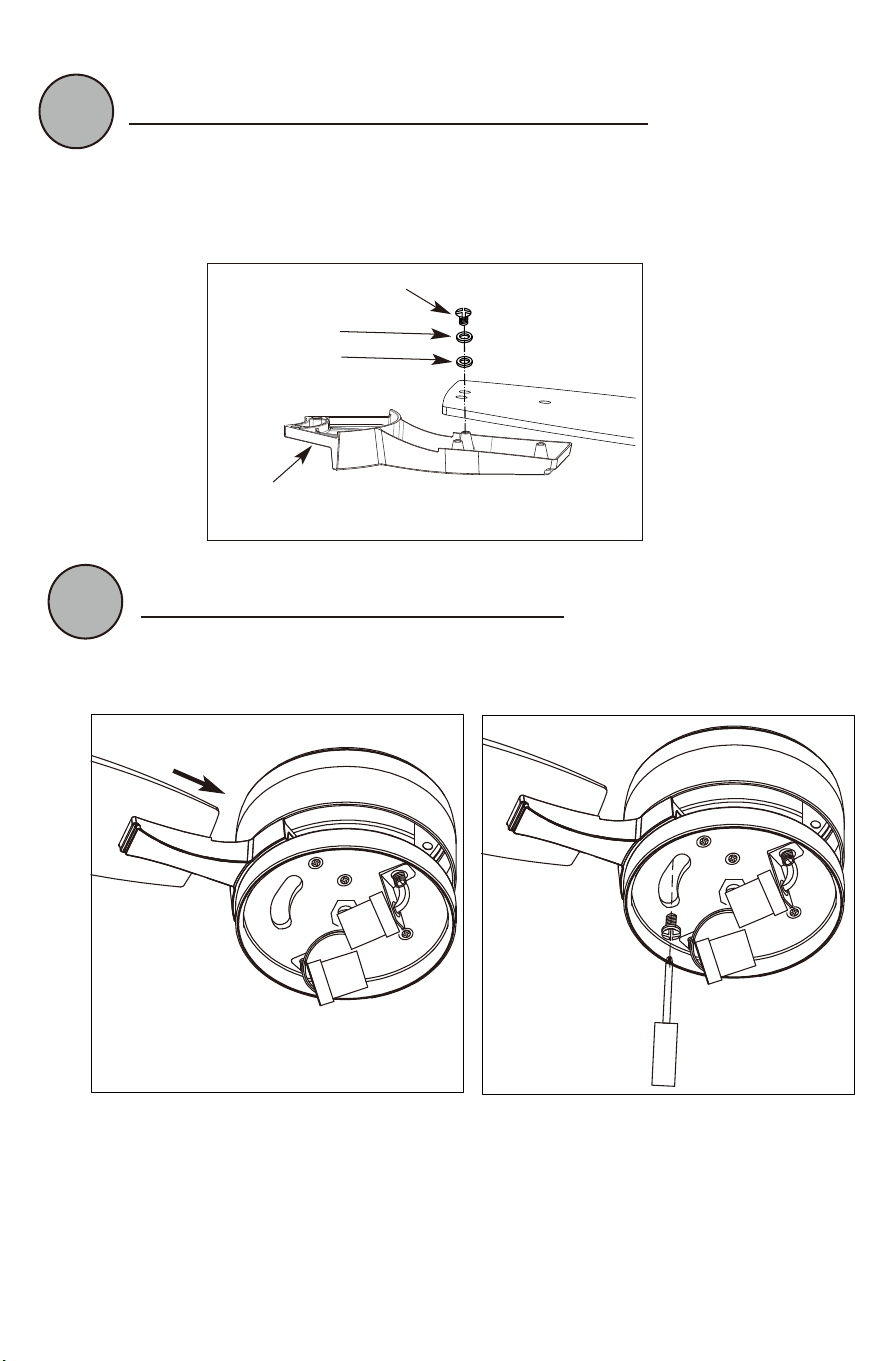

- Place blade bracket screw through flat washer, fibre washer and blade.
- Align with corresponding hole in blade bracket.
- Repeat with (2) remaining screws and tighten.
Blade
Bracket
Fibre Washer
Flat Washer
Fig. 8
Blade Bracket Screw
- Insert the blade arm into the fan as shown.
- Tighten the blade arm to motor with the screw and lock washer as shown.
- Slightly turn the blade after installation and repeat the same step for the other blades.
MOUNTING
BLADES TO
MOTOR
7.
Fig.9 a Fig.9 b
Fig. 2d
Fig. 2e
Canopy
Rubber Ring
Motor
Canopy
Yoke Screws
& Washers
Rubber Bushing
Bolt
Yoke
Jam
Screw
Bolt
Flat
Washer
Cotter Pin
Yoke
Jam
Screw
Cotter
Flat
Washer
Pin
Fig.2bFig.2a
CAUTION
Do not loosen two
lower jam screws
Fig.2c
Pg.
#8
Pg. #5
INSTALL MOUNTING BRACKET

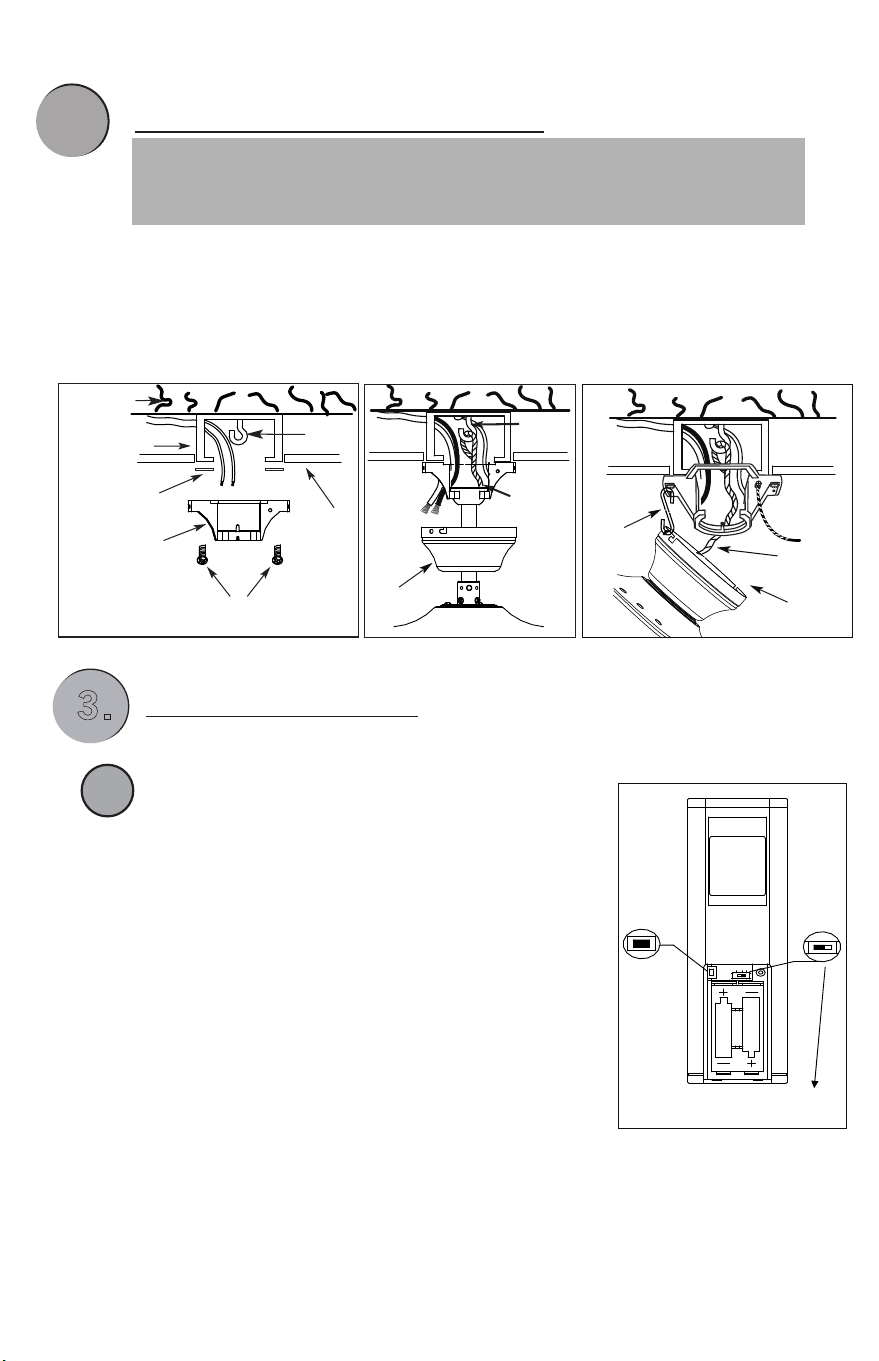

- Install J-Hook through centre of outlet box and into the wooden joist.
- Secure mounting bracket and rubber gaskets to outlet box.
- Hang the safety cable onto the J-hook.
2.
WARNING: To Reduce The Risk Of Fire, Electric Shock, Or Personal
Injury, Mount To UL/CSA Listed Outlet Box Marked Acceptable for
Fan Support And Use Mounting Screws Provided With The Outlet Box.
MOUNTING
FAN ASSEMBLY
- Place two screws and washers on mounting plate (marked B on diagram)
which correspond with slots in canopy. Screw in two turns.
- Position canopy to mounting plate aligning slots to screws (marked B on
diagram) then turn to lock.
- Position and tighten the two screws and washers (marked A on diagram)
then tighten the two screws (marked B on diagram).
ENGAGE HEMISPHERE (Downrod Mount Only)
4.
5.
3
3
.
.
- Carefully rotate fan assembly until groove in hemisphere locks over tab of
canopy assembly.
NOTE: When installing fan on sloped ceiling, make sure tab on hanger bracket
faces towards the top of the slope. Depending on the slope, a longer
downrod may be required to prevent fan blades from hitting the ceiling.
WARNING: Failure to seat tab in groove could cause damage to
electrical wires and possible shock or fire hazard.
Downrod
Hemisphere
Groove
Fig.7b
- Hang fan on temporary hook or mounting bracket.
Fig.7a
(A)
(B)
(B)
Washers
(A)
Ceiling
Outlet box Screws
(not provided)
Fig.3a
Tomporary
Hook
Canopy
Safety
Cable
Fig.3c
J-Hook
Safety
Cable
Canopy
Fig3b
J-Hook
Wood Joist
Outlet Box
Rubber Gasket
Mounting Bracket
Diagram Fig.3b is for Downrod Mount.
Diagram Fig.3c is for Flush Mount.
A
ELECTRICAL HOOK-UP
DC1.5V/ AAA*2pcs, not included), use a ball pen
please make sure not learn in other receiver.
bulb is used, then slide switch to the " DIM" position.
Fig.4
LEARNING PROCESS
-. After installing the unit and power on, open battery cover (with battery,
to press and hold the ”LEARN” key 1~3seconds.
FAN will be turn off and then FAN turn ON at
medium speed, which indicate that learning
process finished. Please note that must press
the “LEARNING KEY" within 30 seconds after
power on. If just replac batteries,no need to
re-learn.
-.Please note that the transmitter can learn in
multiple receiver, when doing learing process
LIGHT FUNCTION SELECT SWITCH
-.If you install an energy savongs bulbs such as a
fluorescent in your ceiling fan, slide the function
switch to " O" position and if a regular incandescent
LIGHT FUNCTION
SELECT SWITCH
LEARN
O/ DIM
AAA DC 1 . 5 V
AAA DC 1 . 5 V
Pg. #6
3
3
.
.
ELECTRICAL HOOK-UP
Pg. #7
3
3
.
.
ELECTRICAL HOOK-UP
- Push all connected
wires up into ceiling box.
- Position the receiver into the canopy as shown direction.
C
NOTE:
Once
ground
wires
are
connected,
carefully
tuck all
wires
and marrettes
into
the
metal outlet
box
making
sure
that
the
wi
res
are
clear
of
the
hemisphere
and
downrod when
positioned
in
mounting
bracket.
Make t
he following wire connections to the receiver unit (see fig. 5) using the
w
ire nu
ts supplied.
- connect GREEN fan wire to BARE (ground) wire.
- connect
BLACK receiver unit
wire to BLACK supply wire.
- connect
WHITE receiver unit wire to WHITE supply wire.
- connect
WHITE receiver unit wire (MOTOR N) to WHITE fan wire.
- connect
BLACK receiver unit wire (MOTOR L) to BLACK fan wir
e.
- connect BLUE receiver unit wire (FOR LIGHT) to BLUE light wire.
B
120
V
SUPPL
Y CIRCUIT
Fan
In Quebec, the installation of this product
must
be carried out by a qualified electrician.
-
-
After making the wire connections, ensure the wires should be spread
apart with the grounded conductor and the equipment-grounding
conductor on one side of the outlet box and the ungrounded conductor
on the other side of the outlet box.
Ensure the splices after being made should be turned upward and
pushed carefully up into the outlet box.
Fig.5
Fig.6a
ANTENNA
(Leave unconnected
and do not cut)
VIEW AFTER INSTALLATION
Mounting
Plate
Reciever
Fig.6a
BLACK
BLUE
WHITE
Canopy
ANTENNA
WHITE
BLACK
120V
SUPPLY
CIRCUIT
Fan
BLACK
WHITE
BLUE
Pg. #6
3
3
.
.
ELECTRICAL HOOK-UP
Pg. #7
3
3
.
.
ELECTRICAL HOOK-UP
- Push all connected
wires up into ceiling box.
- Position the receiver into the canopy as shown direction.
C
NOTE:
Once
ground
wires
are
connected,
carefully
tuck all
wires
and marrettes
into
the
metal outlet
box
making
sure
that
the
wi
res
are
clear
of
the
hemisphere
and
downrod when
positioned
in
mounting
bracket.
Make t
he following wire connections to the receiver unit (see fig. 5) using the
w
ire nu
ts supplied.
- connect GREEN fan wire to BARE (ground) wire.
- connect
BLACK receiver unit
wire to BLACK supply wire.
- connect
WHITE receiver unit wire to WHITE supply wire.
- connect
WHITE receiver unit wire (MOTOR N) to WHITE fan wire.
- connect
BLACK receiver unit wire (MOTOR L) to BLACK fan wir
e.
- connect BLUE receiver unit wire (FOR LIGHT) to BLUE light wire.
B
120
V
SUPPL
Y CIRCUIT
Fan
In Quebec, the installation of this product
must
be carried out by a qualified electrician.
-
-
After making the wire connections, ensure the wires should be spread
apart with the grounded conductor and the equipment-grounding
conductor on one side of the outlet box and the ungrounded conductor
on the other side of the outlet box.
Ensure the splices after being made should be turned upward and
pushed carefully up into the outlet box.
Fig.5
Fig.6a
ANTENNA
(Leave unconnected
and do not cut)
VIEW AFTER INSTALLATION
Mounting
Plate
Reciever
Fig.6a
BLACK
BLUE
WHITE
Canopy
ANTENNA
WHITE
BLACK
120V
SUPPLY
CIRCUIT
Fan
BLACK
WHITE
BLUE
Pg.
#8
Pg. #5
INSTALL MOUNTING BRACKET
- Install J-Hook through centre of outlet box and into the wooden joist.
- Secure mounting bracket and rubber gaskets to outlet box.
- Hang the safety cable onto the J-hook.
2.
WARNING: To Reduce The Risk Of Fire, Electric Shock, Or Personal
Injury, Mount To UL/CSA Listed Outlet Box Marked Acceptable for
Fan Support And Use Mounting Screws Provided With The Outlet Box.
MOUNTING
FAN ASSEMBLY
- Place two screws and washers on mounting plate (marked B on diagram)
which correspond with slots in canopy. Screw in two turns.
- Position canopy to mounting plate aligning slots to screws (marked B on
diagram) then turn to lock.
- Position and tighten the two screws and washers (marked A on diagram)
then tighten the two screws (marked B on diagram).
ENGAGE HEMISPHERE (Downrod Mount Only)
4.
5.
3
3
.
.
- Carefully rotate fan assembly until groove in hemisphere locks over tab of
canopy assembly.
NOTE: When installing fan on sloped ceiling, make sure tab on hanger bracket
faces towards the top of the slope. Depending on the slope, a longer
downrod may be required to prevent fan blades from hitting the ceiling.
WARNING: Failure to seat tab in groove could cause damage to
electrical wires and possible shock or fire hazard.
Downrod
Hemisphere
Groove
Fig.7b
- Hang fan on temporary hook or mounting bracket.
Fig.7a
(A)
(B)
(B)
Washers
(A)
Ceiling
Outlet box Screws
(not provided)
Fig.3a
Tomporary
Hook
Canopy
Safety
Cable
Fig.3c
J-Hook
Safety
Cable
Canopy
Fig3b
J-Hook
Wood Joist
Outlet Box
Rubber Gasket
Mounting Bracket
Diagram Fig.3b is for Downrod Mount.
Diagram Fig.3c is for Flush Mount.
A
ELECTRICAL HOOK-UP
DC1.5V/ AAA*2pcs, not included), use a ball pen
please make sure not learn in other receiver.
bulb is used, then slide switch to the " DIM" position.
Fig.4
LEARNING PROCESS
-. After installing the unit and power on, open battery cover (with battery,
to press and hold the ”LEARN” key 1~3seconds.
FAN will be turn off and then FAN turn ON at
medium speed, which indicate that learning
process finished. Please note that must press
the “LEARNING KEY" within 30 seconds after
power on. If just replac batteries,no need to
re-learn.
-.Please note that the transmitter can learn in
multiple receiver, when doing learing process
LIGHT FUNCTION SELECT SWITCH
-.If you install an energy savongs bulbs such as a
fluorescent in your ceiling fan, slide the function
switch to " O" position and if a regular incandescent
LIGHT FUNCTION
SELECT SWITCH
LEARN
O/ DIM
AAA DC 1 . 5 V
AAA DC 1 . 5 V
Pg. #4
NOTE:
All set screws must be checked and
retightened where necessary, before and after
installation.
MOUNTING OPTION
INST
INST
ALLA
ALL
A
TION
TION
1.
DOWNROD MOUNT
-
Using
a
Philips
sc
rewdriver
loosen the
two
upper
jam
sc
r
ews
on
the
yoke.
-
Position down
rod inside canopy.
-
Route wir
es
exiting yoke on motor through ceiling
canopy
and
down
r
od.
- Position down
r
od/canopy into
yoke and
align holes
in
yoke
and
down
r
od.
- Inse
r
t bolt through
hole
in yoke and downrod.
Be
careful
not
to
damage
or
cut
the
fan wires.
- Tighten flat washe
r
, lock washer
,
and nut and bolt (not included on
some
models
).
Secu
r
e
with cotter pin through hole in the end of the
bolt.
- Secure downrod in position by tightening upper jam screws.
A
FLUSH MOUNT
- Remove the yoke screws and lockwashers which correspond to the holes
- Optional for some models -Remove rubber ring from canopy (see Fig. 2d)
in the canopy.
- Position canopy over the holes on motor and secure with the same screws
and lockwashers removed in the previous step. Ensure to place the rubber bushing
between the canopy and motor.
B
Pg. #9
MOUNT BLADE
BRACKETS
TO
BLADES
6.
- Place blade bracket screw through flat washer, fibre washer and blade.
- Align with corresponding hole in blade bracket.
- Repeat with (2) remaining screws and tighten.
Blade
Bracket
Fibre Washer
Flat Washer
Fig. 8
Blade Bracket Screw
- Insert the blade arm into the fan as shown.
- Tighten the blade arm to motor with the screw and lock washer as shown.
- Slightly turn the blade after installation and repeat the same step for the other blades.
MOUNTING
BLADES TO
MOTOR
7.
Fig.9 a Fig.9 b
Fig. 2d
Fig. 2e
Canopy
Rubber Ring
Motor
Canopy
Yoke Screws
& Washers
Rubber Bushing
Bolt
Yoke
Jam
Screw
Bolt
Flat
Washer
Cotter Pin
Yoke
Jam
Screw
Cotter
Flat
Washer
Pin
Fig.2bFig.2a
CAUTION
Do not loosen two
lower jam screws
Fig.2c
Pg. #3
1. Wooden Joist
2. Approved (CSA for Canada
and UL for U.S.) ceiling fan box
(not provided)
3. Ceiling
4. J-Hook
5. Rubber Gasket
6. Screws & Lock Washers
(set of 4)
7. Mounting Bracket c/w Ground
Wire
8. Outlet Box Screws (not provided)
9. Rubber Ring
10. Lock Pin
11. Hemisphere Jam Screw
12. Hemisphere
13. Upper Motor Housing Screws
& Lock Washers
14. Downrod c/w Ground Wire
15. Ceiling Canopy
16.
Rubber Bushing
17.
Bolt
18.
Motor Assembly
19.
Jam Screws
20.
Cotter Pin
21.
Flat Washer
22.
Blade Bracket
24.
25.
Flat Washer
26.
Fibre Washer
27.
Blade
23.
With Downrod
Without Downrod
10.
11.
12.
13.
14.
15.
18.
15.
17.
19.
20.
21.
22.
ASSEMBLY DRAWING
Pg. #10
Fig.1
9.
19.
Yoke Cover
16.
28.
23.
24.
25.
27.
28.
26.
Screws
Motor Screw & Lock Washer
Blade Bracket
- Install proper wattage and type of bulb (not included) identified on light kit or shade.
- Place glass on light kit by turning clockwise firmly for securement.
8.
LIGHT KIT
WARNING: BE SURE TO TURN OFF POWER BEFORE
INSTALLING
Glass
Light Kit
Bulb
Bulb
Motor
a 01.giF
(not provided)
For model Kori : Fig.10a
Motor
Bulb
Bulb
(not provided)
Glass
Light Kit
b 01.giF
For model Malta : Fig.10b
WARNING: Ensure that all connections, set screws and screws are securely
tightened before the next step.
To clean the fixture, turn off the power, wait for it to cool, and wipe the
fixture with a clean, soft cloth.
1.
2.
3.
4.
5.
6.
7.
8.
Pg. #11
TROUBLESHOOTING
TROUBLE
SUGGESTIONS
- Check fuses and circuit breakers.
1. Fan will not start - Check wiring connections to fan.
- Check wiring connections in switch housing.
CAUTION: Turn power off for last two items.
2. Fan sounds noisy - Check to make sure that all screws in motor housing are snug.
- Check to make sure that blade bracket screws are tight.
- Check to make sure that marrettes in switch housing
are not rattling against wall of switch housing.
- If fan has a light kit make sure switch housing
screws and set screws are tight.
- Some fan motors are sensitive to signals from solid
state variable controls. If solid state controller is
used, change to an alternative control. (See a
representative for a list of available controls.)
- Allow a 24 hour break in period to eliminate most noises.
3. Fan wobbles - Check that all blades are screwed firmly into blade brackets.
or shakes
excessively.
- Check that blade brackets are secured firmly to motor.
- Check distance from tip of blades to ceiling.
-
Check distance between blade tip to blade tip. All
measurements should be equal. Loosen blade
screws and position blade until even then re-tighten.
- Check that the downrod hemisphere notch is engaged in canopy.
- Check to make sure that jam screws in downrod are tightened.
- Make sure canopy and mounting bracket are
tightened securely to wooden joist.
- Make sure warpage has not occurred in wooden
blades. If so, contact the customer service department
for replacement parts.
Pg. #2
SAFETY PRECAUTIONS
1. Turn off power at main electrical service box before starting installation.
2. Electrical connections must comply with local code ordinances, national
electrical codes, CEC, NEC and ANSI/NFPA 70.
3. Make sure the installation site you choose allows the fan blades to rotate
freely without any obstructions.
4. When mounting the fan on a ceiling outlet box, Use an approved (CSA for
Canada and UL for U.S.) ceiling fan box marked "FOR FAN SUPPORT".
5. WARNING: To reduce the risk of fire, electric shock, or personal injury,
mount fan only to an outlet box marked acceptable for fan support and use
mounting screws provided with the outlet box. Most outlet boxes commonly
used for the support of lighting fixtures are not acceptable for fan support
and may need to be replaced. Consult a qualified electrician if in doubt.
Ensure the outlet box is securely installed in place such that it is able to
support at least the fan weight.
6.Total Fan Weight For Reference: 52"approximate 9.5 kgs(20.95lbs).
- To r
-
- Mount
floor or
- DO
be
chain
WARNING
educe the risk of fire or electrical shock, ONLY use model CQ005
remote control for optional remote control adaptability.
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR PERSONAL
INJURY, MOUNT TO OUTLET BOX MARKED ACCEPTABLE FOR FAN SUPPORT
AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX.
with the lowest moving parts at least 2.10 Meters (7 Feet) above
grade level.
NOT operate reversing switch while fan blades are in motion. Fan
must
turned
off
and
rotating
blades
stopped,
reverse
chain
pulled,
the
speed
pulled
again
to
start
in
the
opposite
direction.
- WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS, ENSURE THE FAN
LOWER COVER IS SECURELY ATTACHED ON THE FAN UPPER COVER BEFORE USE.
INSTRUCTIONS
The
slide
switch
is
for
forward/reverse
rotation.
In
warm
weather:
Set
to forward rotation
(counter-clockwise).
Airflow
will
be
directed
downward, circulating cold
air.
.
In
cold
weather:
Set
to
reverse
rotation
(clockwise).
Airflow
will
be
directed
upward,
circulating
warm
air..
REMOTE
CONTROL
Install DC1.5V/AAA*2pcs battery (not included).Operation buttons on the remote:
*Hold
down
to
increase
or
decrease
the
light.
The
light
has
a
memory
function
so
the
light
will
stay
at
the
same
brightness
as
the
last
time
it
was
turned
off.
LIGHT ON/OFF: Press and release immediately to turn on or off the light.
DIMMER- Press and hold to dim or brighten lights to the desired level
and release. (Incandescent light bulbs only and "light function
select switch” to “DIM” position)
HI : Turn on the fan at high speed
MED : Turn on the fan at medium speed
LOW : Turn on the fan at low speed
OFF : Turn off the ceiling fan
I
I
N
N
S
S
T
T
A
A
L
L
L
L
A
A
T
T
I
I
O
O
N
N
I
I
N
N
S
S
T
T
R
R
U
U
C
C
T
T
I
I
O
O
N
N
S
S
QUESTIONS OR CONCERNS CONTACT AT:
1-800-265-1833 (English)
1-800-567-2513 (French)
Monday through Friday 8:00 a.m. to 5:00 p.m. E.S.T.
NOTE: FOR OPTIMUM QUIETNESS, FULLY ASSEMBLE FAN AND RUN 24 HOURS
2157 Parkedale Ave.,
Brockville, Ontario
K6V 5V6
PH: (613) 342-5424
FX: (613) 342-8437
8500 Rue Grenache,
Anjou, Quebec
H1J 2B1
PH: (514) 353-2255
FX: (514) 353-2522
TOOLS AND MATERIALS REQUIRED
- Philips Screw Driver
- Blade Screw Driver
- Step Ladder
- Wire Cutters
- Wiring supplies as required by electrical code.
!
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS
READ ALL INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
INSTALLATION AND WIRING TO BE IN ACCORDANCE WITH CEC,
NEC, LOCAL ELECTRICAL CODES and ANSI/NFPA 70.
Consult a qualified electrician if you are not familiar with wiring.
DUAL MOUNT SERIES
“Thank you” for purchasing our product. It is our policy to furnish you with high quality
products at a fair price. With proper installation your fan should provide you with years of
money saving comfort.
This fan is guaranteed to be free from defects in workmanship and Material for a period
of five (5) years from date of purchase. Within the first (1) year from date of purchase any
defective product should be returned to your RETAIL OUTLET along with proof of purchase.
For the balance of the warranty, four (4) years, the MOTOR WINDINGS ONLY shall be free
of defects. We will correct such defects or replace the motor assembly at our option if the
product is returned, FREIGHT PREPAID, to us. The returned fan must be accompanied by
your proof of purchase and a cheque for $20.00 for handling and labour charges. All costs of
removing and re-installing the product are YOUR RESPONSIBILITY damage to any part as
such by accident, misuse, improper installation or by affixing any accessories IS NOT covered
by this warranty. As a result of varying climatic conditions in our area this warranty does not
cover any changes in finishes, including rusting, pitting, corroding, tarnishing or peeling.
WARRANTY VOID: In cases of alteration, abuse, installation not in accordance with
instructions or REMOVAL Of the c.S.A. Sticker.
5 YEAR LIMITED WARRANTY
11/16
I
I
N
N
S
S
T
T
A
A
L
L
L
L
A
A
T
T
I
I
O
O
N
N
I
I
N
N
S
S
T
T
R
R
U
U
C
C
T
T
I
I
O
O
N
N
S
S
QUESTIONS OR CONCERNS CONTACT AT:
1-800-265-1833 (English)
1-800-567-2513 (French)
Monday through Friday 8:00 a.m. to 5:00 p.m. E.S.T.
NOTE: FOR OPTIMUM QUIETNESS, FULLY ASSEMBLE FAN AND RUN 24 HOURS
2157 Parkedale Ave.,
Brockville, Ontario
K6V 5V6
PH: (613) 342-5424
FX: (613) 342-8437
8500 Rue Grenache,
Anjou, Quebec
H1J 2B1
PH: (514) 353-2255
FX: (514) 353-2522
TOOLS AND MATERIALS REQUIRED
- Philips Screw Driver
- Blade Screw Driver
- Step Ladder
- Wire Cutters
- Wiring supplies as required by electrical code.
!
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS
READ ALL INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
INSTALLATION AND WIRING TO BE IN ACCORDANCE WITH CEC,
NEC, LOCAL ELECTRICAL CODES and ANSI/NFPA 70.
Consult a qualified electrician if you are not familiar with wiring.
DUAL MOUNT SERIES
“Thank you” for purchasing our product. It is our policy to furnish you with high quality
products at a fair price. With proper installation your fan should provide you with years of
money saving comfort.
This fan is guaranteed to be free from defects in workmanship and Material for a period
of five (5) years from date of purchase. Within the first (1) year from date of purchase any
defective product should be returned to your RETAIL OUTLET along with proof of purchase.
For the balance of the warranty, four (4) years, the MOTOR WINDINGS ONLY shall be free
of defects. We will correct such defects or replace the motor assembly at our option if the
product is returned, FREIGHT PREPAID, to us. The returned fan must be accompanied by
your proof of purchase and a cheque for $20.00 for handling and labour charges. All costs of
removing and re-installing the product are YOUR RESPONSIBILITY damage to any part as
such by accident, misuse, improper installation or by affixing any accessories IS NOT covered
by this warranty. As a result of varying climatic conditions in our area this warranty does not
cover any changes in finishes, including rusting, pitting, corroding, tarnishing or peeling.
WARRANTY VOID: In cases of alteration, abuse, installation not in accordance with
5 YEAR LIMITED WARRANTY
11/16
CF-15
11/18
instructions or REMOVAL of the C SA Sticker.
