QUESTIONS OR CONCERNS CONTACT US AT:
1-800-265-1833 (English)
1-800-567-2513 (French)
Monday through Friday 8:00 a.m. to 5:00 p.m. E.S.T.
NOTE: FOR OPTIMUM QUIETNESS, FULLY ASSEMBLE FAN AND RUN 24 HOURS
2157 Parkedale Ave.,
Brockville, Ontario
K6V 5V6
PH: (613) 342-5424
FX: (613) 342-8437
8500 Rue Grenache,
Anjou, Quebec
H1J 2B1
PH: (514) 353-2255
FX: (514) 353-2522
TOOLS AND MATERIALS REQUIRED
- Philips Screw Driver
- Blade Screw Driver
- Step Ladder
- Wire Cutters
- Wiring supplies as required by electrical code.
DUAL MOUNT SERIES
!
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS
READ ALL INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
INSTALLATION AND WIRING TO BE IN ACCORDANCE WITH CEC,
NEC, LOCAL ELECTRICAL CODES and ANSI/NFPA 70.
Consult a qualified electrician if you are not familiar with wiring.
CF-5
LED
11/18
“Thank you” for purchasing our product. It is our policy to furnish you with high quality
products at a fair price. With proper installation your fan should provide you with years of
money saving comfort.
This fan is guaranteed to be free from defects in workmanship and Material for a period
of five (5) years from date of purchase. Within the first (1) year from date of purchase any
defective product should be returned to your RETAIL OUTLET along with proof of purchase.
For the balance of the warranty, four (4) years, the MOTOR WINDINGS ONLY shall be free
of defects. We will correct such defects or replace the motor assembly at our option if the
product is returned, FREIGHT PREPAID, to us. The returned fan must be accompanied by
your proof of purchase and a cheque for $20.00 for handling and labour charges. All costs of
removing and re-installing the product are YOUR RESPONSIBILITY damage to any part as
such by accident, misuse, improper installation or by affixing any accessories IS NOT covered
by this warranty. As a result of varying climatic conditions in our area this warranty does not
cover any changes in finishes, including rusting, pitting, corroding, tarnishing or peeling.
WARRANTY VOID: In cases of alteration, abuse, installation not in accordance with
5 YEAR LIMITED WARRANTY
11/16
instructions or REMOVAL of the C SA Sticker.
SAFETY PRECAUTIONS
1. Turn off power at main electrical service box before starting installation.
2. Electrical connections must comply with local code ordinances, national
electrical codes, CEC, NEC and ANSI/NFPA 70.
3. Make sure the installation site you choose allows the fan blades to rotate
freely without any obstructions.
4. When mounting the fan on a ceiling outlet box, Use an approved (CSA for
Canada and UL for U.S.) ceiling fan box marked "FOR FAN SUPPORT".
5. WARNING: To reduce the risk of fire, electric shock, or personal injury,
mount fan only to an outlet box marked acceptable for fan support and use
mounting screws provided with the outlet box. Most outlet boxes commonly
used for the support of lighting fixtures are not acceptable for fan support
and may need to be replaced. Consult a qualified electrician if in doubt.
Ensure the outlet box is securely installed in place such that it is able to
support at least the fan weight.
6.Total Fan Weight For Reference: 48"approximate 8.0 kgs(17.63lbs).
52"approximate 9.0 kgs(19.84lbs).
Pg. #2
Pg. #11
- To r
-
- Mount
floor or
- DO
be
chain
WARNING
educe the risk of fire or electrical shock, ONLY use model CQ005
remote control for optional remote control adaptability.
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR PERSONAL
INJURY, MOUNT TO OUTLET BOX MARKED ACCEPTABLE FOR FAN SUPPORT
AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX.
with the lowest moving parts at least 2.10 Meters (7 Feet) above
grade level.
NOT operate reversing switch while fan blades are in motion. Fan
must
turned
off
and
rotating
blades
stopped,
reverse
chain
pulled,
the
speed
pulled
again
to
start
in
the
opposite
direction.
- WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS, ENSURE THE FAN
LOWER COVER IS SECURELY ATTACHED ON THE FAN UPPER COVER BEFORE USE.
TROUBLESHOOTING
TROUBLE
SUGGESTIONS
- Check fuses and circuit breakers.
1. Fan will not start - Check wiring connections to fan.
- Check wiring connections in switch housing.
CAUTION: Turn power off for last two items.
2. Fan sounds noisy - Check to make sure that all screws in motor housing are snug.
- Check to make sure that blade bracket screws are tight.
- Check to make sure that marrettes in switch housing
are not rattling against wall of switch housing.
- If fan has a light kit make sure switch housing
screws and set screws are tight.
- Some fan motors are sensitive to signals from solid
state variable controls. If solid state controller is
used, change to an alternative control. (See a
representative for a list of available controls.)
- Allow a 24 hour break in period to eliminate most noises.
3.
Fan wobbles - Check that all blades are screwed firmly into blade brackets.
or shakes
excessively.
- Check that blade brackets are secured firmly to motor.
- Check distance from tip of blades to ceiling.
-
Check distance between blade tip to blade tip. All
measurements should be equal. Loosen blade
screws and position blade until even then re-tighten.
- Check that the downrod hemisphere notch is engaged in canopy
.
- Check to make sure that jam screws in downrod are tightened.
- Make sure canopy and mounting bracket are
tightened securely to wooden joist.
- Make sure warpage has not occurred in wooden
blades. If so, contact the customer service
department for replacement parts.
INSTRUCTIONS
The
slide
switch
is
for
forward/reverse
rotation.
In
warm
weather:
Set
to forward rotation
(counter-clockwise).
Airflow
will
be
directed
downward, circulating cold
air.
.
In
cold
weather:
Set
to
reverse
rotation
(clockwise).
Airflow
will
be
directed
upward,
circulating
warm
air..
REMOTE
CONTROL
Install DC1.5V/AAA*2pcs battery (not included).Operation buttons on the remote:
*Hold
down
to
increase
or
decrease
the
light.
The
light
has
a
memory
function
so
the
light
will
stay
at
the
same
brightness
as
the
last
time
it
was
turned
off.
LIGHT ON/OFF: Press and release immediately to turn on or off the light.
DIMMER- Press and hold to dim or brighten lights to the desired level
and release. (Incandescent light bulbs only and "light function
select switch” to “DIM” position)
HI : Turn on the fan at high speed
MED : Turn on the fan at medium speed
LOW : Turn on the fan at low speed
OFF : Turn off the ceiling fan
Pg. #10
Pg. #3

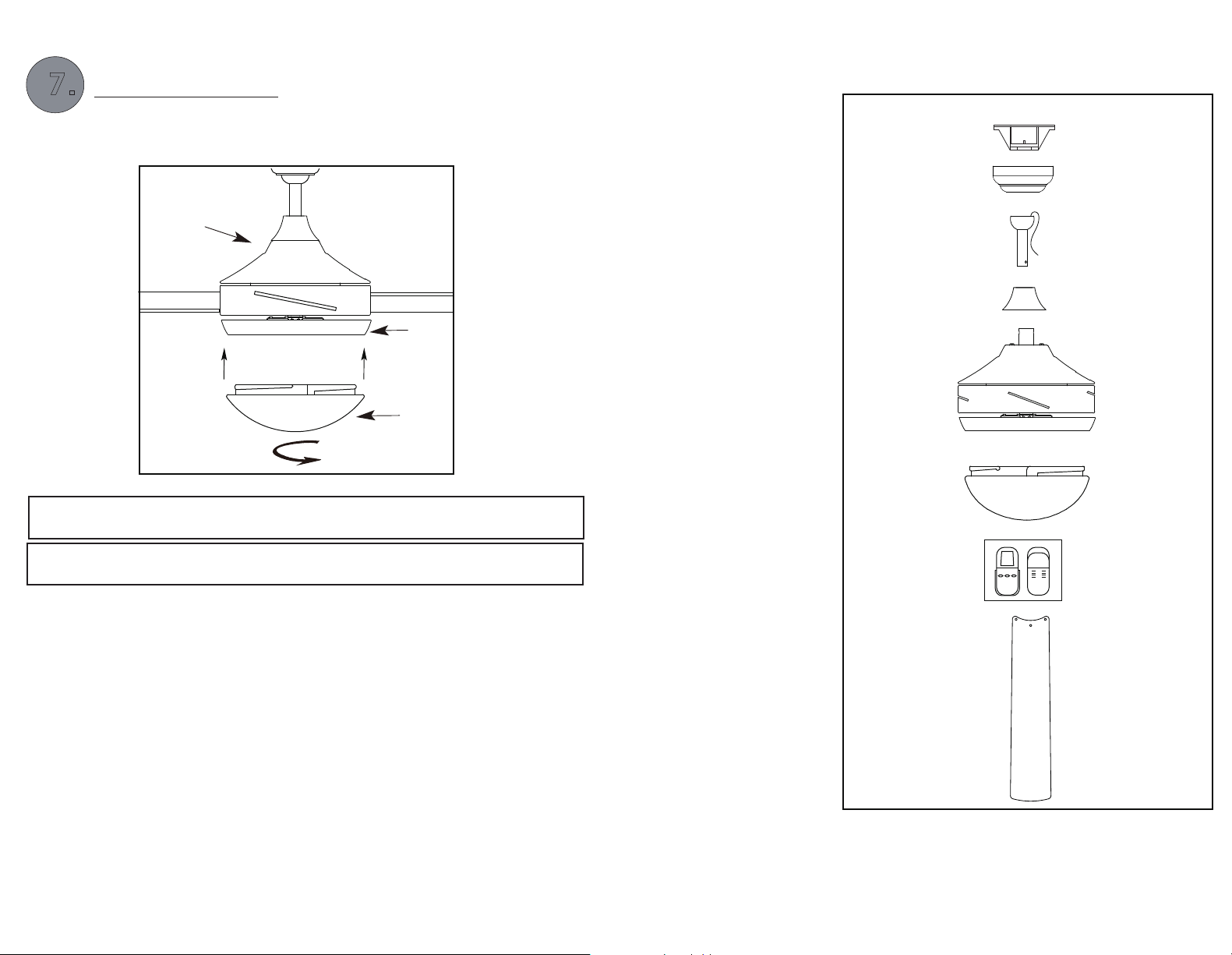

ASSEMBLY DRAWING
A. Mounting Bracket
B. Canopy
C. Downrod Assembly
D. Yoke Cover
E. Fan Motor Assembly
F.
G.
H.
H.
Fig.1
E.
F.
A.
B.
C.
D.
G.
Glass
Remote Control
Fan Blade
WARNING : BE SURE TO TURN OFF POWER BEFORE INSTALLING
7
7
.
.
LIGHT ASSEMBLY
- Place glass onto the fan and turn to secure.
Fig.9
Motor
Glass
Light Kit
WARNING: Ensure that all connections, set screws and screws are securely tightened
before the next step.
To clean the fixture, turn off the power, wait for it to cool, and wipe the fixture
with a clean, soft cloth.
Pg. #4
INST
INST
ALLA
ALLA
TION
TION
NOTE: All set screws must be checked and
retightened where necessary, before and after
installation.

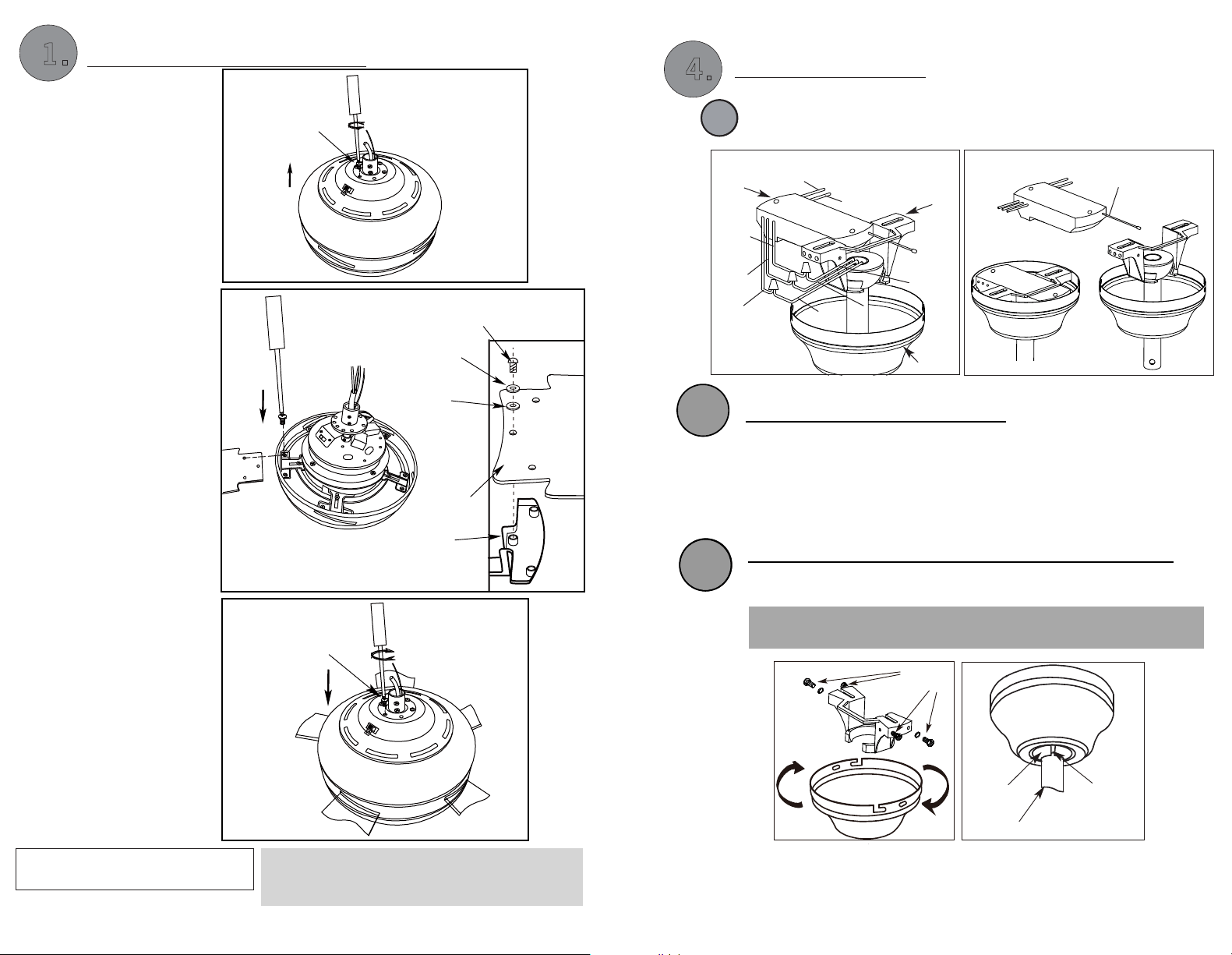

1
1
.
.
ATTACH THE
FAN
BLADES
- Attach the blades to the
fan motor assembly using
the screws, metal washer
and fibre washer. Slightly
turn the blade after
installation and repeat the
same step for the other
blades.
- Re-attach the cover to
the top housing.
Fig.2b
Fig.2a
Fig.2c
Metal Washer
Blade Bracket Screw
Blade
Blade Bracket
Screw
Screw
Fibre Washer
- Remove the cover on
the top housing.
Pg. #9
ELECTRICALHOOK-UP
4
4
.
.
- Push all connected wires up into ceiling box.
Position the receiver into the canopy as shown direction.
C
Fig.7b
ANTENNA
(Leave unconnected
and do not cut)
VIEW AFTER INSTALLATION
5.
MOUNTING FAN ASSEMBLY
- Place two screws and washers on mounting plate (marked B on diagram)
which correspond with slots in canopy. Screw in two turns.
- Position canopy to mounting plate aligning slots to screws (marked B on
diagram) then turn to lock.
- Position and tighten the two screws and washers (marked A on diagram)
then tighten the two screws (marked B on diagram).
6.
6.
ENGAGE HEMISPHERE (Downrod Mount Only)
- Carefully rotate fan assembly until groove in hemisphere locks over tab of
canopy assembly.
WARNING: Failure to seat tab in groove could cause damage to
electrical wires and possible shock or fire hazard.
NOTE: When installing fan on sloped ceiling, make sure tab on hanger bracket
faces towards the top of the slope. Depending on the slope, a longer
downrod
may
be
required
to
prevent
fan
blades
from
hitting
the
ceiling.
Downrod
Hemisphere
Groove
Fig.8a
Fig.8b
(A)
(B)
(B)
Washers
(A)
Mounting
Plate
Reciever
Fig.7a
BLACK
BLUE
WHITE
Canopy
ANTENNA
WHITE
120V
SUPPLY
CIRCUIT
Fan
BLACK
BLACK
WHITE
BLUE
Pg. #8
Pg. #5
NOTE: Once ground wires are connected, carefully tuck all wires and marrettes
into the metal outlet box making sure that the wires are clear of the
hemisphere and downrod when positioned in mounting bracket.
In Quebec, the installation of this product must
be carried out by a qualified electrician.

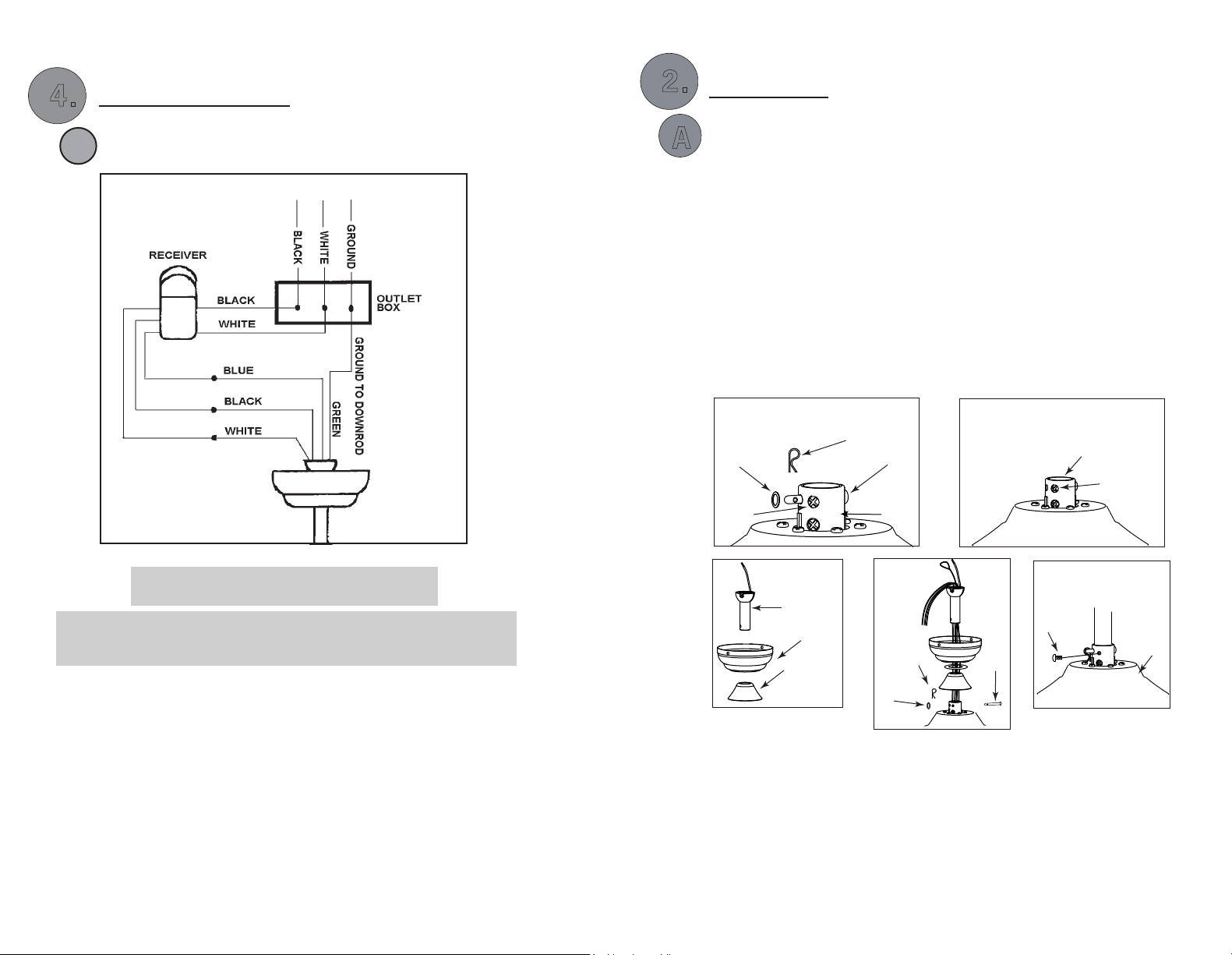

ELECTRICAL HOOK-UP
4
4
.
.
B
120 V
SUPPLY CIRCUIT
Fan
Fig.6
2
2
.
.
MOUNTING
DOWNROD MOUNT
A
A
- Insert bolt through hole in shaft and downrod. Be careful not to
damage or cut the fan wires.
- Tighten flat washer and bolt. Secure with cotter pin through hole in the
end of the bolt.
- Secure downrod in position by tightening jam screws. Slide yoke cover
down so it is flush with the motor housing.
- Take out
fan
motor housing.
-
Remove
cotter pin and bolt from yoke.
- Loosen jam screw in yoke until it is flush with the inside surface.
- Obtain downrod, canopy and yoke cover.
- Place downrod inside canopy and yoke cover.
-
Route
wires
exiting
motor
through
yoke
cover,
canopy
and downrod.
Motor
Bolt
Yoke
Jam
Screw
Jam
Screw
Downrod
Canopy
Yoke
Cover
Bolt
Flat
Washer
Cotter Pin
Yoke
Jam
Screw
Fig. 3d
Fig. 3e
Fig. 3b
Cotter
Flat
Washer
Pin
Fig. 3c
Fig. 3a
Pg. #6
Pg. #7
2
2
.
.
MOUNTING

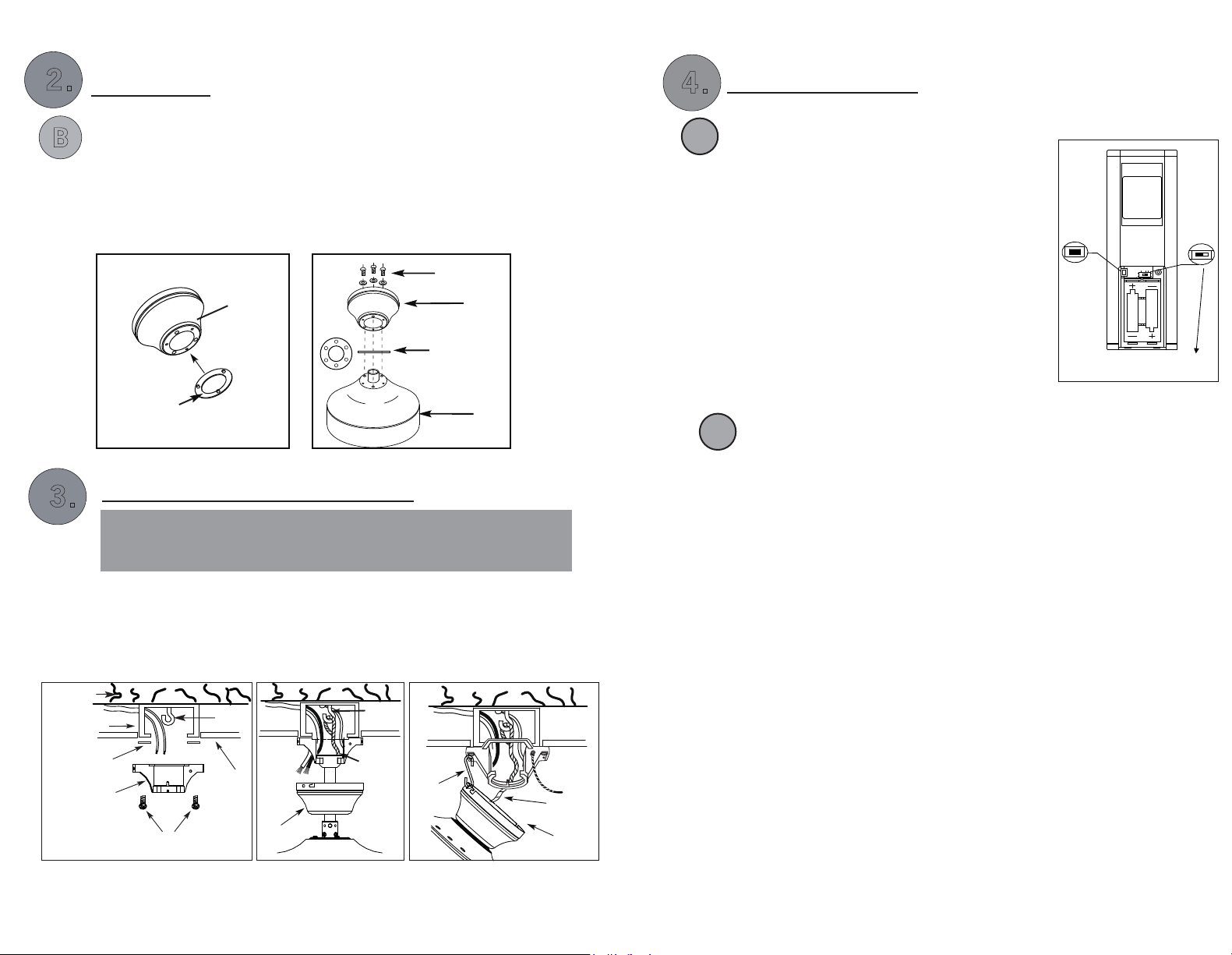

INSTALL MOUNTING BRACKET
- Install J-Hook through centre of outlet box and into the wooden joist.
- Secure mounting bracket and rubber gaskets to outlet box.
- Hang the safety cable onto the J-hook.
WARNING: To Reduce The Risk Of Fire, Electric Shock, Or Personal
Injury, Mount To UL/CSA Listed Outlet Box Marked Acceptable for
Fan Support And Use Mounting Screws Provided With The Outlet Box.
Canopy
Rubber Ring
Motor
Canopy
Yoke Screws
& Washers
Rubber Bushing
FLUSH MOUNT
- Remove rubber ring from canopy.
- Place canopy on fan housing by aligning 3 larger holes of canopy over
3 existing screws on the motor housing.
- Secure canopy to motor housing by placing 3 screws and washers
(supplied in hardware package) in the 3 smaller holes in the canopy.
B
B
Fig. 3f
Fig. 3g
3
3
.
.
- Hang fan on temporary hook or mounting bracket.
Ceiling
Outlet box Screws
(not provided)
Fig.4a
Tomporary
Hook
Canopy
Safety
Cable
Fig.4c
J-Hook
Safety
Cable
Canopy
Fig.4b
J-Hook
Wood Joist
Outlet Box
Rubber Gasket
Mounting Bracket
Diagram Fig.4b is for Downrod Mount.
Diagram Fig.4c is for Flush Mount.
Make the following wire connections to the receiver unit (see fig. 6) using the
wire nuts supplied.
-
connect GREEN fan wire to BARE
(ground) wire.
-
connect BLACK receiver unit wire to BLACK supply wire.
- connect WHITE receiver unit wire to WHITE supply wire.
- connect WHITE receiver unit wire (MOTOR N) to WHITE fan wire.
- connect BLACK receiver unit wire (MOTOR L) to BLACK fan wire.
- connect BLUE receiver unit wire (FOR LIGHT) to BLUE light wire.
B
- After making the wire connections, ensure the wires should be spread
apart with the grounded conductor and the equipment-grounding
conductor on one side of the outlet box and the ungrounded conductor
on the other side of the outlet box.
- Ensure the splices after being made should be turned upward and
pushed carefully up into the outlet box.
ELECTRICAL HOOK-UP
4
4
.
.
DC1.5V/ AAA*2pcs, not included), use a ball pen
please make sure not learn in other receiver.
bulb is used, then slide switch to the " DIM" position.
A
Fig.5
LEARNING PROCESS
-. After installing the unit and power on, open battery cover (with battery,
to press and hold the ”LEARN” key 1~3seconds.
FAN will be turn off and then FAN turn ON at
medium speed, which indicate that learning
process finished. Please note that must press
the “LEARNING KEY" within 30 seconds after
power on. If just replac batteries,no need to
re-learn.
-.Please note that the transmitter can learn in
multiple receiver, when doing learing process
LIGHT FUNCTION SELECT SWITCH
-.If you install an energy savongs bulbs such as a
fluorescent in your ceiling fan, slide the function
switch to " O" position and if a regular incandescent
LIGHT FUNCTION
SELECT SWITCH
LEARN
O/ DIM
AAA DC 1 . 5 V
AAA DC 1 . 5 V
