QUESTIONS OR CONCERNS CONTACT AT:
1-800-265-1833 (English)
1-800-567-2513 (French)
Monday through Friday 8:00 a.m. to 5:00 p.m. E.S.T.
NOTE: FOR OPTIMUM QUIETNESS, FULLY ASSEMBLE FAN AND RUN 24 HOURS
2157 Parkedale Ave.,
Brockville, Ontario
K6V 5V6
PH: (613) 342-5424
FX: (613) 342-8437
TOOLS AND MATERIALS REQUIRED
- Philips Screw Driver
- Blade Screw Driver
- Step Ladder
- Wire Cutters
- Wiring supplies as required by electrical code.
!
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS
READ ALL INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
INSTALLATION AND WIRING TO BE IN ACCORDANCE WITH CEC,
NEC, LOCAL ELECTRICAL CODES and ANSI/NFPA 70.
Consult a qualified electrician if you are not familiar with wiring.
MOUNT SERIES
“Thank you” for purchasing our product. It is our policy to furnish you with high quality
products at a fair price. With proper installation your fan should provide you with years of
money saving comfort.
This fan is guaranteed to be free from defects in workmanship and Material for a period
of five (5) years from date of purchase. Within the first (1) year from date of purchase any
defective product should be returned to your RETAIL OUTLET along with proof of purchase.
For the balance of the warranty, four (4) years, the MOTOR WINDINGS ONLY shall be free
of defects. We will correct such defects or replace the motor assembly at our option if the
product is returned, FREIGHT PREPAID, to us. The returned fan must be accompanied by
your proof of purchase and a cheque for $20.00 for handling and labour charges. All costs of
removing and re-installing the product are YOUR RESPONSIBILITY damage to any part as
such by accident, misuse, improper installation or by affixing any accessories IS NOT covered
by this warranty. As a result of varying climatic conditions in our area this warranty does not
cover any changes in finishes, including rusting, pitting, corroding, tarnishing or peeling.
WARRANTY VOID: In cases of alteration, abuse, installation not in accordance with
instructions or REMOVAL Of the c.S.A. Sticker.
5 YEAR LIMITED WARRANTY
11/16
I
I
N
N
S
S
T
T
A
A
L
L
L
L
A
A
T
T
I
I
O
O
N
N
I
I
N
N
S
S
T
T
R
R
U
U
C
C
T
T
I
I
O
O
N
N
S
S
QUESTIONS OR CONCERNS CONTACT AT:
1-800-265-1833 (English)
1-800-567-2513 (French)
Monday through Friday 8:00 a.m. to 5:00 p.m. E.S.T.
NOTE: FOR OPTIMUM QUIETNESS, FULLY ASSEMBLE FAN AND RUN 24 HOURS
2157 Parkedale Ave.,
Brockville, Ontario
K6V 5V6
PH: (613) 342-5424
FX: (613) 342-8437
TOOLS AND MATERIALS REQUIRED
- Philips Screw Driver
- Blade Screw Driver
- Step Ladder
- Wire Cutters
- Wiring supplies as required by electrical code.
!
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS
READ ALL INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
INSTALLATION AND WIRING TO BE IN ACCORDANCE WITH CEC,
NEC, LOCAL ELECTRICAL CODES and ANSI/NFPA 70.
Consult a qualified electrician if you are not familiar with wiring.
“Thank you” for purchasing our product. It is our policy to furnish you with high quality
products at a fair price. With proper installation your fan should provide you with years of
money saving comfort.
This fan is guaranteed to be free from defects in workmanship and Material for a period
of five (5) years from date of purchase. Within the first (1) year from date of purchase any
defective product should be returned to your RETAIL OUTLET along with proof of purchase.
For the balance of the warranty, four (4) years, the MOTOR WINDINGS ONLY shall be free
of defects. We will correct such defects or replace the motor assembly at our option if the
product is returned, FREIGHT PREPAID, to us. The returned fan must be accompanied by
your proof of purchase and a cheque for $20.00 for handling and labour charges. All costs of
removing and re-installing the product are YOUR RESPONSIBILITY damage to any part as
such by accident, misuse, improper installation or by affixing any accessories IS NOT covered
by this warranty. As a result of varying climatic conditions in our area this warranty does not
cover any changes in finishes, including rusting, pitting, corroding, tarnishing or peeling.
WARRANTY VOID: In cases of alteration, abuse, installation not in accordance with
5 YEAR LIMITED WARRANTY
11/16
CF-24
LED
09/19
instructions or REMOVAL of the CSA Sticker.
DOWNROD
2555 Rue Bernard
Lefebvre Laval, Quebec
H7C 0A5
PH: (450) 665-2535
FX: (450) 665-0910
Pg. #11
Pg. #2
SAFETY PRECAUTIONS
1. Turn off power at main electrical service box before starting installation.
2. Electrical connections must comply with local code ordinances, national
electrical codes, CEC, NEC and ANSI/NFPA 70.
3. Make sure the installation site you choose allows the fan blades to rotate
freely without any obstructions.
4. When mounting the fan on a ceiling outlet box, Use an approved (CSA for
Canada and UL for U.S.) ceiling fan box marked "FOR FAN SUPPORT".
5. WARNING: To reduce the risk of fire, electric shock, or personal injury,
mount fan only to an outlet box marked acceptable for fan support and use
mounting screws provided with the outlet box. Most outlet boxes commonly
used for the support of lighting fixtures are not acceptable for fan support
and may need to be replaced. Consult a qualified electrician if in doubt.
Ensure the outlet box is securely installed in place such that it is able to
support at least the fan weight.
.)sbl 85.01(sgk 8.4 etamixorppa"25 :ecnerefeR roF thgieW naF latoT.6
-
- Mount
floor or
- DO
be
chain
WARNING
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR PERSONAL
INJURY, MOUNT TO OUTLET BOX MARKED ACCEPTABLE FOR FAN SUPPORT
AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX.
with the lowest moving parts at least 2.10 Meters (7 Feet) above
grade level.
NOT operate reversing switch while fan blades are in motion. Fan must
turned
off
and
rotating
blades
stopped,
reverse
chain
pulled,
the
speed
pulled
again
to
start
in
the
opposite
direction.

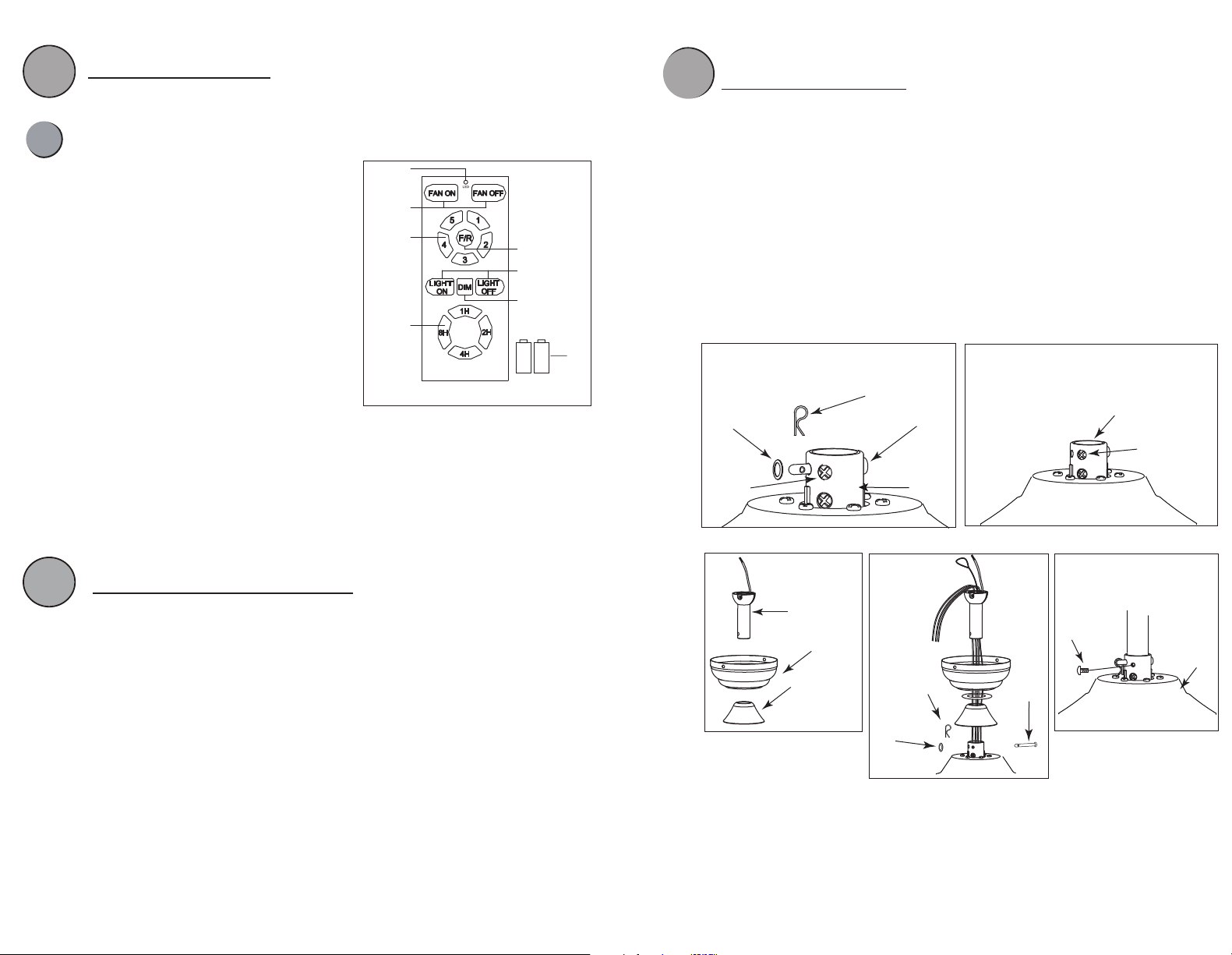

REMOTE
CONTROL
①
②
A Pair of NO.7 battery of emitter (1.5V)
LED indicated light
ON/OFF the fan
③ Speed of the fan (①low speed — ⑤high speed)
④
Timing control of the fan
Short press: ON/OFF the light
⑤
⑥
Direction of the fan (reverse switch)
⑦
Long press(hold for 3 seconds): Dimming
⑧
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the grantee
of this device could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This device contains licence-exempt transmitter(s)/receiver(s)
that comply with Innovation, Science and Economic Development
Canada’s licence-exempt RSS(s). Operation is subject to the
following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference
that may cause undesired operation of the device.
Supplier's Declaration of Conformity
47 CFR § 2.1077 Compliance Information
Unique Identifier: CANARMNA
Responsible Party
CanarmInc.
808 Commerce Park Drive, Ogdensburg, New York, USA 13669
1-800-267-4427
FCC:BTR66.181.19.0001.35
ICES-005:BTR66.181.19.0001.35-1
Pg. #3
Pg. #10
WARNING: Ensure that all connections, set screws and screws are securely
tightened before the next step.
To clean the fixture, turn off the power, wait for it to cool, and wipe the
fixture with a clean, soft cloth.
LIGHT KITS
7.
Fig.9c

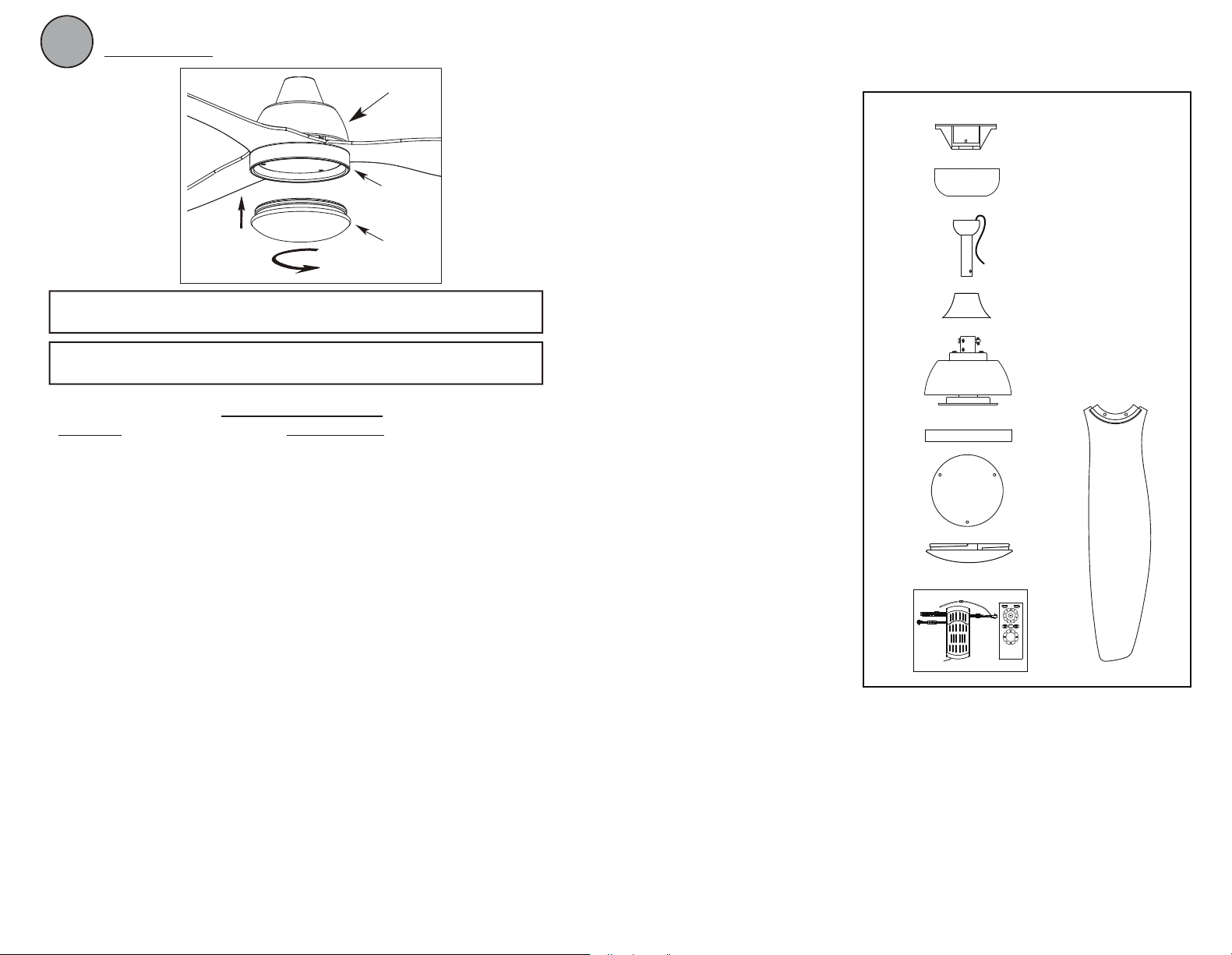

ASSEMBLY DRAWING
A. Mounting Bracket
B. Canopy
C. Downrod Assembly
D. Yoke Cover
E. Fan Motor Assembly
F.
G. Glass Panel
H.
A.
B.
C.
D.
E.
G.
F.
J.
Fig.1
Light Kit
I.
H. Diffuser
I. Remote Control
J. Fan Blade
Motor
KitLight Kit
Diffuser
TROUBLESHOOTING
TROUBLE
SUGGESTIONS
- Check fuses and circuit breakers.
1. Fan will not start - Check wiring connections to fan.
- Check wiring connections in switch housing.
CAUTION: Turn power off for last two items.
2. Fan sounds noisy - Check to make sure that all screws in motor housing are snug.
- Check to make sure that blade bracket screws are tight.
- Check to make sure that marrettes in switch housing
are not rattling against wall of switch housing.
- If fan has a light kit make sure switch housing
screws and set screws are tight.
- Some fan motors are sensitive to signals from solid
state variable controls. If solid state controller is
used, change to an alternative control. (See a
representative for a list of available controls.)
- Allow a 24 hour break in period to eliminate most noises.
3. Fan wobbles - Check that all blades are screwed firmly into blade brackets.
or shakes
excessively.
- Check that blade brackets are secured firmly to motor.
- Check distance from tip of blades to ceiling.
-
Check distance between blade tip to blade tip. All
measurements should be equal. Loosen blade
screws and position blade until even then re-tighten.
- Check that the downrod hemisphere notch is engaged in canopy.
- Check to make sure that jam screws in downrod are tightened.
- Make sure canopy and mounting bracket are
tightened securely to wooden joist.
- Make sure warpage has not occurred in wooden
blades. If so, contact the customer service department
for replacement parts.
Pg. #4
Pg. #9
INST
INST
ALLA
ALLA
TION
TION
NOTE: All set screws must be checked and
retightened where necessary, before and after
installation.
1
1
.
.

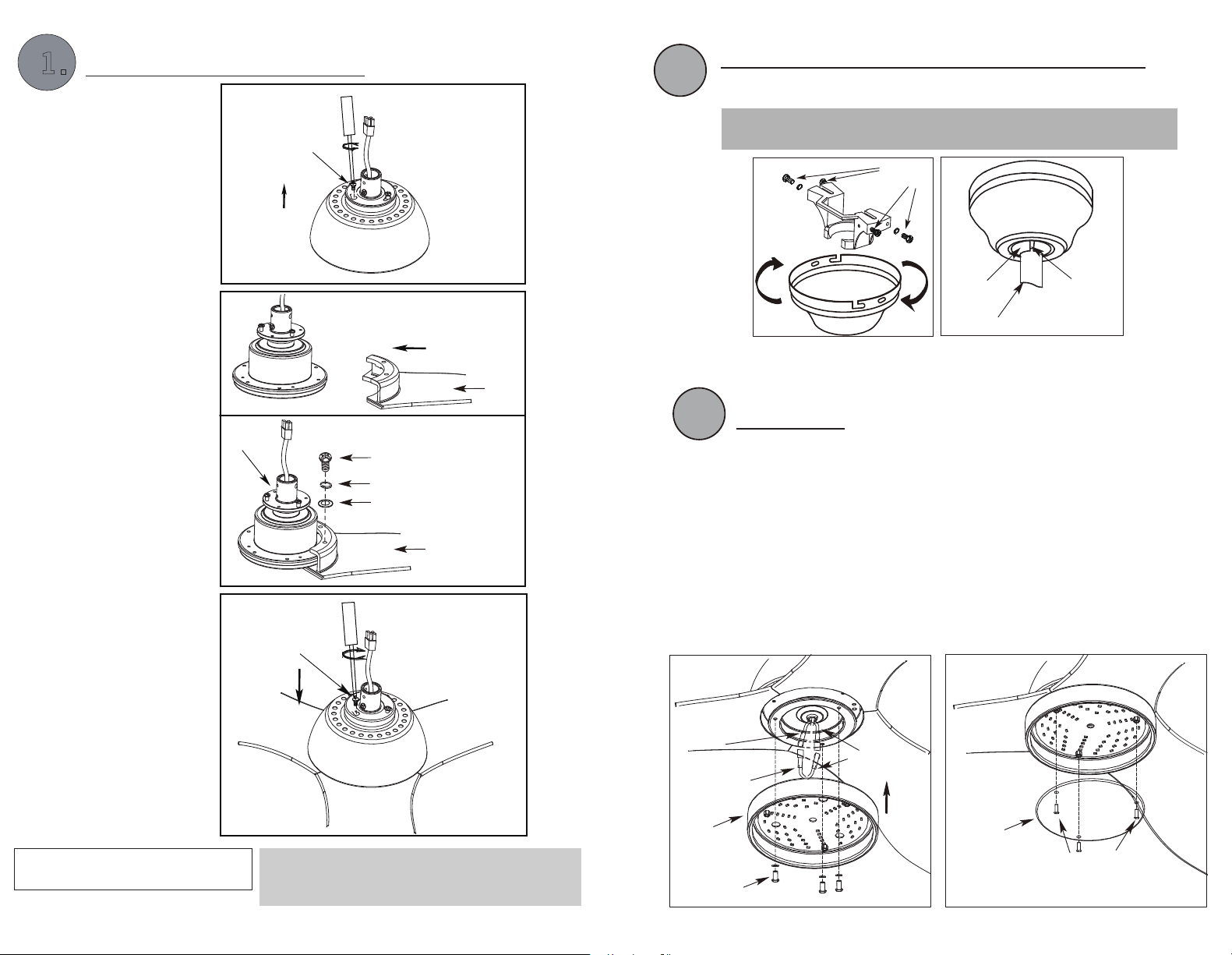

ATTACH THE
FAN
BLADES
- Attach the blades to the
fan motor assembly using
- Re-attach the cover to
the top housing.
- Remove the cover on
the top housing.
Blade Bracket Screw
Screw
Screw
Lock Washer
Metal Washer
Blade
Blade
Motor
Fig.2b
Fig.2a
Fig.2c
ENGAGE HEMISPHERE (Downrod Mount Only)
- Carefully rotate fan assembly until groove in hemisphere locks over tab of
canopy assembly.
NOTE: When installing fan on sloped ceiling, make sure tab on hanger bracket
faces towards the top of the slope. Depending on the slope, a longer
downrod may be required to prevent fan blades from hitting the ceiling.
WARNING: Failure to seat tab in groove could cause damage to
electrical wires and possible shock or fire hazard.
Downrod
Hemisphere
Groove
Fig.8b
6.
(A)
(B)
(B)
Washers
(A)
Fig.8a
the Blade Bracket Screws,
Metal Washer and Lock
Washer. Slightly turn the
blade after installation and
repeat the same step for
the other blades.
- Remove light kit screws and washers.
- Connect polarized connectors of light kit to corresponding connectors
found in switch housing.
WARNING: BE SURE TO TURN OFF POWER
BEFORE INSTALLING
Kit
LIGHT KITS
DETACHABLE LIGHT KITS
for your model)
(Refer to one of the following light kits
7.
Red or Blue
Wires
WhiteWires
Blackor
Blue Wires
Light Kit
Screw
Light Kit
Fig.9a
Plastic Screw
Fig.9b
- Install the light kit to the fan motor assembly by tightening 3 screws.
- Connect polarized connectors of light kit to corresponding connectors
found in switch housing.
- Remove the 3 plastic screw from light kit.
- Install the glass panel on the light kit by tightening the 3 plastic screws.
- Screw the diffuser to the Light kit.
Glass Panel
Pg. #8 Pg. #5
ELECTRICAL HOOK-UP
4.
MOUNTING OPTION
DOWNROD MOUNT
- Insert bolt through hole in shaft and downrod. Be careful not to
damage or cut the fan wires.
- Tighten flat washer and bolt. Secure with cotter pin through hole in the
end of the bolt.
- Secure downrod in position by tightening jam screws. Slide yoke cover
down so it is flush with the motor housing.
Fig.3a
- Remove cotter pin and bolt from yoke.
- Loosen jam screw in yoke until it is flush with the inside surface.
- Obtain downrod, canopy and yoke cover.
- Place downrod inside canopy and yoke cover.
-
Route
wires
exiting
motor
through
yoke
cover,
canopy
and downrod.
2.
Motor
Bolt
Yoke
Jam
Screw
Jam
Screw
Downrod
Canopy
Yoke
Cover
Bolt
Flat
Washer
Cotter Pin
Yoke
Jam
Screw
Cotter
Flat
Washer
Pin
Fig.3b
Fig.3c
Fig.3d
Fig.3e
FUNCTION INSTRUCTION OF EMITTER
C
Fig.7
①
②
③
④
⑥
⑤
⑦
⑧
MOUNTING FAN ASSEMBLY
5.
- Place two screws and washers on mounting plate (marked B on diagram)
which correspond with slots in canopy. Screw in two turns.
- Position canopy to mounting plate aligning slots to screws (marked B on
diagram) then turn to lock.
- Position and tighten the two screws and washers (marked A on diagram)
then tighten the two screws (marked B on diagram).
- Learning code and matching mode is used between transmitter and receiver.
- Turn "ON" the supply power. Within 30 seconds, press "FAN ON" button on the
transmitter for 5 seconds. Transmitter
and receiver are connected after hearing
a long “beep".
- If the transmitter cannot control the fan,
check to ensure all wiring connections are
properly connected according to the
instruction manual. Check to ensure the
batteries are on the right position. Check
whether there is any similar remote
control is working nearby. Check whether
they work with the same frequency.
- Low voltage of battery will affect the
sensitivity of the transmitter. The
indicated light will flash when the batteries
get to low voltage. Replace the batteries for better performance.
- Take out the batteries from the transmitter when leaving unused tor long time.
- Ensure to connect the ground wire accordingly.
Pg. #6
Pg. #7

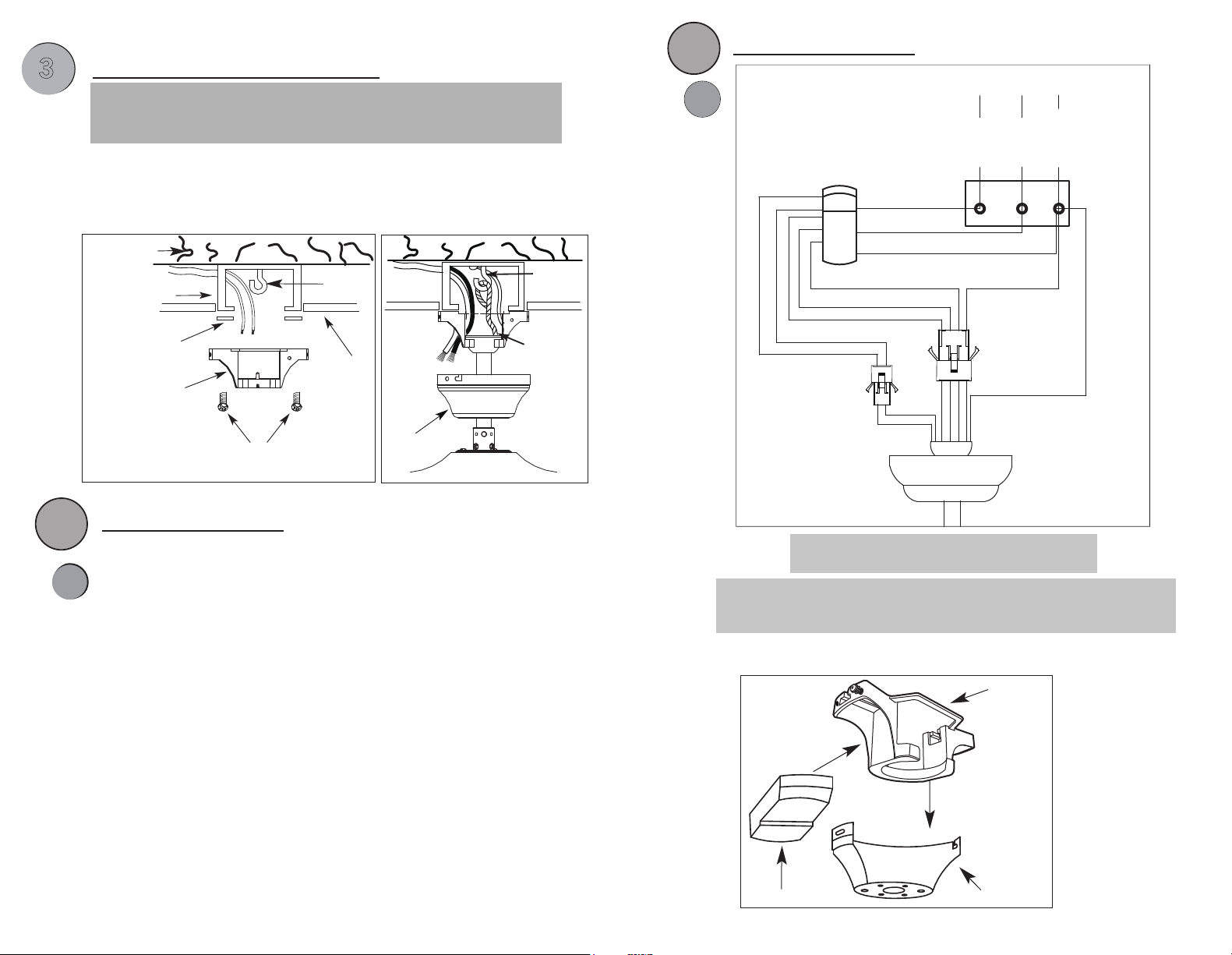

ELECTRICAL HOOK-UP
NOTE: Once ground wires are connected, carefully tuck all wires and marrettes
into the metal outlet box making sure that the wires are clear of the
hemisphere and downrod when positioned in mounting bracket.
Make the following wire connections to the receiver unit (see fig. 5) using the
wire nuts supplied.
- Connect GREEN fan wire to BARE (ground) wire.
- Connect BLACK receiver unit wire to BLACK supply wire.
- Connect WHITE receiver unit wire to WHITE supply wire.
B
120V
SUPPLY CIRCUIT
In Quebec, the installation of this product must
be carried out by a qualified electrician.
-
-
After making the wire connections, ensure the wires should be spread
apart with the grounded conductor and the equipment-grounding
conductor on one side of the outlet box and the ungrounded conductor
on the other side of the outlet box.
Ensure the splices after being made should be turned upward and
pushed carefully up into the outlet box.
Fig.5
4.
INSTALL MOUNTING BRACKET
- Install J-Hook through centre of outlet box and into the wooden joist.
- Secure mounting bracket and rubber gaskets to outlet box.
- Hang the safety cable onto the J-hook.
WARNING: To Reduce The Risk Of Fire, Electric Shock, Or Personal
Injury, Mount To UL/CSA Listed Outlet Box Marked Acceptable for
Fan Support And Use Mounting Screws Provided With The Outlet Box.
ELECTRICAL HOOK-UP
A
- Hang fan on temporary hook or mounting bracket.
Fig.4a
Fig.4b
3
3
.
.
4.
Ceiling
Outlet box Screws
(Not provided)
J-Hook
Safety
Cable
Canopy
J-Hook
Wood Joist
Outlet Box
Rubber Gasket
Mounting Bracket
BOX
OUTLET
Fan
BLUE
WHITE
WHITE
BLACK
BLUE
WHITE
BLUE
WHITE
RED
PINK
BROWN
GREEN
GREEN
GREEN
WHITE
BLACK
GROUND
GROUND TO DOWNROD
GREEN
RED
PINK
BROWN
RECEIVER
- Push all connected wires up into ceiling box.
- Position the receiver into the canopy as shown direction.
Reciever
Mounting
Plate
Canopy
Fig.6
-
Connect the 4-Wire female and male plug.
-
Connect the 2-Wire female and male plug.
- When installing
the canopy, ensure
the antenna is not
pressed by the canopy.
