Fnirsi 1013D User Manual
Fnirsi 1013D - Digital Tablet Oscilloscope Dual Channel 100m Bandwidth 1gs Sample Rate Capacitive Touch Screen + Gestures
Two Channel Plate Oscilloscope User Manual
For 1013D.
PDF File Manual
,
17 pages
,
Read Online
|
Download pdf file

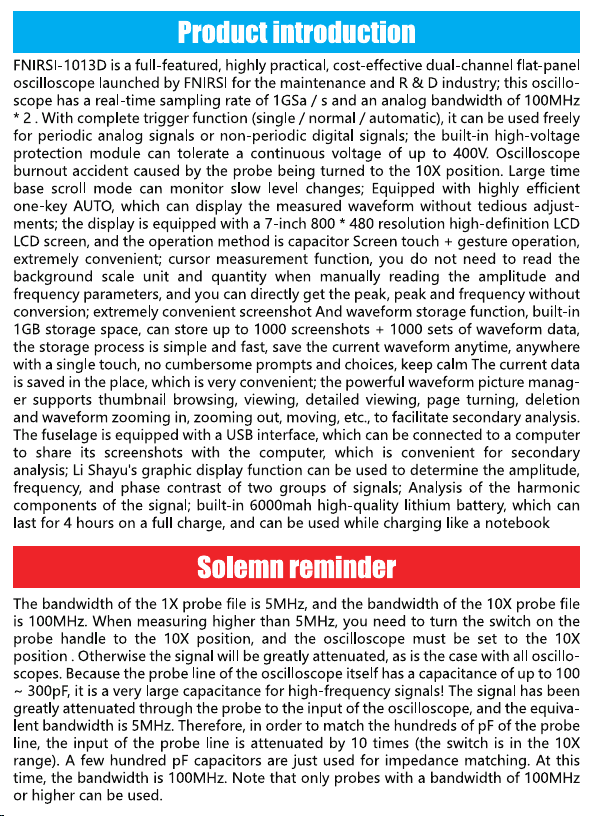

Product Introduction
Solemn Reminder

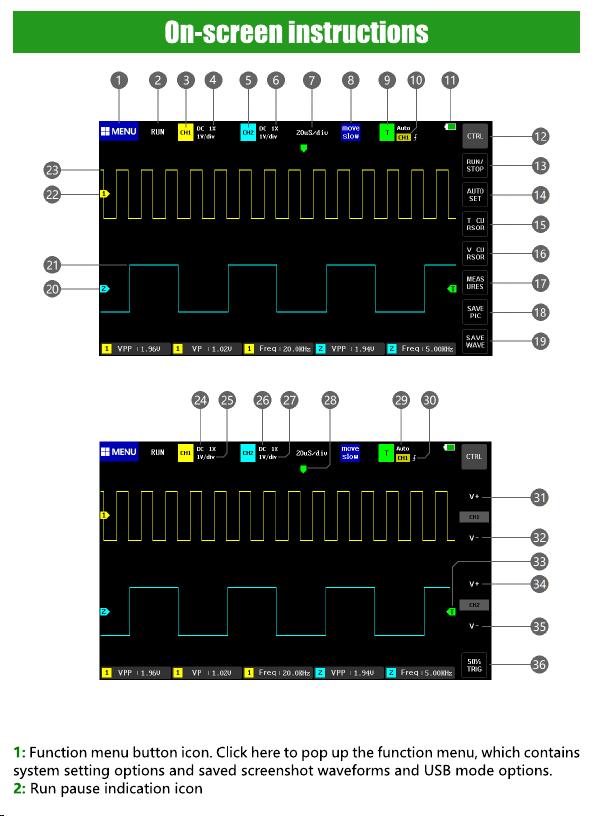

OnScreen Instructions

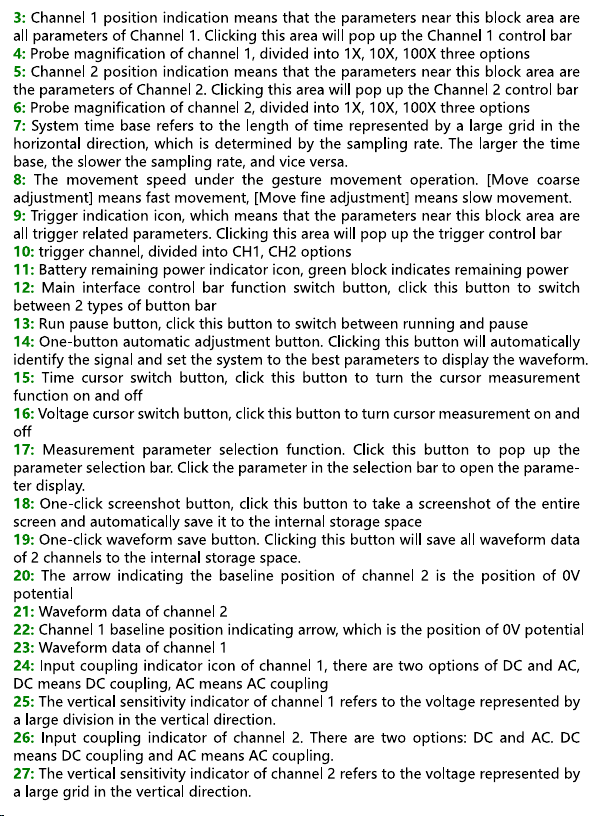

Control Bar Touch Indicator

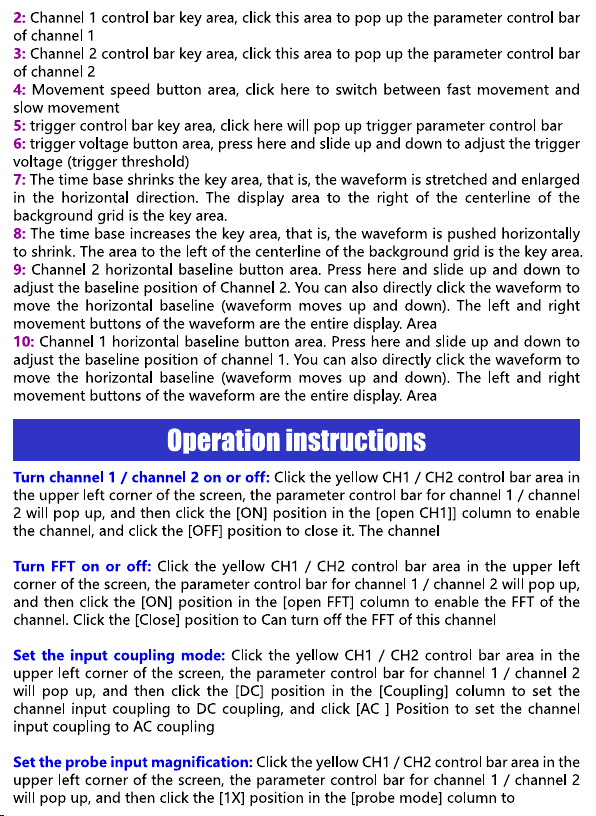

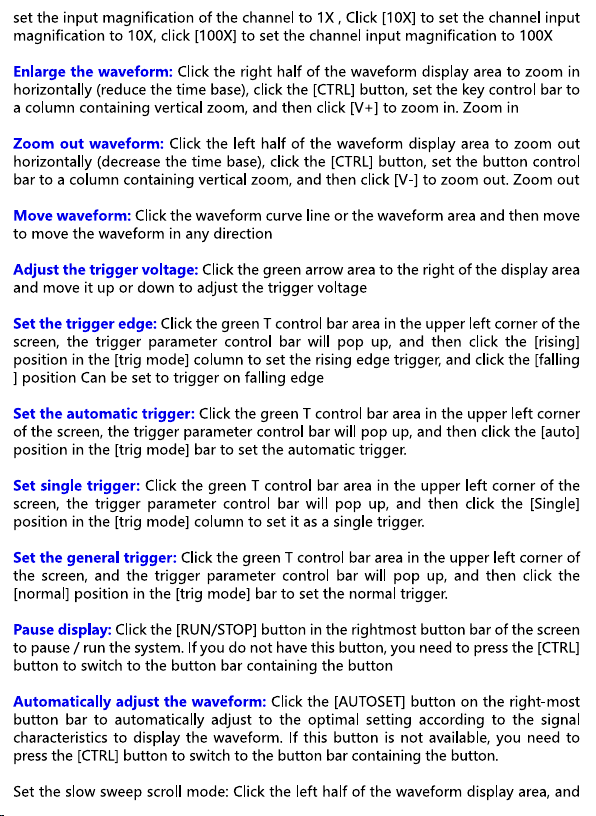

Operation Instructions

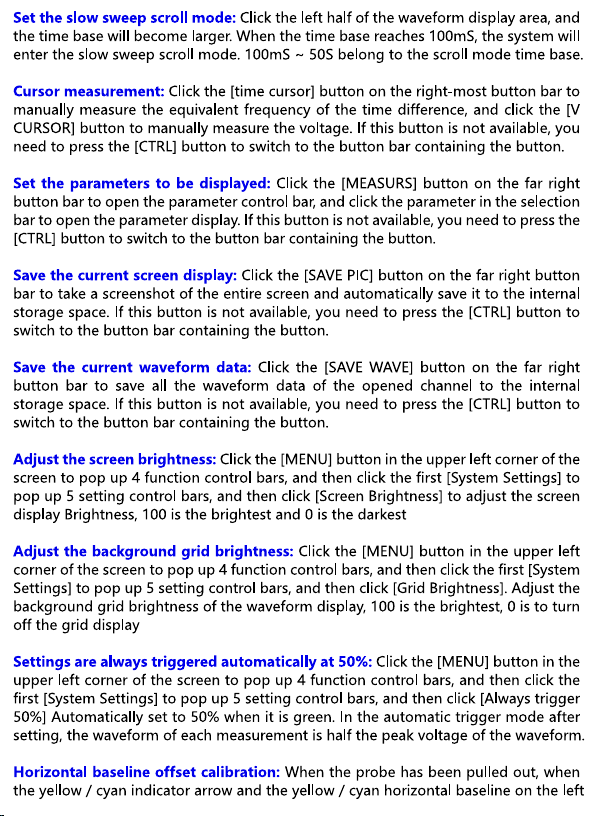

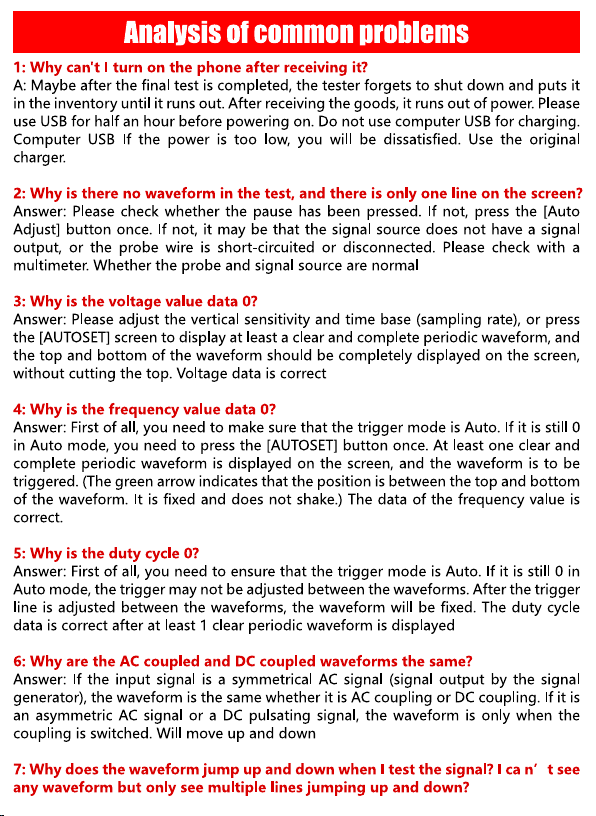

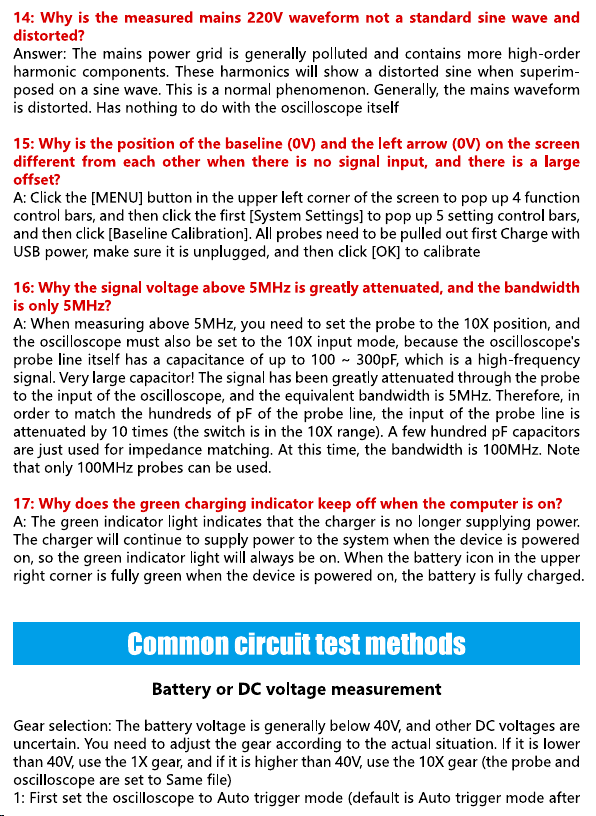

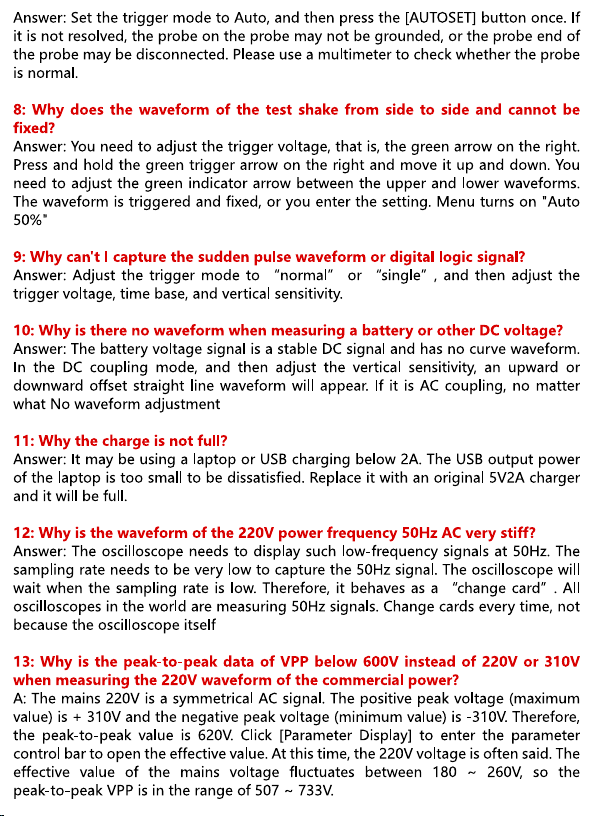

Analysis Of Common Problems
Common Circuit Test Methods

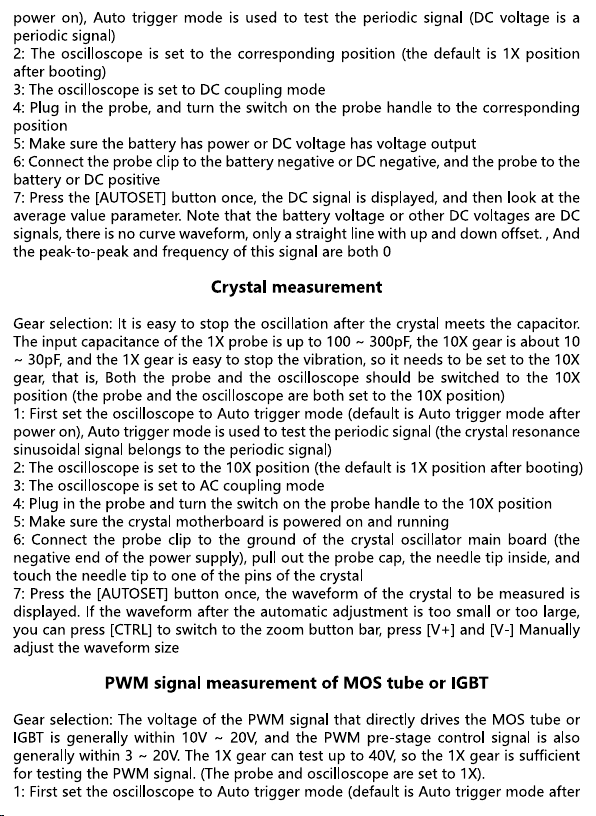

Battery Or DC Voltage Measurement
Crystal Measurement
PWM Signal Measurement Of MOD Tube Or IGBT

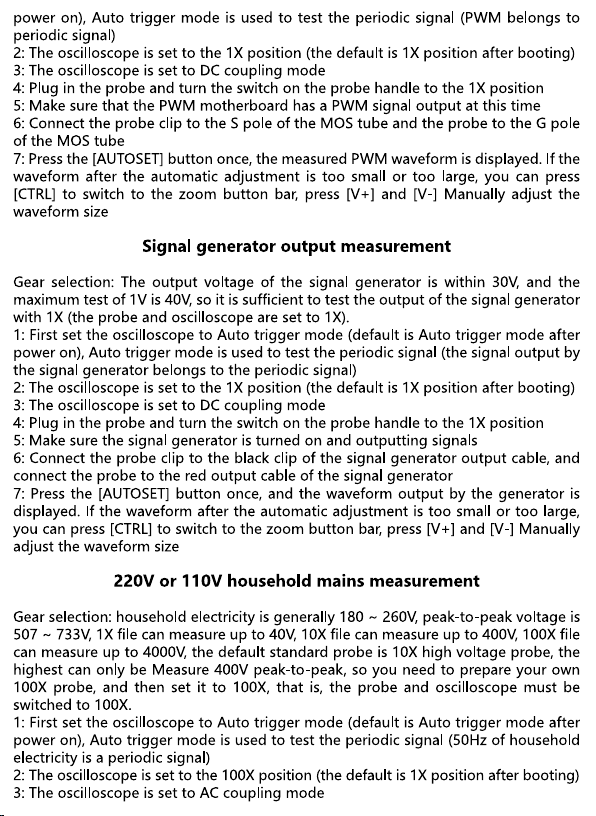

Signal Generator Output Measurement
220 V Or 110V Household Mains Measurement

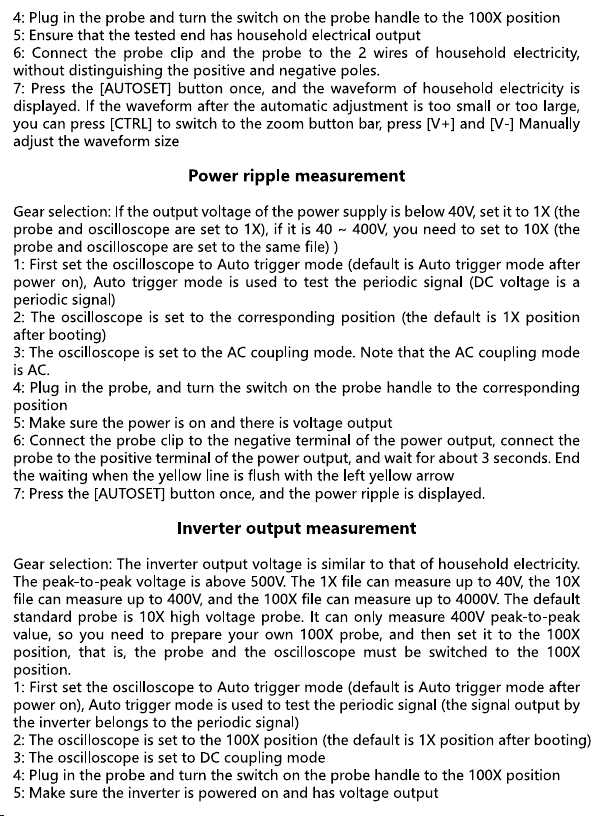

Power Ripple Measurement
Inverter Output Measurement

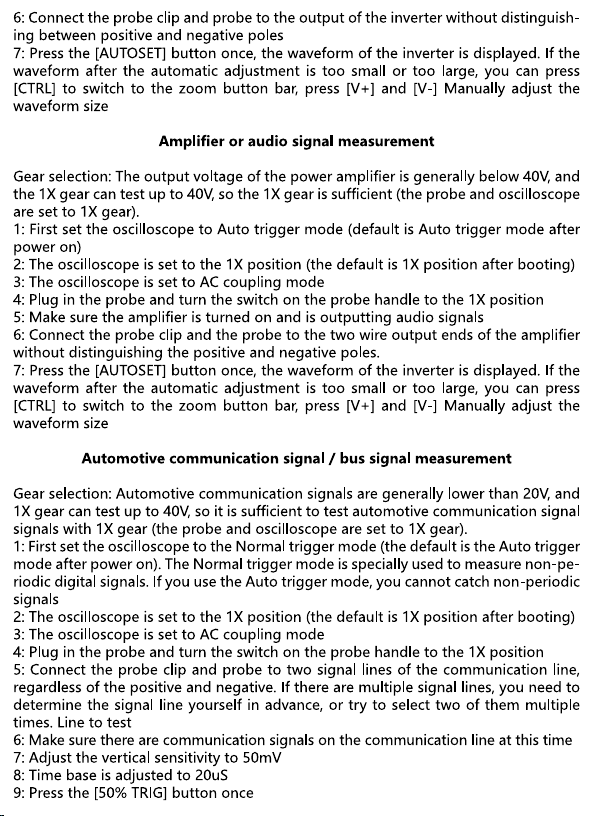

Amplifier Or Audio Signal Measurement
Automotive Communication Signal / Bus Signal Measurement

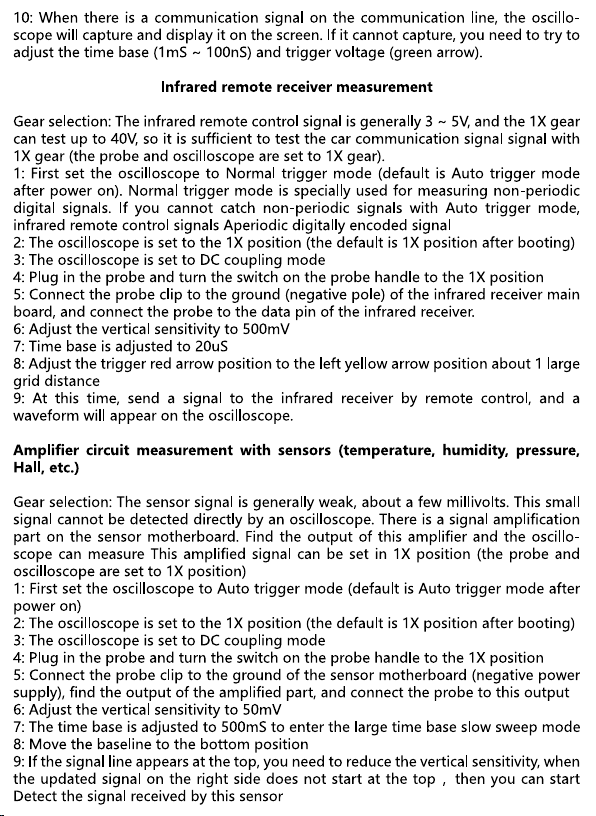

Infrared Remote Receiver Measurement
Amplifier Circuit Measurement With Sensor
Page 1/17
Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Page 9
Page 10
Page 11
Page 12
Page 13
Page 14
Page 15
Page 16
Page 17
