Table of Contents
1 Statement .............................................................................................. 1
1.1 Agreement ................................................................................... 1
1.2 Copyright information ................................................................. 1
1.3 Disclaimer .................................................................................... 2
1.4 Safety Information ....................................................................... 2
1.4.1 Inspection Precautions ..................................................... 3
2 Product description ............................................................................. 6
2.1 Product Overview ........................................................................ 6
2.2 Differences of V6 Series ............................................................... 7
2.3 VCI Model for V6 BT..................................................................... 8
2.4 VCI Model for V6 Pro ................................................................. 10
2.5 Host Model ................................................................................ 13
2.6 The Product Specifications ........................................................ 16

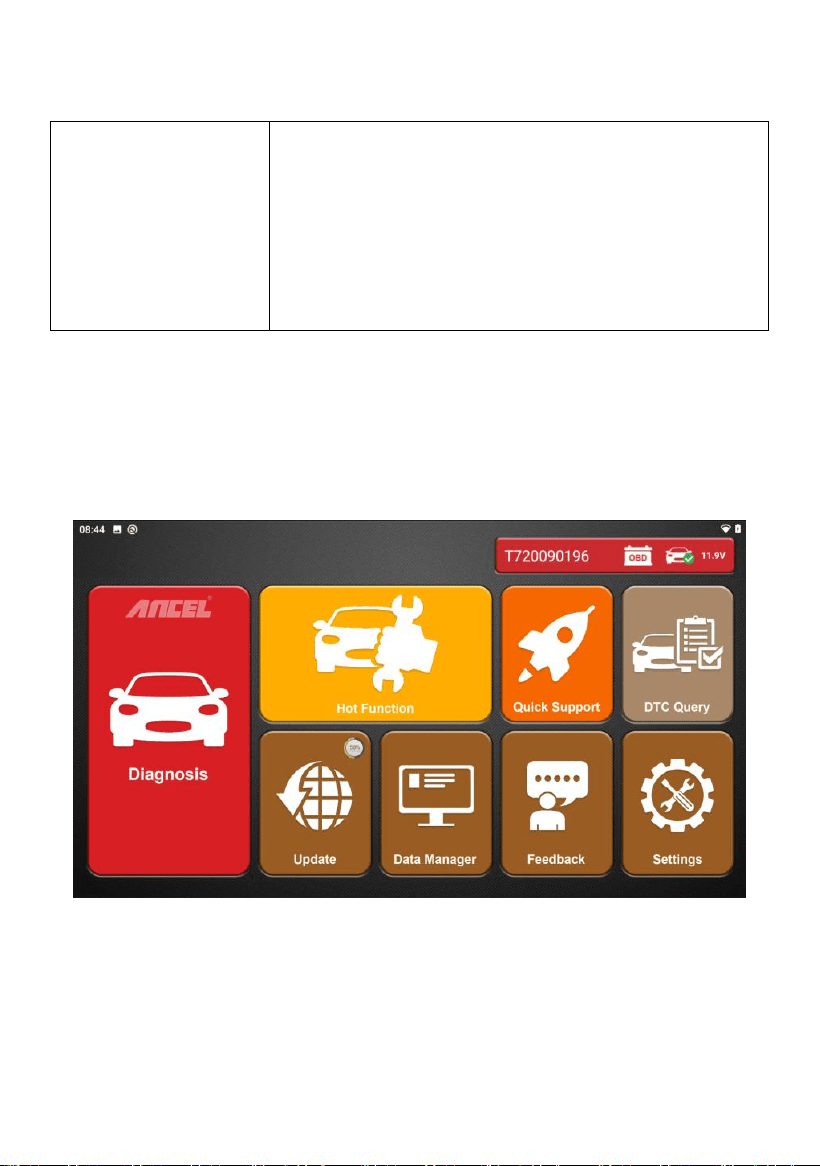

3 Product software introduction .......................................................... 17

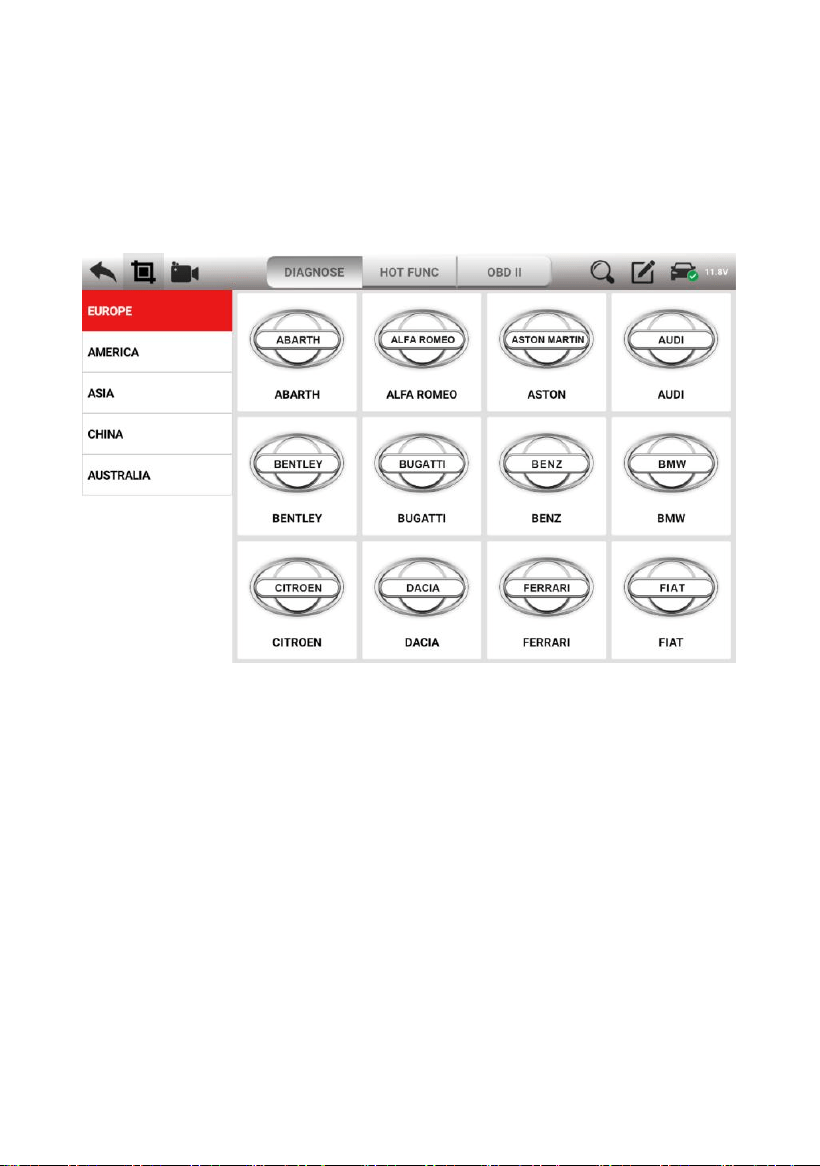

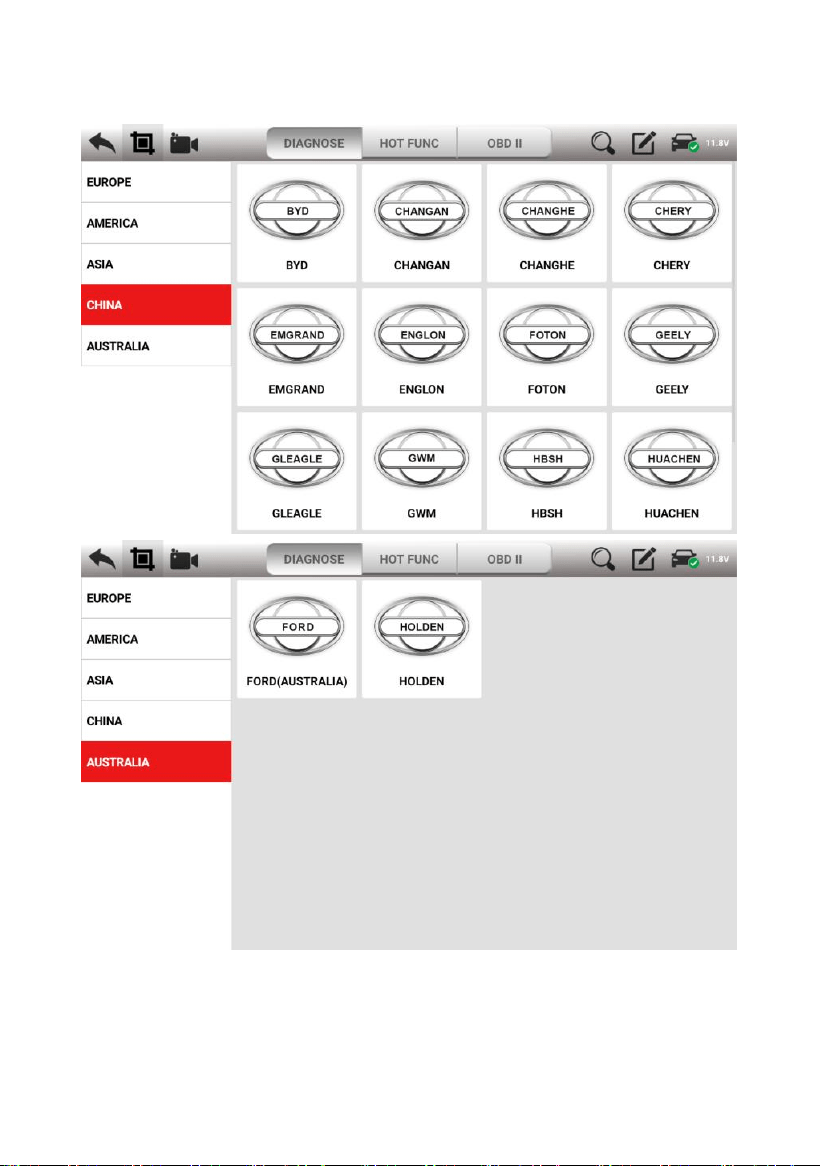

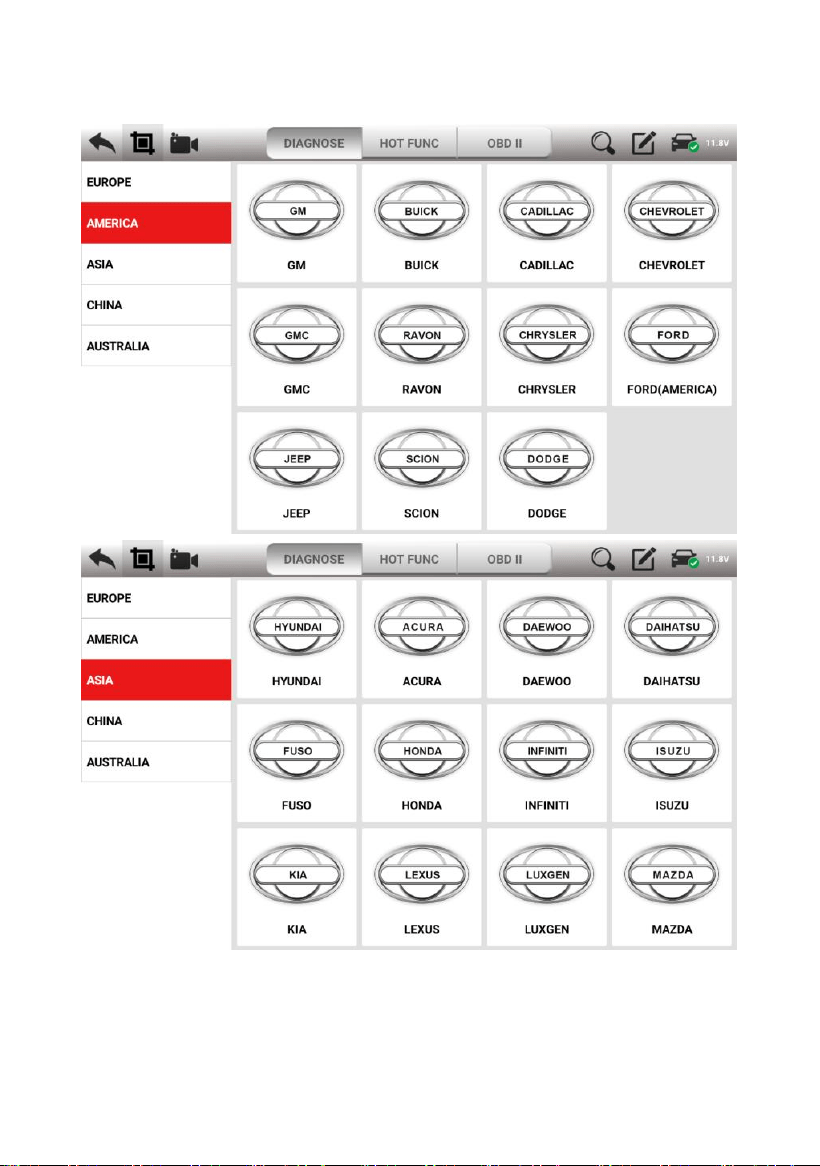

3.1 Diagnosis.................................................................................... 18

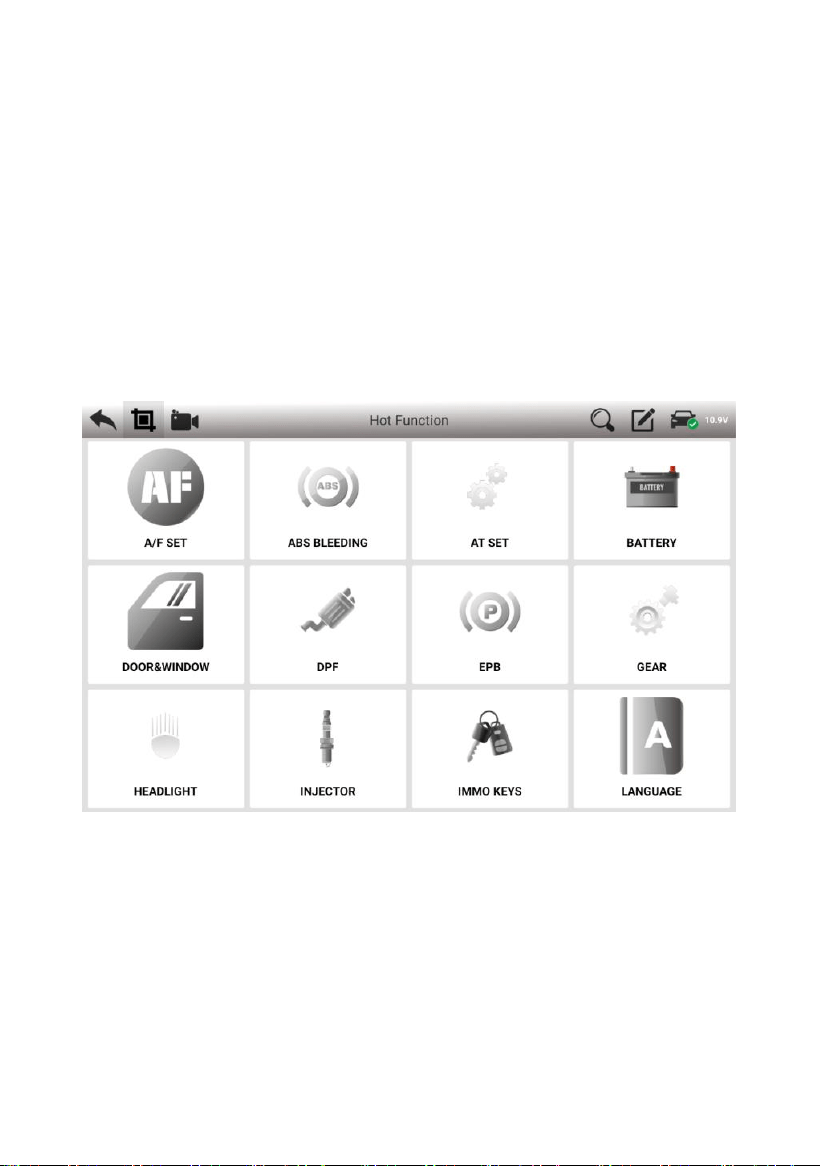

3.2 Hot function ............................................................................... 21
3.3 Update ....................................................................................... 24

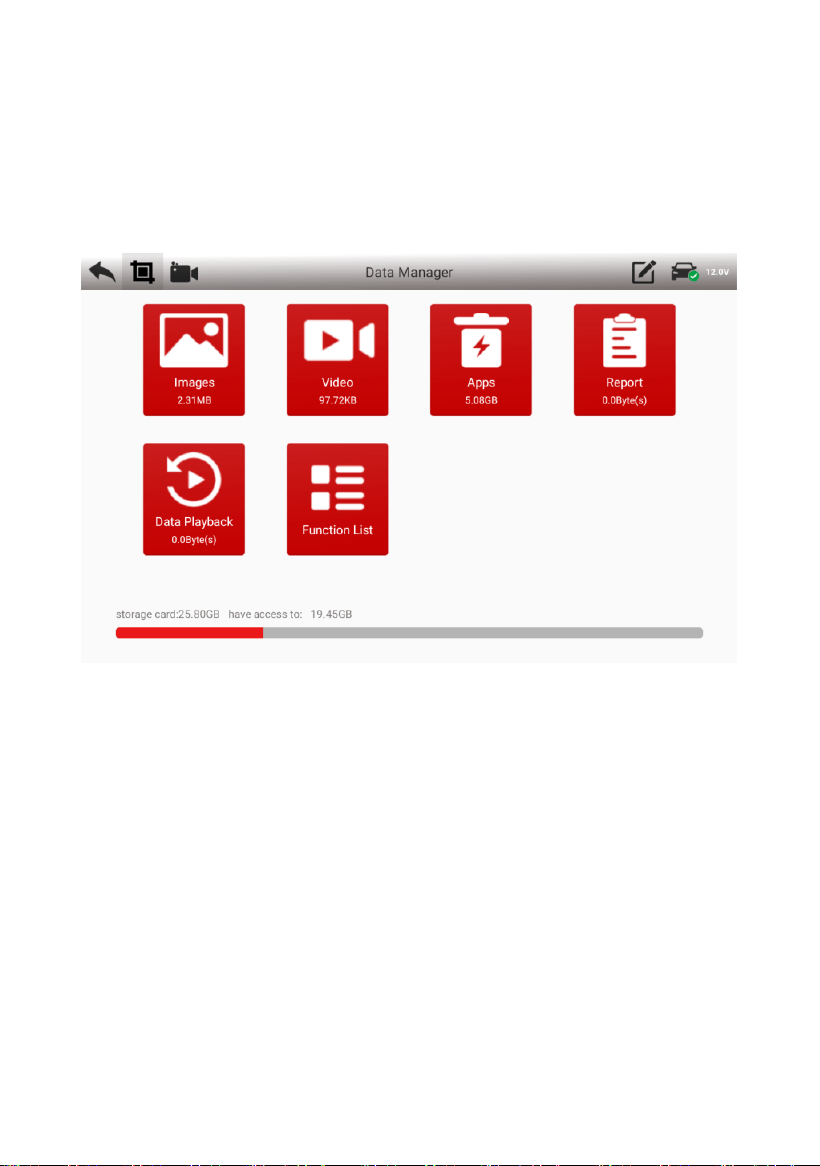

3.4 Data Manager ............................................................................ 26

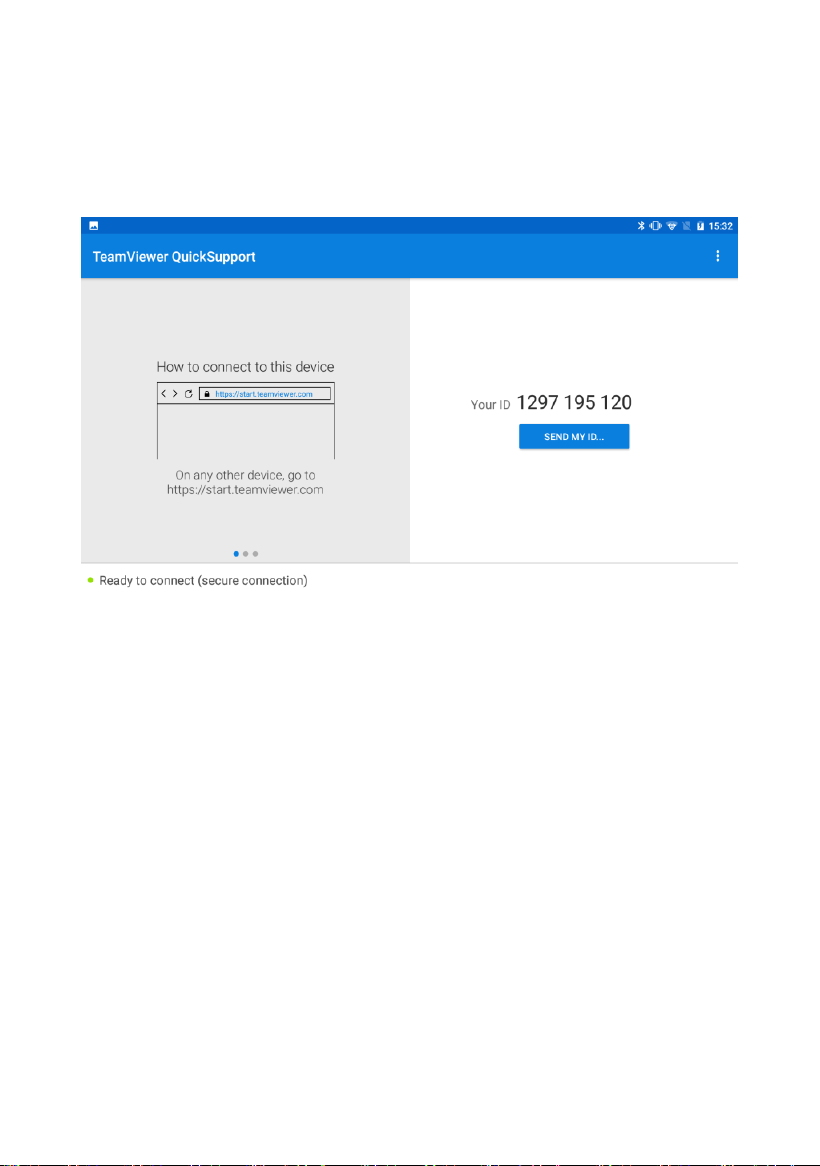

3.5 Quick Support ............................................................................ 27

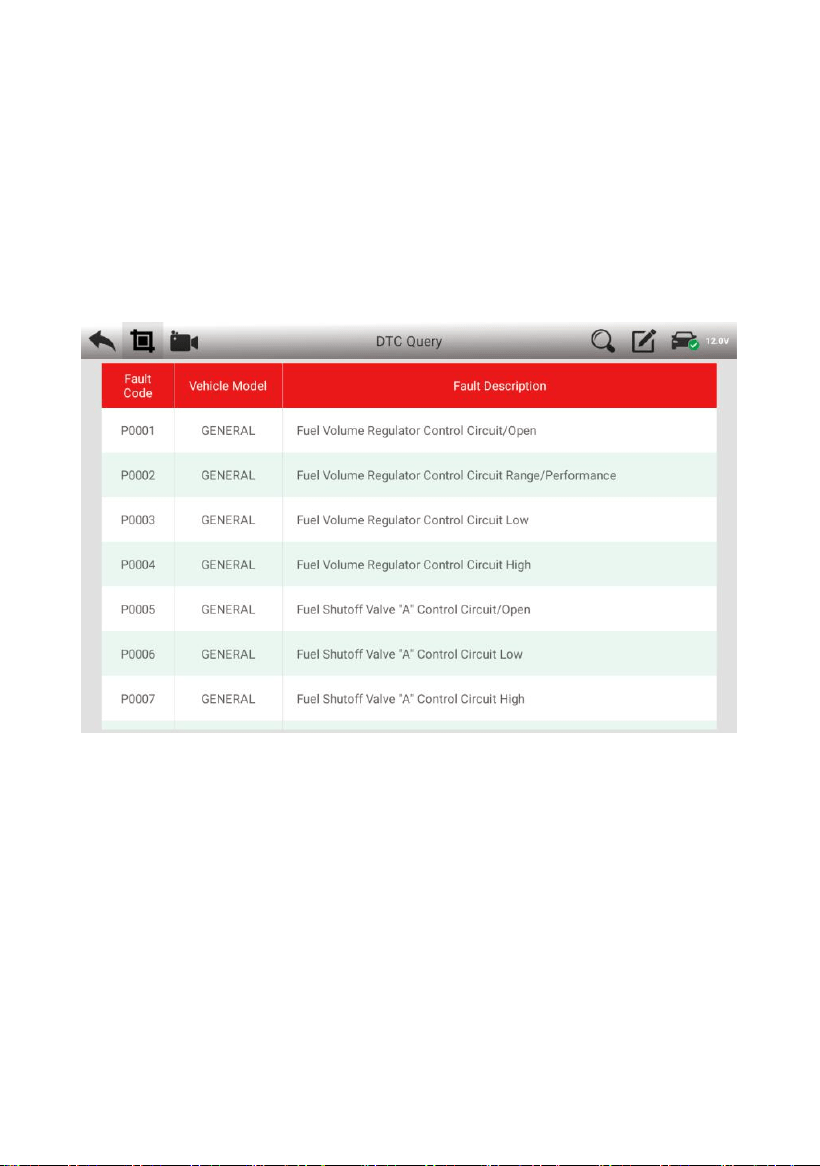

3.6 DTC Query .................................................................................. 28

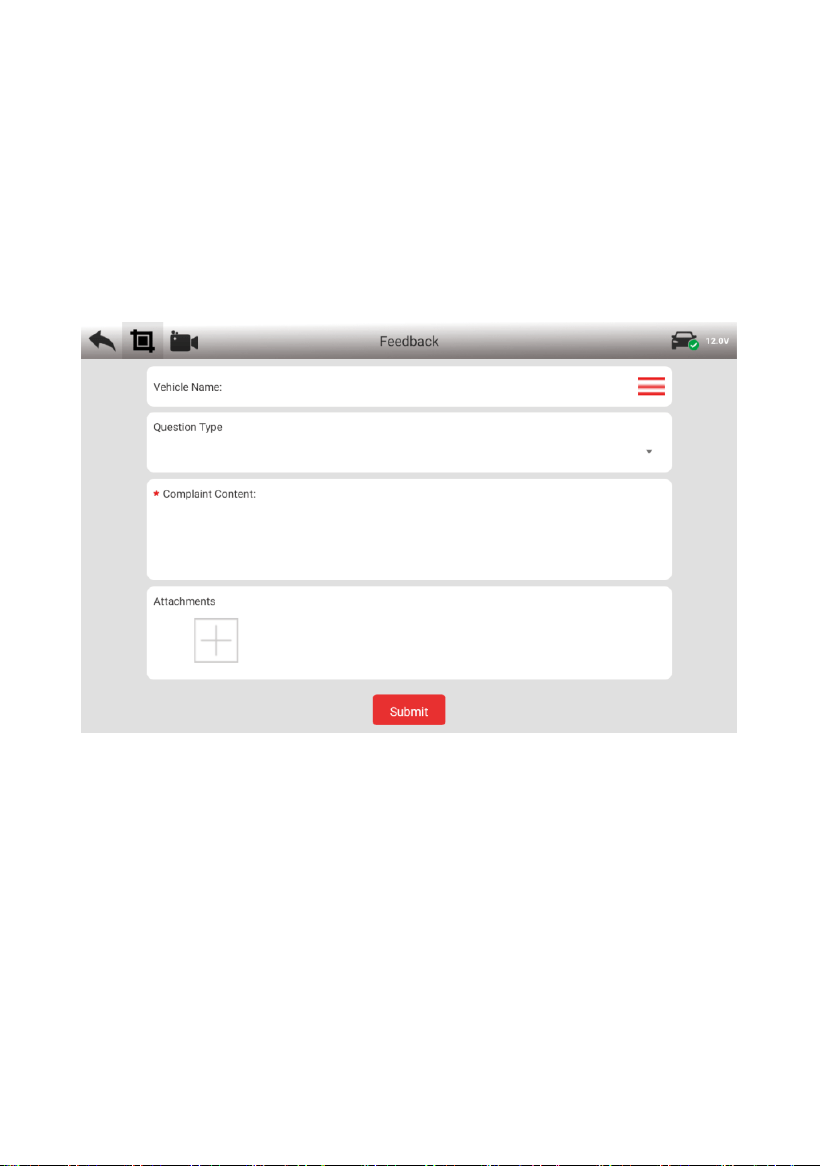

3.7 Feedback.................................................................................... 29

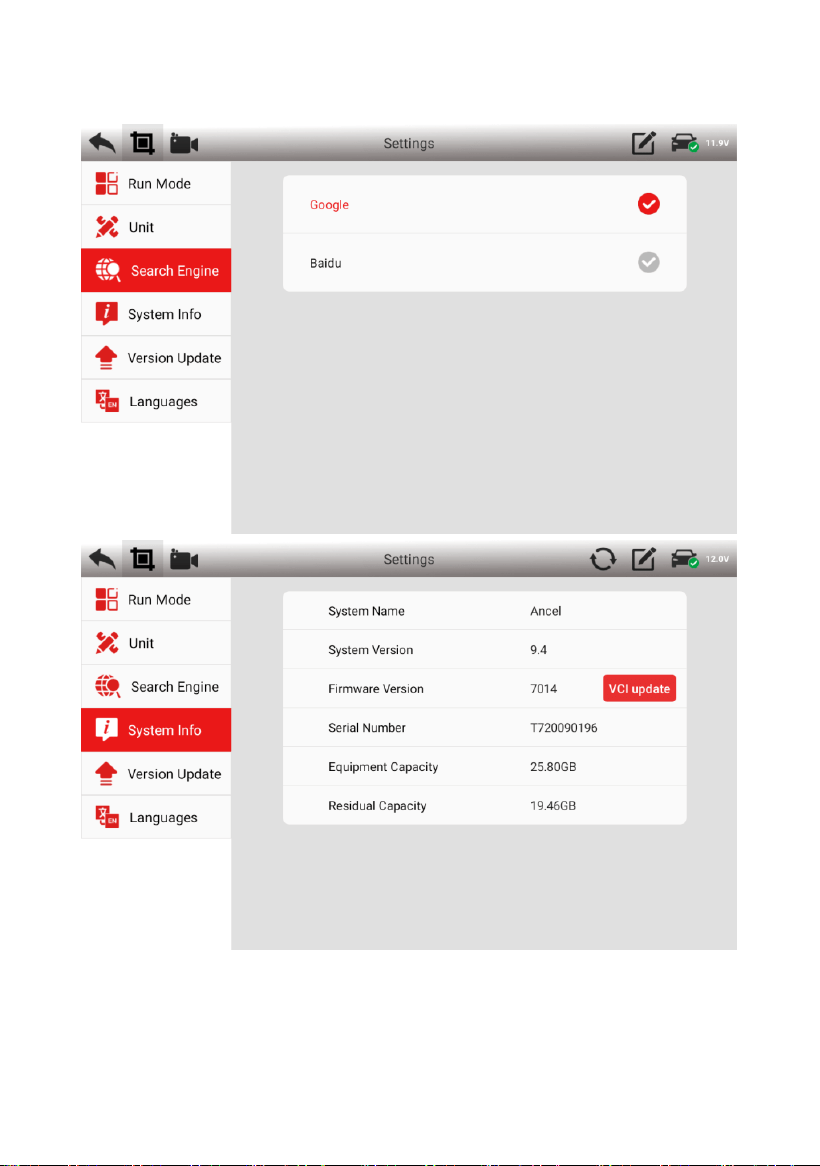

3.8 Settings ...................................................................................... 29

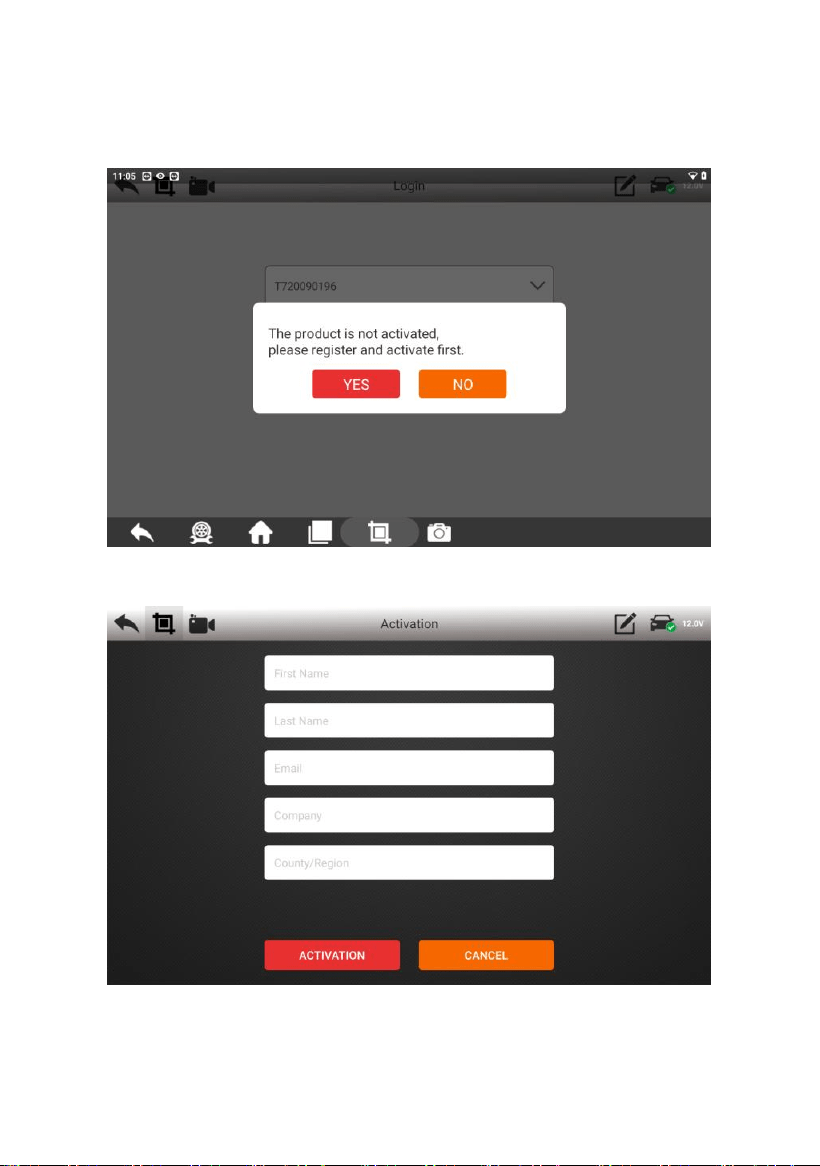

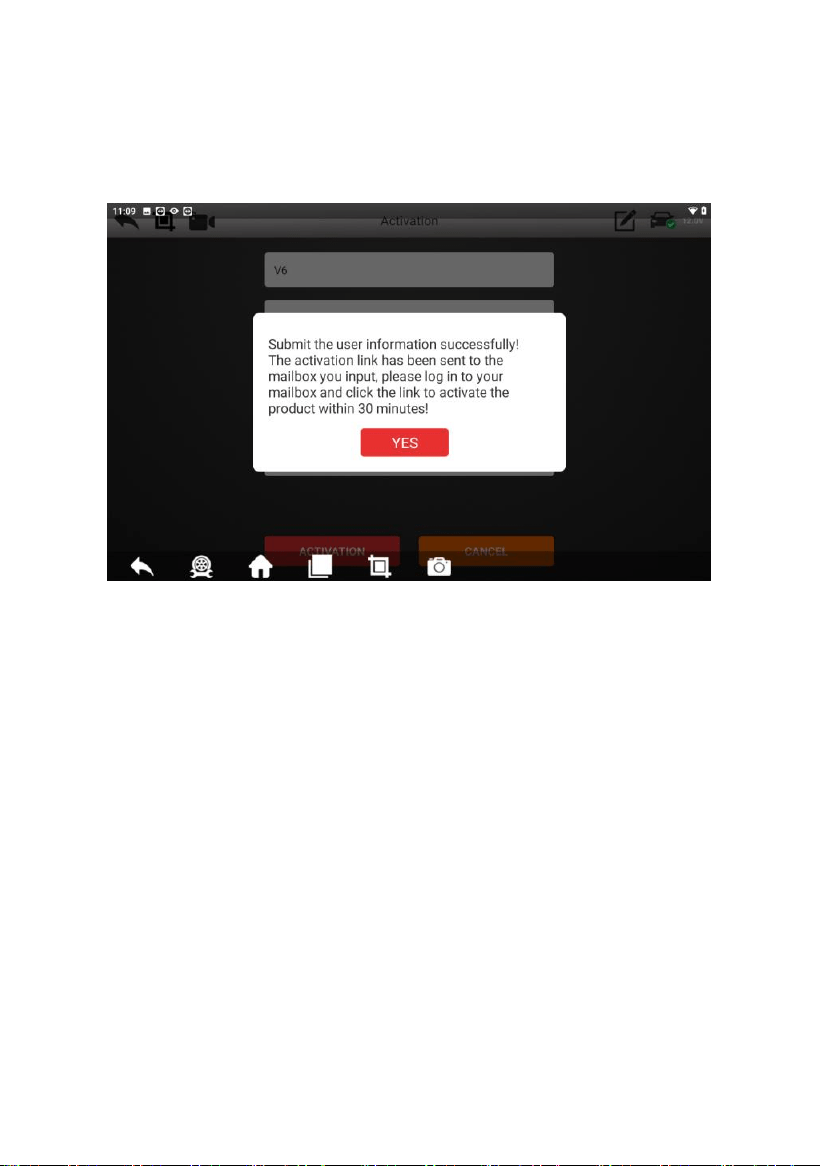

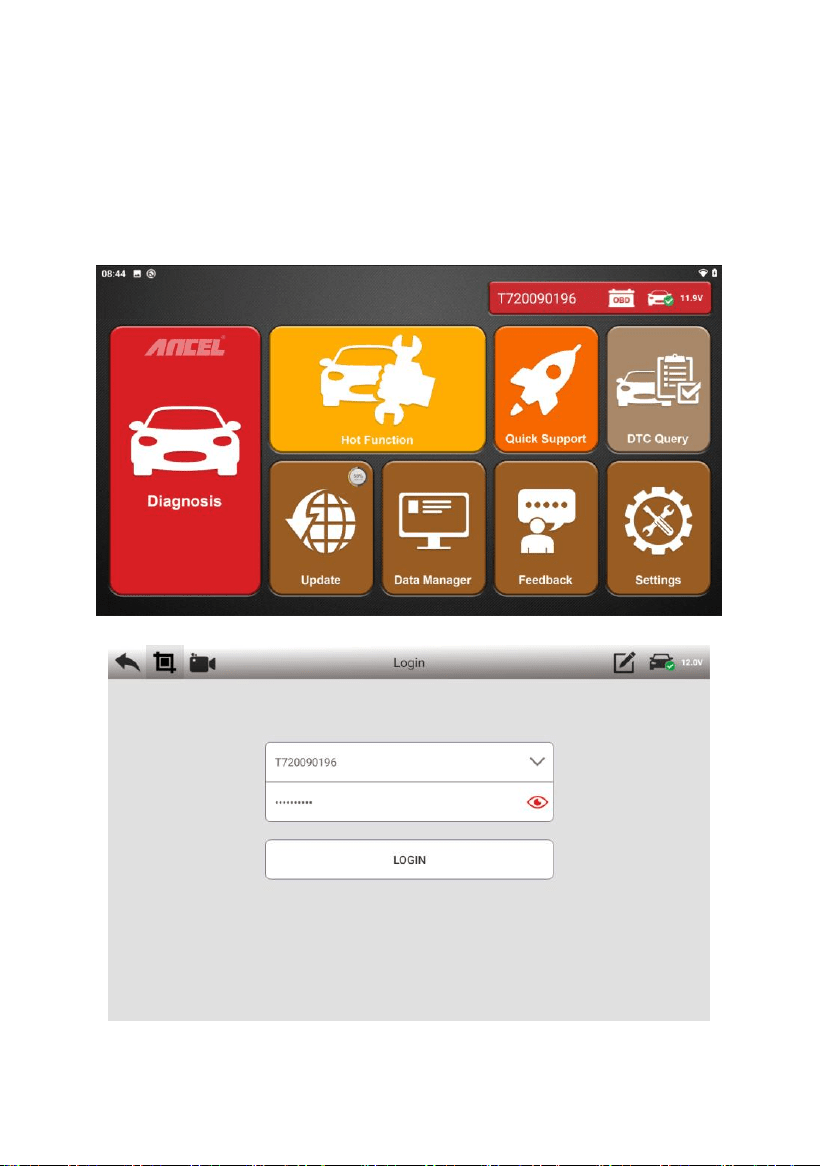

4 Product activation .............................................................................. 33
5 Cleaning and maintenance and warranty ...................................... 36
5.1 Cleaning and maintenance ........................................................ 36
5.2 Warranty .................................................................................... 37
1
1 Statement
You must carefully read the instruction manual, especially the
safety instructions, before you can connect, commission and
operate the products of OBDSPACE TECHNOLOGY CO., LTD.,
Ltd. (hereinafter referred to as “OBDSPACE”).
1.1 Agreement
Once the product is used, it is an endorsement of the following:
(1) Please refer to the packing list of the random distribution for the
configuration equipment of this product, whichever is the actual
product;
(2) The functions and pictures described in this manual are subject
to the actual software. All information, specifications and
illustrations in the manual are the latest information at the time of
publication. The company reserves the right to change it without
notice.
1.2 Copyright information
It cannot be copied or stored in any form(electronic, mechanical,
photocopying, recording or otherwise) without prior written
permission being secured from OBDSPACE. Software and data are
owned by technology and protected by copyright laws, international
2
contract law, and other national laws. It is strictly forbidden to copy
or transfer the data and software or some of the contents. If there is
any violation, the technology will be held legally responsible
according to law.
1.3 Disclaimer
(1) This manual only provides the operation and operation methods
for Ancel V6 Series. The company does not assume any
responsibility for the consequences caused by using the operation
methods for other equipment operations.
(2) The company shall not accept any responsibility for accidents
caused either by the user personally or anyone else, or costs and
expenses due to equipment damages including equipment loss
caused by the user’s abuse or misuse, arbitrary changes or repairs
or operation of the equipment in a manner not in accordance with
the manual requirements.
1.4 Safety Information
For the safety of yourself and others, and to avoid damage to
equipment and vehicles, all personnel handling the equipment must
read the safety precautions mentioned in the manual.
3
1.4.1 Inspection Precautions
(1) Ancel V6 Series can only be connected to a safety outlet that is
grounded. Before connecting, check and confirm that the diagnostic
circuit is in good condition. Otherwise, it is not necessary to test to
avoid damage to the main unit. If necessary, use a multimeter to
measure the diagnostic seat voltage.
(2) Use only the power cord supplied with the OBDSPACE
diagnostics or detected power line.
(3) Pay special attention to the effects or damage caused by
environmental factors such as acid and alkali, poison gas, and
heavy pressure.
(4) Exhaust gases from the engine contain a variety of toxic
compounds and should be avoided. Park the vehicle in a well
ventilated area before operation.
(5) Do not place the device on the vehicle's power distribution unit.
Strong electromagnetic interference can cause damage to the
equipment.
(6) After the equipment is installed successfully, before starting the
engine, make sure that the parking brake is pulled and the speed
lever is placed in the neutral or parked position to avoid accidents
when the vehicle is started.
(7) When the engine is running at a high temperature, avoid contact
4
with high temperature components such as the water tank and the
exhaust pipe. At the same time, be careful of the voltage generated
by the components such as the ignition coil, the distributor cover,
the ignition circuit and the ignition plug during engine operation.
1.4.2 Notes on the use of the instrument
(1) This instrument is a precision electronic instrument. Do not drop
it. Handle it as gently as possible, away from heat and
electromagnetic fields.
(2) Ensure that the instrument and diagnostics are well connected
so that signal interruptions do not affect the test.
(3) Use screws as much as possible when using the cables and
connectors to avoid disconnecting and damaging the connectors
when moving. Hold the front end of the connector when pulling the
connector, and avoid pulling the rear cable to avoid damage to the
diagnostic interface.
(4) When the electrical components are energized, the circuit
cannot be disconnected to prevent self-inductance, mutual
inductance and current sensors and the vehicle ECU.
(5) The operation of this instrument requires a certain basis for
vehicle inspection and maintenance, and has a certain
understanding of the electronic control system of the vehicle under
test.
1.4.3 Operating car ECU considerations
When performing diagnostic operations on a vehicle equipped with
5
a computer control system, the following should be noted:
(1) Do not place magnetic objects such as radio speakers close to
the computer, as the magnetic properties of the speakers can
damage the circuits and components in the ECU.
(2) When the ignition switch is turned on, the internal electrical
equipment of the car must not be disconnected. Due to the
self-inductance of the coil when disconnected, a high instantaneous
voltage will be generated, which will cause damage to the sensor
and ECU;
(3) When performing repairs near a computer or sensor, special
care should be taken to avoid damage to the ECU and sensor;
(4) When carrying out maintenance work on or near the
ECU-controlled digital meter, be sure to wear a metal strap with one
end clamped to the body and the other end wrapped around the
wrist;
(5) When performing welding work on a car, the ECU system power
should be turned off beforehand;
(6) Do not use test lights to test ECU-related electrical devices to
prevent damage to the ECU or sensor unless specifically stated;
(7) Test ECU and sensors cannot be tested with a pointer-type
ohmmeter, unless otherwise specified in the test procedure, but
should be tested with a high-impedance digital meter.
6
2 Product description
2.1 Product Overview
Ancel V6 Series (including V6, V6 BT, V6 Pro) is a proffessional
efficient and convenient diagnostic tool for passenger car.
Powerful quad-core Cortex-A53 2.0GHz processor with faster
2GB LPDDR4 and reliable 32GB On-board memory
Android 10.0 OS running on 8.0 inch IPS Multi-touch
capacitive touch screen
Unique ergonomic design with rubberized outer protection and
a rugged internal housing
Built-in rechargeable lithium-polymer battery for up to 10 hours
of continuous operation
OE-Level full-systems coverage for more than 80 vehicle
makes
Supporting 15 (V6) / 15 (V6 BT) / 25 (V6 Pro) most commonly
used service Reset Functions, more to cover soon
Remote Technical Support via Teamviewer
7
2.2 Differences of V6 Series
Differences
V6
V6 BT
V6 Pro
VCI
Integrate in
the Tablet
Small VCI
Big VCI
Connection
Wired
Bluetooth
Bluetooth
Service Reset
Function
15
15
25
Service Reset Function
V6
V6 BT
V6 Pro
OILREST
X
X
X
ABS BLEEDING
X
X
X
BATTERY
X
X
X
DPF
X
X
X
EPB
X
X
X
INJECTOR
X
X
X
SAS
X
X
X
THROTTLE
X
X
X
TPMS
X
X
X
IMMOKEYS
X
X
X
AT SETTING
X
X
X
GEAR
X
X
X
HEADLIGHT
X
X
X
SUSPENSION
X
X
X
SUNROOF
X
X
X
8
A/F SET
X
DOOR&WINDOWS
X
LANGUAGE
X
NOX SET
X
PUMP START
X
SEAT SET
X
START&STOP
X
TIRE SET
X
TRANSPORT
X
UREA SET
X
2.3 VCI Model for V6 BT
9

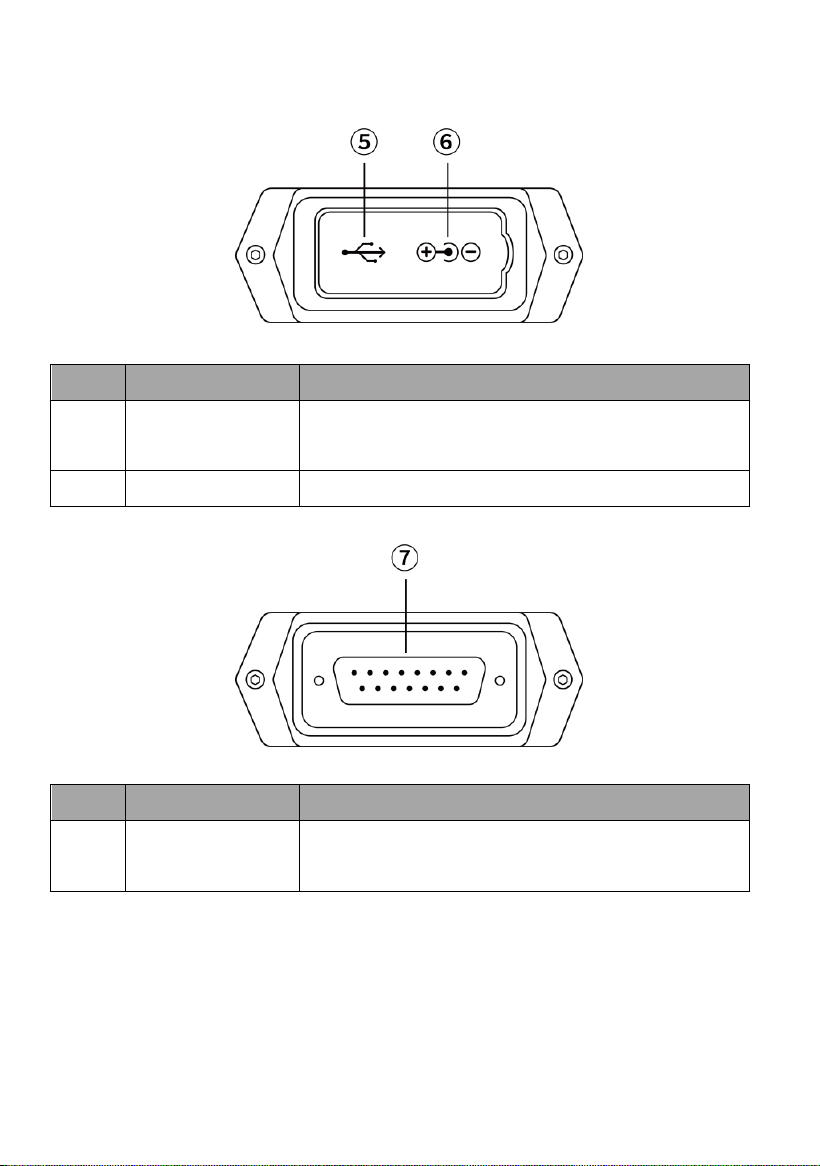

No.
Name
Description
①
Power and
Bluetooth
connection
Indicator
Light on red & blue flashing: Power on and
Bluetooth is disconnected
Light on blue: Bluetooth is connected
Light on blue flashing: communicating
VCI Box Parameters
Processor
ARM 32-bit Cortex processor
Input Voltage
DC 8-30V
Operating Temperature
-10 to 70℃ （14-158℉），relative Humidity:<90%
Storage Temperature
-30 to 120 ℃ （ -22-248 ℉ ），relative
Humidity:<90%
Communication model
Bluetooth or USB
Protocols
ISO 9141, ISO14230, ISO15765, ISO11898,
SAE-J1850 VPW, SAE-1850 PWM, UDS, K/L
lines, High speed CAN, Middle speed CAN, Low
speed CAN and Single wire CAN
10
2.4 VCI Model for V6 Pro
No.
Name
Description
①
Power Indicator
Lights up when powered(connected
to the car)
②
Vehicle
communication
indicator
Flashing When communicating
③
Bluetooth indicator
Lights up when connected to tablet
④
USB indicator
Lights up when connected to tablet
11
No.
Name
Description
⑤
USB interface
Used for wired communication with
tablets
⑥
DC interface
Power supply
No.
Name
Description
⑦
Main cable
interface
Connect the OBDII main cable
12
VCI Box Parameters
Processor
ARM 32-bit Cortex processor
Input Voltage
DC 8-30V
Operating Temperature
-10 to 70℃ （ 14-158℉ ），relative
Humidity:<90%
Storage Temperature
-30 to 120℃ （ -22-248℉ ），relative
Humidity:<90%
Communication model
Bluetooth or USB
Protocols
ISO 9141, ISO14230, ISO15765,
ISO11898, SAE-J1850 VPW, SAE-1850
PWM, J1939, J1708, UDS, K/L lines,
High speed CAN, Middle speed CAN,
Low speed CAN and Single wire CAN
13

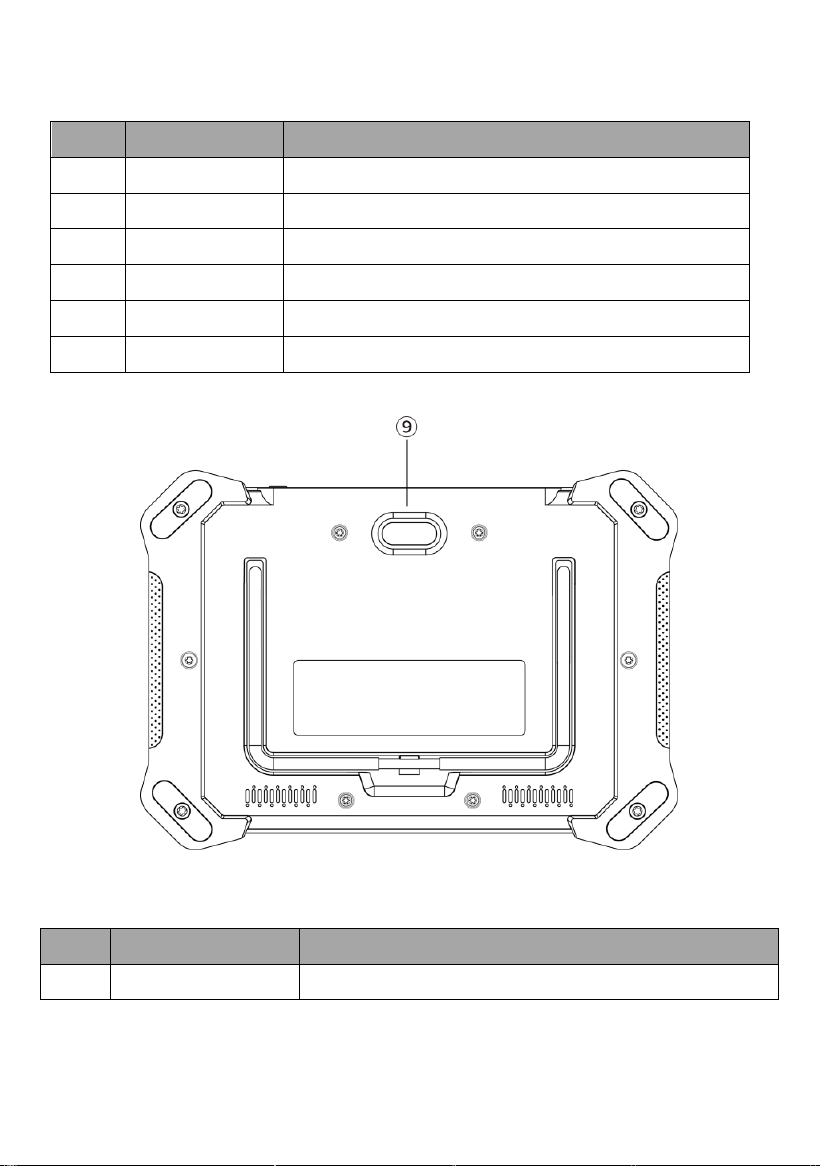

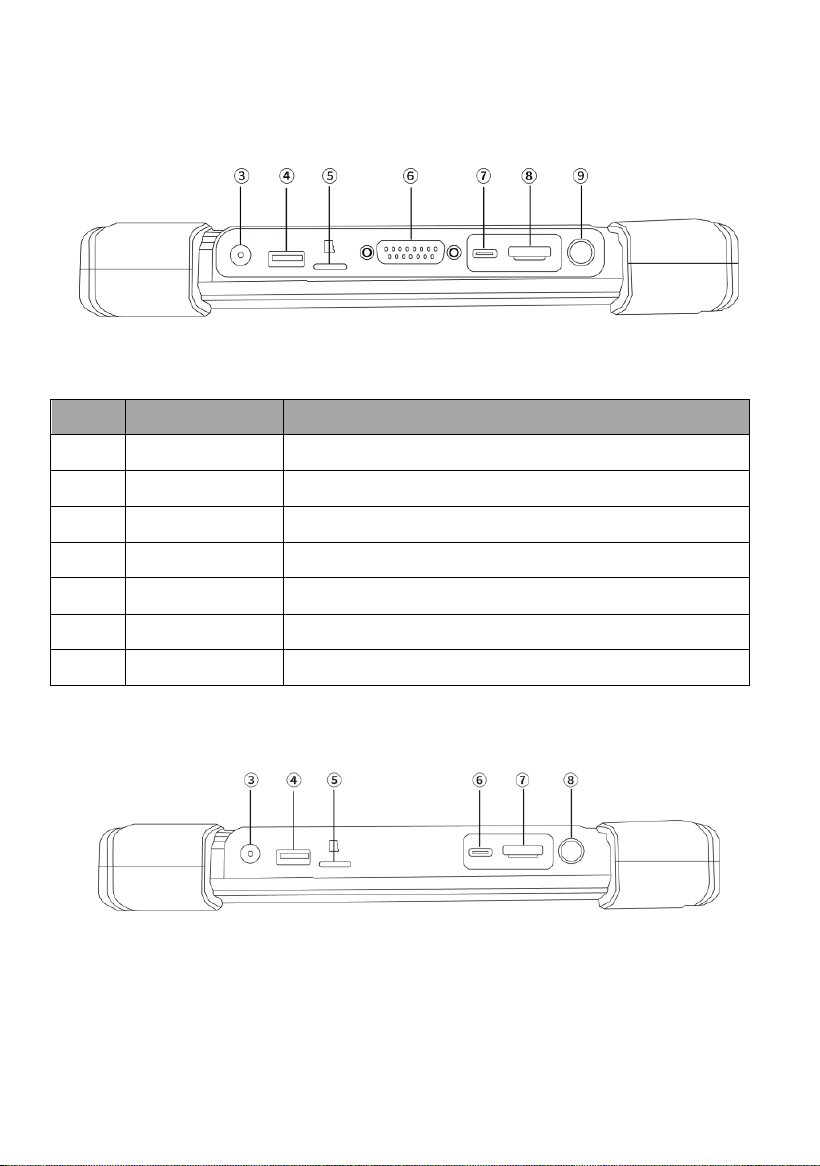

2.5 Host Model

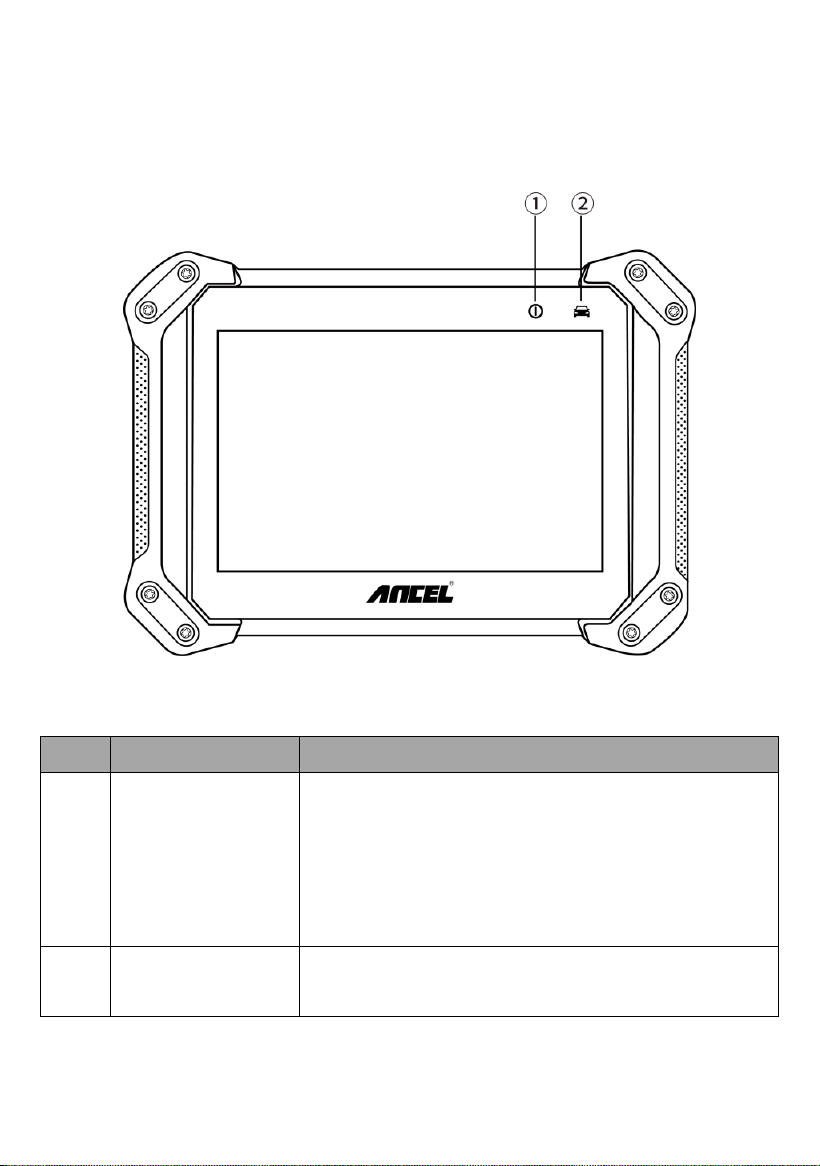

2.5-1 The front of host
No.
Name
Description
①
Power Indicator
Lights on green when power on and the battery is
higher than 20%; Lights on red when power on and
the battery is lower than 20%;
Lights on blue when it is charging;
Lights on green when it is full charge;
②
Communicaiton
Indicator
The light flashing when diagnose communication
14
2.5-2 The top of host for V6
No.
Name
Description
③
DC Port
DC power supply input port
④
USB Port
USB Port
⑤
TF Port
TF card port, Up to 32GB expand
⑥
OBD Port
OBDII main cable connector
⑦
Type-C Port
Type-C port
⑧
HDMI Port
High-Definition multimedia interface port
⑨
Start Button
The button turn ON/OFF the system
2.5-3 The top of host for V6 BT & V6 Pro
15
No.
Name
Description
③
DC Port
DC power supply input port
④
USB Port
USB Port
⑤
TF Port
TF card port, Up to 32GB expand
⑥
Type-C Port
Type-C port
⑦
HDMI Port
High-Definition multimedia interface port
⑧
Start Button
The button turn ON/OFF the system
2.5-3 The back of host
No.
Name
Description
⑨
Camera
Camera lens and camera flash
16
2.6 The Product Specifications
Item
Description
CPU
Quad-core Cortex-A53 2.0GHz
GPU
G52 3EE MC1@800MHz
Operation system
Android 10. 0
ROM
32 GB EMMC
RAM
2G LPDDR4
Display
8.0 inch IPS Multi-touch Capacitive Touch Screen
with 800*1280 resolution
Camera(rear)
5.0 Megapixel, AF with Flashlight
Connectivity
WIFI: 802.11 b/g/n/ac Support Hot spot/ 2.4/5GHz
BlueTooth 5.0, USB 2.0, Type-C
HDMI: 1080P Output
TF Card (Support up to 32GB)
Audio
Microphone
Dual Speakers
Power and Battery
8000 mAh 3.7 V lithium-polymer battery
Input Voltage
8V – 30V
Power Consumption
6.5 W
Operating Temp.
-10 to 50°C (14 to 122°F)
Storage Temp.
-20 to 60°C (-4 to 140°F)
Dimensions(WxHxD)
270 mm(10.63 in) x 193 mm(7.60 in) x 38
mm(1.50 in)
Weight
NW: 1.20 kg (2.65 lb) GW: 3.00 kg (6.61 lb)
17
Protocols
ISO 9141-2, ISO 14230-2, ISO 15765-4, K/L-Line,
SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898,
Highspeed, Middlespeed, Lowspeed and
Singlespeed CAN, GM UART, UART Echo Byte
Protocol, Honda Diag-H Protocol, TP2.0, TP1.6,
SAE J1939, SAE J1708, Fault-Tolerant CAN etc.
3 Product software introduction
The software homepage show the functional module: Diagnosis,
Hot Function, Quick Support, DTC Query, Update, Data Manager,
Feedback, Settings.
18

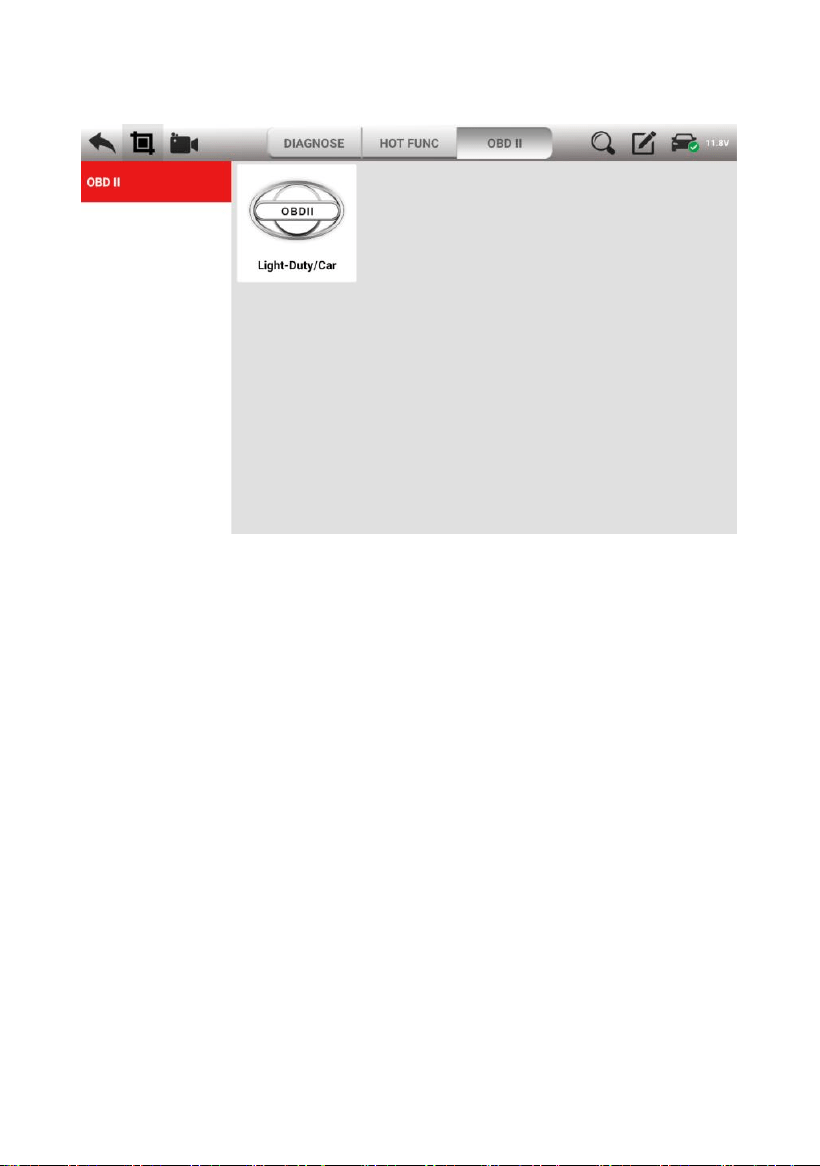

3.1 Diagnosis
Extensive vehicle coverage for more than 80 Europe, America, Asia,
China and Australia vehicle makes.
19
20
21

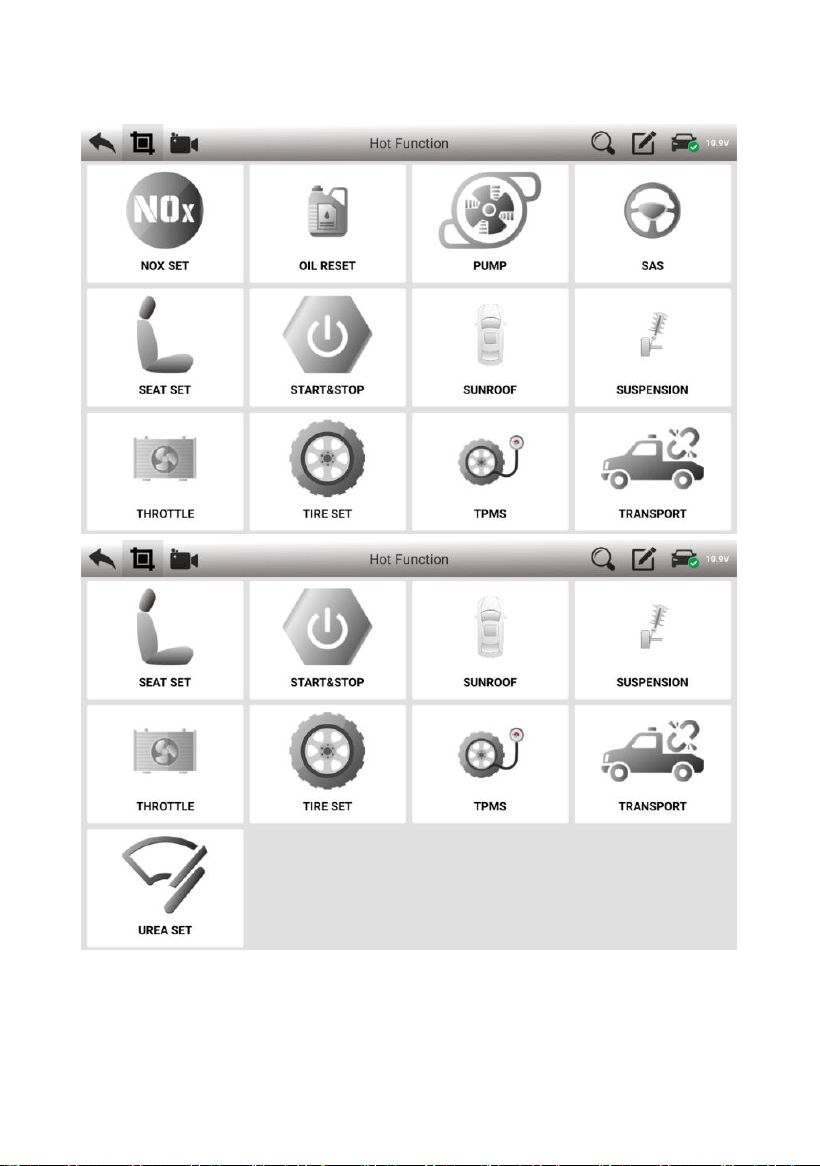

3.2 Hot function
V6 supporting 15 most commonly used service Reset Functions:
OILREST, ABS BLEEDING, BATTERY, DPF, EPB, INJECTOR,
SAS, THROTTLE, TPMS, IMMOKEYS, AT SET, GEAR,
HEADLIGHT, SUSPENSION, SUNPROOF.
V6 BT supporting 15 most commonly used service Reset Functions:
OILREST, ABS BLEEDING, BATTERY, DPF, EPB, INJECTOR,
SAS, THROTTLE, TPMS, IMMOKEYS, AT SET, GEAR,
HEADLIGHT, SUSPENSION, SUNPROOF.
22
V6 Pro supporting 25 most commonly used service Reset
Functions: OILREST, ABS BLEEDING, BATTERY, DPF, EPB,
INJECTOR, SAS, THROTTLE, TPMS, IMMOKEYS, AT SETTING,
GEAR, HEADLIGHT, SUSPENSION, SUNROOF, A/F SET,
DOOR&WINDOWS, LANGUAGE, NOX SET, PUMP START, SEAT
SET, START&STOP, TIRE SET, TRANSPORT, UREA SET.
23
24

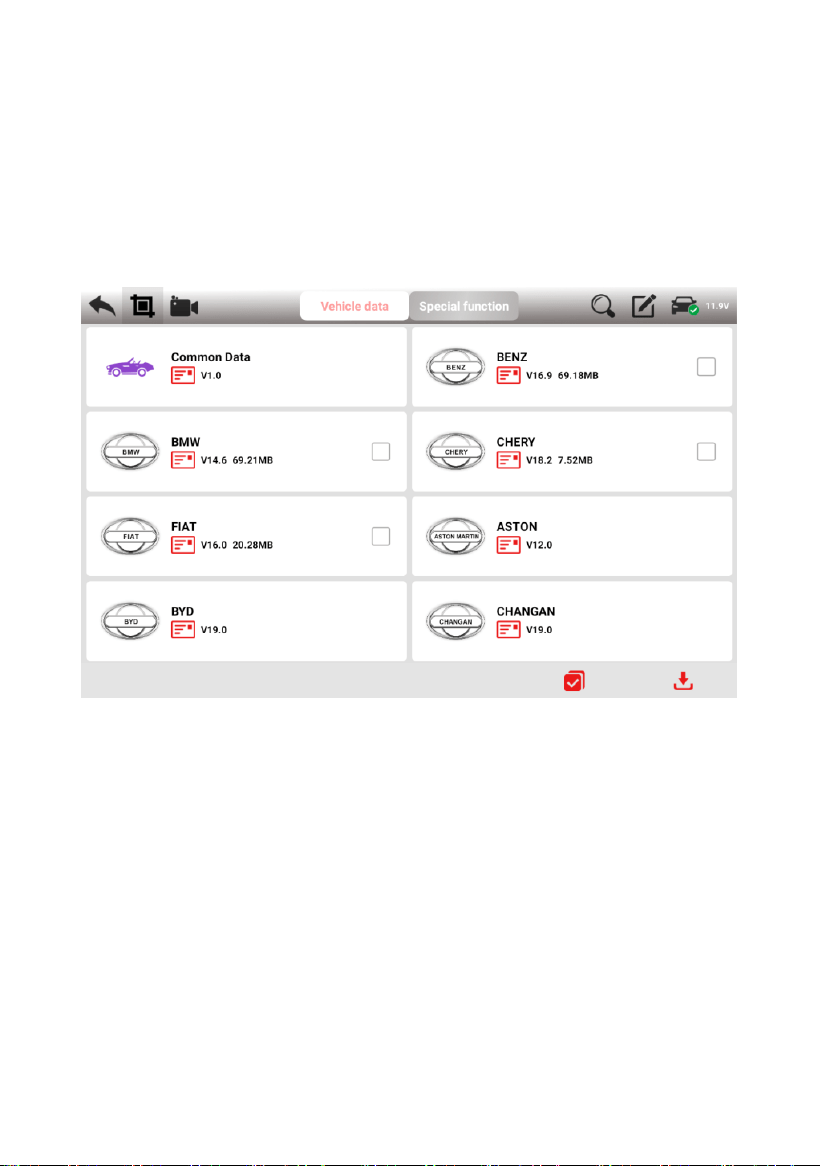

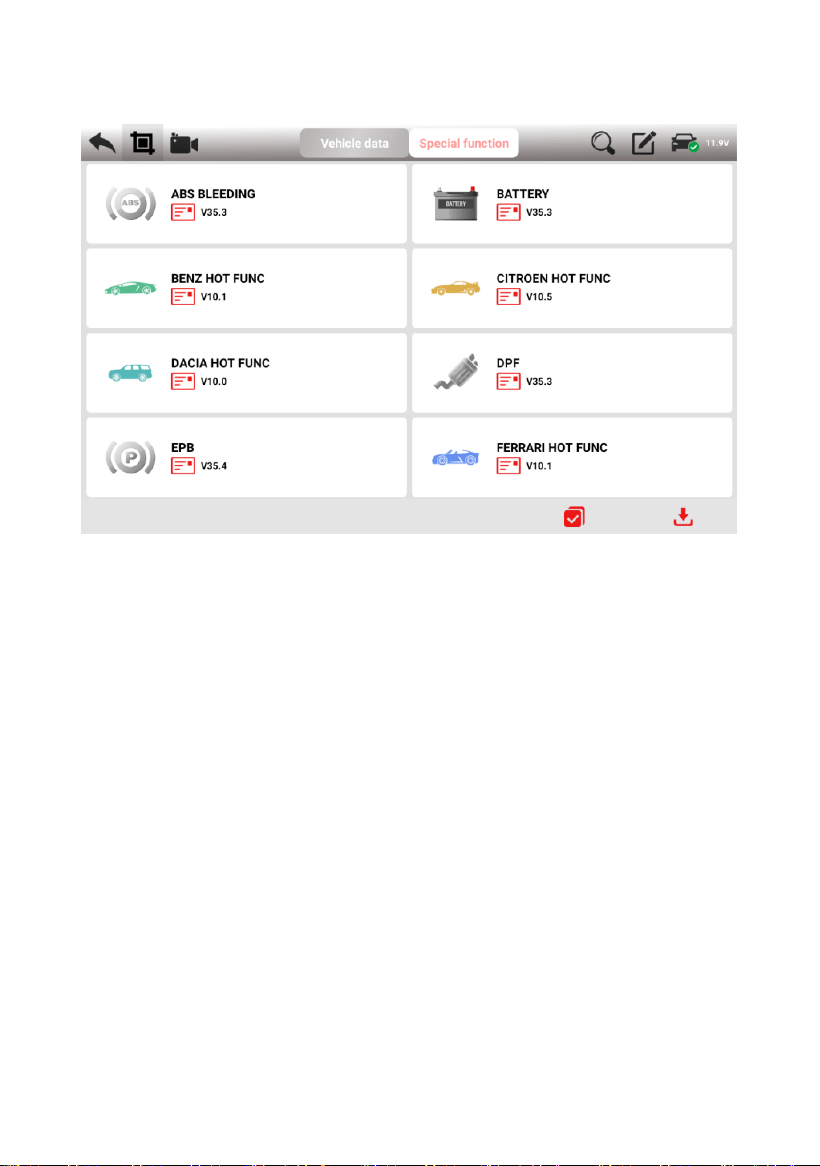

3.3 Update
Logging in the Update function, you can download the vehicle data
and service function data, you can select all and one-click upgrade.
25
26
3.4 Data Manager
Here can manage the screenshot pictures, record video, vehicle
software, testing report, data playback and function list.
27
3.5 Quick Support
Remote technical support via Teamviewer QuickSupport.
28
3.6 DTC Query
The fault information corresponding to the fault code can be quickly
retrieved to help the repairer locate the component fault.
29
3.7 Feedback
This function allows you upload vehicle diagnostics problems
encountered by users during the use of the software. It can help
engineers repair software errors quickly.

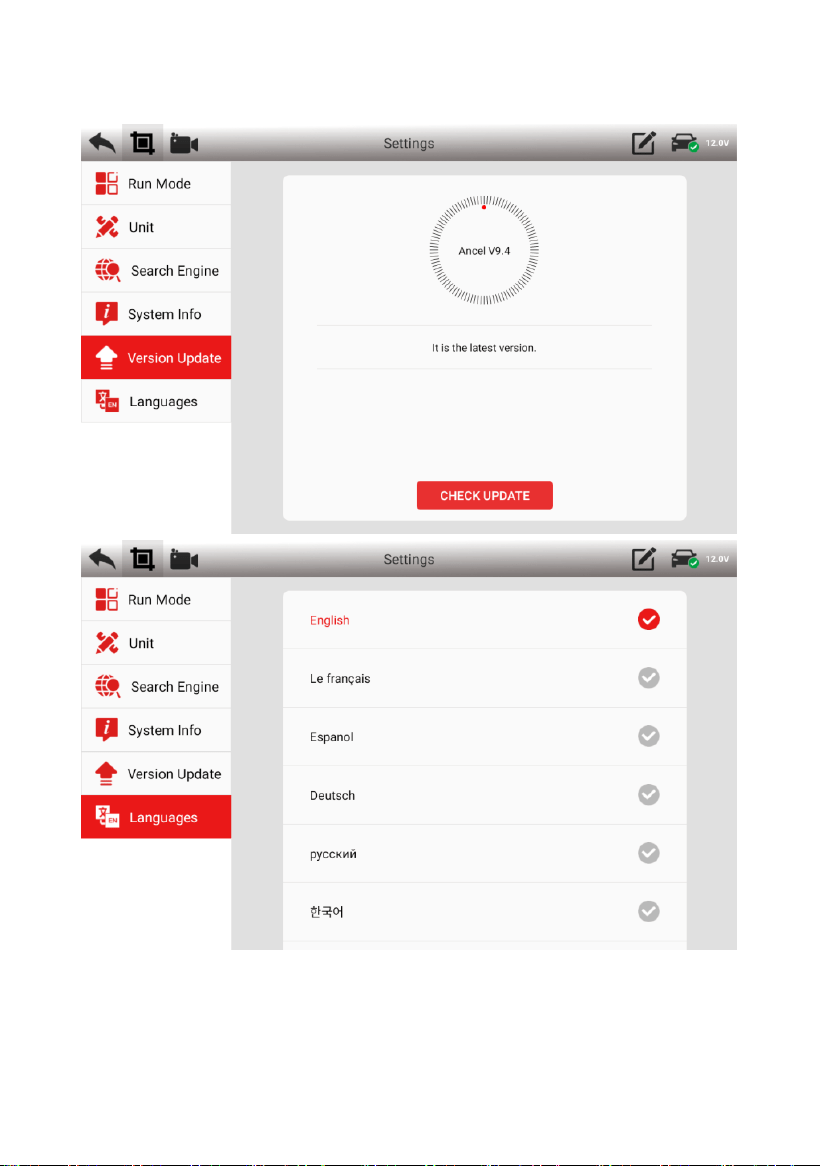

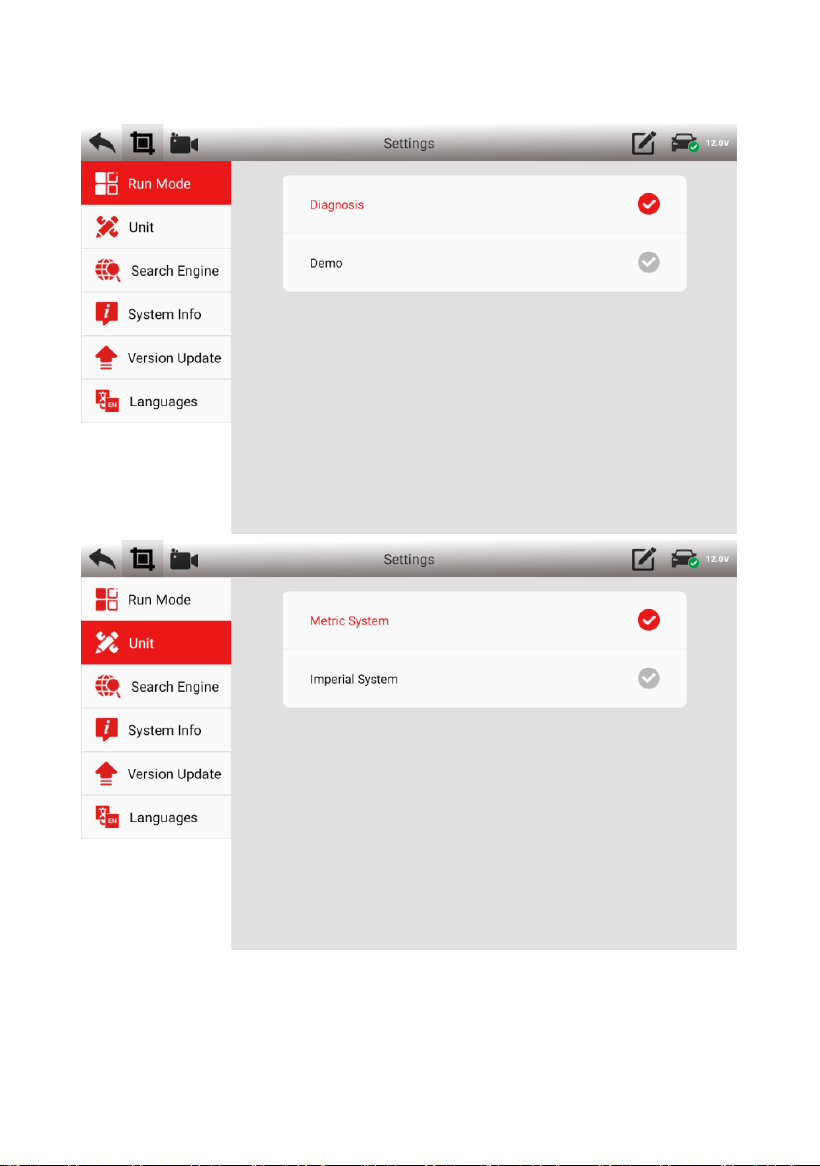

3.8 Settings
View or set the Run mode, Unit, Search engine, System Info,
Version Update, Languages.
30
31
32
33
4 Product activation
(1) Click the Update function on the home page
34
(2) Please activate the product in the first login
(3) Fill in the activation information, and click ACTIVATION
35
(4) The activation request sent, your mailbox has received the
activation link.
(5) Log in to the mailbox where you just filled in the activation
information and click the activation link to complete the
activation.
36
5 Cleaning and maintenance and warranty
5.1 Cleaning and maintenance
(1) Do not disassemble it, try to handle it gently to avoid impact.
(2) Place the fault diagnosis device in a flat, dry,
temperature-friendly and dust-free place and avoid high
temperature and humidity, excessive smoke, easy vibration, direct
sunlight, and strong magnetic field storage environment.
(3) If the vehicle test operation is not performed for a long time,
please run the main machine regularly to avoid moisture.
(4) Unplug the power plug when not in use to avoid aging of
electrical components caused by long-term power.
(5) When the host is dirty, please disconnect the power before
cleaning.
(6) Do not use a cleaning agent with a corrosive function or any
rough cloth to clean the main unit. Only use a soft cloth and a
neutral detergent.
(7) The surface of the screen can be cleaned with a special wiper
for the LCD screen.
(8) Do not place anything on the screen to avoid cracking of the
screen or damage to internal components.
37
5.2 Warranty
This applies only to products purchased from a product dealer that
has been authorized by OBDSPACE. If products are purchased
from anyone other than a OBDSPACE authorized product dealer,
buyers will be solely responsible for the cost of product
maintenance services and will not be eligible to obtain any warranty
from OBDSPACE .
(1) Product acceptance
When you receive the product, please be sure to open the package
check.
Please carefully check the product category and quantity according
to the attached list. If there are any shortages, errors, damages and
other unpredictable abnormal conditions, please keep all the
documents of the product and notify us immediately. Otherwise it is
considered a waiver of the claim.
(2) Product warranty
Beginning on the date of purchase(subject to valid purchase proof
and effective warranty card of the product), if the product suffers
performance failure within one year which is not caused by
deviation from the recommended operation or by uncontrollable
environmental events, you can choose to have evaluation via our
38
maintenance service or replacement of the product with the same
model. After that, there is one year warranty service for the main
unit, connectors and power adapter.
(3) Product Software Update
Two-year free software update since activation of product, and will
be charged annually after free update session.
(4) Not in the scope of the free warranty
A. Failures, defects or flaws not directly related to the quality of the
OBDSPACE products, including but not limited to failing to use the
product according to the user manual’s instructions, crash, fall,
disassemble by anyone other than a OBDSPACE approved service
person, connecting improper accessories, damage owing to impact
because of improper transport or storage of the product, etc.
B. Natural wear and tear of the product: including but not limited to
cover, keypad, touch screen, accessories, etc.
C. Main unit serial number and warranty card serial number
discrepancy, product quality inspection tag or bar code removed,
altered or damaged.
D. Maintenance and modification without the approval of
OBDSPACE or its distributors.
(5) Product warranty program
When the product needs to be repaired, please send the product to
39
the local distributor or OBDSPACE, and attach the purchase
certificate and warranty card, fill in the following information:
company name, contact name, phone number, problem description,
purchase invoice.
Note: The valid purchase certificate is an important warranty
service certificate. To protect your legal rights, you must obtain a
formal invoice from the dealer when purchasing the machine. The
name, model number, serial number and purchase date of the
product should be clearly stated on the invoice. It is covered with
the official seal of the dealer.
(6) Over-warranty product maintenance regulations
If the product needs to be repaired by our company after the
maintenance period, we will charge the maintenance fee
appropriately, and the freight will be borne by the user.
For products that have passed the warranty period, our technical
support personnel will fax the maintenance cost to the user, and will
repair it after confirmation by the customer. After confirming, the
customer will pay the repair fee to the designated account of our
company. After the maintenance fee is received, our company will
Can be repaired.
40
