User manual of Thermador PCG304G-01 (51 pages)
file thumbnail

CARE USE UAL

For Thermador Professional ®Cooktops

UEL 'UTILISATION ET D'ENTRETIEN

Des tables de cuisson Thermador Professional ®

Models Modeles Modelos: PCG 30 PCG 36 PCG 48

This Thermador Appliance is made by BSH HomeAppliances Corporation 5551 McFaddenAve.

Huntington Beach. A 92649

Questions?

1-800-735-4328

We look forward to hearing from you!

WARNING:

If the information in this manual is not

Do not store or use gasoline or other flam

[] Do not try to light any appliance.

[] Do not touch any electrical switch.

[] Do not use any phone in your building.

[] Immediately call your gas supplier from neighbor's phone.

Follow the gas supplier's instructions.

[] If you cannot reach your gas supplier. call the

Installation and service must be performed by a qualified installer. service agency or the gas suppler.

AVERTISSEMENT

L'information fournie dans le present

N'entreposez pas et n'utilisez pas d'essence ou autres produits inflammables dans le voisinage de cette cuisiniere ou de tout autre appareil.

Sl VOUS SENTEZ UNE ODEUR DE GAZ

N'allumezaucun appareil. Ne touchez pas aux interrupteurs electriques. N'utilisez pas les tel6phones du b&timent. Appelez immediatement votre compagnie de gaz de chez un voisin.

Suivez les in

L'installation et les reparations doivent tre r6alisees par un installateur qualifie. un

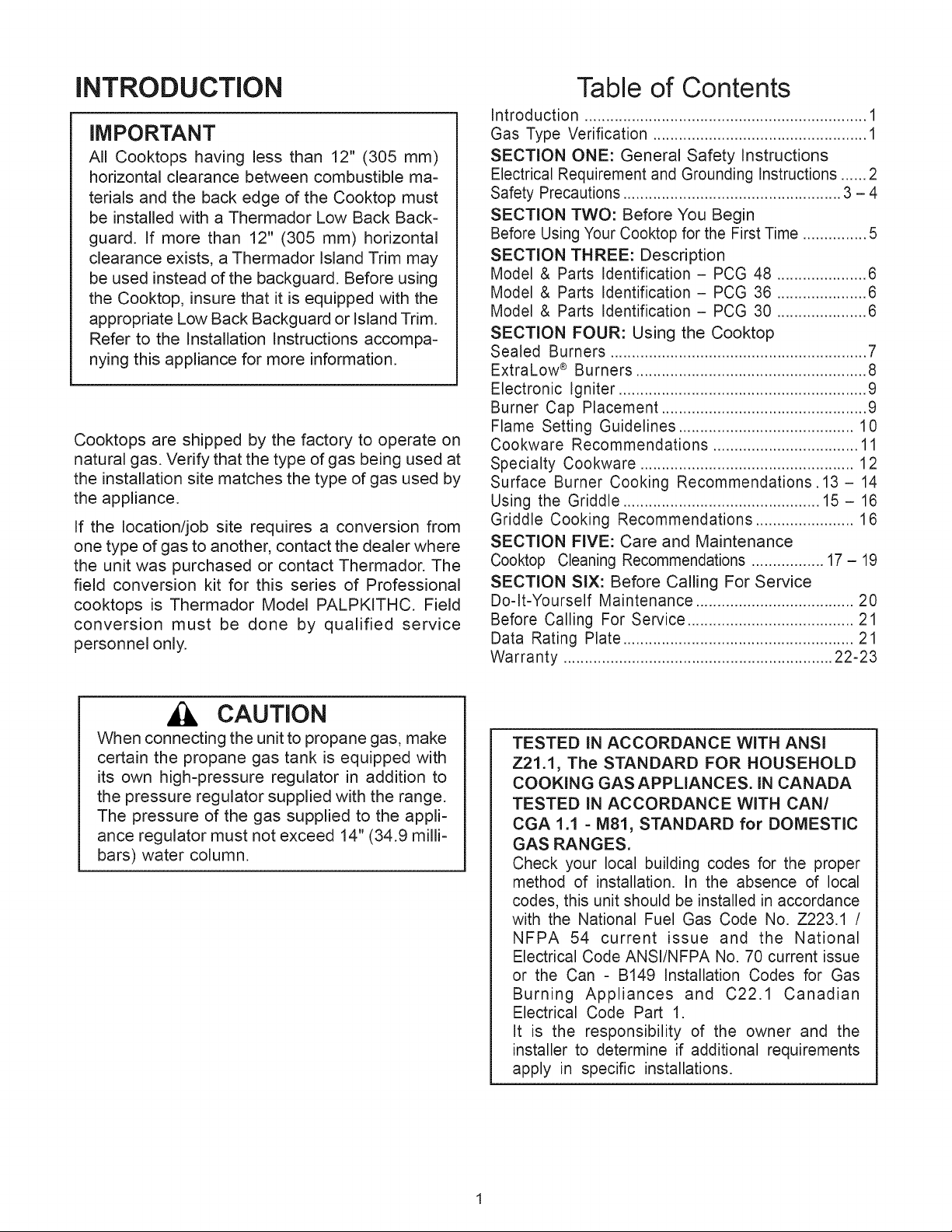

INTRODUCTION

IMPORTANT

All Cooktops having less than 12" (305 mm) horizontal clearance between combustible ma

Cooktops are shipped by the factory to operate on natural gas. Verify that the type of gas being used at the installation site matches the type of gas used by the appliance.

If the location/job site requires a conversion from one type of gas to another. contact the dealer where the unit was purchased or contact Thermador.

The field conversion kit for this series of Professional

Table of Contents

Introduction

Gas Type Verification

SECTION ONE: General Safety Instructions Electrical Requirement and Grounding Instructions 2 Safety Precautions 3 - 4

SECTION TWO: Before You Begin Before Using Your Cooktop for the First Time 5

SECTION THREE: Description Model & Parts Identification

PCG 48 6 Model & Parts Identification

PCG 36 6 Model & Parts Identification

PCG 30 6

SECTION FOUR: Using the Cooktop Sealed Burners

ExtraLow ® Burners

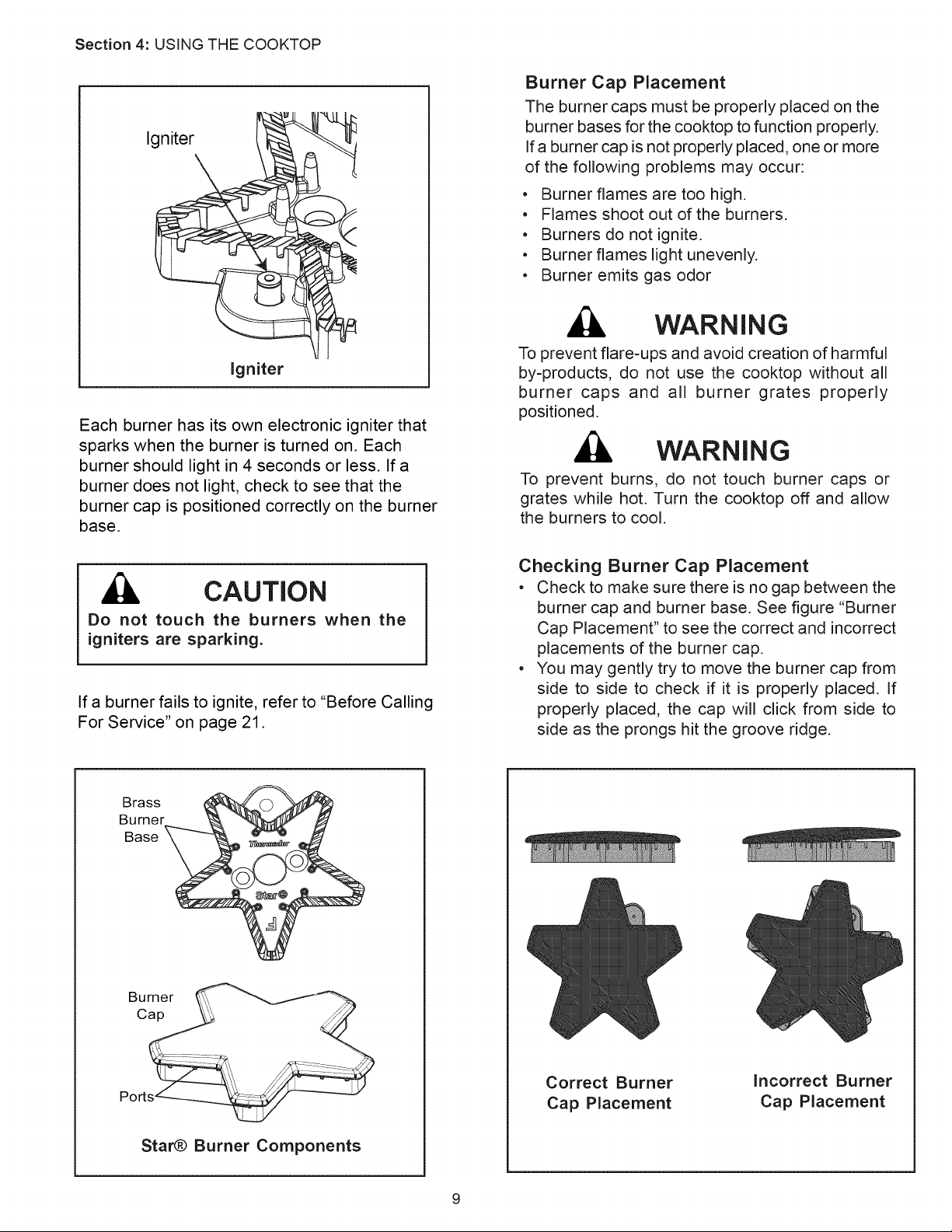

Electronic Igniter . Burner Cap Placement

Flame Setting Guidelines Cookware Recommendations

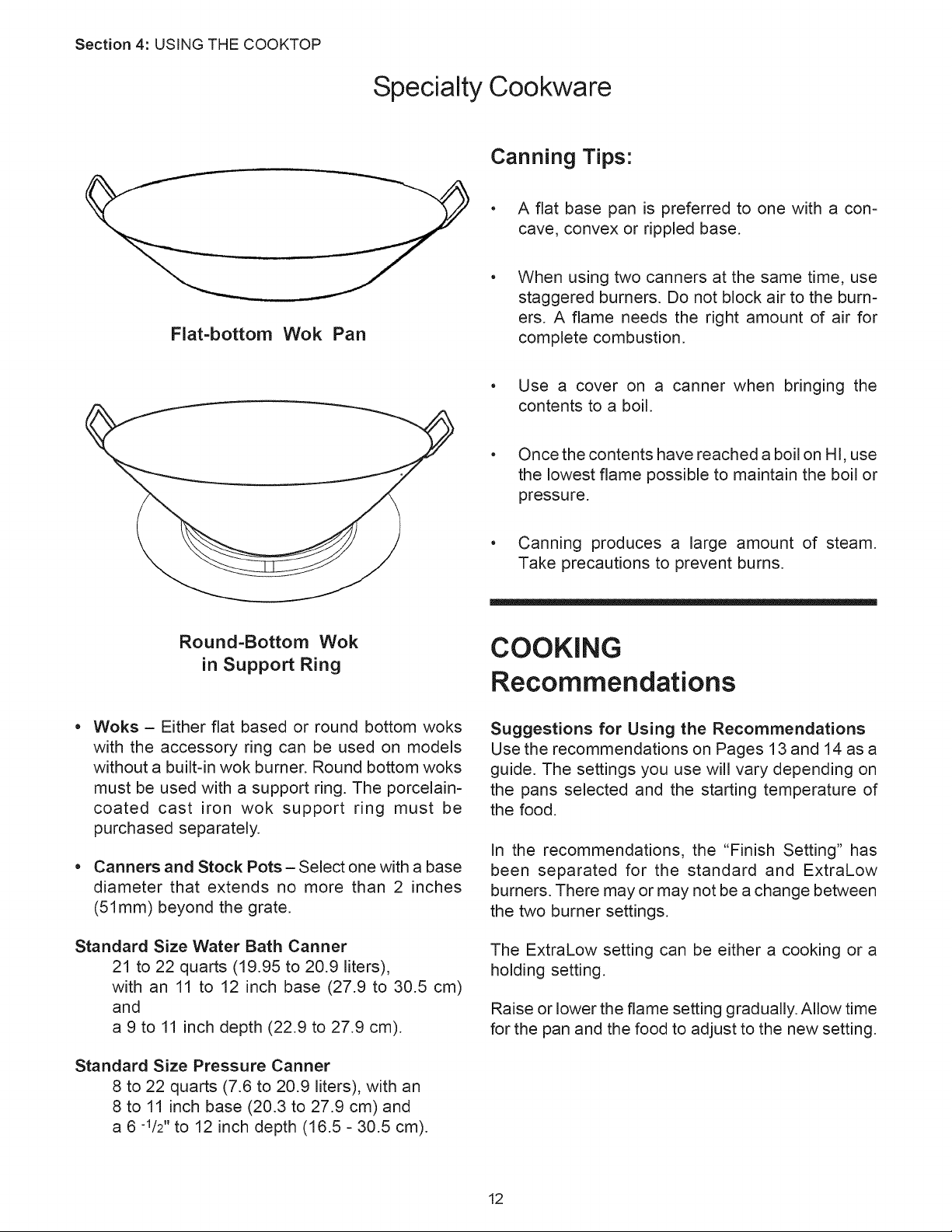

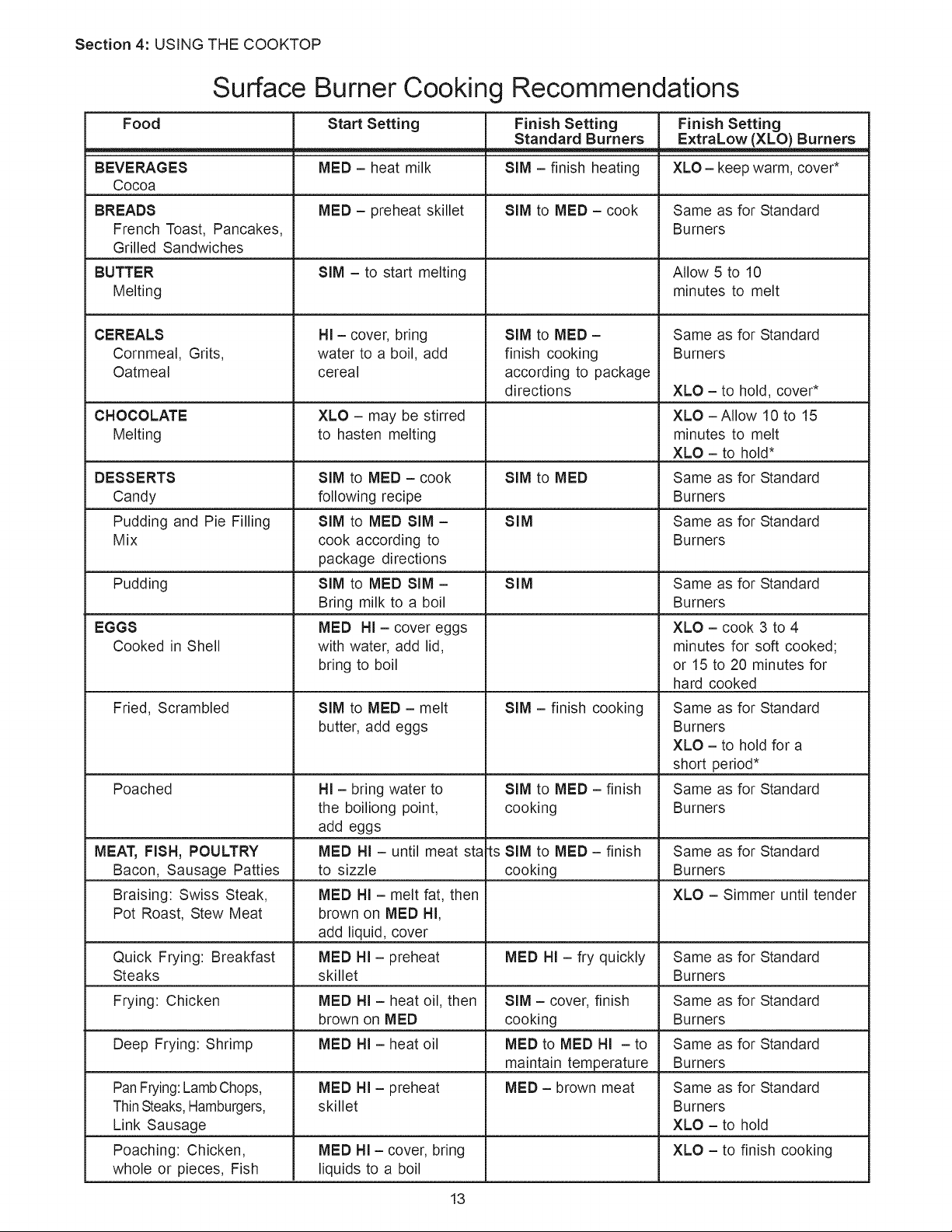

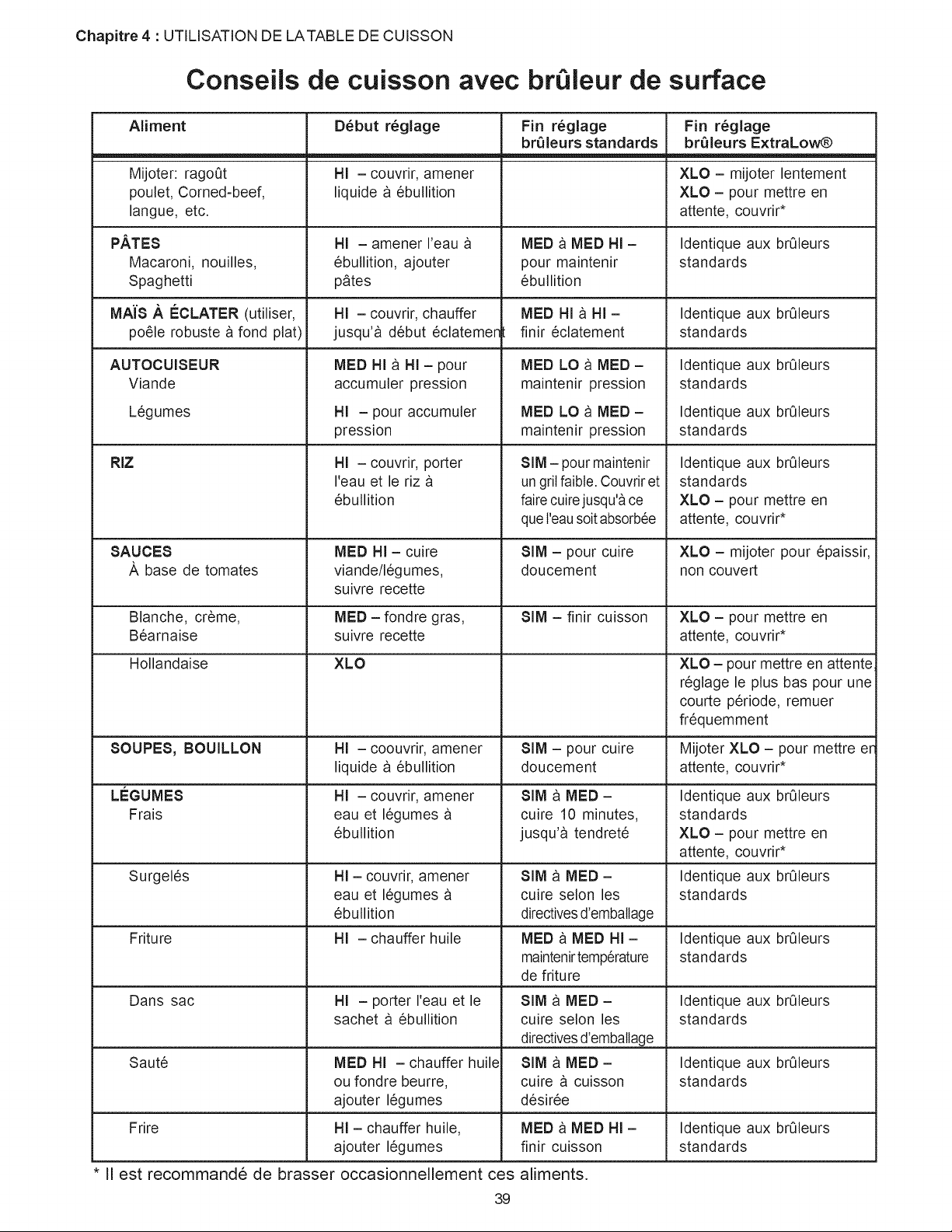

Specialty Cookware Surface Burner Cooking Recommendations. Using the Griddle . Griddle Cooking Recommendations SECTION FIVE: Care and Maintenance

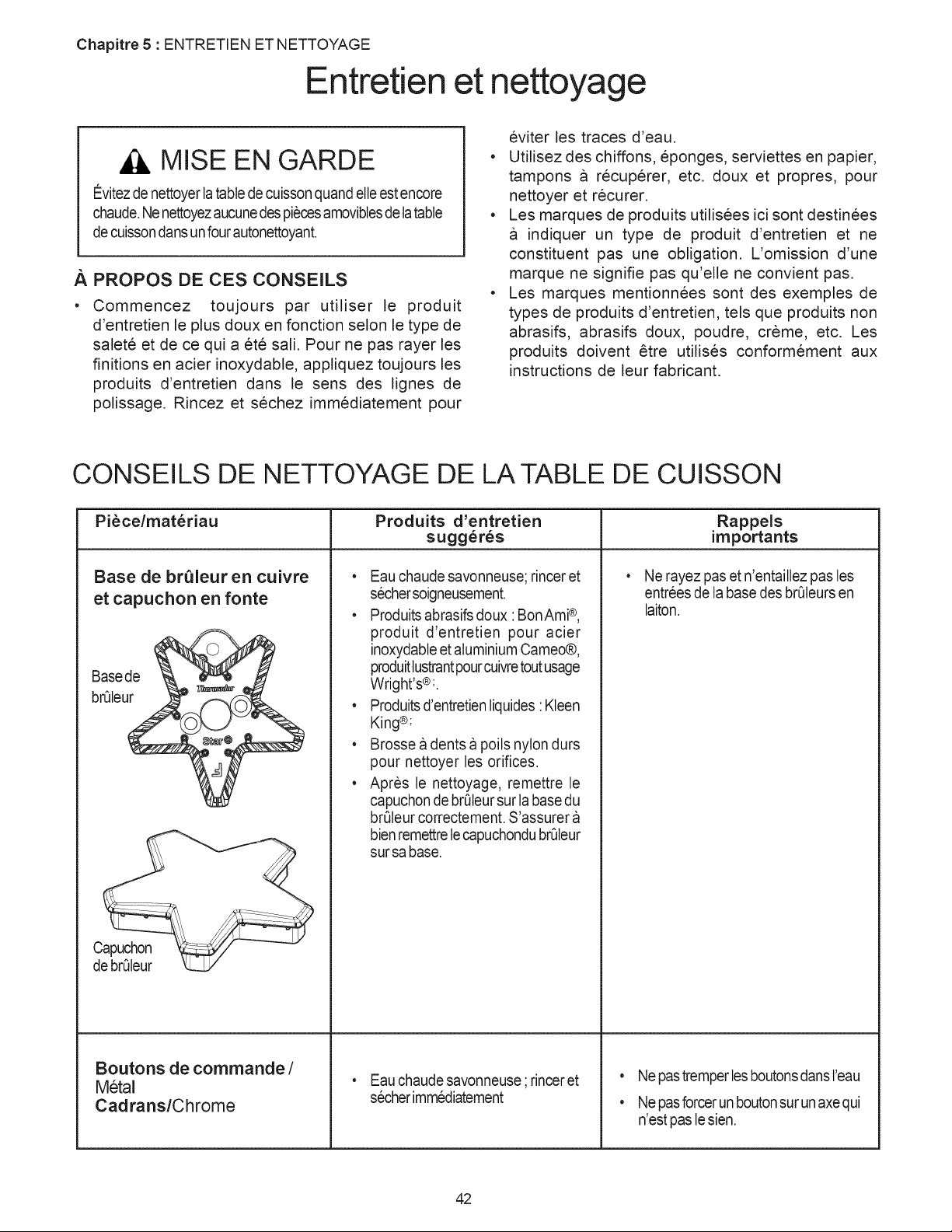

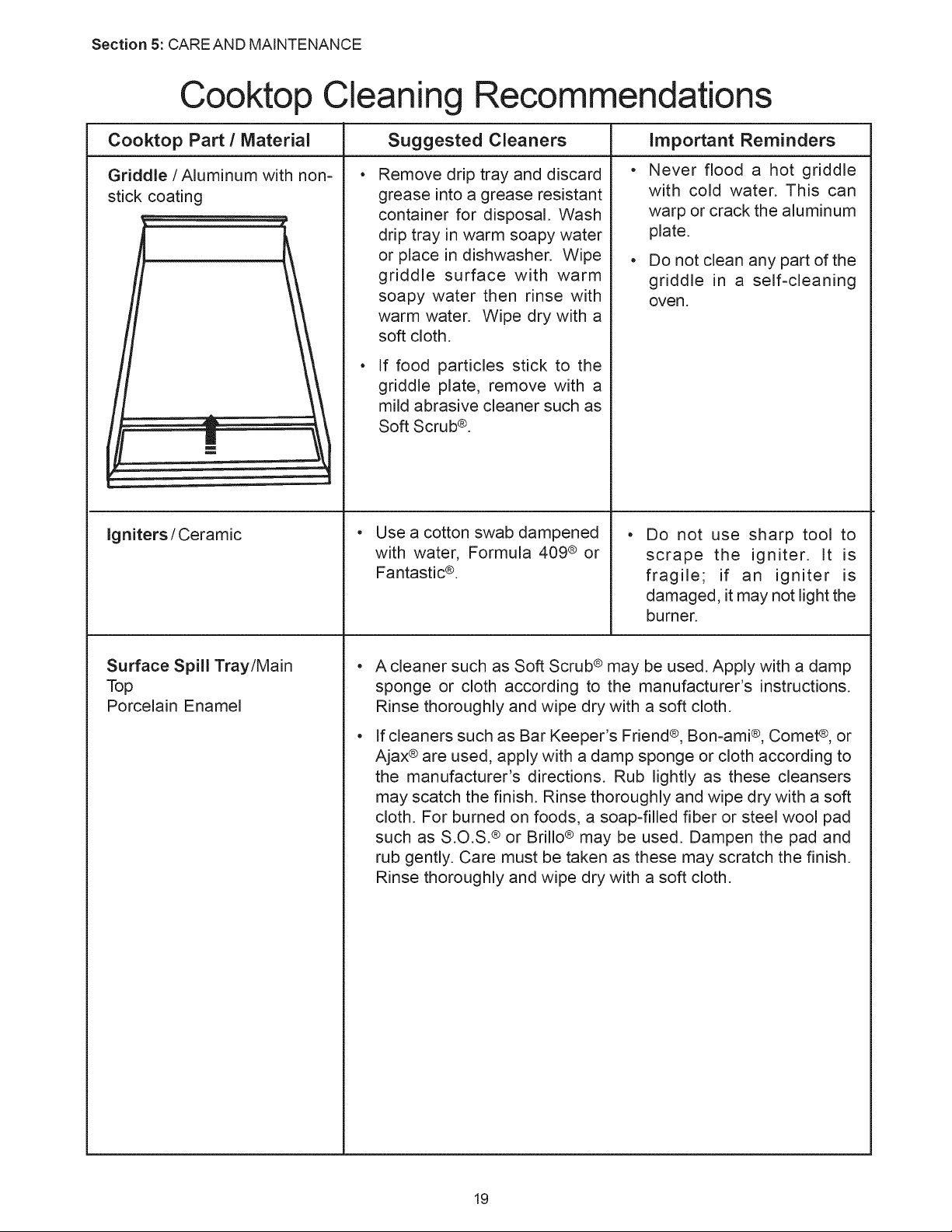

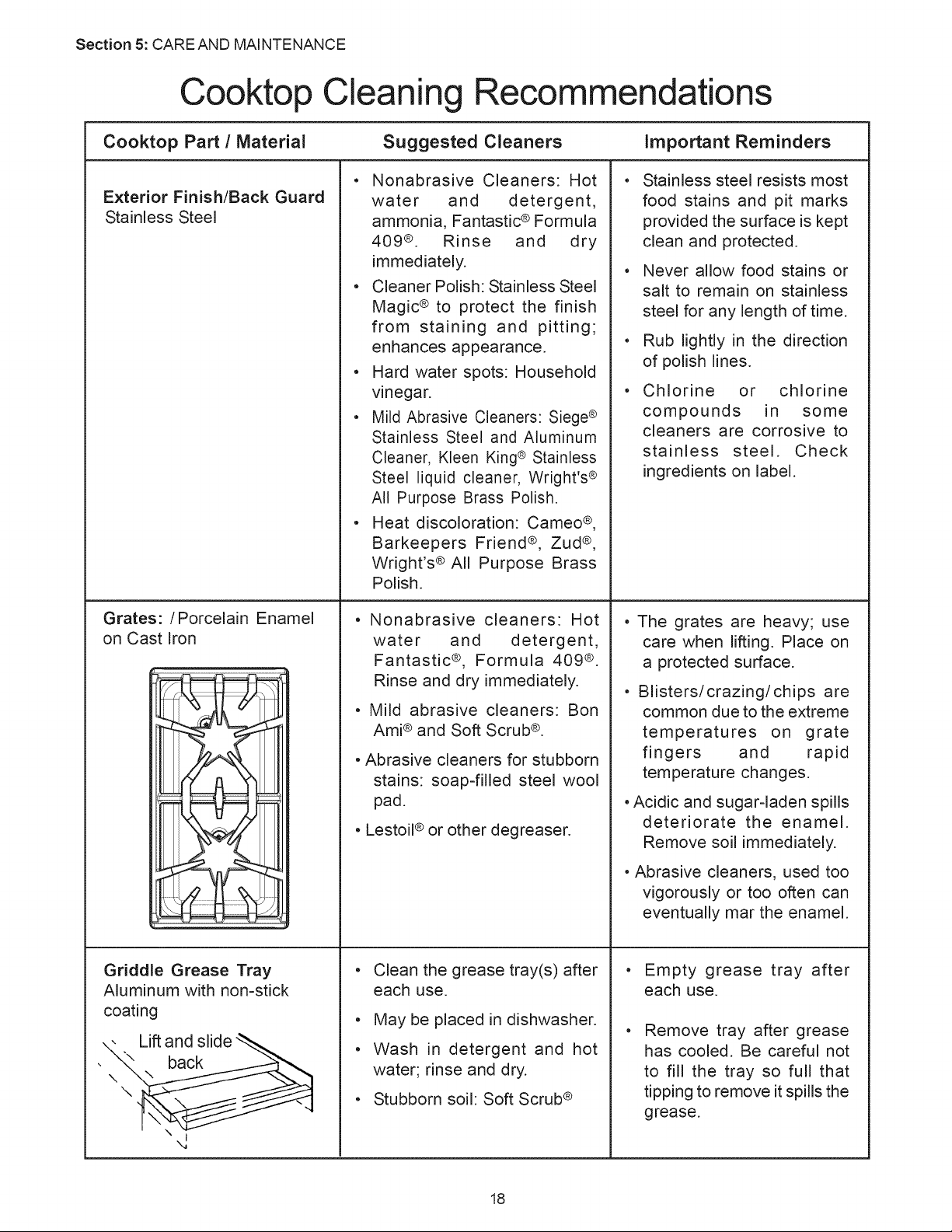

Cooktop Cleaning Recommendations . 17

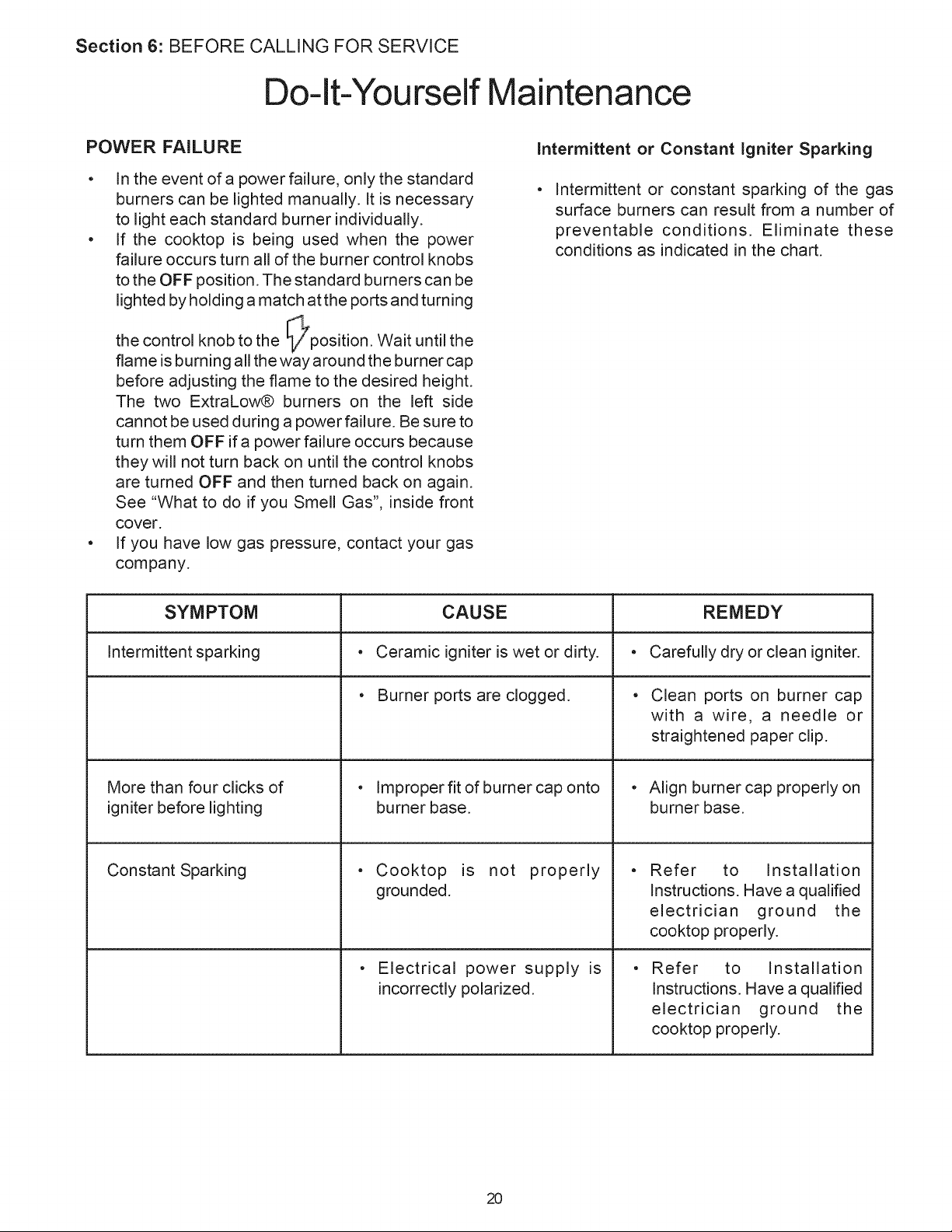

SECTION SiX: Before Calling For Service Do-it-Yourself Maintenance

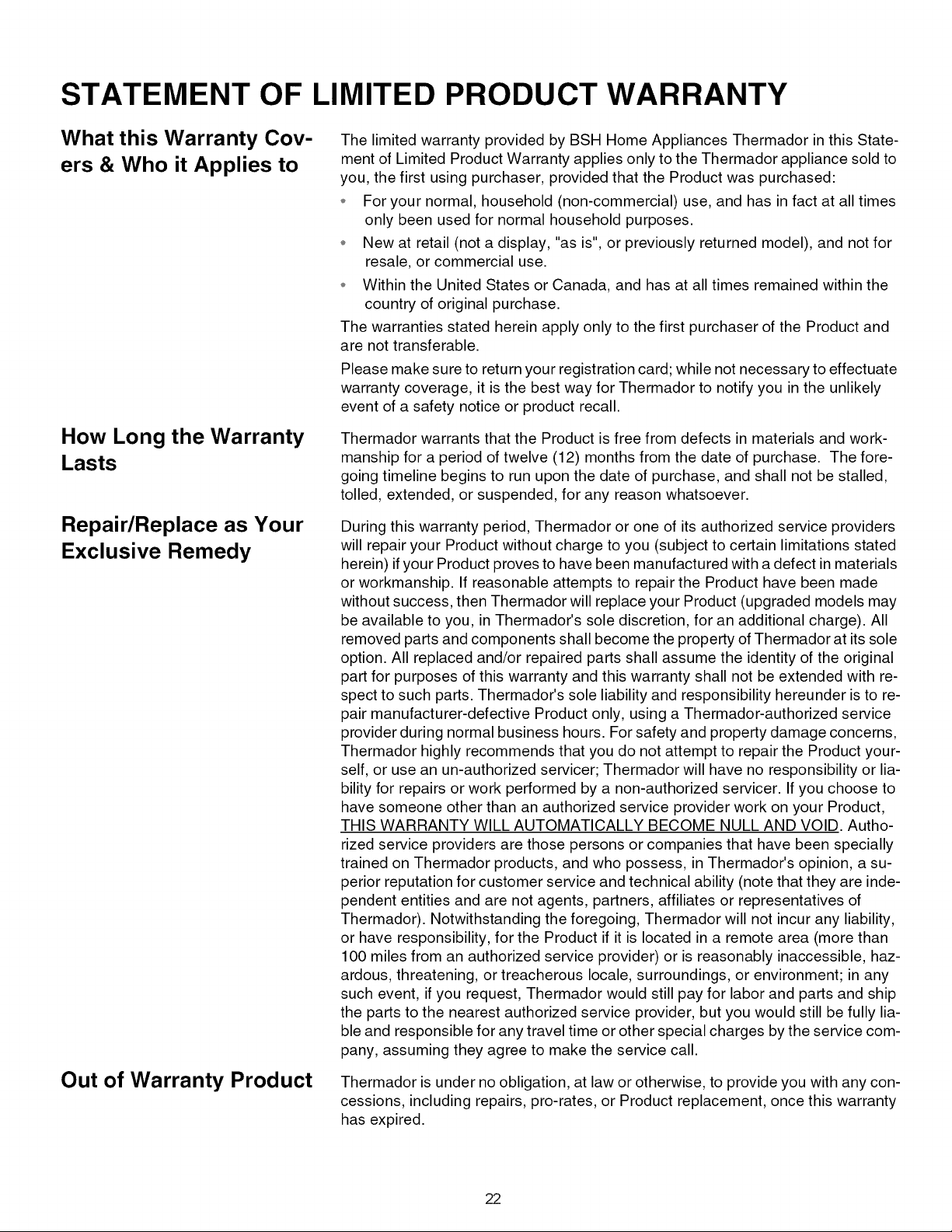

Before Calling For Service Data Rating Plate Warranty

22-23

CAUTION

When connecting the unit to propane gas. make certain the propane gas tank is equipped with its own high=pressure regulator in addition to the pressure regulator supplied with the range.

The pressure of the gas supplied to the appli ance regulator must not exceed 14" (34.9 milli bars) water column.

TESTED IN ACCORDANCE WITH ANSI

Z21.1.

The STANDARD FOR HOUSEHOLD COOKING GAS APPLIANCES.

IN CANADA TESTED IN ACCORDANCE WITH CAN/

CGA 1.1 - M81.

STANDARD for DOMESTIC GAS RANGES.

Check your local building codes for the proper method of installation. In the absence of local codes. this unit should be installed in accordance with the National Fuel Gas Code No. Z223.1 NFPA current issue and the National Electrical Code ANSI/NFPA No. 70 current issue or the Can B149 Installation Codes for Gas

Burning Appliances and C22.1 Canadian Electrical Code Part

It is the responsibility of the owner and the installer to determine if additional requirements apply in specific installations.

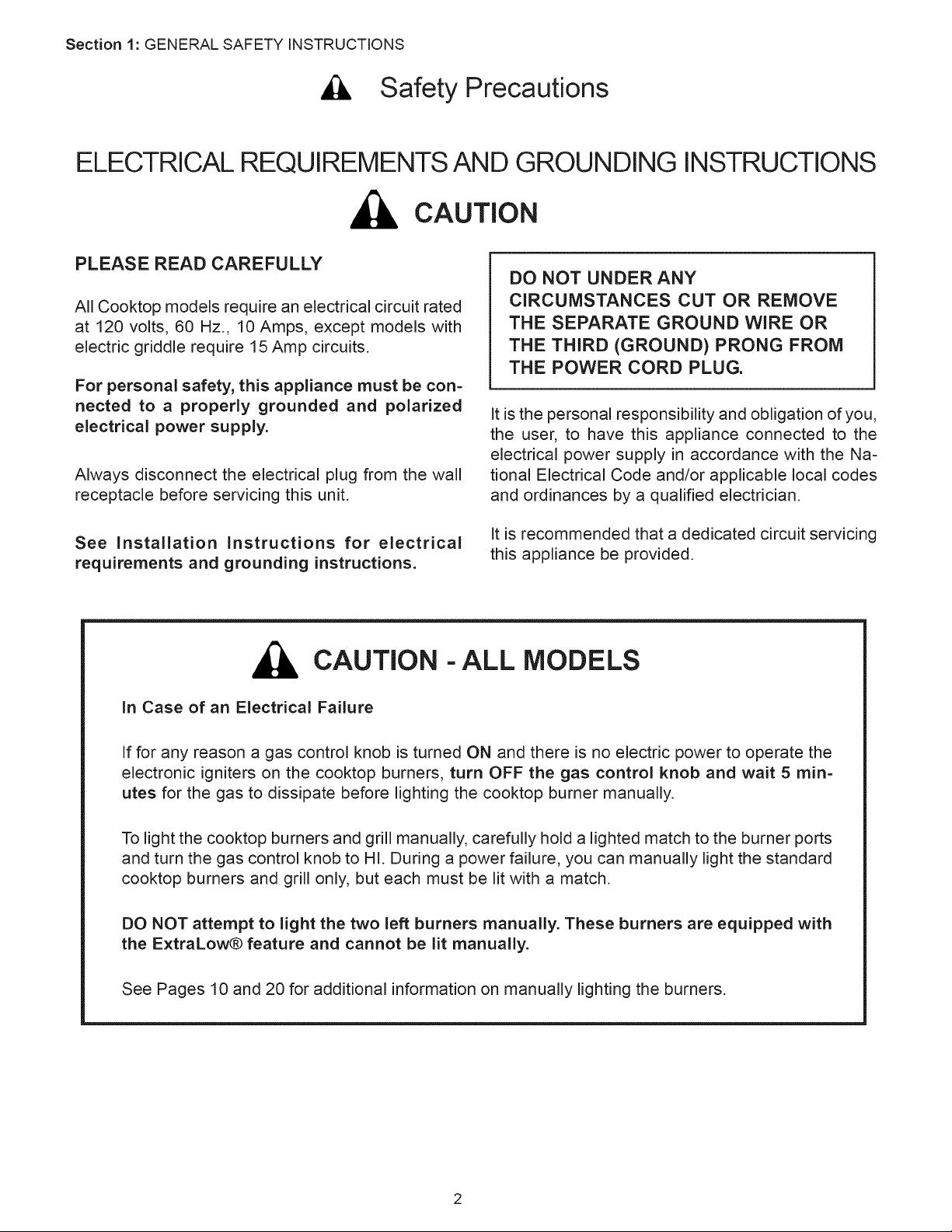

Section 1: GENERAL SAFETY INSTRUCTIONS

Safety Precautions

ELECTRICAL REQUIREMENTS AND GROUNDING INSTRUCTIONS

CAUTION

PLEASE READ CAREFULLY

All Cooktop models require an electrical circuit rated at 120 volts.

60 Hz. 10 Amps. except models with electric griddle require 15 Amp circuits.

For personal safety. this appliance must be con nected to a properly grounded and polarized electrical power supply.

Always disconnect the electrical plug from the wall receptacle before servicing this unit.

See Installation Instructions for electrical

DO NOT UNDER ANY CIRCUMSTANCES CUT OR REMOVE THE SEPARATE GROUND WIRE OR

THE THIRD (GROUND) PRONG FROM THE POWER CORD PLUG.

It is the personal responsibility and obligation of you. the user. to have this appliance connected to the electrical power supply in accordance with the Na tional Electrical Code and/or applicable local codes and ordinances by a qualified electrician.

It is recommended that a dedicated circuit servicing this appliance be provided.

CAUTION

In Case of an Electrical Failure

ALL MODELS

If for any reason a gas control knob is turned ON and there is no electric power to operate the

To light the cooktop burners and grill manually. carefully hold a lighted match to the burner ports and turn the gas control knob to HI. During a power failure. you can manually light the standard cooktop burners and grill only. but each must be lit with a match.

DO NOT attempt to light the two left burners manually.

These burners are equipped with the E×traLow® feature and cannot be lit manually.

See Pages 10 and 20 for additional information on manually lighting the burners.

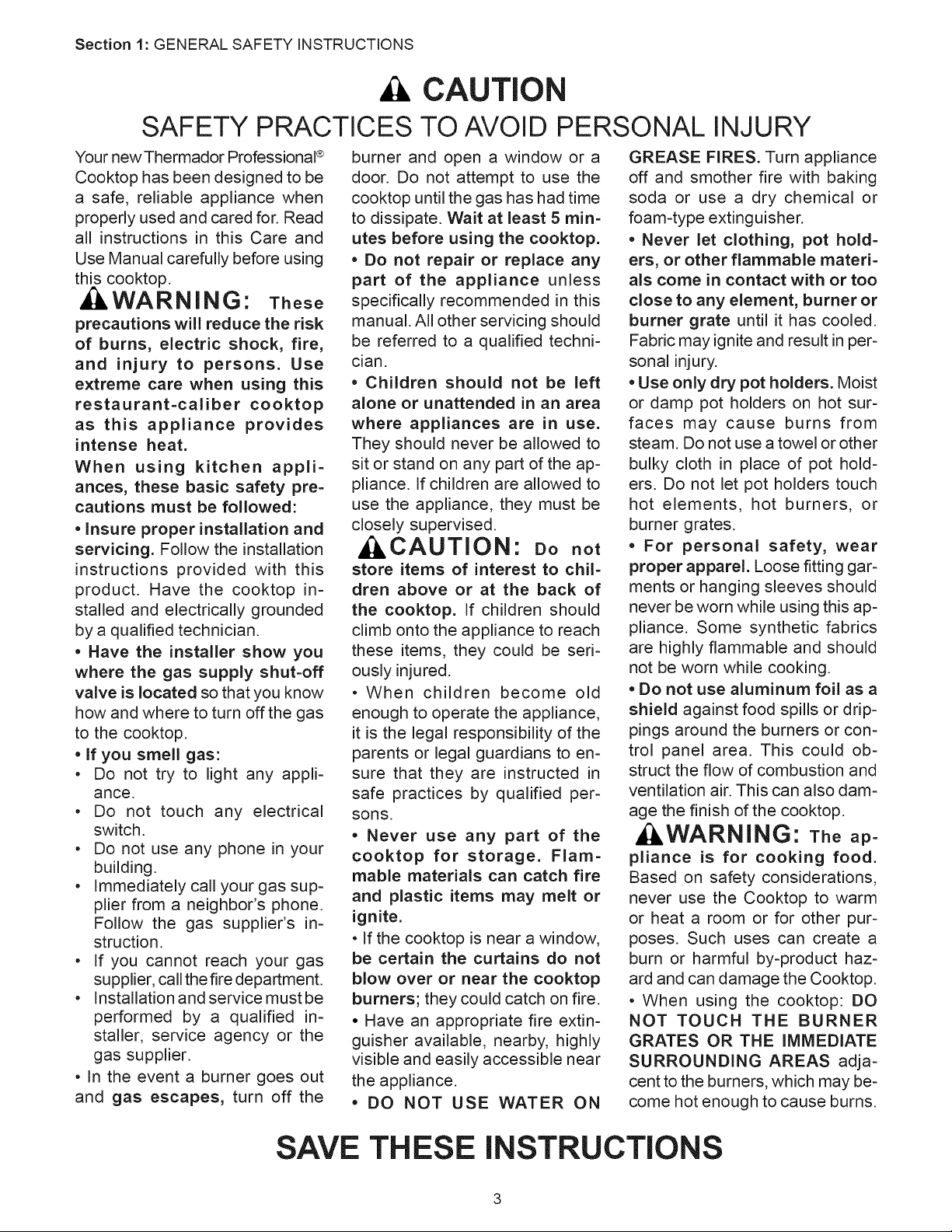

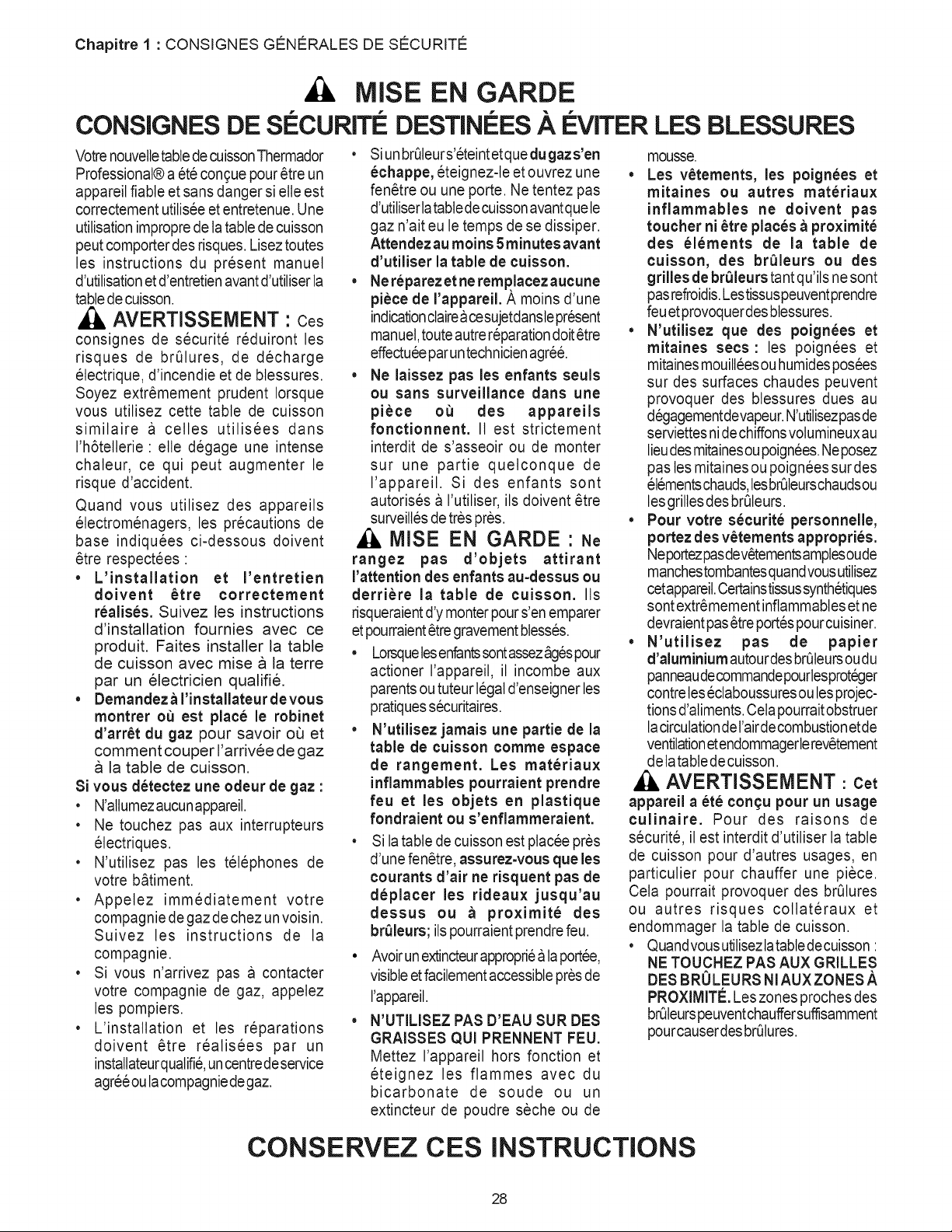

Section1: GENERALSAFETYINSTRUCTIONS

CAUTION SAFETY PRACTICES TO AVOID PERSONAL INJURY

Your newThermador Professional

Cooktop has been designed to be a safe. reliable appliance when properly used and cared for. Read all instructions in this Care and

Use Manual carefully before using this cooktop.

WARNING" These

When using kitchen appli ances. these basic safety pre= cautions must be followed:

• Insure proper installation and servicing.

Follow the installation instructions provided with this product.

Have the cooktop in= stalled and electrically grounded by a qualified technician.

• Have the installer show you where the gas supply shut-off valve is located so that you know how and where to turn off the gas to the cooktop.

• If you smell gas:

Do not try to light any appli ance.

Do not touch any electrical switch.

Do not use any phone in your building.

Immediately call your gas sup= plier from a neighbor's phone.

Follow the gas supplier's in= struction.

If you cannot reach your gas supplier. call the fire department.

Installation and service must be performed by qualified in= staller. service agency or the gas supplier.

In the event a burner goes out and gas escapes. turn off the

• Do not repair or replace any part of the appliance unless specifically recommended in this manual.

All other servicing should be referred to a qualified techni cian.

• Children should not be left alone or unattended in an area

. ever use any part of the cooktop for storage.

Flam mable materials can catch fire

= If the cooktop is near a window. be certain the curtains do not

• Have an appropriate fire extin= guisher available. nearby. highly visible and easily accessible near the appliance.

• DO NOT USE WATER ON

GREASE FIRES.

Turn appliance off and smother fire with baking soda or use a dry chemical or foam4ype extinguisher.

• Never let clothing. pot hold ers. or other flammable materi als come in contact with or too

• Use only dry pot holders.

Moist or damp pot holders on hot sur faces may cause burns from steam.

Do not use a towel or other

• For personal safety. wear proper apparel.

Loose fitting gar ments or hanging sleeves should never be worn while using this ap pliance.

Some synthetic fabrics are highly flammable and should not be worn while cooking.

• Do not use aluminum foil as a

When using the cooktop: DO NOT TOUCH THE BURNER GRATES OR THE IMMEDIATE

SURROUNDING AREAS adja= cent to the burners. which may be= come hot enough to cause burns.

SAVE THESE INSTRUCTIONS

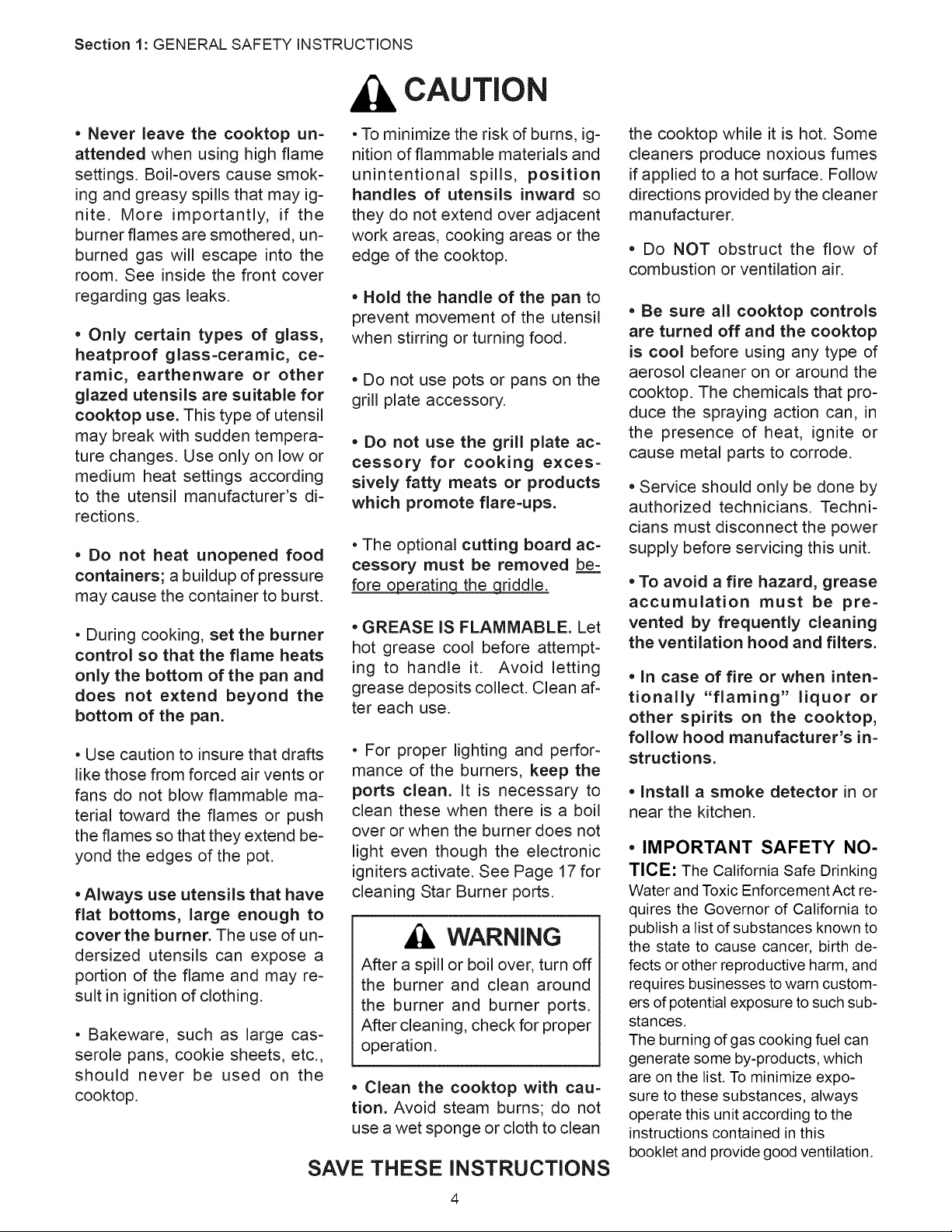

Section 1: GENERAL SAFETY INSTRUCTIONS

• Never leave the cooktop un attended when using high flame settings.

Boil-overs cause smok ing and greasy spills that may ig nite.

More importantly. if the burner flames are smothered. un

• Only certain types of glass. heatproof glass-ceramic. ce ramic. earthenware or other glazed utensils are suitable for cooktop use. This type of utensil may break with sudden tempera ture changes.

Use only on low or medium heat settings according to the utensil manufacturer's di rections.

• Do not heat unopened food containers; a buildup of pressure may cause the container to burst.

During cooking. set the burner control so that the flame heats

CAUTION

To minimize the risk of burns. ig nition of flammable materials and

• Hold the handle of the pan to prevent movement of the utensil when stirring or turning food.

• Do not use pots or pans on the grill plate accessory.

• Do not use the grill plate ac cessory for cooking exces sively fatty meats or products which promote flare-ups.

The optional cutting board ac cessory must be removed be=: fore _qridd le.

• GREASE IS FLAMMABLE.

Let

Use caution to insure that drafts like those from forced air vents or fans do not blow flammable ma

• Always use utensils that have flat bottoms. large enough to cover the burner.

The use of un

Bakeware. such as large cas serole pans. cookie sheets. etc.. should never be used on the

For proper lighting and perfor mance of the burners. keep the ports clean.

It is necessary to clean these when there is a boil over or when the burner does not

WARNING

After a spill or boil over. turn off the burner and clean around

• Clean the cooktop with cau tion.

Avoid steam burns; do not

SAVE THESE INSTRUCTIONS

• Do NOT obstruct the flow of combustion or ventilation air.

• Be sure all cooktop controls are turned off and the cooktop is cool before using any type of aerosol cleaner on or around the

• Service should only be done by authorized technicians.

Techni

• To avoid a fire hazard. grease accumulation must be pre vented by frequently cleaning the ventilation hood and filters.

• In case of fire or when inten

• Install a smoke detector in or near the kitchen.

• IMPORTANT SAFETY NO

TICE: The California Safe Drinking Water and Toxic EnforcementAct re quires the Governor of California to publish a list of substances known to the state to cause cancer. birth de fects or other reproductive harm. and requires businesses to warn custom ers of potential exposure to such sub stances.

The burning of gas cooking fuel can generate some by-products. which are on the list. To minimize expo sure to these substances. always operate this unit according to the instructions contained in this booklet and provide good ventilation.

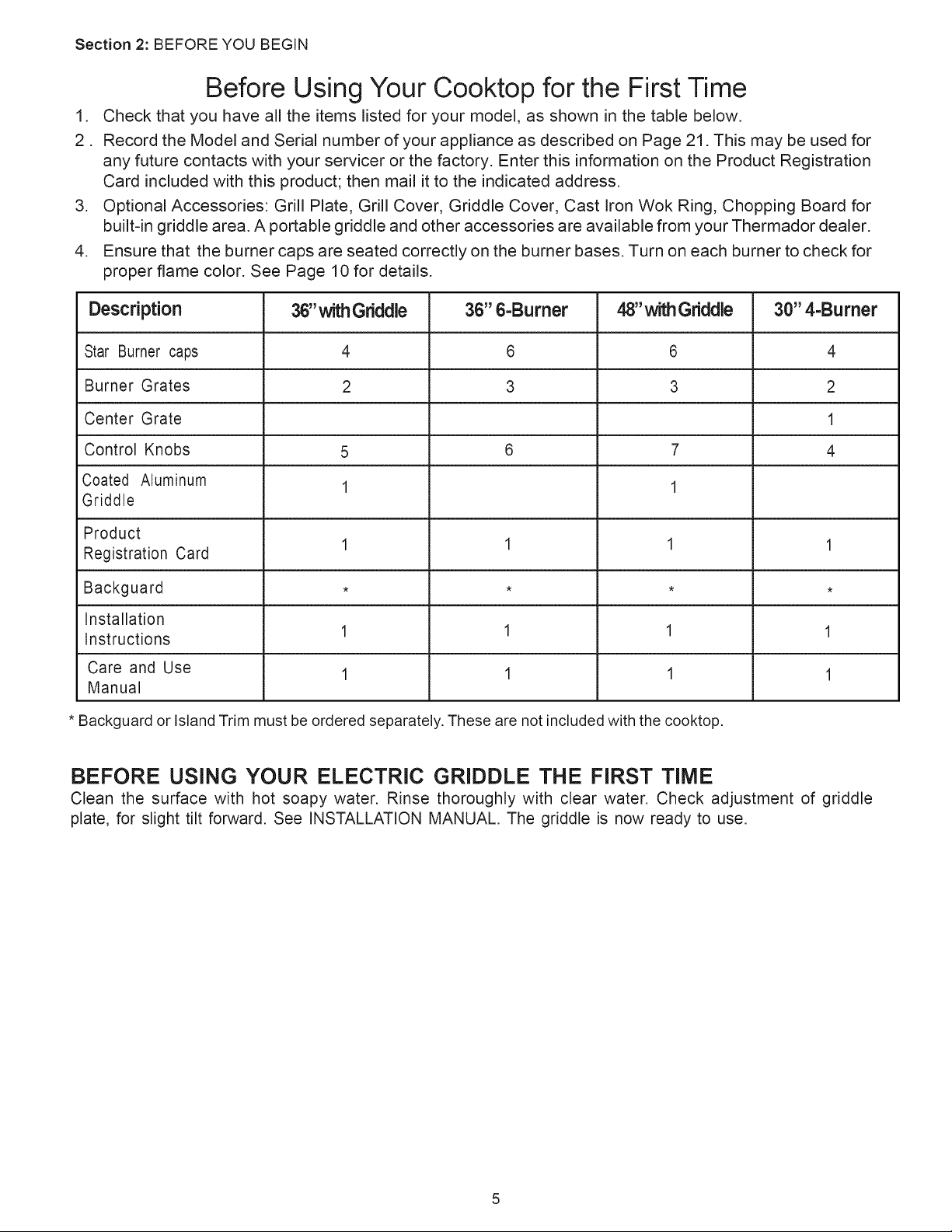

Section 2: BEFORE YOU BEGIN

Before Using Your Cooktop for the First Time

Check that you have all the items listed for your model. as shown in the table below.

Record the Model and Serial number of your appliance as described on Page 21. This may be used for any future contacts with your servicer or the factory.

Enter this information on the Product Registration Card included with this product; then mail it to the indicated address.

Optional Accessories: Grill Plate.

Grill Cover.

Griddle Cover.

Cast Iron Wok Ring. Chopping Board for built-in griddle area. A portable griddle and other accessories are available from your Thermador dealer.

Ensure that the burner caps are seated correctly on the burner bases.

Turn on each burner to check for proper flame color.

See Page 10 for details.

36"with Griddle

Description 36"6-Burner 48"with Griddle 30" 4-Burner

Star Burner caps

Burner Grates

Center Grate

Control Knobs

Coated Aluminum Griddle

Product Registration Card

Backguard

Installation Instructions

Care and Use Manual

+ Backguard or Island Trim must be ordered separately. These are not included with the cooktop.

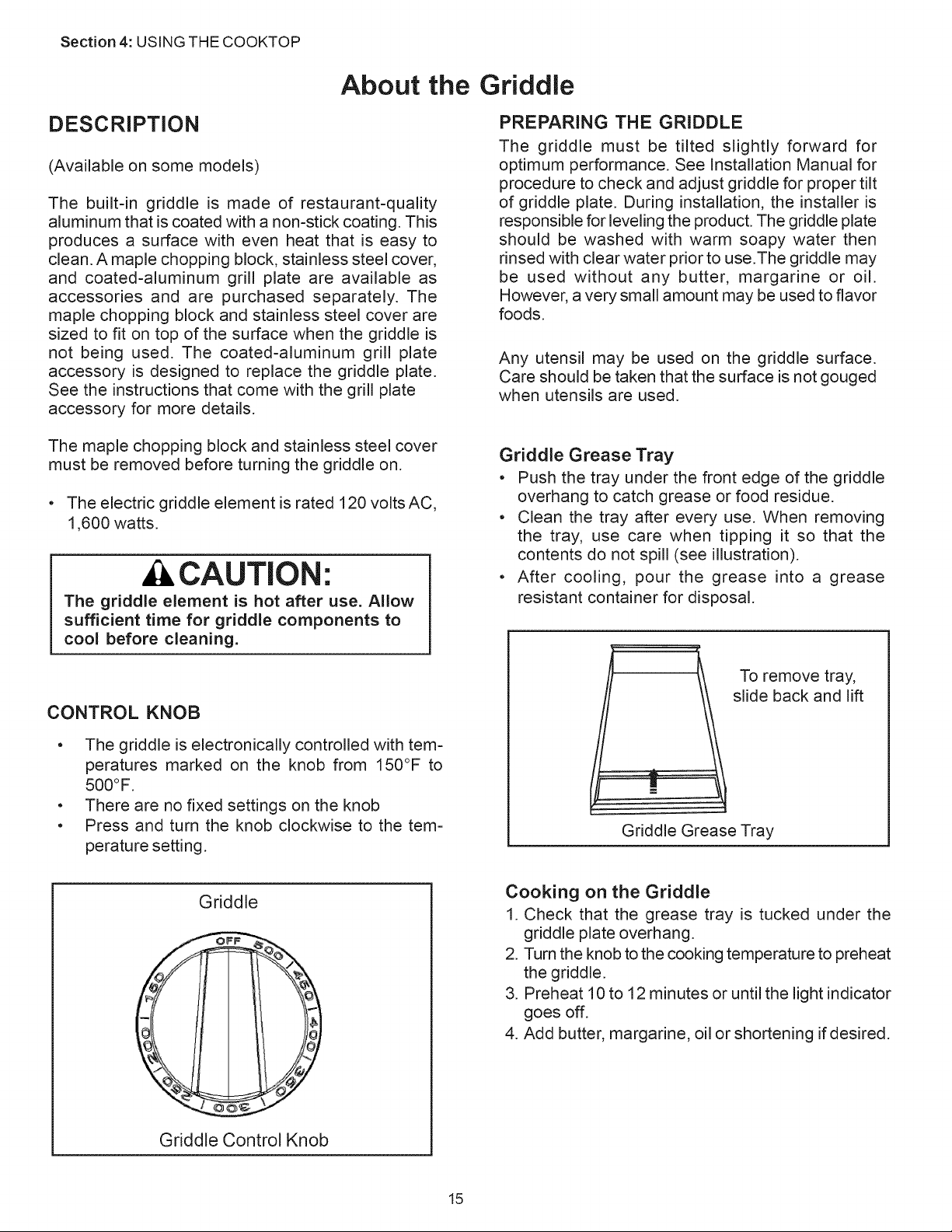

BEFORE USING YOUR ELECTRIC GRIDDLE THE FIRST TIME

Clean the surface with hot soapy water.

Rinse thoroughly with clear water.

Check adjustment of griddle plate. for slight tilt forward.

See INSTALLATION MANUAL.

The griddle is now ready to use.

Section3: DESCRiPTiON

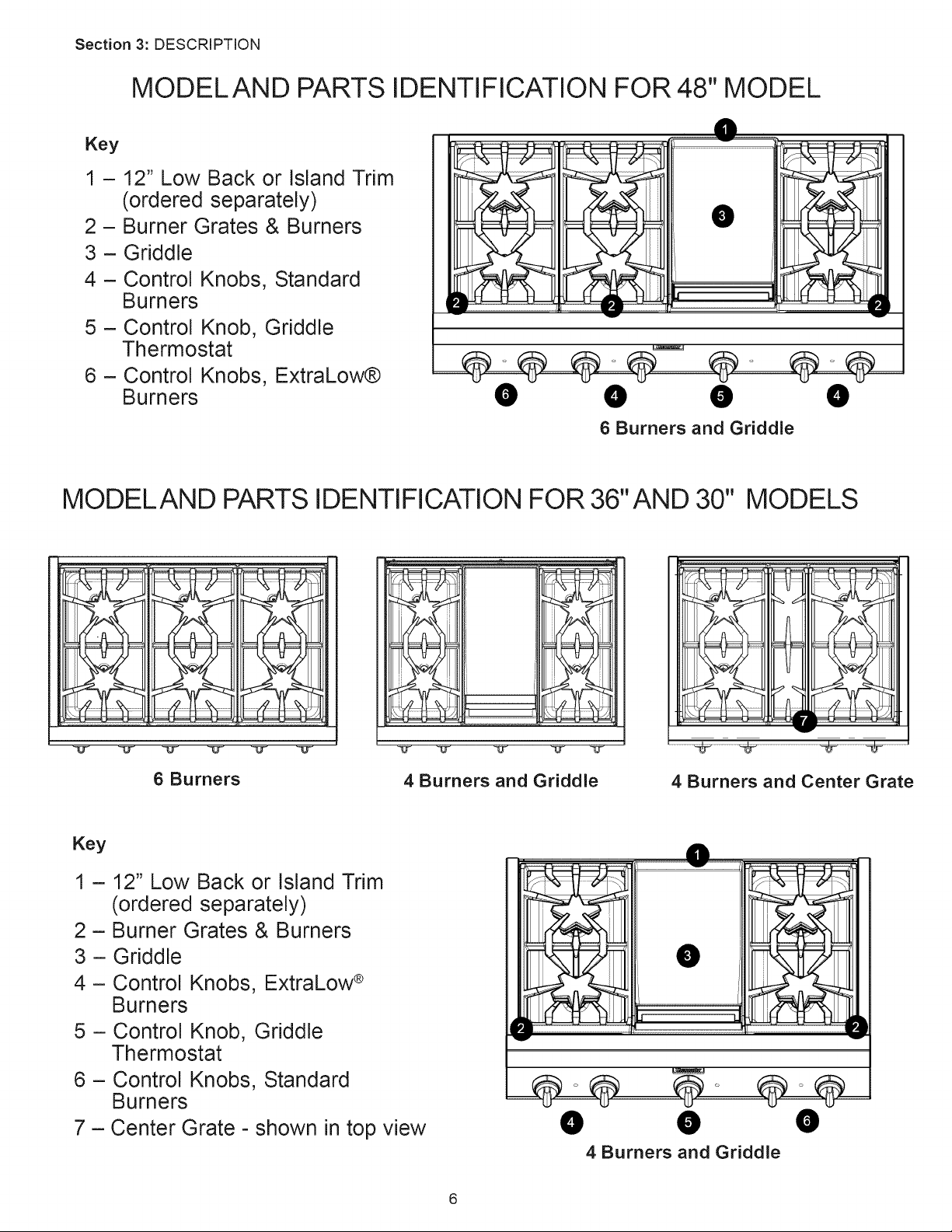

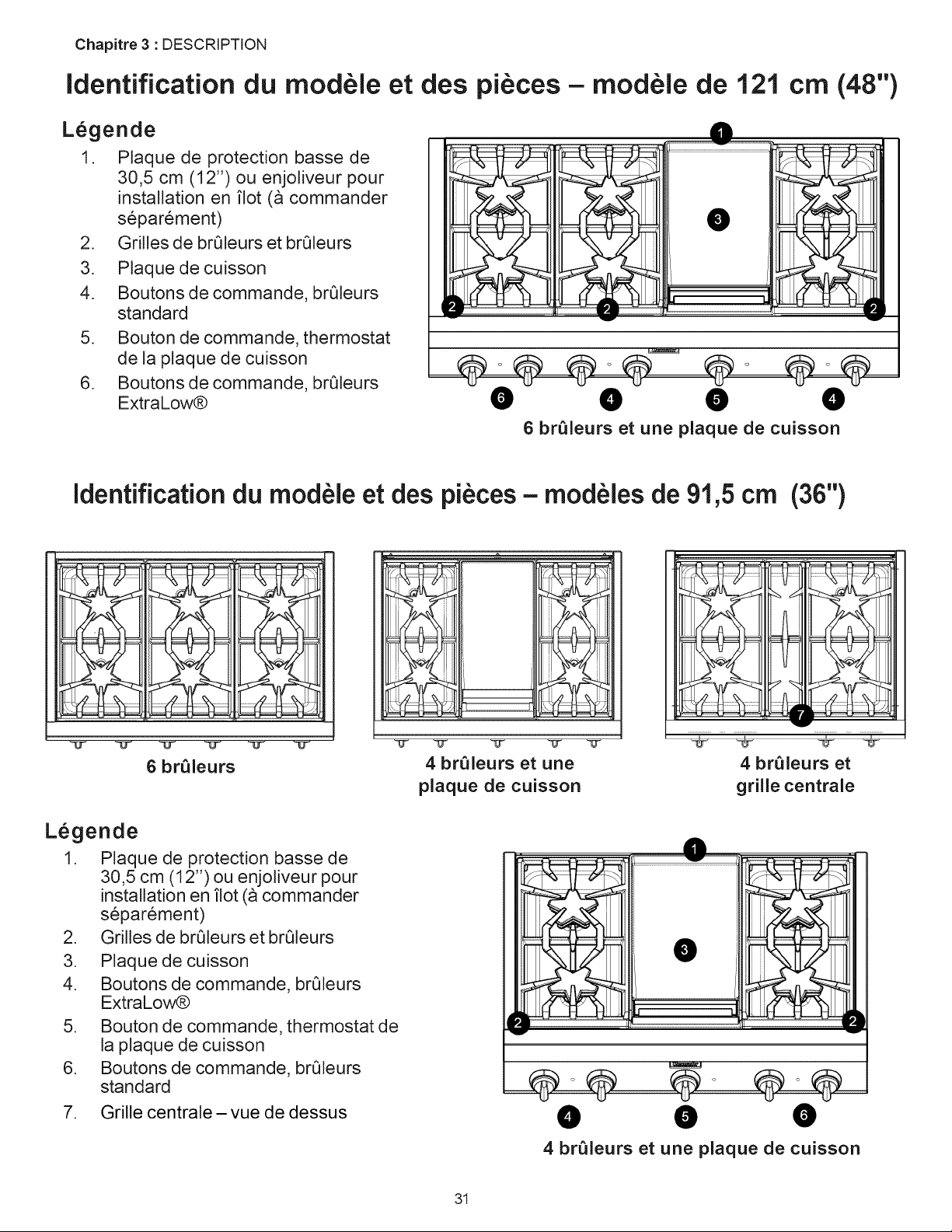

MODELAND PARTS IDENTIFICATION FOR 48" MODEL

1 = 12" Low Back or Island Trim (ordered separately) 2 - Burner Grates & Burners 3 = Griddle

4 = Control Knobs.

Standard Burners

5 = Control Knob.

Griddle Thermostat

6 = Control Knobs.

E×traLow® Burners

6 Burners and Griddle

MODELAND PARTS IDENTIFICATION FOR 36"AND 30" MODELS

6 Burners 4 Burners and Griddle 4 Burners and Center Grate

12" Low Back or Island Trim (ordered separately) Burner Grates & Burners Griddle Control Knobs.

ExtraLow ® Burners Control Knob.

Griddle Thermostat Control Knobs.

Standard Burners

Center Grate - shown in top view 4 Burners and Griddle

Section 4: USING THE COOKTOP

Using The Cooktop

Sealed Burners

The cooktop features four or six gas surface burners; each rated at 18. 00 BTU/HR (15. 00 BTU/HR using Propane).

The burners are mounted on top of unique-shaped pedestals.

This makes the burner assemblies accessible

Star Brass Burner Base

CONTROL KNOBS

The control knobs for two gas burners. one in front and one in the rear. are located directly in front of and below the pair of burners on the control panel.

The symbol above each control knob identifies either the burner position on the cooktop or the griddle control. depending upon your model.

LEFT REAR LEFT FRONT RIGHT REAR RIGHT FRONT Burner:

CENTER REAR CENTER FRONT GRIDDLE: Burner:

Setting Indicator

Knob

Bezel

Standard Burner Control Knob

OPERATION OF THE BURNERS

Press in on the knob and turn it counter

The blue signal light. between the burner knobs. will light when adjacent burners are lit.

The light will remain on until the adjacent burners are turned off.

BTU for Standard Burners

HI is equivalent to 18.000 BTU/HR (15. 00 BTU / HR using Propane).

SIM is equivalent to 2. 00 BTU! HR.

BTU for ExtraLow® Burners

HI is equivalent to 18.000 BTU/HR (15. 00 BTU / HR using Propane).

SIM is equivalent to 3. 00 BTU / HR.

XLO is equivalent to 370 BTU / HR.

Section 4: USING THE COOKTOP

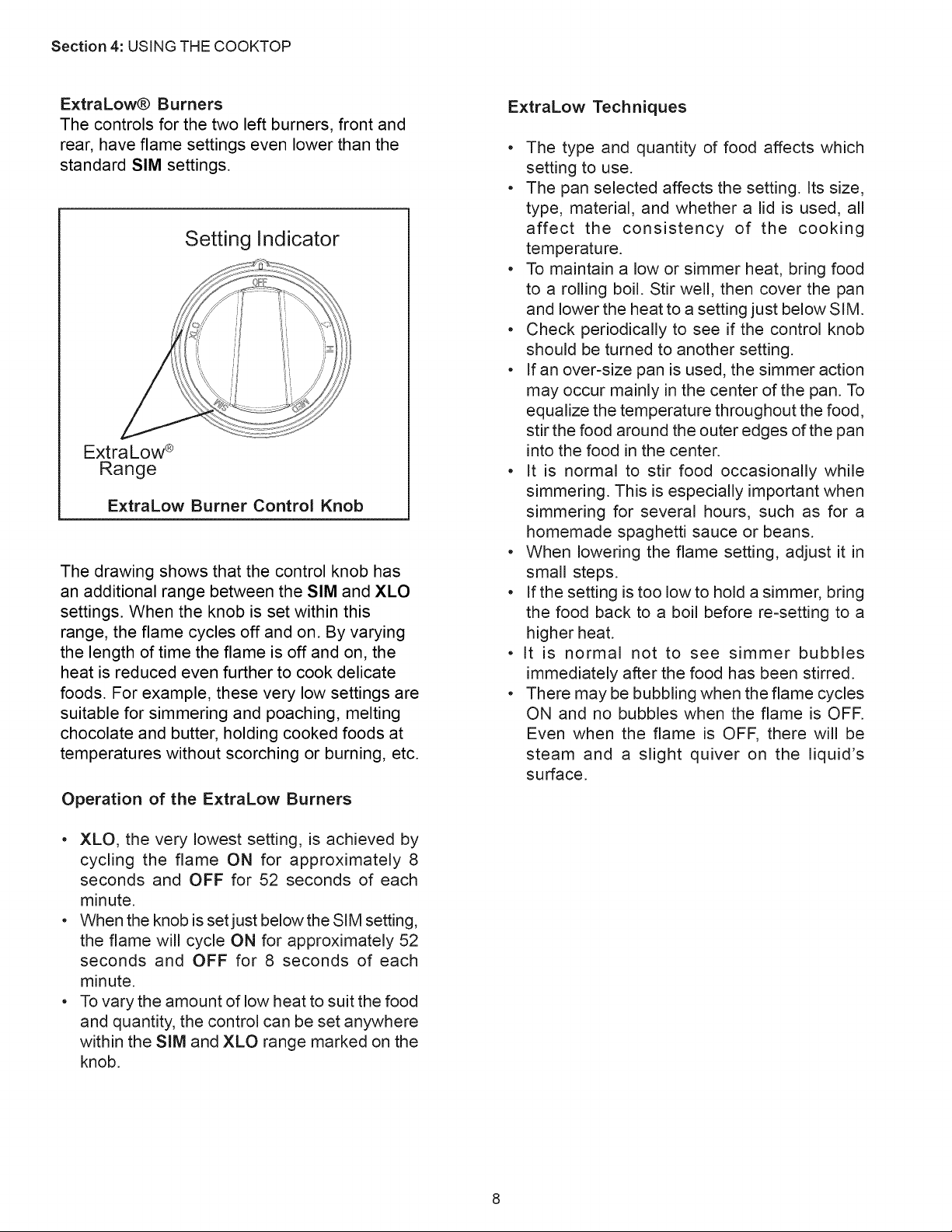

ExtraLow® Burners

The controls for the two left burners. front and

Setting Indicator

ExtraLow Range

ExtraLow Burner Control Knob

The drawing shows that the control knob has an additional range between the SIM and XLO settings.

When the knob is set within this range. the flame cycles off and on. By varying the length of time the flame is off and on. the heat is reduced even further to cook delicate

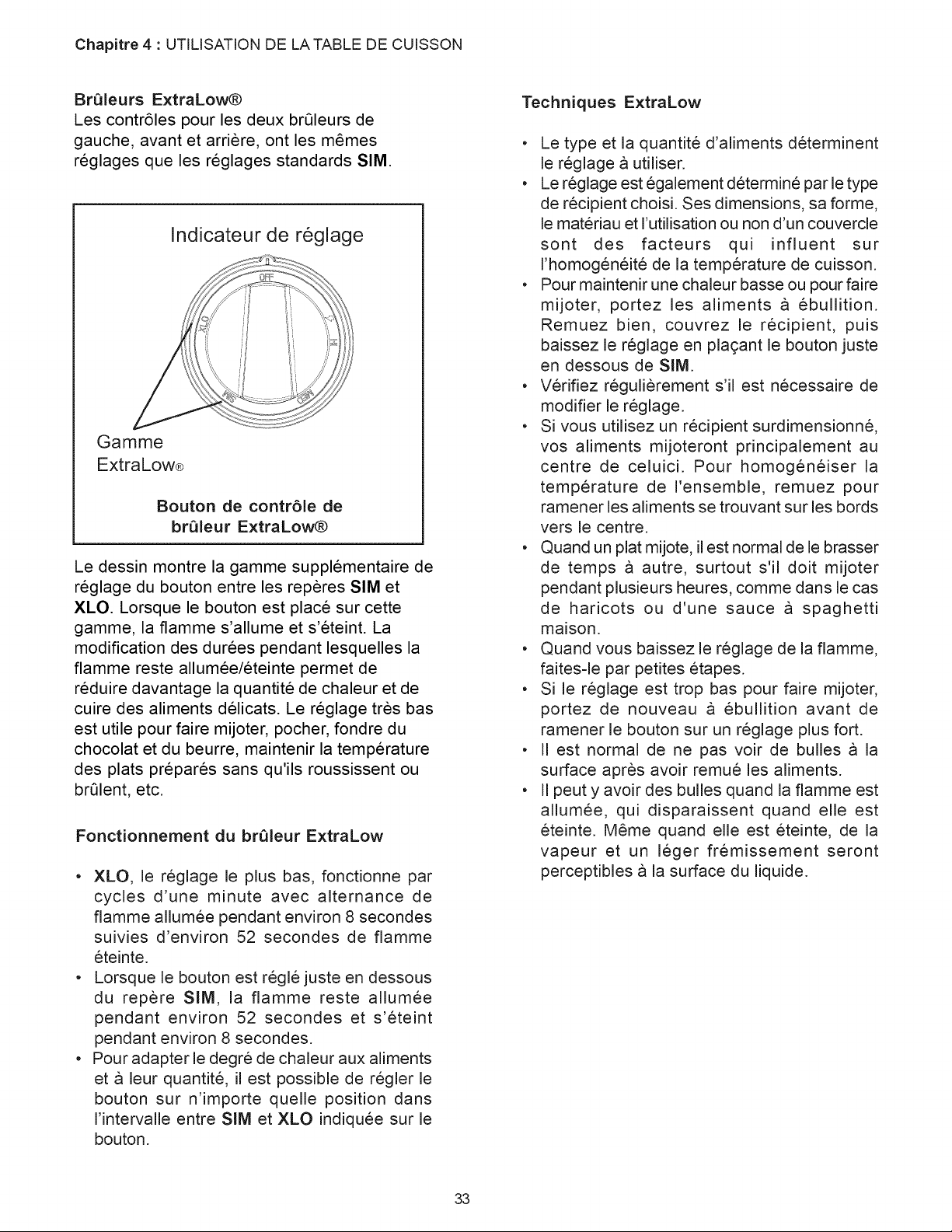

Operation of the ExtraLow Burners

XLO. the very lowest setting. is achieved by

When the knob is set just belowthe SIM setting. the flame will cycle ON for approximately seconds and OFF for 8 seconds of each minute.

To vary the amount of low heat to suit the food and quantity. the control can be set anywhere within the SIM and XLO range marked on the knob.

ExtraLow Techniques

The type and quantity of food affects which setting to use.

The pan selected affects the setting.

Its size. type. material. and whether a lid is used. all affect the consistency of the cooking temperature.

To maintain a low or simmer heat. bring food to a rolling boil.

Stir well. then cover the pan and lower the heat to a setting just below SIM.

Check periodically to see if the control knob should be turned to another setting.

If an over-size pan is used. the simmer action

It is normal to stir food occasionally while simmering.

This is especially important when

Even when the flame is OFF. there will be

Section4: USINGTHECOOKTOP

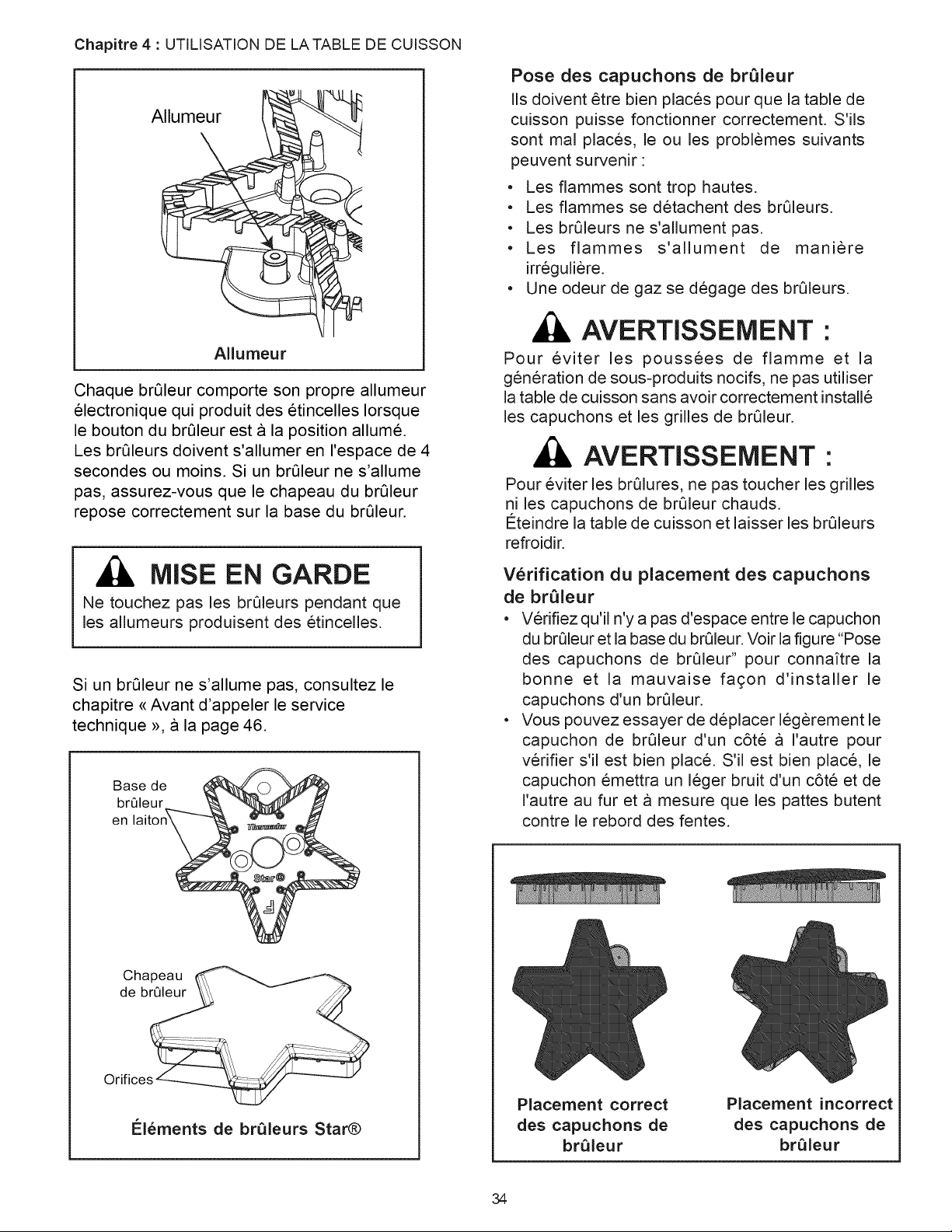

Igniter

Igniter

Each burner has its own electronic igniter that sparks when the burner is turned on. Each burner should light in 4 seconds or less.

If a burner does not light. check to see that the burner cap is positioned correctly on the burner base.

Burner Cap Placement

The burner caps must be properly placed on the burner bases for the cooktop to function properly.

If a burner cap is not properly placed. one or more of the following problems may occur:

Burner flames are too high.

Flames shoot out of the burners.

Burners do not ignite.

Burner flames light unevenly.

Burner emits gas odor

WARNING

To prevent flare-ups and avoid creation of harmful by-products. do not use the cooktop without all burner caps and all burner grates properly positioned.

WARNING

To prevent burns. do not touch burner caps or grates while hot. Turn the cooktop off and allow the burners to cool.

CAUTION

Do not touch the burners when the

If a burner fails to ignite. refer to "Before Calling For Service" on page 21.

Checking Burner Cap Placement

Check to make sure there is no gap between the burner cap and burner base. See figure "Burner

Cap Placement" to see the correct and incorrect placements of the burner cap.

You may gently try to move the burner cap from side to side to check if it is properly placed. if

Brass Burner Base

%rner

L--__:

Ports

[email protected] Burner Components

Correct Burner

Cap Placement

Incorrect Burner

Cap Placement

Section 4: USING THE COOKTOP

AUTOMATIC RE=IGNITION

If any one or more burners blow out. the electronic igniter automatically activates to re light the flame.

Do not touch the burners when the igniters are active.

Important:

For proper combustion do not use the cooktop without the burner grates in place.

There is a slight sound associated with gas combustion and ignition.

This is a normal condition.

On cooktops using propane gas (LP). a slight "pop" sound may be heard at the burner ports a few seconds after the burner has been turned off.

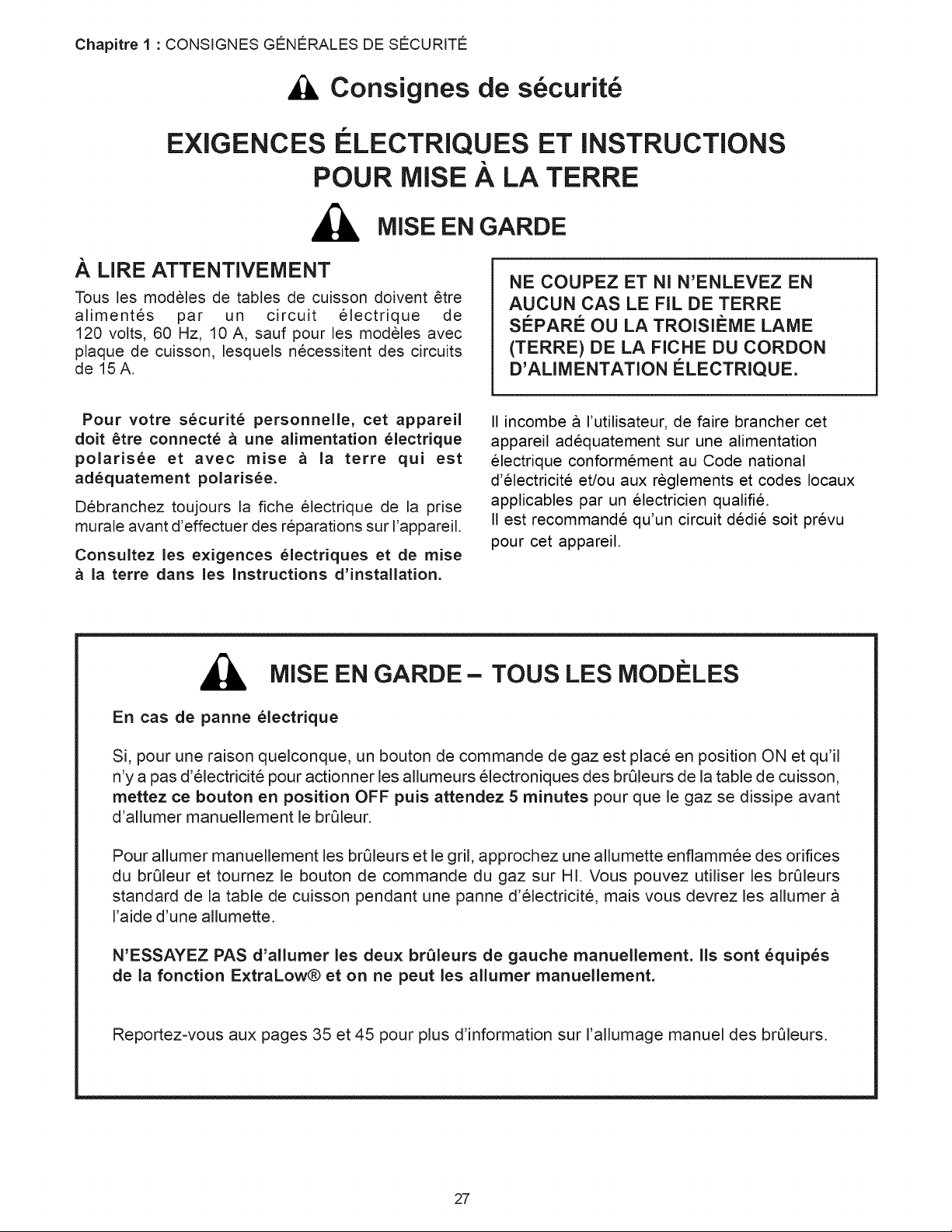

POWER FAILURE

In the event of a power failure. only the standard burners can be manually lit. It is necessary to light each one individually. If the cooktop is being used when the power failure occurs. turn all knobs to the OFF position.

The standard burners can be lit by holding match at the ports and turning the control knob

The ExtraLow burners cannot be used during a power failure.

Be sure to turn them off.

If an ExtraLow burner is on when a power failure occurs. it cannot be turned back on until the knob is first turned off.

The griddle cannot be used during a power failure.

If you smell gas. refer to safety precautions in the front of this manual.

WARNING

In the event of a power failure. all knobs are to be turned to the OFF Position.

Only the standard burners can be lit manually.

FLAME HEIGHT

The correct flame height depends on 1) size and material of pan being used; 2) food being cooked; and 3) amount of liquid in the pan.

Never extend the flame beyond the base of the pan.

Use a low or medium flame for pan materials that conduct the heat slowly. such as porcelain coated steel or glass-ceramic.

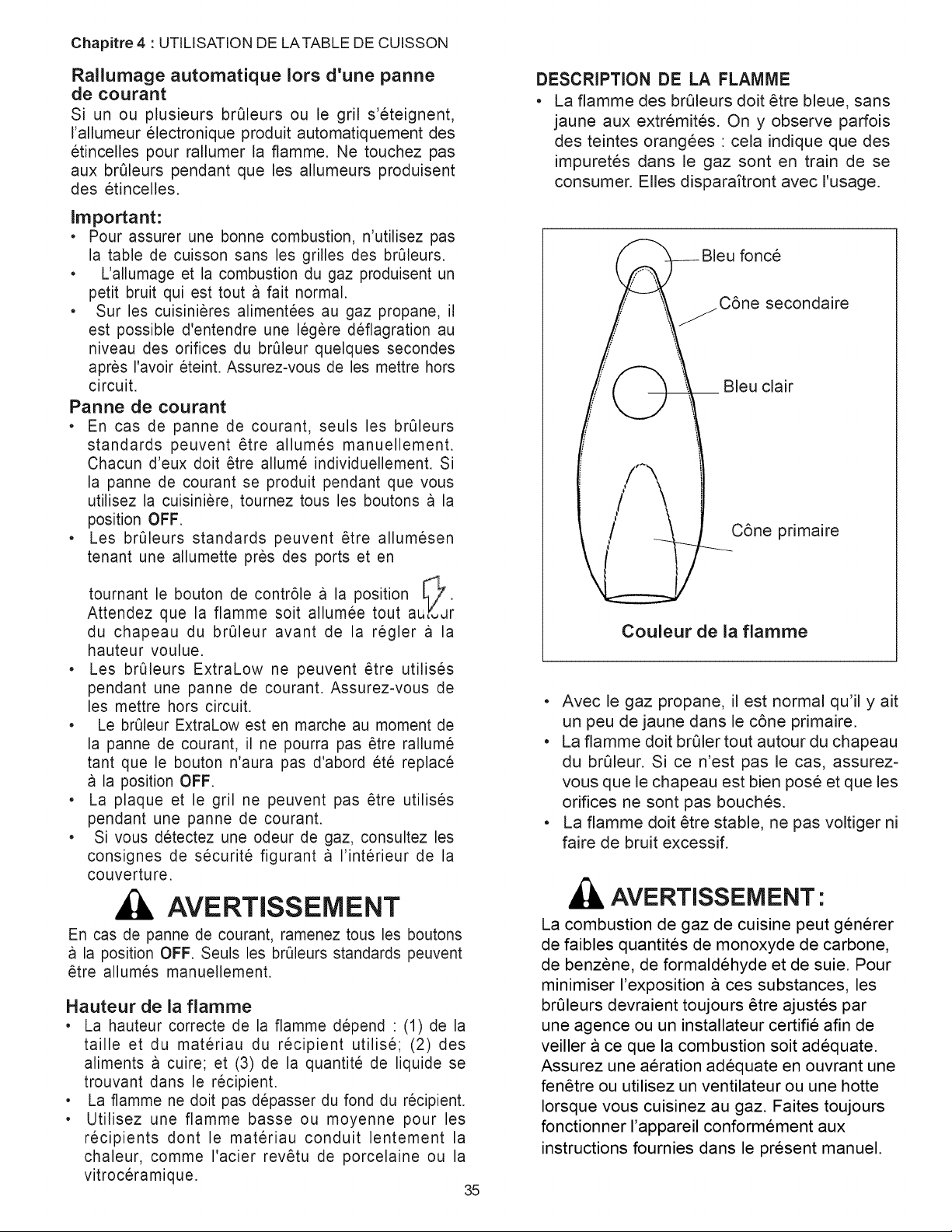

FLAME DESCRIPTION

The burner flame color should be blue with

Blue

Secondary Cone

Light Blue

Primary

Flame Color

With propane (LP) gas. slight yellow tips on the primary cone are normal.

The flame should burn completely around the burner cap. If it doesn't. check that the cap is positioned correctly on the base and that the ports are not blocked.

The flame should be stable with no excessive

WARNING"

The burning of gas cooking fuel can create small amounts of Carbon Monoxide.

Benzene.

Formaldehyde and Soot. To minimize expo sure to these substances. the burners should

Section4: USINGTHECOOKTOP

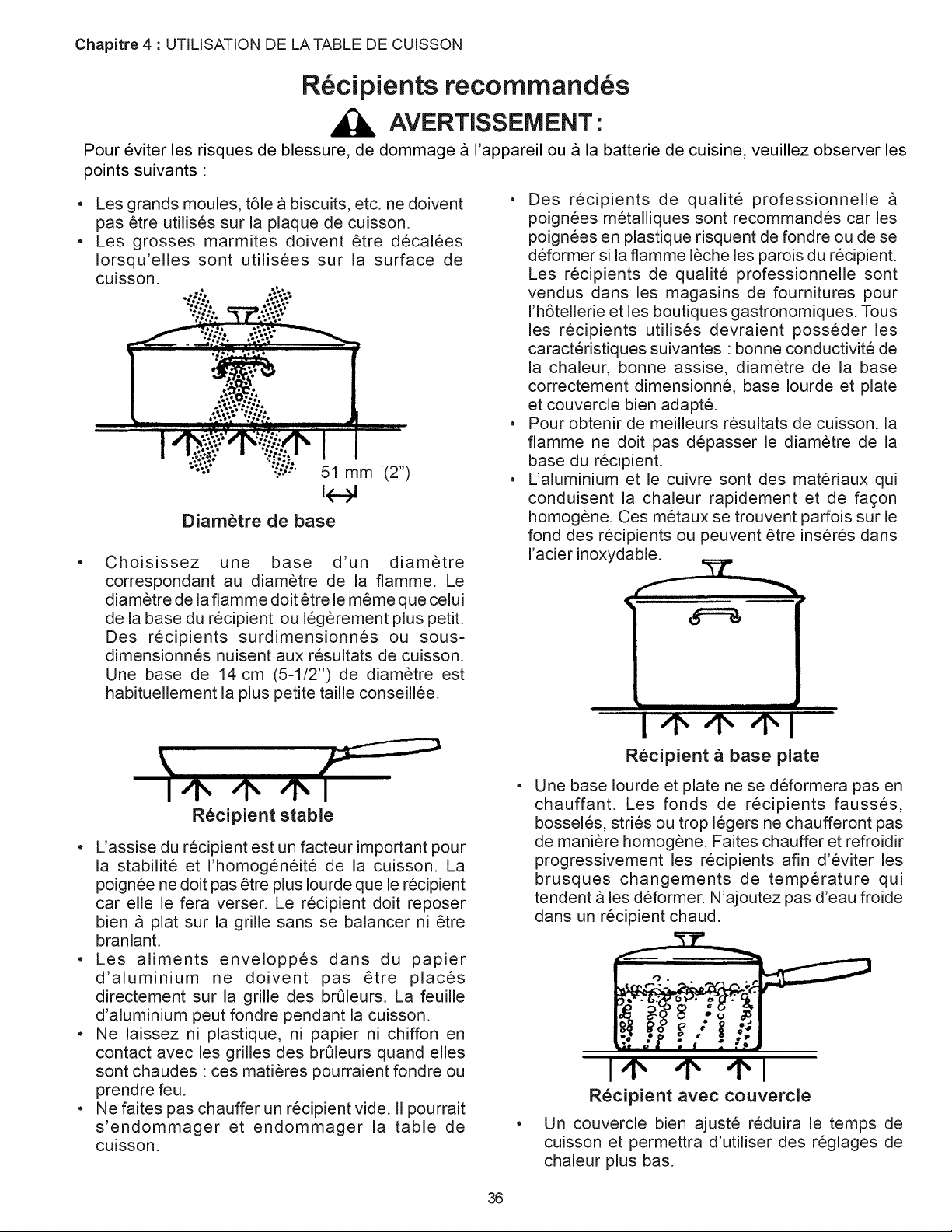

Cookware Recommendations

WARNING:

To avoid risk of serious injury. damage to appliance or cookware. please observe the following:

Bakeware. such as large casserole pans. cookie sheets. etc. should never be used on the cooktop.

Placement of large stock pots should be staggered when used on the cooktop.

Professional quality pans with metal handles are recommended because plastic handles can melt or blister if the flame extends up the side of the pan.

Professional quality pans are found at res taurant supply stores and gourmet specialty shops.

All cookware should have these charac teristics: good heat conductivity. good balance. correctly sized base diameter. a heavy. flat base. and a proper fitting lid.

For best cooking results. the flame should be contained under the bottom of the pan.

(51 mm)

Base Diameter

Select the base diameter to match the diameter of the flame.

The diameter of the flame should be

Oversize or under size pans sacrifice cooking performance. 5-1/2" (140 mm) base size is generally the smallest recommended.

. .. 1. 4.

Balanced Pan

Balance is important for stability and even cooking.

The handle must not be heavier than the pan and tilt it unevenly.

A pan must sit level on the grate without rocking or wobbling.

Food packaged in aluminum foil should not be placed directly on the burner grate. Aluminum foil can melt during cooking.

Do not let plastic. paper or cloth come in contact with a hot burner grate.

They may melt or catch fire.

Never let a pan boil dry. This can damage your pan and the cooking surface.

Aluminum and copper are pan materials that conduct the heat quickly and evenly.

These met als are sometimes attached to the base or in the core between stainless steel.

III jiiii ii 4"4"4"1

Flat Base Pan

A heavy. flat base is more apt to remain flat when heated.

Pan bases that are warped. dented. ridged ortoo lightweight will heat unevenly.

Heat and cool pans gradually to avoid sudden temperature changes which tend to distort cookware.

Do not add cold water to a hot pan.

18 ou e " _ ."_!

I;2 t;Wf _ r _*J 14"'I"'I"1

Covered Pan

A properly fitting lid will shorten cooking time and make it possible to use lower heat settings.

Section4: USINGTHECOOKTOP

Specialty Cookware

Canning Tips:

A flat base pan is preferred to one with a con cave. convex or rippled base.

Flat-bottom Wok Pan

When using two canners at the same time. use staggered burners.

Do not block air to the burn ers. A flame needs the right amount of air for complete combustion.

Use a cover on a canner when bringing the contents to a boil.

Once the contents have reached a boil on HI. use

Canning produces a large amount of steam.

Take precautions to prevent burns.

Round=Bottom Wok

Woks

Either flat based or round bottom woks

Canners and Stock Pots - Select one with a base diameter that extends no more than 2 inches

(51mm) beyond the grate.

Standard Size Water Bath Canner

21 to 22 quarts (19.95 to 20.9 liters). with an 11 to 12 inch base (27.9 to 30.5 cm) and

Standard Size Pressure Canner

8 to 22 quarts (7.6 to 20.9 liters). with an 8 to 11 inch base (20.3 to 27.9 cm) and a 6 -1/2" to 12 inch depth (16.5 30.5 cm).

COOKING Recommendations

Suggestions for Using the Recommendations Use the recommendations on Pages 13 and 14 as a guide.

The settings you use will vary depending on the pans selected and the starting temperature of the food.

In the recommendations. the "Finish Setting" has been separated for the standard and ExtraLow burners.

There may or may not be a change between the two burner settings.

The ExtraLow setting can be either a cooking or a holding setting.

Raise or lower the flame setting gradually.

Allow time for the pan and the food to adjust to the new setting.

Section4: USINGTHECOOKTOP

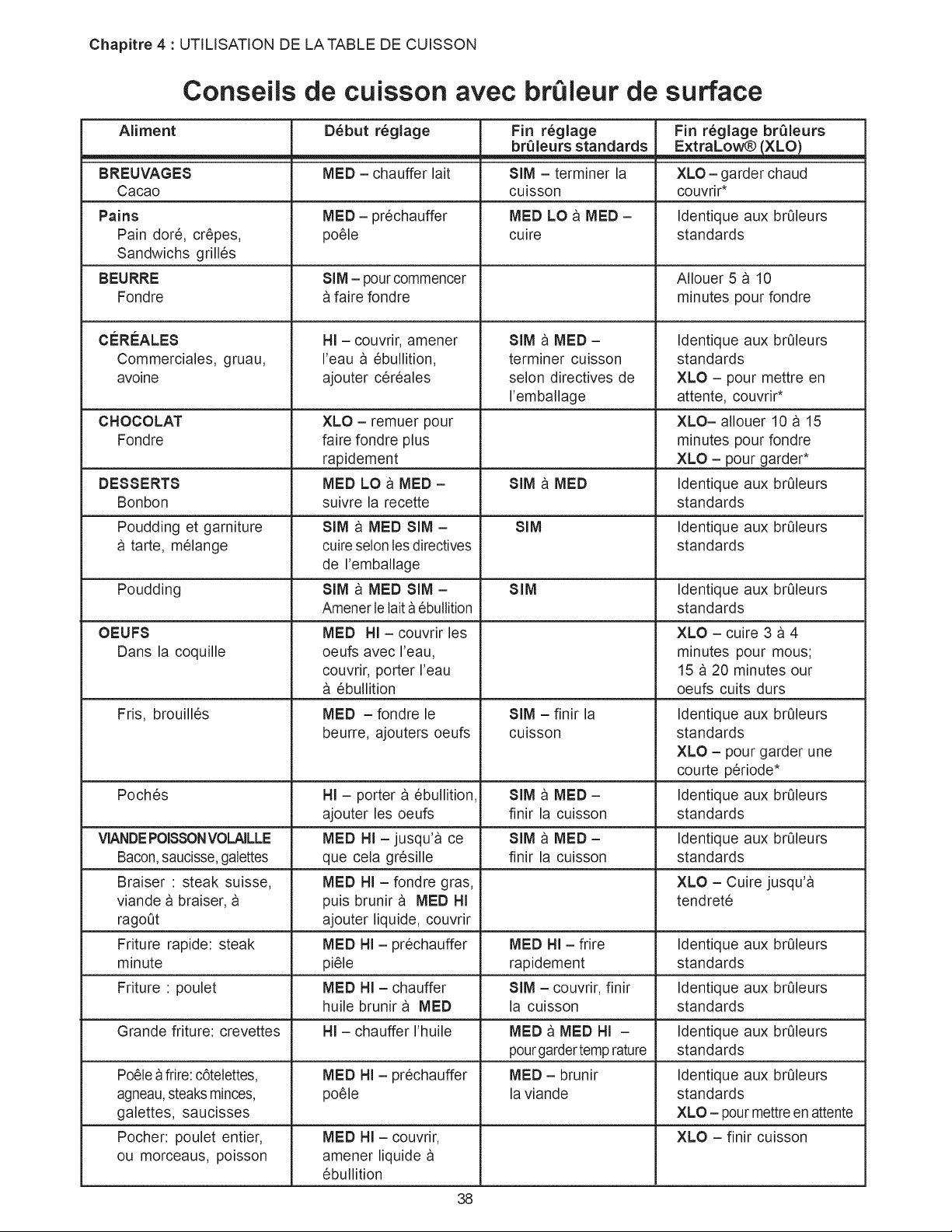

Surface Burner Cooking Recommendations

Food Start Setting Finish Setting Finish Setting Standard Burners ExtraLow (XLO) Burners

BEVERAGES MED - heat milk SIM - finish heating XLO - keep warm. cover* Cocoa

BREADS MED - preheat skillet SIM to MED - cook Same as for Standard French Toast. Pancakes.

Burners Grilled Sandwiches

BUTTER SIM - to start melting Allow 5 to 10 Melting minutes to melt

CEREALS Cornmeal.

Grits.

Oatmeal

HI - cover. bring water to a boil. add cereal

SIM to MED

Same as for Standard Burners

XLO - to hold. cover*

CHOCOLATE XLO - may be stirred XLO -Allow 10 to 15 Melting to hasten melting minutes to melt XLO - to hold*

DESSERTS SIM to MED - cook SIM to MED Same as for Standard

Candy following recipe Burners

Pudding and Pie Filling SIM to MED SIM SIM Same as for Standard Mix cook according to Burners package directions

Pudding SIM to MED SIM SIM Same as for Standard Bring milk to a boil Burners

EGGS MED HI - cover eggs XLO - cook 3 to 4 Cooked in Shell with water. add lid. minutes for soft cooked; bring to boil or 15 to 20 minutes for hard cooked

Fried. Scrambled SIM to MED - melt SIM - finish cooking Same as for Standard butter. add eggs Burners XLO - to hold for a

Poached HI - bring water to SIM to MED - finish Same as for Standard the boiliong point. cooking Burners add eggs

MEAT. FISH. POULTRY MED HI - until meat stats SIM to MED - finish Same as for Standard Bacon. Sausage Patties to sizzle cooking Burners

Braising: Swiss Steak.

MED HI - melt fat. then XLO - Simmer until tender Pot Roast. Stew Meat brown on MED HI. add liquid. cover

Quick Frying: Breakfast MED HI - preheat MED HI - fry quickly Same as for Standard Steaks skillet Burners

Frying: Chicken MED HI - heat oil. then SIM - cover. finish Same as for Standard brown on MED cooking Burners

Deep Frying: Shrimp MED HI - heat oil MED to MED HI - to Same as for Standard maintain temperature Burners

PanFrying:LambChops.

MED HI - preheat MED - brown meat Same as for Standard Thin Steaks. amburgers. skillet Burners Link Sausage XLO -to hold

Poaching: Chicken.

MED HI - cover. bring XLO - to finish cooking whole or pieces. Fish liquids to a boil

Section4: USINGTHECOOKTOP

Surface Burner Cooking Recommendations

Food

Simmering: Stewed Chicken. Corned Beef.

Tongue. etc.

Start Setting

HI - cover. bring liquid to a boil

Finish Setting Standard Burners Finish Setting ExtraLow (XLO) Burners

XLO - to simmer slowly XLO - to hold. cover*

PASTAS HI - bring water to a MED to MED HI = to Same as for Standard Macaroni. Noodles. boil. add pasta maintaina rollingboil Burners Spaghetti

POPCORN (use a heavy. HI - cover. heat until MED HI - finish Same as for Standard flat bottom pan) kernels start to pop popping Burners

PRESSURE COOKER MED HI to HI - build SIM to MED Same as for Standard Meat up pressure maintain pressure Burners

Vegetables Hi - build up pressure SIM to MED Same as for Standard maintain pressure Burners

RICE for Standard

SAUCES Tomato Base

White. Cream. Bernaise

Hollandaise

SOUPS. STOCK

VEGETABLES Fresh

HI - cover. bring water and rice to a boil

MED HI = cook meat/vegetables. follow recipe

MED - melt fat. follow recipe

HI - cover. bring liquid to a boil

HI - cover. bring water and vegetables to a boil

HI - cover. bring water and vegetables to a boil

Frozen

SIM - to maintain low boil Cover and cook until water is absorbed.

SIM - to maintain simmer

SIM - finish cooking

SIM - to maintain simmer

SIM to MED - cook 10 minutes. or until tender

Deep Frying

SIM to MED - cook according to package directions

MED to MED HI maintain frying temperature

SIM to MED - cook

SIM to MED cook to desired doneness

HI - heat oil

Same as Burners XLO - to hold. cover

XLO - simmer to thicken sauce. uncovered

XLO - to hold. cover*

XLO - to hold. lowest setting for short period. stir frequently

Simmer XLO - to hold. cover*

Same as for Standard Burners XLO - to hold. cover

Same as for Standard Burners

Same as for Standard Burners

In Pouch HI - bring water and Same as for Standard pouch to a boil Burners

Saute MED HI - heat oil or Same as for Standard melt butter. add Burners vegetables

Stir Fry HI - heat oil. add MED to MED HI Same as for Standard vegetables finish cooking Burners

+ It is recommended that these foods be stirred occasionally.

Section4: USINGTHECOOKTOP

About the Griddle

DESCRiPTiON

(Available on some models)

The built-in griddle is made of restaurant-quality aluminum that is coated with a non-stick coating.

This produces a surface with even heat that is easy to clean. A maple chopping block. stainless steel cover. and coated-aluminum grill plate are available as accessories and are purchased separately.

The maple chopping block and stainless steel cover are sized to fit on top of the surface when the griddle is not being used.

The coated-aluminum grill plate accessory is designed to replace the griddle plate.

See the instructions that come with the grill plate accessory for more details.

PREPARING THE GRIDDLE

The griddle must be tilted slightly forward for optimum performance.

See Installation Manual for procedure to check and adjust griddle for proper tilt of griddle plate.

During installation. the installer is responsible for leveling the product.

The griddle plate should be washed with warm soapy water then rinsed with clear water prior to use.The griddle may be used without any butter. margarine or oil.

However. a very small amount may be used to flavor foods.

Any utensil may be used on the griddle surface.

Care should be taken that the surface is not gouged when utensils are used.

The maple chopping block and stainless steel cover must be removed before turning the griddle on.

The electric griddle element is rated 120 voltsAC.

1.600 watts.

CAUTION:

The griddle element is hot after use.

Allow sufficient time for griddle components to cool before cleaning.

CONTROL KNOB

The griddle is electronically controlled with tem= peratures marked on the knob from 150°F to 500°F.

There are no fixed settings on the knob

Press and turn the knob clockwise to the tem

Griddle Grease Tray

Push the tray under the front edge of the griddle overhang to catch grease or food residue.

Clean the tray after every use.

When removing the tray. use care when tipping it so that the contents do not spill (see illustration).

After cooling. pour the grease into a grease resistant container for disposal.

To remove tray. slide back and lift

Griddle Grease Tray

Griddle

Griddle Control Knob

Cooking on the Griddle

1. Check that the grease tray is tucked under the griddle plate overhang.

2. Turn the knob to the cooking temperature to preheat the griddle.

3. Preheat 10 to 12 minutes or until the light indicator goes off.

4. Add butter. margarine. oil or shortening if desired.

Section4: USINGTHECOOKTOP

NOTICE:

Griddle / Grill performance may vary if there is an excessive amount of airflow in the vicinity of the appliance.

The excessive airflow could be from an air-conditioning register or ceiling fan blowing at the cooktop.

This could create longer than normal heat up time or it could cause the Griddle / Grill temperature to be higher or lower than the knob setting.

Note:

Having a properly installed ventilation hood is not considered a source of excessive airflow.

GRIDDLE COOKING RECOMMENDATIONS

FOOD SETTING

Eggs 325°F to 350°F (160°C to 180°C)

Bacon. BreakfastSausage 375°F to 400°F (190°C to 200°C)

ToastedSandwiches 350°F to 375°F (180°C to 190°C)

Boneless Chicken Breasts 375°F to 400°F (190°C to 200°C)

Boneless Pork Chops. 1"thick 375°F to 400°F (190°C to 200°C)

Steaks. 1" thick 400°F to 425°F (200°C to 220°C)

GroundBeefPatties(6ounces) 375°F to 400°F (190°C to 200°C)

Hot Dogs 350°F to 375°F (180°C to 190°C)

Ham Slices. 1/2" thick 350°Fto375°F(180°Cto 190°C)

Pancakes. French Toast 375°F to 400°F (190°C to 200°C)

Potatoes. Hash Browns 375°Fto400°F (190°C to200°C)

Section5: CAREAND MAINTENANCE

Care and Maintenance

CAUTION

Avoid cleaning any part of the cooktop while it is hot. Do not clean any removable part of the

ABOUT THESE RECOMMENDATIONS

Always start by selecting the mildest cleaner according to the kind of soil and the material soiled.

To prevent marring the stainless steel finish. always apply the cleaners in the direction of the polish lines. Rinse and dry immediately to avoid water marks.

Use clean applicators. i.e. soft cloths. sponges. paper towels. soap-filled ads. for cleaning and scouring.

The use of brand names in these recommenda

The brands listed are suggested as examples of a type of cleaner. such as non-abrasive. mild abrasive. powder. creme. etc. Use all products in accordance with the manufacturer's instructions.

COOKTOP CLEANING RECOMMENDATIONS

Cooktop Part / Material

Brass Burner Base

And Cast iron Cap

Burner

Control Knobs / Metal Bezels / Chrome

Suggested Cleaners

Hot sudsy water; rinse and dry thoroughly.

Mild Abrasive Cleansers: Bon

Ami ®. Cameo ® aluminum and stainless steel cleaner.

Wright's ® all purpose brass polish.

Liquid cleaners: Kleen King ®.

Stiff nylon bristle tooth brush to clean port openings.

After cleaning. re-assemble the burner cap to the burner base correctly.

Make sure the cap is completely seated when positioned on the base.

Hot sudsy water; rinse and dry immediately.

Do not scratch or gouge the port features of the brass burner base.

Do not soak knobs.

Do not force knobs onto

Section5: CAREAND MAINTENANCE

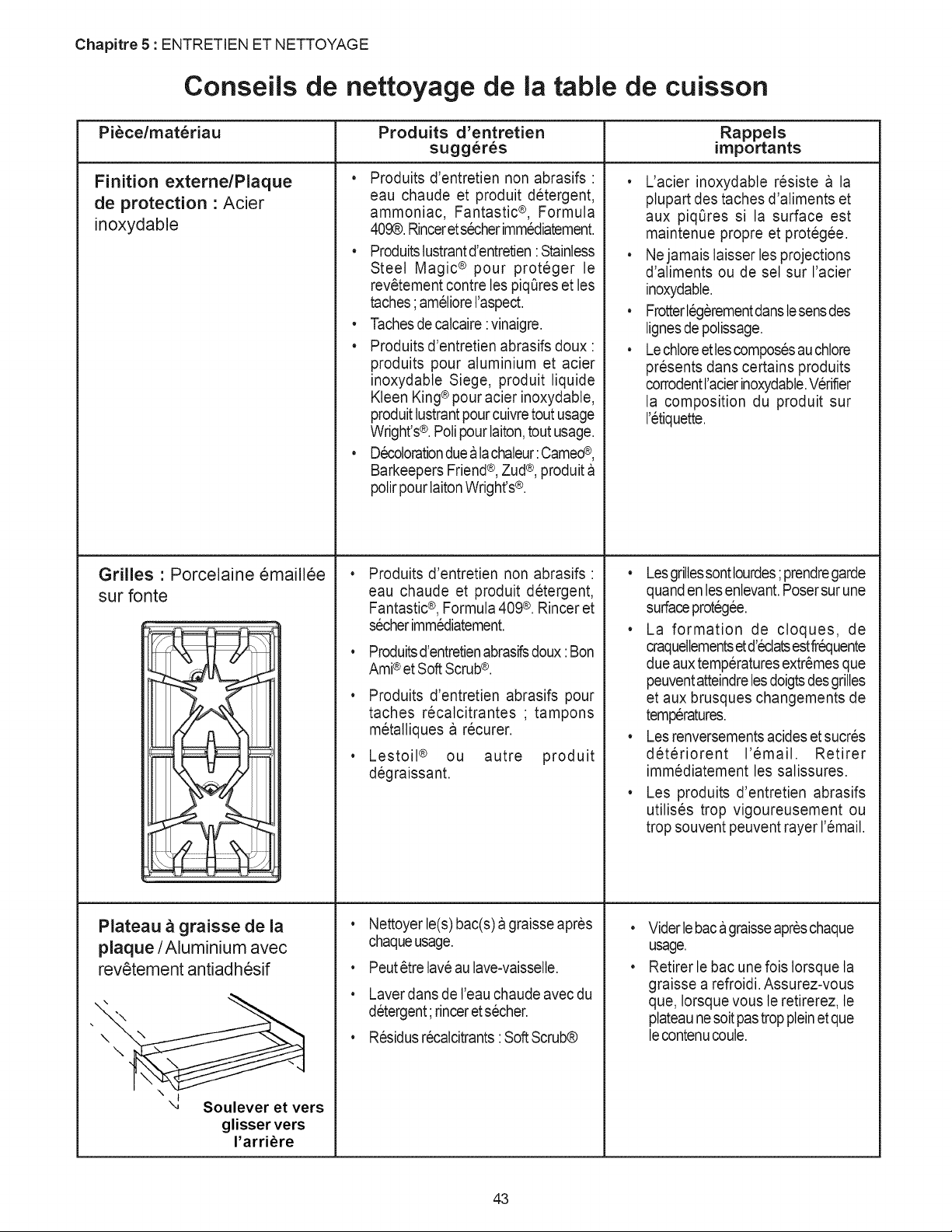

Cooktop Cleaning Recommendations

Cooktop Part / Material Suggested Cleaners important Reminders

Exterior Finish/Back Guard Stainless Steel

Grates: /Porcelain Enamel on Cast iron

Griddle Grease Tray Aluminum with non-stick

. _.

Lift and slide

Nonabrasive Cleaners: Hot

409 ¢ .

Rinse and dry immediately.

Cleaner Polish: Stainless Steel

Magic ® to protect the finish from staining and pitting; enhances appearance.

Hard water spots: Household vinegar.

Mild Abrasive Cleaners: Siege ® Stainless Steel and Aluminum

Cleaner.

Kleen King ® Stainless Steel liquid cleaner.

Wright's ® All Purpose Brass Polish.

Heat discoloration: Cameo ®.

Barkeepers Friend ®. Zud ®.

Wright's ® All Purpose Brass Polish.

Nonabrasive cleaners: Hot

Mild abrasive cleaners: Bon AmP and Soft Scrub ®.

Abrasive cleaners for stubborn

Lestoil ® or other degreaser.

Clean the grease tray(s) after each use.

May be placed in dishwasher.

Wash in detergent and hot water; rinse and dry.

Stubborn soil: Soft Scrub ®

Stainless steel resists most

Never allow food stains or salt to remain on stainless

Rub lightly in the direction of polish lines.

Chlorine or chlorine

The grates are heavy; use care when lifting.

Place on a protected surface.

Blisters/crazing/chips are common due to the extreme

Acidic and sugar-laden spills deteriorate the enamel.

Remove soil immediately.

Abrasive cleaners. used too vigorously or too often can eventually mar the enamel.

Empty grease tray after each use.

Remove tray after grease has cooled.

Be careful not

Section5: CAREAND MAINTENANCE

Cooktop Cleaning Recommendations

Cooktop Part / Material Suggested Cleaners important Reminders

Griddle / Aluminum with non

Surface Spill Tray/Main Top Porcelain Enamel

Remove drip tray and discard grease into a grease resistant container for disposal.

Wash drip tray in warm soapy water or place in dishwasher.

Wipe griddle surface with warm soapy water then rinse with warm water.

Wipe dry with soft cloth.

If food particles stick to the griddle plate. remove with mild abrasive cleaner such as Soft Scrub ®.

Use a cotton swab dampened with water.

Formula 409 ¢ or Fantastic

Never flood a hot griddle with cold water.

This can

Do not clean any part of the griddle in a self-cleaning oven.

Do not use sharp tool to scrape the igniter.

It is

A cleaner such as Soft Scrub ® may be used. Apply with a damp sponge or cloth according to the manufacturer's instructions.

Rinse thoroughly and wipe dry with a soft cloth.

If cleaners such as Bar Keeper's Friend ®. Bon-ami ®. Comet ®. or Ajax ® are used. apply with a damp sponge or cloth according to the manufacturer's directions.

Rub lightly as these cleansers may scatch the finish.

Rinse thoroughly and wipe dry with a soft cloth.

For burned on foods. a soap-filled fiber or steel wool pad such as S.O.S. ® or Brillo ® may be used.

Dampen the pad and rub gently.

Care must be taken as these may scratch the finish.

Rinse thoroughly and wipe dry with a soft cloth.

Section 6: BEFORE CALLING FOR SERVICE

Do-It-Yourself Maintenance

POWER FAILURE

In the event of a power failure. only the standard burners can be lighted manually.

It is necessary to light each standard burner individually.

If the cooktop is being used when the power failure occurs turn all of the burner control knobs

If you have low gas pressure. contact your gas company.

Intermittent or Constant Igniter Sparking

Intermittent or constant sparking of the gas surface burners can result from a number of

SYMPTOM

Intermittent sparking

More than four clicks of

Constant Sparking

CAUSE

Ceramic igniter is wet or dirty.

Burner ports are clogged.

Improper fit of burner cap onto burner base.

Cooktop is not properly grounded.

Electrical power supply is incorrectly polarized.

REMEDY

Carefully dry or clean igniter.

Clean ports on burner cap with a wire. a needle or

Align burner cap properly on burner base.

Refer to Installation

Instructions.

Have a qualified electrician ground the cooktop properly.

Refer to Installation

Instructions.

Have a qualified electrician ground the cooktop properly.

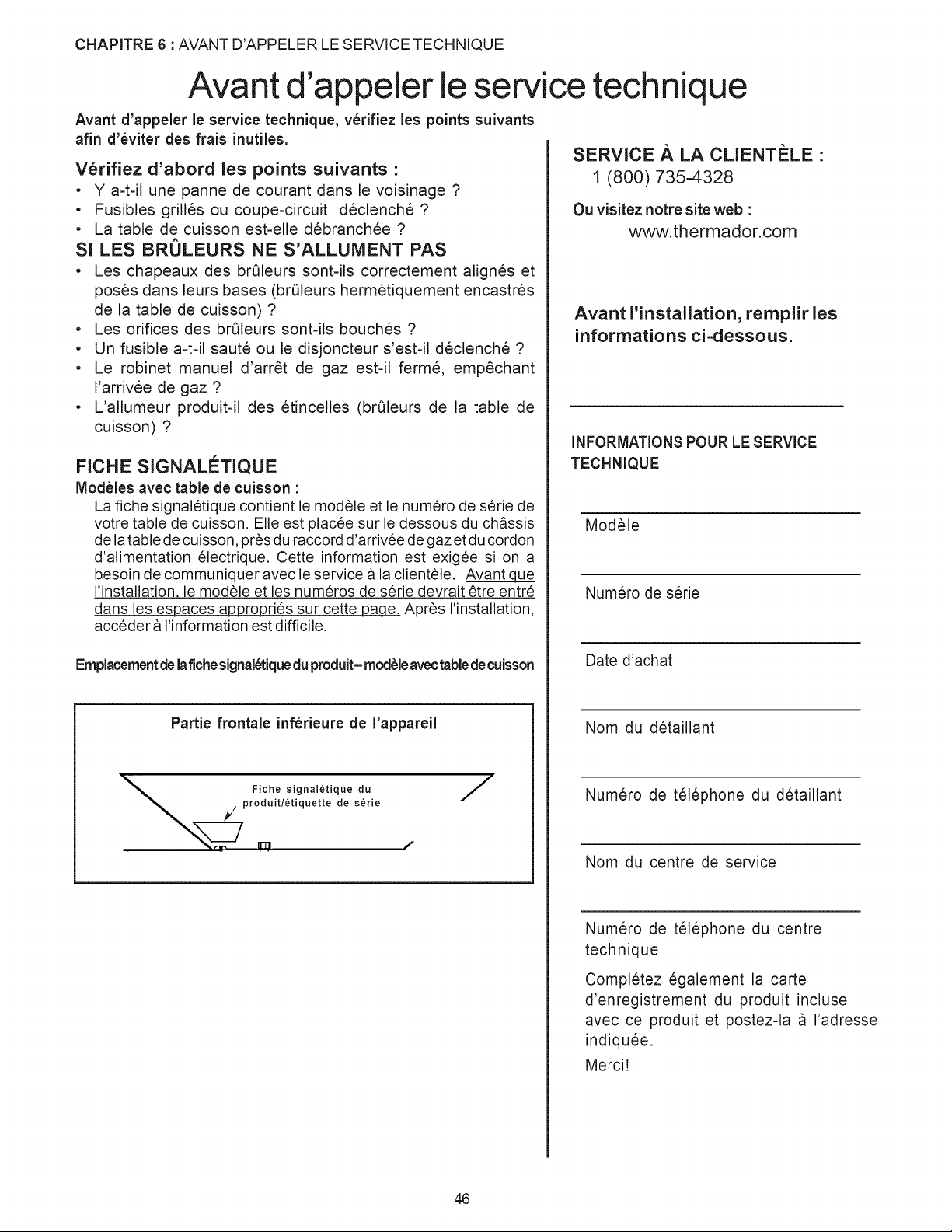

Section 6: BEFORE CALLING FOR SERVICE Before Cal ng for Service

Before calling for service. check the following to avoid unnecessary service charges.

Be sure to check these items first:

IF THE BURNERS DO NOT IGNITE

Are the burner caps properly aligned on the burner bases (Sealed Surface Burners)?

Are the burner ports clogged?

Is a fuse blown or is the circuit breaker tripped?

Is the manual shut-off valve closed. preventing the flow of gas? is the spark igniter sparking (Surface Burners)?

DATA RATING PLATE

Cooktop Models:

The data rating plate showing the model and serial numbers of your Cooktop is located on the underside of the Cooktop chassis near the gas inlet connection and electric power cord.

This information is required if customer service is requested.

Before serial numbers should be entered in the ro riate aces on this After

Product Rating Label Location = Cooktop Model

Front - Bottom of Unit

Product Rating Label/

Serial Tag

Customer Service: 800/735-4328

Before installation. record the information below.

SERVICE INFORMATION

Model

Serial Number

Date of Purchase

Dealer's Name

Dealer's Phone Number

Service Center's Name

Service Center's Phone Number

Also. enter this information on the Product Registration Form in cluded with this product. then mail it to the indicated address.

Thank You.

STATEMENT OF LIMITED PRODUCT WARRANTY

What this Warranty Cov ers & Who it Applies to

How Long the Warranty Lasts

Repair/Replace as Your Exclusive Remedy

Out of Warranty Product

The limited warranty provided by BSH Home Appliances Thermador in this State ment of Limited Product Warranty applies only to the Thermador appliance sold to you. the first using purchaser. provided that the Product was purchased:

For your normal. household (non-commercial) use. and has in fact at all times only been used for normal household purposes.

New at retail (not a display. "as is". or previously returned model). and not for resale. or commercial use.

Within the United States or Canada. and has at all times remained within the country of original purchase.

The warranties stated herein apply only to the first purchaser of the Product and are not transferable.

Please make sure to return your registration card; while not necessary to effectuate warranty coverage. it is the best way for Thermador to notify you in the unlikely event of a safety notice or product recall.

Thermador warrants that the Product is free from defects in materials and work manship for a period of twelve (12) months from the date of purchase.

The fore going timeline begins to run upon the date of purchase. and shall not be stalled. tolled. extended. or suspended. for any reason whatsoever.

During this warranty period. Thermador or one of its authorized service providers will repair your Product without charge to you (subject to certain limitations stated herein) if your Product proves to have been manufactured with a defect in materials or workmanship.

If reasonable attempts to repair the Product have been made without success. then Thermador will replace your Product (upgraded models may be available to you. in Thermador's sole discretion. for an additional charge). All removed parts and components shall become the property of Thermador at its sole option. All replaced and/or repaired parts shall assume the identity of the original part for purposes of this warranty and this warranty shall not be extended with re spect to such parts. Thermador's sole liability and responsibility hereunder is to re pair manufacturer-defective Product only. using a Thermador-authorized service provider during normal business hours. For safety and property damage concerns.

Thermador highly recommends that you do not attempt to repair the Product your self. or use an un-authorized servicer; Thermador will have no responsibility or lia bility for repairs or work performed by a non-authorized servicer. If you choose to have someone other than an authorized service provider work on your Product.

THIS WARRANTY WILL AUTOMATICALLY BECOME NULL AND VOID. Autho rized service providers are those persons or companies that have been specially trained on Thermador products. and who possess. in Thermador's opinion. a su perior reputation for customer service and technical ability (note that they are inde pendent entities and are not agents. partners. affiliates or representatives of Thermador).

Notwithstanding the foregoing.

Thermador will not incur any liability. or have responsibility. for the Product if it is located in a remote area (more than 100 miles from an authorized service provider) or is reasonably inaccessible. haz ardous. threatening. or treacherous locale. surroundings. or environment; in any such event. if you request. Thermador would still pay for labor and parts and ship the parts to the nearest authorized service provider. but you would still be fully lia ble and responsible for any travel time or other special charges by the service com pany. assuming they agree to make the service call.

Thermador is under no obligation. at law or otherwise. to provide you with any con cessions. including repairs. pro-rates. or Product replacement. once this warranty has expired.

Warranty Exclusions The warranty coverage described herein excludes all defects or damage that are not the direct fault of Thermador. including without limitation. one or more of the following:

Use of the Product in anything other than its normal. customary and intended manner (including without limitation. any form of commercial use. use or stor age of an indoor product outdoors. use of the Product in conjunction with air or water-going vessels).

Any party's willful misconduct. negligence. misuse. abuse. accidents. neglect. improper operation. failure to maintain. improper or negligent installation. tam pering. failure to follow operating instructions. mishandling. unauthorized ser vice (including self-performed "fixing" or exploration of the appliance's internal workings).

Adjustment. alteration or modification of any kind.

A failure to comply with any applicable state. local. city. or county electrical. plumbing and/or building codes. regulations. or laws. including failure to install the product in strict conformity with local fire and building codes and regula tions.

Ordinary wear and tear. spills of food. liquid. grease accumulations. or other substances that accumulate on. in. or around the Product.

Any external. elemental and/or environmental forces and factors. including without limitation. rain. wind. sand. floods. fires. mud slides. freezing tempera tures. excessive moisture or extended exposure to humidity. lightning. power surges. structural failures surrounding the appliance. and acts of God.

In no event shall Thermador have any liability or responsibility whatsoever for dam age to surrounding property. including cabinetry. floors. ceilings. and other struc tures or objects around the Product. Also excluded from this warranty are scratches. nicks. minor dents. and cosmetic damages on external surfaces and ex posed parts; Products on which the serial numbers have been altered. defaced. or removed; service visits to teach you how to use the Product. or visits where there is nothing wrong with the Product; correction of installation problems (you are sole ly responsible for any structure and setting for the Product. including all electrical. plumbing or other connecting facilities. for proper foundation/flooring. and for any alterations including without limitation cabinetry. walls. floors. shelving. etc.); and resetting of breakers or fuses.

TO THE EXTENT ALLOWED BY LAW. THIS WARRANTY SETS OUT YOUR EX CLUSIVE REMEDIES WITH RESPECT TO PRODUCT.

WHETHER THE CLAIM ARISES IN CONTRACT OR TORT (INCLUDING STRICT LIABILITY.

OR NEG LIGENCE) OR OTHERWISE.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES.

WHETHER EXPRESS OR IMPLIED. ANY WARRANTY IM PLIED BY LAW. WHETHER FOR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

OR OTHERWISE.

SHALL BE EFFECTIVE ONLY FOR THE PERIOD THAT THIS EXPRESS LIMITED WARRANTY IS EFFEC TIVE. IN NO EVENT WILL THE MANUFACTURER BE LIABLE FOR CONSE QUENTIAL.

SPECIAL.

INCIDENTAL.

INDIRECT. "BUSINESS LOSS". AND/OR PUNITIVE DAMAGES.

LOSSES. OR EXPENSES.

INCLUDING WITHOUT LIMI TATION TIME AWAY FROM WORK. HOTELS AND/OR RESTAURANT MEALS.

REMODELLING EXPENSES IN EXCESS OF DIRECT DAMAGES WHICH ARE DEFINITIVELY CAUSED EXCLUSIVELY BY THERMADOR.

OR OTHERWISE.

SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCI DENTAL OR CONSEQUENTIAL DAMAGES.

AND SOME STATES DO NOT AL LOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS. SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

No attempt to alter. modify or amend this warranty shall be effective unless autho rized in writing by an officer of BSH.



Newest Added: KBUDT4265E/04 KBUDT4860A/01 DWHD410HFM/64 T24ID80NRP/41 T36BT71FSE

Thermador PCG304G-01 | Pages: 51 | Created on: 2022-07-07 | File type: PDF | Filename: 89270470_pcg304g-01.pdf | Size: 7.24 MB | Language: English | Other documents: 1 files.

Download User Manual

Contact us

T: @manualsFile

https://manualsFile.com
