WARNING:
For use with hot water. Not for
use with steam. All hot water pipes should be insulated
to prevent contact. Any hot water pipe below 36
″
must
be insulated.
CAUTION:
Hot Surfaces. Sufficient time must
be allowed for the components to cool down prior to
servicing or draining. Not suitable for potable water.
CAUTION:
Disconnect the electrical power
supply before installing.

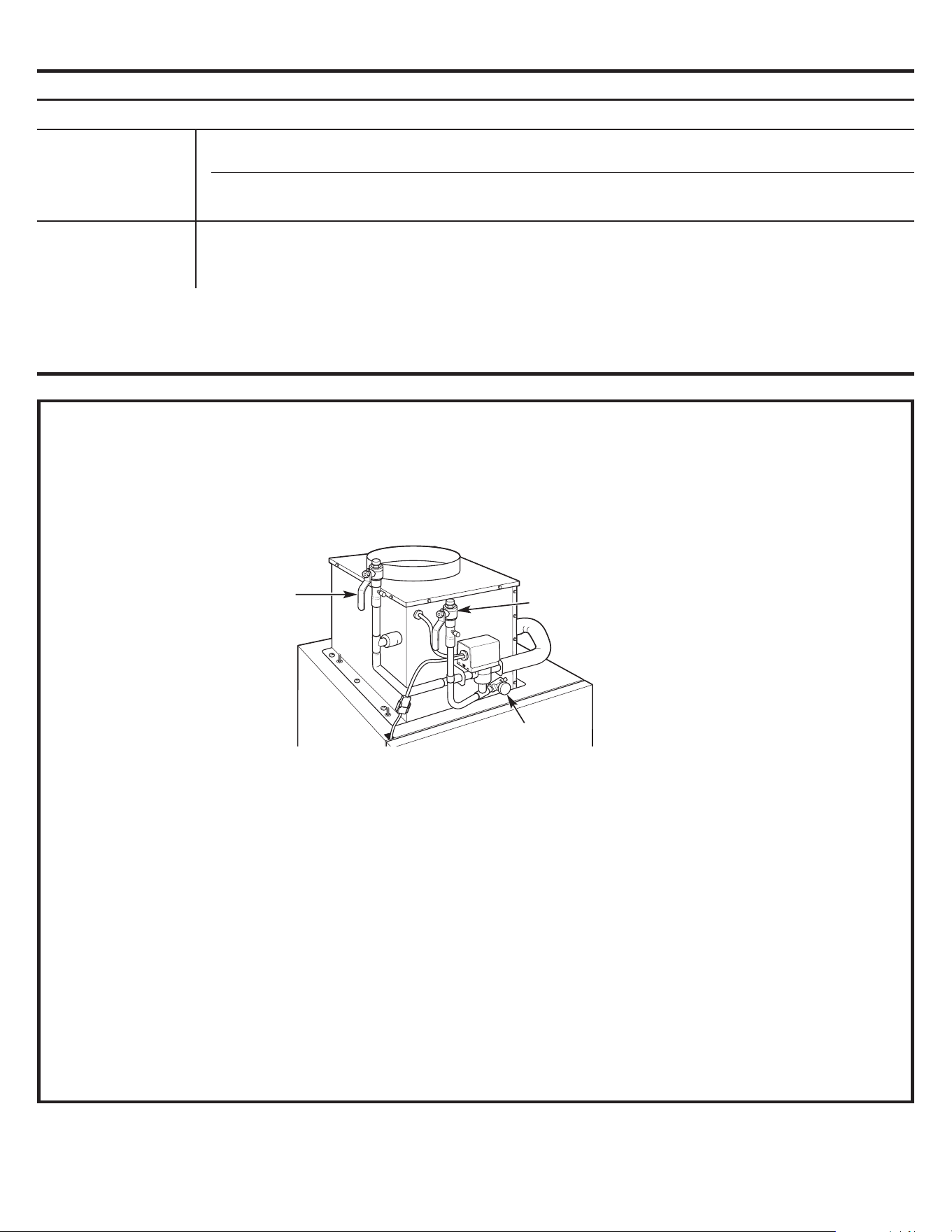

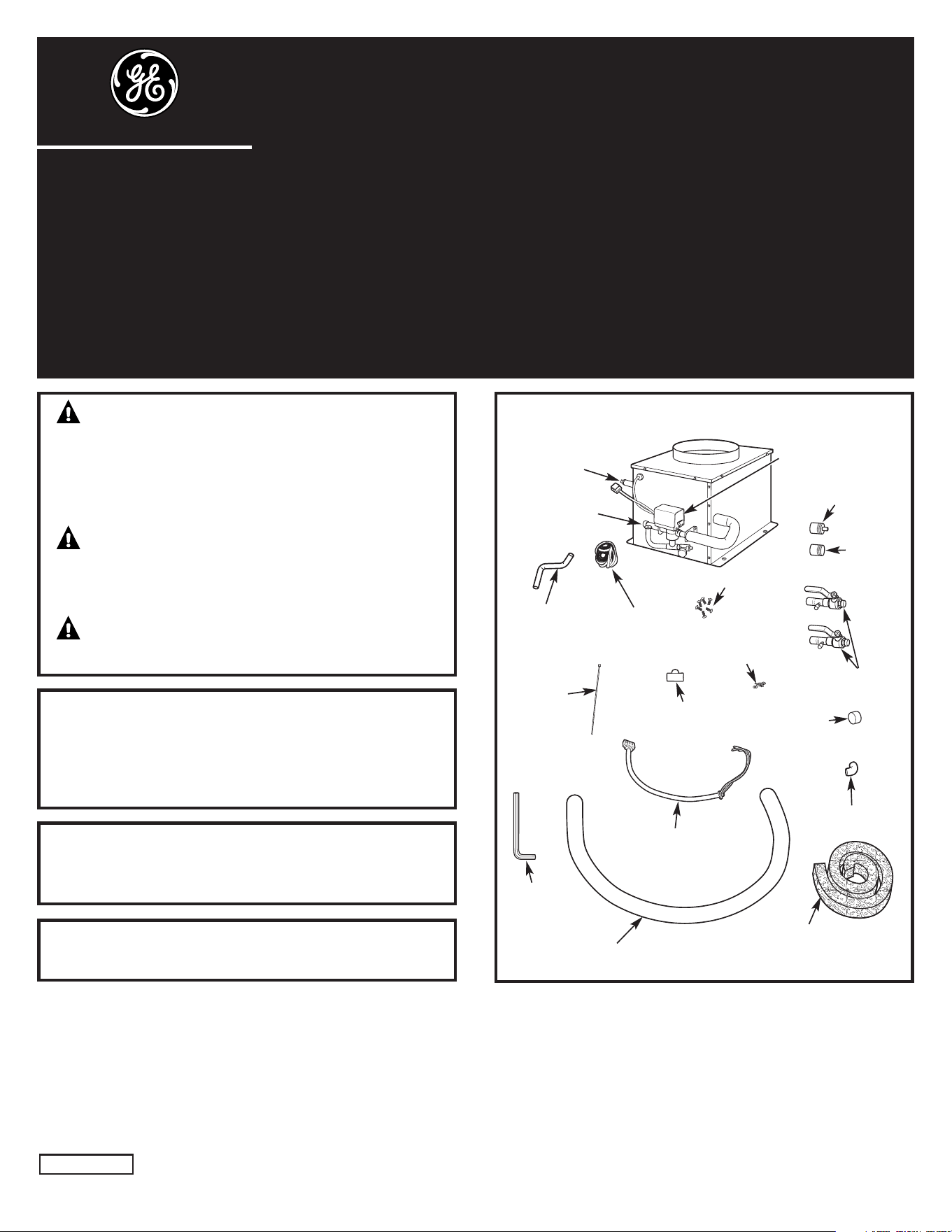

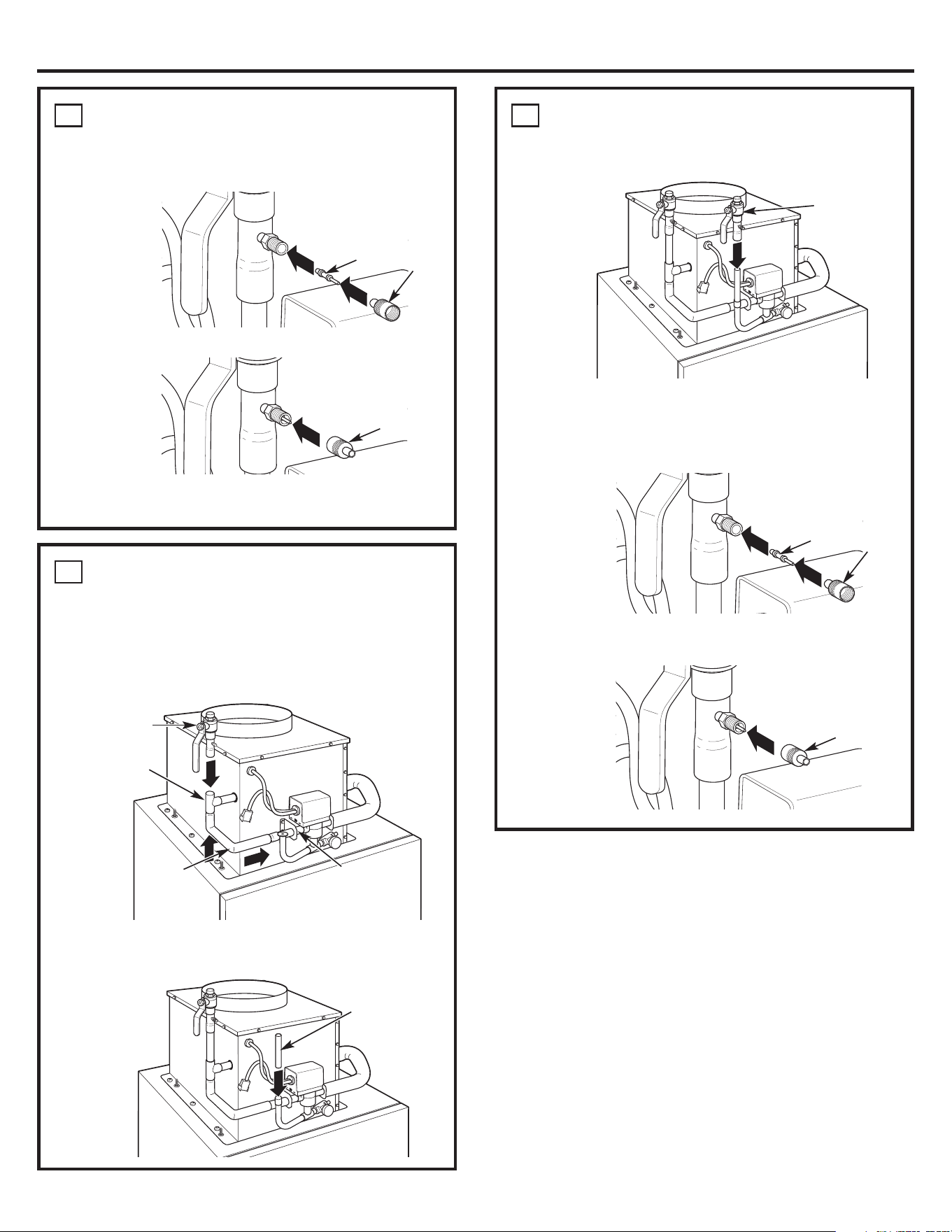

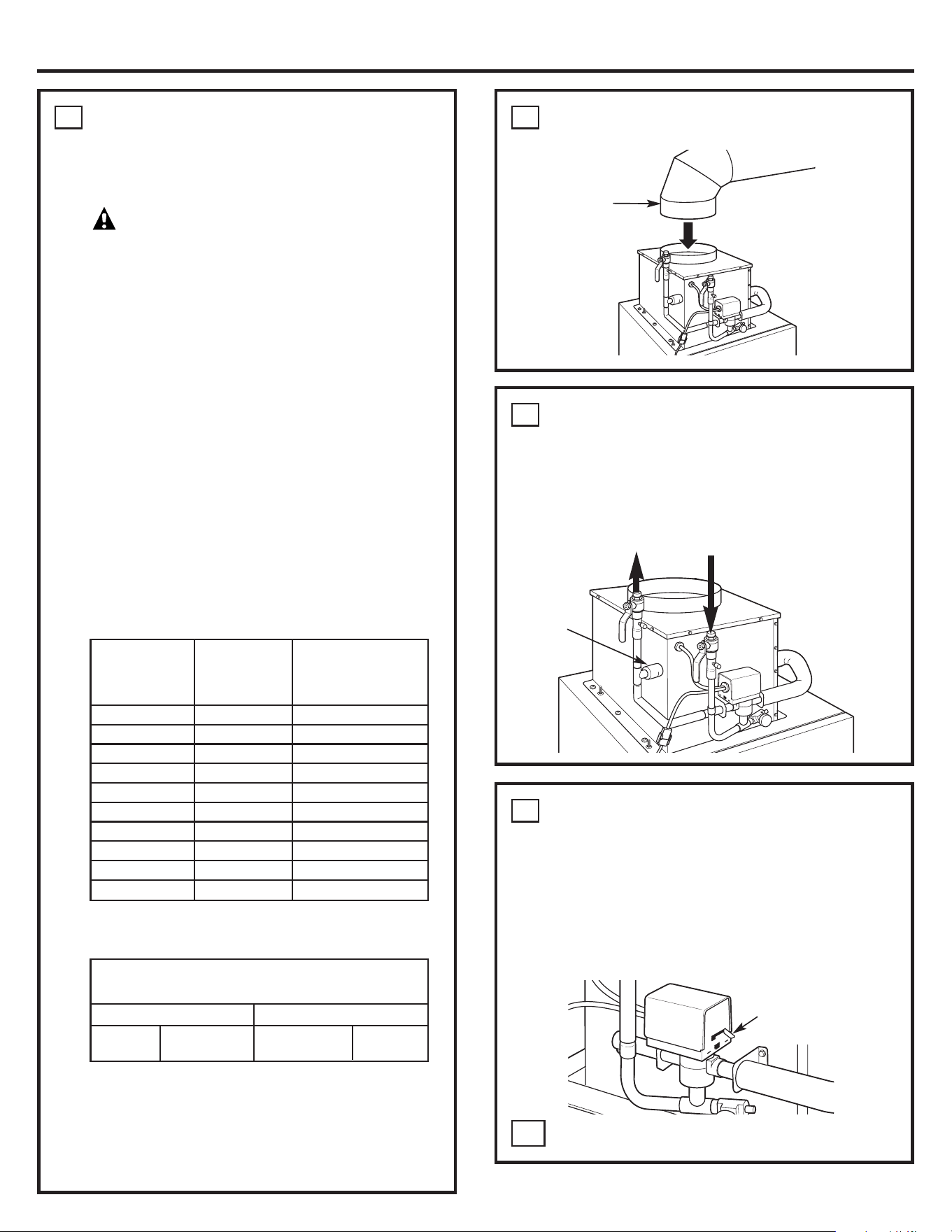

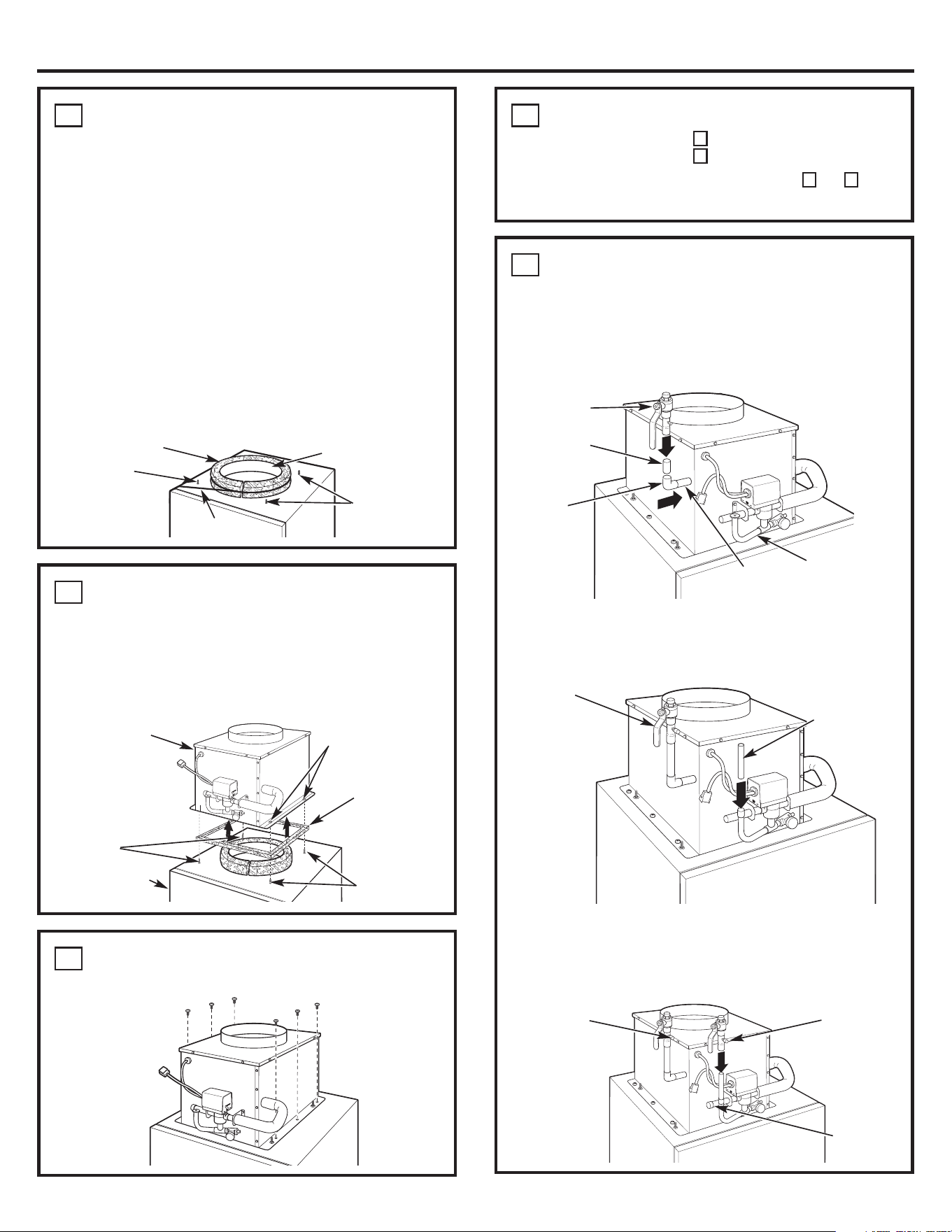

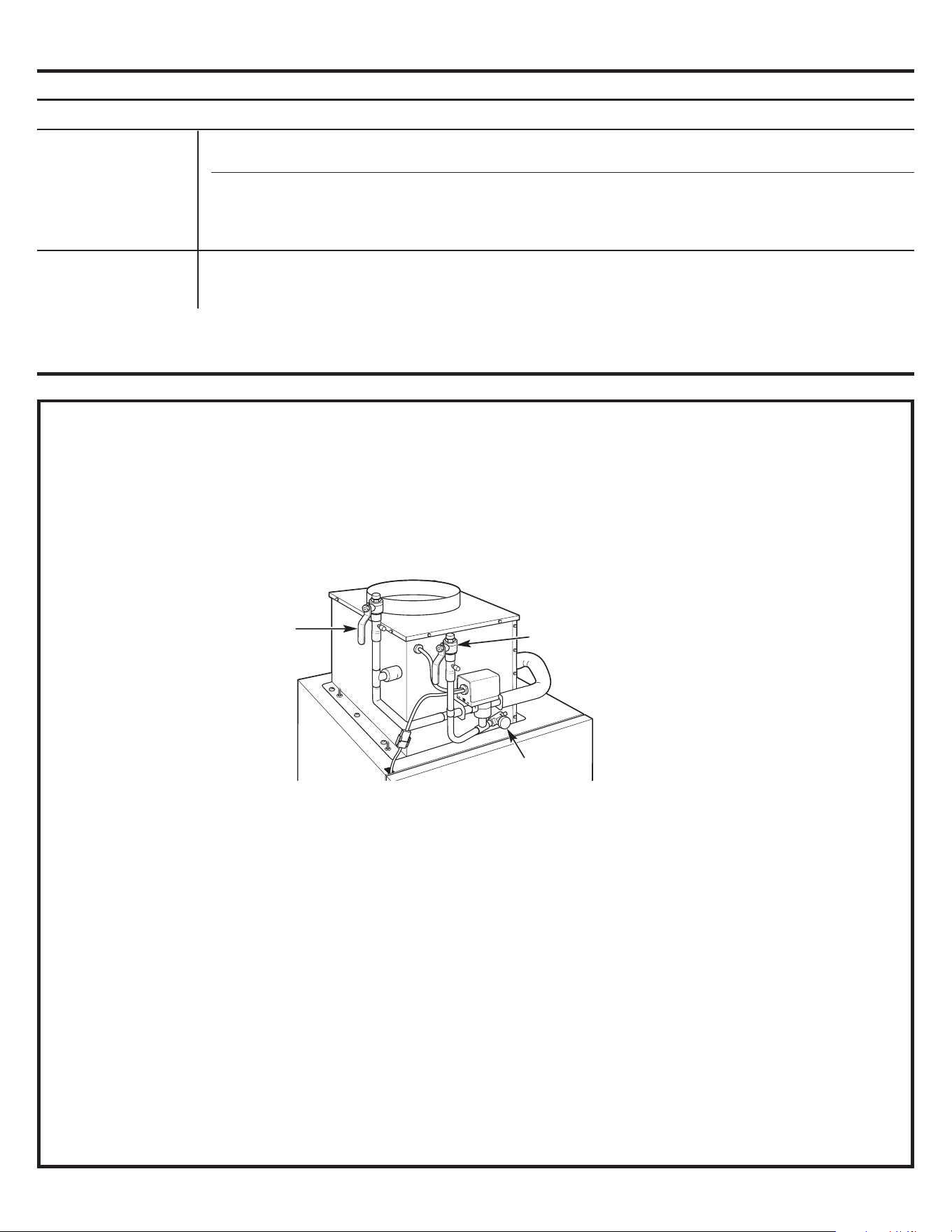

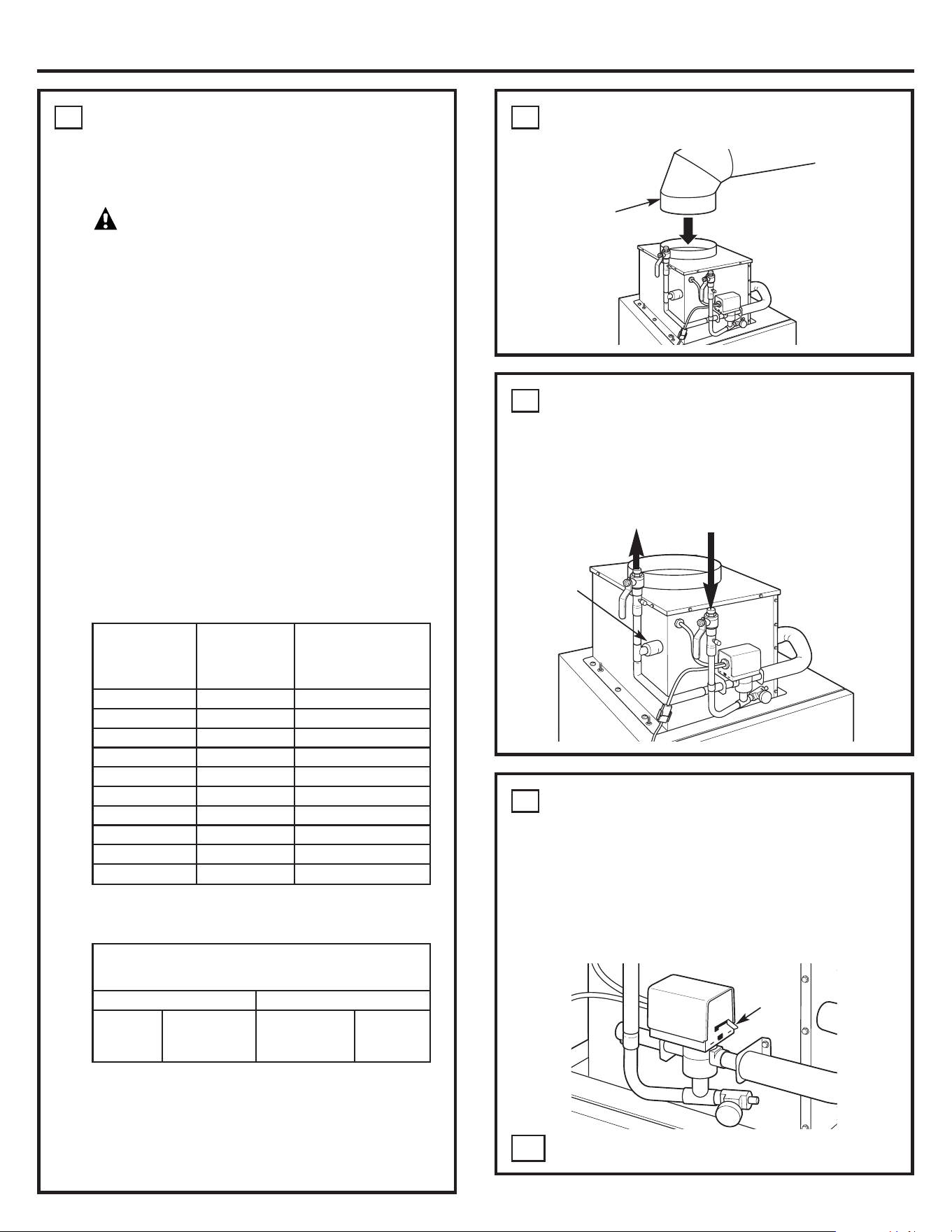

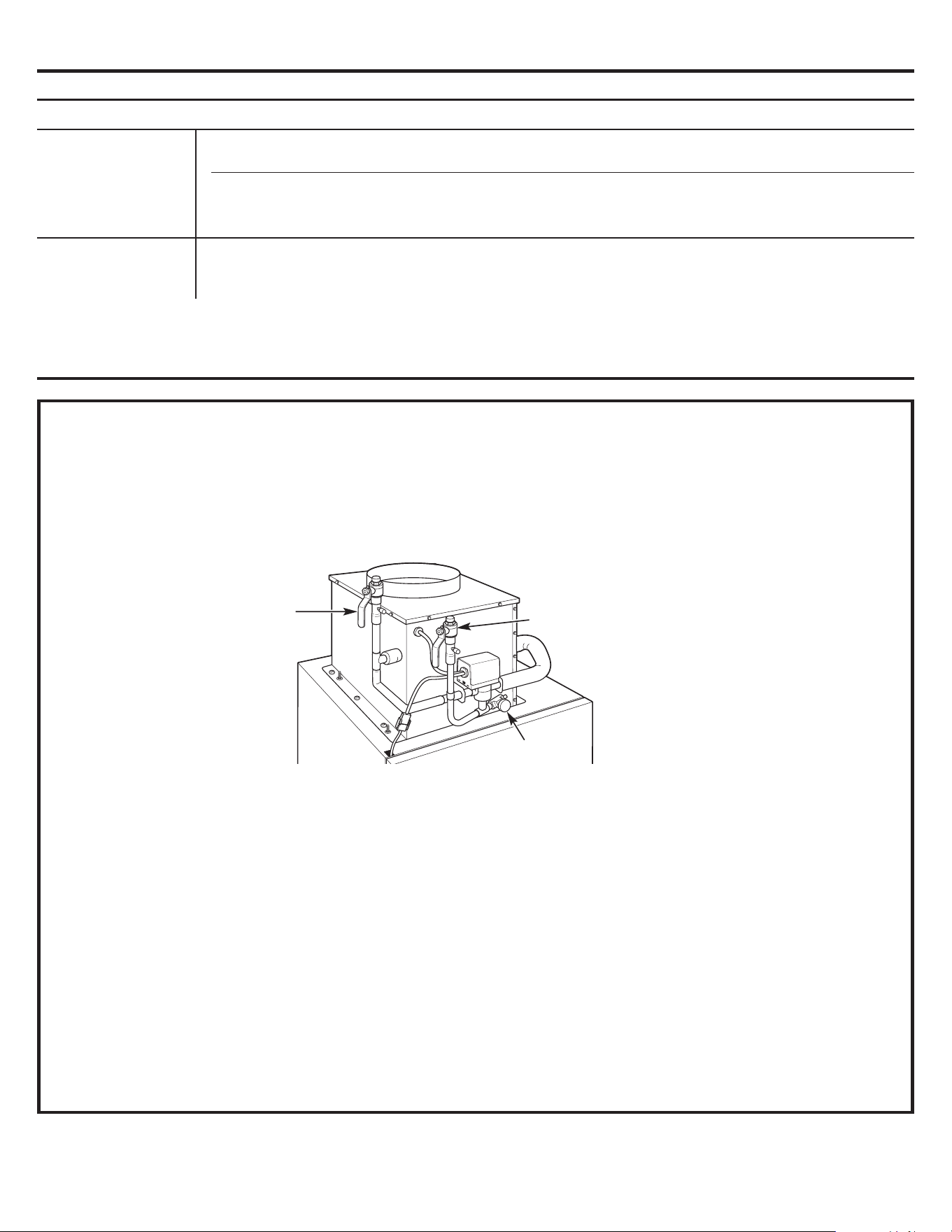

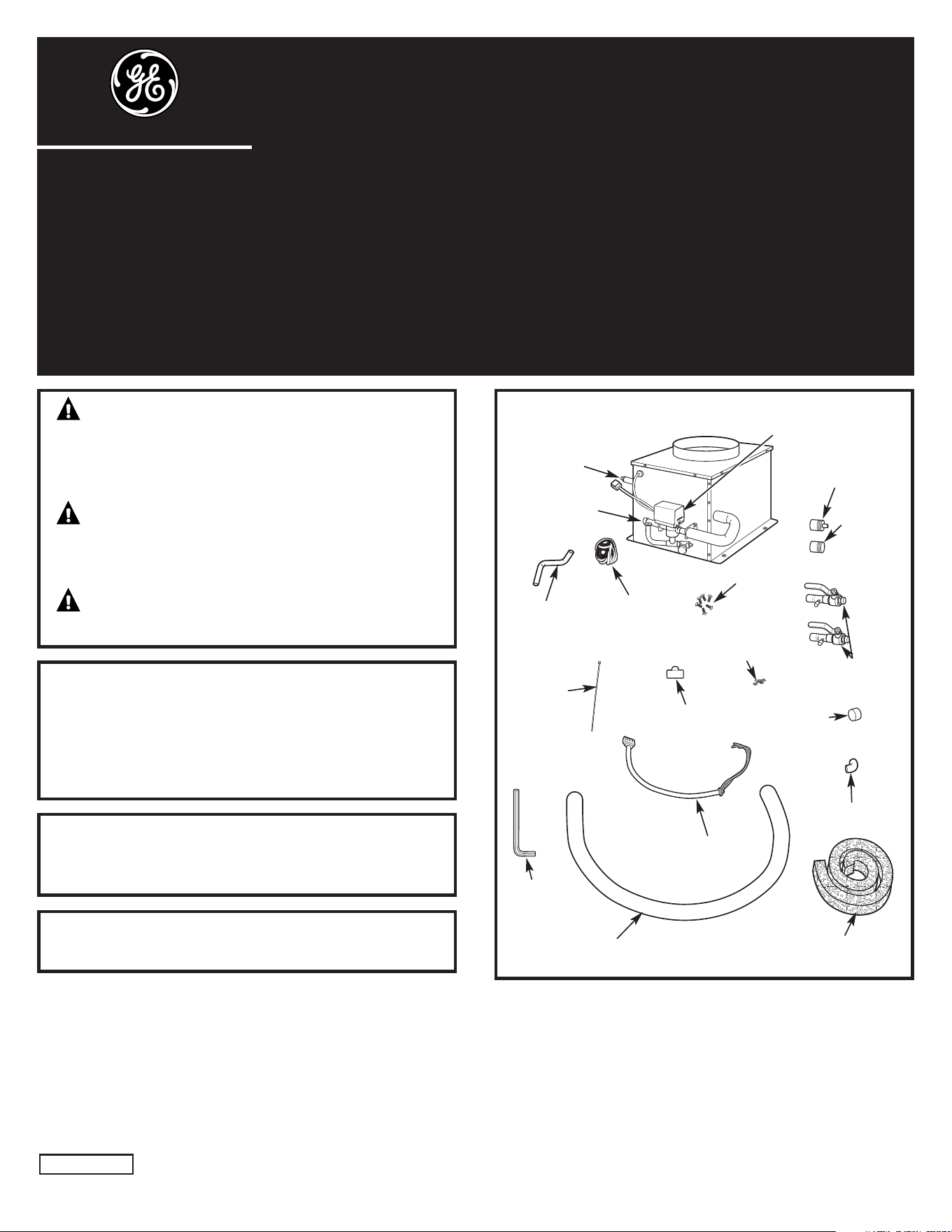

Installation instructions
RAVHW1, RAVHW2,
for your new
RAVHW3
Hydronic Heating Kit for
GE Vertical Zonelines
Before you begin – Read these instructions completely and carefully.
IMPORTANT – OBSERVE ALL GOVERNING CODES AND ORDINANCES. Not for use with potable water.
Note to Installer – Be sure to leave these instructions with the Consumer.
Note to Consumer – Keep these instructions with your Owner’s Manual for future reference.
TOOLS NEEDED
• Adjustable wrench • 1/4″ nutdriver
• Phillips-head screwdriver • Brazing equipment
• Small flat-blade screwdriver • Piping solder or flux
31-61420-3
02-09 JR
Printed in Canada

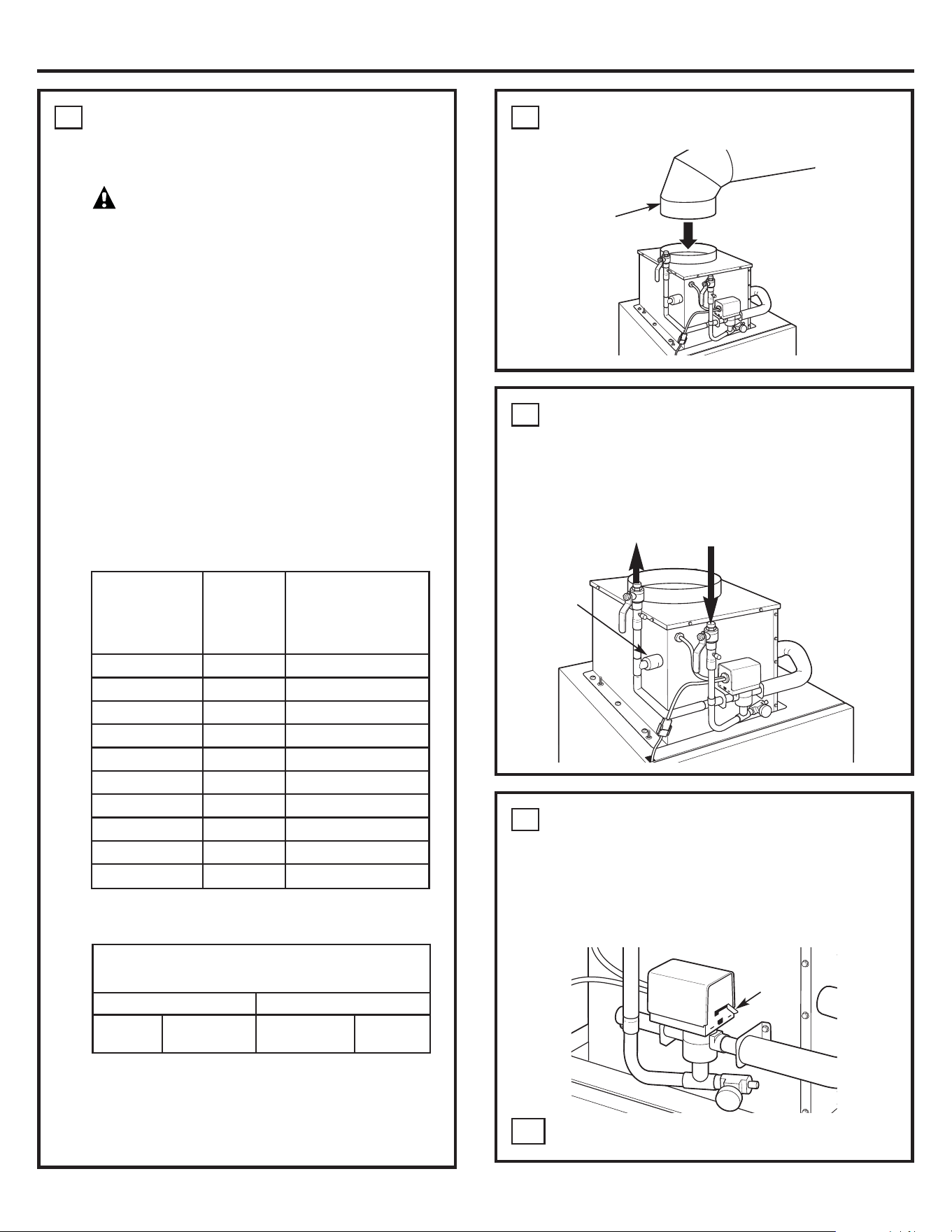

NOTE: The maximum recommended water pressure
across the heating kit is 150 psig.
Outlet
Bypass
(optional)
Copper bypass
tube
Seal material
(6) #8 3/8″ Screws
Air-bleed valve cap
w/ integral tool
Wire tie
(36″)
1/2″ Copper T
(2) Valve stems
90° Elbow
Pipe insulation

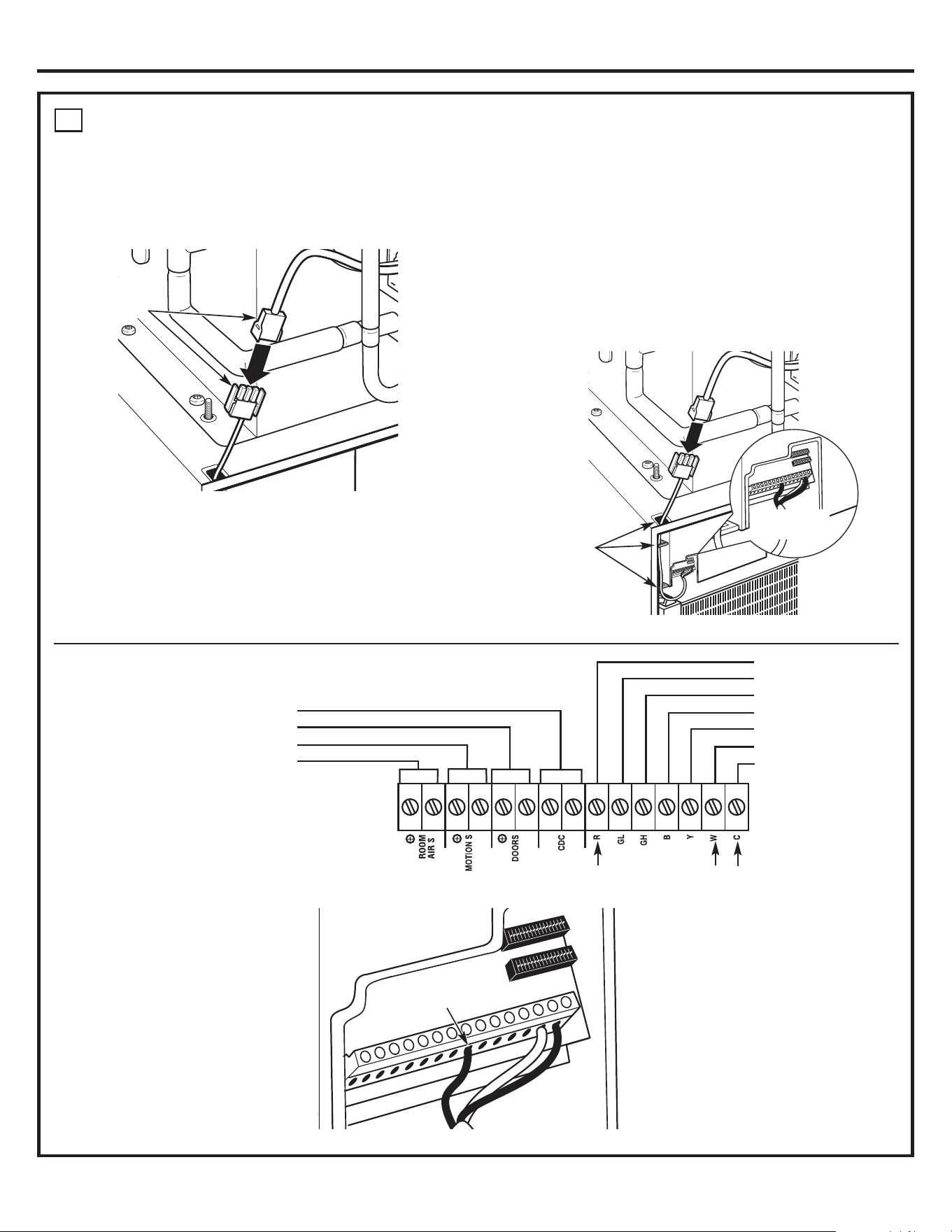

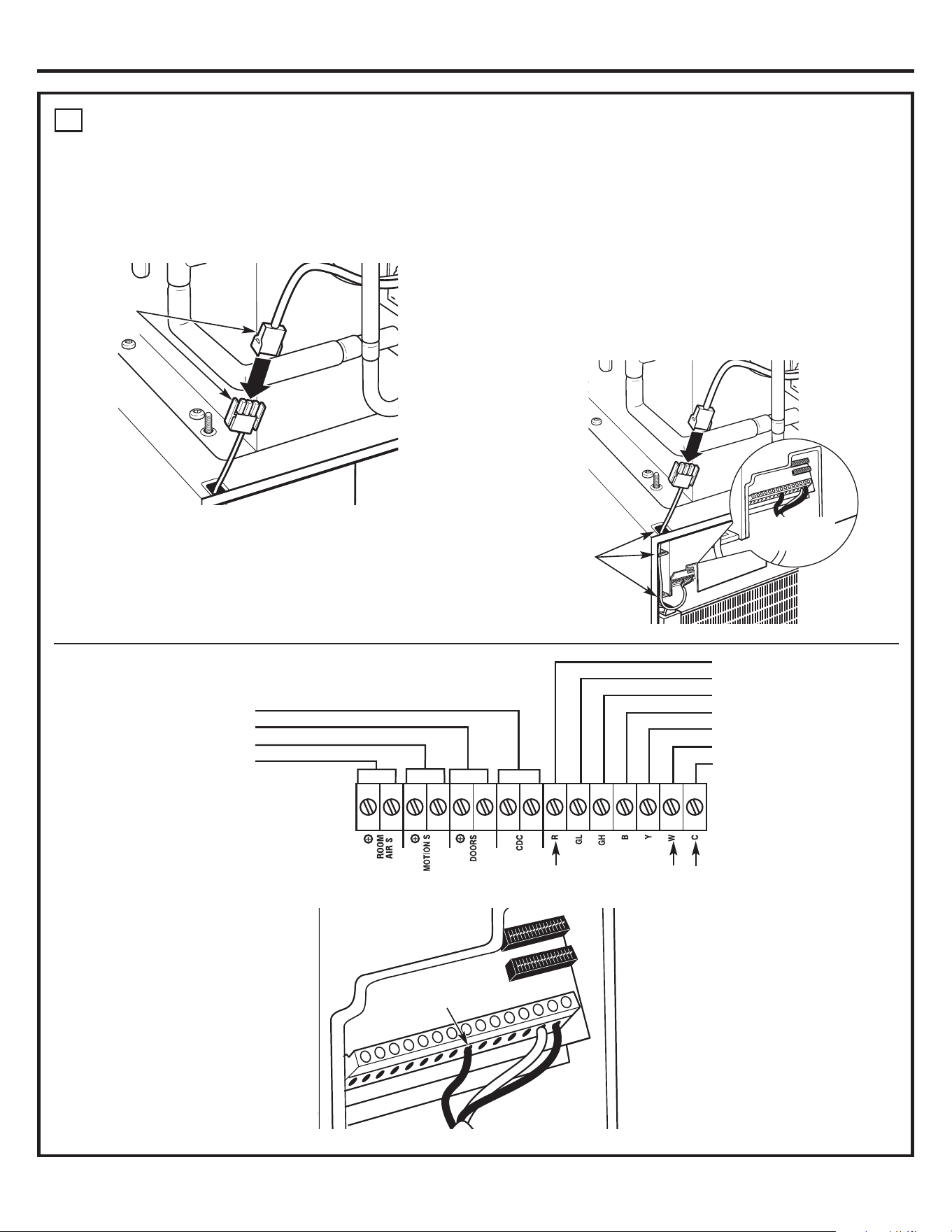

Harness
Shut-off valve
air-bleed assemblies
PARTS PROVIDED
Valve actuator
1/2
″
Copper cap

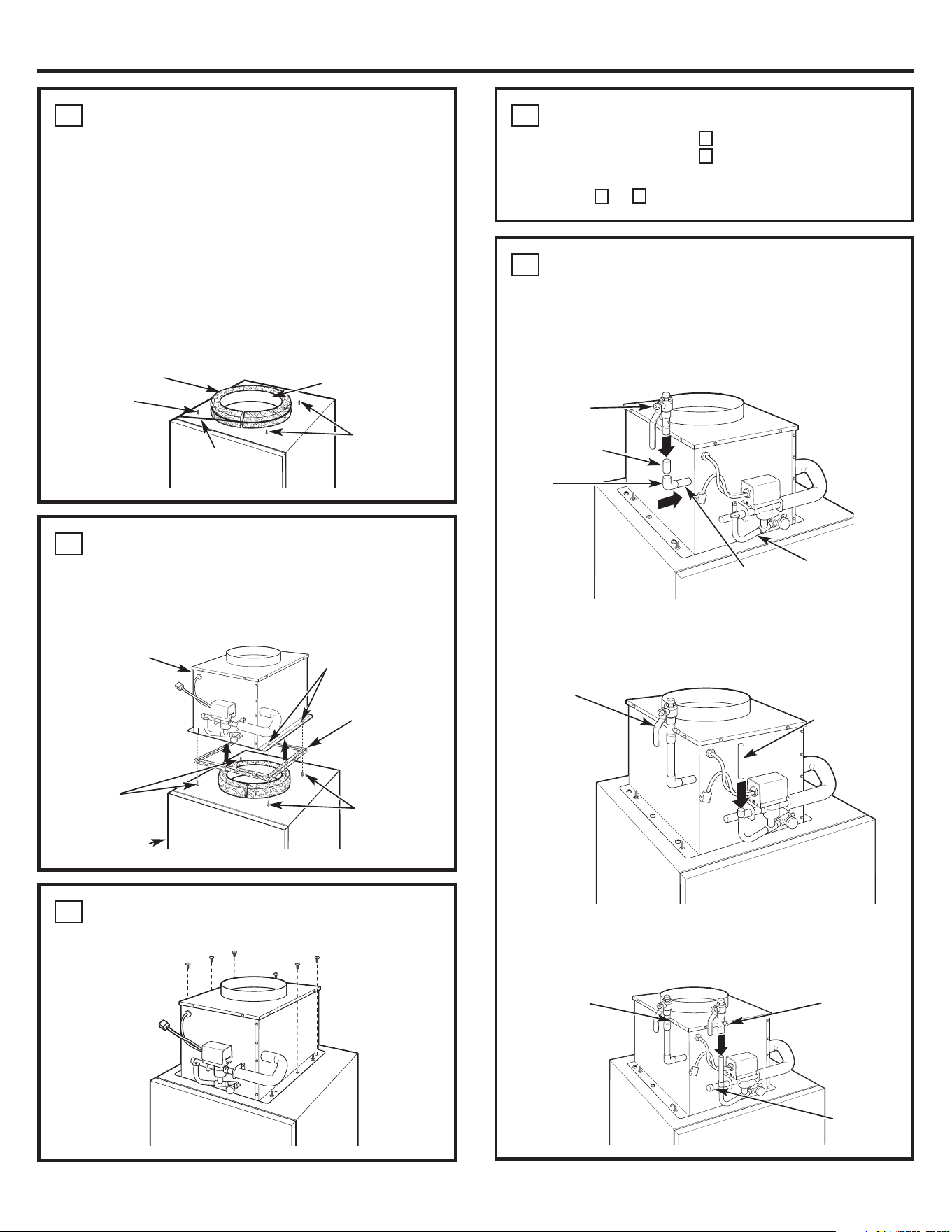

Zoneline duct
seal 1″ x 31.1″
SUPPLIES NEEDED
1/2″ Copper pipe and fittings as required for facility
connections

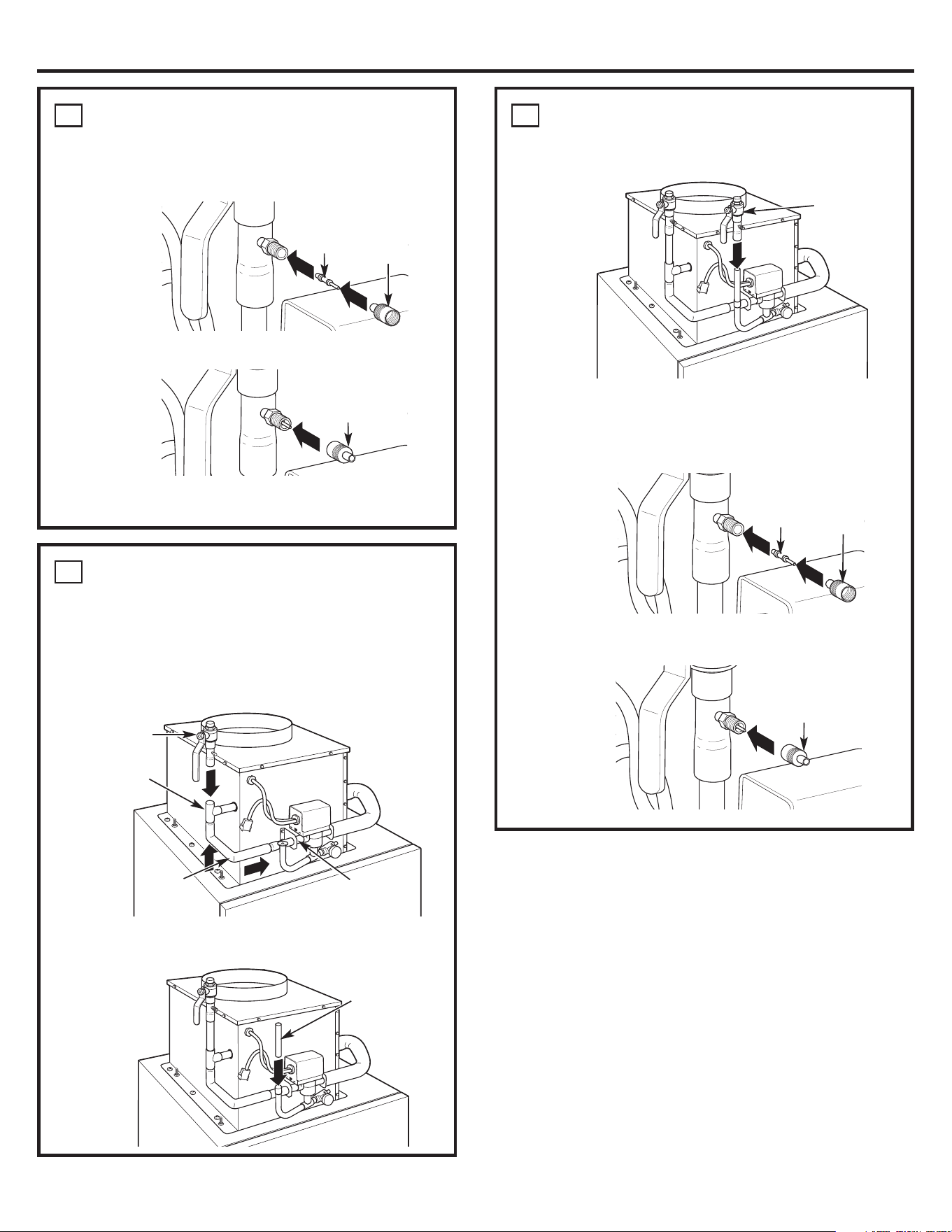

Air-bleed
valve cap
(without
integral
tool)
Allen wrench
