31-5000568 Rev. 0 11-20 GEA
RAVTRANS2 will fit the following GE Appliances Plenum Kits: RAVWP6, RAVWP8, RAVWP12 and
RAVWP15. Remove any black transition plenum already installed.
Installation Instructions
for your new
RAVTRANS2
Transition Plenum
For replacing AZ75, AZ85 series units with a 6”, 8”,
12“ or 15” plenums.
For replacing AZ90 and AZ91 series units installed
with black RAVTRANS transition plenum to 6”, 8”,
12” or 15” fixed length tan plenums.
Before you begin - Read these instructions completely and carefully.
IMPORTANT – OBSERVE ALL GOVERNING CODES AND ORDINANCES.
Note to Installer – Be sure to leave these instructions with the Consumer.
Note to Consumer – Keep these instructions with your Owner’s Manual for future reference.
RAVTRANS2 kit is required when replacing existing AZ75, AZ85, AZ90 or AZ91 series vertical air conditioner
with a new AZ95 series vertical air conditioner when the existing wall plenum is a 6”, 8”, 12” or 15” fixed
length tan color wall plenum. Changes in drain exit locations and drain routing, electrical connections,
platform height, conditioned air duct locations and additional space requirements for installation of
RAVTRANS2 kit are all items that need to be considered when replacing AZ75, AZ85, AZ90 or AZ91 series
units with an AZ95 series unit.
Installation of a new AZ95 series unit with a transition plenum will take up approximately 1 1/2” of additional
closet space once the unit is fully installed. Before starting the conversion be sure there is adequate closet
space to meet the manufacture’s recommend minimum clearance requirements.
Parts Included
• Transition Plenum
• 12 - #10 ¾” long 5/16” hex head sheet metal screws
• Front Bracket

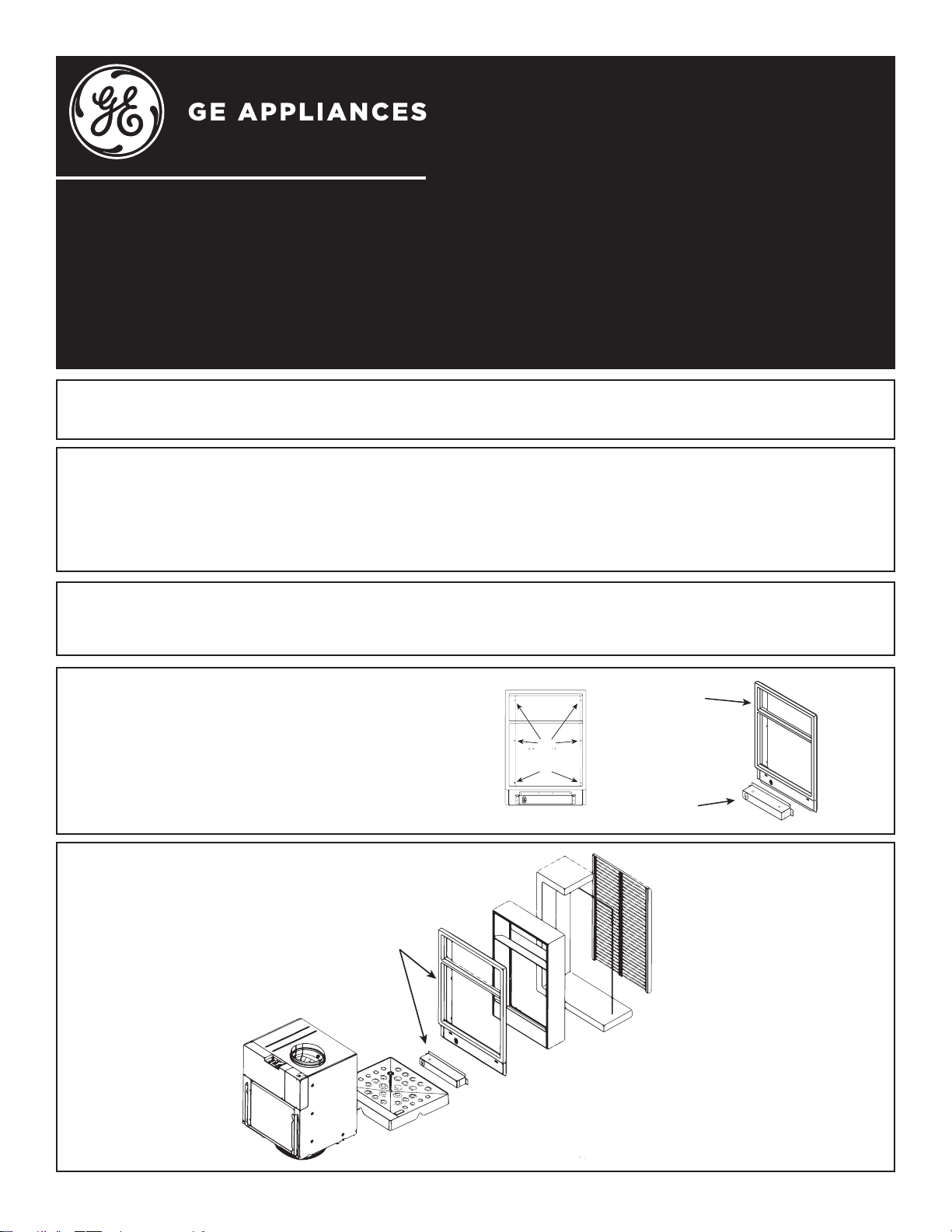

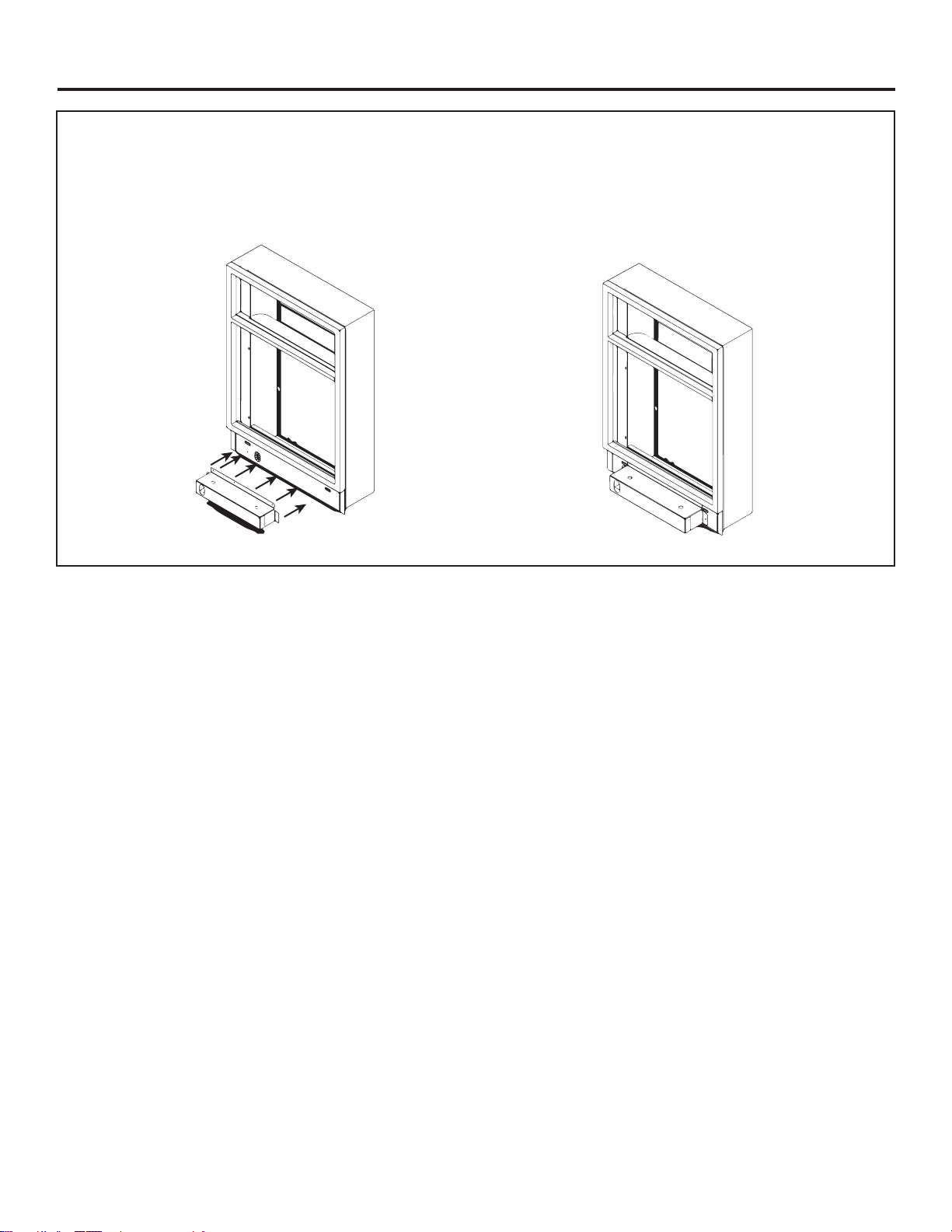

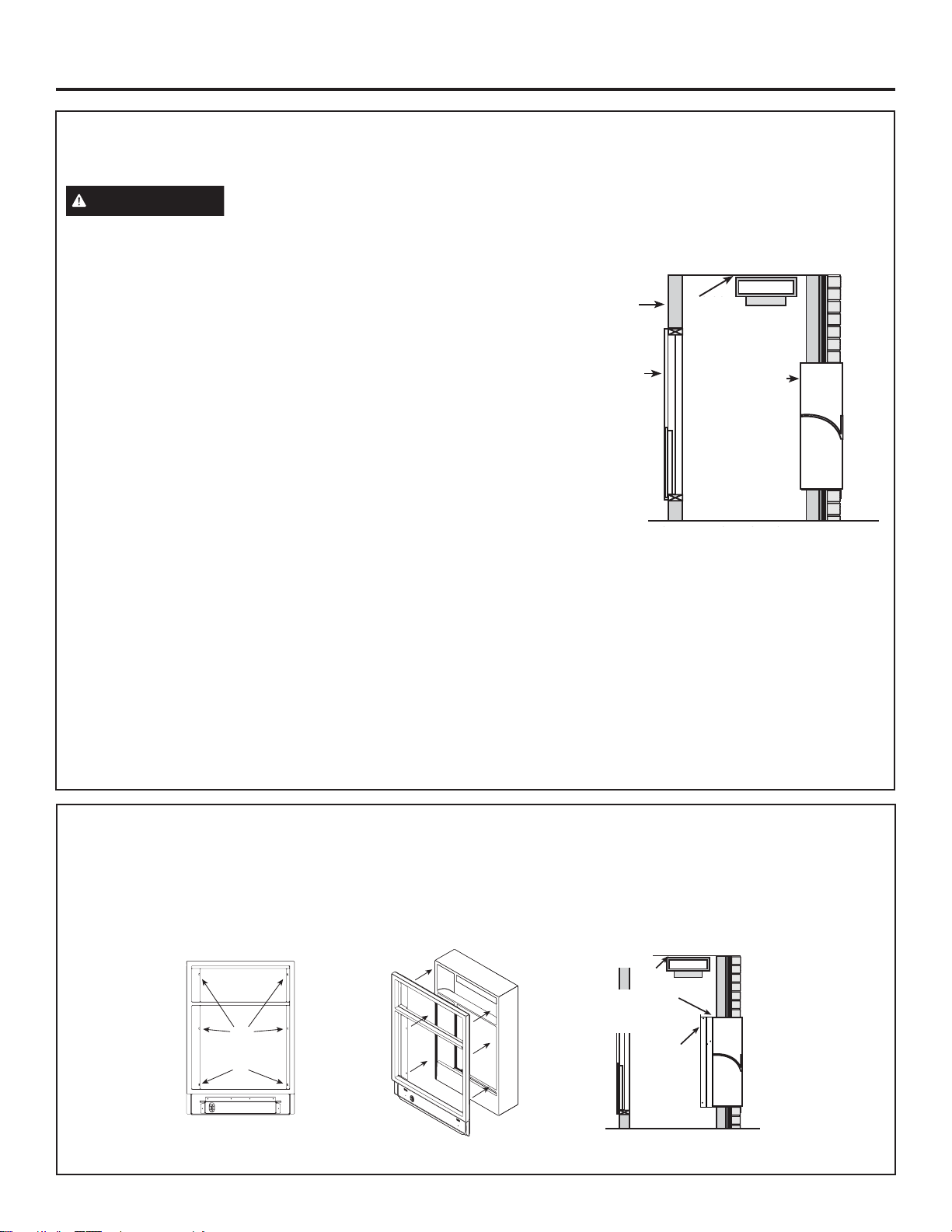

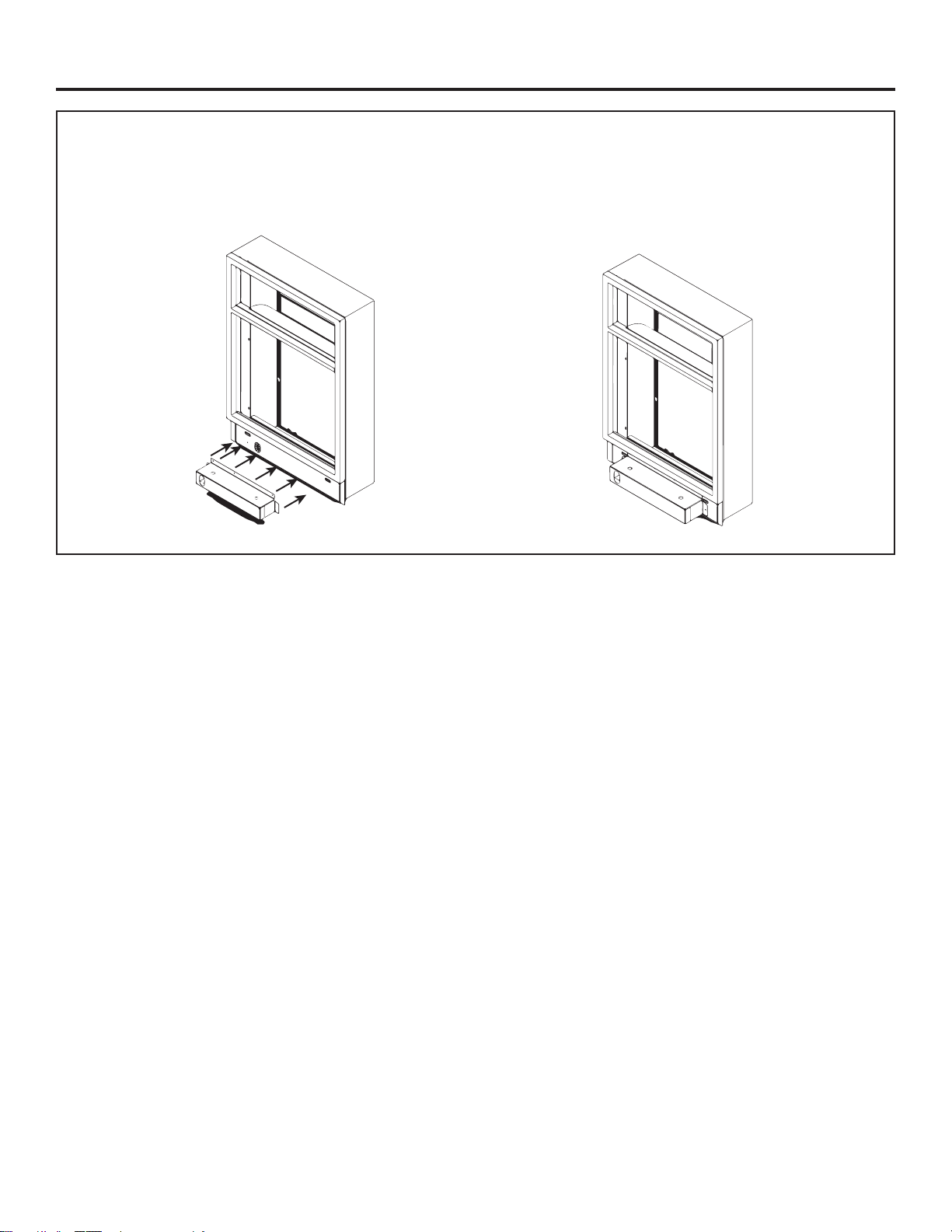

Installation Overview
GE is a trademark of the General Electric Company. Manufactured under trademark license.
Plenum
Front Bracket
Mounting
Locations
Existing Architectural
Louver*
Exterior/
Outside Wall
Existing
Wall Plenum*
RAVTRANS2
Included in
RAVTRANS2
RAVDPLAT*
UNIT*
*Sold Separately
