31-5000570 Rev. 0 11-20 GEA
RAVTRANS4 will fit an existing GE Appliance RAVTWPT14 plenum kit.
Installation Instructions
for your new
RAVTRANS4
Transition Plenum
For replacing AZ90, AZ91 series units with an 8” -
14” outside wall depth
Before you begin - Read these instructions completely and carefully.
IMPORTANT – OBSERVE ALL GOVERNING CODES AND ORDINANCES.
Note to Installer – Be sure to leave these instructions with the Consumer.
Note to Consumer – Keep these instructions with your Owner’s Manual for future reference.
RAVTRANS4 kit is required when replacing an AZ90/AZ91 series vertical air conditioner with a new AZ95
series vertical air conditioner that is installed in an RAVWPT14 wall plenum. The RAVWPT14 is the black
telescopic sheet metal plenum that was used for AZ90/AZ91 installations with exterior walls greater than 8
inches thick. Differences in chassis designs between the AZ90/AZ91 series and AZ95 series require careful
installation planning. Changes in drain exit locations and drain routing, electrical connections, platform
height, and conditioned air duct locations are all items that need to be considered when replacing an AZ90/
AZ91 series unit with an AZ95 series unit.
Parts Included
• Transition Plenum with Air Divider
• 10 - #10 ¾” long 5/16” hex head sheet metal screws
• Front Bracket

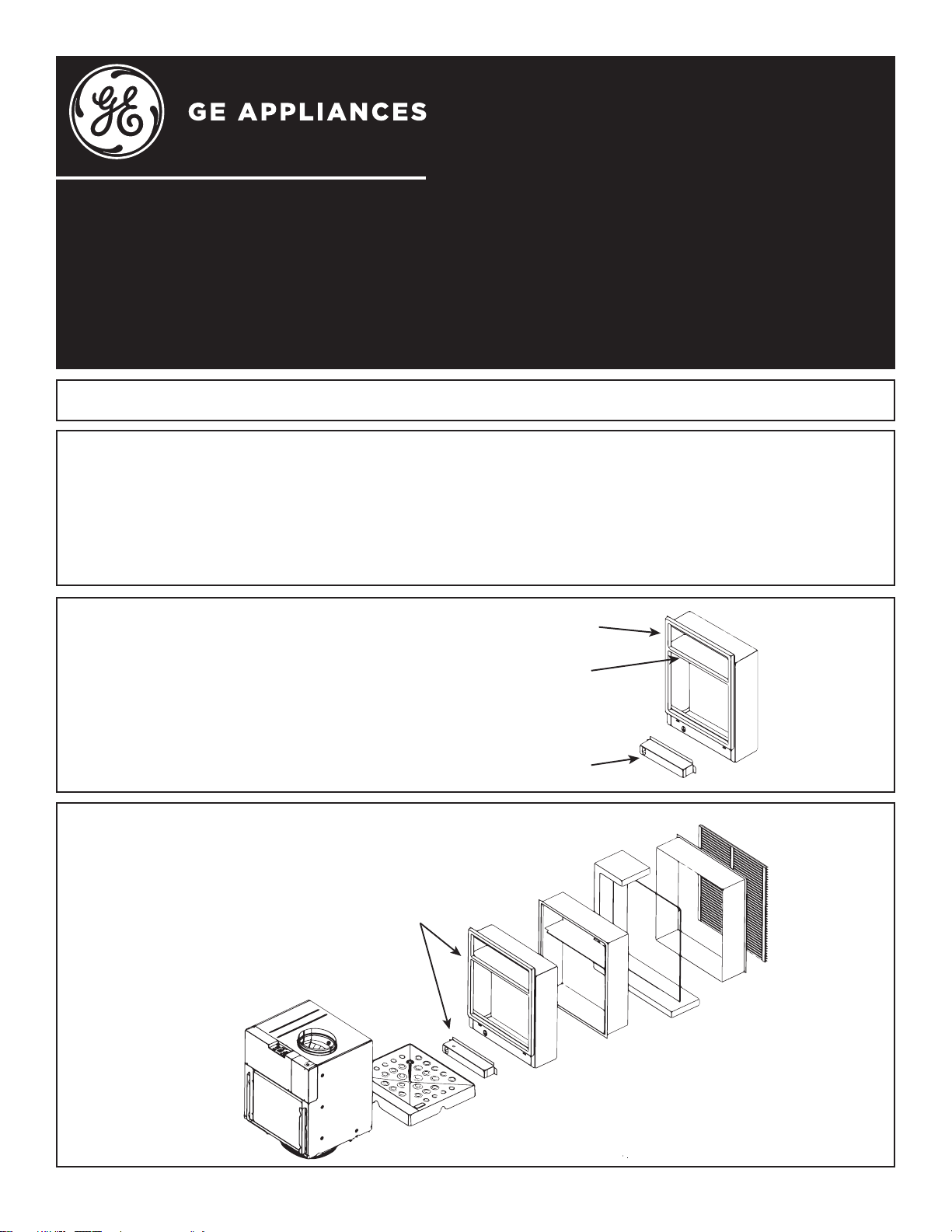

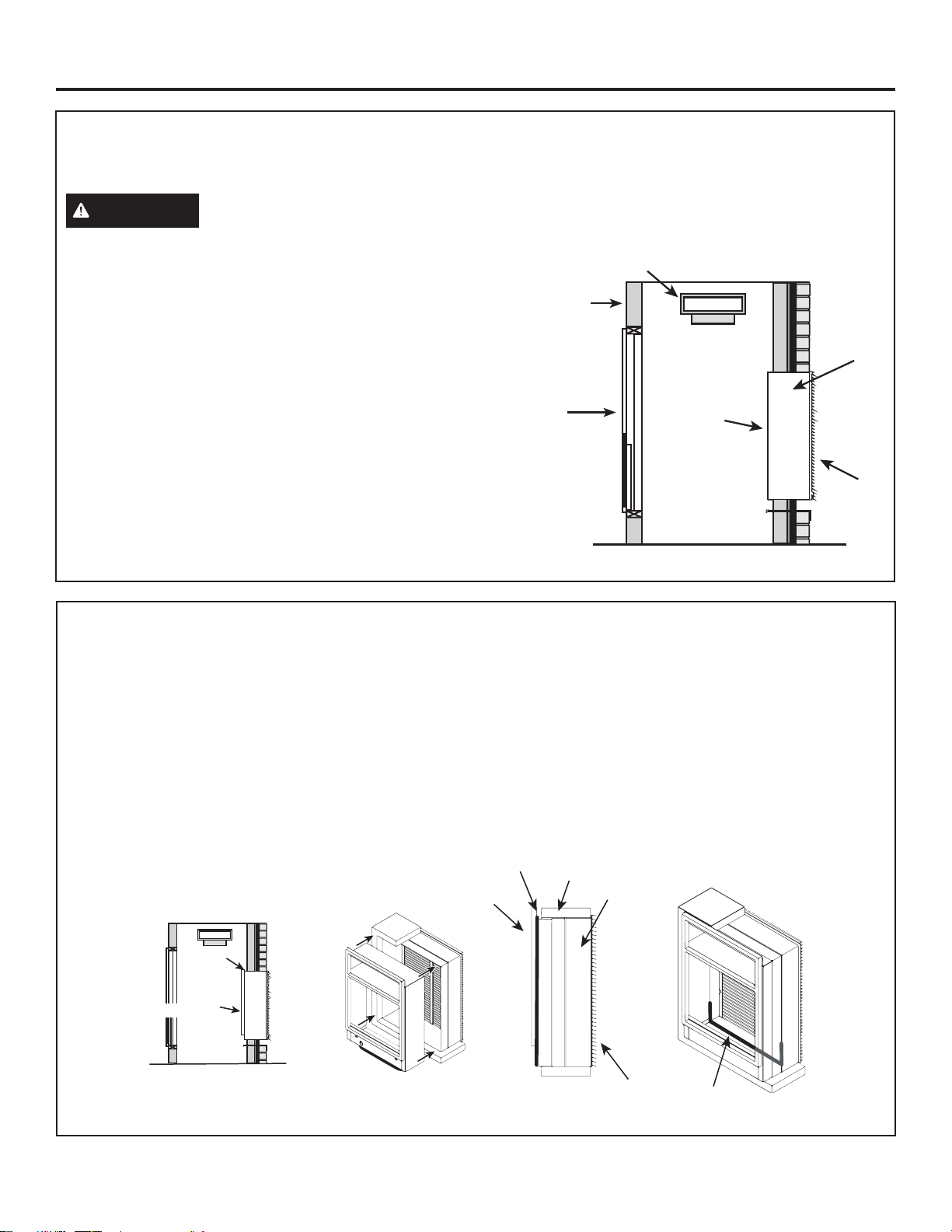

Installation Overview
GE is a trademark of the General Electric Company. Manufactured under trademark license.
Plenum
Air Divider
Front Bracket
Unit*
Included in
RAVTRANS4
RAVDPLAT*
Existing
Wall Plenum
RAVWPT14 Inside*
Exterior/ Outside
Wall
Existing Wall Plenum
RAVWPT14 Outside*
Existing
Architectural
Louver*
*Sold Separately
