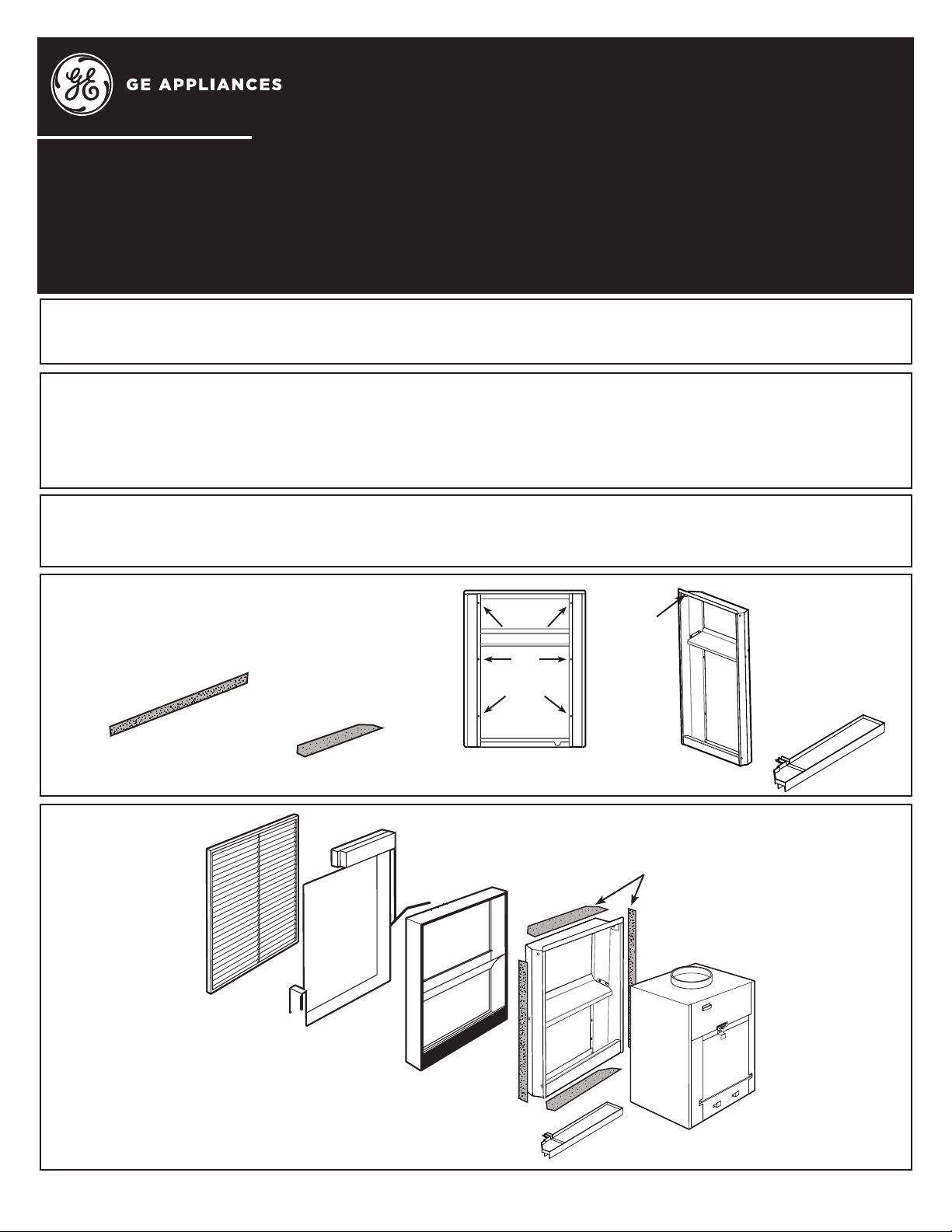

Parts Included
Installation Instructions
for your new
Before you begin - Read these instructions completely and carefully.
IMPORTANT – OBSERVE ALL GOVERNING CODES AND ORDINANCES.
Note to Installer – Be sure to leave these instructions with the Consumer.
Note to Consumer – Keep these instructions with your Owner’s Manual for future reference.
RAVTRANS
Transition Plenum
31-30824-1 02-17 GEA
GE is a trademark of the General Electric Company. Manufactured under trademark license.

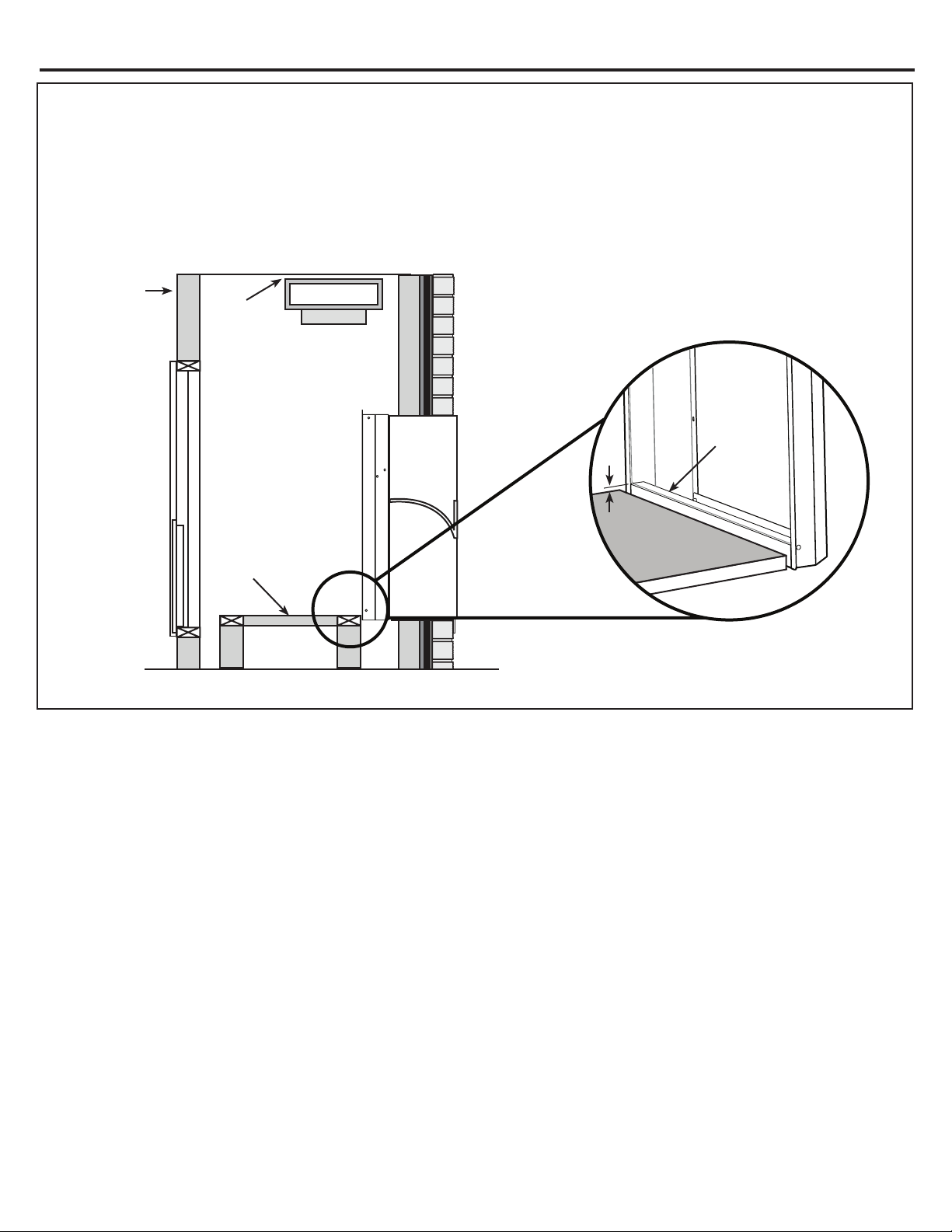

Installation
Overview
Existing
Architectural
Louver
Exterior/
Outside Wall
Existing
Wall Plenum
Unit
RAVWP6 – 6” D x 19-3/4” W x 32” H
RAVWP8 – 8” D x 19-3/4” W x 32” H
RAVWP12 – 12” D x 19-3/4” W x 32” H
RAVWP15 – 15” D x 19-3/4” W x 32” H
RAVTRANS Kit will fit the following GE Appliances plenum kits: RAVWP6, RAVWP8, RAVWP12 and RAVWP15.
This kit will not work for the Large Chassis 18,000 BTU/hr Heat Pump models.
RAVTRANS kit is required when replacing an AZ75/AZ85 series vertical air conditioner with a new AZ90/91
series vertical air conditioner. Differences in chassis designs between the AZ75/AZ85 series and AZ90/91
series require careful installation planning. Changes in drain exit locations and drain routing, electrical
connections, platform height, conditioned air duct location and additional space requirements for installation of
RAVTRANS kit are all items that need to be considered when replacing a AZ75/AZ85 series unit with an AZ90/91
series unit.

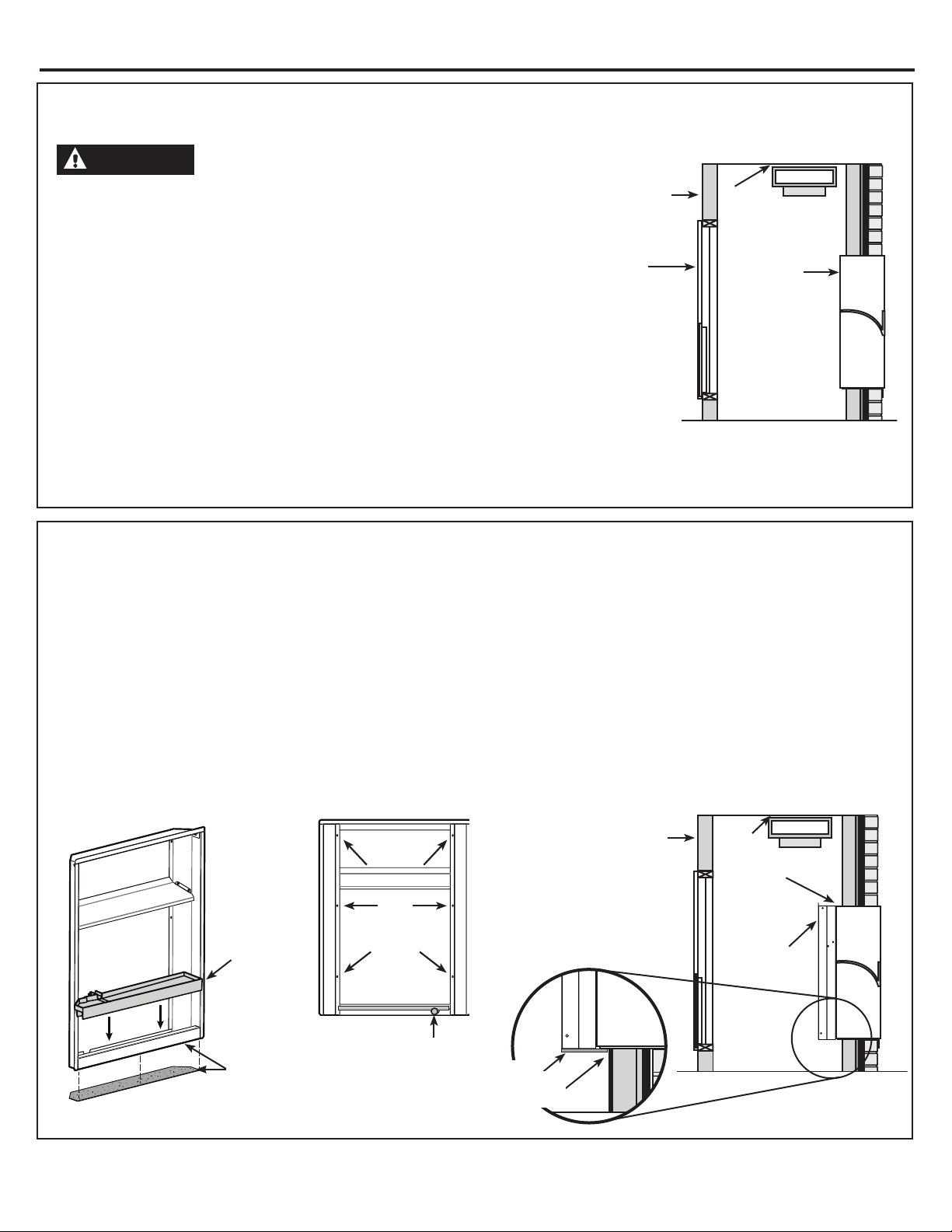

Installation of a new AZ90/91 series unit with a transition plenum will take up approximately 2-1/2” of additional
closet space once the unit is fully installed. Before starting the conversion be sure there is adequate closet
space to meet the manufacture’s recommend minimum clearance requirements.
Transitional
Wall Plenum
Insulation
Drain Pan
Flange
Mounting
screw
locations
Unit Side
Transition Plenum
6 - #8 3/4” hex head sheet metal screws
4 - Pieces of Insulation
1 - Drain Pan
Transition
Wall Plenum
Existing Wall
Plenum Side
(2) Top and Bottom
Pieces of Insulation
(2) Side Pieces
of Insulation
Drain Pan
