Installation Overview
Congratulations, You have Installed the
Trubolt Gemini Biometric Deadbolt
(1744010, 1744011)
Turn Sheet over for Programing Instructions.
7 Override Key Access
(Optional)
Install Enclosed Latch and Strike Plate
31
6

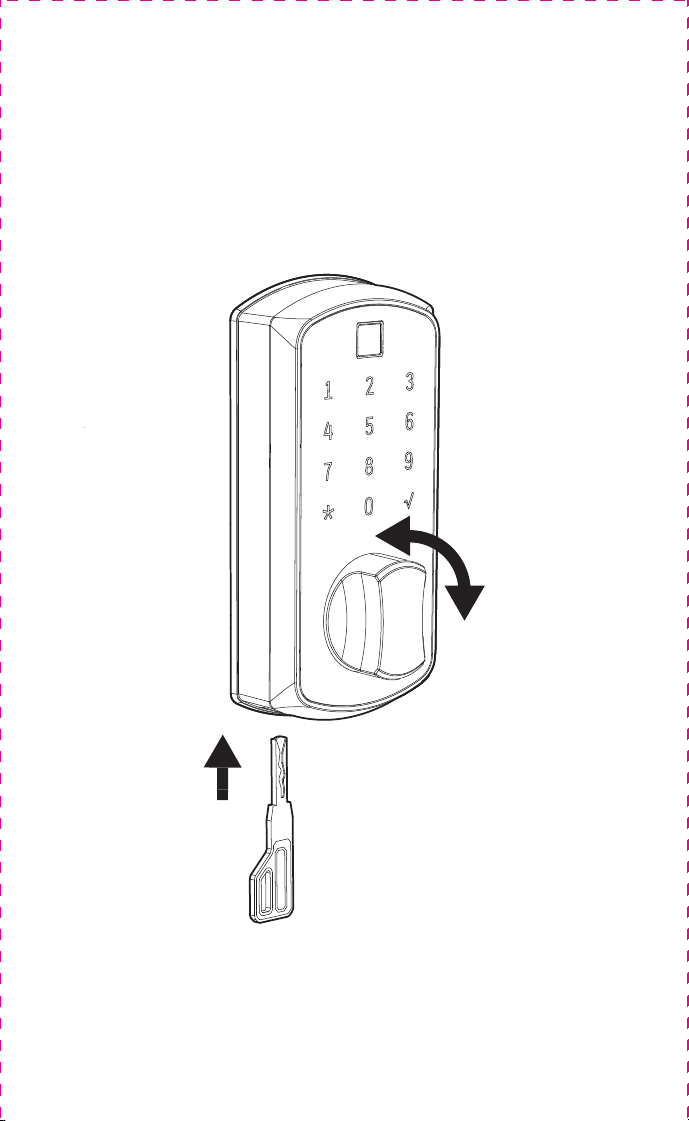

Insert override access key into slot on the bottom of the lock.
Turn key to engage clutch. Rotate Knob to unlock.
Install Exterior Assembly4
Install Interior Assembly
5
ENGLISH
Package Includes:
1 - Exterior Faceplate
1 - Interior Faceplate
1 - User Guide
2 - Keys
1 - Strike Plate
1 - Mounting Plate
1 - Adjustable Latch
2 - 1 3/8” Screws
4 - 3/4” Screws
2 - Mounting Post
Read this manual carefully before installing and operating!
3/4” Screws Mounting Post1 3/8” Screws
Exterior Faceplate Iinterior Faceplate User Guide
Override Key
Adjustable Latch
Models 1744010, 1744011
Please carefully check the above list to confirm all items have been received. If any items are
missing, please contact Consumer Assistance. (See page for contact information)
2 Preparing Door
Strike plateLatch Guide
Biometric Enabled Deadbolt with Keypad
DO NOT RETURN TO STORE!
If any parts are missing or damaged, please call Customer Service
Toll free at 1-800-860-1677 x 1801 (M-F 7am-5pm PST).
Online installation videos can be viewed at TruBoltLocks.info.
Don’t forget to register your lock at TruBoltLocks.info for updates.
1744010, 1744011 V1 E
Limited 1-Year Electronic Warranty
Limited Lifetime Mechanical and Finish Warranty
This Tru-Bolt® product comes with a 1-Year Limited Warranty on Electronic
Parts and a Limited Lifetime Mechanical and Finish Warranty against defects
in materials and workmanship under normal use to the original residential
user. Proof of purchase and ownership is required for the warranty to be in eect.
This warranty is non transferable and applies to the original purchaser
only, as long as the original purchaser occupies the residential premises upon
which the product[s] was originally installed. This warranty DOES NOT
COVER removal and reinstallation of product[s], scratches, abrasions,
deterioration due to the use of paints, solvents or other chemicals, abuse,
misuse, or product[s] used in commercial applications, does not cover any
losses, injuries to persons/property or costs, and shipping and freight
expenses required to return product[s]. In no event shall Tru-Bolt® be liable
for any special, incidental or consequential damag
es. If this product[s] is
considered a consumer product, please be advised that some local and state
laws do not allow limitations on incidental or consequential damages or how
long an implied warranty lasts, so that the above limitations may not fully apply.
Refer to your local laws for your specific rights under this warranty. If
there are any problems please call our customer service with any questions or
concerns.
I
Gemini
E
F
AB
Make sure that the latch is EXTENDED. If it is retracted
insert the screw driver and rotate towards the door edge.
Refer to Template for Door Prep
Instructions Included in packaging
F
NOTE: Skip this step if your door comes with pre-drilled holes.
Insert the Exterior Assembly onto the door with the Tailpiece going
through the Latch in the HORIZONTAL POSITION.
Override Key
Tailpiece
Control Wire
D
F
E
H
J
I
B
A
C
Carefully connect the control wires until they securely fit together.
AB
Strike Plate
2-3/4” position
D
2-3/8” position
Do Not Over Tighten
TO CONVERT FROM 2-3/8” (60mm) BACKSET TO 2-3/4” (70mm) BACKSET
1. Hold latch with “UP” facing forward and thumb pressing on the bolt.
2. Rotate the cylinder clockwise.
3. Twist the extension plate until it is all the way out.
NOTE: Do not extend Cylindrical Cover past 2-3/4” (70mm)
D
I
Work with the door open
Be careful not to pinch wire when installing
Make sure the thumb knob is in the vertical position.
Test the Lock Install Batteries
It is helpful to have a person assist in
the installation of the lock on the door.

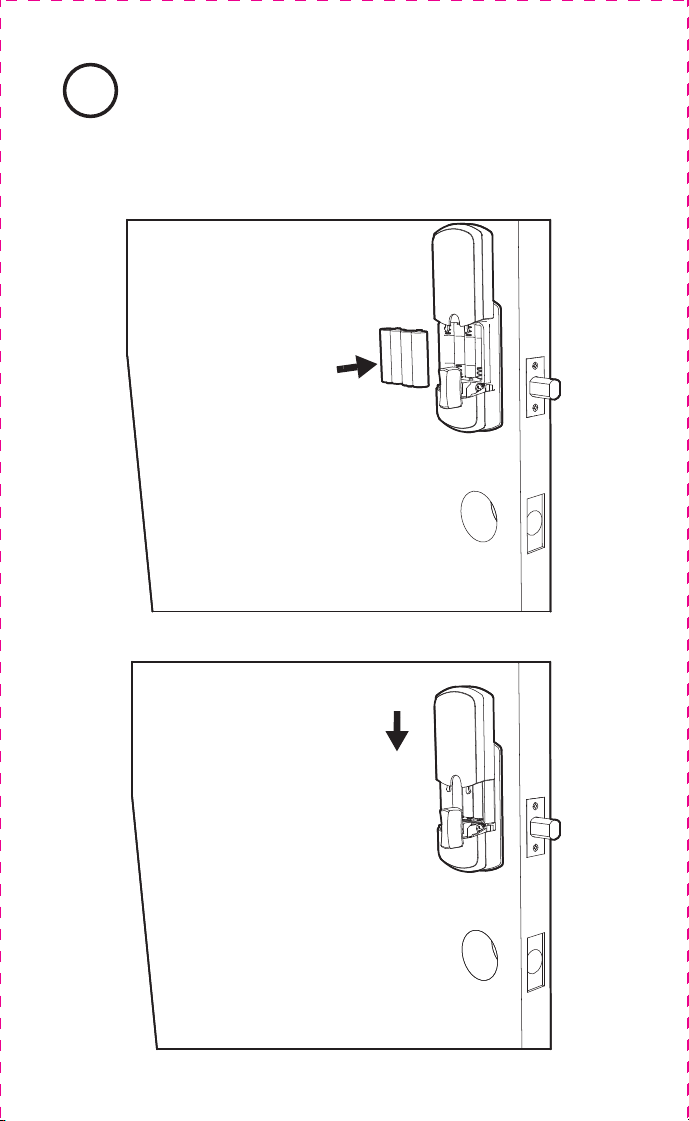

Insert 4 high quality alkaline AA batteries
Replace battery cover
Insert 4 high quality alkaline AA batteries
Replace battery cover
This Electronic lock requires (4) High Quality AA Alkaline
batteries. When all 4 batteries are installed in the correct
position, you should hear and short tone sequence and
the keypad will illuminate blue.
NOTE: Do not touch the Keypad until the blue light turns off.
Do not use rechargeable batteries or non-alkaline batteries.

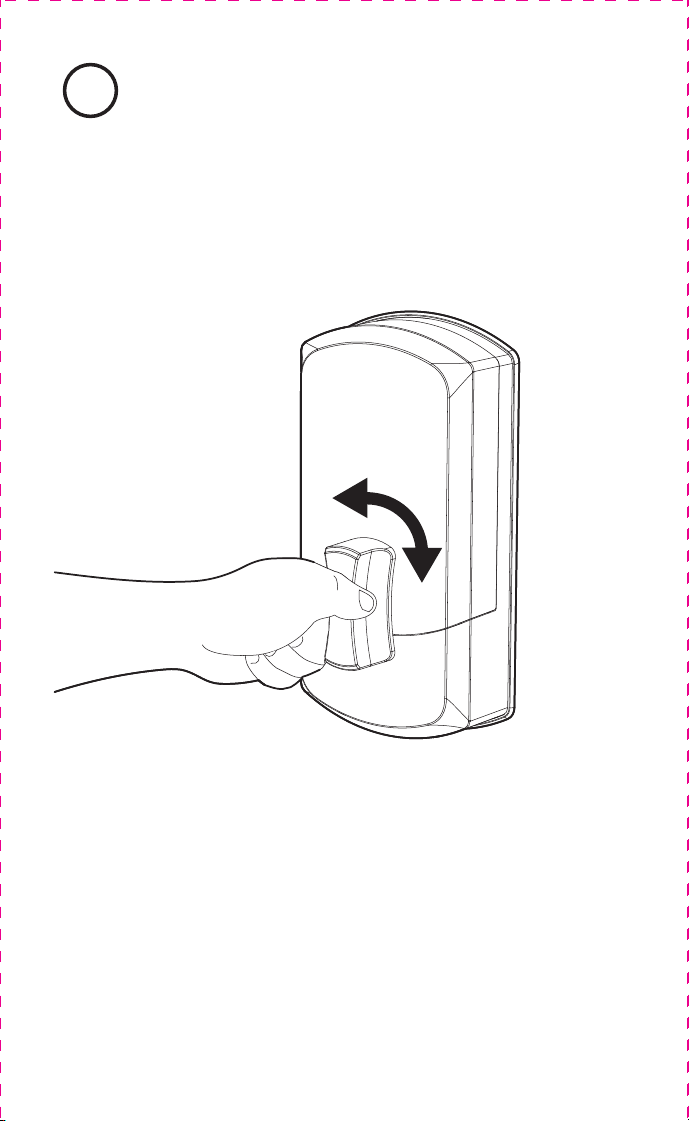

Lock and unlock using the turn knob to make sure the latch is opening and
closing easily. If not, go back to step 4 and ensure you followed the steps
Remove battery cover
Secure with included 1 3/8” screws
H
B
This Electronic lock requires (4) High Quality AA Alkaline
batteries. When all 4 batteries are installed in the correct
position, you should hear and short tone sequence and
the keypad will illuminate blue.
NOTE: Do not touch the Keypad until the blue light turns off.
Do not use rechargeable batteries or non-alkaline batteries.
Lock and unlock using the turn knob to make sure the latch is opening and
closing easily. If not, go back to step 4 and ensure you followed the steps

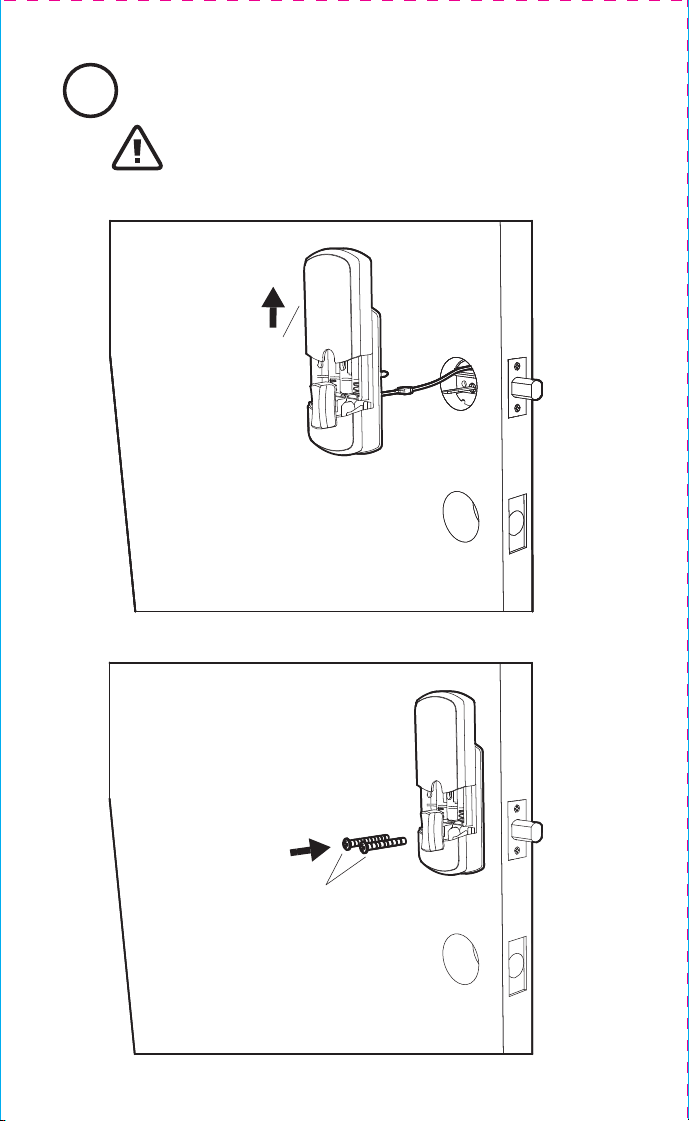

NOTE: Screw Mounting Post (J) into holes on Internal Assembly (B)
J
B
