A
G H I J K
B C
D
E F
ENGLISH
Package Includes:
1 - Exterior Faceplate
1 - Interior Faceplate
1 - User Guide
2 - Keys
1 - Strike Plate
1 - Mounting Plate
1 - Latch
1 - 1 3/8” Screws
2 - 5/16” Screws
2 - 1” Screws
4 - 3/4”Screws
1 - Optional Set Screw
Read this manual carefully before installing and operating!
3/4” Screws1” Screws 5/16” Screws1 3/8” Screws
Exterior Faceplate Interior Faceplate
User Guide
Keys
Latch
Model 1742202, 1742206
Optional Set Screw
Please carefully check the above list to confirm all items have been received. If any items are
missing, please contact Consumer Assistance. (See page for contact information)
Mounting Plate
Strike plate
Bluetooth Enabled Knob with Keypad

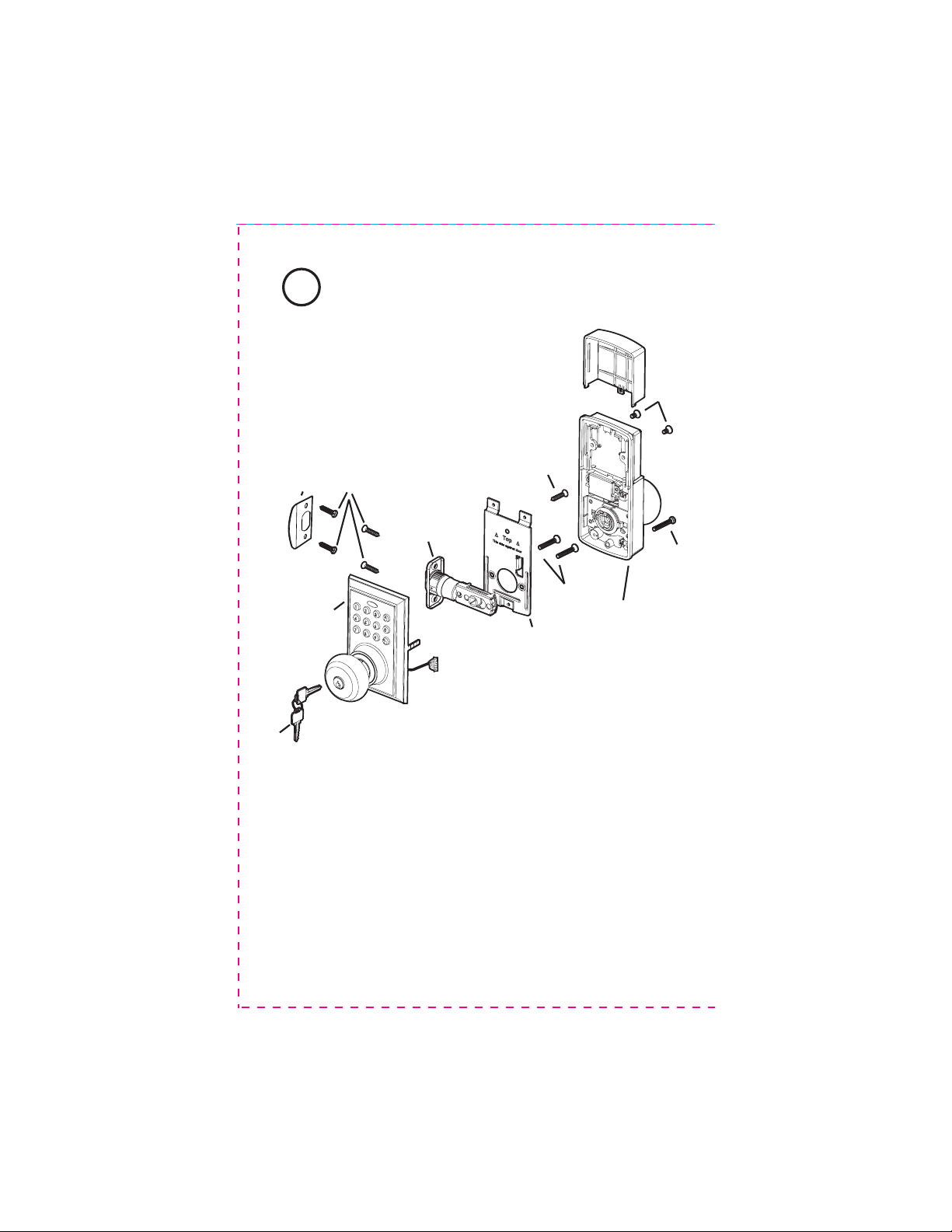

Installation Overview
1
J
I
G
H
K
D
A
C
E
B
F
DO NOT RETURN TO STORE!
If any parts are missing or damaged, please call Customer Service
Toll free at 1-800-860-1677 (Toll Free, M-F 7am – 5pm PST).
Online installation videos can be viewed at TruBoltLocks.info.
Don’t forget to register your lock at TruBoltLocks.info for updates.
2

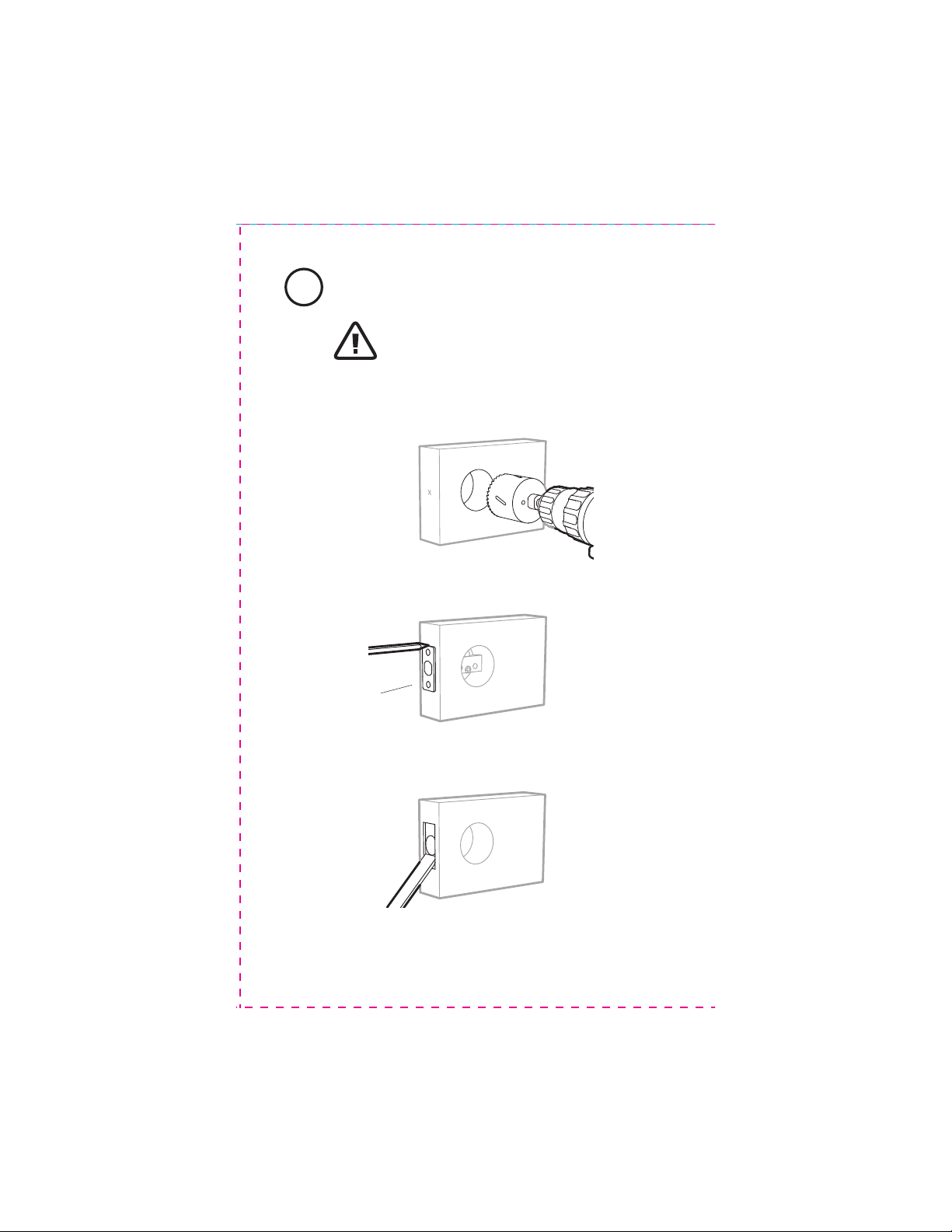

Refer to Template for Door Prep
Instructions Included in packaging
F
NOTE: Skip this step if your door comes with pre-drilled holes.
Preparing Door

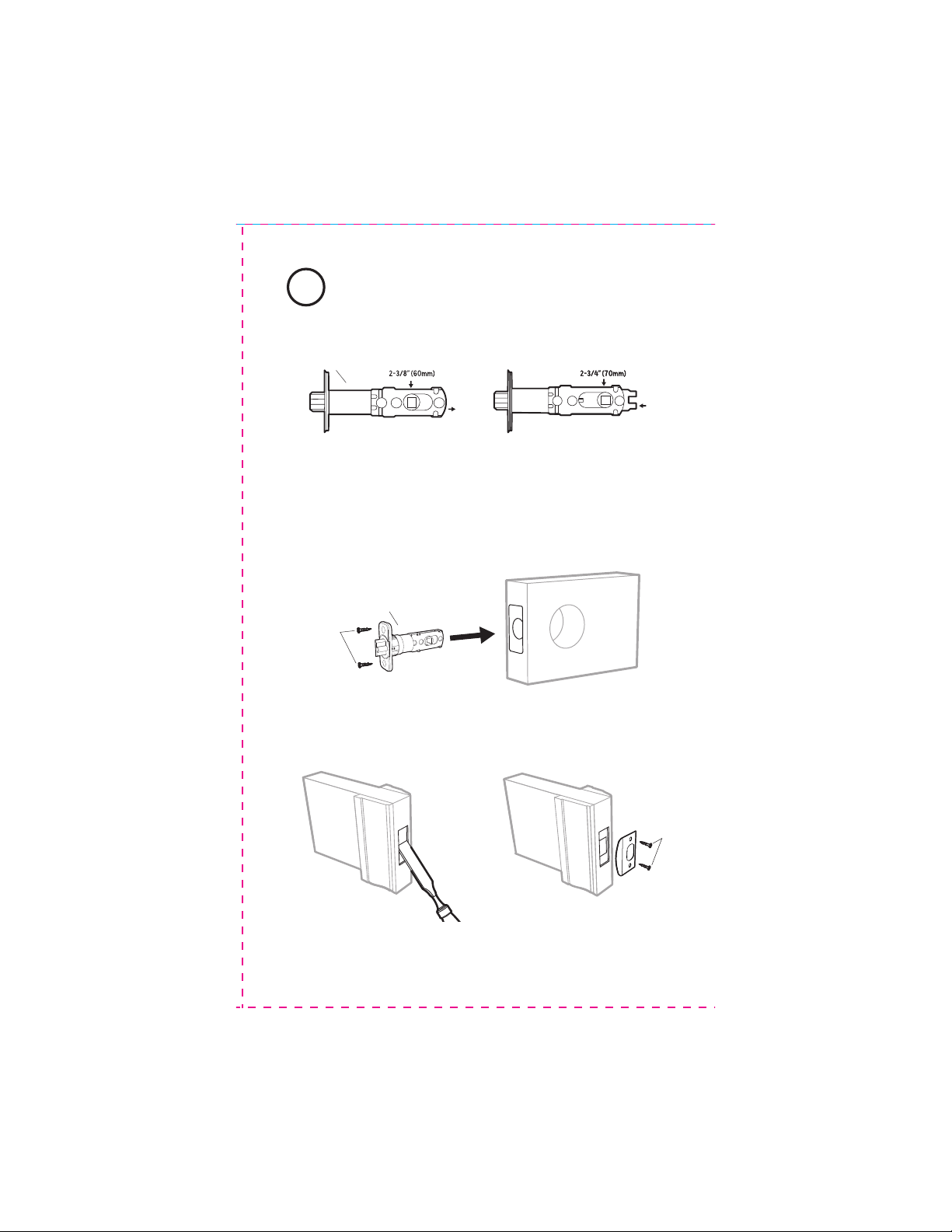

Install Enclosed Latch and Strike Plate3
J
Strike Plate
E
TO CONVERT FROM 2-3/8” (60mm) BACKSET TO 2-3/4” (70mm) BACKSET
1. Hold latch with numbers facing forward and thumb pressing on the latch.
2. Pull or Push the extension plate to the required size.
NOTE: Do not extend Cylindrical Cover past 2-3/4” (70mm)
PUSHPUSH
PULL
E
J
Do Not Over Tighten

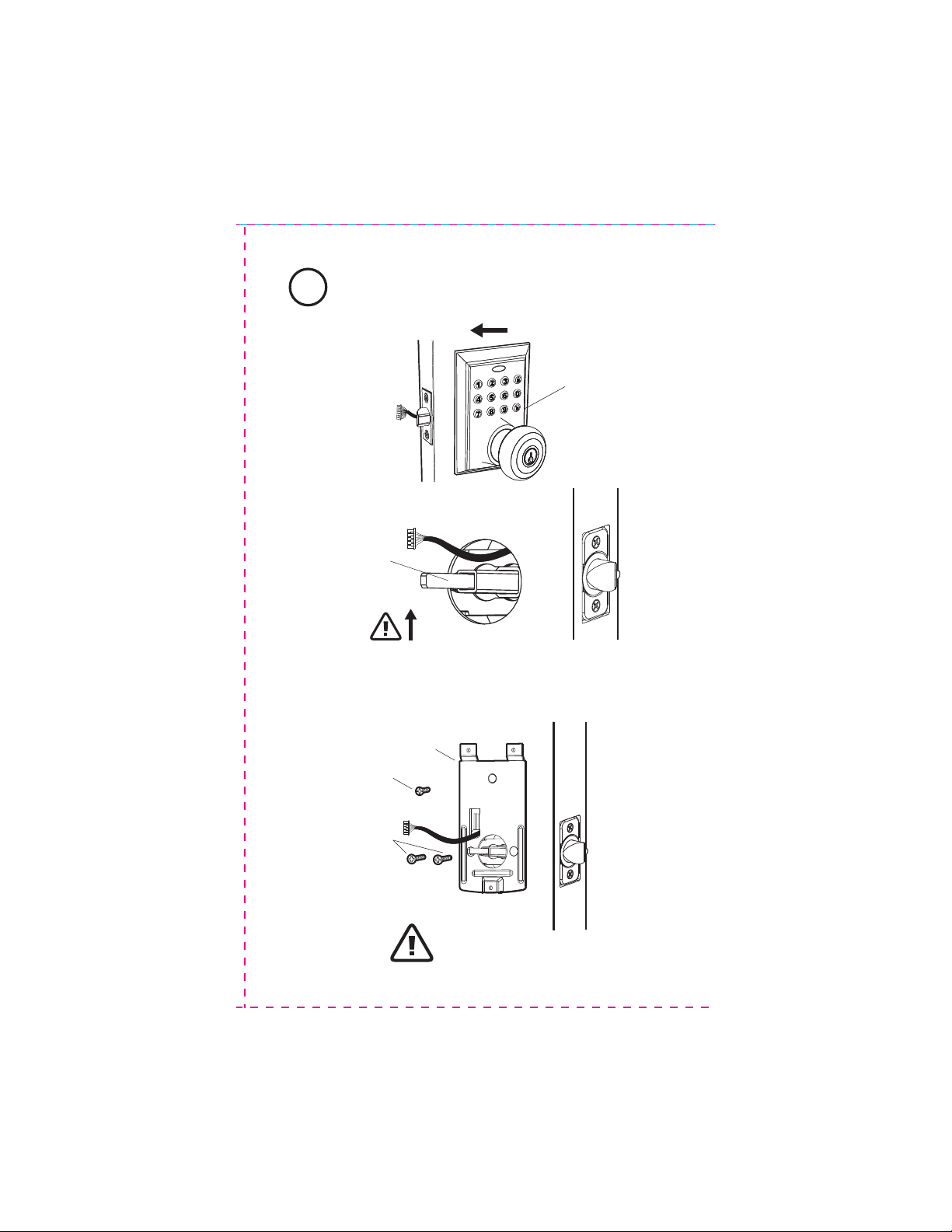

Install Exterior Assembly4
A
A
Secure mounting
plate to door
K (optional)
H
C
Check that the Rubber Gasket is secured on the Exterior
Assembly. Insert the Exterior Assembly onto the door with
the tailpiece going through the Latch Set in the VERTICAL
POSITION. Route the Control Wire through the door above
the Latch Set.

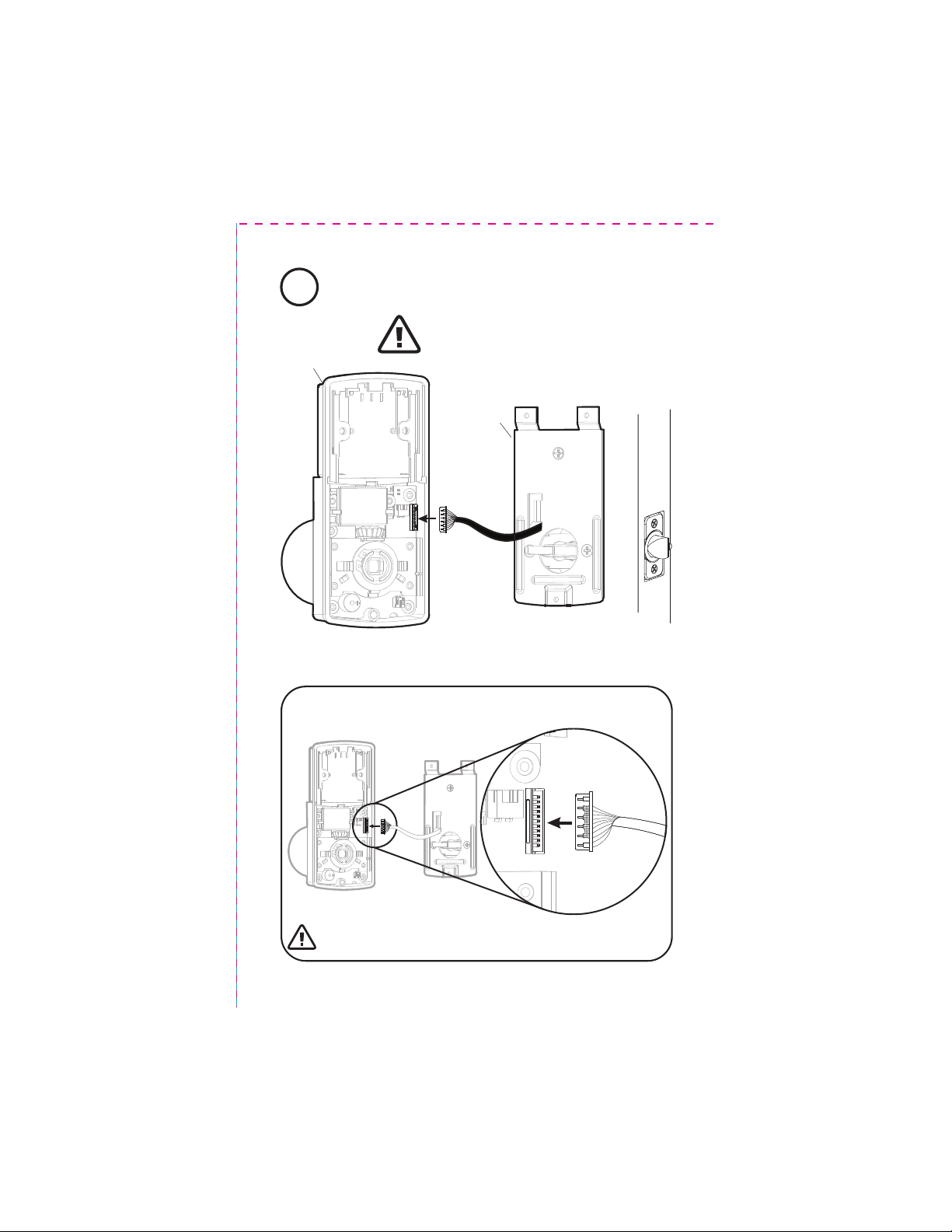

Install Interior Assembly
5
C
B
Work with the door open
IMPORTANT:
Make sure the connector dots line up with the dots on the wire

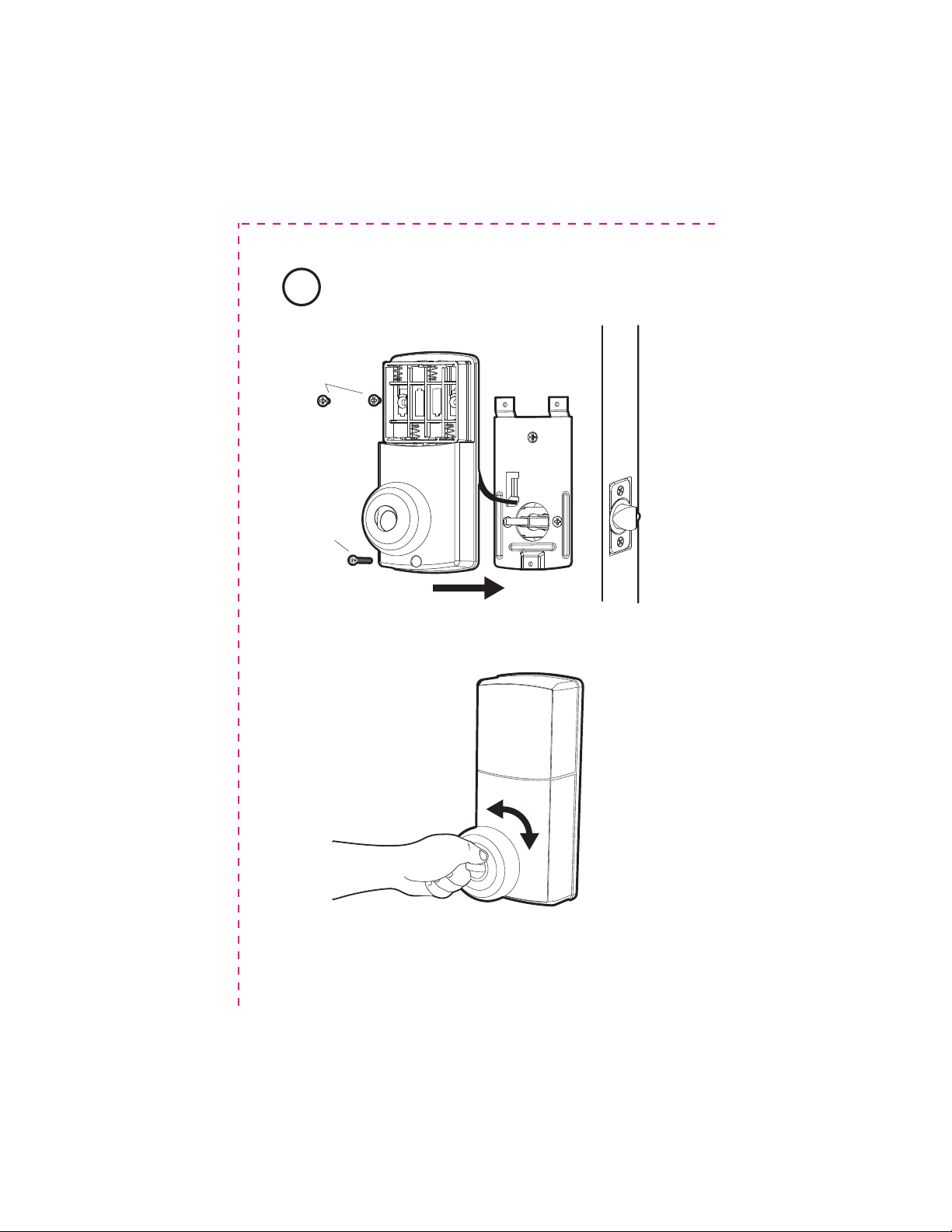

Install Interior Assembly
6
I
G
Test the lock
Lock and unlock using the knob make sure the latch is opening and
closing easily. If not, go back to step 2 and ensure you followed the steps
Install Batteries and Cover7
B
This Electronic lock requires (4) High Quality AA Alkaline
batteries. When all 4 batteries are installed in the correct
position, you should hear 2 beeps and the keypad will
illuminate blue.
NOTE: Do not touch the Keypad until the blue light turns off.
Do not use rechargeable batteries or non-alkaline batteries.

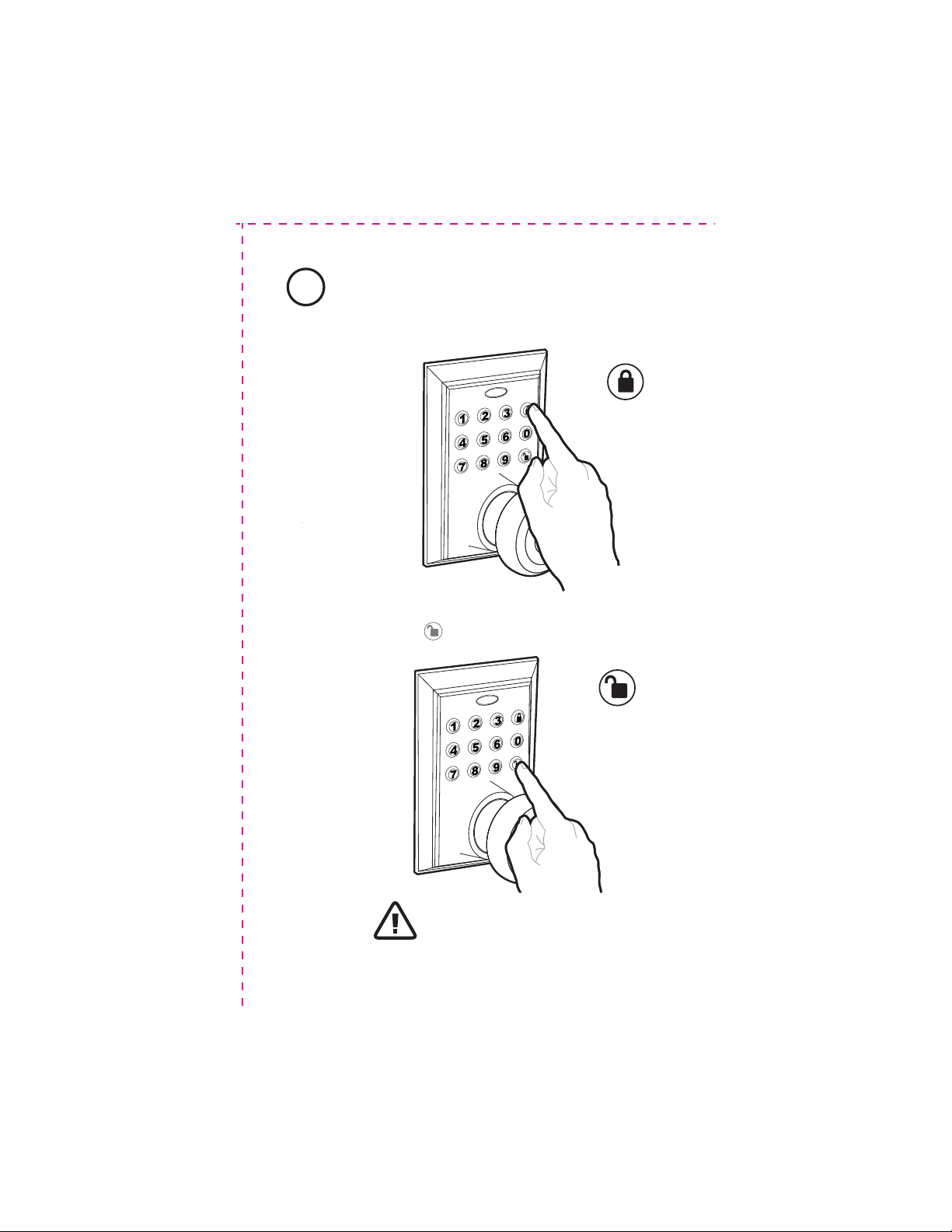

Testing Operation
8
Test unlocking
Press 1-2-3-4-
Test the lock button with door open
Before Opening Door
Let Motor Complete Cycle
Congratulations, You have Installed the
Trubolt Infinity Bluetooth Knob
(1742202, 1742206)
Turn Sheet over for Programing Instructions.
1742202, 1742206 V0 E

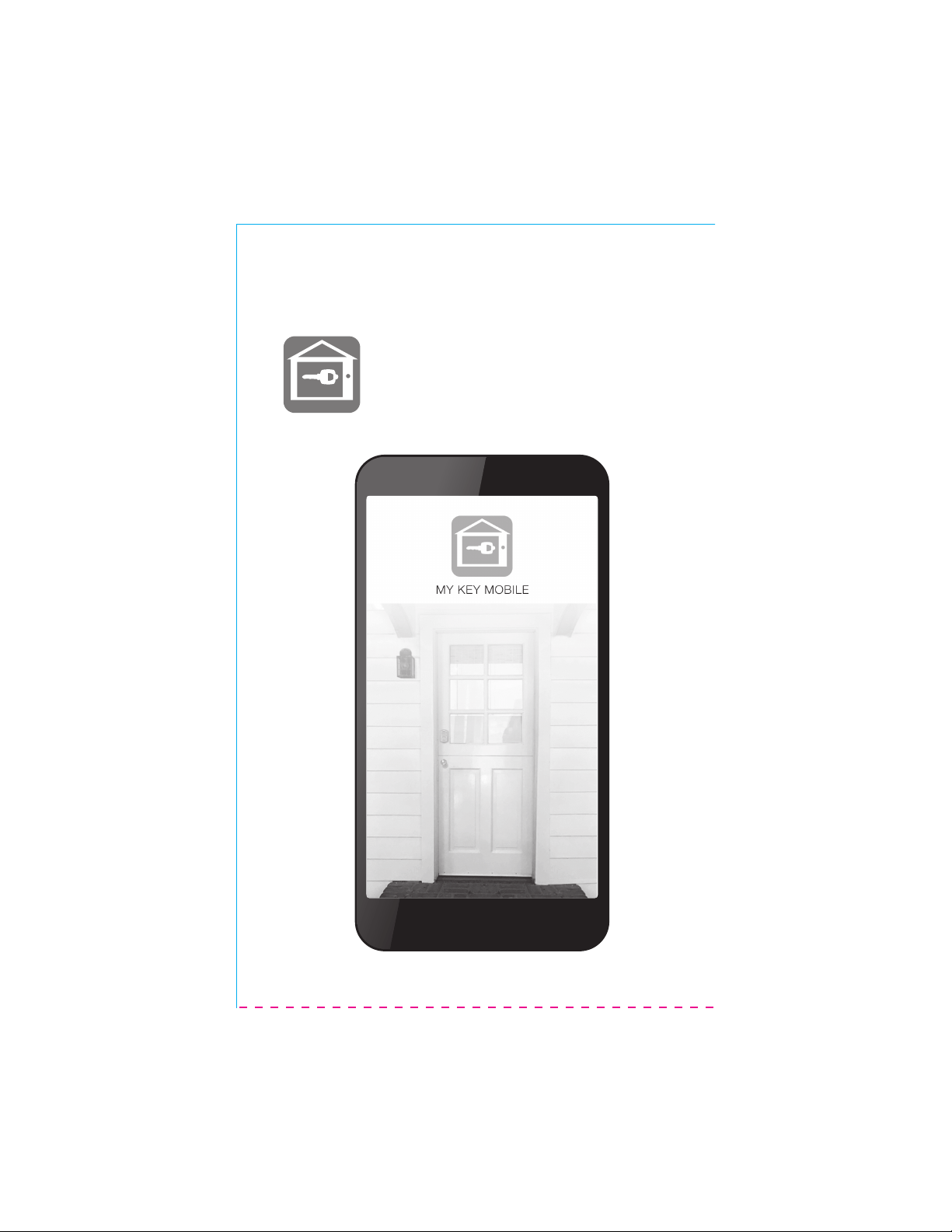

Download the My Key Mobile App
from the APP store or Google Play
Programming Instructions
Download the My Key Mobile App
from the APP store or Google Play

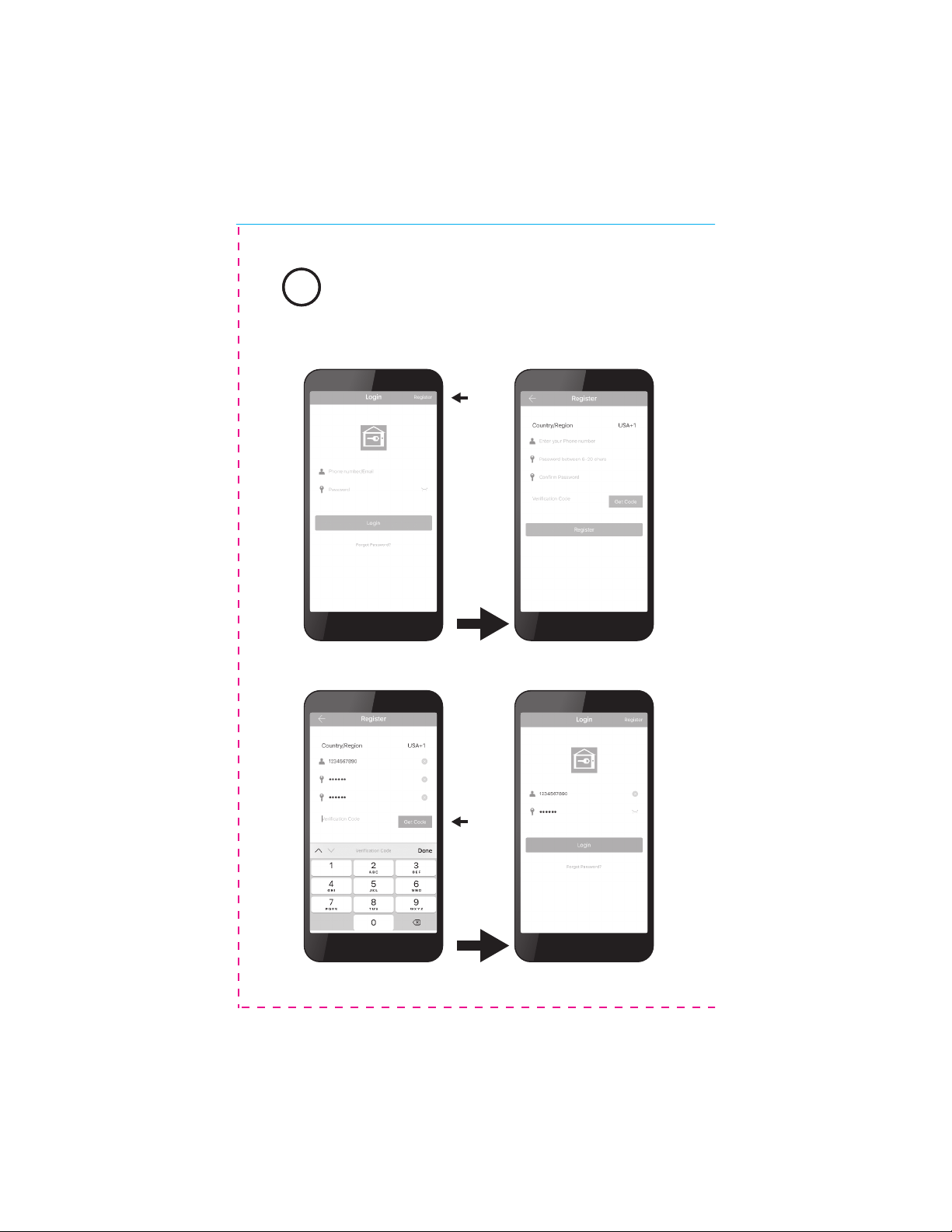

Register an Account11
1. Press “Register” on the login screen 2. Enter your phone number
and prefered password
3. Press “Get Code” and enter the verifiation
code recieved via text msg in the required field
4. Success! Use the selected phone # and
password to log into your My Key Moblie App

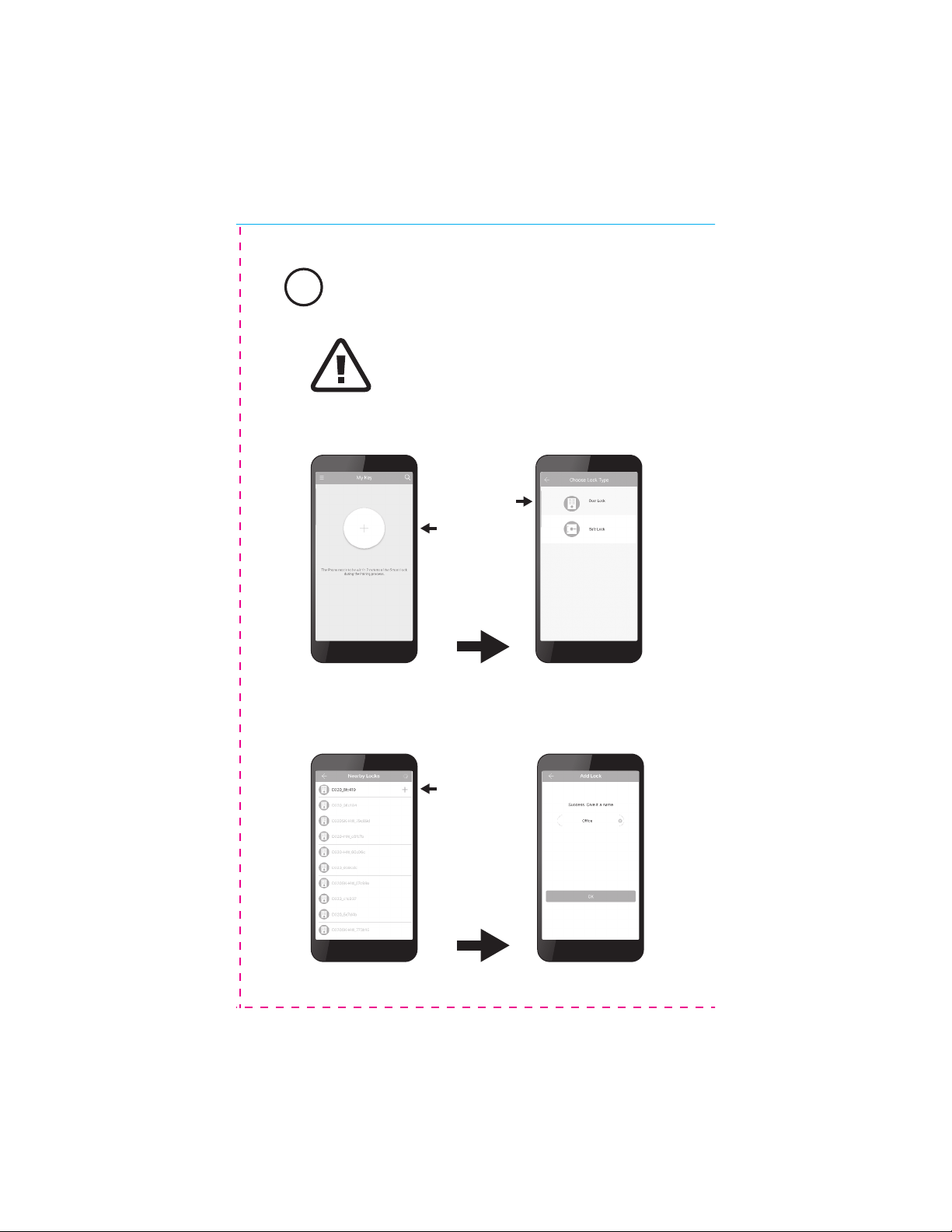

Add a Lock
2
3. Press the “+” next to the lock
you wish to add
4. Success! Name your Lock and enjoy
1. Press the “+” on the lock screen 2. Select Door Lock
Press Any Key on the Keypad to Wake up Lock.
The Keypad Must be Lit in order to add the Lock

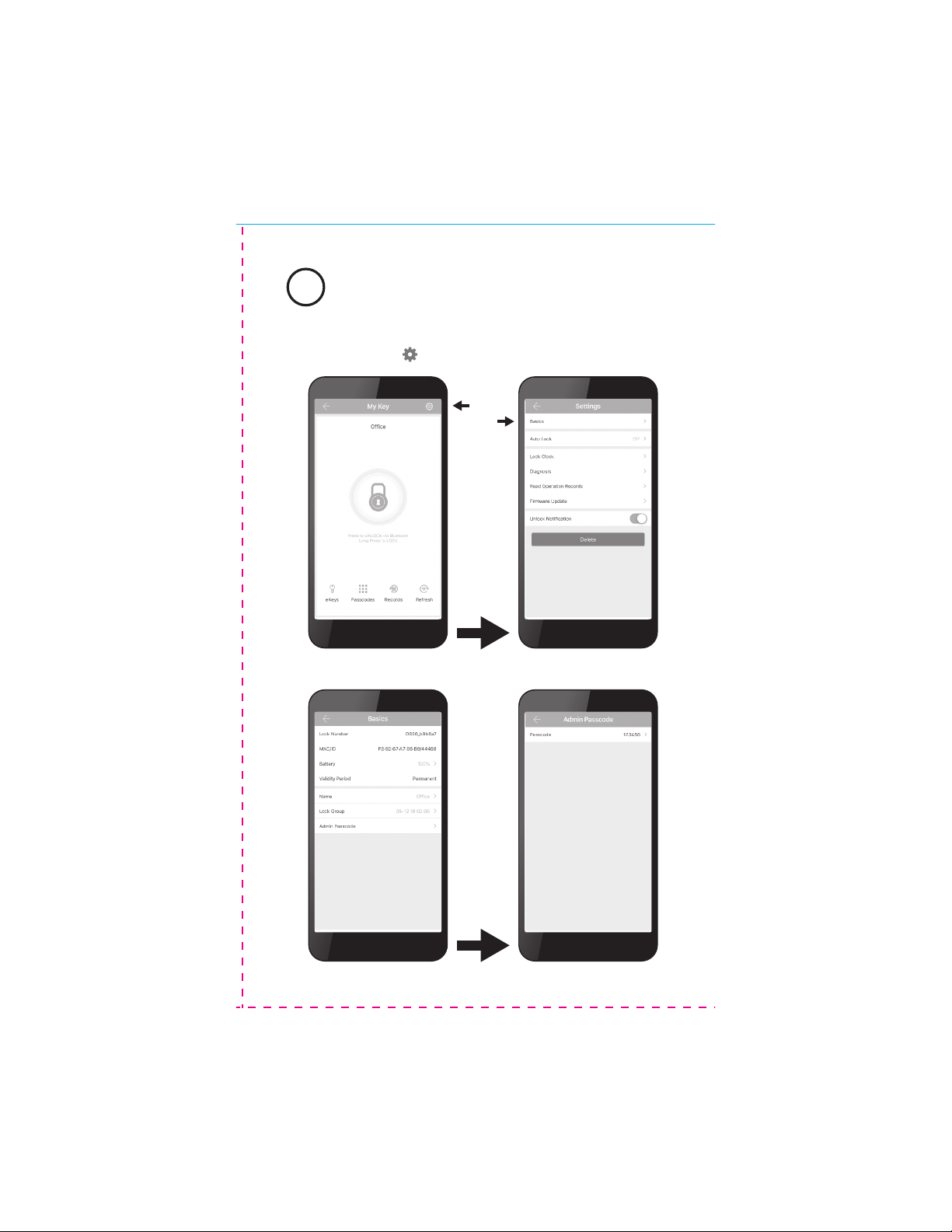

Change Admin Passcode
3
2. Select Basics from the setting list
3. Select “Admin Passcode” 4. Set your new 6-digit Admin Passcode
1. Press the settings “ ” in the
top right of the lock screen
Passcode can be used to unlock from keypad

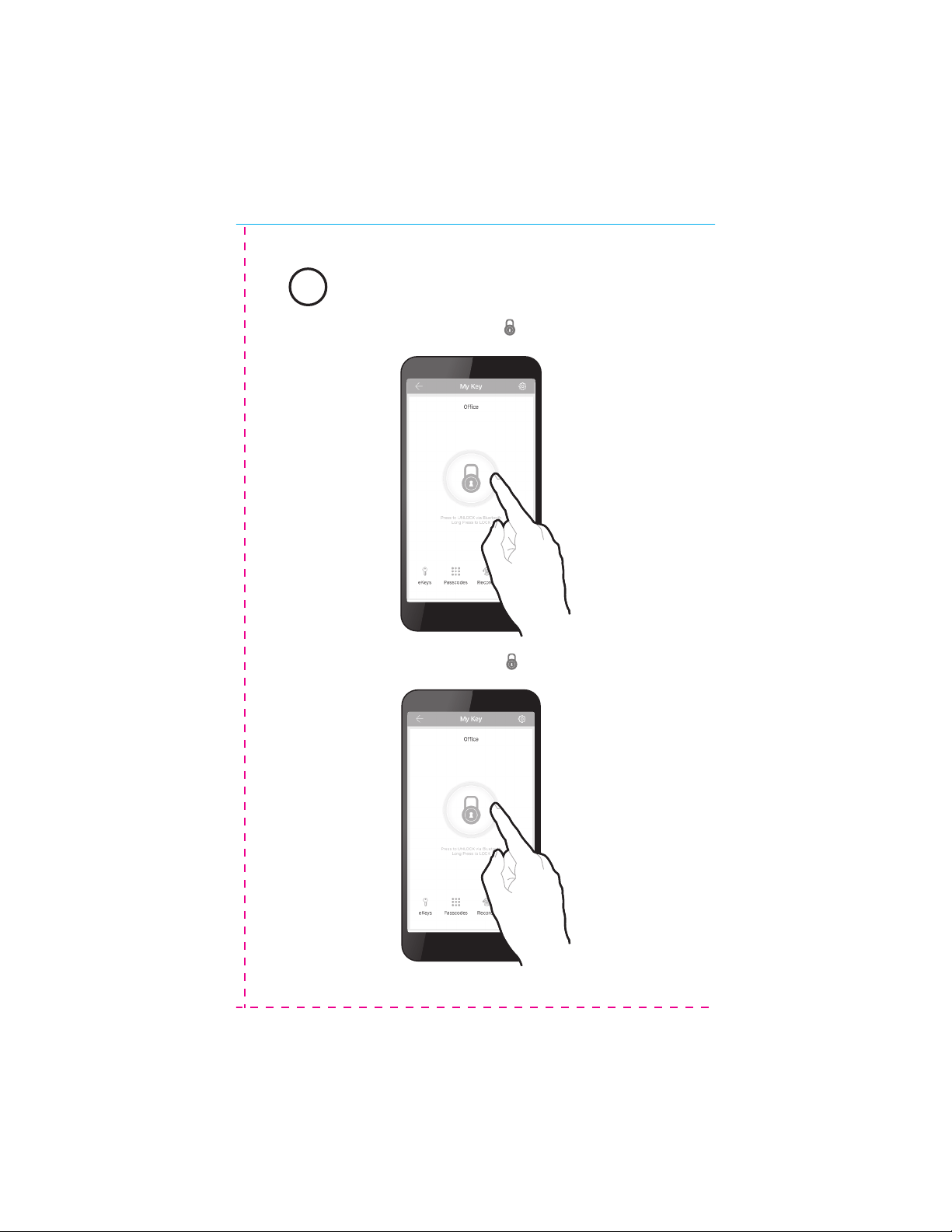

Locking and Unlocking via APP4
Tap the Lock Icon “ ”
to unlock door
Hold the Lock Icon “ ”
to lock door

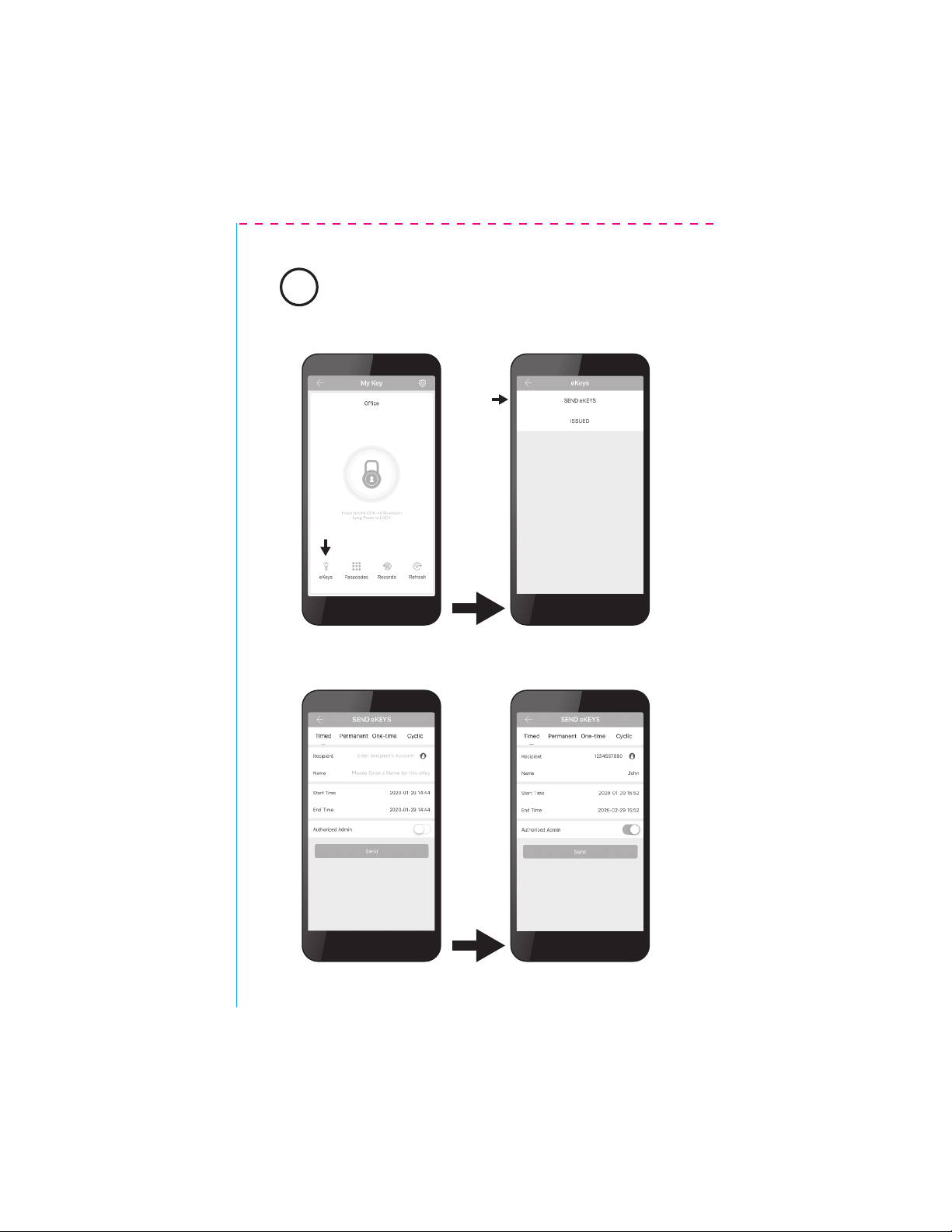

Creating and Sending eKeys
5
1. On the Lock Screen select the
eKey Icon
2. Select SEND eKEYS
3. Select Validity Period
(Timed, Permanent, etc.)
3. Enter the recipiants Phone #
and Name. Hit send to confirm
6

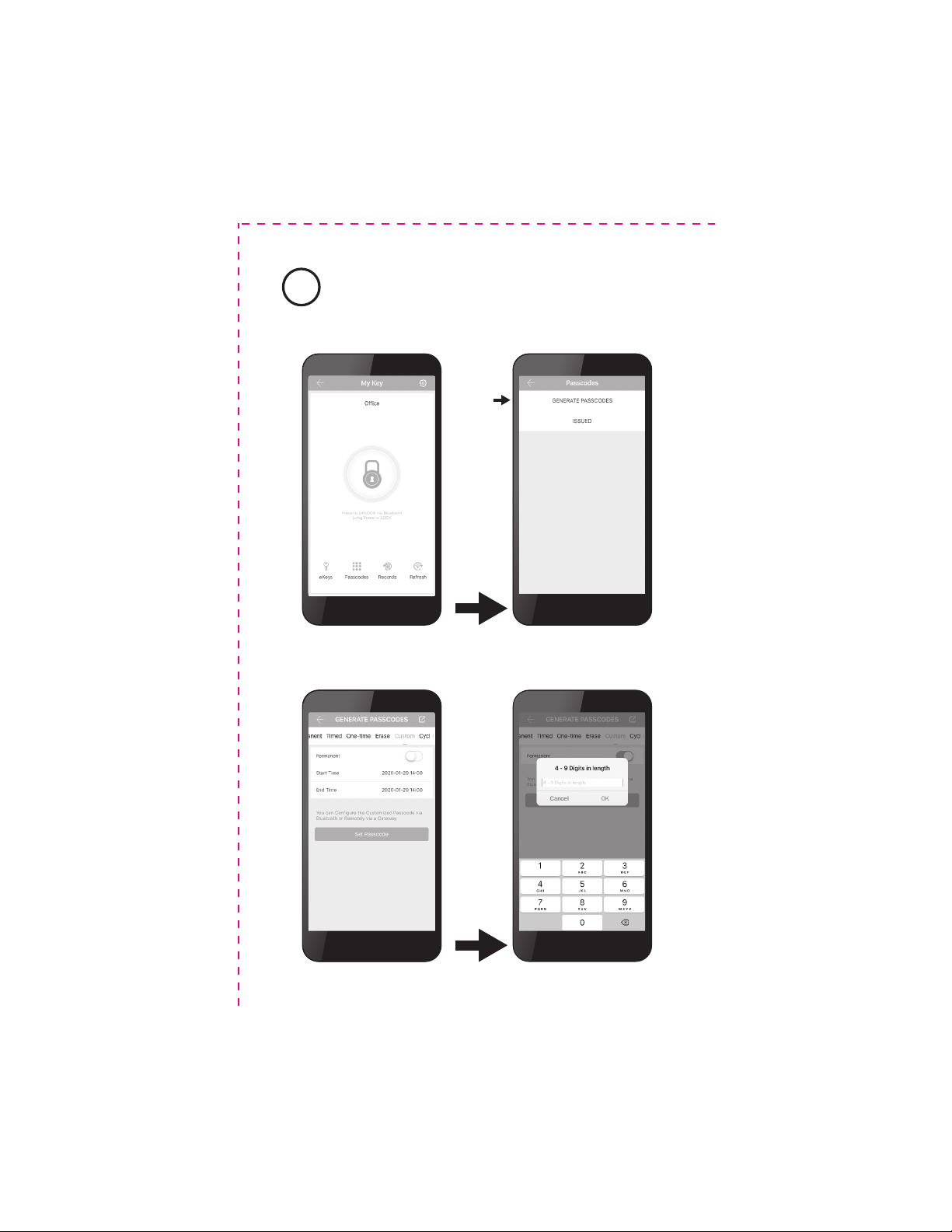

Creating Custom Passcodes
1. On the Lock Screen select the
Passcode Icon
2. Select GENERATE PASSCODES
3. Select “Custom” and select the duration
or toggle permanent. Press Set Passcode
4. Enter the desired 4-9 digit passcode
7
Additional Programming Functions
VACATION MODE
a. Input the Admin Passcode
b. - Green light and beep
c. 10
d.
e. 1
f. - Green light and beep
DISABLE VACATION MODE
a. Press
button for 3 seconds
b. Input the Admin Passcode
c. - Green light and beep
Restore Factory Settings
a. Press the reset button on the PCB board until you hear one beep. Release, and then three seconds later
you will hear a second beep after three seconds. This indicates that the lock has been reset to the
Factory Settings. (Remove cover, The reset button is located inside the back panel, See image below)
b. The Administrator of the lock deletes the lock from the App (Must be done near lock)
Reset Button
OR
TURN ON/OFF AUTO LOCK FUNCTION
a. Input the Admin Passcode
b. - Green light and beep
c. 5
d.
e. Input time (20 - 900 seconds, and 00 to turn off)
f. - Green light and beep
SOUND OFF
a. Input the Admin Passcode
b.
- Green light and beep
c. 6
d.
e. 1
f. - Green light and beep
SOUND ON
a. Input the
AP
b. - Green light and no beep
c. 6
d.
e. 2
f. - Green light and beep
You can also use the APP to make these changes
Troubleshooting
Contact Us First! Do Not Return to Store
Issue Solution
Lock will not function
electronically.
• Check that all batteries are fresh high quality Alkaline Batteries
• Check for proper polarity (+ -) of all batteries
• Check that the Control Wire is attached to the Interior Assembly
Lock gives error signal
when opening or locking
and Latch will not extend
or retract completely when
closed.
• Unlock door using Key or Interior Knob
• While door is open, check that the Latch operates smoothly
• Check for proper alignment of the strike plate, adjust as needed to
assure there is no binding against the Latch
The Latch is sticking. Installation screws of the lock may be too tight and have to be loosened
• Remove Interior Assembly
• Slightly loosen the Mounting Plate screws
• Lock and unlock using the Key
• Reattach Control Wire and Interior Assembly
The Keypad is not working. Application may be overriding the Keypad programming
• Check and see if the App has been connected to the lock
• Open the App and check the locks’ setting to view/change the
Administrator Code
The App is unable to
connect to a lock.
Bluetooth is off, smart device is not compatible, or the lock may not
be activated
• Contact customer assistance regarding compatibility issues, but
iPhone 5 and later models, and most Android devices are compatible
• Turn Bluetooth on, and ensure the lock is activated by pressing a
keypad button on the physical lock until you see the icon to add
the lock
eKeys will not send after. • Only registered users of the App can receive eKeys.. Ensure that
whoever is receiving the eKey has a registered account, and
their information is entered correctly
• Ensure you are connected to WiFi, and that the smart device is
updated
The default Keypad
Passcode is not working.
• If you have connected to the lock with the App, then the default
Passcode is invalid, and is replaced with a new Passcode generated
by the App, which should be changed
Forgotten Password. • On the home screen select the Forgot Password option, then
select the account type that was registered, and follow the
prompts to create a new Password
Latch is not locking in
inclement weather.
• Push or pull door to direct latch
• Re-adjust latch for smoother operations
EMAIL: [email protected]
WEBSITE: www.truboltlocks.info
ADDRESS: Consumer Assistance Dept.
Lewis Hyman, Inc.
860 East Sandhill Avenue
Carson, CA 90746 USA
TELEPHONE: US/Canada 800-860-1677 Ext. 1801 (Toll Free)
1742202, 1742206 V0 E
Regulatory Compliance
This product complies with standards established by following regulatory bodies:
- Federal Communications Commission (FCC)
FCC
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference, including interference that may cause
undesired operation
IMPORTANT! Changes or modifications not expressly approved by the manufacturer
could void the user’s authority to operate the equipment.
Limited 1-Year Electronic Warranty
Limited Lifetime Mechanical and Finish Warranty
This Tru-Bolt® product comes with a 1-Year Limited Warranty on Electronic
Parts and a Limited Lifetime Mechanical and Finish Warranty against defects
in materials and workmanship under normal use to the original residential
user. Proof of purchase and ownership is required for the warranty to be in e�ect.
This warranty is non transferable and applies to the original purchaser
only, as long as the original purchaser occupies the residential premises upon
which the product[s] was originally installed. This warranty DOES NOT
COVER removal and reinstallation of product[s], scratches, abrasions,
deterioration due to the use of paints, solvents or other chemicals, abuse,
misuse, or product[s] used in commercial applications, does not cover any
losses, injuries to persons/property or costs, and shipping and freight
expenses required to return product[s]. In no event shall Tru-Bolt® be liable
for any special, incidental or consequential damages. If this product[s] is
considered a consumer product, please be advised that some local and state
laws do not allow limitations on incidental or consequential damages or how
long an implied warranty lasts, so that the above limitations may not fully apply.
Refer to your local laws for your specific rights under this warranty. If
there are any problems please call our customer service with any questions or
concerns.
DO NOT RETURN TO STORE
For questions / comments, technical assistance or repair parts – please call toll
free at: 1-800-860-1677 x 1801 (M-F 7am-5pm PST)
Don’t forget to register your lock at Truboltlocks.info for updates.
Package Warranty:
Limited Lifetime Mechanical & Finish Warranty:
This Tru-Bolt® product[s] comes with a 1-Year Limited Warranty on
Electronic Parts and a Limited Lifetime Mechanical and Finish Warranty
against defects in materials and workmanship under normal use to the
original residential user. If there are any problems please call our customer
service with any questions or concerns. See installation instructions for full
terms and conditions.
