Moosoo BL100 RolliMini Vacuum Cleaner

User Manual - Transcript

• Page 1: RolliMini Vacuum Cleaner Model User Manual

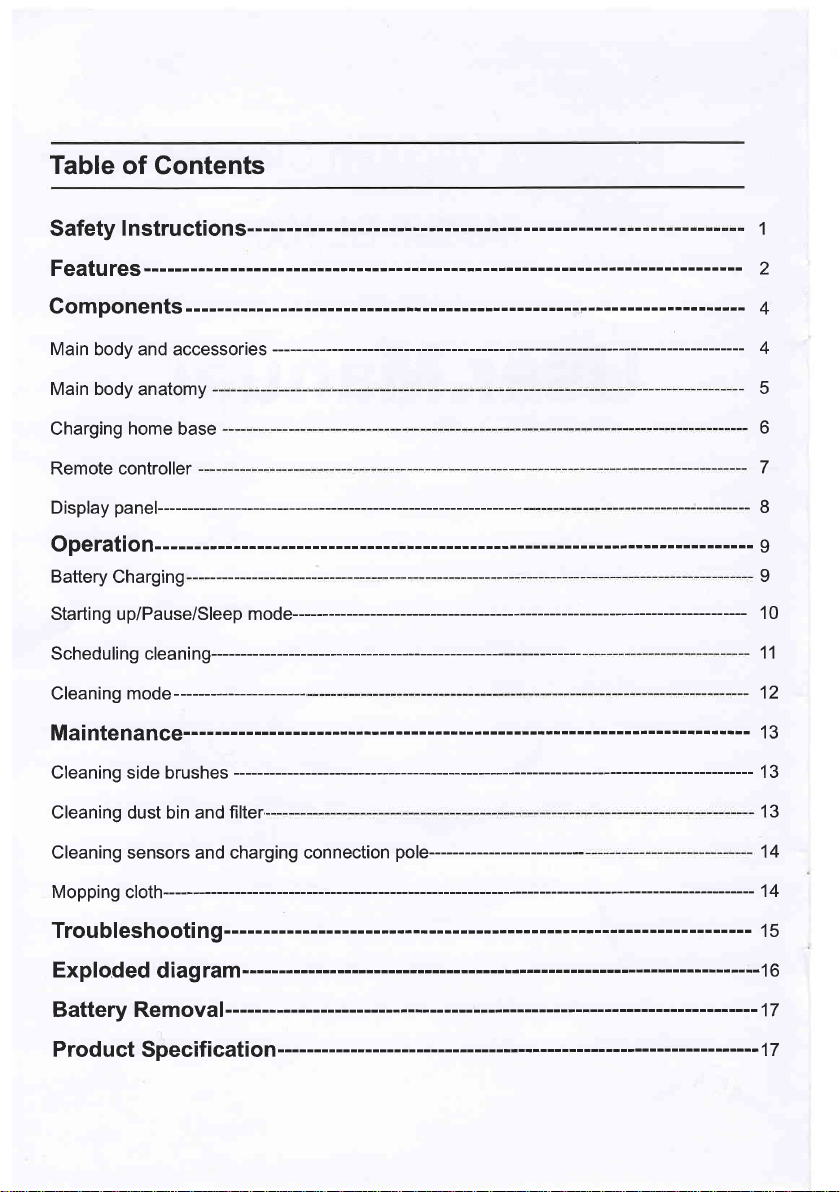

• Page 2 - English - : Table of Gontents Safety I nstru ctions Features Gomponents rrrrr Main body and accessories Main body anatomy Charging home base Remote controller Display panel Operation Battery Charging Starting upPauseSleep mode Scheduling cleaning Cleaning mode Maintenance Cleaning side brushes Cleaning dust bin and filter Cleaning sensors and charging connection pole Mopping cloth Trou bleshooti n g Exploded diag ram Battery Removal Prod u ct Specification I
• Page 3 - English - : Safety Instructions Before using this product please read the safety instructions and follow all normal safety precautions O Read this user manual thoroughly and carefully before using this product O Keep this user manual in your sight O Any operation not following the instructions in this user manual may lead to harm to human or this product Safety Instructions Only use the original battery and power adapter model 2DD240060 of the product for charging Using other unmatched adapter may cause electric shock fire or product damage 2 Do not touch the power mrd plug or adapter with wet hands 3 Before starting the product make sure the dust bin f lter is properly installed 4 Do not use this product in wet or moist environment any environment with liquid eg Bathroom or laundry Before use mllect the floor environment remove all the fragile objects and cords clothing papers loose cables as well as making sure to lift curtains and drapes off the floor to avoid any possible accidents In case that a loose cable is tangled with the product the cable might move around with the product as it woks and topple down tables chairs or cabinets and might cause injury or property damage Do not sit on top of this product or attach an object on the top of it Beware of children or pets while the product is in operation Only use the product indoors do not use it outdoors B Do not let this product get close to cigarette lighter match or any flammables Never use the product to clean up mmbustible or highly volatile liquids such as gasoline 1 0 lf the product needs cleaning do not clean it while charging Do not overbend the power mrd or pressure the power cord with heavy or sharp objects Do not place this product where it is easy to drop off tables chairs etc Tum ofithe power switch during transportation orwhen the product is not in use for seveal days 14 To avoid tripping inform allthe people in the house when this product is in use Before use check whether adapter and outlet are properly connected 16 Empty dust bin every time after robot cleaning 17 Use this product in temperature from 0quotC to 40quotC Do not use this product in hightemperature environment 1 9 The plug must be removed from the socketoutlet before under going maintenance 20 The product must be disconnected from the power outlet when removing the battery The baftery must be removed from the product before it is scrapped The battery should be disposed of properly for safety Warning This product can only be used by children aged from years and above and persons with reduced physical sensory or mental capabilities or lack of experience and knowledge if they have been given superuision or instruction concerning use of the product in a safe way and understand the hazards involved Children shall not play with the product Cleaning and maintenance shall not be made by children without supervision
• Page 4 - English - : Featu res Powedul Suction Intelligent Suction Adiustment Powerful Suction The Product possesses superb cleaning capabilitieseven particle dust on the floorwill be thoroughly removed Intelligent Suction power Adjustment This product is able to automatically adjust its suction power when different floor environments are detected Not only it makes cleaning more easier but also energy effcient Gonsiderate Design Easy stepbystep operation Washable Dust Bin Dust bin can be washed directly by tap water Simply wash dust bin under tap water and let or wipe dry before use Various Cleaning Modes Four cleaning modes are provided to meet your needs 1 Auto cleaning mode The robot will clean a room automatically and adjust its cleaning mode according to the environment By pressing a single button qry quot you can easily direct the robot
• Page 5 - English - : Featu res Spot cleaning mode When the robot detects a heavily soiled area it will activate the sport cleaning mode which will clean in a spiral direction 3 Edge cleaning mode When the robot detects that it is along the wall it will activate the edge cleaning mode Scheduling mode User can schedule the robot cleaning time as they want When a certain time is scheduled the robot will leave the charging home base and start working at the scheduled time
• Page 6 - English - : Gomponents Main body and accessories No Description Quantity 1 Main Body 2 Charging Home Base Remote Controller without battery 4 Cleaning Tool help to clean the robot 5 Side Brushes User Manual HEPA Filter Power Adapter I Mopping Cloth
• Page 7 - English - : Components Robot anatomy Bumper Upper cover Button Charging pole Right brush Battery cover Right wheel Power switch Front wheel Left brush Dust intake Left wheel Bottom cover Upper cover Dust bin Power adapter jack Primary filter Dust bin
• Page 8: Gomponents Gharging home base Power Indicator Infrared Signal Generato Top cover Sig nal Transmitting Window ing connection pole Power Supply Socket
• Page 9 - English - : Components 1 LCD display 2 Auto charging Schedule button Direction controls ONOFF 6 Cleaning mode Spot cleaning Clock set up To operate using the remote control point the remote control to the robot and select your desired command You can also select your command through the robot on board control menu Remote controller time setting press CLK button then you can press direction buttons to set up time After time selected press CLK again to save the time and then it will show the right synched time Cleaning function press ONOFF button Sleep function press ONOFF button for a few seconds robot will enter sleep modeOr if no operation after 30s it will enter sleep mode automatically To exit out of sleep mode press ONOFF Spot cleaning press SPOT button Cleaning mode selection press MODE button and robot will change to the mode shown on the LCD Mode 1 spiral cleaning Mode 2 random cleaning Mode 3 edge cleaning Mode 4 S shape cleaning Scheduling function press PLAN button to set up and for detailed operation guide please see Scheduling Cleaning section User can press PLAN to check whether robot has already scheduled Auto charging press HOME button robot will direct itself automatically to the charging station Remote Controller Note Please install two MAtype batteries into the remote controller before use lf the remote controller of the robot is used around the charging home base those commands given above might not work properly because of signal interference lf remote controller is not in use for a long time please take out its battery
• Page 10 - English - : Gomponents Display panel B Touch CLEAN button the robot will have 3 beeps and the indicator will flash in blue then it will start cleaning if the robot is in good state The indicator light will keep in blue during cleaning C lf the robot has malfunctioned its indicator will be in different status please take reference in troubleshooting guide D The indicator will flash in red when the robot is low in power E During charging robot on charging home base or connected by charging adaptor CLEAN button indictor will tum red gradually After fully charged the robot will have 5 beeps and CLEAN button indicator will turn blue F When the robot is successfully scheduled the indicator will be pink for two seconds Press PIAN button for a few seconds to check whether robot has the scheduled time lf yes the indicator will be in pink for two seconds Otherwise the indicator will have no color change qry Clean ng button A Sw tch on the robot CLEAN button nd cator w be n gradua b ue

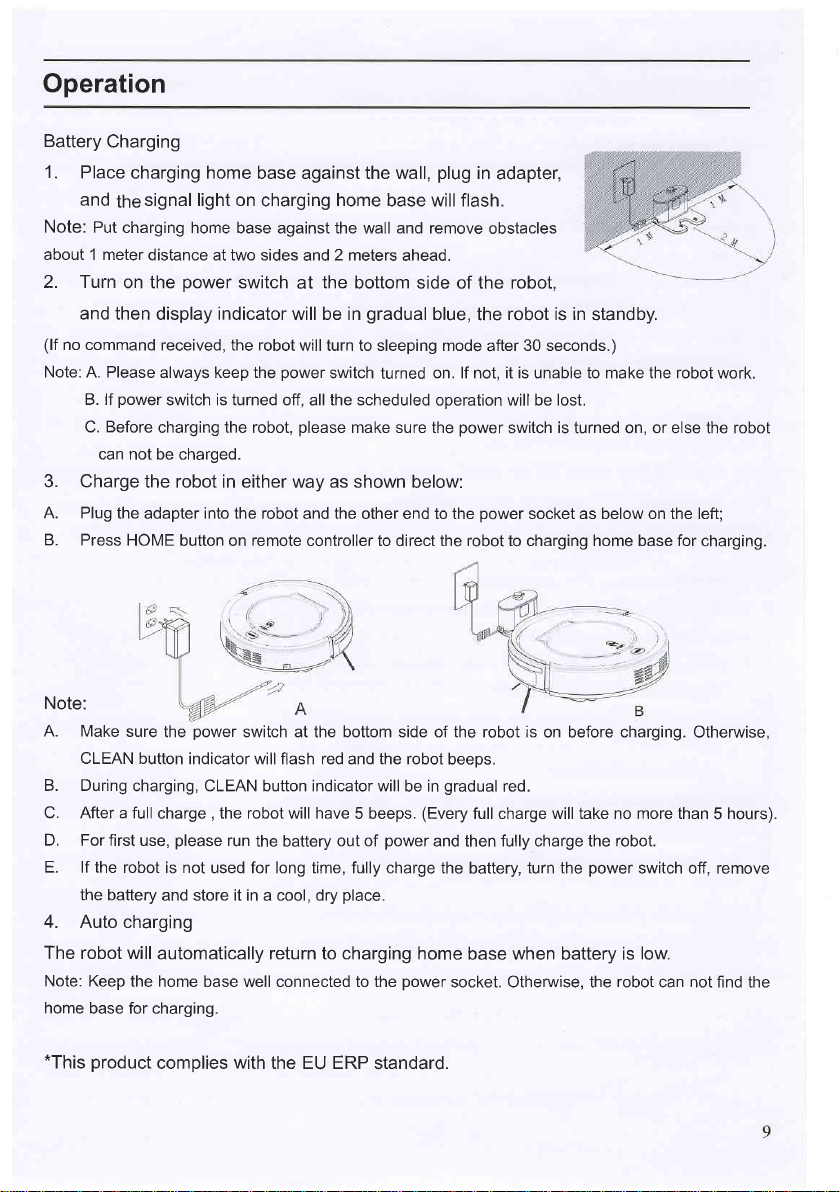

• Page 11 - English - : Operation Battery Charging Place charging home base against the wall plug in adapter and thesignal light on charging home base will flash Note Put charging home base against the wall and remove obstacles about 1 meter distance at two sides and 2 meters ahead 2 Turn on the power switch at the bottom side of the robot and then display indicator will be in gradual blue the robot is in standby lf no command received the robot will turn to sleeping mode after 30 seconds Note A Please always keep the power switch turned on lf not it is unable to make the robot work B lf power switch is turned off all the scheduled operation will be lost C Before charging the robot please make sure the power switch is turned on or else the robot can not be charged 3 Charge the robot in either way as shown below A Plug the adapter into the robot and the other end to the power socket as below on the left B Press HOME button on remote controller to direct the robot to charging home base for charging Note A Make sure the power switch at the bottom side of the robot is on before charging Otherwise CLEAN button indicator will flash red and the robot beeps B During charging CLEAN button indicator will be in gradual red C After a full charge the robot will have 5 beeps Every full charge will take no more than hours D For first use please run the battery out of power and then fully charge the robot E lf the robot is not used for long time fully charge the battery turn the power switch off remove the battery and store it in a cool dry place Auto charging The robot will automatically return to charging home base when battery is low Note Keep the home base well connected to the power socket Otherwise the robot can not find the home base for charging This product complies with the EU ERP standard

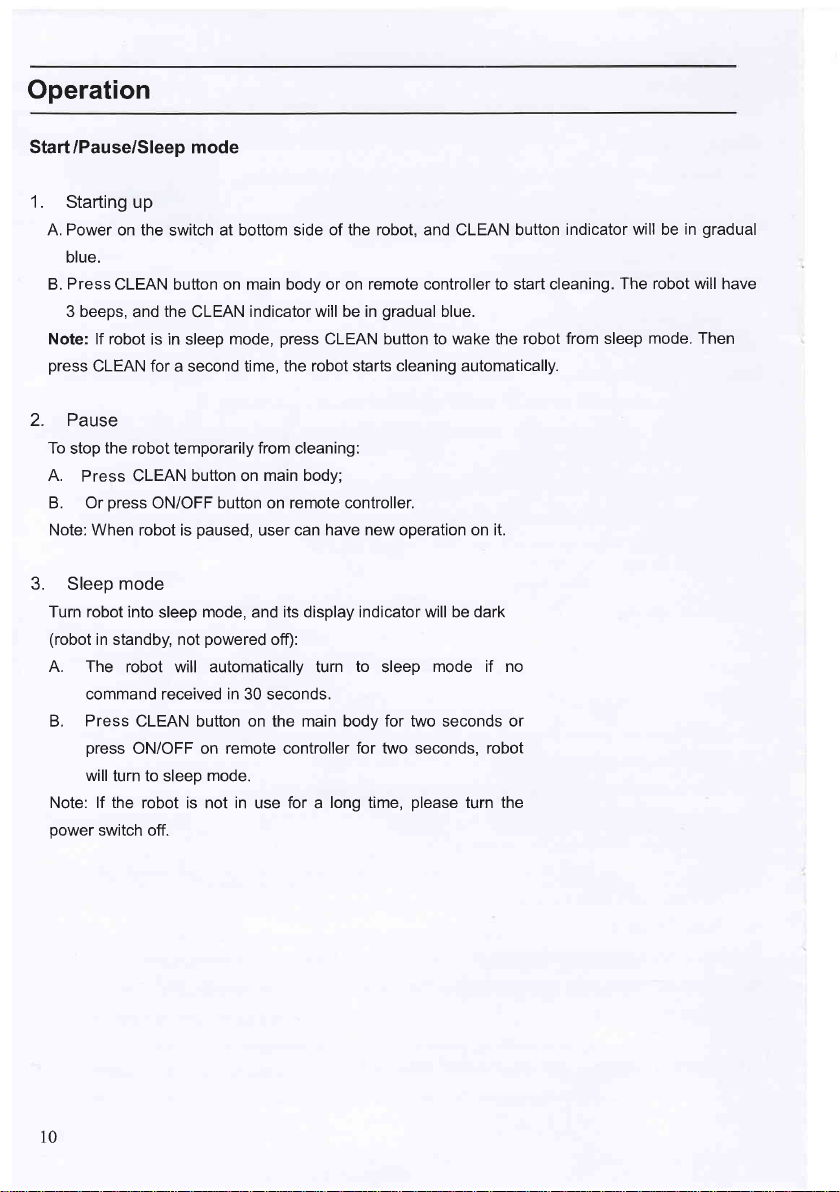

• Page 12 - English - : Operation Start PauseSleep mode Starting up A Power on the switch at bottom side of the robot and CLEAN button indicator will be in gradual blue B Press CLEAN button on main body or on remote controller to start cleaning The robot will have 3 beeps and the CLEAN indicator will be in gradual blue Note lf robot is in sleep mode press CLEAN button to wake the robot from sleep mode Then press CLEAN for a second time the robot starts cleaning automatically 2 Pause To stop the robot temporarily from cleaning A Press CLEAN button on main body B Or press ONOFF button on remote controller Note When robot is paused user can have new operation on it Sleep mode Turn robot into sleep mode and its display indicator will be dark robot in standby not powered off A The robot will automatically turn to sleep mode if no command received in 30 seconds B Press CLEAN button on the main body for two seconds or press ONOFF on remote controller for two seconds robot will turn to sleep mode Note lf the robot is not in use for a long time please turn the oower switch off
• Page 13 - English - : Operation Schedule cleaning You can schedule the robot to start cleaning at a certain time Time delay up to 23 hours For example its 900AM now you set 630 on the remote controller and then the robot will start cleaning after 6 hours and 30 minutes ie at 1530 PM On daily schedule the robot will start cleaning at 1530 PM everydayunless users turn off the power switch on its bottom Note A The robot will always work at the scheduled time after scheduled time is confirmed B All scheduled time will be cancelled if the robot is turned off C lf charging by adapter directly charging without home base robot will not accept scheduled time set operation How to Schedule the robot by remote controller A To schedule the robot on standby mode or charging on home base Press CLEAN to wake up the robot or press ONOFF to wake up it B Press PLAN button until the remote displays flashed figurequot0000quot C Press quotl to set the flashing numbers D Press to switch between hour and minute E After time confirmed press ONOFF to save scheduled settingrobot will have one beep and the CLEAN button indicator will be in pink for two secondsrobot is successfully scheduled F Press ONOFF again scheduled setting will be cancelled robot will have two beeps and the CLEAN button indicator on the robot will be blue G Press PLAN button for a few seconds it will return out from scheduling setting H User can press PLAN button to check whether robot has stored the desired scheduled time lf yes robot CLEAN button indicator will be in pink for two seconds Otheruyise the indicator will have no color change and robot will beep once

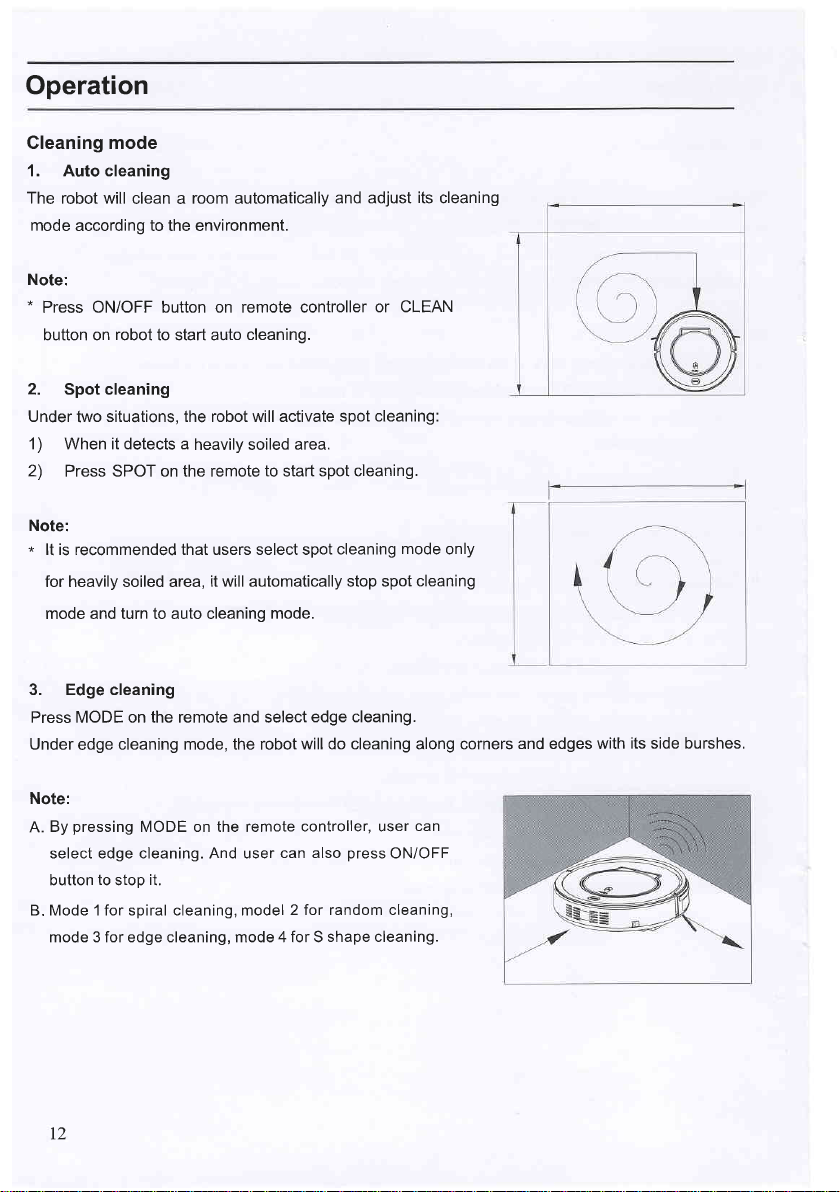

• Page 14 - English - : Operation Gleaning mode 1 Auto cleaning The robot will clean a room automatically and adjust its cleaning mode according to the environment Note Press ONOFF button on remote controller or CLEAN button on robot to start auto cleaning 2 Spot cleaning Under two situations the robot will activate spot cleaning 1 When it detects a heavily soiled area 2 Press SPOT on the remote to start spot cleaning Note lt is recommended that users select spot cleaning mode only for heavily soiled area it will automatically stop spot cleaning mode and turn to auto cleaning mode 3 Edge cleaning Press MODE on the remote and Under edge cleaning mode the Note A By pressing MODE on the remote controller user can select edge cleaning And user can also press ONOFF button to stop it B Mode 1 for spiral cleaning model 2 for random cleaning mode 3 for edge cleaning mode 4 for S shape cleaning select edge cleaning robot will do cleaning along corners and edges with its side burshes I2

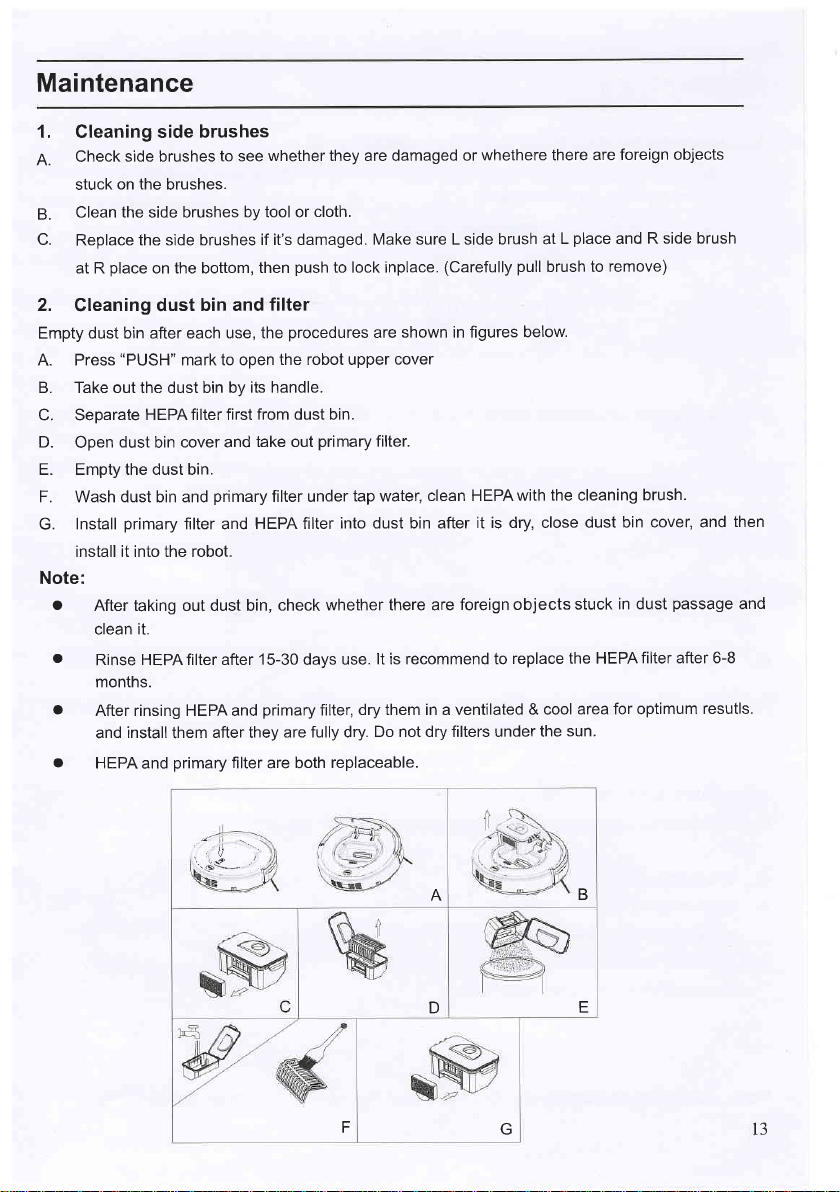

• Page 15 - English - : Maintenance 1 Cleaning side brushes A Check side brushes to see whether they are damaged or whethere there are foreign objects stuck on the brushes B Clean the side brushes by tool or cloth C Replace the side brushes if its damaged Make sure L side brush at L place and R side brush at R place on the bottom then push to lock rnplace Carefully pull brush to remove Gleaning dust bin and filter Empty dust bin after each use the procedures are shown in figures below A Press quotPUSHquot mark to open the robot upper cover B Take out the dust bin by its handle C Separate HEPA filter first from dust bin D Open dust bin cover and take out primary filter E Empty the dust bin F Wash dust bin and primary filter under tap water clean HEPA with the cleaning brush G Install primary filter and HEPA filter into dust bin after it is dry close dust bin cover and then install it into the robot Note o After taking out dust bin check whether there are foreign objects stuck in dust passage and clean it o Rinse HEPA filter after 1530 days use lt is recommend to replace the HEPA filter after 68 months o After rinsing HEPA and primary filter dry them in a ventilated amp cool area for optimum resutls and install them after they are fully dry Do not dry filters under the sun o HEPA and primary filter are both replaceable il iv e c A B D E F G 13
• Page 16 - English - : Maintenance 3 Cleaning sensors and charging connection pole A Slightly wipe the sensor window at the robot bottom and auto charging sensors with cleaning tool or a soft dry cloth as circled below B Clean suction passage and dust sensor as shown below with cleaning tool or a soft dry cloth C Clean charging connection pole on charging home base with cleaning tool or a soft dry cloth Note Keep the sensors free from liquids and debris 4 Mopping cloth A Stick mopping cloth on the bottom of the robot as shown in right figure to mop the floor B When the mopping cloth is dirty users can take it away and stick a new one on the bottom Note Keep the appliance dry T4 Do not clean the appliance under water
• Page 17 - English - : Troubleshooting Problem Possible Gause Solution l Robot suddenly stop cleaning and indicator keeps in blue 1 Robot was picked up 1 Place the robot on the floor and restart the robot Power on robot its indicator keeps in blue 1 Cliff sensor fault 1 Clean cliff senor 2 lf solutions given above does not work send it to the seller for repairing Robot does not change direction when it comes up against obstacle 1 Bumper sensor fault 1 Check the sensor to see if it is covered by foreign object During charging LED indicator flashes in red and robot beeps 1 Robot switch might not be powered on 1 Switch on the robot Red LED stays on 1 Dust bin full 2 Dust passage get blocked 1 Empty dust bin 2 Clean dust passage LED indicator flashes in red 1 Battery low 1 Fully charge the battery Blue LED flash once red LED flash once 1Side brush stuck 1 Put robot on ground 2 Check the side brush I Blue LED flash once red LED flash twice lBumper stuck 1 Loosen bumper bottom screw half circle I Blue LED flash once red LED flash 3 times lWheel stuck 1 Check the wheel and remove debris NOte lf all solutions given above does not work please take actions below 1 Reset the robot by switching the power button on the control panel 2 lf reset action doesnt work please send the robot to seller for repair

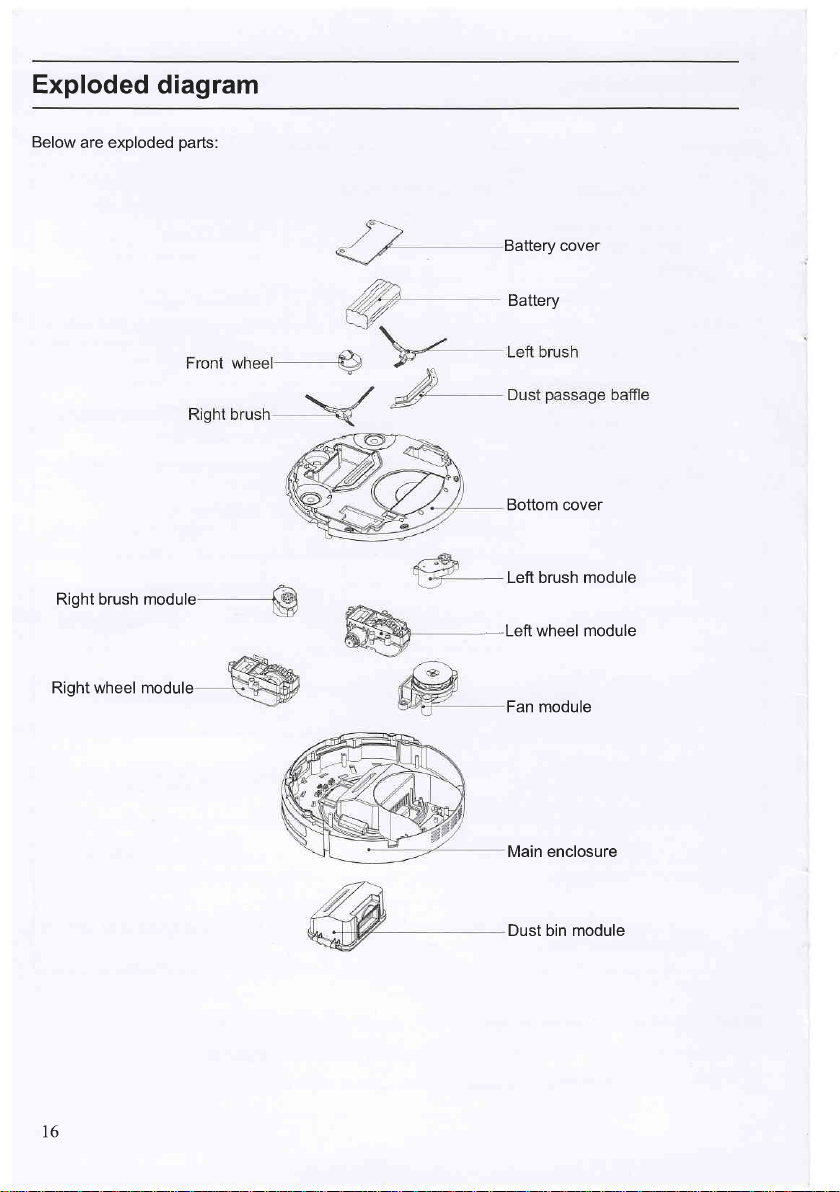

• Page 18 - English - : Exploded diagram Below are exploded parts Battery cover Battery Bottom cover Left brush module Right brush module Left wheel module Right wheel module Fan module Main enclosure Dust bin module t I6
• Page 19 - English - : Battery Removal Please follow below procedures A Remove the screws on battery cover with a screw driver B Pull out the battery cover C Grasp the isolated strips at two sides of the battery and pick the battery up Separate the wire connector that links battery and robot Product Specification Classification Item Detail Mechanical Specifications Diameter 300mm Height 75mm Weight 30k9 Electrical Specifications Battery specifications 144V NMH 1500mAh Functional Specifications Dust bin capacity Charging type Auto amp Manual charging Cleaning mode One key to clean amp Remote control selection Charging time 200300 minutes Cleaning time minutes at maximium Main Body Button Type Press button Note Particular specifications are subjected to change without prior notice t7
