1 Important
Safety
Read and understand all instructions •
before you use the apparatus. If damage
is caused by failure to follow instructions,
the warranty does not apply.
Use of controls or adjustments or •
performance of procedures other than
herein may result in hazardous radiation
exposure or other unsafe operation.
This unit is designed for negative ground •
(earth) 12 V DC operation only.
To reduce the risk of traffic accident, do •
no watch video during driving.
To ensure safe driving, adjust the volume •
to a safe and comfortable level.
Improper fuses can cause damage or •
fire. When you need to change the fuse,
consult a professional.
Use only the supplied mounting hardware •
for a safe and secure installation.
To avoid short circuit, do not expose the •
apparatus to rain or water.
Never insert objects into the ventilation •
slots or other openings on the apparatus.
Never place any objects other than discs •
into the disc tray/slot.
Visible and invisible laser radiation when •
open. Avoid exposure to beam.
Risk of damage to the screen! Never •
touch, push, rub or strike the screen with
any object.
Never use solvents such as benzene, •
thinner, cleaners available commercially,
or anti-static sprays intended for discs.
Clean the apparatus with soft, damp •
cloth. Never use substances such as
alcohol, chemicals or household cleaners
on the apparatus.
The apparatus shall not be exposed to •
dripping or splashing.
EN
5
The making of unauthorized copies of
copy-protected material, including computer
programs, files, broadcasts and sound
recordings, may be an infringement of
copyrights and constitute a criminal offence.
This equipment should not be used for such
purposes.
2011 © Koninklijke Philips Electronics N.V. All
rights reserved.
Specifications are subject to change without
notice. Trademarks are the property of
Koninklijke Philips Electronics N.V. or their
respective owners. Philips reserves the right
to change products at any time without being
obliged to adjust earlier supplies accordingly.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and
old equipment.
“DivX, DivX” Certified, and associated logos
are trademarks of DivX, Inc. and are used
under license.
Offical DivX
®
Certified product. Plays all
versions of DivX
®
video (including DivX
®
6)
with standard playback of DivX
®
media files.
The Bluetooth
®
word mark and logos are
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by Philips
is under license.
Manufactured under license from Dolby
Laboratories.
“Dolby” and the double-D symbol are
trademarks of Dolby Laboratories.
Other trademarks and trade names are those
of their respective owners.
This apparatus includes this label:
EN
English
6
What’s in the box
Check and identify the contents of your
package:
a Main unit
b ISO connectors
c AV out cable
d MZ-TFT/Video out 2 cable
e Control/Camera wire
f GPS antenna
g Printing material (including User manual,
Quick start guide)
h Guarantee card
ab
cd
ef
i
j
2 Your in-car
entertainment
system
Congratulations on your purchase, and
welcome to Philips! To fully benefit from the
support that Philips offers, register your product
at www.philips.com/welcome.
Introduction
With the car entertainment system, you can
Quickly found routine through the •
navigation system
And you can also enjoy:
Audio/video/JPEG pictures from•
DVD, VCD, or CD•
USB devices•
SD/SDHC/MMC cards •
External devices•
FM or AM (MW) radio•
Audio from Bluetooth-enabled devices•
Besides, you can make/receive phone calls with
Bluetooth-enabled devices.
EN
7
i FM/AM
Access the FM/AM source.•
j NAVI
Enter the GPS navigation system or •
exit.
k
Answer phone.•
Dial number.•
l MIC
Built-in microphone for phone calls. •
m
/MUTE/VOL+
Turn the unit on or off.•
Turn mute on or off.•
Adjust volume.•

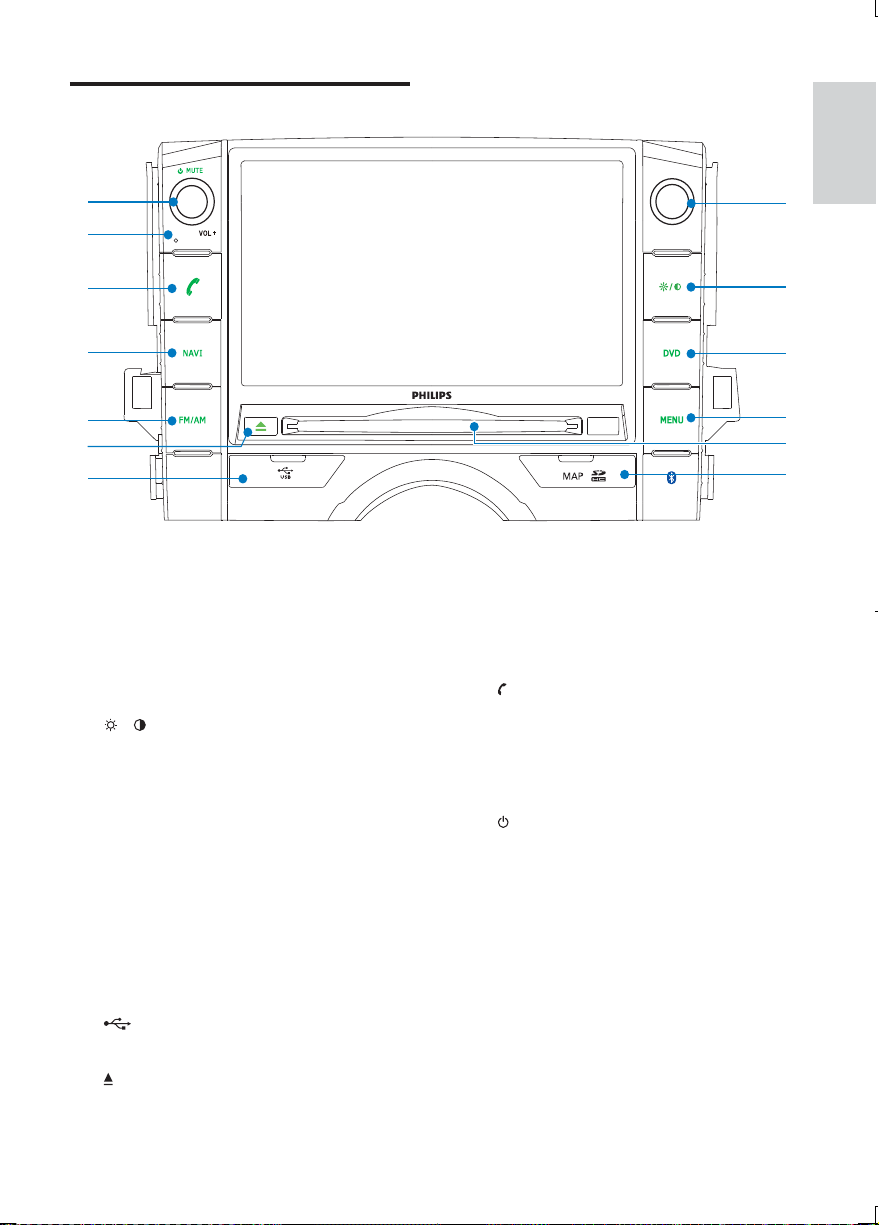

Overview of the main unit
a TUNE/SELECT
Turn it to skip to the previous/next •
title, chapter, or track.
Press it to confirm an entry or •
selection.
Press it to start, pause or resume •
play.
b
/
Adjust display brightness. •
c DVD
Select the DVD source.•
d MENU
Access the home menu.•
e Disc slot
f SD/SDHC/MMC card slot
• MAP
Open the cover and insert/remove •
the GPS map card.
g
USB
USB socket•
h
Eject disc.•
m
k
j
i
g
h
a
b
c
d
f
e
TUNE
SELECT
MIC
l
EN
English
8
Notes on speaker connection
Never connect speaker wires to the •
metal body or chassis of the car.
Never connect speaker wires with stripes •
to one another.
Connect wires
Caution
Ensure that all loose leads are insulated with •
electrical tape.
1 Check the car’s wiring carefully, then
connect them to the unit.
3 Get started
Caution
Use of controls or adjustments or •
performance of procedures other than herein
may result in hazardous radiation exposure or
other unsafe operation.
Always follow the instructions in this chapter in
sequence.
Install the car audio
These instructions are for a typical installation.
However, if your car has different requirements,
make the corresponding adjustment. If you have
any questions regarding installation kits, consult
your Philips car audio dealer.
Caution
This unit is designed for negative ground •
(earth) 12 V DC operation only.
Always install this unit in the car dashboard. •
Other locations can be dangerous as the rear
of the unit heats up during use.
To avoid short-circuit: before you connect, •
ensure that the ignition is off.
Ensure that you connect the yellow and red •
power supply leads after all other leads are
connected.
Ensure that all loose leads are insulated with •
electrical tape.
Ensure that the leads do not get caught under •
screws orin parts that will move (e.g. seat rail).
Ensure that all ground (earth) leads are run to •
a common ground (earth) point.
Use only the supplied mounting hardware for a •
safe and secure installation.
Improper fuses can cause damage or fire. •
When you need to change the fuse, consult a
professional.
Note on the power supply lead (yellow)
When you connect other devices to this •
system, ensure that the rating of the car
circuit is higher than the total fuse value
of all the connected devices.
EN
9
&$0(5$9,'(2
&$0(5$*1'
ޮ൮ࣨ܆჻
ޮ൮ࣨ൮ൿೊ
&$0(5$%
ࢨఞӞທ
*HDUER[
5HDUVFUHHQ
ᇓᇆၿൿԟ
ᇛֲၿൿԟ
%ODFN
7RXFKFRQWUROOHU
$PSOLILHU
5HDUVFUHHQ
*36DQWHQQD
<HOORZ
ᇛֲၿൿԟ
ޮႻၿൿԟ
ఱႻၿൿԟ
ޮቔၿൿԟ
ఱቔၿൿԟ
:LUHOHVVKHDGVHW
<HOORZ
:KLWH
5HG
<HOORZ *UHHQ %OXH
ࢨఞӞ֞Ӟ֫
჻ᆢࠢ
5$',2$17
܃٦ᇉ
%OXHZKLWH
&$0(5$
3LQN
ޮ൮ࣨ܆ֽཐ
֞Ӟࡣҭ
೯Ӟࡣҭ
*UHHQZKLWH
2UDQJHZKLWH
%URZQEODFN
:KLWHEURZQ
ࡳൿೊ%
ࡳൿೊ$
ࡳࢨֽ
ࣥၿࡣҭ
:KLWH
ڧᇽቔၿൿೊ
ڧᇽႻၿൿೊ
ڧᇽ൮ൿೊ
ޮ൮ൿԟ
5($59,'(2287
5($52875
5($5287/
ޮႻၿൿԟ
ޮቔၿൿԟ
൮ൿԟ
ޮԬଇ
9,'(2287
0=7)7
:KLWH
5HG
5HG
5HG
:KLWH
൰ၿใཐ
Radio antenna
:KLWH
:KLWH
%URZQ
5HG
5HG
<HOORZ
<HOORZ
EN
English
10

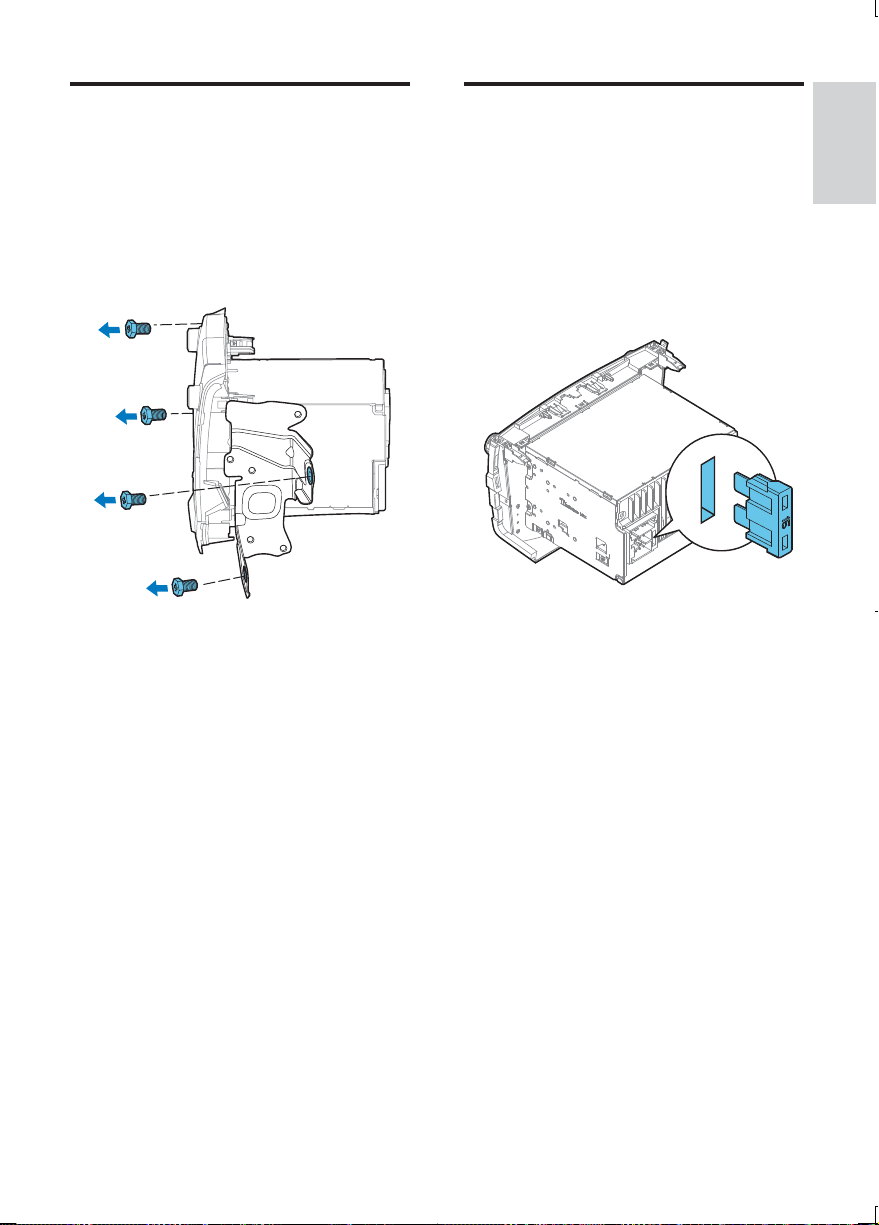

5 Fix the mounting brackets to the unit
with screws (removed from the original
in-car system).
6 Slide the unit into the dashboard and fix
it to the car with screws (removed from
the original in-car system).
7 Reconnect the negative terminal of the
car battery.
Mount in the dashboard
Note
Check wire connection before you mount the •
unit into a car.
If preset radio stations are lost when the
•
ignition key is turned OFF and then back ON,
reconnect the red leads crosswise to the
yellow ones.
1 Remove the original in-car system and
the controller panel of air conditioner
from the dashboard.
2 Keep the controller panel of air
conditioner and plastic buckles.
3 Fix the plastic buckles (removed from the
original in-car system) to the unit.
4 Attach the controller panel of the original
air conditioner to the unit.
EN
11
3 Tap [Time] .
The date/time setup menu is displayed. »
Set date
1 Tap [Date].
2 Tap on the displayed date information.
A submenu is displayed. »
3 Tap or to set year, month and day.
Set clock mode
1 Tap [Clock mode] .
2 Tap on [12Hr] or [24Hr] to select clock
mode.
Turn on
Caution
Risk of road accidents! Never watch video or •
adjust settings while you drive.
1 Press to turn on the unit.
The available OSD (On-Screen »
Display) languages are displayed.
2 Tap a language with fingertip.
The OSD language is changed to the »
selected language immediately.
To adjust screen brightness, press •
/ ,
then tab
or .
To turn off the unit, press •
.
Set date and time
1 Tap to display main menu.
The main menu is displayed. »
2 Tap [Settings].
EN
English
12
4 Use map
Note
You may need to upgrade the map (sold •
separately) before using it (see “Upgrade the
map” section)
1 Tap the upper left corner to display home
menu.
2 Tap [Navigation].
The navigation menu is displayed in a »
few seconds.
3 Refer to the map manual to operate the
navigation tool.
Tip
You can press • NAVI to enter/exit the
navigation system.
Upgrade the map
1 Turn off the car audio system.
2 Press the map card (sold separately) until
you hear a click sound.
3 Take out the card and bring it to the
authorized service center for upgrade.
4 Insert the upgraded map card back into
the map card slot.
5 Turn on the car audio.
The map upgrades in a few minutes. »

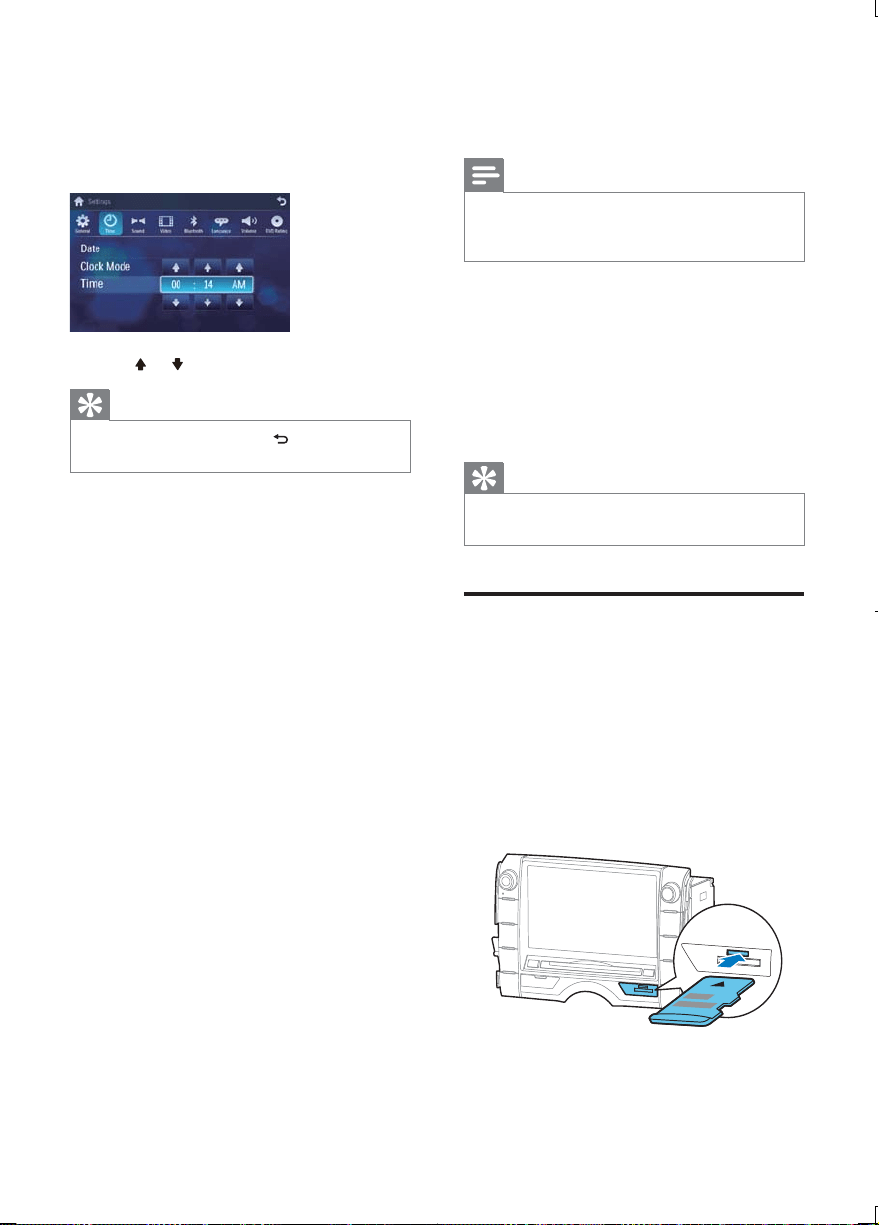

Set time
1 Tap [Time].
2 Tap on the displayed time.
A submenu is displayed. »
3 Tap or to set hour and minute.
Tip
When date/time is set, tap • to return to
main menu.
EN
13
Select radio range
Before you start to search for radio stations,
you can select radio range.
1 Tap .
2 Tap [Radio range] to toggle tuner
sensitivity from normal to high sensitivity.
• [Distance]: Only stations with strong
signals can be broadcast.
• [Local]: Stations with strong and
weak signals can be broadcast.
Store radio stations in
memory
You can store up to 6 stations in each band.
Store stations manually
1 Tune to the station.
2 Tap .
3 Tap [Save].
4 Tap one of the channels 01 to 06 to save
the select band.
5 Listen to radio
Tune to a radio station
1 Tap to display home menu.
2 Tap [Radio].
Band and frequency information is »
displayed.
3 Tap FM or AM to select band:
FM band options: • FM1, FM2, FM3
AM band options: • AM1, AM2
4 Briefly tap or to tune to a radio
station by step.
Tap •
or for over 1 seconds to
tune to a radio station automatically.
Tune by frequency
1 Tap FM or AM to select band.
2 Tap .
3 Tap [Goto].
4 Tap the numbers to enter frequency.
Tap • to clear the last entered
number.
Tap •
to clear all the entered
numbers.
5 Tap to confirm.
The radio station is broadcast. »
EN
English
14
6 Play
Load discs
You can play video, audio or images stored on
the following discs:
DVD video, DVD-R, DVD-RW•
VCD•
Audio CD, CD-R, CD-RW•
Note
Ensure that the disc contains playable content. •
1 Insert the disc into the disc slot with label
side facing up.
Play starts automatically. »
To remove the disc, press the » button.
When the disc is ejected, the unit »
switches to the previous source,
if connected. Otherwise, the
unit switches to [Radio] mode
automatically.
Country Supported DVD region
code
China
Store stations automatically
You can search for a station with intro search,
which broadcasts a 10-second preview of each
detected radio station.
1 Select band.
2 Tap .
3 Tap [Search].
Auto search starts. The six strongest »
stations of the selected band are saved
in preset channels 1-6 automatically.
Tune to a preset station
1 Tap [Radio].
2 Select band.
3 Tap one of the preset channels (01 to 06)
to select a preset station.
EN
15
Play/Pause
1 Once a disc, USB or SD/MMC card is
inserted, play starts automatically.
For DVD movie, if a menu appears, press
to start play.
2 To pause, tap .
To resume play, tap •
again.
Skip/search
1 Tap to return to playlist menu.
2 Tap one of below icons to select folder/
file:
• : To display all available audio
folders/track.
•
: To display all available picture
folders/files.
•
: To display all available video
folders/files
3 Tap or to select a folder/track.
4 Tap to start play.

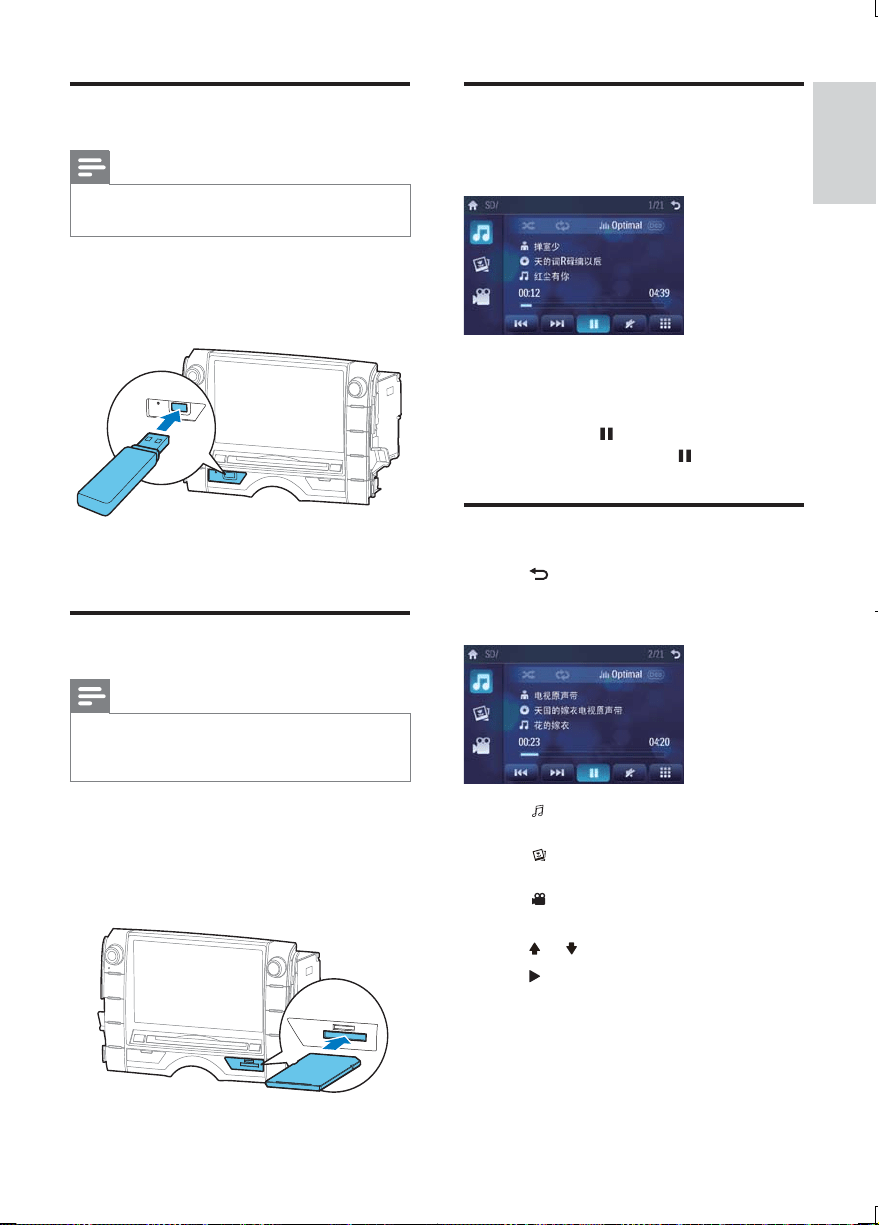

Connect USB device
Note
Ensure that the device contains playable •
content.
1 Open the USB cover.
2 Insert your USB device to the USB
socket.
Play starts automatically. »
Insert USB or SD/MMC card
Note
Ensure that the device contains playable •
content.
The unit supports SDHC card. •
1 Open the SD/MMC card cover.
2 Insert the SD/MMC card into the SD/
MMC card slot.
Play starts automatically. »
EN
English
16
2 Touch to display the 2nd menu.
3 Touch to select:
• [Repeat chapter]: play the current
chapter repeatedly.
• [Repeat title]: play all chapters in the
title repeatedly.
• [Repeat off]: cancel repeat play.
For VCD karaoke or audio CD:
1 Touch anywhere except for the upper left
corner to display menu on the screen, if
necessary.
2 Touch to select:
• [Repeat]: play the current track
repeatedly.
• [Repeat off]: cancel repeat play.
For MP3/WMA files:
1 Touch anywhere except for the upper left
corner to display menu on the screen, if
necessary.
2 Touch to select:
• [Repeat]: play the current track
repeatedly.
• [Repeat folder]: play all the tracks in
the current folder repeatedly.
• [Repeat off]: cancel repeat play.
Repeat a section
You can repeat a specific section of video file
(repeat A-B).
1 During play, tap anywhere except for the
upper left corner to display menu on the
screen, if necessary.
2 Tap to display the 2nd menu, if
necessary.
Direct select
1 Tap anywhere except for the upper left
corner to display menu on the screen, if
necessary.
2 Tap .
The search screen is displayed. »
3 Tap the numbers to enter chapter/file
number, then tap
.
To clear the previous input, tap •
.
To clear all input, tap •
.
Repeat
During play, you can select different repeat play
modes.
For DVD/VCD movie disc:
1 Touch anywhere except for the upper left
corner to display menu on the screen, if
necessary.
EN
17
2 Tap repeatedly until the audio mode
is selected.
Select subtitle language
For DVD or DivX discs that contain two or
more subtitle languages.
1 During play, tap anywhere except for the
upper left corner to display menu on the
screen, if necessary.
2 Tap to display the 2nd menu
3 Tap repeatedly to select a language.
The selected language is displayed. »
Rotate pictures
1 When you view pictures, tap anywhere
except for the upper left corner to display
menu on the screen, if necessary.
2 Tap repeatedly to rotate the picture.
Zoom
You can zoom in pictures for a close view.
1 During view pictures, tap anywhere
except for the upper left corner to display
menu on the screen, if necessary.
2 Tap repeatedly to zoom in the picture.
3 Tap repeatedly to mark:
• [Repeat A-]: the start of the section
to repeat.
• [Repeat A-B]: the end of the section
to repeat.
The selected section plays •
repeatedly.
4 To exit A-B repeat mode, tap
repeatedly until [Repeat A-B off] is
displayed.
Random play
You can play audio tracks/files in random order.
1 During play, tap repeatedly to turn
random play on or off.
•
is highlighted : start random play.
•
turns gray: cancel random play.
Select audio language
For video discs that contain two or more audio
channels.
1 During play, tap anywhere except for the
upper left corner to display menu on the
screen, if necessary.
2 Tap to display the 2nd menu.
3 Tap repeatedly.
The audio channel information is »
displayed on the upper line of the
screen.
Select audio mode
When you play VCDs, you can select an audio
mode (R/L/Stereo).
1 During play, tap anywhere except for the
upper left corner to display menu on the
screen.
EN
English
18
7 Play with
Bluetooth
device
You can make or receive phone calls with
Bluetooth-enabled phones through the unit.
You can also listen to music from a Bluetooth-
enabled device.
Pair the Bluetooth-enabled
devices
To connect your Bluetooth device to the unit,
you need to pair the device to the unit. Pairing
needs only to be done once.
You can pair up to eight devices.
Note
The operational range between this unit and a •
Bluetooth device is approximately 10 meters
(30 feet).
Before you connect a Bluetooth device to this •
unit, familiarize yourself with the Bluetooth
capabilities of the device.
Compatibility with all Bluetooth devices is not •
guaranteed.
Any obstacle between this unit and a •
Bluetooth device can reduce the operational
range.
Keep this unit away from any other electronic •
device that may cause interference.
1 Turn on the Bluetooth function on the
device.
2 Search for Bluetooth device with the
device.
3 Select “CID3610” in the pairing list.
4 Enter default password “0000”.
if pairing succeeds. phone call record is »
displayed.
3 Tap , , or to pan through the
enlarged picture.
Select slide show duration
1 Tap anywhere except for the upper left
corner to display menu on the screen, if
necessary.
2 Tap repeatedly to select:
• Fast: 3 seconds
• Normal: 5 seconds
• Slow: 8 seconds
EN
19
• [Missed calls]
• [Received calls]
• [Dialed calls]
• [Phone book]
• [Sim phone book]
• [Local phone book]
Or tap
to dial number directly, then tap
to dial.
Receive call
By default, all incoming calls are received
automatically.
1 If there is incoming call, [Incoming call...]
flashes on the screen. Speak into the
Bluetooth microphone.
2 When conversation ends, tap (red)
to terminate the call.
Tip
You can select to receive calls manually by set •
[Auto answer] to [Off] status.
Switch phone call to the mobile
If you do not want your passenger to hear
your incoming call, you can switch the call to
the mobile.
1 During talking, tap .
Disconnect Bluetooth devices
1 To disconnect one device, tap (red).
»
(green) is displayed.
Tip
The device will also be disconnected when the •
device is moved beyond the operational range.
If you want to reconnect the device to the •
unit, place it within the operational range.
If you do not want to reconnect the device to •
the unit automatically, tap >[Auto connect],
then select [Off]. For details, see the “Adjust
Bluetooth settings” section.
Make a call
1 Pair the phone with the unit.
2 Tap to display the home menu.
3 Tap [Bluetooth].
The Bluetooth menu is displayed. »
4 Tap or to select the paired phone,
then tap
.
5 Tap or to search for phone number
from the following list:
EN
English
20
1 In Bluetooth menu, tap .
The option menu is displayed. »
2 Tap an option to change the setting.
Tip
You can also adjust Bluetooth settings in the •
“Settings” menu.
The voice is transferred from the unit’s »
loudspeaker to the mobile phone.
Listen to music from
Bluetooth device
If the connected Bluetooth device supports
Advanced Audio Distribution Profile (A2DP),
you can listen to the music stored on the device
through the unit. If the device also supports
Audio Video Remote Control Profile (AVRCP)
profile, you can use the control on the unit to
play music stored on the device.
1 Pair the phone with the unit.
2 Tap to return to home menu.
3 Tap [Bluetooth].
The Bluetooth menu is displayed. »
4 Start play music via device.
• If your device support AVRCP,
1 Tap .
2 Tap to start play.
Adjust Bluetooth settings
You can change below Bluetooth settings:
• [Bluetooth]: to turn on or off
“Bluetooth” function
• [Auto connect]: to turn on or off “Auto
connect” function
• [Auto answer]: to turn on or off “Auto
answer” function
• [Pairing code]: to set paring code
• [Phone Book Sync]: to synchronize
phone book
EN
21
3 Tap or to select an EQ.
4 Tap or to adjust below settings:
• [Bass] bass range: -14 to +14
• [Mid] middle range: -14 to +14.
• [Treb] treble range: -14 to +14
• [LPH] low pass filter range: 60, 80,
100, 200.
• [MPF] middle pass filter range: 500,
1K, 1.5K, 2.5K.
• [HPF] high pass filter range:10K,
12.5K, 15K, 17.5K.
5 Tap to restore the above settings into
default settings.
6 Tap to exit.
Adjust fader/balance
You can also adjust the front and rear speaker
balance, the left and right speaker balance, and
subwoofer settings.
1 Tap anywhere except for the upper left
corner to display menu on the screen, if
necessary.
2 Tap .
3 Tap
Below options are displayed: »
4 Tap or to select subwoofer volume.
• [Sub] subwoofer volume: 0 to 24.

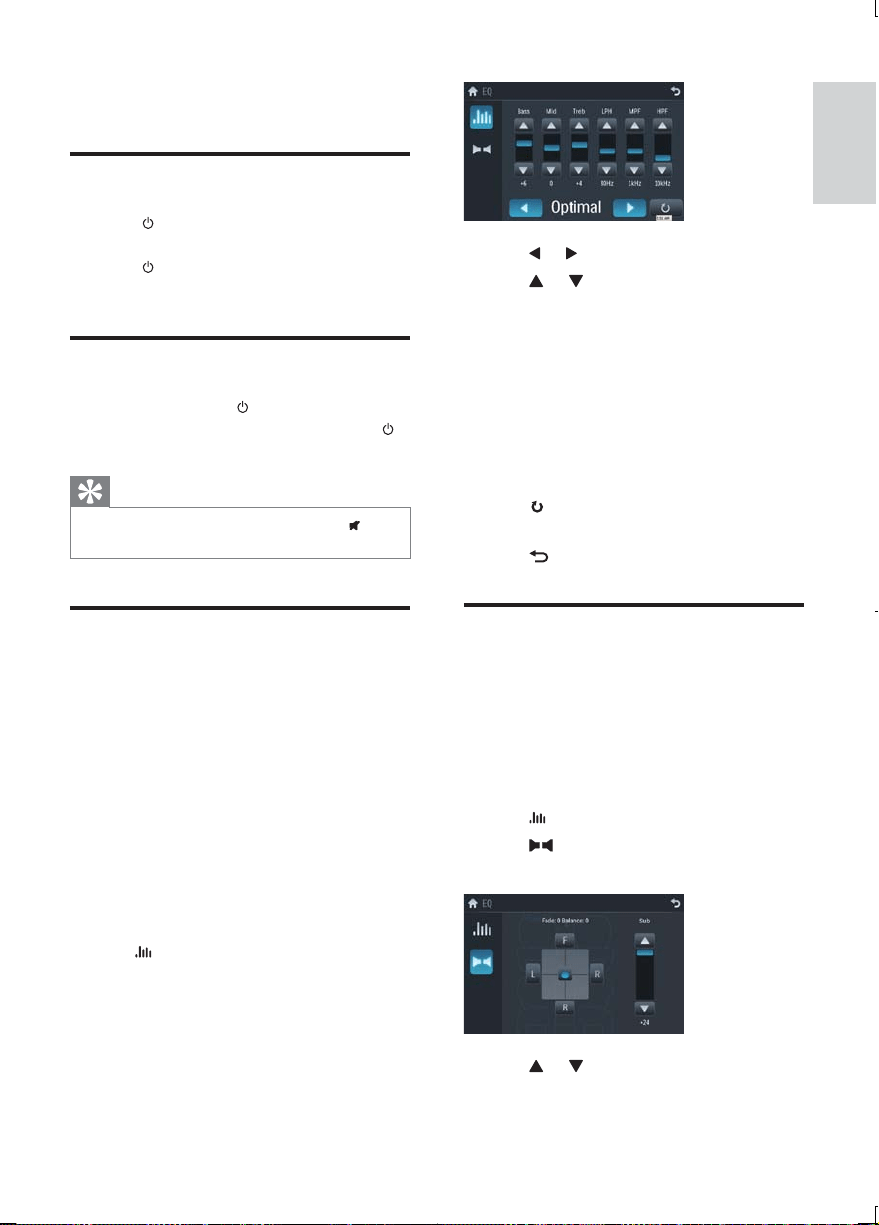

8 Adjust sound
Adjust volume
1 Turn /MUTE/VOL+ clockwise to
increase volume.
Turn •
/MUTE/VOL+ anti-clockwise to
reduce volume.
Mute
1 During play, press /MUTE/VOL+.
To turn the sound back on, press •
/MUTE/VOL+ again.
Tip
You can also turn off sound by tapping • on
the screen.
Select preset equalizer
You can select preset equalizer:
• [User]
• [Techno]
• [Rock]
• [Classic]
• [Jazz]
• [Optimal]
• [Flat]
• [Pop]
1 Tap anywhere except for the upper left
corner to display menu on the screen, if
necessary.
2 Tap .
The current Equalizer setting is »
displayed.
EN
English
22
5 Tap F, R, L, or R to adjust fader/balance
value.
• [Fade] fader range: +24 to -24. (F =
front speaker, R = rear speaker)
• [Balance] balance range: -24 to +24.
(L = left speaker, R = right speaker)
6 Tap to exit.
Set Dynamic Bass Boost
(DBB)
1 Tap to toggle between the settings.
• [DBB] on: The
icon is
illuminated.
• [DBB] off (default): The
icon is
gray.
EN
23
[Radio
range]
[Local] Only stations with
strong signals can
be broadcast.
[Distance] Stations with
strong and weak
signals can be
broadcast.
[Blackout] [off] Never turn on the
screen saver.
[10s] Turn on the
screen saver
automatically 10
seconds after last
operation.
[20s] Turn on the
screen saver
automatically 20
seconds after last
operation.
[Dimmer
Mode]
[Night] Select this mode
at night.
[Dark] Select this mode
at dark.
[Normal] Set screen dimmer
to normal mode.
[Bright] Select this
mode in bright
environment.
[Key color] [Green] Button backlight
turns green.
[Blue] Button backlight
turns blue.
[Beep] [On] Turn on the
beep sound. Each
time you press a
button, the unit
beeps.
[Off] Turn off the beep
sound.
[WallPaper] [Blue] Turn background
color to blue.
[Black] Turn background
color to black.
[Red] Turn background
color to red.

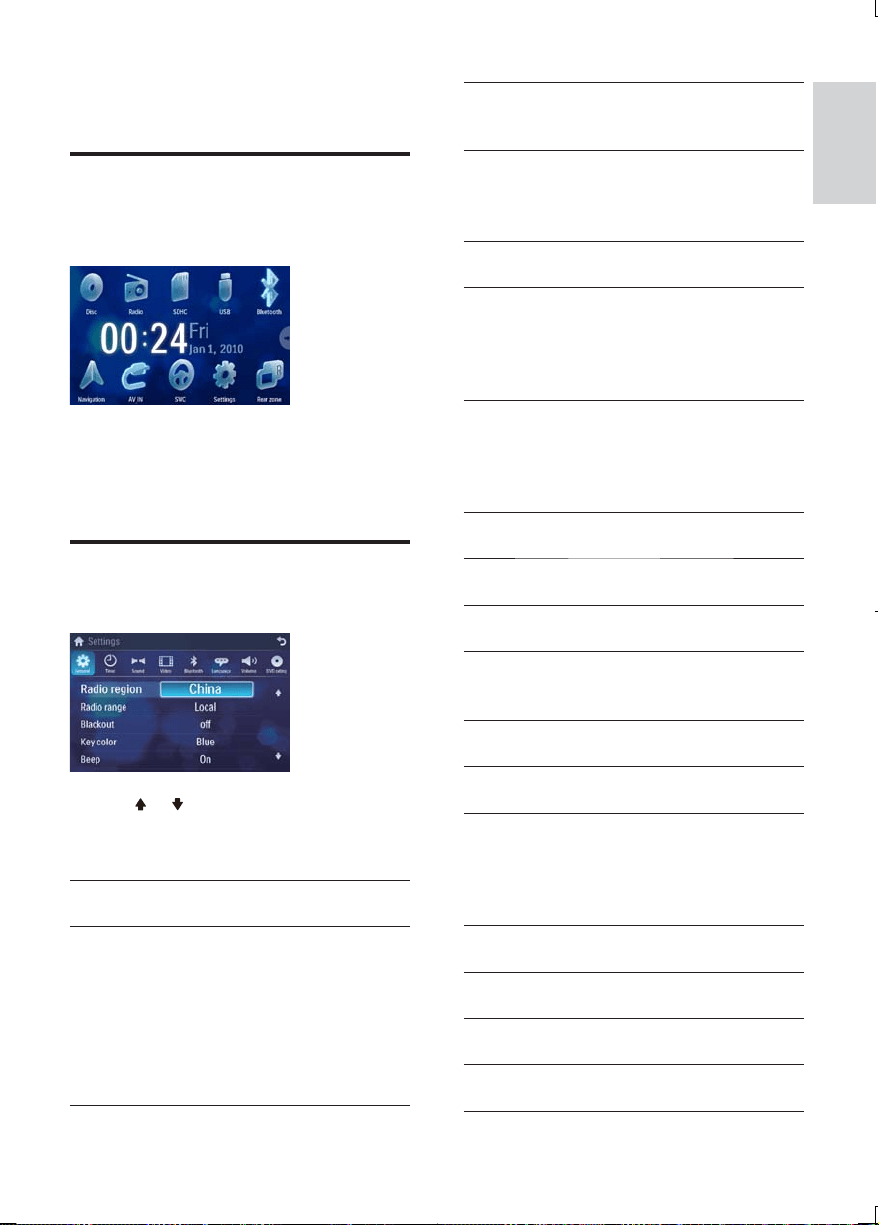

9 Adjust settings
Display system setup menu
1 Touch the upper left corner to display
main menu.
The main menu is displayed. »
2 Touch [Settings].
The settings menu is displayed. »
Adjust general settings
1 Tap [General], if necessary.
2 Tap or to highlight a setting.
3 Tap on the option to display/select an
option.
General
settings
Options Description
[Radio
region]
[USA], [S.
Amer-1],
[Arabia],
[China],[S.
Amer-2],
[Europe],
[Korea],
[OIRT]
Select one that
matches your
location.
EN
English
24

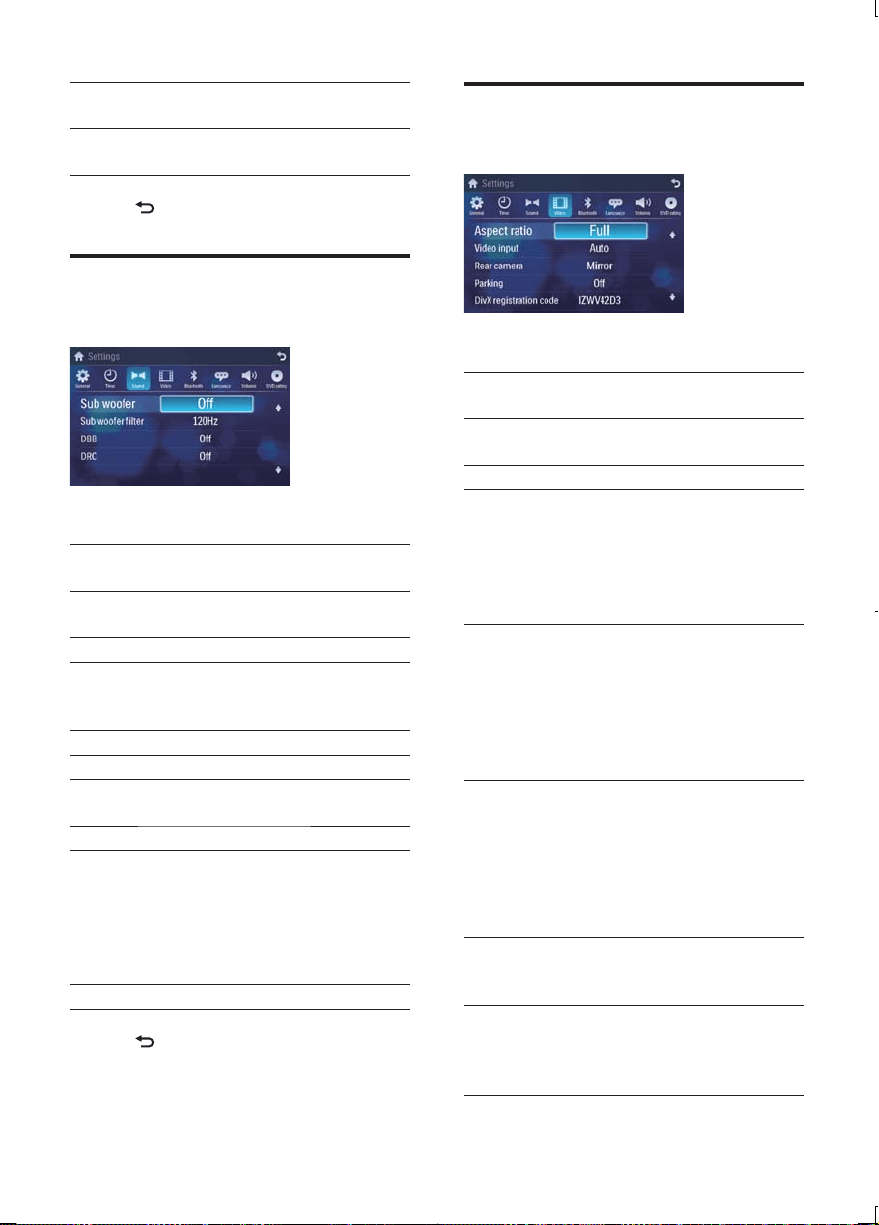

Adjust video settings
1 Tap [Video].
2 Tap an option repeatedly to select:
Video
settings
Options Description
[Aspect
ratio]
[Full] For widescreen
display.
[Normal] For normal display.
[Video
input]
[Auto] The correct format
is set automatically.
Select this option
if you are not sure
which format should
be selected.
[NTSC] Used in the United
States, Canada,
Japan, Mexico, the
Philippines, South
Korea, Taiwan,
and some other
countries.
[PAL] Used in China,
India, Singapore, the
western European
countries (except
France), Australia,
and some other
countries.
[Secam] Used in France,
Russia and other
countries.
[Rear
camera]
[Normal] When you drive in
reverse, the rear
view is displayed
normally.
[F1] Select F1 picture
as wall paper.
[Calibration] [Start] Calibrate the
touch screen.
4 Tap to exit.
Adjust sound settings
1 Tap [Sound].
2 Tap an option repeatedly to select:
Sound
settings
Options Description
[Sub
woofer]
[On] Turn on the subwoofer.
[Off] Turn off the subwoofer.
[Sub
woofer
filter]
[80Hz] Select subwoofer filter
criteria.
[120Hz]
[160Hz]
[DBB] [On] The Dynamic Bass Boost
(DBB) function is on.
[Off] The DBB function is off.
[DRC] [On] Makes loud sound level
softer and soft sound
level louder so that you
can watch the DVD
movies at a low volume,
without disturbing others
[Off] The DRC function is off.
3 Tap to exit.
EN
25
[Off] Answer phone call
manually.
[Pairing
code]
View code for
pairing the unit with
other Bluetooth
devices.
3 Tap to exit.
Adjust language settings
1 Tap [Language].
2 Tap an option repeatedly to select:
Language
settings
Options Description
[OSD] [English] Select on-screen-
display language.
[
ࡩᇓ໗]
[
ْᇓ໗]
[DVD
audio]
[English] Select DVD audio
language. Options
available are depends
on DVD disc.
[
ࡩᇓ໗]
[
ْᇓ໗
]
[DVD
subtitle]
[English] Select DVD subtitle
language. Options
available are depends
on DVD disc.
[
ࡩᇓ໗]
[
ْᇓ໗]
[Disc
menu]
[English] Select DVD menu
language. Options
available are depends
on DVD disc.
[Mirror] When you drive in
reverse, the rear
view is displayed in
mirror.
[Parking] [On] Disable video view
during drive.
[Off] Enable video view
during drive.
[DivX
registration
code]
View code for DivX
registration.
3 Tap to exit.
Adjust Bluetooth settings
1 Tap [Bluetooth].
2 Tap an option repeatedly to select:
Bluetooth
settings
Options Description
[Bluetooth] [On] Turn on the
Bluetooth function.
[Off] Turn off the
Bluetooth function.
[Auto
connect]
[On] If the pre-paired
device is within the
effective range, the
unit re-connects to
pre-paired device
automatically.
[Off] Need to re-connect
manually.
[Auto
answer]
[On] Answer paired
phone call
automatically.
EN
English
26
2 Tap an option repeatedly to select:
DVD rating Options Description
[Set
password]
Set password to
restrict the play of
discs. The default
password is 0000.
[Rating
level]
[Kid
safe]
Acceptable for
children.
[G] Acceptable for general
viewers.
[PG] Parental guidance
suggested.
[PG-13] Unsuitable for children
under age 13.
[PG-R] Recommend parents
to restrict children
under 17 to view.
[R] Restricted.
Recommend parent to
guide children under
17 to view.
[NC-17] Unsuitable for children
under age 17.
[Adult] Acceptable for adults
only.
[Load
factory]
Restore to default
settings.
3 Tap to exit.
[ࡩᇓ໗]
[
ْᇓ໗]
3 Tap to exit.

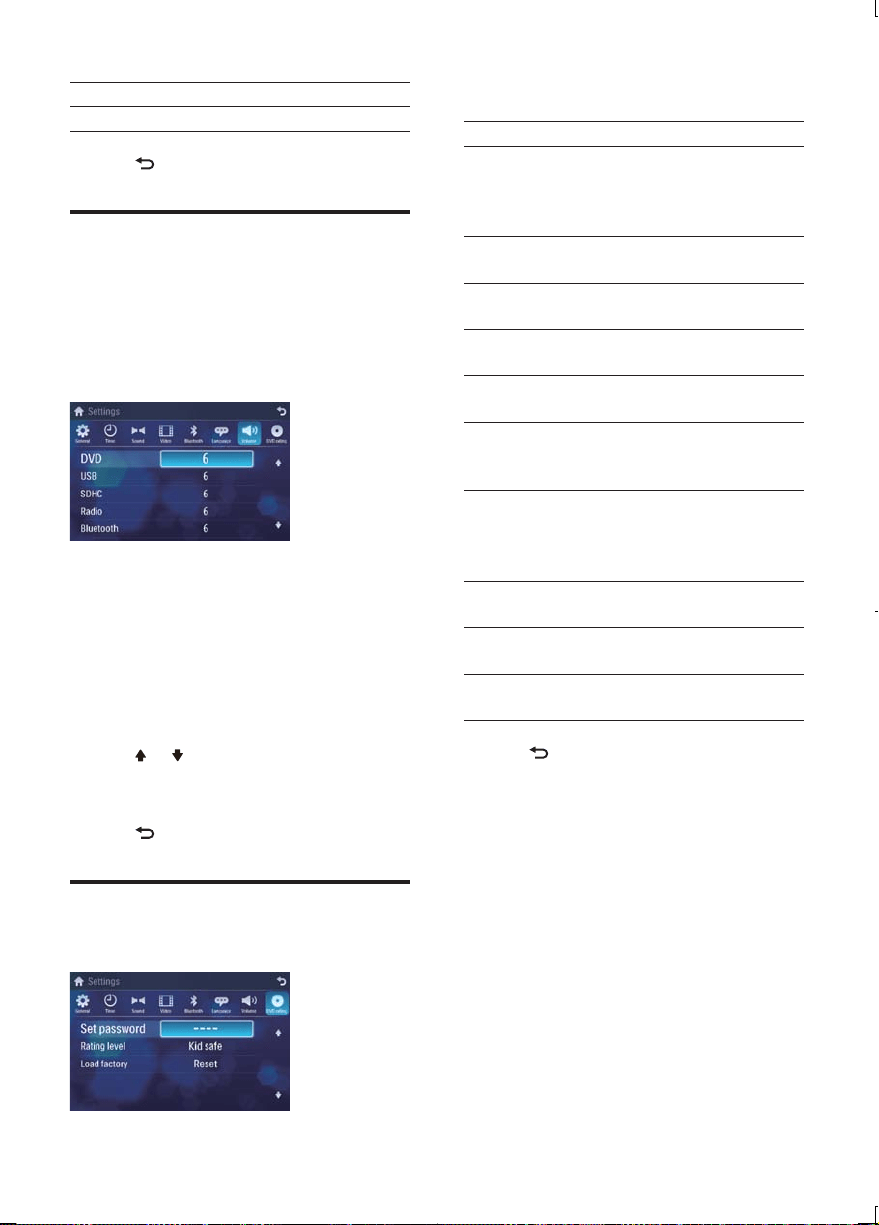

Adjust volume settings
You can set different volume for different
modes.
1 Tap [Volume].
The volume setting sub-menu is »
displayed.
2 Tap on a source.
• [DVD]
• [USB]
• [SDHC]
• [Radio]
• [Bluetooth]
• [Navigation]
• [AV-IN]
3 Tap or to assign value: 0 to 12.
When switches to the source, the »
volume increases automatically.
4 Tap to exit.
Adjust DVD rating
1 Tap [DVD rating].
EN
27
The selected source starts play in a »
few seconds. The passengers can use
headphone to listen at the playing.
Tip
Passengers can’t use headphone to listen •
during playing [AV-IN].
10 Others

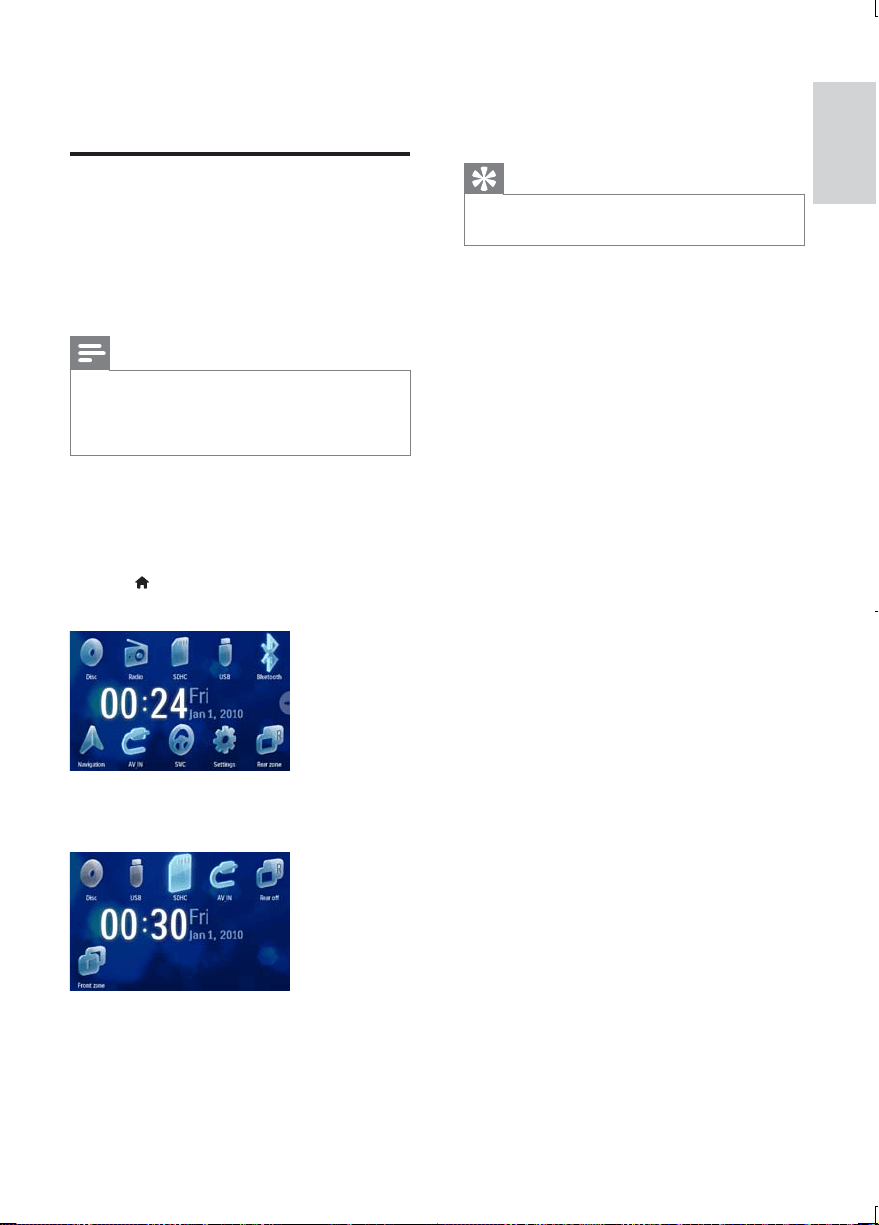

Play from rear displays
If there is a display installed for passengers on
rear seat to watch, you can select to play disc,
USB or SD card on the rear display while you
are using navigation system, listening to Radio or
using Bluetooth.
Note
While playing • [Disc], [USB], [SDHC], or [AV-
IN], the in-car system and the second display
play the same content. There is no choice for
passengers on rear seat.
1 Make sure that your in-car system is
connected to rear display correctly.
2 Tap [Navigation], [Radio] or [Bluetooth]
to select a source for yourself.
3 Tap .
The main menu is displayed. »
4 Tap [Rear zone].
The rear zone options are displayed. »
5 Tap [Disc], [USB] or [SDHC] to select a
source for your passengers.
EN
English
28
USB USB
USB
AV IN
AV IN
EN
29
Replace fuse
If there is no power, the fuse may be damaged
and need to be replaced.
1 Take out the unit from dashboard.
2 Check the electric connection.
3 Buy a fuse that matches the voltage of the
damaged fuse (15A)
4 Replace the fuse.
If the fuse gets damaged immediately after it
has been replaced, there may be an internal
malfunction. In such case, consult your Philips
dealer.
Remove the unit
To repair, replace fuse, or replace the unit
with another car audio, remove it from the
dashboard.
1 Screw off the four (4) screws on the left/
right side of the unit.
2 Pull the unit out from the dashboard.
EN
English
30
Bluetooth
Communication
system
Bluetooth Standard
version 2.0
Output Bluetooth Standard Power
Class 2
Maximum
communication
range
Line of sight approx. 8m
Frequency band 2.4 GHz band (2.4000
GHz - 2.4835 GHz)
Compatible
Bluetooth
profiles
Hands-Free Profile (HFP)
Handset Profile (HSP)
Advanced Audio
Distribution Profile
(A2DP)
Audio Video Remote
Control Profile (AVRCP)
Supported
codecs
Receive
Transmit
SBC (Sub Band Codec)
SBC (Sub Band Codec)
Frequency range - FM 87.5 - 108.0 MHz
(Europe)
Frequency range -
AM(MW)
522 - 1620 KHz
(Europe)
Usable sensitivity - FM 5 uV
Usable sensitivity -
AM (MW)
50 uV
11 Product
information
Note
Product information is subject to change •
without prior notice.
Power supply 12 V DC (11 V - 16
V), negative ground
Fuse 15 A
Aux-in level
500 mV
Dimensions (W x H
x D)
283.8 x 168.4 x 188
mm
Weight (main unit) 2.4 kg
Operating
temperature range
-20°C to 70°C
System DVD / CD audio /
MP3 system
Frequency response 20 Hz - 20k Hz
Signal/noise ratio >75dB
Total harmonic
distortion
Less than 1%
Channel separation >55dB
Video signal format NTSC only
Video output 1 +/- 0.2V
Screen size 8 inches (16:9)
Display resolution 800 x 480 dots
EN
31
Compatible USB devices:
USB flash memory (USB 2.0 or USB1.1)•
USB flash players (USB 2.0 or USB1.1)•
memory cards (SD / MMC / SDHC)•
Supported formats:
USB or memory file format: FAT16, •
FAT32
MP3 bit rate (data rate): 32-320 Kbps and •
variable bit rate
WMA v9 or earlier•
Directory nesting up to a maximum of 8 •
levels
Number of albums/ folders: maximum 99•
Number of tracks/titles: maximum 999•
ID3 tag v2.0 or later•
File name in Unicode UTF8 (maximum •
length: 128 bytes)
Supported MP3 disc format:
ISO9660, Joliet•
Maximum title number: 512 (depending •
on file name length)
Maximum album number: 255•
Supported sampling frequencies: 32 kHz, •
44.1 kHz, 48 kHz
Supported Bit-rates: 32-320 Kbps and •
variable bit rate
Supported video formats:
DVD•
Divx Home theater•
MP4•
Xvid•
Note
To ensure a better playback, bit rate of 4.5 •
Mbps is recommended.
EN
English
32
Image flashes or distorted
Video DVD settings do not match with •
the DVD. Adjust video DVD settings.
Video connection is improper. Check the •
connections.
Noise in broadcasts.
Signals are too weak. Select other •
stations with stronger signals.
Check the connection of the car antenna. •
Change broadcast from stereo to mono. •
Preset stations lost.
Battery cable is not correctly connected. •
Connect the battery cable to the terminal
that is always live.
Fuse is broken
The Fuse type is incorrect. Replace it with •
a 15A fuse.
Speaker wire or power wire is grounded. •
Check the connections.
Display show ERR-12
USB data error. Check the USB device. •
About Bluetooth device
Music playback is unavailable on the system
even after successful Bluetooth connection.
The device cannot be used with the •
system to play music.
The audio quality is poor after connection
with a Bluetooth-enabled device.
The Bluetooth reception is poor. Move •
the device closer to the system or
remove any obstacle between the device
and the system.
Cannot connect with the system.
The device does not support the profiles •
required for the system.
The Bluetooth function of the device is •
not enabled. Refer to the user manual of
the device for how to enable the function.
12 Troubleshooting
Warning
Never remove the casing of this apparatus. •
To keep the warranty valid, never try to repair
the system yourself.
If you encounter problems when using this
apparatus, check the following points before
requesting service. If the problem remains
unsolved, go to the Philips web site (www.
philips.com/welcome). When you contact
Philips, ensure that the apparatus is nearby
and the model number and serial number are
available.
No power
Car engine has not been started. Start •
the car engine.
Connections is incorrect. •
Fuse has been damaged. • Replace fuse (see
‘Replace fuse’ on page 29).
No sound
Volume is too low. Adjust volume. •
Speaker connections is incorrect. •
Disc does not play
Disc is upside down. Ensure the printed •
side is upwards.
Disc is dirty. Clean the disc with a •
clean, soft, lint-free cloth. Wipe the disc
outwards from the center.
Disc is defective. Try another disc. •
incompatible disc is used. Try another •
disc.
Disc rating exceeds the restrict setting. •
Change the rating settings to lower one.
Disc region code is not compatible with •
the unit. Use disc with proper region
code.
No image
Parking brake wire connection is •
incorrect. Check the parking wiring.
EN
33
The system is not in the pairing mode. •
The system is already connected with •
another Bluetooth-enabled device.
Disconnect that device or all other
connected devices and then try again.
The paired mobile phone connects and
disconnects constantly.
The Bluetooth reception is poor. Move •
the mobile phone closer to the system or
remove any obstacle between the mobile
phone and the system.
Some mobile phones may connect and •
disconnect constantly when you make
or end calls. This does not indicate any
malfunction of the system.
For some mobile phones, the Bluetooth •
connection may be deactivated
automatically as a power-saving feature.
This does not indicate any malfunction of
the system.
EN
English
34
S
SD
Secure Digital. A type of memory card with a
flash memory.
SDHC
Secure Digital High Capacity (SDHC) is a
type of flash memory card based on the SDA
2.00 specification. The SDA 2.00 specification
enables SD cards to reach higher capacities
from 4GB to 32GB, and growing.
W
WMA (Windows Media Audio)
An audio format owned by Microsoft, is a
part of Microsoft Windows Media technology.
Includes Microsoft Digital Rights Management
tools, Windows Media Video encoding
technology, and Windows Media Audio
encoding technology.
13 Glossary
B
Bite rate
The max data transfer through the USB port.
Bluetooth
Bluetooth
®
is a short-rang wireless protocol
that is meant to allow mobile devices to share
information and applications without the
worry of cables or interface incompatibilities.
The name refers to a Viking King who unified
Denmark. Operate at 2.4GHz. For more
information, see www.bluetooth.com.
M
MMC
MultimediaCard. A type of memory card with
a flash memory.
MP3
A file format with a sound data compression
system. MP3 is the abbreviation of Motion
Picture Experts Group 1 (or MPEG-1) Audio
Layer 3. With the MP3 format, one CD-R or
CD-RW can contain about 10 times more
data than a regular CD.
R
Region code
A system that allows discs to be played only
in the region designated. This unit only plays
discs that have compatible region codes. You
can find the region code of your unit on the
product label. Some discs are compatible with
more than one region (or ALL regions.)
EN
66 ZHCN
¾ń
њ൙ۂႹႹݡ༂ᇍᄡۂҊࡵෲႹᇍҏᇓ֩ݧᄡ
SJ/T
11363
-
2006
їም݃֩ཏဵၟ༳
O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials
for this part is below the limit requirement in SJ/T
11363
ķ
2006
.
ń
њ൙ۂႹႹݡ༂ᇍᇄഖᄡۂҊࡵ֩ଚ၆ᇍҏᇓ֩ݧӕԟ
SJ/T
11363
ķ
2006
їም݃֩ཏဵ
X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous
materials used for this part is above the limit requirement in SJ/T
11363
-
2006
.
ߐАൔႬཏ
Environmental Protection Use Period
This logo refers to the period (
10
years )
ሴྔ༓ӅᇓݧႹ֩ႹႹݡ༂ᇍࠋჱෑᄡᆢӌൔႬ֩์ࡵ༳҆ߺكഷທྈࠋёĶሴྔ༓ӅႬ߀ൔ
Ⴌۂሴྔ༓Ӆ҆ߺؗߐࣦᄳӲᇛಝࠋؗఇಪപґӅᄳӲᇛ
෩ݡ֩ཏ
This logo refers to the period (
10
years ) during which the toxic or hazardous substances or
elements contained in electronic information products will not leak or mutate so that the use of
these [substances or elements] will not result in any severe environmental pollution, any bodily
injury or damage to any assets.
Ҋࡵӯ
Name of the
Parts
ႹႹݡ༂ᇍࠋჱෑ
Hazardous/toxic Substance
ధ
(Pb, Lead)
܌
(Hg,
Mercury)
ᬄ
(Cd,
cadmium)
ࡒ۴
(Chromium
6
+)
أᜌ৷Ъ
(PBB)
أᜌفЪ
(PBDE)
Housing
ທ
O
OO O OO
DVD/CD loader
DVD/CD
ܿދ
X
OO O OO
LCD Panel
၅ࣚ૯ϴ
XX
OOOO
PWBs
ϴቊࡵ
X
OO O OO
Accessories
(Remote control
& cables)
ڼࡵIJီచĶ
჻ཐĶ৹ࢨཐij
X
OO O OO
Batteries in
Remote Control
(ZnC)
ီచԁ
X
OO O OO
© 2011 Koninklijke Philips Electronics N.V.
All rights reserved.
CID3610_00_UM_V1.0
