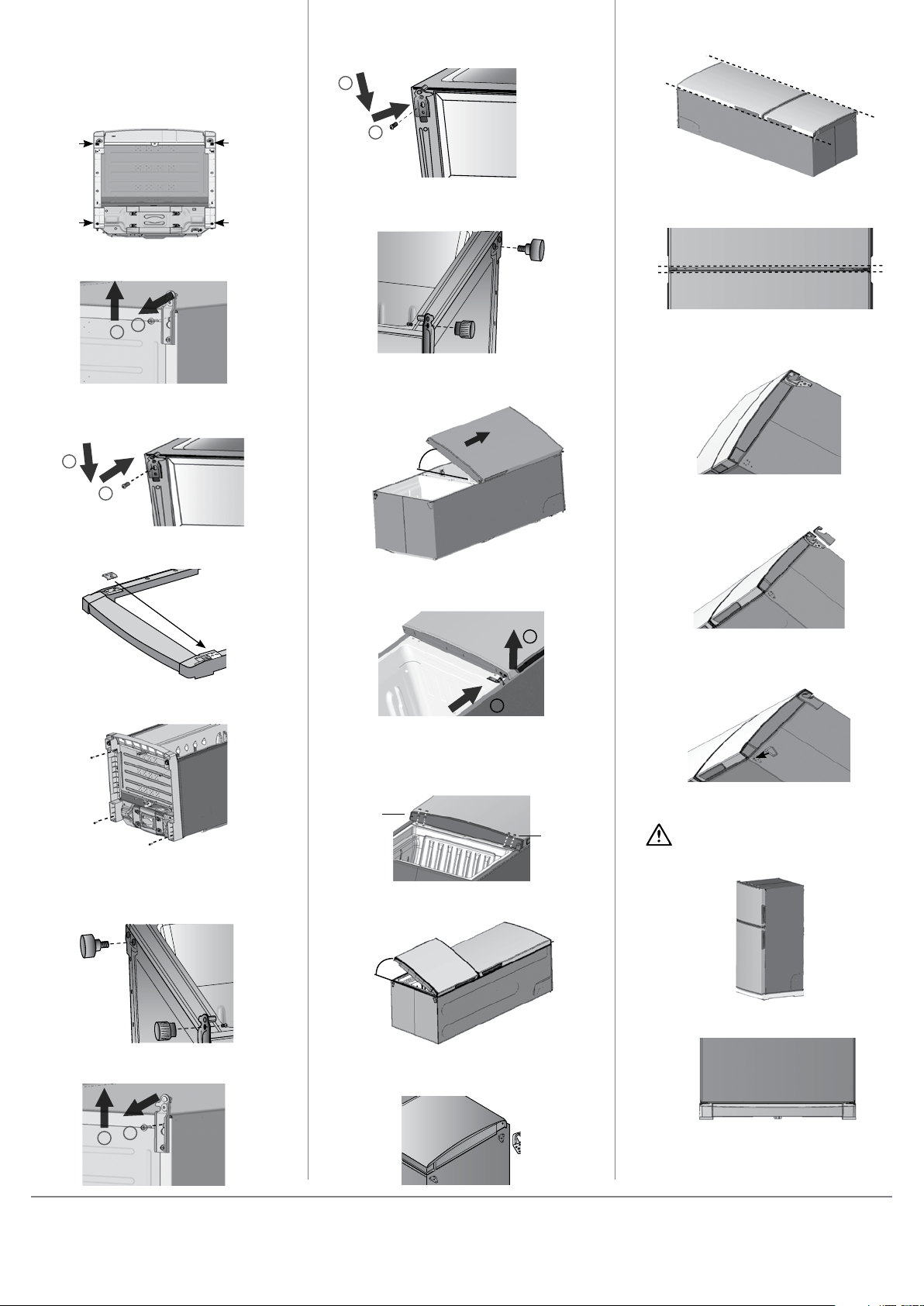

1. Ensure refrigerator is empty of all loose items and
unplugged from power source.
2. Store power cord next to motor to prevent damage.
Check for water in drain pan and remove any water
with a cloth or sponge if necessary.
drain pan
motor
rear view of
refrigerator
3. Lay the refrigerator on its back.
WARNING
Your refrigerator is heavy – you may need assistance.
bottom door
top door
Top freezer Bottom freezer
4. Remove the hinge cover with a soft plastic lever.
5. Remove the LH cap with a soft plastic lever.
6. Unscrew 3 x 8mm top hinge screws and remove RH
top hinge. Do not discard screws.
DESCRIPTION QTY
Cover top cabinet wh GR
Cover top cabinet wh WHT
1
1
Hinge top cover left GR
Hinge top cover left WHT
1
1
Hinge top left 1
Hinge centre left 1
Hinge bottom base left 1
Door auto closer LH 2
Screw centre hinge 2
Cover screw mullion WH GR
Cover screw mullion WH WHT
2
2
NOTE: Keep kit parts separate from other parts as you
disassemble them to avoid mix-ups.This installation manual
is applicable to both top freezer and bottom freezer models.
TOOLS YOU WILL NEED (not supplied)
Phillips head screwdriver
8mm (
5
/
16
"
) hex head socket
WARNING
Electrolux/Westinghouse takes no responsibility for
incorrectly assembled doors leading to injury or malfunction
CAUTION
Refrigerator must stand for 30 minutes prior to connecting
to power supply to ensure system functions correctly.
IMPORTANT
All hinge screws require tightening to a torque setting
of 5-10Nm.
1 Cover top cabinet WH
2 Hinge top right and hinge top
cover right
3 Cover hole mullion
4 Hinge centre right
and screws
5 Adjustable foot
6 Hinge bottom assembly right
FRIDGE DESCRIPTION
KIT CONTENTS
Top view of right hand hinge cabinet
Bottom view of right hand hinge cabinet
INSTRUCTIONS
7. Remove top door by opening 45º and gently slide off
hinge. Set door aside to prevent damage.
8. Unscrew 2 centre hinge screws. Remove the cover
hole mullion with plastic lever.
cover hole
mullion
screws
9. Remove RH centre hinge by lifting the door slightly
and sliding hinge out of the door.
1
2
10. Remove bottom door by opening 45º and gently
slide off hinge. Set door aside to prevent damage.
11. Remove the cover door from top door and assemble it
on the other side. Remove the RH door auto closer and
replace with LH door auto closer (kit content) on the
other side. Repeat the same step with bottom door.
door auto
closer LH
door auto
closer RH
cover door
5
6
1
3
2
4
INSTALLATION MANUAL
REFRIGERATOR DOOR REVERSAL KIT
Models: ETB2102PE, ETB2302PE, ETB2602PE, ETB3202PE, ETB3502PE, EBB2602PA, EBB3202PA, EBB3502PA, WBB3400PA, WBB3400WA, WBB3700PA, WBB3700WA, HTB2300PC,
HTB3200PC, HTB3500PC, WTB2300WC, WTB2300PC, WTB2500WC, WTB2500PC, WTB2800WC, WTB2800PC, WTB3400WC, WTB3400PC, WTB3700WC, WTB3700PC.
This installation manual is applicable to both top freezer (top mount) and bottom freezer (bottom mount).
