LAT PULLDOWN ATTACHMENT
SF-XF9927
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions.
Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
1
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this
equipment correctly. It is important to read this entire manual before assembling and using the
equipment. Safe and effective use can only be achieved if the equipment is assembled,
maintained, and used properly. It is your responsibility to ensure that all users of the equipment
are informed of all warnings and precautions.
1. Before starting any exercise program, you should consult your physician to determine if you
have any medical or physical conditions that could put your health and safety at risk or prevent
you from using the equipment properly. Your physician’s advice is essential if you are taking
medication that affects your heart rate, blood pressure, or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health.
Stop exercising if you experience any of the following symptoms: pain, tightness in your chest,
irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea. If
you do experience any of these conditions, you should consult your physician before
continuing with your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use
only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet.
To ensure safety, the equipment should have at least 4 feet (120 CM) of free space all around
it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of
the equipment can only be maintained if it is regularly examined for damage and/or wear and
tear.
6. Always use the equipment as indicated. If you find any defective components while
assembling or checking the equipment, or if you hear any unusual noises coming from the
equipment during exercise, discontinue use of the equipment immediately and do not use until
the problem has been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may
become entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 352 LBS (160KG).
10. The equipment is not suitable for therapeutic use.
11. To avoid bodily injury and/or damage to the product or property, proper lifting and moving are
required.
12. Your product is intended for use in cool and dry conditions. You should avoid storage in
extreme cold, hot or damp areas as this may lead to corrosion and other related problems.
13. This equipment is designed for indoor and home use only; it is not intended for commercial
use.
2

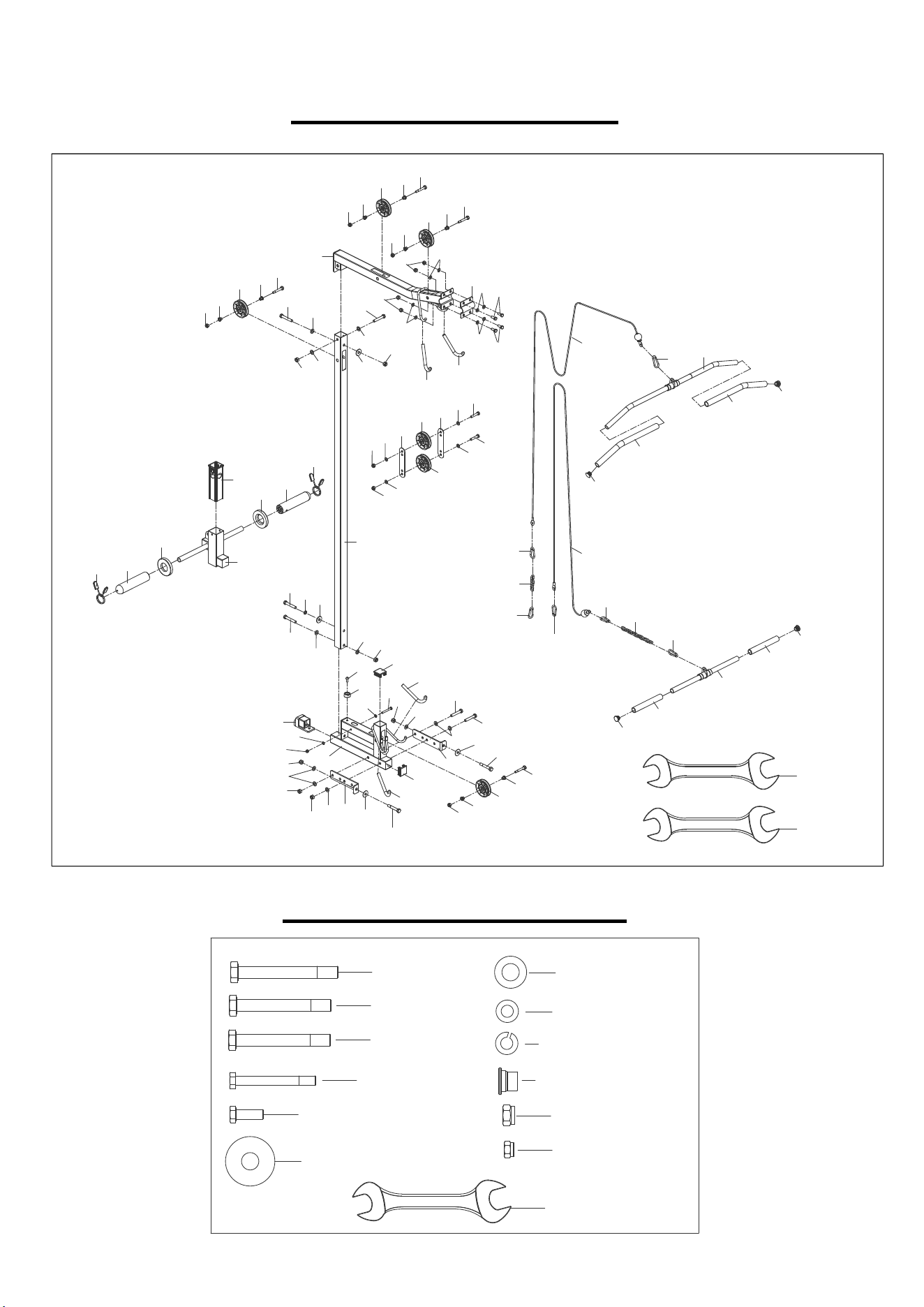

EXPLODED DIAGRAM
HARDWARE PACKAGE
43
16
18
43
16
18
1
2
3
5
6
6
7
8
9
9
10
10
11
12
12
13
13
14
15
15
16
16
17
4
17
18
18
18
18
19
19
19
19
19
19
20
20
20
20
21
21
22
22
22
22
22
22
23
24
25
25
25
25
25
25
25
25
26
27
27
27
27
28
28
29
30
31
31
31
31
31
31
32
32
33
33
33
33
33
33
33
33
34
35
35
36
36
36
36
36
37
38
38
39
39
39
39
39
39
39
40
41
41
41
41
41
41
41
41
41
42
42
42
42
31
31
#36 M12*75 5PCS
#39 M12 7PCS
#41 ￠13*￠24*t2.5 11PCS
#42 ￠13*￠37*t3.0 4PCS
#43 S16-S18 2PCS
16
18
#35 M12*80 2PCS
#27 M10*65 1PC
#38 M10*25 4PCS
#33 M10 5PCS
#31 ￠10.5*￠20*t2.0 8PCS
#40 ￠12.2*￠18.4*t3.1 1PC
#37 M12*70 1PC
#25 ￠20*￠10.5*14 2PCS
3
PARTS LIST
No.
Description Spec. Qty.
No.
Description Spec. Qty.
1
Top Connecting
Frame
1
23 Section 4 Chain ￠6 1
2
Bottom Connecting
Frame
1
24 Section 10 Chain ￠6 1
3 Upright Post 1
25 Alloy Wrap ￠20*￠10.5*14 8
4 Slide Rest 1
26 Crash Pad ￠35*￠32*15 1
5 High Bar 1
27
Hexagon Bolt M10*65
4
6
Bottom Frame Fixing
Plate
2
28 Hexagon Bolt M10*50 2
7 Low Bar 1
29
Hexagon Bolt M8*65
1
8 Top Connection Plate 1
30 Bolt M10*20 1
9
Pulley Connection
Plate
2
31 Flat Washer ￠10.5*￠20*t2.0 12
10 Barbell Support Rod ￠100*￠48*200 2
32 Flat Washer ￠8.4*￠20*t1.5 2
11
End Cap 115*50
1
33 Nut M10 10
12 Square End Cap 50*50*t5.0 2
34 Nut M8 1
13 Spring Clip ￠48 2
35
Hexagon Bolt M12*80
2
14 Square End Cap 60*60*205 1
36
Hexagon Bolt M12*75
5
15 Foam Grip ￠24*￠32*460 2
37
Hexagon Bolt M12*70
1
16 Foam Grip ￠24*￠32*210 2
38
Hexagon Bolt M10*25
4
17 Crash Pad ￠80*￠50*16 2
39 Nut M12 7
18 Handlebar Grip ￠9*￠15*150 4
40 Spring Washer
￠12.2*￠
18.4*t3.1
1
19
￠96 Pulley
Combination
￠96*￠10.5*26 6
41 Flat Washer ￠13*￠24*t2.5 11
20 Round End Cap ￠25*t2.0 4
42 Flat Big Washer ￠13*￠37*t3.0 4
21 Wire Rope Assembly ￠5*2670 2
43 Open End Wrench S16-S18 2
22 Hoist Hook ￠8*80 6
44
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
The model number (found on cover of manual)
The product name (found on cover of manual)
The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found near the
front of the manual)
Please contact us at support@sunnyhealthfitness.com or 1- 877- 90SUNNY (877-907-8669).
4
ASSEMBLY INSTRUCTIONS
We value your experience using Sunny Health and Fitness products. For assistance with parts or
(877-907-8669).
#35 M12*80 2PCS
#41 ￠13*￠24*t2.5 6PCS
#39 M12 4PCS
16
18
#43 S16-S18 2PCS
2
39
39
39
39
6
6
42
42
36
36
41
41
41
41
41
35
35
#36 M12*75 2PCS
#42 ￠13*￠37*t3.0 2PCS
A
SF-XF9931

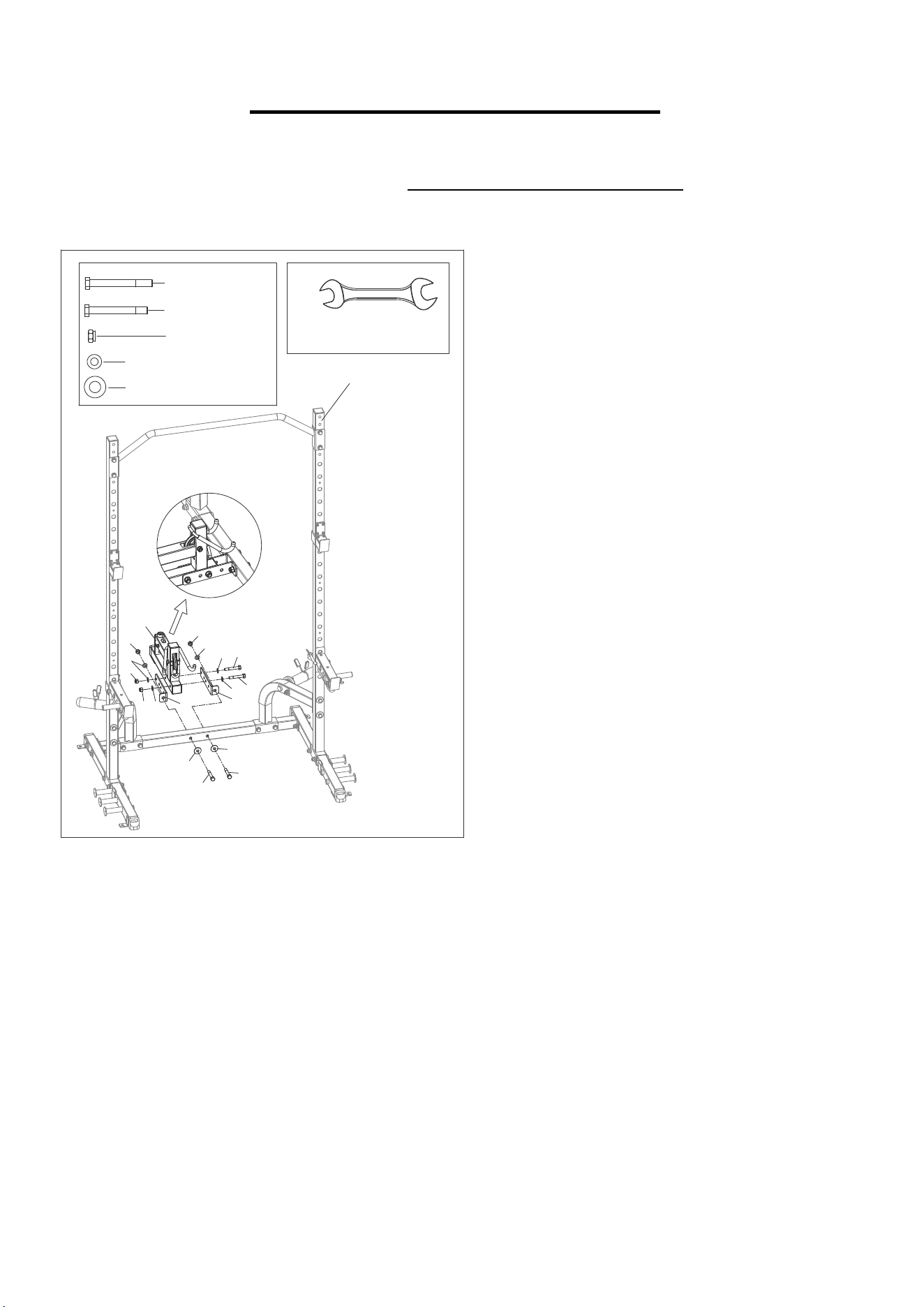

STEP 1:
Attach Bottom Connecting Frame (No.
2) onto 2 Bottom Frame Fixing Plates
(No. 6) using 2 Hexagon Bolts (No. 35),
2 Nuts (No. 39), 4 Flat Washers (No.
41). Secure with 2 Open End Wrenches
(No. 43). Do not tighten the 2 Hexagon
Bolts (No. 35) during this step. The
connecting hole location is shown in
diagram A.
Attach Bottom Frame Fixing Plate (No.
6) onto Bottom Connecting Frame of
SF-XF9931 using 2 Hexagon Bolts (No.
36), 2 Nuts (No. 39), 2 Flat Washers
(No. 41) and 2 Flat Big Washers (No.
42). Secure with 2 Open End Wrenches
(No. 43). Do not tighten the 2 Nuts (No.
39) during this step.
5
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY
(877-907-8669).
16
18
#43 S16-S18 2PCS
2
4
3
36
40
42
36
41
39
41
19
25
27
25
33
#41 ￠13*￠24*t2.5 2PCS
#39 M12 1PC
#36 M12*75 2PCS
#42 ￠13*￠37*t3.0 1PC
#40 ￠12.2*￠18.4*t3.1 1PC
#27 M10*65 1PC
#33 M10 1PC
#25 ￠20*￠10.5*14 2PCS
4
A

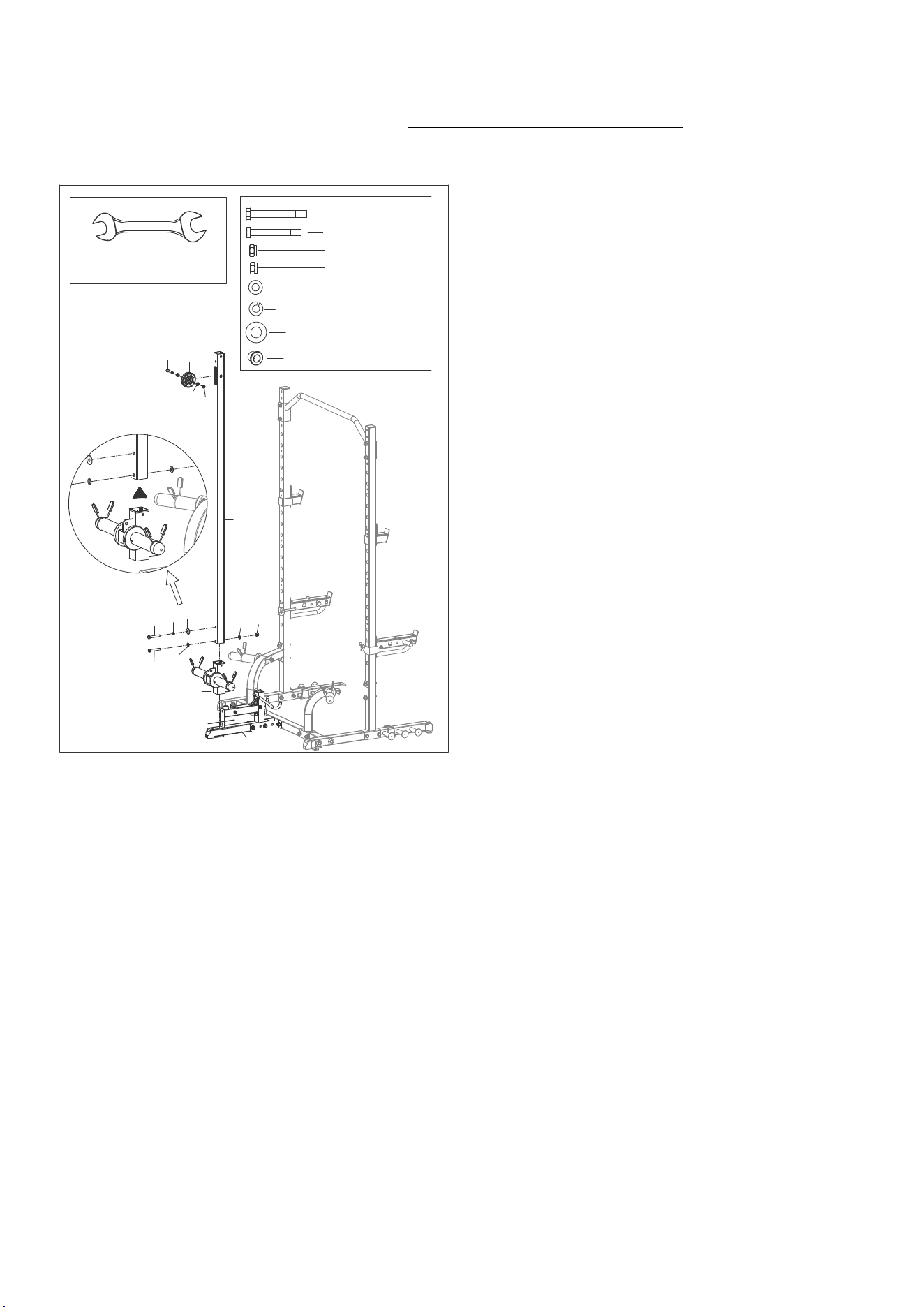

STEP 2:
Assemble Slide Rest (No. 4) upward
through Upright Post (No. 3), see diagram
A.
Attach Upright Post (No. 3) onto Bottom
Connecting Frame (No. 2) Using 2
Hexagon Bolts (No. 36), Nut (No. 39), 2
Flat Washer (No. 41), Flat Big Washer
(No. 42), Spring Washer (No. 40). Secure
with 2 Open End Wrenches (No. 43). Do
not tighten the Nut (No. 39) during this step.
Attach ￠96 Pulley Combination (No. 19)
onto Upright Post (No. 3) using Hexagon
Bolt (No. 27), 2 Alloy Wraps (No. 25) and
Nut (No. 33). Tighten and secure with 2
Open End Wrenches (No. 43).
6
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY
(877-907-8669).
#36 M12*75 1PC
#41 ￠13*￠24*t2.5 3PCS
#39 M12 2PCS
16
18
#43 S16-S18 2PCS
#37 M12*70 1PC
#42 ￠13*￠37*t3.0 1PC
37
41
36
41
42
41
39
39
38
38
31
31
33
33
31
31
8
1
#38 M10*25 4PCS
#33 M10 4PCS
#31 ￠10.5*￠20*t2.0 8PCS
3

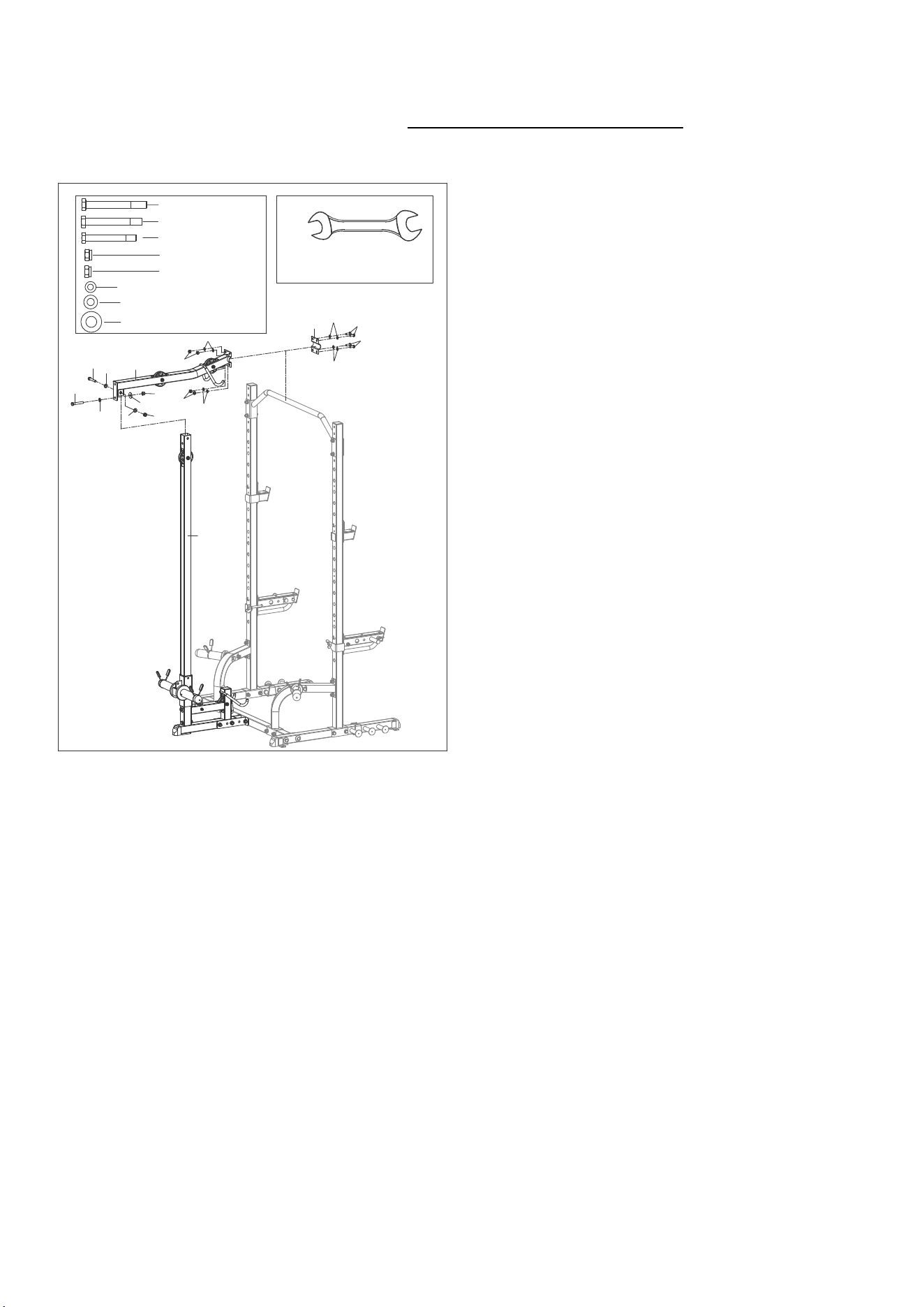

STEP 3:
Insert Top Connecting Frame (No. 1) onto
Upright Post (No. 3) using Hexagon Bolt
(No. 36), Hexagon Bolt (No. 37), 2 Nuts
(No. 39), 3 Flat Washers (No. 41), Flat Big
Washers (No. 42). Secure with 2 Open
End Wrenches (No. 43). Do not tighten the
2 Nuts (No. 39) during this step.
Attach Top Connecting Frame (No. 1) and
Top Connection Plate (No. 8) onto the Pull
Up Bar of SF-XF9931 using 4 Hexagon
Bolts (No. 38), 4 Nuts (No. 33), 8 Flat
Washers (No. 31). Secure with 2 Open
End Wrenches (No. 43).
Adjust the center of the machine and lock
the machine tightly.
Now you can tighten all the Nuts (No. 39)
from STEP 1 & STEP 2 and STEP 3.
7
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY
(877-907-8669).
#22 ￠8*80 2PCS
#23 ￠6 1PC
A
B
D
C
E
F
22
22
23
21
21
1
3
2
4
19
19

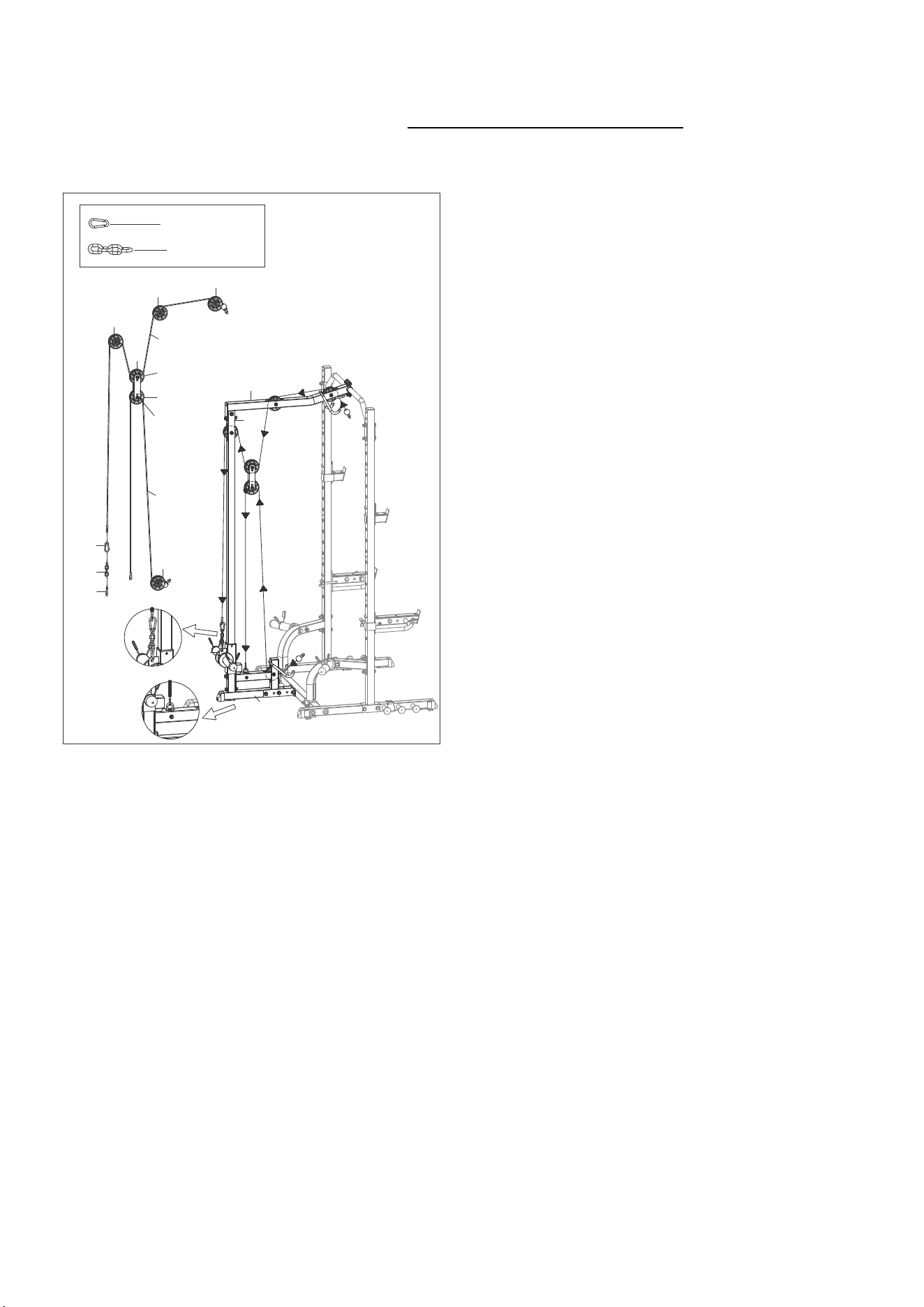

STEP 4:
Pass Wire Rope Assembly (No. 21)
through φ 96 Pulley Combination (No.
19) A-B-C-D in sequence and then attach
Hoist Hook (No. 22) and Section 4 Chain
(No. 23) onto Slide Rest (No. 4).
Pass Wire Rope Assembly (No. 21)
through φ 96 Pulley Combination (No.
19) E-F in order and then attach onto Slide
Rest (No. 4).Adjust the connection length
of Hoist Hook (No. 22) and Section 4
Chain (No. 23) and change the tension of
the wire rope.
8
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY
(877-907-8669).
#22 ￠8*80 3PCS
#24 ￠6 1PC
5
7
22
22
22
24

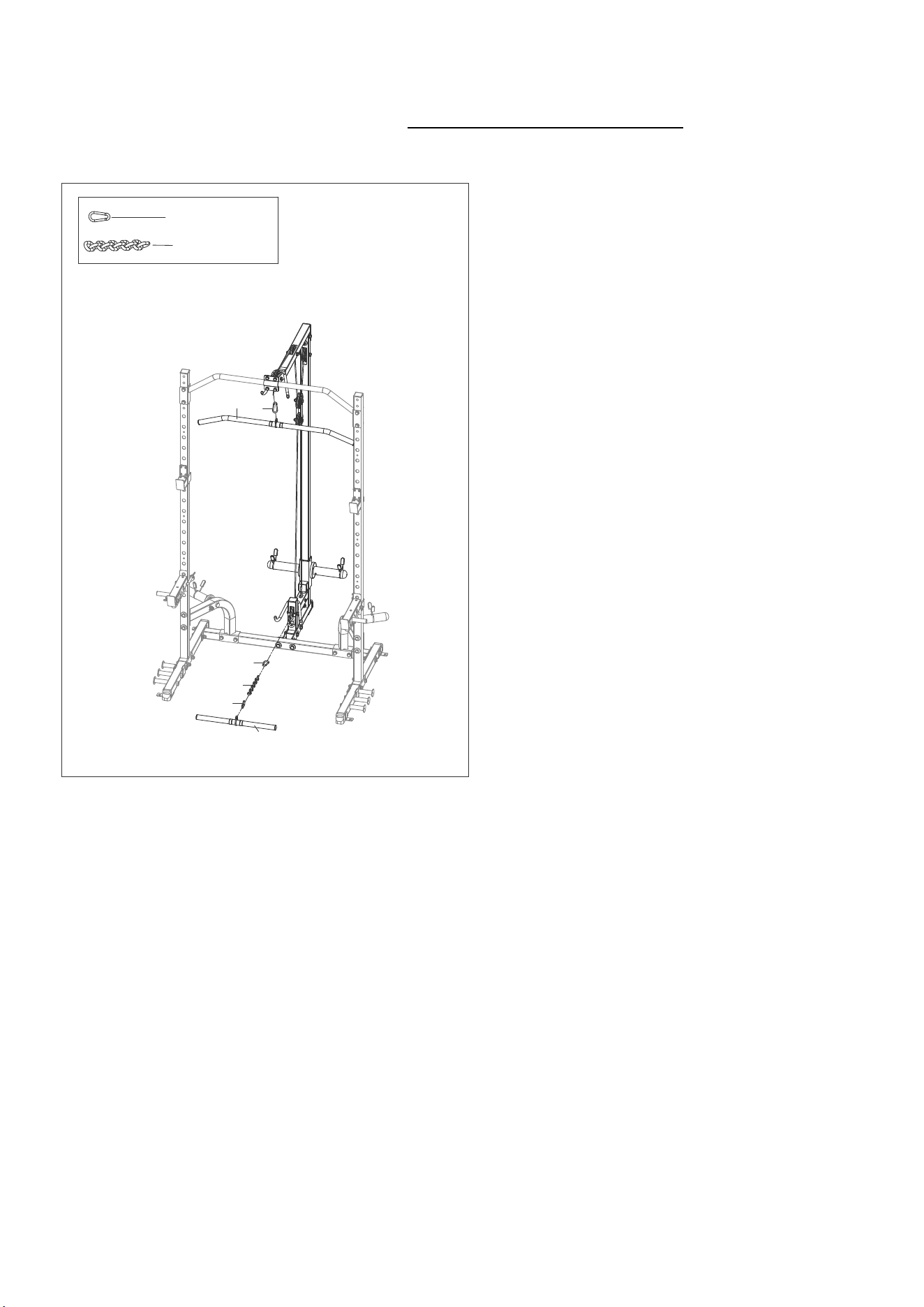

STEP 5:
Attach High Bar (No. 5) and Low Bar
(No. 7) onto their respective positions
with Hoist Hook (No. 22) and Section
10 Chain (No. 24).
The assembly is complete!
9

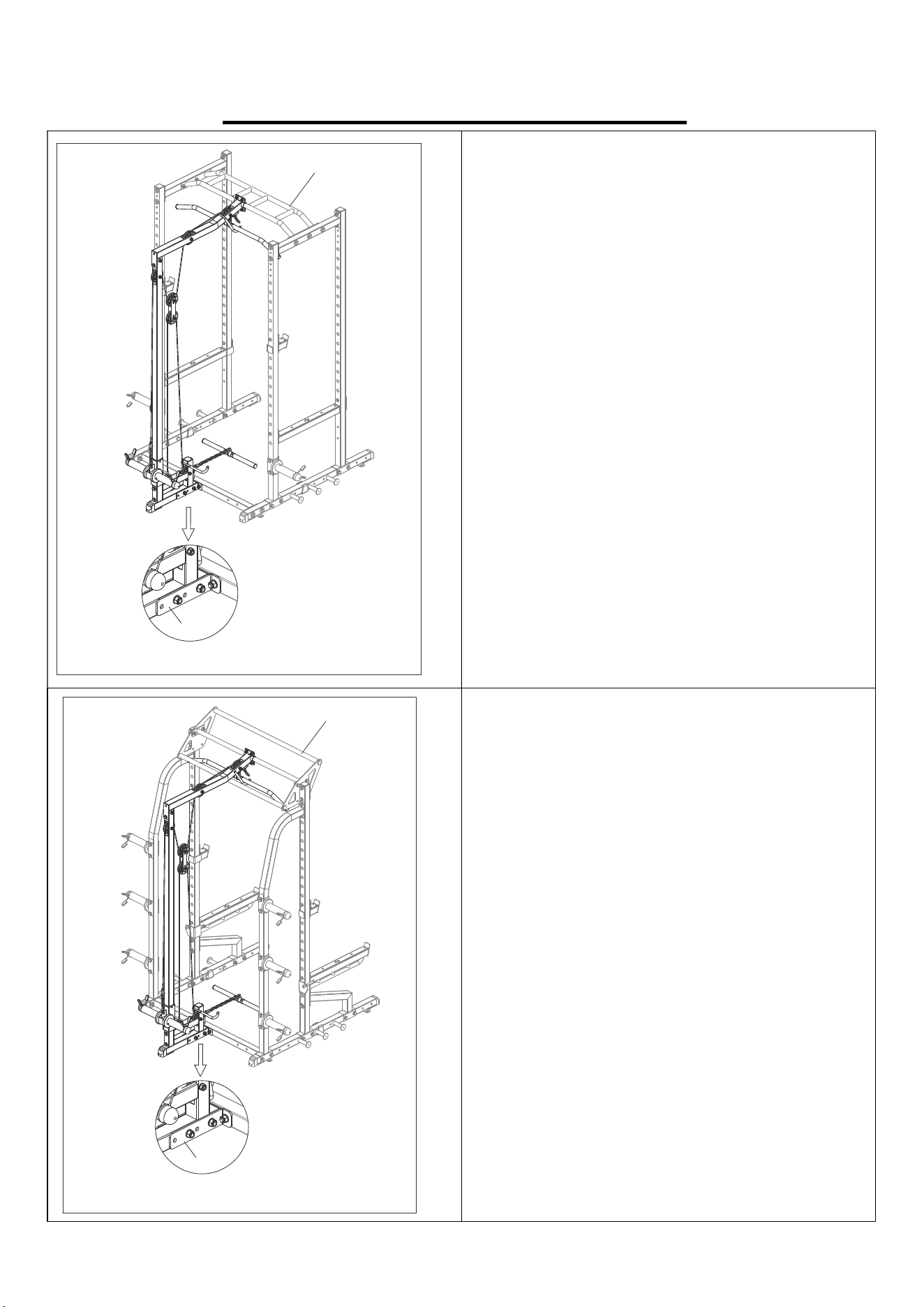

INSTALLATION INSTRUCTIONS
The installation mode of SF-XF9927 and
SF-XF9925 is the same as that of SF-XF9927
and SF-XF9931. Please note the installation
hole of Bottom Frame Fixing Plate (No. 6).
The installation mode of SF-XF9927 and
SF-XF9933 is the same as that of SF-XF9927
and SF-XF9931. Please note the installation
hole of Bottom Frame Fixing Plate (No. 6).
SF-XF9925
6
SF-XF9933
6
10
MAINTENANCE INSTRUCTIONS
DAILY MAINTENANCE
Inspect and tighten all parts regularly. (Nuts, Bolts, Rubber Pads, Steel Brackets, etc.)
Replace any worn or torn parts immediately.
Check and ensure the bench is levelled at all time.
Check and tighten all adjustment pins/knobs regularly.
WEEKLY MAINTENANCE
Use damp cloth on plastic parts only, use dry cloth on metal frames.
Inspect the metal frame structure of the equipment.
Version: 1.1
