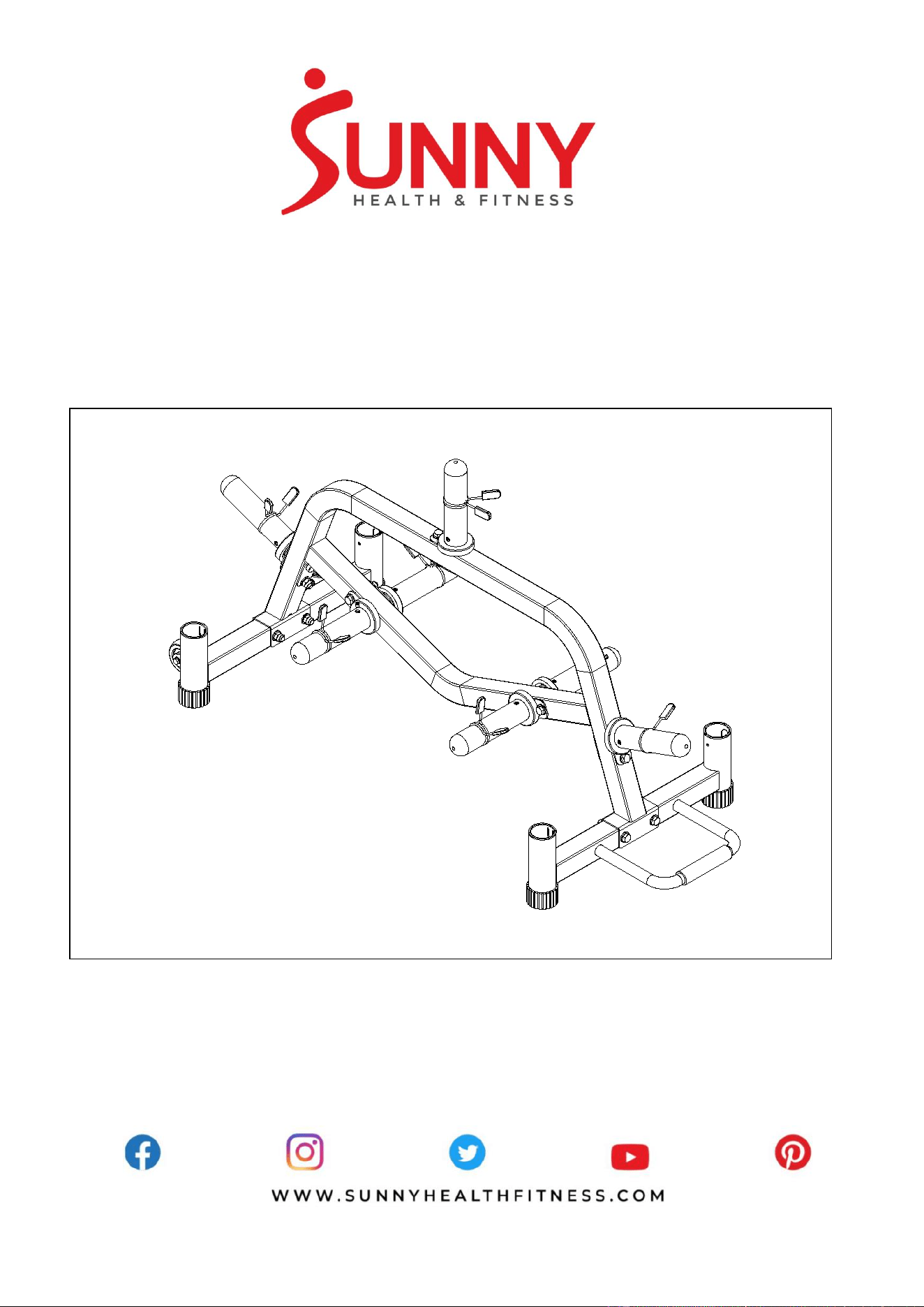

WEIGHT PLATE RACK
SF-XF9938
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions.
Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
1
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this
equipment correctly. It is important to read this entire manual before assembling and using the
equipment. Safe and effective use can only be achieved if the equipment is assembled,
maintained, and used properly. It is your responsibility to ensure that all users of the equipment
are informed of all warnings and precautions.
1. Before starting any exercise program, you should consult your physician to determine if you
have any medical or physical conditions that could put your health and safety at risk or prevent
you from using the equipment properly. Your physician’s advice is essential if you are taking
medication that affects your heart rate, blood pressure, or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health.
Stop exercising if you experience any of the following symptoms: pain, tightness in your chest,
irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea. If
you do experience any of these conditions, you should consult your physician before
continuing with your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use
only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet.
To ensure safety, the equipment should have at least 2 feet (60 CM) of free space all around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of
the equipment can only be maintained if it is regularly examined for damage and/or wear and
tear.
6. Always use the equipment as indicated. If you find any defective components while
assembling or checking the equipment, or if you hear any unusual noises coming from the
equipment during exercise, discontinue use of the equipment immediately and do not use until
the problem has been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may
become entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this stand is 1408 pounds (640 KG). The equipment is not
suitable for therapeutic use.
10. To avoid bodily injury and/or damage to the product or property, proper lifting and moving are
required.
11. Your product is intended for use in cool and dry conditions. You should avoid storage in
extreme cold, hot or damp areas as this may lead to corrosion and other related problems.
12. This equipment is designed for indoor and home use only; it is not intended for commercial
use.
2

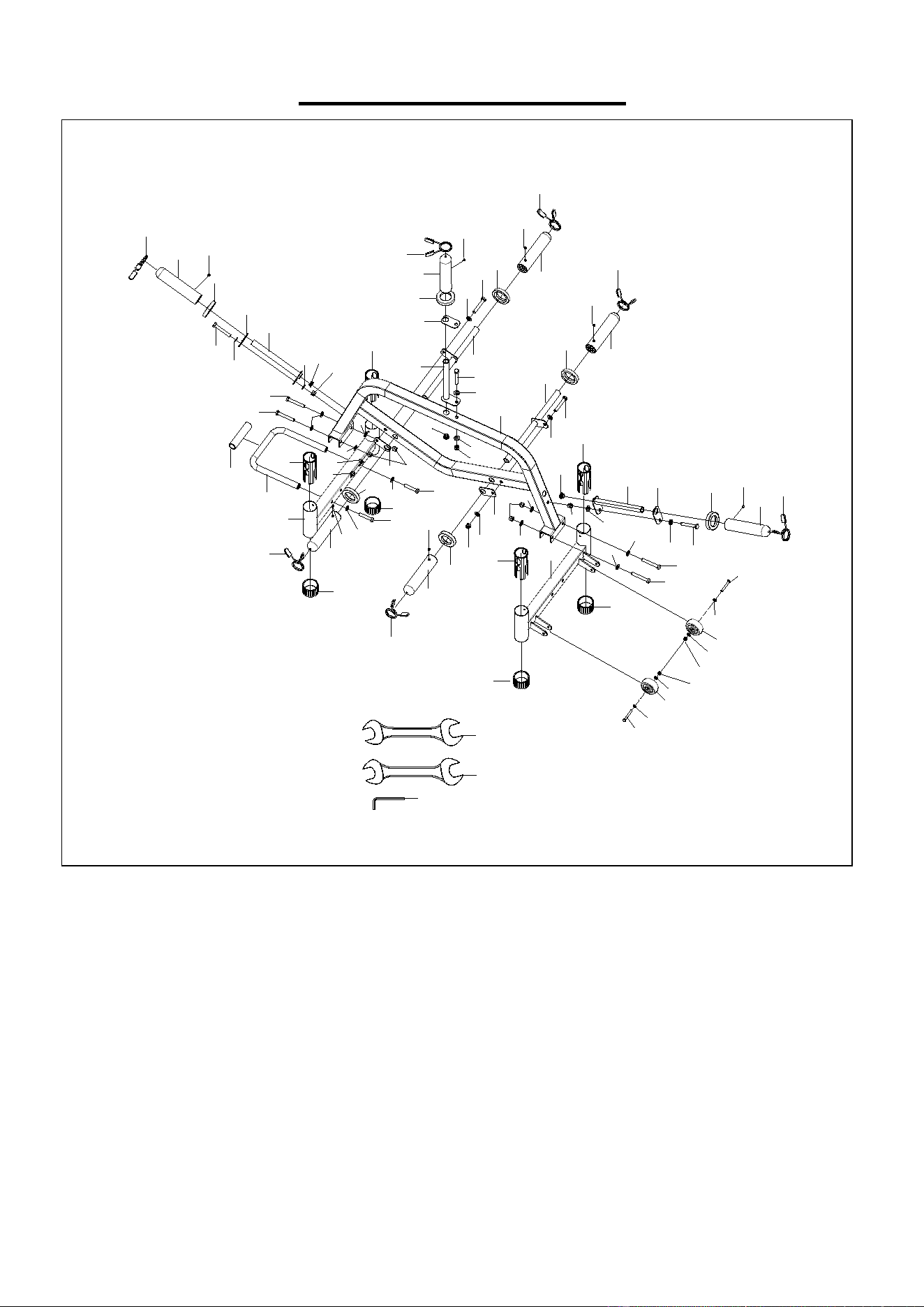

EXPLODED DIAGRAM
12
11
23
13
5
7
15
16
22
22
20
12
11
23
13
7
5
15
10
16
22
22
20
12
23
13
16
22
12
23
13
6
11
11
16
22
6
7
22
20
13
11
12
23
7
13
11
22
20
23
11
12
13
7
5
16
22
22
20
15
1
2
3
4
14
8
10
10
10
16
16
16
16
18
18
20
20
22
22
22
22
22
23
16
18
16
18
24
24
25
22
22
22
9
9
17
17
19
21
21
21
22
8
8
21
19
8
12
3
HARDWARE PACKAGE
PARTS LIST
No. Description Spec. Qty. No. Description Spec. Qty.
1
Main Frame
1
14
Handle Casing
￠
24*
￠
32*140
1
2 Front Stabilizer 1 15
Round Inner Pipe
Plug
￠25 3
3
Rear Stabilizer
1
16
Hex Bolts
M12*75
9
4
Handle
1
17
Hex Bolts
M8*60
2
5
Counterweight
Hanging Rod
3 18
Hex Bolts
M12*30
2
6
Long Counterweight
Hanging Rod
2 19
Lock Nut
M8
2
7
Fixed Piece
5
20
Lock Nut
M12
9
8
Round Outer Pipe
Plug
￠60 4 21
Flat Washer
￠8.4*￠16*1.6
4
9
Transportation
Wheel
￠
8*
￠
77.5*33.5
2 22
Flat Washer
￠13*￠24*2.5
20
10
Cover
4
23
Screw
M8*8
7
11 Barbell Support Bar
￠
100*
￠
50*200
7 24
Open End Wrench
S16-S18
2
12
Spring Clip
7
25
Allen Wrench
4mm
1
13
Cushion
￠
80*
￠
50*16
7
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s)
needed:
The model number (found on cover of manual)
The product name (found on cover of manual)
The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found near
the front of the manual)
Please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY
(877-907-8669).
#16 M12*75 9PCS
#20 M12 9PCS
#25 4mm 1PC
#22 ￠13*￠24*2.5 20PCS
#24 S16-S18 2PCS
16
18
#18 M12*30 2PCS
4
ASSEMBLY INSTRUCTIONS
We value your experience using Sunny Health and Fitness products. For assistance with
parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or
1-877-90SUNNY (877-907-8669).
#18 M12*30 2PCS
#22
￠
13*
￠
24*2.5 2PCS
16
18
#24 S16-S18 1PC
3
4
22
22
18
18

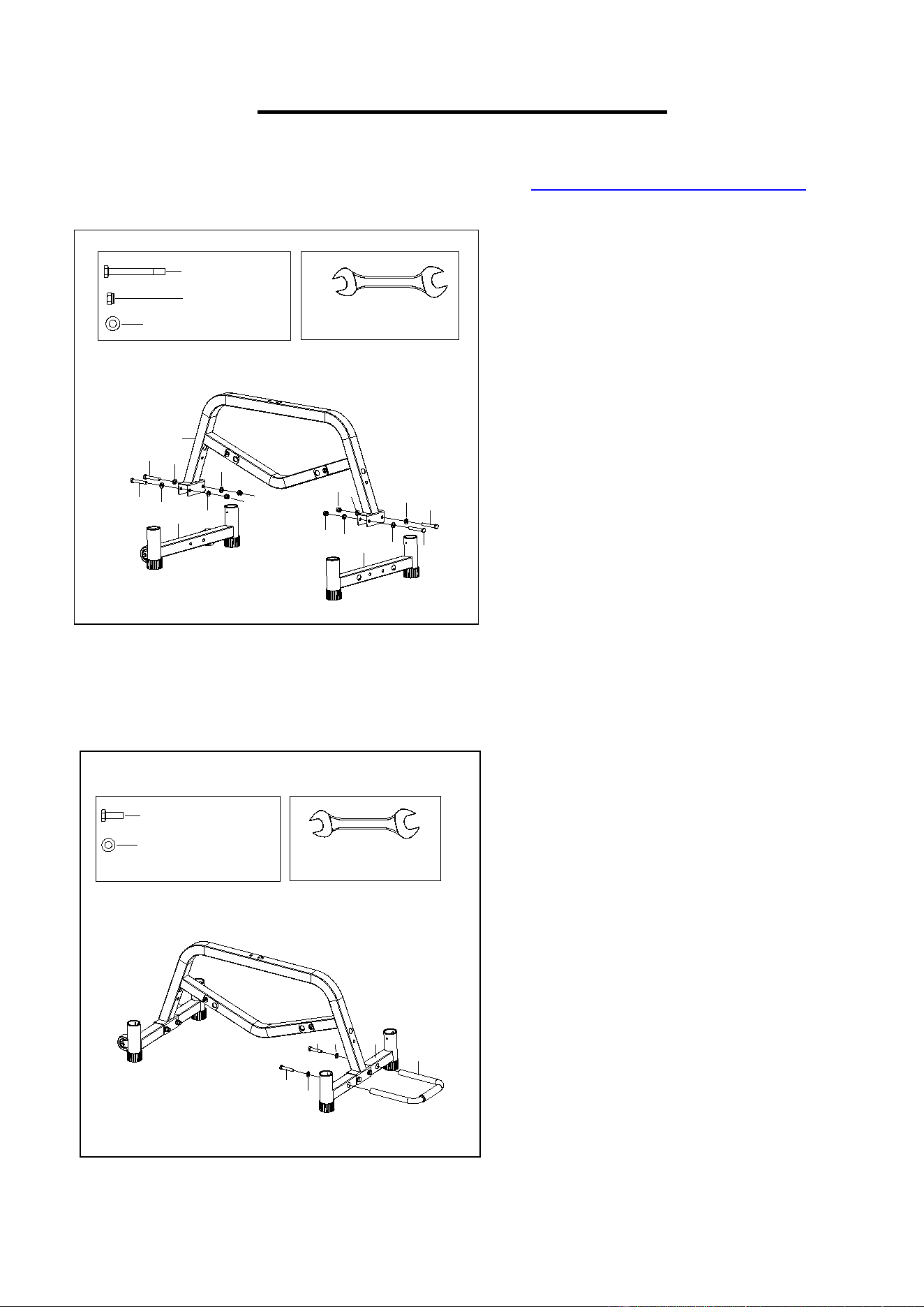

STEP 1:
Attach the Front Stabilizer (No. 2) onto
the Main Frame (No. 1) using 2 Hex
Bolts (No. 16), 4 Flat Washers (No.
22), and 4 Lock Nuts (No. 20). Tighten
and secure with 2 Open End Wrench
(No. 24).
Attach the Rear Stabilizer (No. 3) onto
the Main Frame (No. 1) using 2 Hex
Bolts (No. 16), 4 Flat Washers (No.
22), and 4 Lock Nuts (No. 20). Tighten
and secure with 2 Open End Wrench
(No. 24).
When assembling the
Rear Stabilizer
(No. 3),
make sure the big holes are
outward.
STEP 2:
Attach the Handle (No. 4) onto the Rear
Stabilizer (No. 3) using 2 Hex Bolts
(No. 18), 2 Flat Washers (No. 22).
Tighten and secure with
Open End
Wrench (No. 24).
#16 M12*75 4PCS
#22
￠
13*
￠
24*2.5 8PCS
#20 M12 4PCS
16
18
#24 S16-S18 2PCS
16
16
22
22
22
22
20
20
20
20
22
22
22
22
16
3
2
1
16
5
We value your experience using Sunny Health and Fitness products. For assistance with
parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or
1-877-90SUNNY (877-907-8669).
.

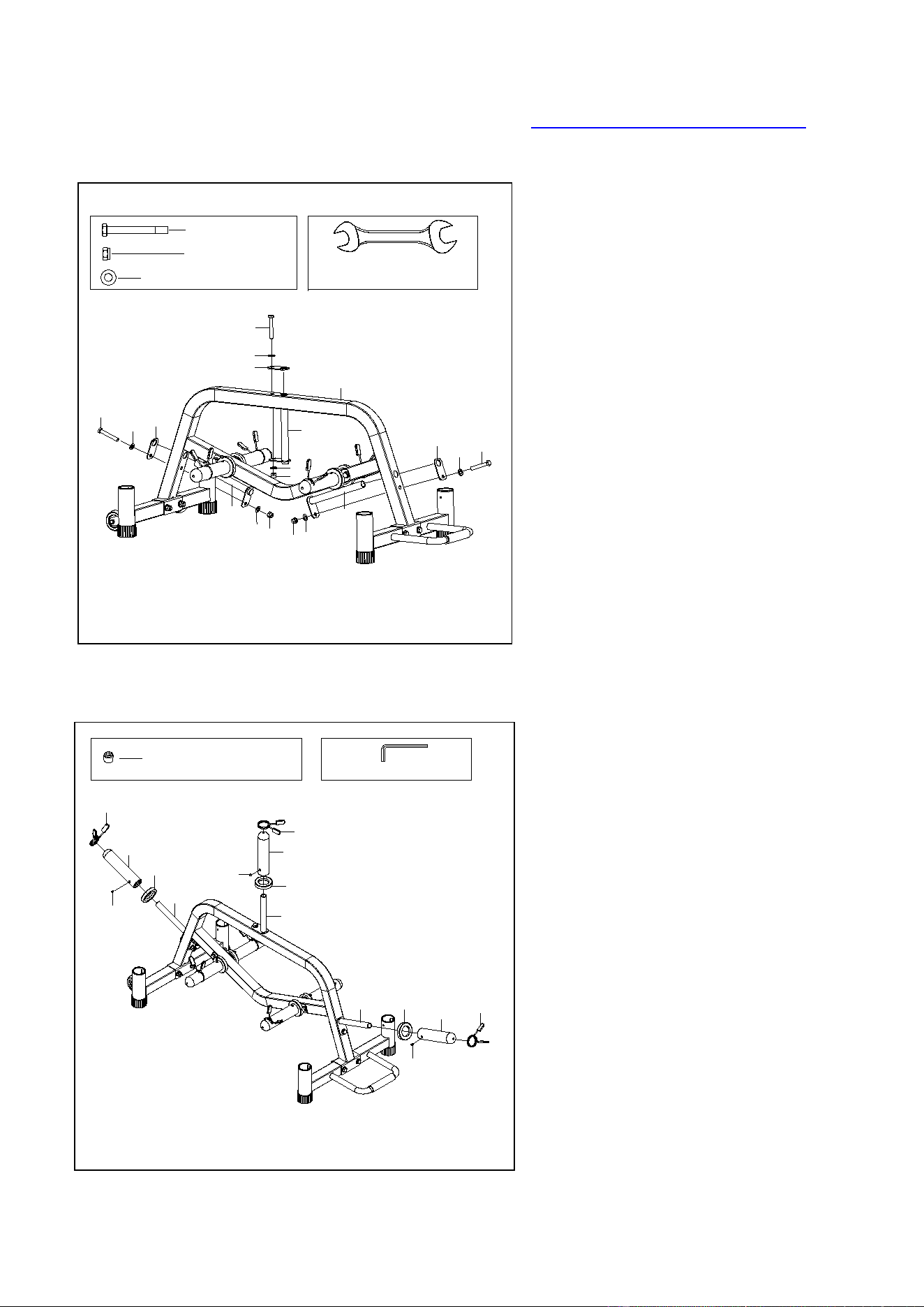

STEP 3:
Attach the 2 Long Counterweight
Hanging Rods (No. 6) and 2 Fixed
Pieces (No. 7) onto the Main Frame
(No. 1) using 2 Hex Bolts (No. 16), 4
Flat Washers (No. 22), and 2 Lock Nuts
(No. 20). Tighten and secure with 2
Open End Wrenches (No. 24).
STEP 4:
Attach 4 Barbell Support Bars (No. 11)
onto 2
Long Counterweight Hanging
Rods (No. 6) using
Allen Wrench (No.
25) to lock 4 Screws (No. 23). D
o not
tighten 4 Screws (No. 23)
too much to
avoid damages of 4
Barbell Support
Bars (No. 11), then Insert 4
Cushions
(No. 13) and 4 Spring Clips (No. 12)
into
4 Barbell Support Bar (No. 11).
16
18
#24 S16-S18 2PCS
#16 M12*75 2PCS
#22
￠
13*
￠
24*2.5 4PCS
#20 M12 2PCS
7
22
20
20
22
7
1
16
22
6
16
22
6
#25 4mm 1PC
11
23
13
12
12
11
23
13
12
11
23
13
23
12
11
13
1
6
6
#23 M8*8 4PCS
6
We value your experience using Sunny Health and Fitness products. For assistance with
parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or
1-877-90SUNNY (877-907-8669).

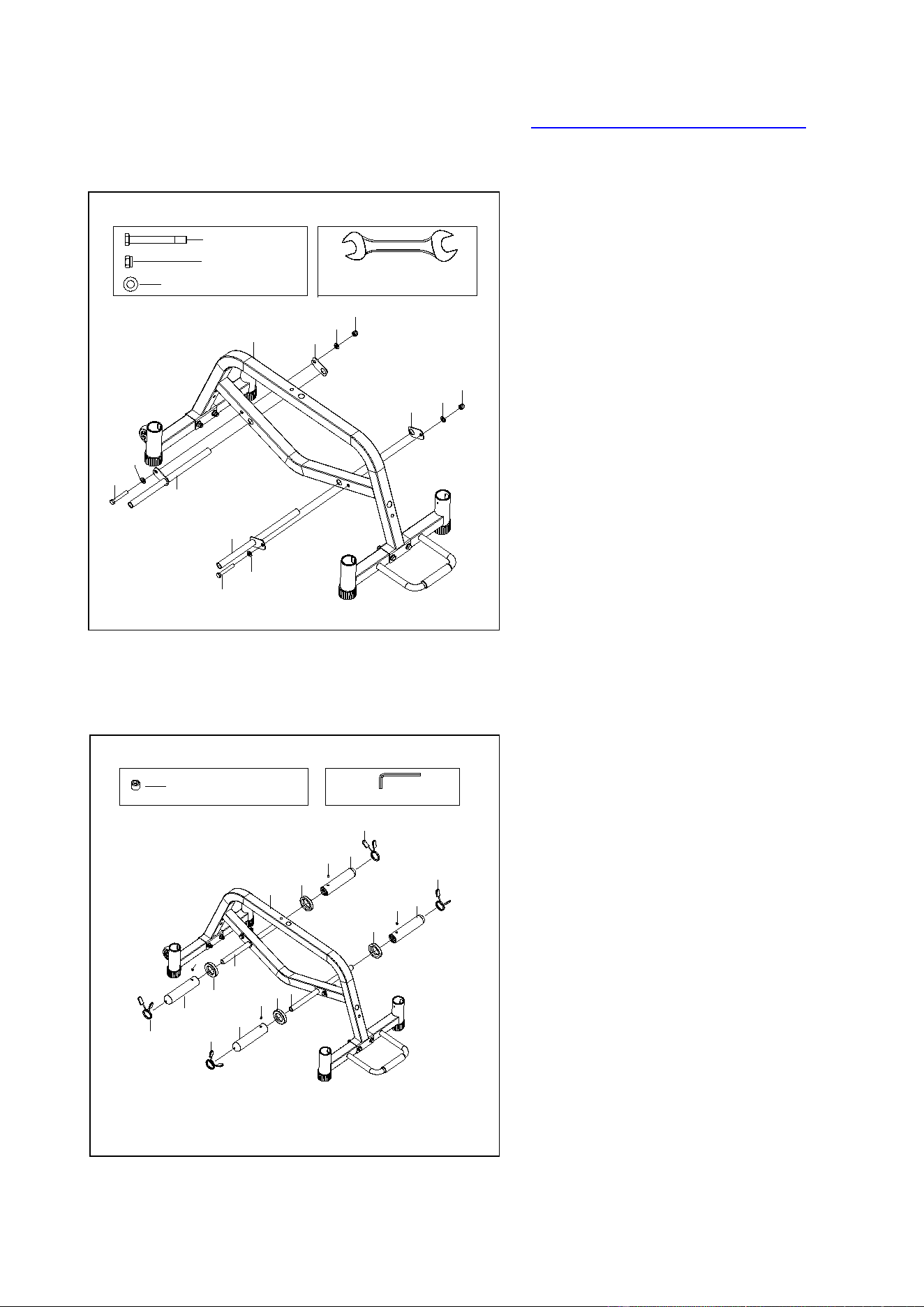

STEP 5:
Attach 3 Counterweight Hanging Rod
(No. 5) and 3 Fixed Pieces (No. 7) onto
the Main Frame (No. 1) using 3 Hex
Bolts (No. 16), 6 Flat Washers (No. 22),
and 3 Lock Nuts (No.20). Tighten and
secure with 2 Open End Wrenches (No.
24).
STEP 6:
Attach 3 Barbell Support Bars (No. 11)
onto 3 Counterweight Hanging Rods
(No. 5), using Allen Wrench (No. 25)
to
lock 3 Screws (No. 23). Do not tighten
3
Screws (No. 23)
too much to avoid
damages of 3 Barbell Support Bars
(No.
11). Then Insert 3 Cushions (No. 13)
and
3 Spring Clips (No. 12) into 3
Barbell
Support Bars (No. 11).
16
18
#24 S16-S18 2PCS
#16 M12*75 3PCS
#22 ￠13*
￠24*2.5 6PCS
#20 M12 3PCS
1
16
22
7
16
22
7
5
22
20
20
22
5
22
20
5
16
22
7
#25 4mm 1PC
11
23
13
12
5
5
13
11
12
23
12
11
23
5
13
#23 M8*8 3PCS
7
MAINTENANCE INSTRUCTIONS
DAILY MAINTENANCE
Inspect and tighten all parts regularly. (Nuts, Bolts, Rubber Pads, Steel Brackets, etc.)
Replace any worn or torn parts immediately.
Check and ensure the bench is leveled at all time.
Check and tighten all adjustment pins/knobs regularly.
WEEKLY MAINTENANCE
Use damp cloth on plastic parts only, use dry cloth on metal frames.
Inspect the metal frame structure of the equipment.
Version 1.1
