Neff B5ACM7HH0B Oven

User Manual - Transcript

• Page 2 - English - : en Safety Table of contents USER MANUAL 1 Safety2 2 Preventing material damage 4 3 Environmental protection and saving en ergy 5 4 Familiarising yourself with your appliance 6 5 Accessories8 6 Before using for the first time 10 7 Basic operation 10 8 Timesetting options11 9 Meat thermometer 12 10 Childproof lock13 11 Rapid heating 13 12 Sabbath mode 14 13 Basic settings14 14 HomeConnect 15 15 Cleaning and servicing17 16 Cleaning functions19 17 Shelf supports21 18 Appliance door23 19 Troubleshooting27 20 Disposal29 21 Customer Service29 22 How it works29 23 INSTALLATION INSTRUCTIONS 33 231 General installation instructions 33 1 Safety Observe the following safety instructions 11 General information Read this instruction manual carefully Keep the instruction manual and the product information safe for future refer ence or for the next owner Do not connect the appliance if it has been damaged in transit 12 Intended use This appliance is designed only to be built into kitchen units Read the special installation instructions Only a licensed professional may connect ap pliances without plugs Damage caused by in correct connection is not covered under the warranty Only use this appliance To prepare meals and drinks In private households and in enclosed spaces in a domestic environment Up to an altitude of max 4000m above sea level 13 Restriction on user group This appliance may be used by children aged 8 or over and by people who have reduced physical sensory or mental abilities or inad equate experience andor knowledge provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers Children must not play with the appliance Children must not perform cleaning or user maintenance unless they are at least 15 years old and are being supervised Keep children under the age of 8 years away from the appliance and power cable 14 Safe use Always place accessories in the cooking com partment the right way round quotAccessoriesquot Page8 WARNINGRisk of fire Combustible objects that are left in the cook ing compartment may catch fire Never store combustible objects in the cooking compartment If smoke is emitted the appliance must be switched off or the plug must be pulled out and the door must be held closed in order to stifle any flames Loose food remnants fat and meat juices may catch fire Before using the appliance remove the worst of the food residues and remnants from the cooking compartment heating ele ments and accessories
• Page 3 - English - : Safety en Opening the appliance door creates a draught Greaseproof paper may come into contact with the heating element and catch fire Never place greaseproof paper loosely over accessories when preheating the ap pliance and while cooking Always cut greaseproof paper to size and use a plate or baking tin to hold it down WARNINGRisk of burns The appliance and its parts that can be touched become hot during use Caution should be exercised here in order to avoid touching heating elements Young children under 8 years of age must be kept away from the appliance Accessories and cookware get very hot Always use oven gloves to remove ac cessories or cookware from the cooking compartment When the cooking compartment is hot any al coholic vapours inside may catch fire Only use small quantities of drinks with a high alcohol content in food Open the appliance door carefully WARNINGRisk of scalding The accessible parts of the appliance become hot during operation Never touch these hot parts Keep children at a safe distance Hot steam may escape when you open the appliance door Steam may not be visible de pending on the temperature Open the appliance door carefully Keep children at a safe distance If there is water in the cooking compartment when it is hot this may create hot steam Never pour water into the cooking compart ment when the cooking compartment is hot WARNINGRisk of injury Scratched glass in the appliance door may develop into a crack Do not use any harsh or abrasive cleaners or sharp metal scrapers to clean the glass on the oven door as they may scratch the surface The hinges on the appliance door move when the door is opened and closed which could trap your fingers Keep your hands away from the hinges Components inside the appliance door may have sharp edges Wear protective gloves WARNINGRisk of electric shock Incorrect repairs are dangerous Repairs to the appliance should only be carried out by trained specialist staff Only use genuine spare parts when repair ing the appliance If the power cord of this appliance is dam aged it must be replaced by trained spe cialist staff If the insulation of the power cord is dam aged this is dangerous Never let the power cord come into contact with hot appliance parts or heat sources Never let the power cord come into contact with sharp points or edges Never kink crush or modify the power cord An ingress of moisture can cause an electric shock Do not use steam or highpressure clean ers to clean the appliance If the appliance or the power cord is dam aged this is dangerous Never operate a damaged appliance Never operate an appliance with a cracked or fractured surface Never pull on the power cord to unplug the appliance Always unplug the appliance at the mains If the appliance or the power cord is dam aged immediately unplug the power cord or switch off the fuse in the fuse box Call customer services Page29 WARNINGDanger Magnetism Permanent magnets are used in the control panel or in the controls These may affect electronic implants eg heart pacemakers or insulin pumps Wearers of electronic implants must stay at least 10 cm away from the control panel WARNINGRisk of suffocation Children may put packaging material over their heads or wrap themselves up in it and suffocate Keep packaging material away from chil dren
• Page 4 - English - : en Preventing material damage Do not let children play with packaging ma terial Children may breathe in or swallow small parts causing them to suffocate Keep small parts away from children Do not let children play with small parts 15 Halogen bulb WARNINGRisk of burns The bulbs in the cooking compartment get very hot There is still a risk of burning for some time after they have been switched off Do not touch the glass cover Avoid contact with your skin when cleaning WARNINGRisk of electric shock When changing the bulb the bulb socket con tacts are live Before replacing the bulb ensure that the appliance is switched off in order to pre vent a potential electric shock Also unplug the appliance from the mains or switch off the circuit breaker in the fuse box 16 Meat probe WARNINGRisk of electric shock Using the wrong meat probe could damage the insulation Only use the meat probe for this specific appliance 17 Cleaning function WARNINGRisk of fire Loose food remnants fat and meat juices may catch fire when the cleaning function is in progress Before you start the cleaning function al ways remove coarse dirt from the cooking compartment Never clean accessories at the same time The outside of the appliance gets very hot when the cleaning function is in progress Never hang combustible objects eg tea towels on the door handle Leave the front of the appliance clear Keep children at a safe distance If the door seal is damaged a large amount of heat is generated around the door Do not scrub or remove the seal Never operate the appliance if the seal is damaged or missing WARNINGRisk of serious harm to health The appliance gets very hot when the clean ing function is in progress The nonstick coat ing on baking trays and tins is destroyed and noxious gases are released Never clean nonstick baking trays or bak ing tins using the cleaning function Never clean accessories at the same time WARNINGRisk of harm to health The cleaning function heats up the cooking compartment to a very high temperature so that food left over from roasting grilling and baking will burn off This process releases va pours which can irritate mucous membranes Keep the kitchen well ventilated while the cleaning function is running Do not remain in the room for long periods Keep children and pets away WARNINGRisk of burns The cooking compartment gets very hot when the cleaning function is in progress Never open the appliance door Allow the appliance to cool down Keep children at a safe distance The outside of the appliance gets very hot when the cleaning function is in progress Never touch the appliance door Allow the appliance to cool down Keep children at a safe distance 2  Preventing material damage 21 General ATTENTION Objects on the cooking compartment floor at over 50C will cause heat to build up The baking and roasting times will no longer be correct and the enamel will be damaged Do not place any accessories greaseproof paper or foil of any kind on the cooking compartment floor Only place cookware on the cooking compartment floor if a temperature above 50C has been set When the cooking compartment is hot any water in side it will create steam The change in temperature may cause damage
• Page 5 - English - : Environmental protection and saving energy en Never pour water into the cooking compartment when it is still hot Never place cookware containing water on the cooking compartment floor The prolonged presence of moisture in the cooking compartment leads to corrosion Allow the cooking compartment to dry after use Do not keep moist food in the cooking compartment for a long time with the door closed Do not store food in the cooking compartment Leaving the appliance to cool down with the door open will damage the front of neighbouring kitchen units over time Always allow the cooking compartment to cool down with the door closed after cooking at high temperatures Take care not to trap anything in the appliance door Only leave the cooking compartment to dry with the door open if a lot of moisture was produced during operation Fruit juice dripping from the baking tray leaves stains that cannot be removed When baking very juicy fruit flans do not pack too much on the baking tray If possible use the deeper universal pan Using oven cleaner in a hot cooking compartment damages the enamel Never use oven cleaner in the cooking compartment when it is still warm Remove all food remnants from the cooking com partment and the appliance door before you next heat up the appliance If the seal is very dirty the appliance door will no longer close properly during operation This may dam age the front of adjacent kitchen units Keep the seal clean at all times Never operate the appliance if the seal is damaged or missing Sitting or placing objects on the appliance door may damage it Do not place or hang objects on the appliance door Do not place cookware or accessories on the appli ance door With certain models accessories may scratch the door pane when closing the appliance door Always push accessories fully into the cooking com partment 3  Environmental protection and saving energy Help protect the environment by using your appliance in a way that conserves resources and by disposing of reusable materials properly 31 Disposing of packaging The packaging materials are environmentally compat ible and can be recycled Sort the individual components by type and dispose of them separately Information about current disposal methods are available from your specialist dealer or local author ity 32 Saving energy If you follow these instructions your appliance will use less power Only preheat the appliance if the recipe or the recom mended settings tell you to do so Not preheating the appliance can reduce the en ergy used by up to 20 Use darkcoloured blackcoated or enamelled baking tins These types of baking tin absorb the heat particu larly well Open the appliance door as little as possible during operation This will maintain the temperature in the cooking compartment and eliminate the need for the appli ance to reheat When baking multiple dishes do so in succession or in parallel The cooking compartment is heated after baking the first dish This reduces the baking time for the second cake If the cooking time is relatively long you can switch the appliance off 10minutes before the cooking time ends There will be enough residual heat to finish cooking the dish Remove any accessories that are not being used from the cooking compartment Accessories that are not being used do not need to be heated Allow frozen food to defrost before cooking This will save the energy that would otherwise be required to defrost it
• Page 6 - English - : en Familiarising yourself with your appliance 4  Familiarising yourself with your appliance 41 Controls You can use the control panel to configure all functions of your appliance and to obtain information about the operating status On certain models specific details such as colour and shape may differ from those pictured 2 3 4 Buttons quotButtonsquot Page6 Function selector You can turn the function selector clockwise or anticlockwise from the zero setting quotTypes of heatingquot Page7quotFunctionsquot Page7 Display quotDisplayquot Page6 Temperature selector Use the temperature selector to set the temper ature for the type of heating or select the set ting for other functions You can turn the tem perature selector clockwise and anticlockwise quotTemperature and setting levelsquot Page7 NoteDepending on the appliance type the control knobs can be pushed in To click it in or out push the control knob in when it is in the off position 42 Buttons The buttons are touchsensitive surfaces Press the corresponding button to select a function Symbol Name Use Timesetting options Sets the time timer cooking time or end time quotTimesetting optionsquot Page11 Left arrow Decreases the adjustment values Right arrow Increases the adjustment values Rapid heating Starts or cancels rapid heating quotRapid heatingquot Page13 Information Displays the current cooking compartment temperature Set basic settings quotBasic settingsquot Page14 43 Display The display shows the current settings options or relevant information The red bar above or below a symbol indicates which value is active or can be changed Symbol Name Use Temperature too high The temperature in the cooking compartment is too high for the operating mode leave the appliance to cool down quotResidual heatquot Page8 Sabbath mode Sabbath mode activated quotSabbath modequot Page14 Childproof lock activ ated The childproof lock is activated quotChildproof lockquot Page13 Door lock Appliance door is locked quotChildproof lockquot Page13 quotPyrolytic selfcleaning quot Page19
• Page 7 - English - : Familiarising yourself with your appliance en Symbol Name Use Temperature display Appliance is heating quotTemperature displayquot Page8 44 Types of heating Here you can find an overview of the types of heating You can find recommendations on using the types of heating Use the function selector to set the types of heating Symbol Type of heating and temperature range What its used forhow it works CircoTherm hot air 30200C Bake and roast on one or more levels The fan distributes the heat from the ringshaped heating element in the back wall evenly around the cooking compartment CircoTherm gentle 125200C Cook selected dishes gently on one level without preheating The fan distributes the heat from the ringshaped heating element in the back wall evenly around the cooking compartment The food is cooked in phases us ing residual heat Always keep the appliance door closed when cooking This type of heating is used to determine the energy consumption in air recircu lation mode and the energy efficiency class Bread baking setting 180240C For baking bread bread rolls and baked goods that require high temperatures Pizza setting 30275C Cook pizza or dishes that require a lot of heat from below The bottom heating element and the ringshaped heating element in the back wall heat the cooking compartment Bottom heating 30250C Final baking or cooking food in a bain marie Heat is emitted from below Fullsurface grill 30275C From 275C Grill flat items such as steak and sausages or make toast Gratinate food The entire area underneath the grill element becomes hot Circoroasting 30250C Roast poultry whole fish and larger pieces of meat The grill element and the fan switch on and off alternately The fan circulates the hot air around the food Topbottom heating 30275C Traditionally bake or roast on one level This type of heating is ideal for cakes with moist toppings The heat is emitted evenly from above and below This type of heating is used to measure the energy consumption in the conven tional mode 45 Functions Here you can find an overview of the functions Use the function selector to set the functions NoteIf you operate your appliance with the HomeConnect app even more functions are available for you You can find more information about this in the app Symbol Name Use Oven light Illuminate the cooking compartment without heating quotLightingquot Page8 Remote start Start and operate the appliance via the Home Connect app Page15 Cleaning functions EasyClean removes light dirt from the cooking compartment quotCleaning aid EasyClean quot Page20 Pyrolytic selfcleaning cleans the cooking compartment almost by itself quotPyrolytic selfcleaning quot Page19 46 Temperature and setting levels There are different settings for the types of heating and functions The settings appear in the display The temperature can be set in 1 degree increments up to 100C and in 5 degree increments thereafter

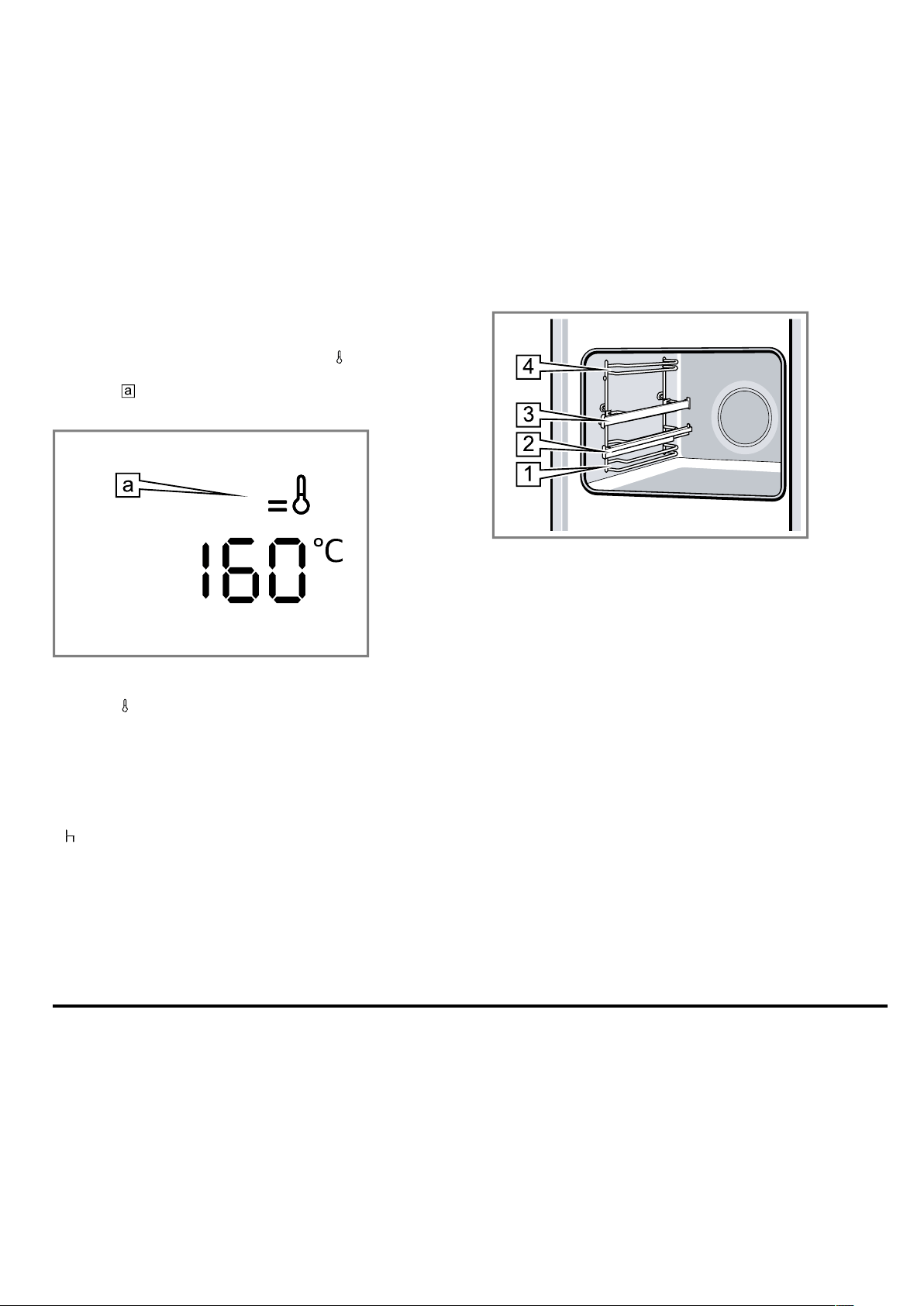

• Page 8 - English - : en Accessories NoteFor temperature settings above 275C for the Grill type of heating the appliance reduces the temper ature to approx 250C after approx 20minutes Temperature display The temperature display shows you the temperature in the cooking compartment Notes The temperature indicator only shows the temperat ure increasing for operating modes for which you can set a temperature eg for cleaning functions the temperature display is filled immediately Due to thermal inertia the temperature displayed may differ slightly from the actual temperature inside the cooking compartment As soon as the appliance heats up the symbol ap pears in the display The lines are filled from the bottom to the top as the cooking compartment heats up When you are preheating the appliance the optimal time to place your food in the cooking compartment is when the symbol first goes out Residual heat When the appliance is switched off the temperature in dicator shows the residual heat in the cooking com partment The further the temperature drops the more lines go out If flashes in the display the temperature in the cook ing compartment is too high for the selected operating mode Switch the appliance off wait until it has cooled down and then switch it back on again 47 Cooking compartment The functions in the cooking compartment make your appliance easier to use Rails The rails in the cooking compartment enable you to place accessories at different heights quotAccessoriesquot Page8 Your appliance has four shelf positions The shelf posi tions are numbered from bottom to top You can remove the rails e g for cleaning quotShelf supportsquot Page21 Lighting The oven light lights up the cooking compartment With most types of heating and functions the lighting lights up during operation When the function selector is turned to bring operation to an end the lighting goes out The Oven light setting on the function selector can be used to switch on the light without heating Cooling fan The cooling fan switches on and off depending on the appliances temperature The hot air escapes above the door ATTENTION Do not cover the ventilation slot above the appliance door The appliance overheats Ensure that the ventilation slots are unobstructed To ensure that the appliance cools down more quickly after operation the cooling fan continues to run for a certain period afterwards Appliance door If you open the appliance door during operation the operation continues 5  Accessories Use original accessories These have been made espe cially for your appliance NoteAccessories may become deformed if they get hot Deformation has no effect on function As the ac cessory cools down it will regain its original shape The accessories supplied may differ depending on the appliance model
• Page 9 - English - : Accessories en Accessories Use Wire rack Cake tins Ovenproof dishes Cookware Meat eg roasting joints or steak Frozen meals Universal pan Moist cakes Baked items Bread Large roasts Frozen meals Catching dripping liquids eg fat when grilling food on the wire rack Meat thermometer Highprecision roasting or cooking quotMeat thermometerquot Page12 51 Locking function The locking function prevents the accessories from tilt ing when they are pulled out You can pull out the accessories approximately halfway without them tipping The accessories must be inserted into the cooking compartment correctly for the tilt pro tection to work properly 52 Sliding accessories into the cooking compartment Always slide accessories into the cooking compartment correctly This is the only way to ensure that accessor ies can be pulled out approximately halfway without tip ping Turn the accessories so that the notch is at the rear and is facing downwards Insert accessories between the two guide rods for the shelf position Wire rack Insert the wire rack with the open side facing the appliance door and the curved lip facing downwards Baking tray Eg univer sal pan or baking tray Slide the tray eg the universal pan in with the sloping edge facing the appliance door Place the accessory at the shelf positions with the pullout rails and pull out the pullout rails Wire rack or baking tray Position the accessory so that its edge is behind the lug on the pull out rail NoteThe pullout rails lock in place when they are fully pulled out Gently push the pullout rails back into the cooking compartment Push the accessory all the way in making sure that it does not touch the appliance door NoteTake any accessories that you will not be using out of the cooking compartment while the appliance is in operation Combining accessories You can combine the wire rack with the universal pan to catch any liquid that drips down Place the wire rack on the universal pan so that both spacers are on the rear edge of the univer sal pan Insert the universal pan between the two guide rods for a shelf position In so doing the wire rack is on top of the upper guide rod Wire rack on univer sal pan
• Page 10 - English - : en Before using for the first time 53 Other accessories You can purchase other accessories from our after sales service specialist retailers or online You will find a comprehensive range of products for your appliance in our brochures and online wwwneffinternationalcom Accessories vary from one appliance to another When purchasing accessories always quote the exact product number E no of your appliance You can find out which accessories are available for your appliance in our online shop or from our after sales service 6  Before using for the first time Configure the settings for initial startup Clean the ap pliance and accessories 61 Initial use You need to make settings for initial use before you can use your appliance Setting the time on the clock Once the appliance has been connected to the mains or following a power failure the time flashes on the dis play The time starts at quot1200quot Set the current time RequirementThe function selector must be set to the quotOffquot position Use the or button to set the time Press the button a The time that is set appears on the display TipYou can go to the basic settings Page14 to specify whether or not the time should be shown on the display 62 Cleaning the appliance before using it for the first time Clean the cooking compartment and accessories be fore using the appliance to prepare food for the first time Remove any accessories and leftover packaging such as polystyrene pellets from the cooking com partment Before heating the appliance wipe the smooth sur faces in the cooking compartment with a soft damp cloth Keep the room ventilated while the appliance is heating Set the type of heating and temperature quotBasic operationquot Page10 Type of heat ing CircoTherm hot air Temperature Maximum Cooking time 1 hour Switch off the appliance after the specified cooking time Wait until the cooking compartment has cooled down Clean the smooth surfaces with soapy water and a dish cloth Clean the accessories using soapy water and a dish cloth or soft brush 7  Basic operation 71 Switching on the appliance Turn the function selector to any position other than the quotOffquot position a The appliance is switched on 72 Switching off the appliance Turn the function selector to the quotOffquot position a The appliance is switched off 73 Setting the type of heating and temperature Use the function selector to set the type of heating Use the temperature selector to set the temperature or grill setting a The appliance starts heating after a few seconds When your food is ready switch off the appliance Tips The most suitable type of heating for your food can be found in the description of the type of heating quotTypes of heatingquot Page7 You can also set a cooking time and end time on the appliance quotTimesetting optionsquot Page11 Changing the type of heating You can change the type of heating at any time Use the function selector to set the required type of heating Changing the temperature You can change the temperature at any time Use the temperature selector to set the required temperature
• Page 11 - English - : Timesetting options en 8  Timesetting options Your appliance has different timesetting options with which you can control its operation 81 Overview of the timesetting options With the button select the different timesetting op tions Timesetting option Use Timer The timer can be set independently of the appliance when it is in opera tion It does not affect the appliance Cooking time If you set a cooking time operation of the appliance stops automatically once this time has elapsed End time For the cooking time you can set the time at which operation ends The appliance starts up automatically so that it finishes cooking at the re quired time Time You can set the time 82 Setting the timer The timer runs independently of the appliance when it is in operation The timer can be set when the appli ance is switched on or off up to 23 hours and 59 minutes The timer has its own audible signal so that you can tell whether it is the timer or a cooking time which has elapsed Press the button repeatedly until is highlighted in the display Use the or button to set the timer duration Button Default value 5minutes 10 minutes The timer duration can be set in 30second incre ments up to 10 minutes Above 10 minutes the time increments become longer the higher the value a The timer starts and the timer duration begins to count down after a few seconds a An audible signal sounds and the timer duration is zero in the display when the timer duration has elapsed Once the timer duration has elapsed Press any button to switch off the timer Changing the timer You can change the timer duration at any time Requirement is highlighted on the display Use the or button to change the timer duration a The appliance applies the change after a few seconds Cancelling the timer You can cancel the timer duration at any time Requirement is highlighted on the display Use the button to reset the timer duration to zero a After a few seconds the appliance applies the change and goes out 83 Setting the cooking time You can set a cooking time for operation of up to 23 hours 59 minutes RequirementThe type of heating and temperature or setting are set Press the button repeatedly until is highlighted in the display Use the or button to set the cooking time Button Default value 10 minutes 30minutes The cooking time can be set in 1minute increments up to 1 hour and then in 5minute increments a The appliance starts heating and the cooking time counts down after a few seconds a If the cooking time has elapsed an audible signal sounds and the display shows the cooking time as zero When the cooking time has elapsed Press any button to end the audible signal before it sounds To set a cooking time again press the button When your food is ready switch off the appli ance Changing the cooking time You can change the cooking time at any time Requirement is highlighted on the display Change the cooking time using the or button a The appliance applies the change after a few seconds Cancelling the cooking time You can cancel the cooking time at any time Requirement is highlighted on the display Reset the cooking time to zero using the button a After a few seconds the appliance applies the change and continues to heat without a cooking time 84 Setting the end time You can delay the time at which cooking is due to fin ish by up to 23 hours and 59 minutes Notes In order to achieve a good cooking result do not delay the end time once the appliance is already in operation Food will spoil if you leave it in the oven cavity too long Requirements The type of heating and temperature or setting are set A cooking time is set
• Page 12 - English - : en Meat thermometer Press the button repeatedly until is highlighted in the display Press the or button a The display shows the calculated end time Use the or button to delay the end time a After a few seconds the appliance applies the set ting and the display shows the set end time a Once the calculated start time has been reached the appliance starts heating up and the cooking time starts counting down a Once the time has elapsed an audible signal sounds and the display shows the cooking time as zero When the cooking time has elapsed Press any button to end the signal prematurely To set another cooking time press the button When your food is ready switch off the appli ance Changing the end time In order to achieve a good cooking result you can only change the set end time before operation starts and the cooking time starts counting down Requirement is highlighted on the display Use the or button to delay the end time a The appliance applies the change after a few seconds Cancelling the end time You can delete the set end at any time Requirement is highlighted on the display Reset the end time to the current time plus the set cooking time using the button a After a few seconds the appliance applies the change and starts heating up The cooking time counts down 85 Setting the time on the clock Once the appliance has been connected to the mains or following a power failure the time flashes on the dis play The time starts at quot1200quot Set the current time RequirementThe function selector must be set to the quotOffquot position Use the or button to set the time Press the button a The time that is set appears on the display TipYou can go to the basic settings Page14 to specify whether or not the time should be shown on the display Changing the time on the clock You can change the time on the clock at any time RequirementThe function selector must be set to the quotOffquot position Press the button repeatedly until is highlighted in the display Use the or button to change the time a The appliance applies the change after a few seconds 9  Meat thermometer Cook with precision by inserting the meat probe into the food and setting a core temperature on the appli ance Once the set core temperature has been reached in the food the appliance stops automatically 91 Suitable types of heating with the meat thermometer Only certain types of heating are suitable for use with the meat thermometer Suitable heating functions include CircoTherm hot air CircoTherm gentle Pizza setting Circoroasting Topbottom heating NoteIf the meat thermometer is being used and you select an unsuitable type of heating a signal sounds 92 Inserting the meat thermometer Use the meat thermometer supplied or order a suitable meat thermometer from our aftersales service WARNINGRisk of electric shock Using the wrong meat probe could damage the insula tion Only use the meat probe for this specific appliance ATTENTION Otherwise the meat probe may be damaged Do not trap the cable of the meat probe To prevent the meat probe from being damaged by excessive heat there must be a gap of a few centi metres between the grill element and the meat probe The meat may expand during the cooking process Insert the meat thermometer at an angle into the thickest part of the meat Ensure that the tip of the meat thermometer is correctly positioned in the meat The tip must be roughly in the middle of the food The tip must not be inserted in the fat The tip must not touch any cookware or bones Place the food with the meat thermometer into the cooking compartment It is best to place the food in cookware into the centre of the wire rack Plug the meat thermometer into the socket on the lefthand side of the cooking compartment Notes If you remove the meat thermometer while the food is cooking all the settings will be reset Do not remove the meat thermometer when turning the food Once you have turned the food check that the meat thermometer is correctly positioned in the food
• Page 13 - English - : Childproof lock en 93 Setting the meat probe The meat probe measures the temperature inside the food between 30 C and 99 C Requirements The food with the meat probe is in the cooking com partment The meat probe is plugged in inside the cooking compartment Use the function selector to set a suitable type of heating a The symbol is highlighted and quotCquot appears in the display Use the or button to set the core temperature The current core temperature of the food is shown on the left while the set core temperature is shown on the right eg 1575C NoteThe current core temperature only appears once it reaches 10C Use the temperature selector to set the temperature of the cooking compartment Set the cooking compartment temperature at least 10C higher than the core temperature Do not set the cooking compartment temperature to higher than 250C a The appliance starts heating after a few seconds a Once the food reaches the core temperature an audible signal sounds and in the display the cur rent core temperature is equal to the set core tem perature eg 7575C WARNINGRisk of burns The cooking compartment accessories and meat probe become very hot Always use oven gloves to remove hot accessor ies and the meat probe from the cooking com partment When the core temperature is reached Switch off the appliance Pull the meat probe out of the socket in the cooking compartment Pull the meat probe out of the food remove it from the cooking compartment 10  Childproof lock You can secure your appliance to prevent children from accidentally switching it on or changing the set tings NoteYou can go to the basic settings Page14 to specify whether you want the option to set the child proof lock You can only use the childproof lock to lock the control elements of the appliance In addition you can lock the appliance door quotBasic settingsquot Page14 101 Automatic childproof lock When the appliance is switched off it locks automatic ally You need to pause the automatic childproof lock before you switch on the appliance You can activate and deactivate the automatic child proof lock in the basic settings quotBasic settingsquot Page14 Pausing the automatic childproof lock RequirementThe automatic childproof lock is activ ated in the basic settings quotBasic settingsquot Page14 Press and hold the button until goes out on the display 102 Childproof lock If you activate the childproof lock the appliance is locked until you deactivate the childproof lock If you switch off the appliance after the next operation the childproof lock is not activated automatically Activating the childproof lock Press and hold the button until appears on the display Deactivating the childproof lock Press and hold the button until goes out on the display 11  Rapid heating To save time you can shorten the preheating time for set temperatures over 100C You can use rapid heating for the following types of heating CircoTherm hot air Bread baking setting Topbottom heating 111 Setting rapid heating To ensure an even cooking result do not place the food in the cooking compartment until rapid heating has come to an end NoteDo not set a cooking time until rapid heating has come to an end Set a suitable type of heating and a temperature of at least 100C Press the button a appears in the display and the arrows are filled from the bottom to the top a Rapid heating starts after a few seconds
• Page 14 - English - : en Sabbath mode a Once rapid heating has ended an audible signal sounds and the symbol goes out in the display Place the food in the cooking compartment 12  Sabbath mode You can set a time of over 70hours using Sabbath mode You can use Topbottom heating to keep food warm between 85C and 140C during this time without having to switch the appliance on or off 121 Starting Sabbath mode Notes If you open the appliance door during operation the appliance does not interrupt the operation Once it has started you can no longer change or in terrupt Sabbath mode You cannot delay the end time for Sabbath mode RequirementSabbath mode is activated in the basic settings quotBasic settingsquot Page14 Use the function selector to set the type of heating a appears in the display Use the temperature selector to set the temperature Use the or button to set the time a After a few seconds the appliance starts heating and the time counts down a Once the time has elapsed the display shows the time as zero Switch off the appliance 13  Basic settings You can configure the appliance to meet your needs 131 Overview of the basic settings Here you can find an overview of the basic settings and factory settings The basic settings depend on the features of your appliance Display Basic setting Selection Automatic childproof lock no yes Signal duration upon completion of a cook ing time or timer period 10 seconds 30 seconds 2 minutes Waiting time until a setting is adopted 3 seconds 6 seconds 10 seconds Button tone when pressing a button off on Brightness of the display illumination dark medium bright Time display hide the time display the time Childproof lock can be adjusted no yes yes with locked door Interior lighting during operation no yes Cooling fan runon time short medium long extra long Telescopic shelves retrofitted no for rails and 1level pullout yes for 2 and 3level pullout Factory setting may vary according to model Depending on the appliance specifications
• Page 15 - English - : HomeConnect  en Display Basic setting Selection Sabbath mode available no yes Reset all values to factory settings no yes HomeConnect Settings quotHomeConnect quot Page15 Factory setting may vary according to model Depending on the appliance specifications 132 Changing basic settings RequirementThe appliance is switched off Press and hold the button for approximately fourseconds a The first basic setting appears in the display eg Use the temperature selector to change the setting Use the or button to switch to the next basic set ting To save the changes press and hold the button for approx fourseconds NoteYour changes to the basic settings will be re tained even after a power failure 133 Discarding changes to the basic settings Turn the function selector a All changes are discarded and not saved 14  HomeConnect This appliance is networkcapable Connecting your ap pliance to a mobile device lets you control its functions via the HomeConnect app adjust its basic settings and monitor its operating status The HomeConnect services are not available in every country The availability of the HomeConnect function depends on the availability of HomeConnect services in your country You can find information about this at wwwhomeconnectcom The HomeConnect app guides you through the entire login process Follow the instructions in the HomeCon nect app to configure the settings Tips Please consult the documents supplied by HomeConnect Please also follow the instructions in the HomeCon nect app Notes Please note the safety precautions in this instruction manual and make sure that they are also observed when operating the appliance via the HomeCon nect app quotSafetyquot Page2 Operating the appliance on the appliance itself al ways takes priority During this time it is not possible to operate the appliance using the HomeConnect app In networked standby mode the appliance requires a maximum of2W 141 Setting up HomeConnect Requirements The appliance is connected to the power supply and is switched on You have a smartphone or tablet with a current ver sion of the iOS or Android operating system The smartphone and the appliance are within range of your home networks WiFi signal Download the HomeConnect app Open the HomeConnect app and scan the follow ing QR code Follow the instructions in the HomeConnect app
• Page 16 - English - : en HomeConnect 142 HomeConnect Settings You can adjust the settings and network settings for HomeConnect in the basic settings for your appliance Setting Selection or display Explanation Connection to the network Not connected Connect automatically Connect manually Connected and are displays that you cannot set Connection to the HomeConnect app Ready Connect Connected and are displays that you cannot set WiFi Off Activate On If WiFi is activated you can use HomeConnect In networked standby mode the appliance requires a max imum of 2W is a display that you cannot set Remote start Deactivated Manual Permanent When remote start is deactivated you can only view the oper ating status of the appliance in the app For manual remote start you must activate the remote start each time before you can start the appliance via the app If you open the appliance door within 15minutes of activating remote start or of the operation ending remote start is deactiv ated For permanent remote start you can start and operate the ap pliance remotely at any time Software update Update available Start update The setting is only displayed if an update is available is a display that you cannot set Remote Diagnostics Not authorised Authorised The setting is only displayed if aftersales service is attempting to access the appliance Factory setting 143 Operating the appliance with the HomeConnect app You can use the HomeConnect app to set and start the appliance remotely WARNINGRisk of fire Combustible objects that are left in the cooking com partment may catch fire Never store combustible objects in the cooking compartment Never open the appliance door if there is smoke in side Switch off the appliance and unplug it from the mains or switch off the circuit breaker in the fuse box Requirements The appliance is switched on The appliance is connected to your home network and to the HomeConnect app In order to be able to set the appliance via the app the manual or permanent remote start must be se lected in the basic setting To activate the remote start set the function selector to Implement a setting in the app and send it to the ap pliance 144 Software update Your appliances software can be updated using the software update function eg for the purposes of op timisation troubleshooting or security updates To do this you must be a registered HomeCon nectuser have installed the app on your mobile device and be connected to the HomeConnectserver As soon as a software update is available you will be informed via the HomeConnectapp and will be able to start the software update via the app Once the update has been successfully downloaded you can start in stalling it via the HomeConnectapp if you are in your local area network The HomeConnectapp will inform you once installation is successful Notes You can continue to use your appliance as normal while updates are downloading Depending on your personal settings in the app software updates can also be set to download automatically We recommend that you install security updates as soon as possible
• Page 17 - English - : Cleaning and servicing en 145 Remote diagnostics Customer Service can use Remote Diagnostics to ac cess your appliance if you contact them have your ap pliance connected to the HomeConnect server and if Remote Diagnostics is available in the country in which you are using the appliance TipFor further information and details about the avail ability of Remote Diagnostics in your country please visit the servicesupport section of your local website wwwhomeconnectcom 146 Data protection Please see the information on data protection The first time your appliance is registered on a home network connected to the Internet your appliance will transmit the following types of data to the HomeConnect server initial registration Unique appliance identification consisting of appli ance codes as well as the MAC address of the WiFi communication module installed Security certificate of the WiFi communication mod ule to ensure a secure data connection The current software and hardware version of your appliance Status of any previous reset to factory settings This initial registration prepares the HomeConnect functions for use and is only required when you want to use the HomeConnect functions for the first time NotePlease note that the HomeConnect functions can only be utilised with the HomeConnect app In formation on data protection can be retrieved in the HomeConnect app 147 Declaration of Conformity Constructa Neff VertriebsGmbH hereby declares that the appliance with Home Connect functionality meets the essential requirements and other relevant provi sions of the Directive 201453EU A detailed RED Declaration of Conformity can be found online at wwwneffinternationalcom among the addi tional documents on the product page for your appli ance 24GHz band 100mW max 5GHz band 100mW max BE BG CZ DK DE EE IE EL ES FR HR IT CY LV LT LU HU MT NL AT PL PT RO SI SK FI SE UK NO CH TR 5GHz WLAN WiFi For indoor use only 15  Cleaning and servicing To keep your appliance working efficiently for a long time it is important to clean and maintain it carefully 151 Cleaning products In order to avoid damaging the various oven surfaces on the appliance do not use unsuitable cleaning products WARNINGRisk of electric shock An ingress of moisture can cause an electric shock Do not use steam or highpressure cleaners to clean the appliance ATTENTION Unsuitable cleaning products may damage the sur faces of the appliance Do not use harsh or abrasive cleaning products Do not use cleaning products with a high alcohol content Do not use hard scouring pads or cleaning sponges Do not use any special cleaners for cleaning the ap pliance while it is hot Using oven cleaner in a hot cooking compartment damages the enamel Never use oven cleaner in the cooking compartment when it is still warm Remove all food remnants from the cooking com partment and the appliance door before you next heat up the appliance New sponge cloths contain residues from production Wash new sponge cloths thoroughly before use Suitable cleaning agents Only use cleaning agents that are suitable for the differ ent surfaces on your appliance Follow the instructions on cleaning the appliance quotCleaning the appliancequot Page19
• Page 18 - English - : en Cleaning and servicing Appliance front Surface Suitable cleaning agents Notes Stainless steel Hot soapy water Special stainless steel cleaning products suitable for hot sur faces To prevent corrosion remove any limescale grease starch or albu min eg egg white stains on stainless steel fronts immediately Apply a thin layer of the stainless steel cleaning product with a soft cloth Plastic or painted surfaces Eg control panel Hot soapy water Do not use glass cleaner or a glass scraper Appliance door Area Suitable cleaning agents Notes Door panels Hot soapy water Do not use a glass scraper or a stainless steel wool TipRemove the door panels in order to clean them thoroughly quotAppliance doorquot Page23 Door cover Made of stainless steel Stainless steel cleaner Made of plastic Hot soapy water Do not use glass cleaner or a glass scraper TipRemove the door cover for thorough cleaning quotAppliance doorquot Page23 Door handle Hot soapy water To avoid permanent stains remove descaling agents from the door handle immediately Door seal Hot soapy water Do not remove or scrub Cooking compartment Area Suitable cleaning agents Notes Enamel surfaces Hot soapy water Vinegar water Oven cleaner Soak any heavily soiled areas and use a brush or steel wool Leave the appliance door open to dry the cooking compartment after cleaning it TipIt is best to use the cleaning function quotPyrolytic selfcleaning quot Page19 Notes Enamel burns at very high temperatures causing minor discol ouration The functionality of your appliance is not affected by this The edges of thin trays cannot be completely enamelled and may be rough This does not impair corrosion protection Food residues will leave a white coating on the enamel surfaces The coating does not pose a health risk The functionality of your appliance is not affected by this You can remove residues with lemon juice Glass cover for the oven light Hot soapy water Use oven cleaner to remove very heavy soiling Rails Hot soapy water Soak any heavily soiled areas and use a brush or steel wool TipRemove the shelf supports for cleaning quotShelf supportsquot Page21 Pullout system Hot soapy water Use a brush to remove very heavy soiling Clean the pullout rails while they are pushed in so that you do not remove the lubricant Do not clean in the dishwasher TipDetach the pullout system for cleaning quotShelf supportsquot Page21 AccessorIes Hot soapy water Oven cleaner Soak any heavily soiled areas and use a brush or steel wool Enamelled accessories are dishwashersafe Meat probe Hot soapy water Use a brush to remove very heavy soiling Do not clean in the dishwasher
• Page 19 - English - : Cleaning functions en 152 Cleaning the appliance In order to avoid damaging the appliance you must clean your appliance only as specified and with suit able cleaning products WARNINGRisk of burns The appliance and its parts that can be touched be come hot during use Caution should be exercised here in order to avoid touching heating elements Young children under 8 years of age must be kept away from the appliance WARNINGRisk of fire Loose food remnants fat and meat juices may catch fire Before using the appliance remove the worst of the food residues and remnants from the cooking com partment heating elements and accessories RequirementRead the information on cleaning products quotCleaning productsquot Page17 Clean the appliance using hot soapy water and a dish cloth For some surfaces you can use alternative cleaning agents quotSuitable cleaning agentsquot Page17 Dry with a soft cloth 153 Checking the cooking compartment seal after cleaning If the cooking compartment seal is on the left or right of the spacer slide the cooking compart ment seal inwards until it is beside the spacer 16  Cleaning functions Use the cleaning functions to clean the appliance 161 Pyrolytic selfcleaning The Pyrolytic selfcleaning cleaning function cleans the cooking compartment almost by itself Use the cleaning function to clean the cooking com partment every two to three months If required you can use the cleaning function more frequently The cleaning function requires approx2548 kilowatt hours Preparing the appliance for the cleaning function In order to achieve a good cleaning result prepare the appliance carefully WARNINGRisk of fire Combustible objects that are left in the cooking com partment may catch fire Never store combustible objects in the cooking compartment If smoke is emitted the appliance must be switched off or the plug must be pulled out and the door must be held closed in order to stifle any flames Loose food remnants fat and meat juices may catch fire when the cleaning function is in progress Before you start the cleaning function always re move coarse dirt from the cooking compartment Never clean accessories at the same time The outside of the appliance gets very hot when the cleaning function is in progress Never hang combustible objects eg tea towels on the door handle Leave the front of the appliance clear Keep children at a safe distance If the door seal is damaged a large amount of heat is generated around the door Do not scrub or remove the seal Never operate the appliance if the seal is damaged or missing Remove accessories and cookware from the cook ing compartment Unhook the shelf supports and remove them from the cooking compartment quotShelf supportsquot Page21 Remove heavy soiling from the cooking compart ment Use a detergent solution and a soft cloth to clean the surfaces at the edges of the cooking compart ment around the door seal Do not remove or scrub the door seal Use oven cleaner to remove stubborn dirt from the inner door pane Remove any objects from the cooking compartment The cooking compartment must be empty Setting the cleaning function Ventilate the kitchen while the cleaning function is run ning WARNINGRisk of harm to health The cleaning function heats up the cooking compart ment to a very high temperature so that food left over from roasting grilling and baking will burn off This pro cess releases vapours which can irritate mucous mem branes Keep the kitchen well ventilated while the cleaning function is running Do not remain in the room for long periods Keep children and pets away
• Page 20 - English - : en Cleaning functions WARNINGRisk of burns The cooking compartment gets very hot when the cleaning function is in progress Never open the appliance door Allow the appliance to cool down Keep children at a safe distance The outside of the appliance gets very hot when the cleaning function is in progress Never touch the appliance door Allow the appliance to cool down Keep children at a safe distance NoteThe oven light does not come on during the cleaning function RequirementPrepare the appliance for the cleaning function Page19 Use the function selector to set the cleaning functions a The symbol and the cleaning functions appear in the display The first cleaning function is highlighted Press the or button repeatedly until the symbol is highlighted a appears in the display Use the temperature selector to set the cleaning set ting Cleaning set ting Cleaning level Duration in hours 1 Lightly soiled Approx 115 2 Medium Approx 130 3 High Approx 200 Select a higher cleaning setting for very heavy or older soiling The duration cannot be changed a The cleaning function starts after a few seconds and the time counts down a For safety reasons the appliance door locks auto matically once a certain temperature is reached in the cooking compartment appears in the display a Once the cleaning function has ended an audible signal sounds and the display shows the duration as zero Switch off the appliance Once the appliance has cooled down sufficiently the appliance door unlocks and goes out Prepare the appliance for use Page20 Preparing the appliance for use following the cleaning function Allow the appliance to cool down Wipe off any ash that has been left behind in the cooking compartment and around the appliance door with a damp cloth Remove white residues with lemon juice NoteWhite residues on the enamel surfaces may be caused by heavy soiling These food residues are harmless The deposits do not compromise the functionality of the appliance Attach the shelf supports quotShelf supportsquot Page21 162 Cleaning aid EasyClean Use the cleaning aid EasyClean for intermediate clean ing of the cooking compartment The cleaning aid EasyClean softens dirt by vaporising the soapy water The dirt can then be removed more easily Setting the cleaning aid EasyClean WARNINGRisk of scalding If there is water in the cooking compartment when it is hot this may create hot steam Never pour water into the cooking compartment when the cooking compartment is hot Notes The interior lighting remains off while the cleaning aid is running You cannot delay the end time The length of time has been preset and cannot be changed Requirements You can only start the cleaning aid once the cooking compartment is cold room temperature and the ap pliance door is closed Do not open the appliance door while the appliance is in operation Otherwise the appliance will stop the cleaning aid To remove particularly stubborn dirt leave the soapy water to work for some time before starting the cleaning aid To remove particularly stubborn dirt rub soapy water onto the dirt on smooth surfaces before starting the cleaning aid Remove the accessories from the cooking compart ment ATTENTION Distilled water in the cooking compartment leads to corrosion Do not use distilled water Mix 04litres water with a drop of washingup liquid and pour into the centre of the cooking compart ment floor Use the function selector to set the cleaning functions a The symbol and the cleaning functions appear in the display The first cleaning function is highlighted Press the or button repeatedly until the symbol is highlighted a appears in the display Turn the temperature selector a appears in the display a The cleaning aid starts after a few seconds The duration counts down in the display a Once the cleaning aid has run through to the end an audible signal sounds NoteIf flashes in the display when the cleaning aid is switched on this indicates that the cooking compart ment has not completely cooled down Switch off the appliance Wait until the cooking compartment has cooled down and switch the cleaning aid back on
• Page 21 - English - : Shelf supports en Recleaning the cooking compartment ATTENTION The prolonged presence of moisture in the cooking compartment leads to corrosion After using the cleaning aid wipe the cooking com partment clean and allow it to dry fully Open the appliance door and remove the remaining water with an absorbent sponge cloth Clean the smooth surfaces in the cooking compart ment with a dish cloth or a soft brush Stubborn residues can be removed using a stainless steel scouring pad Remove limescale with a cloth soaked in vinegar Then wipe with clean water and rub dry with a soft cloth including under the door seal If you are unable to remove stubborn dirt repeat the cleaning aid after the cooking compartment has cooled down To switch off turn the function selector to the zero setting Lower the appliance door and leave it open for ap prox one hour to allow the surfaces in the cooking compartment to dry thoroughly 17  Shelf supports To clean the rails and the cooking compartment or to replace the rails you can remove these 171 Detaching the shelf supports WARNINGRisk of burns The shelf supports get very hot Never touch the shelf supports when hot Always allow the appliance to cool down Keep children at a safe distance Lift the rail forwards slightly and detach it Pull the whole rail to the front and remove it 172 Attaching the shelf supports Notes The rails only fit on the right or left For both pullout rails ensure that you can pull them forwards and out First push the rail into the middle of the rear socket until the rail rests against the cooking compartment wall and then push this back Push the rail into the front socket until the rail also rests against the cooking compartment wall and then press this downwards 173 Removing the pullout rail WARNINGRisk of burns The shelf supports get very hot Never touch the shelf supports when hot Always allow the appliance to cool down Keep children at a safe distance ATTENTION The selfcleaning surfaces in the cooking compartment may be damaged by detaching and attaching the pull out rails Detach the rails before detaching or attaching the pullout rails Notes Depending on the appliance type you must change the basic settings for the telescopic rails for appli ances with rails and pullout rails quotBasic settingsquot Page14 If necessary you can use pullout rails on all levels

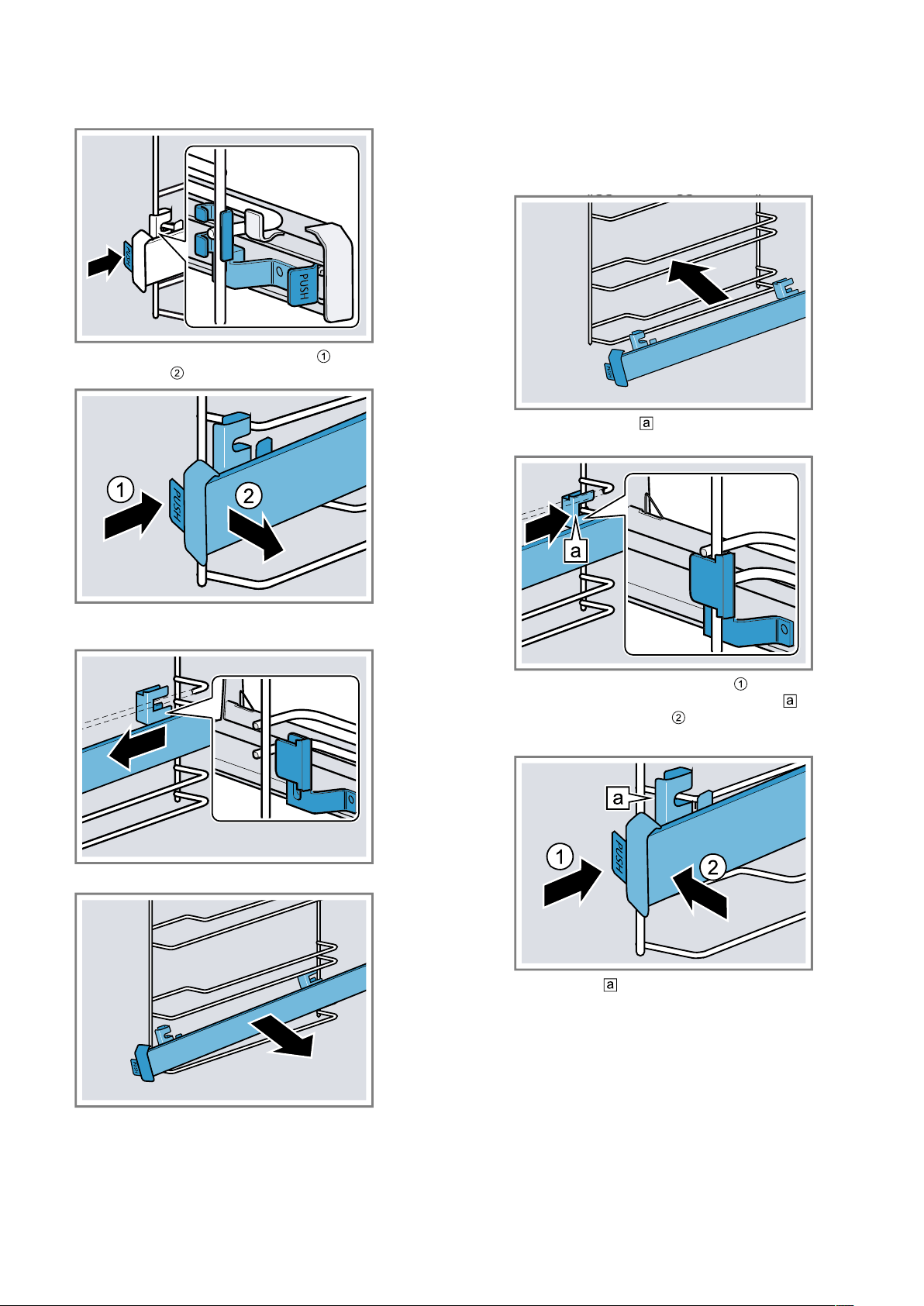

• Page 22 - English - : en Shelf supports Push on the tab marked PUSH behind the rail and push the rail to the rear Keep the PUSH tab pushed back and swing the rail outwards Pull the rail out towards the front until the retainer at the back unhooks Remove the pullout rail Clean the pullout rail quotCleaning productsquot Page17 174 Attaching the pullout rail NoteThe pullout rails only fit on the right or left Make sure when you fit them that you can pull them out to wards the front Insert the pullout rail between the two bars Push the retainer in between the lower and the upper bar Keep the PUSH tab pushed in and swing the pull out rail inwards until the front retainer is located between the two bars Release the PUSH tab a The retainer clicks into place
• Page 23 - English - : Appliance door en Pull the pullout rail out as far as it will go and slide it back in 18  Appliance door To ensure that your appliance retains its appearance and remains fully functioning for a long time you can detach the appliance door and clean it WARNINGRisk of injury If the hinges are not secured due to an incomplete lock they can snap shut with great force To detach or attach the appliance door always turn the two locks as far as they will go If the hinge snaps closed when detaching or attach ing the appliance door do not reach into the hinge call the aftersales service 181 Detaching the appliance door Requirements Have a torch ready Have a screwdriver ready Have a coin ready To make it easier to see the door lock shine the torch into the gap beside the appliance door Hold the screwdriver horizontally and use it to push the door lock black component on each side of the door upwards as far as it will go Door lock open Door lock closed

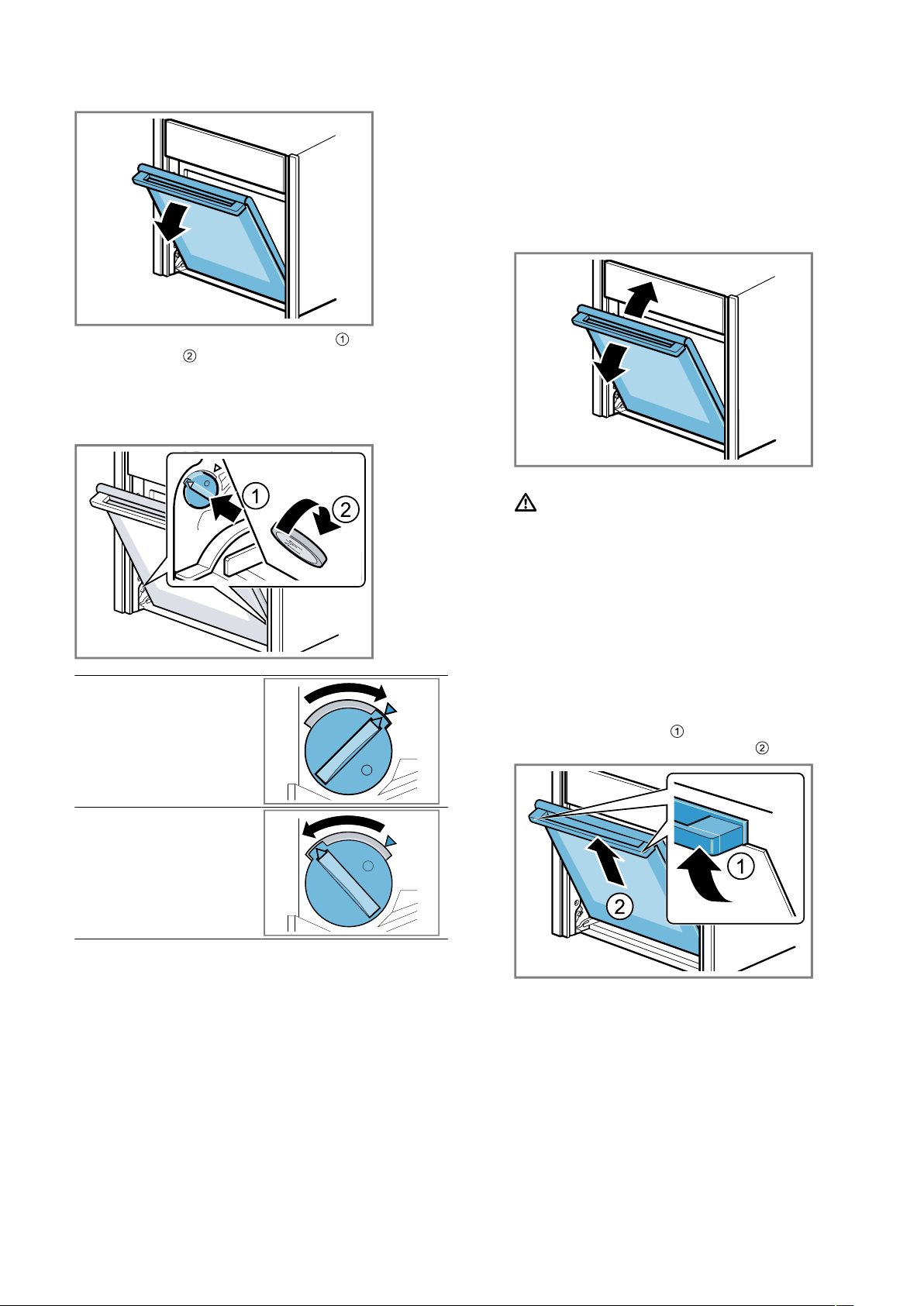

• Page 24 - English - : en Appliance door Open the appliance door approx 45 wide Insert the coin in the gap in the lock and rotate as far as it will go Turn the lock on the lefthand side in a clockwise direction Turn the lock on the righthand side in an anti clockwise direction Lefthand lock secured The arrows point to each other Lefthand lock released a The lock audibly engages ATTENTION Opening and closing the appliance door when it is in the lock position damages the door hinges Never force the appliance door open or closed If the door hinge has been damaged call the aftersales service Move the appliance door up and down until you hear a quiet click You can still only move the appli ance door slightly a The appliance door is in the lock position WARNINGRisk of injury The appliance door has a weight of 710 kg and may fall if it is not handled carefully Handle the appliance door carefully The door handle is not suitable for carrying the ap pliance door The door handle may break off Never carry the appliance door by the door handle Grab hold of the appliance door with both hands on the left and right to carry it Take hold of the appliance door with both hands one on the left and one on the right and rotate the door handle upwards until you are able to pull up the appliance door and remove it Set the appliance door down on a flat soft clean surface

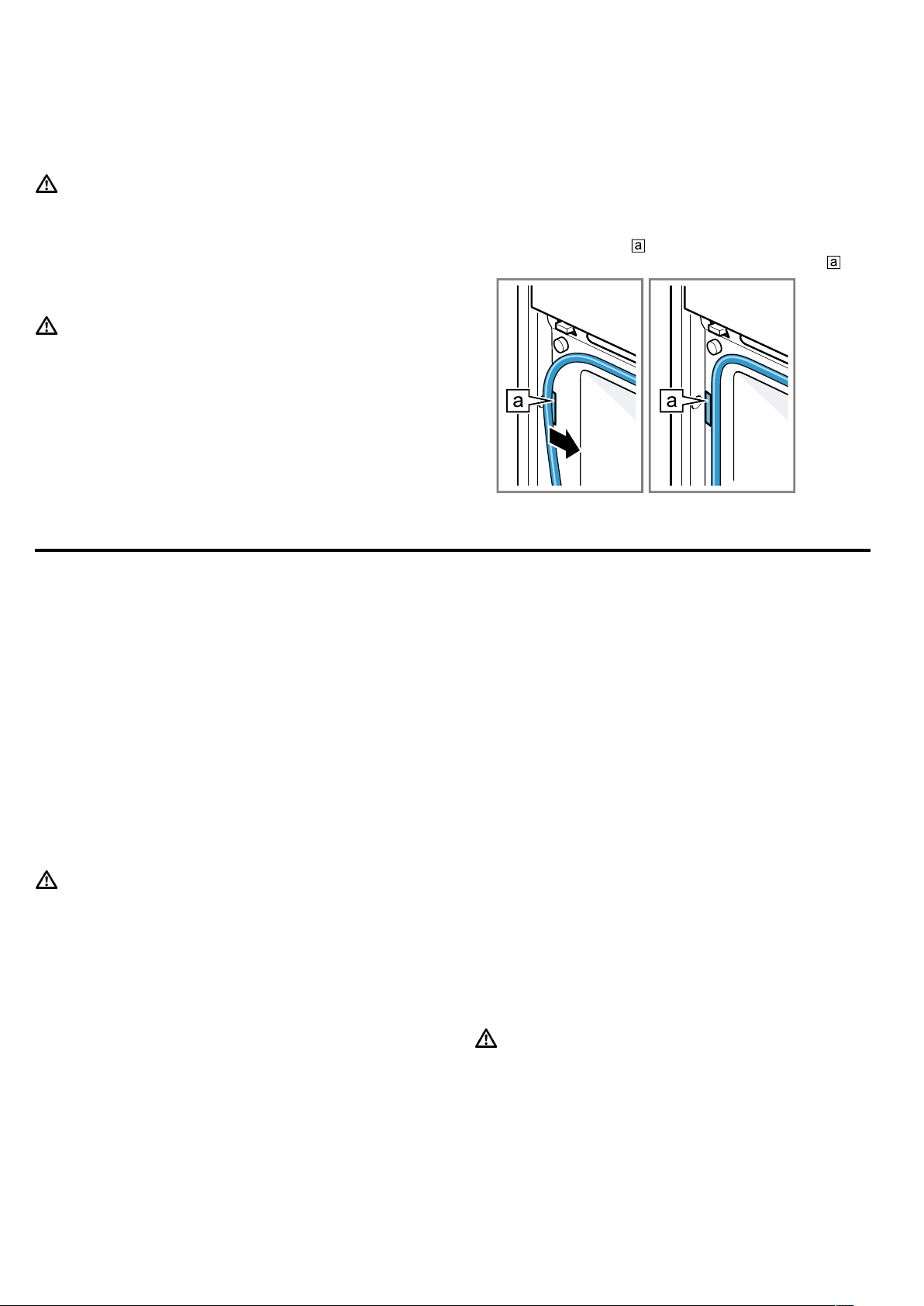

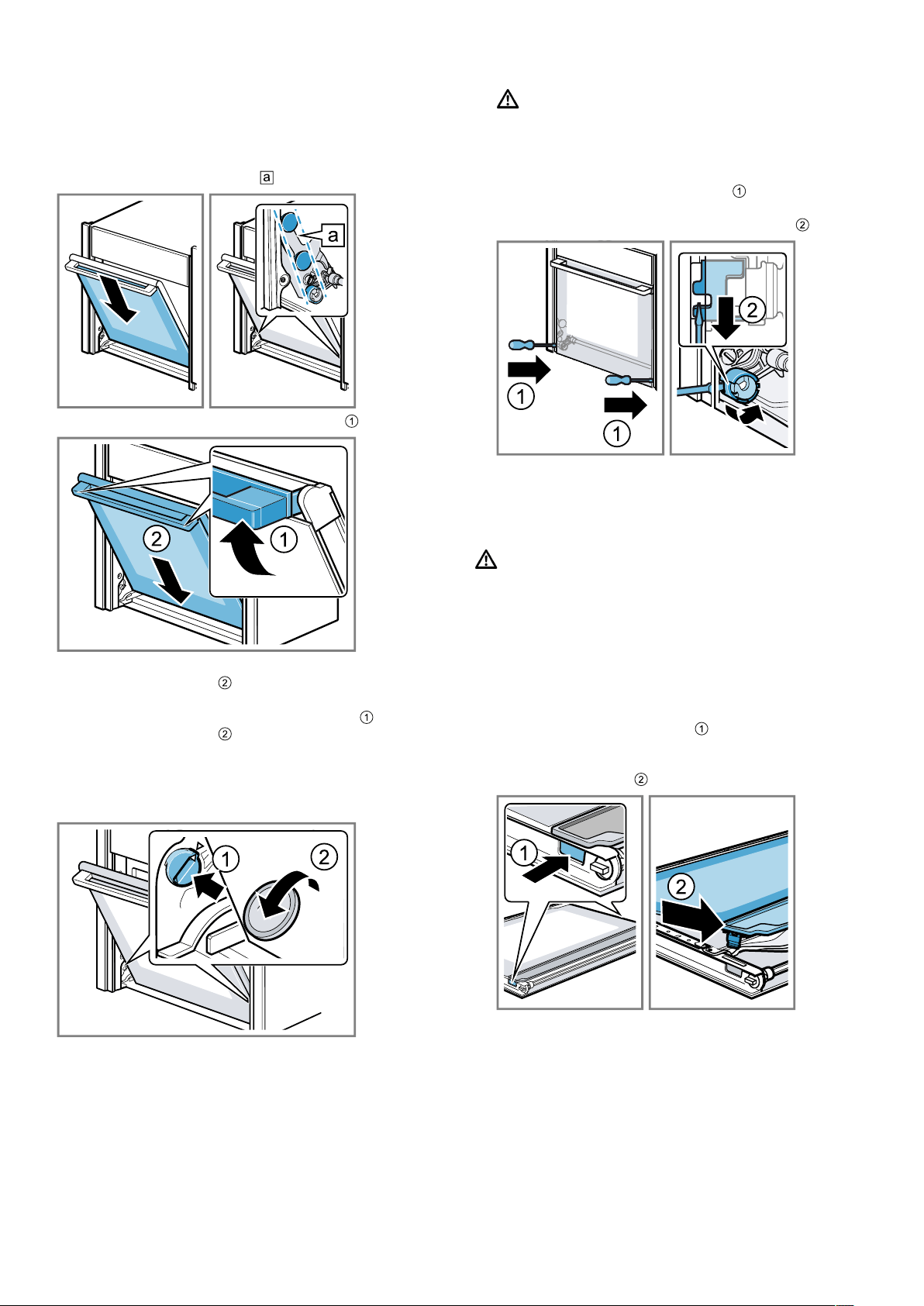

• Page 25 - English - : Appliance door en 182 Attaching the appliance door TipEnsure that the appliance door is not wedged at an angle and that it is properly fitted in place Attach the appliance door via the left and righthand guide rollers simultaneously Rotate the door handle upwards slightly a The appliance door will slide the short distance re maining to the bottom Use a coin to release both locks on the appliance door Insert the coin in the gap in the lock and ro tate as far as it will go Turn the lock on the lefthand side in an anti clockwise direction Turn the lock on the righthand side in a clock wise direction Open the appliance door slightly until you hear a quiet click and then close the appliance door WARNINGRisk of injury If the door locks are unsecured the appliance door may become detached After attaching the appliance door close the left and righthand door locks Hold the screwdriver horizontally and use it to push the door lock black component on each side of the door downwards as far as it will go a The door lock is closed 183 Removing the door panes To facilitate cleaning you can remove the door pane WARNINGRisk of injury Components inside the appliance door may have sharp edges Wear protective gloves RequirementThe appliance door is detached quotDetaching the appliance doorquot Page23 Lay the appliance door with the front side facing down on a flat surface that is soft and clean Push on the left and righthand side of the appli ance door from the outside until the inner pane is released on both sides Carefully lift the inner pane and remove it in the dir ection of the arrow

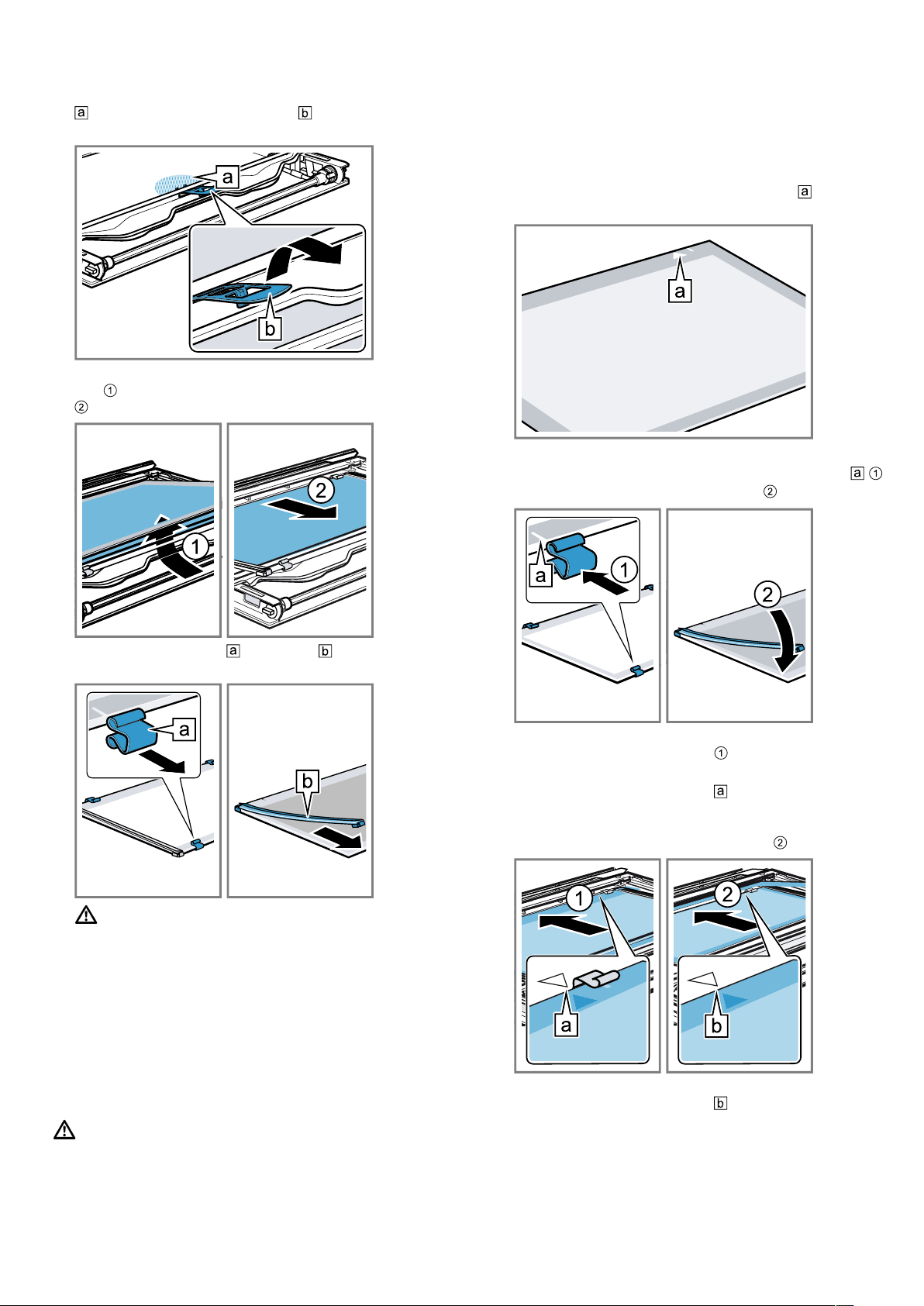

• Page 26 - English - : en Appliance door Push down on the intermediate pane in the area of and carefully lift the retainer until you are able to pull it out Lift the first and second intermediate panes from be low and remove them in the direction of the arrow Remove the spacers and seals for cleaning if required WARNINGRisk of injury Scratched glass in the appliance door may develop into a crack Do not use glass scrapers sharp or abrasive cleaning aids or harsh cleaning products Clean the door panes on both sides with glass cleaner and a soft cloth Dry the door panes and refit them quotFitting the door panesquot Page26 184 Fitting the door panes WARNINGRisk of injury If a door pane or appliance door has not been installed correctly this is dangerous Make sure that all of the door panes and the appli ance door have been correctly fitted before you switch the appliance back on again TipWhen fitting the door panes make sure that they are in the original order Insert the intermediate pane so that the arrow on the righthand side is pointing upwards Check the fit of the four spacers and two seals Place the spacers on the centre of the lines Secure the seals at the corners Insert the intermediate pane with spacers and seals in the direction of the arrow The arrow on the intermediate pane must line up with the arrow on the frame Insert the second intermediate pane without the spacers and seals and slide it in the direction of the arrow until it is inserted in the frame The arrow on the intermediate pane must line up with the arrow on the frame
• Page 27 - English - : Troubleshooting en Push down on the intermediate pane around slide the retainer in at an angle and push down until it clicks into place a The retainer has been inserted Insert the inner pane into the fixing rail at an angle towards the back Push the inner pane downwards until it locks into place 19  Troubleshooting You can rectify minor faults on your appliance yourself Read the troubleshooting information before contacting aftersales service This will avoid unnecessary costs WARNINGRisk of injury Improper repairs are dangerous Repairs to the appliance should only be carried out by trained specialist staff If the appliance is defective call Customer Service WARNINGRisk of electric shock Incorrect repairs are dangerous Repairs to the appliance should only be carried out by trained specialist staff Only use genuine spare parts when repairing the appliance If the power cord of this appliance is damaged it must be replaced by trained specialist staff 191 Malfunctions Fault Cause and troubleshooting The appliance is not working The circuit breaker is faulty Check the circuit breaker in the fuse box There has been a power cut Check whether the lighting in your kitchen or other appliances are working The appliance does not heat up lights up in the display Demo mode is activated Briefly disconnect the appliance from the power supply by switching the cir cuit breaker in the fuse box off and back on again Deactivate demo mode within fiveminutes by changing the basic setting to quotBasic settingsquot Page14 The appliance door cannot be opened lights up in the dis play The childproof lock locks the appliance door Use the button to deactivate the childproof lock quotChildproof lockquot Page13
• Page 28 - English - : en Troubleshooting Fault Cause and troubleshooting The appliance door cannot be opened lights up in the dis play The cleaning function locks the appliance door Allow the appliance to cool down until goes out in the display quotPyrolytic selfcleaning quot Page19 The time flashes in the display There has been a power cut Reset the time quotSetting the time on the clockquot Page12 The time does not appear in the display when the appliance is switched off The basic setting has been changed Change the basic setting for the time display quotBasic settingsquot Page14 lights up in the display and no settings can be made on the ap pliance Childproof lock is activated Use the button to deactivate the childproof lock quotChildproof lockquot Page13 flashes in the display and the appliance does not start The cooking compartment is too hot for the selected operation Switch off the appliance and allow it to cool down Restart the operation appears in the display The maximum cooking time has been reached To prevent an unwanted per manent operation the appliance automatically stops heating after several hours if the settings are unchanged Switch off the appliance You can configure new settings if required TipTo prevent the appliance from switching off when you do not want it to eg for an extremely long preparation time set a cooking time quotTimesetting optionsquot Page11 A message with appears in the display eg Electronics fault Press the button If required reset the time a If the fault was a oneoff the error message disappears If the error message appears again call the aftersales service Quote the ex act error message and the E no of your appliance quotCustomer Servicequot Page29 HomeConnect is not working cor rectly Different causes are possible Go to wwwhomeconnectcom 192 Replacing the oven light bulb If the light in the cooking compartment fails change the oven light bulb NoteHeatresistant 40watt 230 V halogen bulbs are available from the aftersales service or specialist retail ers Only use these bulbs Hold the new halogen bulbs only with a clean dry towel This increases the service life of the bulb WARNINGRisk of burns The appliance gets very hot Never touch the inside surfaces of the cooking com partment or the heating elements while they are hot Always allow the appliance to cool down Keep children at a safe distance WARNINGRisk of electric shock When changing the bulb the bulb socket contacts are live Before replacing the bulb unplug the appliance from the mains or switch off the circuit breaker in the fuse box Requirements The appliance is disconnected from the power sup ply The cooking compartment has cooled down You have a new halogen bulb to replace the old one Place a tea towel in the cooking compartment to prevent damage Turn the glass cover anticlockwise to remove it Pull out the halogen bulb without turning it Insert the new halogen lamp and press it firmly into the socket Make sure the pins are positioned correctly
• Page 29 - English - : Disposal en Depending on the appliance model the glass cover may have a sealing ring Put the sealing ring in posi tion Screw the glass cover on Take the tea towel out of the cooking compartment Connect the appliance to the power supply 20  Disposal Find out here how to dispose of old appliances cor rectly 201 Disposing of old appliance Valuable raw materials can be reused by recycling Unplug the appliance from the mains Cut through the power cord Dispose of the appliance in an environmentally friendly manner Information about current disposal methods are available from your specialist dealer or local author ity This appliance is labelled in accord ance with European Directive 201219EU concerning used elec trical and electronic appliances waste electrical and electronic equip ment WEEE The guideline determines the frame work for the return and recycling of used appliances as applicable throughout the EU 21  Customer Service If you have any queries on use are unable to rectify faults on the appliance yourself or if your appliance needs to be repaired contact Customer Service Functionrelevant genuine spare parts according to the corresponding Ecodesign Order can be obtained from Customer Service for a period of at least 10 years from the date on which your appliance was placed on the market within the European Economic Area NoteUnder the terms of the manufacturers warranty the use of Customer Service is free of charge Detailed information on the warranty period and terms of warranty in your country is available from our after sales service your retailer or on our website If you contact Customer Service you will require the product number ENr and the production number FD of your appliance The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website 211 Product number ENr and production number FD You can find the product number ENr and the pro duction number FD on the appliances rating plate The rating plate bearing these numbers can be found on the base of the appliance when you open the appli ance door Make a note of your appliances details and the Cus tomer Service telephone number to find them again quickly 22  How it works Here you can find the ideal settings for various types of food as well as the best accessories and cookware We have perfectly tailored these recommendations to your appliance 221 Cooking tips Observe this information when preparing food The temperature and cooking time depend on the amount of food and the recipe Settings ranges are specified for this reason Try using the lower values to start with The setting values apply to food placed in the cook ing compartment while the cooking compartment is still cold Do not slide the accessory into the cook ing compartment until it has finished preheating Remove any accessories that are not being used from the cooking compartment 222 Notes on baking When baking use the shelf positions indicated Baking on one level Height Deep baked goods or tin on wire rack 2 Flat baked goods or goods in a baking tray
• Page 30 - English - : en How it works Baking on two levels Height Universal pan Baking tray Baking tinsdishes on the wire rack First wire rack Second wire rack Height Baking on three levels Height Baking tray Universal pan Baking tray Notes When baking on several layers always use hot air Baked goods that are placed in the oven at the same time will not necessarily be ready at the same time Position baking tinsdishes either next to one an other or offset on different shelves so that they are not directly one above the other in the cooking com partment For best results we recommend using darkcol oured metal bakeware 223 Notes on roasting and grilling The setting values are based on the assumption that unstuffed chilled readytoroast poultry meat or fish is placed into a cold cooking compartment The larger the poultry meat or fish the lower the cooking temperature and the longer the cooking time Turn the poultry meat or fish after approx 12 to 23 of the time listed Add a little liquid to the poultry in the cookware Cover the bottom of the cookware with approx1 2cm of liquid When you turn poultry ensure that the breast side or skin side is underneath to begin with Cooking time calculation eg 2035 To calculate the cooking time assume 20 minutes per 500g of meat plus an extra 35minutes For 15kg the cooking time is then 95 minutes Cooking time range eg 1015 Your food will be ready within the specified range of time Roasting and grilling on the wire rack Roasting on the wire rack works particularly well for large poultry or for multiple pieces at the same time Depending on the size and type of the food to be roasted add up to 12litre water to the universal pan You can make a sauce from the juices that are caught This also means that less smoke is pro duced and the cooking compartment becomes less dirty Keep the appliance door closed when using the grill Never grill with the appliance door open Place the food to be grilled on the wire rack In ad dition slide the universal pan in at least one shelf position lower with the slanted edge facing the ap pliance door This means that any dripping fat is caught Roasting in cookware When preparing food in cookware with a lid the cook ing compartment remains cleaner Follow the manufacturers instructions for your roasting dishes Glass cookware is best Cookware without lid Use a deep roasting dish Place the cookware onto the wire rack If you do not have any suitable cookware use the universal pan Cookware with lid Place the cookware onto the wire rack Meat poultry and fish can also become crispy in a covered roasting dish Use a roasting dish with a glass lid Set a higher temperature WARNINGRisk of injury If hot glass cookware is placed on a wet or cold sur face the glass may shatter Place hot glass ovenware on a dry mat after cook ing WARNINGRisk of scalding Very hot steam may escape when the lid is opened after cooking Steam may not be visible depending on the temperature Lift the lid at the rear so that the hot steam can es cape away from you Keep children at a safe distance

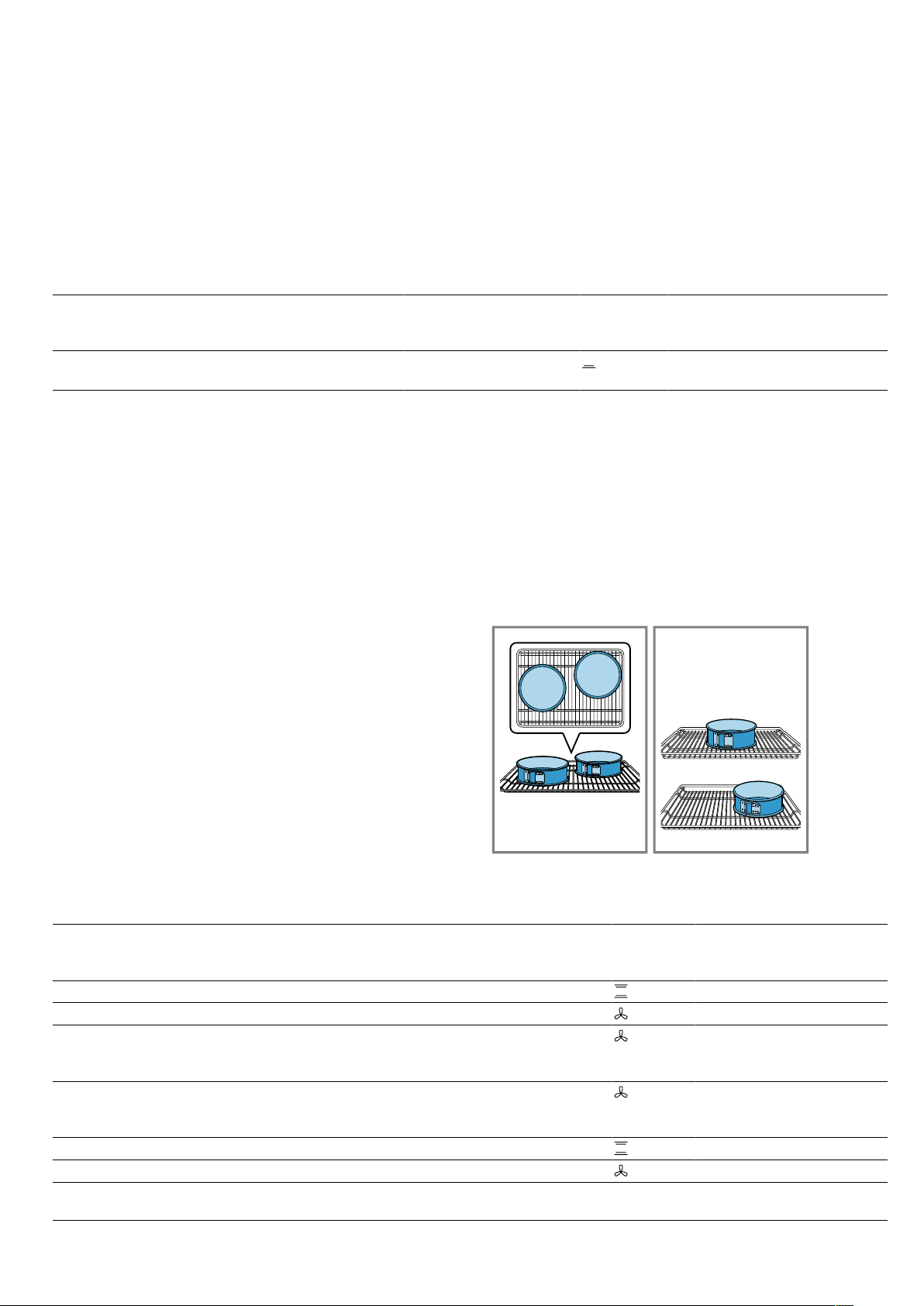

• Page 31 - English - : How it works en 224 Food selection Food Accessoriescookware Shelf pos ition Type of heating Temperature in Cgrill set ting Cooking time in mins Victoria sponge cake 2 pcs Ø20cm cake tin 2 150170 1525 Rich fruit cake Deep 23 cm diameter tin 2 140150 180210 Fruit pie 20 cm diameter plate or pie tin 2 160170 6070 Quiche Quiche tin darkcoated 3 180200 4055 White bread Loaf tin 1 x900g or 2 x450g 2 190210 2540 Scones Baking sheet on wire rack 3 190200 1015 Biscuits Baking sheet on wire rack 3 140160 1020 Small cakes 12cup tin 3 150 2535 Pavlova Baking sheet on wire rack 3 100110 150180 Yorkshire pudding 12cup tin 3 200220 1525 Pizza homemade Baking tray 3 190210 2030 Pizza homemade thin base Round pizza tray 2 250270 813 Victoria sponge cake 2 levels 4 pcs Ø20cm cake tin 31 150160 2030 Biscuits 2 or 3levels Baking sheet on wire rack 31 431 140160 1525 Beef top sidetop rump Cookware without lid 2 170 4030 Lamb leg on the bone Cookware without lid 2 160170 2515 Pork belly Cookware without lid 2 1 1 170180 2 250 1 3030 2 35 Chicken whole Wire rack 2 170180 2515 Turkey crown Wire rack 2 140150 2025 Turkey whole 48kg Wire rack 1 150160 1212 Fish braised whole 300g eg trout Cookware with lid 2 170190 2535 Diced meat beef pork lamb 500g Cookware with lid 2 140 120140 Complete meal with chicken Wire rack Wire rack Universal pan 41 180 then 200 York shire pud ding Chicken 2525 20 for York shire pud ding Bacon rashers Wire rack 3 1 side 45 2 side 34 Sausages thickness 24cm Wire rack 3 1015 Pork gammon joint Cookware without lid 2 170180 2520 Chicken whole Cookware without lid 2 170180 2020 Preheat the appliance Do not use the rapid heating function Preheat the appliance Preheat the appliance for five minutes Do not use the rapid heating function Preheat the appliance to 150C using HotAir Preheat the appliance for 20 minutes Do not turn the food Slide the universal pan underneath the wire rack Add the food after approx one hour Preheat the appliance for 5 minutes Preheat the appliance for three minutes Turn the food occasionally
• Page 32 - English - : en How it works 225 Yoghurt You can use your appliance to make your own yoghurt Preparing yoghurt Remove the accessories and shelf supports from the cooking compartment Pour the previously prepared yoghurt mixture into small containers eg into cups or small jars Cover the containers with foil e g with cling film Place the containers on the cooking compartment floor Set the appliance according to the recommended setting After making the yoghurt leave it to cool in the refri gerator Yoghurt Food Accessoriescookware Shelf position Type of heating Temperature in C Cooking time in mins Yoghurt Individual moulds Cooking compartment floor 4045 89 hrs 226 Test dishes These overviews have been produced for test institutes to facilitate appliance testing in accordance with EN 603501 Baking Observe this information when baking test dishes General information The settings apply to food that is placed into a cold cooking compartment Observe the notes about preheating in the tables These setting values apply without rapid heating When baking use the lower of the listed temperat ures to begin with Shelf positions Shelf positions for baking on two levels NoteItems that are placed in the oven on baking trays or in baking tinsdishes at the same time will not ne cessarily be ready at the same time Universal pan Level 3 Baking tray Level 1 Baking tinsdishes on the wire rack First wire rack Level 3 Second wire rack Level 1 Shelf positions for baking on three levels Baking tray Level 4 Universal pan Level 3 Baking tray Level 1 Baking with two springform cake tins Position baking tinsdishes either next to one another or offset on different shelves so that they are not dir ectly one above the other in the cooking compartment Baking Food Accessoriescookware Shelf pos ition Type of heating Temperature in C Cook ing time in mins Viennese whirls Baking tray 3 140150 2535 Viennese whirls Baking tray 3 140150 2030 Viennese whirls 2levels Universal pan Baking tray 3 1 140150 2535 Viennese whirls 3levels Universal pan Baking tray 4 3 1 130140 3555 Small cakes Baking tray 3 150 2535 Small cakes Baking tray 3 140 2535 Preheat the appliance for five minutes Do not use the rapid heating function Preheat the appliance Do not use the rapid heating function
• Page 33 - English - : Installation instructions en Food Accessoriescookware Shelf pos ition Type of heating Temperature in C Cook ing time in mins Small cakes 2levels Universal pan Baking tray 3 1 140 3040 Small cakes 3levels Universal pan Baking tray 4 3 1 140 3040 Hot water sponge cake Springform cake tin diameter 26 cm 2 160170 2535 Hot water sponge cake Springform cake tin diameter 26 cm 2 160170 3035 Hot water sponge cake 2levels Springform cake tin diameter 26 cm 3 1 150160 3550 Preheat the appliance for five minutes Do not use the rapid heating function Preheat the appliance Do not use the rapid heating function Grilling Food Accessoriescookware Shelf pos ition Type of heating Temperature in Cgrill setting Cook ing time in mins Toasting bread Wire rack 4 56 Do not preheat the appliance 23  Installation instructions Observe this information when installing the appliance  231 General installation instructions Follow these instructions before you start with the installation of the appliance The safe operation of this appliance can only be guaranteed if it has been installed to a professional standard in accordance with these installation instructions The in staller shall be liable for damages incurred as a result of incorrect installation Do not use the door handle for the trans port or installation Check the appliance for damage after un packing it Do not connect the appliance if it has been damaged in transit Before starting up the appliance remove any packaging material and adhesive film from the cooking compartment and the door Proceed in accordance with the installation sheets for installing accessories Fitted units must be heatresistant up to 95C and adjacent unit fronts up to 70C Do not install the appliance behind a decor ative door or the door of a kitchen unit There is a risk of overheating Cutout work on the units should be carried out before installing the appliance Remove any shavings Otherwise the correct opera tion of electrical components may be ad versely affected The mains socket for the appliance must either be located in the hatched area or outside of the area where the appliance is installed Any unsecured units must be secured to the wall using a standard bracket

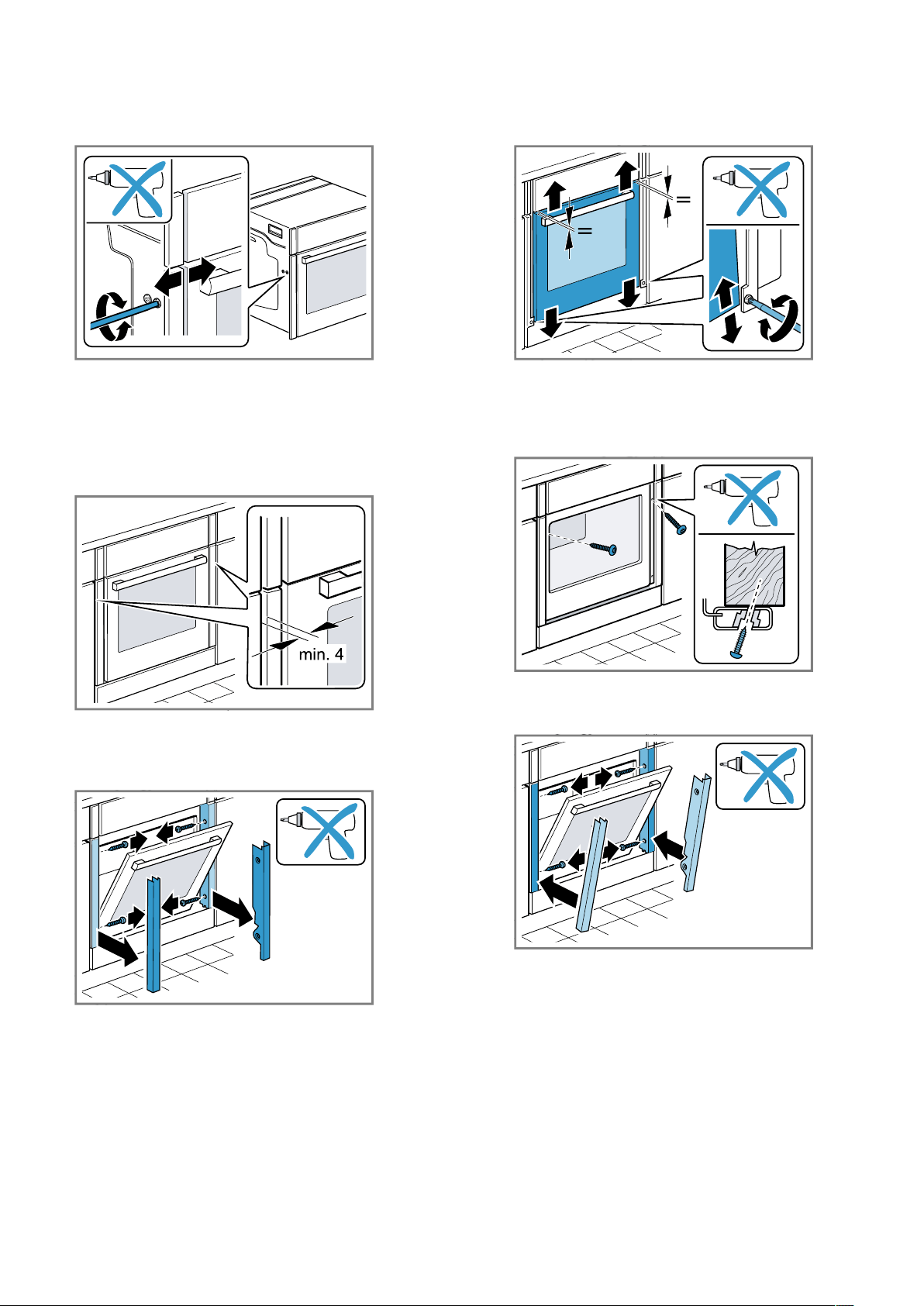

• Page 34 - English - : en Installation instructions Wear protective gloves so that you do not cut yourself Parts that are accessible dur ing installation may have sharp edges Dimensions of the figures in mm WARNINGRisk of fire It is dangerous to use an extended power cord and nonapproved adapters Do not use extension cables or multiple socket strips If the power cord is too short contact Cus tomer Service Only use adapters approved by the manu facturer ATTENTION Carrying the appliance by the door handle could break it The door handle cannot support the weight of the appliance Do not carry or hold the appliance by the door handle 232 Appliance dimensions You will find the dimensions of the appliance here 233 Installation below a worktop Observe the installation dimensions and the installation instructions when installing below a worktop To ventilate the appliance the intermediate floor must have a ventilation cutout In combination with induction hobs the gap between the worktop and appliance must not be sealed using additional strips The worktop must be secured to the builtin unit Observe any available installation instructions for the hob 234 Installing below a hob If the appliance is installed below a hob the following minimum dimensions must be adhered to including substructure if applicable The minimum worktop thickness is based on the re quired minimum clearance

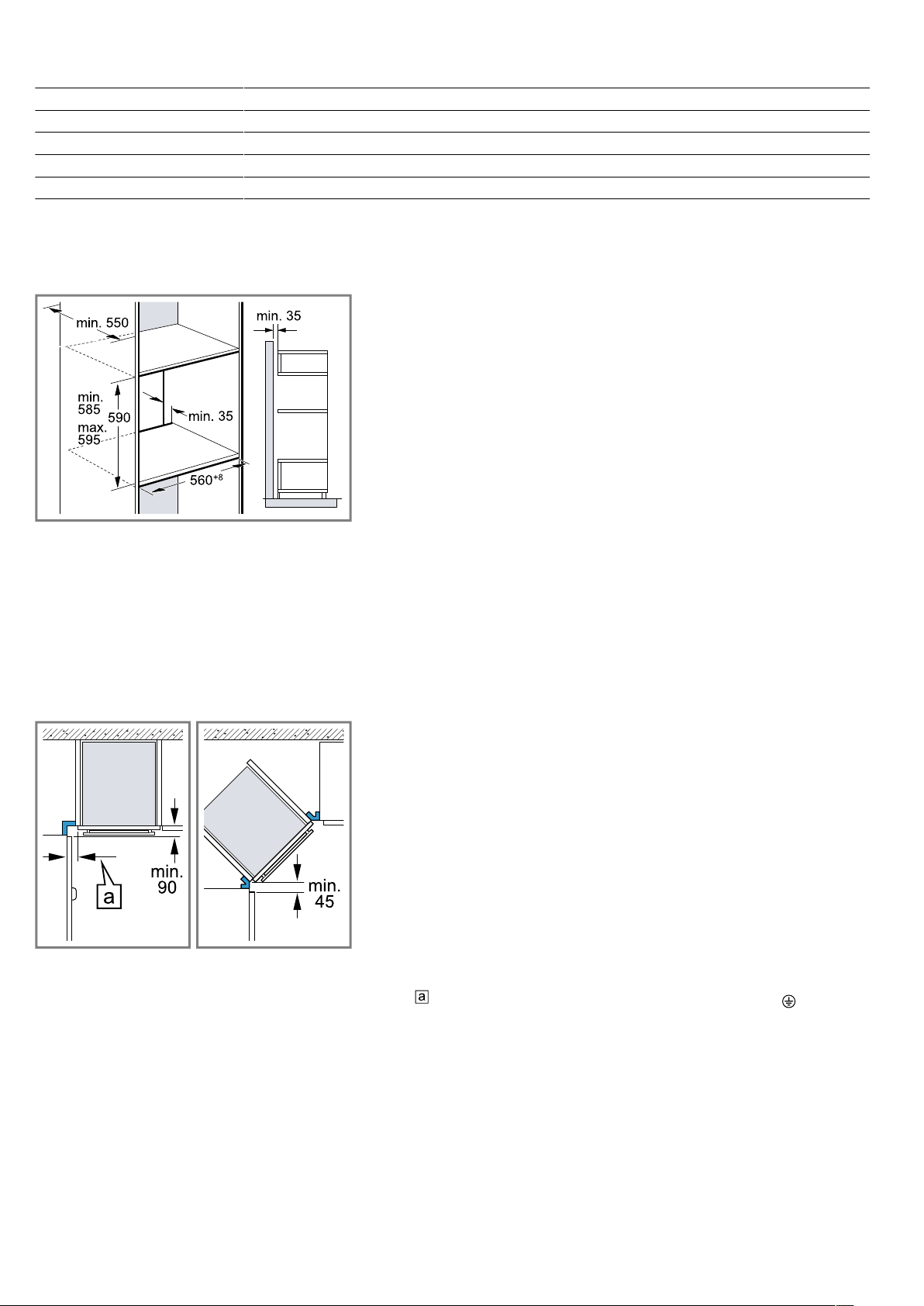

• Page 35 - English - : Installation instructions en Hob type a raised in mm a flush in mm b in mm Induction hob 37 38 5 Fullsurface induction hob 47 48 5 Gas hob 30 38 5 Electric hob 27 30 2 235 Installation in a tall unit Observe the installation dimensions and the installation instructions when installing in a tall unit To ventilate the appliance the intermediate floors must have a ventilation cutout If the tall unit has another back panel in addition to the element back panels this must be removed Only fit the appliance up to a height which allows accessories to be easily removed 236 Corner installation Observe the installation dimensions and the installation instructions when installing in a corner To ensure that the appliance door can be opened you must take the minimum dimensions into consid eration when installing in a corner The dimension is dependent on the thickness of the unit front and the handle 237 Electrical connection In order to safely connect the appliance to the elec trical system follow these instructions The appliance corresponds to protection class I and must only be operated with a protective earth con nection The fuse protection must correspond to the power rating specified on the appliances rating plate and to local regulations The appliance must be disconnected from the power supply whenever installation work is being carried out The appliance must only be connected using the power cable provided The power cable must be plugged in at the rear of the appliance until you hear a clicking sound A 3 m power cable can be obtained from the aftersales service The power cable must only be replaced with a cable from the original manufacturer This is available from aftersales service Contact protection must be ensured during the in stallation Electrically connect the appliance with the protective contact plug NoteThe appliance must only be connected to a pro tective contact socket that has been correctly installed Insert the plug into the protective contact socket When the appliance is installed the mains plug of the power cord must be freely accessible If free ac cess to the mains plug is impossible an allpole isolating switch must be integrated into the perman ent electrical installation in accordance with the in stallation regulations Electrically connecting an appliance without a protective contact plug NoteOnly a licensed professional may connect the ap pliance Damage caused by incorrect connection is not covered under the warranty An allpole isolating switch must be integrated into the permanent electrical installation according to the install ation regulations Identify the phase and neutral conductors in the socket The appliance may be damaged if it is not connec ted correctly Connect the hob in accordance with the connection diagram See the rating plate for the voltage Connect the wires of the mains power cable accord ing to the colour coding Greenyellow Protective conductor Blue Neutral conductor Brown Phase external conductor 238 Installing the appliance NoteDo not use a cordless screwdriver to secure the panels This may damage the panels
• Page 36 - English - : en Installation instructions If required you can adjust the gap between the ap pliance door and the panels using the adjustment screws on the left and right Turning the screws clockwise makes the gap larger Turning the screws anticlockwise makes the gap smaller Push the appliance in fully Do not kink or trap the connecting cable or route it over sharp edges Centre the appliance There must be an air gap of at least 4mm between the appliance and adjacent unit fronts Open the appliance door slightly and unscrew pan els on the left and right Close the appliance door If required you can adjust the height of the appli ance door using the adjustment screws on the left and right Turning the screws clockwise makes the gap smal ler Turning the screws anticlockwise makes the gap larger Screw the appliance into place Open the appliance door slightly then refit the pan els and screw them in place first at the top and then at the bottom NoteThe gap between the worktop and the appliance must not be closed by additional battens Thermal insulation strips must not be fitted to the side panels of the surround unit 239 Removing the appliance Disconnect the appliance from the power supply Undo the fastening screws Lift the appliance slightly and pull it out completely
• Page 40 - English - : ConstructaNeff VertriebsGmbH CarlWeryStraße 34 81739 München GERMANY 9001580262 en Valid within Great Britain Imported to Great Britain by BSH Home Appliances Ltd Grand Union House Old Wolverton Road Wolverton Milton Keynes MK12 5PT United Kingdom
