Ed : 03/17 Rev : 00
INSTRUCTION
____________________________________

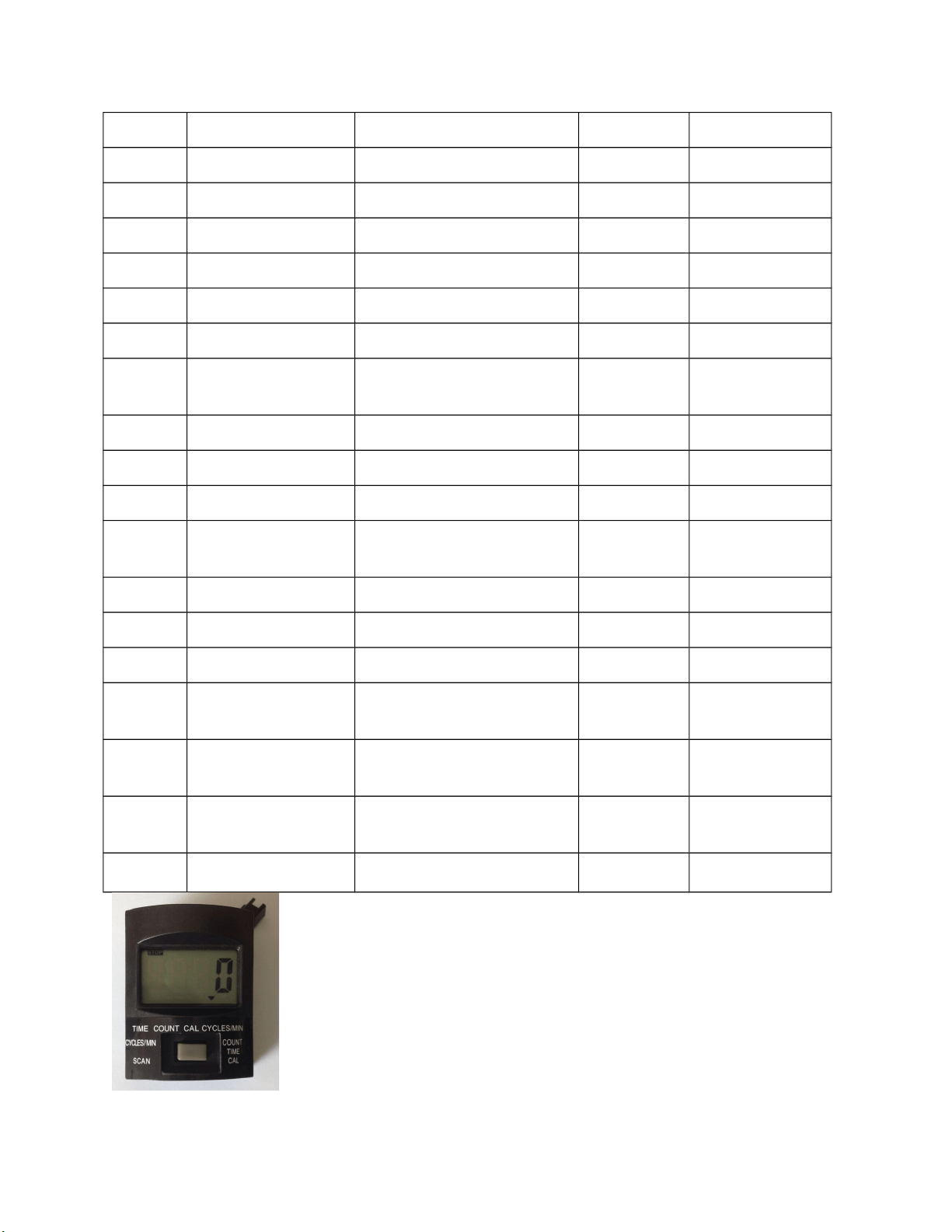

Parts illustration
Item No: Part Name Specification QTY remark
01 Fixed bracket 30*30*1.2*900mm 1pc
02 Fixed bracket 30*30*1.2*435mm 1pc
__________________________________
3
____________________________________
03 Foot tube φ38*1.0*340 2pcs
04 Linking piece 2pcs
05 Rotate the arm 1pc
06 Rotate the foot 1pc
07 Set foot 4pcs
08 Adjusting screw Used for Rotate the arm 1pc small
09 Adjusting screw Used for Rotate the foot 1pc big
10
Semicircle socket head
screw
M8*45 2pcs
11 gasket φ8gasket 6pcs
12 Locking nut M8 6pcs
13 carriage screws M8*50 4pcs
14
Semicircle socket head
screw
M10*45 2pcs
15 gasket Φ10gasket 4pcs
16 Locking nut M10 2pcs
17 Pulling bolt to adjust φ8*45 1pc
10
Semicircle socket head
screw
M8*45 1pc
Optional
accessories
11 gasket φ8gasket 1pc
Optional
accessories
12 Locking nut M8 1pc
Optional
accessories
18 counter 1pc
__________________________________
4
____________________________________
EXERCISE MONITOR INSTRUCTION MANUAL
SPECIFICATIONS:
TIME------------------------------------------------------------------------00:00---99:59MIN
COUNT---------------------------------------------------------------------------0---999 (in Total)
CALORIE(CAL)-------------------------------------------------------------- --0---999.9KCAL
CIRCLE/MIN ------------------------------------------------------------- 0---999 per minute
KEY FUNCTIONS:
MODE(SELECT/RESET):This key lets you to select and lock on to a particular function you want.
To choose the SCAN or LOCK if you do not want the scan mode,press the MODE
key when the pointer on the function you want which begins blinking.
FUNCTIONS:
TIME:Press the MODE key until pointer lock on to TIME.The total working time
will be shown when starting exercise.
COUNT:Press the MODE key until pointer lock on to COUNT.Automatically accumulates workout count when
starting exercise.
CAL(CALORIE):Press the MODE key until pointer lock on to CALORIE.the calorie burned will be displayed when
starting exercise.
CIRCLE/MIN: Press the MODE key until pointer lock on to CIRCLE/MIN.
Display current speed during working time.(Speed here means how many circles per minutes)
SCAN:Automatically display changes every 4 seconds.
Installation Instruction:
__________________________________
5
____________________________________

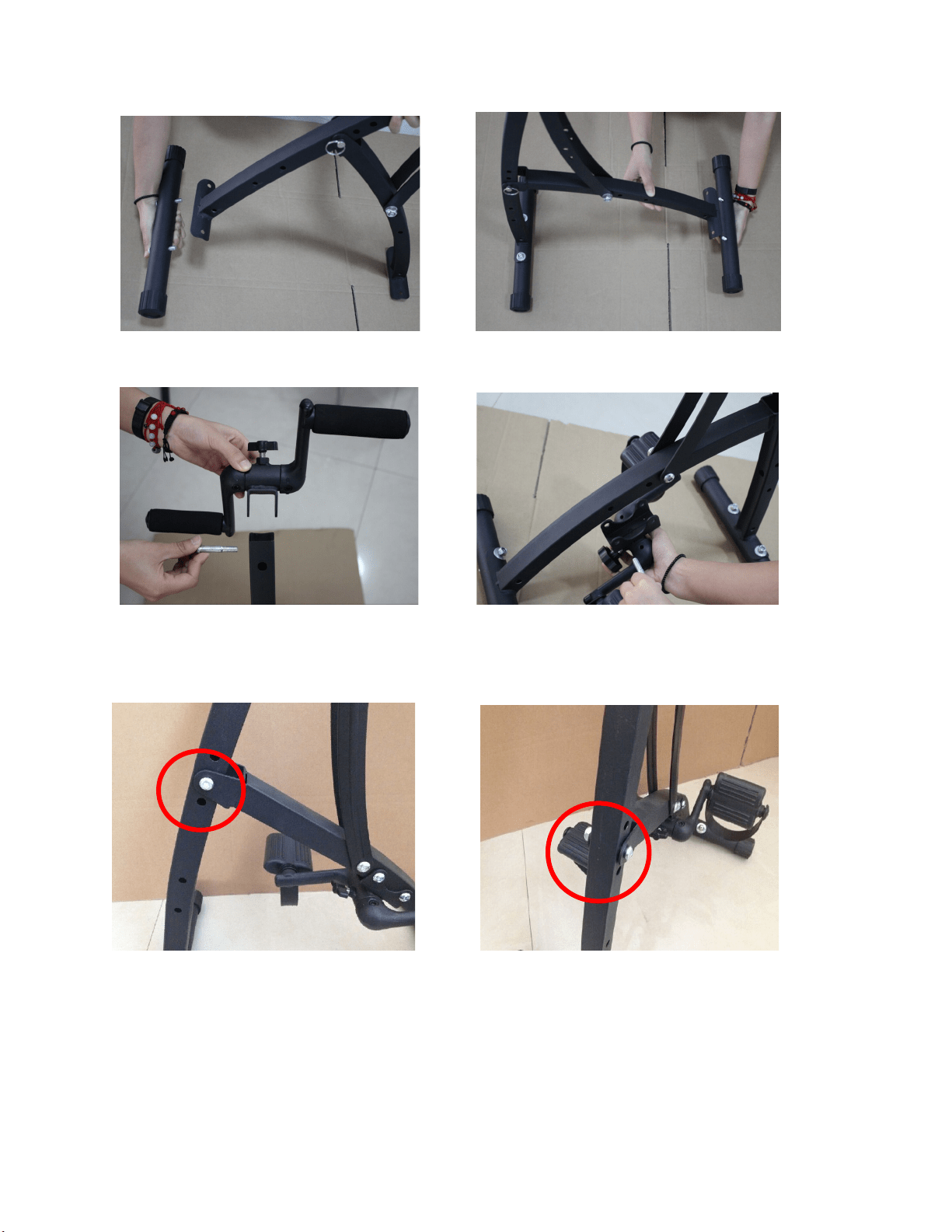

Fixed base Fixed base
Install the hand bar Install the pedal
A. use the screw to fix the pedal
__________________________________
6
____________________________________

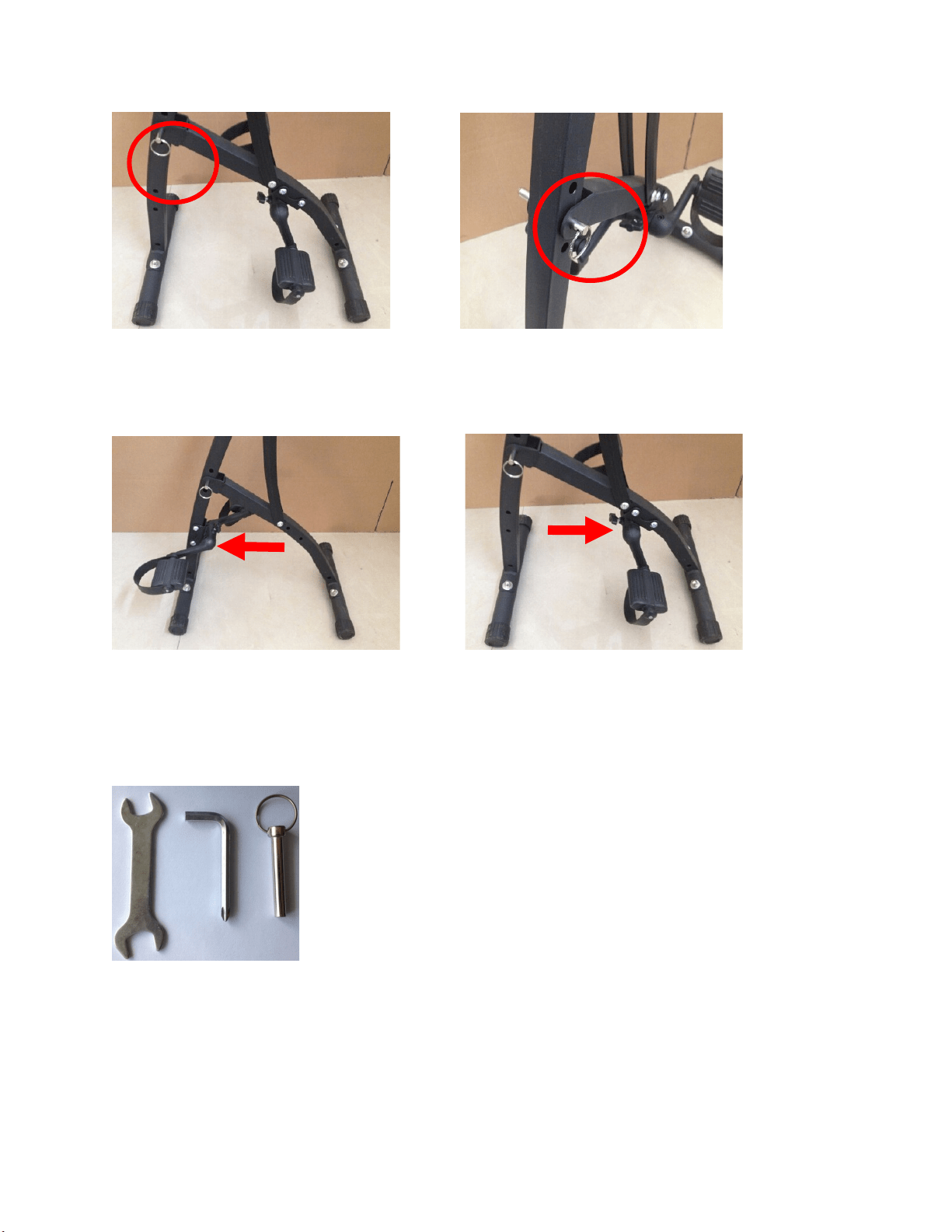

B. Use the pulling bolt #17 or screws sets #10/11/12 to fix the pedal
The location of the foot pedal
The pedals could be as per user's situation to install in the front or be installed
in the rear.
Tools
Multi Wrench 15-17#
Inner hexagon spanner 5#
Pulling bolt to adjust φ8*45
__________________________________
7
GARLANDO SPA
Via Regione Piemonte, 32 - Zona Industriale D1
15068 - Pozzolo Formigaro (AL) - Italy
www.evert.it - info@evert.it
