Ed : 03/17 Rev : 00

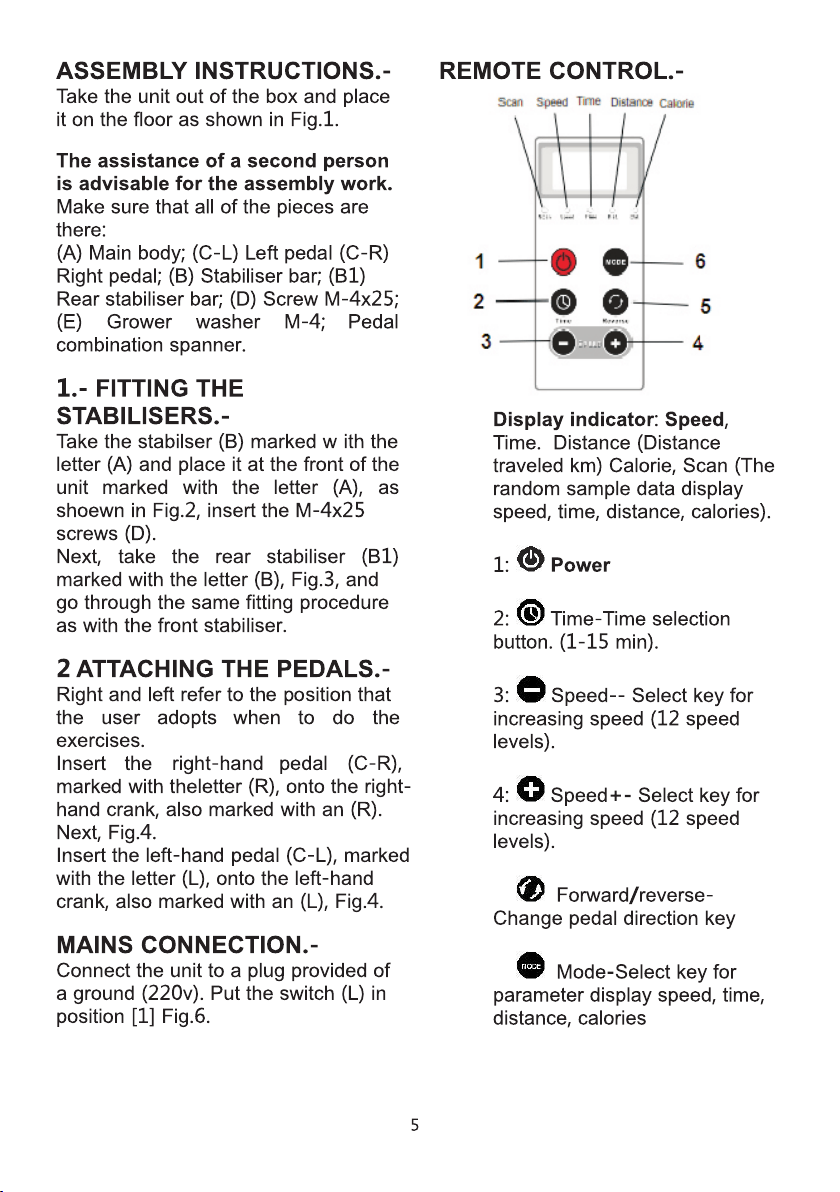

INSTRUCTION
3
4
5
5:
6:
17
18

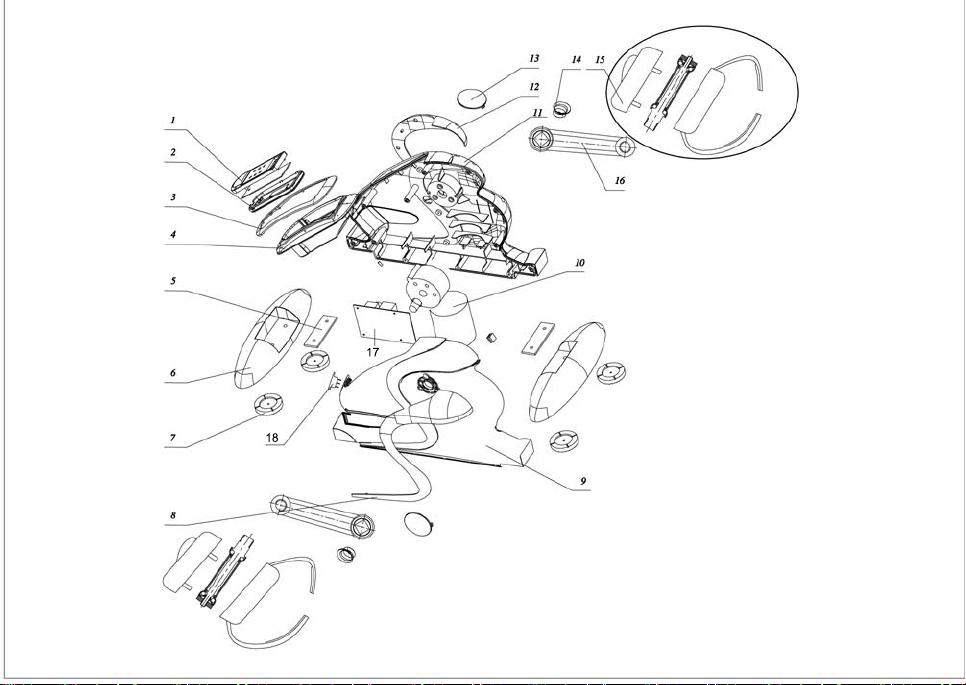

SPARE PARTS LIST :
NO.
DISCRIPTION
QUANTITY
1
CONTROLLER UPPER COVER
1
2
CONTROLLER BEARING COVER
1
3
CONTROLLER HOLDER --UP
1
4
CONTROLLER HOLDER --BEARING
1
5
FIXED BLOCK
2
6
BODY SUPPORTING
2
7
FOOT PAD
4
8
"S" BODY EXTERIOR --LEFT
1
9
MAIN BODY --LEFT
1
10
MOTOR
1
11
MAIN BODY --RIGHT
1
12
"S" BODY EXTERIOR --RIGHT
1
13
BODY COVER
2
14
CRANK COVER
2
15
PEDAL
2
16
CRANK
2
17
PC BOARD
1
18
POWER SWITCH
1
GARLANDO SPA
Via Regione Piemonte, 32 - Zona Industriale D1
15068 - Pozzolo Formigaro (AL) - Italy
www.evert.it - info@evert.it
