Ed : 03/17 Rev : 00
INSTRUCTION
2
11
9
6
12
13
7
5
3
10
1

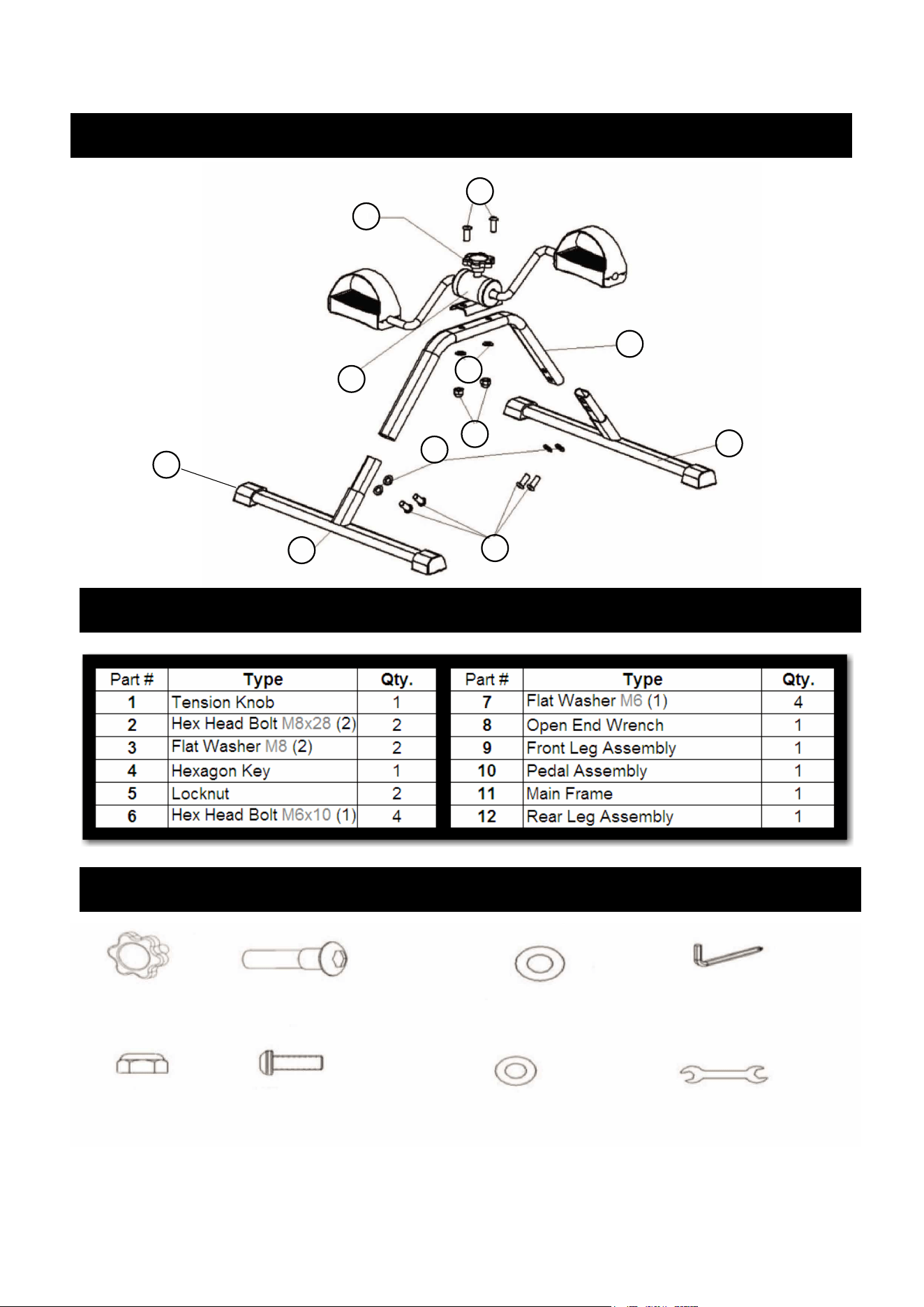

Overview Diagram
Parts List
Hardware
3
1. Tension Knob 2. Hex Head Bolt M8x28 3. Flat Washer M8 4. Hexagon Key
5. Locknut 6. Hex Head Bolt M6x10 7. Flat Washer M6 8. Open End Wrench

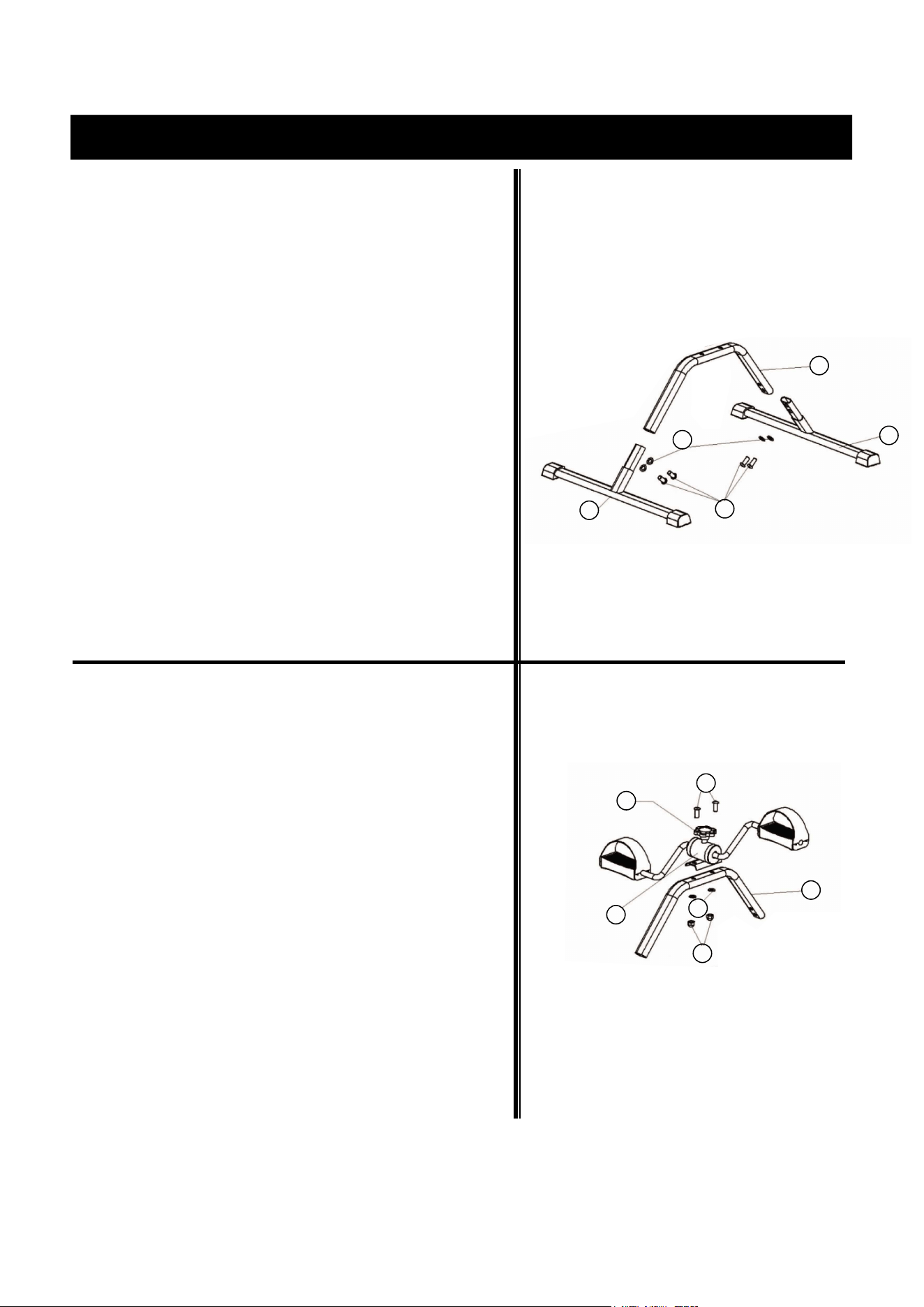

Assembly Instructions
Step 1:
Insert the Front Leg Assembly (9) into
the Main Frame (11). Then attach by
installing two Hex Head Bolts (6) and
two Flat Washers (7).
Insert the Rear Leg Assembly (12)
into the Main Frame(11), Then attach
by installing
two sets of Hex Head
Bolts(6)
and two Flat Washers(7).
Step 2:
Attach the Pedal Assembly (10) onto
the Main Frame (11), by using two
Hex Head Bolts (2), two Flat Washers
(3) and two Lock Nuts (5)
Insert Tension Knob (1) into Pedal
Assembly (10)
4
11
9
6
12
7
2
11
5
3
10
1
