Haier QFD15ESSNWW 4.3 cu.ft. Capacity Smart 24" Frontload Electric Dryer

Owner’s Manual & Installation Instructions

For QFD15ESSNWW. Series: QFD15
Additionally, the document applies to other Haier models: QFD15*

PDF File Manual, 100 pages, Read Online | Download pdf file

QFD15ESSNWW photo
background
Dryers
Sécheuses
Secadoras
49-3000195 06-19 GEA
QFD15 Series/Séries/Serie
Owner's Manual &
Installation Instructions
Manuel d'utilisation et
Instruction d'installation
Manual del propietario y
Instrucciones de instalación
Loading page 2...
Loading page 3...
Loading page 4...
Loading page 5...
Loading page 6...
Loading page 7...
Loading page 8...
Loading page 9...
Loading page 10...
Loading page 11...
Loading page 12...
Loading page 13...
Loading page 14...
Loading page 15...
Loading page 16...
Loading page 17...
Loading page 18...
Loading page 19...
Loading page 20...
Loading page 21...
Loading page 22...
Loading page 23...
Loading page 24...
Loading page 25...
Loading page 26...
Loading page 27...
Loading page 28...
Loading page 29...
Loading page 30...
Loading page 31...
Loading page 32...
Loading page 33...
Loading page 34...
Loading page 35...
Loading page 36...
Loading page 37...
Loading page 38...
Loading page 39...
Loading page 40...
Loading page 41...
Loading page 42...
Loading page 43...
Loading page 44...
Loading page 45...
Loading page 46...
Loading page 47...
Loading page 48...
Loading page 49...
Loading page 50...
Loading page 51...
Loading page 52...
Loading page 53...
Loading page 54...
Loading page 55...
Loading page 56...
Loading page 57...
Loading page 58...
Loading page 59...
Loading page 60...
Loading page 61...
Loading page 62...
Loading page 63...
Loading page 64...
Loading page 65...
Loading page 66...
Loading page 67...
Loading page 68...
Loading page 69...
Loading page 70...
Loading page 71...
Loading page 72...
Loading page 73...
Loading page 74...
Loading page 75...
Loading page 76...
Loading page 77...
Loading page 78...
Loading page 79...
Loading page 80...
Loading page 81...
Loading page 82...
Loading page 83...
Loading page 84...
Loading page 85...
Loading page 86...
Loading page 87...
Loading page 88...
Loading page 89...
Loading page 90...
Loading page 91...
Loading page 92...
Loading page 93...
Loading page 94...
Loading page 95...
Loading page 96...
Loading page 97...
Loading page 98...
Loading page 99...
Loading page 100...

Other documents for Haier QFD15ESSNWW

The following documents are available:
User Manual Installation Instruction
  • Installation Instructions - (English) Download
Specification
  • Specifications Sheet - (English) Download
Other Documents
  • ENERGY STAR® Certified - (English) Download
Photos

Specifications

Owner’s Manual & Installation Instructions - Transcript

  • Page 1 - Spanish - : Dryers Sécheuses Secadoras 493000195 0619 GEA QFD15 SeriesSériesSerie Owners Manual amp Installation Instructions Manuel dutilisation et Instruction dinstallation Manual del propietario y Instrucciones de instalación
  • Page 2 - English - : 2 493000195 ENGLISH RECORD KEEPING Thank you for purchasing this Haier Appliances product This Owners Manual will help you get the best performance from your new dryer For future reference record the model and serial number located on a label on the front of the dryer behind the door Staple your proof of purchase to this manual to aid in obtaining warranty service if needed Model number Serial number Date of purchase TABLE OF CONTENTS SAFETY INFORMATION 3 USING THE DRYER 4 Getting Started 4 Loading 8 Features 8 CARE AND CLEANING 9 INSTALLATION INSTRUCTIONS 11 Stacking Optional 24 Reversing The Door Swing Optional 26 TROUBLESHOOTING TIPS 28 LIMITED WARRANTY 31 CONSUMER SUPPORT 32
  • Page 3 - English - : 493000195 3 ENGLISH SAFETY INFORMATION READ AND SAVE THESE INSTRUCTIONS IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE To reduce the risk of fire explosion electric shock or injury to persons when using your appliance follow basic precautions including the following ʄ Read all instructions before using the appliance ʄ DO NOT dry articles that have been previously cleaned in washed in soaked in or spotted with gasoline drycleaning solvents or other flammable or explosive substances as they give off vapors that could ignite or explode ʄ DO NOT place items exposed to cooking oils in your dryer Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire To reduce the risk of fire due to contaminated loads the final part of the tumble dryer cycle occurs without heat cool down period Avoid stopping a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated ʄ DO NOT allow children to play on or in this appliance Close supervision of children is necessary when this appliance is used near children ʄ Before the appliance is removed from service or discarded remove the door to the drying compartment ʄ DO NOT reach into the appliance if the drum is moving ʄ DO NOT install or store this appliance where it will be exposed to the weather ʄ DO NOT tamper with controls ʄ DO NOT climb or stand on this unit ʄ DO NOT repair or replace any part of this appliance or attempt any servicing unless specifically recommended in the usermaintenance instructions or in published userrepair instructions that you understand and have the skills to carry out ʄ Follow all fabric care instructions and warnings to prevent melting of garments or damage to the appliance ʄ DO NOT use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or product ʄ DO NOT dry articles containing foam rubber or similarly textured rubberlike materials ʄ Clean lint screen before or after each load ʄ DO NOT operate the dryer without the lint filter in place ʄ DO NOT store combustible materials gasoline or other flammable liquids near the dryer Keep area around the exhaust opening and adjacent surrounding areas free from the accumulation of lint dust and dirt ʄ The interior of the appliance and exhaust duct should be cleaned periodically by qualified service personnel ʄ Unplug the appliance or turn off the circuit breaker before servicing Pressing the Power or StartPause button DOES NOT disconnect power ʄ DO NOT operate this appliance if it is damaged malfunctioning partially disassembled or has missing or broken parts including a damaged cord or plug ʄ DO NOT spray any type of aerosol into on or near dryer at any time DO NOT use any type of spray cleaner when cleaning dryer interior Hazardous fumes or electrical shock could occur ʄ See ELECTRICAL CONNECTION located in the Installation Instructions for grounding instructions WARNING
  • Page 4 - English - : 4 493000195 ENGLISH USING THE DRYER Throughout this manual features and appearance may vary from your model Step 1 To reduce the risk of fire electric shock or injury to persons read the IMPORTANT SAFETY INFORMATION before operating this appliance WARNING If the screen is dark press and hold the power button for 2 seconds to wake up the display Step 2 Step 3 Step 4 Select a dry cycle Defaults are set for each dry cycle These default settings can be changed See control settings for more information Press and hold the start button for 1 second Loosely add items Close door NOTE Dryer will not start with door open Instructions can also be found by touching the document icon on the cycle selection screen in the top right corner Controls CONDENSER DRYERCONDENSER DRYER AB I C D E F G H J
  • Page 5 - English - : 493000195 5 ENGLISH USING THE DRYER Power Press and hold for 2 seconds to wake up the display If the display is active press and hold for 2 seconds to turn the dryer off NOTE Pressing the power does not disconnect the appliance from the power supply Dry Cycles The dry cycle controls the cycle time for the drying process The chart below will help you match the dry setting with the loads B A Mixed Loads For loads consisting of cottons and poly blends Cottons For cottons and most linens NOTE ENERGY STAR models are tested on Cottons with default settings Heavy duty For large coats bed spreads mattress covers sleeping bags blankets comforters jackets small rugs and similar large and bulky items Towels Use for towels OR sheets It is not recommended to mix towels and sheets in the same load Casuals For wrinklefree permanent press and delicate items and knits Active Wear Clothing worn for active sports exercise and some casual wear Fabrics include new technology finishes and stretch fibers such as Spandex Also for clothing labeled Easy Care or Perma Press For wrinklefree and permanent press items Sanitize Reduces certain types of bacteria by 996 including Staphylococcus aureus and Pseudomonas aeruginosa The antibacterial process occurs when high heat is used during a portion of this drying cycle Quick Dry For small loads that are needed in a hurry such as sports or school uniforms Can also be used if the previous cycle left some items damp such as collars or waistbands Delicates For lingerie and specialcare fabrics Dewrinkle For removing wrinkles from items that are dry or slightly damp This cycle is not recommended for delicate fabrics Warm Up Provides 25 minutes of warming time to warm up clothes Air Fluff Provides 30 minutes of tumbling time without heat Rack Dry For drying delicate items without tumbling use drying rack accessory Place items flat on the drying rack such as wool sweaters and delicate fabrics Dry with low heat Baby Care For drying childrens clothes and other small items Jeans For drying denim and heavy canvas textiles Timed Dry Use to set your own dry time Time Dry is also recommended for small loads To use 1 Select Timed Dry cycle 2 Select the drying Time in 10minute increments up to 2 hours and 30 minutes 2 Select the dry Temp 3 Close the door 4 Press and hold Start Display and Status Lights The display shows the approximate time remaining until the end of the cycle In addition this display will show the dryer status Status Dr y Dam pC ool Controls lock feature Clean Filter Time to clean the filter See the Care and Cleaning section Damp Alert When Damp Alert option is selected and clothes have dried to a damp dryness level indicator will appear and dryer will beep Estimated Time Remaining Display shows the estimated time remaining until set cycle is completed Ext Tumble Indicates the Extended Tumble feature is set Delay Indicates Delay Dry set time is selected Low Air Indicates decrease in performance of the dryer and increase risk of lint accumulation in the ducts and dryer Indicates the My Cycle feature is set eDry Shows eDry setting selected Temp Shows High Medium Low or No Heat temperature setting selected Level Shows Extra Dry Dry or Damp dryness setting selected Delay Dry Indicates Delay Dry is set time is selected
  • Page 6 - English - : 6 493000195 ENGLISH USING THE DRYER Level The sensor continuously monitors the amount of moisture in the load When the moisture in your clothes reaches your selected dry level the dryer will stop NOTE Sensor dry Level can be used with all cycles except Timed Dry Air Fluff Rack Dry Warm Up and Dewrinkle Extra Dry Use for heavyduty fabrics or items that should be very dry such as towels Dry Use for normal dryness level suitable for most loads This is the preferred cycle for energy saving Less Dry Use for lighter fabric ideal for ironing Damp For leaving items partially damp Delay Dry Use to delay the start of your dryer 1 Choose your dry cycle and any options 2 In the Delay Dry section You can change the delay time in 1 hour increments up to 24 hours 3 Press and hold the start icon for 1 second to start the countdown The selected delay time will not be shown on the screen Only the estimated cycle time will be visible Once the delayed time period has been completed the selected dry cycle will start NOTE If the door is opened while the dryer is in Delay Dry the countdown time will not restart unless the door is closed and Start icon has been pressed again D E Temp Temperature You can change the temperature of your dry cycle High For regular to heavy cottons Medium For synthetics blends and items labeled Permanent Press Low For delicates synthetics and items labeled Tumble Dry Low No Heat This option may only be used with Air Fluff and Timed Dry in which items are tumbled without heat C F Options Damp Alert This option causes the dryer to beep when clothes have dried to a damp level and the Damp Alert indicator to appear on the screen Remove items that you wish to hang dry This feature will only beep when the Damp Alert option is selected The dryer will continue to dry after the Damp Alert indicator is populated on the screen and dryer beeps Removing clothes and hanging them when they are damp can reduce the need to iron some items Extended Tumble Minimizes wrinkles by adding approximately 2 hours of noheat tumbling after clothes are dry The estimated time remaining display will show END The extended tumble time does not get added to the cycle time on the display Detangle Activates alternating forward and reverse tumbling to reduce tangling dry more evenly and improve drying times Typical loads such as bed and bath mixed loads where sheets towels and pillow cases are laundered together benefit from this capability When the dryer reverses direction there will be a slight pause and sound change This is normal NOTE Detangle is selected by default for Towels and Heavy Duty cycles eDry Reduces total energy consumption of specific dryer cycles by adjusting certain heat settings NOTE Cycle times will change when eDry is selected ENERGY STAR models are tested on Cottons cycle with default settings to determine energy use rating of this dryer The eDry option will default to on for Cottons Temperature settings on High and dryness level setting on Dry are specifically designed for this cycle to reduce energy consumption For optimal energy savings turn eDry on For optimal drying times turn eDry off Energy savings will vary across loads and cycles The eDry selection can be used with Mixed Loads Cottons Heavy Duty Towels Casuals Active Wear and Delicates

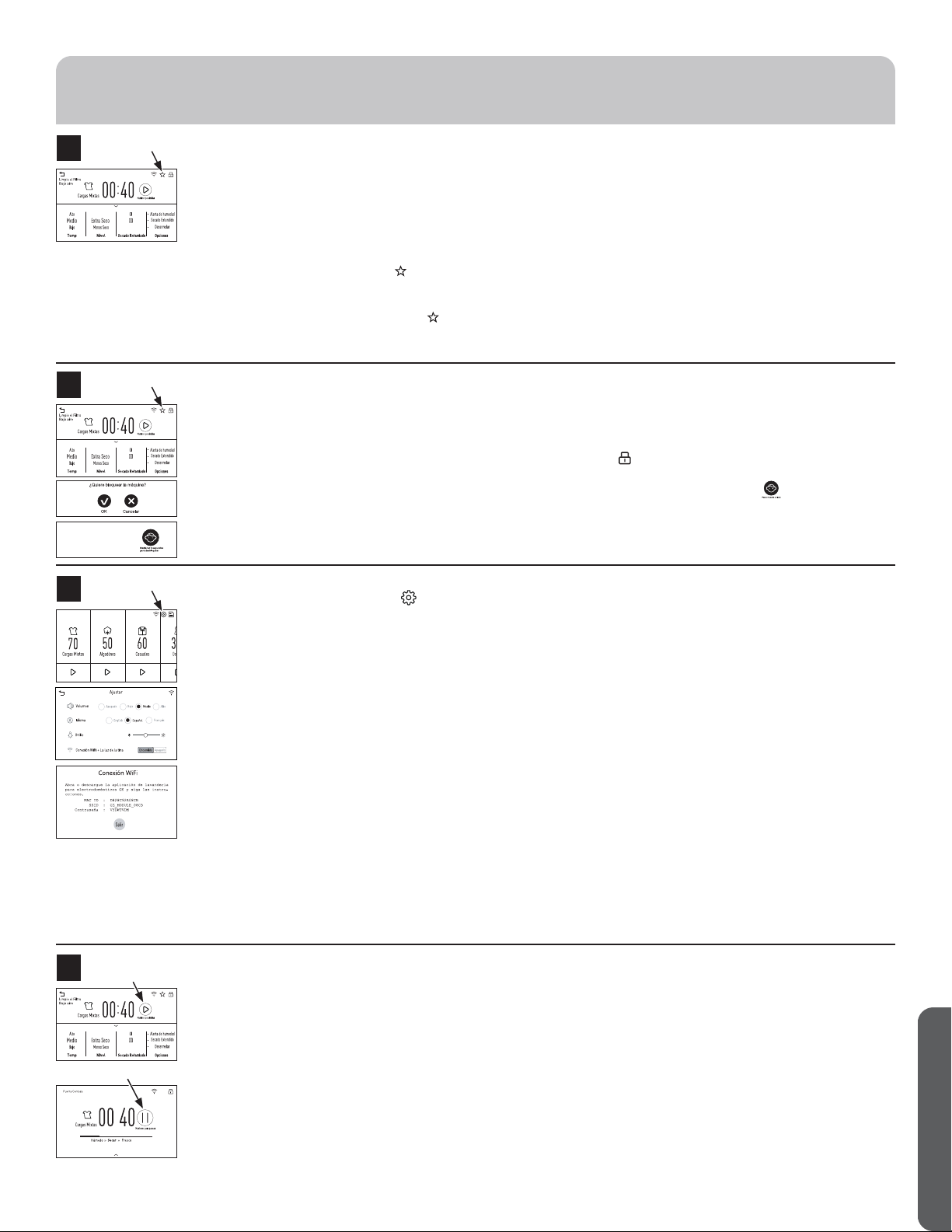

  • Page 7 - English - : 493000195 7 ENGLISH USING THE DRYER My Cycle Lock Settings Start Pause StartPause Start Press and hold for 1 second to start or restart a cycle Pause If the dryer is running press and hold for 1 second to pause the cycle This function can be used to add garments during a cycle NOTE If the dryer is paused and the cycle is not restarted within 15 minutes the current cycle will be cancelled J My Cycle Set up your favorite combination of settings for each cycle and save them here for one touch recall These custom settings can be set while a cycle is in progress NOTE you can store one My Cycle combination of settings for each cycle To store a My Cycle combination of settings 1 Select your drying cycle 2 Change Temp and Level settings to fit your needs 3 Select any drying options you want 4 Press and hold the pad for 3 seconds to store your selection A beep will sound and the icon will light up To recall your stored My Cycle combination Select the cycle and press the icon before drying a load To change your stored My Cycle combination Repeat steps 14 G Lock You can lock the controls to prevent any selections from being made Or you can lock or unlock the controls after you have started a cycle Children cannot accidentally start the dryer by touching pads with this option selected To lock the dryer press and hold the lock pad in the top right corner for 3 seconds and a lock screen will appear To unlock the dryer controls press and hold the unlock pad for 3 seconds and the lock screen will disappear The control lock icon on the display will light up when it is on NOTE The Power button can still be used when the machine is locked B H Volume When the control panel is powered on the dryer will beep at the end of the cycle and every time you press a button on the control panel Use the Option pad to select either High Med Low or Off NOTE The selected volume is for both end of cycle and pad sounds Language Use the Option pad to select either English Spanish or French Brightness To change the brightness of the screen use the brightness slider to change from darker to brighter WiFi Connect Tub Light Use the WiFi Connect Tub Light toggle button to turn this feature on or off Toggling this feature on will enable the WiFi Connect function and enable the usage of the tub light when the door is opened amp closed Follow the directions on the Wifi Connect screen using the information provided to connect with the GEA Laundry App Toggling this feature off will disable the Wifi Connect function and disable the tub light NOTE When the dryer to set up with the GEA Laundry App new software may be available to install After approving the installation of the new software through the GEA Laundry App the dryer tub light will flash on and off during the software installation The dryer tub light will stop flashing and turn off after the software is done installing I Settings Select the gear symbol in the top right corner to enter the Settings screen

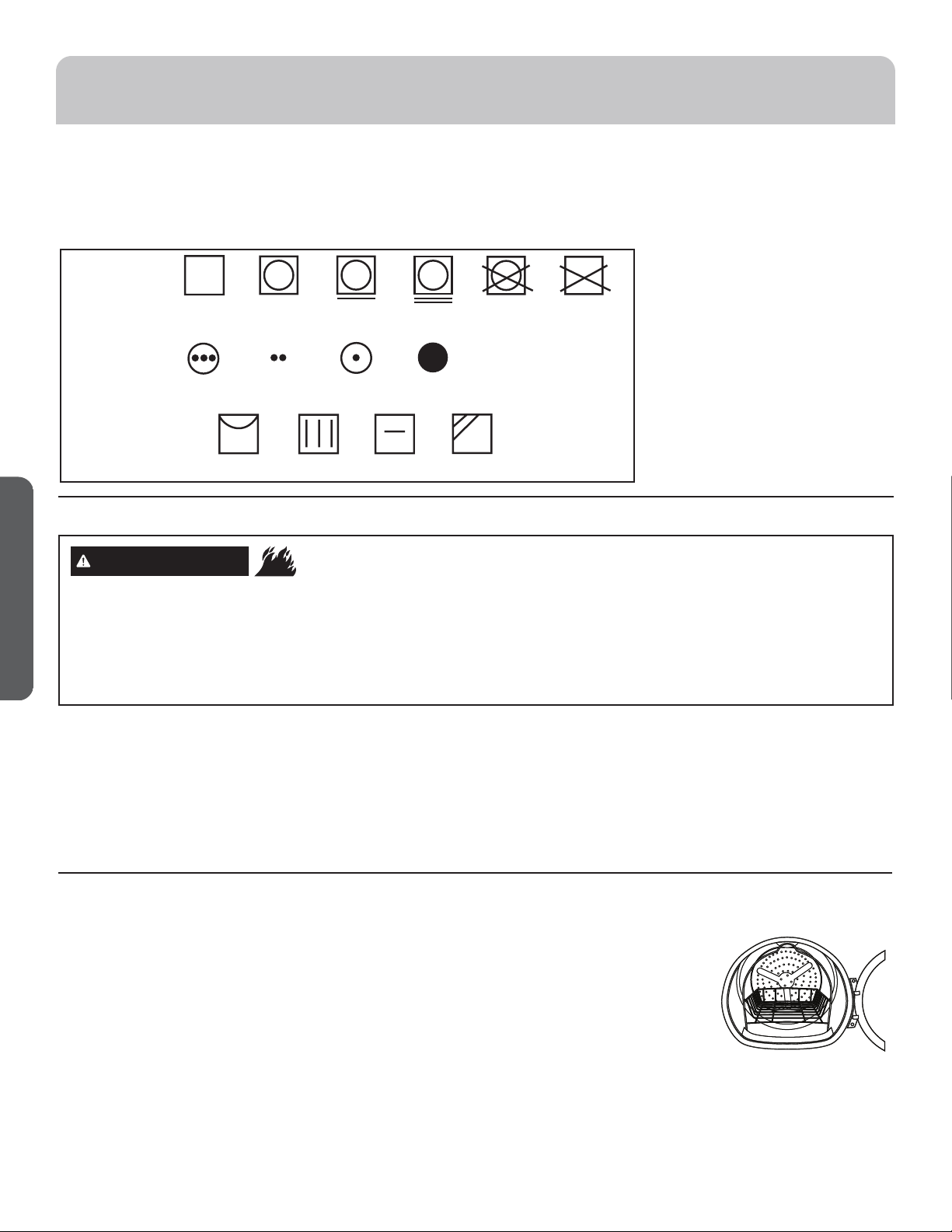

  • Page 8 - English - : 8 493000195 ENGLISH LOADING Fabric Care Labels Below are fabric care label symbols that affect the clothing you will be laundering Dry Labels Always follow fabric manufacturers care label when laundering As a general rule if clothes are sorted properly for the washer they are sorted properly for the dryer Try also to sort items according to size For example do not dry a sheet with socks or other small items Do not add fabric softener sheets once the load has become warm They may cause fabric softener stains Bounce Fabric Conditioner Dryer Sheets have been approved for use in this dryer when used in accordance with the manufacturers instructions Do not overload This wastes energy and causes wrinkling Keep flammable materials and vapors such as gasoline away from dryer DO NOT dry anything that has ever had anything flammable on it even after washing No washer can completely remove oil DO NOT dry anything that has ever had any type of oil on it including cooking oils Items containing foam rubber or plastic must be dried on a clothesline Failure to do so can result in death explosion or fire Sorting and Loading Hints Tumble dry Dry Normal Permanent Press wrinkle resistant Gentle delicate Do not tumble dry Do not dry used with do not wash Heat setting High Medium Low No heatair Special instructions Line dry hang to dry Drip dry Dry flat In the shade Fire Hazard WARNING Drying Rack A handy drying rack may be used for drying delicate items such as washable sweaters Place items flat on the drying rack and block such items as wool sweaters and delicate fabrics Dry with low heat To install the drying rack extend the drying rack into the dryer drum and rest the front two legs on the front angled ledge NOTES ʄ The drying rack is designed for use with the Timed Dry cycle Use with sensor cycles may result in damp items or extended cycle times ʄ Do not use this drying rack when there are other clothes in the dryer that are not placed on the rack ʄ The drying rack WE01X26416 is available as an accessory Visit our website at haierappliancescomparts or in Canada visit haiercanadacaparts
  • Page 9 - English - : 493000195 9 ENGLISH CARE AND CLEANING Exterior Wipe or dust any spills or washing compounds with a damp cloth Dryer control panel and finishes may be damaged by some laundry pretreatment soil and stain remover products Apply these products away from the dryer The fabric may then be washed and dried normally Damage to your dryer caused by these products is not covered by your warranty Stainless Steel To clean stainless steel surfaces use a damp cloth with a mild nonabrasive cleaner suitable for stainless steel surfaces Remove the cleaner residue and then dry with a clean cloth The stainless steel used to make the dryer drum provides the highest reliability available in a Haier Appliances dryer If the dryer drum should be scratched or dented during normal use the drum will not rust or corrode These surface blemishes will not affect the function or durability of the drum Interior and Duct The interior of the appliance and exhaust duct should be cleaned once a year by qualified service personnel The Exhaust Duct Inspect and clean the exhaust ducting at least once a year to prevent clogging A partially clogged exhaust can lengthen the drying time The Exhaust Hood Check with a mirror that the inside flaps of the hood move freely when operating Make sure that there is no wildlife birds insects etc nesting inside the duct or hood Lint Filter Clean the lint filter before each use Pull out the lint filter Moisten your fingers and remove the captured lint Once clean slide the filter back into position Have a qualified technician vacuum the lint from the dryer once a year NEVER OPERATE THE DRYER WITHOUT ITS FILTER IN PLACE
  • Page 10 - English - : 10 493000195 ENGLISH CARE AND CLEANING Drum Lamp NOTE The drum lamp is not consumer replaceable on models where there is a flat cover over an LED bulb If this light should ever stop working contact us for service For models that have a domed cover over the bulb secured by a screw Before replacing the light bulb be sure to unplug the dryer power cord or disconnect the dryer at the household distribution panel by removing the fuse or switching off the circuit breaker Reach above dryer opening from inside the drum to locate the light Remove the screw and the plastic cover to access the bulb Replace with the appropriate bulb and then reaffix the cover and screw Order replacement bulb WE11X26351 by visiting our website at haierappliancescomparts or in Canada visit haiercanadacaparts You may also purchase appliance bulb 7C7 from your local retailer When the door is opened the drum lamp automatically turns on and remains on for 2 minutes When the door is closed the drum lamp will remain on for 30 seconds Disconnect power supply before servicing Replace all parts and panels before operating Failure to do so can result in death or electrical shock Electrical Shock Hazard WARNING
  • Page 11 - English - : 493000195 11 ENGLISH INSTALLATION DRYER INSTRUCTIONS BEFORE YOU BEGIN Read these instructions completely and carefully IMPORTANT Save these instructions for local electrical inspectors use IMPORTANT Observe all governing codes and ordinances Install the clothes dryer according to the manufacturers instructions and local codes Note to Installer Be sure to leave these instructions with the Consumer Note to Consumer Keep these instructions for future reference Clothes dryer installation must be performed by a qualified installer This dryer must be exhausted to the outdoors Before the old dryer is removed from service or discarded remove the dryer door Service information and the wiring diagram are located in the control console Do not allow children on or in the appliance Close supervision of children is necessary when the appliance is used near children Proper installation is the responsibility of the installer Product failure due to improper installation is not covered under the Warranty Install the dryer where the temperature is above 50F for satisfactory operation of the dryer control system Remove and discard existing plastic or metal foil duct and replace with ULlisted duct Risk of Fire Clothes dryer installation must be performed by a qualified installer Install the clothes dryer according to these instructions and local codes DO NOT install a clothes dryer with flexible plastic venting materials If flexible metal semirigid or foiltype duct is installed it must be ULlisted and installed in accordance with the instructions found in Connecting the Dryer to House Vent later in this manual Flexible venting materials are known to collapse be easily crushed and trap lint These conditions will obstruct dryer airflow and increase the risk of fire DO NOT install or store this appliance in any location where it could be exposed to water or weather To reduce the risk of severe injury or death follow all installation instructions Save these instructions Installers Be sure to leave these instructions with the customer If you are planning to stack the washer and dryer order Stacking Kit number GFA24KITL to be used for this dryer Kit sold separately Visit our website at haierappliancescomparts or in Canada visit haiercanadacaparts WARNING If you have questions visit our website at haierappliancescom or in Canada visit haiercanadaca

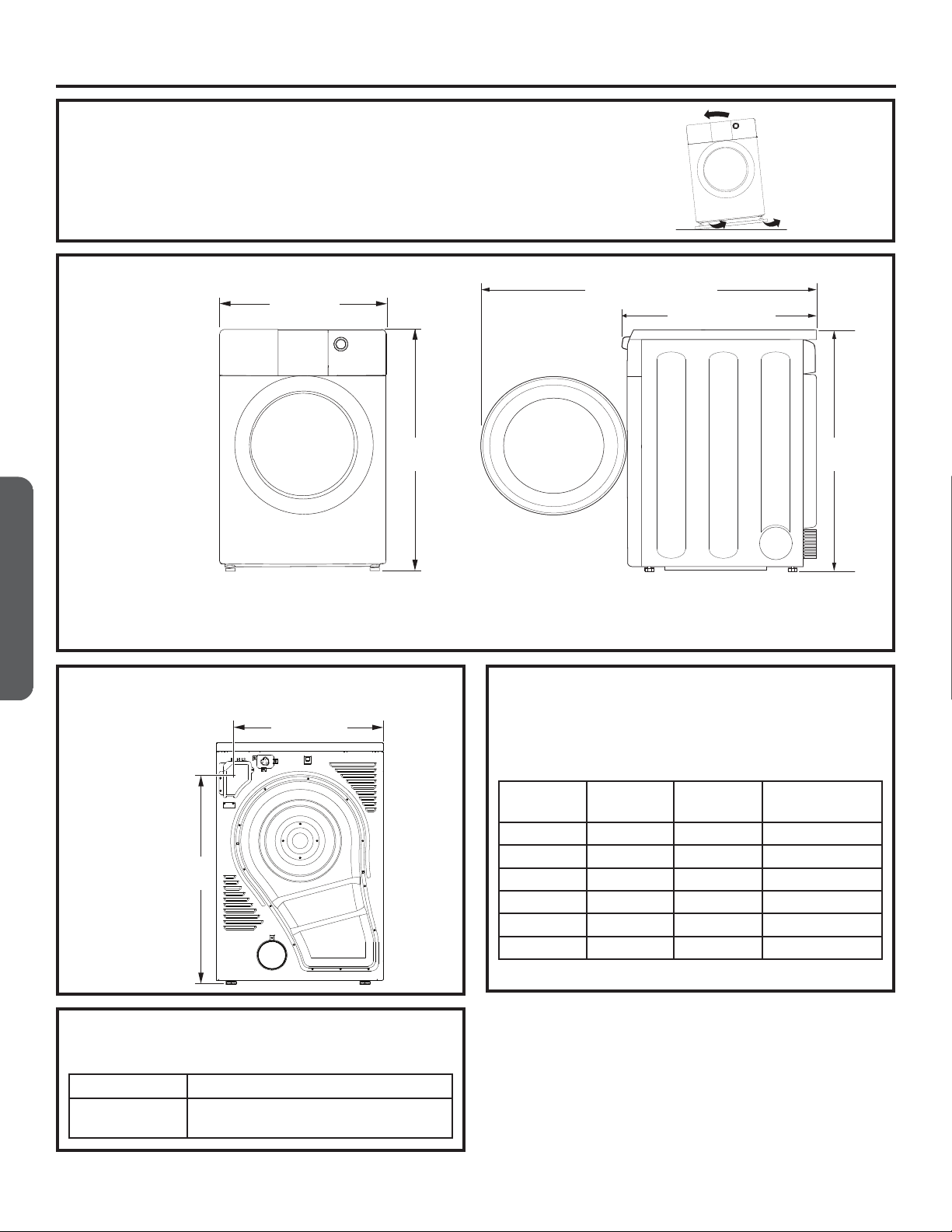

  • Page 12 - English - : 12 493000195 ENGLISH NOTE With leveling legs retracted 3314 845 cm With leveling legs fully extended 3358 854 cm Stacked 6612 1689 cm INSTALLATION INSTRUCTIONS Tilt the dryer sideways and remove the foam shipping pads by pulling at the sides and breaking them away from the dryer legs Be sure to remove all of the foam pieces around the legs Remove the bag containing the literature UNPACKING YOUR DRYER DRYER DIMENSIONS 3314 845 cm Side View 2514 641 cm 421316 1087 cm ELECTRICAL CONNECTION DIMENSIONS POWER CORDS Haier Appliances strongly recommends the use of factory specified parts Select the power cord to fit your installation requirements Visit our website at haierappliancescomparts or in Canada visit haiercanadacaparts Part Number Type Length Amperage WX9X2 3Prong 4 Feet 30 WX9X3 3Prong 5 Feet 30 WX9X4 3Prong 6 Feet 30 WX9X18 4Prong 4 Feet 30 WX9X19 4Prong 5 Feet 30 WX9X20 4Prong 6 Feet 30 Back View 30 762 cm 2012 521 cm Front View 23716 595 cm 3314 845 cm ACCESSORIES Visit our website at haierappliancescomparts or in Canada visit haiercanadacaparts Part Number Accessory PM08X10085 Flexible Metal Dryer Transition Duct
  • Page 13 - English - : 493000195 13 ENGLISH INSTALLATION INSTRUCTIONS MOBILE OR MANUFACTURED HOME INSTALLATION Installation MUST conform to the MANUFACTURED HOME CONSTRUCTION AND SAFETY STANDARD TITLE 24 PART 3280 or STANDARD FOR MOBILE HOMES CANCSAZ240 MH or when such standards are not applicable with AMERICAN NATIONAL STANDARD FOR MOBILE HOME ANSI NFPA NO 501B The dryer MUST be vented to the outdoors The exhaust vent MUST be securely fastened to a noncombustible portion of the mobile home The vent MUST NOT be terminated beneath a mobile or manufactured home The vent duct material MUST BE METAL KIT 14D34633 MUST be used to attach the dryer securely to the structure The vent MUST NOT be connected to any other duct vent or chimney DO NOT use sheet metal screws or other fastening devices which extend into the interior of the exhaust vent Provide an opening with a free area of at least 25 square inches for introduction of outside air into the dryer room See the sections for electrical connection information REQUIREMENTS FOR ALCOVE OR CLOSET INSTALLATION Keep flammable materials and vapors such as gasoline away from dryer Place dryer at least 18 46 cm above the floor for a garage installation Failure to do so can result in death explosion or fire The dryer MUST be vented to the outdoors Minimum clearance between dryer cabinet and adjacent walls or other surfaces is 0 either side 1 front and rear 1 top The rear of the dryer should face a wall Consideration must be given to provide adequate clearance for installation and service Closet doors must be louvered or otherwise ventilated and have at least 60 square inches of open area If the closet contains both a washer and a dryer doors must contain a minimum of 120 square inches of open area NOTE WHEN THE EXHAUST DUCT IS LOCATED AT THE REAR OF THE DRYER THE CONFIGURATION OF THE DUCTING MAY REQUIRE GREATER THAN 3 OF REAR CLEARANCE MINIMUM CLEARANCE OTHER THAN ALCOVE OR CLOSET INSTALLATION Minimum clearance to combustible surfaces and for air opening are 0 both sides 1 rear and 1 top The rear of the dryer should face a wall Consideration must be given to provide adequate clearance for installation and service Explosion Hazard WARNING
  • Page 14 - English - : 14 493000195 ENGLISH UNDERCOUNTER INSTALLATION If an undercounter installation is desired No special dryer installation kit is required If the dryer is installed alone a minimum of 60 square inches of open area is required If a washer and dryer are installed together a minimum of 120 square inches of open area is required BATHROOM OR BEDROOM INSTALLATION The installation must conform with local codes or in the absence of local codes with the NATIONAL ELECTRICAL CODE ANSINFPA NO 70 for electric dryers square inches min open area Dryer Installed Alone Countertop and side cabinets Washer and Dryer Installed Together Countertop and side cabinets square inches min open area INSTALLATION INSTRUCTIONS
  • Page 15 - English - : 493000195 15 ENGLISH INSTALLATION INSTRUCTIONS CONNECTING AN ELECTRIC DRYER Before making the electrical connection turn off the circuit breakers or remove the dryers circuit fuses at the electrical box Be sure the dryer cord is unplugged from the wall NEVER LEAVE THE ACCESS COVER OFF THE TERMINAL BLOCK TOOLS YOU WILL NEED ʄ Slipjoint pliers ʄ Flatblade screwdriver ʄ Phillips screwdriver ʄ Level Disconnect power supply before servicing Replace all parts and panels before operating Failure to do so can result in death or electrical shock Electrical Shock Hazard WARNING MATERIALS YOU WILL NEED ʄ 4 dia metal elbow ʄ 34 Strain relief UL recognized ʄ 4 Duct clamps 2 or 4 spring clamps 2 ʄ Safety glasses ʄ 4 dia metal duct recommended ʄ Gloves ʄ Exhaust hood ʄ Duct tape ʄ 4 dia ULlisted flexible metal duct if needed ʄ Dryer power cord kit not provided with dryer UL rated 120240V 30A with 3 or 4 prongs Identify the plug type as per the house receptacle before purchasing line cord ʄ 4 Cover Plate Kit WE49X22606 if needed Stacking installations may require a power cord up to 6 feet in length
  • Page 16 - English - : 16 493000195 ENGLISH INSTALLATION INSTRUCTIONS For direct wire connections Use 10 gauge copper wire Use a ULlisted strain relief Disconnect power before making electrical connections Connect neutral wire white or center wire to center terminal Ground wire green or bare wire must be connected to green ground connector Connect remaining two supply wires to remaining two terminals Securely tighten all electrical connections Replace the terminal block cover Failure to do so can result in death fire or electrical shock GROUNDING INSTRUCTIONS For a permanently connected dryer This dryer must be connected to a grounded metal permanent wiring system or an equipmentgrounding conductor must be run with the circuit conductors and connected to the equipmentgrounding terminal on the appliance Improper connection of the equipmentgrounding conductor can result in a risk of electric shock Check with a qualified electrician or service representative or personnel if you are in doubt as to whether the appliance is properly grounded SAVE THESE INSTRUCTIONS Fire Hazard WARNING WARNING Use a new ULlisted 240V 30 amp dryer power supply cord with closed ring terminals or spade terminals with upturned ends Use a ULlisted strain relief Disconnect power before making electrical connections Connect neutral wire white or center wire to center terminal Ground wire green or bare wire must be connected to green ground connector Connect remaining two supply wires to remaining two terminals Securely tighten all electrical connections Replace the terminal block cover Failure to do so can result in death fire or electrical shock For electrical connections using a power cord GROUNDING INSTRUCTIONS For a grounded cordconnected dryer This dryer must be grounded In the event of a malfunction or breakdown grounding will reduce the risk of electric shock by providing a path of least resistance for electric current This dryer uses a cord having an equipment grounding conductor and a grounding plug The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances Improper connection of the equipmentgrounding conductor can result in a risk of electric shock Check with a qualified electrician or service representative or personnel if you are in doubt as to whether the appliance is properly grounded DO NOT modify the plug on the power supply cord If it will not fit the outlet have a proper outlet installed by a qualified electrician SAVE THESE INSTRUCTIONS Fire Hazard WARNING WARNING ELECTRICAL CONNECTION INFORMATION FOR ELECTRIC DRYERS ELECTRICAL CONNECTION INFORMATION FOR ELECTRIC DRYERS TO PREVENT ELECTRIC SHOCK DISCONNECT POWER BEFORE SERVICING This dryer should be connected to an individual branch circuit with 10 gauge copper wire minimum through a 30 amp fuse or circuit breaker DO NOT fuse neutral Use copper conductors only Electrical Shock Hazard WARNING TO PREVENT ELECTRIC SHOCK DISCONNECT POWER BEFORE SERVICING This dryer should be connected to an individual branch circuit with 10 gauge copper wire minimum through a 30 amp fuse or circuit breaker DO NOT fuse neutral Use copper conductors only Electrical Shock Hazard WARNING
  • Page 17 - English - : 493000195 17 ENGLISH INSTALLATION INSTRUCTIONS ÌØÎÌÝÒÐÍÛâÎÛÞÜÒÐàÒÛÎ CONNECTION ÌØÎÌÝÒÐÍÛâÎÛÞÜÒÐàÒÛÎ ÌØÎÌÝÒØÖÞÜÝËÎÞÜÎÍÏØÛ ÖØËÒÕÎÑØÖÎÒÜÝÊÕÕÊÝÒØ NOTE Since January 1 1996 the National Electrical Code requires that new constructions use a 4wire connection to an electric dryer A 4wire cord must also be used where local codes do not permit grounding through the neutral 3wire connection is NOT for use on new construction 1 Turn off the circuit breakers 30 amp or remove the dryers circuit fuse at the electrical box 2 Be sure the dryer cord is unplugged from the wall receptacle 3 Remove the power cord cover located at the upper back 4 Remove green ground screw and retain for use in Step 7 Remove center screw marked N in terminal block Remove and discard ground strap 5 Install 34 in ULrecognized strain relief to power cord entry hole Bring power cord through strain relief and bracket 6 Connect power cord as follows A Connect the 2 hot lines to the outer screws of the terminal block marked L1 and L2 B Connect the neutral white line to the center of the terminal block marked N 7 Attach ground wire of power cord with the green ground screw hole above strain relief bracket Tighten all terminal block screws 3 securely 8 Properly secure power cord to strain relief and bracket 9 Reinstall the cover NEVER LEAVE THE COVER OFF OF THE TERMINAL BLOCK NEVER LEAVE THE COVER OFF OF THE TERMINAL BLOCK 3wire Connection Not for use in Canada DO NOT use for Mobile Home Installations NOT for use on new construction NOT for use on recreational vehicles NOT for use in areas where local codes prohibit grounding through the neutral conduction 1 Turn off the circuit breakers 30 amp or remove the dryers circuit fuse at the electrical box 2 Be sure the dryer cord is unplugged from the wall receptacle 3 Remove the power cord cover located at the upper back 4 Install 34in ULrecognized strain relief to power cord entry hole Bring power cord through strain relief and bracket 5 Connect power cord as follows A Connect the 2 hot lines to the outer screws of the terminal block marked L1 and L2 B Connect the neutral white line to the center of the terminal block marked N 6 Be sure ground strap is connected to green ground screw on cabinet rear Tighten all terminal block screws 3 securely 7 Properly secure power cord to strain relief and bracket 8 Reinstall the cover L1 N L2 Green wire from power cord 34 Strain Relief and Bracket Cover 4 10 AWG minimum copper conductors or 120240V 30A power supply cord kit marked for use with dryers and provided with closed loop or spade terminals with upturned ends not supplied White Wire Black or Red Wire Black or Red Wire If required by local code install external ground not provided to grounded metal cold water pipe or other established ground determined by a qualified electrician L1 N L2 Black or Red Wire 34 Strain Relief and Bracket Cover 3 10 AWG minimum copper conductors or 120240V 30A power supply cord kit marked for use with dryers and provided with closed loop or spade terminals with upturned ends not supplied Ground Strap White Wire Black or Red Wire

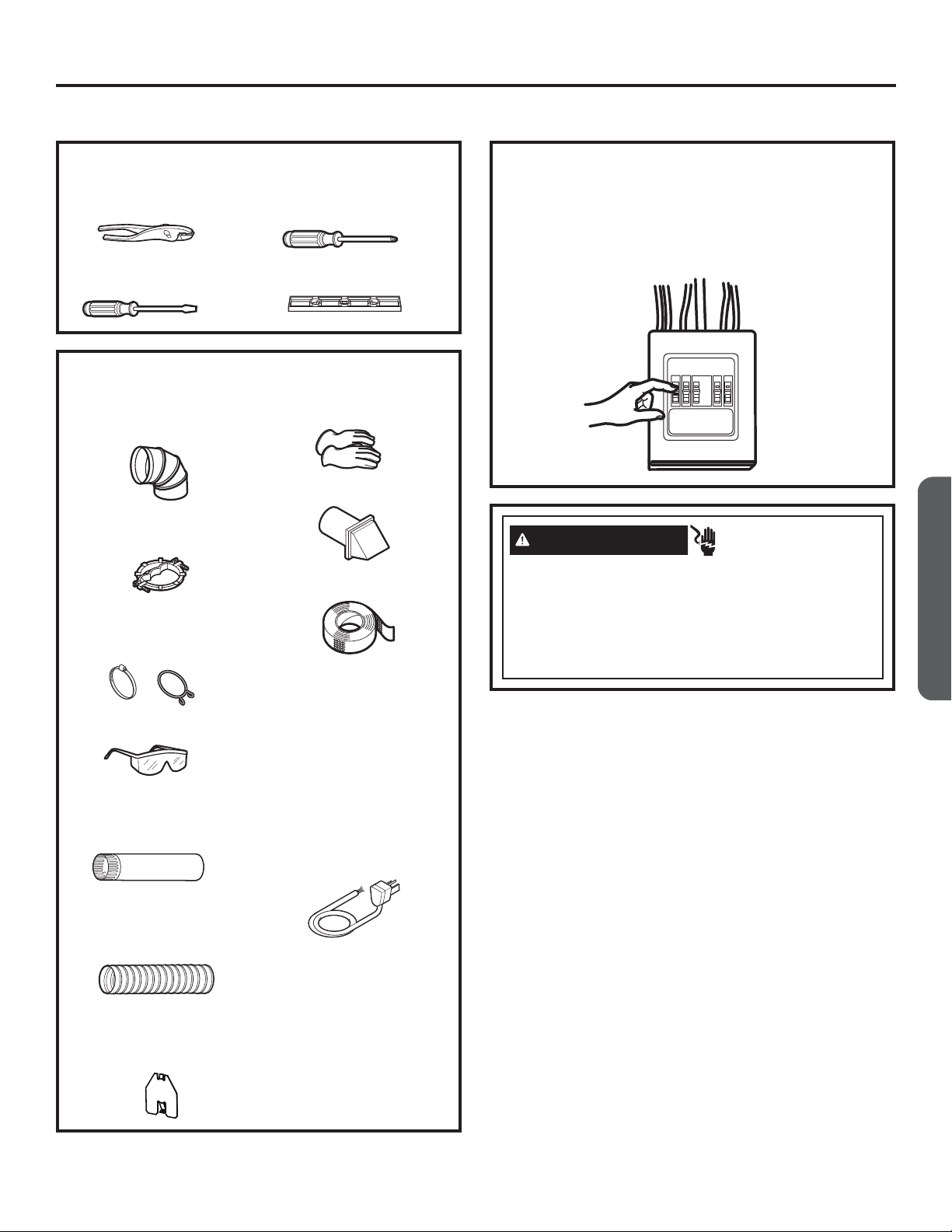

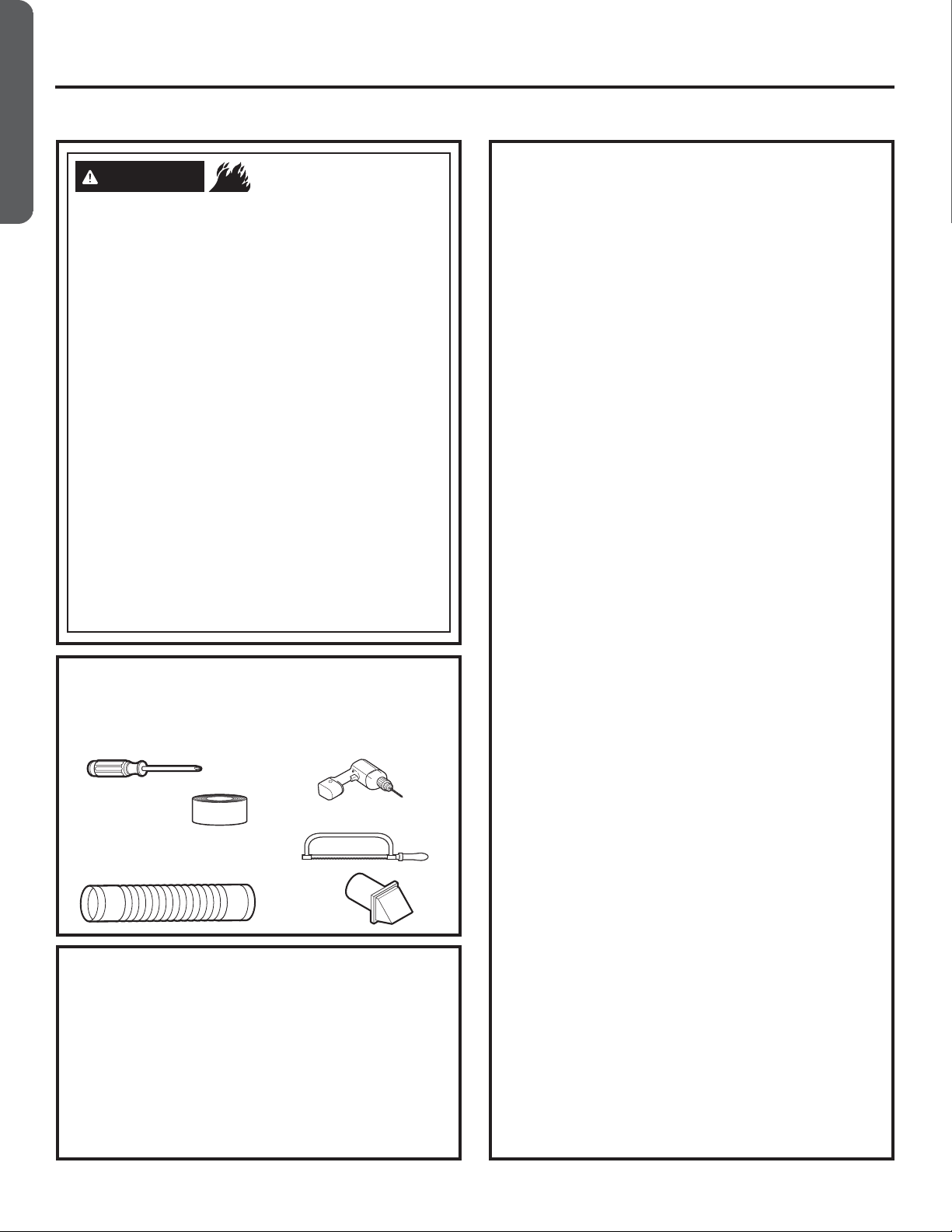

  • Page 18 - English - : 18 493000195 ENGLISH INSTALLATION INSTRUCTIONS EXHAUSTING THE DRYER TOOLS AND MATERIALS YOU WILL NEED TO INSTALL EXHAUST DUCT CONNECTING THE DRYER TO HOUSE VENT RIGID METAL TRANSITION DUCT For best drying performance a rigid metal transition duct is recommended Rigid metal transition ducts reduce the risk of crushing and kinking ULLISTED FLEXIBLE METAL CLOTHES DRYER TRANSITION DUCT If rigid metal cannot be used then ULlisted flexible metal clothes dryer transition duct Haier Appliances part PM08X10085 can be used Never install transition duct in walls ceilings floors or other enclosed spaces Total length of transition duct should not exceed 8 24 m For many applications installing elbows at both the dryer and the wall is highly recommended see illustrations in next section Elbows allow the dryer to sit close to the wall without kinking andor crushing the transition duct maximizing drying performance Avoid resting the duct on sharp objects ULLISTED FLEXIBLE METAL FOILTYPE TRANSITION DUCT In special installations it may be necessary to connect the dryer to the home exhaust vent using flexible metal foiltype transition duct ULLISTED universal flexible dryer transition duct Haier Appliances parts PM8X73 or WX8X73 may be used ONLY in installations where rigid metal or flexible metal transition ducting cannot be used AND where a 4 diameter can be maintained throughout the entire length of the transition duct In Canada and the United States only transition ducts that comply with UL 2158A STANDARD FOR CLOTHES DRYER TRANSITION DUCT shall be used Avoid resting the duct on sharp objects For best drying performance 1 Slide one end of the duct over the clothes dryer outlet pipe 2 Secure the duct with a clamp 3 With the dryer in its permanent position extend the duct to its full length Allow 2 of duct to overlap the exhaust pipe Cut off and remove excess duct Keep the duct as straight as possible for maximum airflow 4 Secure the duct to the exhaust pipe with the other clamp ʄ Phillipshead screwdriver ʄ Duct tape or duct clamp ʄ Rigid or ULlisted flexible metal 4 102 cm duct ʄ Drill with 18 drill bit for bottom venting ʄ Hacksaw ʄ Vent hood This dryer MUST be vented to the outdoors Use only 4 rigid metal ducting for the home exhaust duct Use only 4quot rigid metal ULlisted flexible metal or ULlisted metal foil dryer transition duct to connect the dryer to the home exhaust DO NOT use any plastic to vent the dryer this includes the home exhaust duct dryer transition duct or within the dryer DO NOT use flexible metal or metal foil ducting for a home exhaust duct or within the dryer DO NOT exhaust into a chimney kitchen exhaust gas vent wall ceiling attic crawl space or concealed space of a building DO NOT install a screen in or over the exhaust duct DO NOT install a booster fan in the exhaust duct DO NOT use duct longer than specified in the exhaust length table Failure to follow these instructions can result in death or fire VISIT HAIERAPPLIANCESCOMPARTS OR IN CANADA VISIT HAIERCANADACAPARTS PM8X85 Outdoor exhaust hood PM08X10085 8 Flexible metal clothes dryer transition duct with 2 clamps WX08X10130 4 Dryer exhaust clamp WE49X22606 Rear exhaust opening cover for side or bottom vented dryers Fire Hazard WARNING
  • Page 19 - English - : 493000195 19 ENGLISH INSTALLATION INSTRUCTIONS EXHAUSTING THE DRYER cont Using exhaust longer than specified length will Increase the drying times and the energy cost Reduce the dryer life Accumulate lint creating a potential fire hazard The correct exhaust installation is YOUR RESPONSIBILITY Problems due to incorrect installation are not covered by the warranty The MAXIMUM ALLOWABLE length of the exhaust system depends upon the type of duct number of turns the type of exhaust hood wall cap and all conditions noted on the chart Internal elbows added for side or bottom vent conversions must be included in the total elbow count Any elbow greater than 45 should be treated as a 90 elbow one elbow of 45 or less may be ignored Two 45 elbows will be treated like one 90 elbow For the side exhaust installations add one 90 elbow to the chart For every additional 90 elbow reduce the allowable vent system length by 10 feet When calculating the total vent system length you must add all the straight portions and elbows of the system including the transition duct EXHAUST LENGTH EXHAUST LENGTH RECOMMENDED MAXIMUM LENGTH Exhaust Hood Types Recommended Use only for short run installations 4quot DIA 4quot 4quot DIA 4quot DIA 212quot No of 90 Elbows Rigid Metal Rigid Metal 0 90 Feet 60 Feet 1 60 Feet 45 Feet 2 45 Feet 35 Feet 3 35 Feet 25 Feet 4 25 Feet 15 Feet DO NOT bend or collapse ducting Use elbows if turns are necessary DO NOT use excessive exhaust length Cut duct as short as possible DO NOT crush duct against the wall DO NOT set dryer on duct DO cut duct as short as possible and install straight into wall DO use elbows when turns are necessary Elbows

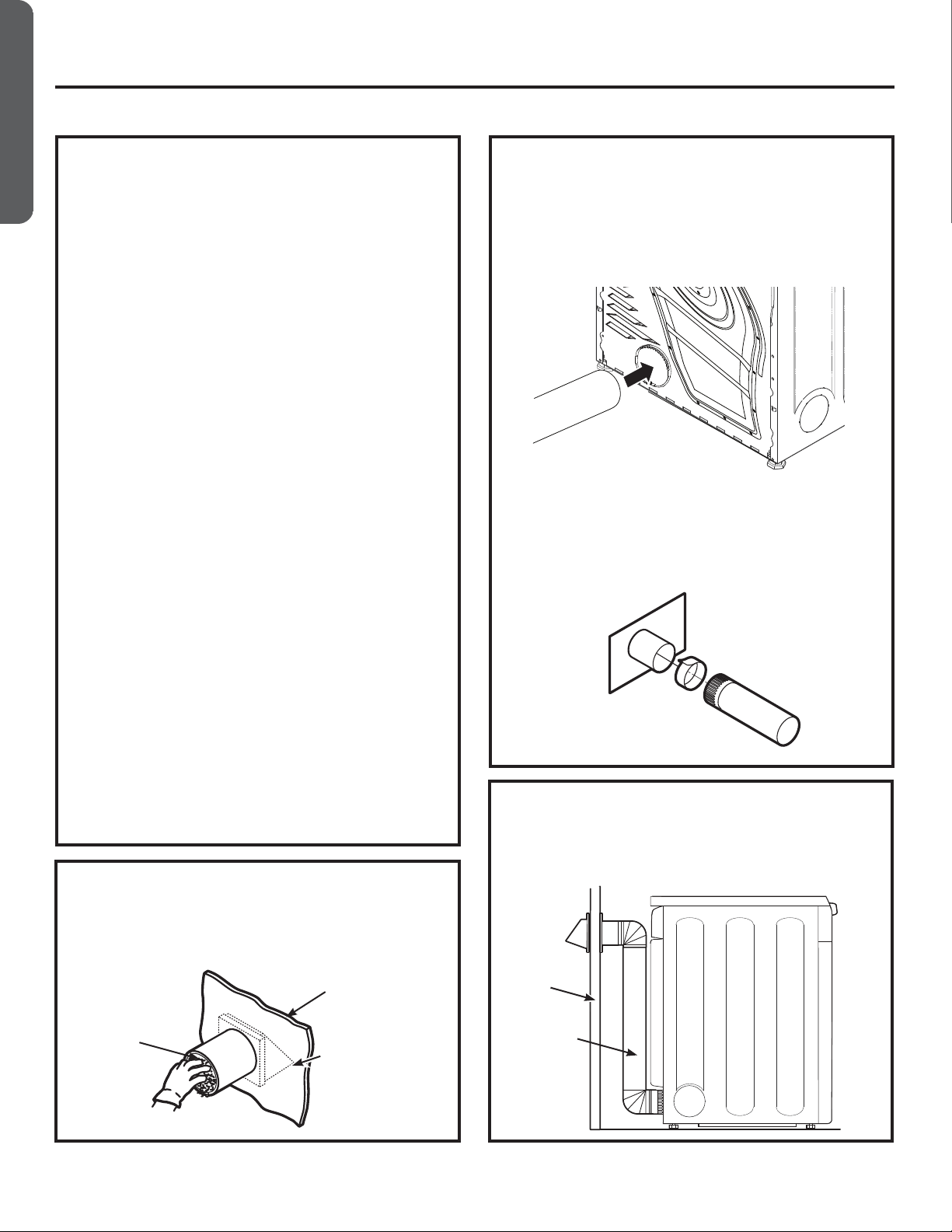

  • Page 20 - English - : 20 493000195 ENGLISH INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN Remove and discard existing plastic or metal foil duct and replace with ULlisted duct Remove any lint from the wall exhaust opening Internal Duct Opening Wall Check that exhaust hood damper opens and closes freely STANDARD REAR EXHAUST We recommend that you install your dryer before installing your washer This will permit direct access for easier exhaust connection Slide the end of the exhaust duct on the back of the dryer and secure with duct tape or a hose clamp NOTE We strongly recommend using rigid metal exhaust duct However if flexible ducting is used it must be ULListed metal not plastic For straight line installation connect the dryer exhaust to the external exhaust hood using duct tape or clamp RECOMMENDED CONFIGURATION TO MINIMIZE EXHAUST BLOCKAGE Using duct elbows will prevent duct kinking and collapsing EXHAUST SYSTEM CHECKLIST HOOD OR WALL CAP Terminate in a manner to prevent back drafts or entry of birds or other wildlife Termination should present minimal resistance to the exhaust airflow and should require little or no maintenance to prevent clogging Wall caps must be installed at least 12 above ground level or any other obstruction with the opening pointed down SEPARATION OF TURNS For best performance separate all turns by at least ft of straight duct including distance between last turn and dampened exhaust hood wall cap SEALING OF JOINTS All joints should be tight to avoid leaks The male end of each section of duct must point away from the dryer Duct joints should be made air and moisturetight by wrapping the overlapped joints with duct tape or aluminum tape Do not assemble ductwork with any fasteners that extend into the duct These fasteners can accumulate lint creating a potential fire hazard Horizontal runs should slope down towards the outdoors 14 per foot Provide an access for inspection and cleaning of the exhaust system especially at turns and joints Exhaust system shall be inspected and cleaned at least once a year INSULATION Ductwork that runs through an unheated area or is near air conditioning should be insulated to reduce condensation and lint buildup Wall Side Dryer Side Duct Tape EXHAUSTING THE DRYER cont Duct Transition Ducting Wall

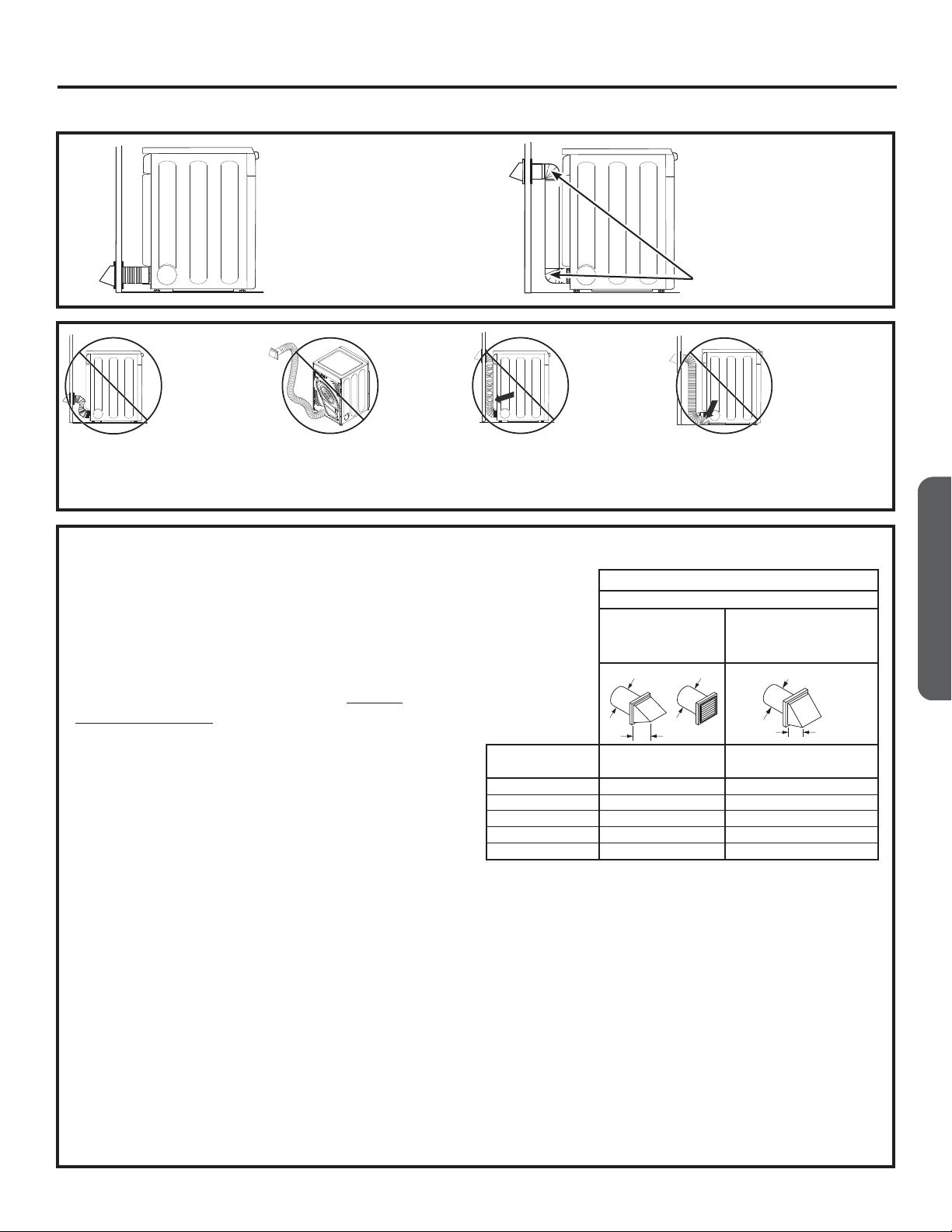

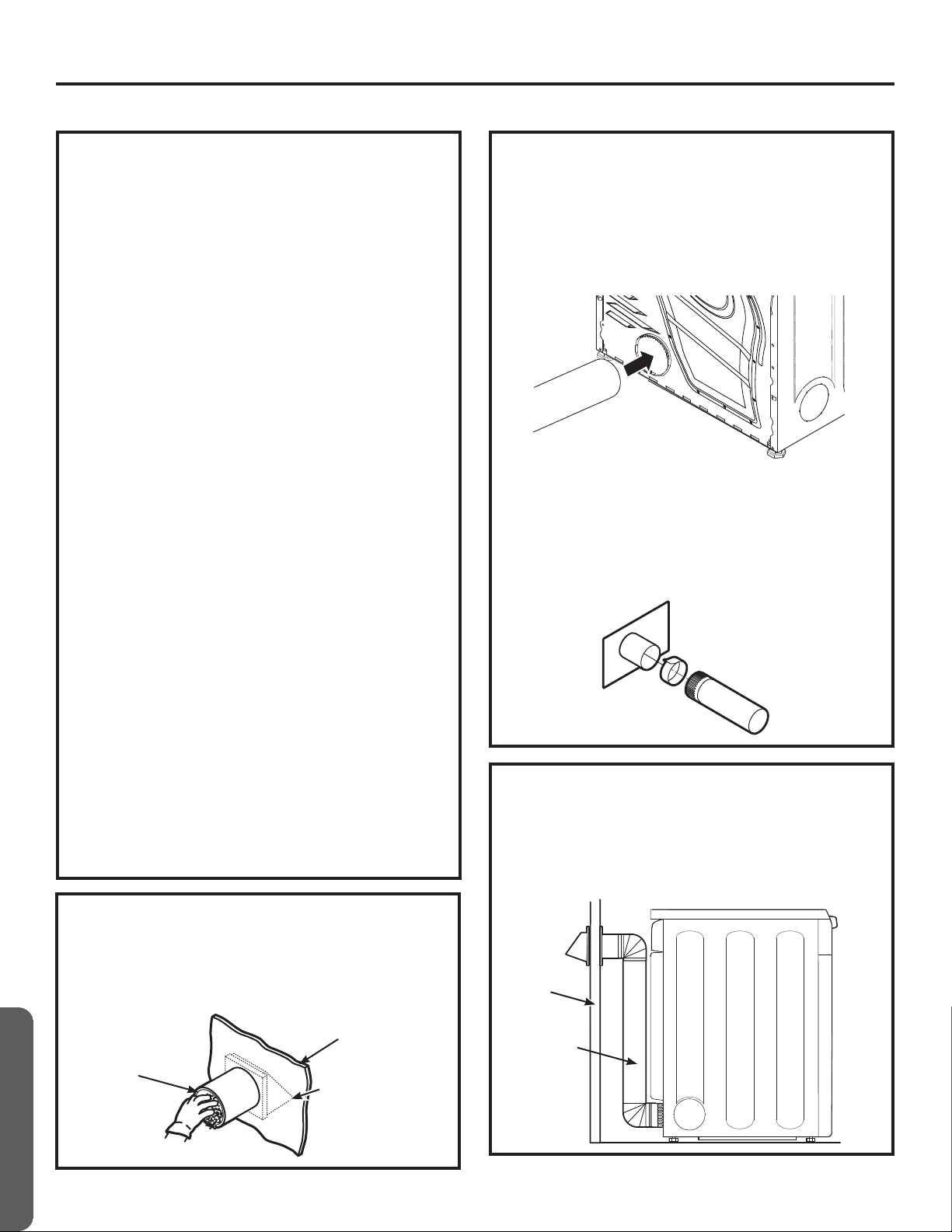

  • Page 21 - English - : 493000195 21 ENGLISH INSTALLATION INSTRUCTIONS SIDE OR BOTTOM VENTING Disconnect dryer from electrical supply Wear gloves and arm guards Close the back opening with cover plate Kit WE49X22606 Failure to do so may result in fire electrical shock or lacerations SIDE OR BOTTOM VENTING cont Detach and remove the right left or bottom knockout as desired Remove the screw inside the dryer exhaust duct and save Pull the duct out of the dryer Cut the duct as shown and keep portion A Reconnect the cut portion A of the duct to the blower housing Make sure that the shortened duct is aligned with the tab in the base Use the screw saved previously to secure the duct in place through the tab on the appliance base ADDING ELBOW AND DUCT FOR EXHAUST TO RIGHT OR LEFT SIDE OF CABINET Preassemble 4 elbow with 4 duct Wrap duct tape around joint ÒñöèõçøæäööèðåïüèïåòúĤõöëõòøêëëèöìçè opening and connect the elbow to the dryer internal duct Be sure not to pull or damage the electrical wires inside the dryer when inserting the duct ADDING A NEW DUCT Remove screw and save Remove desired knockout one only Right Left Bottom Portion A Right or left side exhaust Fixing hole Left Right Exhaust can be added to right or left side Duct tape Right Left EXHAUSTING THE DRYER cont Fixing hole A 9 2286cm Fire Hazard WARNING

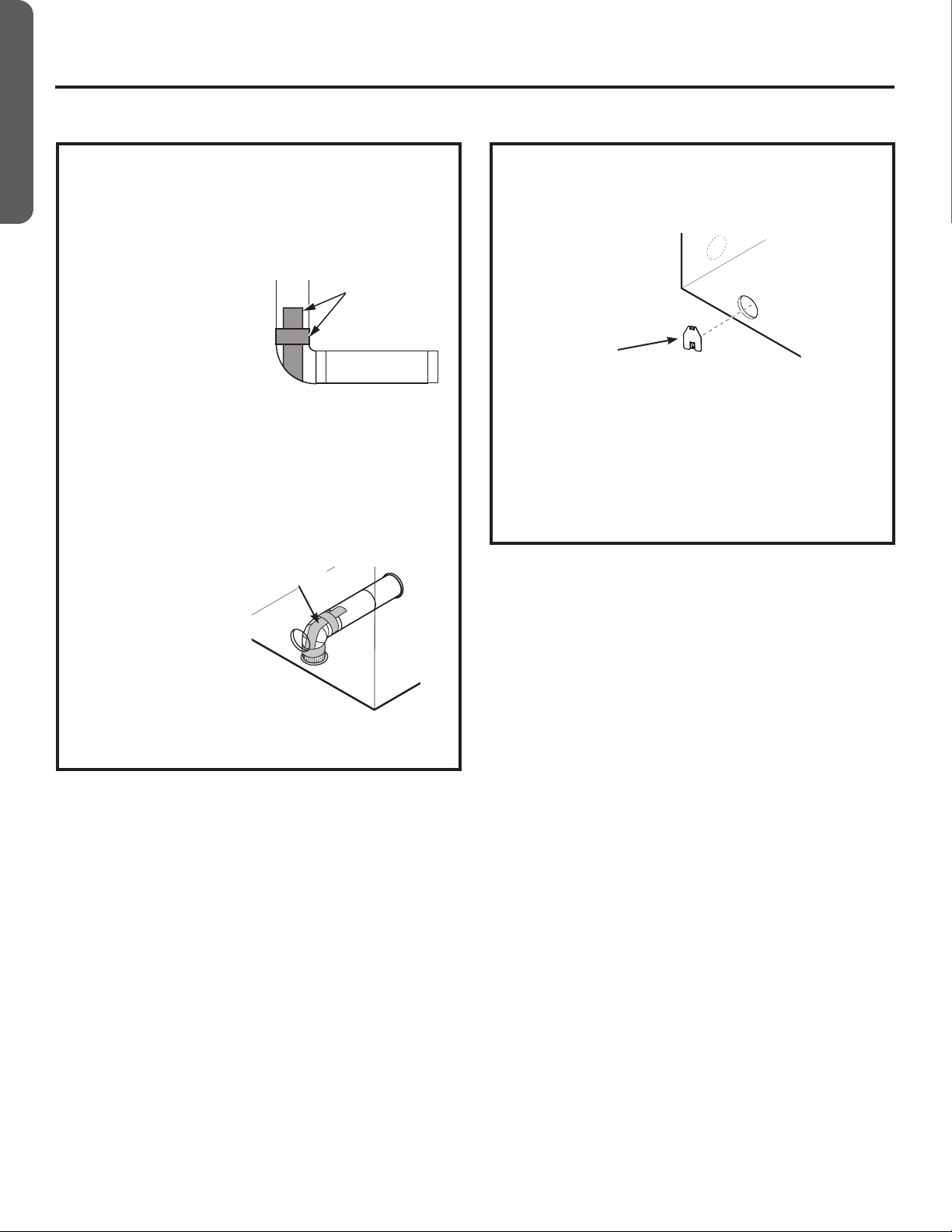

  • Page 22 - English - : 22 493000195 ENGLISH INSTALLATION INSTRUCTIONS EXHAUSTING THE DRYER cont SIDE OR BOTTOM VENTING cont ADDING ELBOW AND DUCT FOR EXHAUST TO LEFT OR RIGHT SIDE OF CABINET cont Apply duct tape as shown on the joint between the dryer internal duct and the elbow and also the joint between the elbow and the side duct Use 4 rigid metal ducting only inside the dryer Internal duct joints must be secured with tape otherwise they may separate and cause a safety hazard DUCT TAPE ADDING ELBOW FOR EXHAUST THROUGH BOTTOM OF CABINET Insert the elbow through the rear opening and connect it to the dryer internal duct Apply duct tape as shown on the joint between the dryer internal duct and the elbow and also the joint between the elbow and the bottom duct Internal duct joints must be secured with tape otherwise they may separate and cause a safety hazard Duct tape SIDE OR BOTTOM VENTING cont ADDING COVER PLATE TO REAR OF CABINET Connect standard metal elbows and ducts to complete the exhaust system Cover back opening with the plate kit WE49X22606 which can be purchased from haierappliancescomparts or in Canada visit haiercanadacaparts It may also be obtained from a local service provider Place dryer in final location Plate Kit WE49X22606 NEVER LEAVE THE BACK OPENING WITHOUT THE PLATE
  • Page 23 - English - : 493000195 23 ENGLISH INSTALLATION INSTRUCTIONS Raise Lower FINAL SETUP NOTE Stacking installations may require a power cord up to 6 feet in length LEVEL THE DRYER Stand the dryer upright near the final location and adjust the four leveling legs at the corners to ensure that the dryer is level from side to side and front to rear PLUG DRYER IN DRYER STARTUP Press and hold the power button NOTE If the dryer has been exposed to temperatures below freezing for an extended period of time allow it to warm up before pressing Power Otherwise the display will not come on The dryer is now ready for use Disconnect power supply before servicing Replace all parts and panels before operating Failure to do so can result in death or electrical shock Electrical Shock Hazard WARNING Ensure proper ground exists before use

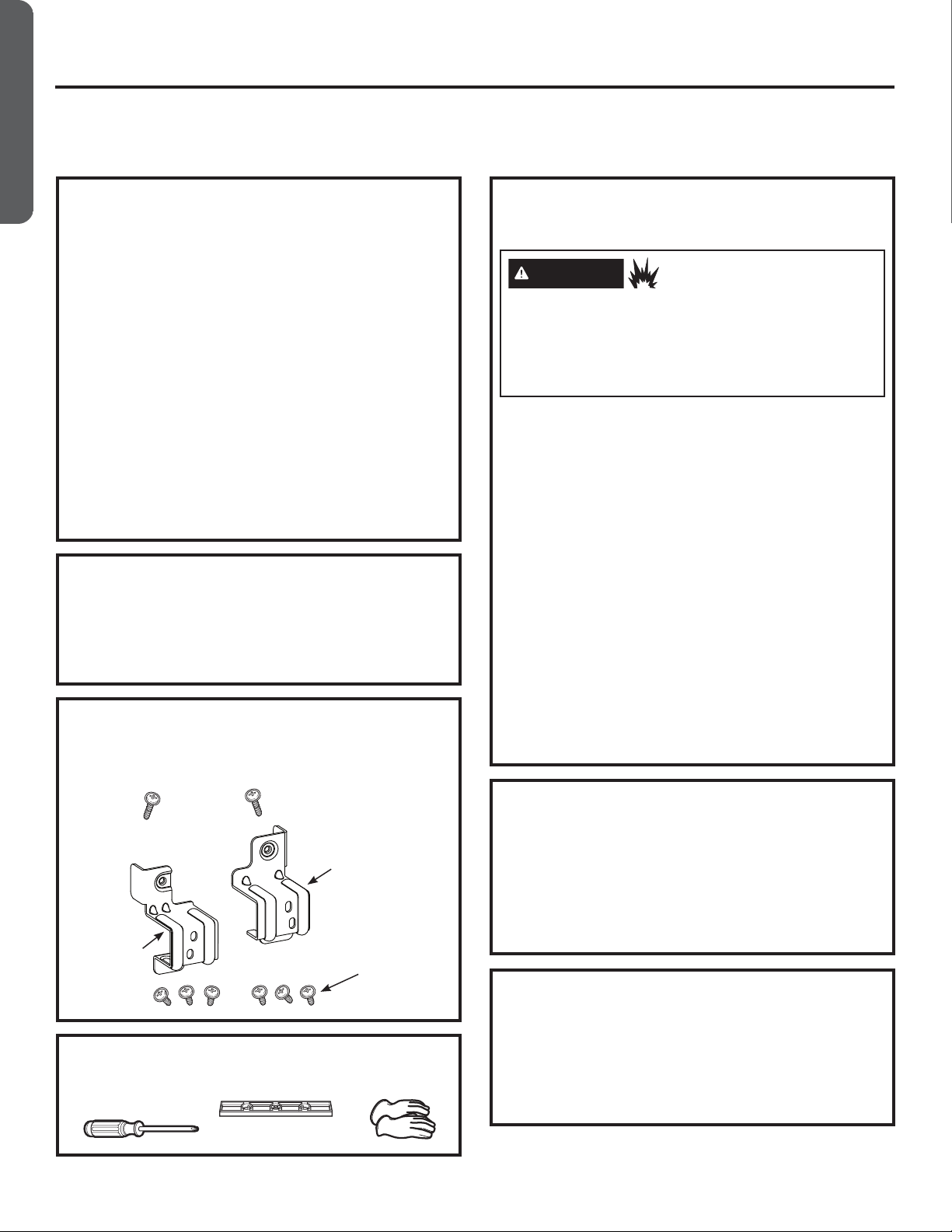

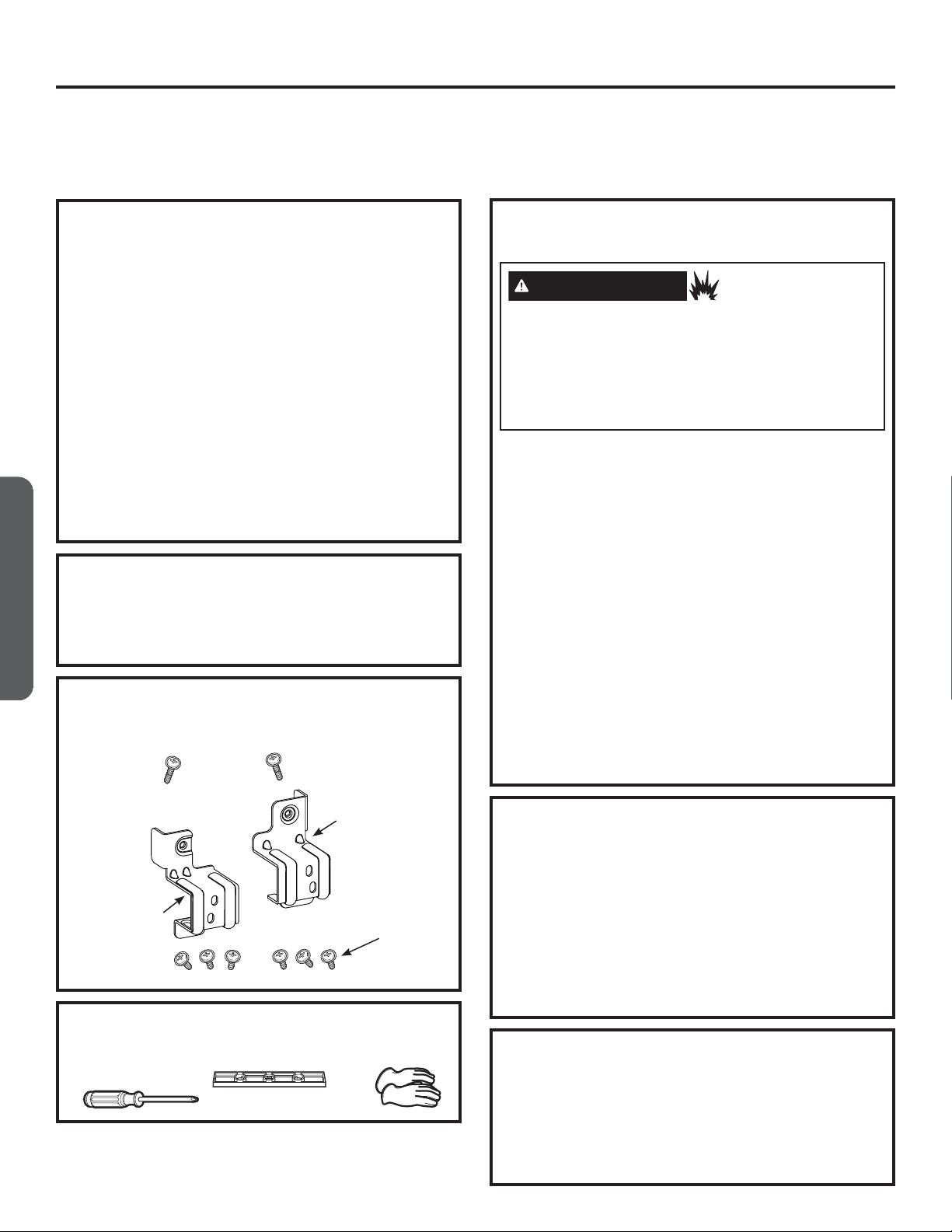

  • Page 24 - English - : 24 493000195 ENGLISH INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN Read these instructions completely and carefully IMPORTANT Save these instructions for local electrical inspectors use IMPORTANT Observe all governing codes and ordinances Note to Installer Be sure to leave these instructions with the Consumer Note to Consumer Keep these instructions for future reference Service must be performed by a qualified installer Do not allow children on or in the appliance Close supervision of children is necessary when the appliance is used near children Proper installation is the responsibility of the installer MINIMUM CLEARANCE OTHER THAN ALCOVE OR CLOSET INSTALLATION Minimum clearance to combustible surfaces and for air opening are 0 both sides 1 rear and 1 top The rear of the dryer should face a wall Consideration must be given to provide adequate clearance for installation and service HAIER APPLIANCES STACK KIT Visit our website at haierappliancescomparts or in Canada visit haiercanadacaparts Part Number Accessory GFA24KITL Complete Stack Kit STACKING THE WASHER AND DRYER if desired If you are planning to stack the washer and dryer order Stacking Kit number GFA24KITL to be used for this dryer Kit sold separately INSTALLATION PREPARATION Remove the packaging Flatten the product carton to use as a pad to lay the dryer down on its side Continue using the carton to protect the finished floor in front of the installation location TOOLS YOU WILL NEED ʄ Level ʄ Phillips screwdriver ʄ Gloves KIT CONTENTS HAIER APPLIANCES KIT GFA24KITL Screws 2 Long For dryer attachment Bracket stack R Bracket stack L Screws 6 Short For washer attachment REQUIREMENTS FOR ALCOVE OR CLOSET INSTALLATION Keep flammable materials and vapors such as gasoline away from dryer Place dryer at least 18 46 cm above the floor for a garage installation Failure to do so can result in death explosion or fire The dryer MUST be vented to the outdoors Minimum clearance between dryer cabinet and adjacent walls or other surfaces is 0 either side 1 front and rear 1 top The rear of the dryer should face a wall Consideration must be given to provide adequate clearance for installation and service Closet doors must be louvered or otherwise ventilated and have at least 60 square inches of open area If the closet contains both a washer and a dryer doors must contain a minimum of 120 square inches of open area NOTE WHEN THE EXHAUST DUCT IS LOCATED AT THE REAR OF THE DRYER THE CONFIGURATION OF THE DUCTING MAY REQUIRE GREATER THAN 3 OF REAR CLEARANCE Explosion Hazard WARNING
  • Page 25 - English - : 493000195 25 ENGLISH INSTALLATION INSTRUCTIONS INSTALLING THE STACK BRACKET KIT INSTALL DRYER AND BRACKET ON DRYER A Lift the dryer on top of the washer Protect the washer control panel with cardboard or other protection Be sure to lift the dryer high enough to clear the washer control panel B Align the holes in the bracket with the holes in the back of the dryer Using a Phillips screwdriver attach the 2 8 x 12 tapping screws Failure to do so may result in back or other injury or property damage Use two or more people to install dryer Avoid tipping and rupture of utility services Dryer must be securely attached to the washer DO NOT place the washer on top of the dryer WARNING Excessive Weight Hazard Disconnect power before installing Failure to do so could result in serious injury or death WARNING FINALIZE THE INSTALLATION A Refer to the washer Installation Instructions to complete the washer installation B Refer to the dryer Installation Instructions to complete the dryer installation C Carefully slide or walk the stacked washer and dryer into place Use felt pads or other sliding device to assist moving and to protect flooring Place hands here Place hands here Washer Dryer Do not push on the dryer once installed to top of the washer Pushing on the dryer may result in pinched fingers CAUTION INSTALL BRACKET TO WASHER A Remove washer top cap screw from the rear left Align left bracket holes with top cap screw hole on rear left of the unit and replace screw NOTE Leave screws loose so dryer hole alignment will be easier B Drive next screw through the bracket into the rear of the washer C Repeat the above steps with the right side INSTALL DRYER AND BRACKET ON DRYER CONT C Tighten the dryer bracket screws then tighten all stacking kit screws Washer Top Short screws into brackets and washer Long screws into brackets and dryer

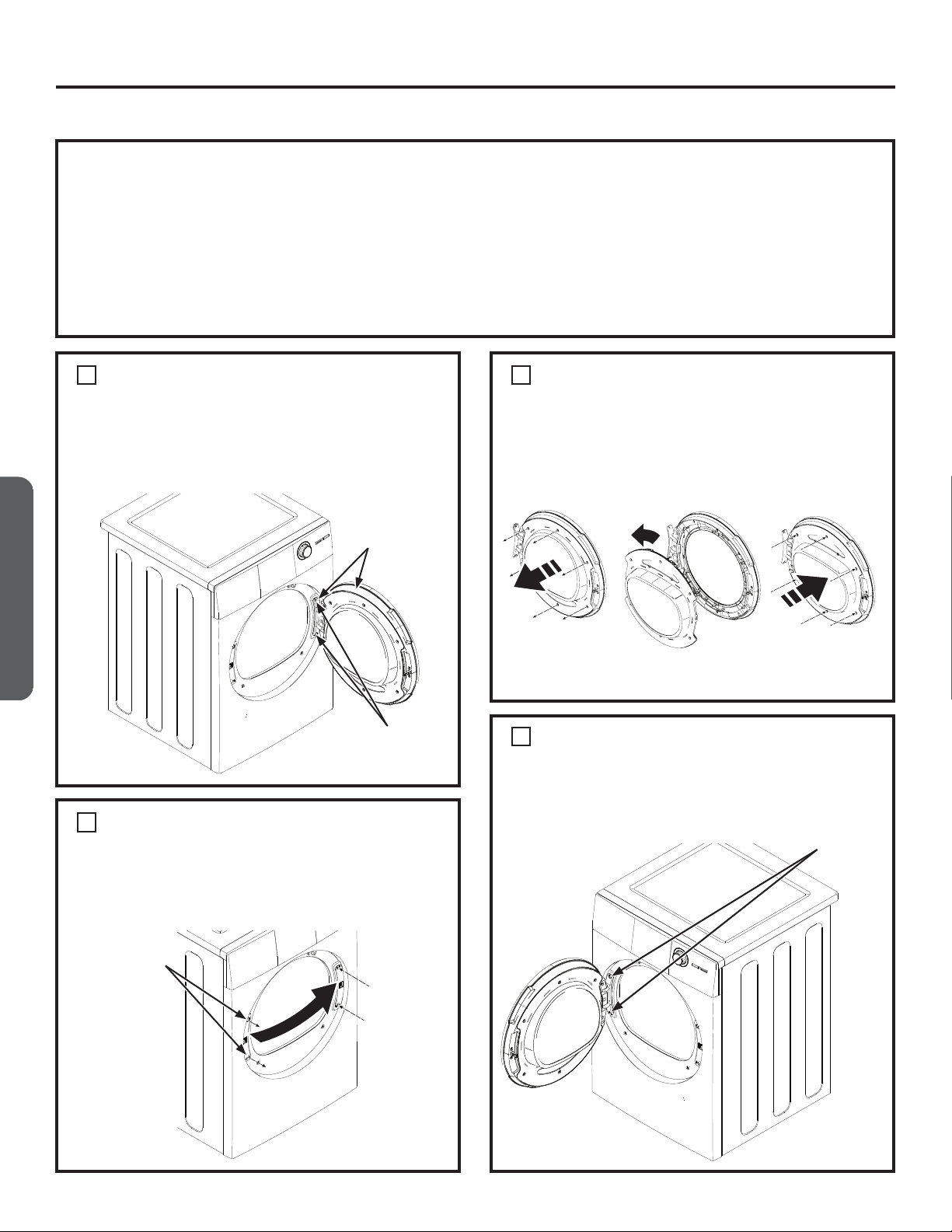

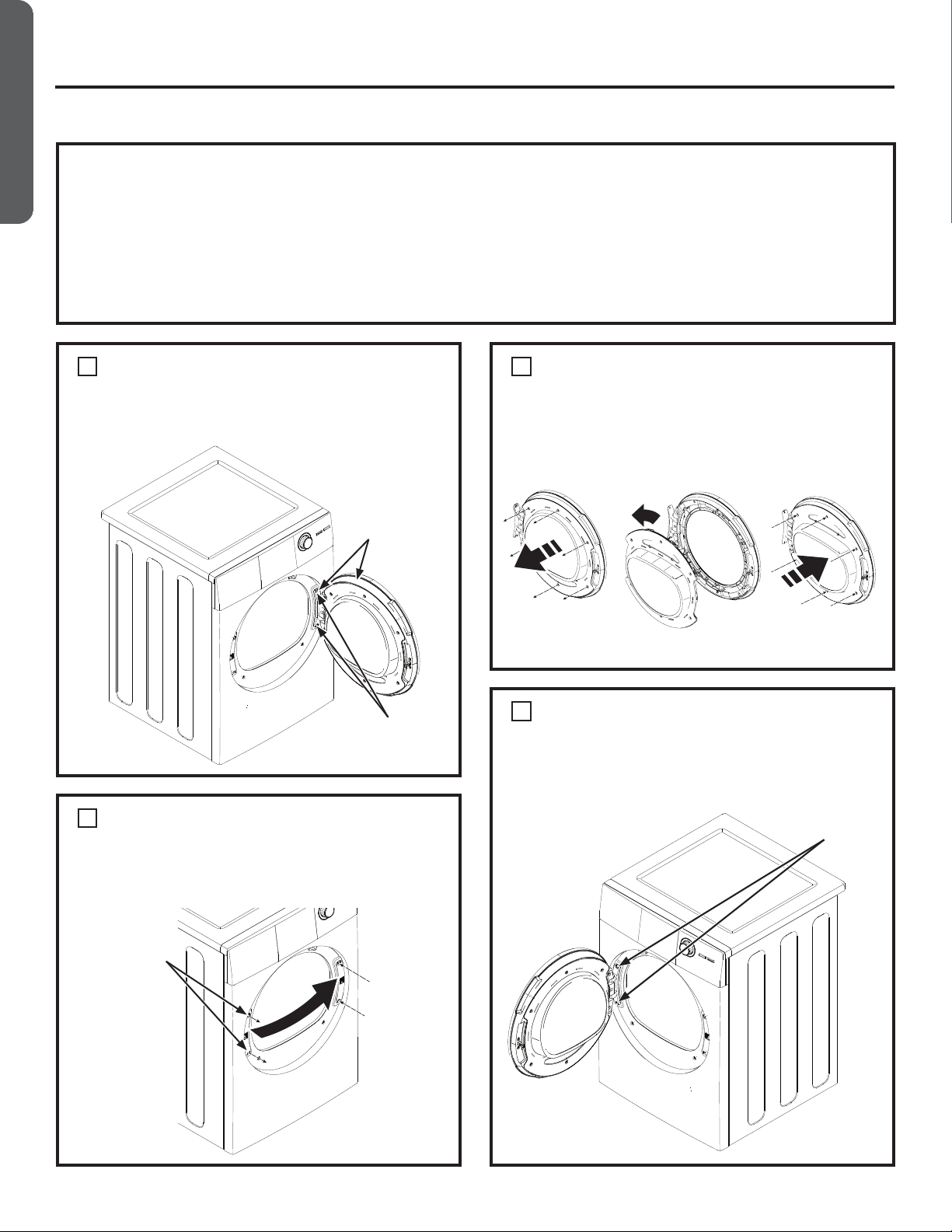

  • Page 26 - English - : 26 493000195 ENGLISH INSTALLATION INSTRUCTIONS REVERSING THE DOOR SWING Optional IMPORTANT NOTES Before you start unplug the dryer from its electrical outlet Handle parts carefully to avoid scratching paint Provide a nonscratching work surface for the doors Tools you will need Phillipshead screwdriver Once you begin do not move the cabinet until door swing reversal is completed These instructions are for changing the hinges from the right side to the left sideif you ever want to switch them back to the right side follow these same instructions and reverse all references to the left and right REMOVE THE DOOR ASSEMBLY Open the door Remove the two screws holding the hingedoor assembly to the dryer Carefully set the hingedoor assembly aside Remove the two screws holding the strike plate Rotate it and install it on the opposite side Reinstall Strike Plate and Screws REMOVE ROTATE AND REPLACE THE STRIKE PLATE REMOVE ROTATE AND REPLACE THE INNER DOOR Remove six screws and the inner door Inner door shown rotated 180 o Replace the inner door and six screws Strike Plate and Screws Hinge and Door Assembly Hold the Door and Remove Hinge Screws from the Dryer ROTATE AND REPLACE THE HINGE DOOR ASSEMBLY Rotate and replace the hingedoor assembly on the opposite side using the same two screws Remove the six screws securing the inner door to the outer door Remove the inner door rotate it 180 o and reinstall it into the outer door using the same six screws Secure with same two screws
  • Page 28 - English - : 28 493000195 ENGLISH TROUBLESHOOTING TIPS Problem Possible Cause What To Do Dryer shakes or makes noise Some shakingnoise is normal Dryer may be sitting unevenly Move dryer to an even floor space or adjust leveling legs as necessary until even Clothes take too long to dry Improper or obstructed ducting Check the Installation Instructions to make sure the dryer venting is correct Make sure ducting is clean free of kinks and unobstructed Check to see if outside wall damper operates easily Improper sorting Separate heavy items from lightweight items generally a wellsorted washer load is a wellsorted dryer load Large loads of heavy fabrics like beach towels Large heavy fabrics contain more moisture and take longer to dry Separate large heavy fabrics into smaller loads to speed drying time Controls improperly set Match control settings to the load you are drying Lint filter is full Clean lint filter before every load Blown fuses or tripped circuit breaker Replace fuses or reset circuit breakers Since most dryers use 2 fuses breakers make sure both are operating Overloadingcombining loads Do not put more than one washer load in the dryer at a time Underloading If you are drying only one or two items add a few items to ensure proper tumbling The Dry dryness level was chosen but load is still damp Load consists of a mixture of heavy and light fabrics When combining heavy and light fabrics in a load choose More Dry Lint filter is blocked Inspect and clean lint filter Dry Sensor is dirty Clean the sensor with a moist cloth Control buttons not responding Controls accidentally put in service mode Press StartPause Controls accidentally put in lock mode Hold the Lock Control button for 3 seconds to unlock the dryer Controls performed an incorrect operation Reset the inhouse breaker Dryer doesnt start Control panel is asleep This is normal Press Power to activate the control panel Dryer is unplugged Make sure the dryer plug is pushed completely into the outlet Fuse is blowncircuit breaker is tripped Check the buildings fusecircuit breaker box and replace fuse or reset breaker NOTE Electric dryers use two fuses or breakers Dryer was accidentally paused when starting Delay Dry If the light on the StartPause button is flashing the dryer is paused Press StartPause to restart the countdown No numbers displayed during cycle only lights Dryer is continuously monitoring the amount of moisture in the clothes This is normal When the dryer senses a low level of moisture in the load the dryer will display the dry time remaining
  • Page 29 - English - : 493000195 29 ENGLISH TROUBLESHOOTING TIPS Problem Possible Causes What To Do Time Remaining jumped to a lower number The estimated time may change when a smaller load than usual is drying This is normal Cannot make a selection and the dryer beeps twice The dryness Level Temp or option that you are trying to select is incompatible with the chosen dry cycle This is normal Dryer is running but 00 is displayed in Time Remaining The Ext Tumble option was chosen This is normal During extended tumbling the time remaining is not displayed The extended tumbling option lasts approximately 60 minutes Clean Lint Filter message Power button was activated Press StartPause to begin a dry cycle and the message will disappear Dryer doesnt heat Fuse is blowncircuit breaker is tripped the dryer may tumble but not heat Check the buildings fusecircuit breaker box and replace both fuses or reset both breakers Your dryer may tumble if only one fuse is blown or one breaker tripped Inconsistent drying times Type of load and drying conditions The load size types of fabric wetness of clothes and the condition of the lint filter andor air intake vent located on the front of the dryer will affect drying times Type of load and drying conditions The load size types of fabric wetness of clothes and the length and condition of the exhaust system will affect drying times Glow at the rear of the drum Heaters behind the drum This is normal Under certain drying conditions and room ambient lighting the glow of the heaters may be visible at the rear of the drum Clothes are still wet and dryer shut off after a short time The door was opened mid cycle The load was then removed from the dryer and a new load put in without selecting a new cycle A dry cycle must be reselected each time a new load is put in Small load When drying 3 items or less choose Quick Dry or Time Dry Load was already dry except for collars and waistbands Choose Quick Dry or Time Dry to dry damp collars and waistbands In the future when drying a load with collars and waistbands choose More Dry Dryer is not level Move dryer to an even floor space or adjust leveling legs as necessary until even Clothes are wrinkled Overdrying Select a shorter drying time Remove items while they still hold a slight amount of moisture Select a Less Dry or Damp setting Letting items sit in dryer after cycle ends Remove items when cycle ends and fold or hang immediately or use the Ext Tumble option Overloading Separate large loads into smaller ones
  • Page 30 - English - : 30 493000195 ENGLISH TROUBLESHOOTING TIPS Problem Possible Causes What To Do Clothes shrink Some fabrics will naturally shrink when washed Others can be safely washed but will shrink in the dryer To avoid shrinkage follow garment care labels exactly Some items may be pressed back into shape after drying If you are concerned about shrinkage in a particular item do not machine wash or tumble dry it Greasy spots on clothes Improper use of fabric softener Follow directions on fabric softener package Drying dirty items with clean ones Use your dryer to dry only clean items Dirty items can stain clean items and the dryer Clothes were not completely clean Sometimes stains which cannot be seen when the clothes are wet appear after drying Use proper washing procedures before drying Lint on clothes Lint filter is full Clean lint screen before each load Improper sorting Sort lint producers like chenille from lint collectors like corduroy Static electricity can attract lint See suggestions in this section under Static occurs Overloading Separate large loads into smaller ones Paper tissue etc left in pockets Empty all pockets before laundering clothes Static occurs No fabric softener was used Try a fabric softener Bounce Fabric Conditioner Dryer Sheets have been approved for use in all Haier Appliances dryers when used in accordance with the manufacturers instructions Overdrying Try a fabric softener Adjust setting to ÕèööÍõü or Damp Synthetics permanent press and blends can cause static Try a fabric softener Collars and waistbands still wet at end of cycle The dryness monitor senses that the body of the clothes is dry Choose Quick Dry or Time Dry to dry damp collars and waistbands In the future when drying a load with collars and waistbands choose More Dry Slight variation in metallic color This is normal Due to the metallic properties of paint used for this unique product slight variations of color may occur due to viewing angles and lighting conditions Dryer continues to tumble after display says Complete Ext Tumble was selected Ensure Ext Tumble option is not selected
  • Page 31 - English - : 493000195 31 ENGLISH LIMITED WARRANTY Staple your receipt here Proof of the original purchase date is needed to obtain service under the warranty What Haier Appliances will not cover ʄ Service trips to your home to teach you how to use the product ʄ Improper installation delivery or maintenance ʄ Failure of the product if it is abused misused or used for other than the intended purpose or used commercially ʄ Replacement of house fuses or resetting of circuit breakers ʄ Products which are not defective or broken or which are working as described in the Owners Manual ʄ Damage to the product caused by accident fire floods or acts of God ʄ Incidental or consequential damage caused by possible defects with this appliance ʄ Defects or damage due to operation in freezing temperatures ʄ Damage caused after delivery ʄ Product not accessible to provide required service ʄ Cleaning of condenser to restore product drying performance For the period of Haier Appliances will replace One year From date of the original purchase Any part of the washer which fails due to a defect in materials or workmanship During this limited oneyear warranty Haier Appliances will provide free of charge all labor and inhome service to replace the defective part In the United States This limited warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA If the product is located in an area where service by a Haier Appliances Authorized Servicer is not available you may be responsible for a trip charge or you may be required to bring the product to an Authorized Haier Appliances Service location for service In Alaska the limited warranty excludes the cost of shipping or service calls to your home Some states do not allow the exclusion or limitation of incidental or consequential damages This limited warranty gives you specific legal rights and you may also have other rights which vary from state to state To know what your legal rights are consult your local or state consumer affairs office or your states Attorney General Warrantor Haier Appliances Louisville KY 40225 Warrantor MC Commercial Inc Burlington ON L7R 5B6 In Canada This limited warranty is extended to the original purchaser and any succeeding owner for products purchased in Canada for home use within Canada If the product is located in an area where service by a Haier Appliances Authorized Servicer is not available you may be responsible for a trip charge or you may be required to bring the product to an Authorized Haier Appliances Service location Some provinces do not allow the exclusion or limitation of incidental or consequential damages This limited warranty gives you specific legal rights and you may also have other rights which vary from province to province To know what your legal rights are consult your local or provincial consumer affairs office EXCLUSION OF IMPLIED WARRANTIES Your sole and exclusive remedy is product repair as provided in this Limited Warranty Any implied warranties including the implied warranties of merchantability or fitness for a particular purpose are limited to one year or the shortest period allowed by law haierappliancescom All warranty service is provided by our Factory Service Centers or an authorized Customer Care technician To schedule service online visit us at haierappliancescomsupportscheduleservice or in Canada haiercanadacaservice Please have your serial number and your model number available when contacting us for service Servicing your appliance may require the use of the onboard data port for diagnostics This gives a Haier Appliances factory service technician the ability to quickly diagnose any issues with your appliance and helps Haier Appliances improve its products by providing Haier Appliances with information on your appliance If you do not want your appliance data to be sent to Haier Appliances please advise your technician not to submit the data to Haier Appliances at the time of service
  • Page 32 - English - : 32 493000195 ENGLISH CONSUMER SUPPORT Printed in China Haier Appliances Website Have a question or need assistance with your appliance Try the Haier Appliances Website 24 hours a day any day of the year You can also shop for more great Haier Appliances products and take advantage of all our online support services designed for your convenience In the US haierappliancescom Register Your Appliance Register your new appliance online at your convenience Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty should the need arise You may also mail in the preprinted registration card included in the packing material In the US haierappliancescomsupportregister In CanadaprodsupportmabecacrmProductsProductRegistrationaspx Schedule Service Expert Haier Appliances repair service is only one step away from your door Get online and schedule your service at your convenience any day of the year In the US haierappliancescomsupportscheduleservice In Canada haiercanadacaservice Parts and Accessories Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes VISA MasterCard and Discover cards are accepted In the US haierappliancescomparts In Canada haiercanadacaparts Instructions contained in this manual cover procedures to be performed by any user Other servicing generally should be referred to qualified service personnel Caution must be exercised since improper servicing may cause unsafe operation Contact Us If you are not satisfied with the service you receive from Haier Appliances contact us on our website at haierappliancescom supportcontactus with all the details including your phone number or write to In the US Haier Appliances Consumer Relations PO Box 1780 Rapid City SD 57709 In Canada haiercanadacacontactus Remote Connectivity For assistance with wireless network connectivity for models with remote enable visit our website in the US at haierappliancescom
  • Page 33: Sécheuses 493000195 0619 GEA QFD15 Séries Manuel dutilisation et Instruction dinstallation
