DVD Player
user manual
DVD-1080P9
DVD-1080PR
AK68-01750A(02)
2_ getting started
getting started
Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with a dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers,stoves, or other apparatus
(including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding- type plug. A polarized plug has
two blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong.
The wide blade or the third prong are provided for your safety. If the provided plug does not fit
into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched: particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long peroids of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been
damaged in any way, such as the power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
English _3
● GETTING STARTED
Precautions
This symbol indicates that
dangerous voltage consisting a risk
of electric shock is present within
this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature
accompanying this unit.
Do not install this equipment in a confined space such as a bookcase or similar unit.
WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPARATUS TO RAIN OR MOISTURE.
FCC NOTE (for U.S.A):
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on.
The user is encouraged to try to correct the interference by one or more of the following measures.
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect this equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This class B digital apparatus meets all requirements of the Canadian Interference --
Causing Equipment Regulations.
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
PRODUCTO LÁSER CLASE 1
Note to CATV system installer : This reminder is provided to call CATV system installer’s attention
to Article 820-40 of the National Electrical Code (Section 54 of Canadian Electrical Code, Part I) that
provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be
connected to the grounding system of the building as close to the point of cable entry as practical.
Caution : FCC regulations state that any unauthorized changes or modifications to this equipment may
void the user’s authority to operate it.
• Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases,
shall be placed on the apparatus.
• If this power supply is used at 240V ac, a suitable plug adapter should be used.
CALIFORNIA USA ONLY :
This Perchlorate warning applies only to primary CR (Maganese Dioxide) Lithium coin cells in the product
sold or distributed ONLY in California USA “Perchlorate Material - special handling may apply”, See www.dtsc.
ca.gov/hazardouswaste/perchlorate.
4_ getting started
getting started
CAUTION
THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT
IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVER AND DO NOT REPAIR
YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.
Note:
•
This unit can be used only where the power supply is AC 120V, 60Hz. It cannot be used elsewhere.
•
This DVD player is designed and manufactured to respond to the Region Management Information.
If the Region number of a DVD disc does not correspond to the Region number of this DVD player,
the DVD player cannot play the disc.
Handling Cautions
• Before connecting other components to this player, be sure to turn them all off.
• Do not move the player while a disc is being played, or the disc may be scratched or broken, and the
player’s internal parts may be damaged.
• Do not put a flower vase filled with water or any small metal objects on the player.
• Be careful not to put your hand into the disc tray.
• Do not place anything other than the disc in the disc tray.
• Exterior interference such as lightning and static electricity can affect normal operation of this player.
If this occurs, turn the player off and on again with the POWER button, or disconnect and then reconnect
the AC power cord to the AC power outlet. The player will operate normally.
• Be sure to remove the disc and turn off the player after use.
• Disconnect the AC power cord from the AC outlet when you don’t intend to use the player for long
periods of time.
• Clean the disc by wiping in a straight line from the inside to the outside of the disc.
• The Main plug is used as a disconnect device and shall stay readily operable at any time.
Disc Storage
Be careful not to harm the disc because the data on these discs is highly vulnerable to the environment.
• Do not keep under direct sunlight.
• Keep in a cool ventilated area.
• Store vertically.
• Keep in a clean protection jacket.
Maintenance of Cabinet
For safety reasons, be sure to disconnect the AC power cord from the AC outlet.
• Do not use benzene, thinner, or other solvents for cleaning.
• Wipe the cabinet with a soft cloth.
English _5
● GETTING STARTED
Install Batteries in the Remote control
1
Open the battery
cover on the back of
the remote control.
2
Insert two AAA batteries.
Make sure that the
polarities (+ and -) are
aligned correctly.
3
Replace the battery
cover.
If the remote control doesn’t operate properly:
- Check the polarity + - of the batteries.
- Check if the batteries are drained.
- Check if the remote control sensor is blocked by obstacles.
- Check if there is any fluorescent lighting nearby.
Before you start
Accessories
Remote Control
(AK59-00084Q)
Batteries for
Remote Control
(AAA Size)
(AC43-12002H)
User’s Manual
(AK68-01750A)
Video/Audio
Cable
(AC39-42001U &
AC39-22017Z)
6_ getting started
getting started
ADVANCED FUNCTIONS
26
26
Adjusting the Aspect Ratio (EZ View)
28
Selecting the Audio Language
29
Selecting the Subtitle Language
29
Changing the Camera Angle
30
Using the Bookmark Function
31
Using the Zoom Function
32
Clips Menu for MP3/WMA/JPEG/MPEG4/
CD Audio
32
Folder Selection
33
MP3/WMA/CD Audio Playback
35
MPEG4 Playback
37
Playing Media Files using the USB HOST
feature
39
CD Ripping
40
Picture CD Playback
41
Picture CD Playback for HD-JPEG
BASIC FUNCTIONS
19
19
Playing a Disc
21
Using the Search and Skip Functions
22
Using the Display Function
23
Using the Disc and Title Menu
24
Repeat Play
25
Slow Play
CONNECTIONS
12
12 Choosing a Connection
12 Connecting to a TV with HDMI Jack
12 Connecting to a TV with DVI Jack
14 Connecting to a TV (Progressive)
15 Connecting to a TV (Interlace)
16 Connecting to a TV (Video)
17 Connecting to an Audio System (2 Channel
Amplifi er)
18 Connecting to an Audio System (Dolby
digital, MPEG2 or DTS Amplifi er)
GETTING STARTED
3
3 Precautions
5 Before you Start
7 General features
8 Disc Type and Characteristics
9 Description
11 Tour of the Remote Control
NAVIGATING THE SETUP MENU
43
43
Using the Setup Menu
44
Setting Up the Language Features
49
Setting Up the Audio Options
51
Setting Up the Display Options
53
Setting Up the Parental Control
55
Setting Up HDMI
56
Setting Up Anynet+(HDMI-CEC)
58
Setting Up the Picture Quality
59
Setting Up the BD Wise
REFERENCE
61
61
Firmware Upgrade
62
Troubleshooting
63
Specifications
English _7
● GETTING STARTED
General Features
Excellent Sound
Dolby Digital, a technology developed by Dolby
Laboratories, provides crystal clear sound
reproduction.
Screen
Both regular and widescreen(16:9) pictures can be
viewed.
Slow Motion
An important scene can be viewed in slow motion.
1080p Playback
This player upconverts regular DVDs for playback
on 1080p TVs.
Parental Control (DVD)
The parental control allows users to set the level
necessary to prohibit children from viewing harmful
movies such as those with violence, adult subject
matter, etc.
Various On-Screen Menu Functions
You can select various languages (Audio/Subtitle)
and screen angles while enjoying movies.
Progressive Scan
Progressive scanning creates an improved picture
with double the scan lines of a conventional
interlaced picture.
EZ VIEW (DVD)
Easy View enables picture adjustment to match your
TV's screen size (16:9 or 4:3).
Digital Photo Viewer (JPEG)
You can view Digital Photos on your TV.
Repeat
You can repeat a song or movie simply by pressing
the REPEAT button.
MP3/WMA
This unit can play discs created from MP3/WMA files.
MPEG4
This unit can play MPEG4 formats within an avi file.
HDMI (High Definition Multimedia
Interface)
HDMI reduces picture noise by allowing a pure
digital video/audio signal path from the player to
your TV.
CD Ripping
This feature lets you to copy audio files from a disc
into MP3 format on a USB device. (Audio CD only (CD
DA)).
Note
- Discs which cannot be played with this
player.
• DVD-ROM • DVD-RAM
• CD-ROM • CDV
• CDI • CVD
• CDGs play audio only, not graphics.
- Ability to play back may depend on
recording conditions.
• DVD-R, +R
• CD-RW
• DVD+RW, -RW (V mode)
- The unit may not play certain CD-R, CD-
RW and DVD-R due to the disc type or
recording conditions.
COPY PROTECTION
Many DVD discs are encoded with copy
protection. Because of this, you should only connect
your DVD player directly to your TV, not to a VCR.
Connecting to a VCR results in a distorted picture
from copy-protected DVD discs.
This product incorporates copyright protection
technology that is protected by methods claims of
certain U.S. patents and other intellectual property
rights owned by Macrovision Corporation and other
rights owners. Use of this copyright protection
technology must be authorized by Macrovision
Corporation, and is intended for home and
other limited viewing uses only unless otherwise
authorized by Macrovision Corporation. Reverse
engineering or disassembly is prohibited.
PROGRESSIVE SCAN OUTPUTS
(480p, 720p, 1080p)
“CONSUMERS SHOULD NOTE THAT NOT ALL HIGH
DEFINITION TELEVISION SETS ARE FULLY
COMPATIBLE WITH THIS PRODUCT AND MAY
CAUSE ARTIFACTS TO BE DISPLAYED IN THE
PICTURE, IF PROGRESSIVE SCAN PICTURE
PROBLEMS OCCUR, IT IS RECOMMENDED THAT
THE USER SWITCH THE CONNECTION TO THE
‘STANDARD DEFINITION’ (VIDEO) OUTPUT. IF
THERE ARE QUESTIONS REGARDING YOUR TV
SET COMPATIBILITY WITH THIS DVD PLAYER,
PLEASE CONTACT SAMSUNG'S CUSTOMER
SERVICE CENTER.”
8_ getting started
getting started
Disc Type and Characteristics
This DVD player is capable of playing the following types of discs with the corresponding logos:
Region Number
Both the DVD player and the discs
are coded by region. These regional
codes must match in order for the disc
to play. If the codes do not match, the
disc will not play.
The Region Number for this player
is described on the rear panel of the
player.
5”
3 1/2”
Single-sided 240 min.
Double-sided 480 min.
Single-sided 80 min.
Double-sided 160 min.
Audio
+
Video
- DVD contains excellent sound and
video due to Dolby Digital and
MPEG-2 system.
- Various screen and audio functions
can be easily selected through the
on-screen menu.
Disc Types (Logos)
Recording Types Disc Size Max. Playing Time
Characteristics
DVD
5”
3 1/2”
74 min.
20 min.
Audio
- CD contains Digital content with
better audio quality, less distortion
and less deterioration of audio
quality over time.
AUDIO-CD
Disc Markings
~
DIGITAL
SOUND
STEREO
NTSC
Play Region Number
NTSC broadcast system in U.S.A, Canada, Korea,
Japan, etc.
Dolby Digital disc
Stereo disc
Digital Audio disc
DTS disc
MP3 disc
You must only insert one DVD disc at a time.
Inserting two or more discs will not allow
playback and may cause damage to the DVD
player.
DivX Certification
DivX, DivX Certified,
and associated logos are
trademarks of DivXNetworks, Inc and
are used under license
English _9
● GETTING STARTED
2
3
4
5
6
7
9
8
1

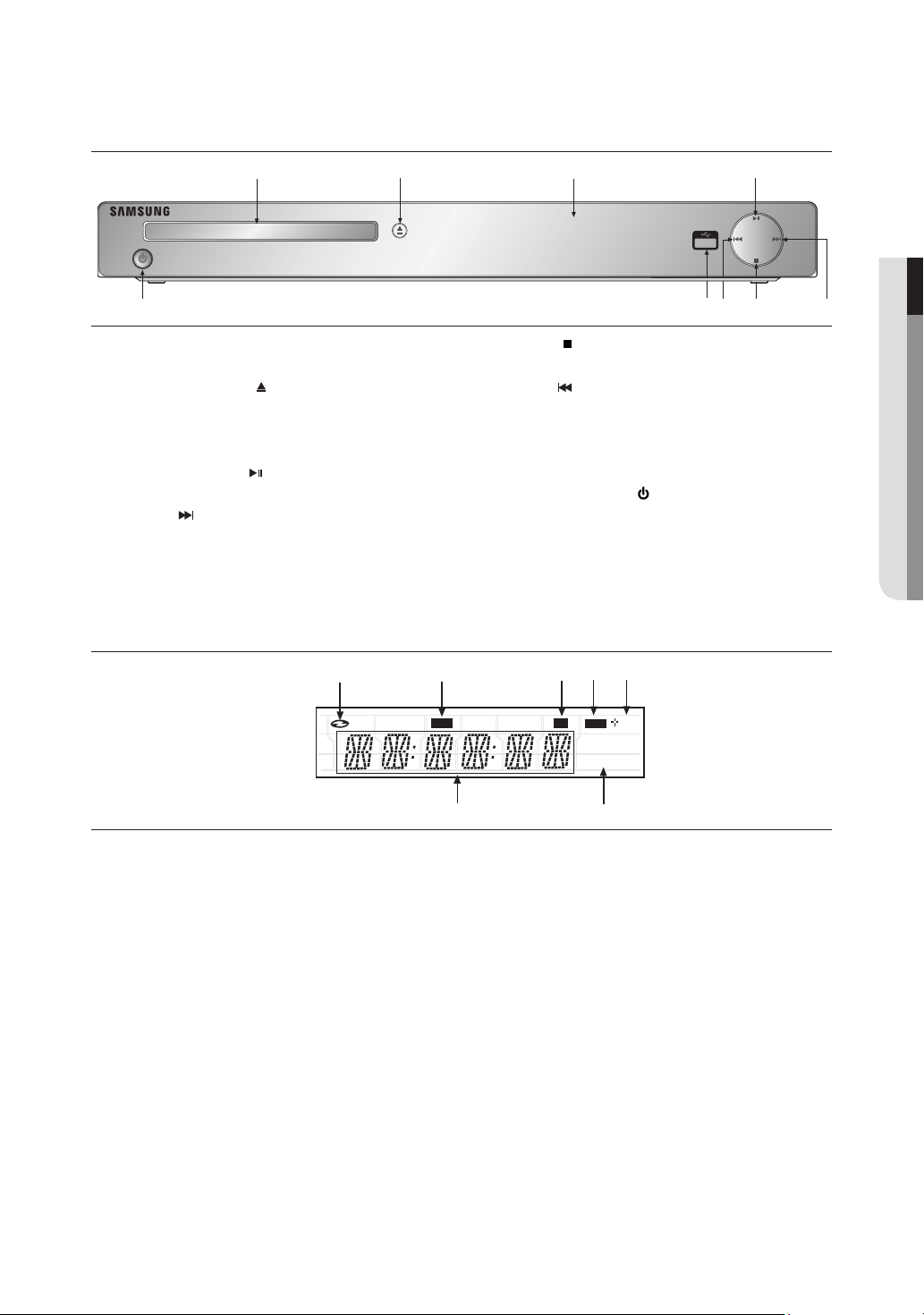

Description
Front Panel Controls
1. DISC TRAY
Place the disc here.
2. OPEN/CLOSE ( )
Press to open and close the disc tray.
3. DISPLAY
Operation indicators are displayed here.
4. PLAY/PAUSE ( )
Begin or pause disc play.
5. SKIP ( ) / SEARCH
Use to forward skip a scene or music.
6. STOP ( )
Stops disc play.
7. SKIP ( ) / SEARCH
Use to reverse skip a scene or music.
8. USB HOST
Connect a digital still camera, MP3 player, memory stick,
Card reader and other removable storage devices.
9. STANDBY/ON ( )
Turn On/Off the DVD Player.
Front Panel Display
DVD
CD
RW
HDMI
1080iP720P
234
7
6
1
USB
5
1. Disc Indicator : DVD Video, Audio
CD, CD-R/RW, DVD-R/RW/RAM,
DVD+R/RW
2. DVD VIEW indicator
3. CD indicator
4. USB indicator
5. Disc Media indicator : DVD-R, DVD-
RW, DVD+R, DVD+RW
6. HDMI indicator :
HDMI 480P ➔ “HDMI”,
HDMI 720P ➔ “HDMI + 720P”,
HDMI 1080i ➔ “HDMI + 1080i”,
HDMI 1080P ➔ “HDMI + 1080P”
7. Displays the Total playing time and
various messages concerning
operations such as PLAY, STOP,
LOAD ...
noDISC: No disc loaded.
OPEN: The disc tray is open.
LOAD: Player is loading disc information.
10_ getting started
getting started

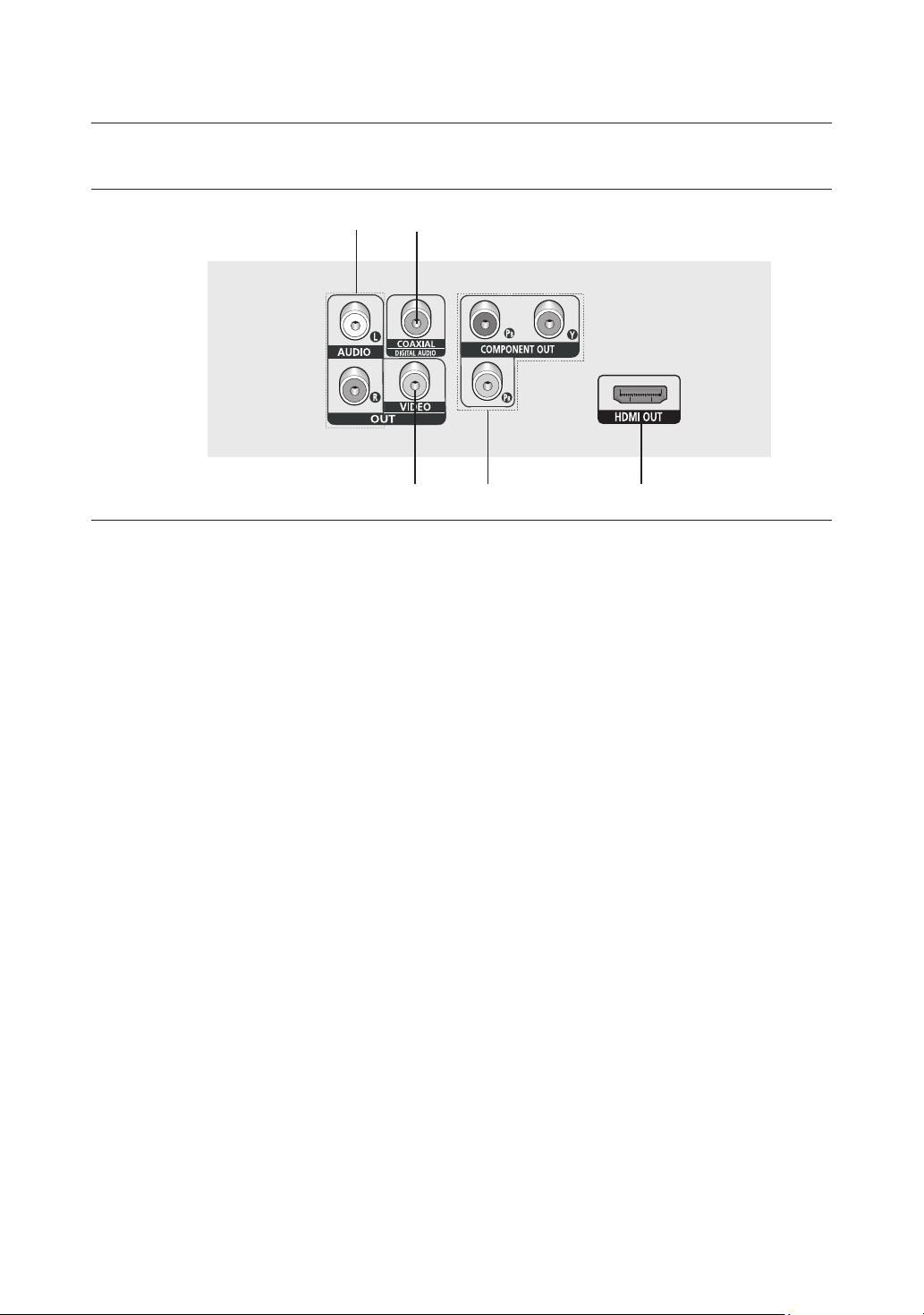

Rear Panel
1. AUDIO OUT JACKS
- Use audio cables to connect to the Audio input jacks
of your television or audio/video receiver
2. DIGITAL AUDIO JACKS
- Use either an coaxial digital cable to connect to a
compatible Dolby Digital receiver.
- Use either an coaxial digital cable to connect to an A/V
Amplifier that contains a Dolby Digital, MPEG2 or DTS
decoder.
3. VIDEO OUT JACK
- Use a video cable to connect to the Video input jack
on your television.
4. COMPONENT VIDEO OUT JACKS
- Use these jacks if you have a TV with Component
Video in jacks. These jacks provide P
R
, P
B
and Y
video.
- If
P-SCAN
is set to “ON” in Video Output of the
Setup Menu, progressive scan mode will work.
- If
I-SCAN
is set to “ON” in Video Output of the Setup
Menu, interlaced scan mode will work.
5. HDMI OUT JACK
- Use an HDMI cable to connect this jack to the HDMI
jack on your television for the best quality picture.
- If an HDMI cable is connected to an HDMI-compatible
TV, HDMI will be output automatically from the player
about 10 seconds later.
Note
- Consult your TV User’s Manual to find out if your TV supports Progressive Scan (P-SCAN).
If Progressive Scan is supported, follow the TV User’s Manual regarding Progressive Scan settings in the
TV’s menu system.
- The HDMI output of this unit can be connected to a DVI jack on a TV or other device using a conversion
adapter. In this case, it is necessary to use a TV or display with an HDCP-compatible DVI input.
- Refer to the TV's instruction manual for detailed information regarding the TV’s HDMI input jack.
- See pages 51~ 52 to get more information on how to use the setup menu.
1
3
4
5
2
English _11
● GETTING STARTED

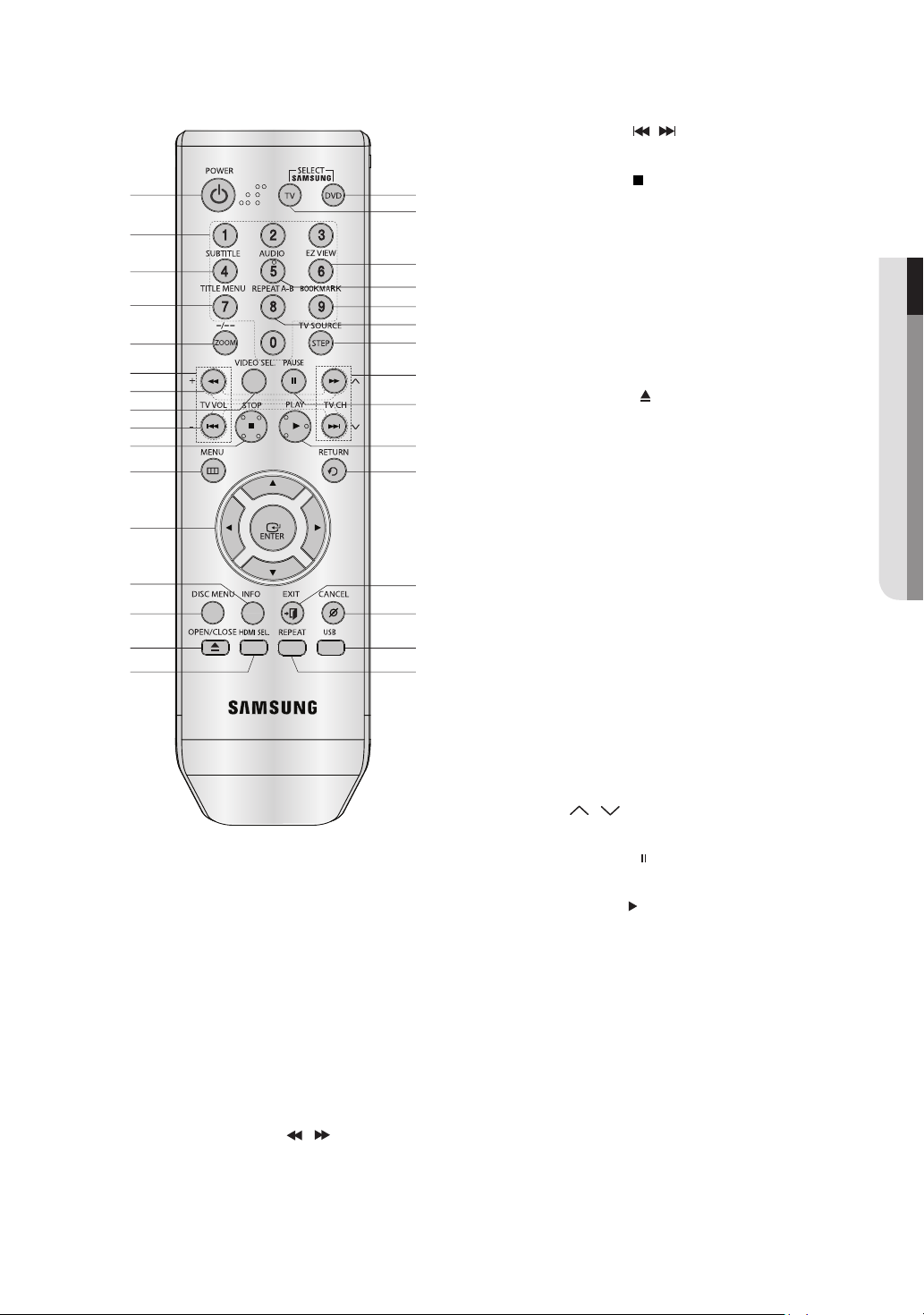

Tour of the Remote Control
1
2
3
4
5
6
7
8
9
10
14
11
12
13
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
1. DVD POWER Button
Turns the power on or off.
2. NUMBER Buttons
3. SUBTITLE (Number 4) Button
4. TITLE MENU (number 7) Button
Brings up the Title menu.
5. ZOOM/-/-- Button
Enlarges the DVD Picture.
Use this button to select additional channel broadcast
by the same TV network.(For example: 5-1).
6. TV VOL (+, -) Buttons
Control volume.
7. SEARCH Buttons (
/
)
Allow you to search forward/backward through a disc.
8. VIDEO SEL. Button
Changes video output mode
9. SKIP Buttons (
/
)
Use to skip the title, chapter or track.
10. STOP Button ( )
11. MENU Button
Brings up the DVD player’s menu.
12. ENTER/π
/
†
,
√
/
® Buttons
This button functions as a toggle switch.
13. INFO Button
Displays the current disc mode.
14. DISC MENU Button
Brings up the Disc menu.
15. OPEN/CLOSE ( ) Button
To open and close the disc tray.
16. HDMI SEL. Button
HDMI Output resolution setup.
17. DVD Button
Use to operate DVD.
18. TV Button
Use to operate a Samsung TV.
19. EZ VIEW (Number 6) Button
The aspect ratio of a picture can easily be adjusted
according to the screen size of your TV (16:9 or 4:3).
20. AUDIO (Number 5) Button
Use this button to access various audio functions on a disc.
21. BOOKMARK (Number 9) Button
22. REPEAT A-B (Number 8) Button
Allows you to repeat play a chosen section (A-B) on a disc.
23. STEP/TV SOURCE Button
Advances play one frame at a time.
24. TV CH ( , ) Buttons
Channel selection.
25. PAUSE Button ( )
Pause disc play.
26. PLAY Button ( )
Begins disc play.
27. RETURN Button
Returns to a previous menu.
28. EXIT Button
Exit the on-screen menu.
29. CANCEL Button
Use to remove menus or status displays from the screen.
30. USB Button
31. REPEAT Button
Allows you to repeat play a title, chapter, track, or disc.
31
12_ connections
connections
Choosing a Connection
The following shows examples of connections commonly used to connect the DVD player with a
TV and other components.
Before Connecting the DVD Player
- Always turn off the DVD player, TV, and other components before you connect or disconnect
any cables.
- Refer to the user’s manual of the additional components (such as a TV) you are connecting for
more information on those particular components.

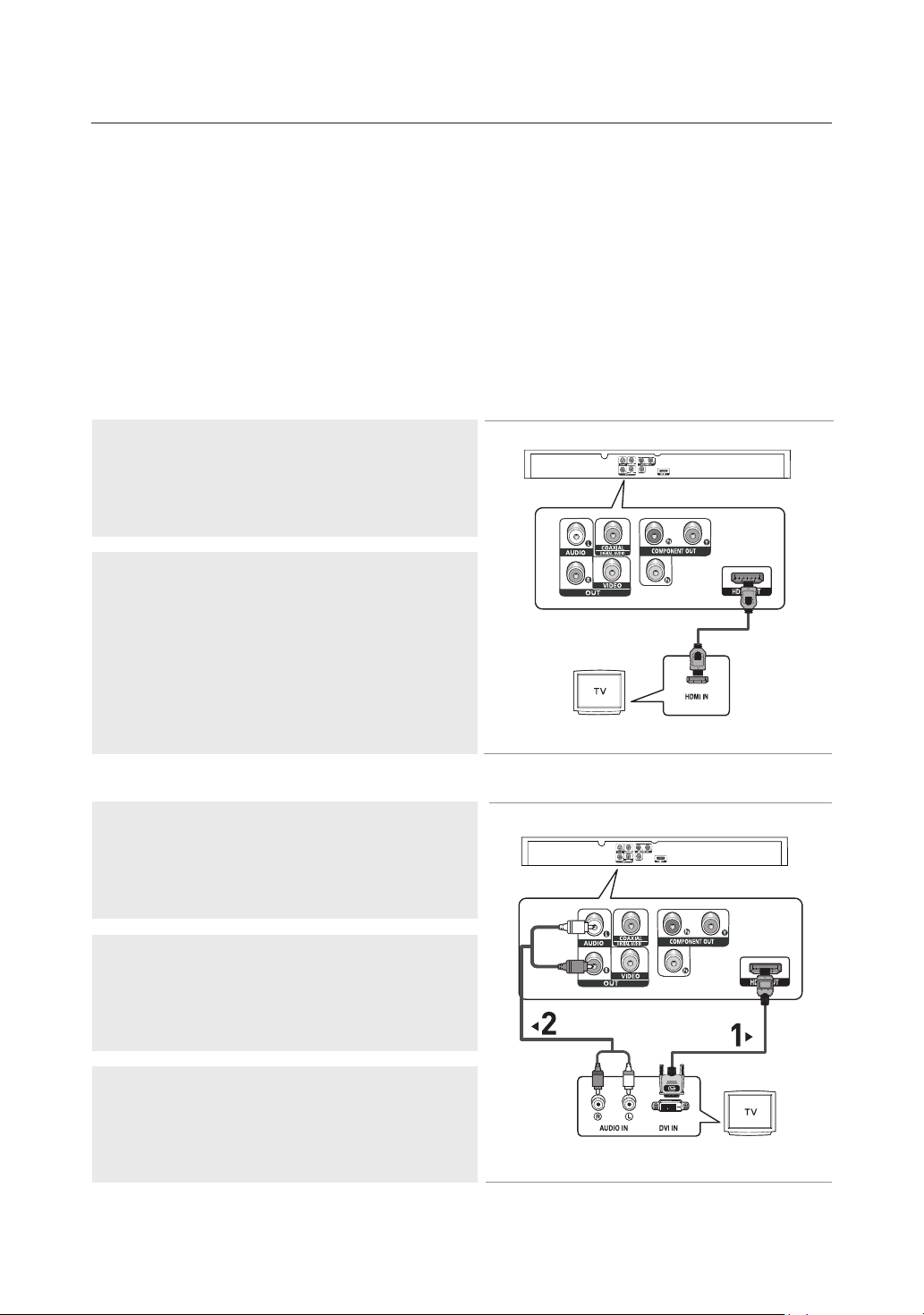

Connecting to a TV with HDMI Jack
HDMI provides the best picture quality of all the connections.
1
Using an HDMI-HDMI cable (not included) connect the HDMI
OUT jack on the rear of the DVD player to the HDMI IN jack of
your TV.
2
Press the input selector button on your TV remote control until
the HDMI signal from the DVD player appears on your TV
screen.
HDMI cable
(Not Included)
Connecting to a TV with DVI Jack
1
Using an HDMI-DVI cable (not included), connect the HDMI
OUT jack on the rear of the DVD player to the DVI IN jack of
your TV.
2
Using the audio cables, connect the AUDIO (red and white)
OUT jacks on the rear of the DVD player to the AUDIO
(red and white) IN jacks of your TV.
Turn on your DVD player and TV.
3
Press the input selector button on your TV remote control until
the DVI signal from the DVD player appears on your TV screen.
RED
WHITE
RED
WHITE
HDMI-DVI cable
(Not Included)
Audio Cable
(Included)
English _13
● CONNECTIONS
HDMI VIDEO Specifications
When you press the HDMI SEL. button, the 480p, 720p, 1080i and 1080p resolutions are selected in order.
The first press of the HDMI SEL. button, brings up the current resolution.
The second press allows you to change the HDMI output resolution.
- Depending on your TV, certain HDMI output resolutions may not work.
- Please refer to the user's manual of your TV.
- If an HDMI or HDMI-DVI cable is plugged into TV, the DVD player’s output is set to HDMI automatically
about 10 seconds later.
- For better picture quality, set the HDMI output resolution to 720p, 1080i or 1080p (see page 52)
- This player upconverts regular DVDs for playback on 1080p TVs. It does not play HD DVDs or Blu-Ray
discs.
- If you connect an HDMI cable between a Samsung TV and this DVD player, you can operate this DVD
player using your TV remote control. This is only available with Samsung TVs that support Anynet+(HDMI-
CEC).(see page 56-57)
- If your TV has an
logo, then it supports the Anynet+ function.
• HDMI (High Definition Multimedia Interface)
HDMI enables you to make a digital video and audio connection with a single cable.
Using HDMI, the DVD player transmits a digital video and audio signal which displays a vivid picture on a
TV having an HDMI input jack.
• HDMI connection description
HDMI connector - Video and audio are transferred digitally without compression (LPCM or Bit Stream
data).
- The player outputs a pure digital signal to the TV through an HDMI cable.
- If your TV does not support HDCP (High-bandwidth Digital content protection), snow noise appears on
the screen.
• Why does Samsung use HDMI?
Analog TVs require an analog video/audio signal. However, when playing a DVD, the signal transmitted
to a TV is digital. Therefore either a digital-to-analog converter (in the DVD player) or an analog-to-digital
converter (in the TV) is required. During this conversion, the picture quality is degraded due to noise
and signal loss. HDMI technology is superior because it requires no D/A conversion and is a pure digital
signal from the player to your TV.
• What is HDCP?
HDCP (High-bandwidth Digital Content Protection) is a system for protecting DVD content output via
HDMI/DVI from being copied. It provides a secure digital link between a video source (PC, DVD. etc) and
a display device (TV, projector, etc). Content is encrypted at the source device to prevent unauthorized
copies from being made.
14_ connections
connections
Connecting to a TV (Progressive)
- Connecting to your TV using Component video cables. The 480p resolution is possible with this
connection.
- What is "Progressive Scan"?
Progressive scan has twice as many scanning lines as the interlace output method and provides
better and clearer picture quality.
1
Using Component video cables (not included), connect the
COMPONENT VIDEO OUT jacks on the rear of the DVD player
to the COMPONENT IN jacks of your TV.
To see the progressive video output,
- Consult your TV User’s Manual to find out if your TV supports Progressive Scan. If Progressive
Scan is supported, follow the TV User’s Manual regarding Progressive Scan settings in the TV’s
menu system.
- Depending on your TV, the connection method may differ from the illustration above.
2
Using the audio cables, connect the AUDIO (red and white)
OUT jacks on the rear of the DVD player to the AUDIO (red
and white) IN jacks of your TV.
Turn on the DVD player and TV.
4
Press the input selector button on your TV remote control until
the Component signal from the DVD player appears on the TV
screen.
3
Set the Video Output to P-SCAN in the Display Setup menu.
(See pages 51 to 52)
You can also use the VIDEO SEL. button to change the Video
Output mode. (See page 16)
RED
WHITE
RED
WHITE
RED
BLUE
GREEN
RED
BLUE
GREEN
Audio Cable
(Included)
Component cable
(not included)
English _15
● CONNECTIONS
Connecting to a TV (Interlace)
- Connecting to your TV using Component video cables. The 480i resolution is possible with this
connection.
- This is the best available connection if your TV is not capable of receiving a Progressive Scan
signal.
- You will enjoy excellent quality and accurate color reproduction images. Component video
separates the picture element into black and white(Y), blue(P
B
), red(P
R
) signals to present clear
and clean images. (Audio signals are delivered through the audio output.)
Note
- If you want to connect to an Amplifier, please refer to the Amplifier connection page. (See pages 17 to 18)
- The Component jacks of your TV may be marked “R-Y, B-Y, Y” or “Cr, Cb, Y” instead of “P
R
, P
B
, Y”
depending on the manufacturer. The number and position of the jacks may vary depending on the TV set.
Please refer to the user's manual of your TV.
1
Using Component video cables (not included), connect the
COMPONENT VIDEO OUT jacks on the rear of the DVD player
to the COMPONENT IN jacks of your TV.
2
Using the audio cables, connect the AUDIO (red and white)
OUT jacks on the rear of the DVD player to the AUDIO (red
and white) IN jacks of your TV.
Turn on your DVD player and TV.
4
Press the input selector on your TV remote control until the
Component signal from the DVD player appears on the TV
screen.
3
Set the Video Output to I-SCAN in the Display Setup menu.
(See pages 51 to 52)
You can also use the VIDEO SEL. button to change the Video
Output mode. (See page 16)
RED
WHITE
RED
WHITE
RED
BLUE
GREEN
RED
BLUE
GREEN
Audio Cable
(Included)
Component cable
(not included)
16_ connections
connections
1
Using Video/Audio cables, connect the VIDEO (yellow)/AUDIO
(red and white) OUT jacks on the rear of the DVD player to the
VIDEO (yellow)/AUDIO (red and white) IN jacks of your TV.
2
Turn on your DVD player and TV.
Note
- Noise may be generated if the audio cable placed too close to the power cable.
- If you want to connect to an Amplifier, please refer to the Amplifier connection page. (See pages 17 to 18)
- The number and position of the jacks may vary depending on your TV set. Please refer to the user's
manual of your TV.
- If there is one audio input terminal on the TV, connect it to the [AUDIO OUT][left] (white) jack of the DVD
player.
- If you press the VIDEO SEL. button when the DVD Player is in stop mode or no disc is inserted, the Video
Output mode changes in the following sequence: (I-SCAN ➝ P-SCAN).
RED
WHITE
YELLOW
RED
WHITE
YELLOW
Audio Cable
(Included)
Video Cable
(Included)
3
Set the Video Output to I-SCAN in the Display Setup menu.
(See pages 51 to 52).
You can also use the VIDEO SEL. button to change the Video
Output mode.
4
Press the input selector button on your TV remote control
until the Video signal from the DVD player appears on the TV
screen.
Connecting to a TV (Video)
English _17
● CONNECTIONS
Note
- Please turn the volume down when you turn on the Amplifier. Sudden loud sound may cause
damage to the speakers and your ears.
- Please set the audio in the menu screen according to the Amplifier.(See pages 49 to 50)
- The position of jacks may vary depending on the Amplifier.
Please refer to your Amplifier’s user's manual.
Connecting to an Audio System (2 Channel Amplifier)
1
Using the audio cables, connect the AUDIO (red and white)
OUT jacks on the rear of the DVD player to the AUDIO (red
and white) IN jacks of the Amplifier.
2
Using the video signal cable(s), connect the HDMI,
COMPONENT or VIDEO OUT jacks on the rear of the DVD
player to the HDMI/DVI, COMPONENT or VIDEO IN jack of
your TV as described on pages 12 to 16.
3
Turn on your DVD player, TV, and Amplifier.
4
Press the input select button of the Amplifier to select the audio
input your DVD player is connected to in order to hear sound.
Refer to your Amplifier's user manual to set the Amplifier's
audio input.
RED
WHITE
RED
WHITE
2-Channel stereo amp
Audio Cable
(Included)
18_ connections
connections
Note
- Please turn the volume down when you turn on the Amplifier. Sudden loud sound may cause
damage to the speakers and your ears.
- Please set the audio in the menu screen according to the Amplifier you have connected. (See pages 49 to 50)
- The position of jacks may vary depending on the Amplifier.
Please refer to the user's manual of the Amplifier.
Connecting to an Audio System (Dolby Digital, MPEG2 or DTS Amplifier)
1
If using a Coaxial cable (not included), connect the DIGITAL
AUDIO (COAXIAL) jack on the rear of the DVD player to the
DIGITAL AUDIO IN (COAXIAL) jack of the Amplifier.
2
Using the video signal cable(s), connect the HDMI,
COMPONENT or VIDEO OUT jacks on the rear of the DVD
player to the HDMI/DVI, COMPONENT or VIDEO IN jack of
your TV as described on pages 12 to 16.
3
Turn on your DVD player, TV, and Amplifier.
4
Press the input select button of the Amplifier to select the audio
input your DVD player is connected to in order to hear sound.
Refer to your Amplifier's user manual to set the Amplifier's
audio input.
Coaxial Cable
(not included)
Dolby Digital or
DTS amp
English _19
● BASIC FUNCTIONS
Playing a Disc
Before Play
- Turn on your TV and set it to the Video Input your DVD player is connected to with your TV’s
remote control.
- If you connected the DVD player to an external Audio System, turn on your Audio System and
set it to the correct Audio Input.
After plugging in the player, the first time you press the DVD POWER button, the screen
to the right appears: If you want to select a language, press a NUMBER button.
(This screen will only appear when you plug in the player for the first time.)
If the language for the startup screen is not set, the settings may change whenever you
turn the power on or off. Therefore, make sure that you select the language you want
to use.
Once you select a menu language, you can change it by pressing the button
on the front panel of the unit for more than 5 seconds with no disc in the unit. Then
the SELECT MENU LANGUAGE window appears again where you can reset your
preferred language.
Playback
1
Press the OPEN/CLOSE
( ) button and the tray
opens.
2
Place a disc gently into the
tray with the disc’s label
facing up.
3
Press the PLAY ( ) button
or OPEN/CLOSE (
) button
to close the disc tray.
▼
RESUME function
When you stop disc play, the player
remembers where you stopped, so when you
press the PLAY (
) button again, it will pick up
where you left off.
Select Menu Language
Press 1 for English
Touche 2 pour Français
Drücken Sie 3 für Deutsch
Pulsar 4 para Español
Premere 5 per Italiano
Druk op 6 voor Nederlands
basic functions

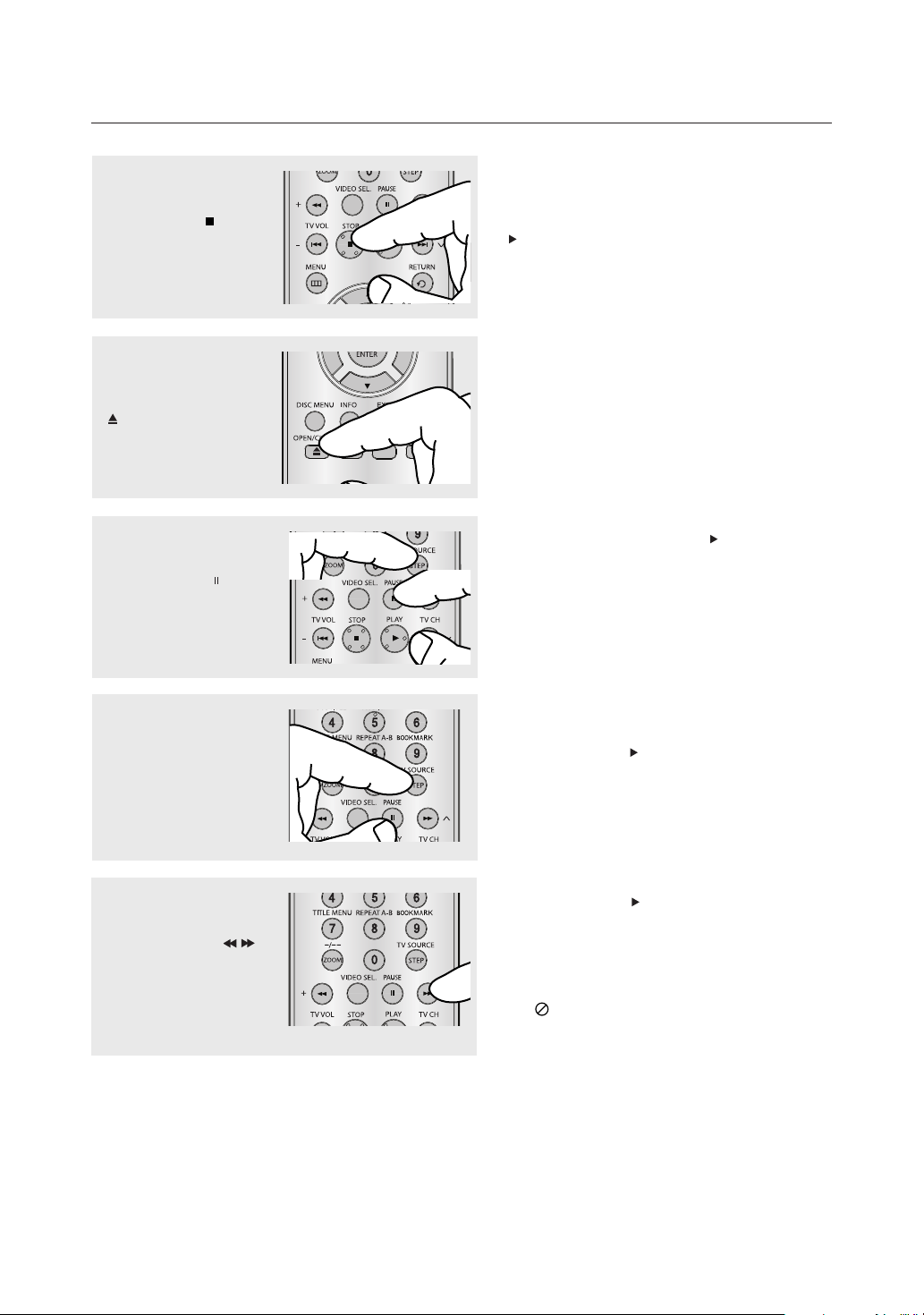

20_ basic functions
basic functions
4
Stopping Play
Press the STOP ( ) button
during play.
Note
- If the player is left in the stop mode for more
than one minute without pressing any buttons, a
screen saver will be activated. Press the PLAY
(
) button to resume normal play.
- If the player is left in the stop mode for more
than 30 minutes, the power will automatically
turn off.
6
Pausing Play
Press the PAUSE (
) or
STEP button on the remote
control during play.
▼
Screen stops, no sound.
To resume, press the PLAY (
) button once
again.
Note
If the player is left for about 5 minutes in pause
mode, it will stop.
7
Step Motion Play (Except
CD)
Press the STEP button on
the remote control during
play.
▼
Each time the button is pressed, a new frame
will appear.
No sound is heard during STEP mode.
Press the PLAY (
) button to resume normal
play.
You can only perform step motion play in the
forward direction.
▼
No sound is heard during slow mode.
Press the PLAY (
) button to resume normal
play.
5
Removing the Disc
Press the OPEN/CLOSE
( ) button.
Note
- The (
) icon indicates an invalid button press.
- This player does not play HD DVDs or Blu-Ray
discs.
8
Slow Motion Play
Press the SEARCH (
/
)
button to choose the play
speed between 1/2, 1/4, 1/8
and 1/16 of normal speed
during PAUSE mode.
English _21
● BASIC FUNCTIONS

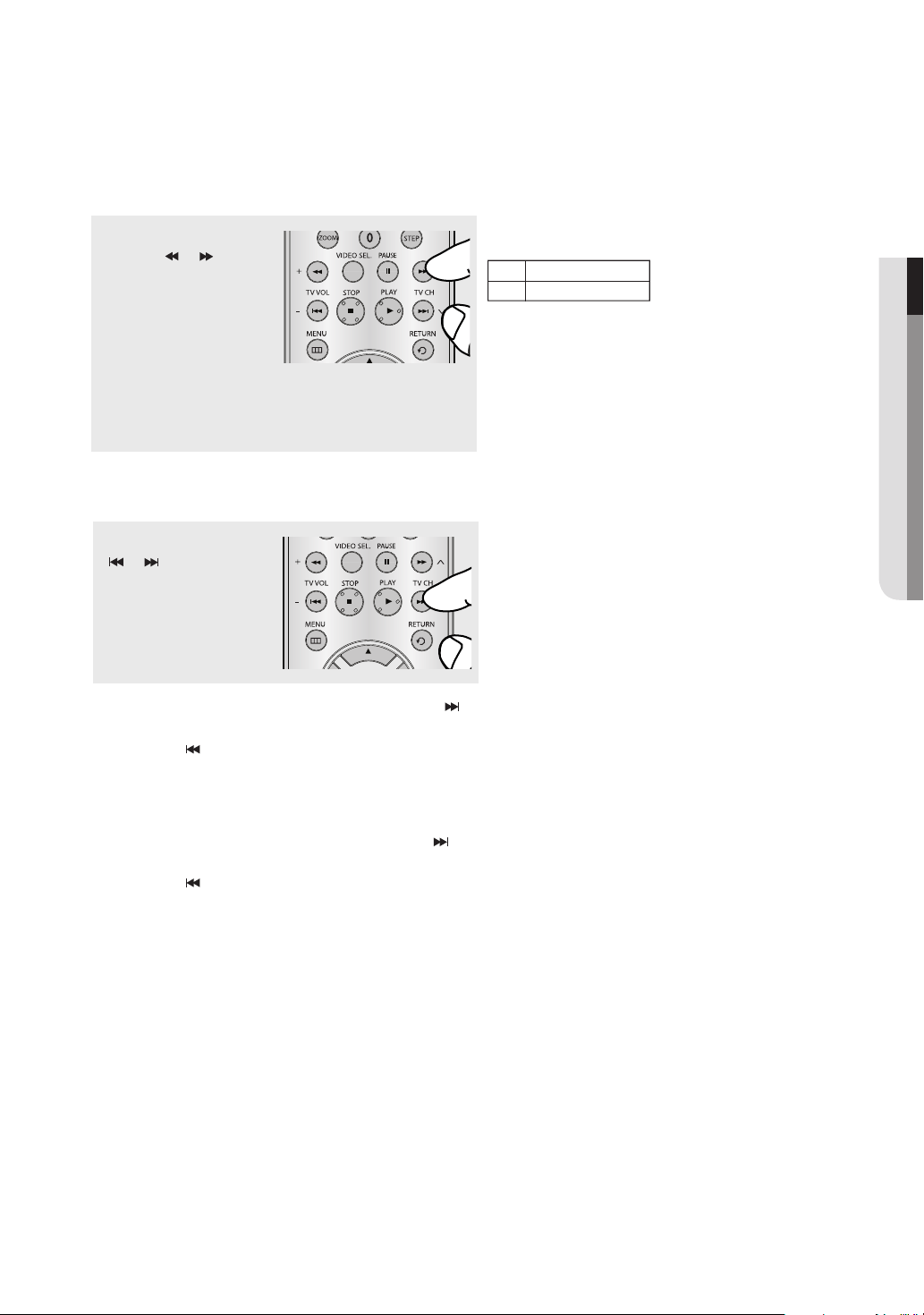

Using the Search and Skip Functions
During play, you can search quickly through a chapter or track, and use the skip function to jump to
the next selection.
Searching through a Chapter or Track
During play, press the
SEARCH ( or ) button
on the remote control for more
than 1 second.
▼
If you want to search at a faster speed on the
DVD or CD, press and hold the button.
Note
-
The speed marked in this function may be
different from the actual playback speed.
- No sound is heard during search mode
(Except CD).
DVD
CD
2X, 4X, 64X, 128X
2X, 4X, 8X
Skipping Tracks
- When playing a DVD, if you press the SKIP ( )
button, it moves to the next chapter. If you press
the SKIP ( ) button, it moves to the beginning
of the chapter. Pressing the Skip button twice
makes the DVD move to the beginning of the
previous chapter.
- When playing a CD, if you press the SKIP ( )
button, it moves to the next track. If you press
the SKIP ( ) button, it moves to the beginning of
the track. Pressing the Skip button twice makes
the CD move to the beginning of the previous
track.
During play, press the SKIP
(
or ) button.
22_ basic functions
basic functions
Using the Display Function
When Playing a DVD/MPEG4
1
During play, press the
INFO button on the remote
control.
▼
You can select Info in the function menu by
pressing the MENU button.
2
Press the π/† buttons to
select the desired item.
DVD
3
To make the screen
disappear, press the INFO
button again.
MPEG4
1/2
1/8
0:00:13
ENG 5.1CH
Off
1/2
1/1
0:00:13
MP3 1/1
Off
English _23
● BASIC FUNCTIONS

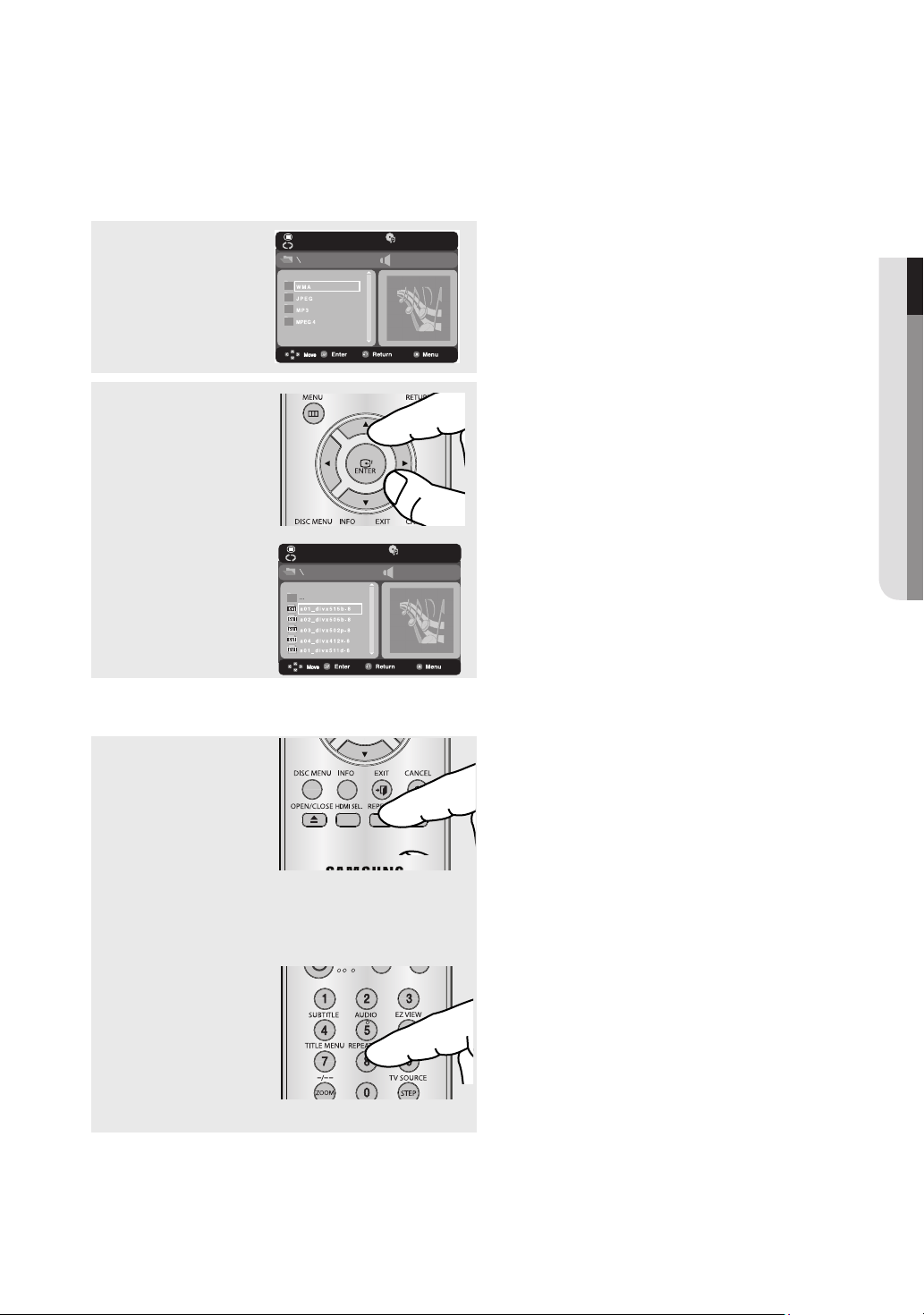

Using the Disc and Title Menu
Using the Disc Menu
1
During the playback of a
DVD disc, press the DISC
MENU button on the remote
control.
Note
- Depending on a disc, the Disc Menu may not
work.
- You can also select the Disc Menu, using the
DISC MENU button on the remote control.
Note
To access the desired title when there is more than one in the disc.
For example, if there is more than one movie on a DVD, each movie will be identified.
Most DVD discs are recorded in chapters so that you can quickly find a specific passage (similar
to tracks on an audio CD).
Allows playback of the film from a desired time. You must enter the starting time as a reference.
The time search function does not operate on some discs.
Refers to the film's soundtrack language. In the example, the soundtrack is played in English 5.1CH.
A DVD disc can have up to eight different soundtracks.
Refers to the subtitle languages available in the disc.
You will be able to choose the subtitle languages or, if you prefer, turn them off from the screen.
A DVD disc can have up to 32 different subtitles.
To access the desired Angle function.
Some DVD disc are have more than one recorded angle.
Using the Title Menu
1
During the playback of a
DVD disc, press the TITLE
MENU button on the remote
control.
Note
- Depending on a disc, the Title Menu may not
work.
- Title Menu will only be displayed if there are at
least two titles in the disc.
24_ basic functions
basic functions
Repeat Play
Repeat the current track, chapter, title, a chosen section (A-B), or all of the disc.
When playing a DVD
1
Press the REPEAT button
on the remote control.
Repeat screen appears.
2
Press the REPEAT button to
change playback mode.
▼
A DVD repeats play by chapter, title or disc.
Chapter : repeats the chapter that is
playing.
Title : repeats the title that is playing.
Disc : repeats the disc that is playing.
Off
Using the A-B Repeat function
1. Press the REPEAT A-B button on the remote control.
2. Press the REPEAT A-B button at the point where you want repeat play to start (A).
3. Press the REPEAT A-B button at the point where you want repeat play to start (B).
4. To return to normal play, press the REPEAT A-B button again.
Note
A-B REPEAT allow you to set point (B) directly after point (A) has been set.
3
To return to normal play,
press the REPEAT A-B
button again.
Note
- Depending on the disc, the Repeat function may
not work.
Chapter
Title
Disc
A
AB
Off
DVD
DVD
Off
English _25
● BASIC FUNCTIONS
Slow Play
This feature allows you slowly to repeat scenes containing sports, dancing, musical instruments
being played etc., so you can study them more closely.
When playing a DVD
1
During play, press the
PAUSE ( ) button.
2
Press the SEARCH ( / )
button to choose the play
speed between 1/2 , 1/4, 1/8,
and 1/16 of normal speed
during PAUSE mode.
26_ advanced functions
advanced functions
Adjusting the Aspect Ratio (EZ View)
The Aspect ratio is the relation between the width and height of a picture. The two most common
are 4:3 (Standard) and 16:9 (Widescreen). Follow the instructions below for the best aspect ratio
setting for your TV.
Changing the aspect ratio (DVD)
Press the EZ VIEW
button.
- The screen size
changes when the
button is pressed
repeatedly.
- The screen zoom mode
operates differently
depending on the screen
setting in the Display
Setup menu.
- To ensure correct
operation of the EZ
VIEW button, you should
set the correct aspect
ratio in the Display
Setup menu.
(See pages 51 to 52).
Here are some examples of possible screen sizes by adjusting
the aspect ratio :
- 4:3 Letter Box
- 4:3 Pan&Scan
- 16:9 Wide
Note
This function may behave differently depending
on the type of disc.
Wide Screen TV
English _27
● ADVANCED FUNCTIONS
If you are using a 4:3 TV
For 16:9 aspect ratio discs
- 4:3 Letter Box
Displays the content of the DVD title in 16:9 aspect ratio.
The black bars will appear at the top and bottom of the
screen.
- 4:3 Pan&Scan
The left and right portions of the screen are cut off and the
central portion of the 16:9 screen is displayed.
- SCREEN FIT
The top and bottom portions of the screen are cut off and a
full screen appears.
The picture will look vertically stretched.
- ZOOM FIT
The top, bottom, left and right of the screen are cut off and
the central portion of the screen is enlarged.
For 4:3 aspect ratio discs
- Normal Screen
Displays the content of the DVD title in 4:3 aspect ratio.
- SCREEN FIT
The top and bottom portions of the screen are cut off and
the full screen appears.
The picture will look vertically stretched.
- ZOOM FIT
The top, bottom, left and right portions of the screen are
cut off and the central portion of the screen is enlarged.
If you are using a 16:9 TV
For 16:9 aspect ratio discs
- WIDESCREEN TV
Displays the content of the DVD title in 16:9 aspect ratio.
- SCREEN FIT
The top and bottom portions of the screen are cut off.
When playing a 2.35:1 aspect ratio disc, the black bars
at the top and bottom of the screen will disappear. The
picture will look vertically stretched. (Depending on a type
of disc, the black bars may not disappear completely.)
- ZOOM FIT
The top, bottom, left and right of the screen are cut off and
the central portion of the screen is enlarged.
For 4:3 aspect ratio discs
- Normal Wide
Displays the content of the DVD title in 16:9 aspect ratio.
The picture will look horizontally stretched.
- SCREEN FIT
The top and bottom portions of the screen are cut off and
the full screen appears.
The picture will look vertically stretched.
- ZOOM FIT
The top, bottom, left and right portions of the screen are
cut off and the central portion of the screen is enlarged.
- Vertical Fit
When a 4:3 DVD is viewed on a 16:9 TV, black bars will
appear at the left and right of the screen in order to
prevent the picture from looking horizontally stretched.
28_ advanced functions
advanced functions
Selecting the Audio Language
You can select a desired audio language available on a disc quickly and easily with the AUDIO
button.
Using the AUDIO button (DVD/MPEG4)
2
To remove the AUDIO
icon from the screen,
press the CANCEL or
RETURN button.
Note
- This function depends on audio languages that
are encoded on the disc. This function may not
work with all DVDs.
- A DVD disc can contain up to 8 audio
languages.
- To have the same audio language come up
whenever you play a DVD; refer to “Using the
Audio Language” on page 46.
1
Press the AUDIO button.
The Audio changes when
the button is pressed
repeatedly.
- The audio languages
are represented by
abbreviations.
DVD
Press the AUDIO button
on the remote control
repeatedly to select the
desired Audio (MP3,
PCM, WMA, AC3 and
MPEG) on MPEG4 discs
then press the ENTER
button .
MPEG4
▼
MPEG4 is a compressed video format
designed to deliver DVD quality video at
lower data rates and smaller file sizes.
Types of MPEG4 files are DivX or Xdiv. These
files have an .avi extension.
ENG DTS 5.1CH
1/1 MP3 2CH
English _29
● ADVANCED FUNCTIONS
Selecting the Subtitle Language
You can select a desired subtitle quickly and easily with the SUBTITLE button.
Using the SUBTITLE button (DVD/MPEG4)
1
Press the SUBTITLE
button.
The subtitle changes when
the button is pressed
repeatedly.
The subtitle languages
are represented by
abbreviations.
Note
- Depending on the DVD, you may have to select the desired subtitle in the DVD’s Disc Menu. Press the
INFO button.
- This function depends on what subtitles are encoded on the disc. This function may not work with all DVDs.
- A DVD disc can contain up to 32 subtitle languages.
- To have the same subtitle language come up whenever you play a DVD; Refer to “Using the Subtitle
Language” on page 47.
DVD
English
Changing the Camera Angle
When a DVD contains multiple angles of a particular scene, you can use the ANGLE function.
Using the ANGLE function (DVD)
If the disc contains multiple angles, the ANGLE mark appears on the screen.
1
During play, press the
INFO button on the
remote control.
2
Press the
π/†
buttons to
select .
When the angle screen is
displayed, press the
√/®
buttons or you can use
the number buttons on the
remote control to select
the desired angle option.
30_ advanced functions
advanced functions
Using the Bookmark Function
This feature lets you bookmark sections of a DVD, so you can quickly find them at a later time.
Using the Bookmark Function (DVD)
1
During play, press the
BOOKMARK button on the
remote control.
2
When you reach the
scene you want to mark,
press the ENTER button.
Up to three scenes may
be marked at a time.
Note
- Depending on the disc, the Bookmark function
may not work.
Bookmark
Play
Clear
Bookmark
Play
Clear
TT:01 CH:05 Time 0:39:23
1
Recalling a Marked Scene
1
During play, press the
BOOKMARK button on
the remote control.
2
Press the
√/®
or
π/†
buttons to select a
marked scene.
3
Press the PLAY ( )
button to skip to the
marked scene.
Bookmark
Pla
y
Clear
TT:01 CH:05 Time 0:39:23
1
2
English _31
● ADVANCED FUNCTIONS
Clearing a Bookmark
2
Press the
√/®
or
π/†
buttons to select the
bookmark
number you want to delete.
1
During play, press the
BOOKMARK button on
the remote control.
3
Press the CANCEL button
to delete a bookmark
number.
Bookmark
Pla
y
Clear
TT:01 CH:05 Time 0:39:23
1
2
3
Using the Zoom Function
Using the Zoom Function (DVD)
▼
During DVD play, press ZOOM the following
order. 2X, 3X, 4X.
1
During play DVD play
or pause mode, press
the ZOOM button on the
remote control repeatedly,
to zoom in 2X, 3X, 4X.
32_ advanced functions
advanced functions
Clips Menu for MP3/WMA/JPEG/MPEG4/CD Audio
CD Audio or discs with MP3/WMA/JPEG/MPEG4 contain individual songs and/or pictures that
will be organized into folders on this unit as shown below. They are similar to how you use your
computer to put files into different folders.
Open the disc tray.
Place the disc on the tray.
Close the tray.
The tray closes and this
screen displays.
001/004
0:00:00 / 0:00:00
Off
-
: Name of currently playing file.
-
: Current Playback Mode : There are four modes.
They can be selected in order by pressing the
REPEAT button.
- Off: Normal Playback
- Track: Repeats the current track.
- Folder: Repeats the current folder.
- Random: Files in the disc will be played in
random order.
-
: AUDIO ICON.
- : STOP ICON.
-
ú
: PLAY ICON.
-
Ø
: PAUSE ICON.
-
: MP3 file icon.
-
: WMA file icon.
-
: JPEG file icon.
-
:
AVI file icon.
-
: CDDA file icon.
-
: Folder icon.
-
: Current Folder icon.
- To select the Parent Folder
Press the RETURN button to go to the parent folder,
or press the
π/†
buttons to select “..” and
press ENTER to go to the parent folder.
Folder Selection
English _33
● ADVANCED FUNCTIONS
MP3/WMA/CD Audio Playback
1
Open the disc tray.
Place the disc on the tray.
Close the tray.
2
Press the
π/†
buttons to
select a song file.
Press ENTER to begin
playback of the song file.
Repeat/Random playback
1
Press the REPEAT button
to change the playback
mode. There are four
modes; Off, Track, Folder
and Random.
- Off: Normal Playback
- Track: Repeats the current song file.
- Folder: Repeats the song files which have the same extension
in the current folder.
- Random: Song files which have the same extension will be
played in random order.
001/004
0:00:28 / 0:03:30
128Kbps
track 1
track 2
track 3
track 4
MP3
Track 1
Off
001/004
0:00:00 / 0:00:00
Off
34_ advanced functions
advanced functions
CD-R MP3/WMA file
When you record MP3 or WMA files on a CD-R for
playback in this unit, please refer to the following.
- Your MP3 or WMA files should be ISO 9660 or JOLIET
format.
ISO 9660 format and Joliet MP3 or WMA files are
compatible with Microsoft's DOS and Windows, and with
Apple's Mac. This format is the most widely used.
- When naming your MP3 or WMA files, do not exceed 8
characters, and enter “.mp3, .wma” as the file
extension.
General name format : Title.mp3. or Title.wma. When
composing your title, make sure that you use 8 characters
or less, have no spaces in the name, and avoid the use of
special characters including: (.,/,\,=,+).
- Use a decompression transfer rate of at least 128 Kbps
when recording MP3 files.
Sound quality with MP3 files basically depends on the rate
of compression/decompression you choose. Getting CD
audio sound requires an analog/digital sampling rate, that
is conversion to MP3 format, of at least 128 Kbps and up
to 160 Kbps. However, choosing higher rates, like 192
Kbps or more, only rarely give better sound quality.
Conversely, files with decompression rates below 128
Kbps will not be played properly.
- Use a decompression transfer rate of at least 64Kbps
when recording WMA files.
Sound quality with WMA files basically depends on the rate
of compression/decompression you choose.
Getting CD audio sound requires an analog/digital
sampling rate, that is conversion to WMA format, of at least
64Kbps and up to 192Kbps.
Conversely, files with decompression rates below 64Kbps
or over 192Kbps will not be played properly.
The sampling rate that can be supported for WMA files is
>30 Khz.
- Do not try recording copyright protected MP3 files.
Certain "secured" files are encrypted and code protected
to prevent illegal copying. These files are of the following
types: Windows Media
TM
(registered trade mark of
Microsoft Inc) and SDMI
TM
(registered trade mark of The
SDMI Foundation). You cannot copy such files.
- Important:
The above recommendations cannot be taken as a
guarantee that the DVD player will play MP3 recordings, or
as an assurance of sound quality. You should note that
certain technologies and methods for MP3 file recording
on CD-Rs prevent optimal playback of these files on your
DVD player (degraded sound quality and in some cases,
inability of the player to read the files).
- This unit can play a maximum of 500 files and 500 folders
per disc.
English _35
● ADVANCED FUNCTIONS
MPEG4 Playback
MPEG4 Play Function
MPEG4 is a compressed video format designed to deliver DVD quality video at lower data rates
and smaller file sizes. Types of MPEG4 files are DivX or Xvid. These files have an .avi extension.
AVI files are used to contain the audio and video data. Only AVI format files with the “.avi”
extensions can be played.
1
Open the disc tray.
Place the disc on the tray.
Close the tray.
2
Press the
π/†
or
√/®
buttons to select an avi file
(DivX/XviD) and then press
the ENTER button.
Repeat and Repeat A-B Playback
- Folder : repeats the AVI files which have the same extension
in the current folder.
- Track : repeats the track that is playing.
- Off : No Repeat mode.
Press the REPEAT A-
B button to set the point
where you want repeat play
to start (A).
Press the REPEAT A-B
button again at the point
where you want the repeat
play to stop (B).
▼
To return to normal play, press the REPEAT
A-B button until the display shows Repeat:Off.
Note
A-B REPEAT allow you to set point (B) directly
after point (A) has been set.
001/004
0:00:00 / 0:00:00
MPEG4
Off
001/004
0:00:00 / 0:00:00
Off
Press the REPEAT button
to change playback mode.
There are 3 modes
Off, Track, Folder,
36_ advanced functions
advanced functions
Possible warning messages that may appear when trying to
play DivX/AVI files are :
1. No Authorization
- File with bad registration code.
2. Unsupported Codec
- Files with
certain Codec Types, Versions (ex.
MP4, AFS and other proprietary codecs) are not --
supported by this player.
3. Unsupported Resolution
- Files containing resolutions higher than the player’s
specification are not supported.
Function Description Reference page
Skip
( or )
Search
( or )
Slow Motion
Play
Step Motion
Play
ZOOM
During play, press the or
button, it moves forward
or backward 5 minutes.
During play, press the SEARCH
( or ) button and press
again to search at a faster
speed.
Allows you to search
at a faster speed in an AVI
file. (2X, 4X, 8X)
Allows you to search at a
slower speed in an AVI file.
(1/2X, 1/4X, 1/8X, 1/16X)
Each time the STEP button
is pressed, a new frame will
appear.
Will zoom in 2X/3X/4X/
Normal
-
-
P 20
P 20
P 31
DivX3.11 & DivX4 & XviD DivX5
Bitrate may fluctuate:
Device may skip decoding
the high bitrate portions
and begin decoding again
when Bitrate returns to
normal.
720 x 480 @30fps
720 x 576 @25fps
: Maximum bitrate : 4Mbps
CD-R AVI file
This unit can play the following video compression formats
within the AVI file format:
- DivX 3.11 contents
- DivX 4 contents (Based on MPEG-4 Simple Profile)
- DivX 5 contents (MPEG-4 simple profile plus additional
features such as bi-directional frames. Qpel and GMC are
also supported.)
- XviD MPEG-4 compliant contents.
DVD-RW & DVD+R
Supported DivX file formats :
- Basic DivX format DivX3.11 / 4.12/ 5.x
- Xvid (MPEG-4 compliant video codec) and DivX Pro
- File format : *.avi, *.div, *.divx.
This unit supports all resolutions for AVI up to maximum shown
at the below.
Note
- The DVD-1080P9 can support resolutions up to 720 x 480 @30 frames/ 720 x 576 @25 frames for DivX
discs.
- This unit supports CD-R/RWs written in MPEG4 in accordance with the “ISO9660 format”.
MPEG4 Function Description
- Depending on the MPEG4 file, these functions may not work.
OK
OK
This File is not supported
001/003
0:00:00 / 0:00:00
Authorization Err
No Codec
No Resolution
Off
English _37
● ADVANCED FUNCTIONS
Playing Media Files Using the USB Host feature
You can enjoy media files such as pictures, movies and tunes saved in an MP3 player, USB
memory or digital camera by connecting them to the USB port of the DVD Player.
Using the USB HOST feature
1
Connect the USB device to
the USB port on the front of
the unit.
Note
-
When the USB button on the remote control is pressed, a display of the USB device selection will appear.
- “USB loading” appears on the display screen.
- The USB MENU screen appears on the TV screen and the saved file is played.
-
If there is a Disc in the unit, pressing the USB button will make the player exit the USB menu and load the disc.
- The Return button in USB menu is using for “Folder Selection” on page 32
2
If your USB device is
partitioned, press the
√/® button to select one
of partitions, then press
ENTER.
3
Press the π/† or √/®
buttons to select a file in
the USB device.
Press ENTER to Open
the file.
Safe USB Removal
Press the USB button to return to device partitions or main screen.
- Press the ST
OP (■) button
- Remove the USB cable.
Skip Forward/Back
During playback, press the (|k / K|) button.
- When there is more than one file, when you press the K| button, the next file is selected.
- When there is more than one file, when you press the |k button, the previous file is selected.
Fast playback
To play back the disc at a faster speed, press (k / K) during playback.
- Each time you press either button, the playback speed will change as follows : 2x ➞ 4x ➞ 8x.
001/004
0:00:00 / 0:00:00
Device
Disc
USB 1
USB 2
Off
38_ advanced functions
advanced functions
Compatible Devices
1. USB devices that support USB Mass Storage v1.0. (USB devices that operate as a removable
disc in Windows (2000 or later) without additional driver installation.)
2. MP3 Player : HDD and fl ash type MP3 players.
3. Digital camera : Cameras that support USB Mass Storage v1.0.
Cameras that operate as a removable disc in Windows (2000 or later) without additional driver
installation.
4. USB Flash Drive: Devices that support USB2.0 or USB1.1.
You may experience a difference in playback quality when you connect a USB1.1 device.
5. USB card Reader : One slot USB card reader and Multi slot USB card reader.
Depending on the manufacturer. the USB card reader may not be supported.
If you install multiple memory devices into a multi card reader, you may experience problems.
6. If you use a USB extension cable, the USB device might not be recognized.
Supported Formats
File name File extension Bit rate Version Pixel
Sampling Fre-
quency
Still Picture
JPG JPG .JPEG – –
640X480
–
Music
MP3 .MP3
80~384kbps
– – 44.1kHz
WMA .WMA
56~128kbps
V8 – 44.1kHz
Movie
VCD MPG.MPEG 1.5Mbps VCD1.1,VCD2.0
320X480
44.1kHz
WMV .WMV 4Mbps V1,V2,V3,V7
720X480
44.1KHz~48KHz
DivX .AVI,.ASF 4Mbps
DivX3.11~DivX5.1,XviD 800X600
44.1KHz~48KHz
CBI (Control/Bulk/Interrupt) is not supported.
Digital Cameras that use PTP protocol or require additional program installation when connected to a PC are
not supported.
A device using NTFS fi le system is not supported.
(Only FAT 16/32 (File Allocation Table 16/32) fi le system is supported.)
Some MP3 players, when connected to this product,may not operate depending on the sector size of their fi le
system.
The USB HOST function is not supported if a product that transfers media fi les by its manufacturer-specifi c
program is connected.
Does not operate with Janus enabled MTP (Media Transfer Protocol) devices.
The USB host function of this product does not support all USB devices.
•
•
•
•
•
•
•
•
•
•
•
Note
- VCD & WMV can’t be played on this player.
English _39
● ADVANCED FUNCTIONS
CD Ripping
This feature lets you to copy audio files from a CD into MP3 format on a USB device.
1
Open the disc tray.
Place the Audio CD(CD DA)
disc on the tray, and close
the tray. Connect the USB
device to the USB port on
the front of the unit. This
screen will displayed.
Press ENTER to select disc.
2
Press the RETURN button
to display the Ripping
screen.
4
Press the ® and † button
to select START, then
press the ENTER button
begin ripping.
Note
- To return to CDDA screen, press the RETURN button again.
- While the CD is being ripped, the player will automatically be in stop mode.
- Ripping process is 2.6 times of normal speed.
- Only Audio CD(CD DA) discs can be ripped.
- The USB button does not work while you’re in the ripping menu.
▼
Ripping menu contain 4 buttons :
- Bitrate, press ENTER to change :
128kbps ➞ 192kbps ➞ 128kbps ...
• Standard : 128kbps
• Better Quality : 192kbps
- Device selection, press ENTER to change
between partitions on the USB device (max 4).
- Select - Unselect, press ENTER to change
from Select all (files) or Select none.
▼
- To cancel the copying in progress, press the
CANCEL button.
001/004
0:00:00 / 0:00:00
TRACK01
TRACK02
TRACK03
TRACK04
TRACK05
TRACK06
Ripping
CD
TRACK01
Device
Disc
USB 1
01/06
0:00:00 / 0:00:00
TRACK01
TRACK02
TRACK03
TRACK04
TRACK05
TRACK06
CD
Bitrate 128kbps
Device USB 1
Select all
Start
01/06
0:00:00 / 0:00:00
TRACK01
TRACK02
TRACK03
TRACK04
TRACK05
TRACK06
CD
Bitrate 128kbps
Device USB 1
TRACK01
Cancel
Ripping...
Off
3
Press the π/† buttons,
then press the ENTER
button to select files for
ripping.
▼
- To deselect files, press ENTER button
again.
01/06
0:00:00 / 0:00:00
TRACK01
TRACK02
TRACK03
TRACK04
TRACK05
TRACK06
CD
Bitrate 128kbps
Device USB 1
Select all
Start
40_ advanced functions
advanced functions

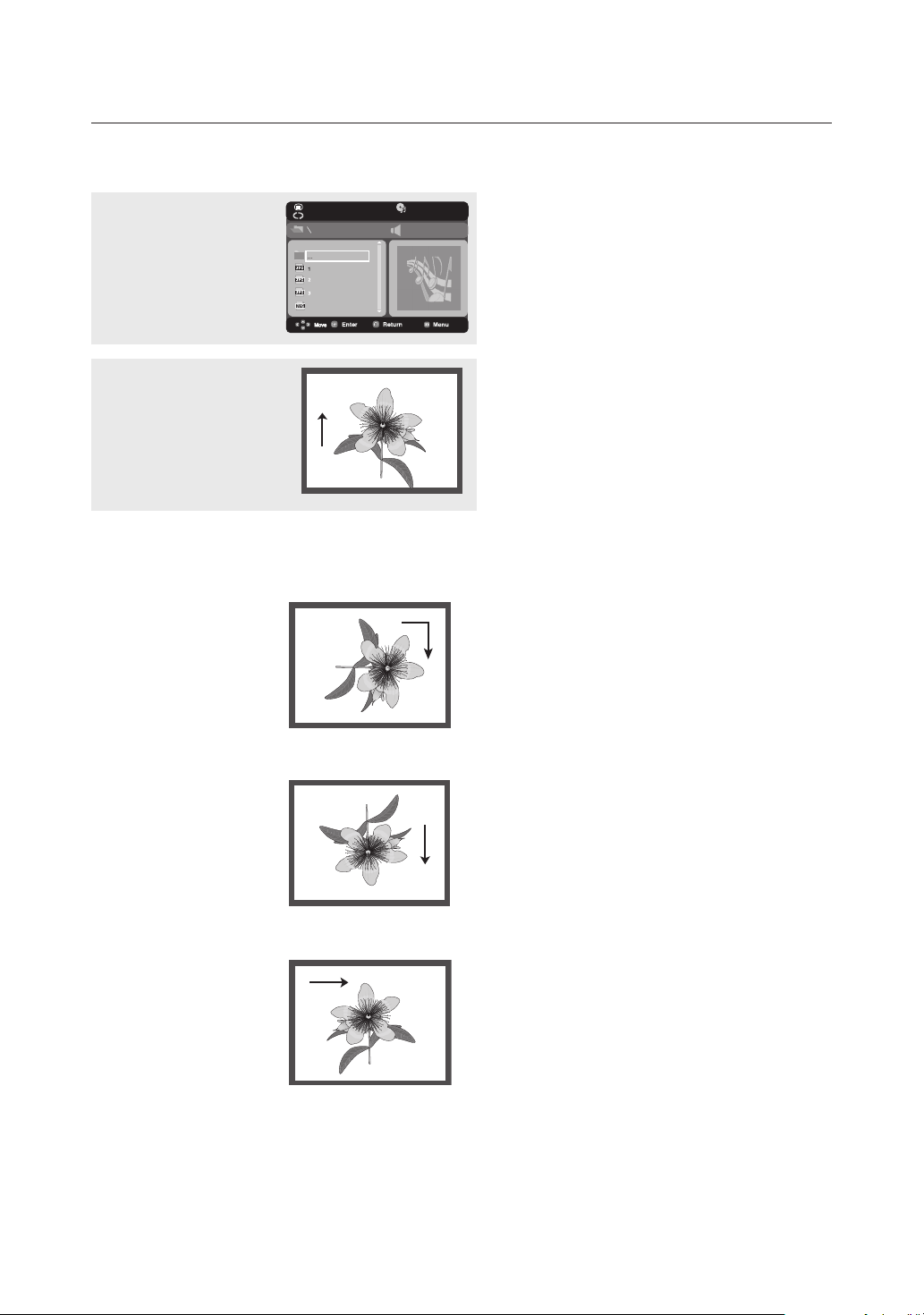

Picture CD Playback
1
Select the desired folder.
Note
- Press the STOP button to return to the clips
menu.
- When playing a Kodak Picture CD, the unit
displays the Photo directly, not the clips menu.
2
Press the
π/†
buttons to
select a Picture file in the
clips menu and then press
the ENTER button.
Rotation
-
Each time the √/® buttons are pressed, the picture rotates
90 degrees clockwise.
-
Each time the π button is pressed, the picture will turn
upside down to show a mirror image.
-
Each time the † button is pressed, the picture will reverse
to the right side to show a mirror image.
Zoom
-
Each time Zoom button is pressed, the picture is enlarged.
Zoom mode : 100%-125%-150%-200%-100%.
Slide Show
-
When you press ENTER/PLAY when viewing a JPEG file, it
will go to full screen mode and the slide show automatically
start.
Note
- Depending on the file size, the amount of loading time each picture may be different.
- If you don’t press any button, the slide show will start automatically in about 8 seconds.
001/004
0:00:00 / 0:00:00
JPEG
4
Off
English _41
● ADVANCED FUNCTIONS
Picture CD Playback for HD-JPEG
To enjoy HD-JPEG, HDMI must be connected an the resolution should be to 720p, 1080i or 1080p.
“Please set the HDMI as highest Resolution which you TV support”.
Note
- To make the setup menu disappear, press the
MENU button.
1
Select the desired folder.
2
Press the π/† buttons to
select a Picture file in the
clips menu and then press
the ENTER button.
- Rotation
Press the √/® button to rotate the screen 90 degrees
to the left/right.
- Skip Picture
Press the |k or K| button to select previous or next
picture.
- Slide Show
Press the PLAY (®) button to start the SLIDE show.
Press the STOP (■) button to stop the SLIDE show.
Note
- Depending on the file size, the amount of loading time each picture may be different.
- The image may be displayed at a smaller size depending on the picture size when displaying images in
HD-JPEG mode.
- It is recommended to set the “BD Wise” to “Off” In Case of playback JPEG image file bigger than 720 X
480 pixel size.
▼
- Press the STOP (■) button to return to the
clips menu.
- When playing a Kodak Picture CD, the unit
displays the Photo directly, not the clips
menu.
001/004
0:00:00 / 0:00:00
Off
001/004
0:00:00 / 0:00:00
JPEG
42_ advanced functions
advanced functions
CD-R JPEG Discs
- Only files with the “.jpg” and “.JPG” extensions can be played.
- If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played.
- Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.
- The name of the JPEG file may not be longer than 8 characters and should contain no blank spaces or special characters
(. / = +).
- Only a consecutively written multi-session disc can be played. If there is a blank segment in the multi-session disc, the disc
can be played only up to the blank segment.
- A maximum of 500 images can be stored on a single CD.
- Kodak Picture CDs are recommended.
- When playing a Kodak Picture CD, only the JPEG files in the pictures folder can be played.
- Kodak Picture CD: The JPEG files in the pictures folder can be played automatically.
- Konica Picture CD: If you want to see the Picture, select the JPEG files in the clips menu.
- Fuji Picture CD: If you want to see the Picture, select the JPEG files in the clips menu.
- QSS Picture CD: The unit may not play QSS Picture CD.
- If the number of files in 1 Disc is over 500, only the first 500 JPEG files can be played.
- If the number of folders in 1 Disc is over 500, only the first JPEG files in 500 folders can be played.

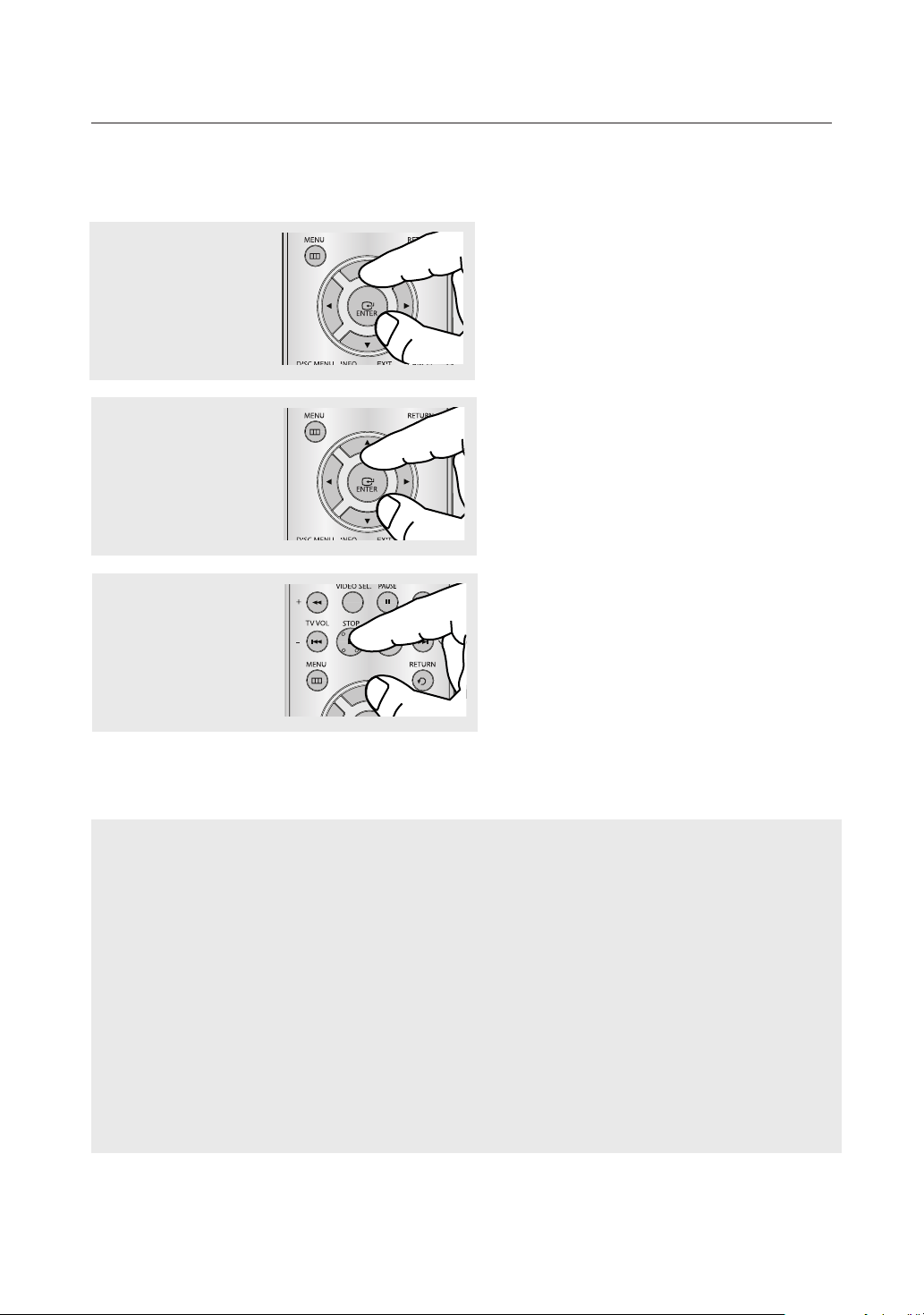

MP3-JPEG Playback
You can play a JPEG photo with background music.
1
Press the
π/†
buttons
to select an MP3 file in
the clips menu and then
press the ENTER button.
2
Press the
π/†
buttons
to select a JPEG file in
the clips menu and then
press the ENTER button.
3
Press the STOP button
when you want to stop
playback.
▼
Music will continue playing.
Note
MP3 and JPEG files have to be on the same
disc.
English _43
● NAVIGATING THE SETUP MENU

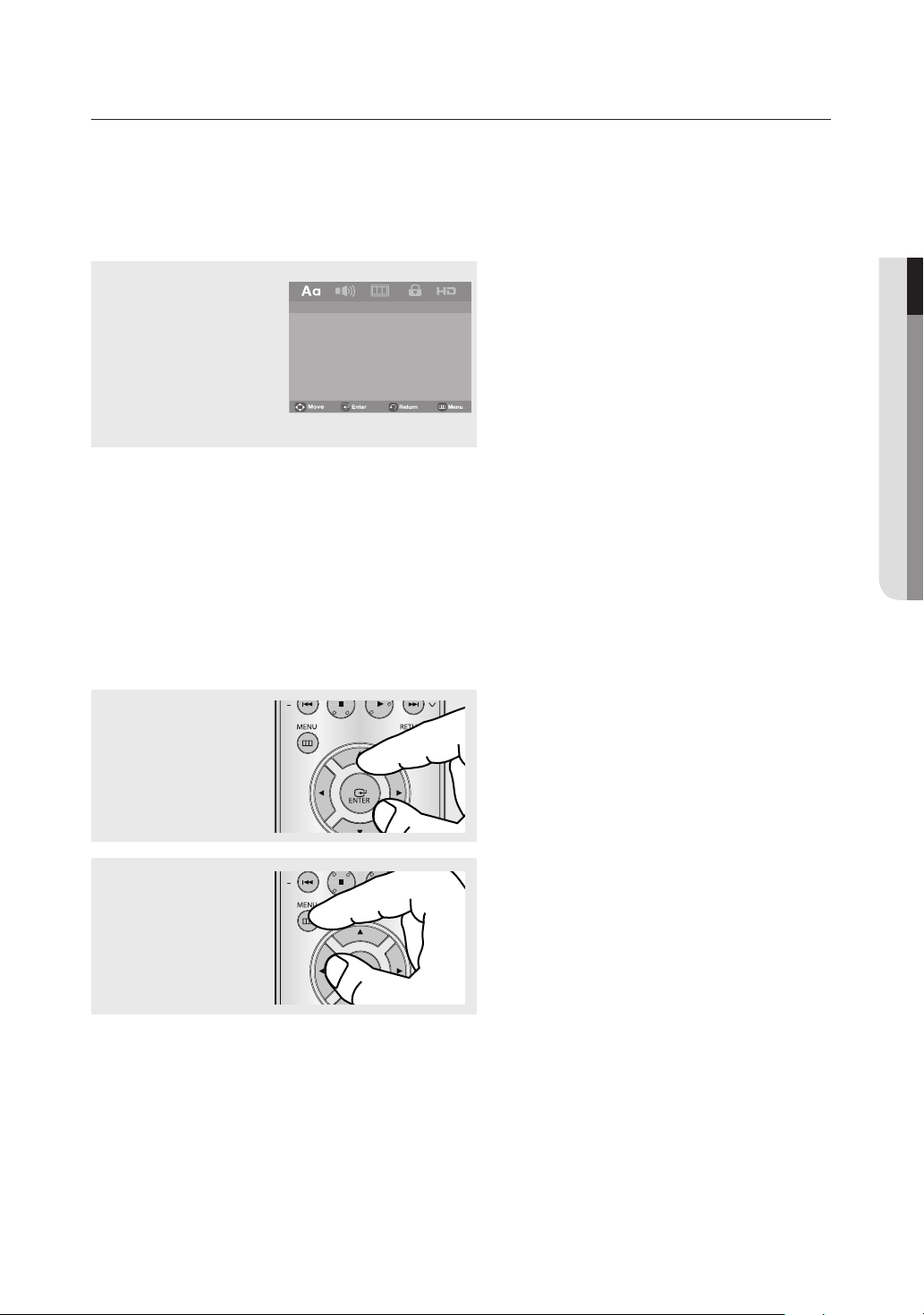

Using the Setup Menu
The Setup menu lets you customize your DVD player by allowing you to select various language
preferences, set up parental level, and even adjust the player to the type of television screen you
have.
❶
Language Setup : Setup of the Language.
❷
Audio Setup : Setup of the Audio Options.
❸
Display Setup : Setup of the Display Options. Use to select which type of screen you want to
watch and several display options.
❹
Parental Setup : Setup of the Parental Level. Allows users to set the level necessary to prevent
children from viewing unsuitable movies such as those with violence, adult
subject matter, etc.
❺
HDMI Setup : Setup of HDMI option.
1
Press the MENU button
on the remote control.
Press the
√/®
buttons to
select Setup, then press
the
†
or ENTER button.
2
Press the
π/†
buttons to
access the different
features. Press the
®
or
ENTER button to access
the sub features.
3
To make the setup screen
disappear after setting up,
press the MENU button
again.
Note
Depending on the disc, some Setup menu
selections may not work.
-- Language Setup Page --
Player Menu ENG
Disc Menu ENG
Audio ENG
Subtitle AUTO
DivX Subtitle Western
navigating the setup menu
44_ navigating the setup menu
navigating the setup menu
Setting Up the Language Features
If you set the player menu, disc menu, audio and subtitle language in advance, they will come up
automatically every time you watch a movie.
Using the Player Menu Language
1
Press the MENU button.
2
Press the
√/®
buttons to
select Language Setup
Page, then press the
†
or ENTER button.
3
Press the
π/†
buttons to
select Player Menu, then
press the
®
or ENTER
button.
4
Press the
π/†
buttons to
select the desired
language, then press the
ENTER button.
▼
- The language is selected and the screen
returns to the Language Setup Page.
- To make the setup menu disappear, press
the MENU button.
-- Language Setup Page --
Player Menu ENG
Disc Menu ENG
Audio ENG
Subtitle AUTO
DivX Subtitle Western
-- Language Setup Page --
Player Menu ENG
Disc Menu ENG
Audio ENG
Subtitle AUTO
DivX Subtitle Western
-- Language Setup Page --
Player Menu ENG
Disc Menu ENG
Audio ENG
Subtitle AUTO
DivX Subtitle Western
English
Français
Deutsch
Español
Italiano
Nederlands
English _45
● NAVIGATING THE SETUP MENU
Using the Disc Menu Language
This function changes the text language only on the disc menu screens.
4
Press the
π/†
buttons to
select the desired
language, then press the
ENTER button.
▼
- If the selected language is not recorded on
the disc, the original pre-recorded language
is selected.
- The language is selected and the screen
returns to the Language Setup Page.
- To make the setup menu disappear, press
the MENU button.
1
Press the MENU button.
2
Press the
√/®
buttons to
select Language Setup
Page, then press the
†
or ENTER button.
3
Press the
π/†
buttons
to select Disc Menu, then
press the
®
or ENTER
button.
-- Language Setup Page --
Player Menu ENG
Disc Menu ENG
Audio ENG
Subtitle AUTO
DivX Subtitle Western
-- Language Setup Page --
Player Menu ENG
Disc Menu ENG
Audio ENG
Subtitle AUTO
DivX Subtitle Western
-- Language Setup Page --
Player Menu ENG
Disc Menu ENG
Audio ENG
Subtitle AUTO
DivX Subtitle Western
English
Français
Deutsch
Español
Italiano
Nederlands
Cesky
46_ navigating the setup menu
navigating the setup menu

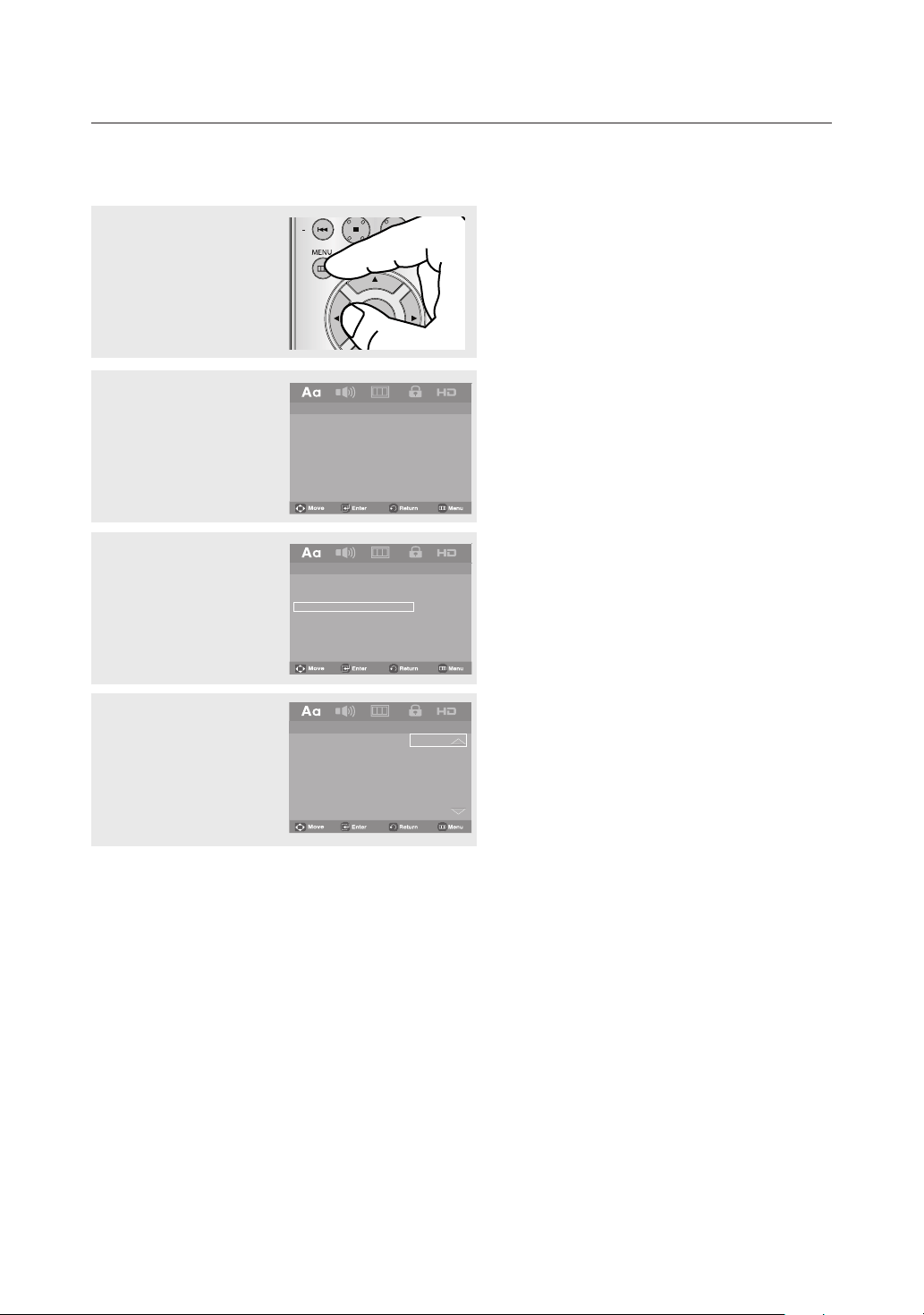

Using the Audio Language
▼
- Select “Original” if you want the default
soundtrack language to be the original
language the disc is recorded in.
- If the selected language is not recorded on
the disc, the original pre-recorded language
is selected.
- The language is selected and the screen
returns to the Language Setup Page.
- To make the setup menu disappear, press
the MENU button.
1
Press the MENU button.
4
Press the
π/†
buttons to
select the desired
language, then press the
ENTER button.
2
Press the
√/®
buttons to
select Language Setup
Page, then press the
†
or ENTER button.
3
Press the
π/†
buttons to
select Audio, then press
the
®
or ENTER button.
-- Language Setup Page --
Player Menu ENG
Disc Menu ENG
Audio ENG
Subtitle AUTO
DivX Subtitle Western
-- Language Setup Page --
Player Menu ENG
Disc Menu ENG
Audio ENG
Subtitle AUTO
DivX Subtitle Western
-- Language Setup Page --
Player Menu ENG
Disc Menu ENG
Audio ENG
Subtitle AUTO
DivX Subtitle Western
English
Français
Deutsch
Español
Italiano
Nederlands
Cesky
English _47
● NAVIGATING THE SETUP MENU
Using the Subtitle Language
▼
- Select “Automatic” if you want the subtitle
language to be the same as the language
selected as the audio language.
- Some discs may not contain the language
you select ; in that case the disc will use its
original language setting.
- The language is selected and the screen
returns to the setup menu.
- To make the setup menu disappear, press
the MENU button.
1
Press the MENU button.
4
Press the
π/†
buttons to
select the desired
language, then press the
ENTER button.
2
Press the
√/®
buttons to
select Language Setup
Page, then press the
†
or ENTER button.
3
Press the
π/†
buttons to
select Subtitle, then press
the
®
or ENTER button.
-- Language Setup Page --
Player Menu ENG
Disc Menu ENG
Audio ENG
Subtitle AUTO
DivX Subtitle Western
-- Language Setup Page --
Player Menu ENG
Disc Menu ENG
Audio ENG
Subtitle AUTO
DivX Subtitle Western
-- Language Setup Page --
Player Menu ENG
Disc Menu ENG
Audio ENG
Subtitle AUTO
DivX Subtitle Western
Automatic
English
Français
Deutsch
Español
Italiano
Nederlands
48_ navigating the setup menu
navigating the setup menu

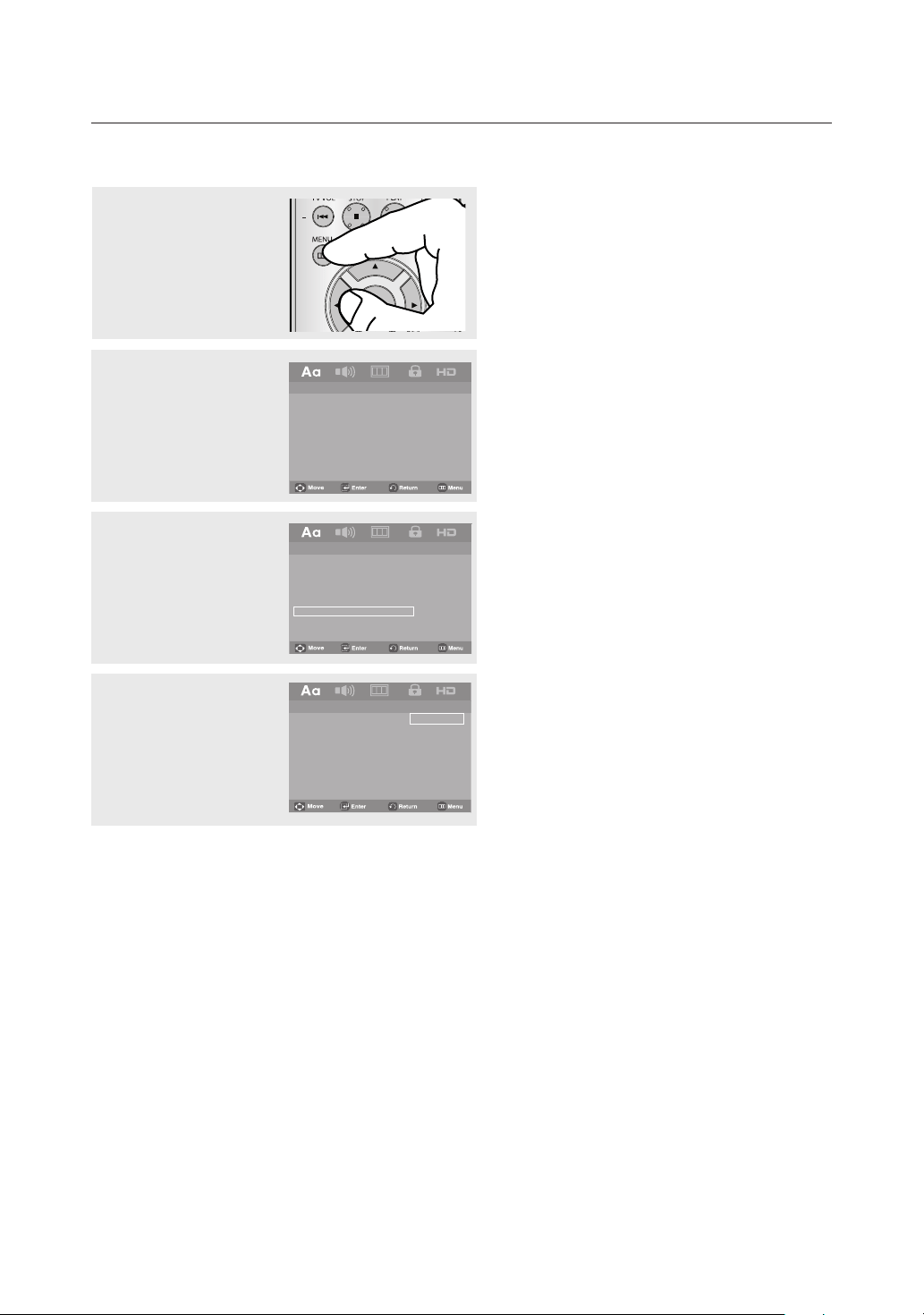

Using the DivX Subtitle Language
1
Press the MENU button.
▼
- The language is selected and the screen
returns to the setup Page.
- To make the setup menu disappear, press
the MENU button.
4
Press the
π/†
buttons to
select the desired
language, then press the
ENTER button.
2
Press the
√/®
buttons to
select Language Setup
Page, then press the
†
or ENTER button.
3
Press the
π/†
buttons to
select DivX Subtitle, then
press the
®
or ENTER
button.
-- Language Setup Page --
Player Menu ENG
Disc Menu ENG
Audio ENG
Subtitle AUTO
DivX Subtitle Western
-- Language Setup Page --
Player Menu ENG
Disc Menu ENG
Audio ENG
Subtitle AUTO
DivX Subtitle Western
-- Language Setup Page --
Player Menu ENG
Disc Menu ENG
Audio ENG
Subtitle AUTO
DivX Subtitle Western
Western
Central
Cyrillic
Greek
Turkish
Arabic
Hebrew
English _49
● NAVIGATING THE SETUP MENU
Setting Up the Audio Options
Audio Options allow you to set up the audio device and sound status settings
depending on the audio system in use.
3
Press the
π/†
buttons
to select the desired
item, then press the
®
or
ENTER button.
1
Press the MENU button.
2
Press the
√/®
buttons
to select Audio Setup
Page, then press the
†
or ENTER button.
▼
To make the setup menu disappear, press the
MENU button.
-- Audio Setup Page --
Dolby Digital Out PCM
MPEG2 Digital Output PCM
Dynamic Compression On
PCM Down Sampling On
Power On Music On
-- Audio Setup Page --
Dolby Digital Out PCM
MPEG2 Digital Output PCM
Dynamic Compression On
PCM Down Sampling On
Power On Music On
-- Audio Setup Page --
Dolby Digital Out PCM
MPEG2 Digital Output PCM
Dynamic Compression On
PCM Down Sampling On
Power On Music On
PCM
Bitstream
50_ navigating the setup menu
navigating the setup menu
Note
• To make the Setup menu disappear, press the MENU button.
• There is no analog audio output when you play a DTS disc.
You must make a Digital audio connection (Coaxial).
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are
trademarks of Dolby Laboratories.
“DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.
HDMI
- If your TV is not compatible with compressed multi-channel formats (Dolby Digital, DTS,
MPEG), you should set Digital Audio to PCM.
- If your TV is not compatible with LPCM sampling rates over 48kHz, you should set PCM
Down sampling to On.
The following describes each option found in the Audio Setup Menu.
❶
Dolby Digital Out
- PCM : Converts to PCM(2CH) audio.
- Bitstream : Outputs Dolby Digital via digital output.
Select Bitstream when connecting to a Dolby Digital Decoder.
❷
MPEG2 Digital Output
- PCM : Converts to PCM(2CH) audio.
- Bitstream : Converts to MPEG-2 Digital Bitstream (5.1 or 7.1 CH). Select Bitstream when
using the Digital Audio Output.
Note
When play disc that have MPEG Audio at bitstream selection, the coaxial may not have Audio
output its depend on the AV Receiver
❸
Dynamic Compression
- On : To select dynamic compression. This is useful for watching movies late at night, as it
balances the loud and quiet portions of a disc.
- Off : To select the standard range.
❹
PCM Down Sampling
- On : Select this when the Amplifier connected to the player is not 96KHz compatible.
In this case, the 96KHz signals will be down converted to 48KHZ.
- Off : Select this when the Amplifier connected to the player is 96KHz compatible. In this case,
all signals will be output without any changes.
❺
Power On Music
- On : To turn On Start up music
- Off : To turn Off Start up music
Note
Even when PCM Down sampling is Off, some discs will only output down sampled audio
through the digital outputs.
English _51
● NAVIGATING THE SETUP MENU
Setting Up the Display Options
Display options enable you to set various video functions of the player.
3
Press the
π/†
buttons
to select the desired
item, then press the
®
or
ENTER button.
1
Press the MENU button.
2
Press the
√/®
buttons
to select DIsplay Setup
Page , then press the
†
or ENTER button.
▼
To make the setup menu disappear, press the
MENU button.
-- Display Setup Page --
TV Aspect Wide
Screen Message On
Video Output I-SCAN
Black Level Off
DivX VOD
-- Display Setup Page --
TV Aspect Wide
Screen Message On
Video Output I-SCAN
Black Level Off
DivX VOD
52_ navigating the setup menu
navigating the setup menu
The following describes each option found in
the Display Setup Menu.
❶
TV Aspect
Depending on a type of television you have,
you may want to adjust the screen setting
(aspect ratio).
- 4:3 Pan&Scan : Select this for
conventional size TVs when you want to
see the central portion of the 16:9 screen.
(Extreme left and right side of movie picture
will be cut off.)
- 4:3 Letter Box : Select when you want
to see the total 16:9 ratio screen DVD
supplies, even though you have a TV with
a 4:3 ratio screen. Black bars will appear at
the top and bottom of the screen.
- 16:9 Wide : You can view the full 16:9
picture on your widescreen TV.
❷ Screen Message
Use to turn on-screen messages On or Off.
❸
Video Output
Select Video Output.
- P-SCAN : Select when you want to use
Component Progressive Out or HDMI.
- I-SCAN : Select when you want to use
Video and Component Interlace Out.
• If you press the VIDEO SEL. button with
no disc inserted, the Video output mode is
changed in the following order:
(P-SCAN ➝ I-SCAN)
• If the Yes/No selection in the Display Setup
sub Menu is not made within 10 seconds,
the screen returns to the previous menu.
❹
Black Level
Adjusts the brightness of the screen (On or
Off). It does not function in Progressive mode.
❺
DivX VOD
Select DivX VOD, then ® or ENTER
button. Press OK to see the DivX
Registration Number.
If you press OK the setup menu disappear.
-- Display Setup Page --
TV Aspect Wide
Screen Message On
Video Output I-SCAN
Black Level Off
DivX VOD
4:3 Pan&Scan
4:3 Letter Box
16:9 Wide
-- Display Setup Page --
TV Aspect Wide
Screen Message On
Video Output I-SCAN
Black Level Off
DivX VOD
OK
OK
OK
OK
DivX(R) Video On Demand
Your registration code is:
V23GGYC5
http://www.divx.com/vod
• Consult your TV User’s Manual to find
out if your TV supports Progressive
Scan. If Progressive Scan is supported,
follow the TV User’s Manual regarding
Progressive Scan settings in the TV’s
menu system.
• If Video Output is set incorrectly, the TV
screen may be blank.
-- Display Setup Page --
TV Aspect Wide
Screen Message On
Video Output I-SCAN
Black Level Off
DivX VOD
P-SCAN
I-SCAN
English _53
● NAVIGATING THE SETUP MENU

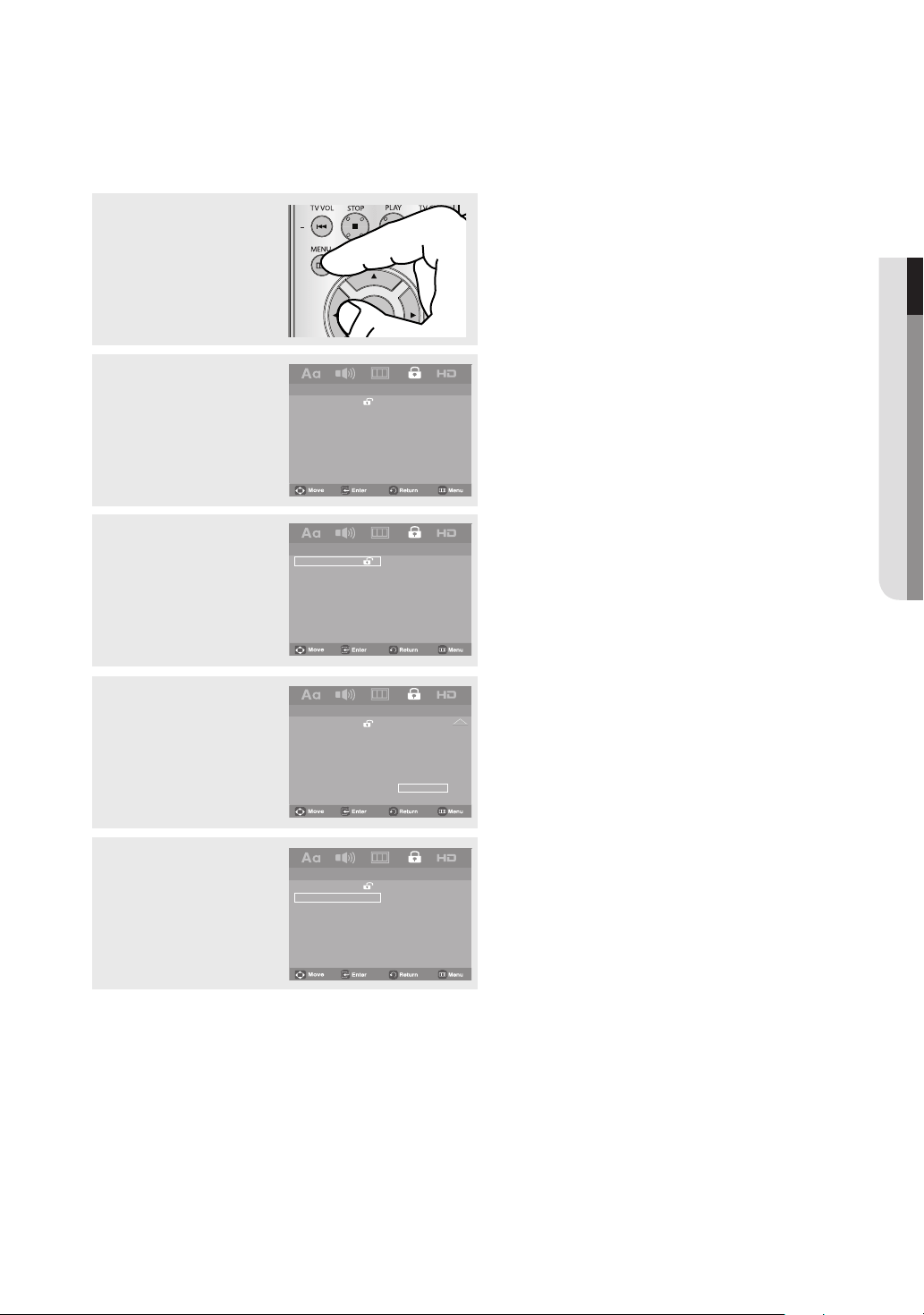

Setting Up the Rating Level
3
Press the
π/†
buttons
to select Parental, then
press the
®
or ENTER
button.
4
Press the
π/†
buttons
to select rating level you
want, then press the ENTER
button.
e.g) Setting up in KID SAFE
5
Enter your password.
▼
To make the setup menu disappear, press the
MENU button.
For example, if you select the Kids Safe level,
discs that contain level 2 or higher will not play.
1
Press the MENU button.
2
Press the
√/®
buttons
to select Parental Page,
then press the
†
or
ENTER button.
Setting Up the Parental Control
The Parental Control function works in conjunction with DVDs that have been assigned a rating,
which helps you control the types of DVDs that your family watches. There are up to 8 rating levels
on a disc.
-- Parental Page --
Parental
Password
-- Parental Page --
Parental
Password
-- Parental Page --
Parental
Password
2 G
3 PG
4 PG 13
5 PGR
6 R
7 NC17
8 ADULT
-- Parental Page --
Parental
Password
Note
❶ KID SAFE
❷ G (General Audiences) : All Ages Admitted
❸ PG (Parental Guidance suggested) : Some material may not be suitable for young children.
❹
PG 13 (PG-13 Parents strongly cautioned) : Some material may be inapproriate for children under 13.
❺
PGR (Parental Guidance Recommended) : These are not necessarily unsuitable for children, but
viewer discretion is advised, and parents and guardians are encouraged to supervise younger viewers.
❻ R (Restricted) : Under 17 requires accompanying adult
❼ NC17 (NC-17) : No one 17 and under admitted.
❽ ADULT
54_ navigating the setup menu
navigating the setup menu
Changing the Password
3
Press the
π/†
buttons
to select Password, then
press the
®
or ENTER
button.
5
Please change the
password to other than
0000 to activate the
parental control function.
Enter your new password.
Re-enter the new
password again.
1
Press the MENU button.
2
Press the
√/®
buttons
to select Parental Page,
then press the
†
or
ENTER button.
Note
If you have forgotten your password, see
“Forgot Password” in the Troubleshooting Guide.
▼
To make the setup menu disappear, press the
MENU button.
-- Parental Page --
Parental
Password
-- Parental Page --
Parental
Password
4
Select Change
Password, then press
ENTER button. Enter your
password. By default the
password is set to 0000.
-- Parental Page --
Parental
Password
Change
Old Password
New Password
Confi rm Password
Cancel
English _55
● NAVIGATING THE SETUP MENU
3
Press the
π/†
buttons to
select HDMI, then press
the
®
or ENTER button.
Press the
π/†
buttons to
select suitable resolution,
then press the ENTER
button.
2
Press the
√/®
buttons to
select HDMI Page, then
press the
†
or ENTER
button.
1
Press the MENU button.
Setting Up HDMI
This setting is used when the unit is connected by HDMI to Display devices (TV, Projector, etc.).
-- HDMI Page --
HDMI Auto
Anynet+(HDMI-CEC) On
Picture Quality
BD Wise Off
-- HDMI Page --
HDMI Auto
Anynet+(HDMI-CEC) On
Picture Quality
BD Wise Off
- Resolution
•
480p : 720 x 480
•
720p : 1280 x 720
•
1080i : 1920 x 1080
•
1080p : 1920 x 1080
-- HDMI Page --
HDMI Auto
Anynet+(HDMI-CEC) On
Picture Quality
BD Wise Off
Auto
480p
720p
1080i
1080p
Note
• The resolutions available for HDMI output depend on the connected TV or projector. For
details, see the user
’s manual of your TV or projector.
• When the resolution is changed during playback, it may take a few seconds for a normal
image to appear.
• If you have HDMI connected, better picture quality will be provided when the output
resolution is set to 720p, 1080i or 1080p.
▼
56_ navigating the setup menu
navigating the setup menu
3
Press the
π/†
buttons
to select Anynet+(HDMI-
CEC), then press the
®
or ENTER button.
4
Set the Anynet+(HDMI-
CEC) to “On”on your DVD
Player., then press the
®
or ENTER button.
2
Press the
√/®
buttons to
select HDMI Page, then
press the
†
or ENTER
button.
1
Press the MENU button.
▼
To make the setup menu disappear, press the
MENU button.
Setting Up Anynet+(HDMI-CEC)
Anynet+ is a function that can be used to operate this DVD Player using a Samsung TV
remote control. This is done by connecting the DVD player to a SAMSUNG TV using an
HDMI Cable. (see pages 12-13) This is only available with SAMSUNG TVs that support
Anynet+.
To operate Anynet+, you must turn Anynet+(HDMI-CEC) On in the Setup Menu.
5
Set the Anynet+ function on
your Samsung TV. (See your
TV instruction manual for
more information.).
• When you press Anynet+
button on the TV remote
control, the OSD to the right
will appear.
View TV
Select Device
®
Menu on Device
Device Operation
Setup
Receiver : Off
®
®
®
®
®
Record
®
Exit
Move
ENTER
DVP
V
i
ew
TV
®
TV Menu
-- HDMI Page --
HDMI Auto
Anynet+(HDMI-CEC) On
Picture Quality
BD Wise Off
-- HDMI Page --
HDMI Auto
Anynet+(HDMI-CEC) On
Picture Quality
BD Wise Off
-- HDMI Page --
HDMI Auto
Anynet+(HDMI-CEC) On
Picture Quality
BD Wise Off
On
Off
English _57
● NAVIGATING THE SETUP MENU
You can operate the DVD Player by using the Samsung TV’s remote control. These TV
remote buttons can be used to operate the DVD Player : , , , , ,
, and buttons, buttons.
- Select Device : Use this option to select the device which you want to connect to your TV.
- Menu on Device : Same as MENU button on the DVD Player remote control.
- Device Operation : Same as INFO button on the DVD Player remote control.
Note
• While watching TV, your TV screen will change to the play screen when you press the
PLAY button of the DVD player.
• If you play a DVD when the TV power is off, the TV will power On.
• If you turn the TV off, the DVD Player will power off automatically.
• If you change from HDMI to other sources (Composite,Component,... etc) while playing a
DVD disc, the DVD Player will stop playing.
58_ navigating the setup menu
navigating the setup menu
3
Press the
π/†
buttons
to select Picture Quality,
then press the
®
or
ENTER button.
2
Press the
√/®
buttons to
select HDMI Page, then
press the
†
or ENTER
button.
1
Press the MENU button.
-- HDMI Page --
HDMI Auto
Anynet+(HDMI-CEC) On
Picture Quality
BD Wise Off
-- HDMI Page - -
HDMI Auto
Anynet+(HDMI-CEC) On
Picture Quality
BD Wise Off
-- Picture Quality Page --
Brightness Level 3
Contrast Level 3
Color Saturation Level 3
Note
- Brightness : Level 1 ~ Level 5
- Contrast : Level 1 ~ Level 5
- Color Saturation : Level 1 ~ Level 5
-- Picture Quality Page --
Brightness Level 3
Contrast Level 3
Color Saturation Level 3
Level 1
Level 2
Level 3
Level 4
Level 5

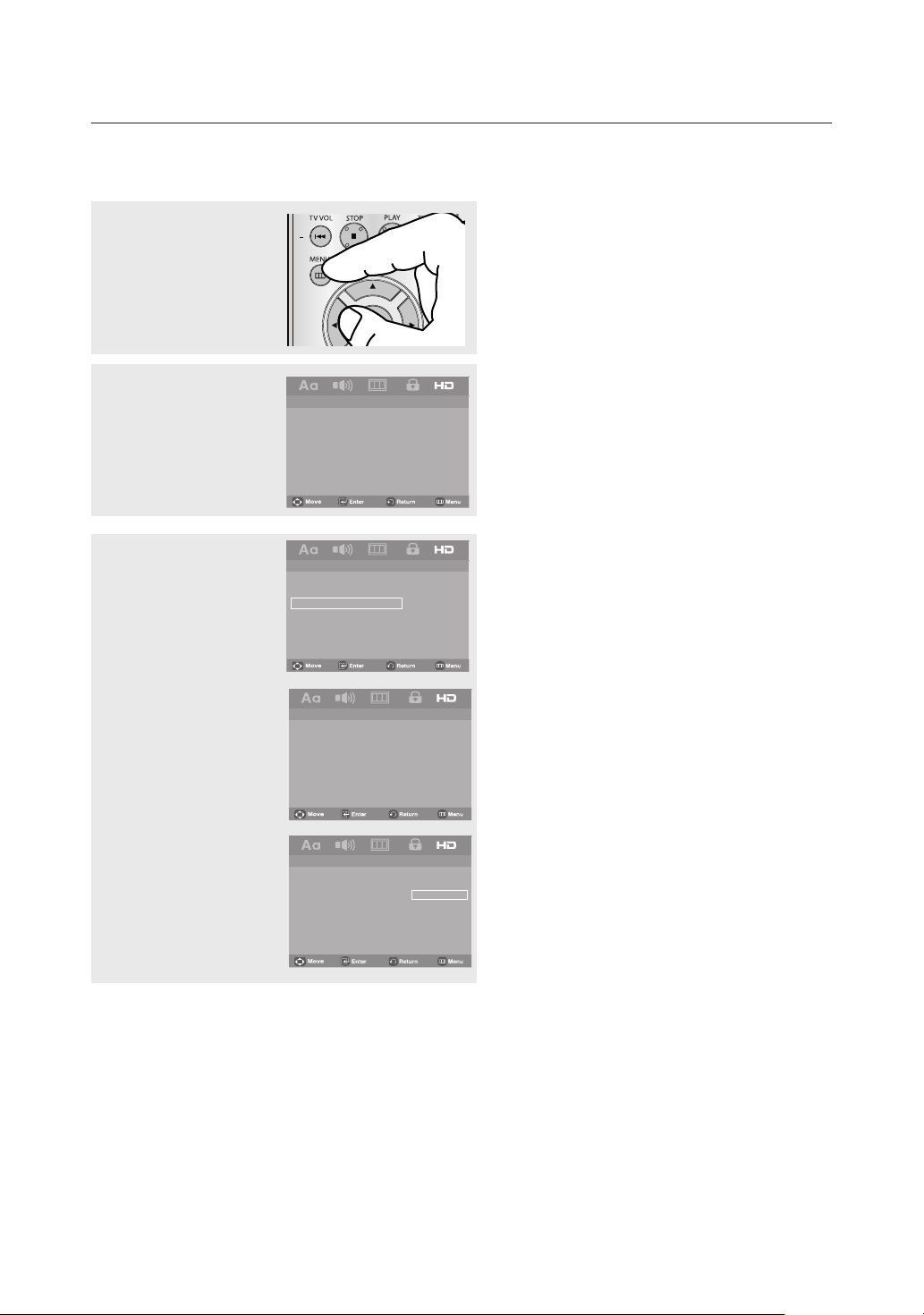

Setting Up the Picture Quality
Note
- This setting work with all video outputs (Video, Component, HDMI).
English _59
● NAVIGATING THE SETUP MENU
3
Press the
π/†
buttons to
select BD Wise, then press
the
®
or ENTER button.
Press the
π/†
buttons to
select On, then press the
ENTER button.
Setting Up the BD Wise
When the player is connected to a SAMSUNG TV which supports “BD Wise”,you can enjoy
optimized Picture Quality by setting the “BD Wise” function as “On”.
-- HDMI Page --
HDMI BD Wise
Anynet+(HDMI-CEC) On
Picture Quality
BD Wise On
-- HDMI Page --
HDMI Auto
Anynet+(HDMI-CEC) On
Picture Quality
BD Wise Off
How to turn Off the BD Wise
If you wish to change to other resolution when “BD Wise On”, Please choose a method between
these two as follows :
Method 1
2
Press the
√/®
buttons to
select HDMI Page, then
press the
†
or ENTER
button.
1
Press the MENU button.
-- HDMI Page --
HDMI BD Wise
Anynet+(HDMI-CEC) On
Picture Quality
BD Wise On
2
Press the
√/®
buttons to
select HDMI Page, then
press the
†
or ENTER
button.
1
Press the MENU button.
-- HDMI Page --
HDMI Auto
Anynet+(HDMI-CEC) On
Picture Quality
BD Wise Off
On
Off
This option can be changed only when TV support
BD Wise.
▼
60_ navigating the setup menu
navigating the setup menu
Note
• The first time when you turned on this product
after purchase, and connected to your TV which
supports “BD Wise” via HDMI, the “BD Wise”
function will be automatically set to “On”.
• If you turn off the DVD player when the “BD
Wise” function is “On”, the player will retain the
“BD Wise” function as long as it is connected to
TV which support “BD Wise”.
• If the HDMI cable is plugged out when the
function is “On”, and plugged back into another
TV which does not support “BD Wise”, then the
HDMI Resolution will be automatically set to
“Auto” and connect to other TV Product which
do not support “BD Wise” then the HDMI Ouput
resolution goes to “Auto”.
• A Samsung TV which supports “BD Wise” can
be set to “BD wise” mode or any other picture
mode (Dynamic, Standard, etc..) when “BD
Wise” function of the connected DVD Player is
set to “On”.
• When Both TV and DVD Player is set to “BD
Wise” You can enjoy optimized Picture Quality.
• When your DVD Player connected to TV which
support “BD Wise” You can set the “BD Wise”
to “On” even if the TV is set to any other Picture
mode than “BD Wise”. In this case, the color
tone or brightness might be slightly different
compared to the case of both TV and DVDP is
in “BD wise”.
• It is recommended to set the “BD Wise” to “Off”
In Case of playback JPEG image file bigger than
720 X 480 pixel size.
3
Press the
π/†
buttons to
select HDMI, then press the
®
or ENTER button.
Press the
π/†
buttons to
select resolution you wish
to use, and then press
ENTER.
Please choose “Yes” to
continue, otherwise choose
“No” to keep current setting.
-- HDMI Page - -
HDMI BD Wise
Anynet+(HDMI-CEC) On
Picture Quality
BD Wise On
Yes
No
Do you want to turn off BD Wise Mode
and change to selected Resolution?
3
Press the
π/†
buttons
to select BD Wise, then
press the
®
or ENTER
button.
Press the
π/†
buttons to
select Off, then press the
ENTER button.
The HDMI resolution will
be changed to maximum
resolution supported by
your TV.
Method 2
2
Press the
√/®
buttons to
select HDMI Page, then
press the
†
or ENTER
button.
1
Press the MENU button.
-- HDMI Page --
HDMI BD Wise
Anynet+(HDMI-CEC) On
Picture Quality
BD Wise On
-- HDMI Page - -
HDMI BD Wise
Anynet+(HDMI-CEC) On
Picture Quality
BD Wise On
-- HDMI Page - -
HDMI Auto
Anynet+(HDMI-CEC) On
Picture Quality
BD Wise Off
Auto
BD Wise
480p
720p
1080i
1080p
On
Off
English _61
● REFERENCE
Introduction
Upgrading the Firmware will keep your DVD player
up to date.
The latest firmware version for this unit is provided
on the Samsung Website.(www.samsung.com).
How to make an upgrade disc
You must burn the latest firmware version onto a
blank CD-R or CD-RW disc:
Upgrade procedure
1. Download a new file from Samsung’s website
(www.samsung.com) Download Center.
2. Write the file to Disc using the CD-RW drive of
your computer.
1. Open the disc tray of your DVD1080P9.
Place the burned disc on the tray. Close the tray.
The Firmware upgrade screen will appear.
Firmware upgrade
menu appears
Firmware upgrade
Firmware upgrade starts
- During the firmware upgrade process, the
tray will open.
Please remove the disc and wait for about
2 minutes.
- If the DVD player was successfully updated,
the disc tray will close and the unit will turn
off and on.
When the unit turns on, the Select Menu
Language screen will appear.
3. Press the number buttons to select the
desired language.
Note
- If the “Select Menu Language” doesn’t
appear, please contact Samsung
Customer Service.
- Do not press any button or unplug the
power cord during the upgrade.
- The upgrade procedure may change, refer
to the web site (www.samsung.com).
- When software is upgrade, video and audio
settings you have made will return to their
default (factory) settings. We recommend
you write down your settings so that you can
easily reset them after the upgrade.
2. Press the ENTER or PLAY to start upgrade.
- Press any other buttons on the remote
control or eject the disc to cancel the
upgrade.
Note
The CD should be burned following the specs
below.
- File System CD-ROM ISO Level.
- Character set ISO 9660.
- The burned CD has to be Finalized.
- Please burn the CD at a low speed.
Select Menu Language
Press 1 for English
Touche 2 pour Français
Drücken Sie 3 für Deutsch
Pulsar 4 para Español
Premere 5 per Italiano
Druk op 6 voor Nederlands
Upgrade file detected
Curent version: 08.09.06.00.108P9/XER
New version: 08.09.09.00.108P9/XER
Press Play to start
Upgrade file detected
Curent version: 08.09.06.00.108P9/XER
New version: 08.09.09.00.108P9/XER
Press Play to start
File Copying
Upgrade file detected
Curent version: 08.09.06.00.108P9/XER
New version: 08.09.09.00.108P9/XER
Upgrade ?
Upgrading
reference
62_ reference
reference
Troubleshooting
Before requesting service, please check the following.
No operations can be
performed with the
remote control.
Disc does not play.
Action
Problem
Page
P5
P8
P43~60
P51~52
P49~50
P19
P54
P4
P12~13
P12~13
P55
• Check the batteries in the remote control.
They may need replacing.
• Operate the remote control at a distance of no more than 20 feet.
• Remove batteries and hold down one or more buttons for several minutes to
drain the microprocessor inside the remote control to reset it. Reinstall
batteries and try to operate the remote control again.
• Ensure that the disc is installed with the label side facing up.
• Check the region number of the DVD.
• The features or action cannot be completed at this time because:
1. The DVD’s software restricts it.
2. The DVD’s software doesn’t support the feature (e.g., angles).
3. The feature is not available at the moment.
4. You’ve requested a title or chapter number or search time that is out of range.
• Check if the disc has a Menu.
• Some of the functions selected in the Setup Menu may not work properly if the
disc is not encoded with the corresponding function.
• The Screen Ratio is fixed on your DVDs.
• Make sure you have selected the correct Digital Output in the Audio Options
Menu.
• Press the
button (on the front panel) for more than 5 seconds with no disc
inside. All settings will revert to the factory settings.
• Press the button (on the panel) for more than 5 seconds with no disc
inside. All settings including the password will revert to the factory settings.
Don't use this unless absolutely necessary.
• Go to the contents and find the section of the instruction book that contains
the explanations regarding the current problem, and follow the procedure
once again.
• If the problem still cannot be solved, please contact your nearest Samsung
authorized service center.
• Make sure that the disc is not dirty or scratched.
•
Clean the disc.
• Check if the Video output is set to HDMI.
• Check the connection between the TV and the HDMI jack of DVD player.
• See if the TV supports this 480p/720p/1080i/1080p DVD player.
• If snow noise appears on the screen, it means that TV does not support
HDCP (High-bandwidth Digital Content Protection).
• Check if your TV is setup correctly.
• Screen Jitter may occur when frame rate is converted from 50Hz to 60Hz for
720P/1080i/1080p HDMI (High Definition Multimedia Interface) Output.
• Please refer to the user’s manual of your TV.
Disc Menu doesn’t appear.
The icon appears
on screen.
The screen ratio
cannot be changed.
No audio.
Play mode differs from
the Setup Menu
selection.
Forgot password
The screen is blocked
If you experience other
problems.
The picture is noisy or
distorted
No HDMI output.
HDMI output Jitter
Abnormal HDMI output
screen.
English _63
● REFERENCE
Specifications
Power Requirements
Power Consumption
Weight
Dimensions
Operating Temperature Range
Operating Humidity Range
DVD
(DIGITAL VERSATILE DISC)
CD : 5”
(COMPACT DISC)
CD : 3 1/2”
(COMPACT DISC)
Composite Video
Component Video
HDMI
*Maximum Output Level
*Frequency Response
*Digital Audio Output
AC 120V ~ 60 Hz
8W (ON), 1W (OFF)
3.5 lbs 56.4 oz
17” (W) X 8” (D) X 1.8” (H)
+41°F to +95°F
10 % to 75 %
Reading Speed : 3.49 ~ 4.06 m/sec.
Approx. Play Time
(Single Sided, Single Layer Disc) : 135 min.
Reading Speed : 4.8 ~ 5.6 m/sec.
Maximum Play Time : 74 min.
Reading Speed : 4.8 ~ 5.6 m/sec.
Maximum Play Time : 20 min.
1 channel : 1.0 Vp-p (75 Ω load)
Y : 1.0 Vp-p (75 Ω load)
Pr : 0.70 Vp-p (75 Ω load)
Pb : 0.70 Vp-p (75 Ω load)
480p, 720p, 1080i,1080p
2Vrms
20Hz ~ 20kHZ
Coaxial terminal (S/PDIF)
General
Disc
Video
Output
Audio
Output
*: Nominal specification
- Samsung Electronics Co., Ltd reserves the right to change the specifications with
out notice.
- Weight and dimensions are approximate.
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.
Region Country Contact Center Web Site
North America
CANADA 1-800-SAMSUNG(726-7864) www.samsung.com/ca
MEXICO 01-800-SAMSUNG(726-7864) www.samsung.com/mx
U.S.A 1-800-SAMSUNG(726-7864) www.samsung.com/us
Latin America
ARGENTINE 0800-333-3733 www.samsung.com/ar
BRAZIL 0800-124-421, 4004-0000 www.samsung.com/br
CHILE 800-SAMSUNG(726-7864) www.samsung.com/cl
NICARAGUA 00-1800-5077267 www.samsung.com/latin
HONDURAS 800-7919267 www.samsung.com/latin
COSTA RICA 0-800-507-7267 www.samsung.com/latin
ECUADOR 1-800-10-7267 www.samsung.com/latin
EL SALVADOR 800-6225 www.samsung.com/latin
GUATEMALA 1-800-299-0013 www.samsung.com/latin
JAMAICA 1-800-234-7267 www.samsung.com/latin
PANAMA 800-7267 www.samsung.com/latin
PUERTO RICO 1-800-682-3180 www.samsung.com/latin
REP. DOMINICA 1-800-751-2676 www.samsung.com/latin
TRINIDAD & TOBAGO 1-800-SAMSUNG(726-7864) www.samsung.com/latin
VENEZUELA 0-800-100-5303 www.samsung.com/latin
COLOMBIA 01-8000112112 www.samsung.com.co
Europe
BELGIUM 02 201 2418 www.samsung.com/be
CZECH REPUBLIC 800-726-786 (800 - SAMSUNG) www.samsung.com/cz
DENMARK 70 70 19 70 www.samsung.com/dk
FINLAND 030-6227 515 www.samsung.com/fi
FRANCE
3260 SAMSUNG (€ 0,15/Min)
08 25 08 65 65 (€ 0,15/Min)
www.samsung.com/fr
GERMANY 01805 - SAMSUNG(726-7864 € 0,14/Min) www.samsung.de
HUNGARY 06-80-SAMSUNG(726-7864) www.samsung.com/hu
ITALIA 800-SAMSUNG(726-7864) www.samsung.com/it
LUXEMBURG 02 261 03 710 www.samsung.com/lu
NETHERLANDS 0900-SAMSUNG (726-7864 € 0,10/Min) www.samsung.com/nl
NORWAY 815-56 480 www.samsung.com/no
POLAND 0 801 801 881, 022-607-93-33 www.samsung.com/pl
PORTUGAL 80820-SAMSUNG(726-7864) www.samsung.com/pt
SLOVAKIA 0800-SAMSUNG(726-7864) www.samsung.com/sk
SPAIN 902-1-SAMSU(72678) www.samsung.com/es
SWEDEN 0771-400 200 www.samsung.com/se
U.K 0845 SAMSUNG (7267864) www.samsung.com/uk
EIRE 0818 717 100 www.samsung.com/ie
AUSTRIA 0800-SAMSUNG(726-7864) www.samsung.com/at
SWITZERLAND 0800-SAMSUNG(726-7864) www.samsung.com/ch
CIS
RUSSIA 8-800-555-55-55 www.samsung.ru
KAZAKHSTAN 8-10-800-500-55-500 www.samsung.com/kz_ru
UZBEKISTAN 8-10-800-500-55-500 www.samsung.com/kz_ru
KYRGYZSTAN 00-800-500-55-500
TADJIKISTAN 8-10-800-500-55-500
UKRAINE 8-800-502-0000 www.samsung.ua
LITHUANIA 8-800-77777 www.samsung.lt
LATVIA 8000-7267 www.samsung.com/lv
ESTONIA 800-7267 www.samsung.ee
Asia Pacifi c
AUSTRALIA 1300 362 603 www.samsung.com/au
NEW ZEALAND 0800 SAMSUNG (0800 726 786) www.samsung.com/nz
CHINA 800-810-5858, 400-810-5858, 010-6475 1880 www.samsung.com/cn
HONG KONG 3698-4698 www.samsung.com/hk
INDIA 3030 8282, 1800 110011, 1-800-3000-8282 www.samsung.com/in
INDONESIA 0800-112-8888 www.samsung.com/id
JAPAN 0120-327-527 www.samsung.com/jp
MALAYSIA 1800-88-9999 www.samsung.com/my
PHILIPPINES 1800-10-SAMSUNG(726-7864) www.samsung.com/ph
SINGAPORE 1800-SAMSUNG(726-7864) www.samsung.com/sg
THAILAND 1800-29-3232, 02-689-3232 www.samsung.com/th
TAIWAN 0800-329-999 www.samsung.com/tw
VIETNAM 1 800 588 889 www.samsung.com/vn
Middle East &
Africa
TURKEY 444 77 11 www.samsung.com/tr
SOUTH AFRICA 0860-SAMSUNG(726-7864 ) www.samsung.com/za
U.A.E 800-SAMSUNG (726-7864), 8000-4726 www.samsung.com/ae
Warranty
LIMITED WARRANTY TO ORIGINAL PURCHASER
This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS AMERICA, INC. (SAM-
SUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against
manufacturing defects in materials and workmanship for the following limited warranty period:
One (1) Year Parts / Ninety days (90) Labor
This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in
the United States, and does not include transportation, installation, removal or reinstallation. Warranty repairs must be
performed by SAMSUNG’s authorized service center. To receive warranty service, the original dated bill of sale must be
presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized service center. Transportation
to and from the service center is the responsibility of the purchaser.
SAMSUNG will repair or replace this product, at our option and at no charge with new or reconditioned parts, if found
to be defective during the limited warranty period specified above. The product must be returned during the warranty
period with transportation charges prepaid to SAMSUNG’s designated service center. Prior to returning any product
for warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures.
SAM-SUNG does not warrant uninterrupted or error-free operation of the product. All replaced parts and products
become the property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and products assume
the remaining original warranty, or ninety (90) days, whichever is longer.
This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, noncom-
mercial use of this product and shall not apply to the following, including, but not limited to: damage which occurs in
shipment; applications and uses for which this product was not intended; failures or problems which are caused by
products or equipment not supplied by SAMSUNG; accidents, misuse, abuse, neglect, misapplication, fire, water,
light-ning or other acts of nature; incorrect electrical line voltage, fluctuations or surges; damage caused by improper
or faulty installation; improper connection with any peripheral; product alteration or modification; improper or unau-
thorized repair; cosmetic damage or exterior finish; product with altered serial numbers; failure to follow operating
instructions, customer adjustments, maintenance and environmental instructions that are covered and prescribed in
the instruction book; use of non-SAMSUNG or unauthorized parts, supplies, accessories or equipment which damage
this product or result in service problems; failures or problems due to incompatibility with other equipment.
memo
memo
AK68-01750A(02)
QUESTIONS OR COMMENTS?
COUNTRY CALL OR VISIT US ONLINE AT WRITE
IN THE US
1-800-SAMSUNG
(7267864)
www.samsung.com
Samsung Electronics America, Inc.
105 Challenger Road Ridgefield Park,
NJ 07660-0511
