Instruction IVlanual
DIGITAL AUDIO
www.samsung.com
AK68-01378A
Getting Started
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE THE COVER(OR BACK).
NO USER-SERVICEABLE PARTS ARE INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
tf this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This symbol indicates that dangerous voltage
consisting a risk of electric shock is present
within this unit.
This symbol indicates that there are important
operating and maintenance instructions in the
literature accompanying this unit.
Do not install this equipment in a confined space such as
a bookcase or similar unit.
WARNING : To preventdamage which may result infire or electric
shock hazard,do not exposethis appliance to rain or moisture.
CAUTION : DVD RECORDERS USEAN INVISIBLE LASER
BEAM WHICH CAN CAUSE HAZARDOUS RADIATION
EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE
RECORDER CORRECTLY AS INSTRUCTED.
CAUTION
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS ORADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR
YOURSELF. REFER SERVICING TO QUALIFIED
PERSONNEL.
CAUTIONS
Caution: To prevent electric shock, match wide blade of plug
to wide slot, fully insert.
Attention: Pour eviter les chocs electriques, introduire ta lame
la plus Iarge de la fiche darts la borne correspondante de la
prise et pousser jusqu au fond.
This product satisfies FCC regulations when shielded
cables and connectors are used to connect the unit to other
equipment. To prevent electromagnetic interference with
electric appliances, such as radios and televisions, use
shielded cables and connectors for connections.
FCC NOTE (for U.S.A):
This equipment has been tested and found to comply with the
limits for a Qass B digital device, pursuant to Part I5 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential instaNation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
Caution: FCC regulations state that any unauthorized changes
or modifications to this equipment may void the user's
authority to operate it.
= This unit can be used oniy where the power supply
is AC 120V, 60Hz. It cannot be used elsewhere.
This DVD Recorder is designed and manufactured to
respond to the Region Management Information.
If the Region number of a DVD disc does not correspond
to the Region number of this DVD Recorder, the DVD
Recorder cannot play the disc.
This device is protected by U.S. Patent Nos.4,631,60
3;4,577,216;4,819,098;4,907,093; and 6,516,132.This
product incorporates copyright protection technology
that is protected by U.S. patents and other intellectual
property rights.Use of this copyright protection
technology must be authorized by Macrovision,and is
intended for home and other limited viewing uses only
unless otherwise authorized by Macrovision.Reverse
engineering or disassembly is prohibited.
This product is covered by one or more of the
following U.S. patents:
5,060,220 5,457,669 5,561,649 5,705,762 5,987,417
6,043,912 6,222,983 6,272,096 6,377,524 6,377,531
6,385,587 6,389,570 6,408,408 6,466,532 6,473,736
6,477,501 6,480,829 6,556,520 6,556,521 6,556,522
6,578,163 6,594,208 6,631,110 6,658,588 6,674,697
6,674,957 6,687,455 6,697,307 6,707,985 6,721,243
6,721,493 6,728,474 6,741,535 6,744,713 6,744,972
6,765,853 6,765,853 6,771,890 6,771,891 6,775,465
6,778,755 6,788,629 6,788,630 6,795,637 6,810,201
6,862,256 6,868,054 6,894,963 6,937,552
f
DANGER
CAUTION
ATTENTION
ADVARSEL
VARO
VARNING
ADVARSEL
VORSIOHT
_A
- VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN.
AVOID DIRECT EXPOSURE TO BEAM.
- VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN.
AVOID EXPOSURE TO BEAM.
- RAYONNEMENT LASER VISIBLE ET INVISIBLE EN CAS D'OUVERTURE.
EXPOSITION DANGEREUSE AU FAISCEAU.
- SYNLIG OG USYNLIG LASERSTRALING VED _BNING.
UNDGA UDS_ET_ELSE FOR STRRLING.
- AVAFrAESSA OLET AL_[IINA NAKYVAA JA N_,KYMATON
LASERSATEILVLLE. _,LA KATSO SATEESEEN.
- SYNLIG OCH OSYNLIG LASERSTRALNING N_,R DBNNA DEL
AR ORRNAD. BETRAKTA EJ STR_,LEN.
- SYNLIG OG USYNLIG LASERSTR_,LING NAR DSKSEL _,PNES.
UNNGA EKSPONERING FOR STRALEN.
- SICHTBARE UND UNSICHTBARE LASERSTRARLUNG, WENNABDBCKUNG
GEOFFNET NICHT DEM STRAHLAUSSBTZEN
English - 2

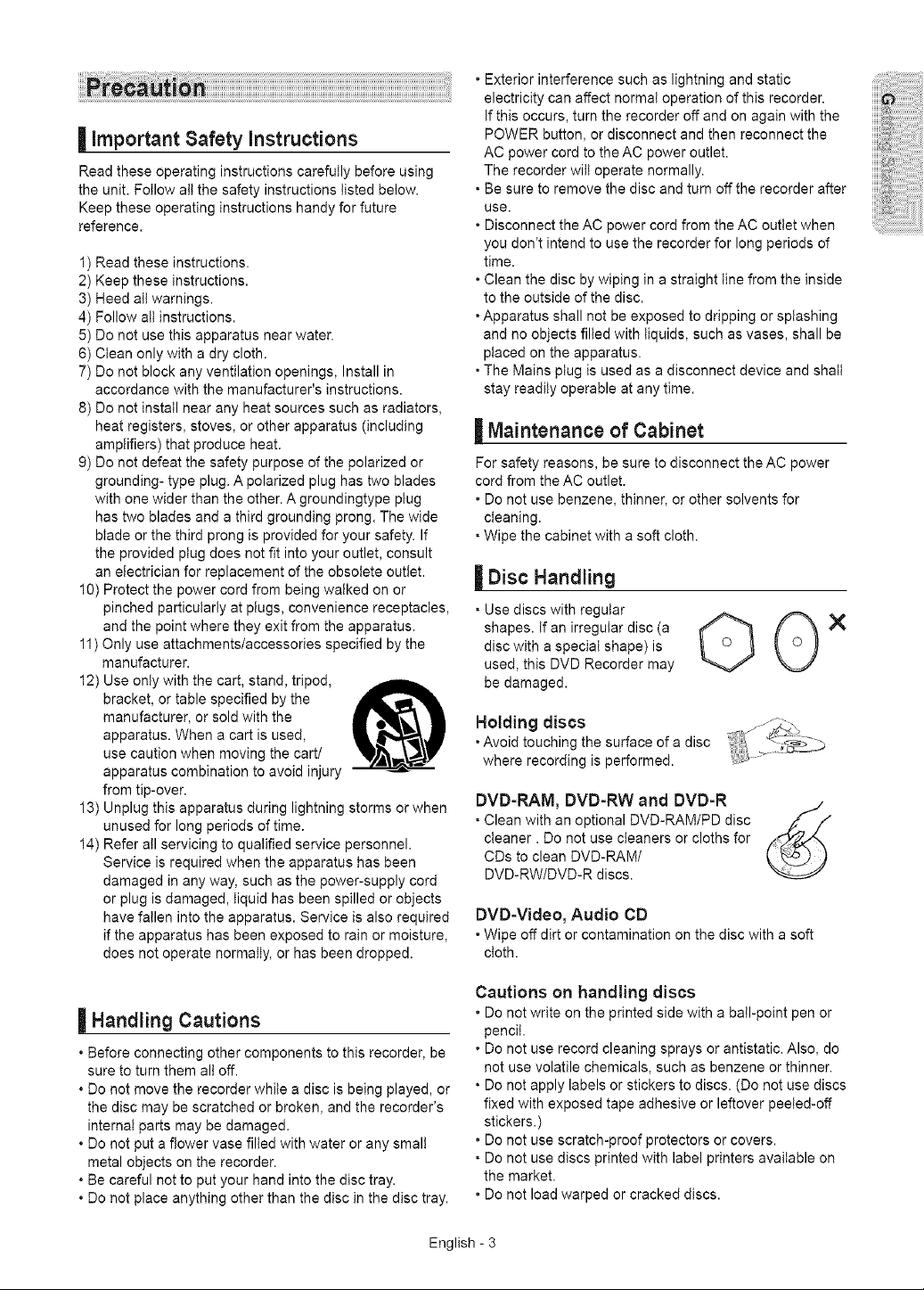

| important Safety instructions
Read these operating instructions carefully before using
the unit. Follow all the safety instructions listed below.
Keep these operating instructions handy for future
reference.
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with a dry cloth.
7) Do not block any ventilation openings, Install in
accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or
grounding- type plug. A polarized plug has two blades
with one wider than the other. A groundingtype plug
has two blades and a third grounding prong. The wide
blade or the third prong is provided for your safety. If
the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the
manufacturer.
12) Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the
apparatus. When a cart is used,
use caution when moving the cart/
apparatus combination to avoid injury
from tip-over.
13) Unplug this apparatus during lightning storms or when
unused for long periods of time.
14) Refer all servicing to qualified service personnel.
Service is required when the apparatus has been
damaged in any way, such as the power-supply cord
or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus. Service is also required
if the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
Exterior interference such as lightning and static
electricity can affect normal operation of this recorder.
If this occurs, turn the recorder off and on again with the
POWER button, or disconnect and then reconnect the
AC power cord to theAC power outlet.
The recorder will operate normally.
• Be sure to remove the disc and turn off the recorder after
use.
• Disconnect the AC power cord from the AC outlet when
you don't intend to use the recorder for long periods of
time.
• Clean the disc by wiping in a straight line from the inside
to the outside of the disc.
• Apparatus shall not be exposed to dripping or splashing
and no objects filled with liquids, such as vases, shall be
placed on the apparatus.
• The Mains plug is used as a disconnect device and shall
stay readily operable at any time.
| Maintenance of Cabinet
For safety reasons, be sure to disconnect theAC power
cord from the AC outlet.
• Do not use benzene, thinner, or other solvents for
cleaning.
• Wipe the cabinet with a soft cloth.
| Disc Handling
• Use discs with regular
shapes. If an irregular disc (a
disc with a special shape) is
used, this DVD Recorder may
be damaged.
©0 x
Holding discs
• Avoid touching the surface of a disc
where recording is performed.
DVD=RAM, DVD=RW and DVD-R
• Clean with an optional DVD-RAM/PD disc
cleaner. Do not use cleaners or cloths for
CDs to clean DVD-RAM/
DVD-RW/DVD-R discs.
DVD-Video, Audio CD
• Wipe off dirt or contamination on the disc with a soft
cloth.
| Handling Cautions
° Before connecting other components to this recorder, be
sure to turn them all off.
. Do not move the recorder while a disc is being played, or
the disc may be scratched or broken, and the recorder's
internal parts may be damaged.
. Do not put a flower vase filled with water or any small
metal objects on the recorder.
. Be careful not to put your hand into the disc tray.
. Do not place anything other than the disc in the disc tray.
Cautions on handling discs
• Do not write on the printed side with a ball-point pen or
pencil.
• Do not use record cleaning sprays or antistatic. Also, do
not use volatile chemicals, such as benzene or thinner.
• Do not apply labels or stickers to discs. (Do not use discs
fixed with exposed tape adhesive or leftover peeled-off
stickers.)
• Do not use scratch-proof protectors or covers.
• Do not use discs printed with label printers available on
the market.
• Do not load warped or cracked discs.
English - 3

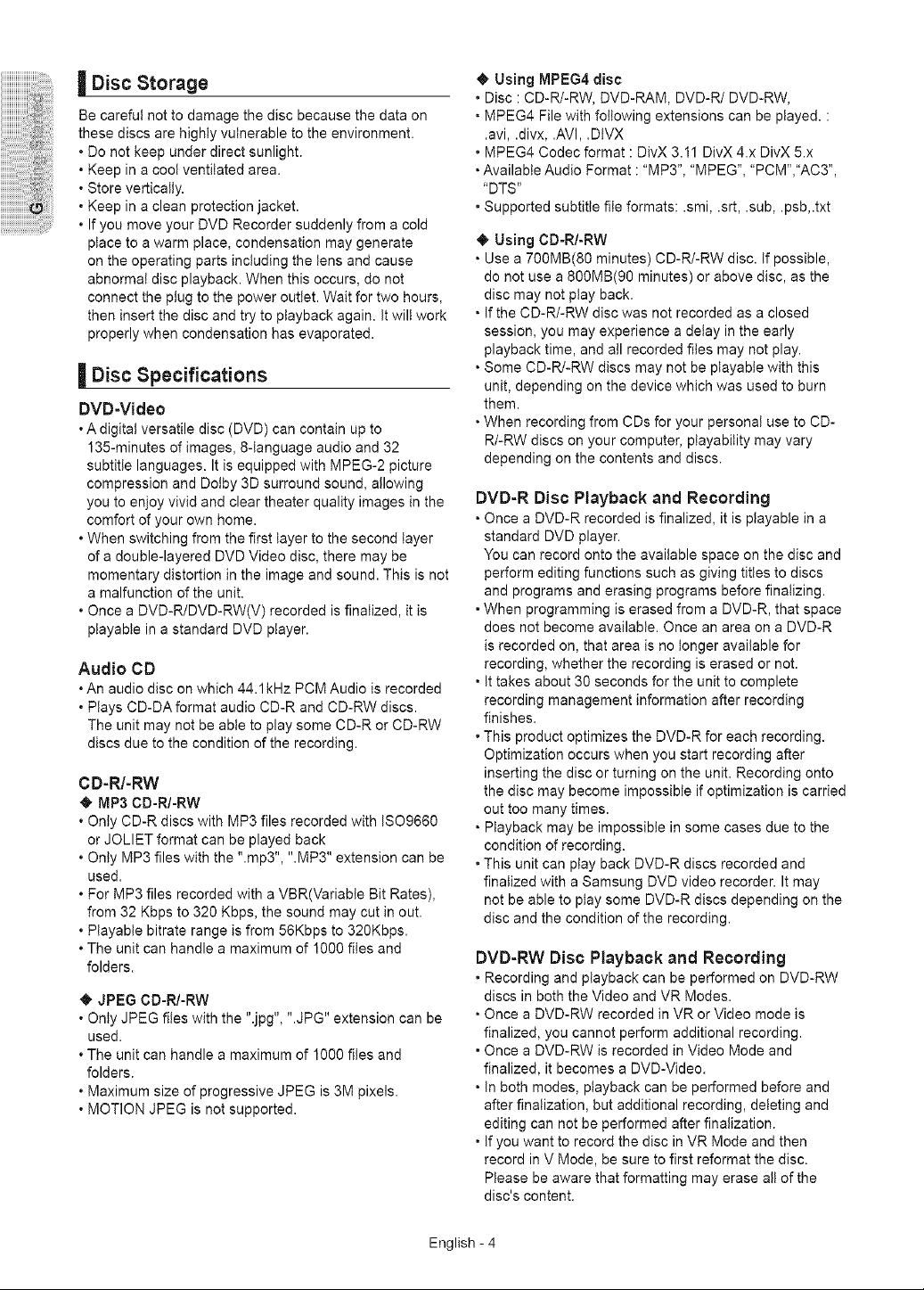

| Disc Storage
Be careful not to damage the disc because the data on
these discs are highly vulnerable to the environment.
• Do not keep under direct sunlight.
• Keep in a cool ventilated area.
• Store vertically.
. Keep in a clean protection jacket.
. If you move your DVD Recorder suddenly from a cold
place to a warm place, condensation may generate
on the operating parts including the tens and cause
abnormal disc playback. When this occurs, do not
connect the plug to the power outlet. Wait for two hours,
then insert the disc and try to playback again. It wilt work
properly when condensation has evaporated.
| Disc Specifications
DVD-Video
° A digital versatile disc (DVD) can contain up to
135-minutes of images, 8-1anguage audio and 32
subtitle languages. It is equipped with MPEG-2 picture
compression and Dolby 3D surround sound, allowing
you to enjoy vivid and clear theater quality images in the
comfort of your own home.
. When switching from the first layer to the second layer
of a double-layered DVD Video disc, there may be
momentary distortion in the image and sound. This is not
a malfunction of the unit.
. Once a DVD-R/DVD-RW(V) recorded is finalized, it is
playable in a standard DVD player.
Audio CD
° An audio disc on which 44.1kHz PCM Audio is recorded
. Plays CD-DA format audio CD-R and CD-RW discs.
The unit may not be able to play some CD-R or CD-RW
discs due to the condition of the recording.
CD=R/=RW
_, IVlP3 CD-R/-RW
. Only CD-R discs with MP3 files recorded with ISO9660
or JOLIET format can be played back
. Only MP3 files with the ".mp3", ".MP3" extension can be
used.
. For MP3 files recorded with a VBR(Variable Bit Rates),
from 32 Kbps to 320 Kbps, the sound may cut in out.
. Playable bitrate range is from 56Kbps to 320Kbps.
. The unit can handle a maximum of 1000 files and
folders.
• ' JPEG CD-R/-RW
° Only JPEG files with the ".jpg", ".JPG" extension can be
used.
. The unit can handle a maximum of 1000 files and
folders.
. Maximum size of progressive JPEG is 3M pixels.
. MOTION JPEG is not supported.
• Using MPEG4 disc
• Disc : CD-R/-RW, DVD-RAM, DVD-R/DVD-RW,
• MPEG4 File with following extensions can be played. :
.avi, .divx, .AVI, .DtVX
• MPEG4 Codec format : DivX 3.11 DivX 4.x DivX 5.x
• Available Audio Format : "MP3", "MPEG", "PCM","AC3",
"DTS"
• Supported subtitle file formats: .smi, .srt, .sub, .psb,.txt
O Using CD-R/-RW
• Use a 700MB(80 minutes) CD-R/-RW disc. If possible,
do not use a 800MB(90 minutes) or above disc, as the
disc may not play back.
• If the CD-R/-RW disc was not recorded as a closed
session, you may experience a delay in the early
playback time, and all recorded files may not play.
• Some CD-R/-RW discs may not be playable with this
unit, depending on the device which was used to burn
them.
• When recording from CDs for your persona! use to CD-
R/-RW discs on your computer, playability may vary
depending on the contents and discs.
DVD=R Disc Playback and Recording
• Once a DVD-R recorded is finalized, it is playable in a
standard DVD player.
You can record onto the available space on the disc and
perform editing functions such as giving titles to discs
and programs and erasing programs before finalizing.
• When programming is erased from a DVD-R, that space
does not become available. Once an area on a DVD-R
is recorded on, that area is no longer available for
recording, whether the recording is erased or not.
• It takes about 30 seconds for the unit to complete
recording management information after recording
finishes.
• This product optimizes the DVD-R for each recording.
Optimization occurs when you start recording after
inserting the disc or turning on the unit. Recording onto
the disc may become impossible if optimization is carried
out too many times.
• Playback may be impossible in some cases due to the
condition of recording.
• This unit can ptay back DVD-R discs recorded and
finalized with a Samsung DVD video recorder. It may
not be able to play some DVD-R discs depending on the
disc and the condition of the recording.
DVD=RW Disc Playloack and Recording
• Recording and playback can be performed on DVD-RW
discs in both the Video and VR Modes.
• Once a DVD-RW recorded in VR or Video mode is
finalized, you cannot perform additional recording.
• Once a DVD-RW is recorded in Video Mode and
finalized, it becomes a DVD-Video.
• In both modes, playback can be performed before and
after finalization, but additional recording, deleting and
editing can not be performed after finalization.
• If you want to record the disc in VR Mode and then
record in V Mode, be sure to first reformat the disc.
Please be aware that formatting may erase all of the
disc's content.
English - 4
* When inserting an unused disc, a message will appear
asking whether to initialize the disc or not. If you select
"YES", the disc will be formatted in VR mode.
, DVD-RW (VR mode)
- This is a format that is used for recording data on a
DVD-RW disc. You can record multiple titles, edit, delete,
partial delete, create a playlist, etc.
- A disc that is recorded in this mode will not ptay in
standard DVD players.
, DVD-RW (Video mode)
- This is a format that is used for recording data on a
DVD-RW or DVD-R disc. The disc can be played by an
existing DVD player once it has been finalized.
- If a disc that has been recorded in Video Mode by a
different maker's recorder but has not been finalized, it
cannot be played or recorded by this recorder.
DVD=RAM Disc Playback and Recording
° For cartridge type DVD-RAM discs, remove the cartridge
and use only the disc
. Ensure that the recording mode is set to VR.
Otherwise, this product will not be able to play the
recording.
. You cannot play a DVD-RAM in most DVD players due
to compatibility issues.
. Only DVD-RAM standard Version 2.0 discs can be
played in this unit.
. DVD-RAM discs recorded on this unit may not work with
other DVD Players. Todetermine compatibility with these
DVD-RAM discs, refer to the user's manual for the player.
• Many DVD discs are encoded with copy protection.
Because of this, you should only connect your DVD
Recorder directly to your TV, not to a VCR.
Connecting your DVD recorder to a VCR results in a
distorted picture from copy-protected DVD discs.
• This product incorporates copyright protection
technology that is protected by methods claims of
certain U.S. patents and other intellectual property
rights owned by Macrovision Corporation and other
rights owners. Use of this copyright protection
technology must be authorized by Macrovision
Corporation, and is intended for home and other
limited viewing uses only unless otherwise authorized
by Macrovision Corporation.
Reverse engineering or disassembly is prohibited.
Protection
This DVD Recorder can allow you to protect the contents
of your discs, as described below.
• Program-protection: See page 69 "Locking a Title"
• Disc-protection: See page 76 "Disc Protection"
:{: DVD-RAM/DVD-RW/DVD-R discs that are incompatible
with the DVD-VIDEO format cannot be played with this
product.
:{: For more information on DVD recording compatibility,
consult your DVD-RAM/DVD-RW/DVD-R manufacturer.
-!_"Use of poor quality DVD-RAM/DVD-RW/DVD-R discs
may cause the following unexpected problems including,
recording failure, loss of recorded or edited materials or
damage to the recorder.
Do not use the following discs!
• LD, CD-G, CD-I, CD-ROM and DVD-ROM discs should
not be used in this product.
[Note]

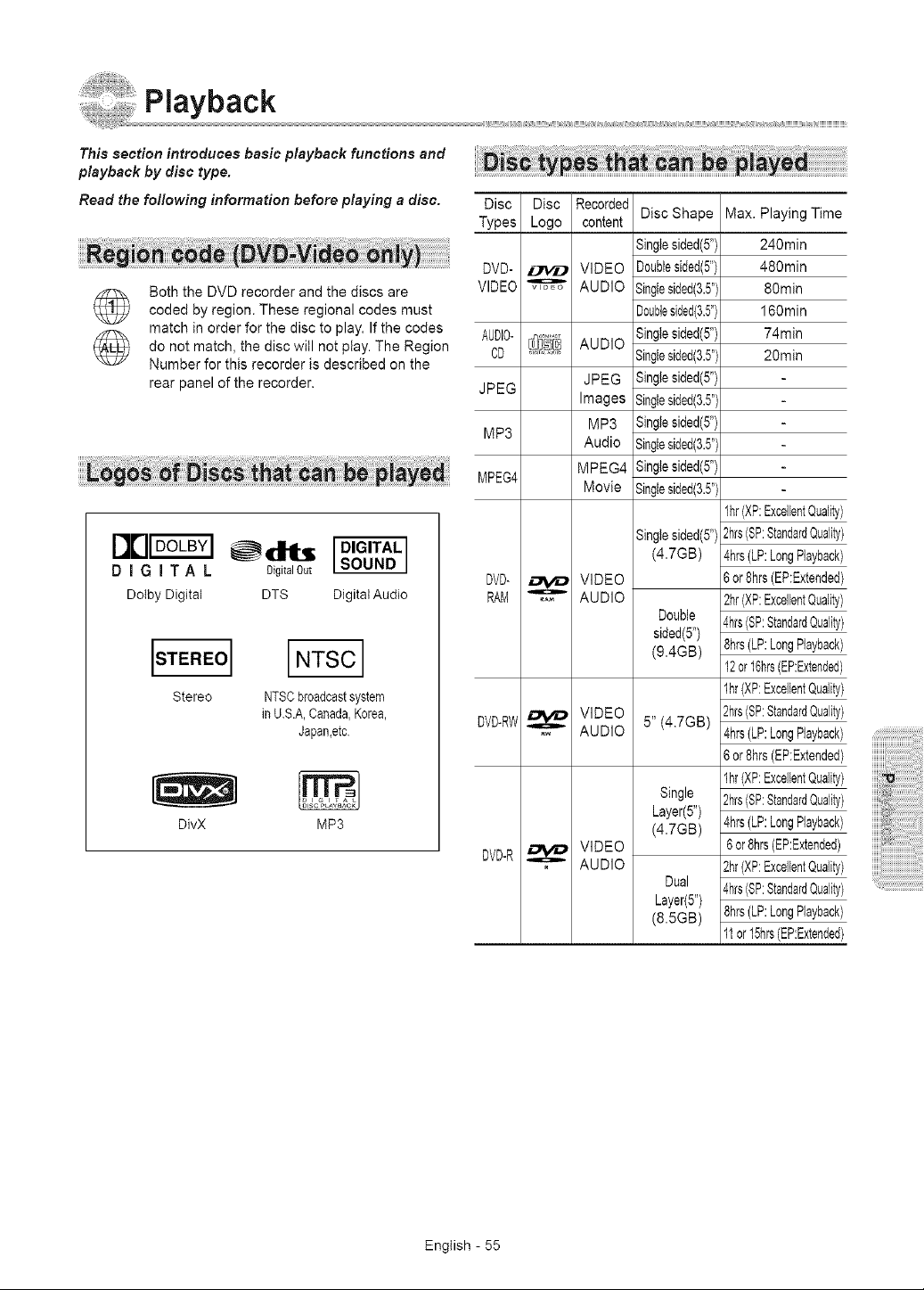

Disc types that can be played :
CDICD-RICD-RWIMP31JPEGIDVD-VideolDVD-RAMI
DVD-RW/DVD-R.
DVD+R/+RW cannot record, but finalized +R/+RWs
can be played.
A DVD-R/DVD-RW disc which has been recorded in Video
Mode on another component can play only when finalized.
• Some commercial discs and DVD discs purchased
outside your region may not be playable with this
product. When these discs are played, either "No Disc."
or "The disc cannot be played. Please check the regional
code of the disc." will be displayed.
• If your DVD-RAM/DVD-RW/DVD-R disc is an illegal
copy or is not in DVD video format, it may also not be
playable.
• Disc Compatibility
• Not all brands of discs will be compatible with this unit.
• The latest firmware upgrade to improve recording &
playback quality can be downloaded from our web site.
(Download Center at www.eamsung.com)
• If disc compatibility problems continue, or there is an
issue upgrading your recorder, contact the Call Center at
1-800-SAMSUNG.
English - 5
importantSafetyInstructions..................................3
HandiingCautions...................................................3
MaintenanceofCabinet..........................................3
DiscHandling..........................................................3
DiscStorage............................................................4
DiscSpecifications..................................................4
mGenera!Features....................................................8
mBeforeReadingtheInstructionManual...................9
mHowtousetheDVDRecorder................................9

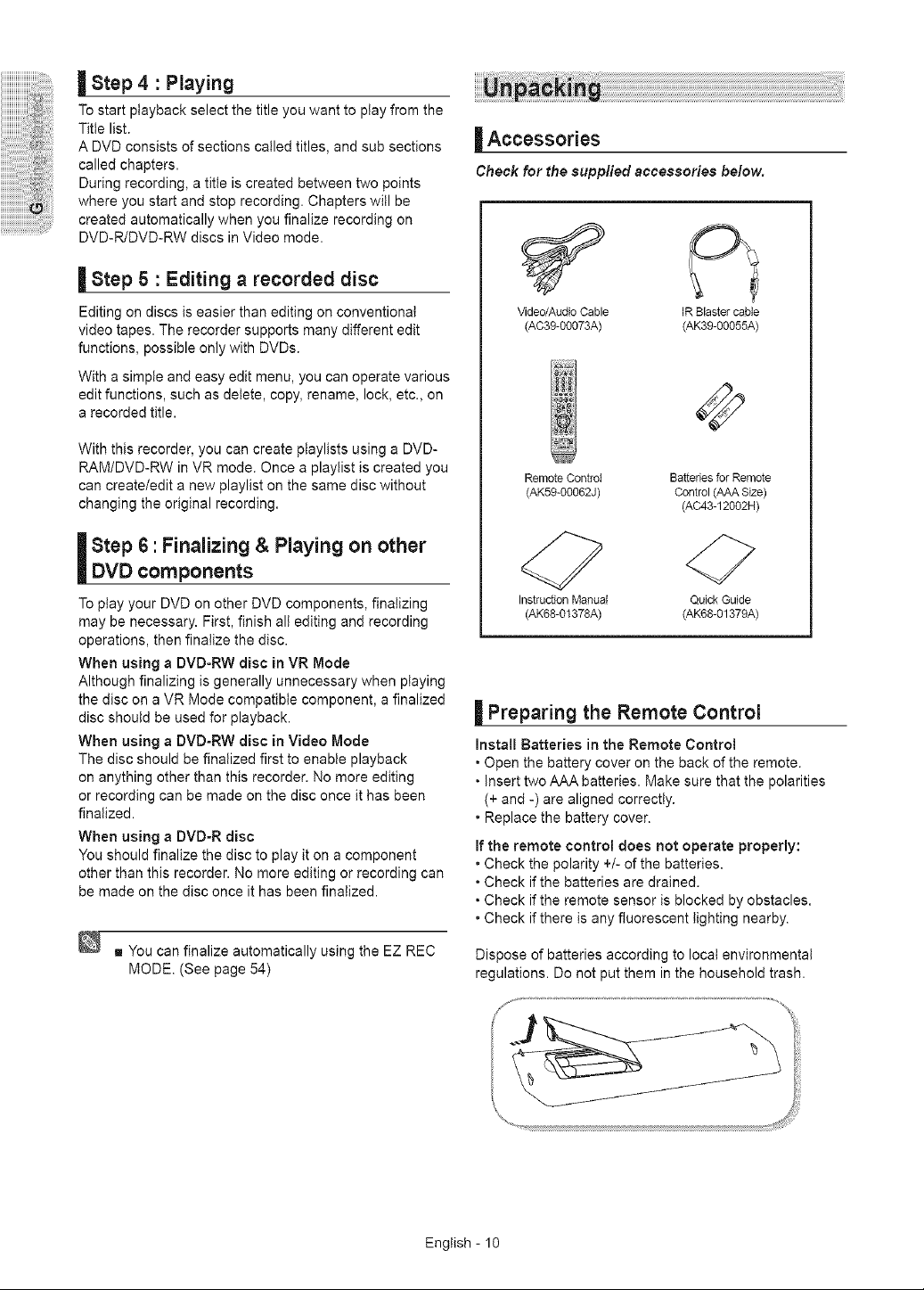

mUnpacking...............................................................10
Accessories.............................................................10
PreparingtheRemoteControl................................10
TouroftheRemoteControl.....................................12
mDescription..............................................................13
FrontPanel..............................................................13
FrontPanelDisplay.................................................13
RearPanel..............................................................14

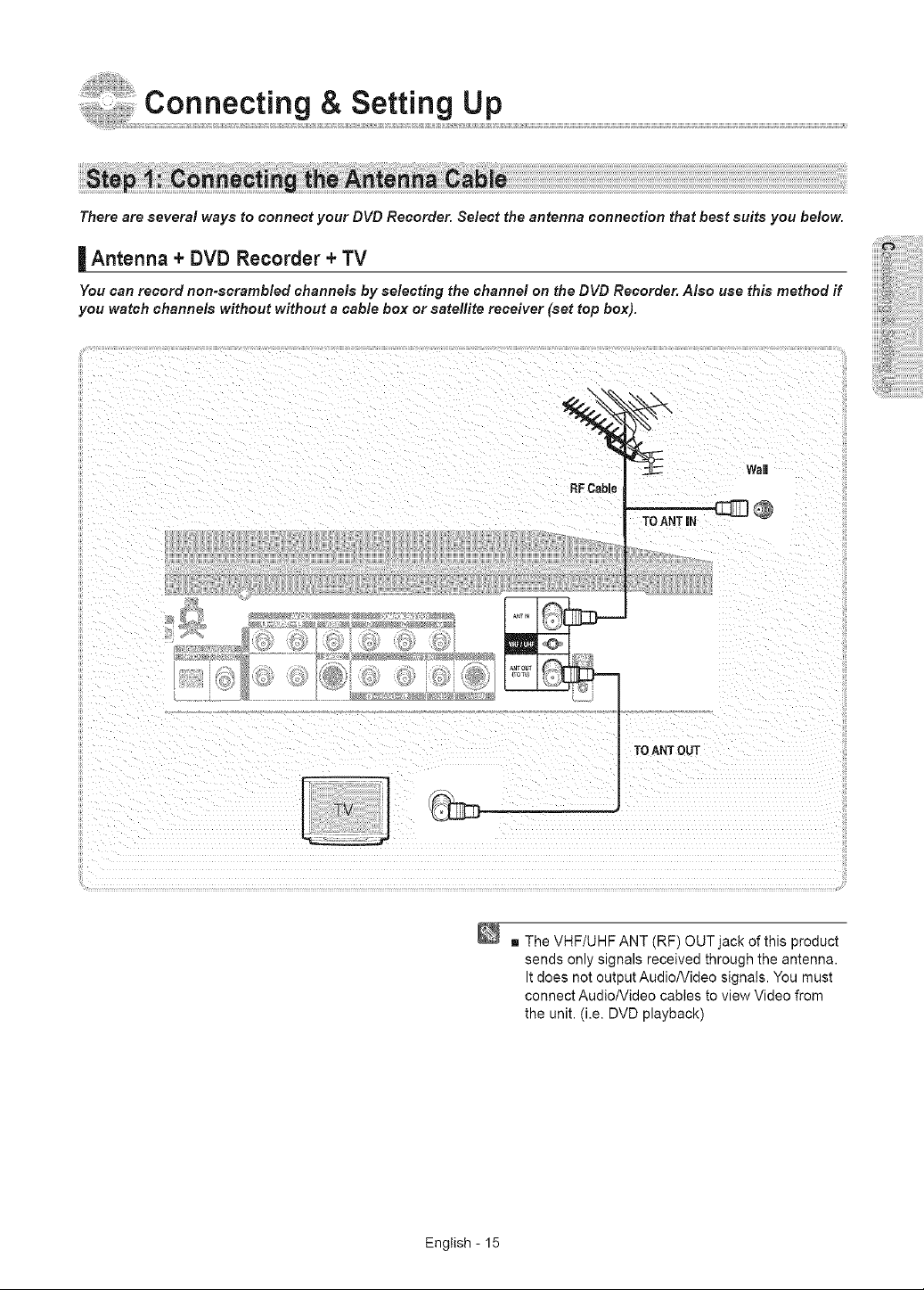

mStep1:ConnectingtheAntennaCable...................15
Antenna+DVDRecorder÷TV...............................15

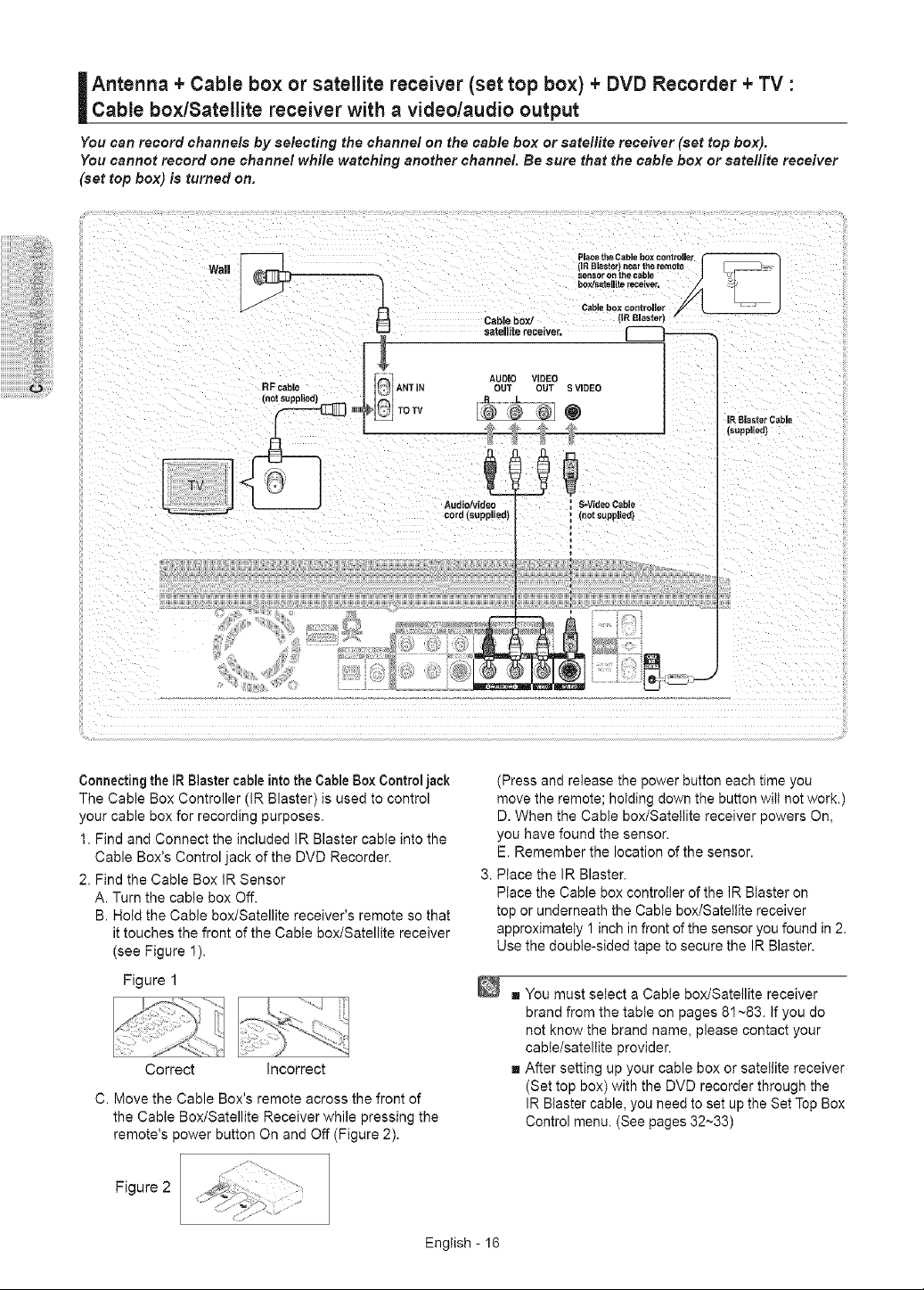

Antenna+Cableboxorsatellitereceiver(settopbox)+
DVDRecorder+TV:Cablebox/Satellitereceiverwith
avideo/audiooutput..................................................16
Antenna+Cableboxorsatellitereceiver(settopbox)+
DVDRecorder+TV:Cablebox/Satellitereceiverwith
anantennaoutputonly................................................17

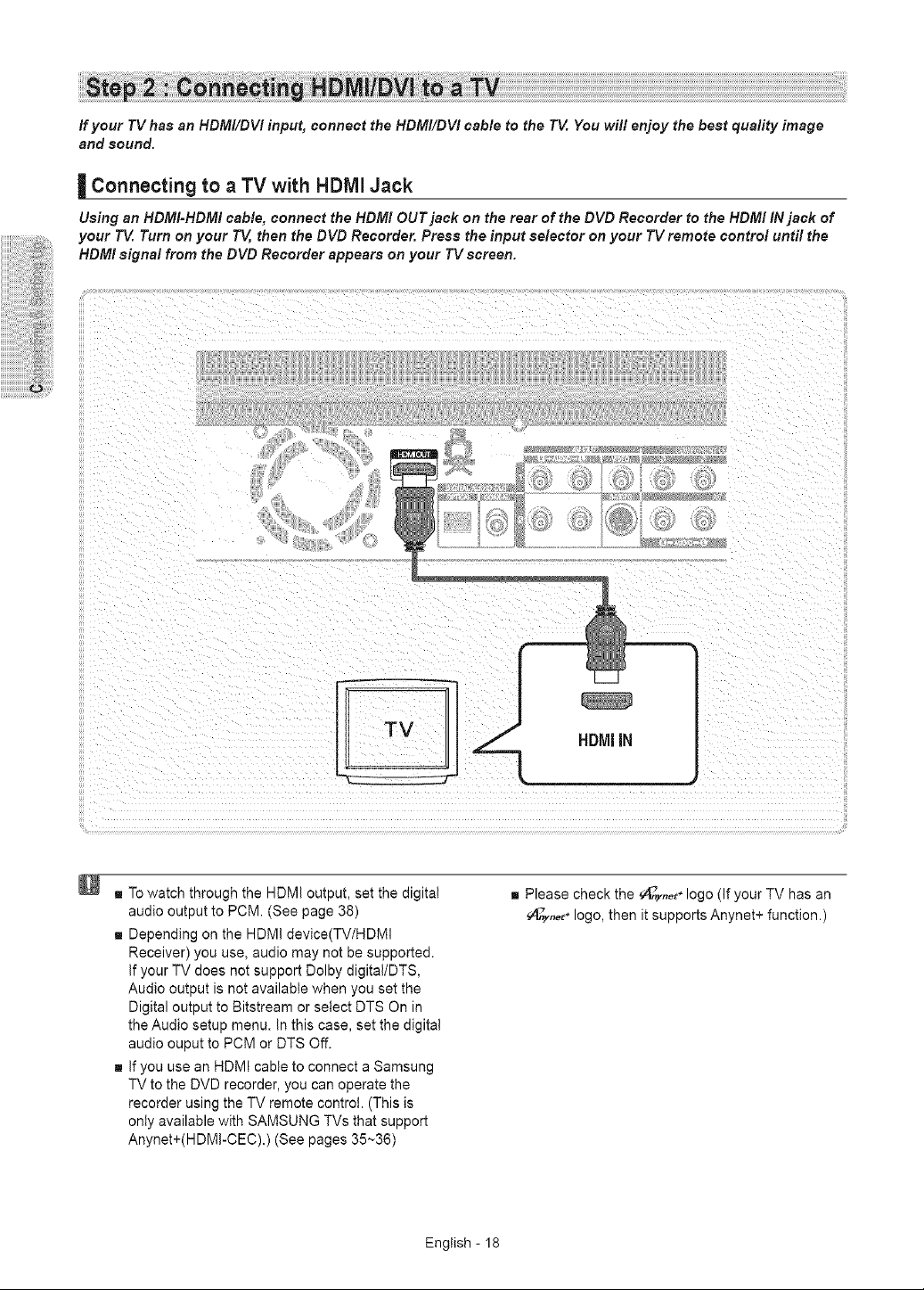

mStep2:ConnectingHDMI/DVltoaTV...................18
ConnectingtoaTVwithHDMIJack.......................18
ConnectingtoaTVwithDVIJack...........................19
mStep3:ConnectingtheVideoCable......................20
ConnectingtoComponentVideoInputJacks
(Y,PB,PR)..................................................................20

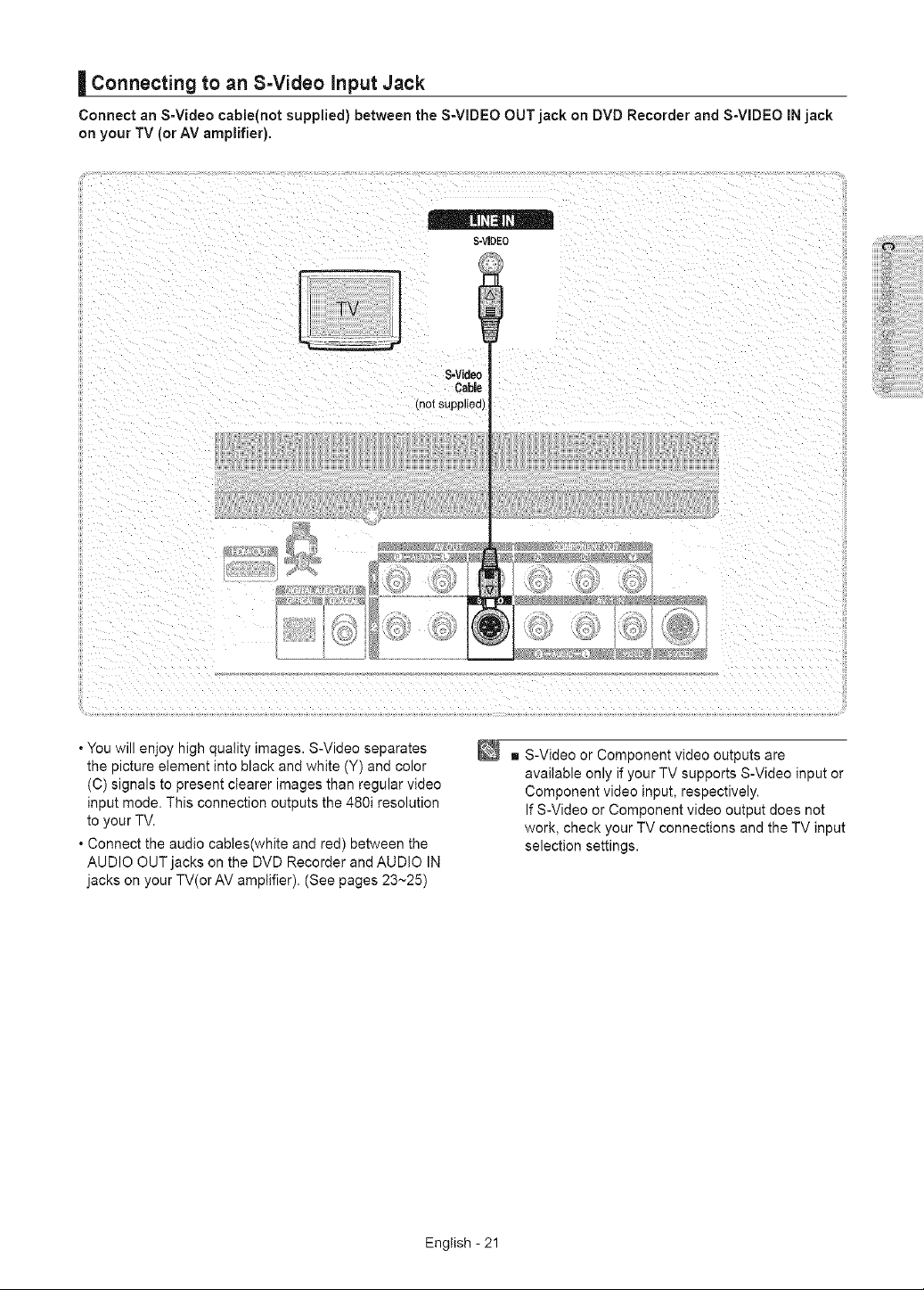

ConnectingtoanS-VideoInputJack......................21

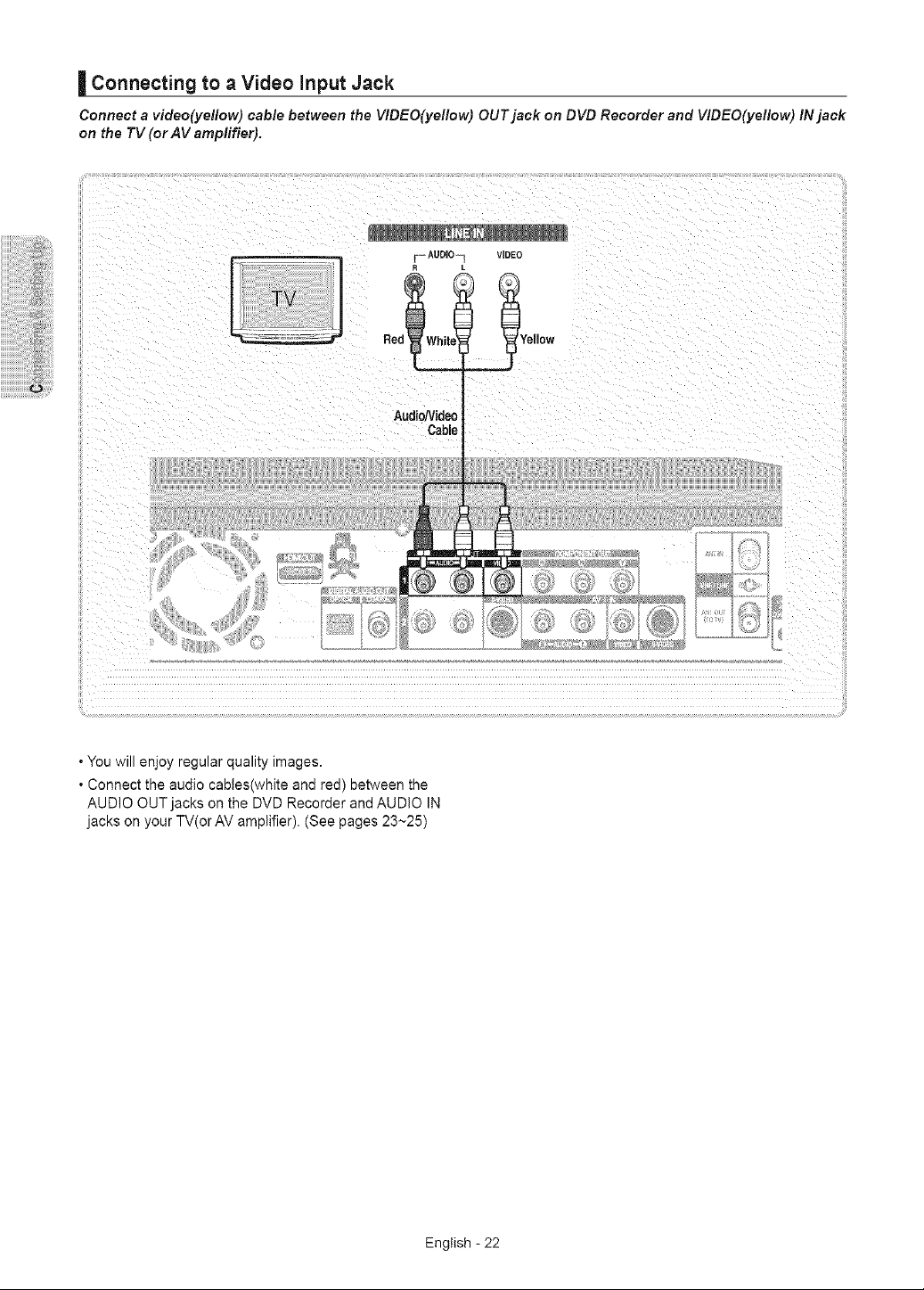

ConnectingtoaVideoinputJack...........................22
mStep4:ConnectingtheAudioCable......................23
ConnectingtoyourTV............................................23

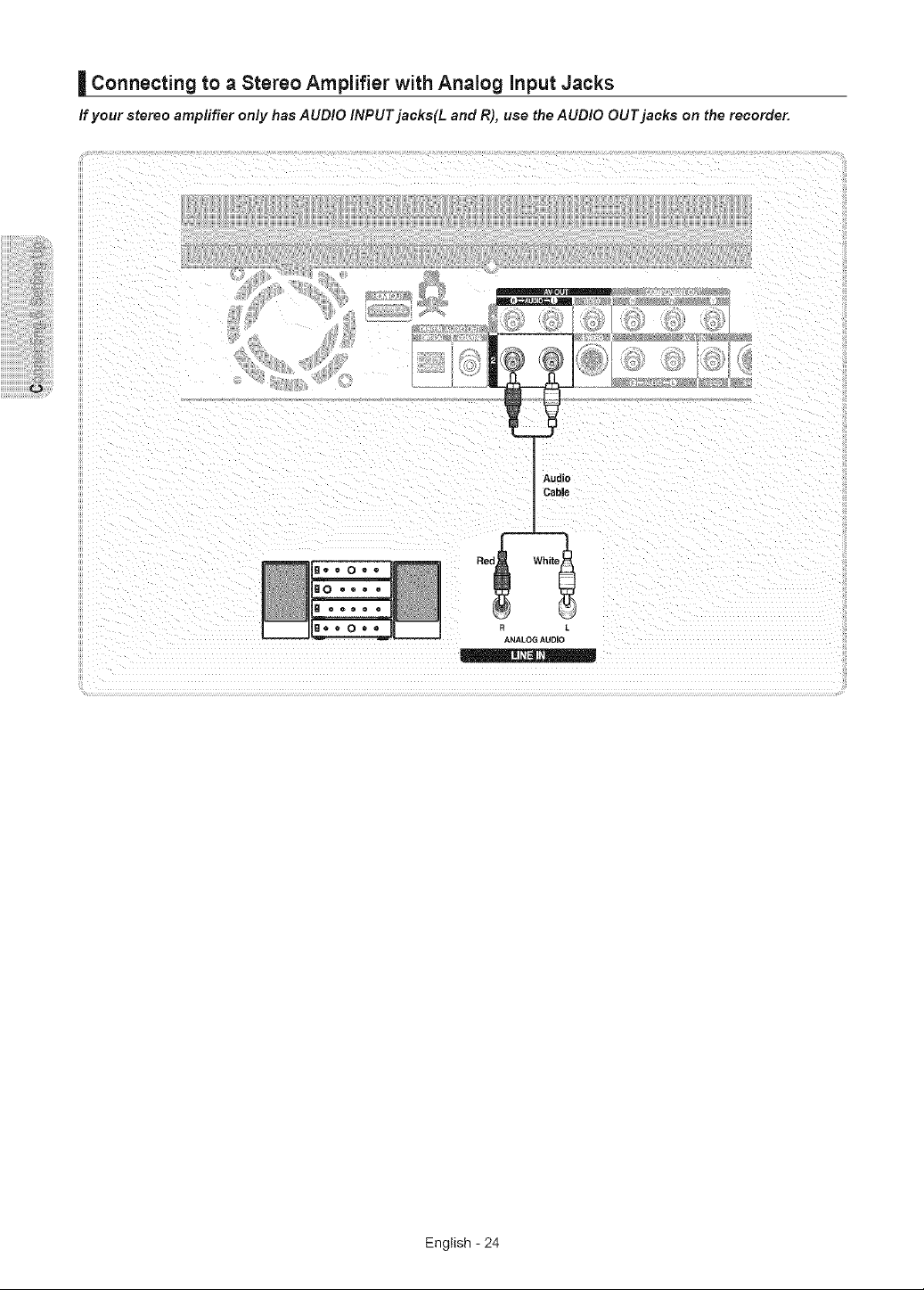

ConnectingtoaStereoAmplifierwithAnaloginput
Jacks.......................................................................24
ConnectingtoanAVAmplifierwithaDigitalInput
Jack.........................................................................25
ConnectingaCamcorder........................................27

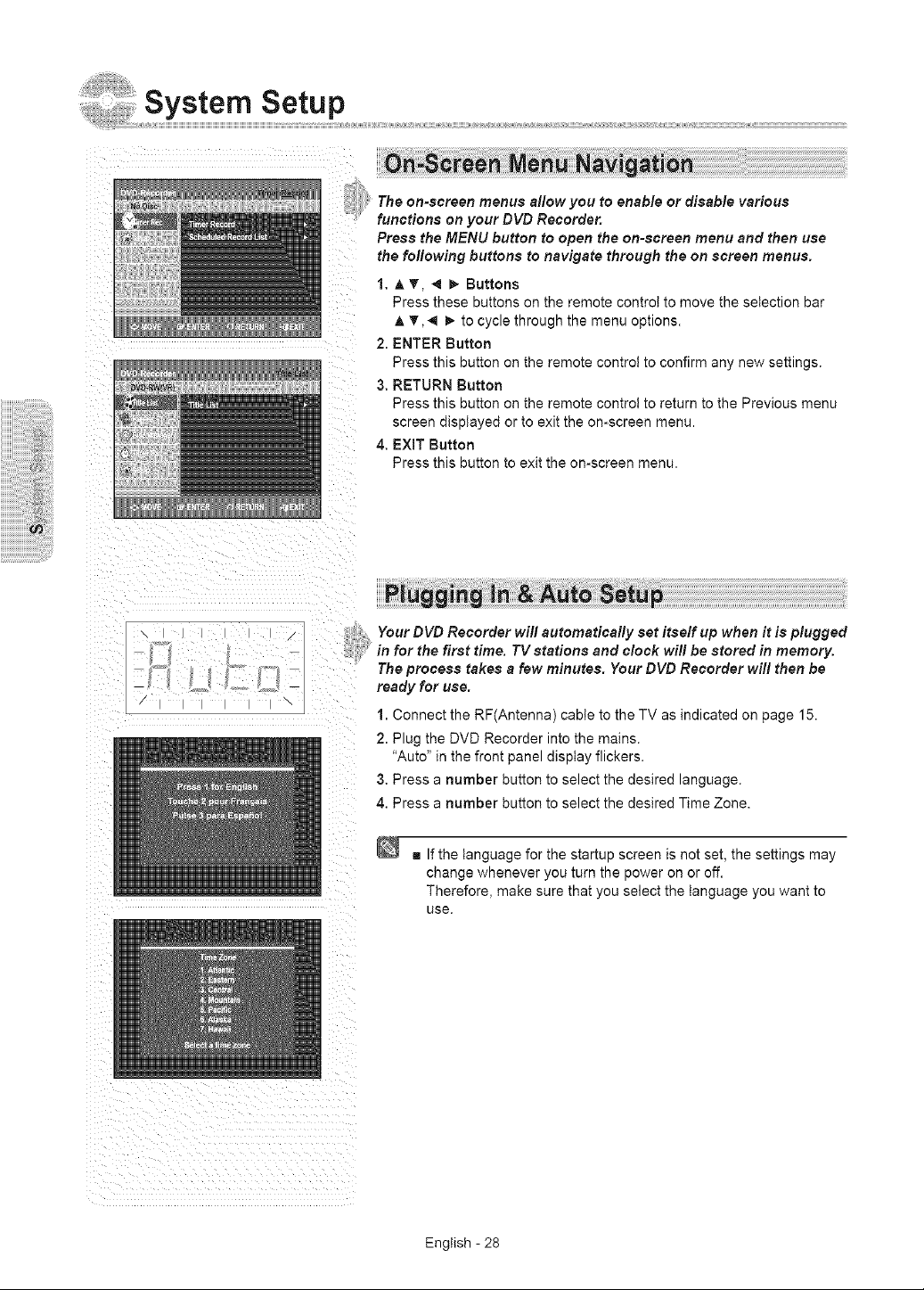

gOn-ScreenMenuNavigation...................................28
gPluggingin&AutoSetup........................................28

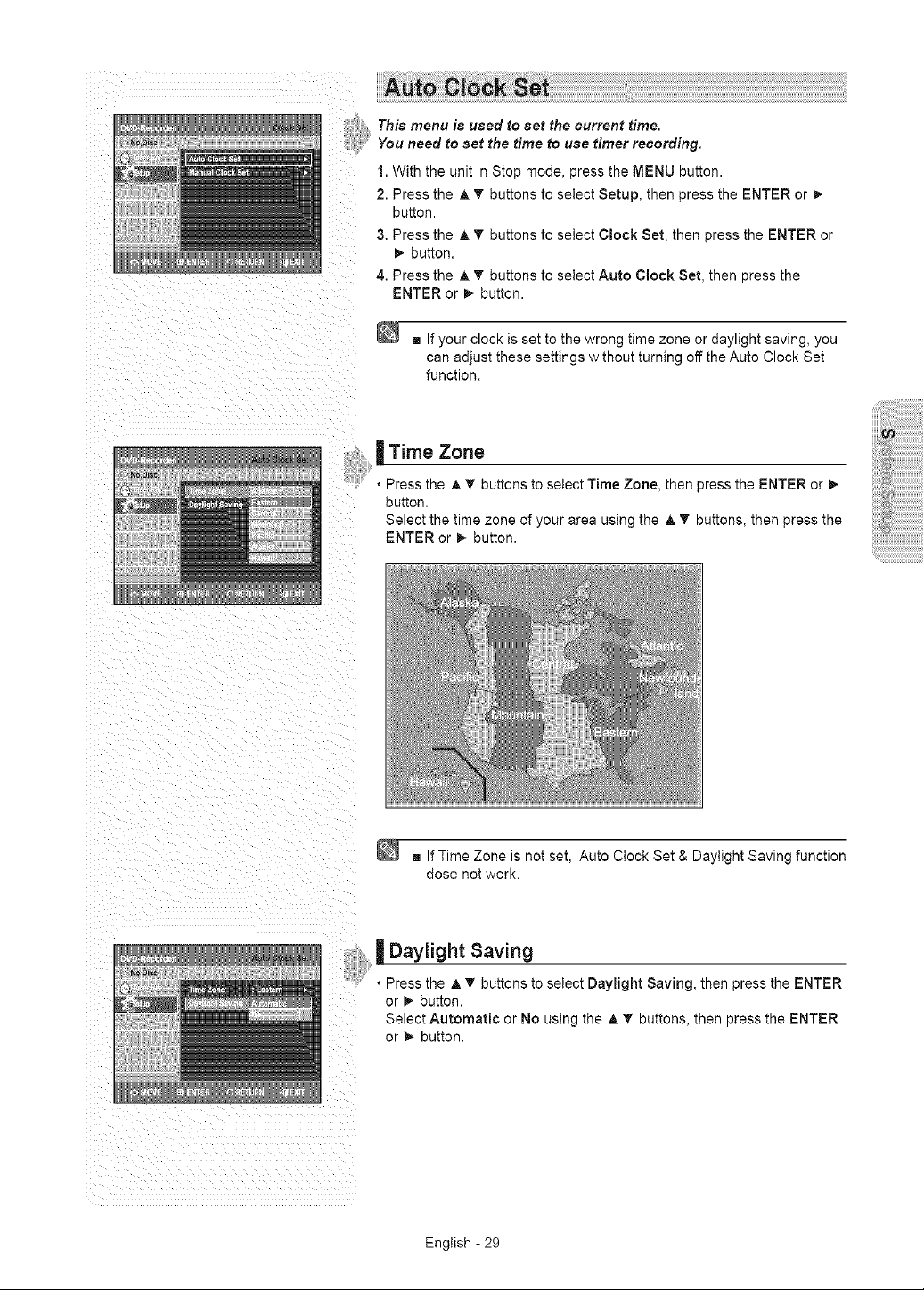

gAutoClockSet.........................................................29
TimeZone...............................................................29
DaylightSaving.......................................................29
gManualClockSet....................................................30
gAutoChannelMemory.............................................30

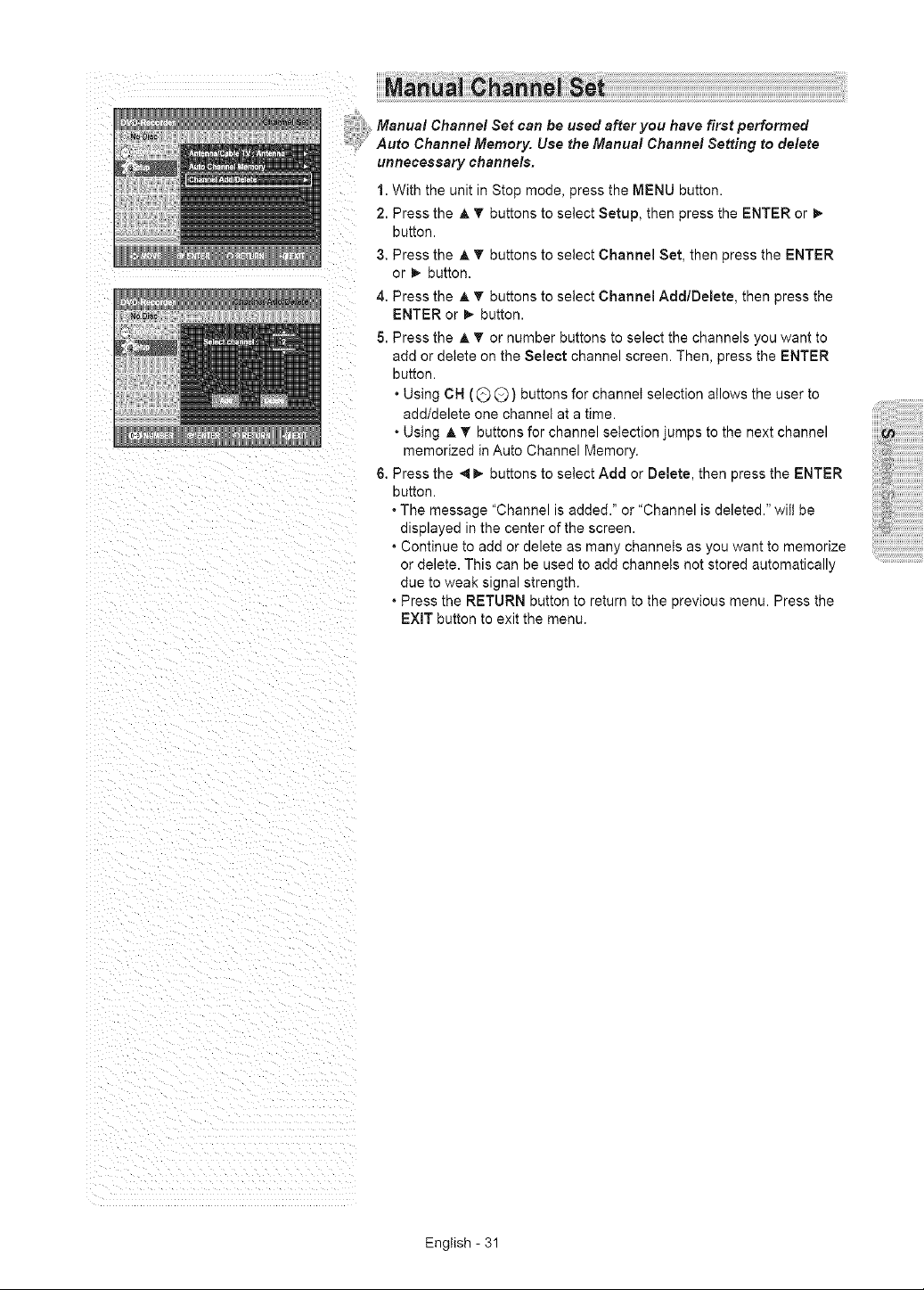

gManualChannelSet................................................31
gSettingUptheSystemOptions...............................32
SetTopBoxControl................................................32

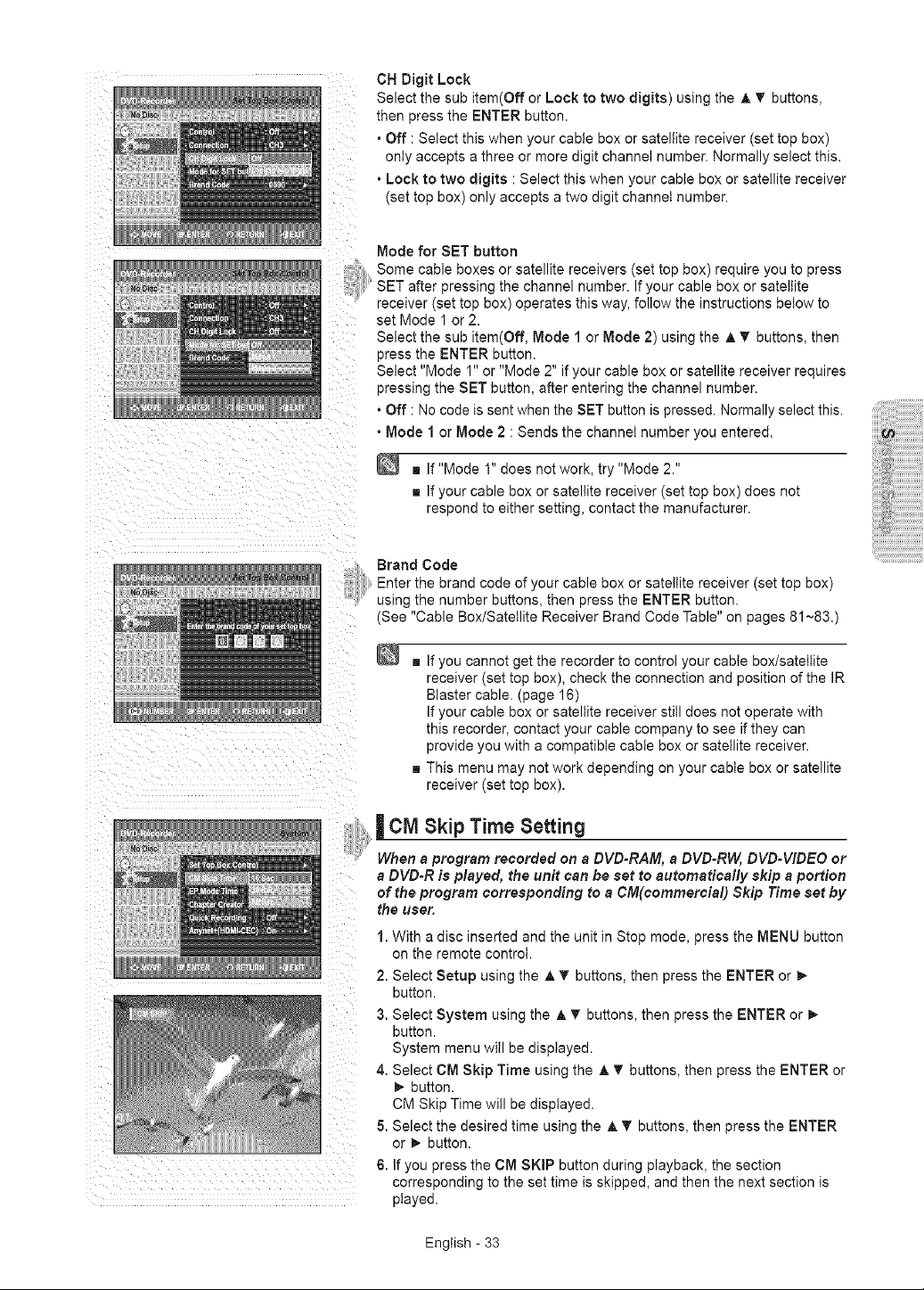

CMSkipTimeSetting..............................................33
EPModeTimeSetting............................................34
AutomaticChapterCreation....................................34
QuickRecordingSetting.........................................35
Anynet+(HDMI-CEC)...............................................35
gLanguageSetting....................................................36
gDigitalCaption.........................................................37
gSettingUptheAudioOptions..................................38
gVideo(Display)Setting.............................................39
TVAspect................................................................39
InputLevel...............................................................39
BlackLevel..............................................................40
3DNoiseReduction................................................40
HDMI/DVIResolution..............................................40
DivX(R)Registration...............................................40

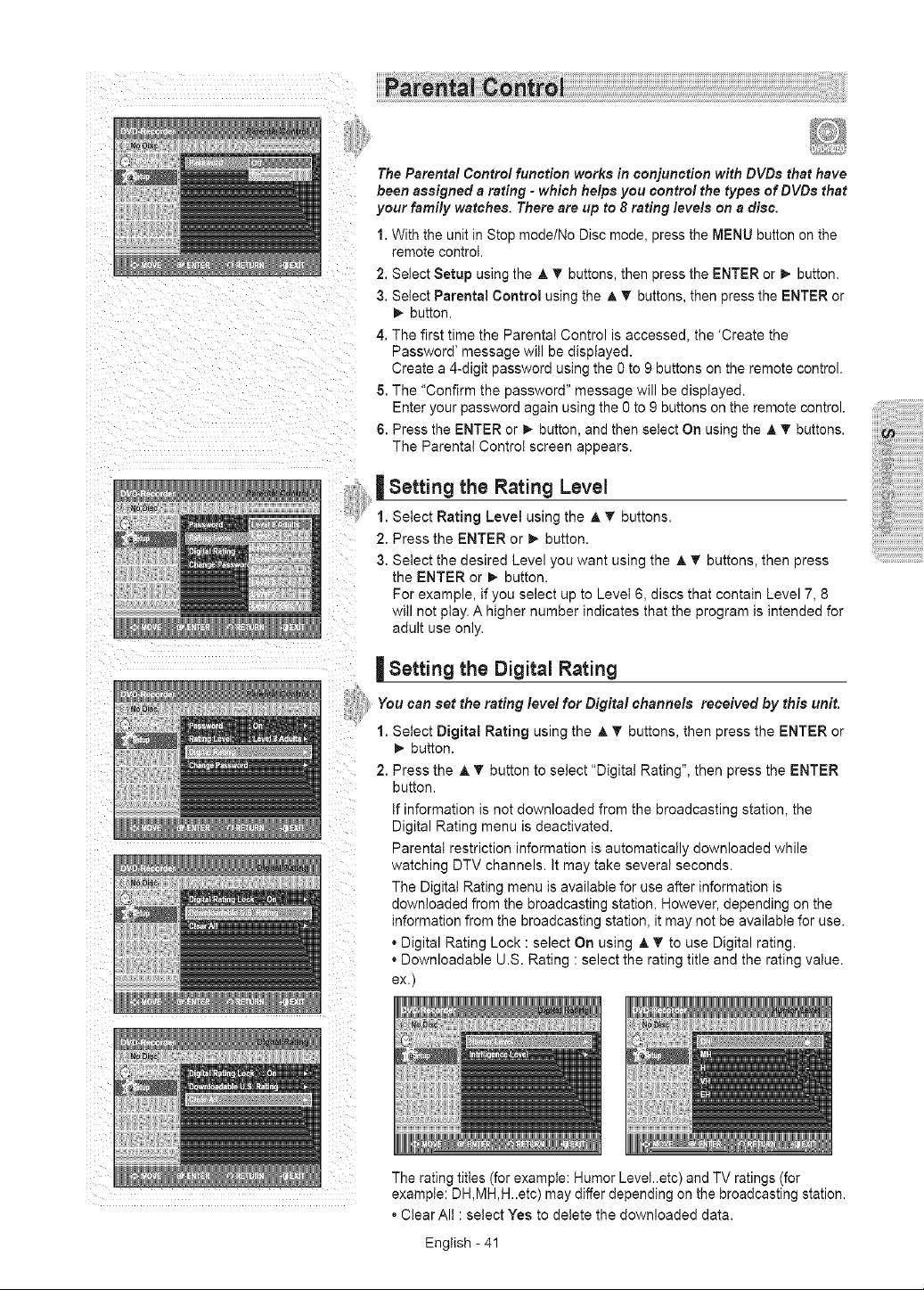

gParentalControl......................................................41
SettingtheRatingLevel..........................................41
SettingtheDigitalRating.........................................41

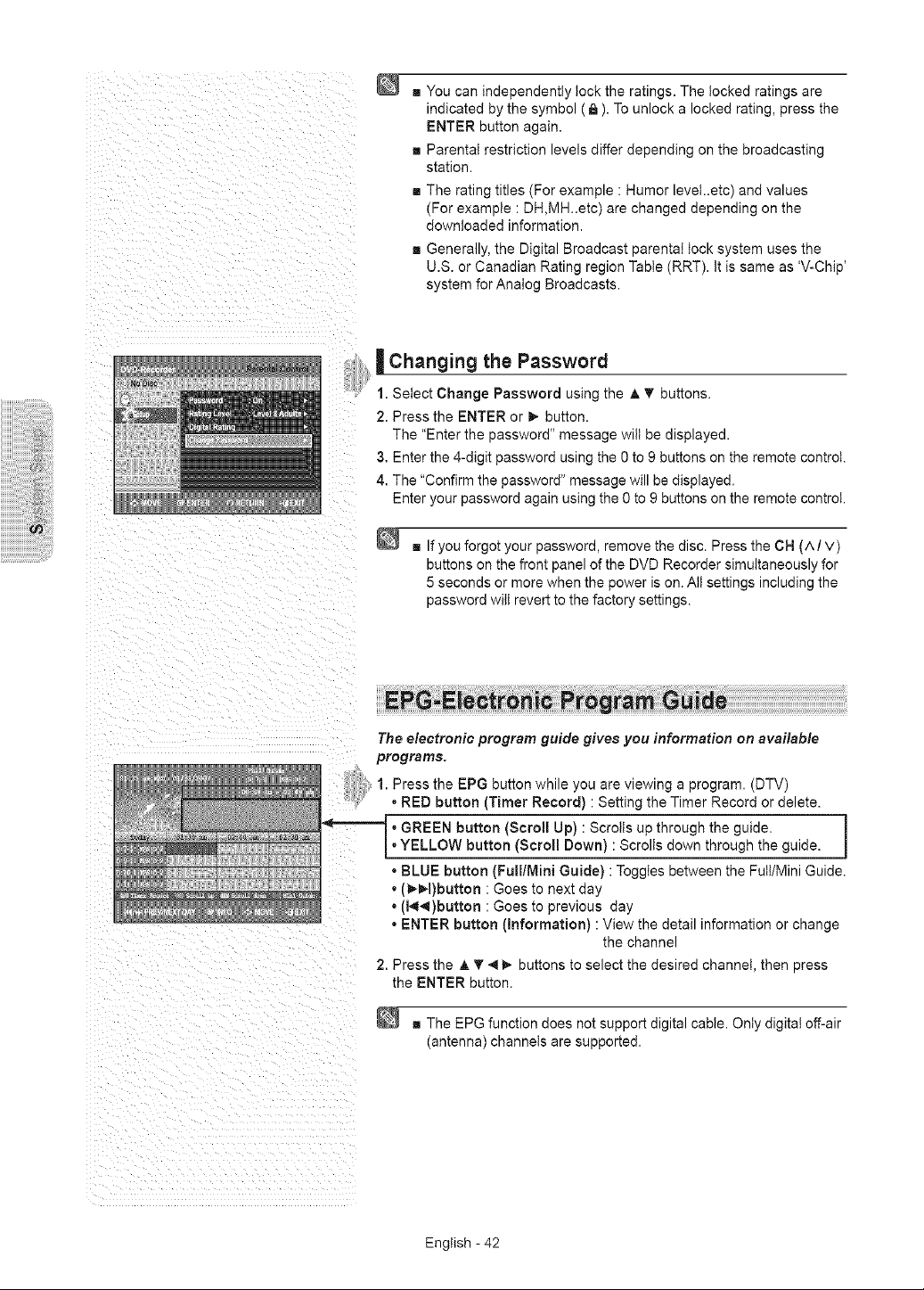

ChangingthePassword..........................................42
gEPG-ElectronicProgramGuide..............................42
ViewingFullGuideandMiniGuide.........................43
EPGTimerRecording.............................................43
English- 6

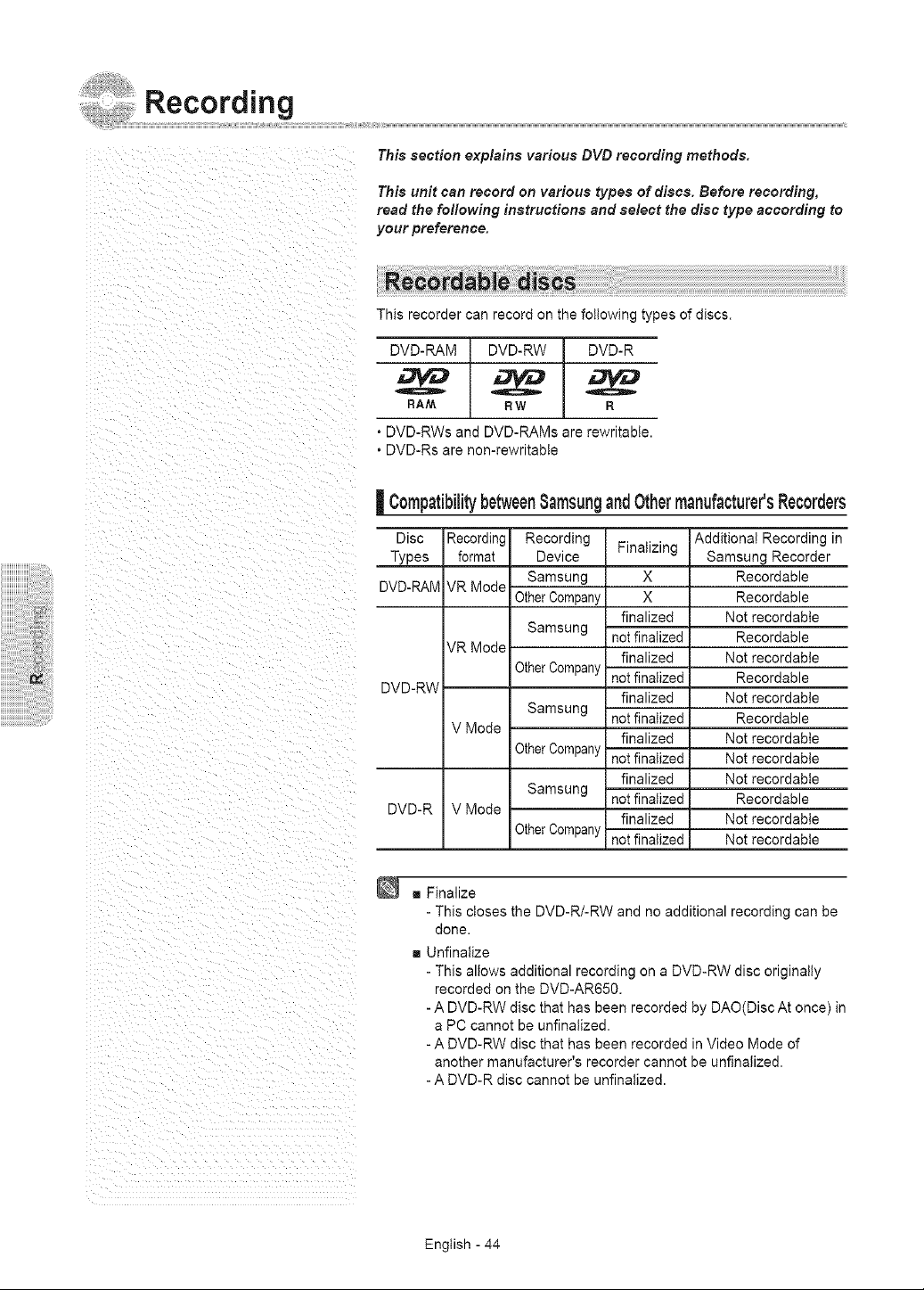

mRecordabtediscs.....................................................44
CompatibilitybetweenSamsungandOther
manufacturer'sRecorders.......................................44

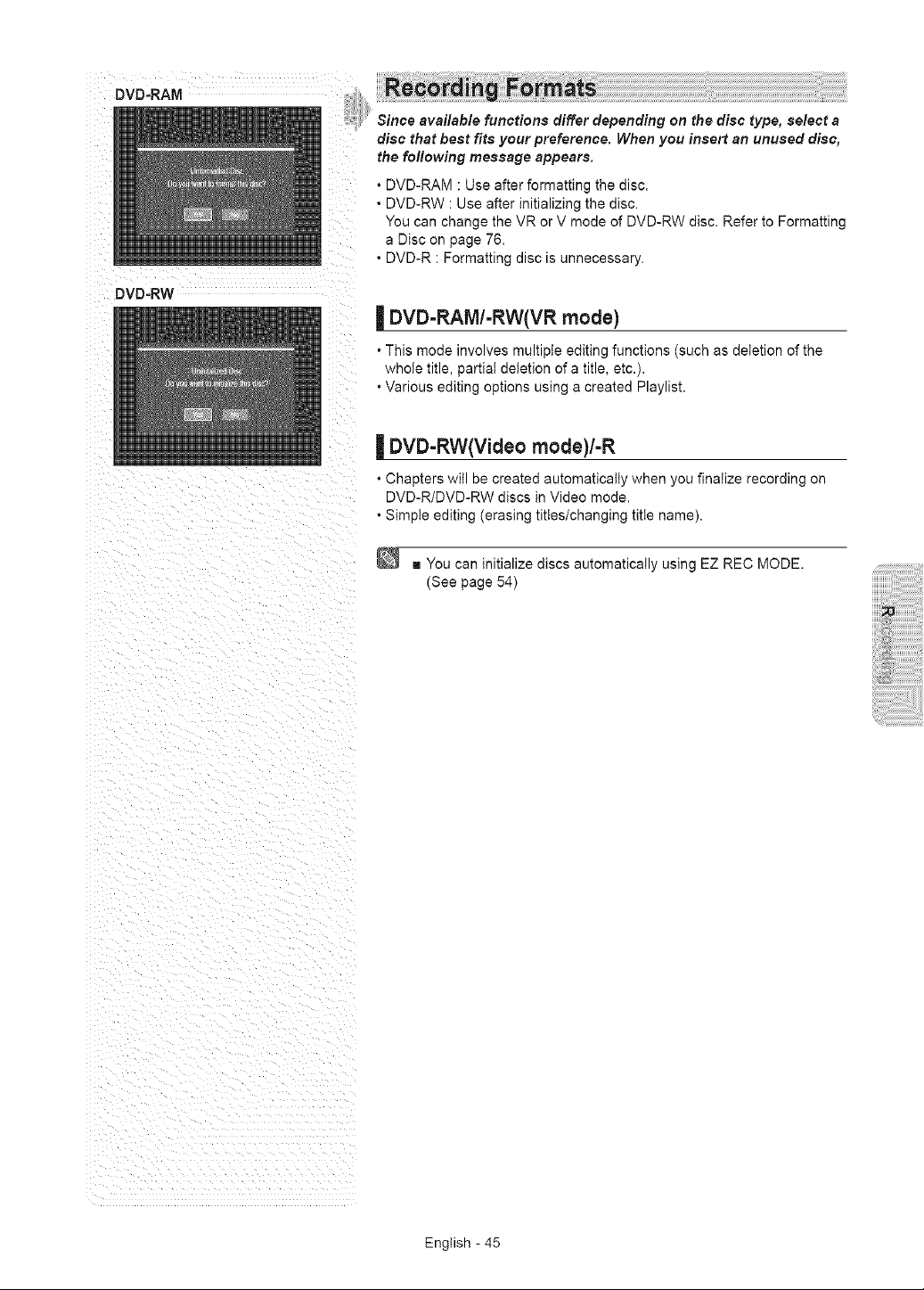

mRecordingFormats..................................................45
DVD-RAM/-RW(VRmode)......................................45
DVD-RW(Videomode)/-R.......................................45

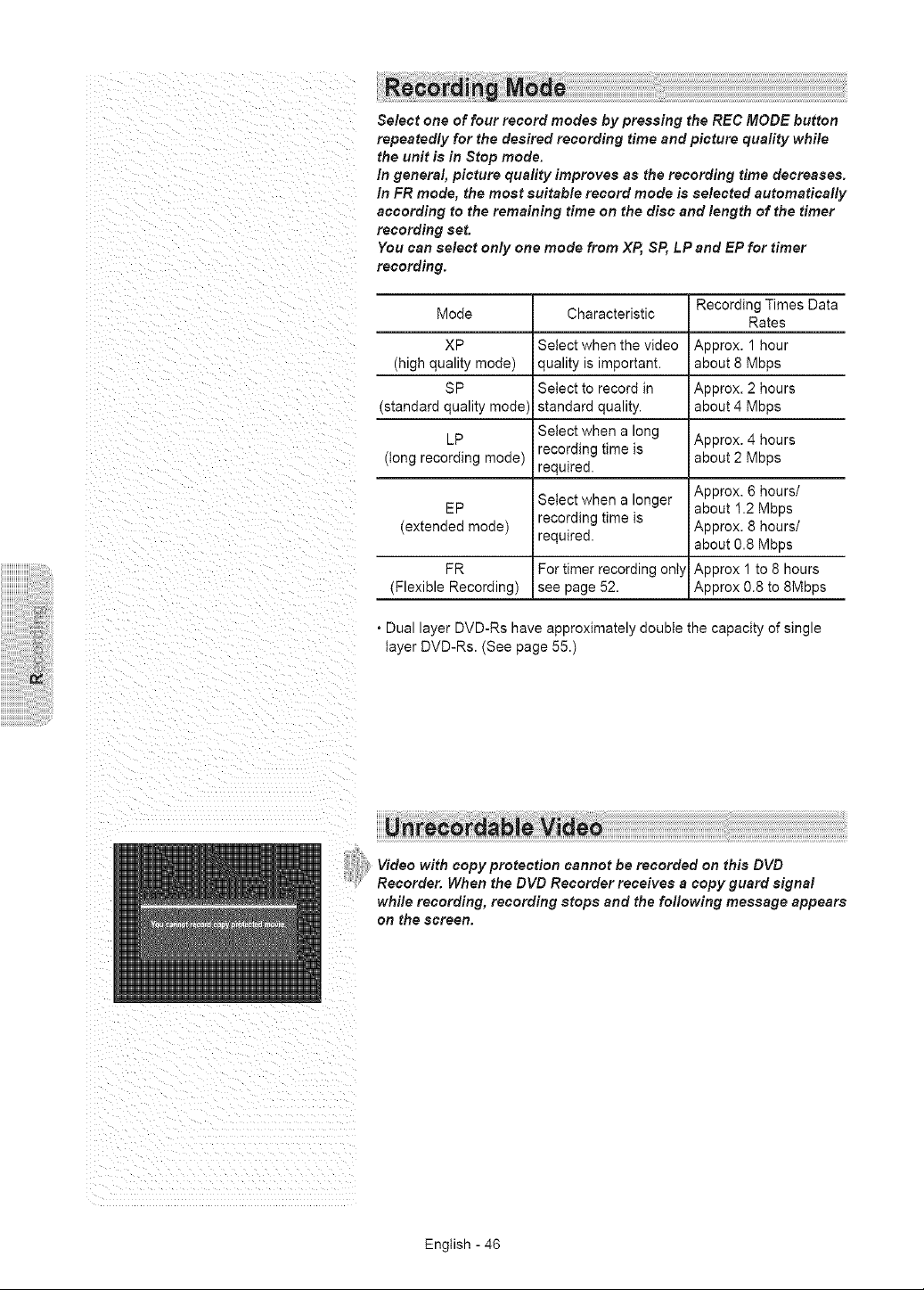

mRecordingMode......................................................46
mUnrecordableVideo.................................................46
AbouttheINFOButton............................................47

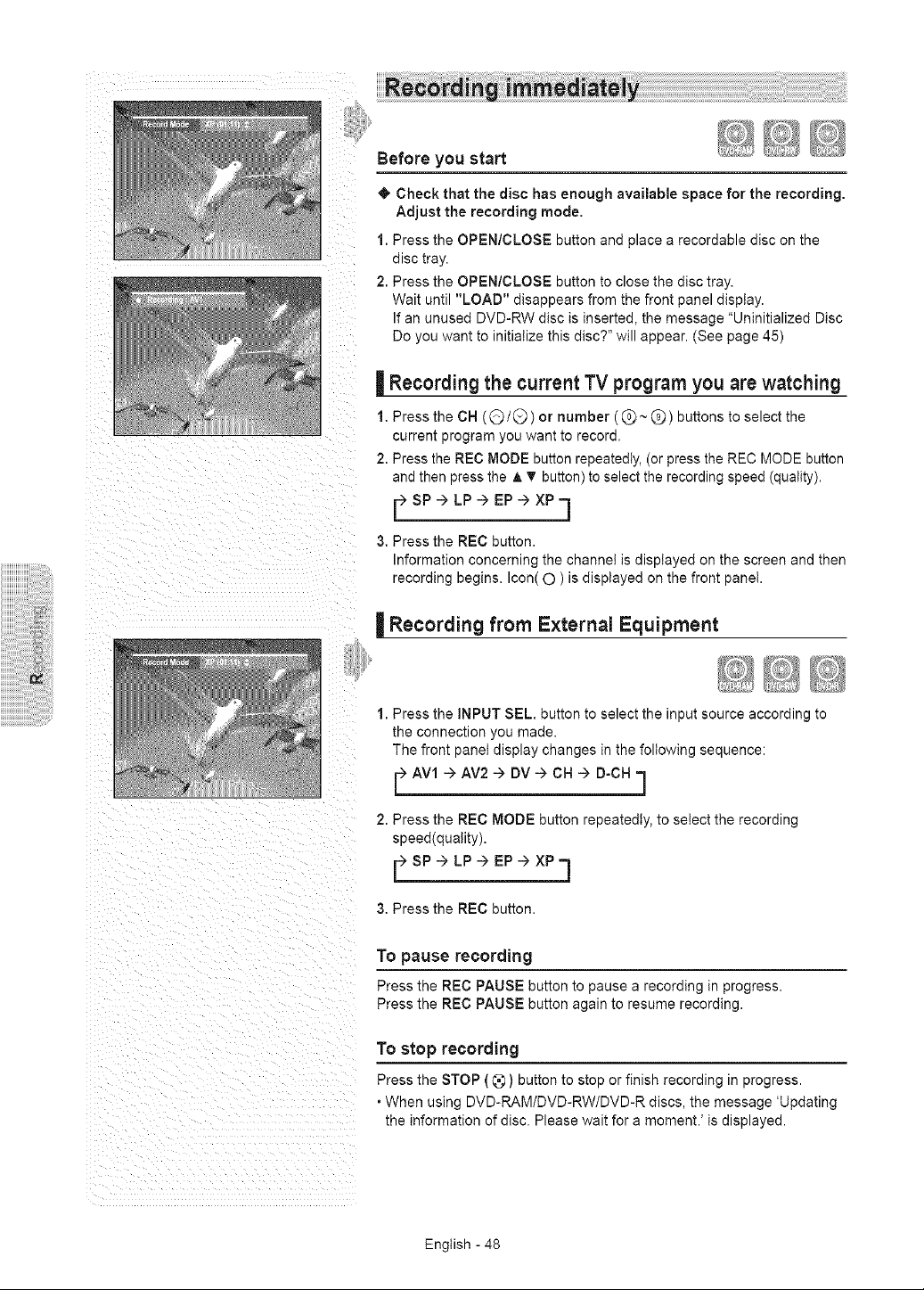

mRecordingimmediately............................................48
RecordingthecurrentTVprogramyouarewatching..48
RecordingfromExternalEquipment.......................48
mCopyingfromaCamcorder.....................................49

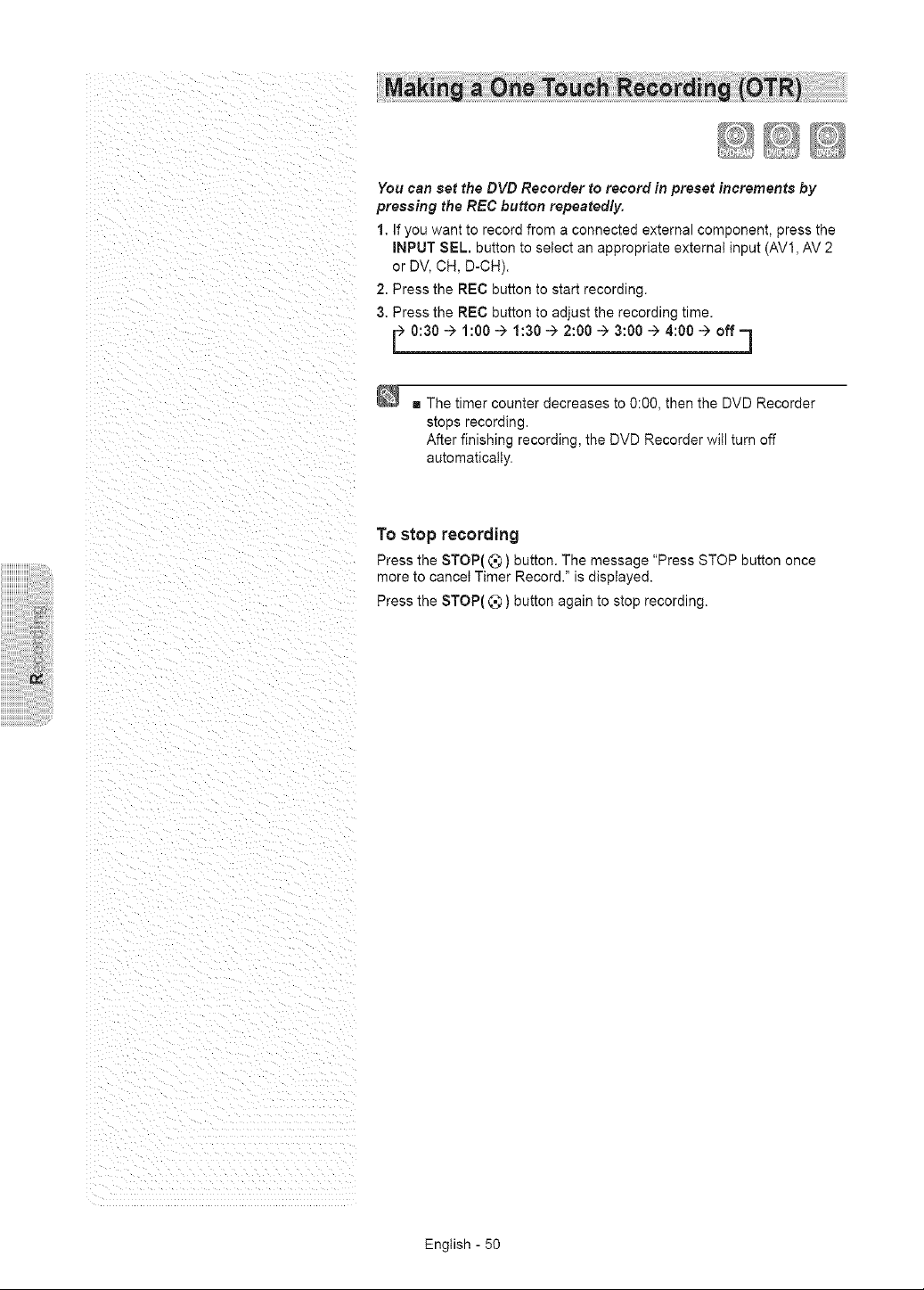

mMakingaOneTouchRecording(OTR)...................50
mSettingaTimerRecording.......................................51
mFlexibleRecording(forTimerRecordingonly)........52
mEditingtheScheduledRecordList..........................52

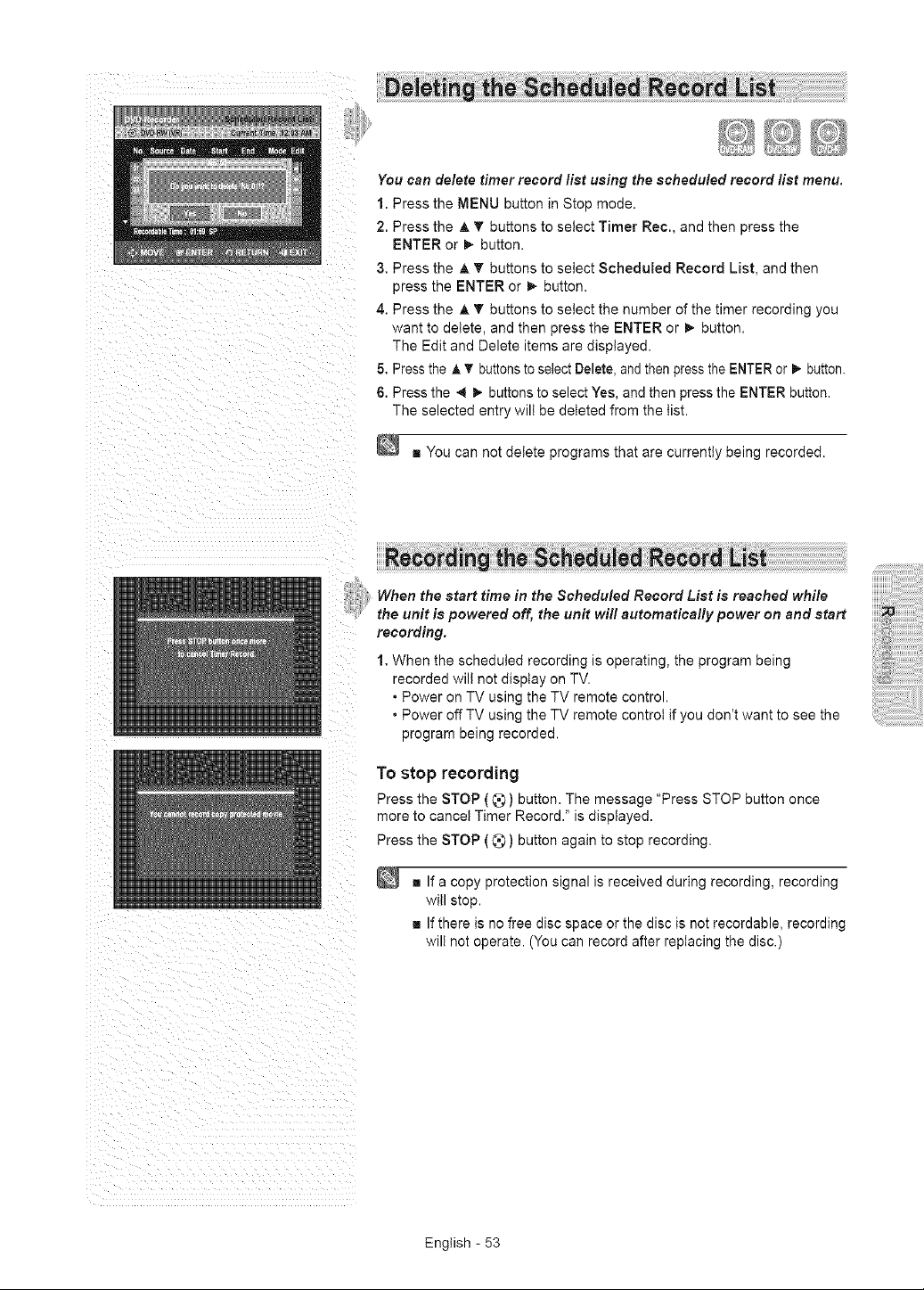

mDeletingtheScheduledRecordList........................53
mRecordingtheScheduledRecordList.....................53
mEZRECMODE.......................................................54
gBasicEditing(TitleList)...........................................68
Renaming(Labeling)aTitle....................................68
Locking(Protecting)aTitle......................................69
DeletingaTitle........................................................69
DeletingaSectionofaTitle....................................70
gAdvancedEditing(Ptaytist)......................................71
CreatingaPlaylist...................................................71
PlayingEntriesinthePlaytist..................................71
RenamingaPtaylistEntry.......................................72
EditingaSceneforthePlaylist...............................72
CopyingaPlaylistEntrytothePtaytist....................75
DeletingaPlaytistEntryfromthePlaylist................75
gDiscManager..........................................................75
EditingtheDiscName.............................................75
DiscProtection........................................................76
FormattingaDisc....................................................76
FinalizingaDisc......................................................77
UnfinalizingaDisc(V/VRmode).............................77
DeleteAllTitleLists.................................................78
mRegioncode(DVD-Videoonly)...............................55
mLogosofDiscsthatcanbeplayed..........................55
mDisctypesthatcanbeplayed.................................55
DiscsThatCannotbePlayed..................................56
mPlayingaDisc..........................................................56
UsingtheDiscMenu&TitleMenu..........................57
UsingthePlaybackRelatedButtons.......................57
SlowMotionPlay.....................................................58
StepMotionPlay.....................................................58

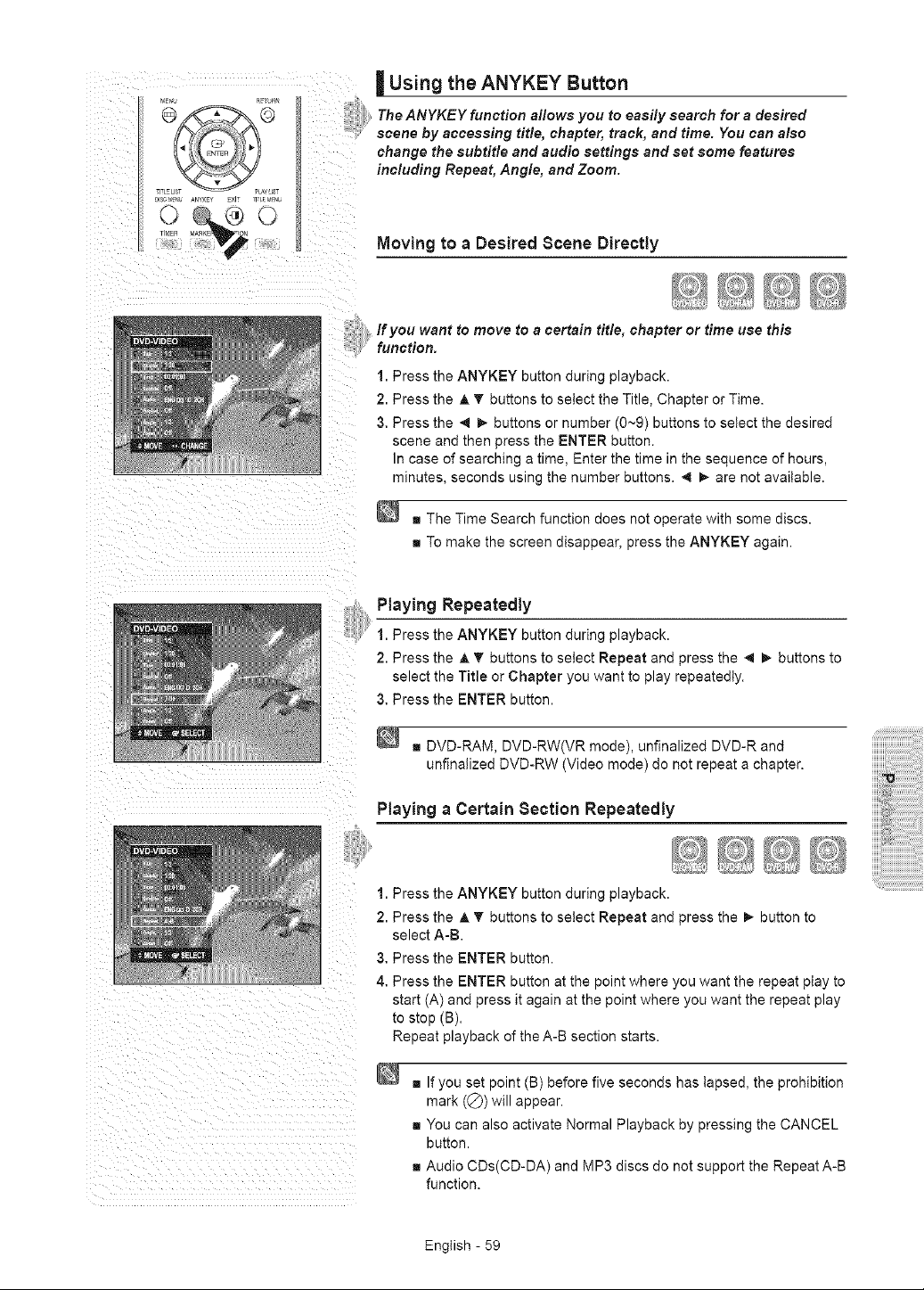

UsingtheANYKEYButton......................................59
mPlayinganAudioCD/MP3.......................................63
PlayinganAudioCD(CD-DA).................................63
PlayinganMP3Disc...............................................64
PlayingRepeatedly.................................................64

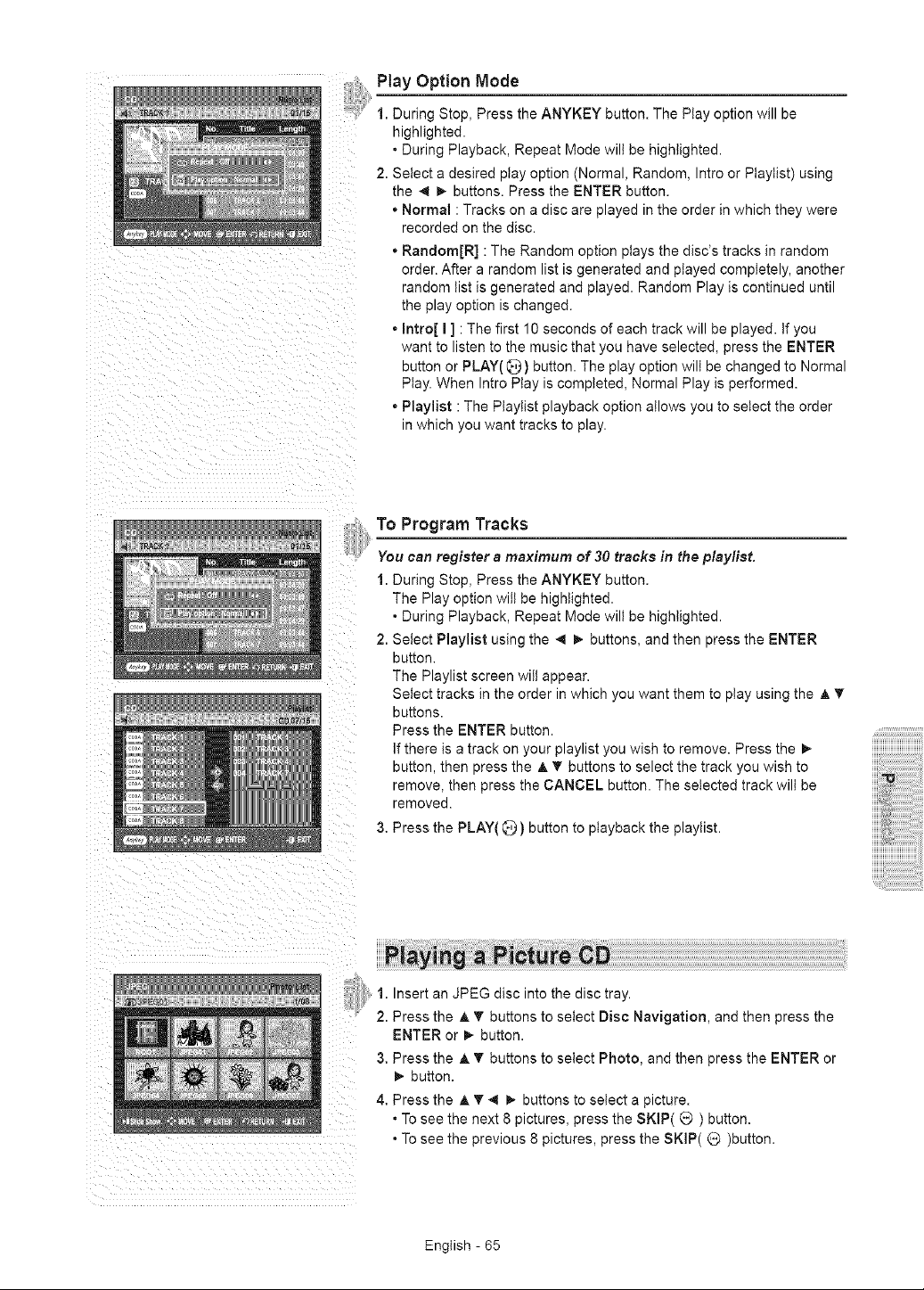

mPlayingaPictureCD...............................................65
mPlayinganMPEG4Disc..........................................66

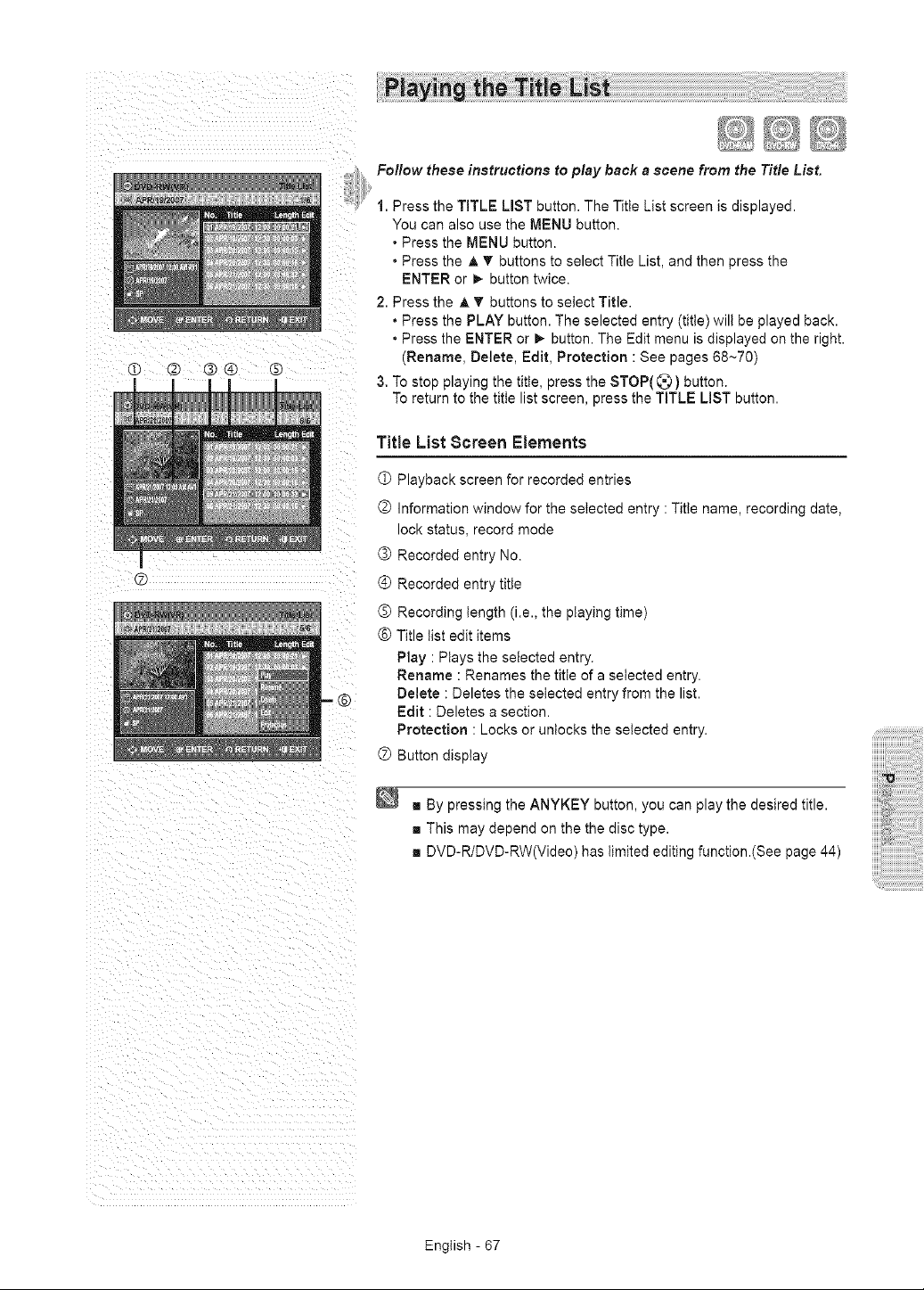

mPlayingtheTitleList................................................67

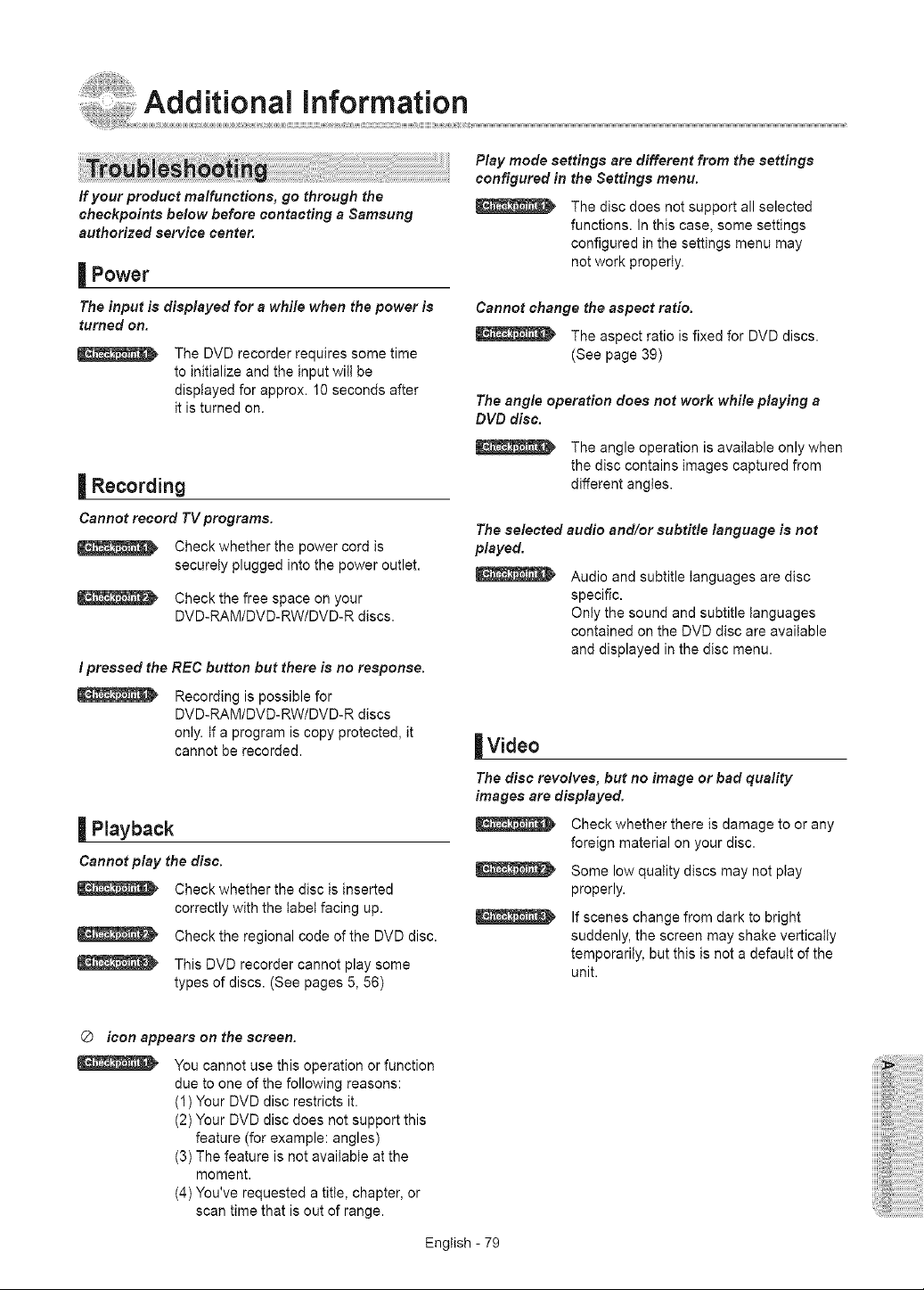

gTroubleshooting.......................................................79
gCableBox/SatelliteReceiverBrandCodeTable.....81
Cable box brand ...................................................... 81
Satellite receiver brand ........................................... 83

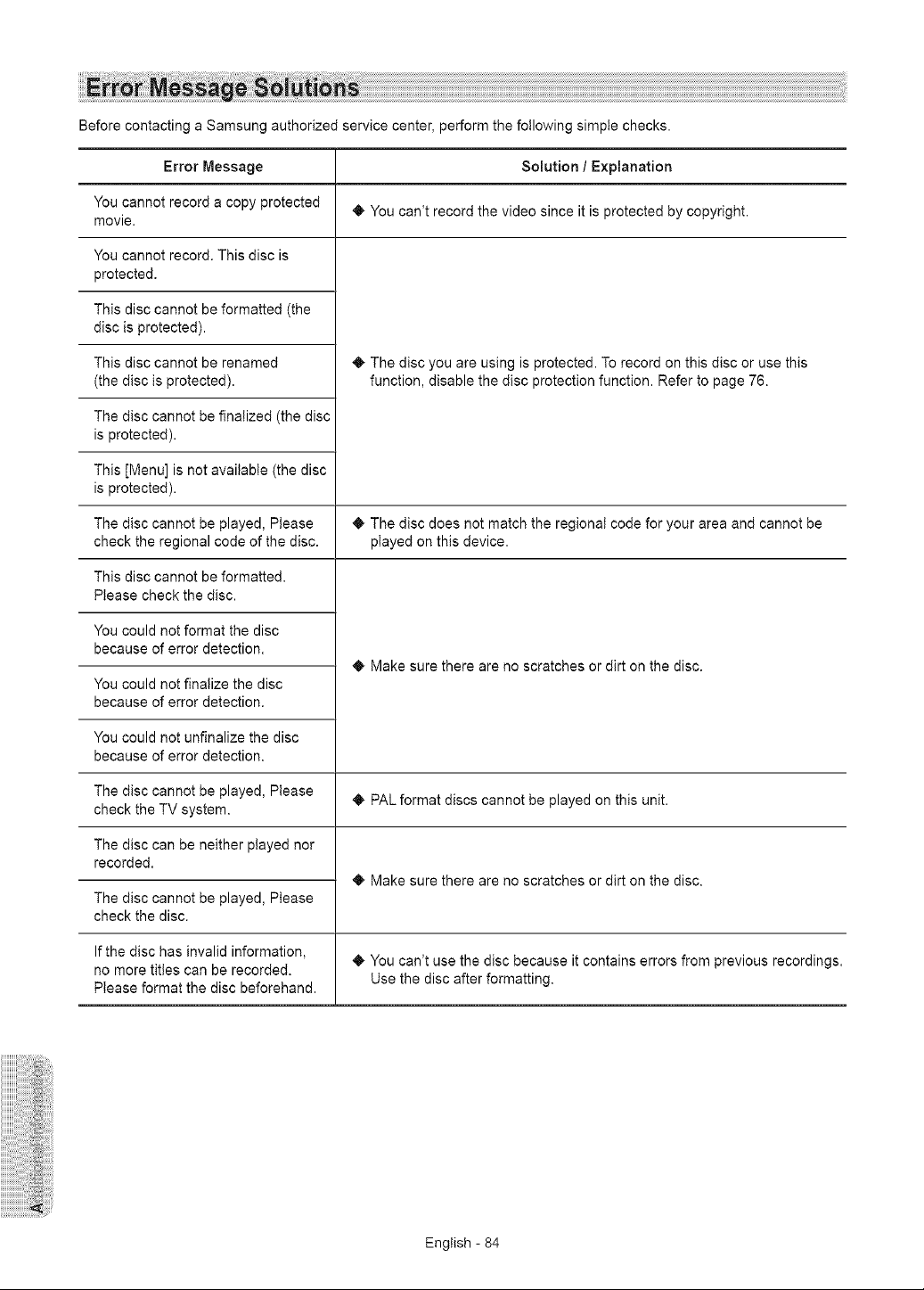

g Error Message Solutions ......................................... 84

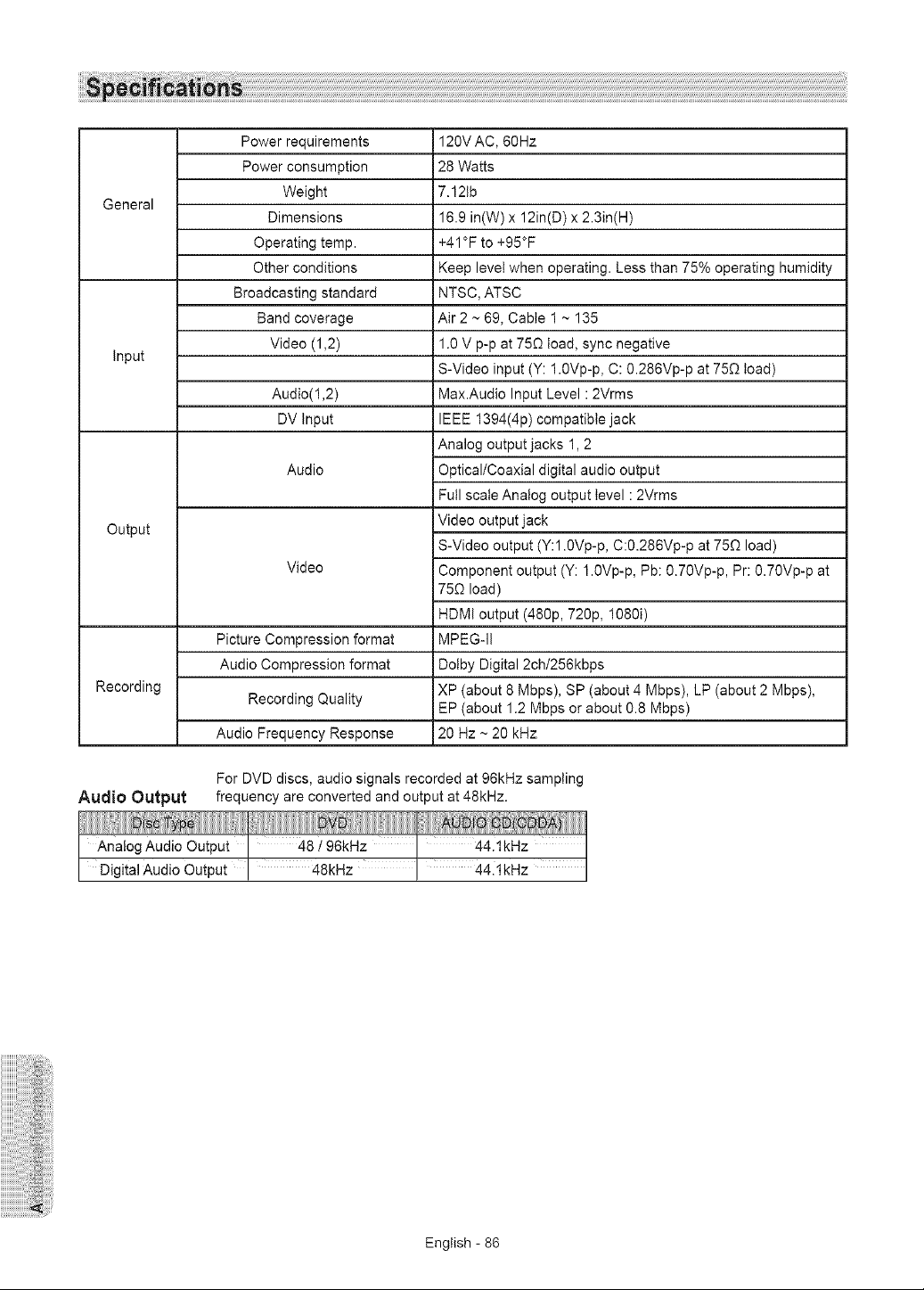

g Specifications .......................................................... 86
g Warranty .................................................................. 87
English - 7
TheDVD-AR650allowsyoutorecordandplayhigh
qualitydigitalvideoonDVD-RAM/DVD-RW/DVD-Rdiscs.
High quality digital audio and video recording and
playback
You can record up to approximately 16-hours of video on
a double side 9.4 GB DVD-RAM disc,up to 15-hours on a
dual-layer 8.5GB DVD-R disc, and up to 8-hours on a 4.7
GB DVD-RAM/DVD-RW/DVD-R disc, depending on the
recording mode.
Selectable Record Mode
You can set your recorder to one of five different recording
speeds, each varying in recording quality and length. EP
mode yields the most recording time, LP & SP modes
provide less recording time with higher quality recording,
and XP mode gives you the highest quality recording.
There's also the FR (Flexible Recording) mode that lets
you record with the best picture quality possible for the
recording time and remaining space on the disc during
timer recording.
Automated Quality Adjustment for Timer Recording
if FR mode is selected, the video quality is adjusted
automatically so that all video for the scheduled time can
be recorded onto the free disc space. (See pages 51 ~52)
Create a DVD video title using a DVD-RW/DVD-R disc
With the DVD-AR650, you can create your own DVD
video title on 4.7 GB DVD-RW/DVD-R or 8.SGB DVD-R
discs.
A variety of functions with an easy=to-use user interface
The integrated menu system and the messaging function
allows you to perform desired operations both easily and
conveniently. With a DVD-RAM or DVD-RW (VR mode)
disc, you can edit recorded images, create a playtist,
and edit videos in a specific sequence according to your
requirements.
MPEG4 playback
This DVD Recorder can play MPEG4 formats within an avi
file.
DivX Certification
DivX, DivX Certified, and associated Iogos
are trademarks of DivXNetworks, Inc and
are used under license.
HDMI (High Definition Multimedia Interface)
HDMI reduces picture noise by allowing a pure digital
video/audio signal path from the DVD Recorder to your
TV.
H :DN'I|
EZ REC MODE
This function allows you to Initialize and Finalize a disc
automatically. (See page 54)
Copying data from a digital camcorder using a DV
input jack
Record digital camcorder video onto DVD-RAM, DVD-RW
or DVD-R discs using the DV input jack (IEEE 1394-4pin).
(See page 49)
High quality progressive scan
Progressive scanning provides high resolution and flicker
free video.
The 10-bit 54-MHz DAC and 2D Y/C Separating Circuitry
provides the highest video playback and recording quality.
(See page 20)
English - 8
Make sure to check the following before reading the
user's manual
Icon Term
DVD
RAM
-RW
-R
CD
JPEG
MP3
MPEG4
Caution
NOTE
One-
Touch
button
ANYKEY
bu_on
Definition
This involves a function available
with DVD or DVD-R/DVD-RW (V)
discs that have been recorded and
finalized.
This involves a function available
with DVD-RAM discs.
This involves a function available
with DVD-RW discs.
This involves a function available
with DVD-R discs.
This involves a function available
with a data CD (CD-R or CD-RW).
This involves a function available
with JPEG files on CD-R/-RW or
DVD-RAM/DVD-RW/DVD-R discs.
This involves a function available
MP3 files on CD-R/-RW or DVD-
RAM/DVD-RW/DVD-R discs.
This involves a function available
with MPEG4s on CD-R/-RW or
DVD-RAM/DVD-RW/DVD-R discs.
This involves a case where a
function does not operate or
settings may be cancelled.
This involves tips or instructions on
the page that help each function
operate.
A function that can be operated by
using only one button.
A function that can be operated by
using the ANYKI::Y button.
1) Be sure to familiarize yourself with the Safety
Instructions before using this product. (See pages 2 ~ 5)
2) If a problem occurs, check the Troubleshooting section.
(See pages 79~80)
@2007 Samsung Electronics Co.
All rights reserved; No part or whole of this user's manual
may be reproduced or copied without the prior written
permission of Samsung Electronics Co.
| Step I : Select the disc
type
This unit can record on the following types of discs.
If you want to repeatedly record on the same disc or you
want to edit the disc after recording, select a rewritable
DVD-RW or DVD-RAM type disc.
If you want to save the recording without making any
changes, choose a non-rewritable DVD-R.
RAM RW R
| Step 2 : Format the disc to start
recording
The recorder automatically starts formatting when an
unused disc is inserted. This is required for the preparation
of disc recording.
Using a DVD-RAM
This type of disc can be formatted with the DVD-Video
Recording format (VR mode). You can edit recorded video
and create a playlist and edit video in a specific sequence
according to your requirements.
Using a DVD-RW
• When an unused DVD-RW disc is first inserted, the
message "Uninitialized Disc. Do you want to initialize this
disc?" will be displayed.
If you select Yes, initializing will begin. A DVD-RW disc
can be formatted in either DVD-Video format (Video
mode) or DVD-Video Recording format (VR mode)
Using a DVD-R
When using a DVD-R disc, only V mode recording is
possible and no initialization is needed to play it on this
recorder. However, finalization is necessary to play this
disc on other DVD players.
g You can only use either the VR or Video mode on
a DVD-RW, but not both at the same time.
g You can format a DVD-RW to V or VR mode using
disc manager.
It should be noted that the disc's data wilt be lost
when changing formats.
| Step 3 : Recording
There are two different recording methods. Direct Recording
(recording a program you are currently watching) and
Timer Recording. Timer recording is determined as a Date :
MM/DD, MON-FRI, Every SAT, etc.. There are 5 recording
modes : XP(high quality mode), SP(standard quality mode),
LP(long recording mode), EP(extended mode) and FR
mode. When using FR mode to record, the picture quality is
determined by the remaining time on the disc.
g You can make a Timer Recording by using the
EPG (Electronic Program Guide). (See page 43)
English - 9
| Step 4 : Playing
To start playback select the title you want to play from the
Title list.
A DVD consists of sections called titles, and sub sections
called chapters.
During recording, a title is created between two points
where you start and stop recording. Chapters will be
created automatically when you finalize recording on
DVD-R/DVD-RW discs in Video mode.
| Step 5 : Editing a recorded disc
Editing on discs is easier than editing on conventional
video tapes. The recorder supports many different edit
functions, possible only with DVDs.
With a simple and easy edit menu, you can operate various
edit functions, such as delete, copy, rename, lock, etc., on
a recorded title.
With this recorder, you can create playlists using a DVD-
RAM/DVD-RW in VR mode. Once a playlist is created you
can create/edit a new playlist on the same disc without
changing the original recording.
8tep 6 : Finalizing & Playing on other
DVD components
To play your DVD on other DVD components, finalizing
may be necessary. First, finish all editing and recording
operations, then finalize the disc.
When using a DVD-RW disc in VR Mode
Although finalizing is generally unnecessary when playing
the disc on a VR Mode compatible component, a finalized
disc should be used for playback.
When using a DVD-RW disc in Video Mode
The disc should be finalized first to enable playback
on anything other than this recorder. No more editing
or recording can be made on the disc once it has been
finalized.
When using a DVD-R disc
You should finalize the disc to play it on a component
other than this recorder. No more editing or recording can
be made on the disc once it has been finalized.
g You can finalize automatically using the EZ REC
MODE. (See page 54)
| Accessories
Check for the supplied accessories below.
Video/AudioCable IR Blastercable
(AC39-00073A) (AK39-00055A)
Remote Controt Batteries for Remote
(AK59-00062J) Control (AAA Size)
(AC43-12002H)
Instruction Manuat
(AK68-01378A)
Quick Guide
(AK68-01379A)
| Preparing the Remote Control
install Batteries in the Remote Control
• Open the battery cover on the back of the remote.
• Insert two AAA batteries. Make sure that the polarities
(+ and -) are aligned correctly.
• Replace the battery cover.
if the remote control does not operate properly:
• Check the polarity +/- of the batteries.
• Check if the batteries are drained.
• Check if the remote sensor is blocked by obstacles.
• Check if there is any fluorescent lighting nearby.
Dispose of batteries according to local environmental
regulations. Do not put them in the household trash.
English - 10
To determine whether your television is compatible, follow the instructions below.
1. Switch your television on.
2. Point the remote control towards the television.
3. Press and hold the TV POWER button and enter the two-figure code simultaneously corresponding to the brand of
your television by pressing the appropriate number buttons.
AIWA 82
ANAM 10, 11, 12, 13, 14, 15, 16, 17, 18
BANG & 57
OLUFSEN
BLAUPUNKT 71
BRANDT 73
BRIONVEGA 57
CGE 52
CONTINENTALEDISON75
DAEWOO 19,20,23,24,25, 26 27,28 29, 30,31,32,33,34
EMERSON 64
FERGUSON 73
FINLUX 06, 49, 57
FORMENTI 57
FUJITSU 84
GRADIENTE 70
GRUNDIG 49, 52, 71
HITACHI 60, 72, 73, 75
IMPERIAL 52
JVC 61, 79
LG 06, 19, 20, 21,22, 78
LOEWE 06, 69
LOEWE OPTA 06, 57
MAGNAVOX 40
METZ 57
MITSUBISHI 06, 48, 62, 65
MIVAR 52, 77
NEC 83
NEWSAN 68
NOBLEX 66
NOKIA 74
NORDMENDE 72, 73, 75
PANASONIC 53, 54, 74, 75
PHILIPS 06, 55, 56, 57
PHONOLA 06, 56, 57
PIONEER 58, 59, 73, 74
RADIOLA 06, 56
RADIOMARELLI 57
RCA 45, 46
REX 74
SABA 57, 72, 73, 74, 75
SALORA 74
SAMSUNG 01,02,03,04,05,06,07,08,09
SANYO 41,42, 43, 44, 48
SCHNEIDER 06
SELECO 74
SHARP 36, 37, 38, 39, 48
SIEMENS 71
SINGER 57
SINUDYNE 57
SONY 35, 48
TELEAVA 73
TELEFUNKEN 67, 73, 75, 76
THOMSON 72, 73, 75
THOMSON ASIA 80, 81
TOSHIBA 47, 48, 49, 50, 51, 52
WEGA 57
YOKO 06
ZENITH 63
Result: If your television is compatible with the remote
control, it will switch off.
It is now programmed to operate with the remote
control.
• If several codes are indicated for your television
brand, try each one in turn until you find one
that works, if you replace the remote control's
batteries, you must set the brand code again.
If you select TV mode, you can then control your
television using the following buttons.
TV POWER
INPUT SEL.
TV VOL +/-
CH (A/V)
TV MUTE
0~9
_ Various functions may be controllable on your
television, if you encounter problems, operate the
television directly.
English - 11
| Tour of the Remote Control
You can contro! certain functions of another manufacturer's TV with this remote control.
• Buttons that can be controlled on your TV: TV POWER, INPUT SEL., TV VOL (+/-), CH (^/v), TV MUTE, 0~9.
5
6
7
8--
9--
1. TV Button
Press this to operate your TV.
2. DVD Sutton
Press this to operate your DVD Recorder.
3. POWER Sutton
Press to power the DVD Recorder on and off.
4. NUMSER Suttons
5. DASH (-) Sutton
Press to select additional channels (digital and analog)
being broadcast by the same station. For example, to
select channel "54-3", press "54", then press "-" and "3".
6. REVERSE/FORWARD SKIP Suttons
Press to skip a disc backwards or forwards.
7. REVERSE/FORWARD STEP Buttons
Press to play frame by frame.
8. REVERSE/FORWARD SEARCH Buttons
Press to search a disc backwards or forwards.
9. STOP Button
Press to stop a disc or to stop the recording.
10. TV VOL Buttons
Volume adjustment.
11. MENU Button
Brings up the DVD recorder's setup menu.
12. ENTER/DIRECTION Buttons
(UP/DOWN and LEFT/RiGHT Buttons)
This button functions as a toggle switch.
13. TITLE LIST/DISC MENU Button
Use this to enter the View Recording list/Disc menu.
14. ANYKEY Button
Use this to view the status of the disc that is being
played.
15. TIMER/EPG RED Button
Press this to enter the Timer Recording Mode menu.
Set the Timer Rec on the EPG.
16. MARKER/EPG GREEN Button
Press this to use Bookmarks or mark a position while
playing a disc.
Scroll up the detail information on the EPG.
17. REC Button
Use to make a recording on writabte/rewritable discs.
18. EZ REC MODE Button
Use this to set the EZ REC MODE.
19. REC PAUSE Button
Press this to pause the recording.
20. INFO Button
This will display current setting or disc status.
21. INPUT SEE Button
Selects line input signal when an external device is
connected. (Analog Ch,Digital Ch,AVl ,AV2 or DV)
22. TV POWER Button
23. OPEN/CLOSE Button
To open and close the disc tray.
24. CM SKIP/SET Button
Press this to skip a portion of the program
automatically during playback of a DVD disc.
25. PLAY/PAUSE Button
Press to play/pause a disc.
26. CH Buttons
Use this to select a channel. (TV/DVD)
27. TV MUTE/AUDIO Button
This operates as Sound Mute. (TV mode)
Use this to access various audio functions on a disc.
(DVD mode)
Use this to access Multi-sound Broadcasting functions
on Air. (DTV mode)
28. RETURN Button
Returns to the previous menu.
29. PLAY LIST/TITLE MENU Button
Use this to return to the Title menu, or to view the
recorded Playlist.
30. EXiT Button
Press this to exit the menu.
31. EPG BLUE Button
Press this to go to Full / Mini Guide on the EPG.
32. CAPTION/EPG YELLOW Button
Press this to select a caption. (DTV mode)
Also used to scroll down in the EPG.
33. EPG (Electronic Program Guide) Button
Press this to display the EPG. (DTV mode)
34. CANCEL Button
35. REC MODE Button
Use this to set the desired Recording time and picture
quality. (XPISPILPIEP)
÷ EPG stands for Electronic Program Guide.
÷ This is a special remote control for the visually impaired,
and has Braille points on the POWER(®), STOP(_)
and PLAY( Q ) buttons.
English - 12
| Front Panel
o o
1. POWER Button
Turns the recorder on and off.
2. AV21N
Connect external equipment.
3. DV-IN
Connects external digital equipment with a DV
jack. (such as a camcorder)
4. DISC TRAY
Opens to accept a disc.
5. RSCAN Button
Selects the progressive scan mode.
6. OPEN/CLOSE Button
Opens and ctoses the disc tray.
7. DISPLAY
Displays the piaying status, time, etc.
8. DTV
Lights when a Digital channel is selected.
9. INPUT SEL. Button
Selects line input signal in external mode.
(Analog Ch, Digital Ch, AV1, AV2, DV)
This allows you to select a TV signal or
connected external equipment for recording
purposes.
10. CH (A/V)
Select channels.
11. REC Button
Starts recording.
12. STOP Button
Stops disc playback.
13. PLAY/PAUSE Button
Plays a disc or pauses playback.
14. SKIP Buttons
Go to the next title/chapter/track, or go back to
the previous title/chapter/track.
| Front Panel Display
1. Lights when a disc is loaded.
2. Lights in the record mode.
3. Lights to indicate the timer record mode.
4. Lights when a DVD-RAM/DVD-RW/DVD-R
disc is loaded.
5. Alpha/Numeric display.
6. Lights in the progressive scan mode.
English - 13
| Rear Panel
Fan
The fan always revolves when the power is on.
Ensure a minimum of 4" clear space on all sides of the
fan when installing the product.
1. HDMI OUT (best video quality)
Connects the input of external equipment using
a HDMI cable.
2. DIGITALAUDIO OUT(OPTICAL)
Connects to an amplifier having a digita! optical
audio input jack.
3. DIGITALAUDIO OUT(COAXiAL)
Connects to an amplifier having a digita! coaxial
audio input jack.
4. AVAUDIO OUT
Connect to the audio input of externa!
equipment using audio cables.
5. AV VIDEO OUT(good video quality)
Connects the input of external equipment using
a Video cable.
6. AV S-VIDEO OUT(better video quality)
Connects the input of external equipment using
an S-Video cable.
7. COMPONENT VIDEO OUT
(excellent video quality)
Connect to equipment having Component video
input jacks.
8. AV 1AUDIO IN
Connect the output of external equipment using
audio cables
9. AV 1 VIDEO IN
Connects the output of external equipment
using a video cable.
10. AV 1 S-VIDEO IN
Connects the output of external equipment
using an S-Video cable.
11. ANT IN/ANT OUT (TO TV)
Connects antenna cables.
12. CABLE BOX CONTROL OUT
Connect the IR Blaster here to control your
cable box or satellite receiver (set top box).
English - 14
There are several ways to connect your DVD Recorder. Select the antenna connection that best suits you below.
| Antenna + DVD Recorder + TV
You can record non-scrambled channels by selecting the channel on the DVD Recorder. Also use this method if
you watch channels without without a cable box or satellite receiver (set top box).
RFCable
TO ANT iN
Wall
TOANTOUT
g The VHF/UHF ANT (RF) OUT jack of this product
sends only signals received through the antenna.
It does not output Audio/Video signals. You must
connect Audio/Video cables to view Video from
the unit. (i.e. DVD playback)
English - 15
_ Antenna + Cable box or satellite receiver (set top box) + DVD Recorder + TV :
Cable box!Satellite receiver with a videolaudio output
You can record channels by selecting the channel on the cable box or satellite receiver (set top box).
You cannot record one channel while watching another channel. Be sure that the cable box or satellite receiver
(set top box) is turned on.
°Fo°bo IAN'O
I_ TO TV
CableboX/
satellitereceiver.
Place the Cable box cont,'oiler
(IR Biastor) near the remote
...... thecable _ _j
box/satellite receiver.
Cable Box conrroUer
(IR Blaster)
AUDIO VIDEO
OUT OUT S VIDEO
®
Audiohddeo S-VideoCable
cord (supplied) (notsupplied)
IR Blaster Cable
_suppliedt
Connecting the tR Blaster cable into the Cable Box Control jack
The Cable Box Controller (IR Blaster) is used to control
your cable box for recording purposes.
1. Find and Connect the included IR Blaster cable into the
Cable Box's Control jack of the DVD Recorder.
2. Find the Cable Box IR Sensor
A. Turn the cable box Off.
B. Hold the Cable box/Satellite receiver's remote so that
it touches the front of the Cable box/Satellite receiver
(see Figure 1).
Figure 1
,- :/'i L
Correct Incorrect
C. Move the Cable Box's remote across the front of
the Cable Box/Satellite Receiver while pressing the
remote's power button On and Off (Figure 2).
Figure 2
(Press and release the power button each time you
move the remote; holding down the button will not work.
D. When the Cable box/Satellite receiver powers On,
you have found the sensor.
E. Remember the location of the sensor.
3. Place the IR Blaster.
Place the Cable box controller of the IR Blaster on
top or underneath the Cable box/Satellite receiver
approximately 1 inch in front of the sensor you found in 2.
Use the double-sided tape to secure the IR Blaster.
g You must select a Cable box/Satellite receiver
brand from the table on pages 81~83. If you do
not know the brand name, please contact your
cable/satellite provider.
g After setting up your cable box or satellite receiver
(Set top box) with the DVD recorder through the
IR Blaster cable, you need to set up the Set Top Box
Control menu. (See pages 32~33)
English - 16
_ Antenna + Cable box or satellite receiver (set top box) + DVD Recorder + TV :
Cable boyJSatellite receiver with an antenna output only
You can record non-scrambled channels by selecting the channel on the DVD Recorder. You cannot record
scrambled channels that require a cable box.
Wall
PlacetheCable boxcontroUe_
(IB Blaster) near the remote _"
s_nsotottthe cable
box/satelllteeacetver.
Cable box controller
{IR Blaster)
RF cable _ _
(not supplied)
RANT iN
ANT iN
TO TV
Cable box/
satellitereceiver,
TO ANT OUT
_ T
V
English - 17
If your TVhas an HDMI/DVI input, connect the HDMI/DVI cable to the TV. Youwill enjoy the best quality image
and sound.
| Connecting to a TV with HDIVllJack
Using an HDMI-HDMI cable, connect the HDMI OUT jack on the rear of the DVD Recorder to the RDMI IN jack of
your TV. Turn on your TV, then the DVD Recorder. Press the input selector on your TV remote control until the
HDMI signal from the DVD Recorder appears on your TV screen.
To watch through the HDMI output, set the digital
audio output to PCM. (See page 38)
Depending on the HDMI device(TV/HDMI
Receiver) you use, audio may not be supported.
If your TV does not support Dolby digita!/DTS,
Audio output is not available when you set the
Digital output to Bitstream or select DTS On in
the Audio setup menu. In this case, set the digital
audio ouput to PCM or DTS Off.
If you use an HDMt cable to connect a Samsung
TV to the DVD recorder, you can operate the
recorder using the TV remote control. (This is
only available with SAMSUNG TVs that support
Anynet+(HDMI-CEC).) (See pages 35~36)
g Please check the _/net ÷ logo (If your TV has an
_,,z_.,.,,et÷logo, then it supports Anynet+ function.)
English - 18
| Connecting to a TV with DVl Jack
Using the HDMI-DVl cable (not included), connect the HDMI OUT terminal on the rear of the DVD Recorder to the
DVI iN terminal of your TV.
An HDMI to DVI connection requires a separate audio connection, using the audio cables, connect the AUDIO (red
and white) OUT terminals on the rear of the DVD Recorder to the AUDIO (red and white) IN terminals of your TV.
Turn on your TV, then the DVD Recorder.
Press the input selector on your TV remote control until the DVl signal from the DVD Recorder appears on your
TV screen.
To set the HDMI output resolution (480p/720p/
1080i), see page 40.
HDMI (High Definition Multimedia interface)
HDMI enables you to make a digital video and
audio connection with a single cable.
Using HDMI, the DVD player transmits a digital
video and audio signal and displays a vivid picture
on a TV having an HDMI input jack.
HDMI is completely compatible with DV!. The only
difference between HDMI and DVl is that HDMI
supports multi-channel audio.
HDMI connection description
HDMI connector - Both uncompressed video data
and digital audio data (LPCM or Bit Stream data).
- The DVD recorder outputs a pure digita! signal to
the TV.
- If your TV does not support HDCP
(High bandwidth Digital Content Protection),
snow noise appears on the screen.
g Why does Samsung use HDMI?
Analog TVs require an analog video/audio
signal.However, when playing a DVD, the data
transmitted to a TV is digital. Therefore either a
digital-to-analog converter (in the DVD Recorder)
or an analog-to-digital converter (in the TV) is
required. During this conversion, the picture
quality is degraded due to noise and signal loss.
HDMI technology is superior because it requires
no D/A conversion and is a pure digita! signa! from
the DVD recorder to your TV.
g What is the HDCP?
HDCP (High-bandwidth Digital Content Protection)
is a system for protecting DVD content output
via HDMI from being copied, tt provides a secure
digital link between a video source (PC, DVD. etc)
and a display device (TV, projector, etc). Content
is encrypted at the source device to prevent
unauthorized copies from being made.
English - 19
If you have not connected to your TV via HDMI/DVI, select one of the video connections on the following pages.
| Connecting to Component Video input Jacks (Y,PB,PR)
t
Component
Cable
(no_ sUpplleo
1. Connect the Component video cables(not supplied)
between the COMPONENT OUT(Y, PB,PR)jacks on the
DVD Recorder and COMPONENT IN(Y, PB,PR) jacks on
your TV (or AV amplifier).
This connection outputs the 480i or 480p resolution to
your TV.
2. If the connected TV supports Progressive Scan, press
the P.SCAN button on the front of the DVD Recorder
to enjoy best quality video. Pressing the P.SCAN
button alternately switches the Progressive(48Op) or
Intertace(480i) scan mode on.
* You will enjoy the best quality accurate color
reproduction images. Component video separates the
picture element into black and white(Y), blue(PB) and
red(PR) signals to present clear and clean images.
* Connect the audio cables(white and red) between the
AUDIO OUT jacks on the DVD Recorder and AUDIO IN
jacks on your TV(or AV amplifier).
(See pages 23~25)
g Compared to standard interlaced video,
progressive scan doubles the amount of video
lines fed to your TV, resulting in a clearer, more
stable, and flicker free image than interlaced
video. The component output jack of the DVD
player can be used for progressive output mode,
which is only available with TVs that support
progressive scan.
g Progressive Scan Output (480p).
Not all high definition television sets are fully
compatible with this product, tf the 480p
progressive scan picture is not satisfactory, press
the P.SCAN button on the unit to switch to the
Interlace mode.
If there are questions regarding TV set
compatibility with this model, please contact our
customer service center at 1-800-SAMSUNG.
g The Component jacks will not output video
resolutions above 480p. To view 720p and 1080i,
connect the DVD-AR650 to your TV with an HDMI-
HDMI cable. With HDMI connected, press the
P.SCAN button to alternate between all available
resolutions. (See page 40)
English - 20
| Connecting to an S-Video input Jack
Connect an S-Video cable(not supplied) between the S-VIDEO OUT jack on DVD Recorder and S-VIDEO iN jack
on your TV (or AV amplifier),
S-VIDEO
S-Video
Cable
_RO[ SU ppltea
* You will enjoy high quality images. S-Video separates
the picture element into black and white (Y) and color
(C) signals to present clearer images than regular video
input mode. This connection outputs the 480i resolution
to your TV.
* Connect the audio cables(white and red) between the
AUDIO OUT jacks on the DVD Recorder and AUDIO IN
jacks on your TV(or AV amplifier). (See pages 23~25)
g S-Video or Component video outputs are
available only if your TV supports S-Video input or
Component video input, respectively.
If S-Video or Component video output does not
work, check your TV connections and the TV input
selection settings.
English - 21
| Connecting to a Video input Jack
Connect a video(yel!ow) cable between the VIDEO(yellow) OUT jack on DVD Recorder and VIDEO(yellow) IN jack
on the TV (or AV amplifier).
ilili
--AUDIO_
Re_'_
AudioNideo
Cable
VIDEO
"5
* You will enjoy regular quality images.
. Connect the audio cables(white and red) between the
AUDIO OUT jacks on the DVD Recorder and AUDIO IN
jacks on your TV(or AV amplifier). (See pages 23~25)
English - 22
Select one of the Audio connections on the fol!owing pages.
| Connecting to your TV
This connection will use your TV's speakers.
Audic
Cable
_hite enow
_ AUDIO _ VIDEO
Engiish - 23
| Connecting to a Stereo Amplifier with Analog input Jacks
If your stereo amplifier only has AUDIO INPUTjacks(L and R), use the AUDIO OUT jacks on the recorder.
• _m..J
Audio
Cable
L
ANALOG AUDIO
English - 24
| Connecting to an AV Amplifier with a Digital input Jack
If your AV amplifier has e Dolby Digital or DTS decoder and a digital input jack, use this connection. To enjoy
Do!by Digital or DTS sound, you will need to set up the audio settings. (See page 38)
u
_=_
Optical Cable Coaxial Cable
(notsupplied_ _-ot_ (not supplied)
AVamplifier
8earlLI _ _ RearfR
Digi_lAU_
..... L_J h_J ,oo,lol
S_bwoole_ Ce_tel
/S ...... %
Manufactured under license from Dolby Laboratories.
"Dolby" and the double-D symbol are trademarks of
Dolby Laboratories.
', ............................................................................................................. ,,J
English - 25
This allows you to connect your DVD Recorder to other external devices and view or record their outputs.
I Connecting a VCR, Cable bo×/Satellite receiver (set top box) or DVD Player to the AV 1
iN or S-VIDEO IN Jacks
Connecting a VCR or external device to the AV 1 IN jacks of the DVD Recorder.
You can record from connected equipment (VCR, STB or DVD Player).
Audio/Video
Cable
_ or _--_
S-VideoCable
(notsupplied)
* You must also make audio connections when connecting
via S-Video.
Engtish - 26
| Connecting a Camcorder
You can record from connected equipment, such as e cemcorder by using the AV 2 IN or DV IN jacks on front of
the DVD Recorder.
Audio;Video
Cable
R
VIDEO LAUDIO_
_ -- o '
DVCable
no[ suppliea_
(See page 49)
_g When an Input source is inserted into AV 2 while
watching TV, the input wilt be switched to AV 2
automatically.
g If the input is not selected automatically, press the
iNPUT SEL. button on the remote control to select
the DV Input.
g Check your camcorder's owner's manual to see
how to use the camcorder in this mode.
Engiish - 27
iiiiii%_i!iiiiiiiiiiiiiii_ii_ii!,!i_!!i_iii
iiiiiiiiiiiiiiiiiiiiiiiiiiiii!iiiiii;iii_iiiiili_i
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii i ! ! ! ;ii
The on-screen menus allow you to enable or disable various
functions on your DVD Recorder.
Press the MENU button to open the on-screen menu and then use
the following buttons to navigate through the on screen menus.
1. A T, ,,_ _, Buttons
Press these buttons on the remote control to move the selection bar
A v',,_ _ to cycle through the menu options.
2. ENTER Button
Press this button on the remote control to confirm any new settings.
3. RETURN Button
Press this button on the remote control to return to the Previous menu
screen displayed or to exit the on-screen menu.
4. EXiT Button
Press this button to exit the on-screen menu.
Your DVD Recorder will automatically set itself up when it is plugged
' in for the first time. TVstations and clock will be stored in memory.
The process takes a few minutes. Your DVD Recorder will then be
ready for use.
1. Connect the RF(Antenna) cabie to the TV as indicated on page 15.
2. Plug the DVD Recorder into the mains.
"Auto" in the front panel display flickers.
3. Press a number button to select the desired language.
4. Press a number button to select the desired Time Zone.
g If the language for the startup screen is not set, the settings may
change whenever you turn the power on or off.
Therefore, make sure that you select the language you want to
use.
English - 28
This menu is used to set the current time.
You need to set the time to use timer recording.
1. With the unit in Stop mode, press the MENU button.
2. Press the A '_' buttons to select Setup, then press the ENTER or _.
button.
3. Press the A T buttons to select Clock Set, then press the ENTER or
_. button.
4. Press the A '_' buttons to select Auto Clock Set, then press the
ENTER or b,, button.
g If your clock is set to the wrong time zone or daylight saving, you
can adjust these settings without turning off the Auto Clock Set
function.
| Time Zone
• Press the ,L T buttons to select Time Zone, then press the ENTER or _.
button.
Select the time zone of your area using the ,A '_' buttons, then press the
ENTER or _. button.
g If Time Zone is not set, Auto Clock Set & Daylight Saving function
dose not work.
| Daylight Saving
• Press the A _ buttons to setect Daylight Saving, then press the ENTER
or _- button.
Select Automatic or No using the ,A T buttons, then press the ENTER
or _. button.
English - 29
i iiiiiiiiiii_ii_i!_i
iiiiii%_i!iiiiiiiiiiiiiii_ii_ii!,!i_!!i_iii
iiiiiiiiiiiiiiiiiiiiiiiiiiiii!iiiiii_iii_iiiiiill
' If your clock cannot be sat automatically, set the clock manually.
1. With the unit in Stop mode, press the MENU button.
2. Press the A v buttons to select Setup, then press the ENTER or _.
button.
3. Press the A '_' buttons to select Clock Set, then press the ENTER or
_. button.
4. Press the ,& T buttons to select Manual Clock Set, then press the
ENTER or _,. button.
5. Use the A _" 411_.buttons to select the Current Date and Current Time
and then press the ENTER button.
When the current time is stored in memory and then the set is powered
off, the current time witt appear in the front panet display.
A _' : Sets the value
You can set the value using the number buttons.
_ : Moves to items
YoucanaottheAntonna/Ca /oWchannelaatting,automatically.
1. With the unit in Stop mode, press the MENU button.
2. Press the ,A '_ buttons to select Setup, then press the ENTER or _.
button.
3. Press the A v" buttons to select Channel Set, then press the ENTER
or _. button.
4. Press the • v buttons to select Antenna/Cable TV, then press the
ENTER or _ button.
Select the item that matches the antenna connection you setected on
pages 15~16.
5. Select Antenna or Cable TV (depending on the hookup you chose)
using the A _r buttons, then press the ENTER or I_. button.
6. Setect Auto Channel Memory using the A T buttons, then press the
ENTER or _,. button.
Auto Channel Memory (Analog) wilt be performed, then Auto Channel
Memory (Digital) wilt be performed.
m Press the RETURN or ENTER button to stop Auto Channel
Memory.
m When memorizing Cable channels, it may take 6 times longer
(about 50minutes) than when memorizing channels received over
the air (antenna).
Auto Channel Memory (Digital) cannot store scrambled channels.
English - 30
ManualChannel Set can be used after you have first performed
Auto Channel Memory. Use the Manual Channel Setting to delete
unnecessary channels.
1. With the unit in Stop mode, press the MENU button.
2. Press the A '_" buttons to select Setup, then press the ENTER or _.
button.
3. Press the A T buttons to select Channel Set, then press the ENTER
or _. button.
4. Press the A _' buttons to select Channel Add/Delete, then press the
ENTER or I_ button.
5. Press the A T or number buttons to select the channels you want to
add or delete on the Select channel screen. Then, press the ENTER
button.
• Using CH (Q Q) buttons for channel selection allows the user to
add/delete one channel at a time.
• Using A • buttons for channel selection jumps to the next channel
memorized in Auto Channel Memory.
6. Press the _1_. buttons to select Add or Delete, then press the ENTER
button.
• The message "Channel is added." or "Channel is deleted." wilt be
displayed in the center of the screen.
• Continue to add or delete as many channels as you want to memorize
or delete. This can be used to add channels not stored automatically
due to weak signal strength.
• Press the RETURN button to return to the previous menu. Press the
EXIT button to exit the menu.
English - 31
iiiiii%_i!iiiiiiiiiiiiiii_ii_ii!,!i_!!i_iii
iiiiiiiiiiiiiiiiiiiiiiiiiiiii!iiiii_iiii_iiiiilil
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii i ! ! ! ;ii
| Set Top Box Control
If you have your came box/sateflite receiver(set top box) connected
as shown on page 16, it can be controlled after setting up this menu.
1. With the unit in Stop mode/No Disc mode, press the MENU button on
the remote control.
Menu items differ depending on the disc type.
2. Select Setup using the ,& V buttons, then press the ENTER or
button.
3. Select System using the A T buttons, then press the ENTER or
button.
System menu will be displayed.
4. Select Set Top Box Control using the A T buttons, then press the
ENTER or _- button.
Set Top Box Control menu will be displayed.
5. Select the desired sub menu(ControL Connection, CH Digit Lock,
Mode for SET button, and Brand Code) using the A _' buttons, then
press the ENTER or P button.
Control
Select the sub item(Off or On) using the ,A T buttons, then press the
ENTER button.
• Off : Turns off the cable box or satellite receiver (set top box) control
function. Select this if you do not want to use the supplied cable box
controller (IR Blaster).
• On : Turns on the cable box or satellite receiver (set top box) control
function.
Connection
Select the sub item (AM1, S-Video, CH3, OH4, AM2) using the A V'
buttons, then press the ENTER button.
If you connect your cable box or satellite receiver (set top box) to the
recorder's audio/video input. (page 16)
• AVl : Select this when the cable box or satellite receiver (set top box) is
connected to the DVD recorder's AV 1 IN jacks.
You can watch the output of the cable box or satellite receiver (set top box)
connected to AV1 when the Recorder is powered off.
• S-Video : Select this when the cable box or satellite receiver (set top box)
is connected to the DVD recorder's S-Video IN jack.
You can't select AV1 when the cable box or satellite receiver (set top box)
is connected to the S-Video input.
• AV2 : Select this when the cable box or satellite receiver (set top box) is
connected to the DVD recorder's AV 2 IN jacks.
If you connect your cable box or satellite receiver (set top box) to the
recorder's antenna input. (page 16)
• OH3 or CH4 : Select the output channel from CH3 or CH4 when the
cable box or satellite receiver (set top box) is connected to the DVD
recorder's VHF/UHF IN jack.
g See the instruction supplied with your cable box or satellite
receiver (set top box) to confirm the box's antenna output channel.
English - 32
CHDigitLock
Selectthesubitem(Offor Lock to two digits) using the A _' buttons,
then press the ENTER button.
• Off : Select this when your cable box or satellite receiver (set top box)
only accepts a three or more digit channel number. Normally select this.
• Lock to two digits : Select this when your cable box or satellite receiver
(set top box) only accepts a two digit channel number.
Mode for SET button
Some cable boxes or satellite receivers (set top box) require you to press
SET after pressing the channel number. If your cable box or satellite
receiver (set top box) operates this way, follow the instructions below to
set Mode 1 or 2.
Select the sub item(Off, Mode 1 or Mode 2) using the _, T buttons, then
press the ENTER button.
Select "Mode 1" or "Mode 2" if your cable box or satellite receiver requires
pressing the SET button, after entering the channel number.
• Off : No code is sent when the SET button is pressed. Normally select this.
• Mode 1 or Mode 2 : Sends the channel number you entered.
• If "Mode 1 does not work, try "Mode 2."
m If your cable box or satellite receiver (set top box) does not
respond to either setting, contact the manufacturer.
Brand Cede
, Enter the brand code of your cable box or satellite receiver (set top box)
using the number buttons, then press the ENTER button.
(See "Cable Box/Satellite Receiver Brand Code Table" on pages 81 ~83.)
m If you cannot get the recorder to control your cable box/satellite
receiver (set top box), check the connection and position of the IR
Blaster cable. (page 16)
If your cable box or satellite receiver still does not operate with
this recorder, contact your cable company to see if they can
provide you with a compatible cable box or satellite receiver.
m This menu may not work depending on your cable box or satellite
receiver (set top box).
| CM Skip Time Setting
When a program recorded on a DVD-RAM, a DVD-RW, DVD-VIDEO or
a DVD-R is played, the unit can be set to automatically skip a portion
of the program corresponding to a CM(commercial) Skip Time set by
the user.
1. With a disc inserted and the unit in Stop mode, press the MENU button
on the remote control.
2. Select Setup using the A T buttons, then press the ENTER or
button.
3. Select System using the A T buttons, then press the ENTER or
button.
System menu will be displayed.
4. Select CM Skip Time using the A _' buttons, then press the ENTER or
button.
CM Skip Time will be displayed.
5. Select the desired time using the A T buttons, then press the ENTER
or _. button.
6. If you press the CM SKiP button during playback, the section
corresponding to the set time is skipped, and then the next section is
played.
English - 33
ii
g CM Skip can be performed only during normal playback.
g When the time set is less than the remaining time of a current
title: The next title is played from the beginning.
g When the time set is less than the remaining time of a ptaytist, the
next scene is played.
g CM Skip does not work in a still picture mode.
g When a set time is less than the remaining time of a scene, last
title, or last track that is currently displayed, a prohibition mark
appears.
g CM Skip releases Repeat (including Repeat A-B, Chapter, and Title).
g CM Skip may not operate with some DVD-Video discs.
| EP Mode Time Setting
Youcanae,,heE,'(ExtendedPlay)recordmode'stime,o6or8
;i hours.
1. With a disc inserted and the unit in Stop mode, press the MENU button
on the remote control.
2. Select Setup using the A v buttons, then press the ENTER or
button.
3, Select System using the A T buttons, then press the ENTER or
button.
4, Select EP Mode Time using the A T buttons, then press the ENTER
or _. button.
EP Mode Time will be displayed.
5. Select the desired menu using the A T buttons, then press the ENTER
or _ button.
| Automatic Chapter Creation
This function creates chapters(sections) within a title automatically.
it works with DVD-RW (Video) and DVD-R discs only.
1. With a disc inserted and the unit in Stop mode, press the MENU button
on the remote control.
2. Select Setup using the A v" buttons, then press the ENTER or
button.
You can't use the Setup functions while piaying a disc.
3. Select System using the ,& v" buttons, then press the ENTER or
button.
System menu will be displayed.
4. Select Chapter Creator using the A T buttons, then press the ENTER
or _. button.
Chapter Creator items wilt be displayed.
5. Select On using the ,& T buttons, then press the ENTER button.
• Off : Select this option when you do not want to create chapters.
• On : Select this option when you want to create chapters.
English - 34
gSetthechaptercreatortoonandthenstartrecording.Stopping
therecordingwillautomaticallycreateachaptermenu.
gThisfunctiononlyworksfornormalrecording.
-Aftertherecordinghasbegun,the"Doyouwanttocreatethe
chaptermenuafterthisrecording?"messageappearsfor10
seconds.SelectYesorNo.
-SelectingYeswiltcreateanewchaptermenuwhileselectingNo
wiltnot.
-Anewchapteriscreatedaccordingtotheselectedrecording
mode.Achapterwillbeabout5minuteslonginXPandSP,and
about15minutestonginLPandEPmode.
gTodisplaythecreatedchaptersandfinalizethedisc,pressthe
DISCMENUbutton.Thechaptersmenuappears.
gTheAutomaticChapterCreationfunctiondoesnotworkduring
TimerRecordingorwhenyouturnthepoweroff.
| Quick Recording Setting
it takes about 10 seconds for a disc to load (initialize) every time
you turn on the unit. To bypass this initialization process, you can
set the Quick Recording feature to On. This enables you to record
immediately without having to wait for the disc to load.
1. With a disc inserted and the unit in Stop mode, press the MENU button
on the remote control.
2. Select Setup using the A v buttons, then press the ENTER or _.
button.
3. Select System using the ,L v" buttons, then press the ENTER or _.
button.
System menu will be displayed.
4. Select Quick Recording using the A T buttons, then press the
ENTER or _. button.
Quick Recording menu will be displayed.
5. Setect On using the A T buttons, then press the ENTER or _ button.
g The Quick Recording is set to Off as default.
g If the Quick Start Recording is set to On, the fan may continue to
operate after the unit is shut off.
| Anynet+(HDMI-CEC)
Anynet+ is a function that can be used to operate the recorder using
a Samsung TVremote control, by connecting the DVD Recorder to
a SAMSUNG TVusing an HDMI Cable. (see page 18) (This is only
available with SAMSUNG TVs that support Anynet+.)
1. With the unit in Stop mode/No Disc mode, press the MENU button on
the remote control.
2. Select Setup using the A T buttons, then press the ENTER or _- button.
3. Select System using the ,A T buttons, then press the ENTER or _.
button. The system menu will be displayed.
4. Select Anynet+(HDMI-CEC) using the A T buttons, then press the
ENTER or D,-button.
Anynet+(HDMI-CEC) items will be displayed.
5. Select On using the A '_" buttons, then press the ENTER or _. button.
English - 35
i iiiiiii;iiii_ii_i!_i
iiiiii%_i!iiiiiiiiiiiiiii_ii_ii!,!i_!!i_iii
iiiiiiiiiiiiiiiiiiiiiiiiiiiii!iiiiiii_ii_iiiiilil
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii i ! ! ! ;ii
TV Menu
For using Anynet+(HDMI-CEC)
1. Connect the recorder to a Samsung TV with an HDMI cable.
(See page 18)
2. Set the Anynet+(HDMI-CEC) to "On" on your DVD Recorder.
(see above)
3. Set the Anynet+ function on your TV.
(See the TV instruction manual for more information.)
• You can operate the DVD Recorder by using TV remote control.
(TV buttons that can be used to control the DVD Recorder : (_, _, _),
(_, _;z_ and _ _) buttons,@~@ button)
• When you press Anynet+ button on the TV's remote control, the OSD to
the left will appear.
- DVDR Operation : Same as ANYKEY button ( 'C)' ) on the DVD Recorder
remote control.
- DVDR Menu : Same as MENU button ( _ ) on the DVD Recorder
remote control.
m By pressing the PLAY button of the recorder while watching TV, the
TV screen will change to the play screen.
If you play a DVD when the TV power is off, the TV wilt power On.
If you turn the TV off, the DVD Recorder will power off automatically.
(When the DVD recorder is recording, it can't be powered off.)
! If you change HDMI to other sources (Composite, Component,
RR.. etc) on your TV while playing a DVD disc, the DVD Recorder
& VCR will stop playing. The DVD Recorder & VCR may keep
playing certain discs based on their content.
if you set the language options in advance, they will come up
automatically every time you watch s movie.
1. With the unit in Stop mode/No Disc mode, press the MENU button on
the remote control.
2. Select Setup using the A _' buttons, then press the ENTER or _ button.
3. Select Language using the J, _' buttons, then press the ENTER or I_ button.
The language setup menu will be displayed.
4. Select the sub menu (Audio, Subtitle, Disc Menu, On-Screen Menu,
Digital Caption Service, Digital Caption Setting) using the A _
buttons, then press the ENTER or _ button.
,,Audio : For the disc audio language.
,, Subtitle : For the disc subtitles.
,, Disc Menu : For the disc menu contained on the disc.
,, On-Screen Menu : For the DVD recorder's menu.
,, Digital Caption Service : For the Digital Caption Service type.
,, Digital Caption Setting : For the Digital caption display options.
5. Select the desired language using the A T buttons, then press the
ENTER or _ button.
m If the selected language is not recorded on the disc, the default
language on the disc is selected.
m The selected language will only appear if it is supported on the disc.
English - 36
You can modify and configure how your captions will appear.
The Digital Captioning function operates on digital channels only.
1. With the unit in Stop mode/No Disc mode, press the MENU button on
the remote control.
2. Select Setup using the A T buttons, then press the ENTER or _- button.
3. Select Language using the A '_' buttons, then press the ENTER or _ button.
The language setup menu will be displayed.
4. Select Digital Caption Service using the A T buttons, then press the
ENTER or I_ button.
You can set the service type according to your environment.
The available types are Service 1~6.
You can also change Digital Caption Service by pressing Caption
button on the remote control.
5. Select Digital Caption Setting using the A T buttons, then press the
ENTER or _button.
You can set the following options:
,, Character Size : You can set your Character size to Default, Small,
Standard and Large.
,, Character Style : You can set your Character style among Default
and styles 0 through 7.
,, Character Color : You can set the Character color of the text.
The available options are Default, White, Black,
Red, Green, Blue, Yellow and Magenta.
,, Character Opacity : You can set the opacity of the text.
The available options are Default, Solid,
Translucent and Transparent.
,, Edge Color : You can set the Edge color of the text.
The available options are Default, White, Black, Red,
Green, Blue, Yellow and Magenta.
,, Edge Type : You can set the Edge type of the text.
The available options are Non, Raised, Depressed,
Outline, Left Shadow and Right Shadow.
,, Background Color : You can set the Background color of the text.
The available options are Default, White, Black,
Red, Green, Blue, Yellow and Magenta.
,, Background Opacity : You can set the Background opacity of the
text. The available options are Default, Solid,
Translucent and Transparent.
English - 37
i iiiiiiiiiii_ii_i!_i
iiiiii%_i!iiiiiiiiiiiiiii_iii!,!i_!!i_iii
iiiiiiiiiiiiiiiiiii!!i_ii!iii!
iiiiiiiiiiiiiiiiiiiiiiiiiiiii!iiiiii;iii_iiiiiill
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii i ! ! ! ;ii
You can connect the DVD-AR650 to an external audio amplifier or a
HomeTheatersystem.
This allows you to setup the audio device and aound atatus settings
depending on the audio system in use.
1. With the unit in Stop mode/No Disc mode, press the MENU button on
the remote control.
2. Setect Setup using the A v buttons, then press the ENTER or _.
button.
3, Select Audio using the A T buttons, then press the ENTER or
button.
4. Select the sub menu(Digital Output, DTS, Dynamic Compression)
using the A T buttons, then press the ENTER or _ button.
Select the item that matches the audio connection you've selected
on pages 23-35 (Method 1, 2 and 3).
Digital Output
• PCM : Converts to PCM(2CH) 48kHz audio.
Select PCM if your amplifier system is stereo and/or Dolby Prologic.
• Bitstream : Outputs Bitstream.
Select Bitstream if your amplifier system supports multi channet digitat
audio surround decoding such as Dotby Digital and/or DTS.
DT8
• Off : Doesn't output DTS bitstream.
• On : Outputs DTS bitstream. (via Digitat Audio Output)
Select DTS when connecting to a digital amp with a DTS decoder.
• When DTS soundtrack is played, sound is not output from Analog Audio Output.
Dynamic Compression
This is only active when a Dolby Digital signal is detected.
,, Off : You can enjoy the movie with the standard Dynamic Range.
,, On : When movie soundtracks are played at low volume or from small
speakers, the system can apply appropriate compression to make low-
tevel content more intelligible and prevent dramatic passages from
getting too toud.
English - 38
This allows you to set up the TV screen size settings.
| TV Aspect
1. With the unit in Stop mode/No Disc mode, press the MENU button.
2. Select Setup using the A T buttons, then press the ENTER or D,, button.
3. Select Video using the A T buttons, then press the ENTER or _ button.
4. Select TV Aspect using the A T buttons, then press the ENTER or _. button.
5. Select the desired item(4:3 Letter Box, 4:3 Pan-Scan or 16:9 Wide)
using the A T buttons.
Then press the ENTER or _ button.
If you have a 4:3 standard TV
• 4:3 Letter Box : Select when you want to see the total 16:9 ratio screen
DVD supplies, even though you have a TV with a 4:3 ratio screen. Black
bars wilt appear at the top and bottom of the screen.
• 4:3 Pan-Scan : Select this for a conventional size TV when you want to
see the central portion of the 16:9 screen. (Extreme left and right side of
movie picture will be cut off.)
If you have a wide screen TV or 4:3 standard TV with a wide-screen mode
• 16:9 Wide : You can view the full 16:9 picture on your widescreen TV.
When receiving a digital broadcast
Setting Value 16:9
16:9 (default)
4:3 (letter box or
Pan& Scan)
Source
16:9
4:3
16:9
4:3
- If you set the 4:3 ratio, the screen format will change automatically
depending on the broadcast signal.
- If you set a different ratio from the one actually being broadcast, the
picture be may be distorted (stretched or narrow).
| input Level
Adjusts the level of the input signal.
"Darker : If you feel the screen is too light and you want to make the
screen darker.
• Lighter : If you feet the screen is too dark and you want to make the
screen lighter.
English - 39
i iiiiiiiiiii_ii_i!_i
iiiiii%_i!iiiiiiiiiiiiiii_ii_ii!,!i_!!i_iii
iiiiiiiiiiiX_ii_iiiiiii_ii!iii!
iiiiiiiiiiiiiiiiiiiiiiiiiiiii!iiiiiii_ii_iiiiilil
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii i ! ! ! ;ii
| Black Level
Adjusts the btack levet of the screen.
O IRE : Setect this when you want a darker screen.
• 7.5 IRE : Select this when you want a lighter screen.
g The Black level function is not available in the progressive scan
mode.
g IRE: Short for the institute of Radio Engineers. An IRE unit is a
relative unit of measure equaling 1/140th of the peak-to-peak (p-p)
video amplitude.
! 3uNoiseReauction
Off: Normal
* On : Provides a cleaner picture through noise reduction (for recording).
| HDMI/DVI Resolution
This setting is used when the unit is connected by HDMI or DV/ to
Display devices (TV, projector, etc).
• 480p : 720 x 480
,720p : 1280 x 720
,1080i : 1920 x 1080
• Connect the DVD-AR650 to your TV via HDMI or DVI. Set your TV's
input to HDMI or DVI.
• Press the P.SCAN button while the unit is in stop mode to select the
output resolution.
- If your TV is connected via an HDMI or DVI cable, the output resolution
mode changes in the following sequence each time you press the
P.SCAN button:
480p --> 720p --> 1080i. =]
- If the DVD Recorder is connected to your TV with Component
cables(no HDMI/DVI cable connected), the output resolution mode
toggles between 480p/480i.
| DivX(R) Registration
Please use the Registration code to register your DVD Recorder with
the DivX(R) Video On Demand format.
To learn more, visit www.divx.com/vod
English - 40
The Parental Controlfunction works in conjunction with DVDs that have
been assigned a rating - which helps you control the types of DVDs that
your family watches. There areup to 8 rating levels on a disc.
1. With the unit in Stop mode/No Disc mode, press the MENU button on the
remote control.
2. Select Setup using the A T buttons, then press the ENTER or _ button.
3. Select Parental Control using the ,t, _ buttons, then press the ENTER or
_, button.
4. The first time the Parental Control is accessed, the 'Create the
Password' message will be displayed.
Create a 4-digit password using the 0 to 9 buttons on the remote control.
5. The "Confirm the password" message will be displayed.
Enter your password again using the 0 to 9 buttons on the remote control.
6. Press the ENTER or _ button, and then select On using the A T buttons.
The Parenta! Control screen appears.
| Setting the Rating Level
1. Select Rating Level using the ,L T buttons.
2. Press the ENTER or _ button.
3. Select the desired Level you want using the A T buttons, then press
the ENTER or D,-button.
For example, if you select up to Levet 6, discs that contain Level 7, 8
will not play. A higher number indicates that the program is intended for
adult use only.
| Setting the Digital Rating
YoucsnsetthoretinglevelforOigitalchsnnolsreceivedbyth.unit.
1. Select Digital Rating using the A T buttons, then press the ENTER or
button.
2. Press the A T button to select "Digita! Rating", then press the ENTER
button.
tf information is not downloaded from the broadcasting station, the
Digital Rating menu is deactivated.
Parental restriction information is automatically downloaded while
watching DTV channels. It may take severa! seconds.
The Digital Rating menu is available for use after information is
downloaded from the broadcasting station. However, depending on the
information from the broadcasting station, it may not be available for use.
• Digital Rating Lock : select On using ,_ T to use Digital rating.
• Downloadable U.S. Rating : select the rating title and the rating value.
ex.)
The rating titles (for example: Humor LeveLetc) and TV ratings (for
example: DH,MH,H..etc) may differ depending on the broadcasting station.
. Clear AIt: select Yes to delete the downloaded data.
English - 41
gYoucanindependentlylocktheratings.Thelockedratingsare
indicatedbythesymbol(_).Tounlockalockedrating,pressthe
ENTERbuttonagain.
gParentalrestrictionlevelsdifferdependingonthebroadcasting
station.
gTheratingtitles(Forexample:Humorlevet..etc)andvalues
(Forexample: DH,MH..etc)arechangeddependingonthe
downloadedinformation.
gGenerally,theDigitalBroadcastparentatlocksystemusesthe
U.S.orCanadianRatingregionTable(RRT).Itissameas'V-Chip'
system for Analog Broadcasts.
i iiiiiiiiii:i_ii_i!_i
iiiiiii_:%iiiiiiiiiiiiii_ii_ii!,!i_!!i_iii
iiiiiiiiiiiiii'ii_i_i:i:iiiii!iiiiiiiiii_i!ii_iiiiii_i_iii
iiiiiiiiiii_X_ii_ili,i_iii!_ii!iii!
iiiiiiiiiiiiiiiiiiiiiiiiiiiii!i;:;ii;iii_:iiiiill
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii i ! ! ! ;ii
| Changing the Password
1. Select Change Password using the A _' buttons.
2. Press the ENTER or b, button.
The "Enter the password" message wilt be displayed.
3. Enter the 4-digit password using the Oto 9 buttons on the remote control.
4. The "Confirm the password" message will be displayed.
Enter your password again using the Oto 9 buttons on the remote control.
= If you forgot your password, remove the disc. Press the CH (^/v)
buttons on the front panel of the DVD Recorder simultaneously for
5 seconds or more when the power is on. All settings including the
password wilt revert to the factory settings.
The electronic program guide gives you information on available
programs.
1. Press the EPG button while you are viewing a program. (DTV)
, RED button (Timer Record) : Setting the Timer Record or delete.
, GREEN button (Scroll Up) : Scroits up through the guide.
, YELLOW button (Scroll Down) : Scrolls down through the guide.
1
• BLUE button (Full/Mini Guide) : Toggles between the Full/Mini Guide.
• (_.l)button : Goes to next day
• (I.,_l)button : Goes to previous day
• ENTER button (information) : View the detail information or change
the channel
2. Press the A V"_1_. buttons to select the desired channel, then press
the ENTER button.
g The EPG function does not support digital cable. Only digita! off-air
(antenna) channels are supported.
English - 42
* Full Guide
i!_ _L
Jb picture)
[ChanneJ table)
_TimeTable)
|Viewing Full Guide and Mini Guide
The Full Guide will display programming information for your
current channel
• Press the BLUE button to see the Mini Guide.
If you press this button again, you can return the Full Guide.
• Full Guide
When moving within the Channel table
• The channel/sub picture and EPG information of selected channel is
updated by moving up/down.
g Only the currently selected screen information will be displayed
on the EPG screen.
g A specific channel must be selected to see updated information
on that channel.
When moving within the Time Table
1. Press the A T 4 _ buttons to select desired Program Title.
2. Then press Enter button. If the Program Title you have highlighted
matches the channel in the sub-picture, you will see detailed program
information. If it does not match, pressing Enter will change the channel
first. You must then press Enter again to see the detailled Program info.
, The channel does not change in the sub picture when navigating within
the Time Table. You must use the Channel table or press Enter after
selecting a Program Title.
• EPG information is not updated.
• A maximum of 5 days worth of Program information can be viewed.
.MiniGuide
• Mini Guide
• Press the ENTER button to see the program information.
g If you press channel up/down button, you can exit EPG screen
automatically.
| EPG Timer Recording
Make sure that clock is set before operating this function. (see page 28)
1. Press the EPG button in Digital Channel mode.
2. Press the _t.T buttons in the Channel table to select the Channel for
recording
3. Press the _ t_ buttons in the Time Table to select the desired
Program Title for recording
4. Then press TIMER (RED) button. Timer Rec. is setup.
5. tf you want to cancel the TIMER REC. for that program, press one more time.
@
O
g You can check this setting scheduled List. (see page 52)
(Up to 12 recordings can be set for both EPG and regular TV)
g You can change the recording speed. (But you can not change
the Date,Time,Source in EPG Recording Mode)
g The time information in the EPG Guide is send from current
channel being broadcast.
g If the TV Station sends the wrong time information, Timer
recording wilt fail or the wrong program wilt be recorded.
g If there is more than 10 minute gap between the current EPG
time information and the setting time on this unit, EPG Timer
Recording does not work.
English - 43
This section explains various DVD recording methods.
This unit can record on various types of discs. Before recording,
read the following instructions end select the disc type according to
your preference.
This recorder can record on the following types of discs.
DVD-RAM DVD-RW DVD-R
RAM R W R
• DVD-RWs and DVD-RAMs are rewritable.
• DVD-Rs are non-rewritable
| CompatibilitybetweenSamsungandOthermanufacturer'sRecorders
Disc Recording Recording
Types format Device
DVD-RAM VR Mode Samsung
Other Company
Samsung
VR Mode
Other Company
DVD-RW
Samsung
V Mode
Other Company
Samsung
DVD-R VMode
Other Company
Finalizing
X
X
finalized
not finalized
finalized
not finalized
finalized
not finalized
finalized
not finalized
finalized
not finalized
finalized
not finalized
Additional Recording in
Samsung Recorder
Recordable
Recordable
Not recordabte
Recordable
Not recordable
Recordable
Not recordable
Recordable
Not recordabte
Not recordable
Not recordabte
Recordable
Not recordable
Not recordabte
g Finalize
- This closes the DVD-R/-RW and no additional recording can be
done.
g Unfinatize
- This allows additional recording on a DVD-RW disc originally
recorded on the DVD-AR650.
- A DVD-RW disc that has been recorded by DAO(Disc At once) in
a PC cannot be unfinalized.
- A DVD-RW disc that has been recorded in Video Mode of
another manufacturer's recorder cannot be unfinalized.
- A DVD-R disc cannot be unfinatized.
English - 44
DVD-RAM
DVD-RW
disc that best fits your preference. When you insert an unused disc,
the following message appears.
* DVD-RAM : Use after formatting the disc.
* DVD-RW : Use after initializing the disc.
You can change the VR or V mode of DVD-RW disc. Refer to Formatting
a Disc on page 76.
* DVD-R : Formatting disc is unnecessary.
| DVD-RAM/-RW(VR mode)
* This mode involves multiple editing functions (such as deletion of the
whole title, partial deletion of a title, etc.).
* Various editing options using a created Playlist.
| DVD-RW(Video mode)!-R
• Chapters will be created automatically when you finalize recording on
DVD-R/DVD-RW discs in Video mode.
• Simple editing (erasing titles/changing title name).
g You can initialize discs automatically using EZ REC MODE.
(See page 54)
English - 45
iiiiiiiiiiiiiii;iiii!_;ii:ii:i!!!i!i!i_iii:iil;
iiiiiiiiiiiiiiiii!!i!_i_iiiiiiii
Select one of four record modes by pressing the REC MODE button
repeatedly for the desired recording time and picture quality while
the unit is in Stop mode.
In general, picture quality improves as therecording time decreases.
In FR mode, the most suitable record mode is selected automatically
according to the remaining time on the disc and length of the timer
recording set.
Youcan select only one mode from XP,SP, LP and EP for timer
recording.
Mode Characteristic Recording Times Data
Rates
XP Select when the video Approx. 1 hour
(high quality mode) quality is important, about 8 Mbps
SP Select to record in Approx. 2 hours
(standard quality mode) standard quality, about 4 Mbps
LP Select when a long Approx. 4 hours
recording time is
(tong recording mode) required, about 2 Mbps
EP Select when a longer Approx. 6 hours/
about 1.2 Mbps
(extended mode) recording time is Approx. 8 hours/
required, about 0.8 Mbps
FR For timer recording only Approx 1 to 8 hours
(Flexible Recording) see page 52. Approx 0.8 to 8Mbps
• Dual layer DVD-Rs have approximately double the capacity of single
layer DVD-Rs. (See page 55.)
Video with copy protection cannot be recorded on this DVD
Recorder. When the DVD Recorder receives a copy guard signal
while recording, recording stops and the following message appears
on the screen.
English - 46
Concerning Copy Control Signals
TV broadcasts that contain copy control signals may have one of the
following three signal types, Copy-Free, Copy-Once and Copy-Never. If
you want to record a copy-once type program, use a DVD-RW disc with
CPRM in VR Mode. You can also use DVD-RAM discs.
('O' : Supported, '-' : Not Supported)
Copy-Free Copy-Once Copy-Never
DVD-RAM
O O*
(Ver.2.0)
DVD-RW (Ver. 1.1) O
DVD-RW (Ver. 1.1)
with CPRM
VR mode O O*
DVD-R O
When a "Copy Once" recording has been made, recording cannot be
done anymore.
*compatible with CPRM.
• Content Protection for Recordable Media (CPRM)
CPRM is a mechanism that ties a recording to the media on which
it is recorded. It is supported by some DVD recorders, but not by
many DVD players. Each blank recordabte DVD has a unique 64-bit
media ID etched in the BCA(Burst Cutting Area). When protected
content is recorded onto the disc, it can be encrypted with a 56-bit C2
(Cryptomeria) cipher derived from the media ID.
Disc contents cannot be copied to other media.
© @ ®
| About the INFO Button
• The INFO function allows you to view the current status and
progress of playback and recording. When recording on a used
disc, make sure that there is enough disc space for recording.
0 Press the INFO button.
0 The disc information display window appears.
- @ O Disc Type
= @ @ Current information display status
@ Disc Name
@ Total Title : Total number of titles
= @ @ Total Playlist : Total number of Playlists
@ Recordable Time : The longest continuous recording time in each of
the record modes(approximate)
@ Date : Current date
@ Time : Current time
g Items in the display differ depending on the disc type or the
recording format.
g With DVD-RAMs or DVD-RWs, you can free up disc space by
erasing titles.
g Press the INFO button again with the unit in playback or recording
mode, then you can check the current status.
English - 47
i iiiiii!I il iiiiiiiii ii!iI
......
Before you start
Check that the disc has enough available space for the recording.
Adjust the recording mode.
1. Press the OPEN/CLOSE button and place a recordable disc on the
disc tray.
2. Press the OPEN/CLOSE button to close the disc tray.
Wait until "LOAD" disappears from the front panel display.
If an unused DVD-RW disc is inserted, the message "Uninitialized Disc
Do you want to initialize this disc?" will appear. (See page 45)
| Recording the current TV program you are watching
1, Press the CH (Q/Q ) or number ( @ ~ Q) buttons to select the
current program you want to record.
2. Press the REC MODE button repeatedly, (or press the REC MODE button
and then press the & T button) to select the recording speed (quality).
_SP÷LP÷EP÷XP =]
3, Press the REC button.
Information concerning the channel is displayed on the screen and then
recording begins. Icon( O ) is displayed on the front panet.
| Recording from External Equipment
1. Press the INPUT SEL. button to select the input source according to
the connection you made.
The front panet display changes in the following sequence:
r) AV1 -> AV2 ..->DV ..->CH -> D-OH
L
2. Press the REC MODE button repeatedly, to select the recording
speed(quality).
_sP÷_P÷EP÷xP3
3, Press the REC button.
To pause recording
Press the REC PAUSE button to pause a recording in progress.
Press the REC PAUSE button again to resume recording.
To stop recording
Press the STOP (_) button to stop or finish recording in progress.
• When using DVD-RAM/DVD-RW/DVD-R discs, the message 'Updating
the information of disc. Please wait for a moment.' is displayed.
English - 48
• Youcannotchangetherecordingmodeandinputsourceduring
recording.
Recordingwiltstopautomaticallyifthereisnofreespaceleft.
Upto99titlescanberecordedontoaDVD-RAM/-RW/-Rdisc.
Recordingwiltstopautomaticallyifacopyprotectedimageis
selected.
! IfyouareusingaCableBox(noantenna),youcannotwatcha
differentcableTVprogramfromtheoneyou'rerecording.
DVD-RAM/DVD-RWdiscsmustbeformattedbeforestartingto
record.Mostnewdiscsaresoldunformatted.
DonotuseDVD-Rauthoringdiscswiththisunit.
You may control a Digital Camcorder using the IEEE1394 (DV) interface.
_,_
Before you start
Check that the disc has enough available space for the recording.
Adjust the record mode. See page 27 to see how to connect the
camcorder to your DVD recorder.
1. Press the OPEN/CLOSE button, and place a recordable disc on the
disc tray.
2. Press the OPEN/CLOSE button to close the disc tray.
Wait until "LOAD" disappears from the front panel display.
3. Press the REC MODE button repeatedly to select the recording
speed(quality).
r
4. Press the iNPUT SEL. button to select DV.
If the input is set to DV, a playback/record menu that enables Digital
camcorder control appears on the top of the screen.
5. Select the PLAY ( ) icon on the upper part of the screen to playback
the camcorder and find the starting position to copy.
6. To start recording select REC() icon in the top side of the screen
using the _ _, buttons, then press the ENTER button.
To stop recording
Press the STOP (_) button to stop or finish recording in progress.
• When using DVD-RAM/DVD-RW/DVD-R discs, the message 'Updating
the information of disc. Please wait for a moment' is displayed.
g You can not change the record mode and input source while
recording.
g Recording wilt stop automatically if there is no free space left.
g Up to 99 titles can be recorded onto a DVD-RAM/-RW/-R disc.
g DVD-RAM/DVD-RW discs must be formatted before starting to
record. Most new discs are sold unformatted.
g Do not use DVD-R authoring discs with this unit.
g To access on-screen controls during recording, press the _ or
buttons.
g When copying from a camcorder and the end of the recorded
content is reached (no Video), the screen may turn blue or purple.
g IEEE1394 :Avery fast external bus standard that supports data
transfer rates of up to 40OMbps (in 1394a) to transfer high levels
of data in real-time, such as video devices.
English - 49
You can set the DVD Recorder to record in preset increments by
pressing the REC button repeatedly.
1. If you want to record from a connected external component, press the
iNPUT SEL. button to setect an appropriate external input (AV1, AV 2
or DV, CH, D-CH).
2. Press the REC button to start recording.
3. Press the REC button to adjust the recording time.
_0:30 --) 1:00 --) 1:30 --) 2:00 ÷ 3:00 ÷ 4:00 ÷ off_
J
m The timer counter decreases to 0:00, then the DVD Recorder
stops recording.
After finishing recording, the DVD Recorder will turn off
automatically.
iiiiiiiiiiiiiii:iiii!_:ii:ii:i!!!:!iii_i:i:i:i:
iiiiiiiiiiiiiiiiii!i!_::iiiiiiii
To stop recording
Press the STOP( _ ) button. The message "Press STOP button once
more to cancel Timer Record." is displayed.
Press the STOP( _ ) button again to stop recording.
English - 50
@
You need to set the Clock (Setup - Clock Set) before proceeding
with a timer recording. (See page 29)
1. Press the OPEN/CLOSE button, and place a recordable disc on the
disc tray.
2. Press the OPEN/CLOSE button to close the disc tray.
Wait until "LOAD" disappears from the front panel display.
If an unused DVD-RW disc is inserted, whether to initialize or not will
be asked first. (See page 45)
3. Press the MENU button in Stop mode.
4. Press the A v buttons to select Timer Rec., and then press the
ENTER or _ button.
5. Press the A v buttons to select Timer Record, and then press the
ENTER or _ button.
The Timer Record input items are displayed.
You can also set a timer recording via the TIMER button.
6. Fill in the items using the A V 4 I_ buttons.
4 _ : Moves to the previous/next item,
A Vor 0~9 : To set or change items in the Scheduled Record List Menu.
,, Source: Select the video input source (AV 1, AV 2, CH, D-CH) you
want to make a timer recording of.
,, Date: Date that the timer recording starts
- There are three options when setting the date. See below:
OtTo make a recording on a specific date, press the A T or number
buttons until the date you want appears.
(bTo make a recording at the same time every day (Monday to Friday),
press the A V buttons until MON-FRt appears.
G_Tomake a recording on a specific day of the week (ie Mon, Tues etc),
press the A 'V buttons until 'Every SAT'...'Every SUN' appears.
,, Start/End Time: Start and end time of the timer recording
• Mode (Record mode)
XP : Approx. 1 hour
SP : Approx. 2 hours
LP : Approx. 4 hours
EP : Approx. 6 hours or 8 hours
FR : See page 51.
g When you are recording at EP mode on a DVD-RW(V)/-R disc,
it may not record the full 6 or 8 hours because the unit uses the
VBR(Variable Bit Rate) ENCODING system.
For example, if you record a Program with a tot of action, it uses a
higher bit rate which in turn consumes more disc memory.
,7. Press the ENTER button.
• ((_) and Timer Set will appear on the front panel display. This means
that a timer recording is set.
• Recording is automatically performed when the set time is reached.
English - 51
=Ifthetimersettingsoverlap
The first program has priority. After recording of the first program
is complete, the second program starts being recorded.
= The timer recording time may differ from the set time depending
on the disc and the overall timer recording status (for example,
recording times overlapping, or when the previous recording ends
within 3 minutes of the start of the next recording.)
Q will start blinking if Timer Recording is not ready to start.
In FR mode, the moat suitable recording mode is selected
automatically, according to the remaining time on the disc and the
length of the timer recording set.
The FR mode recording setup is the same as Timer Recording setup.
When setting the Roe mode in step 6, select FR Mode. (See page 51)
i I ! iiii
_i_i i il iii i
!_i ii iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii _
You can change timer record settings using the scheduled record
list menu.
1. Press the MENU button in STOP mode.
2. Press the A T buttons to select Timer Rec., and then press the
ENTER or _ button.
3, Press the A T buttons to select Scheduled Record List, and then
press the ENTER or _ button.
4, Press the ,A _' buttons to select the number of the Scheduled Record
List you want to edit, and then press the ENTER or _ button.
The Edit and Delete items are displayed.
5. Press the A T buttons to select Edit, and then press the ENTER or
button.
The Timer Record input item is displayed.
Edit the items you want to modify. See the Timer Record section for
more information on Timer Record input items. (See page 50)
6, Move through the items with the _1 _ buttons and change the settings
with A _' or number buttons and press the ENTER button.
7, Press the EXiT button after the operation is finished.
The menu screen will disappear.
English - 52
You can delete timer record list using the scheduled record list menu.
1. Press the MENU button in Stop mode.
2. Press the A T buttons to select Timer Rec., and then press the
ENTER or b,- button.
3. Press the A _' buttons to select Scheduled Record List, and then
press the ENTER or _, button.
4. Press the A T buttons to select the number of the timer recording you
want to delete, and then press the ENTER or _ button.
The Edit and Delete items are displayed.
5. Press the • v buttons to select Delete, and then press the ENTER or _- button.
6. Press the 4 P buttons to select Yes, and then press the ENTER button.
The selected entry wilt be deleted from the list.
= You can not delete programs that are currently being recorded.
When the start time in the Scheduled Record List is reached while
the unit is powered off, the unit will automatically power on and start
recording.
1. When the scheduled recording is operating, the program being
recorded wilt not display on TV.
• Power on TV using the TV remote control.
• Power off TV using the TV remote control if you don't want to see the
program being recorded.
To stop recording
Press the STOP (_) button. The message "Press STOP button once
more to cancet Timer Record." is displayed.
Press the STOP ((_) button again to stop recording.
g If a copy protection signal is received during recording, recording
witl stop.
g If there is no free disc space or the disc is not recordable, recording
will not operate. (You can record after replacing the disc.)
English - 53
iiiiiiiiiiiiiii;iiii!_;ii:ii:i!!!i!i!i_iii:iil;
iiiili_i_i_i_i_i_i_!_i!i!i!i!i!i!i!iiii_iiiiiii!!ii'
iiiiiiiiiiiiii!i!ii!!i!_i_iiiiiiii
This function allows you to initialize and Finalize a disc automatics/ly.
1. With the unit in Stop/No Disc mode, press the EZ RED MODE button
on the remote control.
2. Press the ,,q _, buttons to select On, and then press the ENTER
button.
The EZ REC MODE is set up.
3. Insert a disc.
If the disc is new, it will initialize automatica!ly.
4. Press the REC button.
5. EZ REC MODE wilt Automatically Finalize the disc under the following
conditions.
After the disc is finalized, it wilt play in most DVD players/drives.
- When you press the OPEN/CLOSE button on your DVD Recorder after
recording on at least 30% of the disc. The tray will open after the disc
has been finalized.
- When the disc is full, it wilt finalize automatically and the Recorder will
remain in stop mode.
- When you make a timer recording and it occupies at least 30% of the
disc, the disc will finalize automatically and the Recorder will power off.
Please note that auto finalization will not work if the Recorder has more
than one Timer Recording set in the Scheduled Record List.
g If you insert a new DVD-RW disc, it will be formatted in V mode
after auto initializing.
g If you select off, you must initialize (see page 45) and finalize the
disc manually in the Disc Manager menu.(see page 77)
g The length of Recording is different according to recording mode.
(see page 46)
English - 54
Playback
This section introduces basic playback functions end
playback by disc type.
Read the following information before playing e disc.
(_ Both the DVD recorder and the discs arecoded by region. These regional codes must
match in order for the disc to play. If the codes
do not match, the disc will not play. The Region
Number for this recorder is described on the
rear panel of the recorder.
D I G I T A L DigitalOut
Dotby Digital DTS Digital Audio
s o [.Tscl
Stereo NTSObroadcastsystem
inU.S.A,Canada,Korea,
Japan,etc
DivX MP3
Disc Disc Recorded
Types Logo content Disc Shape
Singlesided(5")
DVD- _ VIDEO Doublesided(5")
VIDEO _ AUDIO Singlesided(3.5")
Doublesided(3.5")
AUDIO Singlesided(5")
Singlesided(3.5")
JPEG Singlesided(5")
JPEG
Images Singlesided(3.5")
MP3 Singlesided(5")
MP3
Audio Singlesided(3.5")
MPEG4 Singlesided(5")
MPEG4
Movie Singlesided(3.5")
DVD- VIDEO
RAM _ AUDIO
Singlesided(5")
(4.7GB)
Double
sided(5")
(9.4GB)
DVD-RW VIDEO 5" (4.7GB)
AUDIO
DVD-R VIDEO
AUDIO
Single
Layer(5")
(4.7GB)
Dual
Layer(5")
(8.5GB)
Max. Playing Time
240min
480min
80min
160min
74min
20min
lhr (XP:ExcellentQuality)
2hrs(SP:StandardQuality)
4hrs(LP:LongPlayback)
6or 8hrs(EP:Extended)
2hr(XP:ExcellentQuality)
4hrs(SP:StandardQuality)
8hrs(LP:LongPlayback)
12or 16hrs(EP:Extended)
l hr(XP:ExcellentQuality)
2hrs(SP:StandardQuality)
4hrs(LP:LongPlayback)
6 or 8hrs(EP:Extended)
l hr(XP:ExcellentQuality)
2hrs(SP:StandardQuality)
4hrs(LP:LongPlayback)
6 or 8hrs(EP:Extended)
2hr(XP:ExcellentQuality)
4hrs(SP:StandardQuality)
8hrs(LP:LongPlayback)
11or 15hrs(EP:Extended)
English - 55
| Discs That Cannot be Played
- DVD-Video with a region number other than "1" or "ALL"
• 5" 2.6 GB and 5.2 GB DVD-RAM
- 3.9 GB DVD-R Disc for Authoring.
• A DVD-R/DVD-RW(V) disc which has been recorded and not finalized in
a different manufacturer's recorder.
• PAL discs
• DVD-ROM/PD/MV-Disc, etc.
• Video CD/CVD/SVCD/CD-ROM/CDV/CD-G/CD-I
g This DVD recorder can only operate with discs that are compatible
with DVD-RAM Standard Version 2.0.
Playback and/or recording may not work for some types of discs,
or when specific operations, such as angle change and aspect
ratio adjustment, are being performed. Information about the discs
is written in detail on the box. Please refer to this if necessary.
Do not allow the disc to become dirty or scratched.
Fingerprints, dirt,dust,scratches or deposits of cigarette smoke on the
recording surface may make it impossible to use the disc for recording.
DVD-RAM/-RW/-R discs may not be able to play on some DVD players,
depending on the player, disc and the condition of the recording.
g Discs with PAL programs already recorded on them can not be
recorded on using this product.
1. Press the OPEN/CLOSE button.
The tray opens.
2. Place a disc gently into the tray with the disc's label facing up.
For DVD-RAM discs, insert the printed side facing up.
3. Press the OPI=N/CLOSE button to close the disc tray.
• Your DVD Recorder closes the disc tray and loads the disc automatically.
• When the recorder is powered on and a disc is in the tray, the unit will
be activated and wait in Stop mode.
• Press the PLAY( Q ) button to start playback.
• If you want the unit to play automatically when it is powered off with a
disc in the unit, power on with the PLAY(C) ) button.
4. Press the STOP( _ ) button to stop playback.
g When you stop ptaying the disc, the recorder remembers where
you stopped. When you press the PLAY button again, it will pick
up where you left off. (unless the disc is removed, the recorder
is unplugged, or if you do not press the STOP button twice.) This
function is only applicable to DVD-VIDEO, DVD-RAM, DVD-RW,
DVD-R or audio CDs (CD-DA).
g Do not move your DVD recorder while playing, as this may cause
damage to the disc.
g Make sure to press the OPEN/CLOSE button to open or close the disc tray.
g Do not push the disc tray while it is being opened or closed, as
this may cause a product malfunction.
g Do not place foreign materials on or in the disc tray.
g Some functions may perform differently or be disabled depending on the
disc type. if this occurs, refer to the instructions written on the disc case.
g Be especially careful that children's fingers are not caught
between the disc tray and the tray chassis when it closes.
g You must only insert one DVD disc at a time. Inserting two or
more discs wilt not a!low playback and may cause damage to the
DVD player.
English - 56
| Using the Disc Menu & Title Menu
Some discs contain a dedicated menu system that allows you to
select special functions for the title, such as chapters, audio track,
subtitles, film previews, information on characters, etc.
For DVD-VIDEO Discs
@®®@
,,oF "LAY
Disc Menu : Press the DiSC MENU button to enter the disc's menu.
• Move to the setup menu related to the playback operation.
• You can select the audio language and the subtitles provided by the disc.
Title Menu : Press the TITLE MENU button to move to the title menu of
the disc.
• Use this button if the disc contains more than one title. Some type of
discs may not support the title menu function.
For DVD-RAM/DVD+RW/=+R Discs
Title List : Press the TITLE LiST button. The Title List is simply a list of
titles on a disc. If a title is deleted, that title cannot be played
again.
PLAY LiST : Press the PLAY LiST button. A playlist is a custom-made list
of titles. When one playlist is played, only the titles within the
playlist wilt play and then stop. Even if that playlist is deleted,
the original recording will not be deleted. (only VR mode)
| Using the Playback Related Buttons
Searching through a Chapter or Track
Fast l(X 2) _ _ Fast 2(X 4)
DVD-VIDEO/
Fast 3(X 8) _ _ Fast 4(X16)
DVD-RAM/
DVD-RW/DVD-R _- Fast 5(X 32) _ _._ Fast 6(X128)
Fast 1(X 2)
_-_ Fast 1 _ _ Fast 2 _ _ Fast 3
MPEG4
_,_ Fast 1
AUDIO CD _,_ Fast x2 _ _,_Fast x4
(CDDA) _ Fast ×8 _ _,-_Fast x2
During playback, press the SEARCH( _ _ ) button on the remote
control.
• You can scan the program in reverse.
• Press and hold the SEARCH( _ (_) button, playback is done at the
default speed of fast 2.
• tf you release the SEARCH( _ Q ) button, playback is performed at
normal speed.(Except CD-DA)
• To return to normal playback speed, press the PLAY( Q ) button.
English - 57
gNosoundisheardduringScan(Search)modeexcept'Fast1'
searchmode(X1.7speedaudio).
gForCD(CD-DA),YoucanhearsoundduringScanmode.
gYoucannothearaudiowhilescanninganMPEG4.
mThespeedmarkedwhilescanningmaybedifferentfromthe
actualplaybackspeed.
Searching Chapters or Tracks
During playback, press the SKIP( G G ) button on the remote control.
• tf you press the SKIP( _ ) button, it moves to the beginning of the
chapter or track or marker (DVD-RAM,DVD-RW(VR mode).)
Pressing the button once again within 3 seconds returns to the
beginning of the previous chapter or track or marker (DVD-RAM,
DVD-RW(VR mode).)
• if you press the SKIP( _ ) button, it moves to the next chapter or title or
marker (DVD-RAM,DVD-RW (VR mode).)
| Slow Motion Play
In Pause mode, press the SEARCH((_) button on the remote control.
• If you press the SEARCH((_) button,
_11t_Slow 1 _ It_ Stow 2 _ IlS!ow 3 =']
• If you press the SEARCH((_) button,
_41 Slow 1 _ _111Stow 2 _ 41S!ow 3
q
• Press and hold the SEARCH( _ ) button during pause, and the disc
will play slowly at a 1/2 speed. If the button is released, the pause
operation will resume.
• To return to normal speed playback, press the PLAY(_) ) button.
g The speed marked in this function may be different from the
actual playback speed.
g Slow motion operates only in the forward direction on MPEG4
discs.
| Step Motion Play
Press the STEP( (_ G) ) button on the remote control in the still mode.
• Each time the button is pressed, a new frame will appear.
if you press the STEP((_) button, the previous frame will be activated.
if you press the STEP((_) button, the next frame will be activated.
• To return to normal speed playback, press the PLAY( @ ) button.
g Step motion operates only in the forward direction on MPEG4
discs.
English - 58
| Using the ANYKEY Button
The ANYKEY function allows you to easily search for a desired
scene by accessing title, chapter, track, and time. You can also
change the subtitle and audio settings and set some features
including Repeat, Angle, and Zoom.
Moving to a Desired Scene Directly
If you want to move to e certain title, chapter or time use this
function.
1. Press the ANYKEY button during playback.
2. Press the A T buttons to select the Title, Chapter or Time.
3, Press the _ _,, buttons or number (0~9) buttons to select the desired
scene and then press the ENTER button.
In case of searching a time, Enter the time in the sequence of hours,
minutes, seconds using the number buttons. 4 _ are not available.
g The Time Search function does not operate with some discs.
g To make the screen disappear, press the ANYKEY again.
Playing Repeatedly
1. Press the ANYKEY button during playback.
2. Press the A _' buttons to select Repeat and press the _1 _ buttons to
select the Title or Chapter you want to play repeatedly.
3, Press the ENTER button.
g DVD-RAM, DVD-RW(VR mode), unfinalized DVD-R and
unfinalized DVD-RW (Video mode) do not repeat a chapter.
Playing a Certain Section Repeatedly
1. Press the ANYKEY button during playback.
2. Press the A _' buttons to select Repeat and press the _ button to
select A-B.
3, Press the ENTER button.
4, Press the ENTER button at the point where you want the repeat play to
start (A) and press it again at the point where you want the repeat play
to stop (B).
Repeat playback of the A-B section starts.
g If you set point (B) before five seconds has lapsed, the prohibition
mark (_)) will appear.
g You can also activate Normal Playback by pressing the CANCEL
button.
g Audio CDs(CD-DA) and MP3 discs do not support the Repeat A-B
function.
English - 59
Selecting the Subtitle
Subtitle languages may not work depending on the disc type. This is
only available during playback.
1. Press the ANYKEY button during playback.
2. Press the A v buttons to select Subtitle and press the 4 t,_ buttons to
select the desired subtitle language.
g If the subtitles overiap, disable the caption function on your TV.
g Some discs allow you to select the language for the disc menu only.
g To make the screen disappear, press the ANYKEY again.
Selecting the Audio language
Audio languages may not work depending on the disc type. This is
only available during playback.
1. Press the ANYKEY button during playback.
2. Press the A v buttons to select Audio and press the _ _. buttons to
select the desired audio language.
g Audio languages may be different because they are disc-specific.
g Some discs allow you to select the audio language for the disc
menu oniy.
g To make the screen disappear, press the ANYKEY again.
Using One Touch button
By pressing the Audio button, you can access the Audio function
":_ directly.
Changing the Camera Angle
When a DVD-VIDEO contains multiple angles of a particular scene,
you can select the Angle function.
This is only available during playback.
If the disc contains multiple angles, the ANGLE mark appears on the
screen.
1. Press the ANYKEY button during playback.
2. Press the & T buttons to select Angle and press the 4 t,_ buttons or
number(O~9) buttons to select the desired angte.
O
g This function is disc-dependent, and may not work all DVDs.
g This function does not work when a DVD has not been recorded
with a multicamera angle system.
g To make the screen disappear, press the ANYKEY again.
English - 60
Zooming-in
1. Press the ANYKEY button during playback or pause.
2. Press the A v' buttons to select Zoom, and then press the ENTER
button.
( ¢, ) will be displayed.
3, Press the A T 4 _ buttons to move to the area you want to enlarge.
4, Press the ENTER button.
normal size _ 2X _ 4X _ 2X _normal size
Using Bookmarks
(V mode)
This feature lets you bookmark sections era DVD or DVD-P,/-RW
(V mode), so you can quickly find them.
Setting Bookmarks
1. Press the MARKER button during playback.
2. Press the MARKER button during playback. Press the ENTER button
when the desired scene appears.
The number 1 is displayed and the scene is memorized.
3. Press the _ _, button to move to the next position.
4. Press the ENTER button when the desired scene appears.
The number 2 is displayed and the scene is memorized.
• Repeat above to bookmark other positions.
• You can bookmark up to 10 scenes.
g When the disc tray is opened and then closed, bookmarks wilt
disappear.
g The button display may differ depending on the disc type.
i" O Playing Back a Bookmark
1. Press the MARKER button during playback.
2. Press the ,,q _, buttons to select a bookmarked scene.
3. Press the ENTER or PLAY(_) ) button to start playing from the
selected scene.
English - 61
O Clearingabookmark
1.PresstheMARKERbuttonduringplayback
2.Pressthe_1_,buttonstoselectabookmarkedscene.
3,PresstheCANCELbuttontodeletetheselectedbookmark.
Using Markers
(MR mode)
• Setting Markers
1. Press the MARKER button during playback.
2. Press the ENTER button when the desired scene appears.
The number 01 is displayed and the scene is memorized.
3, Press the _1 _ button to move to the next position.
4. Press the ENTER button when the desired scene appears.
The number 02 is displayed and the scene is memorized.
• DVD-RAM or DVD-RW (VR Mode) discs have the Marker function
instead of the Bookmark function.
The Marker function allows you to mark up to 99 scenes. Since the
scenes may be displayed as many different pages, numbering is
necessary.
If a disc in use is encoded with Disc Protect, Markers cannot be set or
deleted. Only playback is available.
......ilililili!iiiiiiiiiiiiiiiiiiiiii!ii!
iiiiiiiiiiiiiiiiiiii!_iiiii_ii
iiiiiiiiiiiiiiii;iiiiiiiiiiiiii_!!ii_;!!
iiiiiiiiiiiiiiiiiiiiii'ii_i!iiiiiiiiiiiiiiii_i_i!i!i!i,!il
• Playing Back a Marker
1. Press the MARKER button during playback.
2. Press the _ _. buttons to select a bookmarked scene.
3. Press the ENTER or PLAY( O ) button to start playing from the
selected scene.
