TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE THE COVER(OR BACK).
NO USER-SERVICEABLE PARTS ARE INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol indicates "dangerous voltage"
inside the product that presents a risk of
electric shock or personal injury.
This symbol indicates important instructions
accompanying the product.
Do not instaIt this equipment in a confined space such
as a bookcase or similar unit.
WARNING
To prevent damage which may result in fire or electric
shock hazard, do not expose this appliance to rain or
moisture.
Note to CATV system installer
This reminder is provided to call CATV system installer's
attention to Article 820-40 of the National Electrical Code
(Section 54 of Canadian Electrical Code, Part I) that
provides guidelines for proper grounding and, in
particular, specifies that the cable ground shall be
connected to the grounding system of the building as
dose to the point of cable entry as practical.
FCC NOTE (for U.S.A):
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio or
television reception, which can be determined by
turning the equipment off and on.
The user is encouraged to try to correct the interference
by one or more of the following measures.
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and receiver.
• Connect this equipmentinto an outlet on a circuit
different from that to which the receiver is connected.
2 - English
• Consult the dealer or an experienced radio/TV
technician for help.
This class B digital apparatus meets all
requirements of the Canadian Interference --
Causing Equipment Regulations.
CAUTION
THIS PRODUCT UTILIZES A LASER. USE OF
CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE. DO NOT
OPEN COVER AND DO NOT REPAIRYOURSELE
REFER SERVICING TO QUALIFIED PERSONNEL.
Note:
. This unit can be used only where the power supply is
AC 120V, 60Hz. It cannot be used elsewhere.
. This Blu-ray disc player is designed and manufactured
to respond to the Region Management Information.
If the Region number of a BD/DVD disc does not
correspond to the Region number of this BIu-ray disc
player, the Blu-ray disc player cannot play the disc.
. The product unit accompanying this user manual is
licensed under certain intellectual property rights of
certain third parties. This product is covered by one or
more of the following U.S. patents:
5,060,220 5,457,669 5,561,649 5,705,762 5,987,417
6,043,912 6,222,983 6,272,096 6,377,524 6,377,531
6,385,587 6,389,570 6,408,408 6,466,532 6,473,736
6,477,501 6,480,829 6,556,520 6,556,521 6,556,522
6,578,163 6,594,208 6,631,110 6,658,588 6,674,697
6,674,957 6,687,455 6,697,307 6,707,985 6,721,243
6,721,493 6,728,474 6,741,535 6,744,713 6,744,972
6,765,853 6,765,853 6,771,890 6,771,891 6,775,465
6,778,755 6,788,629 6,788,630 6,795,637 6,810,201
6,862,256 6,868,054 6,894,963 6,937,552
This product is covered by the following U.S. patents:
US4,930,158 US4,930,160
This license is limited to private non-commercia! use
by end-user consumers for licensed contents.
No rights are granted for commercial use. The license
does not cover any product unit other than this
product unit and the license does not extend to any
unlicensed product unit or process conforming to
ISO/IEC 11172-3 or ISO/IEC 13818-3 used or sold in
combination with this product unit.
The license only covers the use of this product unit to
encode and/or decode audio files conforming to the
ISO/IEC 11172-3 or tSO/IEC 13818-3. No rights are
granted under this license for product features or
functions that do not conform to the ISO/IEC 11172-3
or ISO/IEC 13818-3.
Important Safety Instructions
Read these operating instructions carefully before using
the unit. Follow all the safety instructions listed below.
Keep these operating instructions handy for future
reference.
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings, Install in
accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as
radiators, heat registers, or other apparatus
(including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or
grounding- type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding
prong. The wide blade or the third prong are
provided for your safety, tf the provided plug does
not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10) Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from the
apparatus.
11) Onty use attachments/accessories specified by
the manufacturer.
12) Use only with the cart, stand,
tripod, bracket, or table specifi
ed by the manufacturer, or sold
with the apparatus. When a cart
is used, use caution when
moving the cart/apparatus
combination to avoid injury from
tip-over.
13) Unplug this apparatus during lightning storms or
when unused for tong periods of time.
14) Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
Handling Cautions
. Before connecting other components to this Btu-ray
disc player, be sure to turn them all off.
. Do not move the Btu-ray disc player while a disc is being
played, or the disc may be scratched or broken, the
Btu-ray disc player internal parts may be damaged.
. Do not put a flower vase filled with water or any small
metal objects on the Blu-ray disc player.
. Be careful not to put your hand into the disc tray.
. Do not place anything other than the disc in the disc tray.
. Exterior interference such as lightning and static
electricity can affect normal operation of this Blu-ray
disc player. If this occurs, turn the Blu-ray disc player
off and on again with the POWER button, or
disconnect and then reconnect the AC power cord to
the AC power outlet. The Blu-ray disc player wilt
operate normally.
. Be sure to remove the disc and turn off the Btu-ray
disc player after use.
. Disconnect the AC power cord from the AC outlet
when you don't intend to use the Btu-ray disc player
for tong periods of time.
. Clean the disc by wiping in a straight line from the
inside to the outside of the disc.
. Apparatus shall not be exposed to dripping or
splashing and no objects filled with liquids, such as
vases, shall be placed on the apparatus.
. The Mains plug is used as a disconnect device and
shall stay readily operable at any time.
Maintenance of Cabinet
For safety reasons, be sure to disconnect the AC power
cord from the AC outlet.
. Do not use benzene, thinner, or other solvents for cleaning.
. Wipe the cabinet with a soft cloth.
Restrictions on Playback
. This player may not respond to att operating commands
because some BD, DVD or CD discs allow specific or
limited operation and features during playback.
Please note that this is not a defect in the player.
. Samsung cannot assure that this player will play every
disc bearing the BD, DVD and CD Iogos because disc
formats may evolve, and problems and errors can occur
during the creation of BD, DVD and CD software and/or
the manufacture of discs.
This player also operates differently than a standard DVD
player or other AV equipment. Please contact the
SAMSUNG customer care center if you have questions or
encounter difficulty in playing BD, DVD or CD discs in this
player. Also, refer to the rest of this Manual for additional
information on playback restrictions.
English - 3
iiiii i !iii@ii!;i;ii ilili!ii! i!!!
HH_;
iiiiiiiiiiiiiiiiiiiiiiiiiiii i!i!iiiiii!i!iill
iiiiiiiiiiiiiiiiiiiiiii!_i!ii;i:ili
iiiiiiiiiiiiiiiiiiii_i_iii_ii!i_J_;_iiii_iiiiiii
iiiiiiiiiiiiiiiiiiiiiiiii_iiiii!ii!ili
iiiiiiiiiiiiiiiiiiiiiiiiiii_i,!_ii_ii:i_,,i_iiiiiiiiiiil
iiiiiiiii'i!ii iiii ii i i
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

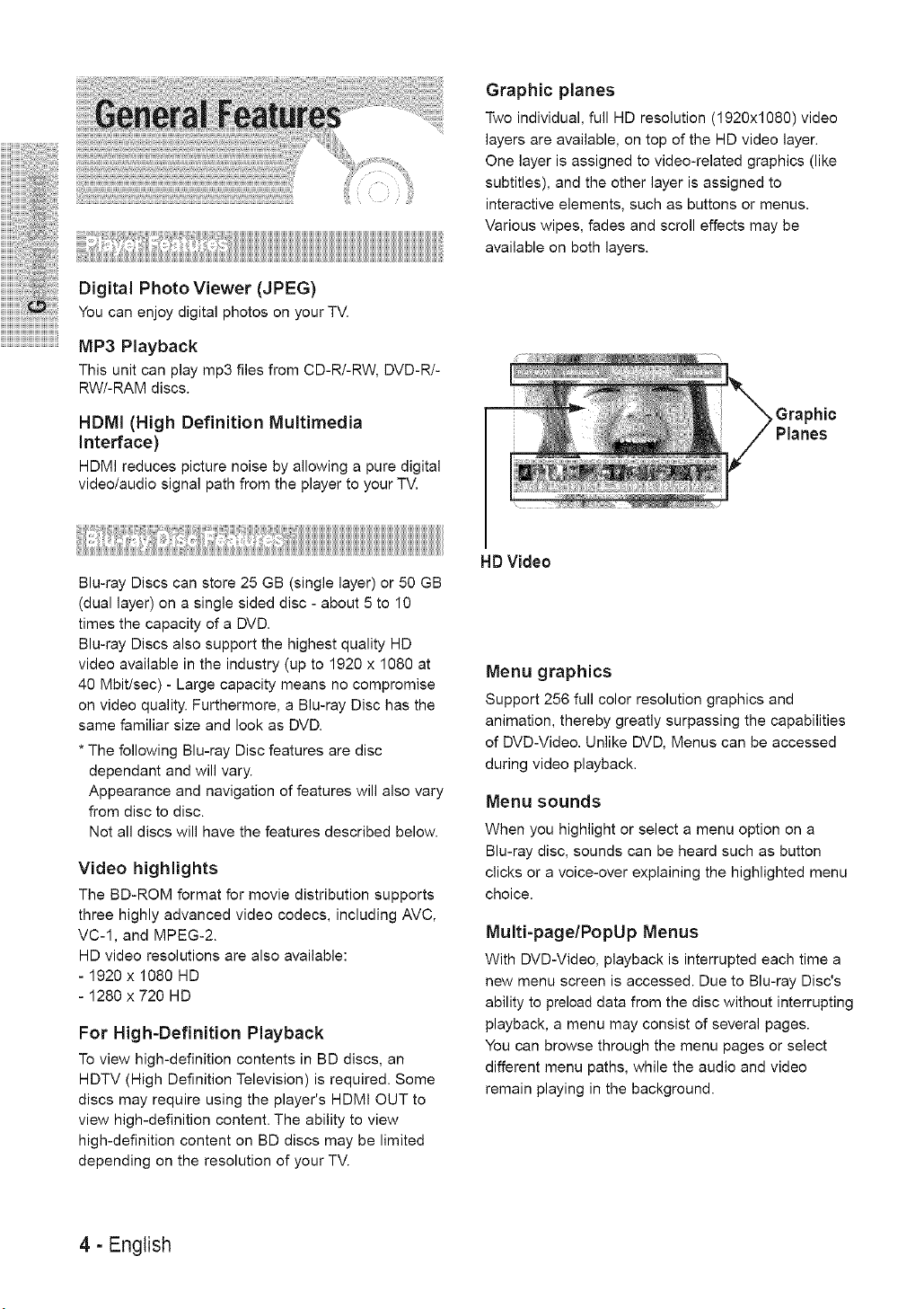

Digital Photo Viewer (JPEG}
You can enjoy digital photos on your TV.
MP3 Playback
This unit can play mp3 files from CD-R/-RW, DVD-R/-
RW/-RAM discs.
HDMI (High Definition Multimedia
interface)
HDMI reduces picture noise by allowing a pure digital
video/audio signal path from the player to your TV.
Graphic planes
Two individual, full HD resolution (1920x1080)video
layers are available, on top of the HD video layer.
One layer is assigned to video-related graphics (like
subtitles), and the other layer is assigned to
interactive elements, such as buttons or menus.
Various wipes, fades and scroll effects may be
available on both layers.
,Graphic
Planes
Blu-ray Discs can store 25 GB (single layer) or 50 GB
(dual layer) on a single sided disc - about 5 to I0
times the capacity of a DVD.
Blu-ray Discs also support the highest quality HD
video available in the industry (up to 1920 x 1080 at
40 Mbit/sec) - Large capacity means no compromise
on video quality. Furthermore, a Blu-ray Disc has the
same familiar size and look as DVD.
* The following Blu-ray Disc features are disc
dependant and will vary.
Appearance and navigation of features will also vary
from disc to disc.
Not all discs will have the features described below.
Video highlights
The BD-ROM format for movie distribution supports
three highly advanced video codecs, including AVC,
VC-1, and MPEG-2.
HD video resolutions are also available:
- 1920 x 1080 HD
- 1280 x 720 HD
For High-Definition Playback
To view high-definition contents in BD discs, an
HDTV (High Definition Television) is required. Some
discs may require using the player's HDMI OUT to
view high-definition content. The ability to view
high-definition content on BD discs may be limited
depending on the resolution of your TV.
HDVideo
Menu graphics
Support 256 full color resolution graphics and
animation, thereby greatly surpassing the capabilities
of DVD-Video. Unlike DVD, Menus can be accessed
during video playback.
Menu sounds
When you highlight or select a menu option on a
Blu-ray disc, sounds can be heard such as button
clicks or a voice-over explaining the highlighted menu
choice.
Multi-page/PopUp Menus
With DVD-Video, playback is interrupted each time a
new menu screen is accessed. Due to Blu-ray Disc's
ability to preload data from the disc without interrupting
playback, a menu may consist of several pages.
You can browse through the menu pages or select
different menu paths, while the audio and video
remain playing in the background.
4 o English
i
i

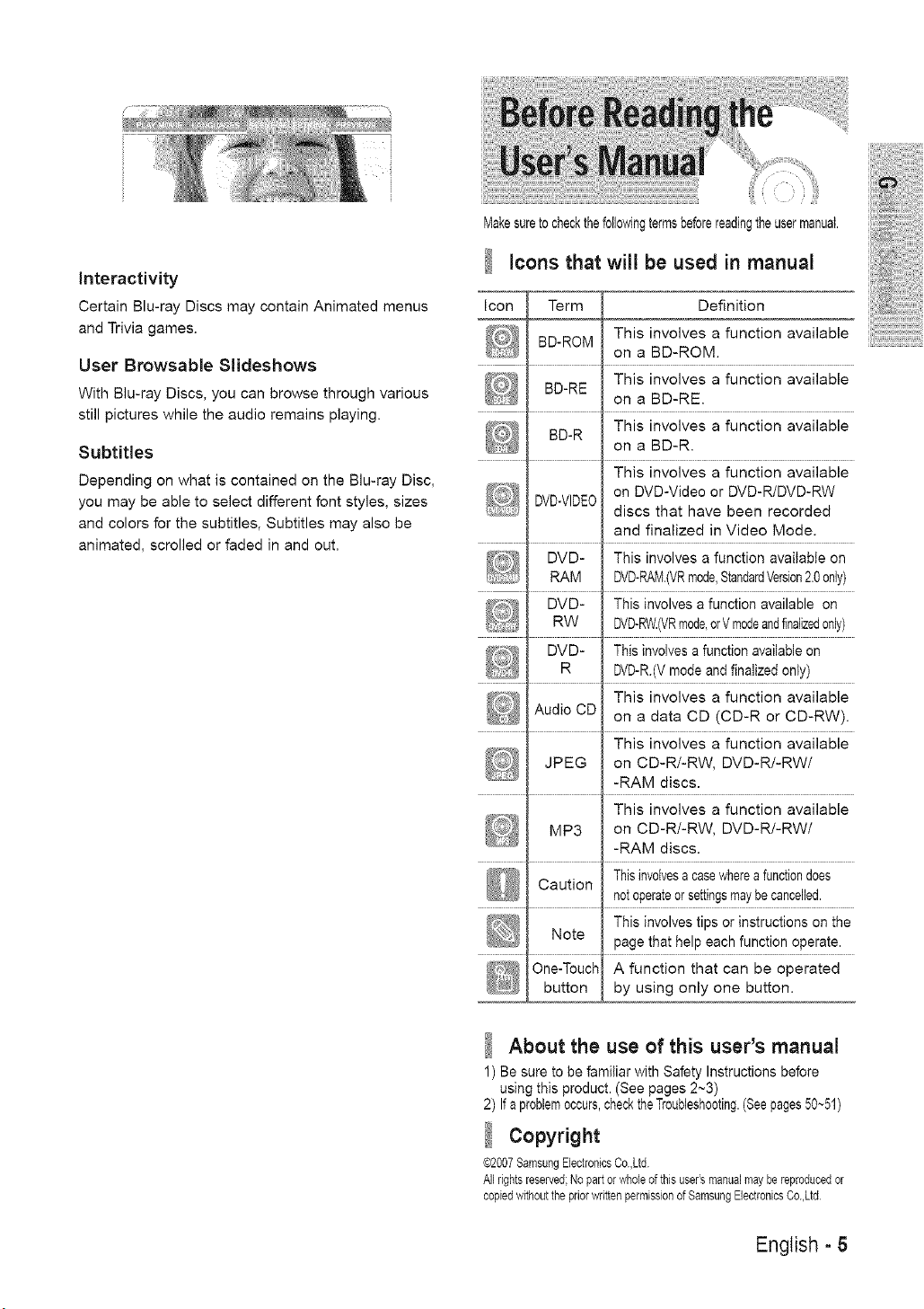

Interactivity
Certain Blu-ray Discs may contain Animated menus
and Trivia games.
User Browsable Slideshows
With Blu-ray Discs, you can browse through various
still pictures while the audio remains playing.
Subtitles
Depending on what is contained on the Blu-ray Disc,
you may be able to select different font styles, sizes
and colors for the subtitles, Subtitles may also be
animated, scrolled or faded in and out.
Makesureto checkthefollowingtermsbeforereadingtheusermanual.
Icons that will be used in manual
Icon Term Definition
This involves a function available
BD-ROM
on a BD=ROM.
This involves a function available
BD-RE
on a BD=RE.
This involves a function available
BD-R
on a BD=R.
This involves a function available
on DVD-Video or DVD-R/DVD-RW
DVD-VIDEO
discs that have been recorded
and finalized in Video Mode.
DVD- This involves a function available on
RAM DVD-RAM.(VRmode,StandardVersion2.0only)
DVD- This involves a function available on
RW DVD-RW.(VRmode,orV modeandfinalizedonly)
DVD- This involves a function available on
R DVD-R.(Vmode and finalized only)
This involves a function available
Audio CD on a data CD (CD-R or CD=RW).
This involves a function available
JPEG on CD-R/-RW, DVD-R/-RW/
-RAM discs.
This involves a function available
MP3 on CD-R/-RW, DVD-R/-RW/
-RAM discs.
Thisinvolvesa casewherea functiondoes
Caution
notoperateor settingsmaybe cancelled.
This involves tips or instructions on the
Note page that help each function operate.
One-Touch A function that can be operated
button by using only one button.
iiiii i !iii@ii!;i;ii ilili!ii! i!!!
HH_;
About the use of this user's manual
1) Be sure to be familiar with Safety Instructions before
using this product. (See pages 2~3)
2) If a problemoccurs,checktheTroubleshooting.(Seepages50_51)
Copyright
@2007SemsungElectronicsOo,Ltd
Allrightsreserved:Nopartorwholeofthisusersmanualmaybereproducedor
copiedwithoutthepriorwrittenpermissionofSamsungBectronicsCo,Ltd
English - 5
iiiiiiiiiiiiiiiiiiiiiiiiiii i!i!iiiiii!i!iill
iiiiiiiiiiiiiiiiiiiiiiiiiiii!;_i!!i;;i_:_iiii
iiiiiiii!_iii!_iiiiiii!_iiiii:ii!:
iiiiiiiiiiiiiiiiiiiiiii_i_ii!i!iiiiiiii_iiiiiiii_i!,_i!,_!ii
iiiiiiiiiiiiiiiiiiiiiiiiiii_i,!_ii_ii:i_,,i_iiiiiiiiiiil

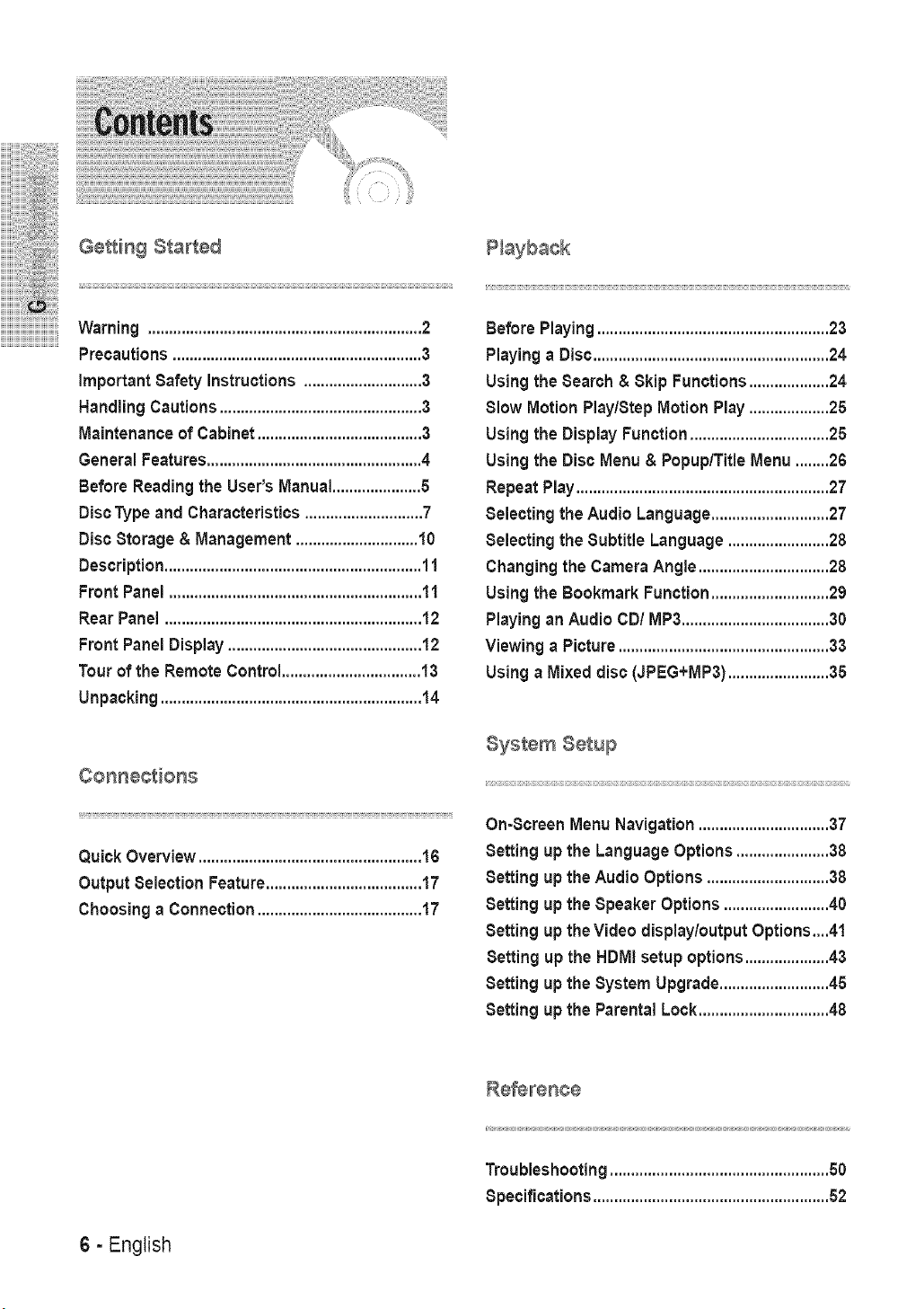

Getting Started
Warning .................................................................2
Precautions ...........................................................3
importantSafety instructions ............................3
Handling Cautions ................................................3
Maintenanceof Cabinet .......................................3
General Features...................................................4
Before Reading the User'sManual.....................5
Disc Type and Characteristics ............................7

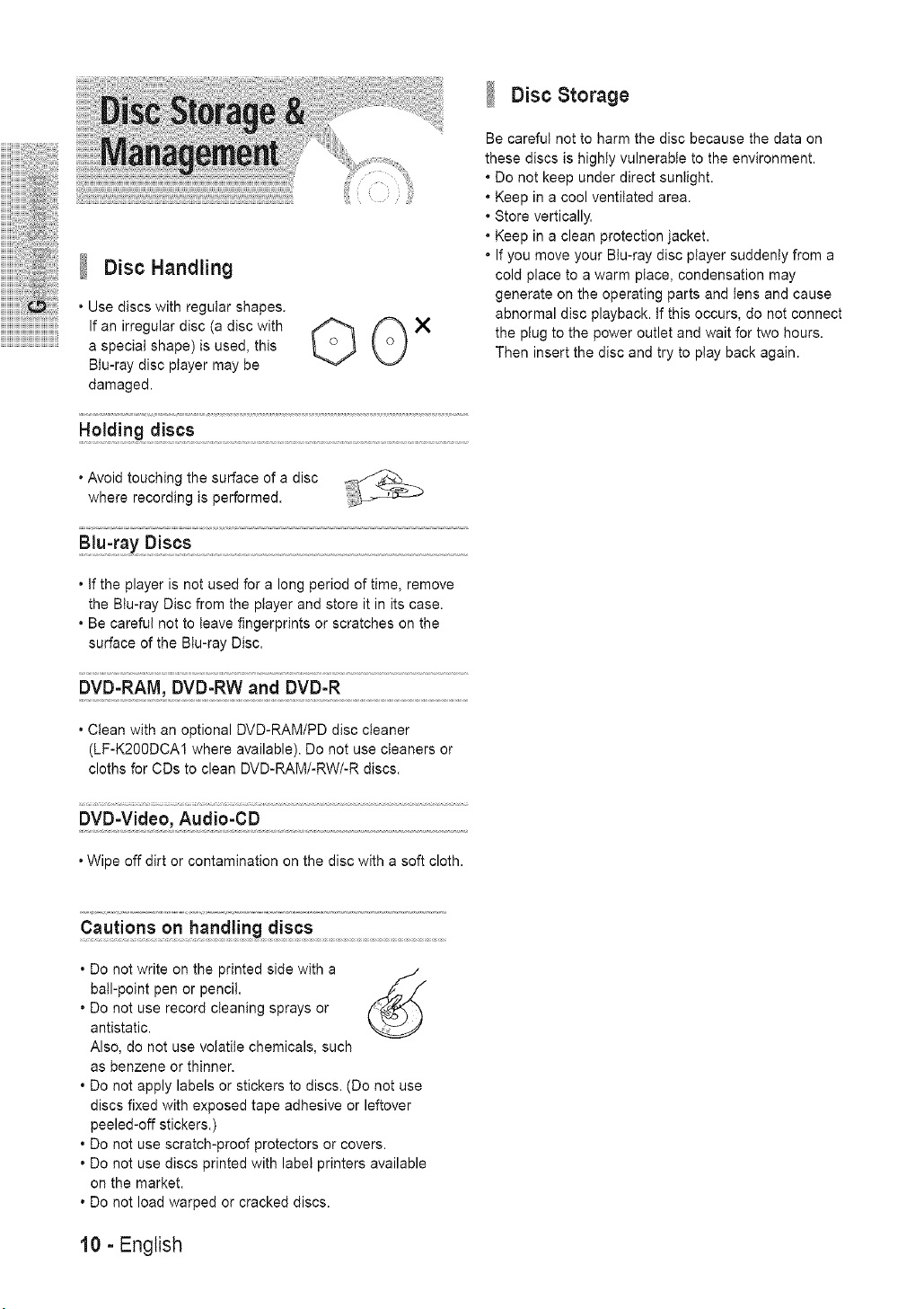

DiscStorage & Management .............................10
Description .............................................................11

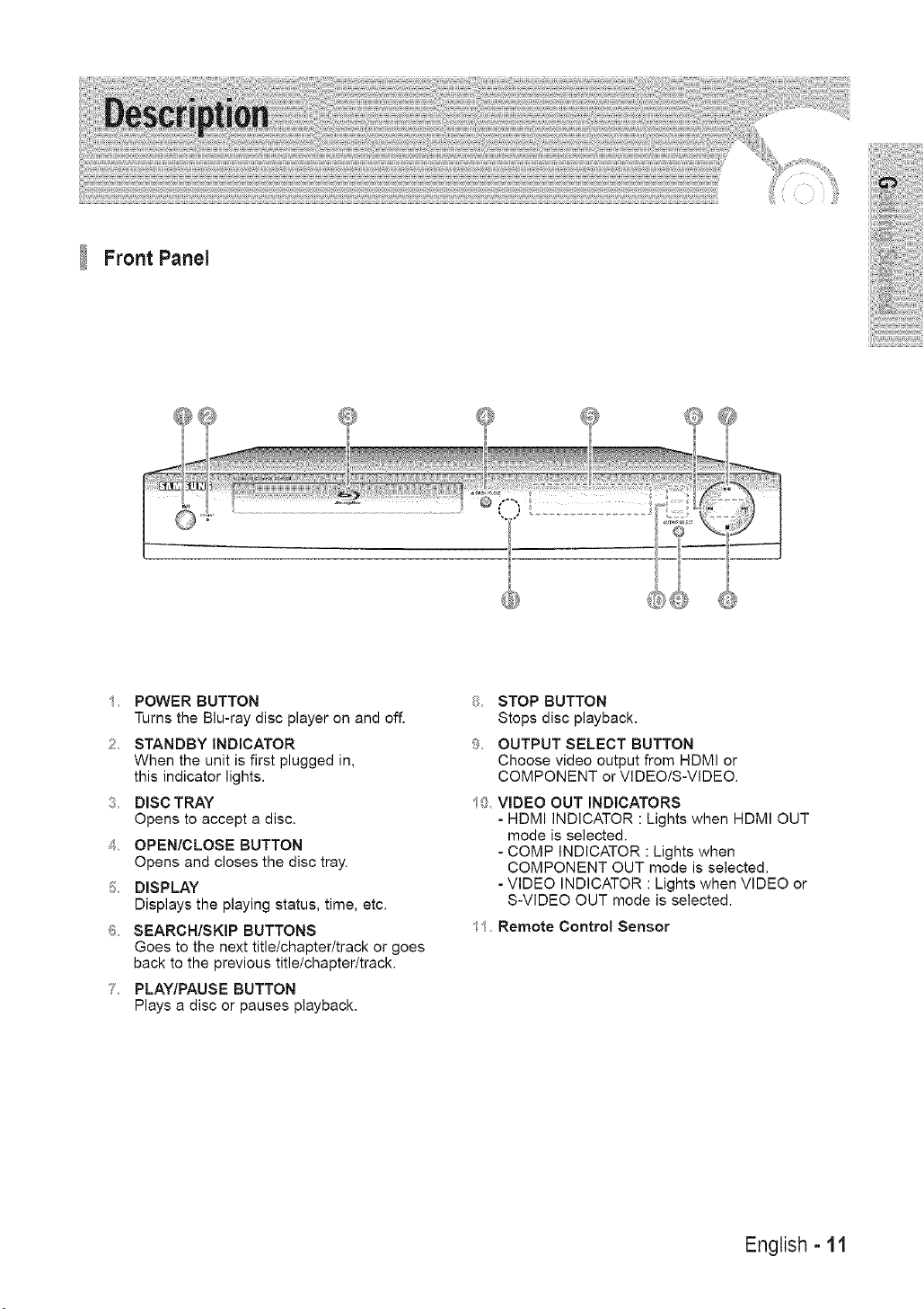

Front Panel ............................................................11

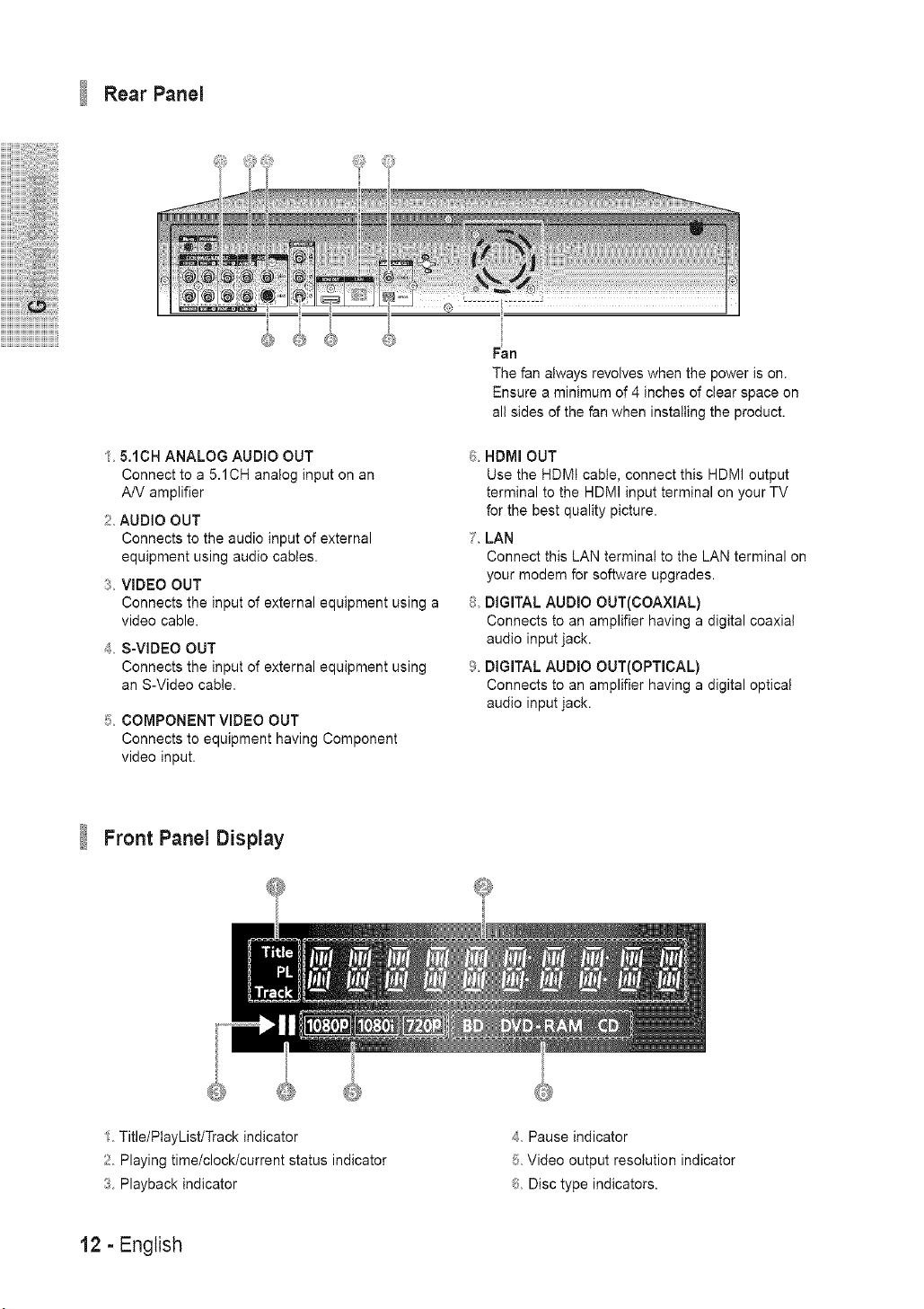

Rear Panel .............................................................12
FrontPanel Display..............................................12

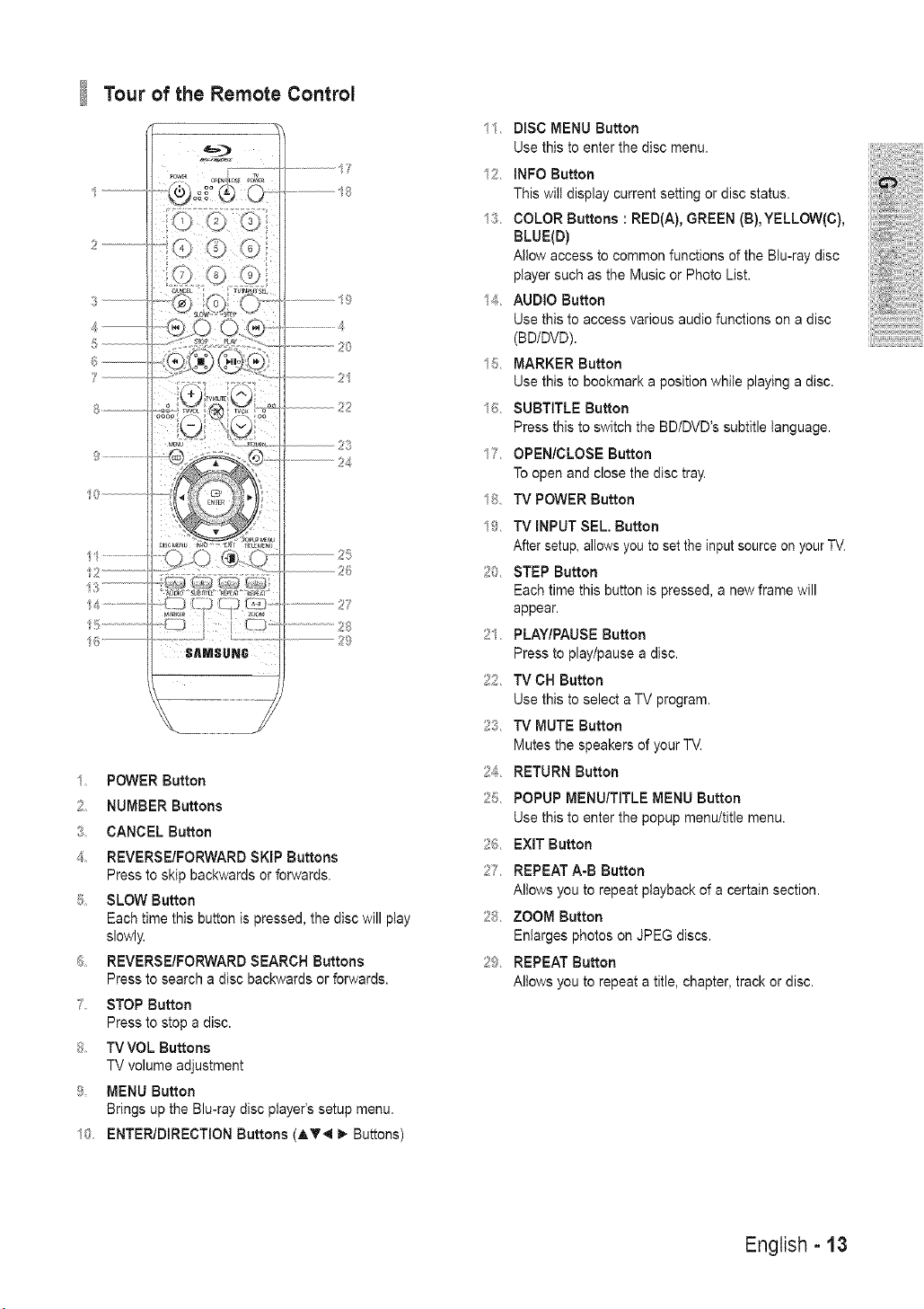

Tour of the Remote Control .................................13

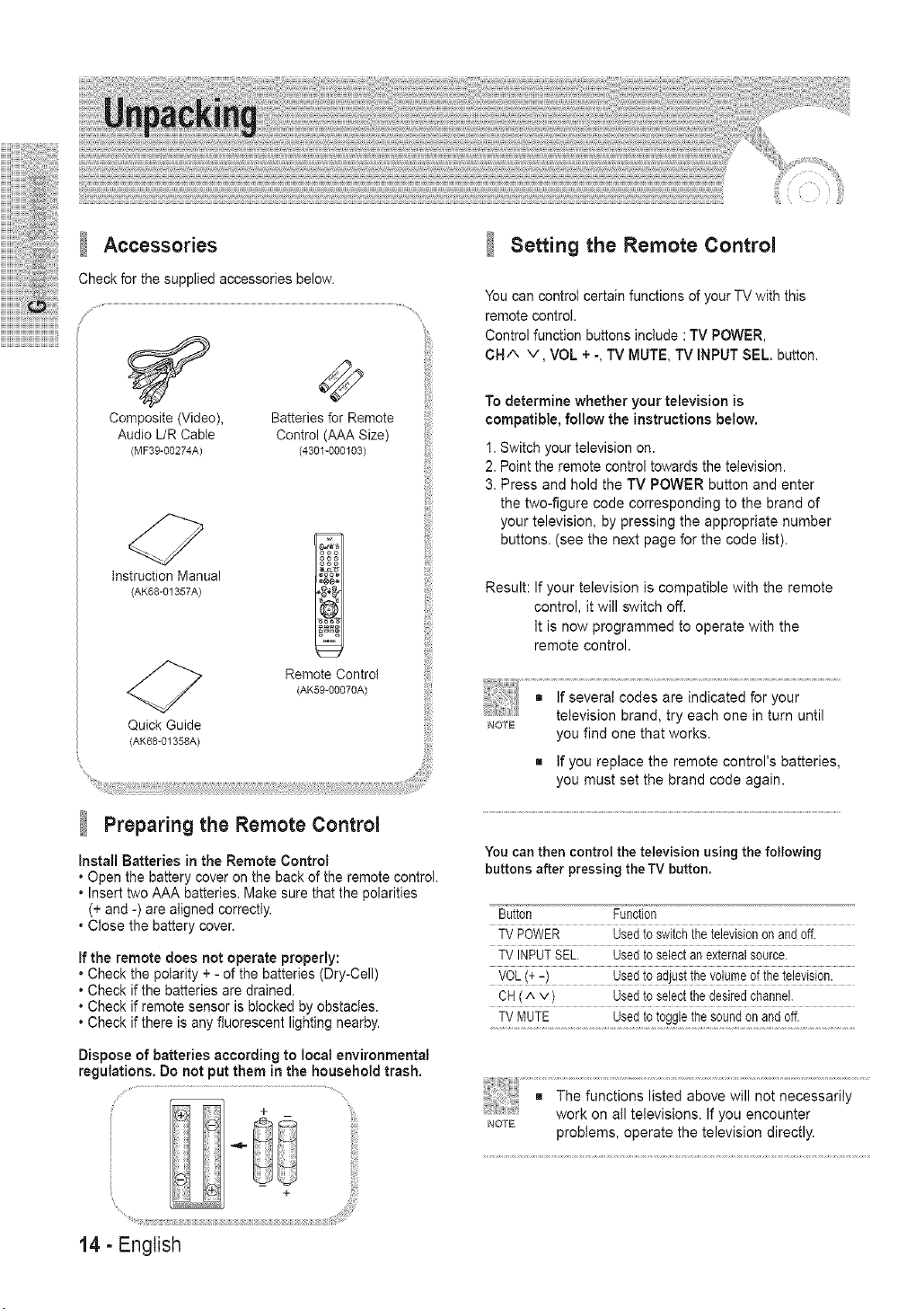

Unpacking..............................................................14

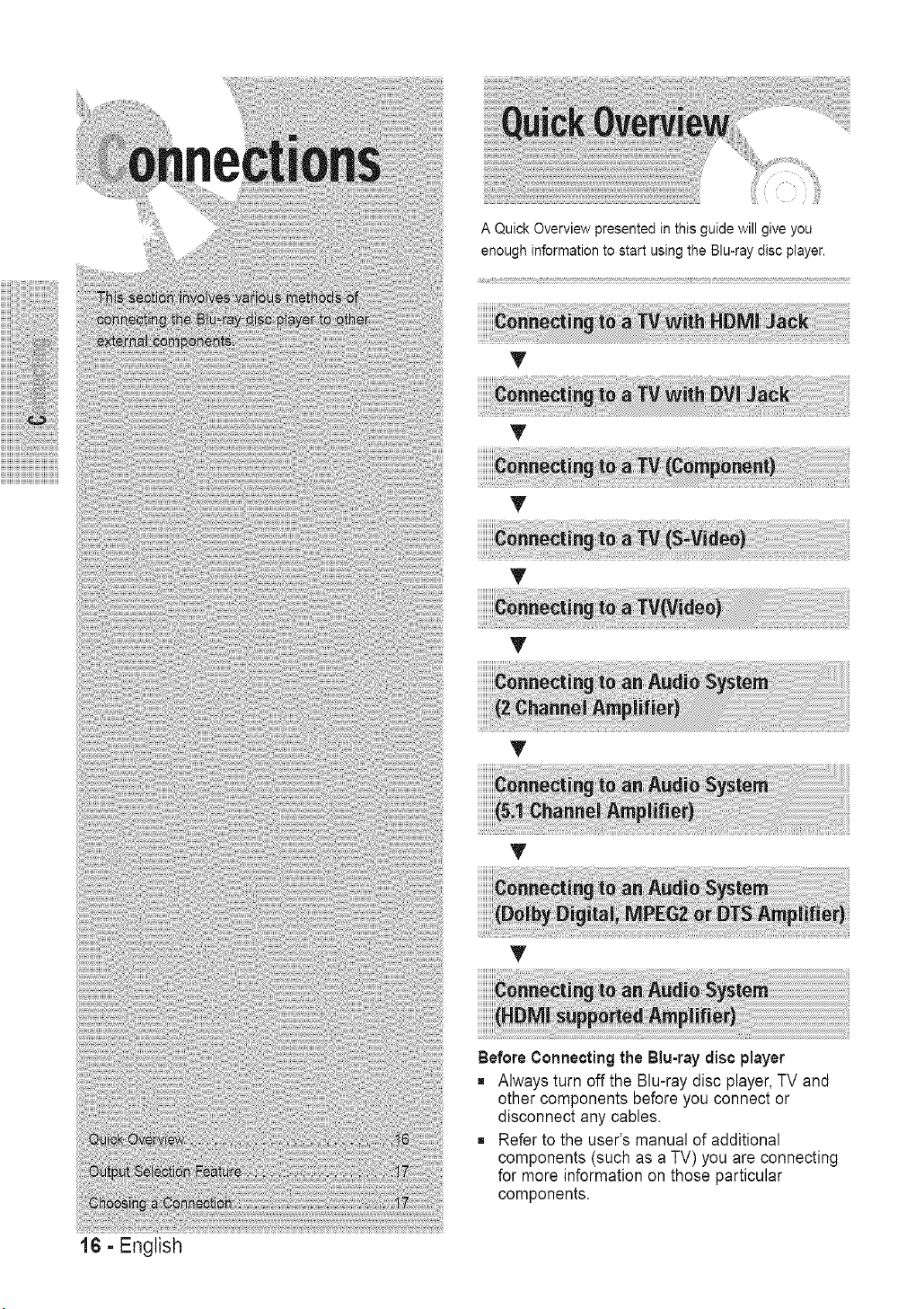

Quick Overview.....................................................16

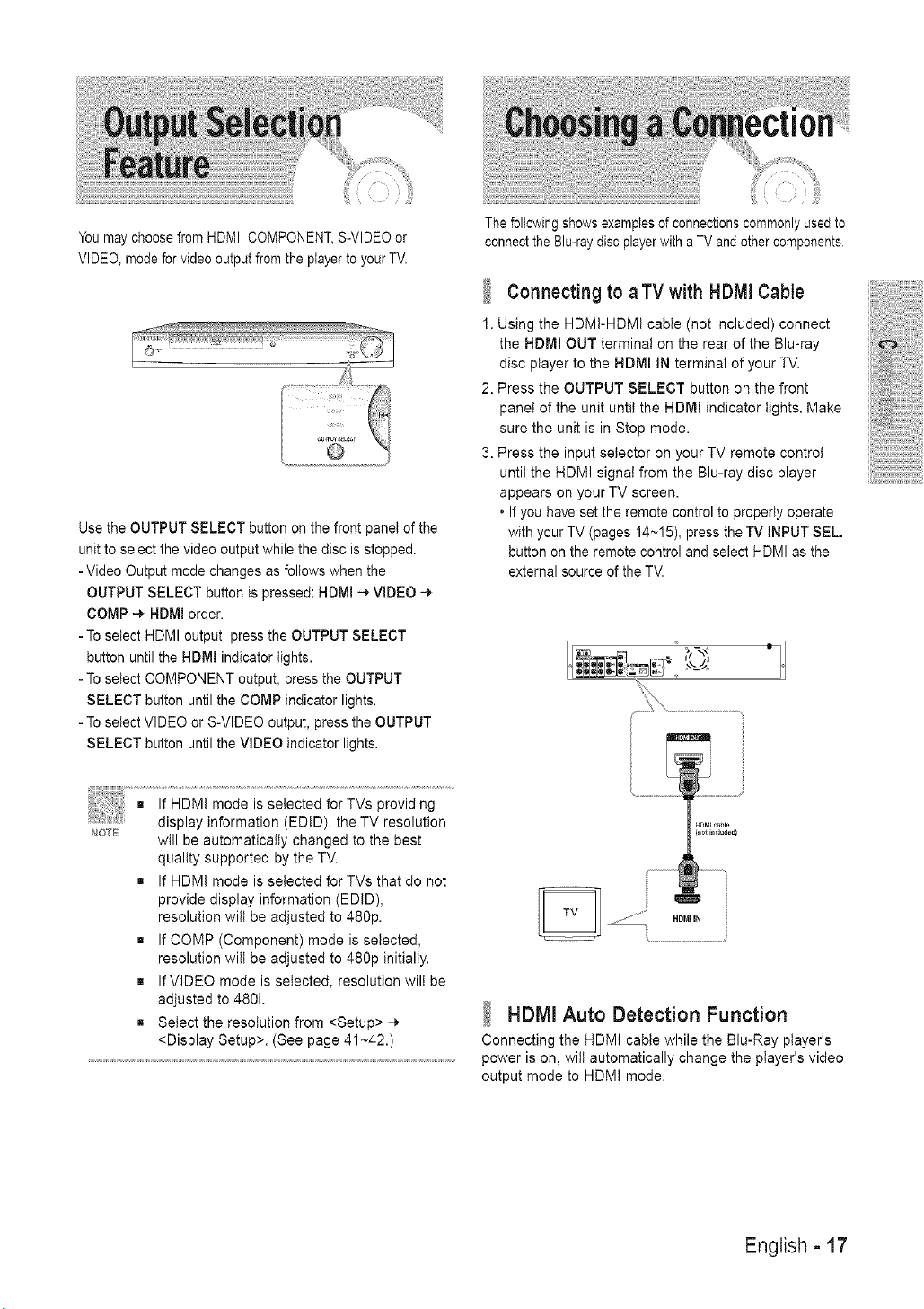

Output Selection Feature .....................................17
Choosing a Connection .......................................17
Playback

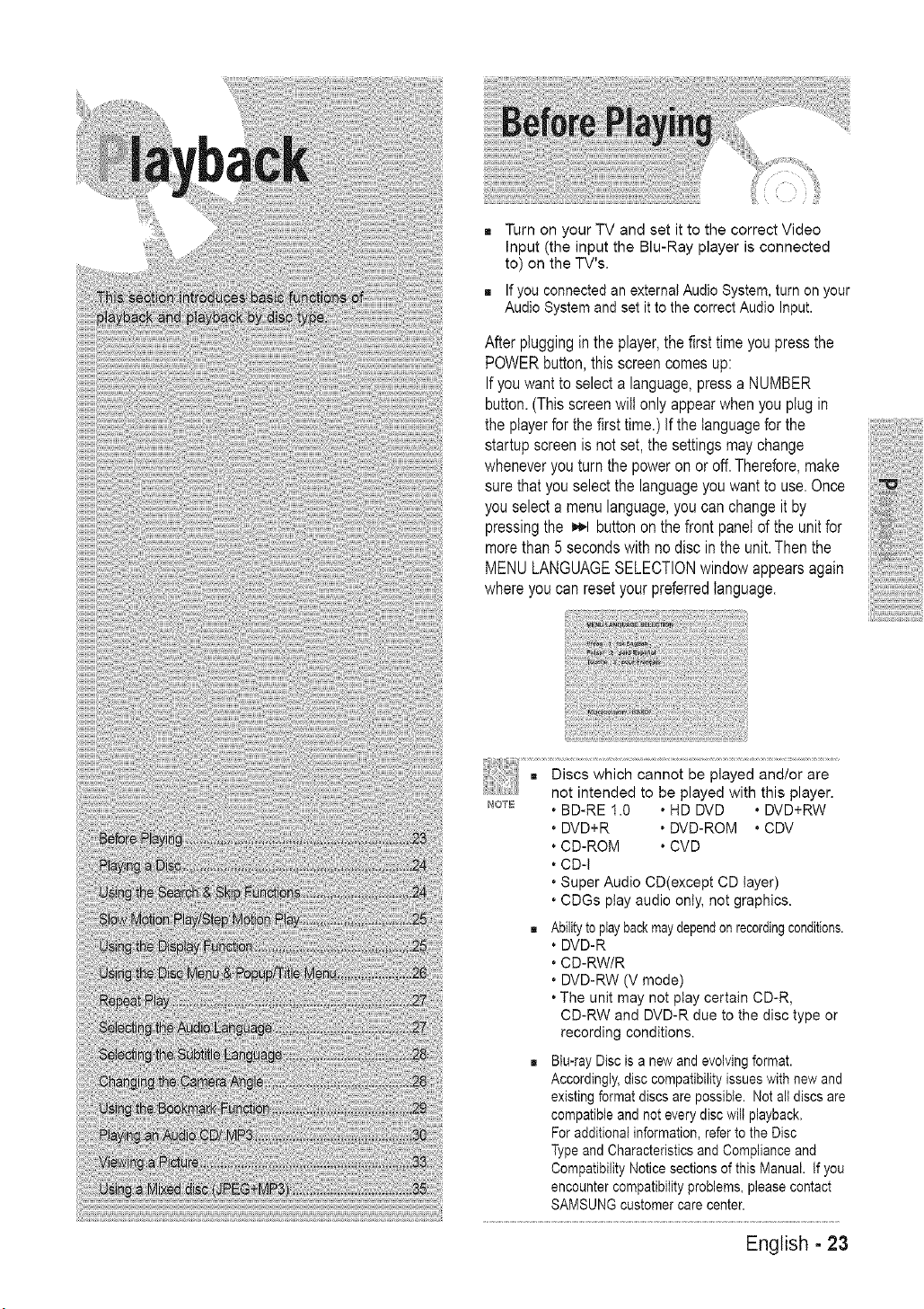

Before Playing .......................................................23

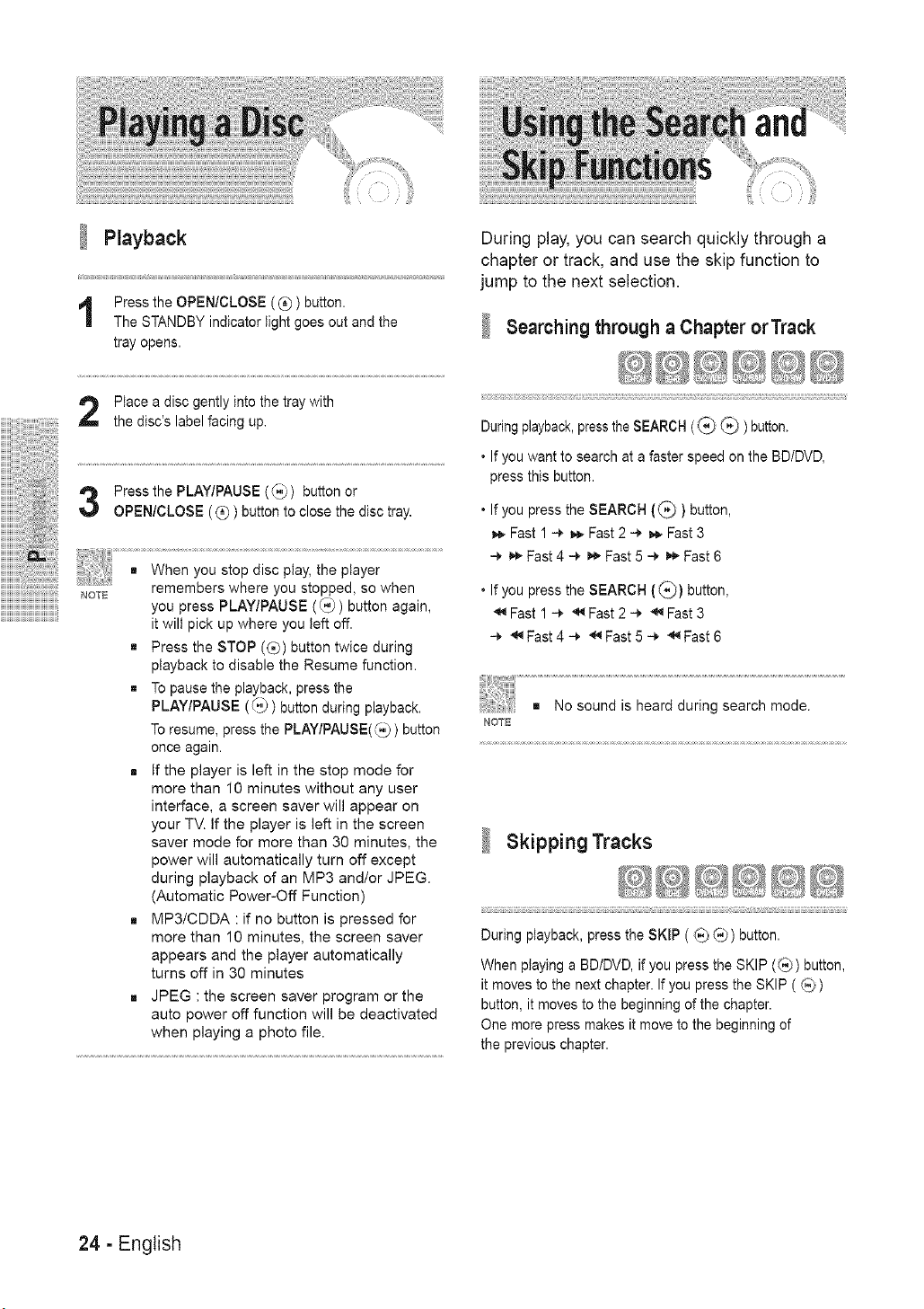

Playinga Disc........................................................24
Usingthe Search & Skip Functions...................24

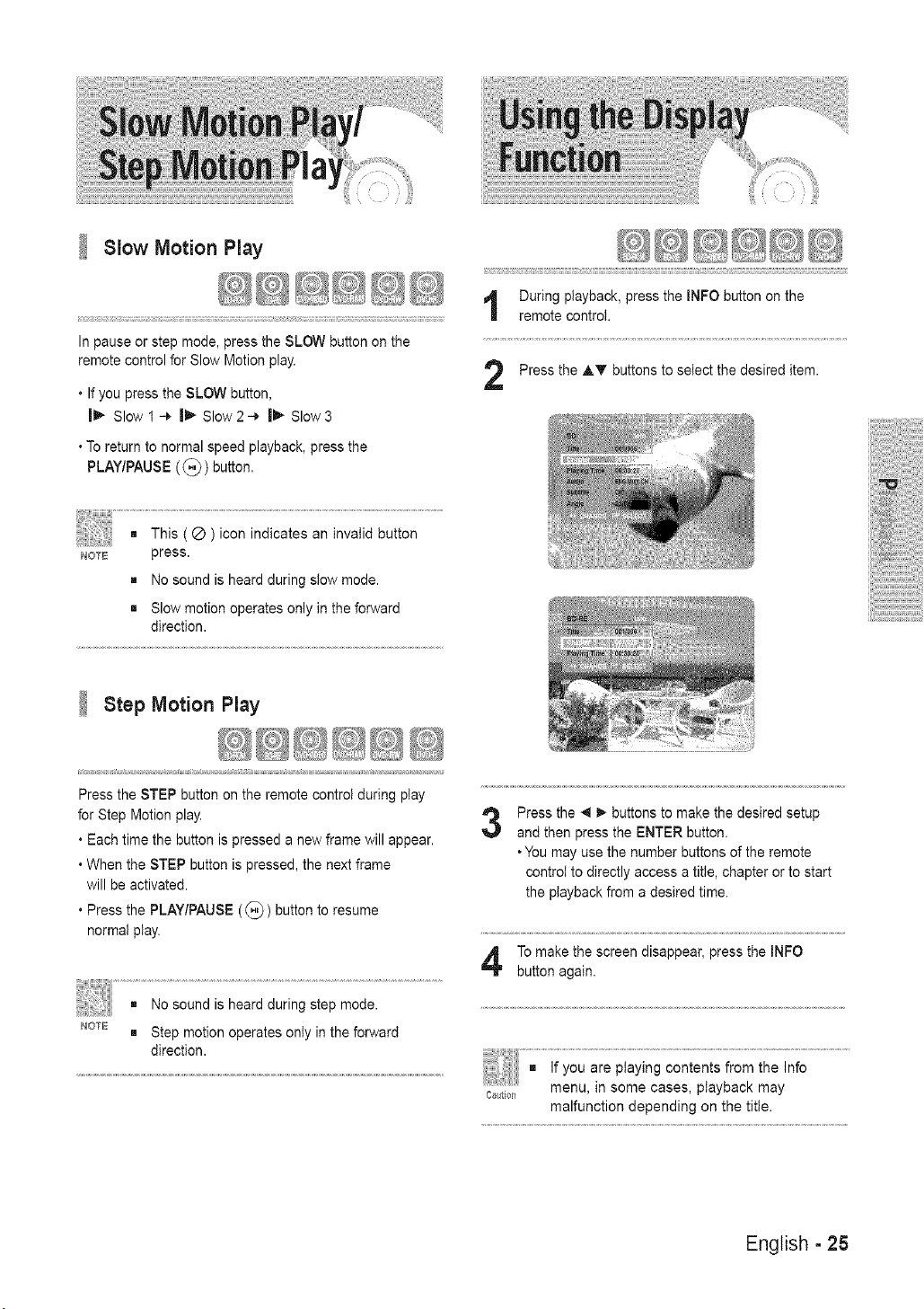

Slow Motion Play/Step Motion Play ...................25
Usingthe Display Function .................................25

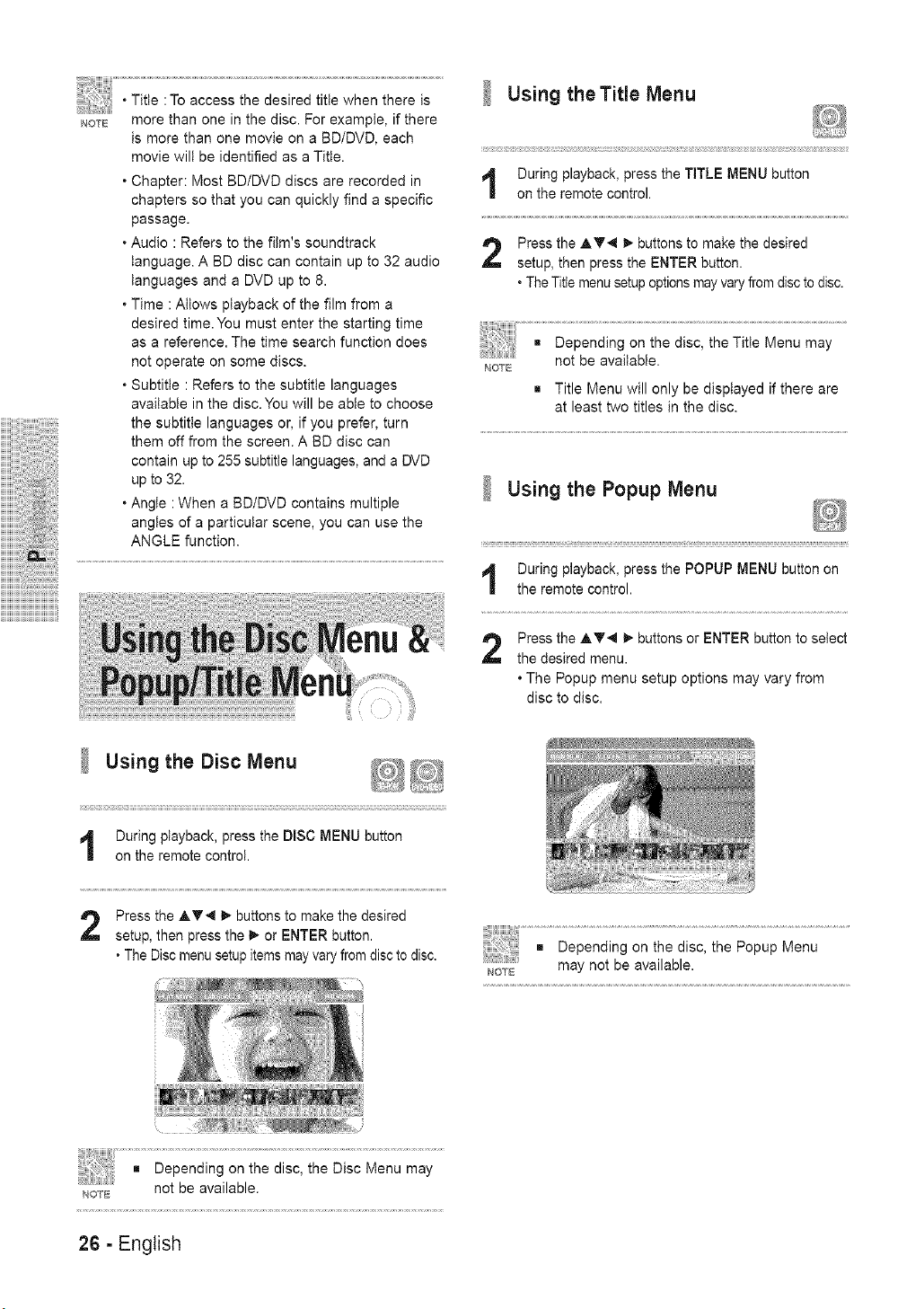

Usingthe Disc Menu & Popup/Title Menu ........26

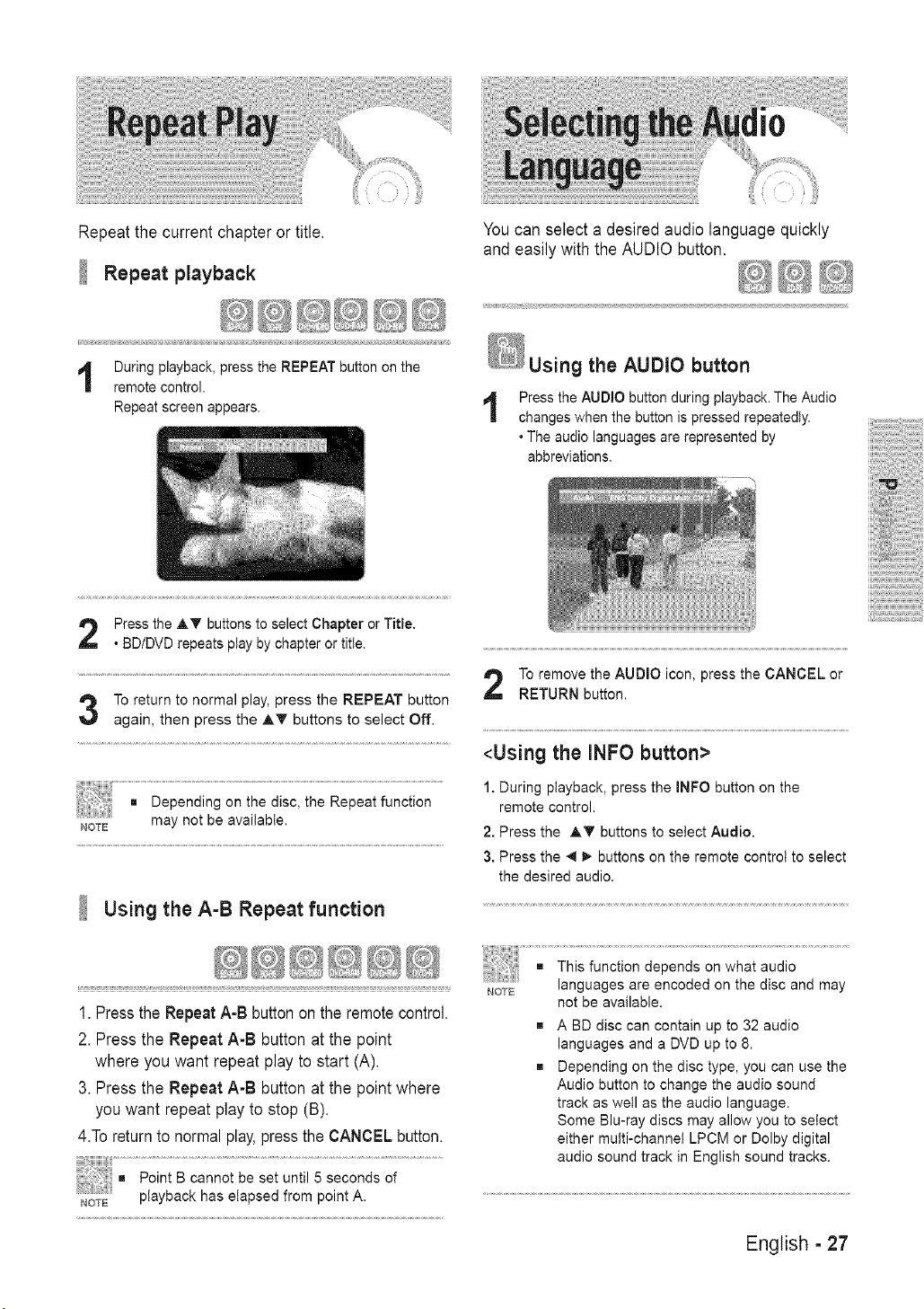

RepeatPlay ............................................................27
Selecting the Audio Language............................27

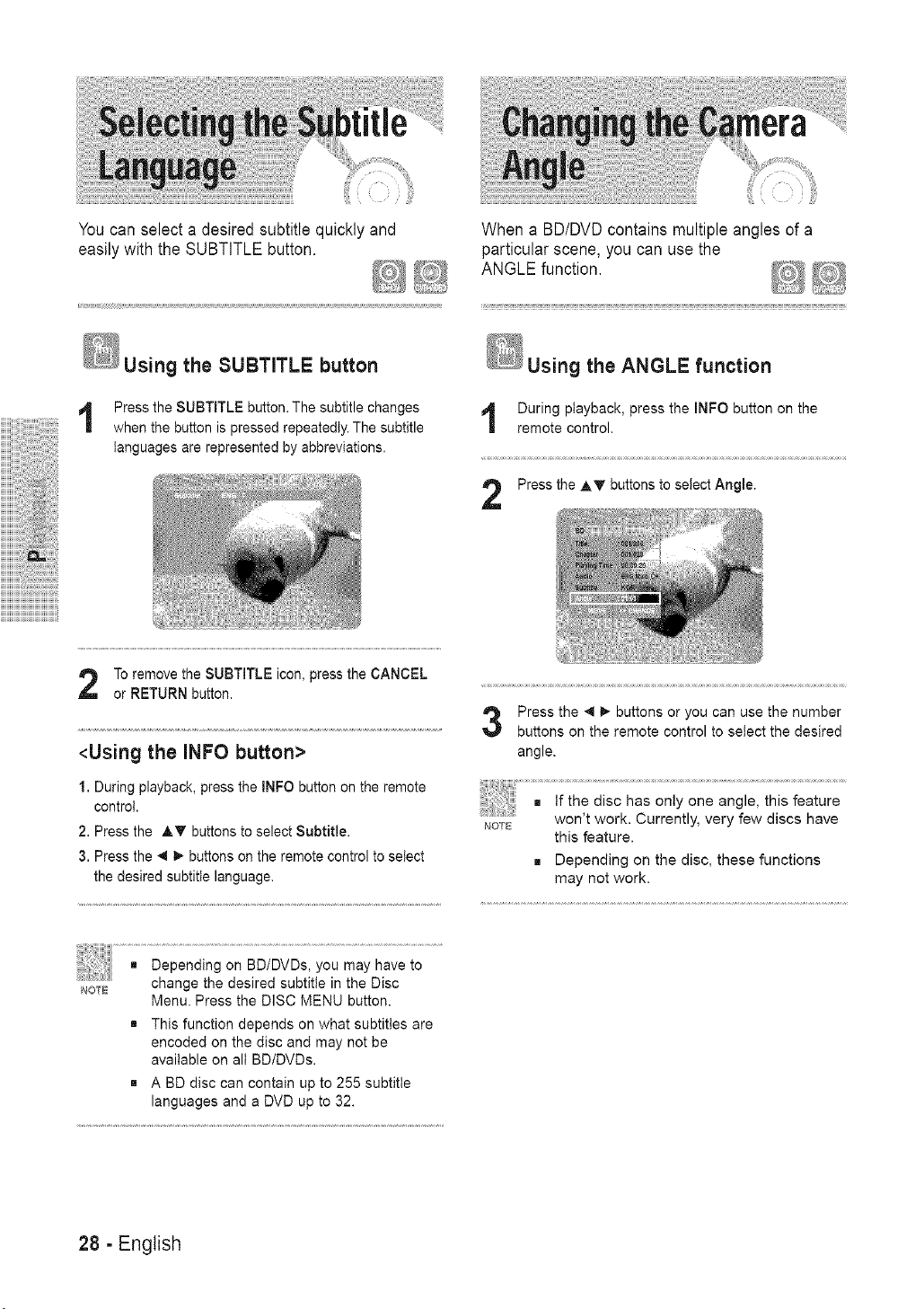

Selecting the Subtitle Language ........................28
Changing the Camera Angle ...............................28

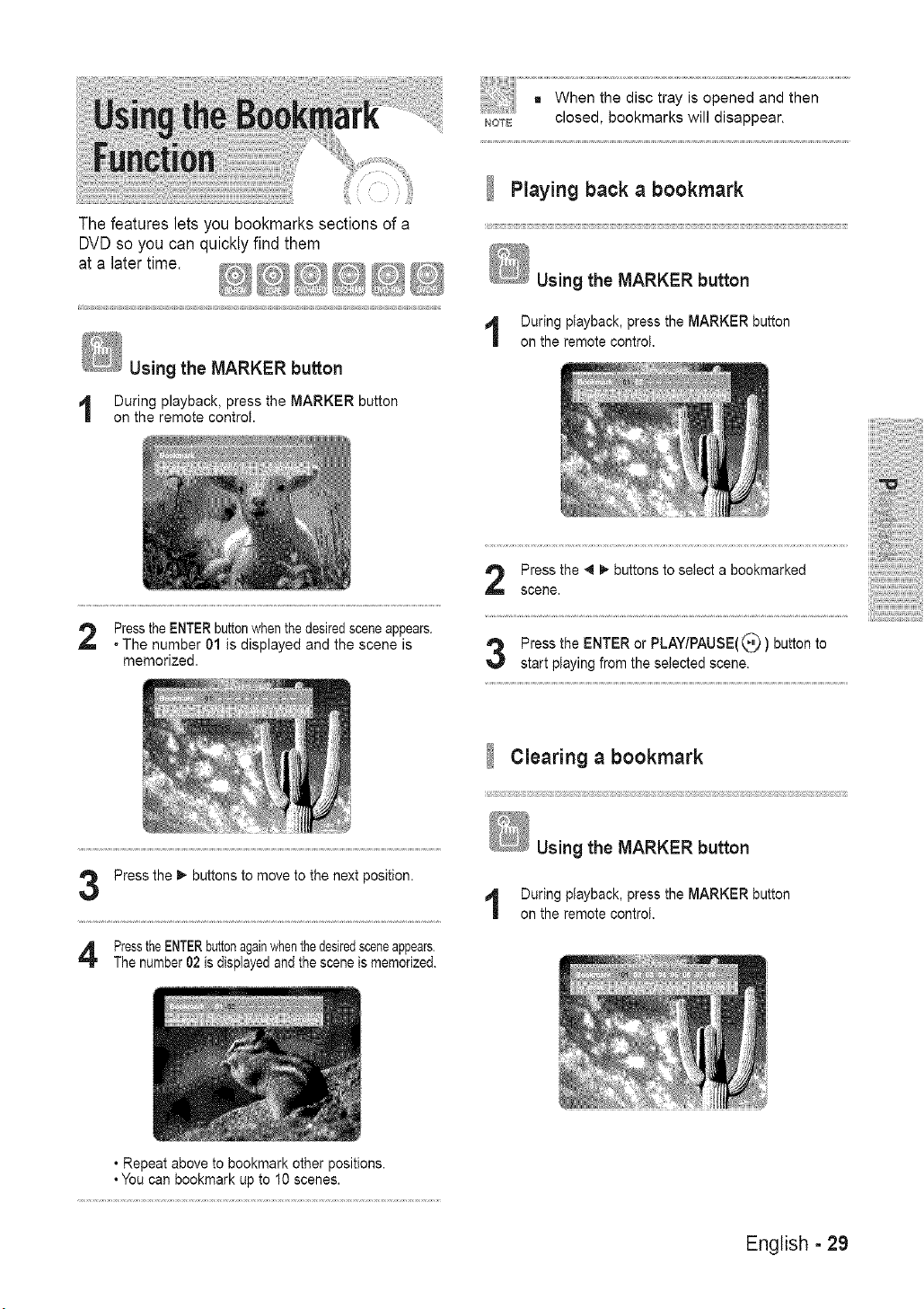

Usingthe Bookmark Function ............................29

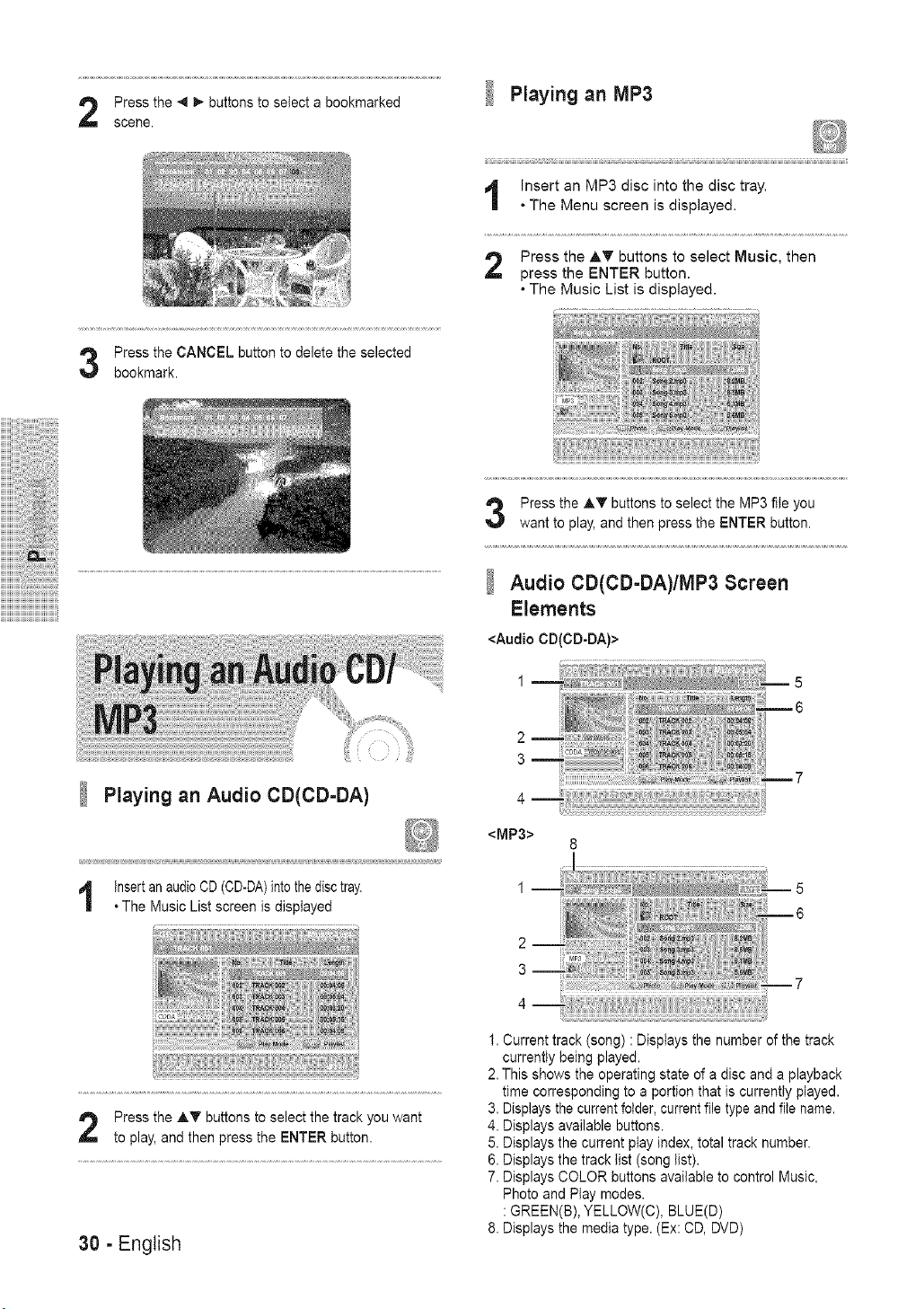

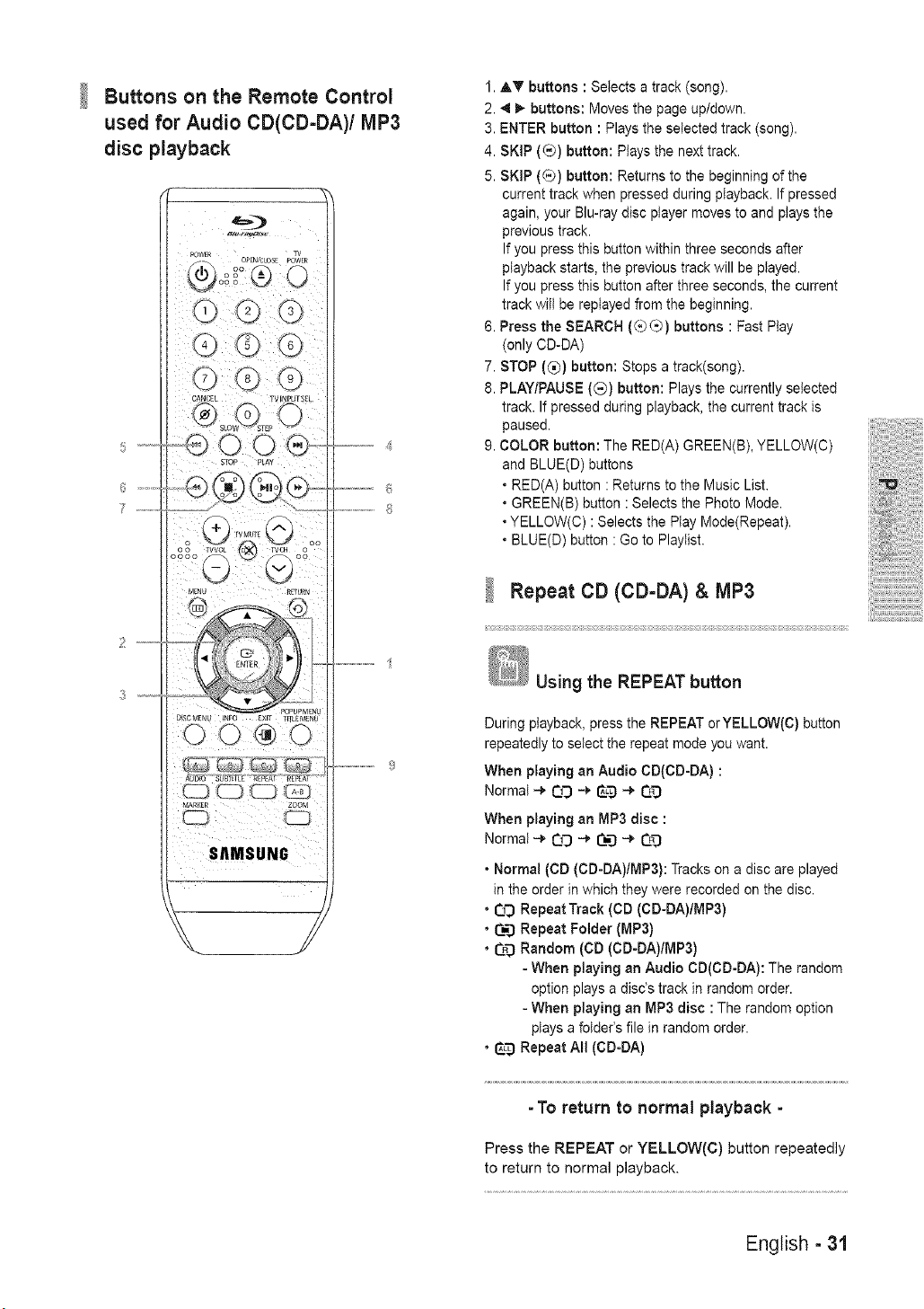

Playing an Audio CD/MP3 ...................................30

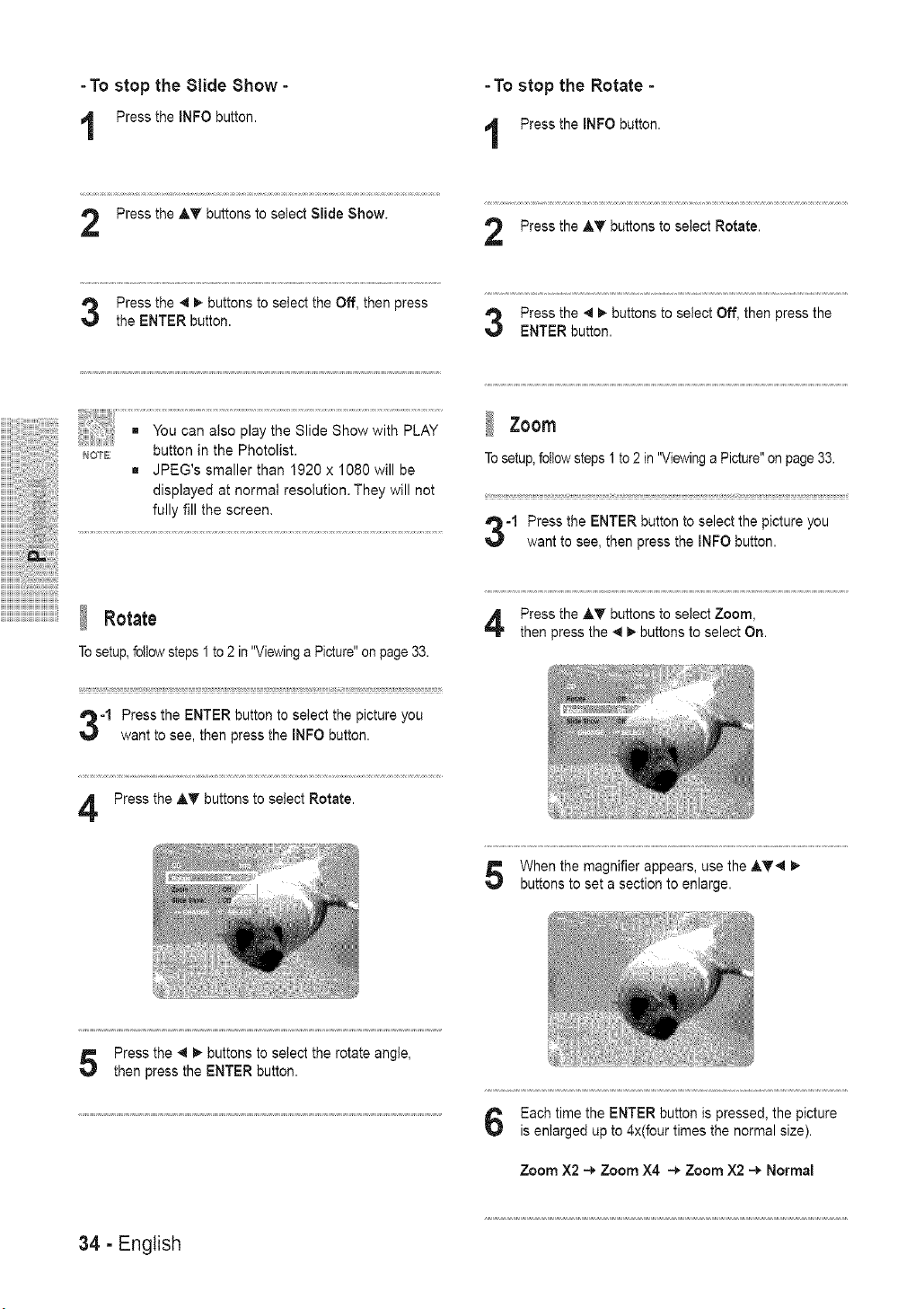

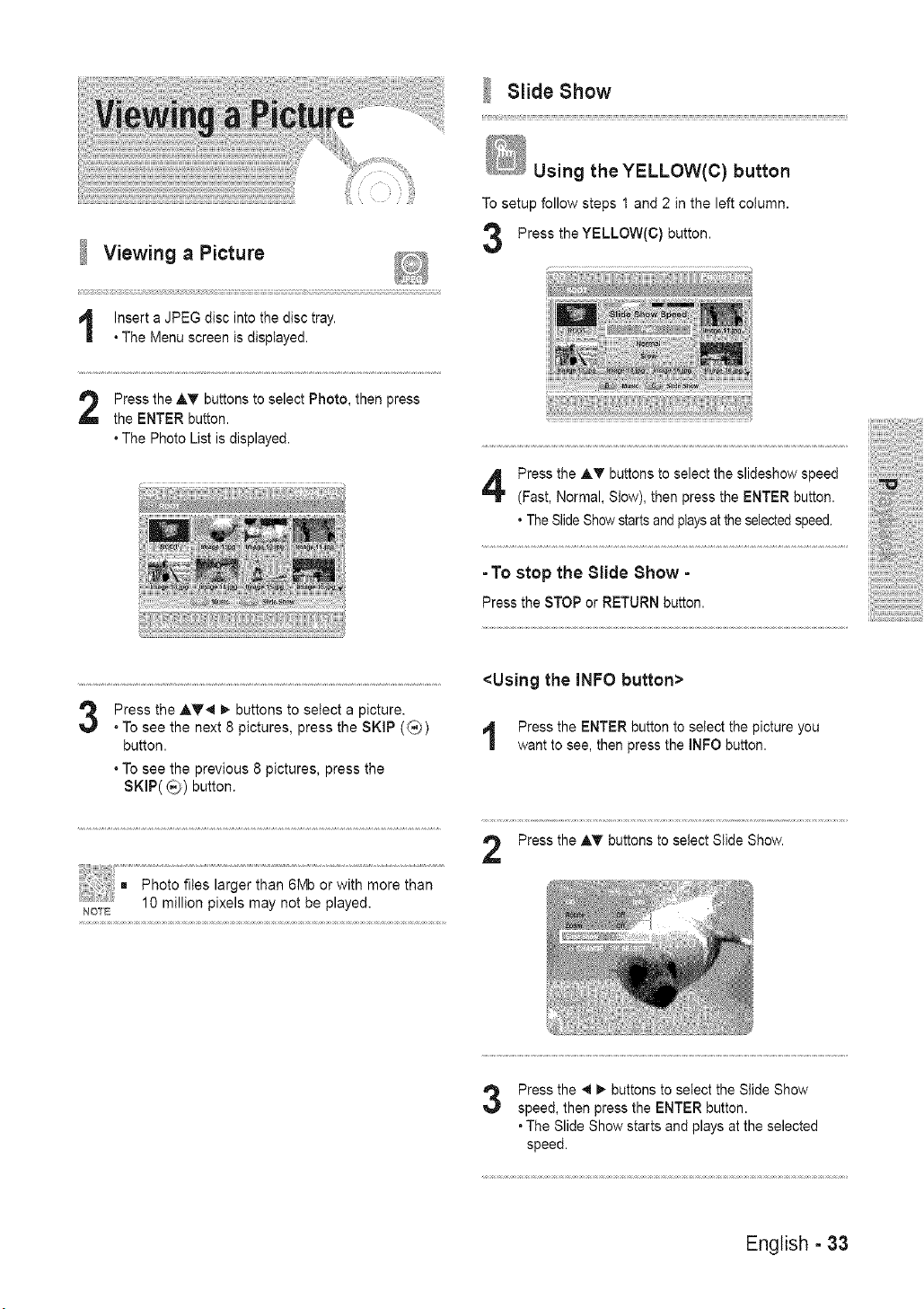

Viewing a Picture ..................................................33

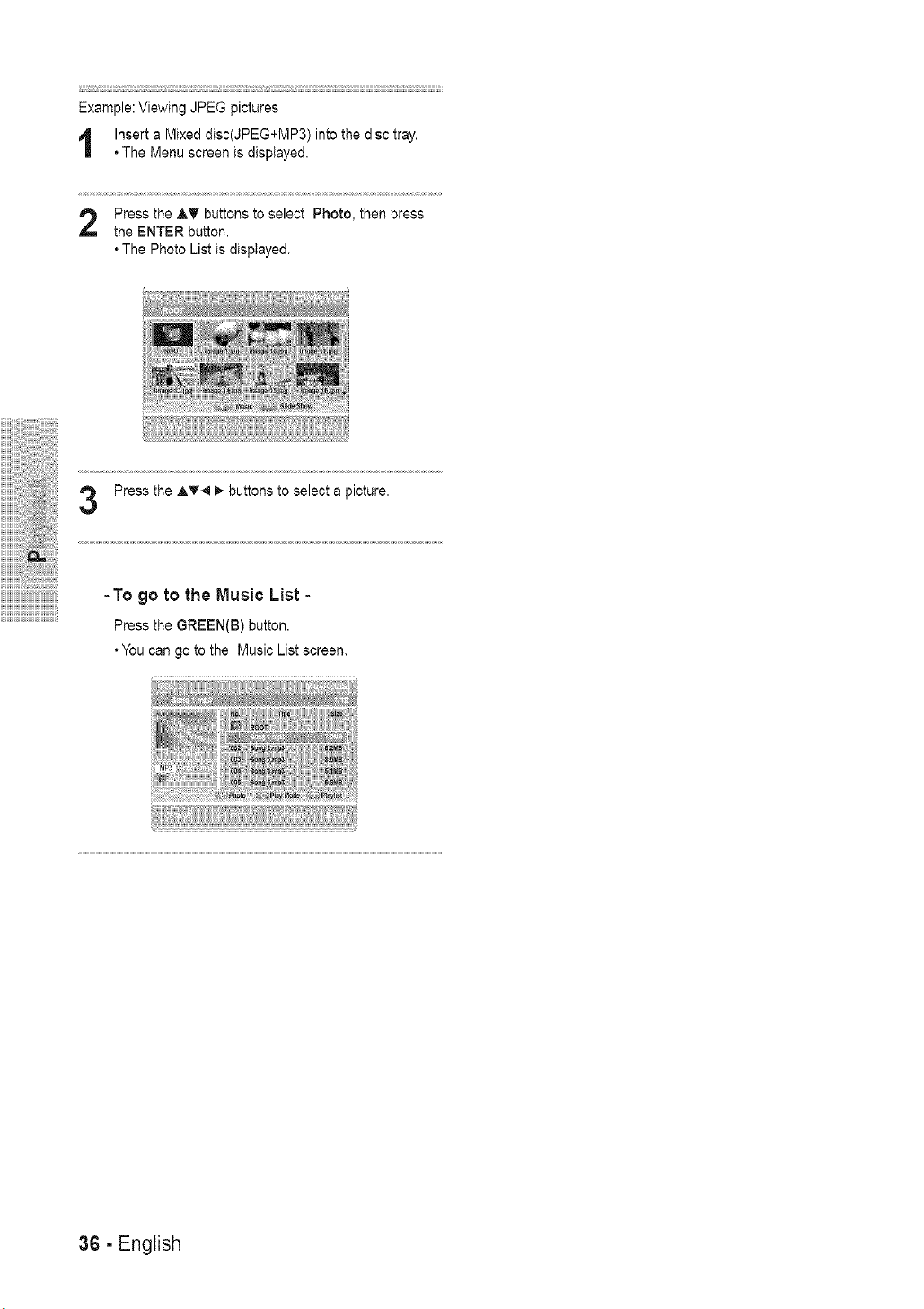

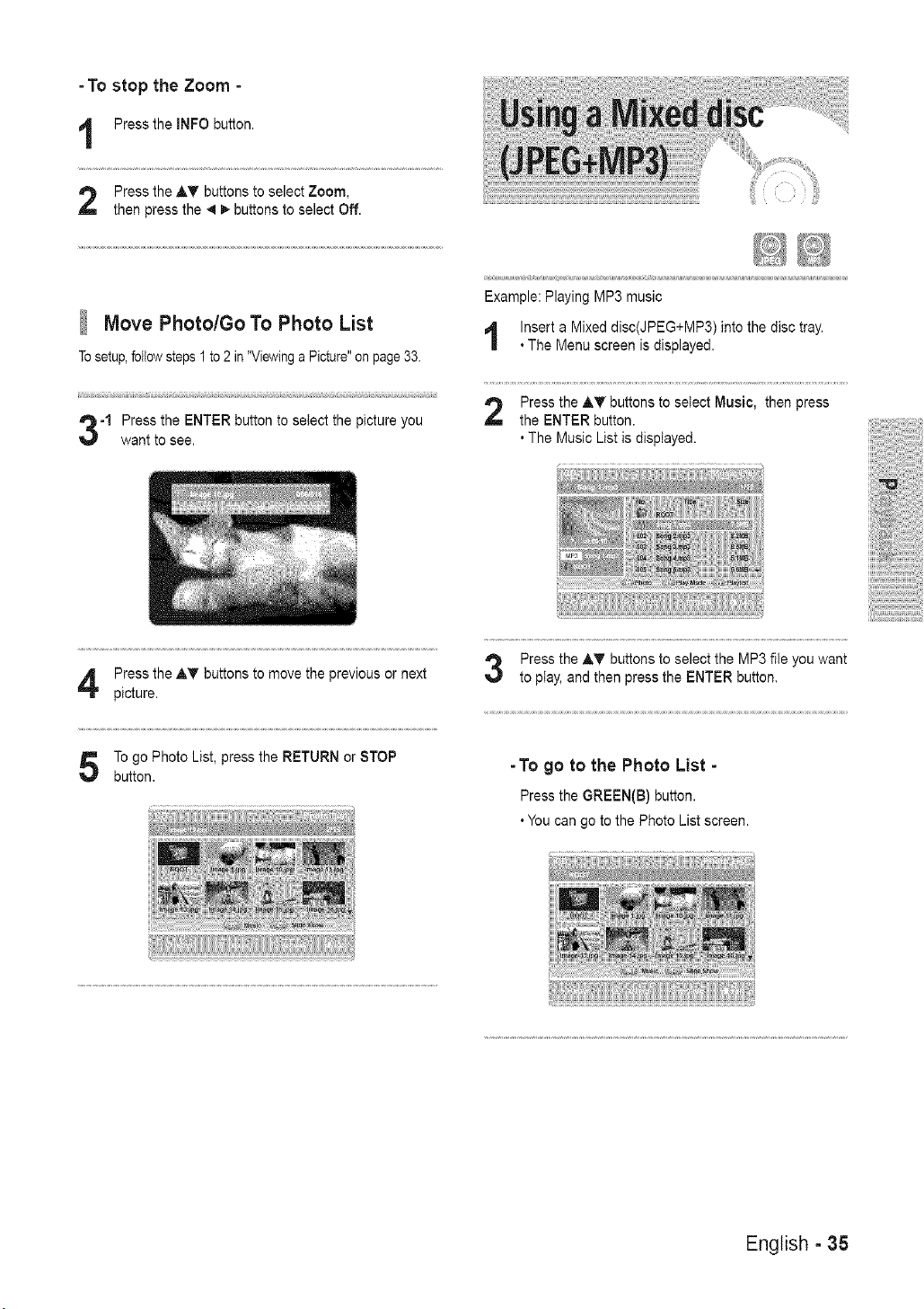

Using a Mixed disc (JPEG+MP3)........................35
System Setup

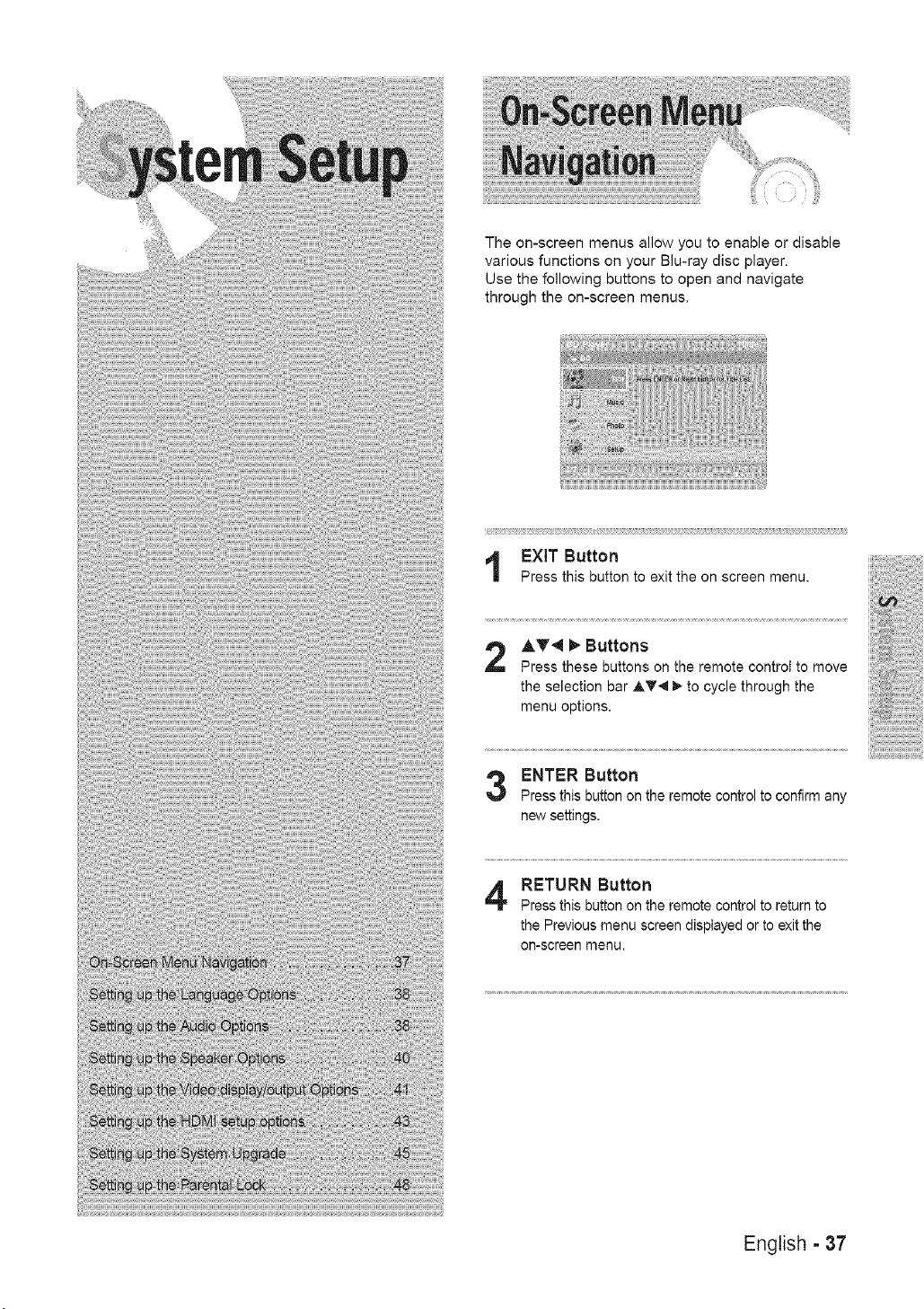

On-Screen Menu Navigation ...............................37

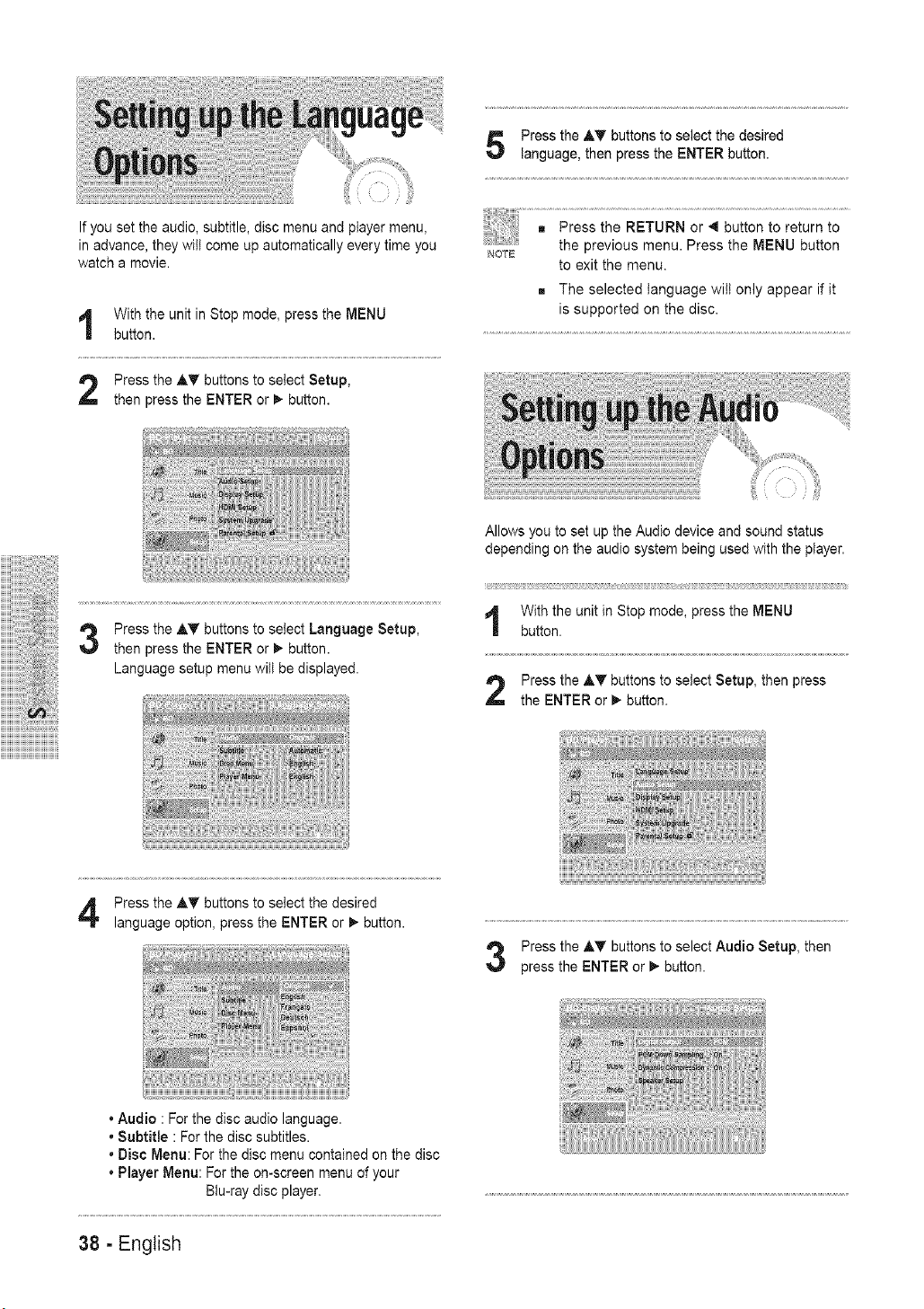

Setting up the Language Options ......................38

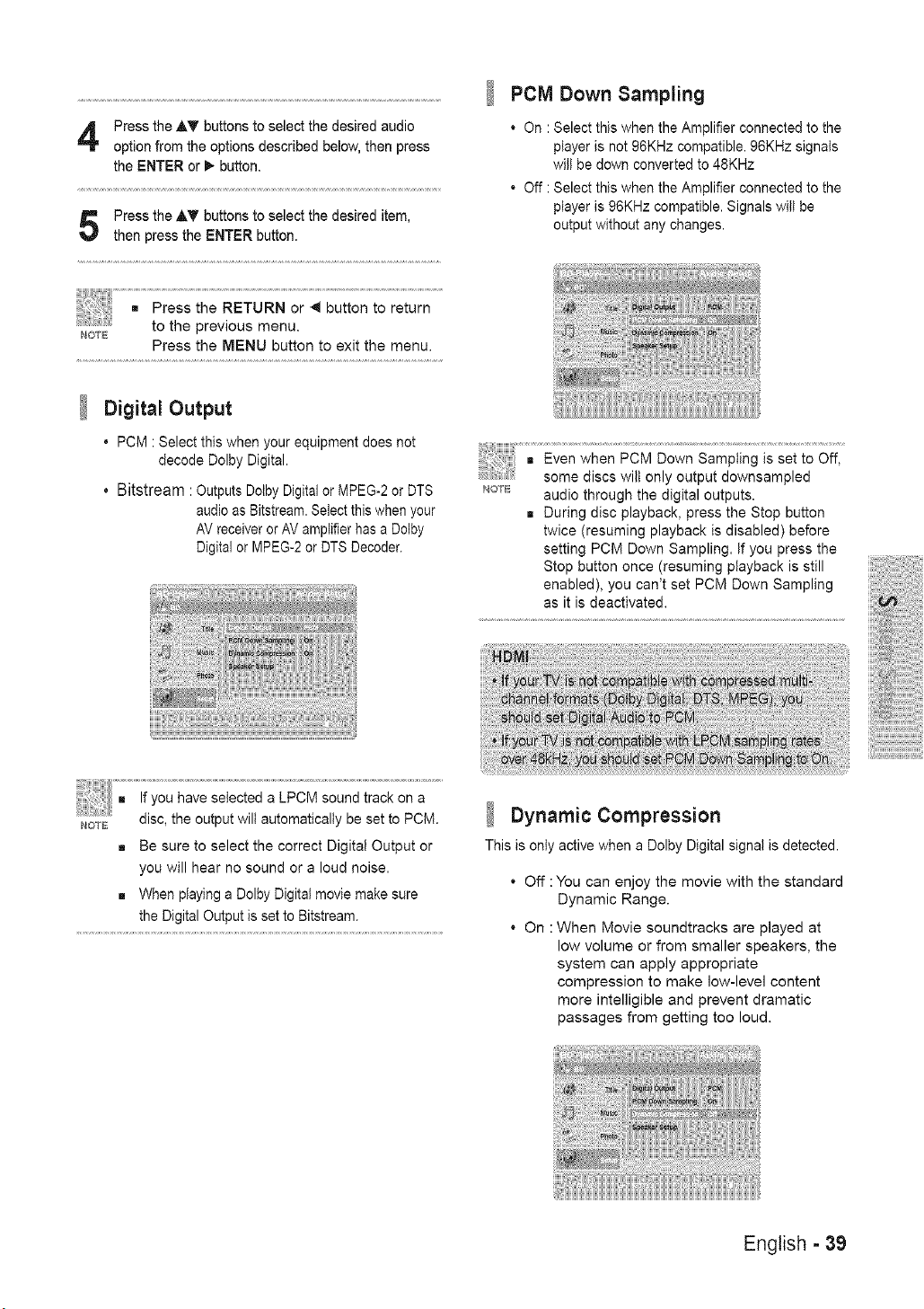

Setting up the Audio Options .............................38

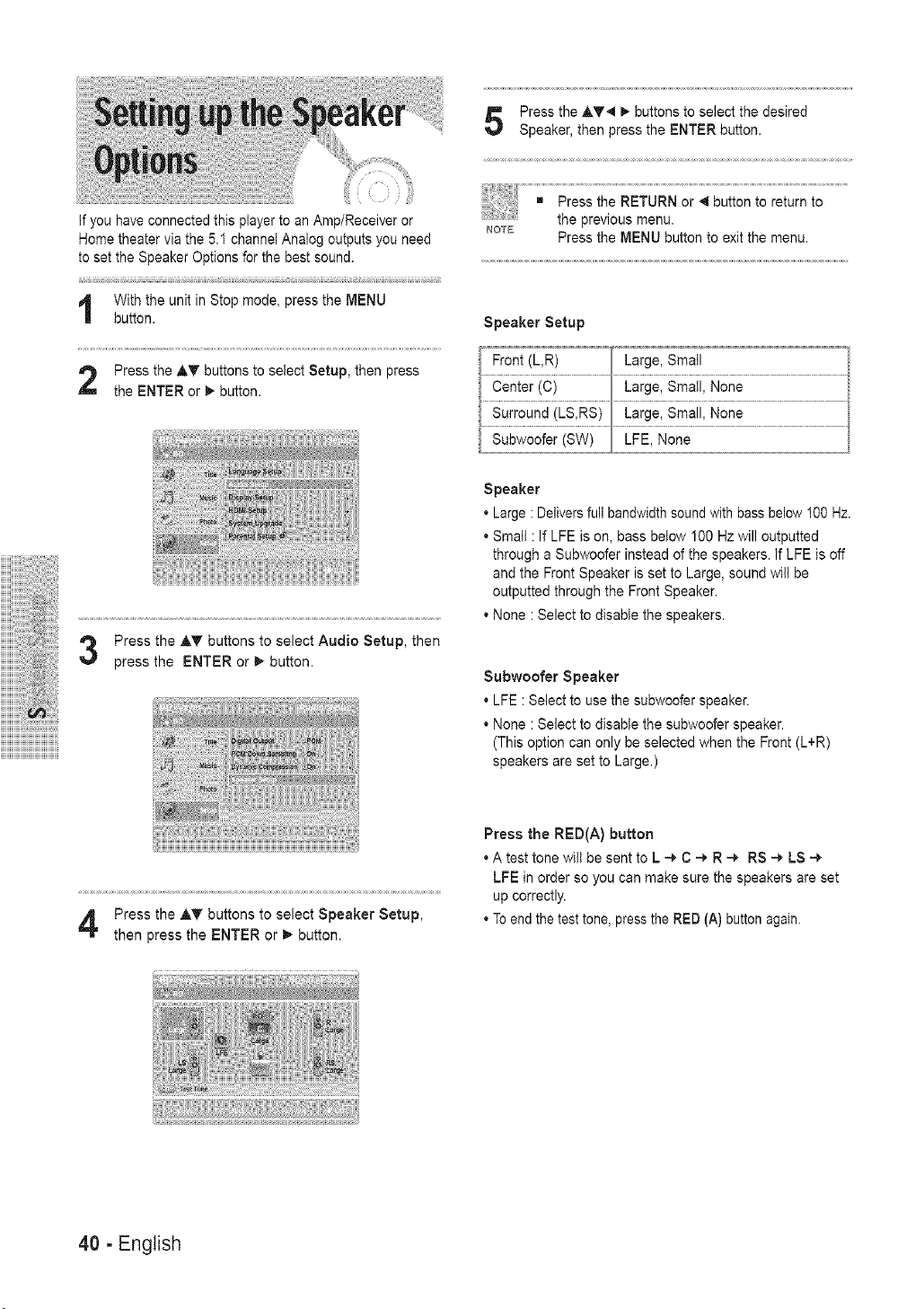

Setting up the Speaker Options .........................40

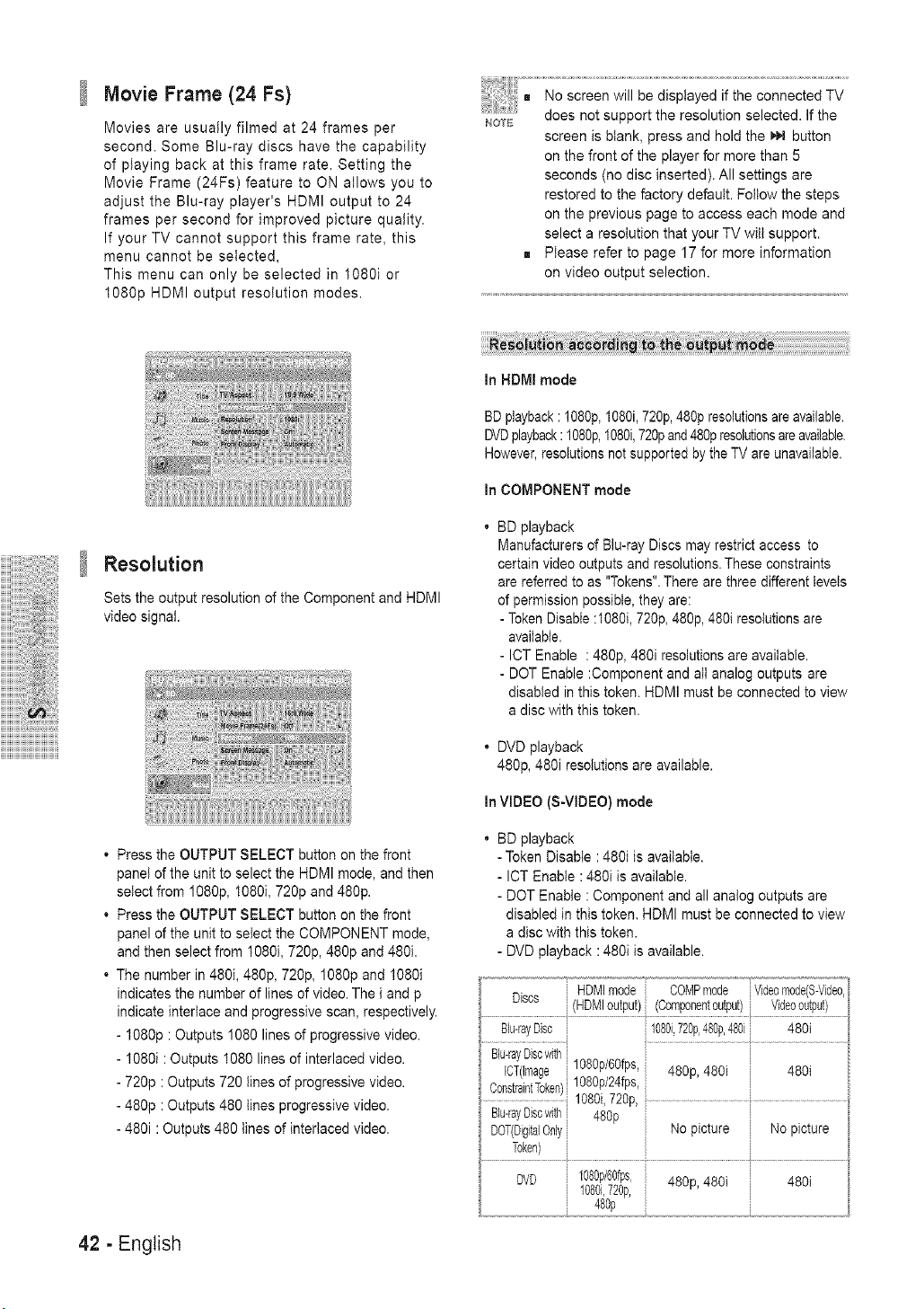

Setting up the Video display/outputOptions....41
Setting up the HDMI setup options ....................43

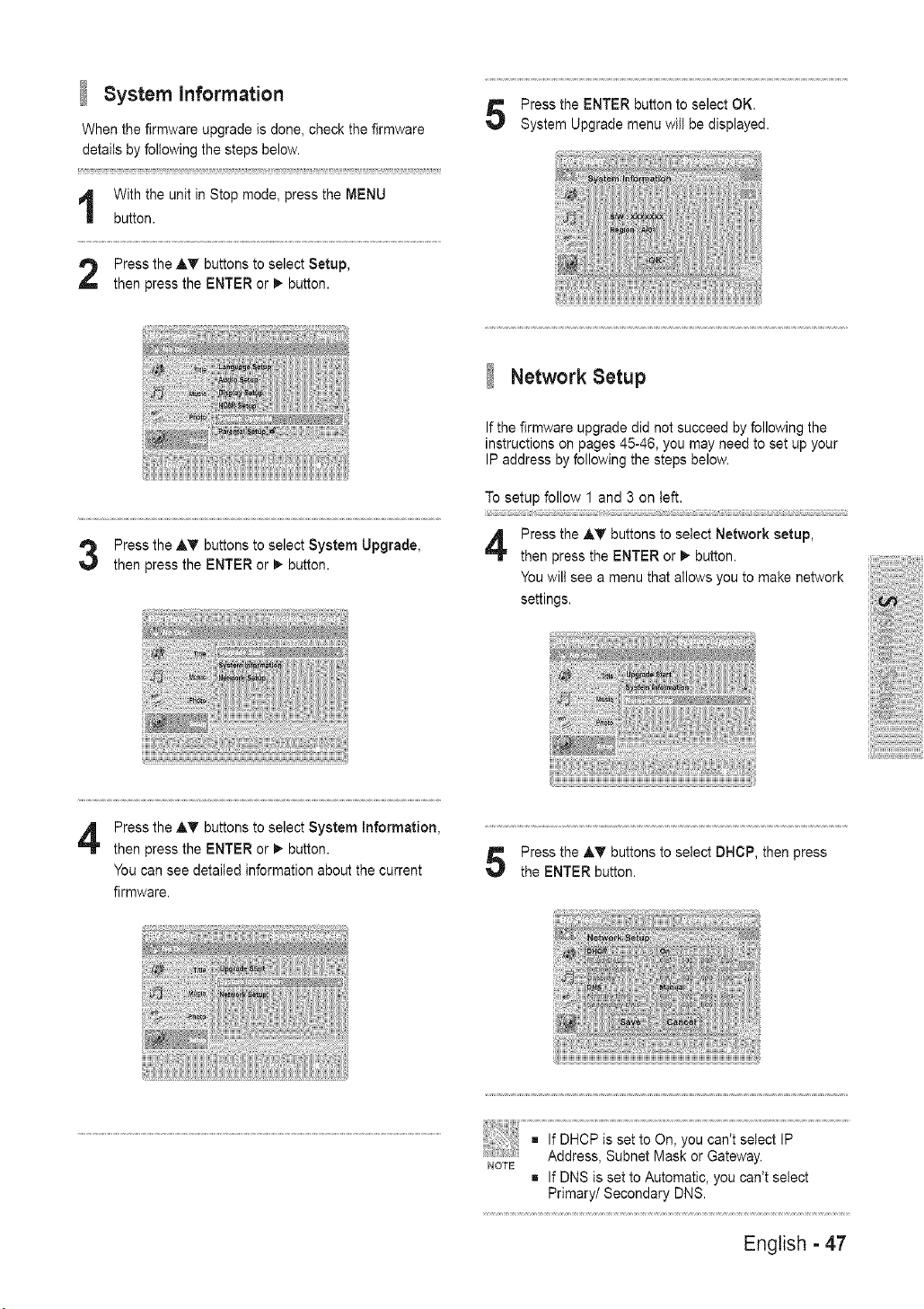

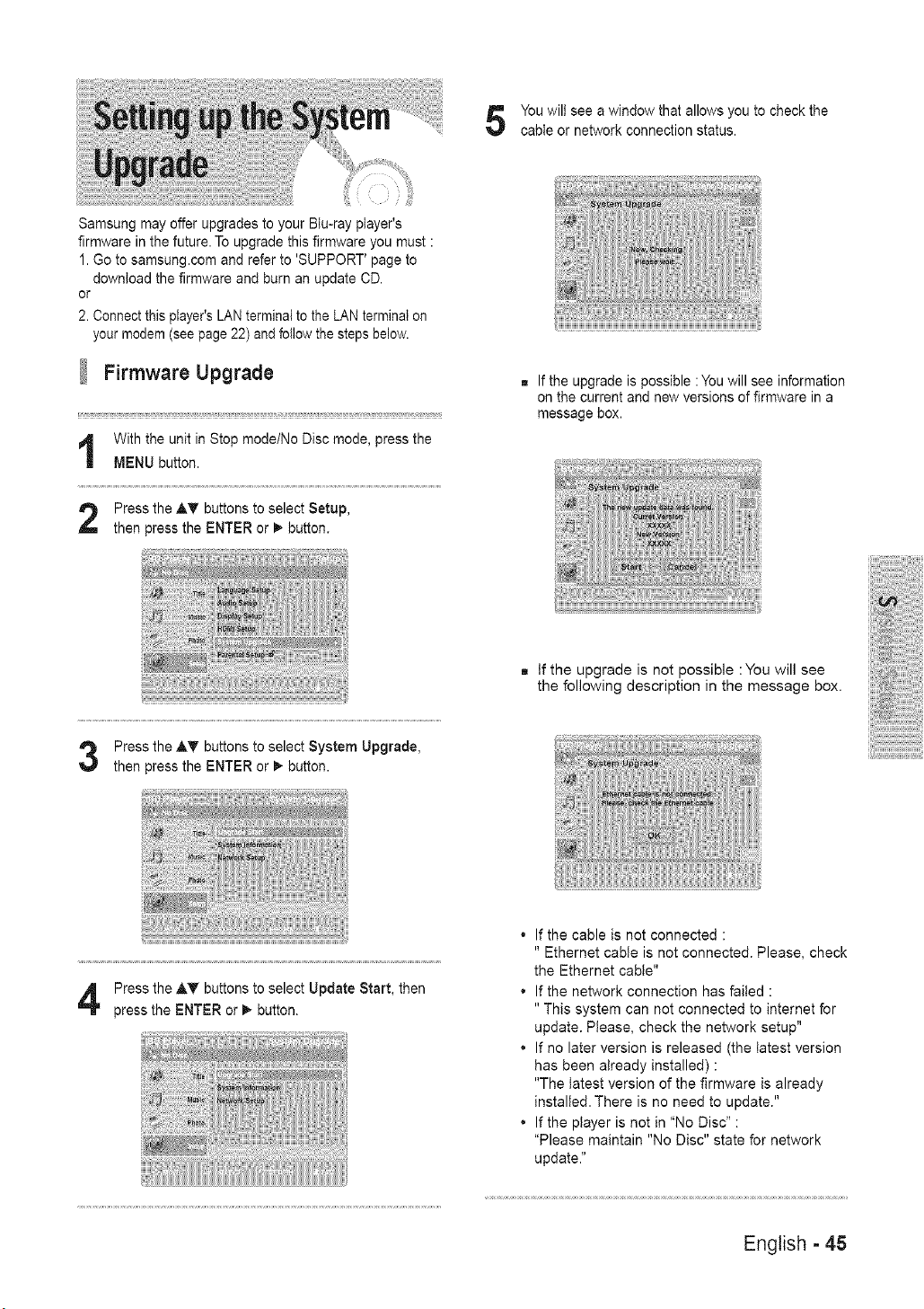

Setting up the System Upgrade..........................45
Setting up the Parental Lock...............................48

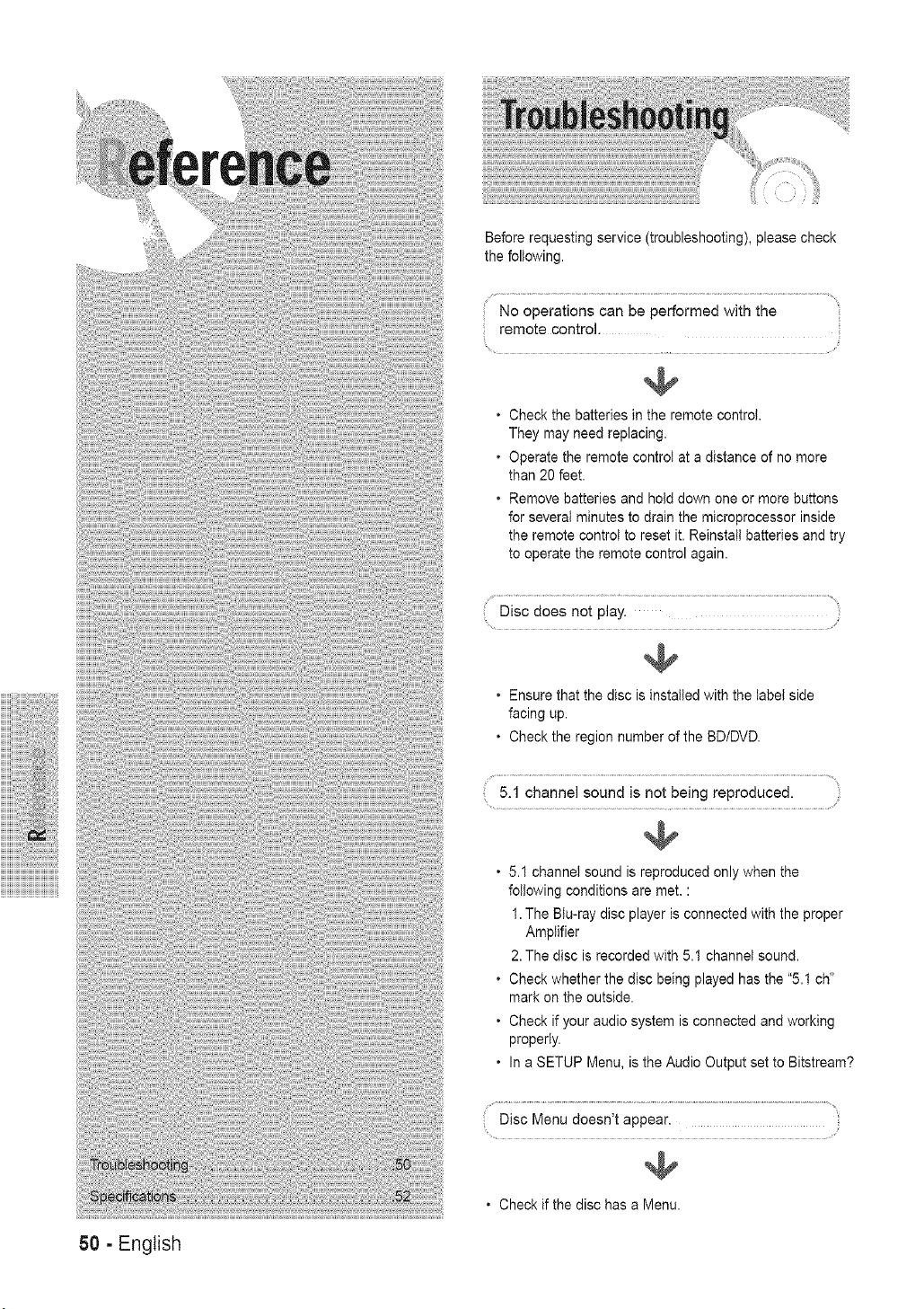

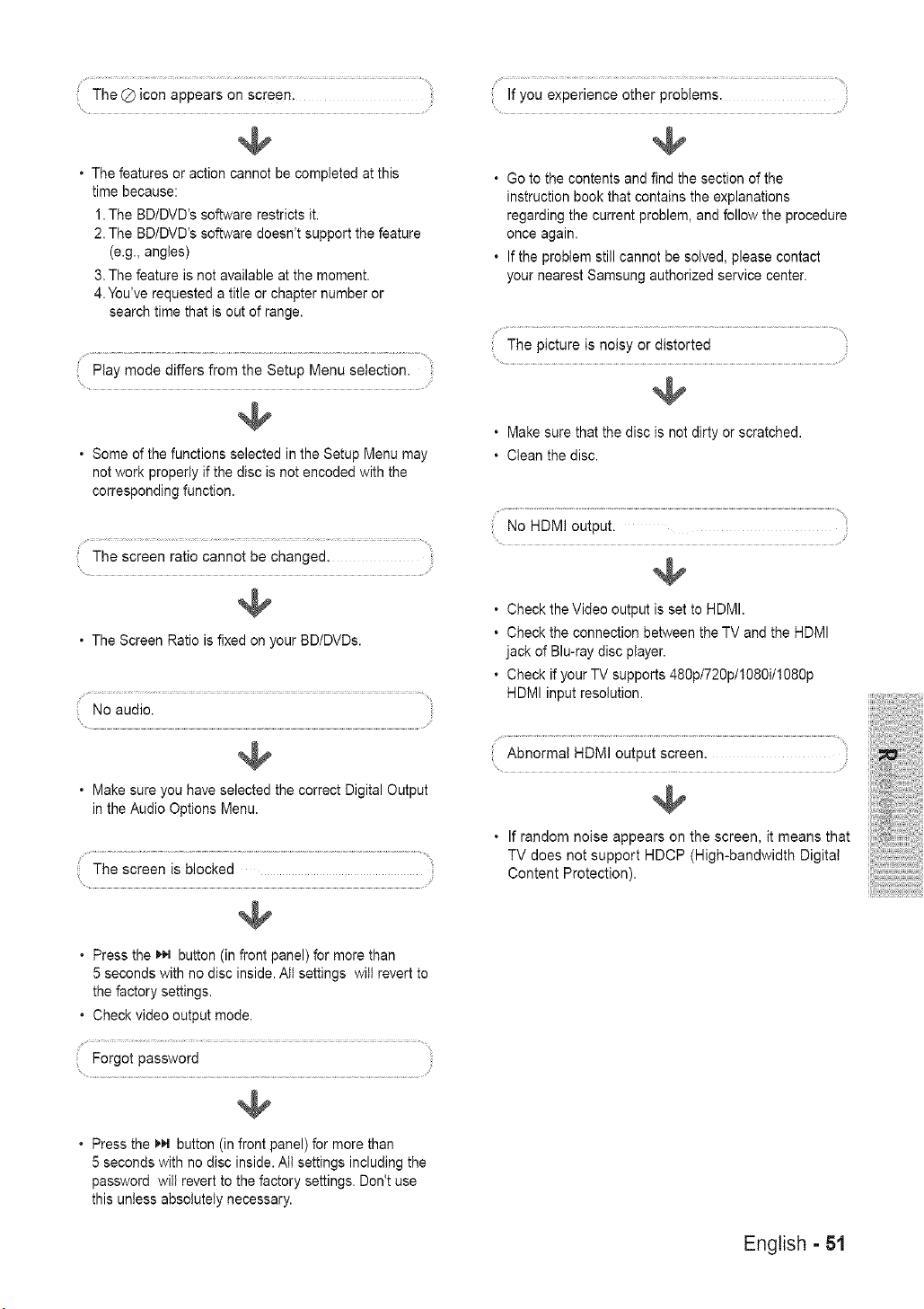

Troubleshooting....................................................50

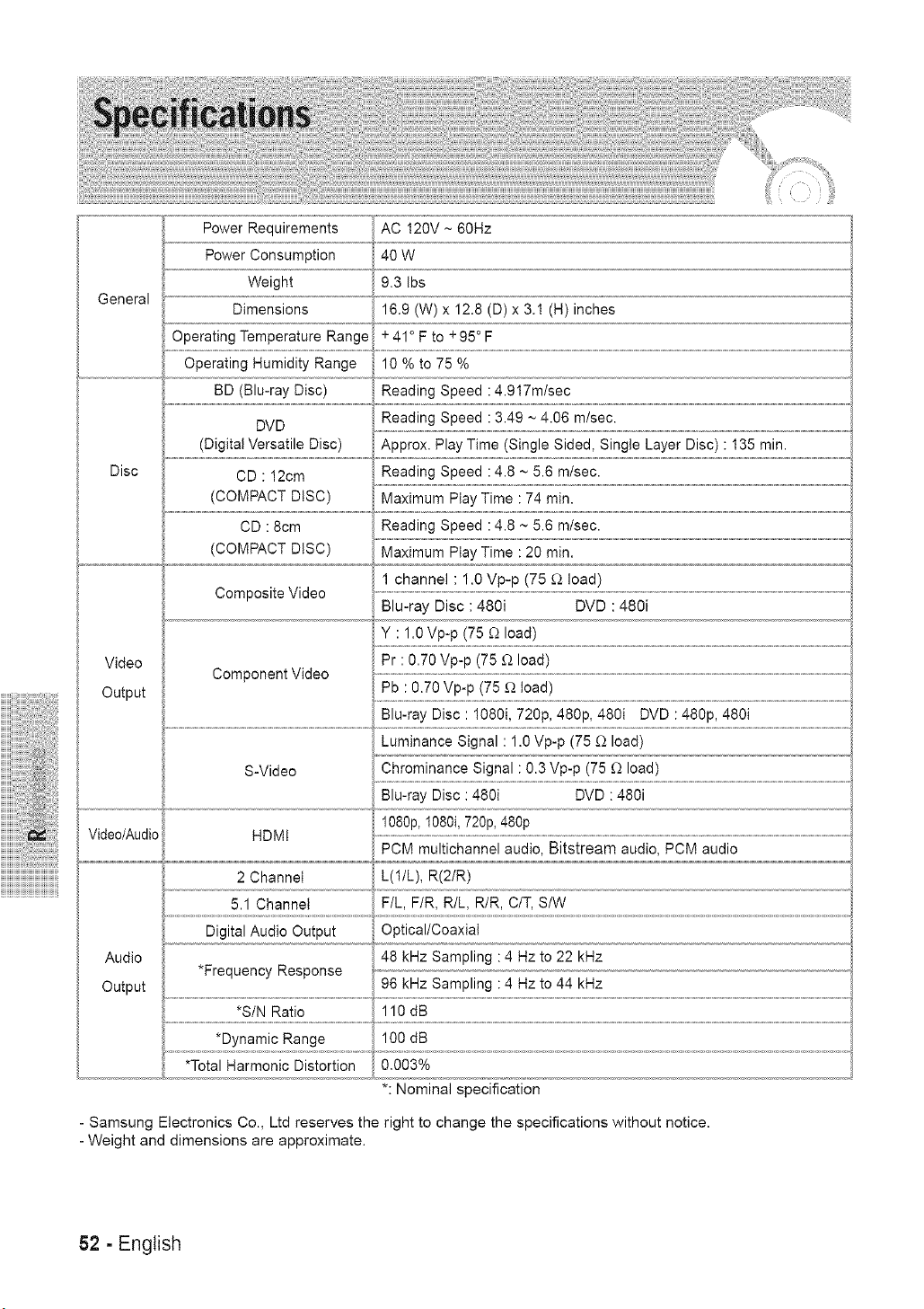

Specifications ........................................................52
6 - English

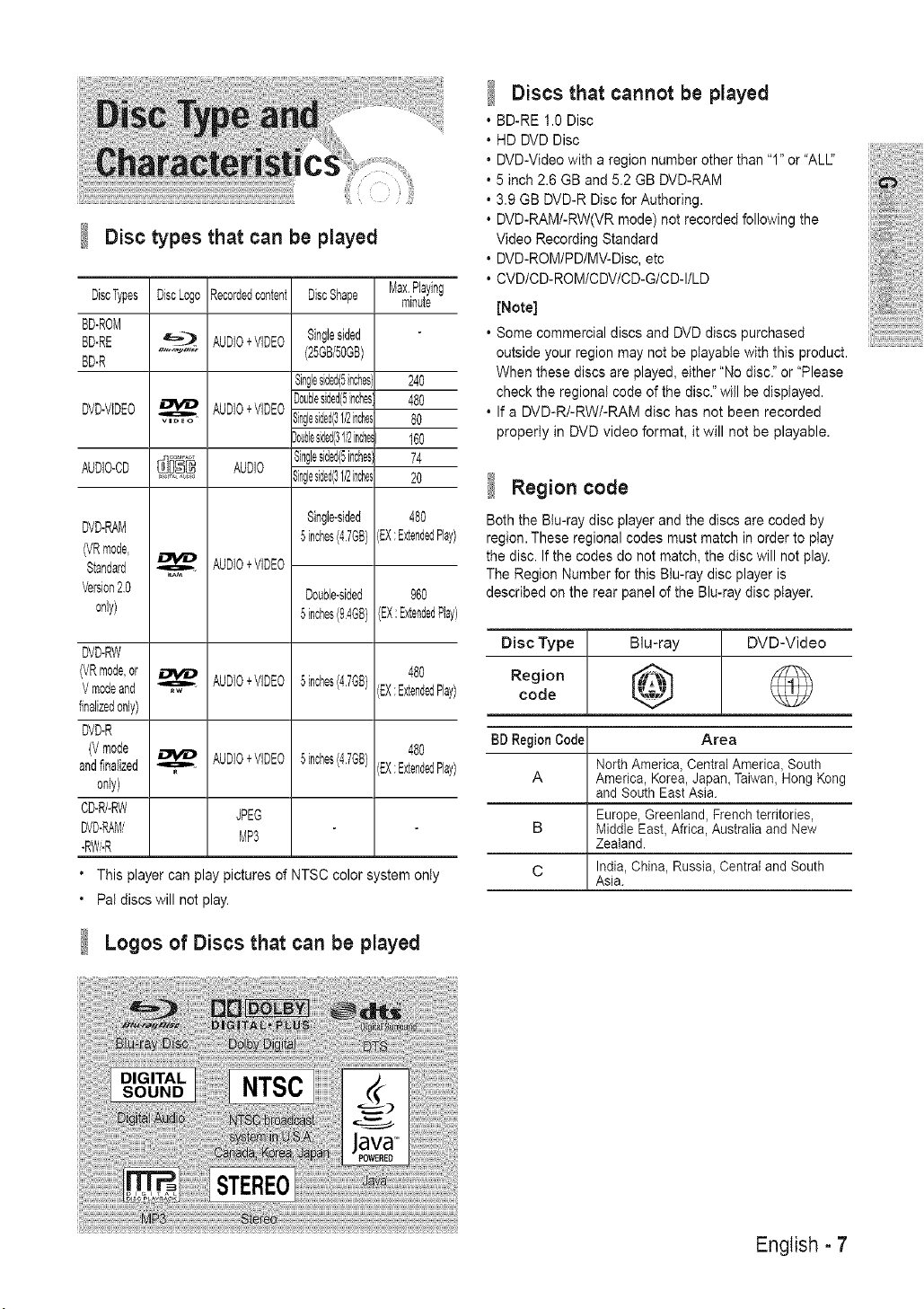

Disc types that can be played
DiscTypes DiscLogoRecordedcontent
BD-ROM
BD-RE _='_. AUDIO+VIDEO
BD-R
DVD-VDEO _ AUDIO+VIDEO
VIDEO
AUDIO-CD8_8_ AUDIO
DI_I _A AUDIO
DVD-RAM
(VRmode,
Standard
Version2.0
onJy)
AUDIO+VIDEO
DVD-RW
VRmode,or
V modeand _ AUDIO+VIDEO
finalizedonly)
DVD-R
(V mode
andfinalized _ AUDIO+VIDEO
only)
CD-R/-RW JPEG
DVD-RAMi
iVIP3
-RW/-R
DiscShape
Singlesided
(25GB/50GB)
Singles}ded(5aches'
Doublesded(5aches
Singlesided(31/2aches
)0ublesded(3I/2inche!
Singlesided(5inches
Singlesided(31/2aches
Single-sided
5inches(4.7GB)
Double-sided
5inches(9.4GB)
5inches(4.7GB)
5inches(4.7GB)
Max.Phying
minute
240
480
80
160
74
20
480
(EX:ExtendedPlay}
960
EX:ExtendedPlay
480
EX:ExtendedPlay',
480
EX:ExtendedPlay',
This player can play pictures of NTSC color system only
Pal discs will not play.
Logos of Discs that can be played
Discs that cannot be played
BD-RE 1.0 Disc
HD DVD Disc
DVD-Video with a region number other than "1" or "ALl"
5 inch 2.6 GB and 5.2 GB DVD-RAM
3.9 GB DVD-R Disc for Authoring.
DVD-RAM/-RW(VR mode) not recorded following the
Video Recording Standard
DVD-ROM/PD/MV-Disc, etc
CVDICD-ROMICDVICD-GICD-IILD
[Note]
. Some commercial discs and DVD discs purchased
outside your region may not be playable with this product.
When these discs are played, either "No disc." or "Please
check the regional code of the disc." will be displayed.
. If a DVD-R/-RW/-RAM disc has not been recorded
properly in DVD video format, it will not be playable.
Region code
Both the Blu-ray disc player and the discs are coded by
region. These regional codes must match in order to play
the disc. If the codes do not match, the disc will not play.
The Region Number for this Blu-ray disc player is
described on the rear panel of the Blu-ray disc player.
Disc Type Blu-ray DVD-Video
BD Region Code Area
North America, Central America, South
A America, Korea, Japan, TaJwan,Hong Kong
and South East Asia.
Europe, Greenland, French territories,
B Middle East, Africa, Australia and New
Zealand.
C India, China, Russia, Central and South
Asia.
English - 7
iiiiiiiiiiiiiiiiiiiiiiiiiii i i!i!iiiiii!i!iill
iiiiiiiiiiiiiiiii_i!iiiiii
iiiiiiiiiiiiiiiiiiiii!iii!_J_iiiiiiii
iiiiiiii!_iii!_iiiii!_iiii
iiiiiiiiiiiiiiiiiiiiiii_iiiii!ii_ii
iiiiiiiiiiiiiiiiiiiiiiiiiii_i,!_ii_ii:i_,,i_iiiiiiiiiiil

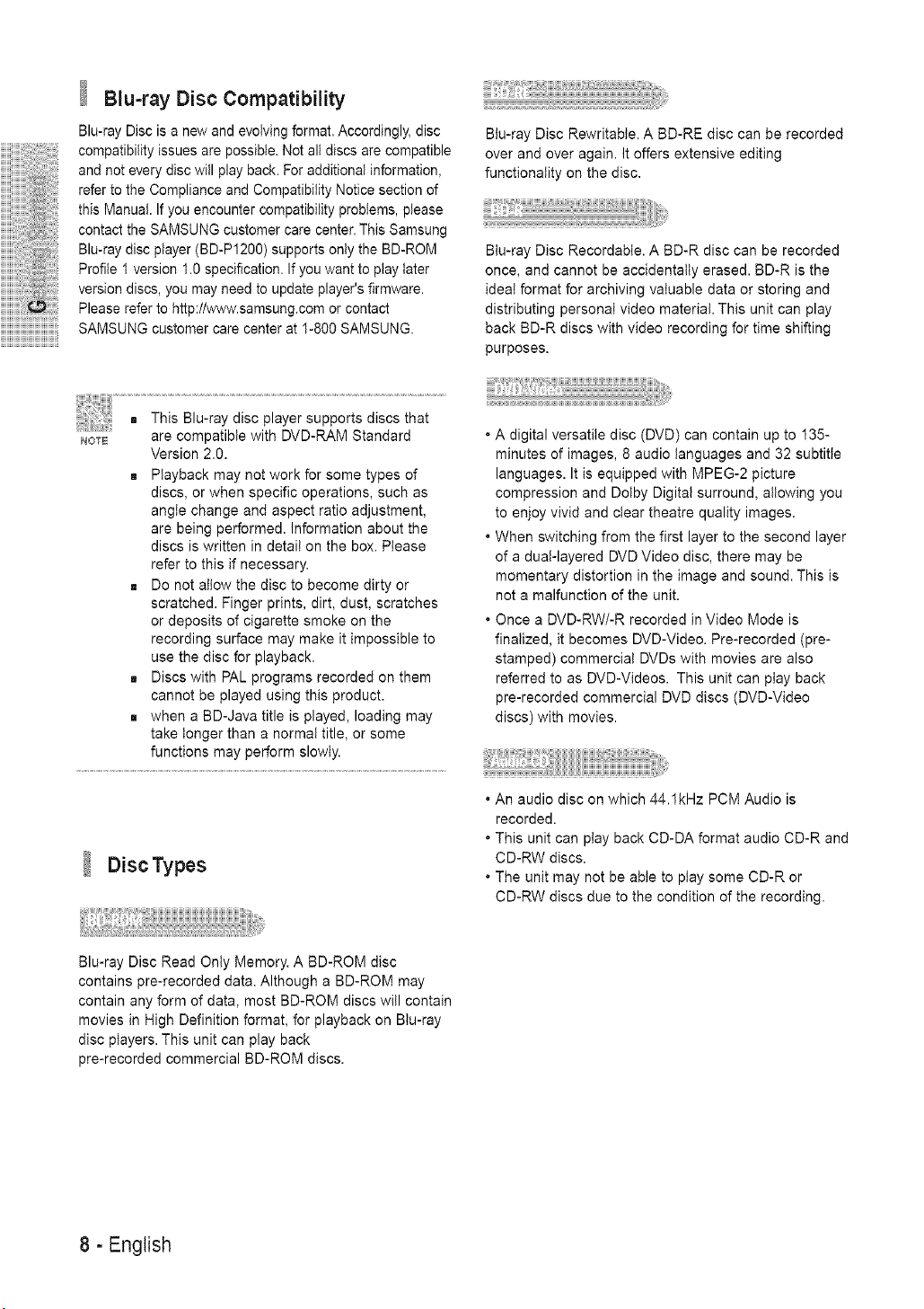

Blu=ray Disc Compatibility
Blu-ray Disc is a new and evolving format. Accordingly, disc
compatibility issues are possible. Not all discs are compatible
and not every disc will play back. For additional information,

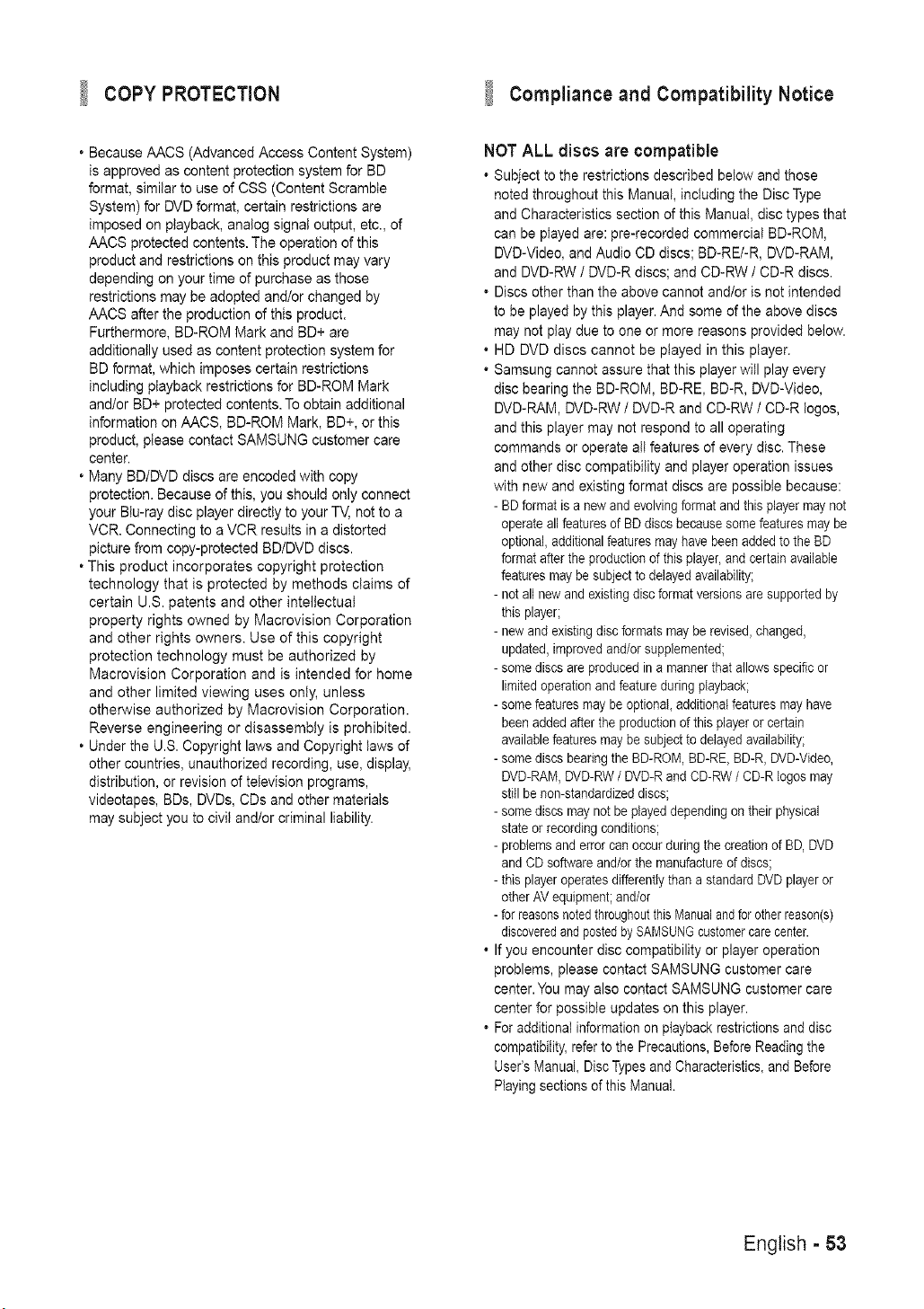

refer to the Compliance and Compatibility Notice section of
this Manual. If you encounter compatibility problems, please
contact the SAMSUNG customer care center. This Samsung
Blu-ray disc player (BD-P1200) supports only the BD-ROM
Profile 1 version 1.0 specification. If you want to play later
version discs, you may need to update player's firmware.
Please refer to http:llwww.samsung.com or contact
SAMSUNG customer care center at 1-800 SAMSUNG.
Btu-ray Disc Rewritable. A BD-RE disc can be recorded
over and over again. It offers extensive editing
functionality on the disc.
Blu-ray Disc Recordable. A BD-R disc can be recorded
once, and cannot be accidentally erased. BD-R is the
ideal format for archiving valuable data or storing and
distributing personal video material. This unit can play
back BD-R discs with video recording for time shifting
purposes.
_,_o_rE are compatible with DVD-RAM Standard
Version 2.0.
= Playback may not work for some types of
discs, or when specific operations, such as
angle change and aspect ratio adjustment,
are being performed. Information about the
discs is written in detail on the box. Please
refer to this if necessary.
= Do not allow the disc to become dirty or
scratched. Finger prints, dirt, dust, scratches
or deposits of cigarette smoke on the
recording surface may make it impossible to
use the disc for playback.
= Discs with PAL programs recorded on them
cannot be played using this product.
m when a BD-Java title is played, loading may
take longer than a normat title, or some
functions may perform slowly.
Disc Types
• A digital versatile disc (DVD) can contain up to 135-
minutes of images, 8 audio languages and 32 subtitle
languages. It is equipped with MPEG-2 picture
compression and Dolby Digital surround, allowing you
to enjoy vivid and clear theatre quality images.
• When switching from the first layer to the second layer
of a dual-layered DVD Video disc, there may be
momentary distortion in the image and sound. This is
not a malfunction of the unit.
• Once a DVD-RW/-R recorded in Video Mode is
finalized, it becomes DVD-Video. Pre-recorded (pre-
stamped) commercial DVDs with movies are also
referred to as DVD-Videos. This unit can play back
pre-recorded commercial DVD discs (DVD-Video
discs) with movies.
• An audio disc on which 44.1kHz PCM Audio is
recorded.
• This unit can ptay back CD-DA format audio CD-R and
CD-RW discs.
• The unit may not be able to play some CD-R or
CD-RW discs due to the condition of the recording.
Blu-ray Disc Read Only Memory. A BD-ROM disc
contains pre-recorded data. Although a BD-ROM may
contain any form of data, most BD-ROM discs will contain
movies in High Definition format, for playback on Btu-ray
disc players. This unit can play back
pre-recorded commercial BD-ROM discs.
8 o English

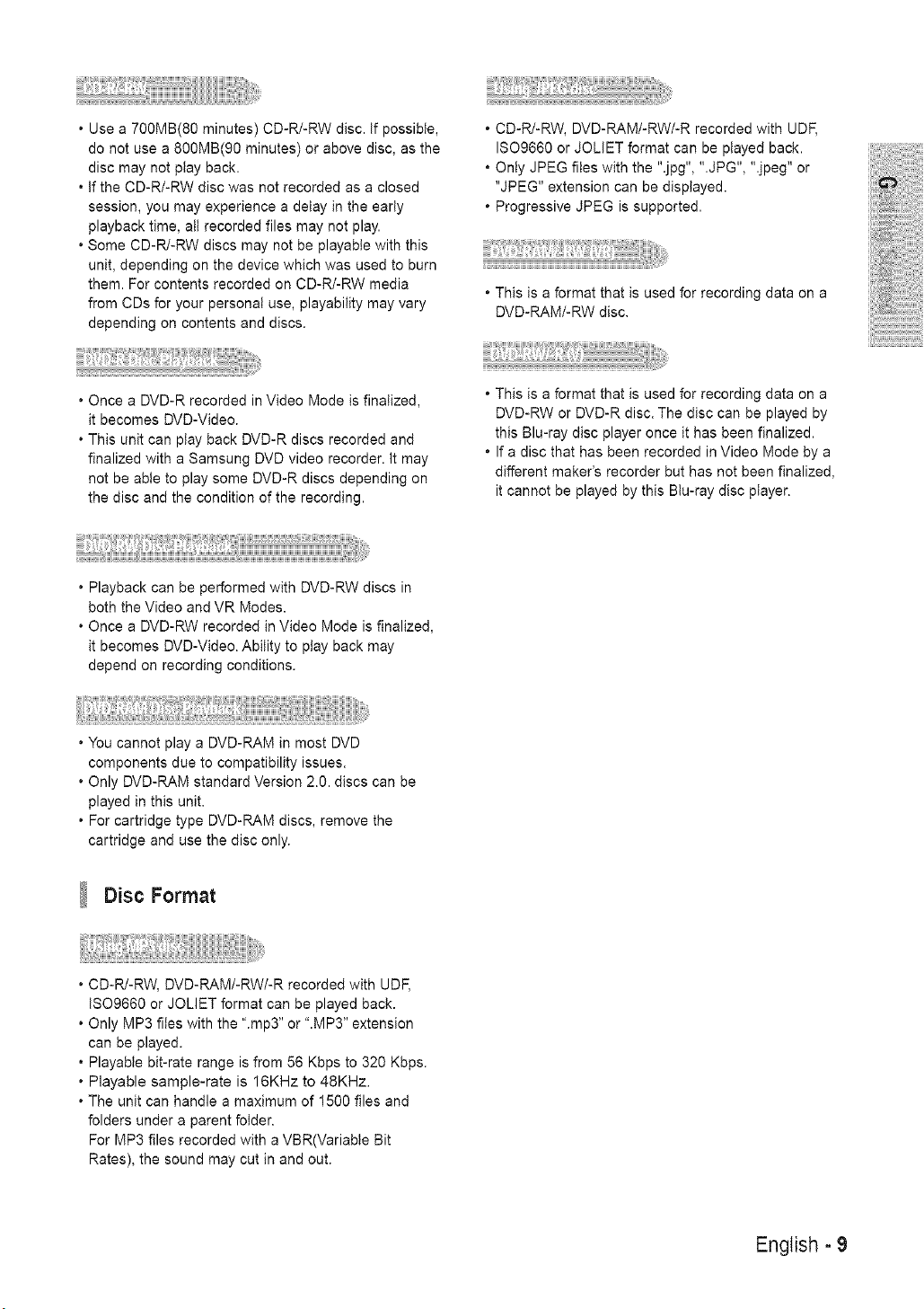

. Use a 700MB(80 minutes) CD-R/-RW disc. If possible,
do not use a 800MB(90 minutes) or above disc, as the
disc may not ptay back.
. If the CD-R/-RW disc was not recorded as a closed
session, you may experience a delay in the early
playback time, ati recorded files may not play.
. Some CD-R/-RW discs may not be playable with this
unit, depending on the device which was used to burn
them. For contents recorded on CD-R/-RW media
from CDs for your personal use, playability may vary
depending on contents and discs.
. CD-R/-RW, DVD-RAM/-RW/-R recorded with UDF,
ISO9660 or JOLIET format can be played back.
. Only JPEG files with the ".jpg", ".JPG", ".peg" or
"JPEG" extension can be displayed.
. Progressive JPEG is supported.
. This is a format that is used for recording data on a
DVD-RAM/-RW disc,
iiiii i !iii@ii!;i;ii ilili!ii! i!!!
il;:iii!i_!_iiiiilziiii_i!ii_i!ii!iiiii;
; i_}i,_sH @_s_¸,
. Once a DVD-R recorded in Video Mode is finalized,
it becomes DVD-Video.
. This unit can play back DVD-R discs recorded and
finalized with a Samsung DVD video recorder. It may
not be able to play some DVD-R discs depending on
the disc and the condition of the recording.
. This is a format that is used for recording data on a
DVD-RW or DVD-R disc. The disc can be played by
this Blu-ray disc player once it has been finalized.
. If a disc that has been recorded in Video Mode by a
different maker's recorder but has not been finalized,
it cannot be played by this Btu-ray disc player.
. Playback can be performed with DVD-RW discs in
both the Video and VR Modes.
. Once a DVD-RW recorded in Video Mode is finalized,
it becomes DVD-Video. Ability to play back may
depend on recording conditions.
. You cannot play a DVD-RAM in most DVD
components due to compatibility issues.
. Only DVD-RAM standard Version 2.0. discs can be
played in this unit.
. For cartridge type DVD-RAM discs, remove the
cartridge and use the disc only.
Disc Format
. CD-R/-RW, DVD-RAM/-RW/-R recorded with UDF,
ISO9660 or JOLIET format can be played back.
. Only MP3 files with the ".mp3" or ".MP3" extension
can be played.
. Playable bit-rate range is from 56 Kbps to 320 Kbps.
. Playable sample-rate is 16KHz to 48KHz.
. The unit can handle a maximum of 1500 files and
folders under a parent folder.
For MP3 files recorded with a VBR(Variable Bit
Rates), the sound may cut in and out.
English - 9
iiiiiiiiiiiiiiiiiiiiiiiiiii i i!i!iiiiii!i!iill
iiiiiiiiiiiiiiiiiiiiiii_i!iiiiii
iiiiiiiiiiiiiiiiiiiii!iii!i_J_;_iiiiiiiii
iiiiiiii!_iii!_iiiiii!_i!iii
iiiiiiiiiiiiiiiiiiii_iiiiiii!ili
iiiiiiiiiiiiiiiiiiiiiiiiiii_i,!_ii_ii:i_,,i_iiiiiiiiiiil
!i!i!i!i!i!i!i!i!i!i!i!i!_!,i'!!!!_i_i_i_iii!i_iii!i_i_i
Disc Handling
. Use discs with regular shapes.
If an irregular disc (a disc with
a special shape) is used, this
Blu-ray disc player may be
damaged.
©0 x
. Avoid touching the surface of a disc
where recording is performed.
Blu-ray Discs
. If the player is not used for a long period of time, remove
the Btu-ray Disc from the player and store it in its case.
. Be careful not to leave fingerprints or scratches on the
surface of the Btu-ray Disc.
DVD_RAM_ DVD-RW and DVD-R
. Clean with an optional DVD-RAM/PD disc cleaner
(LF-K2OODCA1 where available). Do not use cleaners or
cloths for CDs to clean DVD-RAM/-RW/-R discs.
Disc Storage
Be careful not to harm the disc because the data on
these discs is highly vulnerable to the environment.
• Do not keep under direct sunlight.
• Keep in a cool ventilated area.
Store vertically.
• Keep in a clean protection jacket.
• If you move your Blu-ray disc player suddenly from a
cold place to a warm place, condensation may
generate on the operating parts and lens and cause
abnormal disc playback, tf this occurs, do not connect
the plug to the power outlet and wait for two hours.
Then insert the disc and try to play back again.
DVD-Video, Audio-CD
. Wipe off dirt or contamination on the disc with a soft cloth.
cautions on handling d!scs
• Do not write on the printed side with a _,
ball-point pen or pencil.
• Do not use record cleaning sprays or
antistatic.
Also, do not use volatile chemicals, such
as benzene or thinner.
• Do not apply labels or stickers to discs. (Do not use
discs fixed with exposed tape adhesive or leftover
peeled-off stickers.)
• Do not use scratch-proof protectors or covers.
• Do not use discs printed with label printers available
on the market.
• Do not load warped or cracked discs.
10 o English
Front Panel
ili!iiiiiii!il!iiliii!iiiii!iiii
iiiiiiiii iii!ii!ii i!!!
uul
I POWER BUTTON
Turns the Blu-ray disc player on and off.
STANDBY INDICATOR
When the unit is first plugged in,
this indicator lights.
1_ DiSC TRAY
Opens to accept a disc.
4 OPEN/CLOSE BUTTON
Opens and closes the disc tray.
5 DISPLAY
Displays the playing status, time, etc.
(;) SEARCH/SKIP BUTTONS
Goes to the next title/chapter/track or goes
back to the previous title/chapter/track.
7 PLAY/PAUSE BUTTON
Plays a disc or pauses playback.
_; STOP BUTTON
Stops disc playback.
9 OUTPUT SELECT BUTTON
Choose video output from HDMI or
COMPONENT or VIDEO/S-VIDEO.
0 VIDEO OUT INDICATORS
- HDMI INDICATOR : Lights when HDMI OUT
mode is selected.
- COMP INDICATOR : Lights when
COMPONENT OUT mode is selected.
- VIDEO INDICATOR : Lights when VIDEO or
S-VIDEO OUT mode is selected.
Remote Control Sensor
English - 11
Rear Panel
iiiiiiiiiiiiiiiiiiiiiiiii'i i i!i!iiiiii!i!iill
iiiiiiiiiiiiiiiiii_i!iiiiii
;: !S_'
@
@
5.1CH ANALOG AUDIO OUT
Connect to a 5.1CH analog input on an
A/V amplifier
2 AUDIO OUT
Connects to the audio input of external
equipment using audio cables.
_# WDEO OUT
Connects the input of external equipment using a
video cable.
S-VIDEO OUT
Connects the input of external equipment using
an S-Video cable.
COMPONENT VIDEO OUT
Connects to equipment having Component
video input.
FEn
The fan always revolves when the power is on.
Ensure a minimum of 4 inches of dear space on
all sides of the fan when installing the product.
{; HDMI OUT
Use the HDMt cable, connect this HDMI output
terminal to the HDMI input terminal on your TV
for the best quality picture.
? LAN
Connect this LAN terminai to the LAN terminal on
your modem for software upgrades.
t_ DIGITAL AUDIO OUT(COAXiAL)
Connects to an amplifier having a digital coaxia!
audio input jack.
9 DIGITAL AUDIO OUT(OPTICAL)
Connects to an amplifier having a digital optical
audio input jack.
Front Panel Display
Title/PtayList/Track indicator
2 Playing time/clock/current status indicator
_# Playback indicator
4 Pause indicator
5 Video output resolution indicator
{; Disc type indicators.
12 - English
Tour of the Remote Control
2--
S--
f>
?
¢2
3"'''''"
¢4 ....
,;f;....
6 ...............................................
............ /
.... '/8
..... 9
2(
2t
22
-23
24
( "
.... 2;"
8
$BMSUNG
1 POWER Button
_Z NUMBER Buttons
3 CANCEL Button
REVERSE/FORWARDSKIP Buttons
Press to skipbackwardsor forwards.
5 SLOW Button
Each time this buttonis pressed, the discwill play
slowly.
6 REVERSE/FORWARDSEARCH Buttons
Press to search a disc backwardsor forwards.
7 STOP Button
Press to stopa disc.
8 TVVOL Buttons
TV volume adjustment
!3 MENU Button
Brings up the Blu-raydisc player'ssetup menu.
10 ENTER/DIRECTIONButtons (AT4 _,-Buttons)
11 DISC MENU Button
Use this to enter the disc menu.
1;!, INFO Button
This will display current setting or disc status.
13, COLOR Buttons : RED(A), GREEN (B),YELLOW(C),
BLUE(D)
Allow access to common functions of the Blu-ray disc
player such as the Music or Photo List.
14, AUDIO Button
Use this to access various audio functions on a disc
(BD/DVD).
15, MARKER Button
Use this to bookmark a position while playing a disc.
1{7, SUBTITLE Button
Press this to switch the BD/DVD% subtitle language.
17, OPEN/CLOSE Button
To open and close the disc tray.
1/; TV POWER Button
1_, TV INPUT SEL. Button
After setup, allows you to set the input source on your TV.
;ZO, STEP Button
Each time this button is pressed, a new frame will
appear.
;H, PLAY/PAUSE Button
Press to play/pause a disc.
K;_, TV CH Button
Use this to select a TV program.
;Z3, TV MUTE Button
Mutes the speakers of your TV.
;Z4, RETURN Button
;Z5, POPUP MENU/TITLE MENU Button
Use this to enter the popup menu/title menu.
;Z{£ EXIT Button
;ZT, REPEAT A-B Button
Allows you to repeat p{ayback of a certain section.
;ZS, ZOOM Button
Enlarges photos on JPEG discs.
_Z!5 REPEAT Button
Allows you to repeat a title, chapter, track or disc.
iiiii i !iii@ii!;i;ii ilili!ii! i!!!
i;i@i@__ili}i{@i!i;iil;{il
um;
English - 13
iiiiiiiiiiiiiiiiiiii_!iii_iiii_#J_;_iiilii_iil • o
Accessories _ Sort=rig the Remote Control
Check for the supplied accessories below.
You can controt certain functions of your TV with this
.......................... remote control.
Controlfunction buttonsinctude :TVPOWER,
Composite (Video),
Audio L/R Cable
(MF39-00274A)
Instruction Manual
(AKS8-01357A)
Quick Guide
(AK68-01358A)
Batteries for Remote
Control (AAA Size)
(4301-000103)
Remote Control
(AK59-00070A)
CH/', v, VOL + -, TV MUTE, TV INPUT SEL. button.
To determine whether your television is
compatible, follow the instructions below.
1. Switch your television on.
2. Point the remote control towards the television.
3. Press and hold the TV POWER button and enter
the two-figure code corresponding to the brand of
your television, by pressing the appropriate number
buttons. (see the next page for the code list).
Result: If your television is compatible with the remote
control, it will switch off.
It is now programmed to operate with the
remote control.
NOTE
you find one that works.
m If you replace the remote control's batteries,
you must set the brand code again.
Preparing the Remote Control
Install Batteries in the Remote Control
, Open the battery cover on the back of the remote control.
, Insert two AAA batteries. Make sure that the polarities
(+ and -) are aligned correctly.
, Close the battery cover.
If the remote does not operate properly:
, Check the polarity + - of the batteries (Dry-Cell)
, Check if the batteries are drained.
, Check if remote sensor is blocked by obstacles.
, Check if there is any fluorescent lighting nearby.
You can then control the television using the following
buttons after pressing the TV button.
Button Function
TV POWER Usedto switchthetelevisionon and off.
TV INPUTSEL. Usedto select an externalsource.
VOL (+ -) Usedto adjustthe volumeof the television.
CH (^ v ) Usedto selectthe desiredchannel.
TV MUTE Usedto toggle thesound on and off.
Dispose of batteries according to local environmental
regulations. Do not put them in the household trash.
..... ;i
14 - English
NOTB
problems, operate the television directly.

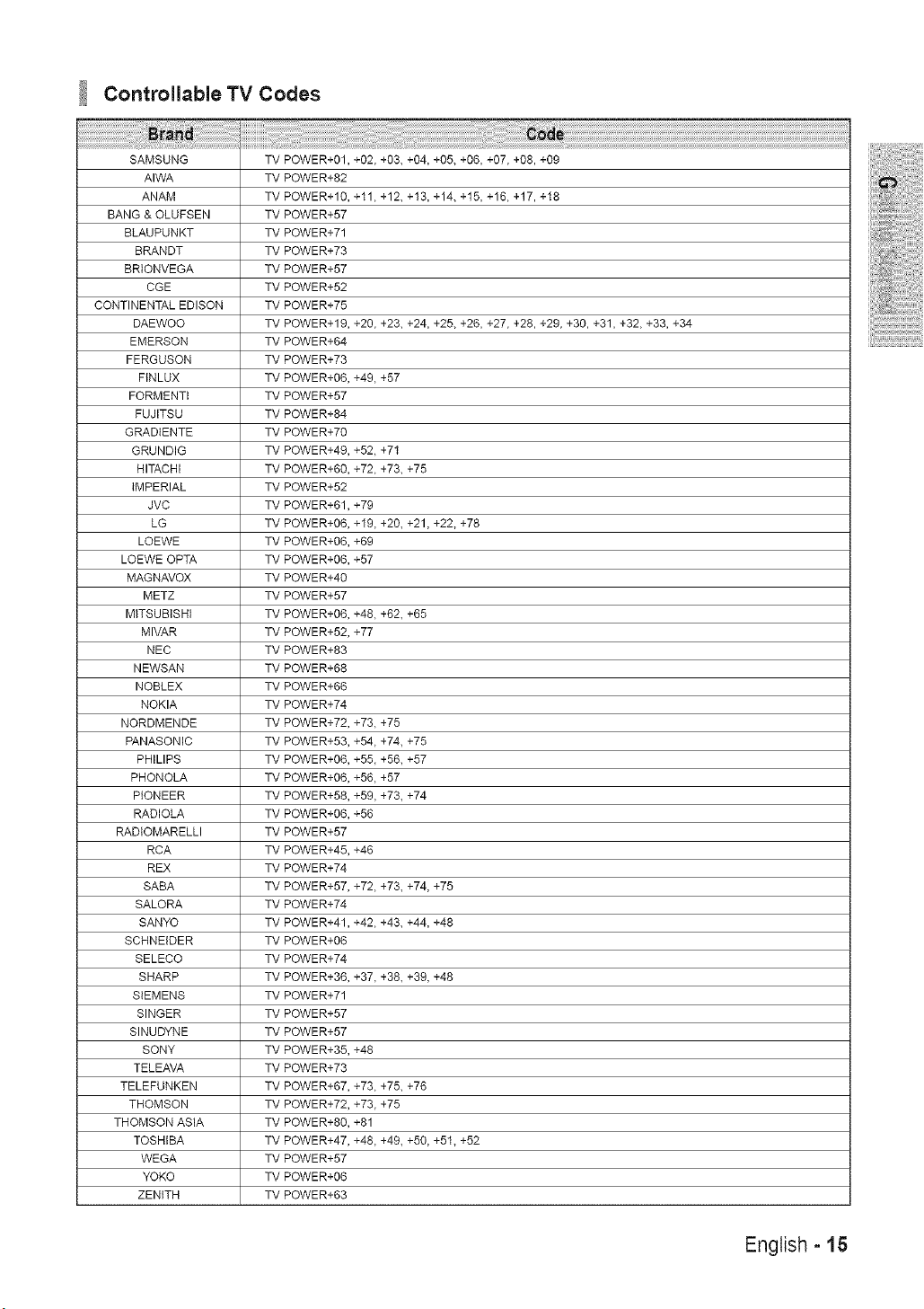

Controllable TV Codes
SAMSUNG
AIWA
ANAM
BANG & OLUPSEN
BLAUPUNKT
BRANDT
BRIONVEGA
CGE
CONTINENTAL EDISON
DAEWOO
EMERSON
FERGUSON
FtNLUX
FORMENTI
FUJITSU
GRADIENTE
GRUNDIG
HITACHI
IMPERIAL
JVC
LG
LOEWE
LOEWE OPTA
MAGNAVOX
METZ
MITSUBISHI
MIVAR
NEC
NEWSAN
NOBLBX
NOKIA
NORDMENDE
PANASONIC
PHILIPS
PHONOLA
PIONEER
RADIOLA
RADtOMARELLI
RCA
REX
SABA
SALORA
SANYO
SCHNEIDER
SELECO
SHARP
SIEMENS
SINGER
SlNUDYNE
SONY
TELEAVA
TELEFUNKEN
THOMSON
THOMSON ASIA
TOSHIBA
WEGA
YOKO
ZENITH
TV POWER+01, +02, +03, +04, +05, +06, +07, +08, +09
TV POWER+82
TV POWER+10, +I1_ +12, +13, +14, +15, +16_ +17, +I8
TV POWER+57
TV POWER+71
TV POWER+73
TV POWER+57
TV POWER+52
TV POWER+75
TV POWER+19, +20, +23, +24, +25, +26, +27, +28, +29, +30, +31, +32, +33, +34
TV POWER+64
TV POWER+73
TV POWER+06, +49_ +57
TV POWER+57
TV POWER+84
TV POWER+70
TV POWER+49, +52_ +71
TV POWER+60, +72_ +73, +75
TV POWER+52
TV POWER+61, +79
TV POWER+06, +I9, +20, +21, +22, +78
TV POWER+06, +69
TV POWER+06, +57
TV POWER+40
TV POWER+57
TV POWER+06, +48_ +62, +65
TV POWER+52, +77
TV POWER+83
TV POWER+68
TV POWER+66
TV POWER+74
TV POWER+72, +73, +75
TV POWER+53, +54, +74, +75
TV POWER+06, +55, +56, +57
TV POWER+06, +56, +57
TV POWER+58, +59, +73, +74
TV POWER+06, +56
TV POWER+57
TV POWER+45, +46
TV POWER+74
TV POWER+57, +72, +73, +74, +75
TV POWER+74
TV POWER+41, +42, +43, +44, +48
TV POWER+06
TV POWER+74
TV POWER+36, +37, +38, +39, +48
TV POWER+71
TV POWER+57
TV POWER+57
TV POWER+35, +48
TV POWER+73
TV POWER+67, +73, +75, +76
TV POWER+72, +73, +75
TV POWER+80, +81
TV POWER+47, +48, +49, +50, +5I, +52
TV POWER+57
TV POWER+06
TV POWER+63
iiiii i !iii@ii!;i;ii ilili!ii! i!!!
iiiii!i_,__iliiiiiiii!!iiiiiil
HNi;
English o 15
16 - English
A Quick Overview presented in this guide will give you
enough information to start using the Blu-ray disc player.
T
T
T
T
T
T
T
Before Connectingthe Blu-ray disc player
[] Always turn off the Blu-ray disc player, TV and
other components before you connect or
disconnect any cables.
[] Refer to the user's manual of additional
components (such as a TV) you are connecting
for more information on those particular
components.
You may choose from HDMI, COMPONENT, S-VIDEO or
VIDEO, mode for video output from the player to your TV.
Use the OUTPUT SELECT button on the front panel of the
unit to select the video output while the disc is stopped.
- Video Output mode changes as follows when the
OUTPUT SELECT button is pressed: HDMI -_ VIDEO 4,
COMP 4 NDMI order.
-To select HDMI output, press the OUTPUT SELECT
button until the HDMI indicator lights.
- To select COMPONENT output, press the OUTPUT
SELECT button until the COMP indicator lights.
- To select VIDEO or S-VIDEO output, press the OUTPUT
SELECT button until the VIDEO indicator lights.
NOTE_
will be automatically changed to the best
quality supported by the TV.
= If HDMI mode is selected for TVs that do not
provide display information (EDID),
resolution wilt be adjusted to 480p.
= If COMP (Component) mode is selected,
resolution wilt be adjusted to 480p initially.
= If VIDEO mode is selected, resolution will be
adjusted to 480i.
m Select the resolution from <Setup> -_
<Display Setup>. (See page 41 ~42.)
The following shows examples of connections commonly used to
connect the Blu-ray disc player with a TV and other components.
Connecting to aTV with HDMI Cable
1. Using the HDMI-HDMI cable (not included) connect
the HDMI OUT termina! on the rear of the Blu-ray
disc player to the NDMI IN terminal of your TV.
2. Press the OUTPUT SELECT button on the front
panel of the unit until the HDMI indicator lights. Make
sure the unit is in Stop mode.
3. Press the input selector on your TV remote controt
until the HDMI signal from the Blu-ray disc player
appears on your TV screen.
• If you have set the remote control to properly operate
with your TV (pages 14--15), press theTV INPUT SEL.
button on the remote control and select HDMI as the
external source of the TV.
/ i
i
}4DIE_,Ee
HDMI Auto Detection Function
Connecting the HDMI cable while the Blu-Ray player's
power is on, will automatically change the player's video
output mode to HDMI mode.
English - 17
= Depending on your TV, certain HDMI output
_i resolutions may not work.
= Please refer to the user's manual of your TV.
= If an HDMI or HDMI-DVl cable is plugged into TV,
the Blu-ray disc player's output is set to HDMI/DVl
automatically within 10 seconds.
= If Component and HDMI are both connected,
HDMI mode is automatically selected.
(If HDMI is connected in Component mode or
video mode, the video output mode automatically
switches to HDMI mode.)
m If you connect a Samsung TV to the Blu-ray
disc player using an HDMI cable, the player
can be easily operated using the TV remote
control. (This is only available with Samsung
TVs that support the Anynet+ feature.)(See
pages 43~44)
HDMI (High Definition Multimedia Interface)
HDMI is an interface that enables the digital
transmission of video and audio data with just a
single connector.
Using HDMI, the Blu-ray disc player transmits a
digital video and audio signal and displays a vivid
picture on a TV having an HDMI input jack.
HDMI connection description
HDMI connector - Supports video and digital audio
data (LPCM or Bitstream).
- HDMI outputs only a pure digital signal to the TV.
- If your TV does not support HDCP (High-
bandwidth Digital Content Protection), random
noise appears on the screen.
• Why does 8amsung use HDMI?
Analog TVs require an analog video/audio signal.
However,when playing a BD/DVD,the data
transmitted to a TV is digital. Therefore either a
digital-to-analog converter (in the Blu-ray disc
player) or an analog-to-digital converter (in the TV)
is required. During this conversion, the picture
quality is degraded due to noise and signal loss.
HDMI technology is superior because it requires
no D/A conversion and is a pure digital signal from
the player to your TV.
• What is the HDCP?
HDCP (High-band width Digital Content Protection)
is a system for protecting BD/DVD content
outputted via HDMI from being copied. It provides
a secure digital link between a video source (PC,
DVD. etc) and a display device (TV, projector, etc).
Content is encrypted at the source device to
prevent unauthorized copies from being made.

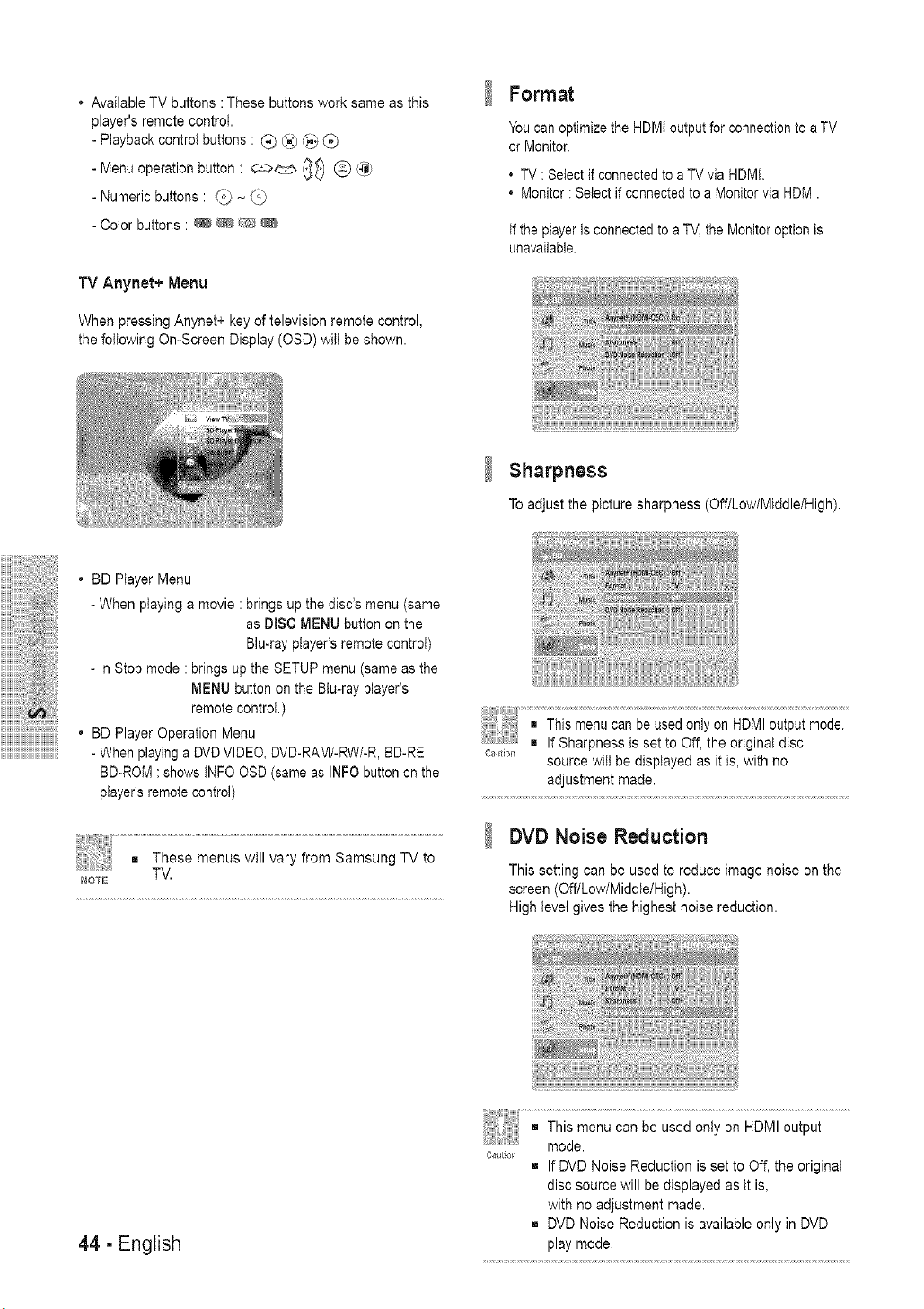

What is Anynet+?
Anynet+ is a convenient function that offers linked
operation of this unit through Samsung TVs with
the Anynet+ feature.
- If your Samsung TV has an _y,,e_, logo, then it
supports Anynet+ function.
- If you turn on the player and insert a disc, the
player will start playing the disc, and the TV will
turn on automatically and switch to HDMI mode.
- If you turn on the player and press the Play
button with a disc already inserted,the TV will
immediately turn on and switch to HDMI mode.
Connecting to a TV with DVi Cable
1. Using the HDMI-DVI cable (not included), connect the
HDMI OUT terminal on the rear of the Blu-ray disc
player to the DVl iN terminal of your TV.
2. Using the audio cabtes, connect the AUDIO (red and
white) OUT terminals on the rear of the Blu-ray disc
player to the AUDIO (red and white} IN terminals of
your TV.
Turn on the Btu-ray disc player and TV.
3. Press the OUTPUT SELECT button on the front
panel of the unit until the HDMI indicator lights. Make
sure the unit is in Stop mode.
4. Press the input selector on your TV remote control
until the DVi signal from the Blu-ray disc player
appears on your TV screen.
• If you have set the remote controt to properly operate
with your TV (pages 14~15), press the TV INPUT SEL.
button on the remote control and select HDMI as the
external source of the TV.
"1.
[
18 - English
Connecting to a TV (Component)
- Connecting to your TV using Component video cables.
-You will enjoy high quality and accurate color
reproduction images. Component video separates the
picture element into black and white(Y), blue(PB),
red(PR) signals to present clear and clean images.
(Audio signals are delivered through the audio output.)
1. Using component video cables (not included),
connect the COMPONENT VIDEO OUT terminals on
the rear of the Btu-ray disc player to the
COMPONENT IN terminals of your TV.
2. Using the audio cables (not included), connect the
AUDIO (red and white) OUT terminals on the rear of
the Blu-ray disc player to the AUDIO (red and white)
IN terminals of your TV. Turn on the Blu-ray disc
player and TV.
3. Press the OUTPUT SELECT button on the front
panel of the unit until the COMP indicator lights.
Make sure the unit is in Stop mode.
4. Press the input selector on your TV remote control
until the Component signal from the Blu-ray disc
player appears on the TV screen.
• If you have set the remote control to properly operate
with your TV (pages 14~15), press the TV INPUT SEL.
button on the remote controt and select COMPONENT
as the external source of the TM
Connecting to a TV (8-Video)
- Connecting to your TV using an S-Video cable.
-You wilt enjoy high quality images. S-Video separates
the picture element into black and white(Y) and
color(C) signals to present clearer images than regular
video input mode.
(Audio signals are delivered through the audio output.)
1. Using an S-Video cable (not included), connect the
S-VIDEO OUT terminal on the rear of the Btu-ray disc
player to the S-VIDEO IN terminal of your TV.
2. Using the audio cables, connect the AUDIO (red and
white) OUT terminals on the rear of the Blu-ray disc
player to the AUDIO (red and white) IN terminals of
your TV. Turn on the Blu-ray disc player and TV.
3. Press the OUTPUT SELECT button on the front
panel of the unit until the VIDEO indicator lights.
Make sure the unit is in Stop mode.
4. Press the input selector on your TV remote control
unti! the S-Video signal from the Blu-ray disc player
appears on your TV screen.
• If you have set the remote control to properly operate
with your TV (pages 14~15), press theTV INPUT SEL.
button on the remote control and select S-VIDEO as
the external source of the TV.
iiiiiiii_i!!i!!i!!iii;iiii!iiii!ii_i
NOTE
marked "R-Y, B-Y, Y" or "Cr, Cb, Y" instead of
"PR, PB, Y". The number and position of
terminals may vary depending on the TV set.
Please refer to the user's manual of your TV.
English - 19
iiiiiiiiiiiiiii!iiiiiliiii__iii_!i

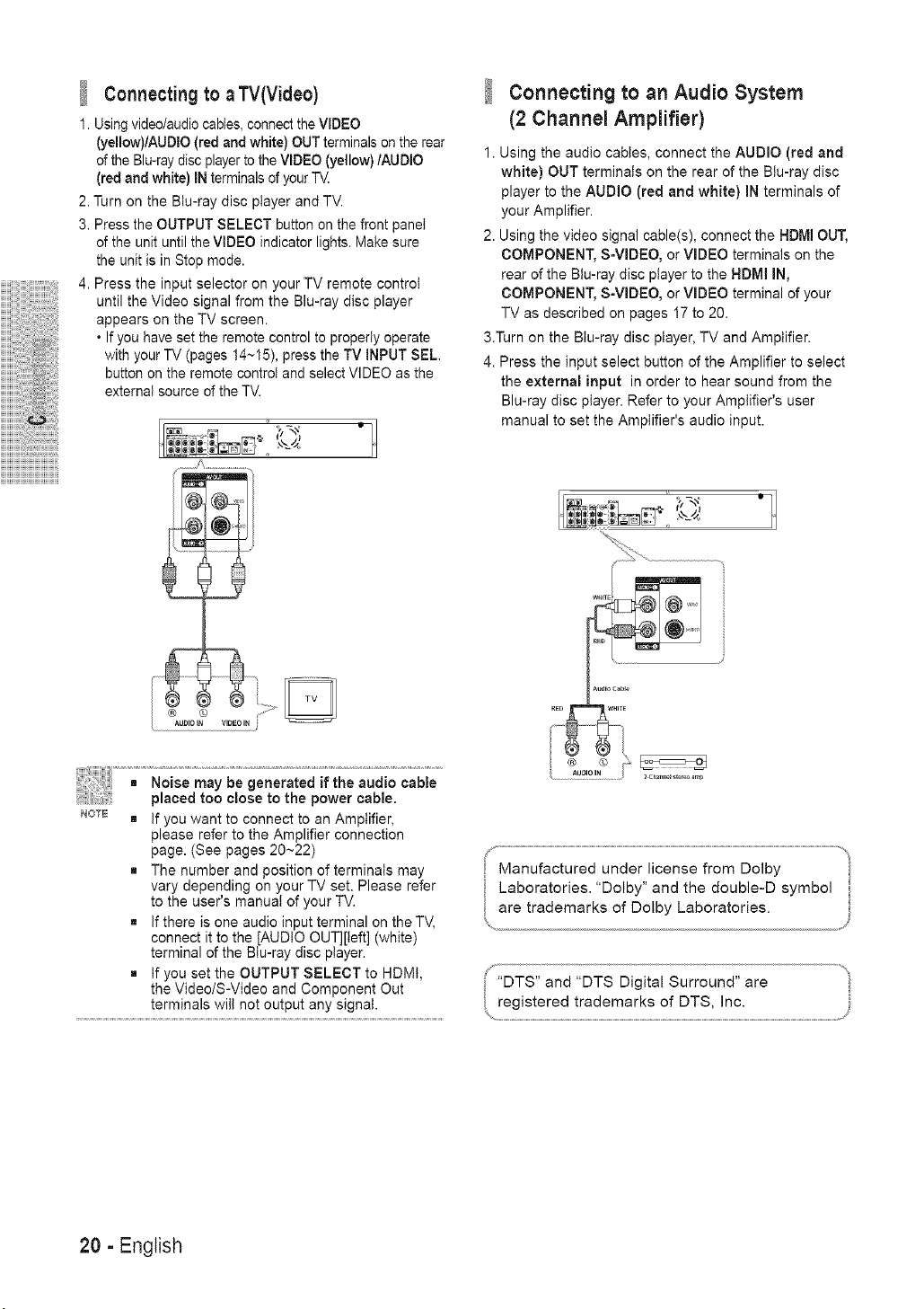

Connectingto a TV(Video)
1. Using video/audio cables, connect the VIDEO
(yellow)/AUDIO (red and white) OUT terminals on the rear
of the Blu-ray disc player to the VIDEO (yellow)/AUDIO
(red and white) iN terminals of your TV.
2. Turn on the Btu-ray disc player and TV.
3. Press the OUTPUT SELECT button on the front panel
of the unit until the VIDEO indicator lights. Make sure
the unit is in Stop mode.
4. Press the input selector on your TV remote controt
until the Video signal from the Blu-ray disc player
appears on the TV screen.
• If you have set the remote control to properJy operate
with your TV (pages 14~15), press the TV iNPUT SEL.
button on the remote control and select VIDEO as the
external source of the TV.
Connecting to an Audio System
(2 Channel Amplifier)
1. Using the audio cables, connect the AUDIO (red and
white) OUT terminals on the rear of the Biu-ray disc
player to the AUDIO (red and white) iN terminals of
your Amplifier.
2. Using the video signal cable(s), connect the HDMI OUT,
COMPONENT, S-VIDEO, or VIDEO terminals on the
rear of the Btu-ray disc player to the HDMI iN,
COMPONENT, S-VIDEO, or VIDEO terminal of your
TV as described on pages 17 to 20.
3.Turn on the Btu-ray disc player, TV and Amplifier.
4. Press the input select button of the Amplifier to select
the external input in order to hear sound from the
Blu-ray disc player. Refer to your Amplifier's user
manual to set the Amplifier's audio input.
NOTE
= If you want to connect to an Amplifier,
please refer to the Amplifier connection
page. (See pages 20~22)
= The number and position of terminals may
vary depending on your TV set. Please refer
to the user's manual of your TV.
= If there is one audio input terminal on the TV,
connect it to the [AUDIO OUT][left] (white)
terminal of the Btu-ray disc player.
[] tf you set the OUTPUT SELECT to HDMt,
the Video/S-Video and Component Out
terminals will not output any signal.
f .............
"DTS" and "DTS Digital Surround" are
registered trademarks of DTS, Inc.
% j!
20 - English

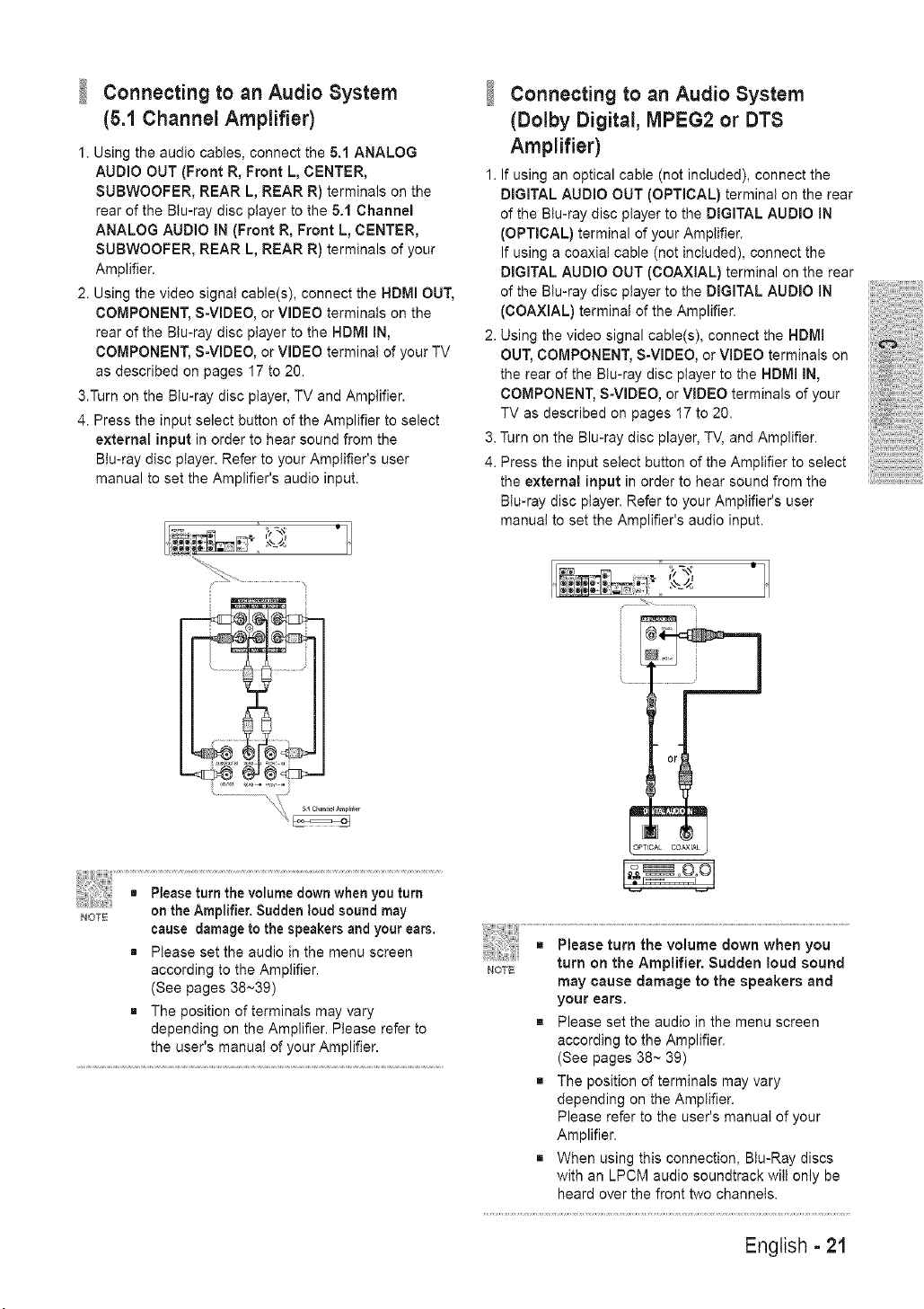

Connecting to an Audio System
(5,1 Channel Amplifier)
1. Using the audio cables, connect the 5.1 ANALOG
AUDIO OUT (Front R, Front L, CENTER,
SUBWOOFER, REAR L, REAR R) terminals on the
rear of the BIu-ray disc player to the 5.1 Channel
ANALOG AUDIO IN (Front R, Front L, CENTER,
SUBWOOFER, REAR L, REAR R) terminals of your
Amplifier.
2. Using the video signal cable(s), connect the HDMI OUT,
COMPONENT, S-VIDEO, or VIDEO terminals on the
rear of the Btu-ray disc player to the HDMI IN,
COMPONENT, S-VIDEO, or VIDEO terminal of your TV
as described on pages 17 to 20.
3.Turn on the Btu-ray disc player, TV and Amplifier.
4. Press the input select button of the Amplifier to select
external input in order to hear sound from the
Btu-ray disc player. Refer to your Amplifier's user
manual to set the Amplifier's audio input.
Connecting to an Audio System
(Doiby Digital, IVIPEG2 or DT8
Amplifier)
1. If using an optical cable (not included), connect the
DiGiTAL AUDIO OUT (OPTICAL) terminal on the rear
of the Btu-ray disc player to the DIGITAL AUDIO IN
(OPTICAL) terminal of your Amplifier.
If using a coaxial cable (not included), connect the
DiGiTAL AUDIO OUT (COAXIAL) terminal on the rear
of the Btu-ray disc ptayer to the DIGITAL AUDIO IN
(COAXIAL) terminal of the Amplifier.
2. Using the video signal cable(s), connect the HDMI
OUT, COMPONENT, S-VIDEO, or VIDEO terminals on
the rear of the Blu-ray disc ptayer to the HDMI IN,
COMPONENT, S-WDEO, or WDEO terminals of your
TV as described on pages 17 to 20.
3. Turn on the Blu-ray disc player, TV, and Amplifier.
4. Press the input select button of the Amptifier to setect
the external input in order to hear sound from the
Btu-ray disc player. Refer to your Amplifier's user
manual to set the Amplifier's audio input.
iiiiii!_iiiiiiiiiiiiiiiiiiii
\ ................
°ri
NOTE on the Amplifier. Sudden loud sound may
cause damage to the speakers and your ears.
[] Please set the audio in the menu screen
according to the Amplifier.
(See pages 38~39)
[] The position of terminals may vary
depending on the Amplifier. Please refer to
the user's manual of your Amplifier.
NOTE
may cause damage to the speakers and
your ears.
[] Please set the audio in the menu screen
according to the Amplifier.
(See pages 38~ 39)
[] The position of terminals may vary
depending on the Amplifier.
Please refer to the user's manual of your
Amplifier.
When using this connection, Btu-Ray discs
with an LPCM audio soundtrack witl only be
heard over the front two channels.
English - 21
iiiiiiiiiiiiiiiiiiiiiiiiii!ii_iii_!i
iiiiiiiiiiiiiiiiiiiiiii,:ii:_:iiiii_i_ii_i_ii_il!i
Connecting to an Audio System
(HDMI supported Amplifier)
1. Using the HDMI-HDMI cable (not included), connect
the HDMI OUT terminal on the rear of the Blu-ray disc
player to the HDMI IN terminal of your Amplifier.
2. Using the HDMI-HDMI cable connect the HDMI OUT
terminal of the Amplifier to the HDMI iN terminal of
your TV.
3. Turn on the Blu-ray disc player, TV, and Amplifier.
4. Press the input select button of the Amplifier to select
external input in order to hear sound from the
Blu-ray disc player. Refer to your Amplifier's user
manual to set the Amplifier's audio input.
Connecting to Samsung's
FTPllnternet site for Software
Upgrades
1. Using the Direct LAN Cable (UTP cable), connect the
LAN terminal on the rear of the Blu-ray disc player to
the LAN terminal of your modem.
- Connect to the Internet for future software upgrades.
NO"_E procedure,
NOTE
may cause damage to the speakers and
your ears.
m Please set the audio in the menu screen
according to the Amplifier.
(See pages 38~39)
m The position of terminals may vary
depending on the Amplifier.
Please refer to the user's manual of your
Amplifier.
22 - English
Turn on your TV and set it to the correct Video
Input (the input the Blu-Ray player is connected
to) on the TV's.
If you connected an external Audio System, turn on your
Audio System and set it to the correct Audio Input.
Afterplugginginthe player,thefirst timeyoupressthe
POWERbutton,this screencomesup:
Ifyouwantto selecta language,pressa NUMBER
button.(This screenwiltonly appearwhenyou plugin
the playerfor thefirst time.)If the languagefor the
startupscreenis notset, thesettingsmaychange
wheneveryouturn the poweronor off.Therefore,make
sure that you select the language you want to use. Once
youselectamenulanguage,youcan changeit by ....
pressingthe _i buttonon thefrontpanelof the unitfor ......_ .............................
morethan 5secondswith no disc in the unit.Thenthe
MENULANGUAGESELECTIONwindowappearsagain
whereyoucan resetyourpreferredlanguage.
N_'E
. BD-RE 1.0 . HD DVD . DVD+RW
. DVD+R • DVD-ROM . CDV
. CD-ROM . CVD
. CD-I
. Super Audio CD(except CD layer)
. CDGs play audio only, not graphics.
m Abilityto playback maydependon recordingconditions.
. DVD-R
. CD-RW/R
. DVD-RW (V mode)
. The unit may not play certain CD-R,
CD-RW and DVD-R due to the disc type or
recording conditions.
m Blu-ray Disc is a new and evolving format.
Accordingly, disc compatibility issues with new and
existing format discs are possible. Not alt discs are
compatible and not every disc wilt playback,
For additional information, refer to the Disc
Type and Characteristics and Compliance and
Compatibility Notice sections of this Manual. If you
encounter compatibility problems, please contact
SAMSUNG customer care center,
English - 23
i@i!iiiiiiiiiiii_iiiiiiiil
iiiiiiiiiiiiiiiiiii!ii!i{iiiii_i_i_iiiil;!}!_i!_!
iiiiiiiiiiiiiiii!iiiii_!ii!i!i!i
iiiiiiiiiiiiiiiiiiiiiiiiiii i ii! ! ! ilili!ilili!iiiii!i i!
Playback
Press the OPEN/CLOSE((_) button.
The STANDBY indicator light goes out and the
tray opens.
Place a disc gently into the tray with
the disc's label facing up.
,_ Press the PLAY/PAUSE ({*_) button or
OPEN/CLOSE ((_) button to close the disc tray.
• When you stop disc play the player
remembers where you stopped, so when
you press PLAY/PAUSE (("I}) button again,
it will pick up where you left off.
[] Press the STOP ((_) button twice during
playback to disable the Resume function.
[] To pause the playback, press the
PLAY/PAUSE ((_) button during playback.
To resume, press the PLAY/PAUSE(®) button
once again.
[] If the player is left in the stop mode for
more than 10 minutes without any user
interface, a screen saver will appear on
your TV. If the player is left in the screen
saver mode for more than 30 minutes, the
power will automatically turn off except
during playback of an MP3 and/or JPEG.
(Automatic Power-Off Function)
[] MP3/CDDA : if no button is pressed for
more than 10 minutes, the screen saver
appears and the player automatically
turns off in 30 minutes
[] JPEG : the screen saver program or the
auto power off function will be deactivated
when playing a photo file.
During play, you can search quickly through a
chapter or track, and use the skip function to
jump to the next selection.
Searchingthrougha Chapter orTrack
During playback, press the SEARCH (_ _ ) button.
• If you want to search at a faster speed on the BD/DVD,
press this button.
• If you press the SEARCH(_-_) button,
Fast 1 --_ _ Fast 2.4, _ Fast 3
_ Fast 4 -* _ Fast 5 4 _ Fast 6
• If you press the SEARCH(_) button,
'_ Fast 1 -_ '_ Fast 2 -_ _ Fast 3
--_ '_ Fast 4 _ _ Fast 5 _ '_ Fast6
NOT_
Skipping Tracks
During playback, press the SKIP (_) button.
When playing a BD/DVD, if you press the SKIP (_) button,
it moves to the next chapter. If you press the SKIP (_)
button, it moves to the beginning of the chapter.
One more press makes it move to the beginning of
the previous chapter.
24 - English
Slow Motion Play
In pause or step mode, press the SLOW button on the
remote control for Slow Motion play.
• If you press the SLOW button,
II_ Slow 1 4 I_ Slow 2 44, I_ Slow 3
• To return to normal speed playback, press the
PLAY/PAUSE (__) button.
NOTE press.
[] No sound is heard during stow mode.
[] Slow motion operates only in the forward
direction.
f_
During playback, press the INFO button on the
remote control.
Press the AT buttons to select the desired item.
i!! ii!i!;!iiii iiiii!i iiiiiili;!i!iiiiiii! i!i i,
Step Motion Play
Press the STEP button on the remote cor_trol during play
for Step Motion play.
• Each time the button is pressed a new frame will appear.
• When the STEP button is pressed, the next frame
will be activated.
• Press the PLAY/PAUSE (_) button to resume
normai play.
_,_oT_ [] Step motion operates only in the forward
direction.
Press the _ I_ buttons to make the desired setup
and then press the ENTER button.
• You may use the number buttons of the remote
controt to directly access a title, chapter or to start
the playback from a desired time.
To make the screen disappear, press the INFO
button again.
c_tior, menu, In some cases, playback may
malfunction depending on the title.
English - 25
iiiiiiiiiiiiiiii_:;ii_iii_i!i!_i!iiii_i_i,i:_i;i;ii!!il
iiiiiiiiiiiiii!ii!;i!i!ii_il;iiiiil
iii_i!!!i!!_ii_iiiiiiil
iiiiiiiiiiL ,!ii_iiii! i_i_!!!!ii!!
iiiiiiiiiii-iii!i_iii:_iiii
iiiiiiiiiiiiiiiiiiiiiiiii,i!i! i iiii i i;i:i!i i:i!i i:i!! ii!
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii iiiiiiiiiii iiiiiiiiiii iiiiiiii,il
NOT_'_ more than one in the disc. For example, if there
is more than one movie on a BD/DVD, each
movie will be identified as a Title.
• Chapter: Most BD/DVD discs are recorded in
chapters so that you can quickly find a specific
passage.
• Audio : Refers to the film's soundtrack
language. A BD disc can contain up to 32 audio
languages and a DVD up to 8.
• Time : Allows playback of the film from a
desired time.You must enter the starting time
as a reference. The time search function does
not operate on some discs.
• Subtitle : Refers to the subtitle languages
available in the disc.You will be able to choose
the subtitle languages or, if you prefer, turn
them off from the screen. A BD disc can
contain up to 255 subtitle languages, and a DVD
up to 32.
• Angle : When a BD/DVD contains multiple
angles of a particular scene, you can use the
ANGLE function.
Using the Title Menu
During playback, press the TITLE MENU button
on the remote control.
Press the AT_I _ buttons to make the desired
setup, then press the ENTERbutton.
• The Title menu setup options may vary from disc to disc.
N OT&'_
m Title Menu will only be displayed if there are
at least two titles in the disc.
Using the Popup Menu
During playback, press the POPUP MENU button on
the remote control.
Press the AT_ _,,buttons or ENTER button to select
the desired menu.
. The Popup menu setup options may vary from
disc to disc.
Using the Disc Menu
During playback, press the DISC MENU button
on the remote control.
Press the AT_I i_ buttons to make the desired
setup, then press the I,- or ENTER button.
• The Disc menu setup items may vary from disc to disc.
.....
NOT_
NOTE not be available.
26 - English
Repeat the current chapter or title.
Repeat playback
During playback, press the REPEAT button on the
remote control.
Repeat screen appears.
Press the AT buttons to select Chapter or Title.
• BD/DVD repeats play by chapter or title.
To return to normal play, press the REPEAT button
again, then press the AT buttons to select Off.
NOTE
Using the A=B Repeat function
Youcan select a desired audio language quickly
and easily with the AUDIO button.
1
Using the AUDIO button
Press the AUDIO button during playback. The Audio
changes when the button is pressed repeatedly.
• The audio languages are represented by
abbreviations.
To remove the AUDIO icon, press the CANCEL or
RETURN button.
<Using the INFO button>
1. During playback, press the INFO button on the
remote control.
2. Press the AT buttons to select Audio.
3. Press the _11_ buttons on the remote control to select
the desired audio.
1. Press the Repeat A-B button on the remote control.
2. Press the Repeat A-B button at the point
where you want repeat play to start (A).
3. Press the Repeat A-B button at the point where
you want repeat play to stop (B).
4.Toreturn to normal play,pressthe CANCEL button.
NOTE
m
m
not be available.
A BD disc can contain up to 32 audio
languages and a DVD up to 8.
Depending on the disc type, you can use the
Audio button to change the audio sound
track as well as the audio language.
Some Blu-ray discs may allow you to select
either multi-channel LPCM or Dolby digital
audio sound track in English sound tracks.
English - 27
You can select a desired subtitle quickly and
easily with the SUBTITLE button.
When a BD/DVD contains multiple angles of a
particular scene, you can use the
ANGLE function.
iiiiiiiiiiiiiiii_:;ii_iii_i!i!_i!iiii_i_i,i:_i;i;ii!!il
iiiiiiiiiiiiii!i!il_;i;iiiiii
iii'_i!!i!!_ii_iiiiiiil
iiiiiiiiiiL,!ii_iiii! i_i_!!!!ii!!
iiiiii-iii'_ili:_iiii
iiiiiiiiiiiiiiiiiiiiiiiii,i!i!_i_iiii_i_i;i:i!i_i:i!i_i:i!!_ii!
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii iiiiiiiiiii iiiiiiiiiii iiiiiiii,il
Using the SUBTITLE button
t Press the SUBTITLE button. The subtitle changes
when the button is pressed repeatedly. The subtitle
languages are represented by abbreviations.
To remove the SUBTITLE icon, press the CANCEL
or RETURN button.
<Using the INFO button>
1. During playback, press the iNFO button on the remote
control.
2. Press the AT buttons to select Subtitle.
3. Press the 4 I_ buttons on the remote control to select
the desired subtitle language,
Using the ANGLE function
During playback, press the INFO button on the
remote control.
Press the AT buttons to select Angle.
Press the 4 _- buttons or you can use the number
buttons on the remote control to setect the desired
angle.
NOTE
this feature.
[] Depending on the disc, these functions
may not work.
NOT&'_
Menu. Press the DISC MENU button.
[] This function depends on what subtitles are
encoded on the disc and may not be
available on all BD/DVDs.
[] A BD disc can contain up to 255 subtitle
languages and a DVD up to 32.
28 - English
_4o_rE closed, bookmarks will disappear.
The features lets you bookmarks sections of a
DVDso you can quickly find them
at a later time.
Using the MARKER button
During playback, press the MARKER button
on the remote control.
Press the ENTER button when the desired scene appears.
* The number 01 is displayed and the scene is
memorized.
Playing back a bookmark
Using the MARKER button
During playback, press the MARKER button
on the remote control.
Press the _1 _ buttons to select a bookmarked
scene.
Press the ENTER or PLAY/PAUSE((_) ) button to
start playing from the selected scene.
iiiiiii i i!i i;i: i !iiii !iiii! ii!i!ili
i!i_i!iil;i_!!i!:iii_i;iii_i;ii:i!ii;i;!i'i
Clearing a bookmark
Press the _ buttons to move to the next position.
PresstheENTERbuttonagainwhenthedesiredsceneappears,
The number 02 isdisplayed and the scene is memorized.
Using the MARKER button
During playback, press the MARKER button
on the remote control.
• Repeat above to bookmark other positions.
• You can bookmark up to 10 scenes.
English - 29
Press the 4 _ buttons to select a bookmarked
scene.
Press the CANCEL button to delete the selected
bookmark.
Playing an MP3
Insert an MP3 disc into the disc tray.
• The Menu screen is displayed.
2
Press the AT buttons to select Music, then
press the ENTER button.
• The Music List is displayed.
iiiiiiiiiiiiiiii_i;ii_iii_i!i!_i!iiii_i_i,ii_i;i;ii!!il
iiiiiiiiiiiiii!i!i_;i;iiiiii
iii_i!!i!!_ii_iiiiiiil
iiiiiiiiiii_,,!ii_iill! i_i_!!!!ii!!
iiiiii-iii__ili:_iiii
iiiiiiiiiiiiiiiiiiiiiiiiii!i!_i_iiii_i_i;i:i!i_i:i!i_i:i!!_ii!
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii iiiiiiiiiii iiiiiiiiiii iiiiiiiiil
Press the AT buttons to select the MP3 file you
want to play, and then press the ENTER button.
Audio CD(CD-DA)/MP3 Screen
Elements
<Audio CD(CD-DA)>
1 5
Playing an Audio CD(CD=DA)
2
3
iiiiiiiiiiiiiiiiii
!!i!
<MP3>
8
Press the ,_T buttons to select the track you want
to play, and then press the ENTER button.
30 - English
4
1. Current track (song) : Displays the number of the track
currently being played.
2. This shows the operating state of a disc and a playback
time corresponding to a portion that is currently played.
3. Displays the current folder, current file type and file name.
4. Displays available buttons.
5. Displays the current ptay index, total track number.
6. Displays the track tist (song list).
7. Displays COLOR buttons available to control Music,
Photo and Play modes.
: GREEN(B), YELLOW(C), BLUE(D)
8. Displays the media type. (Ex: CD, DVD)
Buttons on the Remote Control
used for Audio CD(CD-DA)/MP3
disc playback
5
G
f
.................9
1. AT buttons : Selects a track (song).
2. _I I_ buttons: Moves the page up/down.
3. ENTER button : Plays the selected track (song).
4. SKiP (_) button: Plays the next track.
5. SKiP (C_) button: Returns to the beginning of the
current track when pressed during playback. If pressed
again, your Blu-ray disc player moves to and plays the
previous track.
If you press this button within three seconds after
playback starts, the previous track will be played.
If you press this button after three seconds, the current
track will be replayed from the beginning.
6. Press the SEARCH (C_C_) buttons : Fast Play
(only CD-DA)
7. STOP (®) button: Stops a track(song).
8. PLAY/PAUSE (@) button: Plays the currently selected
track. If pressed during playback, the current track is
paused.
9. COLOR button: The RED(A) GREEN(B), YELLOW(C)
and BLUE(D) buttons
• RED(A) button : Returns to the Music List.
• GREEN(B) button : Selects the Photo Mode.
• YELLOW(C) : Selects the Play Mode(Repeat).
• BLUE(D) button : Go to Playlist.
Repeat CO (CD-DA) & MP3
Using the REPEAT button
During playback, press the REPEAT orYELLOW(C) button
repeatedly to select the repeat mode you want.
When playing an Audio CD(CD-DA) :
Normal -_ O'3 -_ _ -_ C_
When playing an MP3 disc :
Normal -4, Q'3 _ C_ -4, Cn--3
• Normal (CD (CD-DA)/MP3): Tracks on a disc are played
in the order in which they were recorded on the disc.
" O'3 RepeatTrack (CD (CD-DA)/MP3)
• C_ Repeat Folder (MP3)
" C_ Random (CD (CD-DA)/MP3)
- When playing an Audio CD(CD-DA): The random
option plays a disc's track in random order.
- When playing an MP3 disc : The random option
plays a folder's file in random order.
• _@ Repeat All (CD-DA)
-To return to normal playback -
Press the REPEAT or YELLOW(C) button repeatedly
to return to normal playback.
English - 31
iii!i:i iiiii !!ii i!i! iii i;iliiii;iii!ii:iiiii!
i!!ii;:i_:_!iiiiiiiii!i!i;ii_i

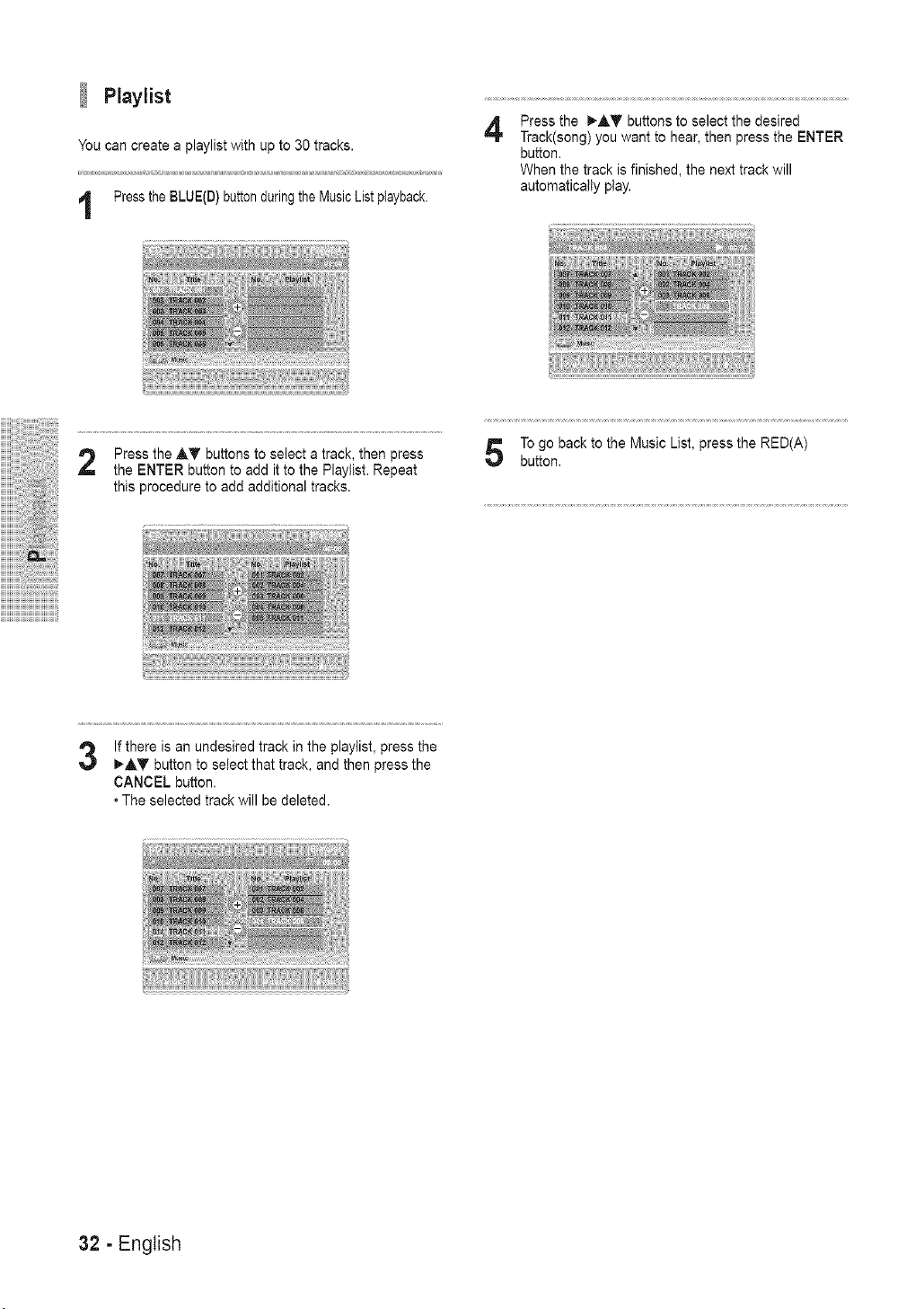

Playlist
You can create a playlist with up to 30 tracks.
1
Press the BLUE(D) button during the Music List playback.
[ _ [ii it ii'ii"_ _
!iiii_!ii!i!i!_iiiiiiiiiiiii_!iI_i_i_i_i_i_i_i_i_i_i_i_iiii_i!i_!_ii_i_i_i_i_i_i_i_i_i_/'_!i_ii
4
Press the D,-,_y buttons to select the desired
Track(song) you want to hear, then press the ENTER
button,
When the track is finished, the next track will
automatically play.
iiiiiiiiiiiiiiii_iiii_iii_i!i!_i!iiii_i_i,ii_i_i_ii!!il
iiiiiiiiiiiiii!i!i_iiiiiiiii
iii_i!!!!!_ii_iiiiiiil
iiiiiiiiiii_,,!ii_iill! i_i_!!!!ii!!
iiiiii-iii__iii:_iiii
iiiiiiiiiiiiiiiiiiiiiiiii,i!i!_i_iiii_i_i_i:i!i_i:i!i_i:i!!_ii!
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii iiiiiiiiiii iiiiiiiiiii iiiiiiii, il
_i!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
To go back to the Music List, press the RED(A)
button,
If there is an undesired track in the playtist, press the
I_,_T button to select that track, and then press the
CANCEL button.
• The selected track will be deleted.
! *:_ J[ : : i i[ :; i[_ ? ':
32 - English
Viewing a Picture
t Insert a JPEG disc into the disc tray.
• The Menu screen is displayed.
Press the AT buttons to select Photo, then press
the ENTER button.
• The Photo List is displayed.
s,,,, r;
Slide Show
Using the YELLOW(C) button
To setup follow steps 1 and 2 in the left column.
Press theYELLOW(C) button.
r i i
Press the AT buttons to select the slideshow speed
(Fast, Normal, SIow), then press the ENTER button.
• The SWe Show starts and plays at the selected speed.
-To stop the 81ide 8how -
Press the STOP or RETURN button.
Press the Ay_ _. buttons to setect a picture.
o To see the next 8 pictures, press the SKiP (,_)
button.
• To see the previous 8 pictures, press the
SKIP(_,-_) button.
<Using the INFO button>
Pressthe ENTERbutton to select the pictureyou
want to see, then press the INFO button.
Press the A,T buttons to select Slide Show.
NO'rE
3
Press the _1_ buttons to select the Slide Show
speed, then press the ENTER button.
• The Slide Show starts and plays at the selected
speed.
English - 33
-To stop the Slide Show -
Pressthe INFO button.
-To stop the Rotate -
PresstheINFObutton.
Press the AT buttons to select Slide Show.
Press the AT buttons to select Rotate.
Press the 4 _ buttons to select the Off, then press
the ENTER button.
Press the 4 _- buttons to select Off, then press the
ENTER button.
)iii)iii)iii)iii_i;ii_iii_i!i)i!il)i_i_i,ii_i;i;)i!!il
iiiiiiiiiiiii)!iii_;i;iiiii)
iii_i!!!!!_ii_iii)iil
iiiiiiiiiii_,,)::_;;i;)i_(!))!:))!
iiiiii-ii!i_)ii)iiii
)iii)iii)iii)iii)iii)iiii,i!i! i iiii i i;i:i!i i:i!i i:i!! ii!
)il)il)il)il)il)il)iliiii)iliiii)iliiii)ililili
[] You can also play the Slide Show with PLAY
button in the Photolist.
[] JPEG's smaller than 1920 x 1080 will be
displayed at normal resolution. They will not
fully fill the screen.
Rotate
To setup, foi(owsteps 1 to 2 in "Viewing a Picture" on page 33.
-1 Press the ENTER button to select the picture you
want to see, then press the INFO button.
Press the A'_' buttons to select Rotate.
Zoom
Tosetup, follow steps 1 to 2 in "Viewing a Picture" on page 33.
-1 Press the ENTER button to select the picture you
want to see, then press the INFO button.
Press the _,_ buttons to select Zoom,
then press the ,,_I_ buttons to select On.
When the magnifier appears, use the _r_ _-
buttons to set a section to enlarge.
Press the _ _ buttons to select the rotate angle,
then press the ENTER button.
Each time the ENTER button is pressed, the picture
is enlarged up to 4x(four times the normal size).
Zoom X2 -* Zoom X4 -4,Zoom )(2 -* Normal
34 - English
-To stop the Zoom -
Pressthe INFO button.
Press the AT buttons to select Zoom,
then press the _ I_ buttons to select Off.
Move Photo/Go To Photo List
Tosetup, follow steps 1 to 2 in"Viewing a Picture"on page 33.
-1 Press the ENTER button to select the picture you
want to see.
Example: Playing MP3 music
Insert a Mixed disc(JPEG+MP3) into the disc tray.
• The Menu screen is displayed.
Press the A'_ buttons to select Music, then press
the ENTER button.
• The Music List is displayed.
iiiiiiii!!i i i!iiiii!iiiiiii
i!i;:i!:i!i_ii!_iii!;iiiiiiiiii:!;
iiii!ii_iiiiiiiiiiii!i
iiiiiii_iiiiiiiiiii
Press the AT buttons to move the previous or next
picture.
To go Photo List, press the RETURN or STOP
button.
Press the _,_r buttons to select the MP3 file you want
to play, and then press the ENTER button.
-To go to the Photo List -
Press the GREEN(B) button.
• You can go to the Photo List screen.
English - 35
Example: Viewing JPEG pictures
Insert a Mixeddisc(JPEG+MP3)into the disc tray.
• The Menu screen is displayed,
Press the _,_' buttons to select Photo, then press
the ENTER button.
• The Photo List is displayed.
1i :_ii[ _ i[i ?"_
iiiiiiiiiiiiiiii_i;ii_iii_i!i!_i!iiii_i_i,ii_i;i;ii!!il
iiiiiiiiiiiiiii!iii;i!!!ili_il;iiii!;il
iii_i!!!i!!_ii_iii!iiil
iiiiiiiiiii_,,!ii_iill! i_i_!!!!ii!!
iiiiiiiiiii-ii!i!!!_ili:_iiii
iiiiiiiiiiiiiiiiiiiiiiiii,i!i!_i_iiii_i_i;i:i!i_i:i!i_i:i!!_ii!
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii iiiiiiiiiii iiiiiiiiiii iiiiiiii,il
-To go to the Music List -
Pressthe GREEN(B)butten.
• You can go to the Music List screen.
36 - English
The on-screen menus allow you to enable or disable
various functions on your Blu-ray disc player.
Use the following buttons to open and navigate
through the on-screen menus,
t PressEX'TthisBUtt°nbuttontoexittheonscreenmenu _iii_!i_!i!!ii_!_i_!_!_i!i_i!i_!!_i_!ii_i_ii_!_!_i_i_i!!iii_i_i_!!i_!_!ii!i_!
Ay_ _ Buttons
Press these buttons on the remote control to move
the selection bar AT_I _ to cycle through the
ii!_iiill i!!!i
menu options.
ENTER Button
Press this button on the remote control to confirm any
new settings.
RETURN Button
Press this button on the remote control to return to
the Previous menu screen displayed or to exit the
on-screen menu.
English o37
Press the AT buttons to select the desired
language, then press the ENTER button.
If you set the audio, subtitle, disc menu and player menu,
in advance, they will come up automatically every time you
watch a movie.
With the unit in Stop mode, press the MENU
button.
Press the AT buttons to select Setup,
then press the ENTER or _. button.
iiiiiii!ii!iiiiiiiiii_iii_iii_i_iiii!ii!
;::_:::;,_ ,_ Press the AT buttons to select Language Setup,
'tJ then press the ENTER or I_ button.
Language setup menu will be displayed.
NOT&'_
to exit the menu.
m The selected language witl only appear if it
is supported on the disc.
Allows you to set up the Audio device and sound status
depending on the audio system being used with the player.
With the unit in Stop mode, press the MENU
button.
Press the ,_' buttons to select Setup, then press
the ENTER or _,- button.
Press the AT buttons to select the desired
language option, press the ENTER or _ button.
Press the ,_ buttons to select Audio Setup, then
press the ENTER or _,-button.
o Audio : For the disc audio language.
. Subtitle : For the disc subtitles.
. Disc Menu: For the disc menu contained on the disc
. Player Menu: For the on-screen menu of your
Blu-ray disc player.
38 - English
Press the _,_' buttons to select the desired audio
option from the options described below, then press
the ENTER or m,.button.
Press the AT buttons to select the desired item,
then press the ENTER button.
PCtVlDown Sampling
* On : Select this when the Amplifier connected to the
piayer is not 96KHz compatible. 96KHz signals
will be down converted to 48KHz
* Off : Select this when the Amplifier connected to the
piayer is 96KHz compatible. Signals will be
output without any changes.
NOTE
Press the MENU button to exit the menu.
Digital Output
. PCM : Select this when your equipment does not
decode Dolby Digital.
. Bitstream : Outputs Dotby Digital or MPEG-2 or DTS
audio as Bitstream. Select this when your
AV receiver or AV amplifier has a Dolby
Digital or MPEG-2 or DTS Decoder.
NOTE audio through the digital outputs.
= During disc playback, press the Stop button
twice (resuming playback is disabled) before
setting PCM Down Sampling. If you press the
Stop button once (resuming playback is still
enabled), you can't set PCM Down Sampling
as it is deactivated.
iiiiii!ii!!i iiiiiiiiiiiiii:i!i!ii!:!iiii ii! !Jii!i
iiiili:i!;!!_ii_iii!_iiiiii_i;iliiii!i!!
iiii:ili_iiii!iiii%ii!i!!ii!
iiiiiiiiiiiii!ili_!i_i:i!i_i:i!i_ili!ili:i!iiii!ii:i_iii_i_iiii_i
fill:fill!_i!!iii_!ii!ii!ii!ii!iiii_i_iii_i,i
iiii_ii_i!i!i:_i!!i!ili!i!iiii_i_ii!i:iii!i:iii!i:iii!i:ili_i!'_
= Be sure to select the correct Digitai Output or
you will hear no sound or a loud noise.
m When playing a Dolby Digitai movie make sure
the Digital Output is set to Bitstream.
Dynamic Compression
This is only active when a Dolby Digital signal is detected.
* off
* On
: You can enjoy the movie with the standard
Dynamic Range.
: When Movie soundtracks are played at
low volume or from smaller speakers, the
system can apply appropriate
compression to make low-level content
more intelligible and prevent dramatic
passages from getting too loud.
English - 39
tf you have connected this player to an Amp/Receiver or
Home theater via the 5.1 channel Analog outputs you need
to set the Speaker Optons for the best sound.
With the unit in Stop mode, press the MENU
button.
Press the ,_' buttons to select Setup, then press
the ENTER or _ button.
Press the A.T._ I,,-buttons to select the desired
Speaker, then press the ENTER button.
NOTE
Press the MENU button to exit the menu.
Speaker Setup
Front (L,R) Large, Small
Center (C) Large, Small, None
Surround (LS,RS) Large, Small, None
Subwoofer (SW) LFE, None
iiiiiiiiiiiiiiiiii_iii_ii_i_iiiiii!
iiiiiiii'_i!iiii_ii_i!ii!i_i:ii!iii!:i_!ili
iiiiiiiiiiiiiiiiii_iiiiiiil:iil
iiiiiii:::ii_i]_i!iiiiiii!;il
iiiiiiiiiiii!:ii!:;i_!_,!j!iii:i
iiiiiiiiiii;iiiii!iii_iiiiiii¸
iiiiiii:!ii i:i!i!i!
iiiiii ii i
,_ Press the ,_ buttons to select Audio Setup, then
v press the ENTER or I_ button
Speaker
,, Large : Delivers full bandwidth sound with bass below 100 Hz.
,, Small :If LFE is on, bass below 100 Hz will eutputted
through a Subweefer instead of the speakers, If LFE is off
and the Front Speaker is set to Large, sound will be
eutputted through the Front Speaker,
,, None : Select to disable the speakers,
Subwoofer Speaker
,, LFE : Select to use the subwoofer speaker.
,, None : Select to disable the subwoofer speaker.
(This option can only be selected when the Front (L+R)
speakers are set to Large.)
Press the _._ buttons to select Speaker Setup,
then press the ENTER or t,,- button.
I!i _: ,,;:' i_ !iiii1;]ii°ii_ii i ii,i :t_: , ! I,'_ i!:b <' _ i
Press the RED(A) button
,, A test tone will be sent to L .-* C .-* R .-* RS .-* LS .-*
LFE in order so you can make sure the speakers are set
up correctly.
• To end the test tone, press the RED (A) button again.
40 - English
Press the AT buttons to select the desired item,
then press the ENTER button.
This function allows you to setup the TV screen settings.
This function depends on disc type. It may not work for
some disc types.
With the unit in Stop mode, press the MENU
button.
Press the A_' buttons to select Setup, then press
the ENTER or _. button.
No'r'
Press the MENU button to exit the menu.
TV Aspect
Depending on the type of television you have, you may
want to adjust the screen setting. (aspect ratio)
Press the _,'_!' buttons to select Display Setup, then
press the ENTER or I_ button.
Video setup menu will be displayed.
4:3 Letter Box:
Select when you want to see the
total 16:9 ratio screen BD/DVD
supplies, even though you have a
TV with a 4:3 ratio screen. Black
bars wilt appear at the top and
bottom of the screen.
4:3 Pan-Scan :
Select this for conventional size
TV when you want to see the
central portion of the 16:9 screen.
(Extreme left and right side of
movie picture wilt be cut off.)
iiii_iii_iiiiiiiiiiiii!!!!iiiiii
iiiii,:_iiii!ii@!i_i_iii_i,iiii_i!iii_i!i!S_i!i_i_i!i_!ii!i!!i!ilili
Press the ,/,_' buttons to select the desired display
option, then press the ENTER or _. button.
16:9Wide :
'Youcanviewthe full 16:9picture
on yourwidescreenTV.
_o'rE ratios may not be available.
English - 41
Movie Frame (24 Fs)
Movies are usually filmed at 24 frames per
second. Some Blu-ray discs have the capability
of playing back at this frame rate. Setting the
Movie Frame (24Fs) feature to ON allows you to
adjust the Blu-ray player's HDMI output to 24
frames per second for improved picture quality.
If your TV cannot support this frame rate, this
menu cannot be selected,
This menu can only be selected in 1080i or
1080p HDMI output resolution modes.
NOTE
screen is blank, press and hold the _ button
on the front of the player for more than 5
seconds (no disc inserted). All settings are
restored to the factory default. Follow the steps
on the previous page to access each mode and
select a resolution that your TV will support.
m Please refer to page 17 for more information
on video output selection.
iiiiiiiiiiiiiiiiiiiii_iii_i_iiiiii!
iiiiiiiiiiiiiii'_i!iiii_ii_i!ii!i_i:ii!iii!:i_!ili
iiiiiiiiiiiiiiiiiii_iiiiiiiiiiil
iiiiiiiiiii::ili_i!iiiiiii_i!iiiiiili;il
iiiiiiiiiiiiiiiiiiiiiiiii!:ii;!:;iF_,!j!iiiii:i
iiiiiiiiiiiiiiiiii!ii!iiiii_iiiii!iii
iiiiiiiiiiiiiiiiiiiiiiii :! !iiii ! iii ii!i ;:i!i!i!
Resolution
Sets the output resolution of the Component and HDMI
video signal.
,, Press the OUTPUT SELECT button on the front
panel of the unit to select the HDMI mode, and then
select from 1080p, 1080i, 720p and 480p.
,, Press the OUTPUT SELECT button on the front
panel of the unit to select the COMPONENT mode,
and then select from 1080i, 720p, 480p and 480i.
,, The number in 480i, 480p, 720p, 1080p and 1080i
indicates the number of lines of video. The i and p
indicate interlace and progressive scan, respectively.
- 1080p : Outputs 1080 lines of progressive video.
- 1080i : Outputs 1080 lines of interlaced video.
- 720p : Outputs 720 lines of progressive video.
- 480p : Outputs 480 lines progressive video.
- 480i : Outputs 480 lines of interlaced video.
42 - English
In HDMI mode
BD playback : 1080p, 1080i, 720p, 480p resolutions are available.
DVDplayback: 1080p,1080i,720p and480p resolutionsareavailable.
However, resolutions not supported by the '[1/are unavailable.
In COMPONENTmode
, BD playback
Manufacturers of Blu-ray Discs may restrict access to
certain video outputs and resolutions. These constraints
are referred to as "Tokens". There are three different levels
of permission possible, they are:
- Token Disable :1080i, 720p, 480p, 480i resolutions are
available.
- ICT Enable : 480p, 480i resolutions are available.
- DOT Enable :Component and all analog outputs are
disabled in this token. HDMI must be connected to view
a disc with this token.
• DVD playback
480p, 480i resolutionsare available.
In VIDEO (S-VIDEO) mode
, BD playback
- Token Disable : 480i is available.
- ICT Enable : 480i is available.
- DOT Enable : Component and all analog outputs are
disabled in this token. HDMI must be connected to view
a disc with this token.
- DVD playback : 480i is available.
7
HDMImode COMPmode Videomode(S-Video,
Discs (HDMIoutput) (Componentoutput) Videooutput)
Bh-rayDisc 1080i720p:480p,480i 480i
Bh-rayDiscwith
ICT(Image .1080p/60fps,
ConstraintToken !0801_/24fps,
............................................1UUU, fzup,
Bh-rayDiscwith 48@
DOT(DigitalOnly
Token)
DVD 1080p/60fps, 480p, 480i 480i
1080i,720p,
48O
480p, 480i 480i
No picture No picture
Screen Message
° On : Disptays messages related to operation mode.
° Off : Doesnot display messages related to operation mode.
Front Display
, Automatic : Display is dark during playback and bright
when the unit is in Stop mode.
, Dim : Select to dim the display window.
• Bright : Select to brighten the display window.
Anynet+ (HDMI-CEC)
When HDMI is set to on, you can operate Anynet+ function.
• On : Anynet+ functions will be work.
, Off : Anynet+ function will not work.
With the unit in Stop mode, press the MENU
button.
Press the A_ buttons to select Setup, then press
the ENTER or _. button.
Press the ,_' buttons to select HDMI Setup, then
press the ENTER or _- button.
HDMI setup menu will be displayed.
Press the _,,'_ buttons to select the desired display
option, then press the ENTER or _,- button.
What is Anynet+?
Anynet+ is a convenient function that offers linked
operations with other Samsung products with the
Anynet+ feature.
You can operate this unit using a Samsung TV remote
control or power on the Samsung TV and Home theater
and start disc playback simply by pressing the PLAY button
on the Blu-ray player's remote. : :
• This function is not available if the HDM!
_O'TE cable does not support CEC.
To use Anynet+
1. Connect the BD Player to a Samsung
TV with an HDMI cable. (See pages 17~18)
2. Set the Anynet+ (HDMI CEC) to "On" on your
BD Player.
3. Set the Anynet+ function on your TV.
(See the TV instruction manual for more information.)
Anynet+ Functions
,, One touch play
You can power on your Samsung TV and Home Theater,
and play the disc in this unit simply by pressing the PLAY
button on the Blu-ray's
,, One touch watching
Select "Watching BD" or "Connected to BD player"
(depending on your TV's menu) in the Anynet+ menu on
the TV. The Blu-Ray player will automatically turn on and
the TV witl be switched to HDMI mode.
,, Remote control Link
You can operate this player with your Samsung TV remote
control.
English - 43
_, Available TV buttons : These buttons work same as this
player's remote control.
- Playback control buttons : (_) _,_ _
- Menu operation button: _, (_) @
- Numeric buttons : (_) ~ _)
- Color buttons : _ _ (_
TV Anynet+ Menu
When pressing Anynet+ key of television remote control,
the following On-Screen Display (OSD) will be shown.
Format
You can optimize the HDMI output for connection to a TV
or Monitor.
TV : Select if connected to a TV via HDMI.
, Monitor : Select if connected to a Monitor via HDMI.
if the prayer is connected to a TV, the Monitor option is
unavaiJable.
Sharpness
To adjust the picture sharpness (Off/Low/Middle/High).
. BD Player Menu
- When playing a movie : brings up the disc's menu (same
as DISC MENU button on the
BJu-ray player's remote control)
- In Stop mode : brings up the SETUP menu (same as the
MENU button on the Blu-ray pJayer's
remote control.)
. BD Player Operation Menu
- When pJayinga DVD VIDEO, DVD-RAM/-RW/-R, BD-RE
BD-ROM : shows INFO OSD (same as INFO button on the
player's remote control)
NOTE TV.
Ca{_ton
source will be displayed as it is, with no
adjustment made.
DVD Noise Reduction
This setting can be used to reduce image noise on the
screen (OfflLowlMiddlelHigh ).
High level gives the highest noise reduction.
44 - English
Caution1
[] If DVD Noise Reduction is set to Off, the original
disc source will be displayed as it is,
with no adjustment made.
[] DVD Noise Reduction is available only in DVD
play mode.
Youwill see a window that allowsyou to check the
cableor network connectionstatus.
Samsung may offer upgrades to your Btu-ray player's
firmware in the future. To upgrade this firmware you must
1. Go to samsung.com and refer to 'SUPPORT' page to
download the firmware and burn an update CD.
or
2. Connect this player's LAN terminal to the LAN terminal on
your modem (see page 22) and follow the steps below.
Firmware Upgrade
With the unit in Stop mode/No Disc mode, press the
MENU button.
Press the ,_,_' buttons to select Setup,
then press the ENTER or _ button.
Press the ,_,_ buttons to select System Upgrade,
then press the ENTER or _. button.
= If the upgrade is possible : You will see information
on the current and new versions of firmware in a
message box.
If the upgrade is not possible : You will see
the following description in the message box.
;!i !ii i
iiiiii;i_iiiiiiiiiiii!!iiiiiii
iiiii,:_iiii!ii@!i_i_iii_i,iiil;i!iil;i!i!S_i!i_i_i!i_!ii!i!!i!ilili
Press the ,_,_ buttons to select Update Start, then
press the ENTER or _ button.
If the cable is not connected :
" Ethernet cable is not connected. Please, check
the Ethernet cable"
If the network connection has failed :
"This system can not connected to internet for
update. Please, check the network setup"
If no later version is released (the latest version
has been already installed) :
"The latest version of the firmware is already
installed. There is no need to update."
If the player is not in "No Disc" :
"Please maintain "No Disc" state for network
update."
English - 45
To perform the system upgrade, press the _
buttons to select Start and then press the ENTER
button.
9
When the installation is done, you will see a
message of "Update Completed".
The player will automatically turn off in 3 seconds.
All settings will revert to the factory settings. And the
next time you start the system, you will see the menu
language selection window.
The system update gets started.
iiiiiiiiiiiiiiiiiiiii_iiiiiiiii
iiiiiiiiiiiiiii'_i!iiii_ii_i!ii!i_i:ii!iii!:i_!ili
iiiiiiiiiiiiiiiiii_iiiiiiiiiiil
iiiiiiiiiii:ili_i!iiiiiii_i!iiiiiili;il
iiiiiiiiiiiiiiiiiiiiiiiii!:iii!:;i_!_,!j!iiiiiii
iiiiiiiiiiiiiiiiii!iiii!iii_iiiii!iii
iiiiiiiiiiiiiiiiiiiiiiii :! !iiii ! iii ii!i i:i!i!i!
When the verification is done, you will see a window
that allows you to update firmware. To perform the
firmware update,press the _ _, buttons to select Yes
and then press the ENTER button.
NOT&'_
process of downloading the upgrade data,
press the ENTER button.
You will see a confirmation message.
Selecting Yes will end the upgrade process,
and selecting No will proceed with the
verification step.
[] When the system upgrade is done, check the
firmware details in the System Upgrade menu.
[] You will see a message about the upgrade process for
3seconds.
• If HDMl-related update is included: Starting HDMI Update.
If current output mode is HDMI, the screen will turn black
while updating. The power wilt be off automatically after
update is finished.
• In a normal case: Starting Sub F/W Update. When update
is finished, the power will be off after the tray is closed.
[] If you do not want to update firmware, select No and then
press the ENTER button.
46 - English
c_t o_, properly.
System information
When the firmware upgrade is done, check the firmware
detaiis by following the steps below.
With the unit in Stop mode, press the MENU
button.
Press the _kT buttons to select Setup,
then press the ENTER or _. button.
Press the ENTER button to select OK.
System Upgrade menu will be displayed.
Network Setup
Press the _,T buttons to select System Upgrade,
then press the ENTER or _,-button.
If the firmware upgrade did not succeed by following the
instructions on pages 45-46, you may need to set up your
IP address by following the steps below.
To setup follow 1 and 3 on left.
Press the A_' buttons to select Network setup,
then press the ENTER or _ button.
You will see a menu that allows you to make network
settings.
iiiiiiii_:iiiiiiiiiii!!!iiiili
B!i_@iq_iii!ii
iiiii,:(iii!ii@!@i_i!i_i_i!i_!ii!i!!i!ilili
Press the ,&T buttons to select System Information,
then press the ENTER or _ button.
You can see detaiied information about the current
firmware.
Press the A_' buttons to select DHCP, then press
the ENTER button.
NO"rE
m If DNS is set to Automatic, you can't select
Primary/Secondary DNS.
English - 47
Press the AT buttons to select a desired item, then
press the ENTER button.
= If DHCP is set to Off and DNS is set to Manual
....Setup
available
The Parental Lock function works in conjunction with
BD/DVDs that have been assigned a rating which helps
you control the types of BD/DVDs that your family
watches. There are up to 8 rating levels on a disc.
= If DHCP is set to On and DNS is set to Manual
Setup not
available
Setup
available
With the unit in Stop mode, press the MENU
button.
Press the AT buttons to select Setup, then press
the ENTER or _,- button.
iiiiiiiiiiiiiiiiii_iii_i))_i_iiiiii!
)()()())i'_)iiii_ii_i))i))_i:ii!iii!:i_!ili
iiiiiiiiiiiiiiiiiii_iiiiii)iiiil
iiiiiiiiiii:_ili_i!iiiiiii_i!iiiiiili;il
)iii)iii)iii)iii)iii)iiii):ii;):;i_!_,!j!iil))i
)i))i))i))i))i))ii!ii!iiiii_iiiii!iil
)iii)iii)iii)iii)iii)iii )!iiii ! iii ii!i ;ii!i!i!
= If DHCP is set to On and DNS is set to Automatic
Setup not
available
3
Press the A'_ buttons to select Parental Setup, then
press the ENTER or I_ button.
When you operate your Blu-ray disc player for the
first time, the "Enter New password" message will be
displayed.
NO"r_
When done, use the ,_' buttons to select Save, then
press the ENTER button.
If you don't want to save your work, use the ,&_
buttons to select Cancel, then press the ENTER
button.
Enter the 4-digit password using the number buttons
on the remote control.
The "Confirm the password" message will be
displayed. Enter your password again.
c_t_or, refer to the your network settings and do not
enter the address presented in this manual.
48 - English
Press the ENTER or _ button to select Use Password.
Changing the Password
Press the AT buttons to select New Password, then
press the ENTER or _- button.
Press the AT buttons to select On or Off, then press
the ENTER button,
_4oT_ Press the MENU button to exit the menu.
if you forgot your password
Remove the disc.
Press and hotd the _ button on the front panel for
5 seconds or more.
,, All settings will revert to the factory settings.
Setting the Rating Level
Press the A'_ buttons to select Rating Level, then
press the ENTER or _ button.
Enter the 4-digit password using the number buttons
on the remote control. The "Confirm the password"
message will be displayed,
iiiiiiiiii_!i_iii!i___i___ii!i__i_______i_i_i!i_i!i!___!i!iii!!!i__i__!_!!__i_ii__!_!i!i!
iiiiiiiii!!iiiii_!i_i!iii_i!ii_iiii,!_iii,!_!!i_!_!i!_i
iiiiii_ii!!!ii_ii_iiii_ii!i_ii!_i;!i;!i;!i;!i_
Enter your password again using the number
buttons on the remote control.
Press the _ buttons to select the rating level you want,
then press the ENTER button. For example, if you select
up to Level 6, discs that contain Level 7, 8 wilt not play.
A larger number indicates that the program is intended
for adult use only.
English - 49
50 - English
Before requesting service (troubleshooting), please check
the following.
No operations can be performed with the
remote control.
/
• Check the batteries in the remote control.
They may need replacing.
• Operate the remote control at a distance of no more
than 20 feet.
• Remove batteries and hold down one or more buttons
for several minutes to drain the microprocessor inside
the remote control to reset it. Reinstall batteries and try
to operate the remote control again.
iiiiiiii%iiii_:ii!iiiil
iiiiiiiiiiiiiiiiiiiii_!!_!iiiii_iiii
iiiiiiiiiiiiii!iiiii!_iiii!ii!
iiiiiiiiiiiiiiiiiiiiiiii_:i_i!ili_i_i!_!i!ii_i_iii_i_iiii!i!
iiiiiiiiiiiiiiiiiiiiiiiiiiiii iiii iiiii ii iiii iiiii ii iiii iiiii ii iiii ii
Disc does not play. ...............................
@
• Ensure that the disc is installed with the label side
facing up.
• Check the region number of the BD/DVD.
Disc Menu doesn't appear.
• Check if the disc has a Menu.
5.1 channel sound is not being reproduced.
@
• 5.1 channel sound is reproduced only when the
following conditions are met, :
1. The Blu-ray disc player is connected with the proper
Amplifier
2. The disc is recorded with 5.1 channel sound.
• Check whether the disc being played has the "5.1 ch"
mark on the outside.
• Check if your audio system is connected and working
properly.
• In a SETUP Menu, is the Audio Output set to Bitstream?
¢.......................................................................................................................................................................................................................\
The @ icon appears on screen,
• The features or action cannot be completed at this
time because:
1. The BD/DVD's software restricts it.
2. The BD/DVD's software doesn't support the feature
(e.g., angles)
3. The feature is not available at the moment.
4. You've requested a title or chapter number or
search time that is out of range.
Play mode differs from the Setup Menu selection.
• Some of the functions selected in the Setup Menu may
not work properly if the disc is not encoded with the
corresponding function.
The screen ratio cannot be changed.
• The Screen Ratio is fixed on your BD/DVDs.
No audio.
• Make sure you have selected the correct Digital Output
in the Audio Options Menu.
The screen is blocked
• Pressthe _,Mbutton(in front panel)for more than
5 secondswith no disc inside.AII settings will revert to
the factory settings.
• Checkvideo output mode.
Forgot password
• Press the _'_ button (in front panel) for more than
5 seconds with no disc inside. All settings including the
password will revert to the factory settings. Don't use
this unless absolutely necessary.
If you experience other problems,
• Go to the contents and find the section of the
instruction book that contains the explanations
regarding the current problem, and follow the procedure
once again.
• If the problem still cannot be solved, please contact
your nearest Samsung authorized service center.
The picture is noisy or distorted
@
• Make sure that the disc is not dirty or scratched.
• Clean the disc.
No HDMI output.
• Check the Video output is set to HDMI.
• Check the connection between the TV and the HDMI
jack of Blu-ray disc player.
• Check if your TV supports 480p/72Op/1080i/108Op
HDMI input resolution.
Abnormat HDMI output screen.
• If random noise appears on the screen, it means that
TV does not support HDCP (High-bandwidth Digital
Content Protection).
English - 51
iiiii i! !iil;!ii!i !i!i i! ii!i! i i!!i
iiiiiii_iiiiiiiiii!iiiiiiiii!
iiiiiii_iiiiiiiiiii;ii_iiiiil
iiiiiiiiiiiiiiiliiiiii_:iiiiiiii
iiiiiiiiiiiiiiiiiiiii_!!_!iiiii_i!iii
iiiiiiiiiiiiiiii!iiiii!_iii!i!i
iiiiiiiiiiiiiiiiiiiiiiii_:i_i!ili_i_i!_!i!ii_i_iii_i_iiii!i!
Power Requirements AC 120V ~ 60Hz
Power Consumption 40 W
Weight 9.3 Ibs
General
Dimensions 16.9 (W) x 12.8 (D) x 3.1 (H) inches
Operating Temperature Range +41 ° F to +95 ° F
Disc
Video
Output
Video/Audio
Audio
Output
Operating Humidity Range 10 % to 75 %
BD (Blu-ray Disc) Reading Speed : 4.917m/sec
DV D
(Digital Versatile Disc) Approx. Play Time (Single Sided, Single Layer Disc) : 135 min.
CD : 12cm Reading Speed :4.8 ~ 5.6 m/sec.
(COMPACT DISC) Maximum Ptay Time : 74 min.
CD : 8cm Reading Speed : 4.8 ~ 5.6 m/sec.
(COMPACT DISC) Maximum Ptay Time : 20 min.
1 channel : 1.0 Vp-p (75 £2 load)
Composite Video
Blu-ray Disc : 480i DVD : 480i
Y : 1.0 Vp-p (75 £_)lead)
Pr : 0.70 Vp-p (75 £_ lead)
Component Video
Pb : 0.70 Vp-p (75 £_ load)
Blu-ray Disc : 1080i, 720p, 480p, 480i DVD : 480p, 480i
Luminance Signal : 1.0 Vp-p (75 £_)load)
S-Video Chrominance Signal : 0.3 Vp-p (75 £_)load)
..............................................................................................................................................................................................................................
Blu-ray Disc : 480i DVD : 480i
1080p, 1080i, 720p, 480p
HDM!
PCM multichannel audio, Bitstream audio, PCM audio
2 Channel L(I/L), R(2/R)
5.1 Channel F/L, F/R, RIL, R/R, C/T, S/W
Digital Audio Output Optical/Coaxial
48 kHz Sampling : 4 Hz to 22 kHz
*Frequency Response
96 kHz Sampling : 4 Hz to 44 kHz
*SIN Ratio 110 dB
*Dynamic Range 100 dB
*Total Harmonic Distortion 0.003%
*: Nominal specification
- Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.
- Weight and dimensions are approximate.
52 - English
COPYPROTECTION _ Compliance and Compatibility Notice
. Because AACS (Advanced Access Content System)
is approved as content protection system for BD
format, similar to use of CSS (Content Scramble
System) for DVD format, certain restrictions are
imposed on playback, analog signal output, etc., of
AACS protected contents. The operation of this
product and restrictions on this product may vary
depending on your time of purchase as those
restrictions may be adopted and/or changed by
AACS after the production of this product.
Furthermore, BD-ROM Mark and BD+ are
additionally used as content protection system for
BD format, which imposes certain restrictions
including playback restrictions for BD-ROM Mark
and/or BD+ protected contents. To obtain additional
information on AACS, BD-ROM Mark, BD+, or this
product, please contact SAMSUNG customer care
center.
. Many BD/DVD discs are encoded with copy
protection. Because of this, you should only connect
your Blu-ray disc player directly to your TV, not to a
VCR. Connecting to a VCR results in a distorted
picture from copy-protected BD/DVD discs.
. This product incorporates copyright protection
technology that is protected by methods claims of
certain U.S. patents and other intellectual
property rights owned by Macrovision Corporation
and other rights owners. Use of this copyright
protection technology must be authorized by
Macrovision Corporation and is intended for home
and other limited viewing uses only, unless
otherwise authorized by Macrovision Corporation.
Reverse engineering or disassembly is prohibited.
. Under the U.S. Copyright laws and Copyright laws of
other countries, unauthorized recording, use, display,
distribution, or revision of television programs,
videotapes, BDs, DVDs, CDs and other materials
may subject you to civil and/or criminal liability.
NOTALL discs are compatible
• Subject to the restrictions described below and those
noted throughout this Manual, including the Disc Type
and Characteristics section of this Manual, disc types that
can be played are: pre-recerded commercial BD-ROM,
DVD-Video, and Audio CD discs; BD-RE/-R, DVD-RAM,
and DVD-RW / DVD-R discs; and CD-RW / CD-R discs.
• Discs other than the above cannot and/or is not intended
to be played by this player. And some of the above discs
may not play due to one or more reasons provided below.
• HD DVD discs cannot be played in this player.
• Samsung cannot assure that this player will play every
disc bearing the BD-ROM, BD-RE, BD-R, DVD-Video,
DVD-RAM, DVD-RW / DVD-R and CD-RW / CD-R Iogos,
and this player may not respond to all operating
commands or operate all features of every disc. These
and other disc compatibility and player operation issues
with new and existing format discs are possible because:
- BD format is a new and evolvingformat and this player may not
operate all features of BD discs because some featuresmay be
optional, additional features mayhave been added to the BD
format after the production of this player, and certain available
features may be subject to delayed availability;
- not all new and existingdisc format versions are supported by
this player;
- new and existing disc formats may be revised, changed,
updated, improved and/or supplementedl
- some discs are produced in a manner that allowsspecific or
limited operationand feature during playback;
- some featuresmay be optional,additional features may have
been added after the production of this player or certain
availablefeatures may be subject to delayedavailability;
- some discs bearingthe BD-ROM,BD-RE, BD-R, DVD-Video,
DVD-RAM, DVD-RW/ DVD-R and CD-RW / CD-R togos may
still be non-standardizeddiscs;
- some discs maynot be played depending on their physical
state or recordingconditions;
- problems and error can occur during the creation of BD, DVD
and CD software and/or the manufacture of discs;
- this player operates differently than a standard DVD player or
other AVequipment; and/or
- for reasonsnotedthroughoutthis Manualand for other reason(s)
discoveredand postedbySAMSUNGcustomercarecenter.
• If you encounter disc compatibility or player operation
problems, please contact SAMSUNG customer care
center. You may also contact SAMSUNG customer care
center for possible updates on this player.
• For additional information on playback restrictions and disc
compatibility, refer to the Precautions, Before Reading the
User's Manual, Disc Types and Characteristics, and Before
Playing sections of this Manual.
English - 53
This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS AMERICA, INC. (SAMSUNG) and delivered new, in
the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and
workmanship for the following limited warranty period:
One (1)Year Parts / Ninety Days (90) Labor
This limited warranty begins on the original date of purchase, and is valid only on products purchased and used ill the United States, and does
not include transportation, installation, removal or reinstallation. Warranty repairs must be performed by SAMSUNG's authorized service
center. To receive warranty service, the original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or
SAMSUNG's authorized service center. Transportation to and from the service center is the responsibility of the purchaser.
SAMSUNG will repair or replace this product, at our option and at no charge with new or reconditioned parts, if found to be defective during
the limited warranty period specified above. The product must be returned during the warranty period with transportation charges prepaid to
SAMSUNG's designated service center. Prior to returning any product for warranty service, the purchaser must contact SAMSUNG for problem
determination and service procedures. SAMSUNG does not warrant uninterrupted or error-free operation of the product.
All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and products
assume the remaining original warranty, or ninety (90) days, whichever is longer.
This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, noncommercial use of this product
and shall not apply to the following, including, but not limited to: damage which occurs in shipment; applications and uses for which this
product was not intended; failures or problems which are caused by products or equipment not supplied by SAMSUNG; accidents, misuse,
abuse, neglect, misapplication, fire, water, lightning or other acts of nature: incorrect electrical line voltage, fluctuations or surges; damage
caused by improper or faulty installation; improper connection with any peripheral; product alteration or modification; improper or unauthorized
repair: cosmetic damage or exterior finish; product with altered serial numbers; failure to follow operating instructions, customer adjustments,
maintenance and environmental instructions that are covered and prescribed in the instruction book: use of non-SAMSUNG or unauthorized
parts, supplies, accessories or equipment which damage this product or result in service problems; failures or problems due to incompatibility
with other equipment.
No person, agent, distributor, dealer or company is authorized to change, modify or extend the terms of these warranties in any manner
whatsoever. The time within which an action must be commended to enforce any obligations of SAMSUNG arising under the warranty or under
any statute, or law of the United States or of any state thereof, is hereby limited to ninety (90) days from the date you discovered or should have
discovered the defect. This limitation does not apply to implied warranties arising under state law, if any.
SAMSUNG does not warrant (i) disc compatibility with new and existing format discs or (ii) error free playback in full compliance with
specifications of the compatible disc formats, and SAMSUNG shall not be liable for any data loss recorded in your discs.
SAMSUNG's responsibility shall be limited to appropriate warranty services during the warranty period through SAMSUNG customer care center.
If you encounter compatibility or data loss problems, please contact SAMSUNG customer care center.
THERE ARE NO EXPRESSWARRANTIESOTHERTHANTHOSE LISTEDAND DESCRIBED ABOVE,AND NO WARRANTIESWHETHER
EXPRESSOR IMPLIED,INCLUDING,BUT NOT LIMITEDTO,ANY IMPLIEDWARRANTIESOF MERCHANTABILITYOR FITNESSFOR A
PARTICULARPURPOSE, SHALL APPLYAFTER THE EXPRESSWARRANTY PERIODSSTATEDABOVE,AND NO OTHEREXPRESS
WARRANTY OR GUARANTYGIVEN BY ANY PERSON, FIRM OR CORPORATIONWITH RESPECTTO THIS PRODUCTSHALL BE
BINDING ON SAMSUNG.SAMSUNGSHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURETO REALIZESAVINGS
OR OTHERBENEFITS,OR ANY OTHERSPECIAL, INCIDENTALOR CONSEQUENTIALDAMAGESCAUSED BYTHE USE,MISUSE OR
INABILITYTO USE THIS PRODUCT,REGARDLESSOF THE LEGALTHEORY ONWHICH THE CLAIM IS BASED,AND EVEN IF
SAMSUNG HAS BEEN ADVISEDOF THE POSSIBILITYOF SUCH DAMAGES.NOR SHALL RECOVERYOF ANY KINDAGAINST
SAMSUNG BE GREATERIN AMOUNTTHAN THE PURCHASE PRICEOF THE PRODUCTSOLD BY SAMSUNGAND CAUSINGTHE
ALLEGED DAMAGE.WITHOUT LIMITINGTHE FOREGOING,PURCHASERASSUMES ALL RISKAND LIABILITY FOR LOSS, DAMAGE
OR INJURYTO PURCHASERAND PURCHASER'S PROPERTYAND TO OTHERSAND THEIR PROPERTYARISING OUT OF THE USE,
MISUSE OR INABILITYTO USE THIS PRODUCT SOLD BY SAMSUNG NOTCAUSED DIRECTLYBYTHE NEGLIGENCEOF SAMSUNG.
THIS LIMITEDWARRANTY SHALL NOT EXTENDTO ANYONEOTHERTHAN THE ORIGINAL PURCHASEROF THIS PRODUCT,IS
NONTRANSFERABLEAND STATESYOUR EXCLUSIVEREMEDY.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential
damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state.
To obtain warranty service, please contact SAMSUNG customer care center.
54 - English

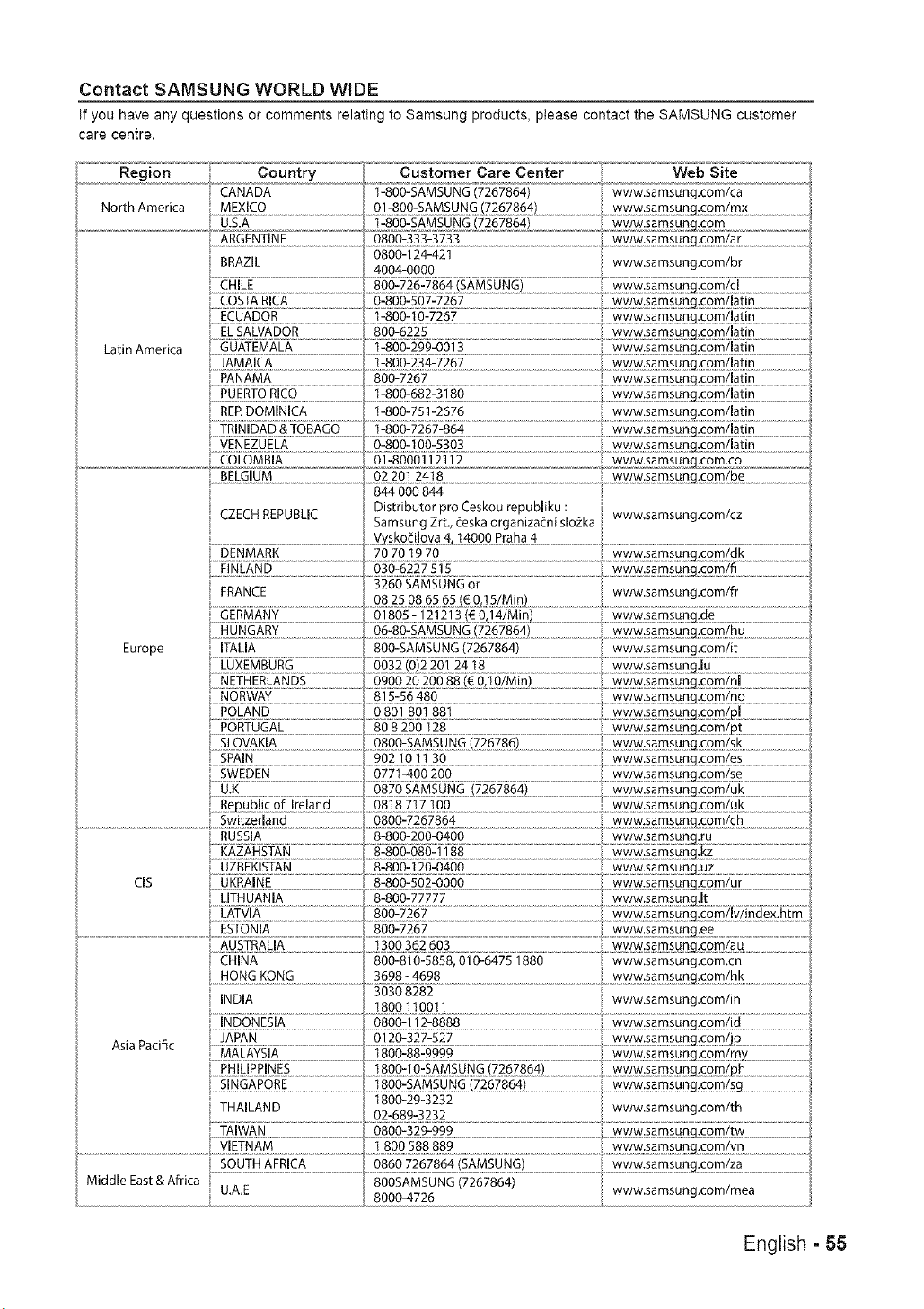

Contact SAIVlSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer
care centre.
..................... ,.Count ..................... Customer Care Center Web Site
....qAi!ADA..............................................!-8_Q:_SY_G£26Z86_L.....................................Ww%_amsung:corntca...............................
North America ....MEX!CQ ................................................_ ] ::_::_A _ S_ _ (72_7_64_ ......................................_:_YDg-_m/_ .............................
U.S.A 1-800-SAMSUNG (7267864) www.samsunq.com
....,_I_GENT!NE......................................_Q_:33_z3Z_ .........................................................................w_w_,_Y_g:SPm!_f: ................................
0800-124-421
BRAZIL 4004-0000 www.samsung.com/br
....qHBE........................................................@_:Z_:_8_(_s_@ .............................................._Y_w:_ung:s_!c! .................................
(_OSTA &.........................................q:80():507:7 ?67......................................................................WV_Wsamsung_om t at!n.........................
_aDgB ...................................................3:@9:!_£_f_Z............................................................................_:s_uag,_o_b_!_ ..........................
....El:SALVSDqI_................................80Q:62_...............................................................................................w__:_ams'@9:cq_L!at!_.........................
Latin America GU_,TI_MAIj_ ...................................! :80_:_99::09_:3 ......................................................................._:_a_Y_9:_gg)L!_! r]............................
J_6!_8 .................................................._:8_0:2_:Z_ ........................................................................_a m_y_9,€o_L!_!r].........................
PANAMa"................................................8_o:_6Z...............................................................................................w_:sam_u_9,_m!bt!_.........................
....PU[RTOR!CO ................................._:_f)q:6_2:_!@......................................................................_:s_ _y_g,comL!_!_.........................
....RE_RgM!N!C_....................................!:800£_1@T6.........................................................................w_:sem?ung,c°m@t!,.........................
Z_!N!D_D &TQB,_G_................._:aQQ:_Z:_64 .........................................................................w__:_a m_y_g:f_/!_!_ .........................
....VENEZLEL_,......................................q:_gd _:_3_ ........................................................................._%ga _y_9._9_1!_!_ .........................
COLOMBIA 01-8000112112 www.samsunq.com.co
844 000 844
CZECH REPUBLIC Distributor pro Ceskou republiku :
Samsung Zrt.,_eska organiza_nislo2ka www, samsung,com/cz
....DEnMaRK..............................................................................................................................._:s_m_9.com/_ ..............................
....F!NL@D..........................................................................................................................W_w._sung,_m@...................................
3260 SAMSUNG or
.... RANcE........................................................oa 5o86 6s €o, s/M q!..........................................www:sam u2g: 02([!................................
...._E_6N'( .................................................. ........................................w_W._Y0g:@ .................................................
....HtJNGARY.........................................q_:_9":_ _ _ (Z_Z86_} .........................................YV_W_W:_m_)g:_9mtby ..............................
Europe ....!TA!:!6 ........................................................ .............................................w ww:sar0sung:c£rn((t.................................
....t-UXI_MBUI_G.....................................993_(_)22_L24!_...................................................................'_:_SY_g:!Y ...............................................
....NETHERLANDS...............................O90929 29088 (So,!o/M!n)......................................w_w4amSYng:;ore/n!................................
NQ_WA'/..............................................815:@_@.......................................................................................w__w._m_eg:co_Lg_.............................
....POLAND.................................................q_O]@1_8!..............................................................................ww_:_m_9:s_m/_! ................................
....EQI_TLJGSI:........................................8q8_ !_8 ........................................................................................Y_'_:_m>Yqg:_9!D@t ...............................
[ _LO_K!,_ ...............................................0899:_6_ _ (Z_6za_)..........................................._:_#YDg:_£rnLsk ...............................
SPAIN .................................................................................w_,sam_[fg.com/_s ................................
....SWEDEN.............................................._ZZ!_q92_ ....................................................................................ww_'__SY_9_Sqm!_e................................
.........................................._ww@_,_9:_£m!_..............................
_e pub !!€9t !i_e!_d .................os]_Z]! !g0 ...............................................................................W_w_:_yng:s_m!y_ ...............................
Switzerland 0800-7267864 www, samsunq:com/ch
....RU6%.........................................................8:892:20070@0........................................................................WWW:sarnsy _;u..............................................
....KazausTAN.....................................8:609:Q6q:]!8_.........................................................................WVVw:samsung:kz.............................................
....L_aDEK!S>N ....................................8:?_]Q07]_TQ_9 ...........................................................................ww__t:_m _Y_g:Y_.................................................
